6.8

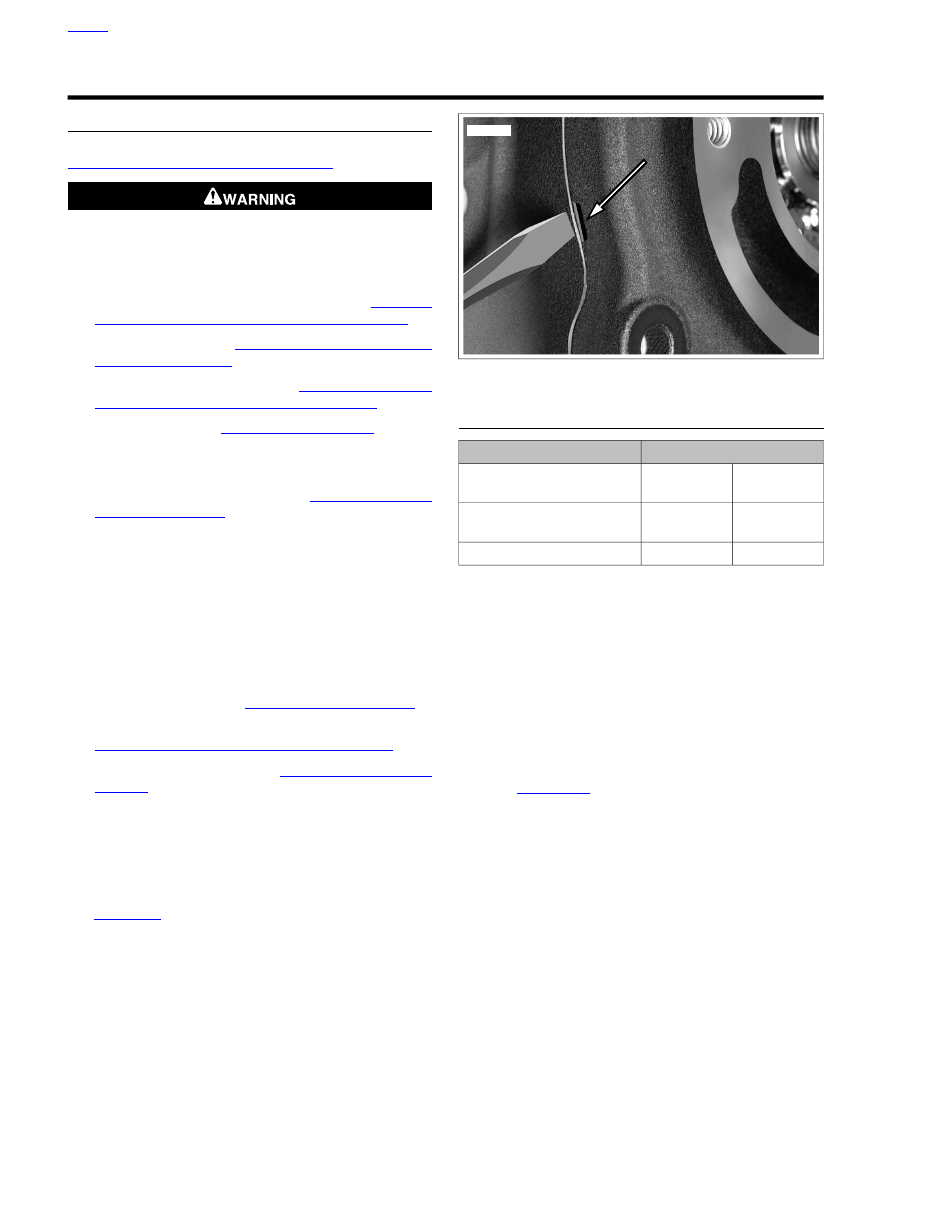

TRANSMISSION CASE

REMOVAL

For information on pulling transmission case from frame, see

Disconnect negative (-) battery cable first. If positive (+)
cable should contact ground with negative (-) cable con-
nected, the resulting sparks can cause a battery explosion,
which could result in death or serious injury. (00049a)

Disconnect battery, negative cable first. See

1.20 BAT-

TERY MAINTENANCE, Disconnection and Removal

Drain engine oil. See

1.6 ENGINE OIL AND FILTER,

Changing Oil and Filter

Drain transmission lubricant. See

1.10 TRANSMISSION

LUBRICANT, Changing Transmission Lubricant

Remove starter. See

7.13 STARTER, Removal

Remove upper and lower fasteners from seat post. Discon-
nect coil connector and remove the post with coil attached.

Remove transmission assembly. See

6.6 TRANSMISSION

ASSEMBLY, Removal

Position jack under lower frame crossmember to support
rear of motorcycle. Slide wooden blocks beneath the
crankcase to support the weight of the engine and trans-
mission assembly.

NOTE

When removing pivot shaft, make note of spacer position on
each side of transmission. Spacers differ slightly in length from
each other and must be installed on the same side from which
they were removed.

Remove pivot shaft. See

2.20 REAR FORK, Removal

Disconnect

vehicle

speed

sensor

(VSS).

See

7.27 VEHICLE SPEED SENSOR (VSS), Removal

10. Disconnect neutral switch. See

7.29 NEUTRAL SWITCH,

Removal

11. Mark splines on shift arm and shift shaft to assist in

assembly. Remove shift arm from shift shaft.

12. Remove four fasteners that connect transmission to

engine.

NOTE

See

Figure 6-50

. Do not use a hammer to remove transmission.

If the transmission sticks or binds on the ring dowels, gently
pry away from crankcase using the pry point.

13. Move transmission rearward until two ring dowels in lower

flange are free of crankcase. Remove transmission case
from left side of the motorcycle.

sm05040

Figure 6-50. Bearing Housing Pry Point

INSTALLATION

TORQUE VALUE

FASTENER

20.3 Nm

15 ft-lbs

Transmission mounting bolts,
1st torque

46.1-52.9 Nm

34-39 ft-lbs

Transmission mounting bolts,
final torque

19.0-28.5 Nm

14-21 ft-lbs

Transmission drain plug

Install

new

ground post at top of transmission case.

Tighten ground post until snug.

NOTE

A new transmission case comes with the shifter shaft sleeve
and seal, centering screw, countershaft needle bearing and
main drive gear bearing and seal installed.

Thoroughly wipe all engine oil from pockets in crankcase
flange.

Install

new

gasket engaging two index pins in holes of

transmission flange.

See

Figure 6-51

. Verify that transmission dowels are

seated. Place transmission case into position behind
crankcase. Mate engine and transmission flanges.

NOTE

Use new transmission mounting bolts when installing transmis-
sion case. Do not reuse old bolts.

Tighten fasteners.

Using a crosswise pattern,

hand tighten

fasteners.

Shorter bolts are installed at the top, longer bolts are
installed at the bottom.

Alternately tighten bolts to 15 ft-lbs (20.3 Nm) in the
same crosswise pattern.

Final tighten bolts to 34-39 ft-lbs (46.1-52.9 Nm).

NOTE

When installing pivot shaft, make sure spacers are installed
on the same side from which they were removed. Spacers
differ slightly in length from each other.

HOME

6-30 2013 Softail Service: Transmission

Install pivot shaft. See

2.20 REAR FORK, Installation

Install shift shaft on shift arm.

Install transmission assembly and main drive gear. See

6.6 TRANSMISSION ASSEMBLY, Installation

Adjust drive belt tension. See

1.12 DRIVE BELT AND

SPROCKETS

10. Install primary chaincase. See

5.5 PRIMARY CHAINCASE

HOUSING

NOTE

Replace the gasket between the primary chaincase cover and
chaincase each time the cover is removed. Failure to replace
this gasket may cause primary chaincase leaks.

11. Install primary chaincase cover. See

5.3 PRIMARY

CHAINCASE COVER

12. Install the exhaust system. See

4.17 EXHAUST SYSTEM

13. Clean and install transmission drain plug. Tighten to 14-

21 ft-lbs (19.0-28.5 Nm). Place motorcycle in an upright
position. Fill transmission to proper level with fresh trans-
mission fluid. See

1.10 TRANSMISSION LUBRICANT

Do not overfill the primary chaincase with lubricant.
Overfilling can cause rough clutch engagement, incomplete
disengagement, clutch drag and/or difficulty in finding
neutral at engine idle. (00199b)

14. Fill primary. See

1.9 PRIMARY CHAINCASE LUBRICANT

15. Fill engine oil. See

1.6 ENGINE OIL AND FILTER

Connect positive (+) battery cable first. If positive (+) cable
should contact ground with negative (-) cable connected,
the resulting sparks can cause a battery explosion, which
could result in death or serious injury. (00068a)

16. Connect battery cables.

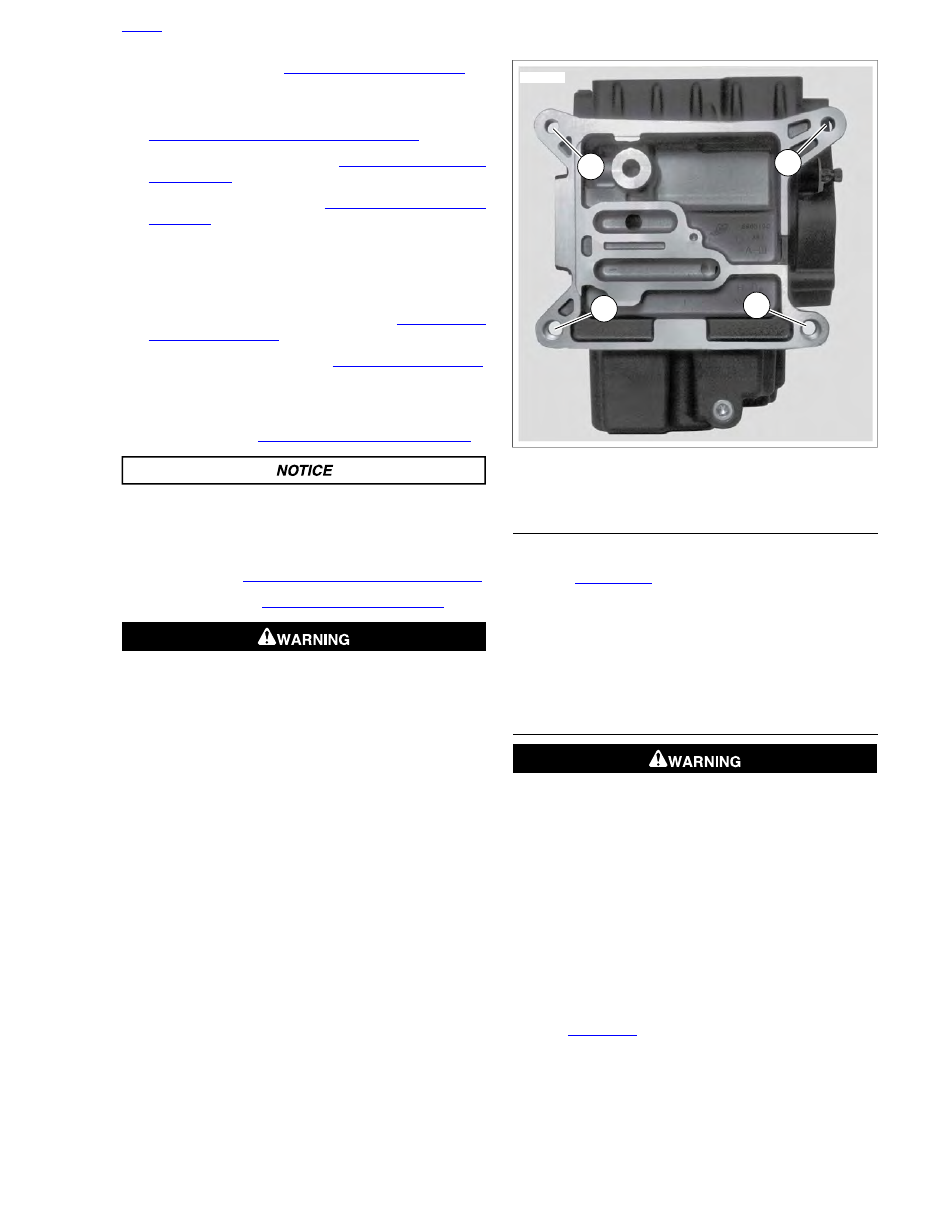

sm02180

Figure 6-51. Transmission Housing to Crankcase Torque

Sequence

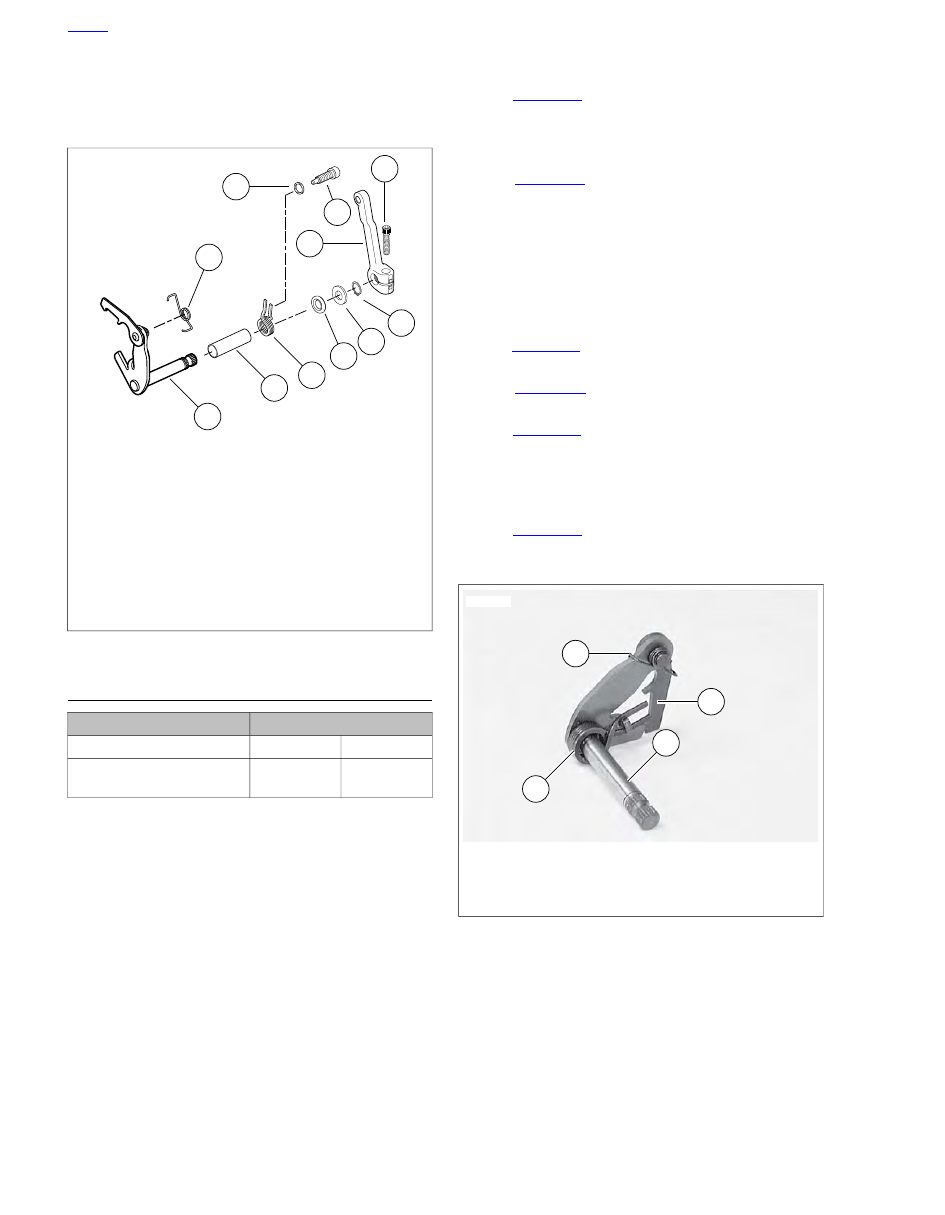

DISASSEMBLY

Shifter Arm Assembly

See

Figure 6-52

. After removing bearing housing

assembly, remove screw (8) and shifter rod lever (9) from
the shifter pawl lever assembly (1).

Remove retaining ring (7), washer (6) and seal (5). Discard
retaining ring and seal. Pull shifter pawl lever assembly
out of the transmission case.

Inspect sleeve (2) inside transmission case.

CLEANING AND INSPECTION

Compressed air can pierce the skin and flying debris from
compressed air could cause serious eye injury. Wear
safety glasses when working with compressed air. Never
use your hand to check for air leaks or to determine air
flow rates. (00061a)

Clean all parts in solvent except the case and main drive
gear needle bearings. Blow parts dry with low pressure
compressed air.

NOTE

Never wash the transmission case and needle bearings with
solvent. Normal cleaning methods will wash dirt or other con-
taminants into the bearing case (behind the needles) leading
to bearing failure.

See

Figure 6-52

. Inspect the shifter pawl lever assembly

(1) for wear. Replace assembly if pawl ends are damaged.
Replace centering spring (3) if elongated.

Inspect the shifter spring (4). Replace if the spring fails to
hold the pawl on the cam pins.

HOME

2013 Softail Service: Transmission 6-31

Thoroughly clean the oil pan with solvent.

Inspect preformed transmission top cover vent hose for
damage. Replace as necessary. Use low-pressure com-
pressed air to verify that hose and fitting are unobstructed.

sm03066

1. Shifter pawl lever assembly
2. Sleeve (inside transmission case)
3. Shift lever centering spring
4. Shifter shaft lever spring
5. Seal
6. Washer
7. Retaining ring
8. Screw
9. Shifter rod lever
10. Washer
11. Screw

Figure 6-52. Shifter Arm Assembly

ASSEMBLY

TORQUE VALUE

FASTENER

24.4-31.2 Nm

18-23 ft-lbs

Shifter pawl centering screw

24.4-29.8 Nm

18-22 ft-lbs

Shifter rod lever pinch screw,
transmission lever

Countershaft Needle Bearing Replacement

Find a suitable bearing driver 1.25 in. (31.75 mm) in dia-
meter.

Check bearing position.

From the outside of the transmission case place the
needle bearing open end first next to the bearing bore.

Hold the driver squarely against the closed end of the
bearing and tap the bearing into place.

The bearing is properly positioned when it is driven
inward flush with the outside surface of the case or
to a maximum depth of 0.030 in. (0.76 mm).

Lubricate

the

bearing

with

SCREAMIN'

EAGLE

ASSEMBLY LUBE.

Shifter Pawl Lever Assembly

See

Figure 6-52

. Verify that sleeve (2) is inside transmis-

sion case.

Install screw (11) and washer (10) into side of transmission
case. Tighten to 18-23 ft-lbs (24.4-31.2 Nm).

See

Figure 6-53

. Slide shifter lever centering spring (3)

over shaft of shifter pawl lever assembly (2). Align opening
on spring with tab on lever.

Place shifter shaft lever spring (4) on shifter pawl lever
assembly.

NOTE

Do not bend shifter shaft lever spring more than necessary for
assembly.

See

Figure 6-54

. Insert the assembly into the transmission

case.

See

Figure 6-55

. Verify that pin sits inside shifter shaft

lever spring.

See

Figure 6-54

. Install a

new

seal. Install washer (1) and

new

retaining ring (2).

NOTE

In next step, shifter rod lever must be installed so angle of lever
is toward front of vehicle, one spline from vertical.

See

Figure 6-52

. Install shifter rod lever (9) on the shifter

pawl lever assembly shaft end using screw (8). Tighten
to 18-22 ft-lbs (24.4-29.8 Nm).

sm03067

1. Pawl (part of shifter pawl lever assembly)
2. Shifter pawl lever assembly
3. Shifter lever centering spring
4. Shifter shaft lever spring

Figure 6-53. Shifter Pawl Lever Assembly

HOME

6-32 2013 Softail Service: Transmission

sm03068

1. Washer (with seal behind)
2. Retaining ring
3. Shifter shaft lever
4. Pin

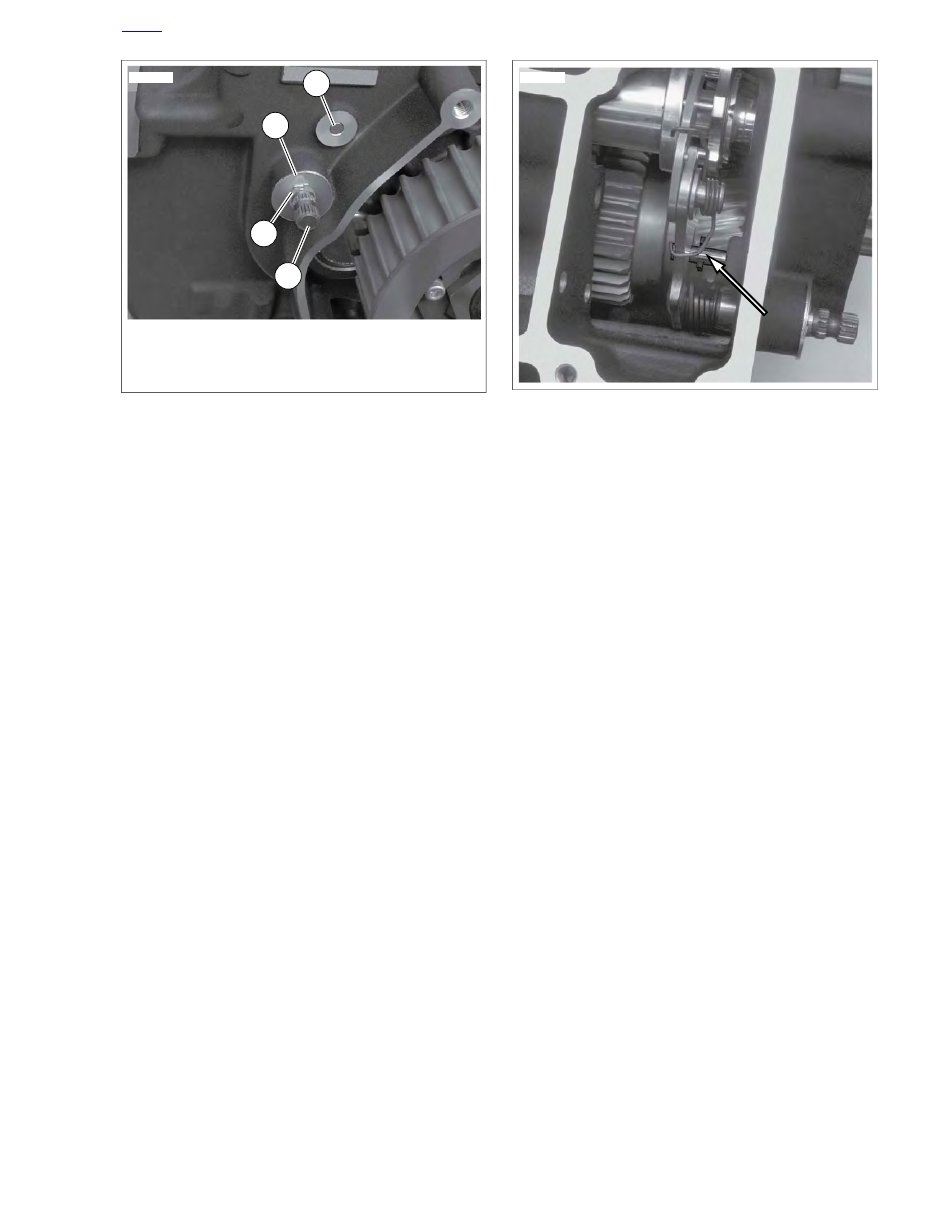

Figure 6-54. Shifter Shaft Lever, Exterior View

sm03069

Figure 6-55. Shifter Shaft Lever Spring

HOME

2013 Softail Service: Transmission 6-33

TABLE OF CONTENTS

SUBJECT

............................................................................................................................

PAGE NO.

ELECTRICAL

7.1

FASTENER TORQUE VALUES

FASTENER TORQUE VALUES IN THIS
CHAPTER

The table below lists torque values for all fasteners presented
in this chapter.

NOTES

TORQUE VALUE

FASTENER

7.20 AUTOMATIC COMPRESSION RELEASE
(ACR), Installation/Apply three equally spaced dots
of LOCTITE 246 MEDIUM STRENGTH/HIGH
TEMPERATURE THREADLOCKER (blue) around
lower third of threads

14.9-20.3 Nm

132-180

in-lbs

ACR

7.33 ACTIVE EXHAUST, Installation

3.6-4.5 Nm

32-40

in-lbs

Active exhaust module fasteners

7.17 AUXILIARY LAMPS: FLSTC, FLSTN, FLSTC
Models

8.1-13.6 Nm

72-120

in-lbs

Auxiliary lamp bracket: FLSTC, FLSTN

7.17 AUXILIARY LAMPS: FLSTC, FLSTN, FLSTN
Models

8.1-13.6 Nm

72-120

in-lbs

Auxiliary lamp bracket: FLSTC, FLSTN

7.17 AUXILIARY LAMPS: FLSTC, FLSTN, Adjust-
ment: FLSTC/FLSTN Models

20.3-24.4 Nm

15-18 ft-lbs

Auxiliary lamp nut, FLSTC

7.17 AUXILIARY LAMPS: FLSTC, FLSTN, Adjust-
ment: FLSTC/FLSTN Models

20.3-24.4 Nm

15-18 ft-lbs

Auxiliary lamp nut, FLSTN

7.12 BATTERY CABLES, Routing Procedure

6.8-8.1 Nm

60-72

in-lbs

Battery cable to battery fasteners

7.12 BATTERY CABLES, Routing Procedure

6.8-8.1 Nm

60-72

in-lbs

Battery cable to battery fasteners

7.21 IGNITION COIL, Installation

3.4-4.5 Nm

30-40

in-lbs

Coil cover screw, all but FXS

7.21 IGNITION COIL, Installation

10.9-13.6 Nm

96-120

in-lbs

Coil mounting screw

7.19 CRANK POSITION SENSOR (CKP), Installa-
tion

10.2-13.6 Nm

90-120

in-lbs

Crank Position Sensor (CKP)

7.3 ELECTRICAL PANEL, Installation: All But
FXSB

4.1-6.8 Nm

36-60

in-lbs

Electrical panel fasteners: all but FXSB

7.37 LEFT HANDLEBAR CONTROL
MODULE, Installation

6.8-9.0 Nm

60-80

in-lbs

Handlebar clamp to clutch lever bracket
screws

7.36 RIGHT HANDLEBAR CONTROL
MODULE, Installation

6.8-9.0 Nm

60-80

in-lbs

Handlebar clamp to master cylinder
screws

7.36 RIGHT HANDLEBAR CONTROL
MODULE, Installation

0.9-1.1 Nm

8-10

in-lbs

Handlebar switch assembly retainer
screws

7.36 RIGHT HANDLEBAR CONTROL
MODULE, Front Brake Switch Replacement

0.9-1.1 Nm

8-10

in-lbs

Handlebar switch assembly retainer
screws

7.37 LEFT HANDLEBAR CONTROL
MODULE, Installation

0.9-1.1 Nm

8-10

in-lbs

Handlebar switch assembly retainer
screws

7.37 LEFT HANDLEBAR CONTROL
MODULE, Clutch Switch Replacement

0.9-1.1 Nm

8-10

in-lbs

Handlebar switch assembly retainer
screws

7.36 RIGHT HANDLEBAR CONTROL
MODULE, Installation

4.0-5.1 Nm

35-45

in-lbs

Handlebar switch housing screws

7.37 LEFT HANDLEBAR CONTROL
MODULE, Installation

4.0-5.1 Nm

35-45

in-lbs

Handlebar switch housing screws

7.15 TAIL LAMP: ALL BUT FLSTN, Base
Replacement

4.5-5.4 Nm

40-48

in-lbs

Headlamp circuit board/pin housing
screw: All but FLSTN

7.15 TAIL LAMP: ALL BUT FLSTN, Base
Replacement

2.3-2.7 Nm

20-24

in-lbs

Headlamp lens base screws: All but
FLSTN

7.32 HORN, Removal and Installation: All But
FXS/B

9.0-11.3 Nm

80-100

in-lbs

Horn bracket clamp: All but FXS/B

HOME

2013 Softail Service: Electrical 7-1

NOTES

TORQUE VALUE

FASTENER

7.32 HORN, Removal and Installation: FXS/B

17.64-20.36 Nm

13-15 ft-lbs

Horn bracket mounting bolt, FXS/B

7.32 HORN, Removal and Installation: All But
FXS/B

9.0-11.3 Nm

80-100

in-lbs

Horn bracket nut: All but FXS/B

7.32 HORN, Removal and Installation: All But
FXS/B

4.0-6.2 Nm

35-55

in-lbs

Horn bracket screws: All but FXS/B

7.11 IGNITION AND LIGHT SWITCH, Removal
and Installation: FXS/B

15.8-18.1 Nm

140-160

in-lbs

Ignition/light switch nut: FXS/B

7.21 IGNITION COIL, Installation

13.6-20.3 Nm

120-180

in-lbs

Ignition coil screws, all except FXS

7.21 IGNITION COIL, Installation

15.8-18.1 Nm

140-160

in-lbs

Ignition switch nut, FXS

7.28 INDICATOR LAMPS, Installation: FXS

1.7-2.1 Nm

15-19

in-lbs

Indicator lamp cover fasteners: FXS

7.28 INDICATOR LAMPS, Installation: FXSB

2.3-3.4 Nm

20-30

in-lbs

Indicator lamp screws: FXSB

7.11 IGNITION AND LIGHT SWITCH, Removal
and Installation: All But FXS/B

9.5-14.9 Nm

84-132

in-lbs

Instrument panel acorn nut: all but FXS/B

7.16 TAIL LAMP: FLSTN, Tail Lamp Replacement

3.4-5.6 Nm

30-50

in-lbs

License plate bracket fasteners: FLSTN

7.16 TAIL LAMP: FLSTN, Tail Lamp Replacement

6.8-10.2 Nm

60-90

in-lbs

License plate support fasteners: FLSTN

7.29 NEUTRAL SWITCH, Installation

13.6-20.3 Nm

120-180

in-lbs

Neutral switch

7.30 OIL PRESSURE SWITCH, Installation

10.8-16.3 Nm

96-144

in-lbs

Oil pressure switch

7.3 ELECTRICAL PANEL, Installation: FXSB

4.1-6.8 Nm

36-60

in-lbs

Rear electrical panel fasteners: FXSB

7.18 TURN SIGNALS AND RUNNING
LIGHTS, Lamp Replacement

28.5-36.6 Nm

21-27 ft-lbs

Rear fender support to fender fasteners:
FXS, FLS

7.31 REAR STOP LAMP SWITCH, Installation

16.3-20.3 Nm

12-15 ft-lbs

Rear stop lamp switch

7.18 TURN SIGNALS AND RUNNING
LIGHTS, Lamp Replacement

16.3-21.7 Nm

12-16 ft-lbs

Rear turn signal housing fastener

7.18 TURN SIGNALS AND RUNNING
LIGHTS, Lamp Replacement

16.3-21.7 Nm

12-16 ft-lbs

Rear turn signal housing fastener: FXS,
FLS

7.17 AUXILIARY LAMPS: FLSTC, FLSTN, Adjust-
ment: FLSTC/FLSTN Models

4.1-6.8 Nm

36-60

in-lbs

Signal lamp mounting bracket screws

7.17 AUXILIARY LAMPS: FLSTC, FLSTN, Adjust-
ment: FLSTC/FLSTN Models

4.1-6.8 Nm

36-60

in-lbs

Signal lamp mounting bracket screws

7.13 STARTER, Solenoid

7.3-9.0 Nm

65-80

in-lbs

Solenoid contact post jamnut

7.13 STARTER, Drive Assembly

7.9-10.1 Nm

70-90

in-lbs

Solenoid terminal post nut

7.26 SPEEDOMETER, Installation: All But FXS/B

9.5-14.9 Nm

84-132

in-lbs

Speedometer console nut: all but FXS/B

7.26 SPEEDOMETER, Installation: FXS

1.4-2.0 Nm

12-18

in-lbs

Speedometer fasteners, FXS

7.26 SPEEDOMETER, Installation: FXSB

1.4-1.9 Nm

12-17

in-lbs

Speedometer fasteners: FXSB

7.26 SPEEDOMETER, Installation: FXS

8.1-13.6 Nm

72-120

in-lbs

Speedometer housing fasteners, FXS

7.28 INDICATOR LAMPS, Installation: FXS

8.1-13.6 Nm

72-120

in-lbs

Speedometer housing fasteners: FXS

7.3 ELECTRICAL PANEL, Installation: All But
FXSB

4.1-5.4 Nm

36-48

in-lbs

Splash guard screw: all but FXSB

7.5 BODY CONTROL MODULE (BCM), Installation:
All But FXSB

4.1-5.4 Nm

36-48

in-lbs

Splash guard screw: all but FXSB

7.9 SECURITY SIREN, Installation: All But FXSB

4.1-5.4 Nm

36-48

in-lbs

Splash guard screw: all but FXSB

7.13 STARTER, Drive Assembly

10.1-12.4 Nm

90-110

in-lbs

Starter end cover screw

7.13 STARTER, Installation

33.9-36.6 Nm

25-27 ft-lbs

Starter mounting bolts

7.12 BATTERY CABLES, Routing Procedure

7.9-10.2 Nm

70-90

in-lbs

Starter nut

7.13 STARTER, Solenoid

6.8-9.0 Nm

60-80

in-lbs

Starter ring terminal hex nut

7.13 STARTER, Drive Assembly

4.4-7.3 Nm

39-65

in-lbs

Starter through bolts

7.24 ALTERNATOR, Installation/TORX screws,
use only once

6.2-8.4 Nm

55-75

in-lbs

Stator screws

HOME

7-2 2013 Softail Service: Electrical

NOTES

TORQUE VALUE

FASTENER

7.16 TAIL LAMP: FLSTN, Tail Lamp Replacement

0.9-3.4 Nm

8-30

in-lbs

Tail lamp connector cover fastener:
FLSTN

7.18 TURN SIGNALS AND RUNNING
LIGHTS, Lamp Replacement

0.9-3.4 Nm

8-30

in-lbs

Tail lamp fastener: FLSTN

7.16 TAIL LAMP: FLSTN, Tail Lamp Replacement

6.8-10.2 Nm

60-90

in-lbs

Tail lamp fasteners: FLSTN

7.15 TAIL LAMP: ALL BUT FLSTN, Bulb Replace-
ment

2.3-2.7 Nm

20-24

in-lbs

Tail lamp lens screws

7.18 TURN SIGNALS AND RUNNING
LIGHTS, Lamp Replacement

20.4-25.8 Nm

15-19 ft-lbs

Turn signal bar screws: FLSTN

7.28 INDICATOR LAMPS, Installation: FXSB

16.3-21.7 Nm

12-16 ft-lbs

Upper handlebar clamp fasteners: FXSB

7.23 VOLTAGE REGULATOR, Installation

5.7-9.0 Nm

50-80

in-lbs

Voltage regulator

7.23 VOLTAGE REGULATOR, Installation

7.9-11.3 Nm

70-100

in-lbs

Voltage regulator bracket to crankcase
fasteners

7.27 VEHICLE SPEED SENSOR (VSS), Installation

9.5-12.2 Nm

84-108

in-lbs

VSS mounting bolt

HOME

2013 Softail Service: Electrical 7-3

7.2

SPECIFICATIONS: ELECTRICAL

SPECIFICATIONS

Table 7-1. Ignition System Specifications

DATA

IGNITION

950-1050 RPM

Idle speed

12 mm

Spark plug size

0.038-0.043 in.

Spark plug gap

0.97-1.09 mm

Harley-Davidson No. 6R12 (no

substitute)

Spark plug type

0.5-0.7 ohms

Ignition coil primary resistance

5500-7500 ohms

Ignition coil secondary resist-

ance

Table 7-2. Circuit Breaker/Fuses

RATING (AMPERES)

CIRCUIT BREAKER/FUSES

Main fuse

P&A fuse

Battery fuse

Table 7-3. Charging System

DATA

CHARGING SYSTEM

19 A hour/315 CCA

Battery

16-23 VAC per 1000 rpm

Alternator AC voltage output

0.1-0.2 ohms

Alternator stator coil resistance

14.3-14.7 VDC

75 °F (24 °C)

Regulator voltage output @ 3600
rpm

35-50 A

Regulator amperes @ 3000 rpm

Table 7-4. Starter Specifications

STARTER DATA

3000 rpm (min) @ 11.5 V

Free speed

90 A (max) @ 11.5 V

Free current

200 A (max) @ 68 °F

Cranking current

8.0 ft-lbs (10.8 Nm) @ 2.4 V

Stall torque

HOME

7-4 2013 Softail Service: Electrical

7.3

ELECTRICAL PANEL

GENERAL

All Softail models use a panel under the rear fender to mount
important electrical components. This electrical panel contains:

•

Body control module (BCM).

•

Security siren, if equipped.

•

ABS ECU, if equipped.

•

FXSB:

ECM

REMOVAL: ALL BUT FXSB

Remove seat.

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

Remove main fuse.

Remove right side saddlebag if present.

NOTE

Rear wheel may have to be raised slightly to allow for splash
guard removal.

Remove bolt from lower end of splash guard. Lift up on
tabs and pull lower end of splash guard toward rear tire.

Pull upper end of splash guard off rear fork and move
splash guard from motorcycle.

See

Figure 7-1

. Remove BCM (1).

Remove wheel speed sensor connector (4) from electrical
panel.

If installed, remove security siren (5). If not installed, dis-
connect security siren connector [142] from receptacle (3)
in electrical panel.

If installed, remove purge solenoid from top of electrical
panel. If not installed, disconnect purge solenoid connector
[95] from receptacle (2) on top of electrical panel.

10. See

Figure 7-2

. If equipped with ABS, remove ECU (1)

from electrical panel.

11. Remove electrical panel fasteners (2) and remove elec-

trical panel.

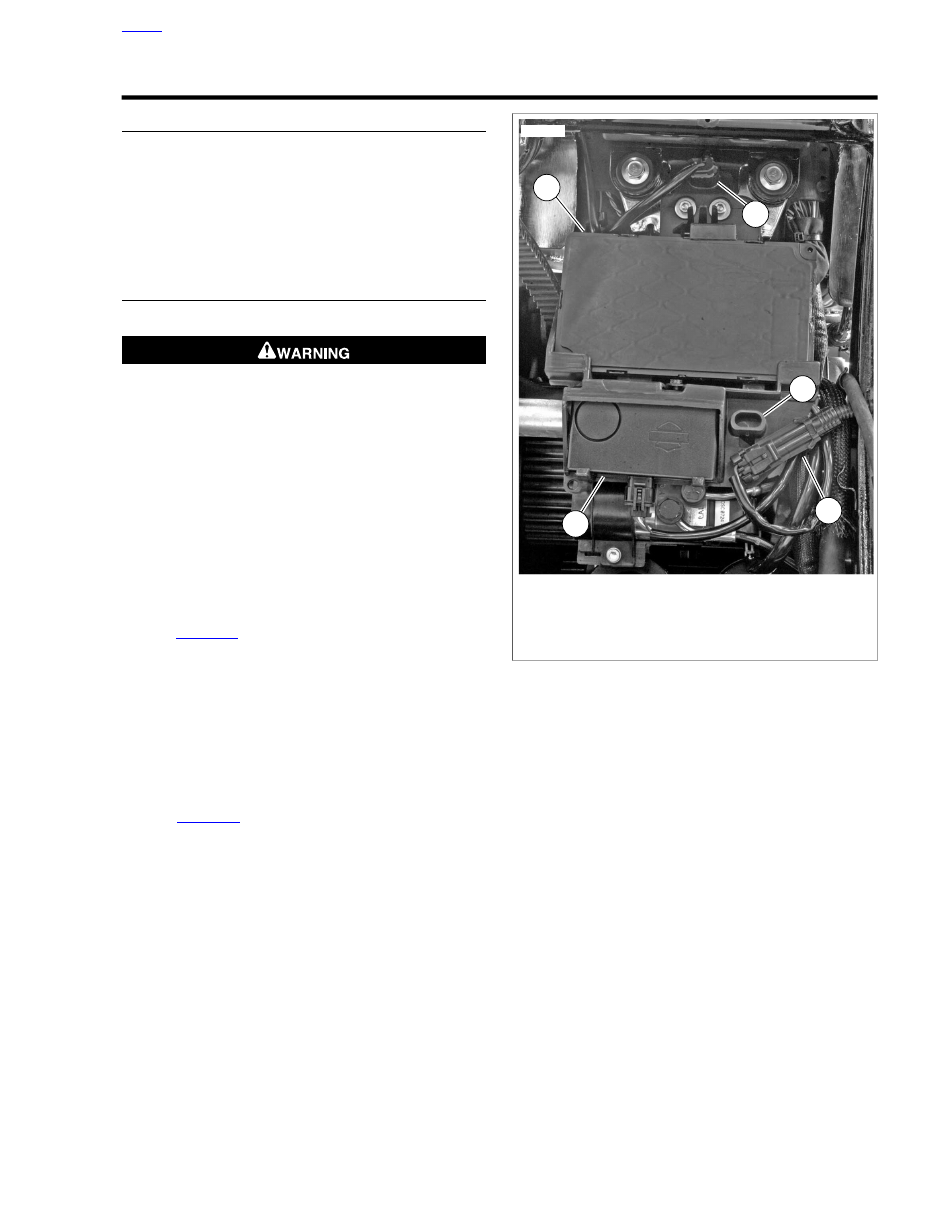

sm06996

1. BCM
2. Purge solenoid connector receptacle
3. Security siren connector receptacle
4. Wheel speed sensor connector
5. Security siren

Figure 7-1. Body Control Module (BCM): All But FXSB

HOME

2013 Softail Service: Electrical 7-5

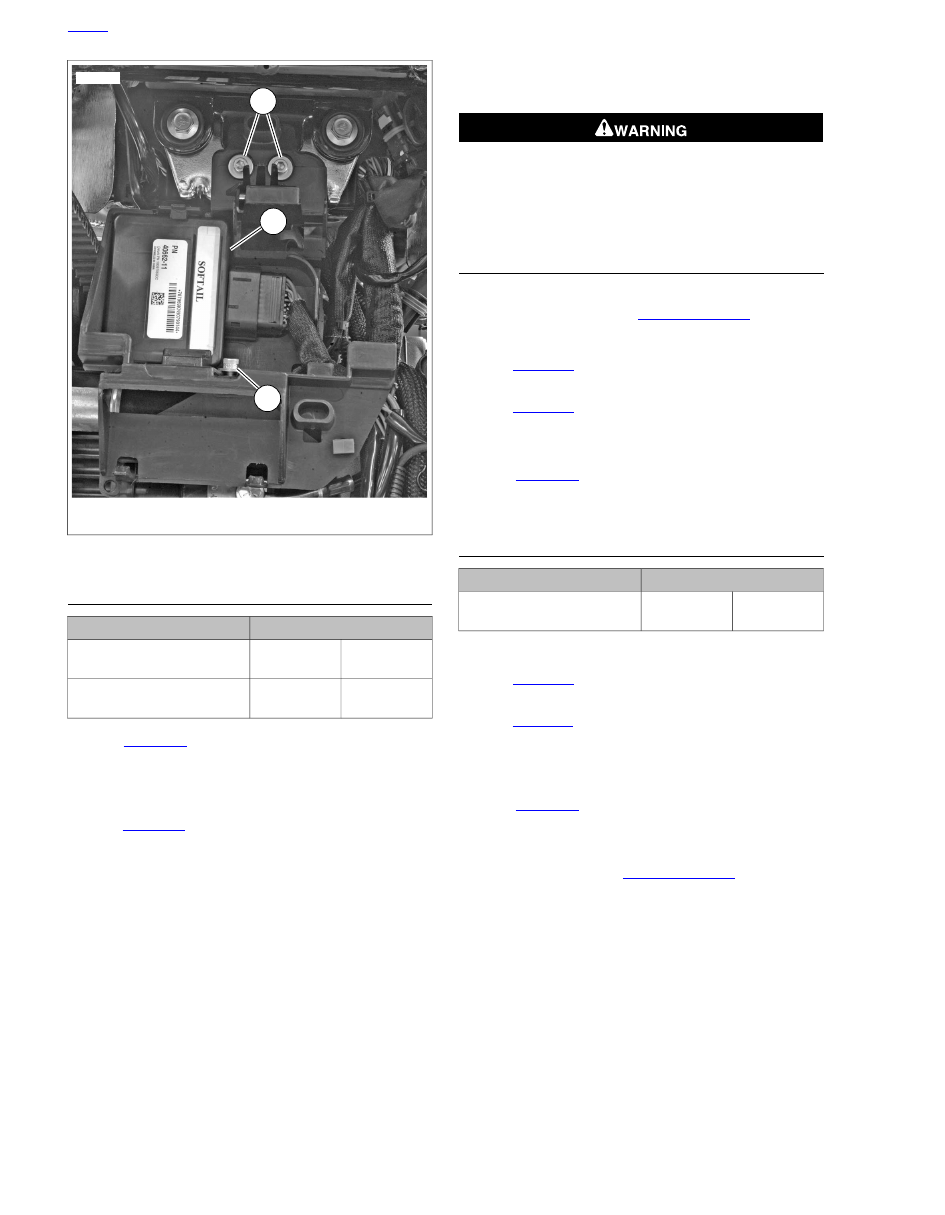

sm06997

1. Electronic control unit (ECU)
2. Electrical panel fasteners

Figure 7-2. Electrical Panel

INSTALLATION: ALL BUT FXSB

TORQUE VALUE

FASTENER

4.1-6.8 Nm

36-60

in-lbs

Electrical panel fasteners: all
but FXSB

4.1-5.4 Nm

36-48

in-lbs

Splash guard screw: all but
FXSB

See

Figure 7-2

. Place electrical panel into position and

install fasteners (2). Tighten fasteners to 36-60

in-lbs

(4.1-

6.8 Nm).

If equipped with ABS, install ECU (1).

See

Figure 7-1

. Install purge solenoid to top of electrical

panel, if equipped. If not equipped, connect purge solenoid
connector [95] to receptacle (2) on top of electrical panel.

Install security siren (5), if equipped. If not equipped,
connect security siren connector [142] to receptacle (3) in
electrical panel.

Install BCM (1).

Attach wheel speed sensor connector (4) to electrical
panel.

Place splash guard into position and snap upper end onto
rear fork.

Press lower end against rear fork until the tabs snap into
place.

Install screw to secure splash guard. Tighten to 36-48

in-lbs

(4.1-5.4 Nm).

10. Install right side saddlebag if removed.

11. Install main fuse.

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

12. Install seat.

REMOVAL: FXSB

Remove main fuse.

Remove rear wheel. See

2.5 REAR WHEEL

Remove splash guard.

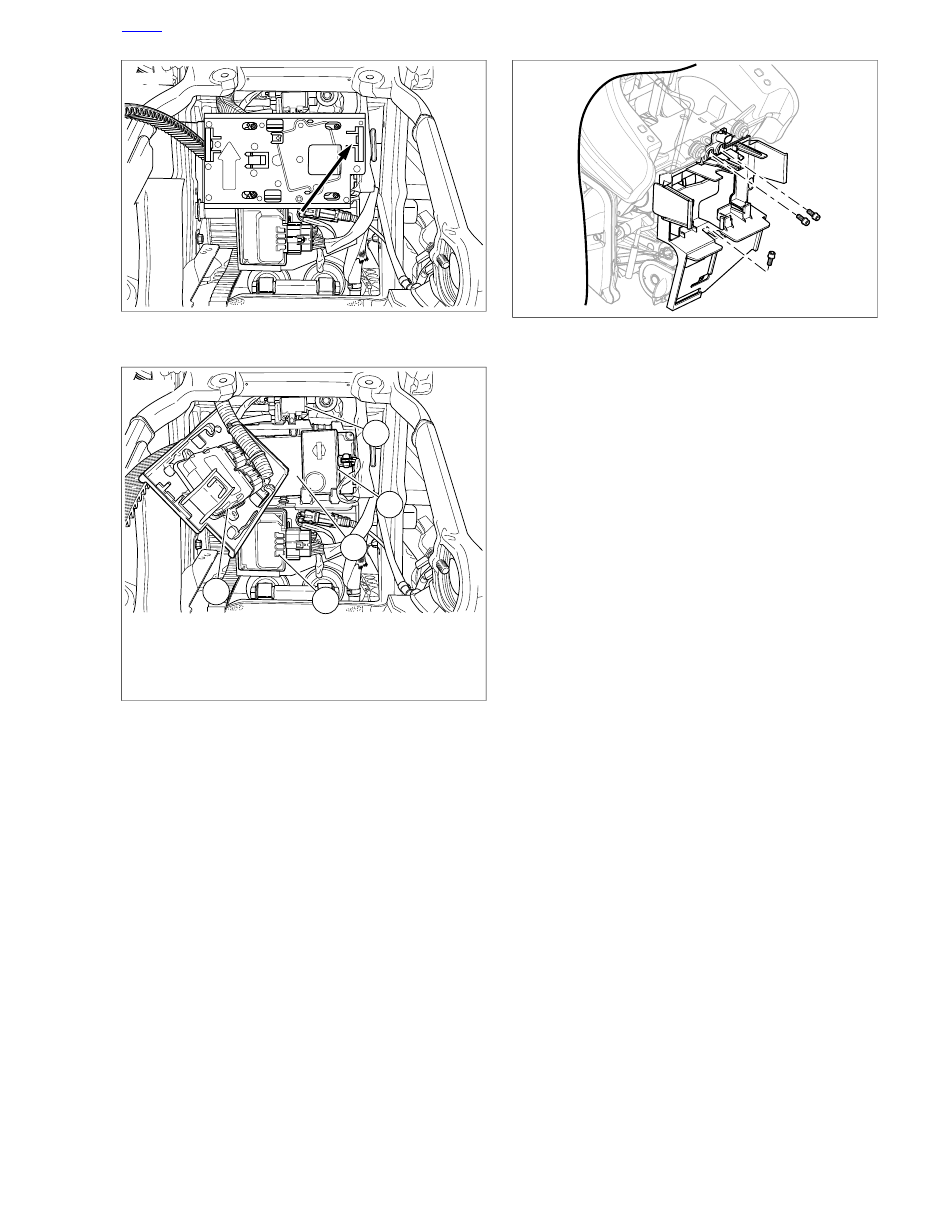

See

Figure 7-3

. Press in on tab and pull ECM panel away

from latch.

See

Figure 7-4

. Remove security siren (2), BCM (3), ECU

(4) and ECM with panel (5).

Detach purge solenoid (1) from rear electrical panel.

See

Figure 7-5

. Remove three fasteners securing rear

electrical panel to frame.

Remove rear electrical panel.

INSTALLATION: FXSB

TORQUE VALUE

FASTENER

4.1-6.8 Nm

36-60

in-lbs

Rear electrical panel
fasteners: FXSB

Install rear electrical panel.

See

Figure 7-5

. Install three fasteners securing rear elec-

trical panel to frame. Tighten to 36-60

in-lbs

(4.1-6.8 Nm).

See

Figure 7-4

. Attach purge solenoid (1) to rear electrical

panel.

Install BCM (3), security siren (2), ECU (4) and ECM (5)
with panel.

See

Figure 7-3

. Push ECM panel forward and engage

latch.

Install splash guard.

Install rear wheel. See

2.5 REAR WHEEL

Install main fuse.

HOME

7-6 2013 Softail Service: Electrical

sm07682

Figure 7-3. ECM

sm07807

1. Purge solenoid
2. Security siren
3. BCM
4. ECU
5. ECM

Figure 7-4. Rear Electrical Panel

sm07693

Figure 7-5. Rear Electrical Panel Fasteners

HOME

2013 Softail Service: Electrical 7-7

7.4

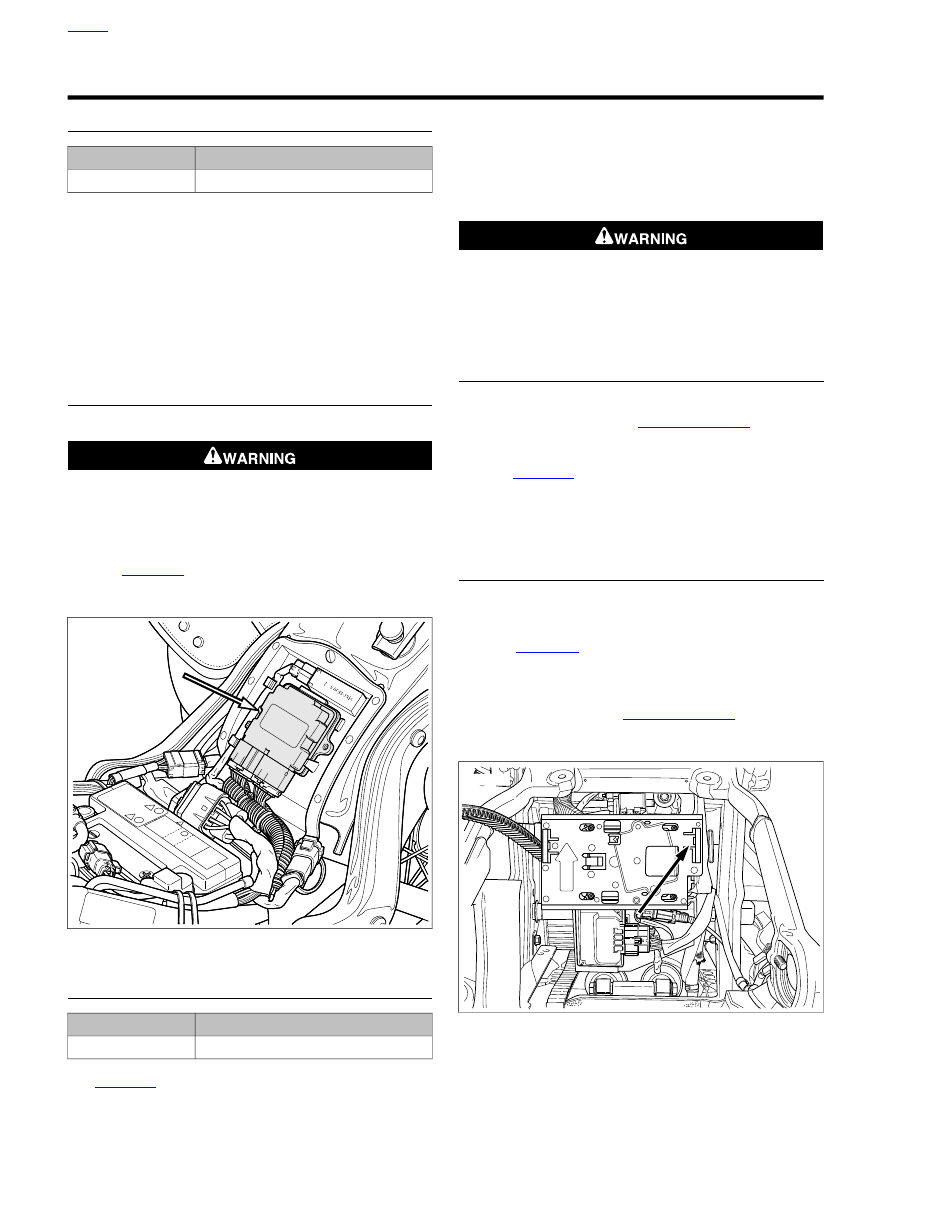

ELECTRONIC CONTROL MODULE (ECM)

GENERAL

TOOL NAME

PART NUMBER

DIGITAL TECHNICIAN II

HD-48650

All But FXSB:

the ECM is mounted under the seat.

FXSB:

the ECM is mounted on the rear electrical panel.

See the electrical diagnostic manual for information on the
function and testing of the ECM.

NOTES

•

The ECM cannot be repaired. Replace the unit if it fails.

•

If replacing the ECM, it must be calibrated using DIGITAL
TECHNICIAN II (Part No. HD-48650).

REMOVAL: ALL BUT FXSB

Remove seat.

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

Remove main fuse.

See

Figure 7-6

. Pull ECM from mount.

Detach connectors [78-1, 78-2].

sm07184a

Figure 7-6. ECM Location

INSTALLATION: ALL BUT FXSB

TOOL NAME

PART NUMBER

DIGITAL TECHNICIAN II

HD-48650

Figure 7-6

. Attach connectors [78-1, 78-2] to ECM.

Install ECM on mount.

Install main fuse.

new

ECM was installed, calibrate ECM and Perform

password learn procedure using DIGITAL TECHNICIAN
II (Part No. HD-48650).

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

Install seat.

REMOVAL: FXSB

Remove main fuse.

Remove rear wheel. See

2.5 REAR WHEEL

Remove splash guard.

See

Figure 7-7

. Press in on tab and pull ECM panel away

from latch.

Disconnect ECM connector.

Remove ECM from panel.

INSTALLATION: FXSB

Install ECM onto panel.

Connect ECM connector.

See

Figure 7-7

. Push ECM panel forward and engage

latch.

Install splash guard.

Install rear wheel. See

2.5 REAR WHEEL

Install main fuse.

sm07682

Figure 7-7. ECM

HOME

7-8 2013 Softail Service: Electrical

7.5

BODY CONTROL MODULE (BCM)

GENERAL

The BCM is located in front of the rear tire. The BCM supplies
ignition and accessory power to most of the vehicle. It controls
the lighting and other functions by using the switches as inputs,
and the power circuits for the lights as outputs. The BCM is
also connected to the CAN bus and shares information with
the other modules on the vehicle. See the electrical diagnostic
manual for more information.

BCM CONFIGURATION

TOOL NAME

PART NUMBER

DIGITAL TECHNICIAN II

HD-48650

After replacing the BCM, configuration/password learn must
be accomplished using DIGITAL TECHNICIAN II (Part No. HD-
48650).

REMOVAL: ALL BUT FSXB

Remove seat.

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

Remove main fuse.

Remove right side saddlebag, if present.

NOTE

Rear wheel may have to be raised slightly to allow for splash
guard removal.

Remove bolt from lower end of splash guard. Lift up on
tabs and pull lower end of splash guard toward rear tire.

Pull upper end of splash guard off rear fork and move
splash guard from motorcycle.

See

Figure 7-8

. Detach body control module (BCM) (1)

from electrical panel and remove both electrical con-
nectors.

INSTALLATION: ALL BUT FXSB

TORQUE VALUE

FASTENER

4.1-5.4 Nm

36-48

in-lbs

Splash guard screw: all but
FXSB

NOTE

All replacement BCMs are configured for keyless ignition. If
the battery is reconnected with the run/stop switch in the run
position, the vehicle will enable all ignition functions and not
respond to the ignition switch. If this situation occurs, turn the
ignition and run/stop switches off. Then turn the ignition on.

Verify ignition and run/stop switches are in the OFF posi-
tion.

See

Figure 7-8

. Connect both BCM connectors and install

BCM (1) onto electrical panel.

Place splash guard into position and snap upper end onto
rear fork.

Press lower end against rear fork until the tabs snap into
place.

Install screw to secure splash guard. Tighten to 36-48

in-lbs

(4.1-5.4 Nm).

Install right side saddlebag, if removed.

Install main fuse.

Turn ignition switch on to configure BCM for keyed ignition
operation.

Be sure that all lights and switches operate properly before
operating motorcycle. Low visibility of rider can result in
death or serious injury. (00316a)

NOTE

If ignition is cycled on when BCM is not secured in rear elec-
trical panel, the lights may cycle on for 2 seconds and the word
"tip" will be displayed on the odometer.

Test for correct operation.

10. Configure BCM. See

7.5 BODY CONTROL MODULE

(BCM), BCM Configuration

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

11. Install seat.

HOME

2013 Softail Service: Electrical 7-9

sm06996

1. BCM
2. Purge solenoid connector receptacle
3. Security siren connector receptacle
4. Wheel speed sensor connector
5. Security siren

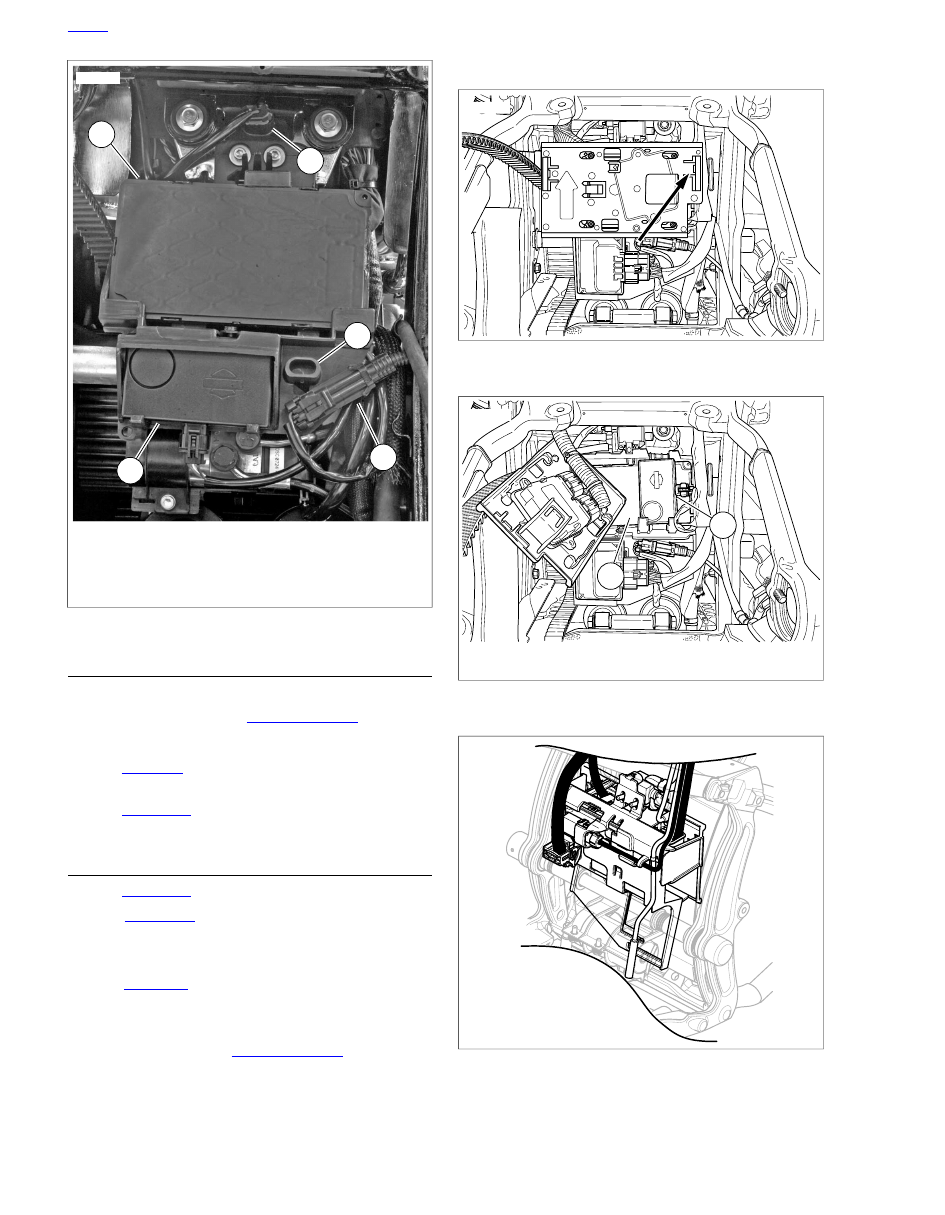

Figure 7-8. Body Control Module (BCM): All But FXSB

REMOVAL: FXSB

Remove main fuse.

Remove rear wheel. See

2.5 REAR WHEEL

Remove splash guard.

See

Figure 7-9

. Press in on tab and pull ECM panel away

from latch.

See

Figure 7-10

. Move security siren (1) out of the way.

Remove BCM (2).

INSTALLATION: FXSB

See

Figure 7-10

. Install BCM (2).

See

Figure 7-11

. Install BCM connectors with harness

routed as shown.

Install security siren (1).

See

Figure 7-9

. Push ECM panel forward and engage

latch.

Install splash guard.

Install rear wheel. See

2.5 REAR WHEEL

Install main fuse.

sm07682

Figure 7-9. ECM

sm07809

1. Security siren
2. BCM

Figure 7-10. BCM

sm07694

Figure 7-11. BCM Wire Routing

HOME

7-10 2013 Softail Service: Electrical

7.6

H-DSSS ACTUATION

SIDECAR CONFIGURATION

Only Touring Harley-Davidson Motorcycles are suitable
for sidecar use. Consult a Harley-Davidson dealer. Use of
motorcycles other than Touring models with sidecars
could result in death or serious injury. (00040a)

ACTUATION

Actuation consists of assigning two fobs to the system, and
entering an initial PIN. The PIN can be changed by the rider
at any time.

Configure vehicles by assigning

both

fobs to the vehicle.

Configure vehicles by entering a PIN picked by the owner.
The personal code allows the owner to operate the system
if the fob is lost or inoperable. Record the PIN in the
owner's manual. Instruct the customer to carry a copy (use
the wallet card found in the owner's manual). See

7.7 PERSONAL IDENTIFICATION NUMBER (PIN)

Once the system has been activated, it will always "arm" within
5 seconds of turning the ignition switch to

OFF

ACC

and no

motorcycle motion.

FOB ASSIGNMENT

TOOL NAME

PART NUMBER

DIGITAL TECHNICIAN II

HD-48650

Use DIGITAL TECHNICIAN II (Part No. HD-48650) to assign
both fobs to the H-DSSS. Follow the menu prompts to scan
the fob serial number with the bar code reader. Alternatively,
enter the number using the keyboard. The initial PIN entry
should be performed using DIGITAL TECHNICIAN II (Part
No. HD-48650) in conjunction with fob assignment.

NOTE

Each fob has a unique serial number. Attach fob label to a
blank NOTES page in the owner's manual for reference.

HOME

2013 Softail Service: Electrical 7-11

Content .. 22 23 24 25 ..
