Harley Davidson HANDLEBAR INSTALLATION REQUIREMENTS (2019-02-13) - page 9

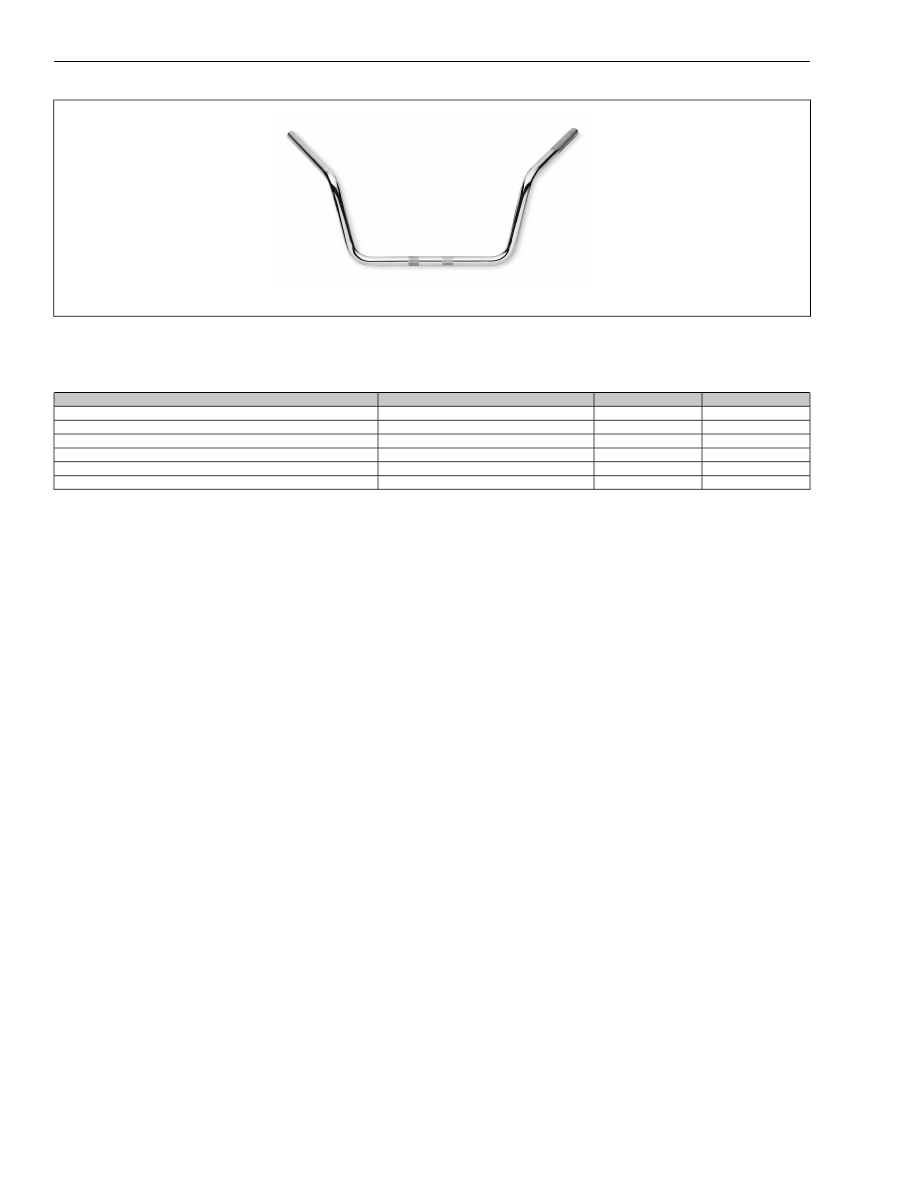

BATWING

REACH

HANDLEBAR

55914-98 (POLISHED STAINLESS)

Figure 45. BAT WING REACH

HANDLEBAR ('02-'07 models)

2002-2007 FLHT, FLHTC, FLHTCU & FLHX

Table 482.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

38649-98

Clutch Cables ('02 - '06 models)

37200049A

38922-09A

38649-07

Clutch Cables ('07 models)

n/a

38778-05

n/a

Throttle / Idle Cables

n/a

41800452

n/a

Brake Lines, UPPER

n/a

45820-07

n/a

Brake Lines, LOWER

732 (2x) & 755 (2x)

Fairing Plugs (FLHX & models w/ fairing mounted mirrors)

NOTE: Installation of handlebars and risers may require a change in clutch cables or lines, throttle cables, or brake lines for some models. All modular lower brake
lines listed are based on stock front suspension. Harley Davidson Motor Company cannot test and make specific fitment recommendations concerning every possible
mirror and handlebar combination. Therefore, after installing new mirrors, handlebars, or control cables/lines and before operating the motorcycle, check to ensure
that all controls are fully functional and that the mirrors provide the operator a clear view to the rear. Handlebar height is regulated in many areas. Check local laws
before installation.

130 / 165

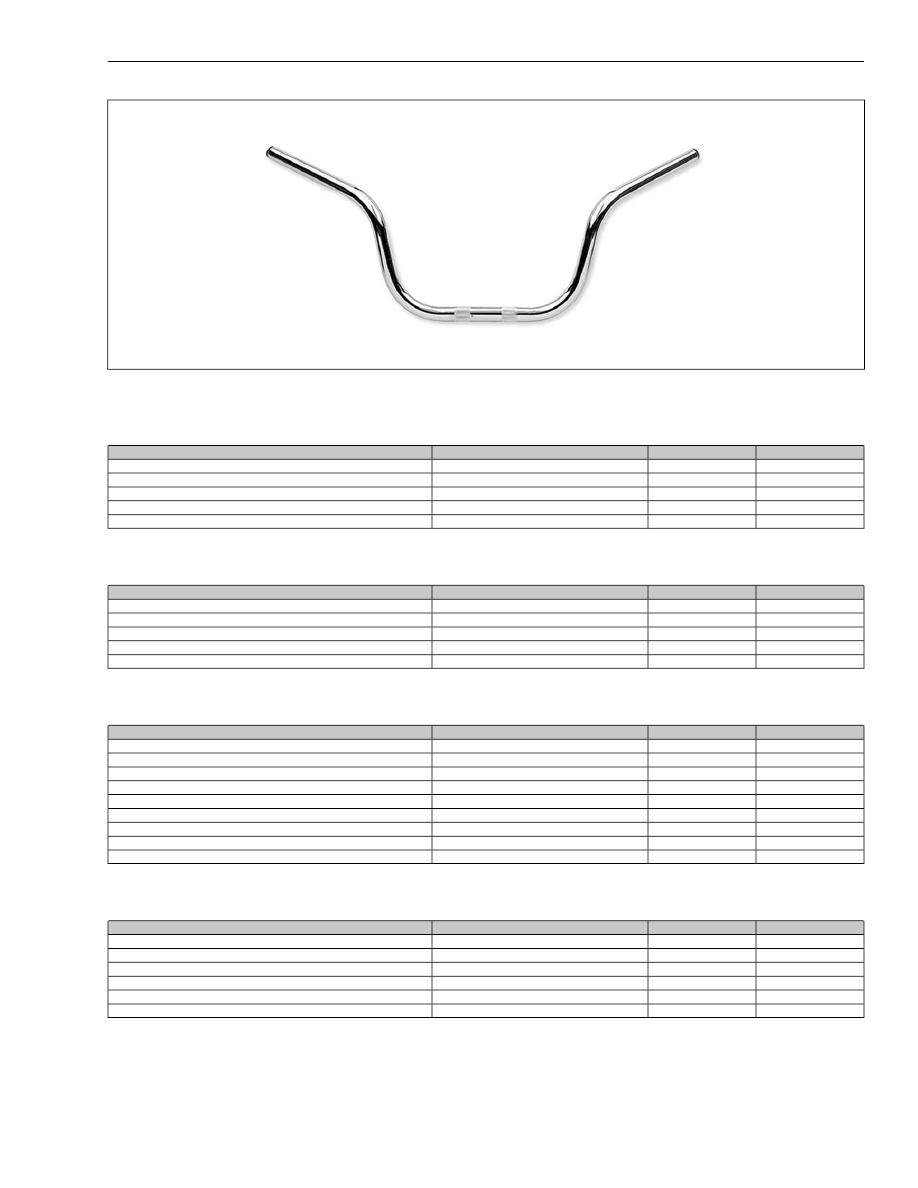

ROAD KING

/ ROAD GLIDE

TALLBOY HANDLEBAR

55954-00 (CHROME)

Figure 46. ROAD KING

/ ROAD GLIDE

TALLBOY HANDLEBAR ('96-'07 models)

1996-1999 FLHR/I & 1996-1997 FLHRC/I

Table 484.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

Stock 38667-00

Clutch Cables

55723-10

56809-05

Stock 56523-02 / 56522-02

Throttle / Idle Cables

n/a

41800420

Stock 43350-96C

Brake Lines, UPPER

n/a

45818-07

n/a

Brake Lines, LOWER

2935A (2x)

Tamper-proof Screws (HDI, Australia, England, Japan only)

2000-2001 FLHR/I & 1998-2001 FLHRC/I

Table 485.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

Stock 38667-00

Clutch Cables

n/a

Stock 56379-96 / 56368-96

Throttle / Idle Cables

n/a

41800420

Stock 43350-96C

Brake Lines, UPPER

n/a

45818-07

n/a

Brake Lines, LOWER

2935A (2x)

Tamper-proof Screws (HDI, Australia, England, Japan only)

2002-2007 FLHR/I & FLHRC/I

Table 486.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

Stock 38667-00

Clutch Cables ('02-'06 models)

38967-10A

38921-09A

Stock 38667-07

Clutch Cables ('07 models)

n/a

56810-05

Stock 56523-02 / 56522-02

Throttle / Idle Cables

n/a

41800420

Stock 43350-96C

Brake Lines, UPPER

n/a

45818-07

n/a

Brake Lines, LOWER

72187-05

Switch Wire Extensions, 5" ('02 - '03 models)

72184-04

Switch Wire Extensions, 5" ('04 - '06 models)

70198-07

Switch Wire Extensions, 5" ('07 models)

2935A (2x)

Tamper-proof Screws (HDI, Australia, England, Japan only)

2004-2007 FLHRS/I

Table 487.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

Stock 38667-00

Clutch Cables ('04 - '06 models)

38967-10A

38921-09A

Stock 38667-07

Clutch Cables ('07 models)

n/a

56810-05

Stock 56295-03 / 56293-03

Throttle / Idle Cables

n/a

41800420

n/a

Brake Lines, UPPER

n/a

45818-07

n/a

Brake Lines, LOWER

2935A (2x)

Tamper-proof Screws (HDI, Australia, England, Japan only)

131 / 165

2002-2007 FLTR

Table 488.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

Stock 38667-00

Clutch Cables ('02 - '06 models)

38967-10A

38921-09A

Stock 38667-07

Clutch Cables ('07 models)

n/a

56810-05

Stock 56295-03 / 56293-03

Throttle / Idle Cables

n/a

41800420

n/a

Brake Lines, UPPER

n/a

45818-07

n/a

Brake Lines, LOWER

132 / 165

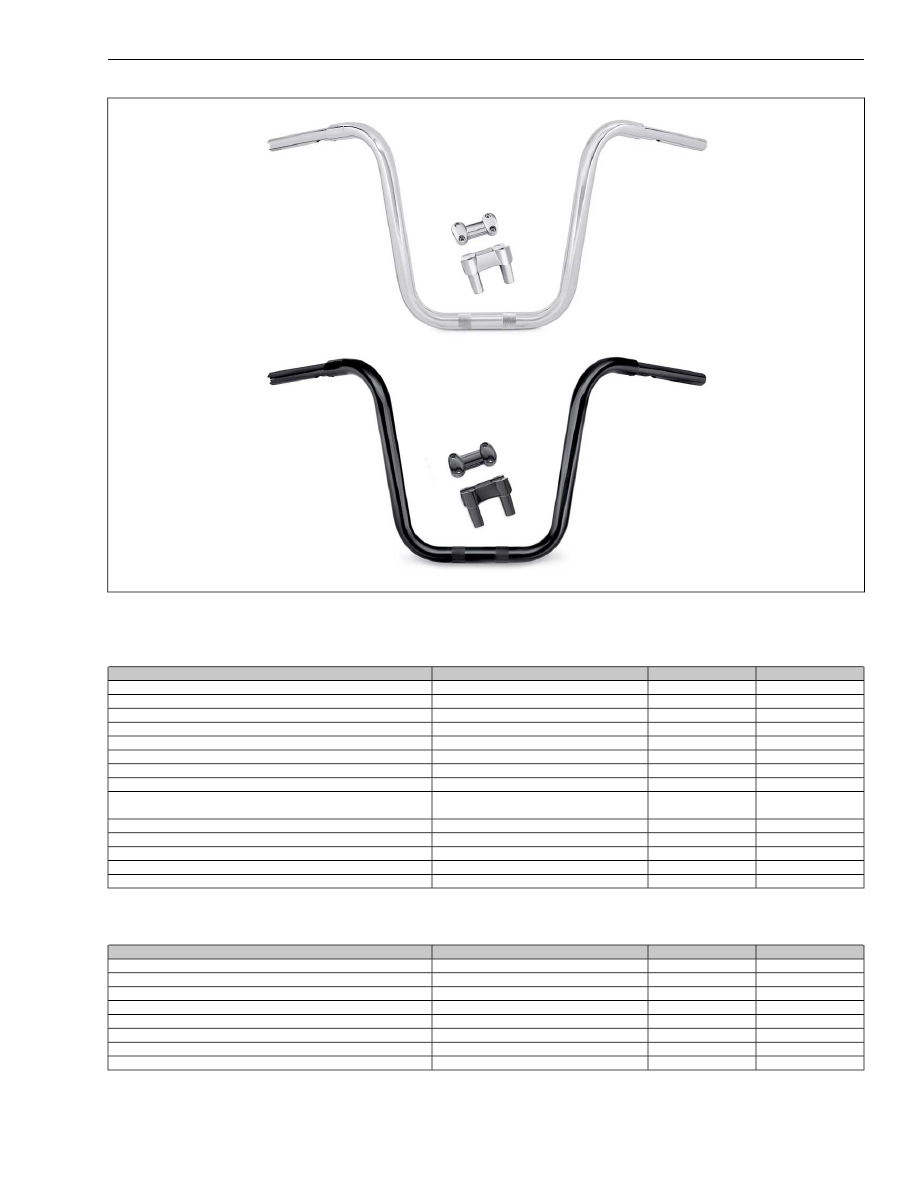

16" FAT APE HANDLEBARS

55800750 (CHROME), 55800751 (GLOSS BLACK)

Figure 47. 16" FAT APE HANDLEBARS

2018-later FXLR, FLSL, FLFB, FLFBS & FLSB

Table 490.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200328

Upper Clutch Cables

n/a

37200337

n/a

Clutch Cables

41800481

41800467

41800656

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800481

41800467

41800656

Brake Lines, NON-ABS - UPPER (FLSL & FXLR only)

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER (FLSL & FXLR only)

55900122 or

55900123

55900122 or

55900123

55900122 or 55900123

Riser Kit (FXLR only)

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16" (FXLR, FLFB & FLFBS only)

2018-later FXBB, FXBR & FXBRS

Table 491.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200328

Upper Clutch Cables

n/a

37200337

n/a

Clutch Cables

41800481

41800467

41800709

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER (FXBB only)

n/a

Stock

Brake Lines, ABS - LOWER (FXBR/S only)

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800481

41800467

41800709

Brake Lines, NON-ABS - UPPER (FXBB & FXLR only)

133 / 165

Table 491.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER (FXBB & FXLR only)

55900157

Riser Kit (FXBB only)

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16" (FXBB only)

2018-later FXFB & FXFBS

Table 492.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200328

Upper Clutch Cables

n/a

37200337

n/a

Clutch Cables

n/a

41800727

41800722

Brake Lines, ABS - UPPER

n/a

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16"

55800789

Handlebar Shim Kit

2014-2016 FLHR & FLHRC

Table 493.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200039A

n/a

Clutch Cables

41800258 & 41800321

41800244 & 41800321

n/a

Brake Lines, ABS - UPPER

41800333 &

41800323A

41800332 &

41800323A

Stock 41800194 & 41800195

OPTIONAL Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16"

55900067A

Riser Kit

2017-later FLHR & FLHRC

Table 494.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200291

37200248

n/a

Hydraulic Clutch Line

41800258 & 41800321

41800244 & 41800321

n/a

Brake Lines, ABS - UPPER

41800333 &

41800323A

41800332 &

41800323A

Stock 41800194 & 41800195

OPTIONAL Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16"

55900067A

Riser Kit

2017-later FLHRXS

Table 495.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200291

37200248

n/a

Hydraulic Clutch Line

41800258 & 41800321

41800244 & 41800321

n/a

Brake Lines, ABS - UPPER

41800333 &

41800323A

41800332 &

41800323A

Stock 41800194 & 41800195

OPTIONAL Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

55900067A

Riser Kit

134 / 165

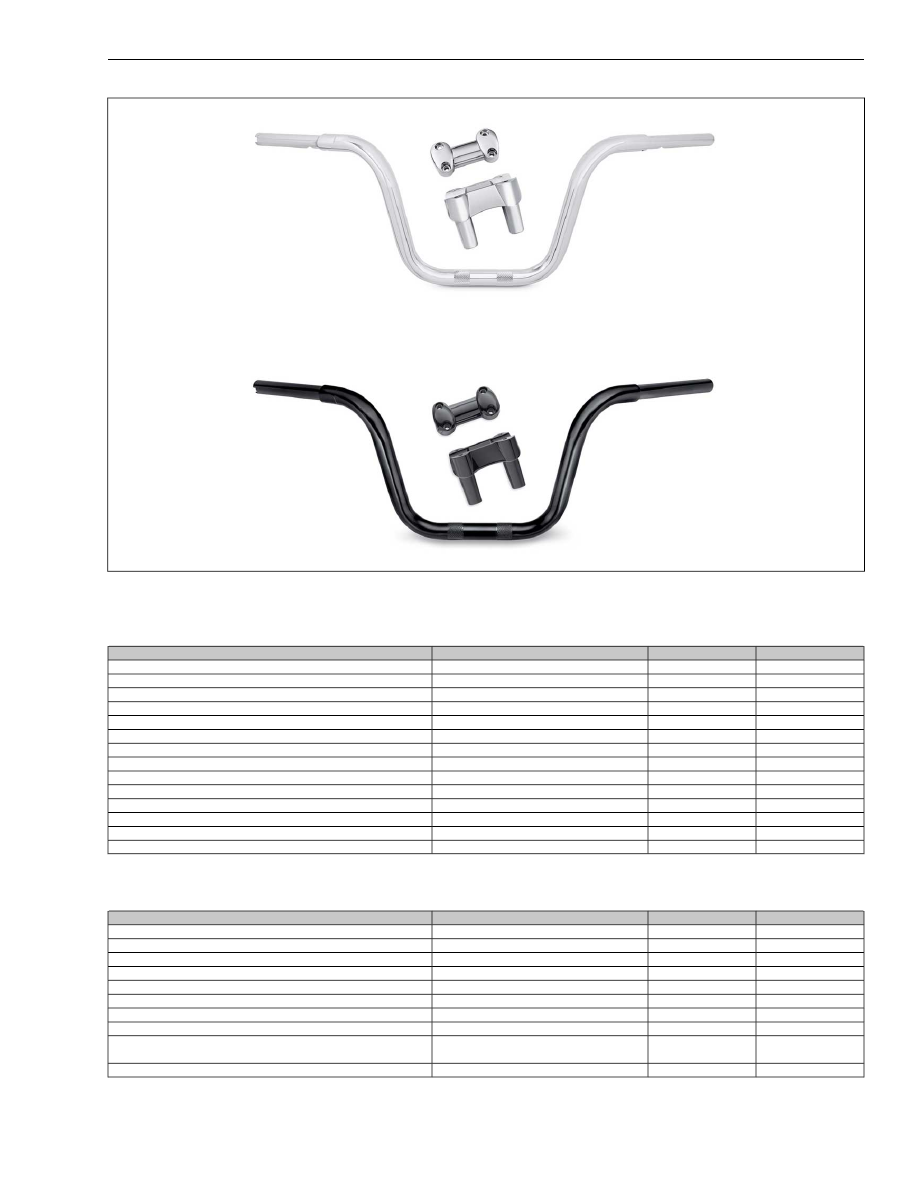

12" FAT APE HANDLEBARS

55800749 (CHROME), 55800748 (GLOSS BLACK)

Figure 48. 12" FAT APE HANDLEBARS

2018-later FXBB

Table 497.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200385

Upper Clutch Cables

n/a

37200336

n/a

Clutch Cables

41800480

41800465

41800710

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800480

41800465

41800710

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

55900157

Riser Kit

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16"

2018-later FXLR, FLSL, FLFB, FLFBS & FLSB

Table 498.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200384

Upper Clutch Cables

n/a

37200336

n/a

Clutch Cables

41800480

41800465

41800710

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800480

41800465

41800710

Brake Lines, NON-ABS - UPPER (FXLR and FLSL only)

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER (FXLR and FLSL only)

55900122 or

55900123

55900122 or

55900123

55900122 or 55900123

Riser Kit (FXLR and FLSL only)

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg) (FXLR and FLSL only)

135 / 165

Table 498.

Diamond Black

Diamondback™

OEM Stock

Fitment

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16"

2018-later FXFB & FXFBS

Table 499.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200384

Upper Clutch Cables

n/a

37200336

n/a

Clutch Cables

n/a

41800726

41800723

Brake Lines, ABS - UPPER

n/a

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16"

55800789

Handlebar Shim Kit

2018-later FXBR & FXBRS

Table 500.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200328

Upper Clutch Cables

n/a

37200336

n/a

Clutch Cables

n/a

41800466

41800710

Brake Lines, ABS - UPPER

n/a

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16"

2014-2016 FLHR & FLHRC

Table 501.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200038A

n/a

Clutch Cables

41800254 & 41800321

41800240 & 41800321

n/a

Brake Lines, ABS - UPPER

41800333 &

41800323A

41800332 &

41800323A

Stock 41800194 & 41800195

OPTIONAL Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16"

55900067A

Riser Kit

2017-later FLHR & FLHRC

Table 502.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200290

37200247

n/a

Hydraulic Clutch Line

41800254 & 41800321

41800240 & 41800321

n/a

Brake Lines, ABS - UPPER

41800333 &

41800323A

41800332 &

41800323A

Stock 41800194 & 41800195

OPTIONAL Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16"

55900067A

Riser Kit

2017-later FLHRXS

Table 503.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200290

37200247

n/a

Hydraulic Clutch Line

41800254 & 41800321

41800240 & 41800321

n/a

Brake Lines, ABS - UPPER

41800333 &

41800323A

41800332 &

41800323A

Stock 41800194 & 41800195

OPTIONAL Brake Lines, ABS - LOWER

136 / 165

Table 503.

Diamond Black

Diamondback™

OEM Stock

Fitment

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

55900067A

Riser Kit

137 / 165

RISER DIMENSIONS

A new riser kit enables a rider to change the look and feel of their bike by repositioning the hand controls. Straight and curved
risers are available for many model and handlebar combinations.

Table 506. Riser Kits

Finish

Pull Back

(inch)

Height

(inch)

Bar Dia.

(inch)

Description

Kit

Item

Chrome

0.0

3.6

1.25

Fat-Bar Risers

56916-07

Riser and Clamp
Kits

Gloss Black

0.6

5.0

1.25

Black Fat-Risers

55996-09

Chrome

1.3

4.0

1.25

Curved Pullback, 4"

56269-09

Chrome

1.7

6.0

1.25

Curved Pullback, 6"

56267-09

Chrome

0.0

4.1

1.25

Fat One-Piece Riser, Chrome

56929-10

Gloss Black

0.0

4.1

1.25

Fat One-Piece Riser, Black

56931-10

Chrome

1.5

5.2

1.00

FLSTC Riser

56296-05

Gloss Black

0.4

1.9

1.00

Softail Slim Riser, Black

55900166

Chrome

0.8

4.4

1.00

Softail Deluxe Pull Back Riser, Chrome

55900023

Gloss Black

0.8

4.4

1.00

Softail Deluxe Pull Back Riser, Black

55900165

Cast Alum

0.0

1.6

1.25

Road King Fat-Riser

56789-05

Cast Alum

-0.2

1.3

1.25

Hidden Fat Riser Kit

55900067

Satin Black

0.6

1.2

1.00

VRSCF Handlebar Replacement Riser

55900008

Chrome

0.0

1.9

1.00

Riser Kit for Headlight Nacelle

46809-09

Gloss Black

1.7

4.1

1.25

1.25 In. Fat Riser Kit

55900157

Gloss Black

0.0

2.5

1.25

Fat Handlebar Riser Kit

55900123

Chrome

0.0

2.5

1.25

Fat Handlebar Riser Kit

55900122

Chrome

1.5

4.4

1.00

Curved Riser, 4"

56066-82A

Riser Only Kits

Chrome

0.0

4.0

1.00

Straight Riser, 4"

56063-82A

Chrome

1.7

6.0

1.00

Curved Riser, 6"

56266-09

Chrome

0.0

6.0

1.00

Straight Riser, 6"

56223-98

Gloss Black

0.0

0.5

1.00

Riser Spacer Kit

55900074

Spacer / Shim Kits

Black Annodized

0.0

1.50 to 1.25

Handlebar Shim Kit

55800789

138 / 165

HOW TO FIND A CUSTOM LENGTH CABLE OR LINE

If you select a custom handlebar that requires shorter or longer control cables and brake lines, it’s easy to find the correct size
using the following 5 simple steps. For example, if you are installing a handlebar that requires 4" longer cables on your 2009 Fat
Boy® model, you would follow the instructions in Figure 49.

Find the model in the Original Equipment Applications chart.

Note the Diamondback part number for your model.

Locate the part number in the Custom Length Chart.

Note the length and specifications - this is the stock size.

Move up or down the chart for shorter or longer length requirements.

139 / 165

SOFTAIL

Table 474. Control Cables - Original Equipment Applications: Softail

THROTTLE/IDLE CABLES

CLUTCH CABLES/HYDRAULIC LINES

From

Platform

Diamond Black

Diamondback ™

Orig . Equip . Idle

Orig. Equip.

Throttle

Diamond Black

Diamondback ™

Original Equip-

ment

38954-09

56807-05A

56342-01

56343-01

38877-09B

38850-09A

38664-07C

2014

2012

FLS

38954-09

56807-05A

56342-01

56343-01

37200049A

38922-09A

37200117

2015

Stock TGS

32700050

37200049A

38922-09A

37200117

2017

2016

Stock TGS

32700050

37200109

37200107

37200186

2017

2016

FLSS

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-00

2006

FLST

38957-09

55700-07

56934-07A

56939-07A

38818-10A

38851-09A

38666-07C

2010

2009

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

38607-87A

1999

1996

FLSTC

38954-09

56807-05A

56342-96

56343-96

38818-10A

38851-09A

38666-00

2001

2000

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-00

2006

2002

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-07C

2008

2007

38918-09

56805-05A

56934-07A

56939-07A

38818-10A

38851-09A

38666-07C

2014

2009

38918-09

56805-05A

56934-07A

56939-07A

37200175

38923-09A

37200119

2015

Stock TGS

32700050

37200175

38923-09A

37200119

2017

2016

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

38607-87A

1999

1996

FLSTF

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

38664-00

2001

2000

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-00

2006

2002

38954-09

56807-05A

56342-01

56343-01

38877-09B

38850-09A

38664-07C

2014

2007

38954-09

56807-05A

56342-01

56343-01

37200049A

38922-09A

37200117

2015

Stock TGS

32700050

37200049A

38922-09A

37200117

2017

2016

Table 480.

Max. Cable

Stroke

Adjuster Pos-

ition "B"

Total Length "A"

Diamond Black

Diamondback™

Platform

2.72''

20.75''

48.25''

37200136A

37200134A

SPORTSTER 2004 - later

52.75''

37200008B

37200056A

54.75''

37200058A

38737-09B

57.50''

38939-09C

38745-09B

58.75''

37200149

37200151

61.75''

38911-09C

37200048A

3.13''

31.5''

57.69''

38874-10A

38847-09A

SOFTAIL 2000 - 2014
DYNA 2000 - 2017

58.69''

38941-09B

38848-09A

60.69''

38940-09B

38849-09A

62.69''

38877-09B

38850-09A

64.69''

38818-10A

38851-09A

66.69''

38875-09B

38852-09A

68.69''

38916-09B

38854-09A

70.69''

38973-10A

38856-09A

72.69''

38975-10A

38857-09A

74.69''

38977-10A

38858-09A

76.69''

38979-10A

38859-09A

78.69''

38860-09A

3.49''

25.4''

58.69''

37200174

37200173

TOURING 2000 - 2016
SOFTAIL 2015 - later

60.69''
62.69''

38967-10A

38921-09A

64.69''

37200049A

38922-09A

66.69''

37200175

38923-09A

68.69''

37200050A

38924-09A

70.69''

38981-10A

38925-09A

72.69''

38983-10A

38926-09A

74.00''

37200336

78.00''

37200337

CONTROL CABLES - CUSTOM LENGTHS

ACCESSORY CLUTCH CABLES

1110125

Figure 49.

140 / 165

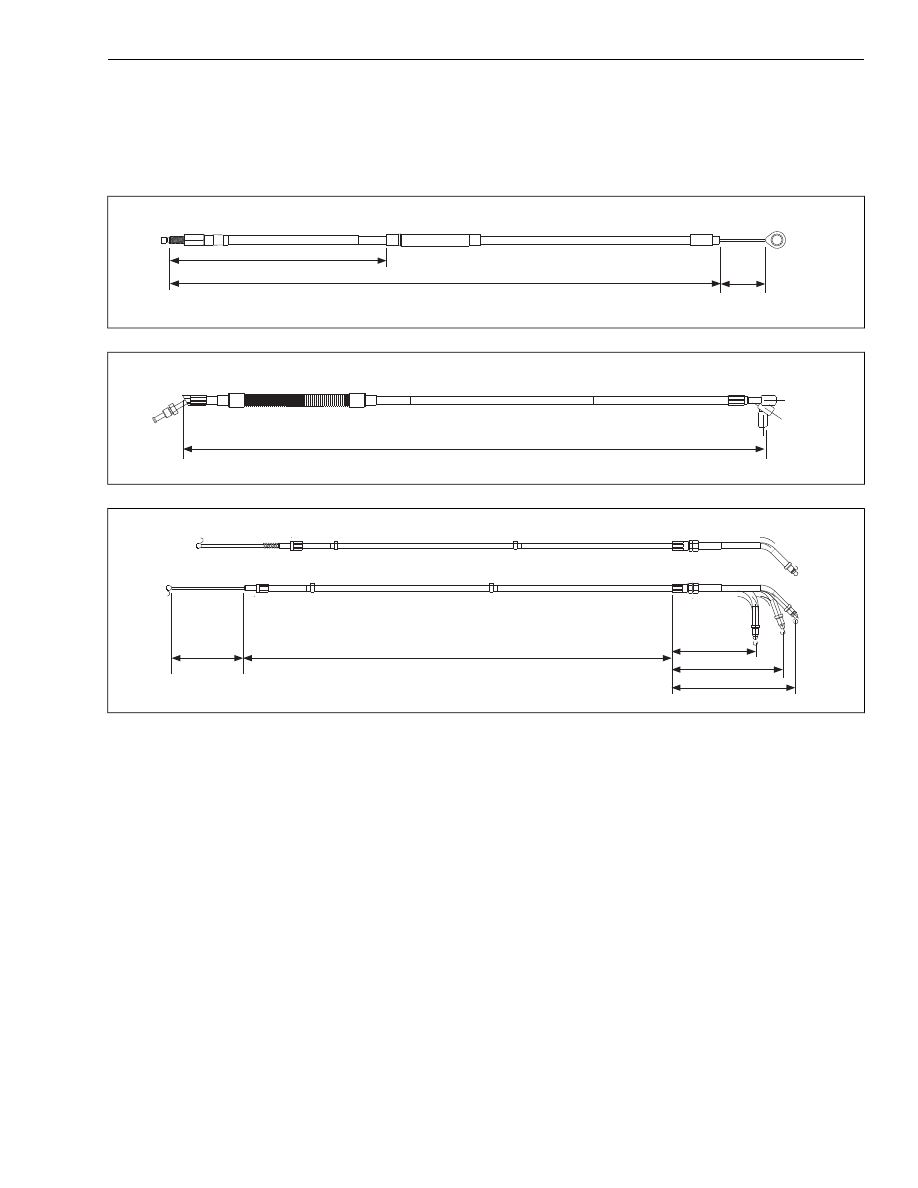

CUSTOM BRAIDED CONTROL CABLES

Dress your bike for maximum custom impact. Harley Davidson offers a choice of two braided cable finishes to match your
customizing style. All cables include a clear anti-yellowing outer jacket, providing superior scuff protection and easy maintenance.

CLUTCH

CABLE

STROKE

TRANSMISSION FITTING

ADJUSTER

ADJUSTER POSITION – DIMENSION "B"

OVERALL CLUTCH CABLE LENGTH – DIMENSION "A"

1110137

Figure 50. Clutch Cables

BANJO FITTINGS

90º

35º

0º

FLARE FITTING WITH TUBE NUT

OVERALL CLUTCH CABLE LENGTH – DIMENSION "A"

1110138

Figure 51. Hydraulic Clutch Lines

SPRING

'IDLE' CABLE

'THROTTLE' CABLE

'THROTTLE' CABLE DIMENSIONS PUBLISHED, 'IDLE'

CABLE DIMENSIONS AND STROKE MAY BE DIFFERENT

GRIP FITTING

('IDLE" CABLE ANGLE MATCHES

'THROTTLE' CABLE ANGLE)

GRIP FITTING

3.50" (8.89 cm )

4.63" (11.75 cm )

5.00" (12.70 cm )

OVERALL THROTTLE CABLE HOUSING LENGTH – DIMENSION "A"

90º

70º

45º

THROTTLE

CABLE

STROKE

1110139

Figure 52. Throttle/Idle Cables

141 / 165

CONTROL CABLES - ORIGINAL EQUIPMENT APPLICATIONS

STREET

™

Table 510. Control Cables - Original Equipment Applications: Street

THROTTLE/IDLE CABLES

CLUTCH CABLES/HYDRAULIC LINES

From

Model

Diamond

Black

Diamond-

back™

Orig. Equip.

Idle

Orig. Equip.

Throttle

Diamond

Black

Diamond-

back™

Original

Equipment

56100045

56100044

37200148

later

2015

XG500

56100045

56100044

37200148

later

2015

XG750

56100209

56100208

37200227

later

2017

XG750A

SPORTSTER

Table 511. Control Cables - Original Equipment Applications: Sportster

THROTTLE/IDLE CABLES

CLUTCH CABLES/HYDRAULIC LINES

From

Model

Diamond

Black

Diamond-

back™

Orig. Equip.

Idle

Orig. Equip.

Throttle

Diamond

Black

Diamond-

back™

Original

Equipment

56715-06

56401-96

56400-96

38619-86A

1999

1996

XL883 STD

56715-06

56401-96

56400-96

38662-00

2000

56715-06

56401-96

56400-96

38663-00

2003

2001

56715-06

56401-96

56400-96

37200058A

38737-09B

38699-04D

2006

2004

38945-09

56726-07

56885-07

56884-07

37200058A

38737-09B

38699-04D

2009

2007

56715-06

56401-96

56400-96

38620-96

1999

XL883C

56715-06

56401-96

56400-96

38663-00

2003

2000

56715-06

56401-96

56400-96

37200058A

38737-09B

38699-04D

2006

2004

38945-09

56726-07

56885-07

56884-07

37200058A

38737-09B

38699-04D

2010

2007

56715-06

56401-96

56400-96

38939-09C

38745-09B

38702-05C

2006

2005

XL883L

38945-09

56726-07

56885-07

56884-07

38939-09C

38745-09B

38702-05C

later

2007

38945-09

56726-07

56885-07

56884-07

37200058A

38737-09B

38699-04D

later

2009

XL883N

56309-96

56308-96

38662-00

2003

2002

XL883R

56715-06

56401-96

56400-96

37200058A

38737-09B

38699-04D

2006

2005

38945-09

56726-07

56885-07

56884-07

37200058A

38737-09B

38699-04D

2015

2007

56309-96

56308-96

38620-96

1999

1996

XLH883HUG

56309-96

56308-96

38663-00

2000

56309-96

56308-96

38662-00

2003

2001

38945-09

56726-07

56885-07

56884-07

37200058A

38737-09B

38699-04D

2007

XL50

56309-96

56308-96

38620-96

1999

1996

XL1200

56309-96

56308-96

38663-00

2000

56309-96

56308-96

38662-00

2003

2001

56382-96

56381-96

38619-86A

1998

1996

XL1200C

56715-06

56401-96

56400-96

38619-86A

1999

56715-06

56401-96

56400-96

38662-00

2000

56715-06

56401-96

56400-96

38663-00

2003

2001

56715-06

56401-96

56400-96

37200058A

38737-09B

38699-04D

2006

2004

38945-09

56726-07

56885-07

56884-07

37200058A

38737-09B

38699-04D

2010

2007

38945-09

56726-07

56885-07

56884-07

38911-09C

37200048A

37000041A

later

2011

XL1200C w/
base Pullback
H'bar

38913-09

38906-07

55786-11

55785-11

38911-09C

37200048A

37000041A

later

2011

XL1200C w/
optional Mini-
Ape H'bar

38945-09

56726-07

56885-07

56884-07

37200058A

38737-09B

38699-04D

later

2011

XL1200C w/
optional Drag-
bar H'bar

56715-06

56401-96

56400-96

38939-09C

38745-09B

38702-05C

2006

XL1200L

38945-09

56726-07

56885-07

56884-07

38939-09C

38745-09B

38702-05C

2011

2007

38945-09

56726-07

56885-07

56884-07

38939-09C

38745-09B

38702-05C

2012

2007

XL1200N

38913-09

38906-07

55786-11

55785-11

38911-09C

37200048A

37000041A

later

2018

XL1200NS

56715-06

56401-96

56400-96

37200058A

38737-09B

38699-04D

2006

2004

XL1200R

38945-09

56726-07

56885-07

56884-07

37200058A

38737-09B

38699-04D

2009

2007

56715-06

56401-96

56400-96

38663-00

2003

1996

XL1200S

38945-09

56726-07

56885-07

56884-07

37200058A

38737-09B

38699-04D

later

2014

XL1200T

38913-09

38906-07

55786-11

55785-11

38911-09C

37200048A

37000041A

later

2012

XL1200V

38945-09

56726-07

56885-07

56884-07

37200058A

38737-09B

38699-04D

later

2010

XL1200X

56100197

56100196

56100198

27000027

37200008B

37200056A

37200172

later

2016

XL1200XC

38913-09

38906-07

55786-11

55785-11

38939-09C

38745-09B

38702-05C

later

2018

XL1200XS

142 / 165

Table 511. Control Cables - Original Equipment Applications: Sportster

THROTTLE/IDLE CABLES

CLUTCH CABLES/HYDRAULIC LINES

From

Model

Diamond

Black

Diamond-

back™

Orig. Equip.

Idle

Orig. Equip.

Throttle

Diamond

Black

Diamond-

back™

Original

Equipment

56639-08

56637-08

38939-09C

38745-09B

38786-08A

2010

2008

XR1200

56639-08

56637-08

38939-09C

38745-09B

38786-08A

2012

2010

XR1200X

DYNA

Table 512. Control Cables - Original Equipment Applications: Dyna

THROTTLE/IDLE CABLES

CLUTCH CABLES/HYDRAULIC LINES

From

Model

Diamond

Black

Diamond-

back™

Orig. Equip.

Idle

Orig. Equip.

Throttle

Diamond

Black

Diamond-

back™

Original

Equipment

38954-09

56807-05A

56415-06

56421-06

38875-09B

38852-09A

38788-06C

2017

2012

FLD

38918-09

56805-05A

56355-96A

56356-96A

38916-09B

38854-09A

38602-92

1999

1996

FXD

38918-09

56805-05A

56355-96A

56356-96A

38818-10A

38851-09A

38666-00

2005

2000

38946-09

38781-06

56634-06

56633-06

38818-10A

38851-09A

38787-06C

2010

2006

38954-09

56807-05A

56415-06

56421-06

38875-09B

38852-09A

38788-06C

2006

FXD35

38918-09

56805-05A

56355-96A

56356-96A

38916-09B

38854-09A

38789-06C

2012

2006

FXDB

38918-09

56805-05A

56355-96A

56356-96A

38916-09B

38854-09A

38789-06C

2017

2013

FXDB w/ base
Mini-Ape H'bar

38954-09

56807-05A

56415-06

56421-06

38875-09B

38852-09A

38788-06C

2017

2013

FXDB w/ op-
tional Pullback
H'bar

38946-09

38781-06

56634-06

56633-06

38940-09B

38849-09A

38785-08A

2017

2013

FXDB w/ op-
tionad Dragbar
H'bar

38946-09

38781-06

56634-06

56633-06

38940-09B

38849-09A

38785-08A

2015

2014

FXDBB (stock
Dragbar)

38946-09

38781-06

56634-06

56633-06

38940-09B

38849-09A

38785-08A

2017

2016

FXDBC (stock
Dragbar)

38918-09

56805-05A

56355-96A

56356-96A

38818-10A

38851-09A

38666-00

2005

FXDC

38946-09

38781-06

56634-06

56633-06

38818-10A

38851-09A

38787-06C

2006

38954-09

56807-05A

56415-06

56421-06

38875-09B

38852-09A

38788-06C

2017

2007

38946-09

38781-06

56634-06

56633-06

38940-09B

38849-09A

38785-08A

later

2008

FXDF

38918-09

56805-05A

56355-96A

56356-96A

38916-09B

38854-09A

38602-92

1999

1996

FXDL

38918-09

56805-05A

56355-96A

56356-96A

38916-09B

38854-09A

38661-00

2000

38918-09

56805-05A

56355-96A

56356-96A

38818-10A

38851-09A

38666-00

2005

2001

38954-09

56807-05A

56415-06

56421-06

38875-09B

38852-09A

38788-06C

2013

2006

38954-09

56807-05A

56415-06

56421-06

38877-09B

38850-09A

37200083

2017

2014

Stock TGS 32700050

38940-09B

38849-09A

38785-08A

2017

2016

FXDLS

38918-09

56805-05A

56355-96A

56356-96A

38916-09B

38854-09A

38602-92

1999

1996

FXDS-CONV

38918-09

56805-05A

56355-96A

56356-96A

38916-09B

38854-09A

38661-00

2000

38918-09

56805-05A

56355-96A

56356-96A

38916-09B

38854-09A

38602-92

1999

1996

FXDWG

38918-09

56805-05A

56355-96A

56356-96A

38916-09B

38854-09A

38661-00

2005

2000

38918-09

56805-05A

56355-96A

56356-96A

38916-09B

38854-09A

38789-06C

2008

2006

38954-09

56807-05A

56415-06

56421-06

38818-10A

38851-09A

38787-06C

2017

2010

38918-09

56805-05A

56355-96A

56356-96A

38818-10A

38851-09A

38649-08A

1999

FXDX

38918-09

56805-05A

56355-96A

56356-96A

38818-10A

38851-09A

38666-00

2005

2000

38918-09

56805-05A

56355-96A

56356-96A

38818-10A

38851-09A

38666-00

2003

2001

FXDXT

SOFTAIL

Table 513. Control Cables - Original Equipment Applications: Softail

THROTTLE/IDLE CABLES

CLUTCH CABLES/HYDRAULIC LINES

From

Model

Diamond

Black

Diamond-

back™

Orig. Equip.

Idle

Orig. Equip.

Throttle

Diamond

Black

Diamond-

back™

Original

Equipment

38954-09

56807-05A

56342-01

56343-01

38877-09B

38850-09A

38664-07C

2014

2012

FLS

38954-09

56807-05A

56342-01

56343-01

37200049A

38922-09A

37200117

2015

Stock TGS 32700050

37200049A

38922-09A

37200117

2017

2016

Stock TGS 32700050

37200109

37200107

37200186

2017

2016

FLSS

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

2006

FLST

38957-09

55700-07

56934-07A

56939-07A

38818-10A

38851-09A

38666-07C

2010

2009

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

38607-87A

1999

1996

FLSTC

38954-09

56807-05A

56342-96

56343-96

38818-10A

38851-09A

38666-00

2001

2000

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-00

2006

2002

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-07C

2008

2007

38918-09

56805-05A

56934-07A

56939-07A

38818-10A

38851-09A

38666-07C

2014

2009

38918-09

56805-05A

56934-07A

56939-07A

37200175

38923-09A

37200119

2015

Stock TGS 32700050

37200175

38923-09A

37200119

2017

2016

143 / 165

Table 513. Control Cables - Original Equipment Applications: Softail

THROTTLE/IDLE CABLES

CLUTCH CABLES/HYDRAULIC LINES

From

Model

Diamond

Black

Diamond-

back™

Orig. Equip.

Idle

Orig. Equip.

Throttle

Diamond

Black

Diamond-

back™

Original

Equipment

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

38607-87A

1999

1996

FLSTF

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

38664-00

2001

2000

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-00

2006

2002

38954-09

56807-05A

56342-01

56343-01

38877-09B

38850-09A

38664-07C

2014

2007

38954-09

56807-05A

56342-01

56343-01

37200049A

38922-09A

37200117

2015

Stock TGS 32700050

37200049A

38922-09A

37200117

2017

2016

38954-09

56807-05A

56342-01

56343-01

38877-09B

38850-09A

38664-07C

2014

2010

FLSTFB

38954-09

56807-05A

56342-01

56343-01

37200049A

38922-09A

37200117

2015

Stock TGS 32700050

37200049A

38922-09A

37200117

2017

2016

Stock TGS 32700050

37200109

37200107

37200186

2017

2016

FLSTFBS

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

1996

FLSTN

38954-09

56807-05A

56342-01

56343-01

38877-09B

38850-09A

38664-00

2006

2005

38954-09

56807-05A

56342-01

56343-01

38877-09B

38850-09A

38664-07C

2014

2007

38954-09

56807-05A

56342-01

56343-01

37200049A

38922-09A

37200117

2015

Stock TGS 32700050

37200049A

38922-09A

37200117

2017

2016

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

38607-87A

1999

1997

FLSTS

38954-09

56807-05A

56342-96

56343-96

38818-10A

38851-09A

38666-00

2001

2000

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-00

2003

2002

38957-09

55700-07

56934-07A

56939-07A

38875-09B

38852-09A

38883-08A

2011

2008

FLSTSB

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-07C

2007

2005

FLSTSC

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-07C

2009

2008

FXCW

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-07C

2011

2008

FXCWC

38947-09

56808-05A

56433-98

56432-98

38941-09B

38848-09A

38665-07B

2013

2011

FXS

38946-09

38781-06

27000004

56100056

38940-09B

38849-09A

37200033

2014

2013

FXSB

38946-09

38781-06

27000004

56100056

38967-10A

38921-09A

37200115

2015

Stock TGS 32700050

38967-10A

38921-09A

37200115

2017

2016

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

38607-87A

1999

FXST

38954-09

56807-05A

56342-96

56343-96

38818-10A

38851-09A

38666-00

2001

2000

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-00

2006

2002

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-07C

2014

2007

38954-09

56807-05A

56342-01

56343-01

37200175

38923-09A

37200119

2015

38947-09

56808-05A

56433-98

56432-98

38874-10A

38847-09A

1999

FXSTB

38947-09

56808-05A

56433-98

56432-98

38874-10A

38847-09A

38665-00

2006

2000

38947-09

56808-05A

56433-98

56432-98

38941-09B

38848-09A

38665-07B

2009

2007

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

38607-87A

1999

1996

FXSTC

38918-09

56805-05A

56934-07A

56939-07A

38818-10A

38851-09A

38666-07C

2010

2007

38954-09

56807-05A

56342-96

56343-96

38877-09B

38850-09A

38664-00

2001

2000

FXSTD

38954-09

56807-05A

56342-01

56343-01

38877-09B

38850-09A

38664-00

2006

2002

38954-09

56807-05A

56342-01

56343-01

38818-10A

38851-09A

38666-07C

2007

38877-09B

38850-09A

38607-87A

1999

1996

FXSTS

38818-10A

38851-09A

38666-00

2006

2000

38954-09

56807-05A

56342-96

56343-96

38940-09B

38849-09A

1997

1996

FXSTSB

Stock TGS 32700088

37200175

38923-09A

37200218 /

37200214

later

2018

FLHC/S

Stock TGS 32700088

'37200050A

38924-09A

37200216 /

37200214

later

2018

FLFB/S

Stock TGS 32700088

'37200049A

38922-09A

37200219 /

37200214

later

2018

FLDE

Stock TGS 32700088

'37200049A

38922-09A

37200215 /

37200214

later

2018

FLSL

Stock TGS 32700088

'37200049A

38922-09A

37200215 /

37200214

later

2018

FXBR/S

Stock TGS 32700088

'37200050A

38924-09A

37200216 /

37200214

later

2018

FXBB

Stock TGS 32700088

'37200049A

38922-09A

37200219 /

37200214

later

2018

FXFB/S

Stock TGS 32700088

37200175

38923-09A

37200218 /

37200214

later

2018

FXLR

Stock TGS 32700088

'37200049A

38922-09A

37200219 /

37200214

later

2018

FLSB

Stock TGS 32700088

37200049A

38922-09A

37200219 /

37200214

later

2019

FXDRS

TGS = Twist Grip Sensor (throttle by wire)

144 / 165

TOURING

Table 514. Control Cables - Original Equipment Applications: Touring

THROTTLE/IDLE CABLES

CLUTCH CABLES/HYDRAULIC LINES

From

Model

Diamond

Black

Diamond-

back™

Orig. Equip.

Idle

Orig. Equip.

Throttle

Diamond

Black

Diamond-

back™

Original

Equipment

56375-96

56376-96

38967-10A

38921-09A

38601-89

1999

1996

FLHR
(carburated)

56375-96

56376-96

38967-10A

38921-09A

38667-00

2001

2000

55723-10

56809-05

56237-99A

56376-02

38967-10A

38921-09A

38667-00

2006

2002

56375-96

56376-96

38967-10A

38921-09A

38601-89

1999

1996

FLHR
(fuel injected)

56368-96

56379-96

38967-10A

38921-09A

38667-00

2001

2000

55723-10

56809-05

56237-99A

56376-02

38967-10A

38921-09A

38667-00

2006

2002

55723-10

56809-05

56237-99A

56376-02

38967-10A

38921-09A

38667-07

2007

Stock TGS 32305-08A & 70415-08A

38967-10A

38921-09A

38667-08A

2013

2008

Stock TGS 32305-08A & 69200338

38967-10A

38921-09A

37200005

2015

2014

Stock TGS 32700050

38967-10A

38921-09A

37200005

2016

Stock TGS 32700050

37200289

37200246

37200129

later

2017

56375-96

56376-96

38967-10A

38921-09A

38601-89

1997

1996

FLHRC

56368-96

56379-96

38967-10A

38921-09A

38601-89

1999

1998

56368-96

56379-96

38967-10A

38921-09A

38667-00

2001

2000

55723-10

56809-05

56237-99A

56376-02

38967-10A

38921-09A

38667-00

2006

2002

55723-10

56809-05

56237-99A

56376-02

38967-10A

38921-09A

38667-07

2007

Stock TGS 32305-08A & 70415-08A

38967-10A

38921-09A

38667-08A

2013

2008

Stock TGS 32305-08A & 69200338

38967-10A

38921-09A

37200005

2015

2014

Stock TGS 32700050

38967-10A

38921-09A

37200005

2016

Stock TGS 32700050

37200289

37200246

37200129

later

2017

56810-05

56293-03

56295-03

38967-10A

38921-09A

38667-00

2006

2004

FLHRS

56810-05

56293-03

56295-03

38967-10A

38921-09A

38667-07

2007

56328-96

56327-96

38967-10A

38921-09A

38601-89

1999

1996

FLHT

56328-96

56327-96

38967-10A

38921-09A

38667-00

2001

2000

38778-05

56525-02

56526-02

38967-10A

38921-09A

38667-00

2005

2002

38778-05

56358-02

56357-02

38967-10A

38921-09A

38667-00

2006

38778-05

56358-02

56357-02

38967-10A

38921-09A

38667-07

2007

Stock TGS 32305-08A & 70415-08A

38967-10A

38921-09A

38667-08A

2010

2008

56328-96

56327-96

38967-10A

38921-09A

38601-89

1999

1996

FLHTC

56387-96

56357-96

38967-10A

38921-09A

38667-00

2001

2000

38778-05

56358-02

56357-02

38967-10A

38921-09A

38667-00

2006

2002

38778-05

56358-02

56357-02

38967-10A

38921-09A

38667-07

2007

Stock TGS 32305-08A & 70415-08A

38967-10A

38921-09A

38667-08A

2013

2008

56358-96

56357-96

38967-10A

38921-09A

38601-89

1999

1996

FLHTCU

56358-96

56357-96

38967-10A

38921-09A

38667-00

2001

2000

38778-05

56358-02

56357-02

38967-10A

38921-09A

38667-00

2006

2002

38778-05

56358-02

56357-02

38967-10A

38921-09A

38667-07

2007

Stock TGS 32305-08A & 70415-08A

38967-10A

38921-09A

38667-08A

2013

2008

Stock TGS 32305-08A & 69200338

37200043

37200037A

37200024

2015

2014

Stock TGS 32700050

37200043

37200037A

37200024

2016

Stock TGS 32700050

37200289

37200246

37200129

later

2017

Stock TGS 32305-08A & 70415-08A

38967-10A

38921-09A

38667-08A

2013

2010

FLHTK

Stock TGS 32305-08A & 69200338

37200043

37200037A

37200024

2015

2014

Stock TGS 32700050

37200043

37200037A

37200024

2016

Stock TGS 32700050

37200289

37200246

37200129

later

2017

38778-05

56358-02

56357-02

38967-10A

38921-09A

38667-00

2006

FLHX

38778-05

56358-02

56357-02

38967-10A

38921-09A

38667-07

2007

Stock TGS 32305-08A & 70415-08A

38967-10A

38921-09A

38667-08A

2013

2008

Stock TGS 32305-08A & 69200338

37200043

37200037A

37200024

2015

2014

Stock TGS 32700050

37200043

37200037A

37200024

2016

Stock TGS 32700050

37200289

37200246

37200129

later

2017

Stock TGS 32305-08A & 69200338

37200043

37200037A

37200024

2015

2014

FLHXS

Stock TGS 32700050

37200043

37200037A

37200024

2016

Stock TGS 32700050

37200289

37200246

37200129

later

2017

Stock TGS 32700050

37200289

37200246

37200129

later

2017

FLHRXS

56358-96

56357-96

38967-10A

38921-09A

38601-89

1996

FLTCU

56351-96

56327-96

38967-10A

38921-09A

38601-89

1999

1996

FLTR

56358-96

56357-96

38967-10A

38921-09A

38667-00

2001

2000

38778-05

56358-02

56357-02

38967-10A

38921-09A

38667-00

2006

2002

38778-05

56358-02

56357-02

38967-10A

38921-09A

38667-07

2007

Stock TGS 32305-08A & 70415-08A

38967-10A

38921-09A

38667-08A

2009

2008

Stock TGS 32305-08A & 70415-08A

38967-10A

38921-09A

38667-08A

2013

2010

FLTRX

Stock TGS 32305-08A & 69200338

37200099

37200103

37200097

2015

Stock TGS 32700050

37200099

37200103

37200097

2016

Stock TGS 32700050

37200292

37200260

37200128

later

2017

Stock TGS 32305-08A & 69200338

37200099

37200103

37200097

2015

FLTRXS

Stock TGS 32700050

37200099

37200103

37200097

2016

Stock TGS 32700050

37200292

37200260

37200128

later

2017

145 / 165

Content .. 7 8 9 10 ..
