Harley Davidson HANDLEBAR INSTALLATION REQUIREMENTS (2019-02-13) - page 7

Table 384.

Diamond Black

Diamondback™

OEM Stock

Fitment

46809-09

Riser Kit

70234-07

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2011-2014 FLSTF & FLSTFB

Table 385.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, NON-ABS - UPPER

48920-10

42371-07

n/a

Brake Lines, NON-ABS - LOWER

41800580

41800042A

n/a

Brake Lines, ABS - UPPER

38135-11A

38132-11A

n/a

Brake Lines, ABS - LOWER

46809-09

Riser Kit

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2015 FLSTF & FLSTFB

Table 386.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800456

41800453

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

46809-09

Riser Kit

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2016-2017 FLSTF & FLSTFB

Table 387.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

41800456

41800453

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

46809-09

Riser Kit

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

2018-later FLFB & FLFBS

Table 388.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200386

Upper Clutch Cables

n/a

37200336

n/a

One-Piece Clutch Cables

41800480

41800465

41800657

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

55900023

Riser Kit

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

69201795

Turn Signal Wire Extensions, 8"

2016 FLSS & FLSTFBS

Table 389.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200199

37200187

n/a

Hydraulic Clutch Lines

41800456

41800453

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

46809-09

Riser Kit (FLSTFBS models only)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

98 / 165

2017 FLSS & FLSTFBS

Table 390.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200294

37200251

n/a

Hydraulic Clutch Lines

41800456

41800453

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

46809-09

Riser Kit (FLSTFBS models only)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

NOTE: Installation of handlebars and risers may require a change in clutch cables or lines, throttle cables, or brake lines for some models. All modular lower brake
lines listed are based on stock front suspension. Harley Davidson Motor Company cannot test and make specific fitment recommendations concerning every possible
mirror and handlebar combination. Therefore, after installing new mirrors, handlebars, or control cables/lines and before operating the motorcycle, check to ensure
that all controls are fully functional and that the mirrors provide the operator a clear view to the rear. Handlebar height is regulated in many areas. Check local laws
before installation.

99 / 165

1" REACH HANDLEBAR

55800715 (CHROME), 55800717 (GLOSS BLACK)

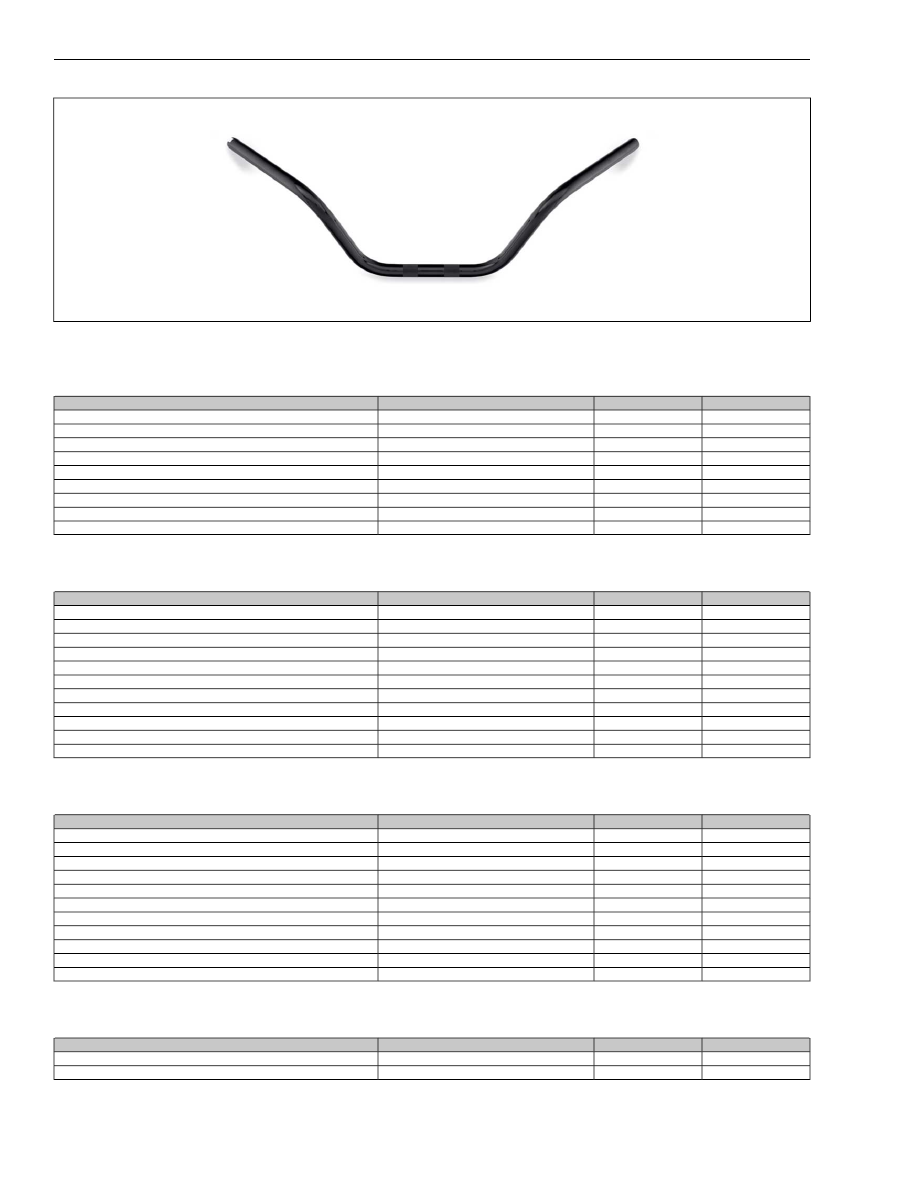

Figure 29. 1" REACH HANDLEBAR

2018-later FXBB

Table 392.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

Stock

Upper Clutch Cables

37200050A

38924-09A

n/a

Clutch Cables

41800553

41800473

41800655

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800553

41800473

41800655

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

2018-later FXLR

Table 393.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200326

Upper Clutch Cables

37200050A

38924-09A

n/a

Clutch Cables

41800437

41800421

41800708

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800437

41800421

41800708

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

2018-later FLSL

Table 394.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200326

Upper Clutch Cables

37200049A

38922-09A

n/a

Clutch Cables

n/a

41800474

41800655

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

n/a

41800474

41800655

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

2018-later FLDE

Table 395.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200326

Upper Clutch Cables

37200050A

38924-09A

n/a

Clutch Cables

100 / 165

Table 395.

Diamond Black

Diamondback™

OEM Stock

Fitment

41800437

41800421

41800708

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

2018-later FLHC & FLHCS

Table 396.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

Stock

Upper Clutch Cables

37200175

38923-09A

n/a

Clutch Cables

n/a

41800475

41800706

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

101 / 165

1" TALLBOY HANDLEBAR

55800719 (CHROME), 55800721 (GLOSS BLACK)

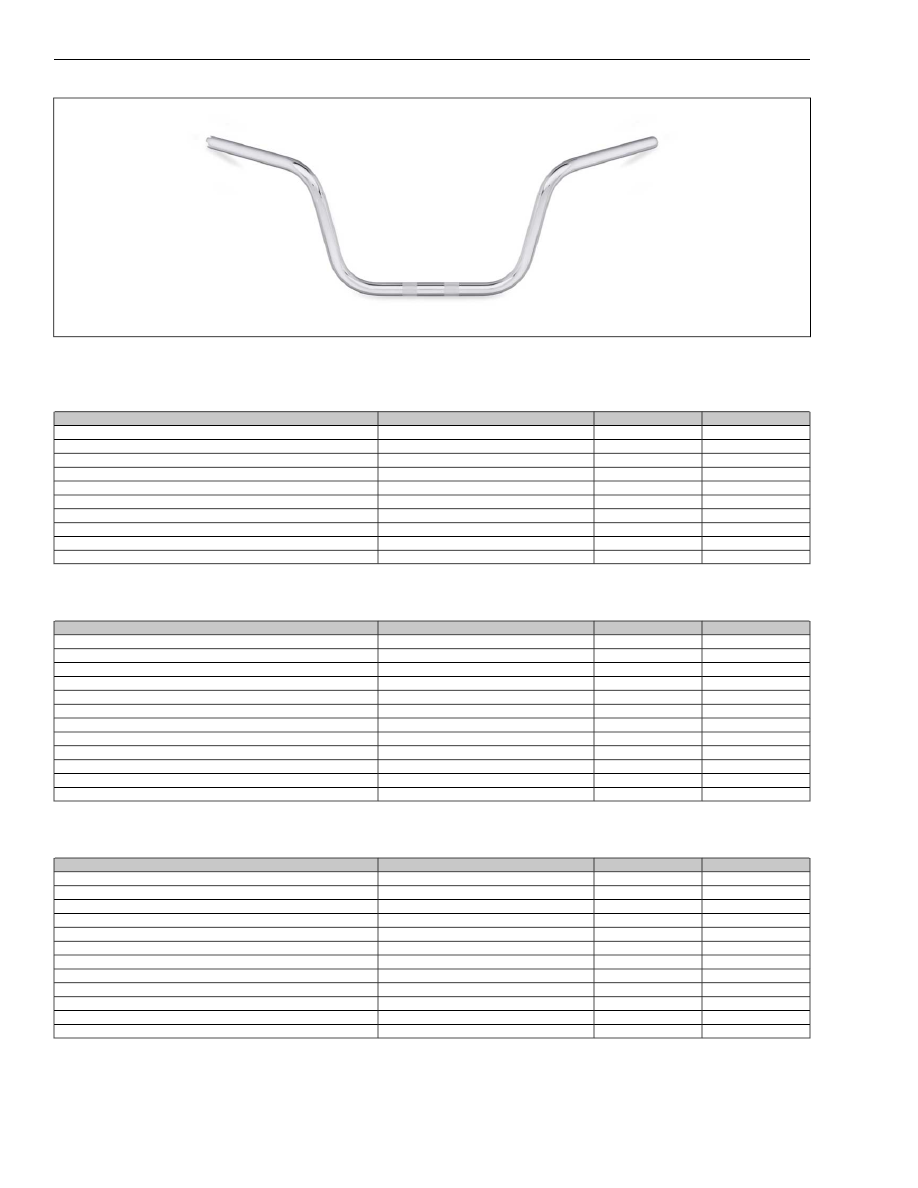

Figure 30. 1" TALLBOY HANDLEBAR

2018-later FXBB

Table 398.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200327

Upper Clutch Cables

38981-10A

38925-09A

n/a

Clutch Cables

41800441

41800425

41800667

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800441

41800425

41800667

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

2018-later FXLR

Table 399.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200381

Upper Clutch Cables

38981-10A

38925-09A

n/a

Clutch Cables

41800456

41800453

41800667

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800456

41800453

41800667

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

69201795

Turn Signal Wire Extensions, 8"

2018-later FLSL

Table 400.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200327

Upper Clutch Cables

38981-10A

38925-09A

n/a

Clutch Cables

41800260

41800246

41800711

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800260

41800246

41800711

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

69201795

Turn Signal Wire Extensions, 8"

102 / 165

2018-later FLDE

Table 401.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200327

Upper Clutch Cables

38981-10A

38925-09A

n/a

Clutch Cables

41800439

41800423

41800678

Brake Lines, ABS - UPPER

n/a

41600632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

2018-later FLHC & FLHCS

Table 402.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200326

Upper Clutch Cables

3720050A

38924-09A

n/a

Clutch Cables

41800439

41800423

41800667

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

103 / 165

FAT REACH HANDLEBAR

55800712 (CHROME), 55800714 (GLOSS BLACK)

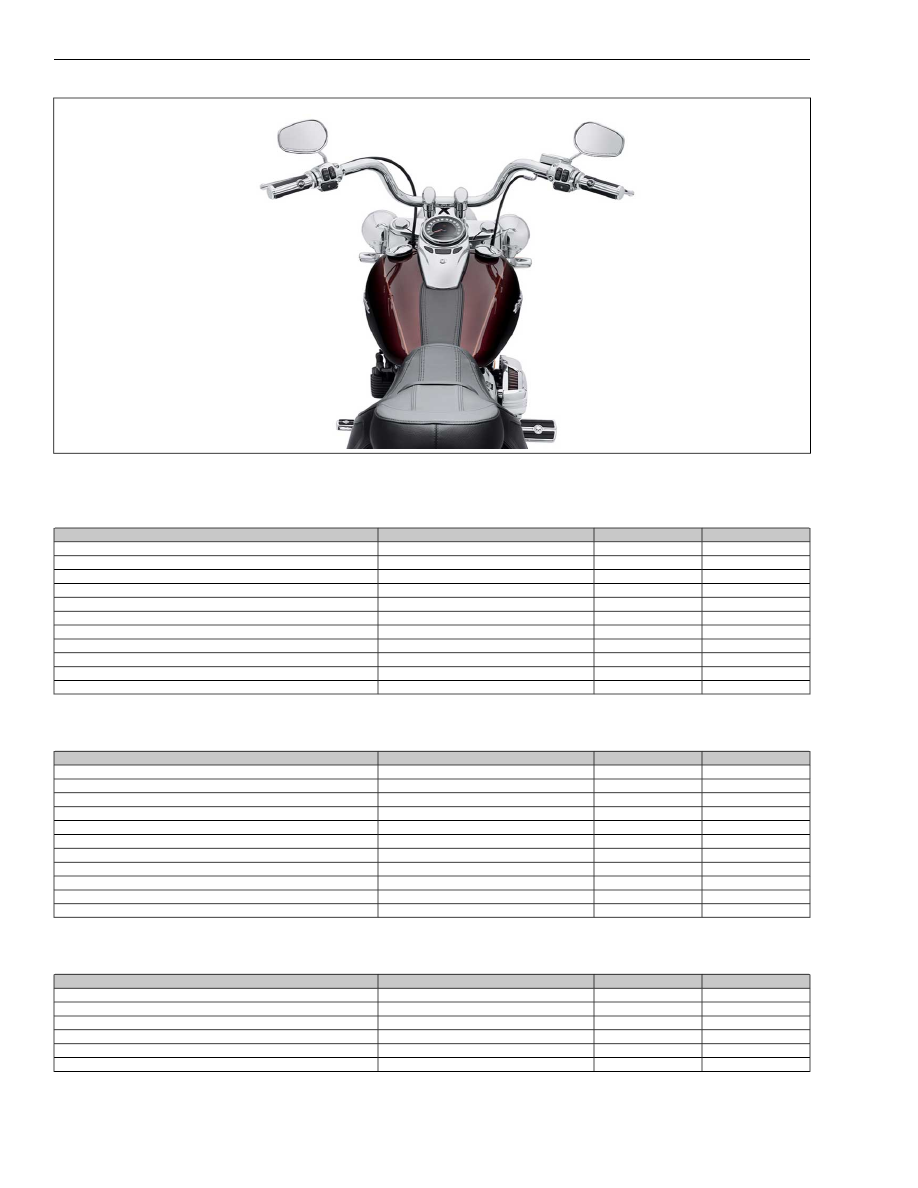

Figure 31. FAT REACH HANDLEBAR

2018-later FXBR, FXBRS, FLFB, FLFBS & FLSB

Table 404.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200327

Upper Clutch Cables

38983-10A

38926-09A

n/a

Clutch Cables

41800437

41800421

41800705

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER (all except FXBR/S)

n/a

Stock

Brake Lines, ABS - LOWER (FXBR/S only)

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

69201795

Turn Signal Wire Extensions, 8" (FXBR only)

2018-later FXFB & FXFBS

Table 405.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200326

Upper Clutch Cables

37200050A

38924-09A

n/a

One-Piece Clutch Cables

n/a

41800725

41800721

Brake Lines, ABS - UPPER

n/a

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

69201795

Turn Signal Wire Extensions, 8"

55800789

Handlebar Shim Kit

2018-later FLSL

Table 406.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200381

Upper Clutch Cables

37200050A

38924-09A

n/a

Clutch Cables

41800437

41800421

41800705

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

104 / 165

Table 406.

Diamond Black

Diamondback™

OEM Stock

Fitment

41800437

41800421

41800705

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

105 / 165

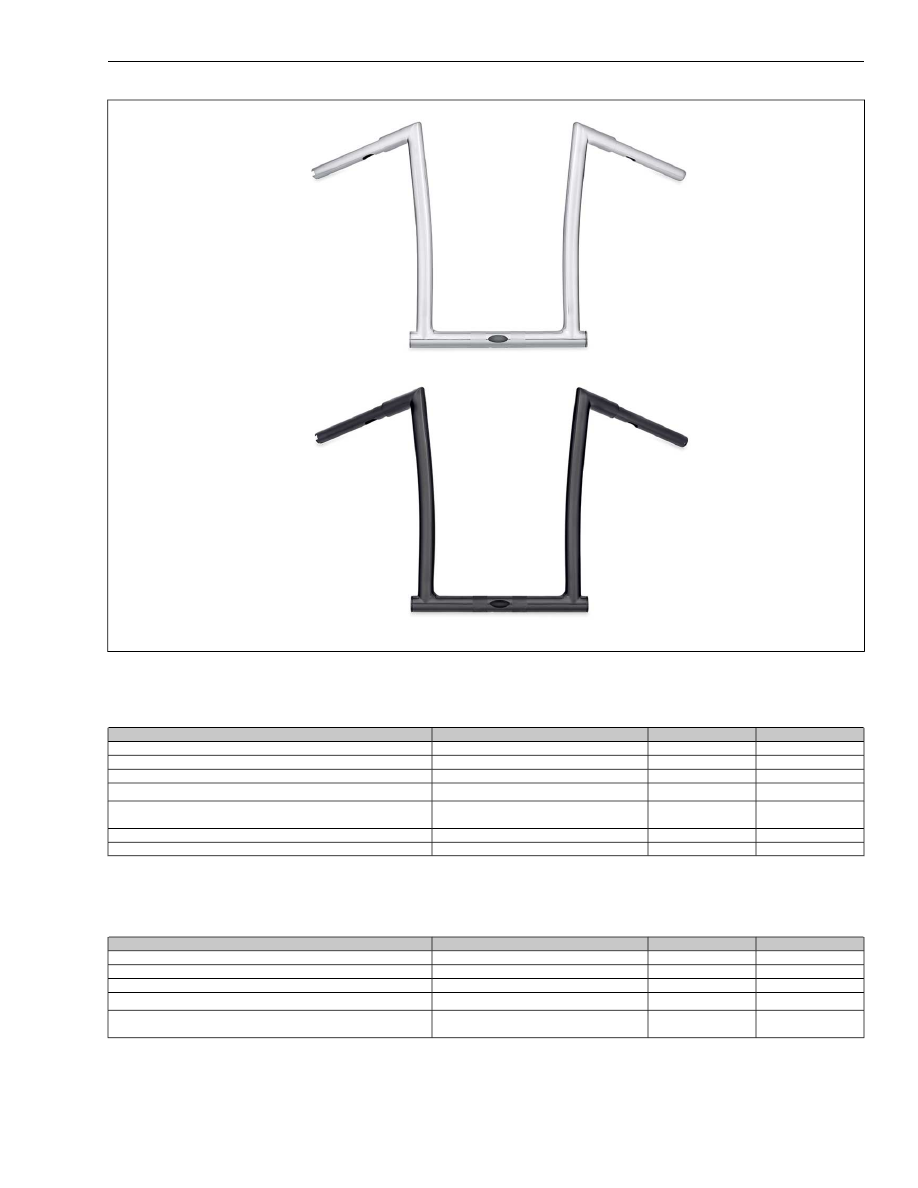

ROAD GLIDE

CHIZELED LOW HANDLEBAR

55800568 (CHROME), 55800569 (GLOSS BLACK)

Figure 32. ROAD GLIDE

CHIZELED LO HANDLEBAR

2015-2016 FLTRX, FLTRXS

Table 408.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200042

37200036A

n/a

Hydraulic Clutch Lines

41800436

41800240

n/a

Brake Lines, NON ABS - UPPER (FLTRX only)

41800338

41800336

n/a

Brake Lines, NON ABS - LOWER (FLTRX only)

41800250 & 41800321

41800236 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLTRX, FLTRXS

Table 409.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200287

37200245

n/a

Hydraulic Clutch Lines

41800436

41800240

n/a

Brake Lines, NON ABS - UPPER (FLTRX only)

41800338

41800336

n/a

Brake Lines, NON ABS - LOWER (FLTRX only)

41800250 & 41800321

41800236 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

106 / 165

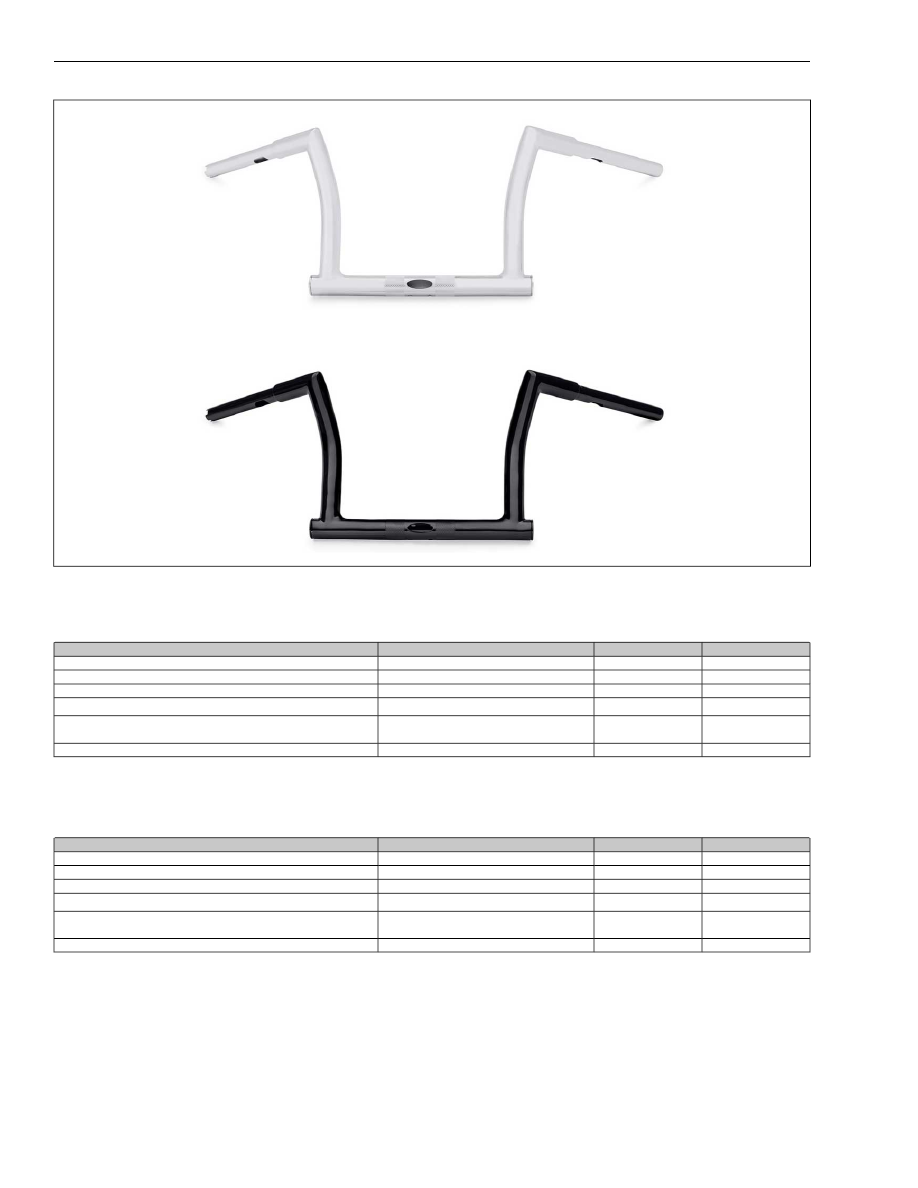

ROAD GLIDE

CHIZELED HANDLEBAR

55800439 (CHROME), 55800440 (GLOSS BLACK)

Figure 33. ROAD GLIDE

CHIZELED HANDLEBAR

2015-2016 FLTRX, FLTRXS

Table 411.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200044

37200038A

n/a

Hydraulic Clutch Lines

41800456

41800453

n/a

Brake Lines, NON ABS - UPPER (FLTRX only)

41800338

41800336

n/a

Brake Lines, NON ABS - LOWER (FLTRX only)

41800258 & 41800321

41800244 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800323A &

41800333

41800323A &

41800332

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLTRX, FLTRXS

Table 412.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200290

37200247

n/a

Hydraulic Clutch Lines

41800456

41800453

n/a

Brake Lines, NON ABS - UPPER (FLTRX only)

41800338

41800336

n/a

Brake Lines, NON ABS - LOWER (FLTRX only)

41800258 & 41800321

41800244 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800323A &

41800333

41800323A &

41800332

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

107 / 165

Table 412.

Diamond Black

Diamondback™

OEM Stock

Fitment

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2016 FLTRU

Table 413.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200044

37200038A

n/a

Hydraulic Clutch Lines

41800258 & 41800321

41800244 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800323A &

41800333

41800323A &

41800332

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLTRU

Table 414.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200290

37200247

n/a

Hydraulic Clutch Lines

41800258 & 41800321

41800244 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800323A &

41800333

41800323A &

41800332

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

108 / 165

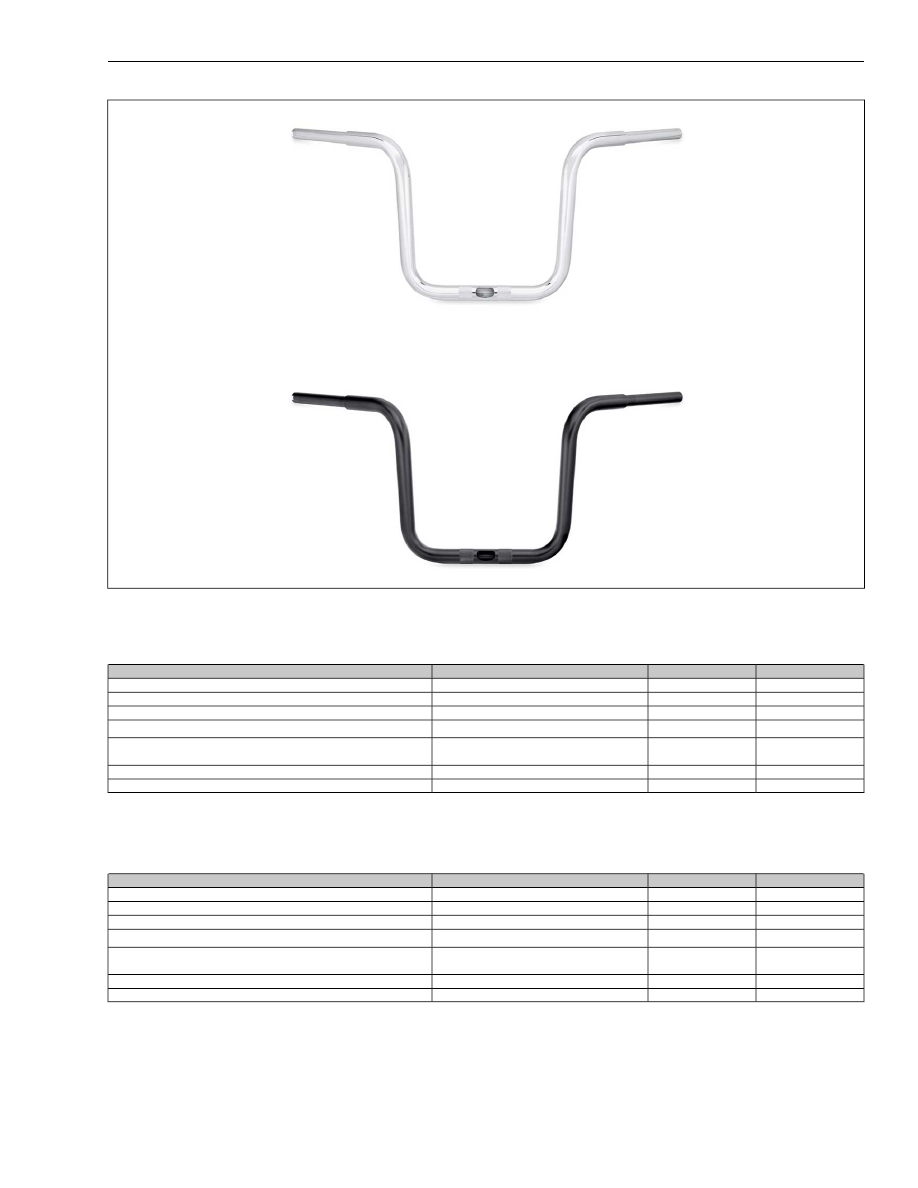

ROAD GLIDE

TALLBOY

HANDLEBAR

55800550A (CHROME), 55800551A (BLACK)

Figure 34. ROAD GLIDE

TALLBOY

HANDLEBAR ('15-later models)

2015-2016 FLTRX, FLTRXS

Table 416.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200099

37200103

n/a

Hydraulic Clutch Lines

n/a

41800474

n/a

Brake Lines, NON-ABS - UPPER (FLTRX only)

n/a

41800336

n/a

Brake Lines, NON-ABS - LOWER (FLTRX only)

41800443 & 41800321

41800427 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLTRX, FLTRXS

Table 417.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200292

37200260

n/a

Hydraulic Clutch Lines

n/a

41800474

n/a

Brake Lines, NON-ABS - UPPER (FLTRX only)

n/a

41800336

n/a

Brake Lines, NON-ABS - LOWER (FLTRX only)

41800443 & 41800321

41800427 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

109 / 165

2016 FLTRU

Table 418.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200099

37200103

n/a

Hydraulic Clutch Lines

41800443 & 41800321

41800427 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLTRU

Table 419.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200292

37200260

n/a

Hydraulic Clutch Lines

41800443 & 41800321

41800427 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

110 / 165

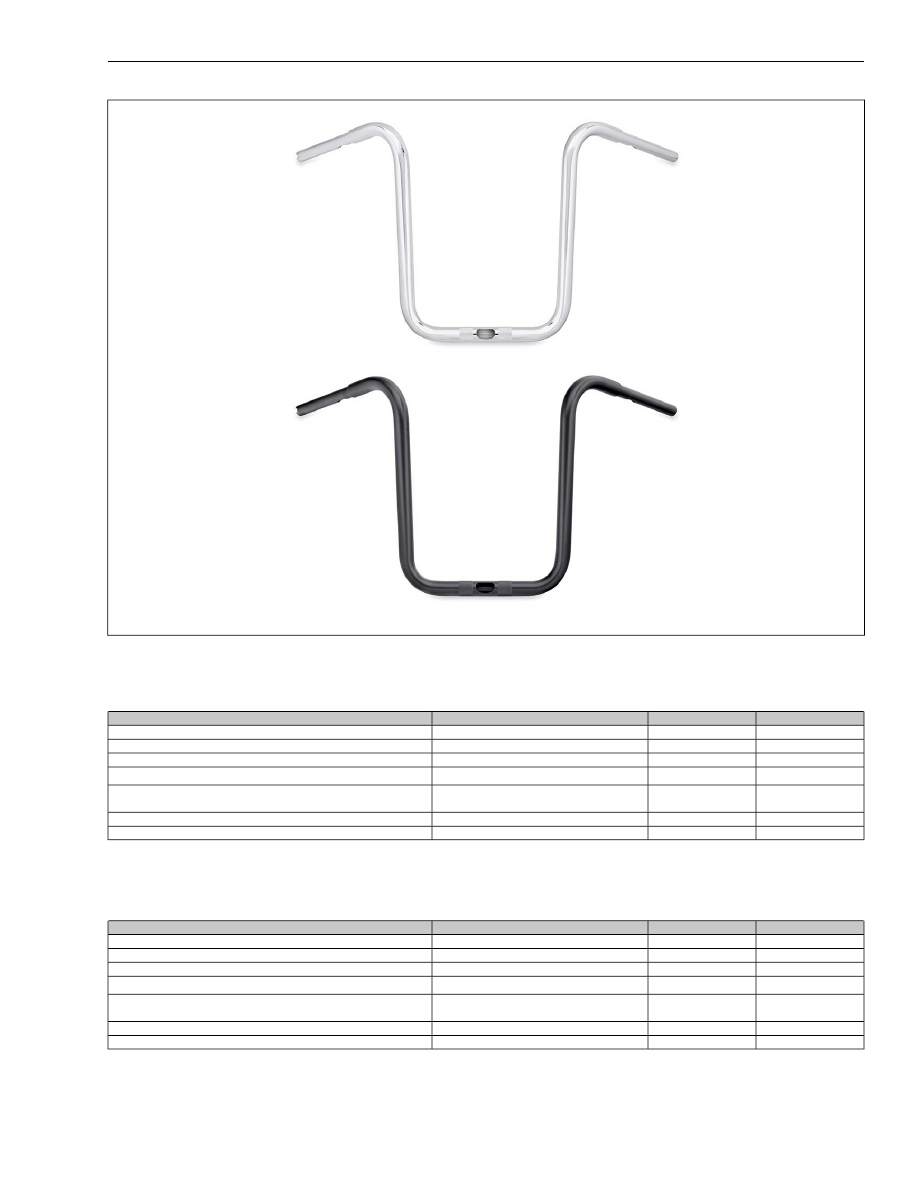

ROAD GLIDE

FAT APE HANDLEBAR

55800548A (CHROME), 55800549A (BLACK)

Figure 35. ROAD GLIDE

FAT APE HANDLEBAR ('15-later models)

2015-2016 FLTRX, FLTRXS

Table 421.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200101

37200105

n/a

Hydraulic Clutch Lines

41800439

41800423

n/a

Brake Lines, NON-ABS - UPPER (FLTRX only)

41800338

41800336

n/a

Brake Lines, NON-ABS - LOWER (FLTRX only)

41800436 & 41800321

41800420 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLTRX, FLTRXS

Table 422.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200282

37200254

n/a

Hydraulic Clutch Lines

41800439

41800423

n/a

Brake Lines, NON-ABS - UPPER (FLTRX only)

41800338

41800336

n/a

Brake Lines, NON-ABS - LOWER (FLTRX only)

41800436 & 41800321

41800420 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

111 / 165

2016 FLTRU

Table 423.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200101

37200105

n/a

Hydraulic Clutch Lines

41800436 & 41800321

41800420 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLTRU

Table 424.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200282

37200254

n/a

Hydraulic Clutch Lines

41800436 & 41800321

41800420 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

112 / 165

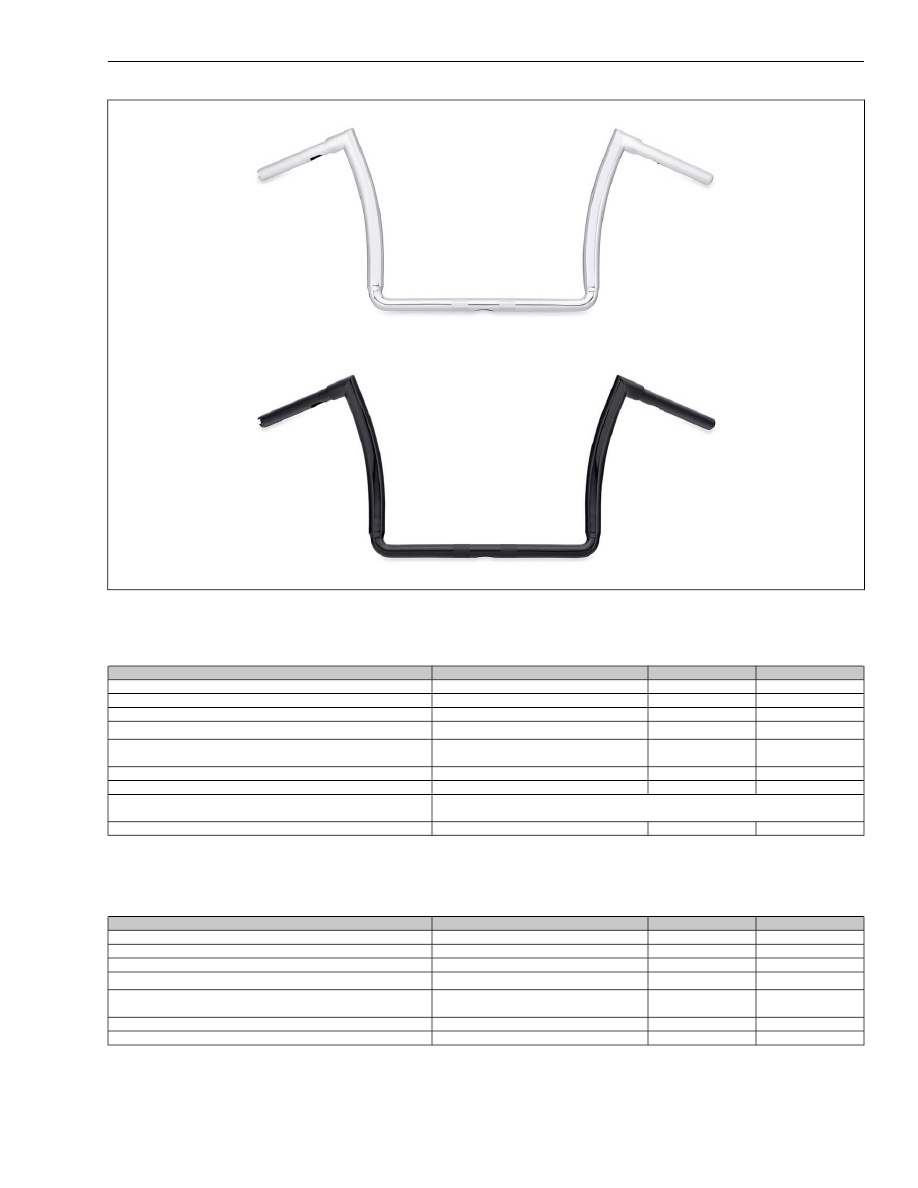

BATWING

CHIZELED HANDLEBAR

55800298 (CHROME), 55800299 (SATIN BLACK)

Figure 36. BAT WING

CHIZELED HANDLEBAR

2014-2016 FLHTCU, FLHTK, FLHX & FLHXS

Table 426.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200045

37200039A

n/a

Hydraulic Clutch Lines

41800258

41800244

n/a

Brake Lines, NON-ABS - UPPER

41800338

41800336

n/a

Brake Lines, NON-ABS - LOWER

41800260 & 41800321

41800246 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

Handlebar ID will not fit with FLHTK stock heated grips or 56100034.

Requires separate purchase of accessory heated grips.

Heated Grips (stock FLHTK and 56100034)

57300063

Fairing Plugs (FLHX/S & models w/ fairing mounted mirrors)

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLHTCU, FLHTK, FLHX & FLHXS

Table 427.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200291

37200248

n/a

Hydraulic Clutch Lines

41800258

41800244

n/a

Brake Lines, NON-ABS - UPPER

41800338

41800336

n/a

Brake Lines, NON-ABS - LOWER

41800260 & 41800321

41800246 & 41800321

n/a

Brake Lines, ABS - UPPER

(1)

41800333 &

41800323A

41800332 &

41800323A

Stock

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

113 / 165

Content .. 5 6 7 8 ..
