Harley Davidson HANDLEBAR INSTALLATION REQUIREMENTS (2019-02-13)

2011-2014 FXST

Table 301.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

Stock 38666-07C

Clutch Cables

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800055A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42366-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800055A

n/a

Brake Lines, ABS - UPPER

n/a

38132-11A

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

2015 FXST

Table 302.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

Stock 37200119

Clutch Cables

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800022B

41800308A

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

2000-2009 FXSTB

Table 303.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

38666-00

Clutch Cables ('00 - '06 models)

38818-10A

38851-09A

38666-07C

Clutch Cables ('07 - '09 models)

38954-09

56807-05A

56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800055A

n/a

Brake Lines, UPPER

n/a

42366-07

n/a

Brake Lines, LOWER

56916-07

Riser Kit

72150-03 & 72151-03

Switch Wire Extensions, 10" ('00 - '06 models)

70234-07

Switch Wire Extensions, 10" ('07 - '09 models)

2007-2010 FXSTC

Table 304.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

Stock 38666-07C

Clutch Cables

38954-09

56807-05A

56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800055A

n/a

Brake Lines, UPPER

n/a

42366-07

n/a

Brake Lines, LOWER

56916-07

Riser Kit

2000-2007 FXSTD

Table 305.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

38666-00

Clutch Cables ('00 - '06 models)

38818-10A

38851-09A

38666-07C

Clutch Cables ('07 models)

38954-09

56807-05A

56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800055A

n/a

Brake Lines, UPPER

n/a

42366-07

n/a

Brake Lines, LOWER

56916-07

Riser Kit

72140-03 & 72141-03

Switch Wire Extensions, 4" ('00 - '06 models)

70229-07

Switch Wire Extensions, 4" ('07 models)

6740 (2x)

Mount Spacer

2018-later FXBR & FXBRS

Table 306.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200327

Upper Clutch Cables

38981-10A

38925-09

n/a

One-Piece Clutch Cables

n/a

41800474

41800655

Brake Lines, ABS - UPPER

n/a

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

82 / 165

2018-later FLSL & FXLR

Table 307.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200326

Upper Clutch Cables

3720050A

38924-09

n/a

One-Piece Clutch Cables

n/a

41800474

41800655

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

n/a

41800474

41800655

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

55996-09

Riser Kit

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

2000-2010 FLSTC

Table 308.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

Stock 38666-00

Clutch Cables ('00 - '06 models)

38877-09B

38850-09A

Stock 38666-07C

Clutch Cables ('07 - '10 models)

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800057A

n/a

Brake Lines, UPPER

n/a

42371-07

n/a

Brake Lines, LOWER

56916-07

Riser Kit

2011-2014 FLSTC

Table 309.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

n/a

Clutch Cables

38954-09

56807-05A

n/a

Throttle / Idle Cables

n/a

41800057A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42371-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800057A

n/a

Brake Lines, ABS - UPPER

n/a

38132-11A

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

2015 FLSTC

Table 310.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

Stock 37200119

Clutch Cables

38954-09

56807-05A

n/a

Throttle / Idle Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

2016-2017 FLSTC

Table 311.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

Stock 37200119

Clutch Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

Stock

Stock 32700050

Twist Grip Sensor Kit

2018-later FLHC, FLHCS & FLSB

Table 312.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200329

Upper Clutch Cables

37200175

38923-09

n/a

One-Piece Clutch Cables

n/a

41800474

41800655

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

55996-09

Riser Kit

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

83 / 165

2018-later FLDE

Table 313.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200379

Upper Clutch Cables

37200175

38923-09

n/a

One-Piece Clutch Cables

n/a

41800474

41800655

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

55996-09

Riser Kit

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

2000-2010 FLSTF

Table 314.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

Stock 38666-00

Clutch Cables ('00 - '06 models)

38877-09B

38850-09A

38666-07C

Clutch Cables ('07 - '10 models)

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800057A

n/a

Brake Lines, UPPER

n/a

42371-07

n/a

Brake Lines, LOWER

56916-07

Riser Kit

2011-2014 FLSTF

Table 315.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

38666-07C

Clutch Cables

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800057A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42371-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800057A

n/a

Brake Lines, ABS - UPPER

n/a

38132-11A

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

2015 FLSTF

Table 316.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

37200119

Clutch Cables

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

2016-2017 FLSTF

Table 317.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

37200119

Clutch Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

Stock

Stock 32700050

Twist Grip Sensor Kit

2018-later FLFB & FLFBS

Table 318.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200327

Upper Clutch Cables

38983-10A

38926-09

n/a

One-Piece Clutch Cables

n/a

41800474

41800655

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

84 / 165

2010 FLSTFB

Table 319.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

n/a

Clutch Cables

38954-09

56807-05A

n/a

Throttle / Idle Cables

n/a

41800055A

n/a

Brake Lines, UPPER

n/a

42371-07

n/a

Brake Lines, LOWER

56916-07

Riser Kit

70229-07

Switch Wire Extensions, 4"

72137-03

Turn Signal Wire Extensions, 6"

2011-2014 FLSTFB

Table 320.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

n/a

Clutch Cables

38954-09

56807-05A

n/a

Throttle / Idle Cables

n/a

41800055A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42371-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800055A

n/a

Brake Lines, ABS - UPPER

n/a

38132-11A

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

69200034

Switch Wire Extensions, 10"

2015 FLSTFB

Table 321.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

37200119

Clutch Cables

38954-09

56807-05A

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

69200034

Switch Wire Extensions, 10"

2016-2017 FLSTFB

Table 322.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

37200119

Clutch Cables

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

56916-07

Riser Kit

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

NOTE: Installation of handlebars and risers may require a change in clutch cables or lines, throttle cables, or brake lines for some models. All modular lower brake
lines listed are based on stock front suspension. Harley Davidson Motor Company cannot test and make specific fitment recommendations concerning every possible
mirror and handlebar combination. Therefore, after installing new mirrors, handlebars, or control cables/lines and before operating the motorcycle, check to ensure
that all controls are fully functional and that the mirrors provide the operator a clear view to the rear. Handlebar height is regulated in many areas. Check local laws
before installation.

85 / 165

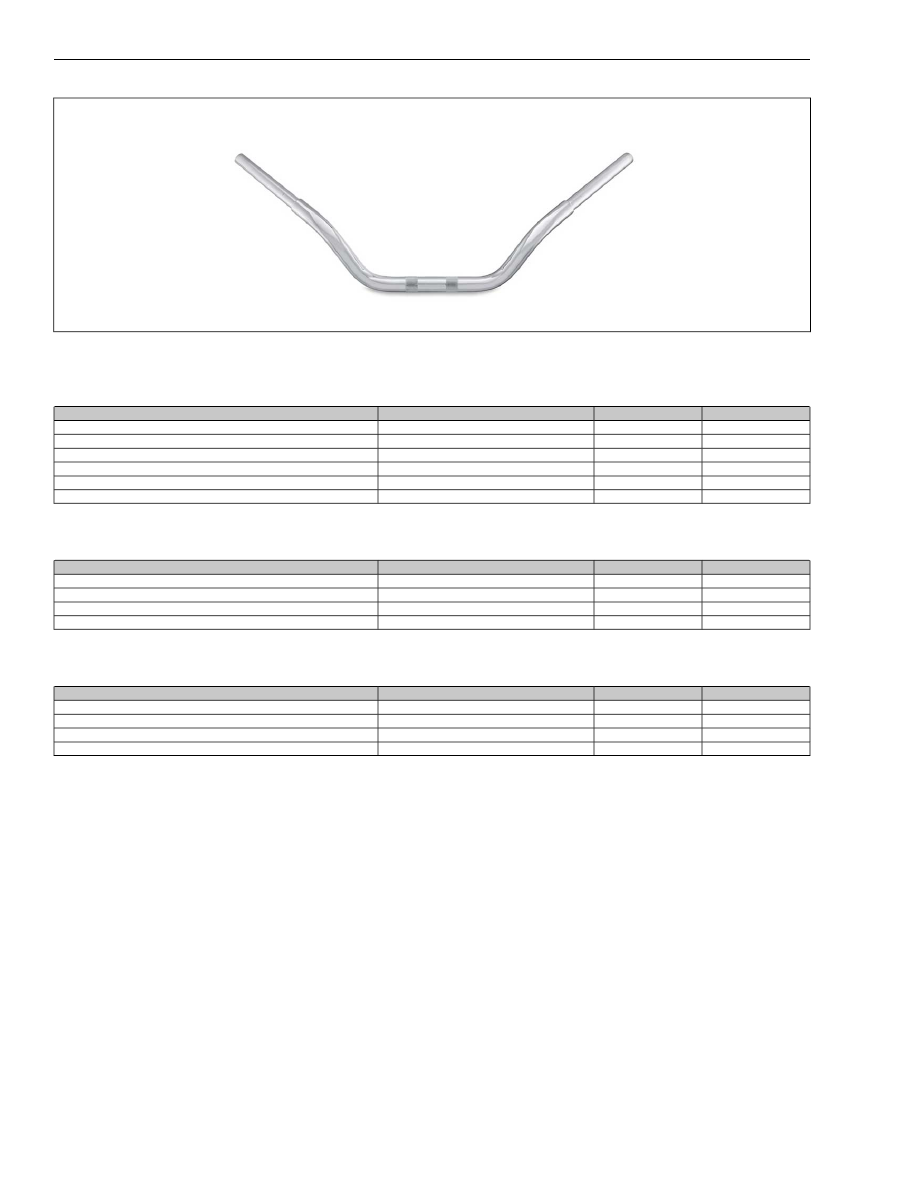

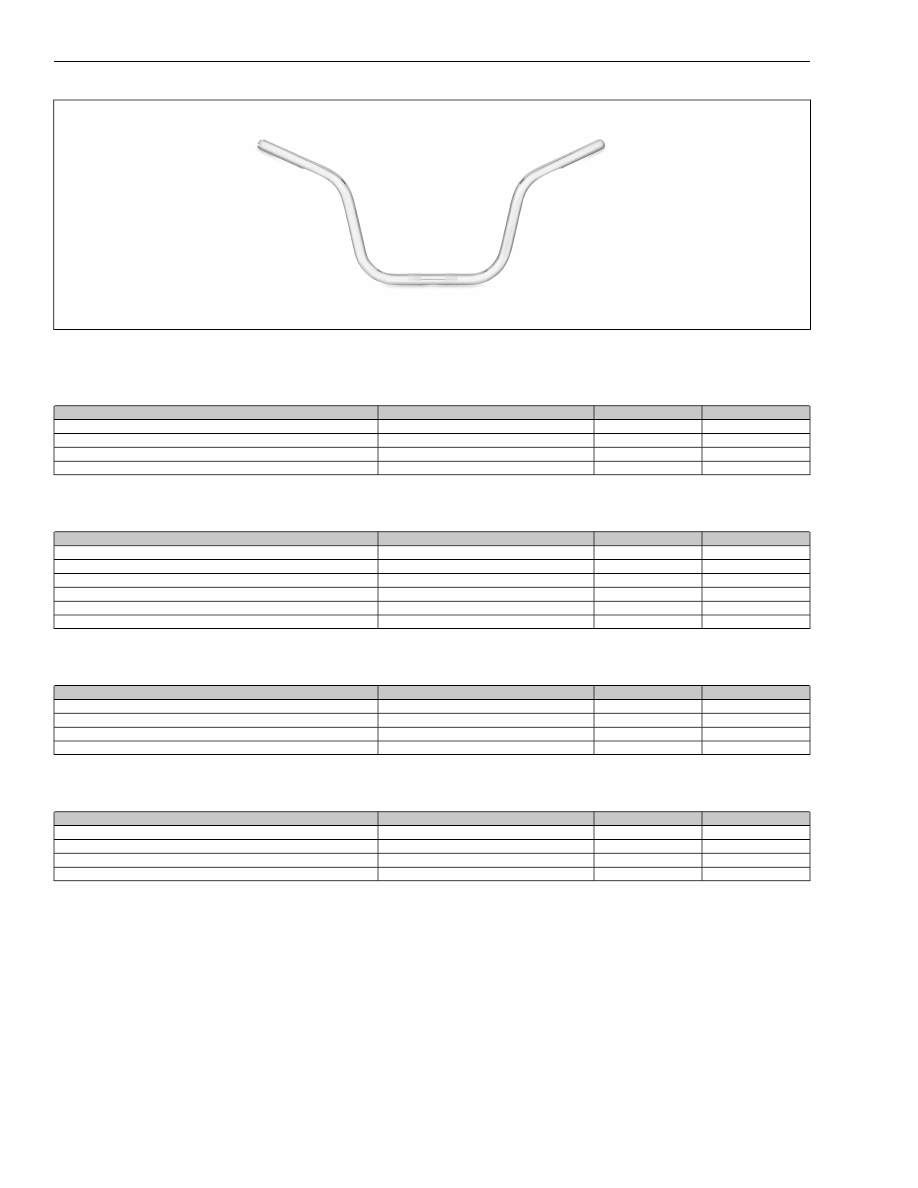

HERITAGE SOFTAIL

CLASSIC HANDLEBAR

56623-99A (CHROME)

Figure 24. HERITAGE SOFTAIL

CLASSIC HANDLEBAR

2009-2010 FLSTC

Table 324.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

n/a

Clutch Cables

38954-09

56807-05A

n/a

Throttle / Idle Cables

n/a

41800056A

n/a

Brake Lines, UPPER

n/a

42371-07

n/a

Brake Lines, LOWER

2011-2014 FLSTC

Table 325.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

n/a

Clutch Cables

38954-09

56807-05A

n/a

Throttle / Idle Cables

n/a

41800056A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42371-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800056A

n/a

Brake Lines, ABS - UPPER

n/a

38132-11A

n/a

Brake Lines, ABS - LOWER

2015 FLSTC

Table 326.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

Stock 37200119

Clutch Cables

38954-09

56807-05A

n/a

Throttle / Idle Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

2016-2017 FLSTC

Table 327.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

Stock 37200119

Clutch Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

86 / 165

HOLLYWOOD HANDLEBAR

55800579 (GLOSS BLACK)

Figure 25. HOLLYWOOD HANDLEBAR

2010-2013 XL1200X

Table 329.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

Stock 38699-04D

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

46779-09

46930-06

45449-04C

Brake Lines

70229-07

Switch Wire Extension, 4"

2014-later XL1200X

Table 330.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

Stock 38699-04D

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

2006-2011 FXDB

Table 331.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

38787-06C

Clutch Cables

38954-09

56807-05A

56421-06 / 56415-06

Throttle / Idle Cables

41800110A

41800054A

n/a

Brake Lines, UPPER

38116-10

42110-07

n/a

Brake Lines, LOWER

68266-03

Turn Signal Relocation Kit

2012-later FXDB

Table 332.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

38787-06C

Clutch Cables

38954-09

56807-05A

56421-06 / 56415-06

Throttle / Idle Cables

41800110A

41800054A

n/a

Brake Lines, NON ABS - UPPER

38116-10

42110-07

n/a

Brake Lines, NON ABS - LOWER

n/a

41800056A

n/a

Brake Lines, ABS - UPPER

n/a

41800032A

n/a

Brake Lines, ABS - LOWER

68266-03

Turn Signal Relocation Kit

2018-later FXBB

Table 333.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200382

Upper Clutch Cable

37200050A

38924-09A

n/a

One-Piece Clutch Cable

41800457

41800454

41800707

Upper Brake Lines, ABS - UPPER

87 / 165

Table 333.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

41800632

Stock

Upper Brake Lines, ABS - LOWER

41600245

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

n/a

41800454

41800707

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

32700050 Stock

Twist Grip Sensor Kit

2010-2011 FXDWG

Table 334.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

Stock 38787-06C

Clutch Cables

38954-09

56807-05A

Stock 56421-06 / 56415-06

Throttle / Idle Cables

n/a

41800057A

n/a

Brake Lines, UPPER

n/a

42108-07

n/a

Brake Lines, LOWER

55900023

Riser

2012-2017 FXDWG

Table 335.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

Stock 38787-06C

Clutch Cables

38954-09

56807-05A

Stock 56421-06 / 56415-06

Throttle / Idle Cables

n/a

41800057A

n/a

Brake Lines, NON ABS - UPPER

n/a

42108-07

n/a

Brake Lines, NON ABS - LOWER

n/a

41800057A

n/a

Brake Lines, ABS - UPPER

n/a

41800032A

n/a

Brake Lines, ABS - LOWER

55900023

Riser

2018-later FXLR

Table 336.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200326

Upper Clutch Cable

37200050A

38924-09A

n/a

One-Piece Clutch Cable

n/a

41800474

41800655

Upper Brake Lines, ABS - UPPER

n/a

41800632

Stock

Upper Brake Lines, ABS - LOWER

41600245

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

n/a

41800474

41800655

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

32700050 Stock

Twist Grip Sensor Kit

2000-2010 FLSTC

Table 337.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

38664-07C

Clutch Cables

38954-09

56807-05A

56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800056A

42314-08

Brake Lines, UPPER

n/a

42371-07

n/a

Brake Lines, LOWER

2011-2014 FLSTC

Table 338.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

38664-07C

Clutch Cables

38954-09

56807-05A

56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800056A

42314-08

Brake Lines, NON ABS - UPPER

n/a

42371-07

n/a

Brake Lines, NON ABS - LOWER

n/a

41800056A

45829-11

Brake Lines, ABS - UPPER

n/a

38132-11A

42552-11

Brake Lines, ABS - LOWER

2015 FLSTC

Table 339.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

37200117

Clutch Cables

38954-09

56807-05A

56343-01 / 56342-01

Throttle / Idle Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

88 / 165

2016-2017 FLSTC

Table 340.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

37200117

Clutch Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

2018-later FLHC, FLHCS & FLSB

Table 341.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200337

Upper Clutch Cable

38967-10A

38921-09A

n/a

One-Piece Clutch Cable

n/a

41800474

41800655

Upper Brake Lines, ABS - UPPER

n/a

41800632

Stock

Upper Brake Lines, ABS - LOWER

41600245

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

32700050 Stock

Twist Grip Sensor Kit

46809-09

Riser Kit (FLSB Only)

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg) (FLSB Only)

7068

Washer, Split Lock (1/2" nom) (FLSB Only)

2008-2010 FLSTN

Table 342.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

Stock 38664-07C

Clutch Cables

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800056A

Stock 42314-08

Brake Lines, UPPER

n/a

42371-07

n/a

Brake Lines, LOWER

2011-2014 FLSTN

Table 343.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

Stock 38664-07C

Clutch Cables

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800056A

Stock 42314-08

Brake Lines, NON ABS - UPPER

n/a

42371-07

n/a

Brake Lines, NON ABS - LOWER

n/a

41800056A

Stock 45829-11

Brake Lines, ABS - UPPER

n/a

38132-11A

Stock 42552-11

Brake Lines, ABS - LOWER

2015 FLSTN

Table 344.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

Stock 37200117

Clutch Cables

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

2016-2017 FLSTN

Table 345.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

Stock 37200117

Clutch Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

2018-later FLDE

Table 346.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200329

Upper Clutch Cable

37200049A

38922-09A

n/a

One-Piece Clutch Cable

n/a

41800474

41800655

Upper Brake Lines, ABS - UPPER

n/a

41800632

Stock

Upper Brake Lines, ABS - LOWER

41600245

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

32700050 Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

89 / 165

2000-2011 FLSTF & 2010-2011 FLSTFB

Table 347.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

38664-07C

Clutch Cables

38954-09

56807-05A

56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800056A

42314-08

Brake Lines, NON ABS - UPPER

n/a

42371-07

n/a

Brake Lines, NON ABS - LOWER

n/a

41800056A

45829-11

Brake Lines, ABS - UPPER ('11 models)

n/a

38132-11A

42552-11

Brake Lines, ABS - LOWER ('11 models)

55900023

Riser ('07 - later models)

2012-2014 FLSTF & FLSTFB

Table 348.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

Stock 38664-07C

Clutch Cables

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800056A

Stock 42314-08

Brake Lines, NON ABS - UPPER

n/a

42371-07

n/a

Brake Lines, NON ABS - LOWER

n/a

41800056A

Stock 45829-11

Brake Lines, ABS - UPPER

n/a

38132-11A

Stock 42552-11

Brake Lines, ABS - LOWER

55900023

Riser

2015 FLSTF & FLSTFB

Table 349.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

Stock 37200117

Clutch Cables

38954-09

56807-05A

Stock 56343-01 / 56342-01

Throttle / Idle Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

55900023

Riser

2016-2017 FLSTF & FLSTFB

Table 350.

Diamond Black

Diamondback™

OEM Stock

Fitment

38967-10A

38921-09A

Stock 37200117

Clutch Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

55900023

Riser

Stock

Stock 32700050

Twist Grip Sensor Kit

2016 FLSTFBS

Table 351.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200109

37200107

Stock 37200186

Hydraulic Clutch Lines

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

55900023

Riser

Stock

Stock 32700050

Twist Grip Sensor Kit

2017 FLSTFBS

Table 352.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200281

37200253

n/a

Hydraulic Clutch Lines

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

55900023

Riser

Stock

Stock 32700050

Twist Grip Sensor Kit

2018-later FLFB & FLFBS

Table 353.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200380

Upper Clutch Cable

38981-10A

38925-09A

n/a

One-Piece Clutch Cable

n/a

41800474

41800655

Upper Brake Lines, ABS - UPPER

n/a

41800632

Stock

Upper Brake Lines, ABS - LOWER

41600245

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

90 / 165

Table 353.

Diamond Black

Diamondback™

OEM Stock

Fitment

Stock

32700050 Stock

Twist Grip Sensor Kit

46809-09

Riser Kit

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

2015-2016 FLRT

Table 354.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200161

37200164

n/a

Hydraulic Clutch Lines

41800455

41800452

n/a

Brake Lines, LINKED - UPPER

41600094

n/a

Brake Lines, LINKED - ADAPTER

41800558

41800292

Stock 41800184 & 41800187

OPTIONAL Brake Lines, LINKED - LOWER

Stock

Twist Grip Sensor Kit

2017-2018 FLRT

Table 355.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200284

37200256

Stock

Hydraulic Clutch Lines

41800455

41800452

Stock

Brake Lines, LINKED - UPPER

41600094

n/a

Brake Lines, LINKED - ADAPTER

41800558

41800292

Stock 41800184 & 41800187

OPTIONAL Brake Lines, LINKED - LOWER

Stock

Twist Grip Sensor Kit

2019-later FLRT

Table 356.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200284

37200256

Stock

Hydraulic Clutch Lines

41800738 & 41800455

41800738 & 41800452

Stock

Brake Lines, LINKED - UPPER

(1)

41800690 & 41800333

41800690 & 41800332

Stock

OPTIONAL Brake Lines, LINKED - LOWER

(1)

Stock

Twist Grip Sensor Kit

(1) Mid Brakelines 41800690 and 41800738 have OE black finish and are not cosmetically braided.

91 / 165

REACH HANDLEBAR - FXSB SOFTAIL

55800188 (CHROME)

Figure 26. REACH HANDLEBAR - FXSB SOFTAIL

2013-2014 FXSB

Table 358.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

38666-07C

Clutch Cables

38954-09

56807-05A

56343-01 / 56342-01

Throttle / Idle Cables

n/a

41800056A

n/a

Brake Lines, NON ABS - UPPER

n/a

42110-07

n/a

Brake Lines, NON ABS - LOWER

n/a

41800056A

45829-11

Brake Lines, ABS - UPPER

n/a

41800308A

Stock 41800225

Brake Lines, ABS - LOWER

2015 FXSB

Table 359.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

37200119

Clutch Cables

38954-09

56807-05A

56343-01 / 56342-01

Throttle / Idle Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

2016-2017 FXSB

Table 360.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200049A

38922-09A

37200119

Clutch Cables

41800436

41800420

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

92 / 165

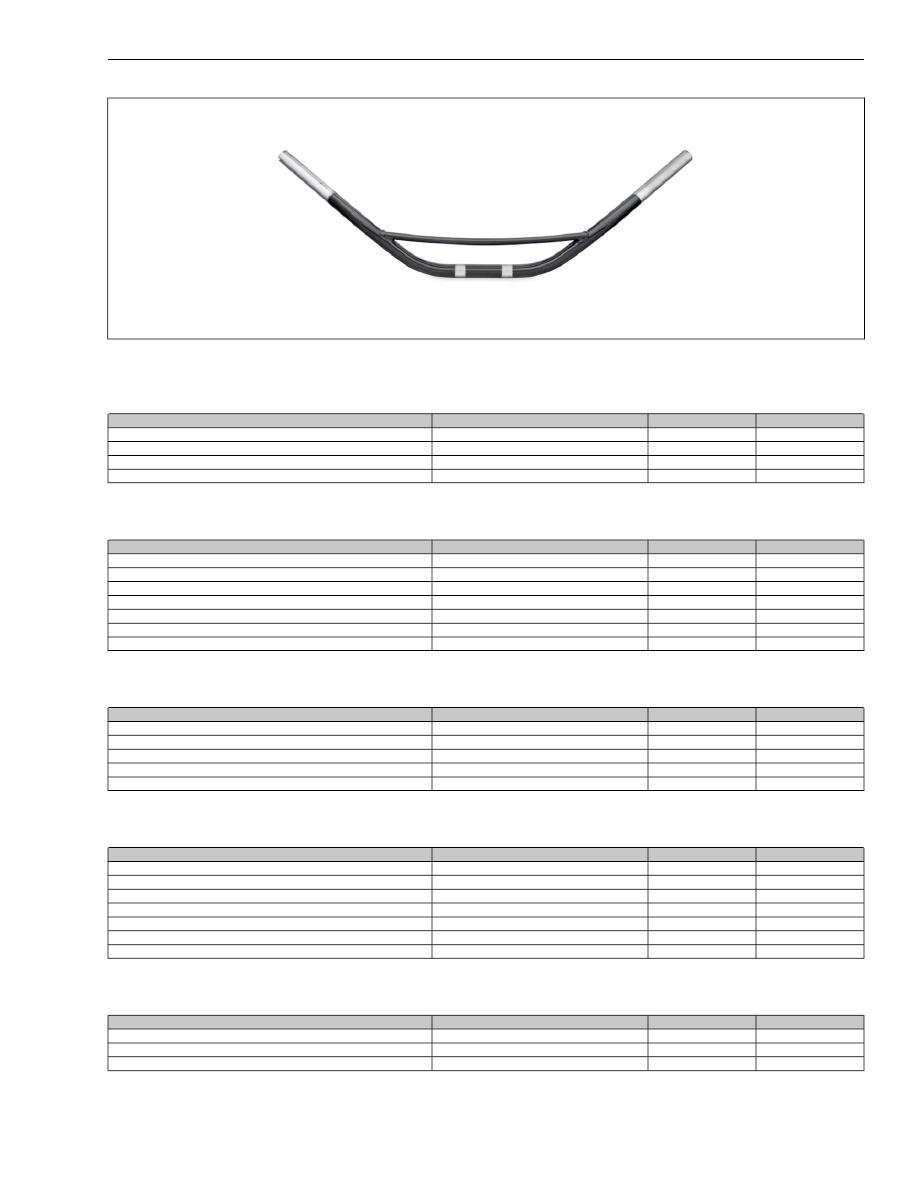

FAT MINI-APE HANDLEBAR - FXSB SOFTAIL

55800252 (CHROME)

Figure 27. FAT MINI-APE HANDLEBAR - FXSB SOFTAIL

2013-2014 FXSB

Table 362.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55748-10

55703-07

n/a

Throttle / Idle Cables

n/a

41800043A

n/a

Brake Lines, NON ABS - UPPER

n/a

42110-07

n/a

Brake Lines, NON ABS - LOWER

n/a

41800043A

n/a

Brake Lines, ABS - UPPER

n/a

41800308A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

2015 FXSB

Table 363.

Diamond Black

Diamondback™

OEM Stock

Fitment

38981-10A

38925-09A

n/a

Clutch Cables

55748-10

55703-07

n/a

Throttle / Idle Cables

41800439

41800423

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

2016-2017 FXSB

Table 364.

Diamond Black

Diamondback™

OEM Stock

Fitment

38981-10A

38925-09A

n/a

Clutch Cables

41800439

41800423

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

93 / 165

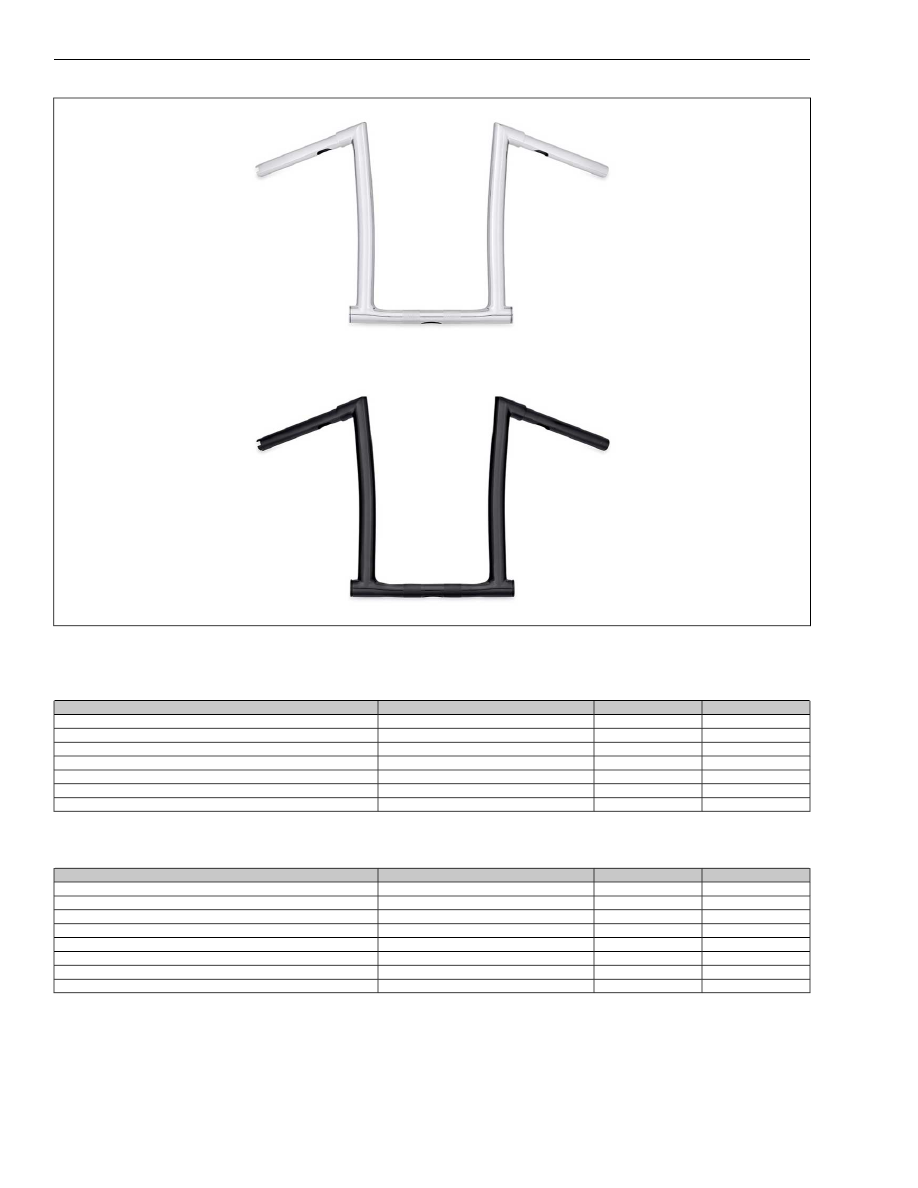

FAT CHIZELED HANDLEBAR

55800421 (CHROME), 55800422 (GLOSS BLACK)

Figure 28. FAT CHIZELED HANDLEBAR

2012-2016 FLD

Table 366.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, NON ABS - UPPER

38116-10

42110-07

n/a

Brake Lines, NON ABS - LOWER

n/a

41800042A

n/a

Brake Lines, ABS - UPPER

n/a

41800050

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

2013-2017 FXDB

Table 367.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, NON ABS - UPPER

38116-10

42110-07

n/a

Brake Lines, NON ABS - LOWER

41800580

41800042A

n/a

Brake Lines, ABS - UPPER

41800076A

41800032A

n/a

Brake Lines, ABS - LOWER

46809-09

Riser Kit (Drag handlebar equipped models only)

69200034

Switch Wire Extensions, 10"

94 / 165

2016-2017 FXDLS

Table 368.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

41800456

41800453

n/a

Brake Lines, ABS - UPPER

41800078

41800048

n/a

Brake Lines, ABS - LOWER

46809-09

Riser Kit

69200034

Switch Wire Extensions, 10"

2018-later FXBB & FXLR

Table 369.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200384

Upper Clutch Cables

n/a

37200336

n/a

One-Piece Clutch Cables

41800480

41800465

41800657

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800480

41800465

41800657

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

69201795

Turn Signal Wire Extensions, 8"

2000-2010 FXST

Table 370.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, UPPER

48924-10

42366-07

n/a

Brake Lines, LOWER

58742-05

Turn Signal Relocation Kit

72140-03 & 72141-03

Switch Wire Extensions, 4" ('00 - '06 models)

70229-07

Switch Wire Extensions, 4" ('07 - '10 models)

2011-2014 FXST

Table 371.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, NON-ABS - UPPER

48924-10

42366-07

n/a

Brake Lines, NON-ABS - LOWER

41800580

41800042A

n/a

Brake Lines, ABS - UPPER

38135-11A

38132-11A

n/a

Brake Lines, ABS - LOWER

58742-05

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2015 FXST

Table 372.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800456

41800453

n/a

Brake Lines, ABS - UPPER

41800022B

41800308A

n/a

Brake Lines, ABS - LOWER

58742-05

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2000-2009 FXSTB

Table 373.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, UPPER

48920-10

42366-07

n/a

Brake Lines, LOWER

72150-03 & 72151-03

Switch Wire Extensions, 10" ('00 - '06 models)

70234-07

Switch Wire Extensions, 10" ('07 - '09 models)

95 / 165

2000-2010 FXSTC

Table 374.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, UPPER

48920-10

42366-07

n/a

Brake Lines, LOWER

58742-05

Turn Signal Relocation Kit

70229-07

Switch Wire Extensions, 4"

2000-2010 FLSTC, 2005-2010 FLSTN

Table 375.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, UPPER

48920-10

42371-07

n/a

Brake Lines, LOWER

46809-09

Riser Kit (FLSTN models only)

72140-03 & 72141-03

Switch Wire Extensions, 4" ('00 - '06 models)

70229-07

Switch Wire Extensions, 4" ('07 - '10 models)

2012-2014 FLS, 2011-2014 FLSTC & FLSTN

Table 376.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, NON-ABS - UPPER

48920-10

42371-07

n/a

Brake Lines, NON-ABS - LOWER

41800580

41800042A

n/a

Brake Lines, ABS - UPPER

38135-11A

38132-11A

n/a

Brake Lines, ABS - LOWER

46809-09

Riser Kit (FLSTN models only)

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6" [FLS models only]

2015 FLS, FLSTC & FLSTN

Table 377.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800456

41800453

n/a

Brake Lines, NON-ABS - UPPER [FLS models only]

41800375

41800374

n/a

Brake Lines, NON-ABS - LOWER [FLS models only]

41800456

41800453

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

46809-09

Riser Kit (FLSTN models only)

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6" [FLS models only]

2016-2017 FLS, FLSTC & FLSTN

Table 378.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

41800456

41800453

n/a

Brake Lines, NON-ABS - UPPER [FLS models only]

41800375

41800374

n/a

Brake Lines, NON-ABS - LOWER [FLS models only]

41800456

41800453

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

46809-09

Riser Kit (FLSTN models only)

Stock

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12" [FLS models only]

2018-later FLSL

Table 379.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200328

Upper Clutch Cables

n/a

37200336

n/a

One-Piece Clutch Cables

41800456

41800453

41800657

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

96 / 165

Table 379.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800456

41800453

41800657

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

69201795

Turn Signal Wire Extensions, 8"

2018-later FLDE

Table 380.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200386

Upper Clutch Cables

n/a

37200336

n/a

One-Piece Clutch Cables

41800480

41800465

41800710

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69200034

Switch Wire Extensions, 10"

2018-later FLHC, FLHCS & FLSB

Table 381.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200327

Upper Clutch Cables

n/a

37200336

n/a

One-Piece Clutch Cables

41800480

41800465

41800657

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

55900023

Riser Kit

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

2000-2006 FLSTF

Table 382.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, NON-ABS - UPPER

48920-10

42371-07

n/a

Brake Lines, NON-ABS - LOWER

72140-03 & 72141-03

Switch Wire Extensions, 4"

Wire extension needed if externally wired OR
68669-05A (domestic) or 68670-05A (interna-

tional)

Externally Wire Turn Signals OR Auxiliary Lighting Kit

72137-03 only if externally wired

Turn Signal Wire Extensions, 6"

2007-2010 FLSTF

Table 383.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, UPPER

48920-10

42371-07

n/a

Brake Lines, LOWER

46809-09

Riser Kit

70229-07

Switch Wire Extensions, 4"

72137-03

Turn Signal Wire Extensions, 6"

2010 FLSTFB

Table 384.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800580

41800042A

n/a

Brake Lines, UPPER

48920-10

42371-07

n/a

Brake Lines, LOWER

97 / 165

Harley Davidson HANDLEBAR INSTALLATION REQUIREMENTS (2019-02-13) - page 6
