Harley Davidson HANDLEBAR INSTALLATION REQUIREMENTS (2019-02-13)

Table 145.

Diamond Black

Diamondback™

OEM Stock

Fitment

38116-10

42110-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800062A

n/a

Brake Lines, ABS - UPPER

n/a

41800050

n/a

Brake Lines, ABS - LOWER

69200083

Turn Signal Wire Extensions, 12"

2000-2010 FXST

Table 146.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800114A

41800060A

n/a

Brake Lines, UPPER

48924-10

42366-07

n/a

Brake Lines, LOWER

58742-05

Turn Signal Relocation Kit

72150-03 & 72151-03

Switch Wire Extensions, 10" ('00 - '06 models)

70234-07

Switch Wire Extensions, 10" ('07 - '10 models)

2011-2014 FXST

Table 147.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800114A

41800060A

n/a

Brake Lines, NON-ABS - UPPER

48924-10

42366-07

n/a

Brake Lines, NON-ABS - LOWER

41800114A

41800060A

n/a

Brake Lines, ABS - UPPER

38135-11

38132-11

n/a

Brake Lines, ABS - LOWER

58742-05

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2015 FXST

Table 148.

Diamond Black

Diamondback™

OEM Stock

Fitment

38983-10A

38926-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800439

41800423

n/a

Brake Lines, ABS - UPPER

41800022B

41800308A

n/a

Brake Lines, ABS - LOWER

58742-05

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2000-2009 FXSTB

Table 149.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800114A

41800060A

n/a

Brake Lines, UPPER

48924-10

42366-07

n/a

Brake Lines, LOWER

72150-03 & 72151-03

Switch Wire Extensions, 10" ('00 - '06 models)

70234-07

Switch Wire Extensions, 10" ('07 - '09 models)

72137-03

Turn Signal Wire Extensions, 6"

2007-2010 FXSTC

Table 150.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800114A

41800060A

n/a

Brake Lines, UPPER

48924-10

42366-07

n/a

Brake Lines, LOWER

58742-05

Turn Signal Relocation Kit

70234-07

Switch Wire Extensions, 10"

2008-2010 FXCW & FXCWC

Table 151.

Diamond Black

Diamondback™

OEM Stock

Fitment

38977-10A

38858-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

n/a

41800060A

n/a

Brake Lines, UPPER

n/a

45770-08

n/a

Brake Lines, LOWER

50 / 165

Table 151.

Diamond Black

Diamondback™

OEM Stock

Fitment

70234-07

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

3471 (2x)

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068 (2x)

Washer, Split Lock (1/2" nom)

10053

P-Clamp ('08 - '09 models)

3594 & 6703

Screw & Washer ('08 - '09 models)

2011 FXCWC

Table 152.

Diamond Black

Diamondback™

OEM Stock

Fitment

38977-10A

38858-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

n/a

41800060A

n/a

Brake Lines, NON-ABS - UPPER

n/a

45770-08

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800060A

n/a

Brake Lines, ABS - UPPER

n/a

38186-11A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

3471 (2x)

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068 (2x)

Washer, Split Lock (1/2" nom)

2018-later FXBR & FXBRS

Table 153.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200328

Upper Clutch Cables

(1)

n/a

37200336

n/a

One-Piece Clutch Cables

n/a

41800466

41800710

Brake Lines, ABS - UPPER

n/a

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201795

Turn Signal Wire Extensions, 8"

(1) *Must use stock risers and clamp for this fitment. (#parent?)

2000-2006 FLSTF

Table 154.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800116A

41800061A

n/a

Brake Lines, UPPER

48920-10

42371-07

n/a

Brake Lines, LOWER

72150-03 & 72151-03

Switch Wire Extensions, 10"

Wire extension needed if externally wired OR
68669-05A (domestic) or 68670-05A (interna-

tional)

Externally Wire Turn Signals OR Auxiliary Lighting Kit

72137-03 only if externally wired

Turn Signal Wire Extensions, 6"

2000-2010 FLSTC, 2005-2010 FLSTN & 2007-2010 FLSTF

Table 155.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800116A

41800061A

n/a

Brake Lines, UPPER

48920-10

42371-07

n/a

Brake Lines, LOWER

72150-03 & 72151-03

Switch Wire Extensions, 10" ('00 - '06 models)

70234-07

Switch Wire Extensions, 10" ('07 - '10 models)

72137-03

Turn Signal Wire Extensions, 6" (FLSTF models only)

2011-2014 FLSTC, FLSTN, FLSTF & 2012-2014 FLS

Table 156.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800116A

41800061A

n/a

Brake Lines, NON-ABS - UPPER

51 / 165

Table 156.

Diamond Black

Diamondback™

OEM Stock

Fitment

48920-10

42371-07

n/a

Brake Lines, NON-ABS - LOWER

41800116A

41800061A

n/a

Brake Lines, ABS - UPPER

38135-11A

38132-11A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6" (FLS & FLSTF models only)

2015 FLSTC, FLSTN, FLSTF & FLS

Table 157.

Diamond Black

Diamondback™

OEM Stock

Fitment

38983-10A

38926-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800551

41800468

n/a

Brake Lines, NON-ABS - UPPER (FLS models only)

41800375

41800374

n/a

Brake Lines, NON-ABS - LOWER (FLS models only)

41800551

41800468

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6" (FLS & FLSTF models only)

2016-2017 FLSTC, FLSTN, FLSTF & FLS

Table 158.

Diamond Black

Diamondback™

OEM Stock

Fitment

38983-10A

38926-09A

n/a

Clutch Cables

41800551

41800468

n/a

Brake Lines, NON-ABS - UPPER (FLS models only)

41800375

41800374

n/a

Brake Lines, NON-ABS - LOWER (FLS models only)

41800551

41800468

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12" (FLS & FLSTF models only)

2018-later FLSL, FXLR, FLFB, FLFBS & FLSB

Table 159.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200325

Upper Clutch Cables

n/a

37200337

n/a

Clutch Cables

n/a

41800466

41800710

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

n/a

41800466

41800710

Brake Lines, NON-ABS - UPPER (FLSL & FXLR models only)

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER (FLSL & FXLR models only)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201795

Turn Signal Wire Extensions, 8" (FLSL & FXLR Only)

69201796

Turn Signal Wire Extensions, 16" (FLFB Only)

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

2010 FLSTFB

Table 160.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800116A

41800061A

n/a

Brake Lines, UPPER

48920-10

42371-07

n/a

Brake Lines, LOWER

70693-10

Switch Wire Extensions, 15"

68983-10

Turn Signal Wire Extensions, 12"

2011-2014 FLSTFB

Table 161.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800116A

41800061A

n/a

Brake Lines, NON-ABS - UPPER

48920-10

42371-07

n/a

Brake Lines, NON-ABS - LOWER

41800116A

41800061A

n/a

Brake Lines, ABS - UPPER

52 / 165

Table 161.

Diamond Black

Diamondback™

OEM Stock

Fitment

38135-11A

38132-11A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

68983-10

Turn Signal Wire Extensions, 12"

2015 FLSTFB

Table 162.

Diamond Black

Diamondback™

OEM Stock

Fitment

38983-10A

38926-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800551

41800468

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

68983-10

Turn Signal Wire Extensions, 12"

2016-2017 FLSTFB

Table 163.

Diamond Black

Diamondback™

OEM Stock

Fitment

38983-10A

38926-09A

n/a

Clutch Cables

41800551

41800468

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

2016 FLSS & FLSTFBS

Table 164.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200204

37200192

n/a

Hydraulic Clutch Lines

41800551

41800468

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

2017 FLSS & FLSTFBS

Table 165.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200286

37200257

n/a

Hydraulic Clutch Lines

41800551

41800468

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

2003-2007 FLHR, FLHRC & FLHRS

Table 166.

Diamond Black

Diamondback™

OEM Stock

Fitment

38983-10A

38926-09A

n/a

Clutch Cables

n/a

55736-07

n/a

Throttle / Idle Cables

41800439

41800423

n/a

Brake Lines, NON-ABS - UPPER

48938-10

45818-07

n/a

Brake Lines, NON-ABS - LOWER

55879-10 (chrome) or

55881-10 (black)

55879-10 (chrome) or

55881-10 (black)

55879-10 (chrome) or 55881-10 (black)

Handlebar Cover Kit

70318-10

Switch Wire Replacement, Non-Cruise Control

69577-06 (dom) or

69578-06 (interntl)

69577-06 (dom) or

69578-06 (interntl)

69577-06 (dom) or 69578-06 (interntl)

Turn Signal Relocation Kit (FLHRS models only)

67868-03

Nacelle Trim Strip (FLHRS models only)

2935A (2x)

Tamper-proof Screws (HDI, Australia, England, Japan only)

2008-2013 FLHR & FLHRC

Table 167.

Diamond Black

Diamondback™

OEM Stock

Fitment

38983-10A

38926-09A

n/a

Clutch Cables

41800439

41800423

n/a

Brake Lines, NON-ABS - UPPER

48942-10

44907-08

n/a

Brake Lines, NON-ABS - LOWER

41800484

41800472

n/a

Brake Lines, ABS - UPPER ('09 - '13 models)

53 / 165

Table 167.

Diamond Black

Diamondback™

OEM Stock

Fitment

48946-10

41825-09

n/a

Brake Lines, ABS - LOWER ('09 - '13 models)

55879-10 (chrome) or

55881-10 (black)

55879-10 (chrome) or

55881-10 (black)

55879-10 (chrome) or 55881-10 (black)

Handlebar Cover Kit

70318-10

Switch Wire Replacement, Non-Cruise Control

70246-10

Switch Wire Replacement, Cruise Control

32310-08

Twist Grip Sensor Kit

2935A (2x)

Tamper-proof Screws (HDI, Australia, England, Japan only)

2014-16 FLHR & FLHRC

Table 168.

Diamond Black

Diamondback™

OEM Stock

Fitment

38983-10A

38926-09A

n/a

Clutch Cables

41800438

41800422

n/a

Brake Lines, NON-ABS - UPPER

41800338

41800336

n/a

Brake Lines, NON-ABS - LOWER

41800321 & 41800437

41800321 & 41800421

n/a

Brake Lines, ABS - UPPER

(1)

41800323A &

41800333

41800323A &

41800332

n/a

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or 55800290 (black)

Handlebar Cover Kit

69200034

Switch Wire Extensions, 10"

70142-94

Ground Strap, 5"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLHR & FLHRC

Table 169.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200282

37200254

n/a

Hydraulic Clutch Line

41800438

41800422

n/a

Brake Lines, NON-ABS - UPPER

41800338

41800336

n/a

Brake Lines, NON-ABS - LOWER

41800321 & 41800437

41800321 & 41800421

n/a

Brake Lines, ABS - UPPER

(1)

41800323A &

41800333

41800323A &

41800332

n/a

OPTIONAL Brake Lines, ABS - LOWER

Stock

Twist Grip Sensor Kit

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or 55800290 (black)

Handlebar Cover Kit

69200034

Switch Wire Extensions, 10"

70142-94

Ground Strap, 5"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLHRXS

Table 170.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200282

37200254

n/a

Hydraulic Clutch Line

41800321 & 41800437

41800321 & 41800421

n/a

Brake Lines, ABS - UPPER

(1)

41800323A &

41800333

41800323A &

41800332

n/a

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or 55800290 (black)

Handlebar Cover Kit

69200034

Switch Wire Extensions, 10"

70142-94

Ground Strap, 5"

69201618

Turn Signal Extensions, 12"

(1) Mid Brake lines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

NOTE: Installation of handlebars and risers may require a change in clutch cables or lines, throttle cables, or brake lines for some models. All modular lower brake
lines listed are based on stock front suspension. Harley Davidson Motor Company cannot test and make specific fitment recommendations concerning every possible
mirror and handlebar combination. Therefore, after installing new mirrors, handlebars, or control cables/lines and before operating the motorcycle, check to ensure
that all controls are fully functional and that the mirrors provide the operator a clear view to the rear. Handlebar height is regulated in many areas. Check local laws
before installation.

54 / 165

12" FAT MINI-APE HANDLEBAR KIT WITH RISER

56832-04C (CHROME), 55859-10B (SATIN BLACK)

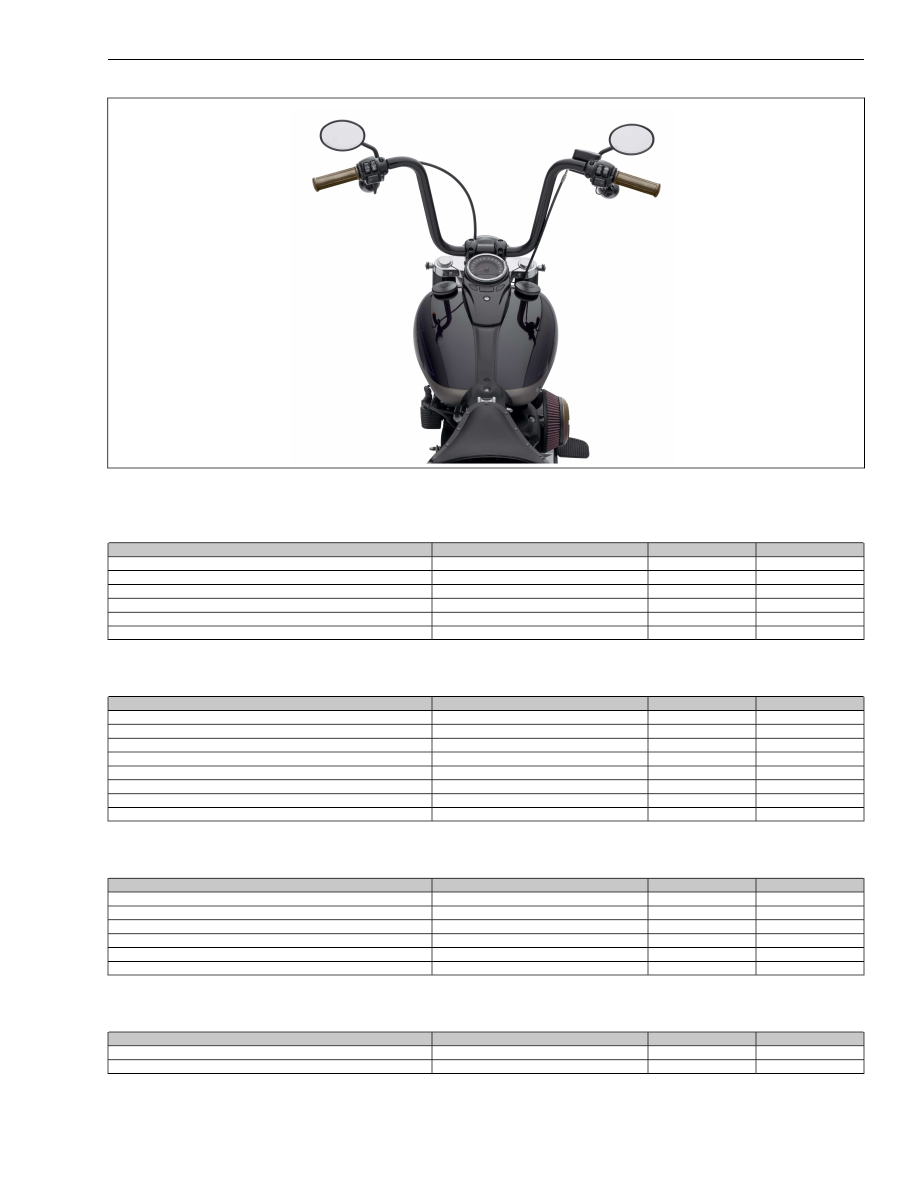

Figure 19. 12" FAT MINI-APE HANDLEBAR KIT WITH RISER

1999-2005 FXDWG

Table 172.

Diamond Black

Diamondback™

OEM Stock

Fitment

38973-10A

38856-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, UPPER

48924-10

42366-07

n/a

Brake Lines, LOWER

58742-05

Turn Signal Relocation Kit

72140-03 & 72141-03

Switch Wire Extensions, 4"

2006-2008 FXDWG

Table 173.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, UPPER

48926-10

42108-07

n/a

Brake Lines, LOWER

72140-03 & 72141-03

Switch Wire Extensions, 4" ('06 models)

70229-07

Switch Wire Extensions, 4" ('07 - '08 models)

72137-03

Turn Signal Wire Extensions, 6" ('06 models)

69200083

Turn Signal Wire Extensions, 12" ('07 - '08 models)

2010-2011 FXDWG

Table 174.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, UPPER

48926-10

42108-07

n/a

Brake Lines, LOWER

70234-07

Switch Wire Extensions, 10"

69200083

Turn Signal Wire Extensions, 12"

2012-2017 FXDWG

Table 175.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

55 / 165

Table 175.

Diamond Black

Diamondback™

OEM Stock

Fitment

41800112A

41800059A

n/a

Brake Lines, NON-ABS - UPPER

48926-10

42108-07

n/a

Brake Lines, NON-ABS - LOWER

41800112A

41800059A

n/a

Brake Lines, ABS - UPPER

41800076A

41800032A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

69200083

Turn Signal Wire Extensions, 12"

2006-2011 FXDB

Table 176.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, UPPER

38116-10

42110-07

n/a

Brake Lines, LOWER

45538-08

Upper Fork Bracket ('08 -'11 models only)

2012-2017 FXDB

Table 177.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines - NON-ABS - UPPER

38116-10

42110-07

n/a

Brake Lines - NON-ABS - LOWER

41800112A

41800059A

n/a

Brake Lines, ABS - UPPER

41800076A

41800032A

n/a

Brake Lines, ABS - LOWER

45538-08

Upper Fork Bracket ('12 models only)

2008-2011 FXDF

Table 178.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800437

41800421

n/a

Brake Lines, UPPER

48928-10

42112-08A

n/a

Brake Lines, LOWER

2012-2017 FXDF

Table 179.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800437

41800421

n/a

Brake Lines, NON-ABS - UPPER

48928-10

42112-08A

n/a

Brake Lines, NON-ABS - LOWER

41800437

41800421

n/a

Brake Lines, ABS - UPPER

41800078

41800048

n/a

Brake Lines, ABS - LOWER

2016-2017 FXDLS

Table 180.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

41800437

41800421

n/a

Brake Lines, ABS - UPPER

41800078

41800048

n/a

Brake Lines, ABS - LOWER

2018-later FXLR

Table 181.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200383

Upper Clutch Cables

38983-10A

38926-09A

n/a

One-Piece Clutch Cables

41800456

41800453

41800678

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800456

41800453

41800678

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

56 / 165

Table 181.

Diamond Black

Diamondback™

OEM Stock

Fitment

69201796

Turn Signal Wire Extensions, 16"

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

2012-2016 FLD

Table 182.

Diamond Black

Diamondback™

OEM Stock

Fitment

38973-10A

38856-09A

n/a

Clutch Cables

38957-09

55700-07

56939-07A / 56934-07A

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, NON-ABS - UPPER

38116-10

42110-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800059A

n/a

Brake Lines, ABS - UPPER

n/a

41800050

n/a

Brake Lines, ABS - LOWER

69200083

Turn Signal Wire Extensions, 12"

2000-2010 FXST

Table 183.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, UPPER

48924-10

42366-07

n/a

Brake Lines, LOWER

58742-05

Turn Signal Relocation Kit

72140-03 & 72141-03

Switch Wire Extensions, 4" ('00 - '06 models)

70229-07

Switch Wire Extensions, 4" ('07 - '10 models)

2011-2014 FXST

Table 184.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, NON-ABS - UPPER

48924-10

42366-07

n/a

Brake Lines, NON-ABS - LOWER

41800112A

41800059A

n/a

Brake Lines, ABS - UPPER

38135-11A

38132-11A

n/a

Brake Lines, ABS - LOWER

58742-05

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2015 FXST

Table 185.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800438

41800422

n/a

Brake Lines, ABS - UPPER

41800022B

41800308A

n/a

Brake Lines, ABS - LOWER

58742-05

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2000-2009 FXSTB

Table 186.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, UPPER

48920-10

42366-07

n/a

Brake Lines, LOWER

72150-03 & 72151-03

Switch Wire Extensions, 10" ('00 - '06 models)

70234-07

Switch Wire Extensions, 10" ('07 - '09 models)

2007-2010 FXSTC

Table 187.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, UPPER

48920-10

42366-07

n/a

Brake Lines, LOWER

57 / 165

Table 187.

Diamond Black

Diamondback™

OEM Stock

Fitment

58742-05

Turn Signal Relocation Kit

70229-07

Switch Wire Extensions, 4"

2008-2010 FXCW & FXCWC

Table 188.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, UPPER

n/a

45770-08

n/a

Brake Lines, LOWER

70229-07

Switch Wire Extensions, 4"

72137-03

Turn Signal Wire Extensions, 6"

3471 (2x)

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068 (2x)

Washer, Split Lock (1/2" nom)

10053

P-Clamp ('08 - '09 models)

3594 & 6703

Screw & Washer ('08 - '09 models)

2011 FXCWC

Table 189.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, NON-ABS - UPPER

n/a

45770-08

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800058

n/a

Brake Lines, ABS - UPPER

n/a

38186-11A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

3471 (2x)

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068 (2x)

Washer, Split Lock (1/2" nom)

2018-later FLSL, FLFB, FLFBS & FLSB

Table 190.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200328

Upper Clutch Cables

n/a

37200336

n/a

One-Piece Clutch Cables

41800456

41800453

41800678

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800456

41800453

41800678

Brake Lines, NON-ABS - UPPER (FLSL only)

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER (FLSL only)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit

69201794

Switch Wire Extensions, 18"

69201796

Turn Signal Wire Extensions, 16" (FLSL Only)

69201795

Turn Signal Wire Extensions, 8" (FLFB/S Only)

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

2000-2006 FLSTF

Table 191.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

38661-00

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, NON-ABS - UPPER

48920-10

42371-07

n/a

Brake Lines, NON-ABS - LOWER

72140-03 & 72141-03

Switch Wire Extensions, 4"

Wire extension needed if externally wired OR
68669-05A (domestic) or 68670-05A (interna-

tional)

Externally Wire Turn Signals OR Auxiliary Lighting Kit

72137-03 only if externally wired

Turn Signal Wire Extensions, 6"

58 / 165

2000-2010 FLSTC, 2005-2010 FLSTN & 2007-2010 FLSTF

Table 192.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, UPPER

48920-10

42371-07

n/a

Brake Lines, LOWER

72140-03 & 72141-03

Switch Wire Extensions, 4" ('00 - '06 models)

70229-07

Switch Wire Extensions, 4" ('07 - '10 models)

72137-03

Turn Signal Wire Extensions, 6" (FLSTF models only)

2011-2014 FLSTC, FLSTN, FLSTF & 2012-2014 FLS

Table 193.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, NON-ABS - UPPER

48920-10

42371-07

n/a

Brake Lines, NON-ABS - LOWER

41800112A

41800059A

n/a

Brake Lines, ABS - UPPER

38135-11A

38132-11A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6" (FLS & FLSTF models only)

2015 FLSTC, FLSTN, FLSTF & FLS

Table 194.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800438

41800422

n/a

Brake Lines, NON-ABS - UPPER (FLS models only)

41800375

41800374

n/a

Brake Lines, NON-ABS - LOWER (FLS models only)

41800438

41800422

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6" (FLS & FLSTF models only)

2016-2017 FLSTC, FLSTN, FLSTF & FLS

Table 195.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

41800438

41800422

n/a

Brake Lines, NON-ABS - UPPER (FLS models only)

41800375

41800374

n/a

Brake Lines, NON-ABS - LOWER (FLS models only)

41800438

41800422

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12" (FLS & FLSTF models only)

2018-later FLDE, FLHC & FLHCS

Table 196.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200327

Upper Clutch Cables

38983-10A

38926-09A

n/a

Clutch Cables

41800456

41800453

41800678

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Grip Sensor Extension Kit (FLDE Only)

69200034

Switch Wire Extensions, 10" (FLDE Only)

69201794

Switch Wire Extensions, 18" (FLHC Only)

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

2010 FLSTFB

Table 197.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

38789-06C

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

59 / 165

Table 197.

Diamond Black

Diamondback™

OEM Stock

Fitment

41800112A

41800059A

n/a

Brake Lines, UPPER

48920-10

42371-07

n/a

Brake Lines, LOWER

70234-07

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2011-2014 FLSTFB

Table 198.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

38789-06C

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800112A

41800059A

n/a

Brake Lines, NON-ABS - UPPER

48920-10

42371-07

n/a

Brake Lines, NON-ABS - LOWER

41800112A

41800059A

n/a

Brake Lines, ABS - UPPER

38135-11A

38132-11A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2015 FLSTFB

Table 199.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800438

41800422

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2016-later FLSTFB

Table 200.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

41800438

41800422

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

2016 FLSS & FLSTFBS

Table 201.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200203

37200191

n/a

Hydraulic Clutch Lines

41800438

41800422

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

2017 FLSS & FLSTFBS

Table 202.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200283

37200258

n/a

Hydraulic Clutch Lines

41800438

41800422

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

2003-2007 FLHR, FLHRC & FLHRS

Table 203.

Diamond Black

Diamondback™

OEM Stock

Fitment

38981-10A

38925-09A

n/a

Clutch Cables

n/a

55734-07

n/a

Throttle / Idle Cables

41800437

41800421

n/a

Brake Lines, NON-ABS - UPPER

48938-10

45818-07

n/a

Brake Lines, NON-ABS - LOWER

55879-10 (chrome) or

55881-10 (black)

55879-10 (chrome) or

55881-10 (black)

55879-10 (chrome) or 55881-10 (black)

Handlebar Cover Kit

60 / 165

Table 203.

Diamond Black

Diamondback™

OEM Stock

Fitment

70318-10

Switch Wire Replacement, Non-Cruise Control

69577-06 (dom) or

69578-06 (interntl)

69577-06 (dom) or

69578-06 (interntl)

69577-06 (dom) or 69578-06 (interntl)

Turn Signal Relocation Kit (FLHRS models only)

67868-03

Nacelle Trim Strip (FLHRS models only)

2935A (2x)

Tamper-proof Screws (HDI, Australia, England, Japan only)

2008-2013 FLHR & FLHRC

Table 204.

Diamond Black

Diamondback™

OEM Stock

Fitment

38981-10A

38925-09A

n/a

Clutch Cables

41800437

41800421

n/a

Brake Lines, NON-ABS - UPPER

48942-10

44907-08

n/a

Brake Lines, NON-ABS - LOWER

41800483

41800471

n/a

Brake Lines, ABS - UPPER ('09 - '13 models)

48946-10

41825-09

n/a

Brake Lines, ABS - LOWER ('09 - '13 models)

55879-10 (chrome) or

55881-10 (black)

55879-10 (chrome) or

55881-10 (black)

55879-10 (chrome) or 55881-10 (black)

Handlebar Cover Kit

70318-10

Switch Wire Replacement, Non-Cruise Control

70246-10

Switch Wire Replacement, Cruise Control

32310-08

Twist Grip Sensor Kit

2935A (2x)

Tamper-proof Screws (HDI, Australia, England, Japan only)

2014-2016 FLHR & FLHRC

Table 205.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200050A

38924-09A

n/a

Clutch Cables

41800436

41800420

n/a

Brake Lines, NON-ABS - UPPER

41800338

41800336

n/a

Brake Lines, NON-ABS - LOWER

41800321 & 41800256

41800321 & 41800242

n/a

Brake Lines, ABS - UPPER

(1)

41800323A &

41800333

41800323A &

41800332

n/a

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or 55800290 (black)

Handlebar Cover Kit

69200034

Switch Wire Extensions, 10"

70142-94

Ground Strap, 5"

(1) Mid Brakelines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLHR & FLHRC

Table 206.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200283

37200258

n/a

Hydraulic Clutch Lines

41800436

41800420

n/a

Brake Lines, NON-ABS - UPPER

41800338

41800336

n/a

Brake Lines, NON-ABS - LOWER

41800321 & 41800256

41800321 & 41800242

n/a

Brake Lines, ABS - UPPER

(1)

41800323A &

41800333

41800323A &

41800332

n/a

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or 55800290 (black)

Handlebar Cover Kit

69200034

Switch Wire Extensions, 10"

70142-94

Ground Strap, 5"

(1) Mid Brakelines 41800321 and 41800323A have OE black finish and are not cosmetically braided.

2017-later FLHRXS

Table 207.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200283

37200258

n/a

Hydraulic Clutch Lines

41800321 & 41800256

41800321 & 41800242

n/a

Brake Lines, ABS - UPPER

(1)

41800323A &

41800333

41800323A &

41800332

n/a

OPTIONAL Brake Lines, ABS - LOWER

(1)

Stock

Twist Grip Sensor Kit

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or

55800290 (black)

55800289 (chrome) or 55800290 (black)

Handlebar Cover Kit

69200034

Switch Wire Extensions, 10"

61 / 165

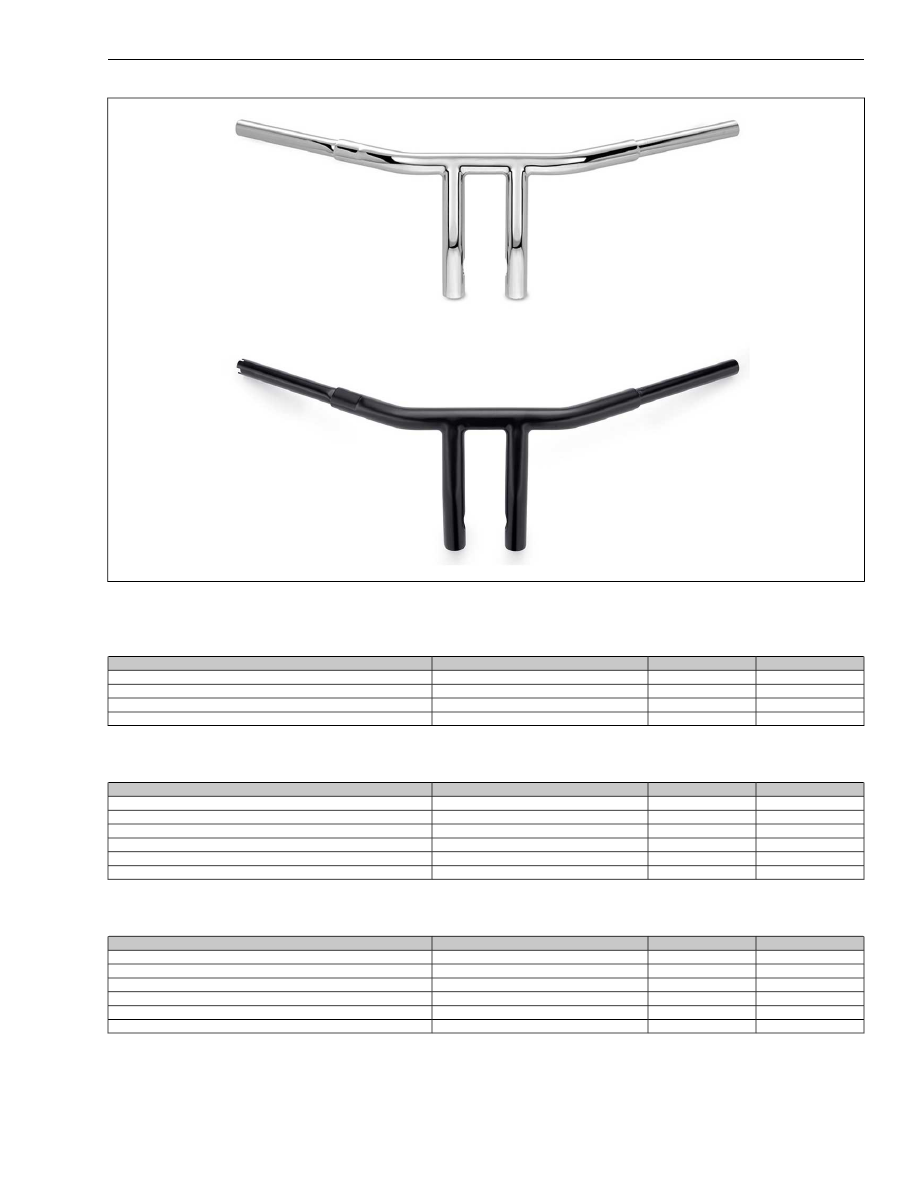

STREET SLAMMER HANDLEBAR

55975-08A (CHROME), 55985-10 (SATIN BLACK)

Figure 20. STREET SLAMMER HANDLEBAR

2001-2005 FXDL

Table 209.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

Stock 38666-00

Clutch Cables

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

41800122A

41800090A

Stock 44794-01A

Brake Lines, UPPER

48920-10

42371-07

n/a

Brake Lines, LOWER

1999-2005 FXDWG

Table 210.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

38666-00

Clutch Cables

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

41800122A

41800090A

n/a

Brake Lines, UPPER

48924-10

42366-07

n/a

Brake Lines, LOWER

68266-03

Turn Signal Relocation Kit

46699-05

Clutch Cable Guide Kit

2006-2008 FXDWG

Table 211.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

n/a

Clutch Cables

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

41800122A

41800090A

n/a

Brake Lines, UPPER

48926-10

42108-07

n/a

Brake Lines, LOWER

68266-03

Turn Signal Relocation Kit

46699-05

Clutch Cable Guide Kit

63 / 165

2010-2011 FXDWG

Table 212.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

n/a

Clutch Cables

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

41800122A

41800090A

n/a

Brake Lines, UPPER

48926-10

42108-07

n/a

Brake Lines, LOWER

68266-03

Turn Signal Relocation Kit

46699-05

Clutch Cable Guide Kit

2012-later FXDWG

Table 213.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

n/a

Clutch Cables

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

41800122A

41800090A

n/a

Brake Lines, NON-ABS - UPPER

48926-10

42108-07

n/a

Brake Lines, NON-ABS - LOWER

41800122A

41800090A

n/a

Brake Lines, ABS - UPPER

41800076A

41800032A

n/a

Brake Lines, ABS - LOWER

68266-03

Turn Signal Relocation Kit

46699-05

Clutch Cable Guide Kit

2006-2011 FXDB

Table 214.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

n/a

Clutch Cables

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

41800122A

41800090A

n/a

Brake Lines, UPPER

38116-10

42110-07

n/a

Brake Lines, LOWER

68266-03

Turn Signal Relocation Kit

46699-05

Clutch Cable Guide Kit

45538-08

Upper Fork Bracket ('08 -'11 models only)

2012-2017 FXDB

Table 215.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

n/a

Clutch Cables

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

41800122A

41800090A

n/a

Brake Lines, NON-ABS - UPPER

38116-10

42110-07

n/a

Brake Lines, NON-ABS - LOWER

41800122A

41800090A

n/a

Brake Lines, ABS - UPPER

41800076A

41800032A

n/a

Brake Lines, ABS - LOWER

68266-03

Turn Signal Relocation Kit

46699-05

Clutch Cable Guide Kit

45538-08

Upper Fork Bracket ('12 models only)

2008-2011 FXDF

Table 216.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

n/a

Clutch Cables

38918-09

56805-05A

56356-96A / 56355-96A

Throttle / Idle Cables

41800442

41800426

n/a

Brake Lines, UPPER

48928-10

42112-08A

n/a

Brake Lines, LOWER

68266-03

Turn Signal Relocation Kit

46699-05

Clutch Cable Guide Kit

2012-2017 FXDF

Table 217.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

n/a

Clutch Cables

38918-09

56805-05A

56356-96A / 56355-96A

Throttle / Idle Cables

41800442

41800426

n/a

Brake Lines, NON-ABS - UPPER

48928-10

42112-08A

n/a

Brake Lines, NON-ABS - LOWER

41800442

41800426

n/a

Brake Lines, ABS - UPPER

41800078

41800048

n/a

Brake Lines, ABS - LOWER

68266-03

Turn Signal Relocation Kit

46699-05

Clutch Cable Guide Kit

64 / 165

2016-2017 FXDLS

Table 218.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

n/a

Clutch Cables

41800442

41800426

n/a

Brake Lines, ABS - UPPER

41800078

41800048

n/a

Brake Lines, ABS - LOWER

68266-03

Turn Signal Relocation Kit

46699-05

Clutch Cable Guide Kit

2018-later FXLR

Table 219.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

37200326

Upper Clutch Cables

37200050A

38924-09

n/a

One-Piece Clutch Cables

41800256

41800242

41800704

Brake Lines, ABS - UPPER

n/a

41800632

Stock

Brake Lines, ABS - LOWER

41600245

n/a

Upper Brake Line Adapter (Braided Lines)

n/a

41600260

Upper Brake Line Adapter (OE-Style Lines)

41800256

41800242

41800704

Brake Lines, NON-ABS - UPPER

n/a

41800634

41800636

Brake Lines, NON-ABS - LOWER

Stock

Stock 32700050

Twist Grip Sensor Kit

69201804

Twist Brip Sensor Extension, 18"

69200034

Switch Wire Extensions, 10"

3471

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg)

7068

Washer, Split Lock (1/2" nom)

2012-2016 FLD

Table 220.

Diamond Black

Diamondback™

OEM Stock

Fitment

38877-09B

38850-09A

n/a

Clutch Cables

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

41800122A

41800090A

n/a

Brake Lines, NON-ABS - UPPER

38116-10

42110-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800090A

n/a

Brake Lines, ABS - UPPER

n/a

41800050

n/a

Brake Lines, ABS - LOWER

68266-03

Turn Signal Relocation Kit

2000-2010 FXST & 2007-2010 FXSTC

Table 221.

Diamond Black

Diamondback™

OEM Stock

Fitment

38874-10A

38847-09A

38665-00

Clutch Cables ('00 - '06 models)

38941-09B

38848-09A

38665-07B

Clutch Cables ('07 - '10 models)

38947-09

56808-05A

56432-98 / 56433-98

Throttle / Idle Cables

41800106A

41800051A

n/a

Brake Lines, UPPER

48924-10

42366-07

n/a

Brake Lines, LOWER

68266-03

Turn Signal Relocation Kit

2011-2014 FXST

Table 222.

Diamond Black

Diamondback™

OEM Stock

Fitment

38941-09B

38848-09A

38665-07B

Clutch Cables

38947-09

56808-05A

56432-98 / 56433-98

Throttle / Idle Cables

41800106A

41800051A

n/a

Brake Lines, NON-ABS - UPPER

48924-10

42366-07

n/a

Brake Lines, NON-ABS - LOWER

41800106A

41800051A

n/a

Brake Lines, ABS - UPPER

38135-11A

38132-11A

n/a

Brake Lines, ABS - LOWER

68266-03

Turn Signal Relocation Kit

2015 FXST

Table 223.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200174

37200173

n/a

Clutch Cables

38947-09

56808-05A

56432-98 / 56433-98

Throttle / Idle Cables

41800252

41800238

n/a

Brake Lines, ABS - UPPER

41800022B

41800308A

n/a

Brake Lines, ABS - LOWER

68266-03

Turn Signal Relocation Kit

65 / 165

Harley Davidson HANDLEBAR INSTALLATION REQUIREMENTS (2019-02-13) - page 4
