Harley Davidson HANDLEBAR INSTALLATION REQUIREMENTS (2019-02-13)

IRON 883

™

HANDLEBAR

55800345 (SATIN BLACK)

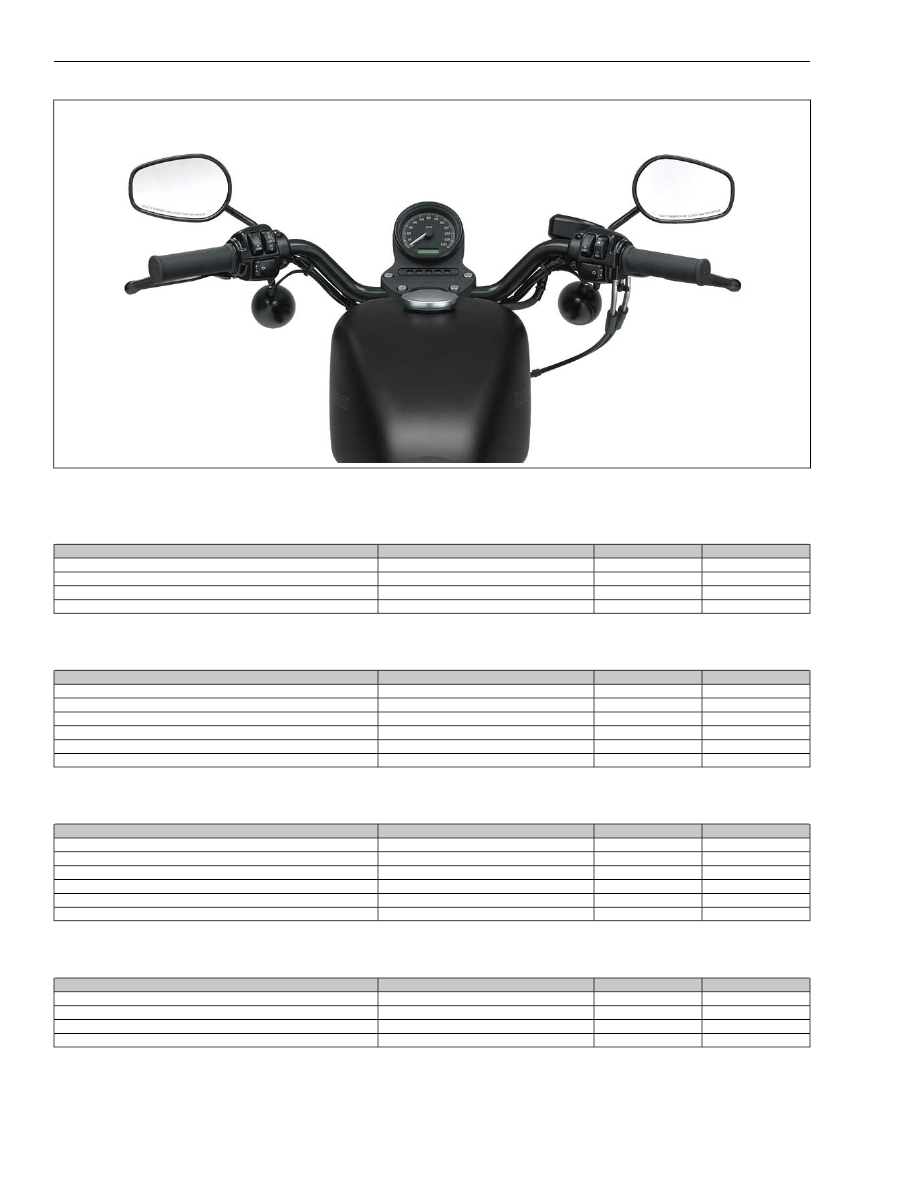

Figure 6. IRON 883

™

HANDLEBAR

2010-2013 XL883N

Table 12.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

Stock 38699-04D

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

41800455

41800452

Stock 41800172

Brake Lines, UPPER

41800232A

41800230A

n/a

Brake Lines, LOWER

2014-Later XL883N

Table 13.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

Stock 38699-04D

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

41800254

41800240

Stock 41800172

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800254

41800240

Stock 41800151

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

2018-Later XL1200NS

Table 14.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

Stock 38699-04D

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

41800254

41800240

Stock 41800172

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800254

41800240

Stock 41800151

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

2010-2013 XL1200C

Table 15.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

38702-05C

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

41800254

41800240

41800160

Brake Lines, UPPER

41800228

41800226

n/a

Brake Lines, LOWER

18 / 165

2014-Later XL1200C (pullback handlebar equipped) & XL1200CA (drag handlebar equipped)

Table 16.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

38702-05C

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

41800254

41800240

41800160

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800254

41800240

41800150

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

2014-Later XL1200CB (mini-ape handlebar equipped)

Table 17.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

38699-04D

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

41800254

41800240

41800172

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800254

41800240

41800151

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

2014-Later XL883L & XL1200T

Table 18.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

38699-04D

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

41800254

41800240

41800172

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800254

41800240

41800151

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

2012-2013 XL1200V

Table 19.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

38699-04D

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

41800455

41800452

41800172

Brake Lines, UPPER

41800413

41800412

n/a

Brake Lines, LOWER

2014-2016 XL1200V

Table 20.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

38699-04D

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

41800455

41800452

41800172

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

41800455

41800452

41800151

Brake Lines, ABS - UPPER

41800417A

41800416A

n/a

Brake Lines, ABS - LOWER

2010-2013 XL1200X

Table 21.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

Stock 38699-04D

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

41800252

41800238

Stock 46417-10A

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

2014-Later XL1200X

Table 22.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

Stock 38699-04D

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

41800250

41800236

Stock 41800171

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800250

41800236

Stock 41800143

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

19 / 165

2018-Later XL1200XS

Table 23.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

Stock 38699-04D

Clutch Cables

38945-09

56726-07

Stock 56884-07 / 56885-07

Throttle / Idle Cables

41800250

41800236

Stock 41800171

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800250

41800236

Stock 41800143

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

NOTE: Installation of handlebars and risers may require a change in clutch cables or lines, throttle cables, or brake lines for some models. All modular lower brake
lines listed are based on stock front suspension. Harley Davidson Motor Company cannot test and make specific fitment recommendations concerning every possible
mirror and handlebar combination. Therefore, after installing new mirrors, handlebars, or control cables/lines and before operating the motorcycle, check to ensure
that all controls are fully functional and that the mirrors provide the operator a clear view to the rear. Handlebar height is regulated in many areas. Check local laws
before installation.

20 / 165

MINI-APE HANDLEBAR

56079-93T (CHROME), 56075-07 (SATIN BLACK)

Figure 7. MINI-APE HANDLEBAR

2007-2013 XL883L, XL883N, XL1200L & XL1200N

Table 25.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

46720-09

41800283

n/a

Brake Lines

70234-07

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2014-later XL883L, XL883N & XL1200T

Table 26.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

41800168

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

41800147

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2018-later XL1200NS

Table 27.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

41800168

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

41800147

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2012-2013 XL1200V

Table 28.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

Stock 37000041A

Clutch Cables

38913-09

38906-07

Stock 55785-11 / 55786-11

Throttle / Idle Cables

46720-09

41800283

Stock 46688-11

Brake Lines

21 / 165

2014-2016 XL1200V

Table 29.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

Stock 37000041A

Clutch Cables

38913-09

38906-07

Stock 55785-11 / 55786-11

Throttle / Idle Cables

41800260

41800246

Stock 41800168

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

Stock 41800147

Brake Lines, ABS - UPPER

41800417A

41800416A

n/a

Brake Lines, ABS - LOWER

2010-2013 XL1200X

Table 30.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

46720-09

41800283

n/a

Brake Lines

70234-07

Switch Wire Extensions, 10"

2014-later XL1200X

Table 31.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

41800168

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

41800147

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

2018-later XL1200XS

Table 32.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

41800168

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

41800147

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

2016-later XL1200CX

Table 33.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800592A

41800590A

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

n/a

Brake Lines, ABS - UPPER

41800587

41800585

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

1996-2005 FXDWG

Table 34.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

Stock 38602-92

Clutch Cables ('96 - '99 models)

38916-09B

38854-09A

Stock 38661-00

Clutch Cables ('00 - '05 models)

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

41800112A

41800030A

Stock 45112-96A

Brake Lines, UPPER

48924-10

42366-07

n/a

Brake Lines, LOWER

2006-2011 FXDB

Table 35.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

Stock 38789-06C

Clutch Cables

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

46740-09

n/a

Stock 45112-08

Brake Line

22 / 165

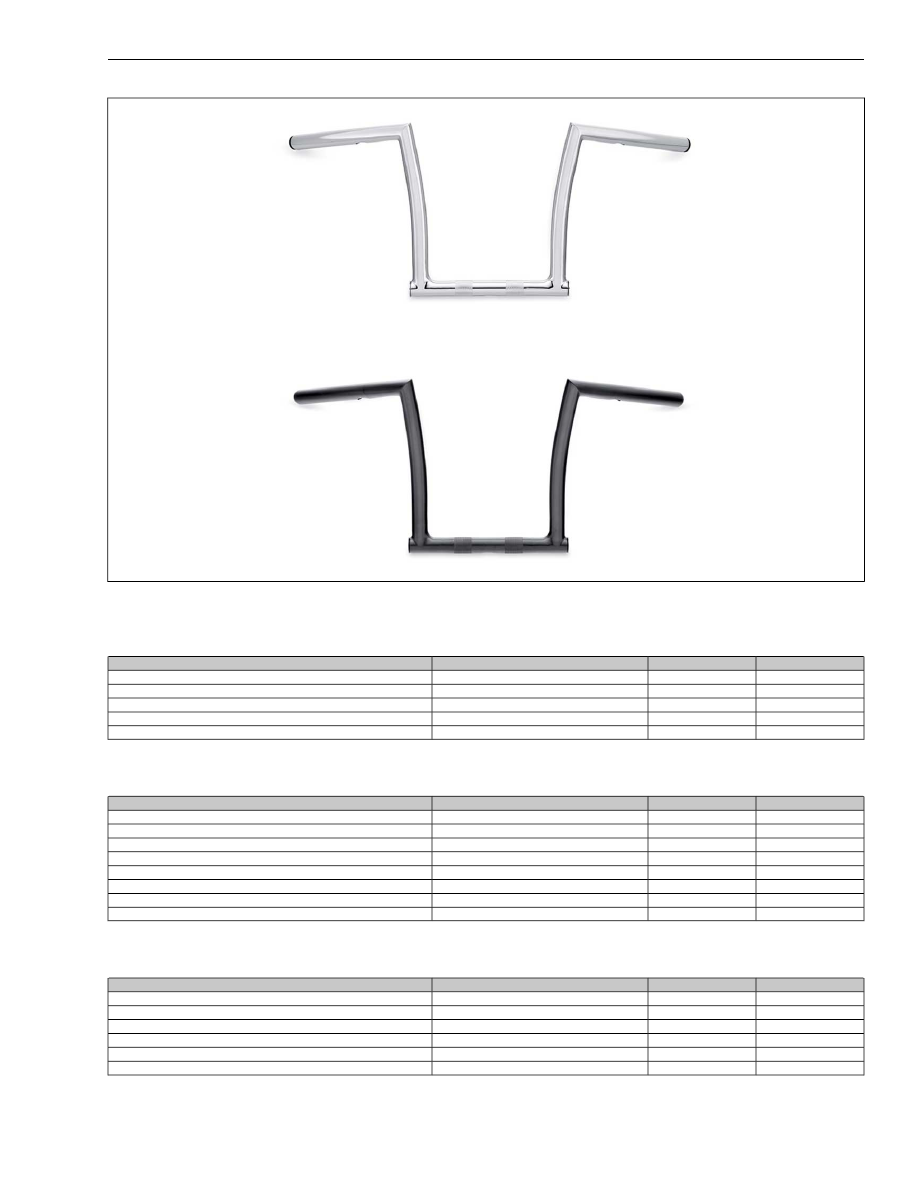

SPORTSTER

TALLBOY

HANDLEBAR

55800580 (CHROME), 55800587 (GLOSS BLACK)

Figure 8. SPORTSTER

TALLBOY HANDLEBAR

2007-2013 XL883L, XL883N, XL1200L, XL1200N

Table 38.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

70234-07

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extension

2014-Later XL883L, XL883N

Table 39.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extension

2018-Later XL1200NS

Table 40.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extension

24 / 165

2007-2013 XL1200C

Table 41.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

70234-07

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extension

2014-Later XL1200C

Table 42.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extension

2014-later XL1200T

Table 43.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

2012-2013 XL1200V

Table 44.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

70234-07

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extension

2014-2016 XL1200V

Table 45.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

n/a

Brake Lines, ABS - UPPER

41800417A

41800416A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extension

2010-2013 XL1200X

Table 46.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

70234-07

Switch Wire Extensions, 10"

25 / 165

2014-later XL1200X

Table 47.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

2018-later XL1200XS

Table 48.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

2016-later XL1200CX

Table 49.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

n/a

Clutch Cables

38913-09

38906-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800592A

41800590A

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

n/a

Brake Lines, ABS - UPPER

41800587

41800585

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extension

26 / 165

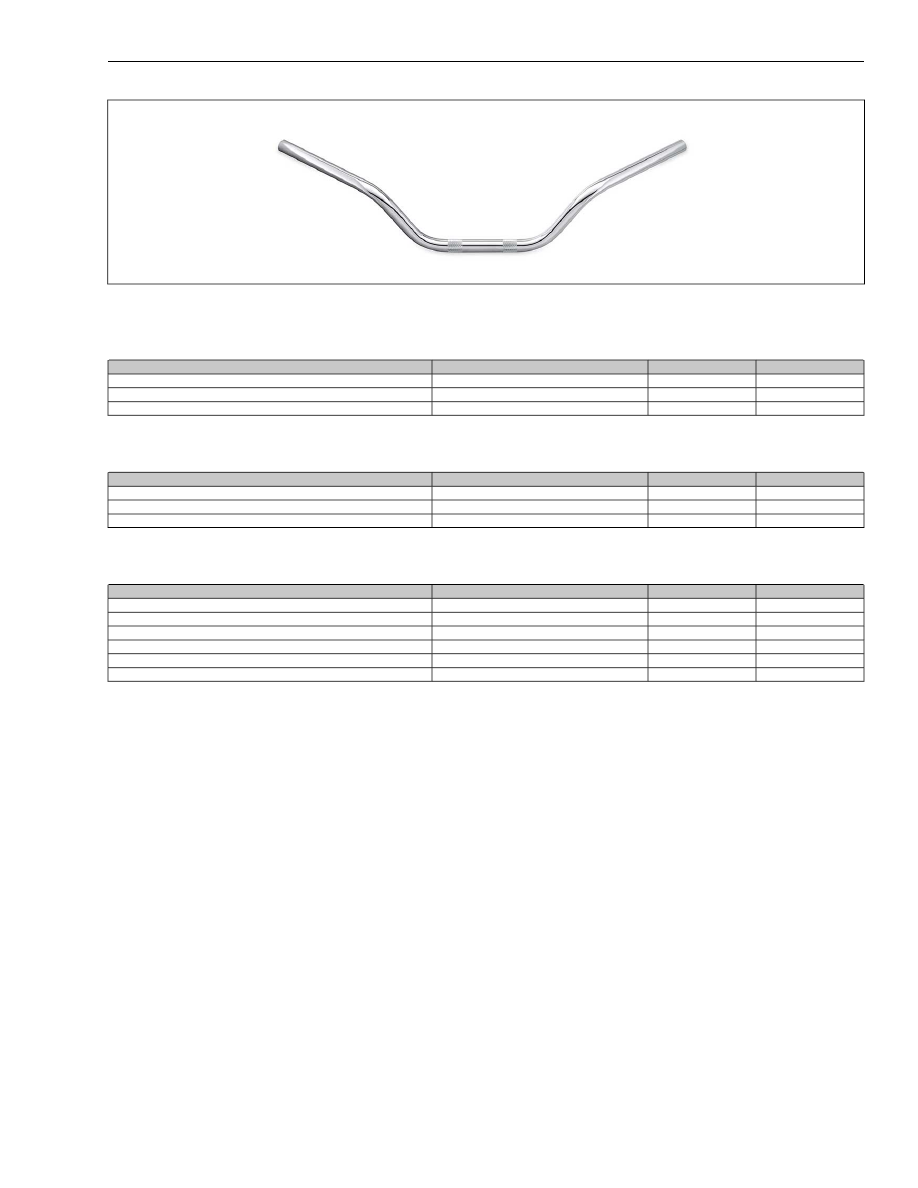

SPORTSTER

REACH

HANDLEBAR

56021-04B (CHROME)

Figure 9. SPORTSTER

REACH

HANDLEBAR

2004-2006 XL883C & XL1200C

Table 51.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

38702-05C

Clutch Cables

n/a

56381-96 / 56382-96

Throttle/Idle Cables

46720-09

41800283

46688-11

Brake Lines

2007-2013 XL883C & XL1200C

Table 52.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

37000041A

Clutch Cables

38913-09

38906-07

55785-11 / 55786-11

Throttle/Idle Cables

46720-09

41800283

46688-11

Brake Lines

2014-later XL1200C

Table 53.

Diamond Black

Diamondback™

OEM Stock

Fitment

38911-09C

37200048A

37000041A

Clutch Cables

38913-09

38906-07

55785-11 / 55786-11

Throttle/Idle Cables

41800260

41800246

41800168

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

41800147

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

27 / 165

SPORTSTER

DRAG BAR

55800035A (SATIN BLACK)

Figure 10. SPORTSTER

DRAG BAR

2007-2013 XL883N, 2007-2010 XL883L & 2007-2012 XL1200N

Table 55.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100019

n/a

Throttle / Idle Cables

41800178

n/a

Brake Lines

2014-later XL883N

Table 56.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100019

n/a

Throttle / Idle Cables

41800248

41800234

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800248

41800234

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

2018-later XL1200NS

Table 57.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100019

n/a

Throttle / Idle Cables

41800248

41800234

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800248

41800234

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

2012-2013 XL1200V

Table 58.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100019

n/a

Throttle / Idle Cables

41800178

n/a

Brake Lines

2014-2016 XL1200V

Table 59.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100019

n/a

Throttle / Idle Cables

41800248

41800234

n/a

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

41800248

41800234

n/a

Brake Lines, ABS - UPPER

41800417A

41800416A

n/a

Brake Lines, ABS - LOWER

28 / 165

2010-2013 XL1200X

Table 60.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100019

n/a

Throttle / Idle Cables

41800178

n/a

Brake Lines

55900074

Riser Kit

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or 67800452 (black)

Turn Signal Relocation Kit

2014-later XL1200X

Table 61.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100019

n/a

Throttle / Idle Cables

41800248

41800234

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800248

41800234

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

55900074

Riser Kit

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or 67800452 (black)

Turn Signal Relocation Kit ('14 - '15 models)

67800557 (black)

Turn Signal Relocation Kit ('16 - later models)

2018-later XL1200XS

Table 62.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100019

n/a

Throttle / Idle Cables

41800248

41800234

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800248

41800234

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

55900074

Riser Kit

67800557 (black)

Turn Signal Relocation Kit

2016-later XL1200CX

Table 63.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

n/a

Clutch Cables

38945-09

56726-07

n/a

Throttle / Idle Cables

41800250

41800236

n/a

Brake Lines, NON ABS - UPPER

41800592A

41800590A

n/a

Brake Lines, NON ABS - LOWER

41800250

41800236

n/a

Brake Lines, ABS - UPPER

41800587

41800585

n/a

Brake Lines, ABS - LOWER

72137-03

Turn Signal Wire Extensions, 6"

29 / 165

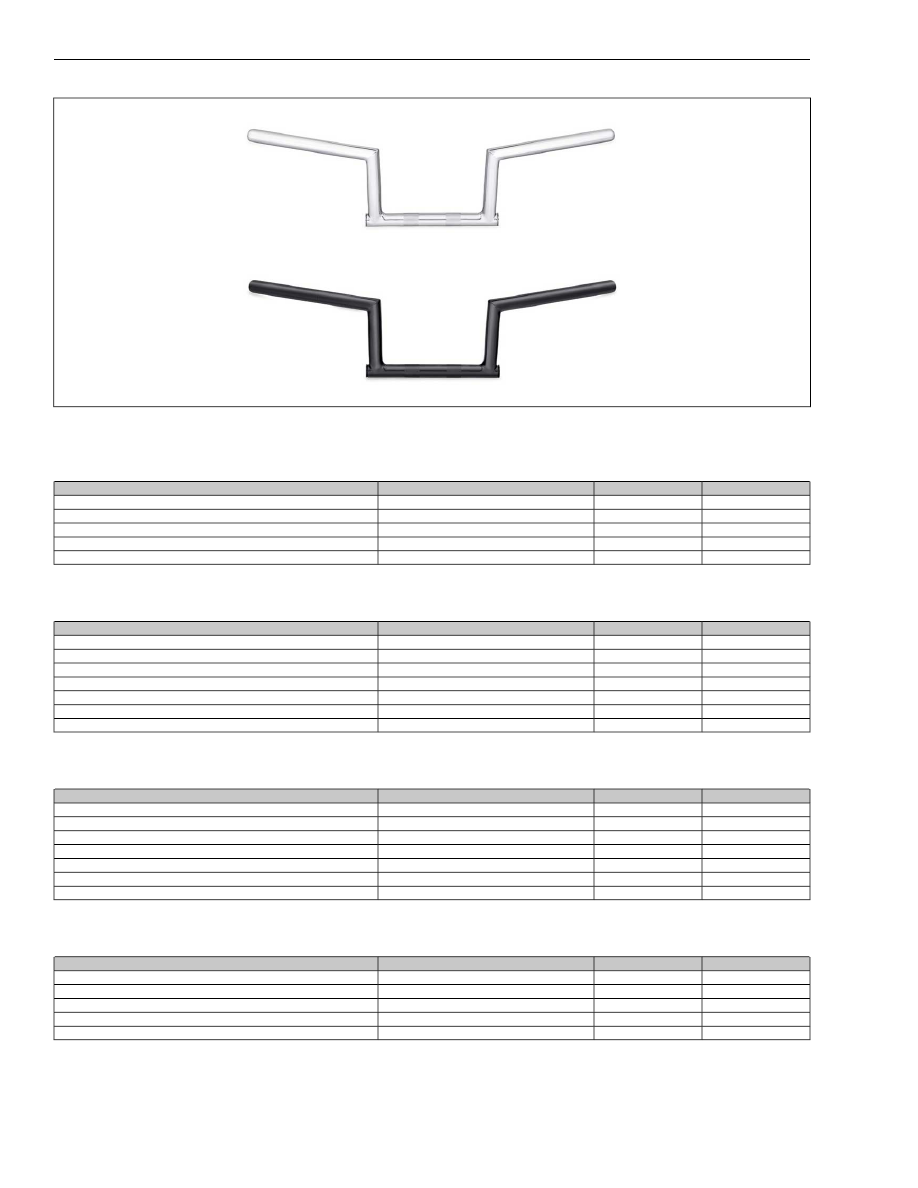

CHIZELED LO HANDLEBAR

55800430 (CHROME), 55800431 (GLOSS BLACK)

Figure 11. CHIZELED LO HANDLEBAR

2007-2013 XL883L, XL883N, XL1200L & XL1200N

Table 65.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

n/a

Clutch Cables

38945-09

56726-07

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

72137-03

Turn Signal Wire Extensions, 6"

2014-later XL883L, XL883N & XL1200T

Table 66.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200149

37200151

n/a

Clutch Cables

38945-09

56726-07

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

72137-03

Turn Signal Wire Extensions, 6"

2018-later XL1200NS

Table 67.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200149

37200151

n/a

Clutch Cables

38945-09

56726-07

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

72137-03

Turn Signal Wire Extensions, 6"

2012-2013 XL1200V

Table 68.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

n/a

Clutch Cables

38945-09

56726-07

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

72137-03

Turn Signal Wire Extensions, 6"

30 / 165

2014-2016 XL1200V

Table 69.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

n/a

Clutch Cables

38945-09

56726-07

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800417A

41800416A

n/a

Brake Lines, ABS - LOWER

72137-03

Turn Signal Wire Extensions, 6"

2010-2013 XL1200X

Table 70.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

n/a

Clutch Cables

56100197

56100196

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

55900074

Riser Kit

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or 67800452 (black)

Turn Signal Relocation Kit

2014-2015 XL1200X

Table 71.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

n/a

Clutch Cables

56100197

56100196

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

55900074

Riser Kit

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or 67800452 (black)

Turn Signal Relocation Kit

2016-later XL1200X

Table 72.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

n/a

Clutch Cables

56100197

56100196

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

55900074

Riser Kit

67800557 (black)

Turn Signal Relocation Kit

2018-later XL1200XS

Table 73.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200058A

38737-09B

n/a

Clutch Cables

56100197

56100196

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

55900074

Riser Kit

67800557 (black)

Turn Signal Relocation Kit

2016-later XL1200CX

Table 74.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

n/a

Clutch Cables

38945-09

56726-07

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON ABS - UPPER

41800592A

41800590A

n/a

Brake Lines, NON ABS - LOWER

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800587

41800585

n/a

Brake Lines, ABS - LOWER

31 / 165

CHIZELED HANDLEBAR

55800198 (CHROME), 55800103 (SATIN BLACK)

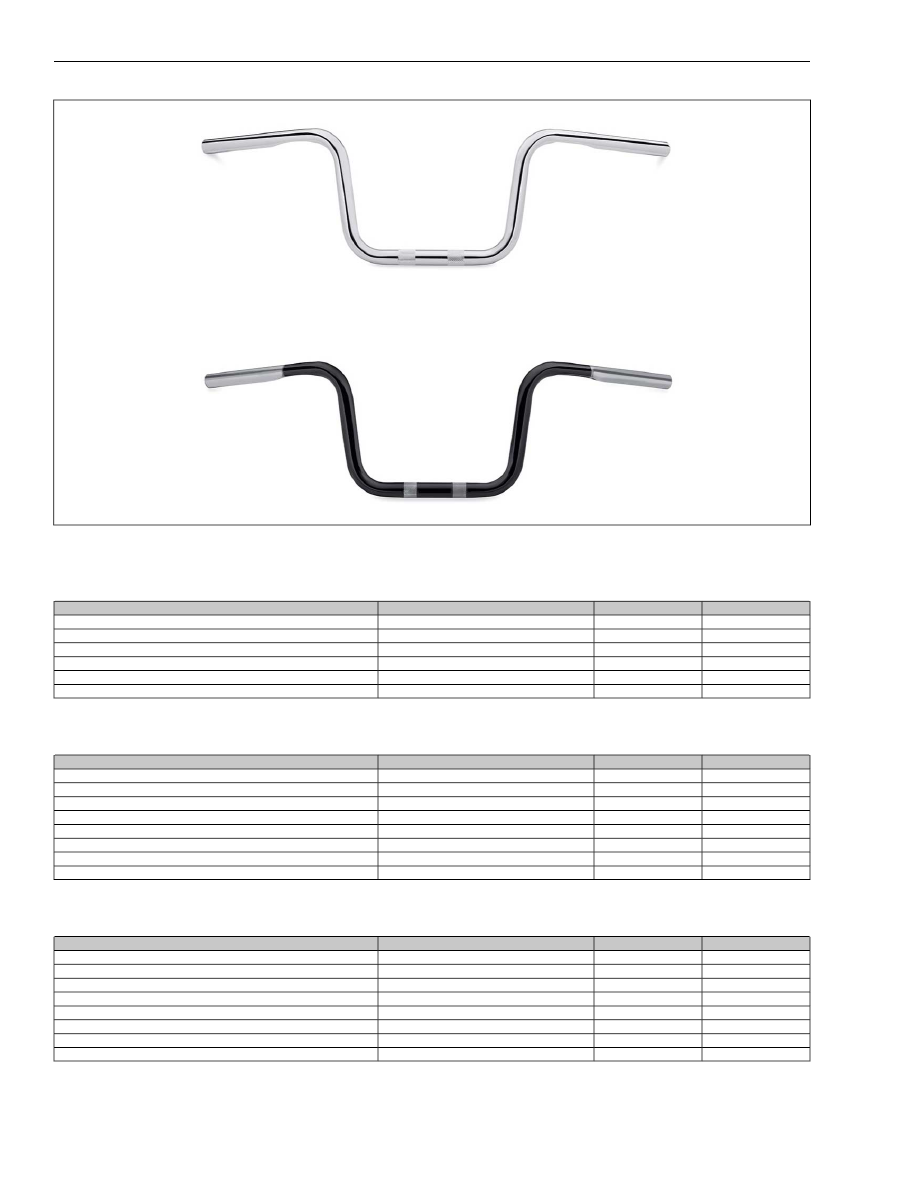

Figure 12. CHIZELED HANDLEBAR

2007-2013 XL883L, XL883N, XL1200L & XL1200N

Table 76.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

38702-05C

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

46720-09

41800283

n/a

Brake Lines

70234-07

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2014-later XL883L, XL883N & XL1200T

Table 77.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

38702-05C

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

41800260

41800246

41800168

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

41800147

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2018-later XL1200NS

Table 78.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

38702-05C

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

41800260

41800246

41800168

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

41800147

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

33 / 165

Harley Davidson HANDLEBAR INSTALLATION REQUIREMENTS (2019-02-13) - page 2
