Harley Davidson HANDLEBAR INSTALLATION REQUIREMENTS (2019-02-13)

Table 78.

Diamond Black

Diamondback™

OEM Stock

Fitment

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2012-2013 XL1200V

Table 79.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

38702-05C

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

46720-09

41800283

n/a

Brake Lines

70234-07

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2014-2016 XL1200V

Table 80.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

38702-05C

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

41800260

41800246

41800168

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

41800147

Brake Lines, ABS - UPPER

41800417A

41800416A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2010-2013 XL1200X

Table 81.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

38702-05C

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

46720-09

41800283

n/a

Brake Lines

70234-07

Switch Wire Extensions, 10"

55900074

Riser Kit

2014-later XL1200X

Table 82.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

38702-05C

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

41800260

41800246

41800168

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

41800147

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

55900074

Riser Kit

2018-later XL1200XS

Table 83.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

38702-05C

Clutch Cables

38945-09

56726-07

56884-07 / 56885-07

Throttle / Idle Cables

41800260

41800246

41800168

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

41800147

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

55900074

Riser Kit

2016-later XL1200CX

Table 84.

Diamond Black

Diamondback™

OEM Stock

Fitment

38939-09C

38745-09B

n/a

Clutch Cables

38945-09

56726-07

n/a

Throttle / Idle Cables

41800260

41800246

n/a

Brake Lines, NON ABS - UPPER

41800592A

41800590A

n/a

Brake Lines, NON ABS - LOWER

41800260

41800246

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

34 / 165

Table 84.

Diamond Black

Diamondback™

OEM Stock

Fitment

69200034

Switch Wire Extensions, 10"

55900074

Riser Kit

2006-2011 FXDB

Table 85.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

Stock 38789-06C

Clutch Cables

38918-09

56805-05A

Stock 56356-96A & 56355-96A

Throttle / Idle Cables

41800341

41800029A

42728-08

Brake Lines, UPPER

38116-10

42110-07

n/a

Brake Lines, LOWER

2012-2017 FXDB

Table 86.

Diamond Black

Diamondback™

OEM Stock

Fitment

38916-09B

38854-09A

38789-06C

(1)

Clutch Cables

38918-09

56805-05A

56356-96A & 56355-96A *

(1)

Throttle / Idle Cables

41800341

41800029A

42728-08

(1)

Brake Lines, NON ABS - UPPER

38116-10

42110-07

n/a

Brake Lines, NON ABS - LOWER

41800112A

41800059A

42935-12

(1)

Brake Lines, ABS - UPPER

41800076A

41800032A

Stock

Brake Lines, ABS - LOWER

(1) Stock on FXDB models equipped with mini-ape handlebars.

NOTE: Installation of handlebars and risers may require a change in clutch cables or lines, throttle cables, or brake lines for some models. All modular lower brake
lines listed are based on stock front suspension. Harley Davidson Motor Company cannot test and make specific fitment recommendations concerning every possible
mirror and handlebar combination. Therefore, after installing new mirrors, handlebars, or control cables/lines and before operating the motorcycle, check to ensure
that all controls are fully functional and that the mirrors provide the operator a clear view to the rear. Handlebar height is regulated in many areas. Check local laws
before installation.

35 / 165

SPORTSTER

CLUBMAN HANDLEBAR

55800342 (SATIN BLACK)

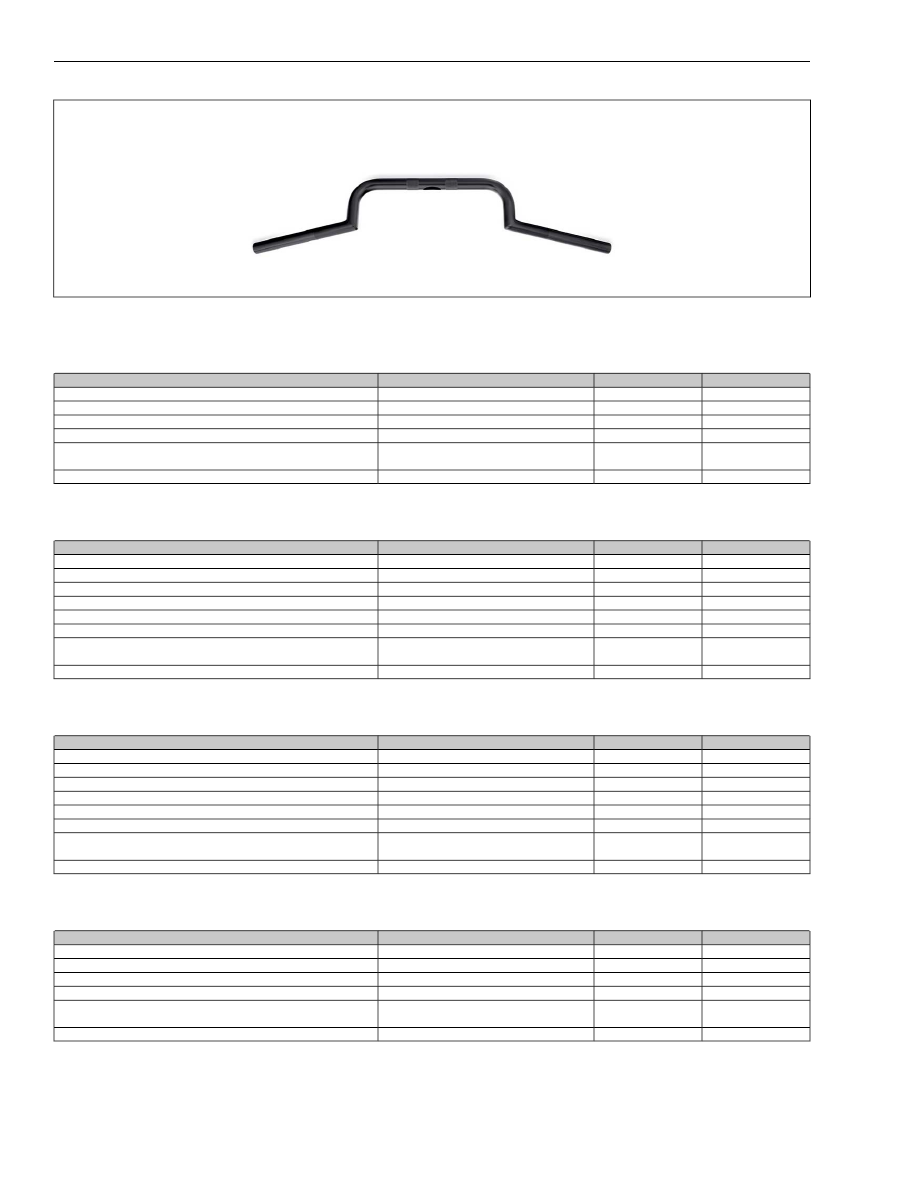

Figure 13. SPORTSTER

- CLUBMAN HANDLEBAR

2010-2013 XL883N

Table 88.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200136A

37200134A

n/a

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome) or 68643-09 (black)

Turn Signal Relocation Kit

70234-07

Switch Wire Extensions, 10"

2014-Later XL883N

Table 89.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200136A

37200134A

n/a

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800534

41800532

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome) or 68643-09 (black)

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2018-Later XL1200NS

Table 90.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200136A

37200134A

n/a

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800534

41800532

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome) or 68643-09 (black)

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2010-2013 XL1200C

Table 91.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100019

n/a

Throttle / Idle Cables

41800248

41800234

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome) or 68643-09 (black)

Turn Signal Relocation Kit

70234-07

Switch Wire Extensions, 10"

36 / 165

2014-Later XL1200C

Table 92.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100019

n/a

Throttle / Idle Cables

41800248

41800234

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800248

41800234

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome) or 68643-09 (black)

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2014-later XL1200T

Table 93.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200136A

37200134A

n/a

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800534

41800532

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

2012-2013 XL1200V

Table 94.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200136A

37200134A

n/a

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome) or 68643-09 (black)

Turn Signal Relocation Kit

70234-07

Switch Wire Extensions, 10"

2014-2016 XL1200V

Table 95.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200136A

37200134A

n/a

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800413

41800412

n/a

Brake Lines, NON ABS - LOWER

41800534

41800532

n/a

Brake Lines, ABS - UPPER

41800417A

41800416A

n/a

Brake Lines, ABS - LOWER

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome)

or 68643-09 (black)

68517-94A (chrome) or 68643-09 (black)

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2010-2013 XL1200X

Table 96.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200136A

37200134A

n/a

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

55900074

Riser Kit

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or 67800452 (black)

Turn Signal Relocation Kit

70234-07

Switch Wire Extensions, 10"

2014-2015 XL1200X

Table 97.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200136A

37200134A

n/a

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800534

41800532

n/a

Brake Lines, ABS - UPPER

37 / 165

Table 97.

Diamond Black

Diamondback™

OEM Stock

Fitment

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

55900074

Riser Kit

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or 67800452 (black)

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2016-later XL1200X

Table 98.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200136A

37200134A

n/a

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800534

41800532

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

55900074

Riser Kit

67800557 (black)

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2018-later XL1200XS

Table 99.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200136A

37200134A

n/a

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800228

41800226

n/a

Brake Lines, NON ABS - LOWER

41800534

41800532

n/a

Brake Lines, ABS - UPPER

41800232A

41800230A

n/a

Brake Lines, ABS - LOWER

55900074

Riser Kit

67800557 (black)

Turn Signal Relocation Kit

69200034

Switch Wire Extensions, 10"

2016-later XL1200CX

Table 100.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

n/a

Clutch Cables

56100197

56100196

n/a

Throttle / Idle Cables

41800534

41800532

n/a

Brake Lines, NON ABS - UPPER

41800592A

41800590A

n/a

Brake Lines, NON ABS - LOWER

41800534

41800532

n/a

Brake Lines, ABS - UPPER

41800587

41800585

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

38 / 165

SPORTSTER

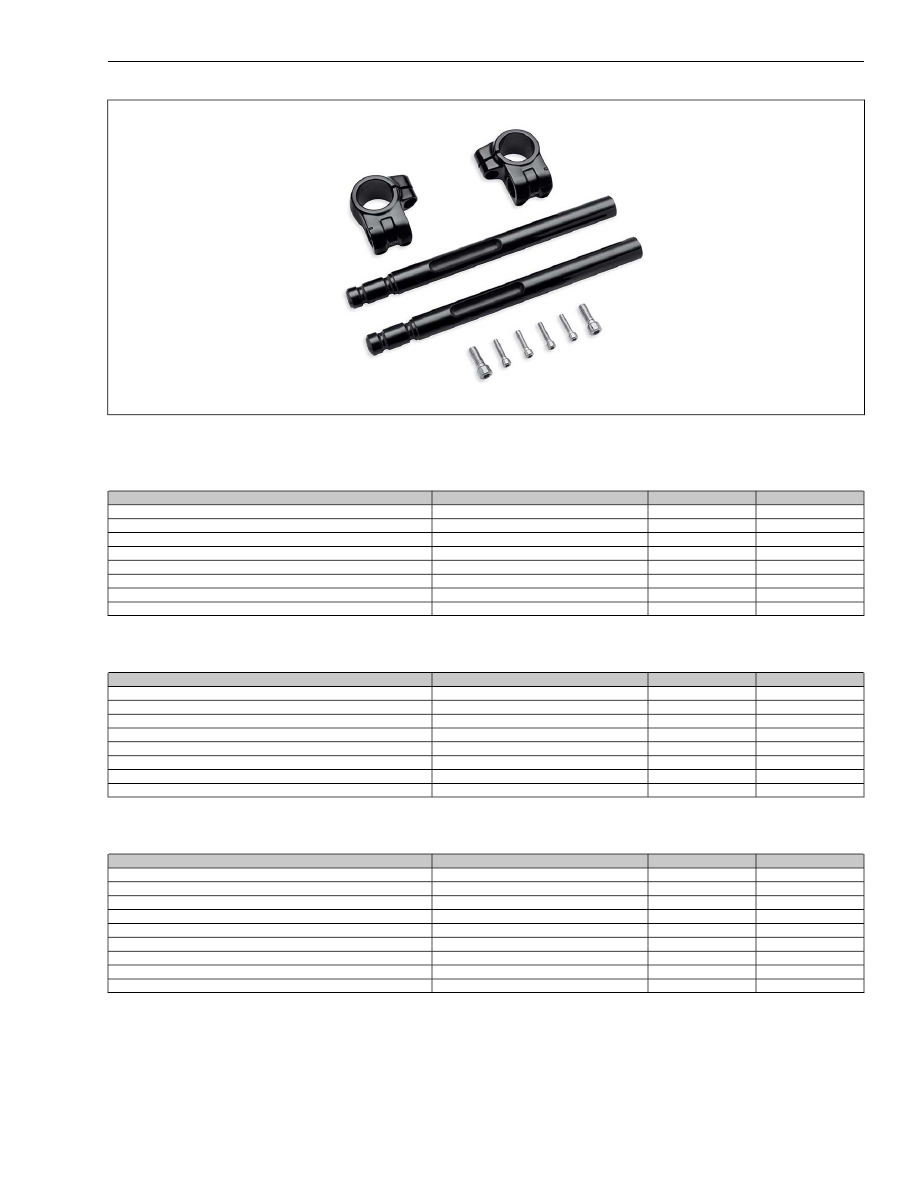

- CLIP-ON HANDLEBARS FOR 55MM FORKS

55800646 (BLACK ANNODIZED ALUMINUM)

Figure 14. SPORTSTER

- CLIP-ON HANDLEBARS FOR 55MM FORKS

2016-later XL1200CX

Table 102.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

Stock 37200172

Clutch Cables

56100197

56100196

Stock 27000027/ 56100198

Throttle / Idle Cables

n/a

41800566

Brake Lines, NON ABS

41800248

41800234

Stock 41800567

Brake Lines, ABS - UPPER

41800587

41800585

Stock 41800154

Brake Lines, ABS - Lower

70900660

Instrument Cluster/Speedo Relocation Kit

39 / 165

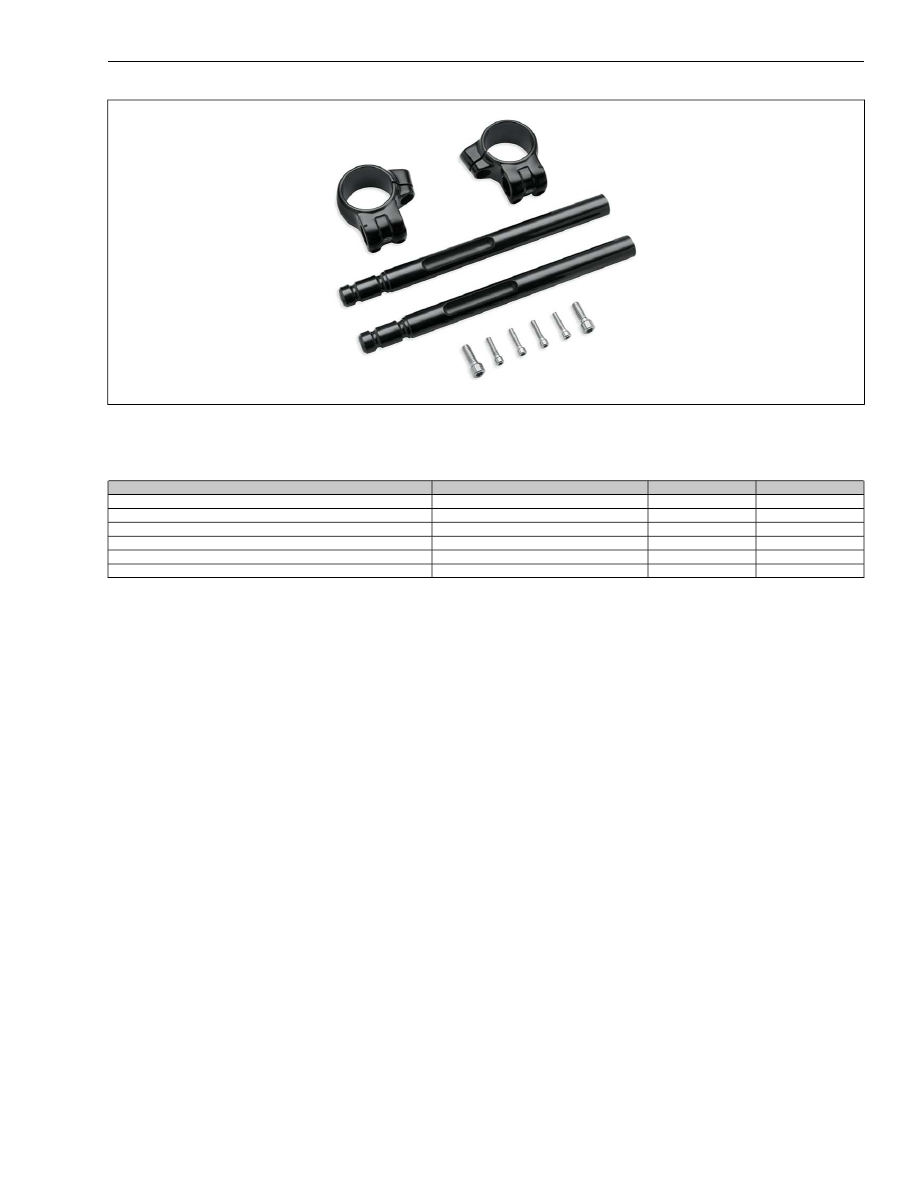

SPORTSTER

- CLIP-ON HANDLEBARS FOR 49MM FORKS

55800668 (BLACK ANNODIZED ALUMINUM)

Figure 15. SPORTSTER

- CLIP-ON HANDLEBARS FOR 49MM FORKS

2016-later XL1200X

Table 104.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

37200172

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

n/a

41800670

Brake Line, NON ABS

n/a

41800671

Brake Line Assembly, ABS

55800672

Handlebar Clamp Plug Kit

67800557

Turn Signal Relocation Kit ('16 - later models)

7725 (x2)

Lock Nut

7155 (x2)

Washer

2018-later XL1200XS

Table 105.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

37200172

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

n/a

41800670

Brake Line, NON ABS

n/a

41800671

Brake Line Assembly, ABS

55800672

Handlebar Clamp Plug Kit

67800557

Turn Signal Relocation Kit ('16 - later models)

7725 (x2)

Lock Nut

7155 (x2)

Washer

40 / 165

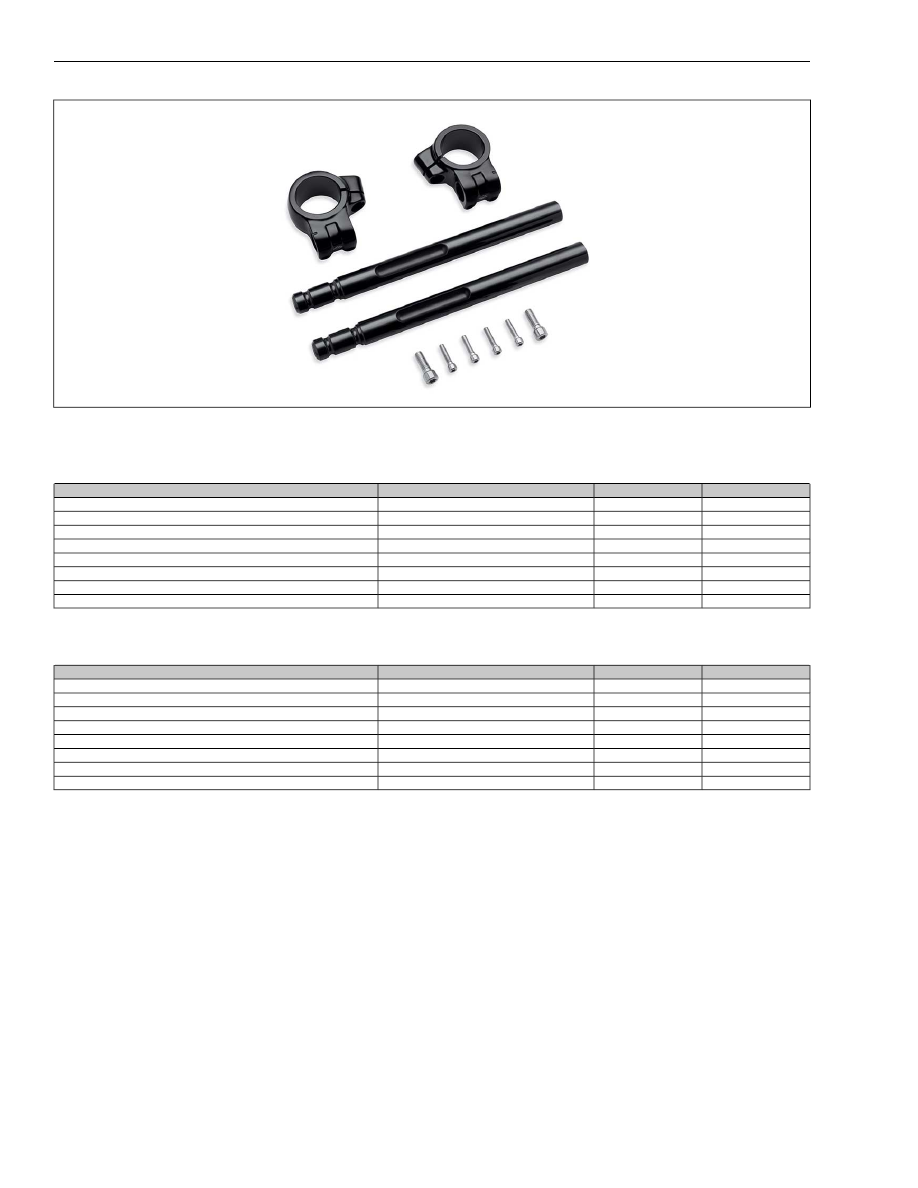

SPORTSTER

- CLIP-ON HANDLEBARS FOR 39MM FORKS

55800647 (BLACK ANNODIZED ALUMINUM)

Figure 16. SPORTSTER

- CLIP-ON HANDLEBARS FOR 39MM FORKS

2014-Later XL883N

Table 107.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

37200172

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

n/a

41800670

Brake Line, NON ABS

n/a

41800671

Brake Line Assembly, ABS

70900661

Instrument Cluster/Speedo Relocation Kit

68643-09

Turn Signal Relocation Kit

7725 (x2)

Lock Nut

7155 (x2)

Washer

2018-Later XL1200NS

Table 108.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

37200172

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

n/a

41800670

Brake Line, NON ABS

n/a

41800671

Brake Line Assembly, ABS

70900661

Instrument Cluster/Speedo Relocation Kit

68643-09

Turn Signal Relocation Kit

7725 (x2)

Lock Nut

7155 (x2)

Washer

2014-Later XL1200C

Table 109.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

37200172

Clutch Cables

56100197

56100196

Stock 27000027/ 56100198

Throttle / Idle Cables

n/a

41800670

Brake Line, NON ABS

n/a

41800671

Brake Line Assembly, ABS

70900660

Instrument Cluster/Speedo Relocation Kit

3374 (x2)

Bolts

69200080

Wire Harness

2325 (x2)

Screws/Bezel

69200439

Speedometer Back Cover

41 / 165

2014-2015 XL1200X

Table 110.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200008B

37200056A

37200172

Clutch Cables

56100139

56100147

n/a

Throttle / Idle Cables

n/a

41800670

Brake Line, NON ABS

n/a

41800671

Brake Line Assembly, ABS

55800672

Handlebar Clamp Plug Kit

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or

67800452 (black)

67800489 (chrome) or 67800452 (black)

Turn Signal Relocation Kit

7725 (x2)

Lock Nut

7155 (x2)

Washer

41800413

41800412

n/a

Non-ABS Models

(1)

41800417A

41800416A

n/a

Models Equipped with ABS

(1)

(1) Lower Brake Lines in the tables above are for fitment with stock vehicle front suspension. If installing the Screamin' Eagle® Fully Adjustable
Front Suspension, P/N 45400176, make the following replacements to the Lower Brake Lines listed in the table below:

42 / 165

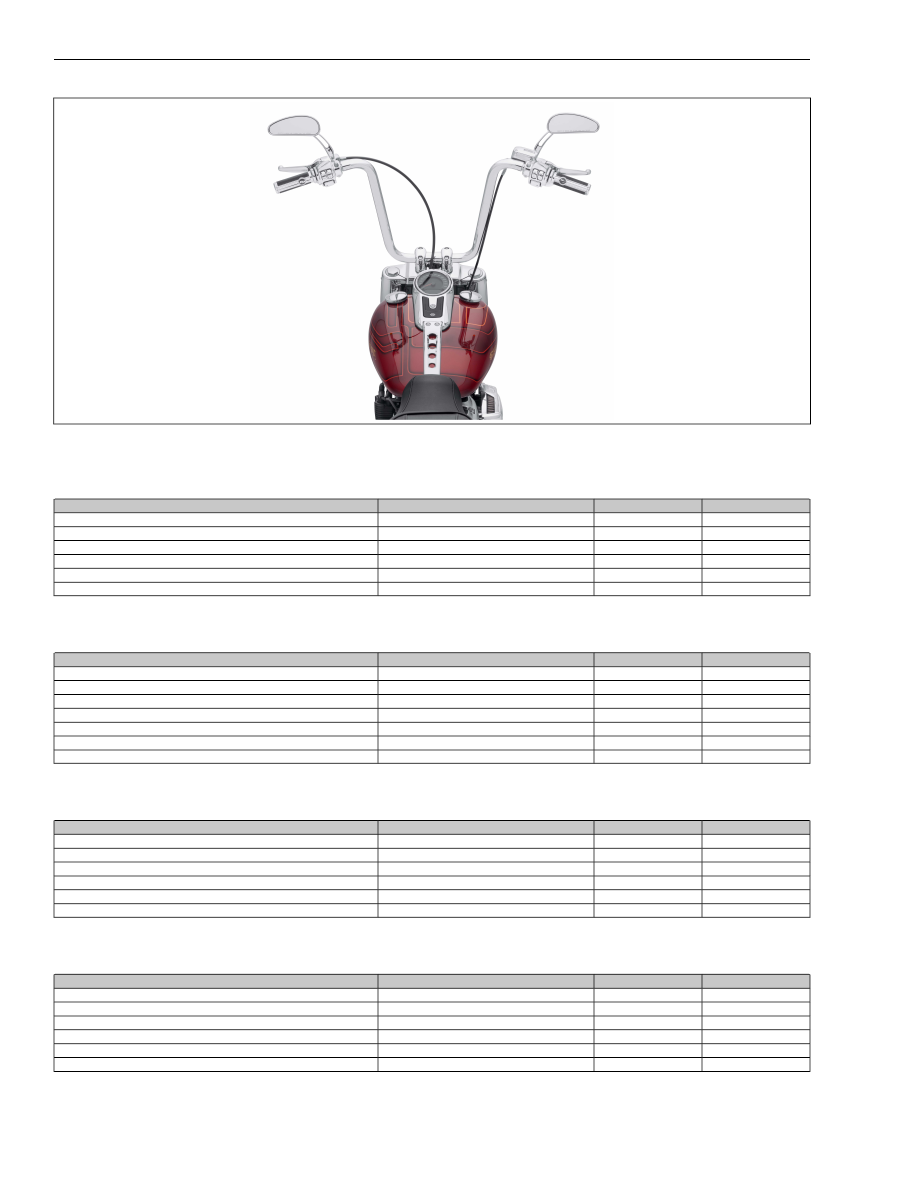

EXTREME REACH

HANDLEBAR

55800563

Figure 17. EXTREME REACH

HANDLEBAR

2006-2008 FXDWG

Table 112.

Diamond Black

Diamondback™

OEM Stock

Fitment

38973-10A

38856-09A

n/a

Clutch Cables

38918-09

56805-05A

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, UPPER

n/a

42108-07

n/a

Brake Lines, LOWER

56266-09

Riser Kit

72140-03 & 72141-03

Switch Wire Extensions, 4" ('06 models)

70229-07

Switch Wire Extensions, 4" ('07 - '08 models)

72137-03

Turn Signal Wire Extensions, 6" ('06 models)

69200083

Turn Signal Wire Extensions, 12" ('07 - '08 models)

2010-2011 FXDWG

Table 113.

Diamond Black

Diamondback™

OEM Stock

Fitment

38973-10A

38856-09A

n/a

Clutch Cables

38918-09

56805-05A

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, UPPER

n/a

42108-07

n/a

Brake Lines, LOWER

56266-09

Riser Kit

2012-2017 FXDWG

Table 114.

Diamond Black

Diamondback™

OEM Stock

Fitment

38973-10A

38856-09A

n/a

Clutch Cables

38918-09

56805-05A

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42108-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800058A

n/a

Brake Lines, ABS - UPPER

n/a

41800032A

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

2006-2011 FXD, FXDC & FXDL

Table 115.

Diamond Black

Diamondback™

OEM Stock

Fitment

38973-10A

38856-09A

n/a

Clutch Cables

38918-09

56805-05A

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, UPPER

n/a

42108-07

n/a

Brake Lines, LOWER

56266-09

Riser Kit

43 / 165

Table 115.

Diamond Black

Diamondback™

OEM Stock

Fitment

70234-07

Switch Wire Extensions, 10"

69200083

Turn Signal Wire Extensions, 12"

2012-2014 FXDC & 2012-2013 FXDL

Table 116.

Diamond Black

Diamondback™

OEM Stock

Fitment

38973-10A

38856-09A

n/a

Clutch Cables

38918-09

56805-05A

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42108-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800058A

n/a

Brake Lines, ABS - UPPER

n/a

41800032A

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

69200034

Switch Wire Extensions, 10"

69200083

Turn Signal Wire Extensions, 12"

2006-2011 FXDB

Table 117.

Diamond Black

Diamondback™

OEM Stock

Fitment

38973-10A

38856-09A

n/a

Clutch Cables

38918-09

56805-05A

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, UPPER

n/a

42110-07

n/a

Brake Lines, LOWER

56266-09

Riser Kit

45538-08

Upper Fork Bracket ('08 -'11 models only)

2012-2017 FXDB

Table 118.

Diamond Black

Diamondback™

OEM Stock

Fitment

38973-10A

38856-09A

n/a

Clutch Cables

38918-09

56805-05A

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42110-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800058A

n/a

Brake Lines, ABS - UPPER

n/a

41800032A

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

45538-08

Upper Fork Bracket ('12 models only)

2008-2011 FXDF

Table 119.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, UPPER

48928-10

42112-08A

n/a

Brake Lines, LOWER

56266-09

Riser Kit

2012-2017 FXDF

Table 120.

Diamond Black

Diamondback™

OEM Stock

Fitment

38975-10A

38857-09A

n/a

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800256

41800242

n/a

Brake Lines, NON-ABS - UPPER

48928-10

42112-08A

n/a

Brake Lines, NON-ABS - LOWER

41800256

41800242

n/a

Brake Lines, ABS - UPPER

41800078

41800048

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

2012-2016 FLD

Table 121.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

Stock 38788-06C

Clutch Cables

38918-09

56805-05A

Stock 56356-96A / 56355-96A

Throttle / Idle Cables

41800112A

41800059A

Stock 42728-08

Brake Lines, NON-ABS - UPPER

38116-10

42110-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800059A

n/a

Brake Lines, ABS - UPPER

44 / 165

Table 121.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

41800050

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

2000-2010 FXST

Table 122.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

38883-08A

Clutch Cables

38918-09

56805-05A

56356-96A / 56355-96A

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, UPPER

n/a

42366-07

n/a

Brake Lines, LOWER

56266-09

Riser Kit

72140-03 & 72141-03

Switch Wire Extensions, 4" ('00 - '06 models)

70229-07

Switch Wire Extensions, 4" ('07 - '10 models)

72137-03

Turn Signal Wire Extensions, 6"

2011-2014 FXST

Table 123.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

38883-08A

Clutch Cables

38918-09

56805-05A

56356-96A / 56355-96A

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42366-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800058A

n/a

Brake Lines, ABS - UPPER

n/a

38186-11A

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2015 FXST

Table 124.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200175

38923-09A

37200119

Clutch Cables

38918-09

56805-05A

56356-96A / 56355-96A

Throttle / Idle Cables

41800437

41800421

n/a

Brake Lines, ABS - UPPER

41800022B

41800308A

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2000-2009 FXSTB

Table 125.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

38883-08A

Clutch Cables

38918-09

56805-05A

56356-96A / 56355-96A

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, UPPER

n/a

42366-07

n/a

Brake Lines, LOWER

56266-09

Riser Kit

72150-03 & 72151-03

Switch Wire Extensions, 10" ('00 - '06 models)

70234-07

Switch Wire Extensions, 10" ('07 - '09 models)

2007-2010 FXSTC

Table 126.

Diamond Black

Diamondback™

OEM Stock

Fitment

38875-09B

38852-09A

38883-08A

Clutch Cables

38918-09

56805-05A

56356-96A / 56355-96A

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, UPPER

n/a

42366-07

n/a

Brake Lines, LOWER

56266-09

Riser Kit

70229-07

Switch Wire Extensions, 4"

72137-03

Turn Signal Wire Extensions, 6"

2000-2010 FLSTC, FLSTF & FLSTN

Table 127.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

38666-07C

Clutch Cables

38957-09

55700-07

56356-96A / 56355-96A

Throttle / Idle Cables

45 / 165

Table 127.

Diamond Black

Diamondback™

OEM Stock

Fitment

n/a

41800058A

n/a

Brake Lines, UPPER

n/a

42371-07

n/a

Brake Lines, LOWER

56266-09

Riser Kit

72140-03 & 72141-03

Switch Wire Extensions, 4" ('00 - '06 models)

70229-07

Switch Wire Extensions, 4" ('07 - '10 models)

72137-03

Turn Signal Wire Extensions, 6"

2011-2014 FLSTC, FLSTF, FLSTN & FLS

Table 128.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

38666-07C

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42371-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800058A

n/a

Brake Lines, ABS - UPPER

n/a

38132-11A

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6" (FLS & FLSTF models only)

2015 FLSTC, FLSTF, FLSTN & FLS

Table 129.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200175

38923-09A

37200119

Clutch Cables

38957-09

55700-07

56356-96A / 56355-96A

Throttle / Idle Cables

41800437

41800421

n/a

Brake Lines, NON-ABS - UPPER (FLS models only)

41800375

41800374

n/a

Brake Lines, NON-ABS - LOWER (FLS models only)

41800437

41800421

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6" (FLS & FLSTF models only)

2016-2017 FLSTC, FLSTF, FLSTN & FLS

Table 130.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200175

38923-09A

37200119

Clutch Cables

41800437

41800421

n/a

Brake Lines, NON-ABS - UPPER (FLS models only)

41800375

41800374

n/a

Brake Lines, NON-ABS - LOWER (FLS models only)

41800437

41800421

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12" (FLS & FLSTF models only)

2010 FLSTFB

Table 131.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

38666-07C

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, UPPER

n/a

42371-07

n/a

Brake Lines, LOWER

56266-09

Riser Kit

70234-07

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2011-2014 FLSTFB

Table 132.

Diamond Black

Diamondback™

OEM Stock

Fitment

38818-10A

38851-09A

38666-07C

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

n/a

41800058A

n/a

Brake Lines, NON-ABS - UPPER

n/a

42371-07

n/a

Brake Lines, NON-ABS - LOWER

n/a

41800058A

n/a

Brake Lines, ABS - UPPER

n/a

38132-11A

n/a

Brake Lines, ABS - LOWER

56266-09

Riser Kit

46 / 165

Table 132.

Diamond Black

Diamondback™

OEM Stock

Fitment

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2015 FLSTFB

Table 133.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200175

38923-09A

37200119

Clutch Cables

38957-09

55700-07

n/a

Throttle / Idle Cables

41800437

41800421

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - lower

56266-09

Riser Kit

69200034

Switch Wire Extensions, 10"

72137-03

Turn Signal Wire Extensions, 6"

2016-2017 FLSTFB

Table 134.

Diamond Black

Diamondback™

OEM Stock

Fitment

37200175

38923-09A

37200119

Clutch Cables

41800437

41800421

n/a

Brake Lines, ABS - UPPER

41800369

41800370

n/a

Brake Lines, ABS - lower

56266-09

Riser Kit

Stock

Stock 32700050

Twist Grip Sensor Kit

69200034

Switch Wire Extensions, 10"

69201618

Turn Signal Wire Extensions, 12"

47 / 165

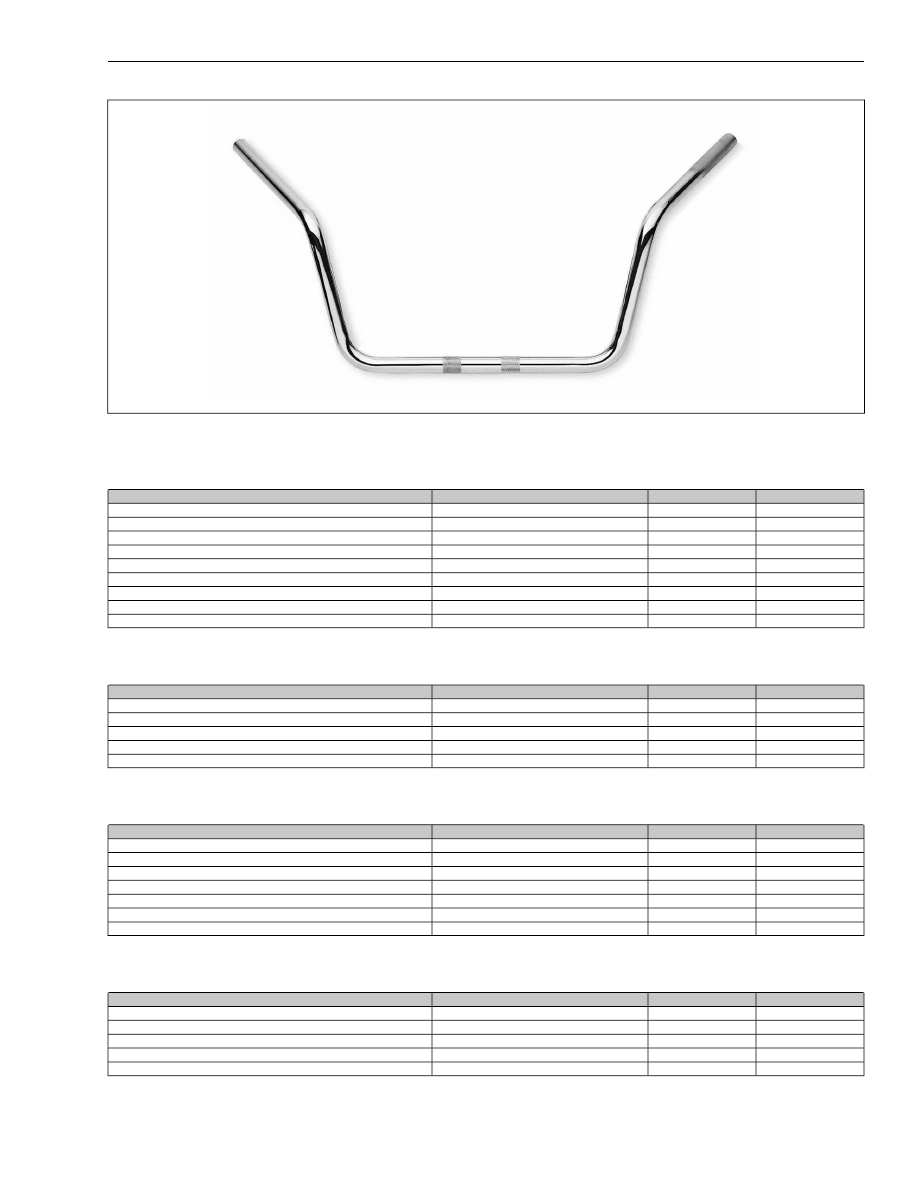

16" FAT APE HANDLEBAR KIT WITH RISER

56942-10B (CHROME), 55857-10B (SATIN BLACK)

Figure 18. 16" FAT APE HANDLEBAR KIT WITH RISER

1999-2005 FXDWG

Table 136.

Diamond Black

Diamondback™

OEM Stock

Fitment

38977-10A

38858-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800116A

41800061A

n/a

Brake Lines, UPPER

48924-10

42366-07

n/a

Brake Lines, LOWER

58742-05

Turn Signal Relocation Kit

72140-03 & 72141-03

Switch Wire Extensions, 4"

2006-2008 FXDWG

Table 137.

Diamond Black

Diamondback™

OEM Stock

Fitment

38977-10A

38858-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800116A

41800061A

n/a

Brake Lines, UPPER

48926-10

42108-07

n/a

Brake Lines, LOWER

70229-07

Switch Wire Extensions, 4" ('07 - '08 models)

72137-03

Turn Signal Wire Extensions, 6" ('06 models)

69200083

Turn Signal Wire Extensions, 12" ('07 - '08 models)

2010-2011 FXDWG

Table 138.

Diamond Black

Diamondback™

OEM Stock

Fitment

38977-10A

38858-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800118A

41800062A

n/a

Brake Lines, UPPER

48926-10

42108-07

n/a

Brake Lines, LOWER

70234-07

Switch Wire Extensions, 10"

69200083

Turn Signal Wire Extensions, 12"

2012-2017 FXDWG

Table 139.

Diamond Black

Diamondback™

OEM Stock

Fitment

38977-10A

38858-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800118A

41800062A

n/a

Brake Lines, NON-ABS - UPPER

48926-10

42108-07

n/a

Brake Lines, NON-ABS - LOWER

41800118A

41800062A

n/a

Brake Lines, ABS - UPPER

41800076A

41800032A

n/a

Brake Lines, ABS - LOWER

48 / 165

Table 139.

Diamond Black

Diamondback™

OEM Stock

Fitment

69200034

Switch Wire Extensions, 10"

69200083

Turn Signal Wire Extensions, 12"

2006-2011 FXDB

Table 140.

Diamond Black

Diamondback™

OEM Stock

Fitment

38979-10A

38859-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800116A

41800061A

n/a

Brake Lines, NON-ABS - UPPER

38116-10

42110-07

n/a

Brake Lines, NON-ABS - LOWER

45538-08

Upper Fork Bracket ('08 -'11 models only)

72140-03 & 72141-03

Switch Wire Extensions, 4" ('06 models)

70229-07

Switch Wire Extensions, 4" ('07 - '11 models)

72137-03

Turn Signal Wire Extensions, 6" ('06 models)

69200083

Turn Signal Wire Extensions, 12" ('07 - '11 models)

2012-2017 FXDB

Table 141.

Diamond Black

Diamondback™

OEM Stock

Fitment

38979-10A

38859-09A

n/a

Clutch Cables

55767-10

55706-07

n/a

Throttle / Idle Cables

41800116A

41800061A

n/a

Brake Lines, NON-ABS - UPPER

38116-10

42110-07

n/a

Brake Lines, NON-ABS - LOWER

41800118A

41800062A

n/a

Brake Lines, ABS - UPPER

41800076A

41800032A

n/a

Brake Lines, ABS - LOWER

45538-08

Upper Fork Bracket ('12 models only)

69200034

Switch Wire Extensions, 10"

69200083

Turn Signal Wire Extensions, 12"

2008-2011 FXDF

Table 142.

Diamond Black

Diamondback™

OEM Stock

Fitment

38977-10A

38858-09A

n/a

Clutch Cables

55748-10

55703-07

n/a

Throttle / Idle Cables

41800438

41800422

n/a

Brake Lines, UPPER

48928-10

42112-08A

n/a

Brake Lines, LOWER

70229-07

Switch Wire Extensions, 4"

69200083

Turn Signal Wire Extensions, 12"

2012-2017 FXDF

Table 143.

Diamond Black

Diamondback™

OEM Stock

Fitment

38977-10A

38858-09A

n/a

Clutch Cables

55748-10

55703-07

n/a

Throttle / Idle Cables

41800438

41800422

n/a

Brake Lines, NON-ABS - UPPER

48928-10

42112-08A

n/a

Brake Lines, NON-ABS - LOWER

41800438

41800422

n/a

Brake Lines, ABS - UPPER

41800078

41800048

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

69200083

Turn Signal Wire Extensions, 12"

2016-2017 FXDLS

Table 144.

Diamond Black

Diamondback™

OEM Stock

Fitment

38979-10A

38859-09A

n/a

Clutch Cables

41800438

41800422

n/a

Brake Lines, ABS - UPPER

41800078

41800048

n/a

Brake Lines, ABS - LOWER

69200034

Switch Wire Extensions, 10"

69200083

Turn Signal Wire Extensions, 12"

2012-2016 FLD

Table 145.

Diamond Black

Diamondback™

OEM Stock

Fitment

38977-10A

38858-09A

n/a

Clutch Cables

55748-10

55703-07

n/a

Throttle / Idle Cables

41800118A

41800062A

n/a

Brake Lines, NON-ABS - UPPER

49 / 165

Harley Davidson HANDLEBAR INSTALLATION REQUIREMENTS (2019-02-13) - page 3
