Ford Mondeo (petrol engines). Manual - part 60

12•38

Wiring diagrams

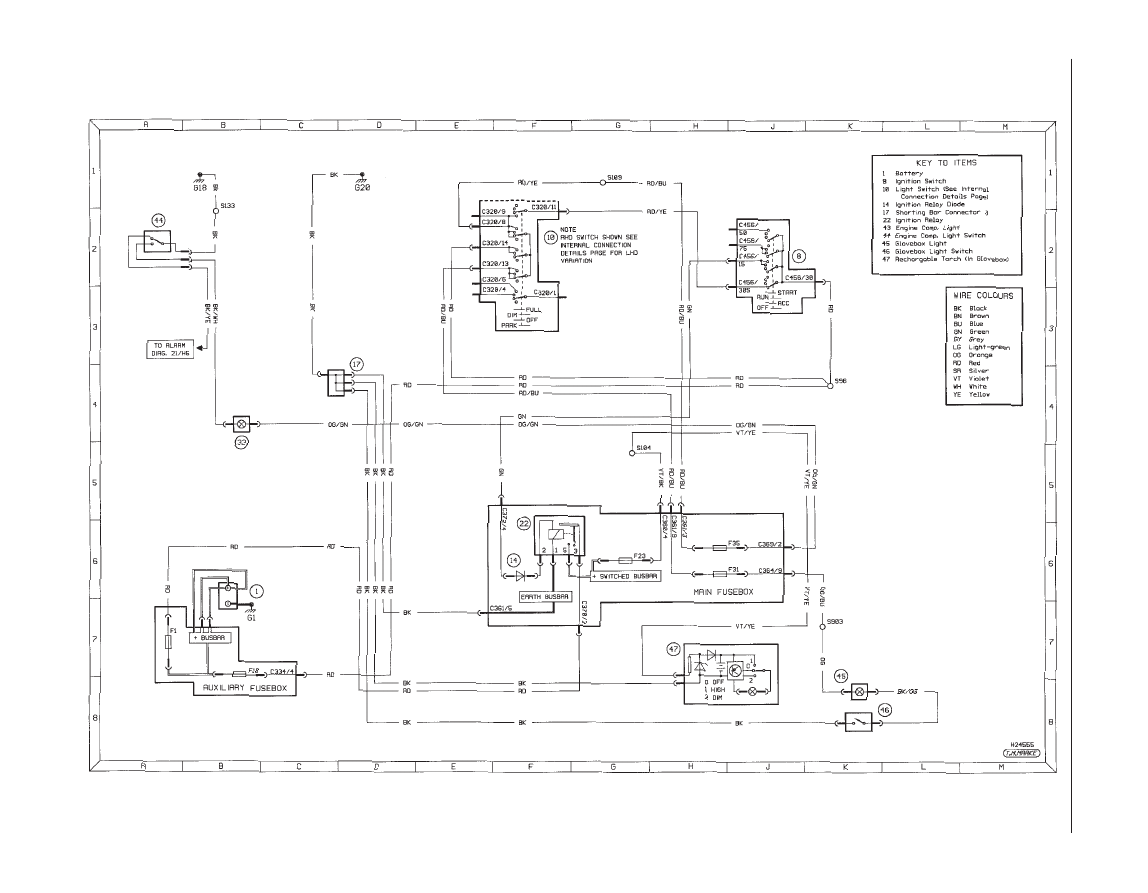

Diagram 14: Interior lighting – torch, glovebox and engine compartment lights

Wiring diagrams  12•39

12

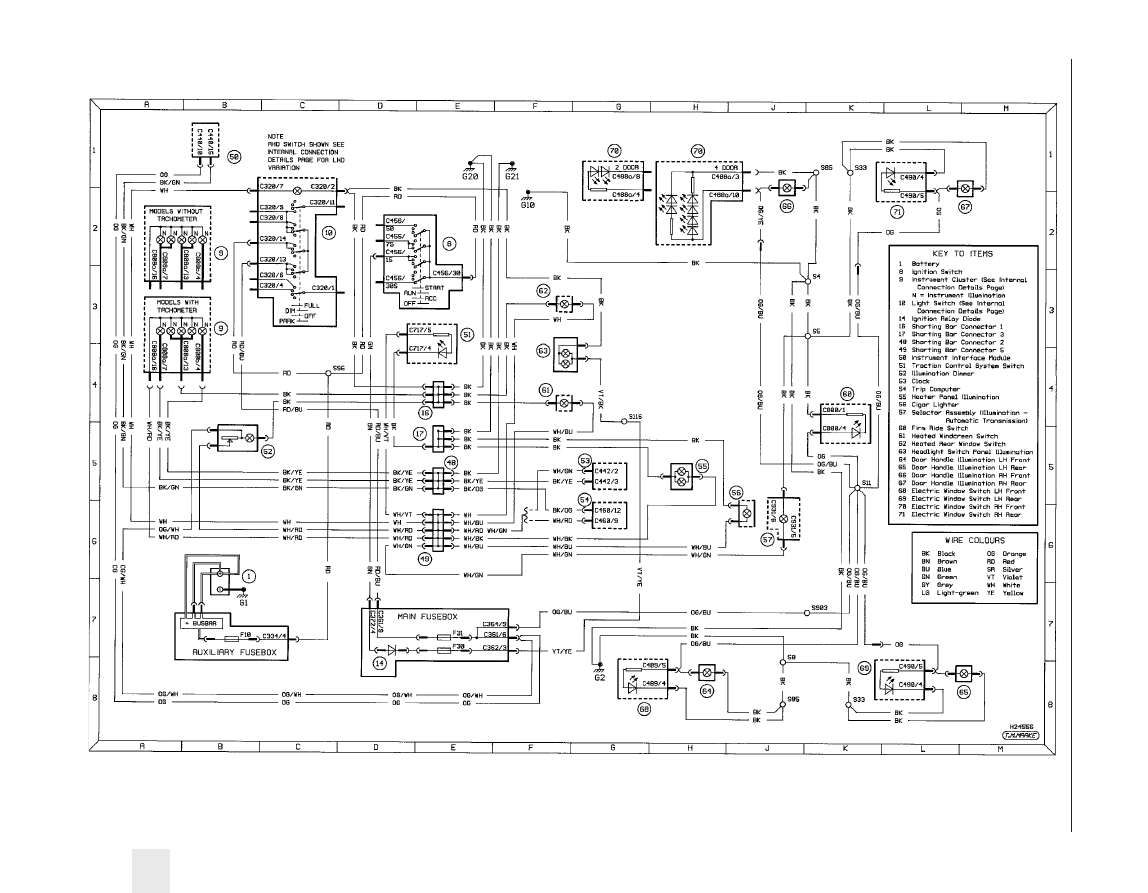

Diagram 15: Interior illumination

12•40

Wiring diagrams

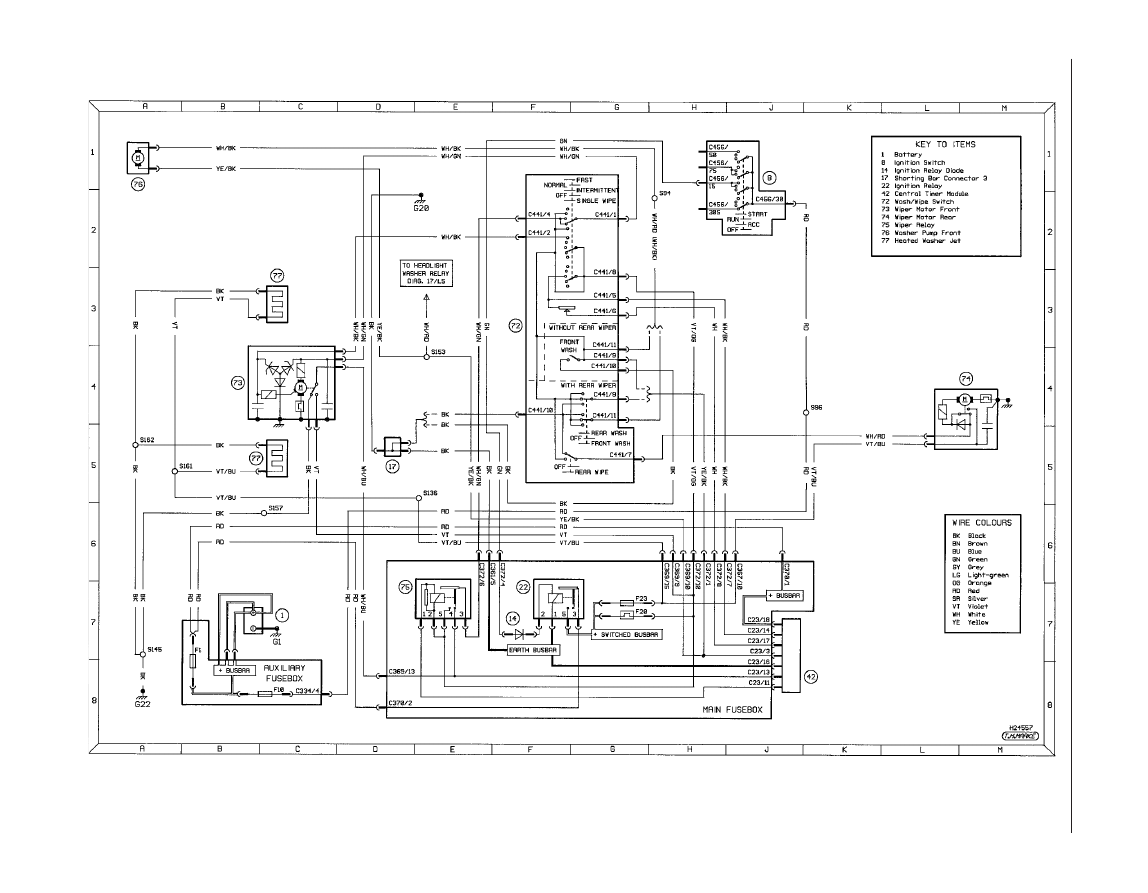

Diagram 16: Wash/wipe and heated washer jets

Wiring diagrams  12•41

12

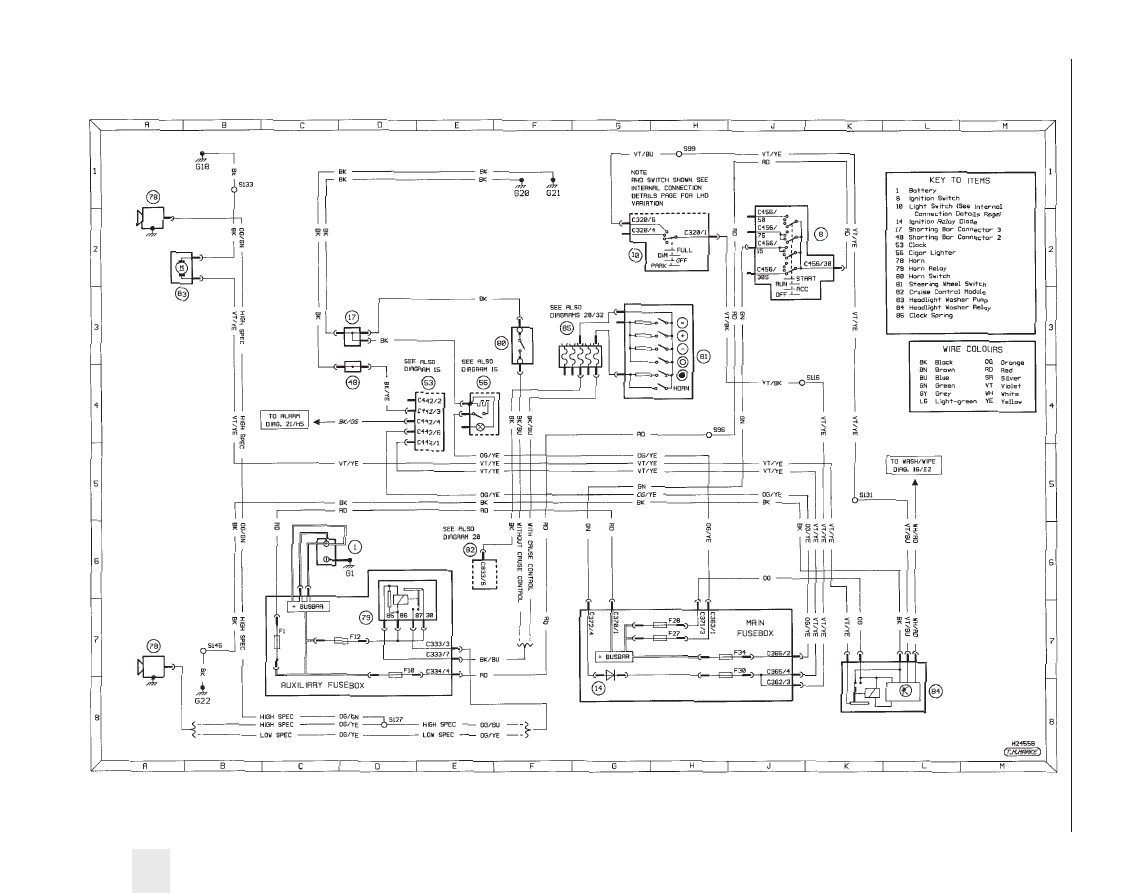

Diagram 17 Headlight washer, horn, clock and cigar lighter
