Ford Mondeo (petrol engines). Manual - part 61





12•42

Wiring diagrams

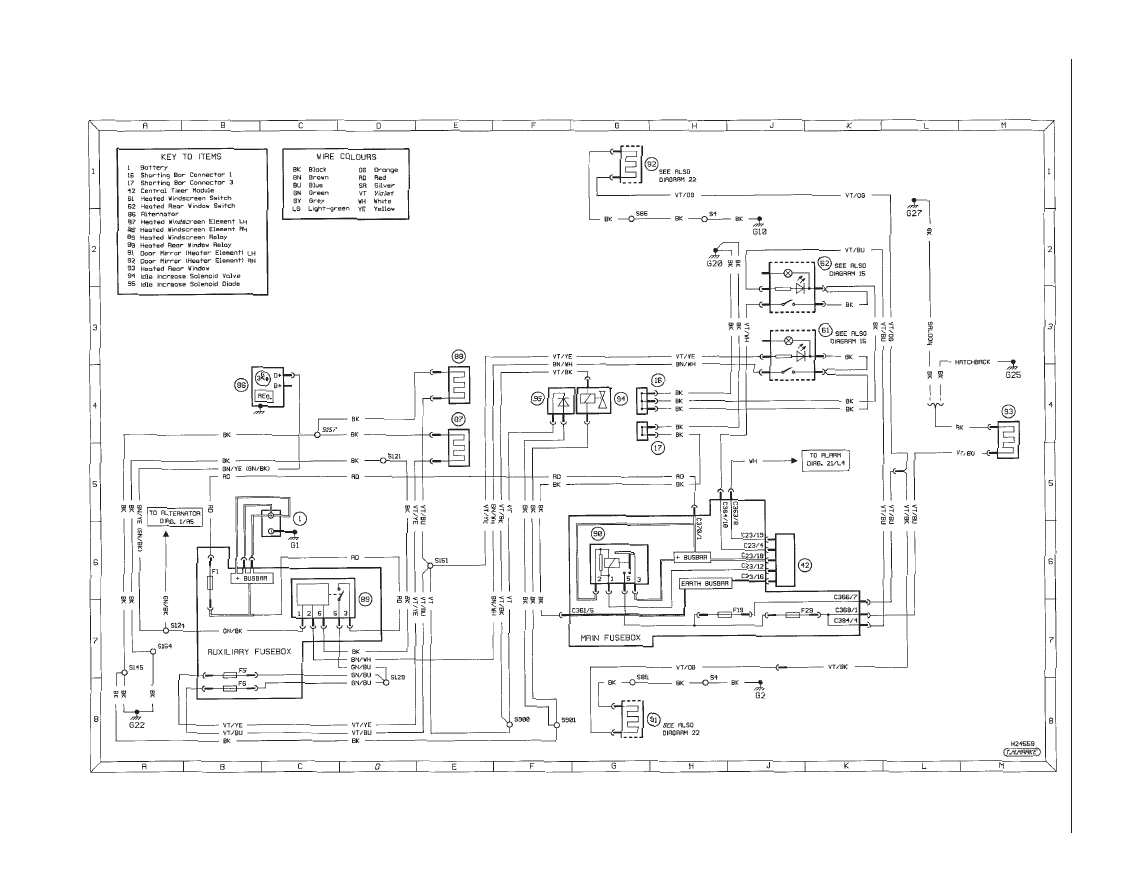

Diagram 18: Heated mirrors and heated front/rear screens

Wiring diagrams  12•43

12

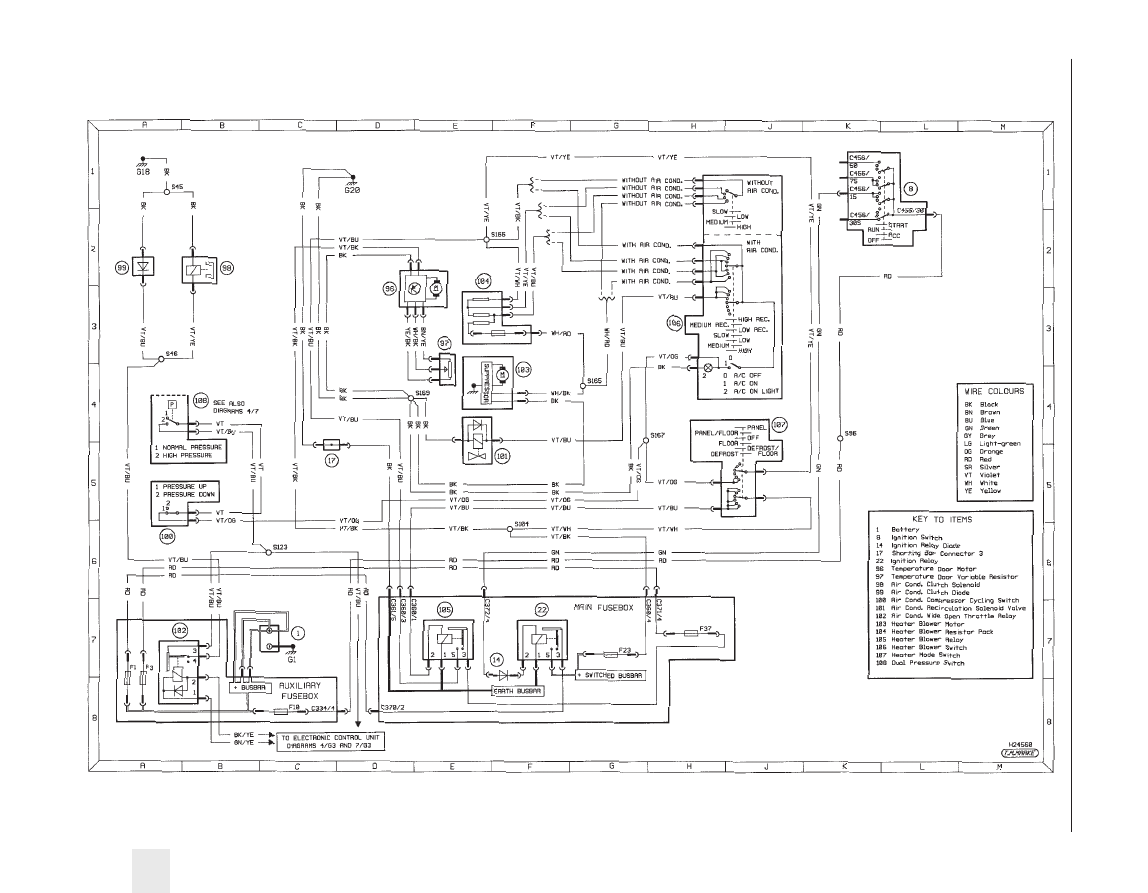

Diagram 19: Air conditioning and heater blower

12•44

Wiring diagrams

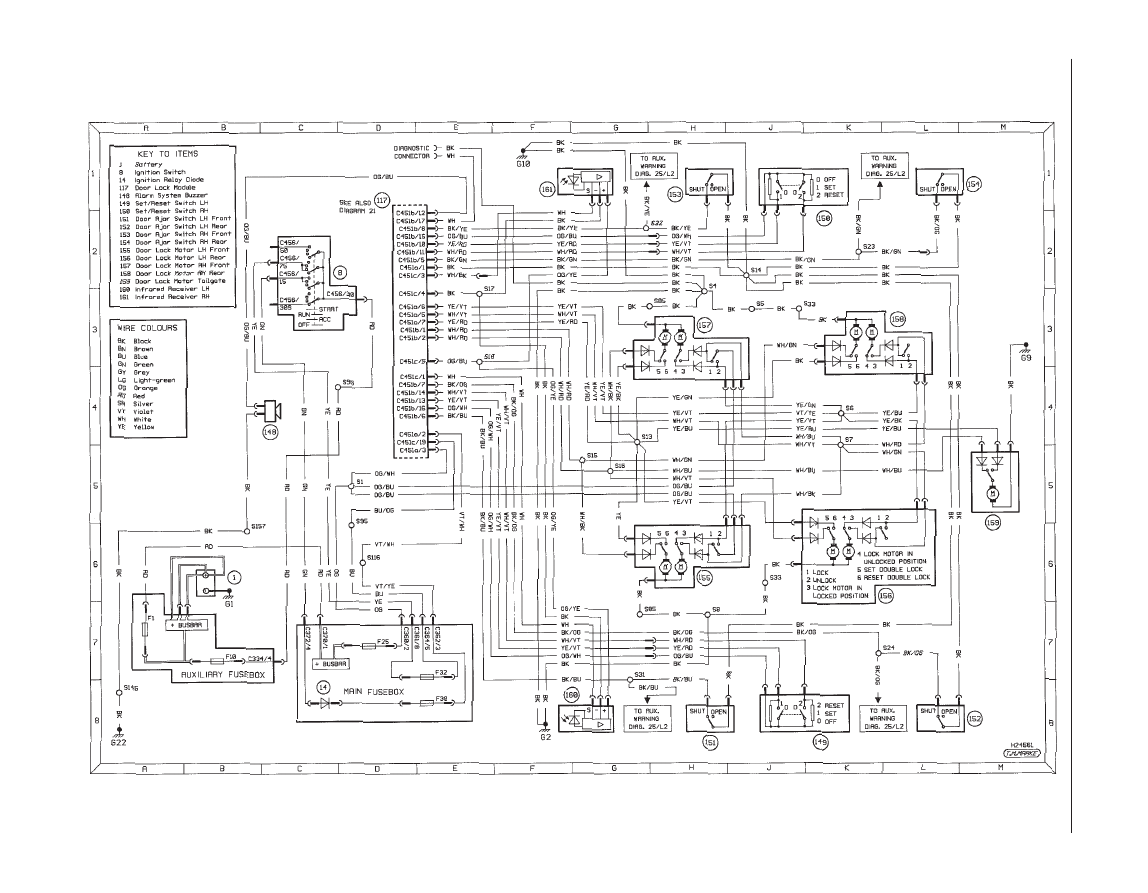

Diagram 20: Central door locking (with double locking)

Wiring diagrams  12•45

12

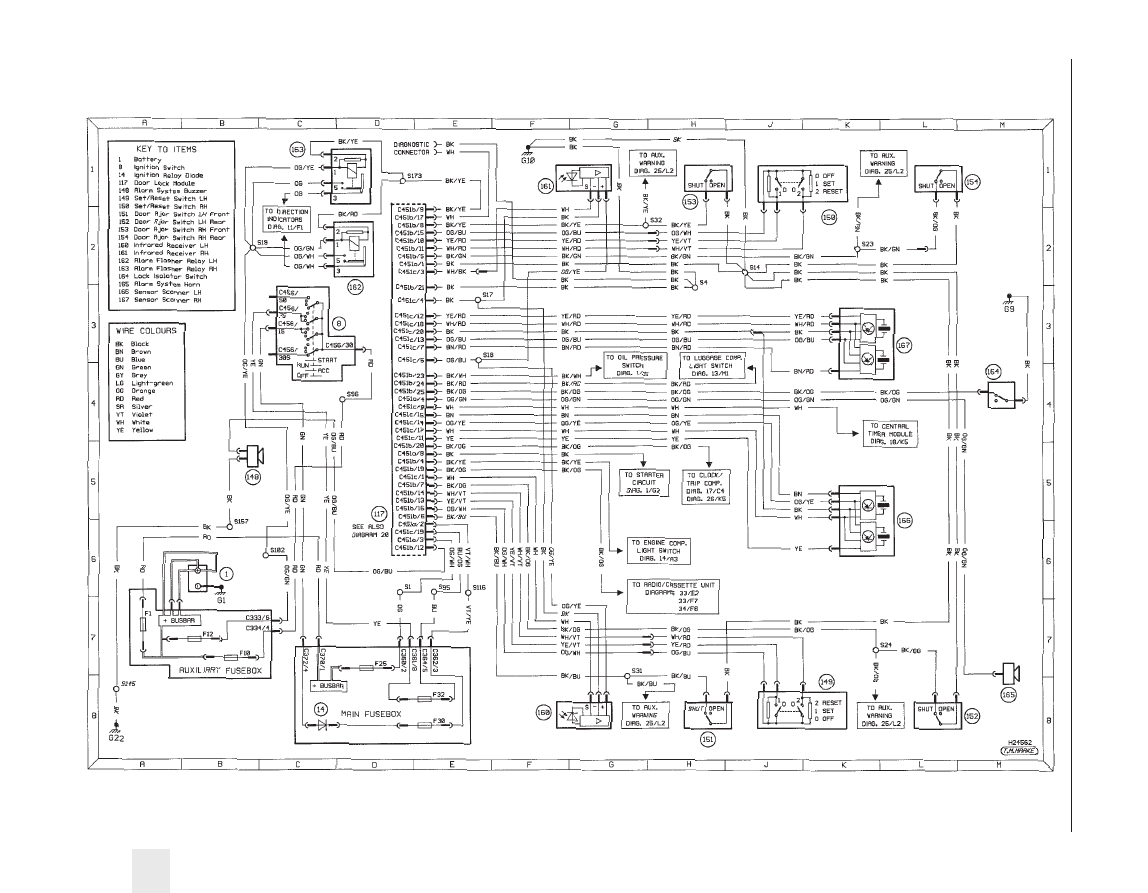

Diagram 21: Anti-theft alarm
