Ford Mondeo (petrol engines). Manual - part 58

12•30

Wiring diagrams

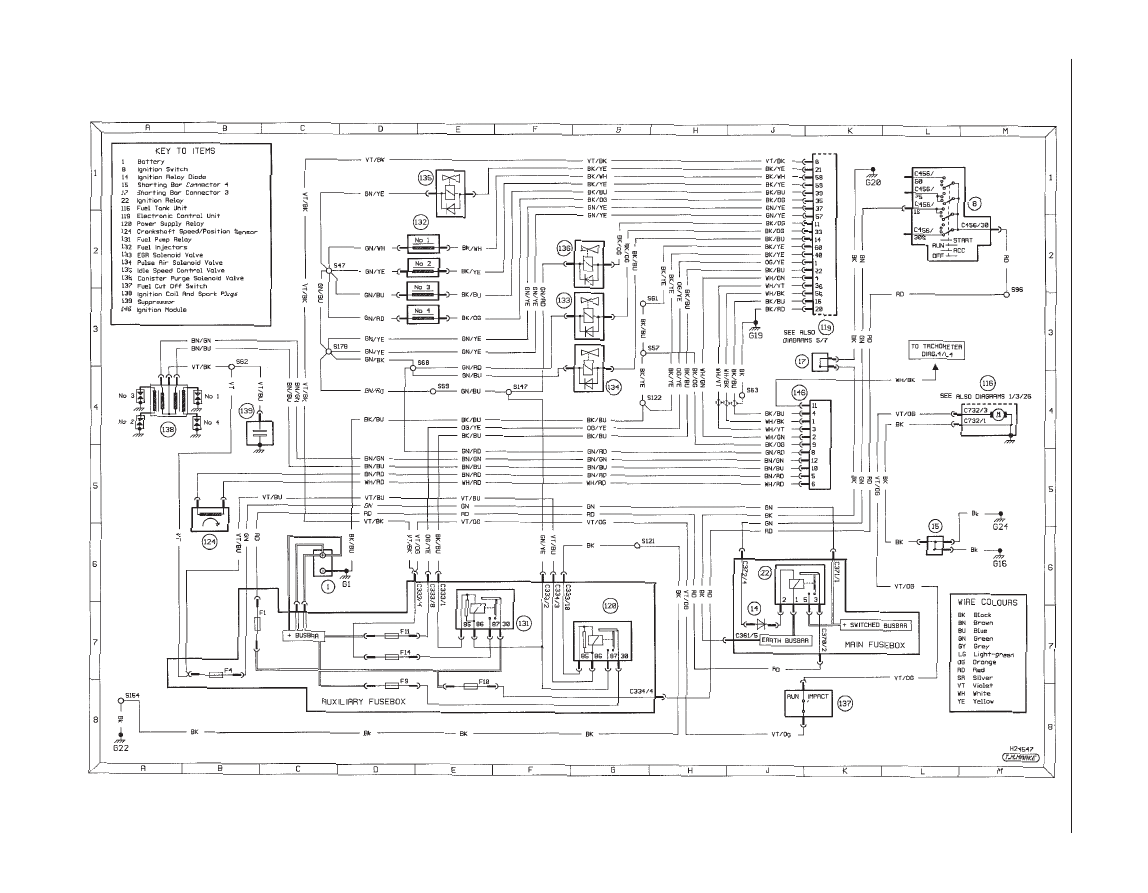

Diagram 6: Engine management – solenoid outputs, ignition and fuel pump (automatic transmission models)

Wiring diagrams  12•31

12

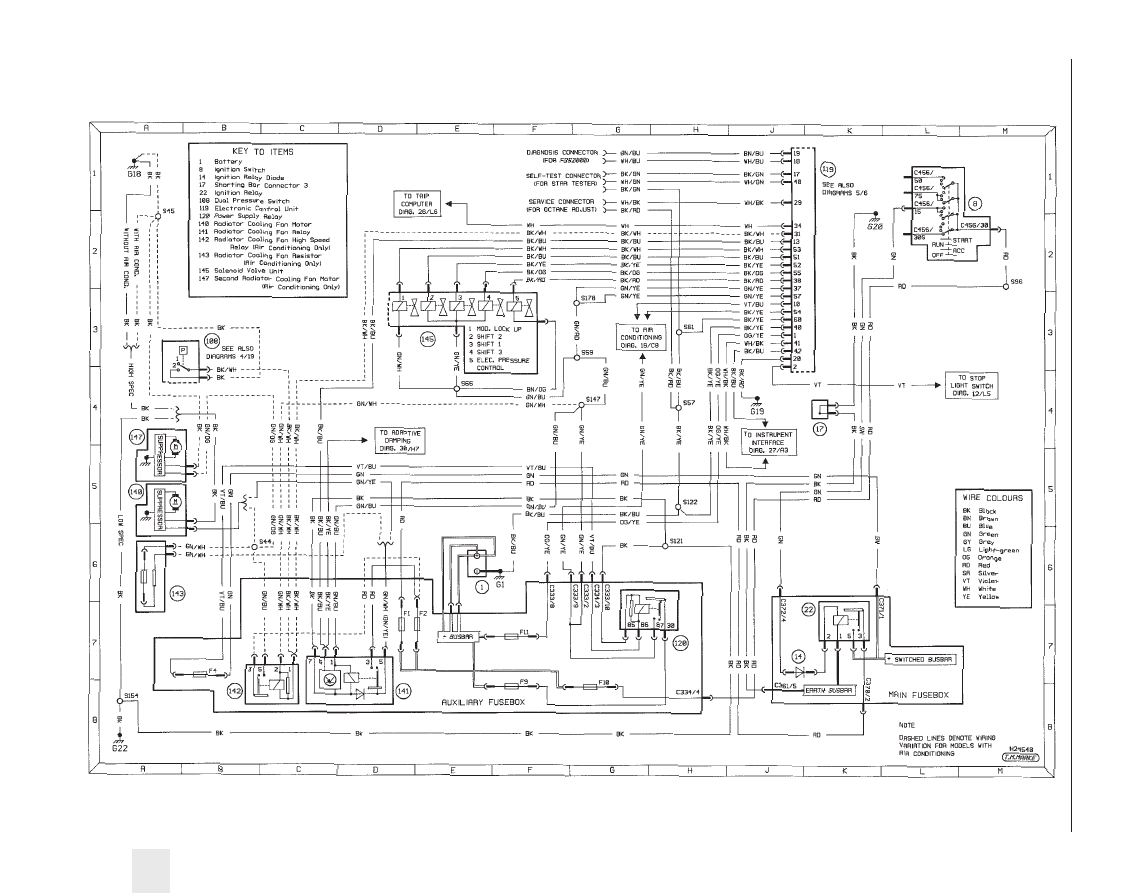

Diagram 7: Engine management – cooling fan, solenoid valve unit and diagnostic connectors (automatic transmission models)

12•32

Wiring diagrams

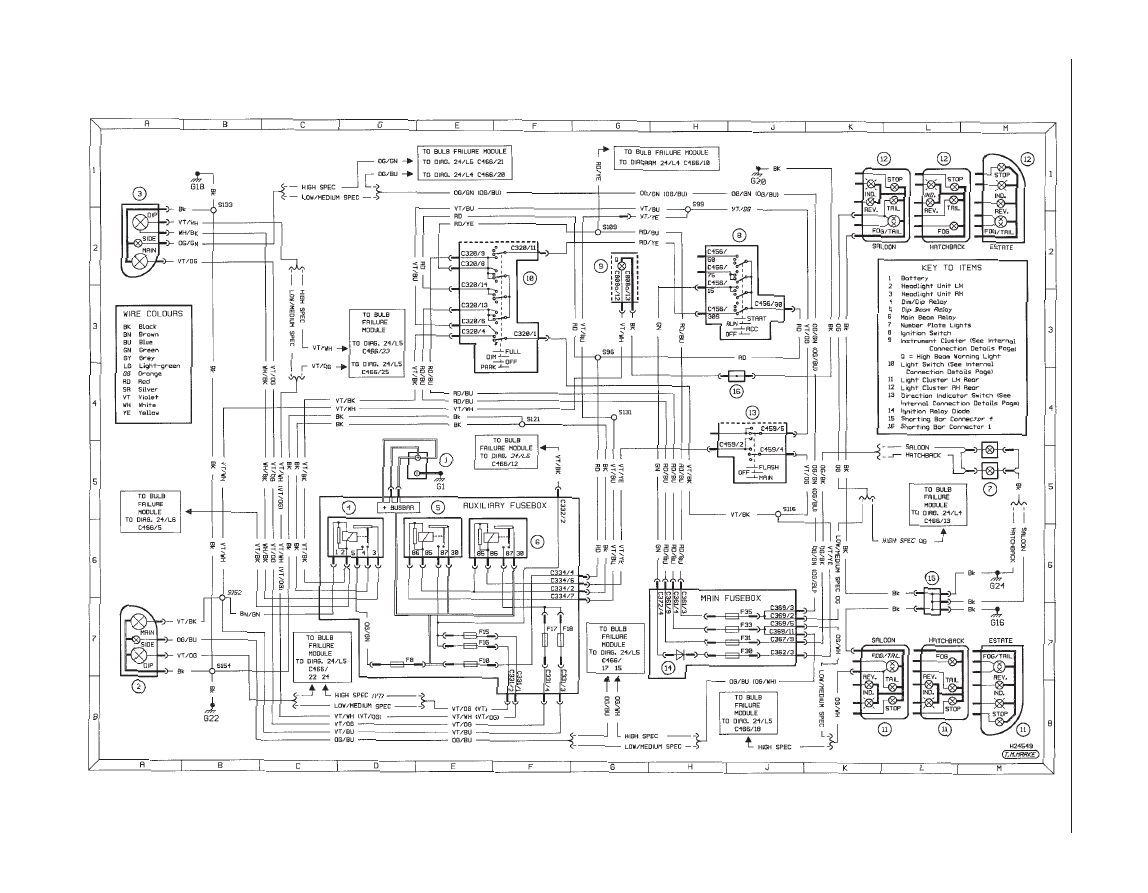

Diagram 8: Exterior lighting – side and headlights (right-hand drive models: dim-dip)

Wiring diagrams  12•33

12

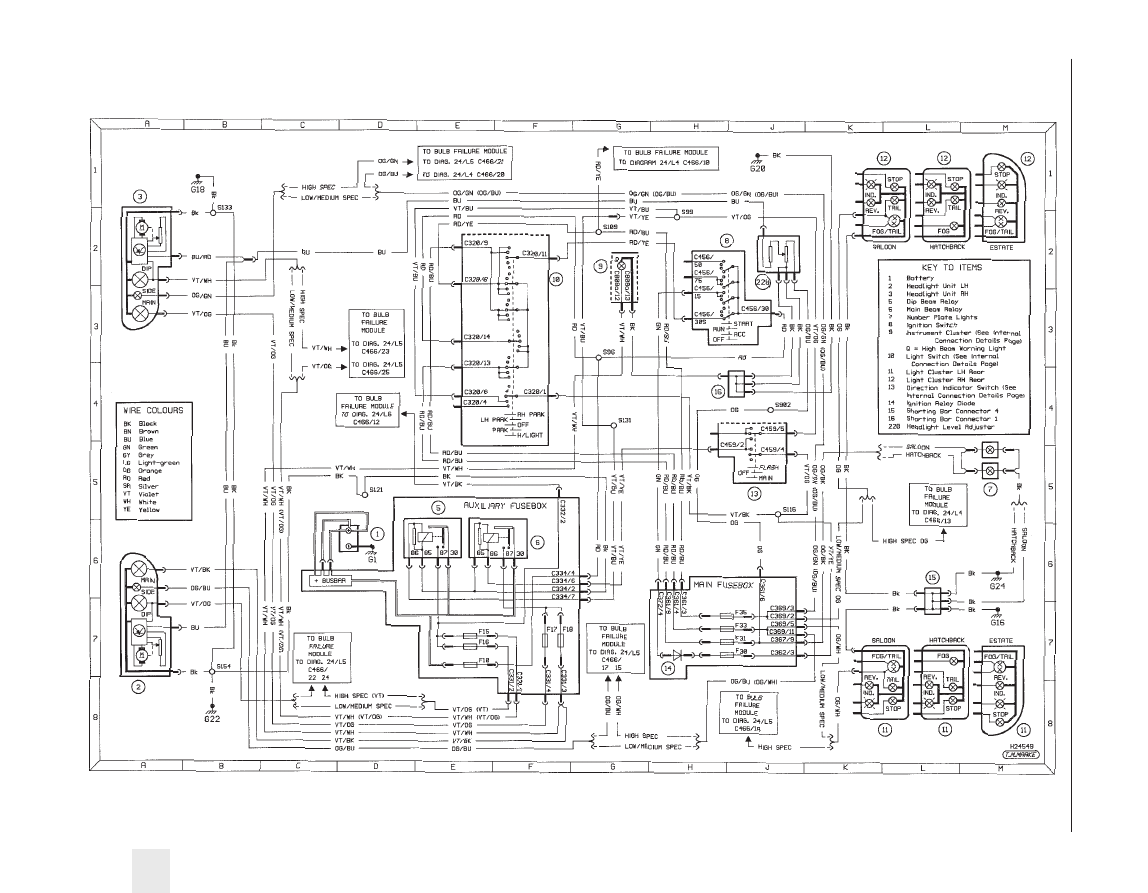

Diagram 9: Exterior lighting – side and headlights (left-hand drive models: non dim-dip)
