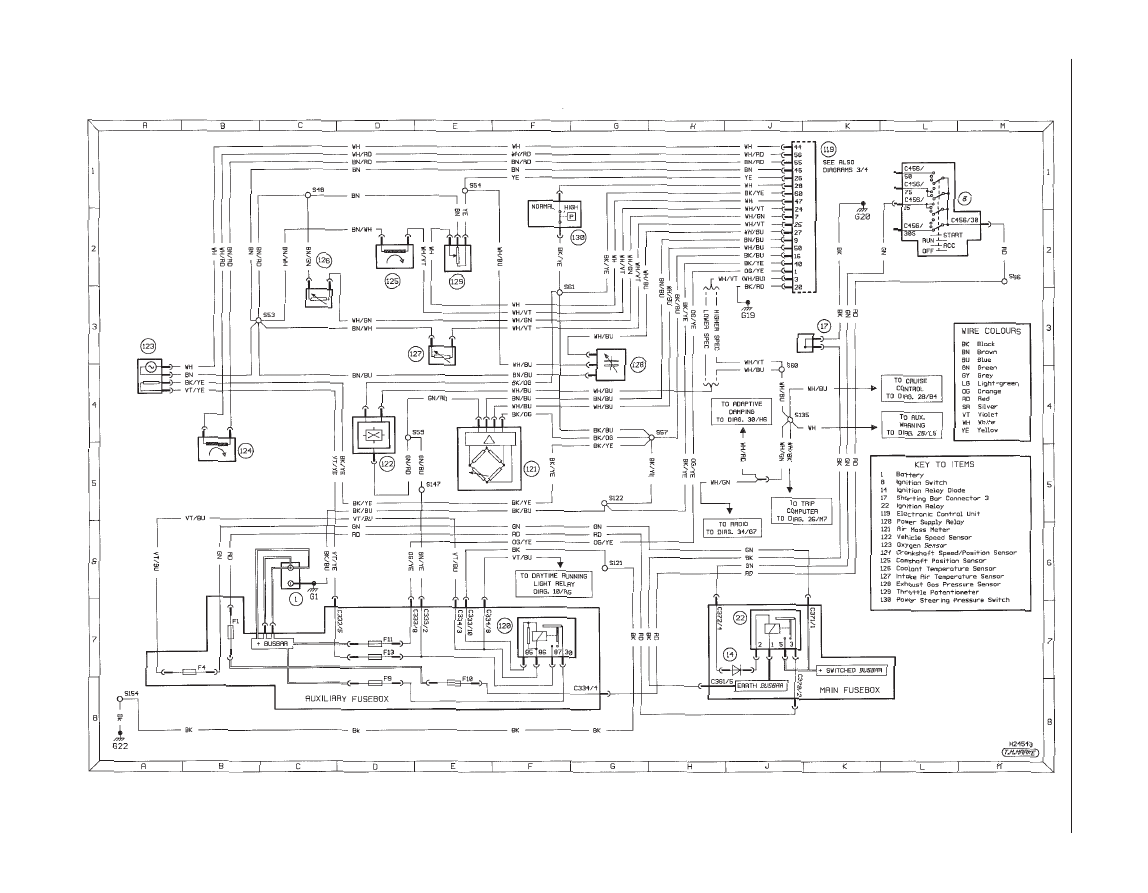

Diagram 2: Engine management – sensor inputs (manual transmission models)

Wiring diagrams  12•27

12

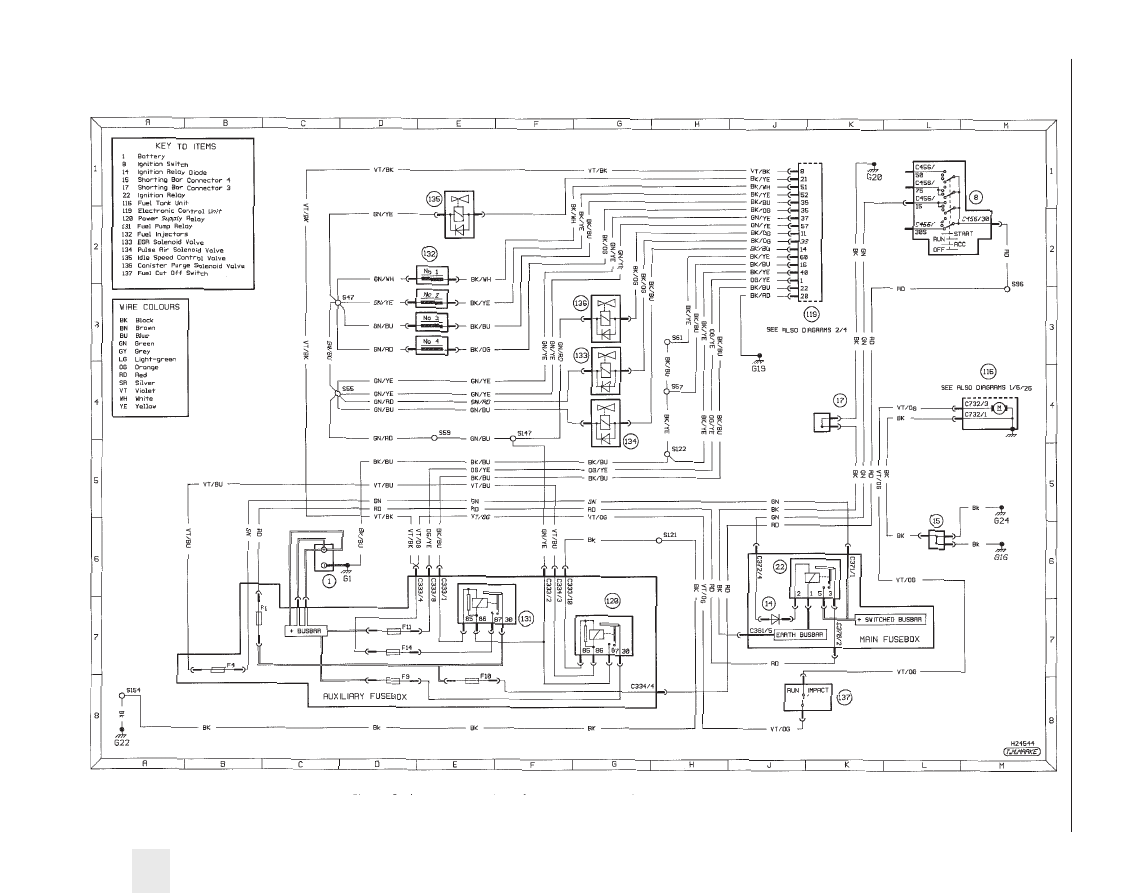

Diagram 3: Engine management – solenoid outputs and fuel pump (manual transmission models)

12•28

Wiring diagrams

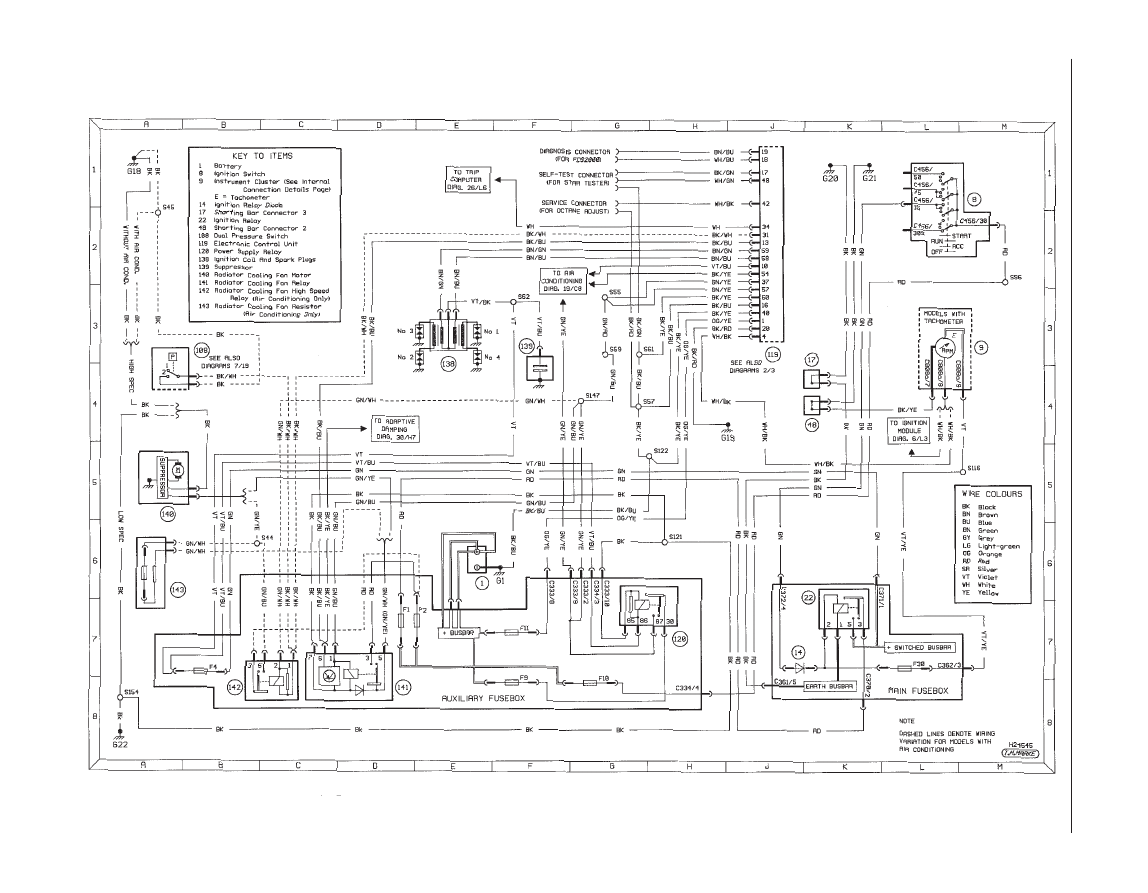

Diagram 4: Engine management – ignition, tachometer, cooling fan and diagnostic connectors (manual transmission models)

Wiring diagrams  12•29

12

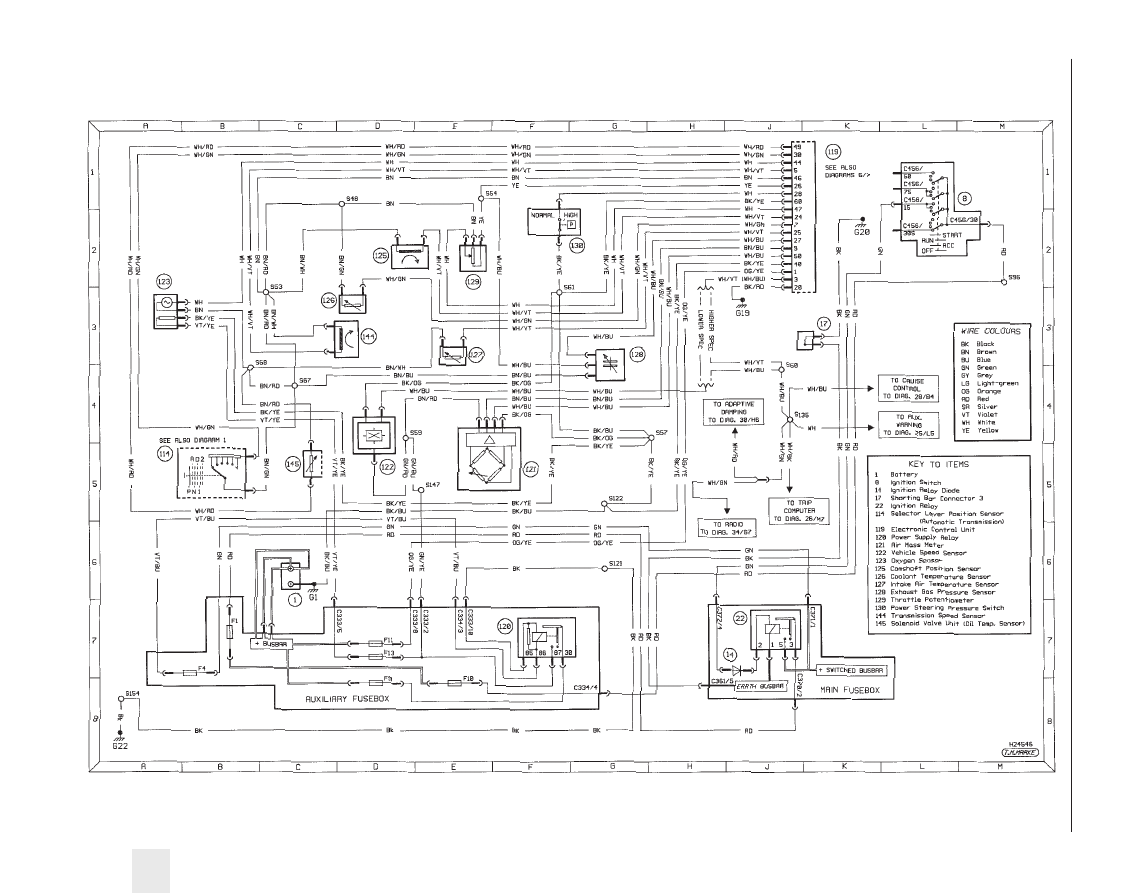

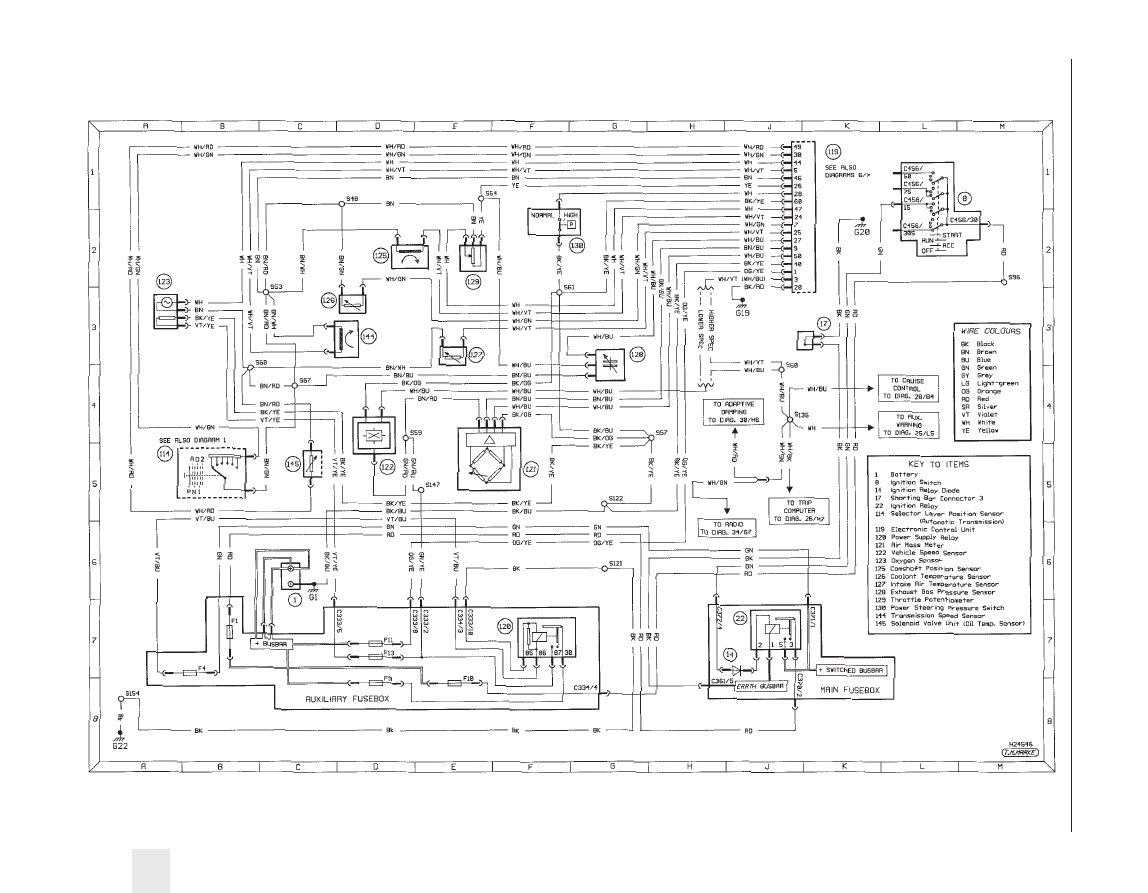

Diagram 5: Engine management – sensor inputs (automatic transmission models)
