Ford F150 Pickup. Manual - part 265



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup

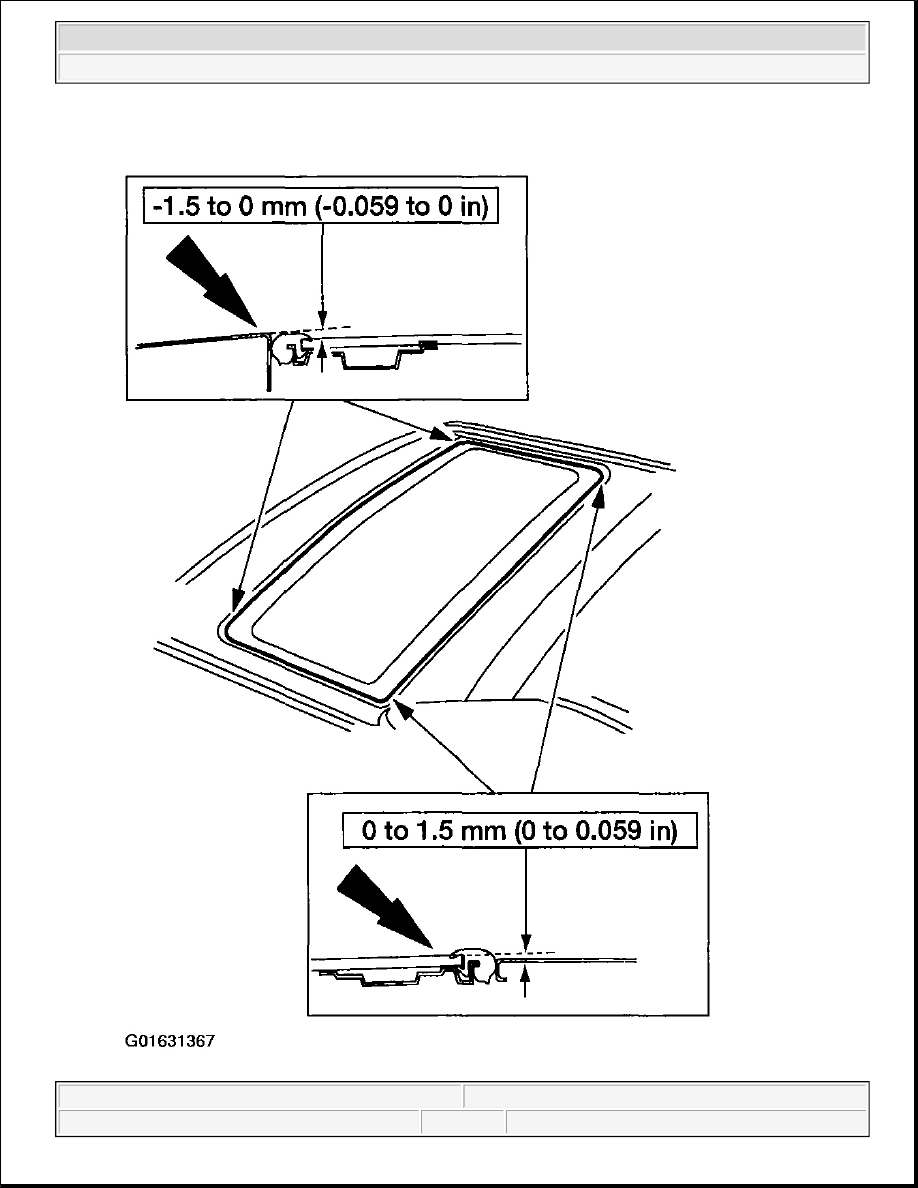

Fig. 22: Positioning Roof Opening Panel To Roof Panel
Courtesy of FORD MOTOR CO.

3. Maintain the roof opening panel position and tighten the four roof opening panel bolts.

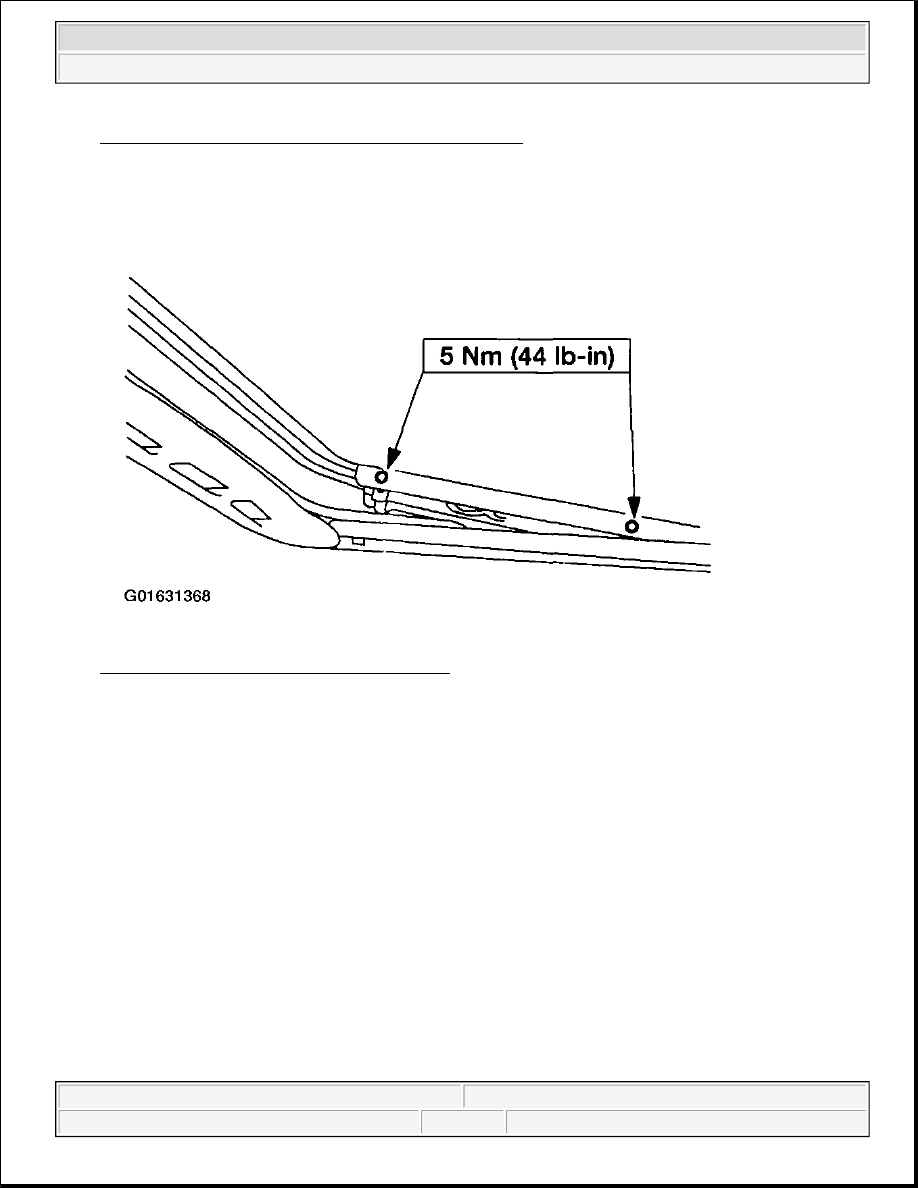

Fig. 23: Tightening Roof Opening Panel Bolts
Courtesy of FORD MOTOR CO.

REMOVAL AND INSTALLATION

ROOF OPENING PANEL

Removal and Installation

1. Remove the four roof opening panel bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



Fig. 24: Removing Four Roof Opening Panel Bolts
Courtesy of FORD MOTOR CO.

2. Remove the roof opening panel from the outside of the vehicle by lifting up and out.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup

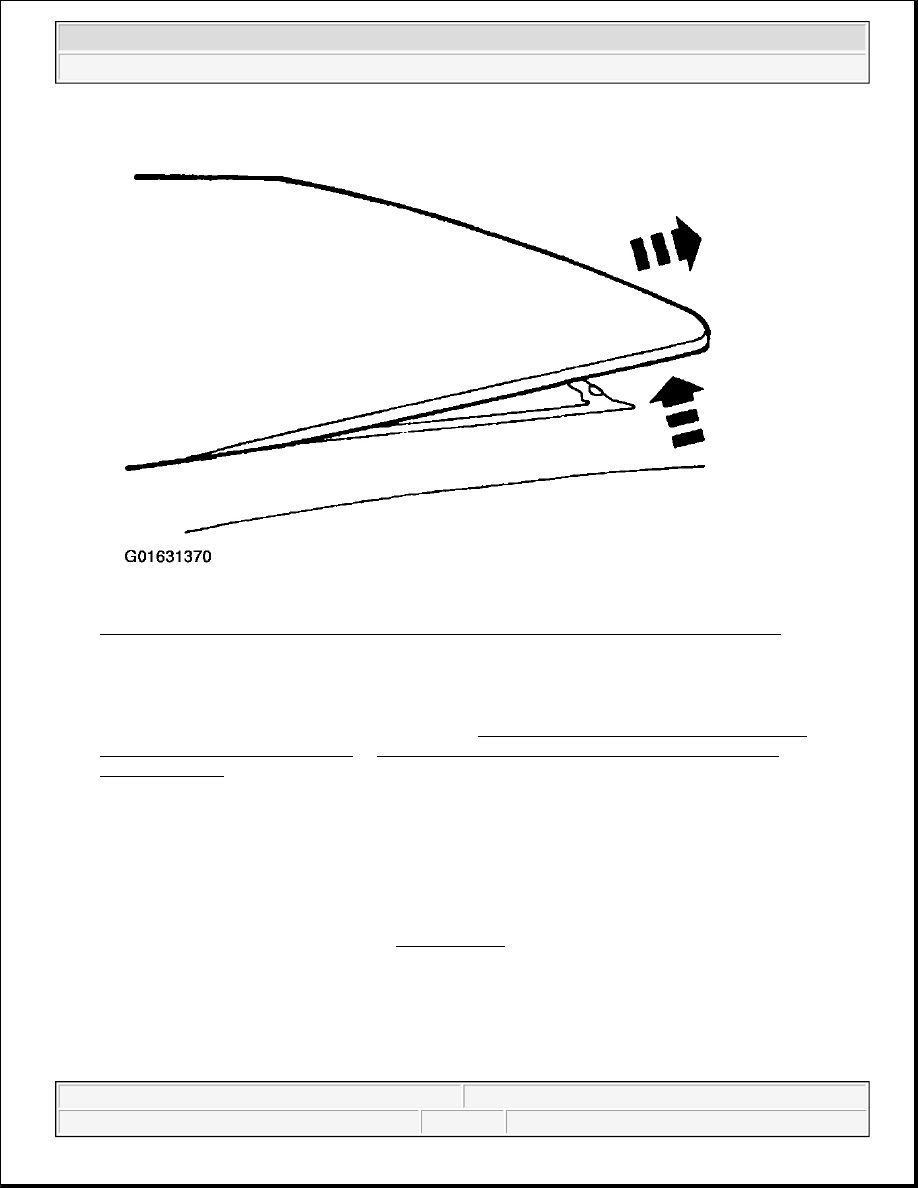

Fig. 25: Removing Roof Opening Panel From Outside Of Vehicle By Lifting Up And Out
Courtesy of FORD MOTOR CO.

3. To install, reverse the removal procedure.

z

If necessary, adjust the roof opening panel. Refer to ROOF OPENING PANEL ALIGNMENT-
HORIZONTAL ADJUSTMENT or ROOF OPENING PANEL ALIGNMENT-HEIGHT
ADJUSTMENT .

ROOF OPENING PANEL MOTOR

Removal

1. Lower the rear of the headliner. Refer to HEADLINER .

2. Remove the three roof opening panel motor bolts.

NOTE:

The roof opening panel should be in the closed position.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup
