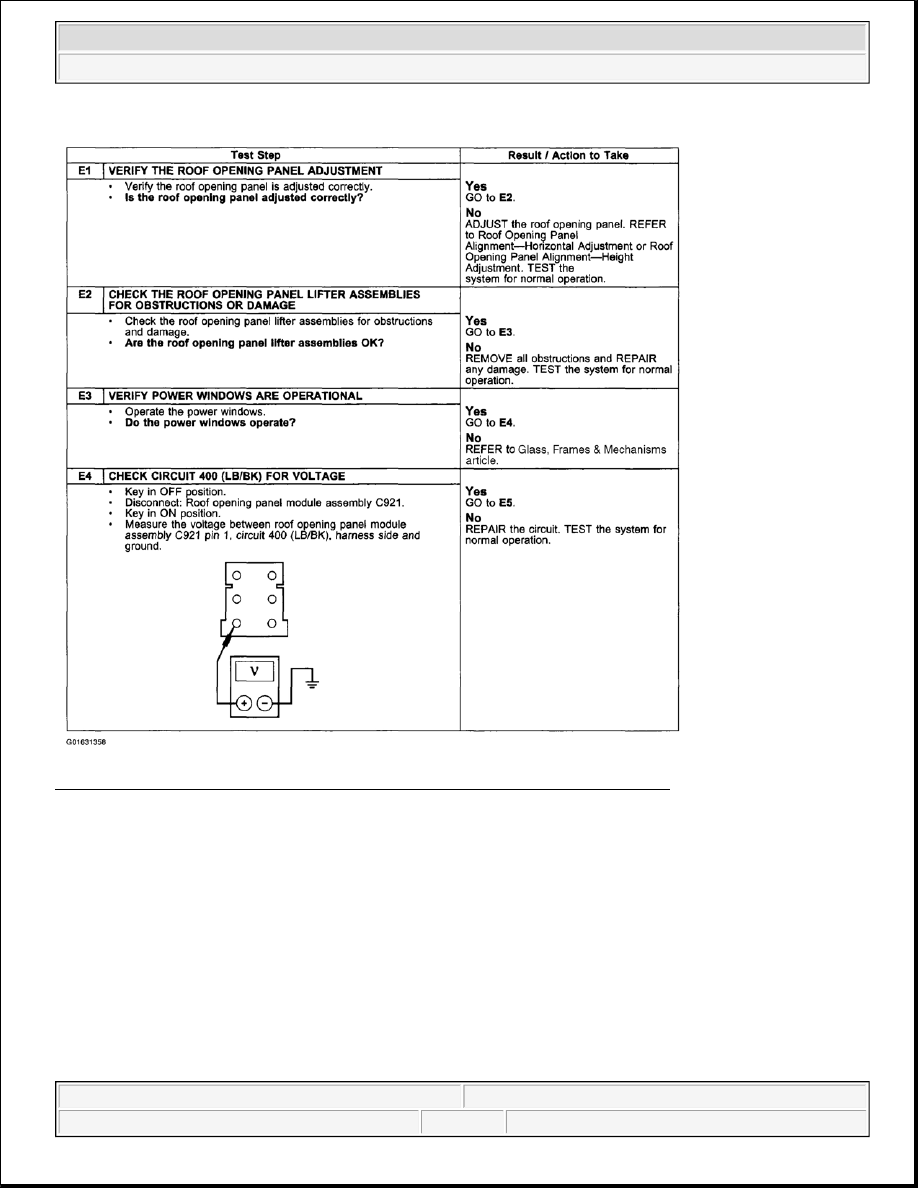

Fig. 13: Pinpoint Test E: Roof Opening Panel Does Not Open Or Close (E1 - E4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup

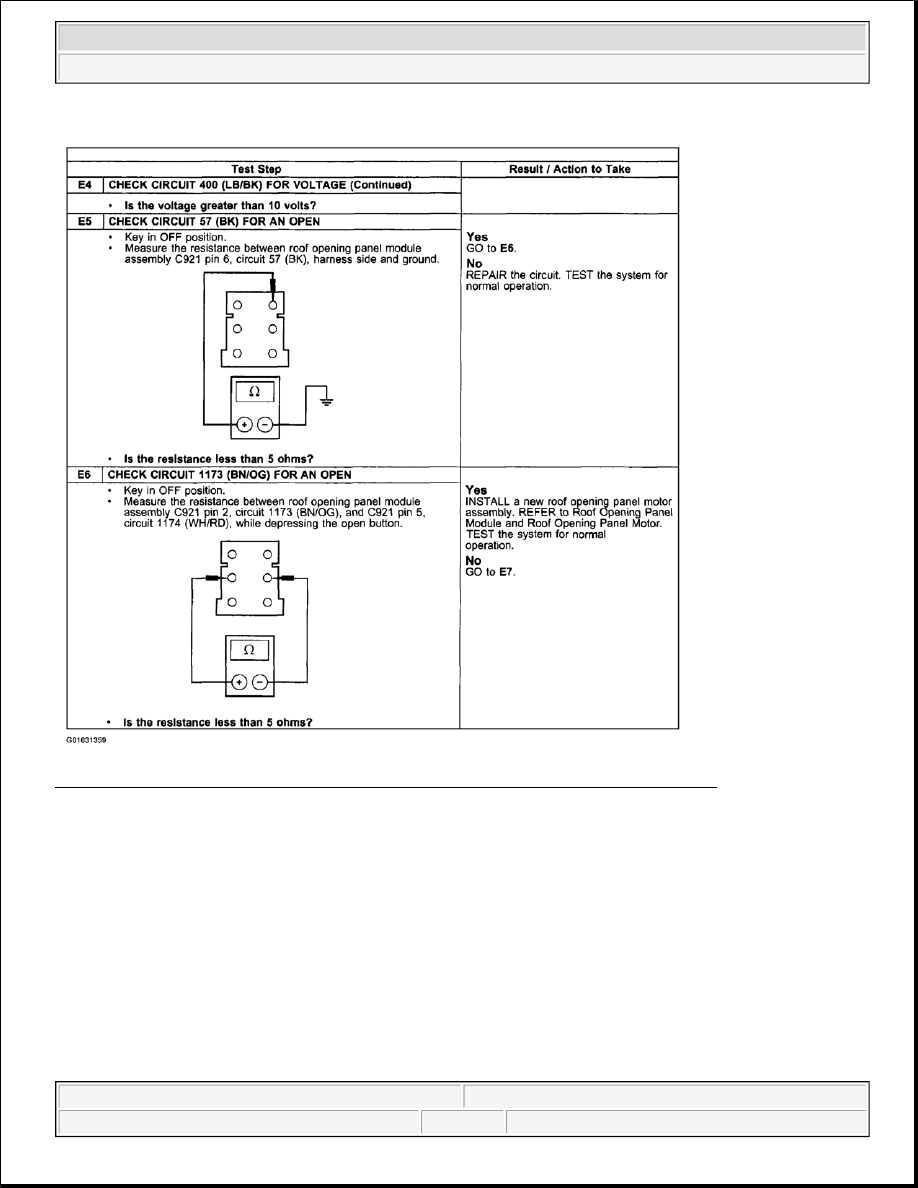

Fig. 14: Pinpoint Test E: Roof Opening Panel Does Not Open Or Close (E4 Cont. - E6)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup

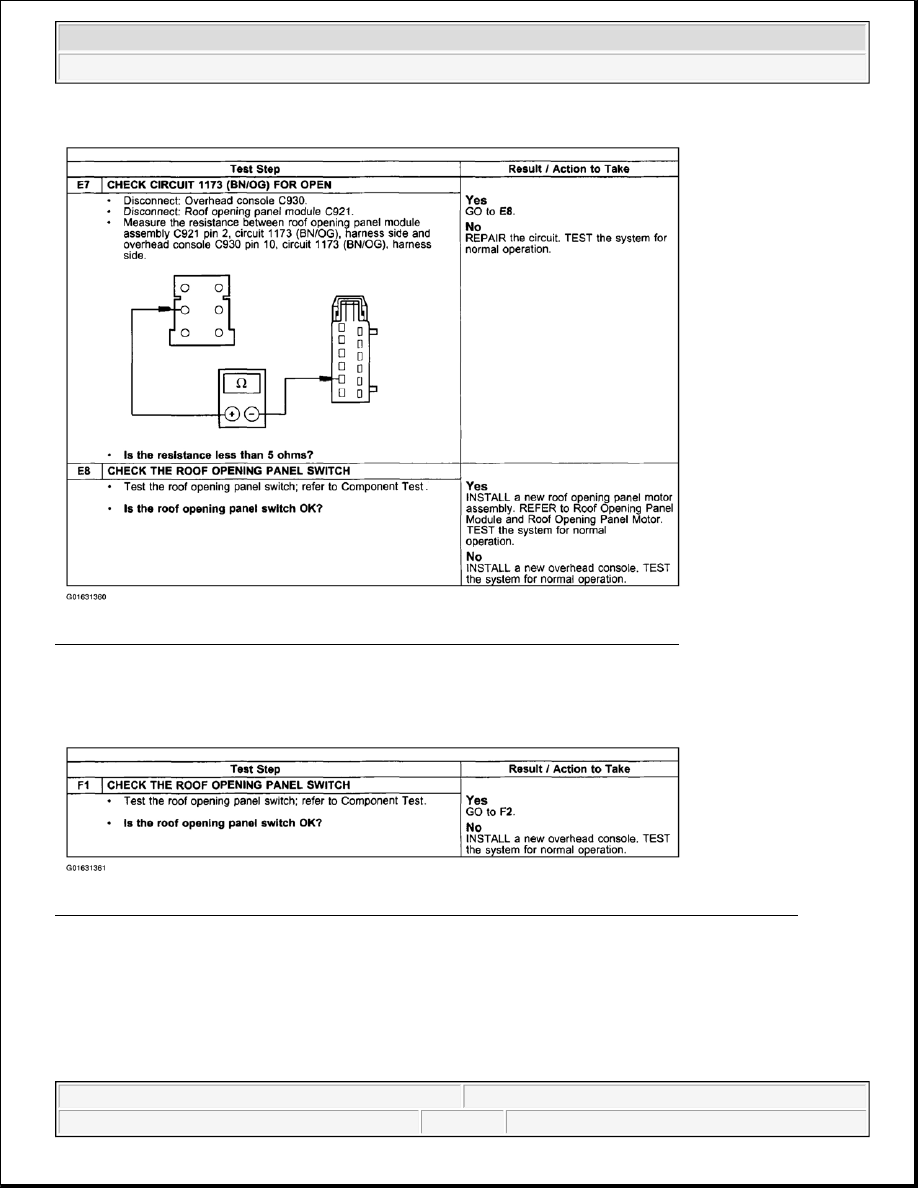

Fig. 15: Pinpoint Test E: Roof Opening Panel Does Not Open Or Close (E7 & E8)
Courtesy of FORD MOTOR CO.

PINPOINT TEST F: ROOF OPENING PANEL DOES NOT OPEN OR CLOSE - ONE DIRECTION ONLY

Fig. 16: Pinpoint Test F: Roof Opening Panel Does Not Open Or Close - One Direction Only (F1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup

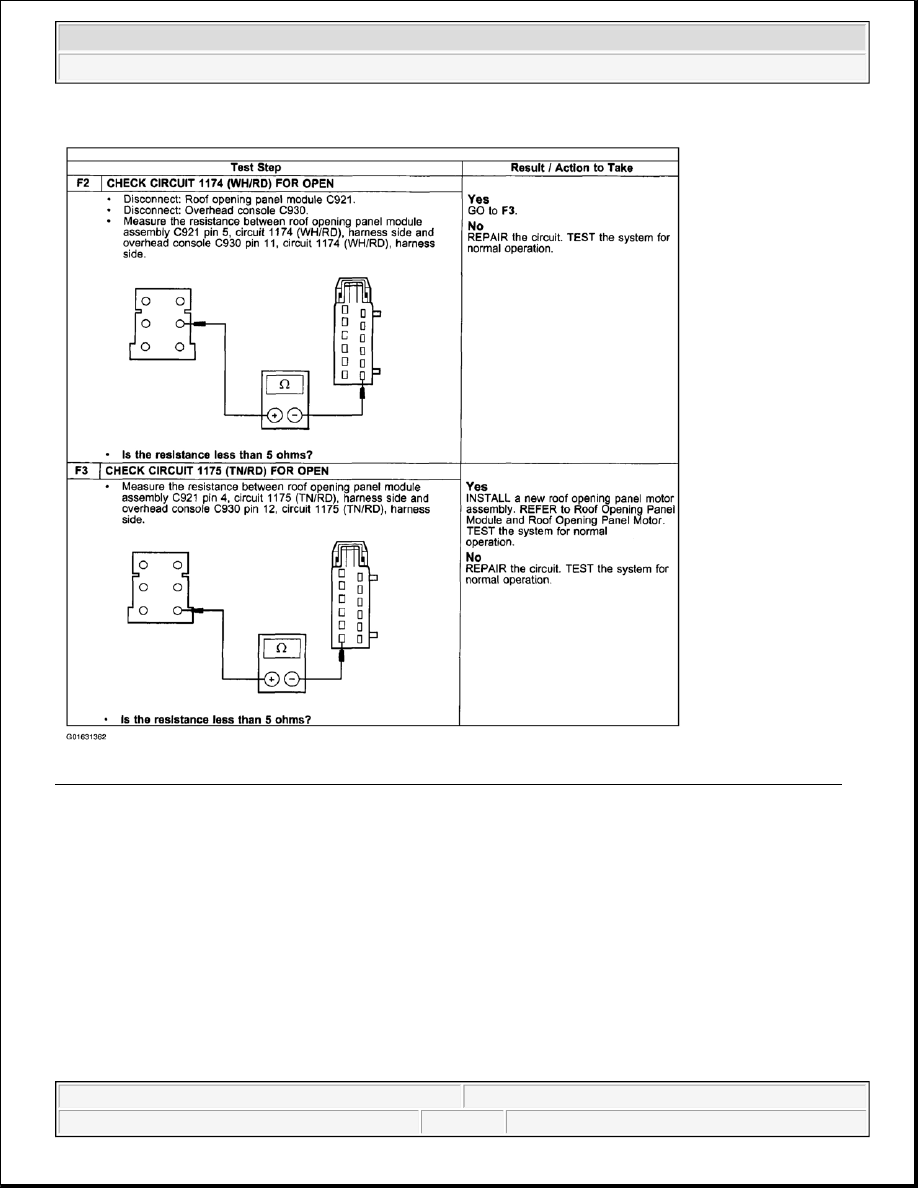

Fig. 17: Pinpoint Test F: Roof Opening Panel Does Not Open Or Close - One Direction Only (F2 & F3)
Courtesy of FORD MOTOR CO.

Component Test

Switch

1. Measure the resistance between the following overhead console connector pins (component side) as

follows:



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup
