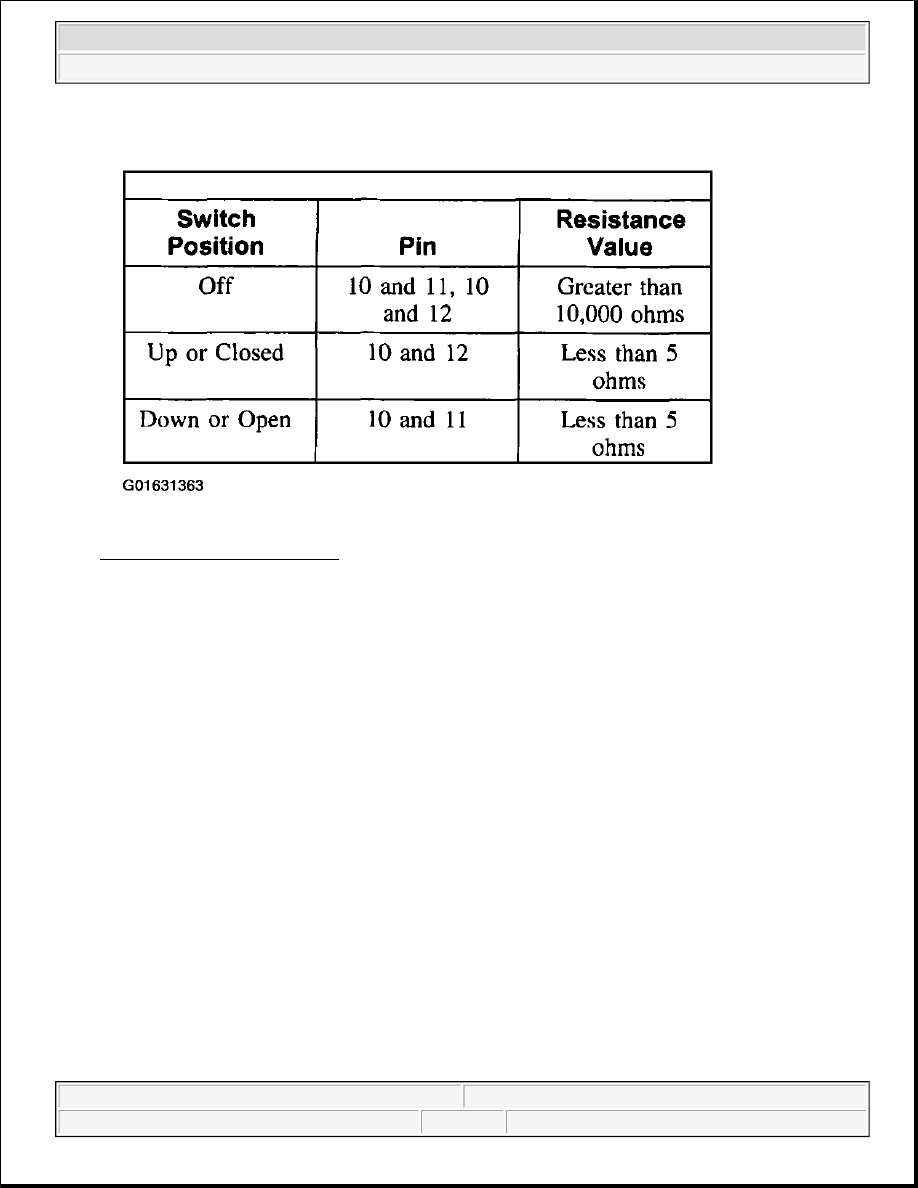

Fig. 18: Component Test Table
Courtesy of FORD MOTOR CO.

GENERAL PROCEDURES

ROOF OPENING PANEL ALIGNMENT - HORIZONTAL ADJUSTMENT

1. Loosen the roof opening panel bolts on the driver side.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



Fig. 19: Loosening Roof Opening Panel Bolts On Driver Side
Courtesy of FORD MOTOR CO.

2. Insert a plastic bar (or similar tool) between the rear of the roof opening panel seal and the roof opening

panel.

3. Gently move the roof opening panel forward.

4. Tighten the roof opening panel bolts.

CAUTION: Use care to avoid scratching the roof or damaging the roof opening

panel seal.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup

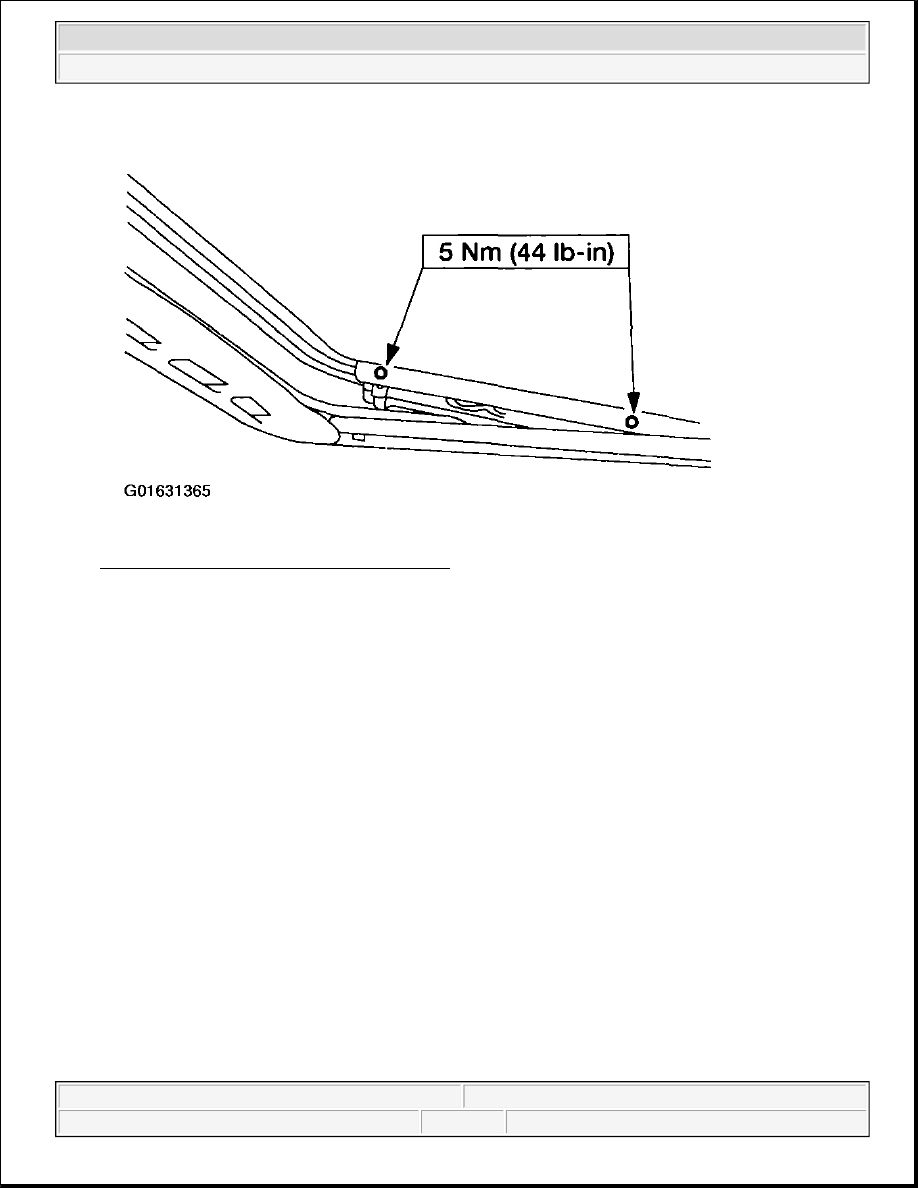

Fig. 20: Tightening Roof Opening Panel Bolts
Courtesy of FORD MOTOR CO.

5. Repeat for the passenger side.

ROOF OPENING PANEL ALIGNMENT - HEIGHT ADJUSTMENT

1. Loosen the four roof opening panel bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup

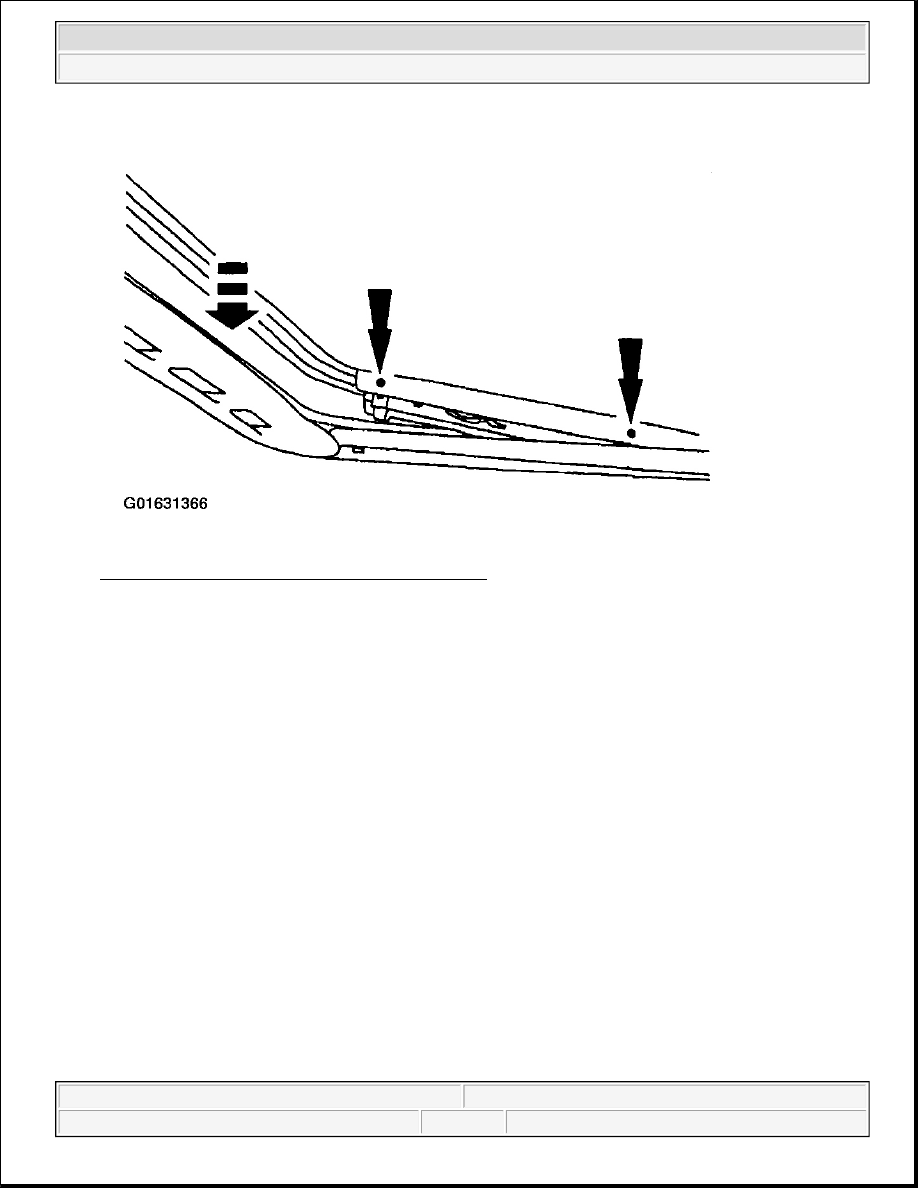

Fig. 21: Loosening Four Roof Opening Panel Bolts
Courtesy of FORD MOTOR CO.

2. Position the roof opening panel to the roof panel as specified.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup
