Ford C-MAX Hybrid / Energi (2016 year). Manual - part 59

Air cleaner assembly.

Air cleaner cover.

Air cleaner outlet tube.

Positive crankcase ventilation (PCV) tube.

Air cleaner intake tube.

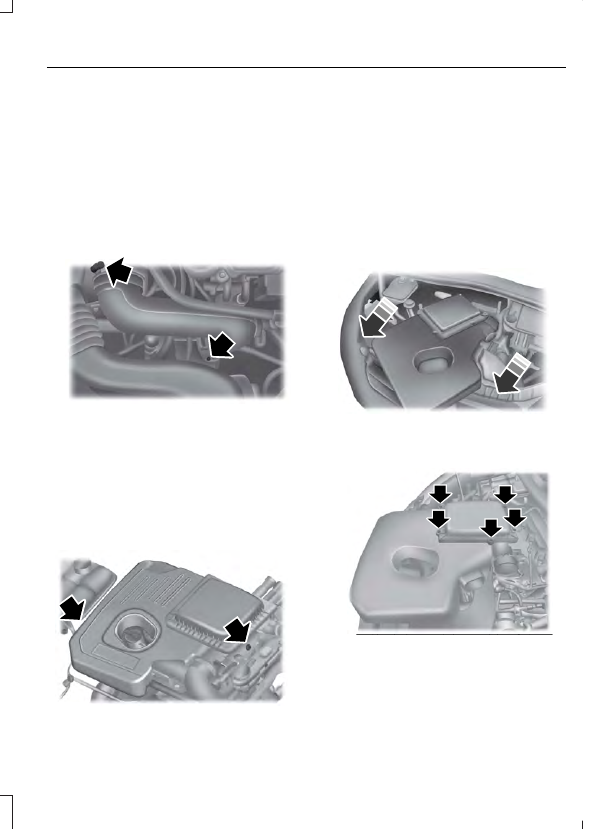

Removing the Engine Air Filter
Element

E162534

Loosen the hose clamps for air cleaner
outlet tube (C). Disconnect the tube
from the air cleaner assembly (A).

2. Release the tabs and disconnect the

PCV tube (D) from the air cleaner
outlet tube (C) and remove the tube.

3. Disconnect the air cleaner intake tube

(E) from the air cleaner assembly (A).

E162535

4. Remove the bolts from each side of the

air cleaner assembly (A) as shown with
arrows.

E162536

5. Lift the air cleaner assembly (A) from

the mounting studs, then rotate and
pull it toward the front of the vehicle.

E162537

6. Remove the 5 bolts from the air cleaner

cover (B).

Remove the air cleaner cover (B) from
the air cleaner assembly (A).

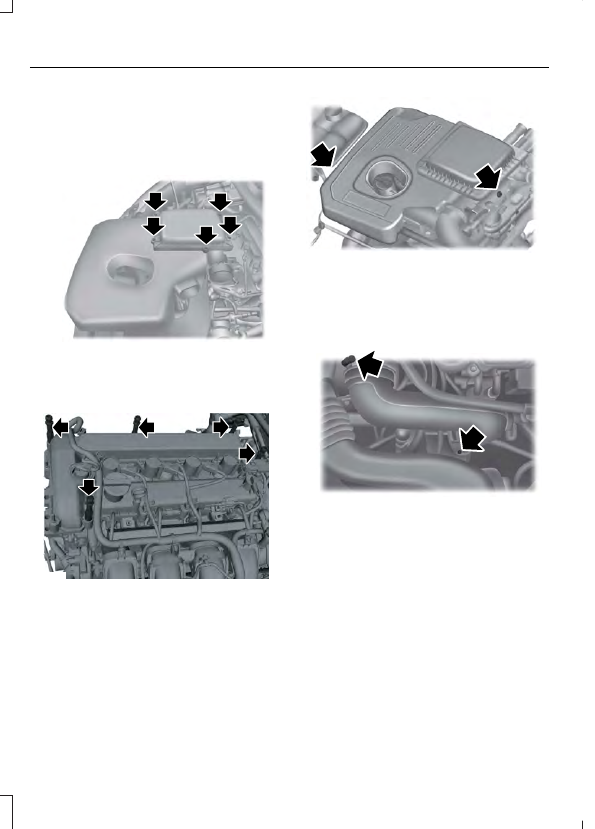

Installing the Engine Air Filter
Element

Note: Clean the inside of the air cleaner
assembly before installing a new air filter
element.

E162538

Install the new air filter element into
the engine air cleaner assembly.

2. Install the air cleaner cover (B) and

tighten the 5 bolts.

E162539

3. Position the air cleaner assembly (A)

onto the engine and make sure the
assembly is aligned with the studs.

E162540

4. Install and tighten the bolts to each

side of the air cleaner assembly (A) as
shown with arrows.

5. Attach the air cleaner intake tube (E)

to the air cleaner assembly (A).

E162541

6. Connect the PCV tube (D) to the air

cleaner outlet tube (C).

Connect the air cleaner intake tube (E)
to the air cleaner assembly (A).

GENERAL INFORMATION

Your Ford or Lincoln authorized dealer has
many quality products available to clean
your vehicle and protect its finishes.

CLEANING PRODUCTS

For best results, use the following products
or products of equivalent quality:

Materials

Specification

Name

Motorcraft Bug and Tar Remover
ZC-42

Motorcraft Custom Bright Metal Cleaner
ZC-15

ESR-M14P4-A

Motorcraft® Detail Wash
ZC-3-A

Motorcraft Engine Shampoo and Degreaser (U.S.)
ZC-20 (U.S.)

Engine Shampoo

Motorcraft Leather and Vinyl Cleaner
ZC-56

Multi-Purpose Cleaner

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concentrate with
Bitterant (U.S.)
ZC-32-B2 (U.S.)

Professional Strength Carpet and Upholstery Cleaner
ZC-54

Motorcraft Spot and Stain Remover (U.S.)
ZC-14 (U.S.)

ESR-M14P5-A

Motorcraft® Ultra-Clear Spray Glass Cleaner (U.S.)
ZC-23 (U.S.)

Motorcraft® Wheel and Tire Cleaner
ZC-37-A

CLEANING THE EXTERIOR

Wash your vehicle regularly with cool or
lukewarm water and a neutral pH
shampoo, we recommend Motorcraft
Detail Wash.

•

Never use strong household detergents
or soap, for example dish washing or
laundry liquid. These products can
discolor and spot painted surfaces.

•

Never wash your vehicle when it is hot
to the touch, or during strong or direct
sunlight.

•

Dry your vehicle with a chamois or soft
terry cloth towel to eliminate water
spotting.

•

Immediately remove fuel spillages, bird
droppings, insect deposits and road tar.
These may cause damage to your
vehicle’s paintwork or trim over time.
We recommend Motorcraft Bug and
Tar Remover.

•

Remove any exterior accessories, for
example antennas, before entering a
car wash.

Note: Suntan lotions and insect repellents
can damage painted surfaces. If these
substances come in contact with your
vehicle, wash the affected area as soon as
possible.

Exterior Chrome Parts

•

Apply a high quality-cleaning product
to bumpers and other chrome parts.
Follow the manufacturer’s instructions.
We recommend Motorcraft Custom
Bright Metal Cleaner.

•

Do not apply the cleaning product to
hot surfaces. Do not leave the cleaning
product on chrome surfaces longer
than the time recommended.

•

Using other non-recommended
cleaners can result in severe and
permanent cosmetic damage.

Note: Never use abrasive materials, for
example steel wool or plastic pads as they
can scratch the chrome surface.

Note: Do not use chrome cleaner, metal
cleaner or polish on wheels or wheel covers.

Exterior Plastic Parts

For routine cleaning we recommend
Motorcraft Detail Wash. If tar or grease
spots are present, we recommend
Motorcraft Bug and Tar Remover.

Stripes or Graphics

(If Equipped)

Hand washing your vehicle is preferred
however, pressure washing may be used
under the following conditions:

•

Do not use water pressure higher than
2,000 psi (14,000 kPa).

•

Do not use water hotter than 179°F
(82°C).

•

Use a spray with a 40° wide spray
angle pattern.

•

Keep the nozzle at a 12 in (305 mm)
distance and 90° angle to your
vehicle's surface.

Note: Holding the pressure washer nozzle
at an angle to the vehicle's surface may
damage graphics and cause the edges to
peel away from the vehicle's surface.

Underbody

Flush the complete underside of your
vehicle frequently. Keep body and door
drain holes free of debris or foreign
material.

WAXING

Regular waxing is necessary to protect your
car's paint from the elements. We
recommend that you wash and wax the
painted surface once or twice a year.

When washing and waxing, park your
vehicle in a shaded area out of direct
sunlight. Always wash your vehicle before
applying wax.

•

Use a quality wax that does not contain
abrasives.

•

Follow the manufacturer’s instructions
to apply and remove the wax.

•

Apply a small amount of wax in a
back-and-forth motion, not in circles.
