1.

Make sure the headlamp control is in
the off position.

2. Open the liftgate.

3. Remove the trim panel cover.

E162556

4. Disconnect the electrical connector.

5. Remove the wing nut.

6. Gently pull the lamp assembly away

from the vehicle.

E162557

7.

Remove the bulb holder.

8. Gently press the bulb into the bulb

holder, then turn the bulb
counterclockwise and remove the bulb.
(A) Taillamp and brake lamp. (B)
Direction indicator lamp.

Install the new bulb in reverse order.

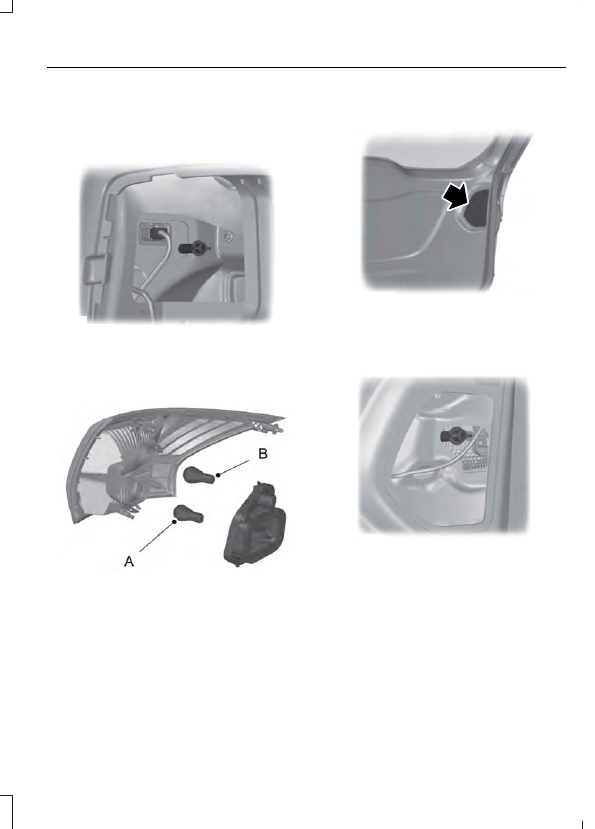

Replacing Reverse Lamp and Tail
Lamp Bulbs

E162558

1.

Make sure the lighting control is in the
off position.

2. Open the liftgate.

3. Remove the trim panel cover.

E162559

4. Remove the wing nut.

5. Gently pull the lamp assembly away

from the vehicle.

E162560

6. Disconnect the electrical connector.

7.

Remove the bulb holder.

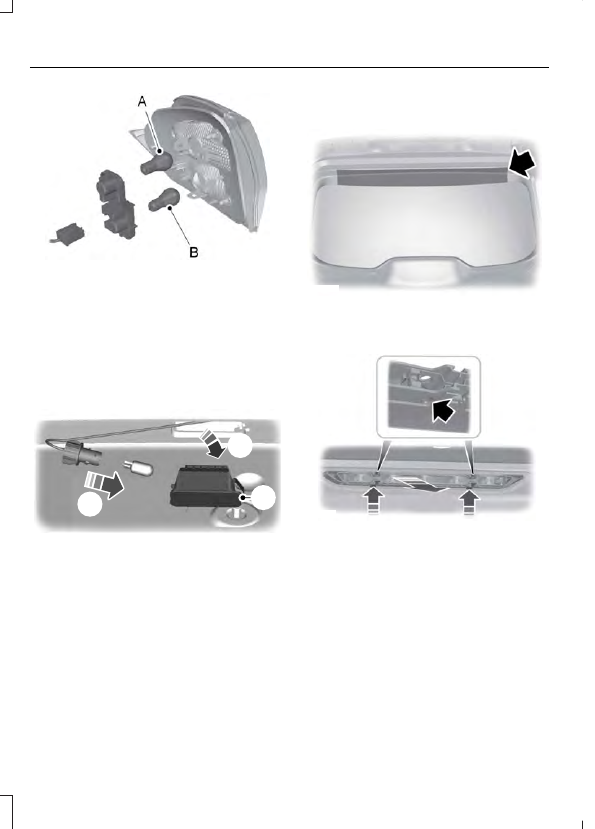

8. Gently press the bulb into the bulb

holder, turn the bulb counterclockwise,
and remove the bulb. (A) Reverse
lamp. (B) Tail lamp.

9. Install the new bulb in reverse order.

Replacing License Plate Lamp Bulb

3

2

1

E72789

1.

Carefully release the spring clip.

2. Remove the lamp.

3. Remove the bulb.

Reverse steps to reinstall bulb.

Replacing the Center High
Mounted Brake Lamp Bulbs

E162562

1.

Open the liftgate.

2. Detach the clips above the inboard side

of the rear window.

E162563

3. Insert a suitable tool into the holes.

4. Carefully pull the lamp towards the

front of the vehicle in order to release
the spring clips.

E162564

5. Gently pull the lamp assembly away

from the vehicle.

6. Remove the bulb holder.

7.

Remove the bulb.

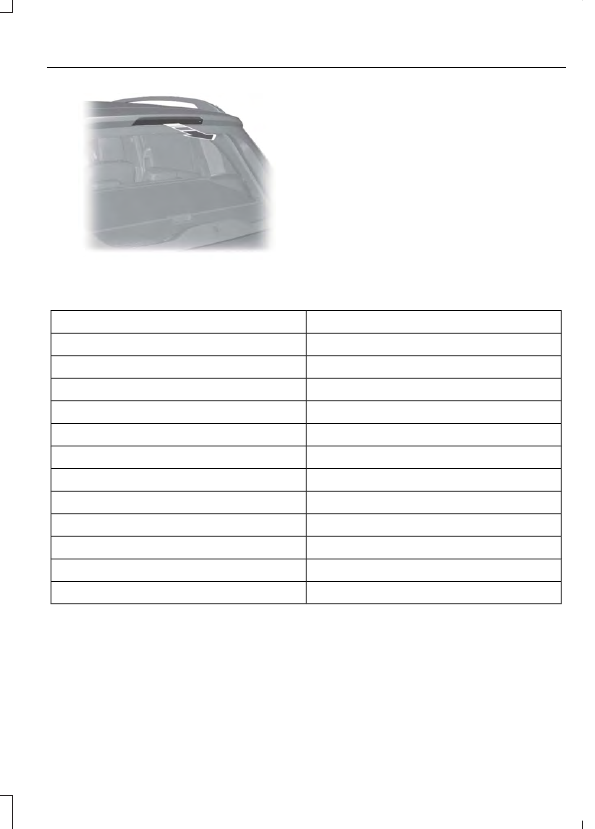

BULB SPECIFICATION CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized “D.O.T.” for
North America to ensure lamp
performance, light brightness and pattern
and safe visibility. The correct bulbs will
not damage the lamp assembly or void the
lamp assembly warranty and will provide
quality bulb burn time.

Trade number

Function

9005LL

Headlamps high beam (Halogen)

H11LL

Headlamp low beam (Halogen)

168

Sidemarker - front

194

Park lamp - front

W21W

Turn lamp - front

H10 (9145)

Fog lamps

3157K

Tail/brake lamp

T20

Turn lamp - rear

921

Backup lamp

W5W

License plate lamp

W5W

* High-mount brake lamp

LED

* Interior lamps

* To replace these lamps - see your authorized dealer.

To replace all instrument panel lights - see your authorized dealer

CHANGING THE ENGINE AIR
FILTER

WARNING

To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

Change the air filter element at the correct
interval.

Note: When changing the air filter element,
use only the air filter element listed.  See
Capacities and Specifications (page 276).

Note:  Failure to use the correct air filter
element may result in severe engine
damage.  Resulting component damage
may not be covered by the vehicle Warranty.

Note: Failure to re-install the air cleaner
assembly properly by fully seating on the
mounting studs in five places and securing
with the two bolts may result in air cleaner
assembly dislodgement from engine and
damage to the air cleaner assembly and
other engine components. Therefore we
recommend that the air filter be serviced at
a Ford dealer.

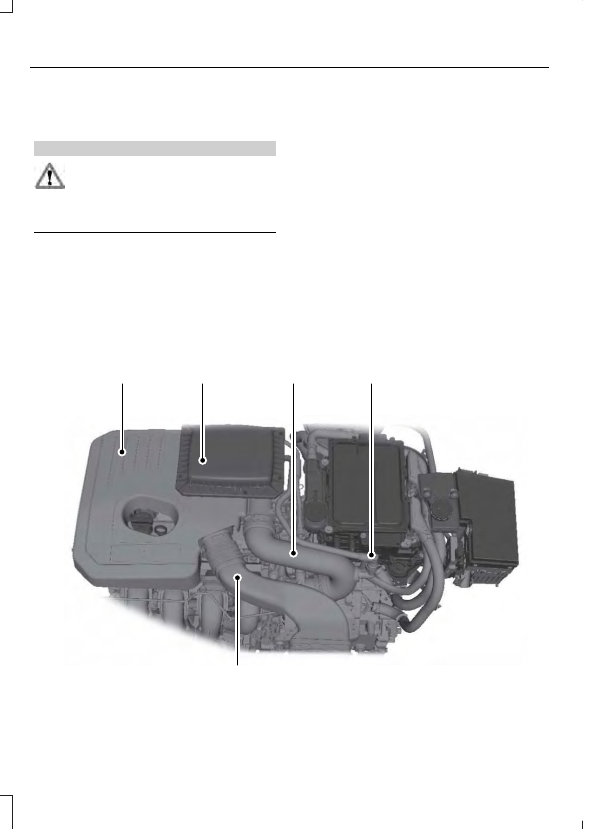

Air Cleaner Assembly Components

E162533

A

C

D

E

B
