2. Slightly rotate the wiper blade.

3. Disengage the wiper blade from the

wiper arm.

4. Remove the wiper blade.

5. Install in the reverse order.

Note: Make sure that the wiper blade locks
into place.

ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

The headlamps on your vehicle are
properly aimed at the assembly plant. If
your vehicle has been in an accident, the
alignment of your headlamps should be
checked by your authorized dealer.

E142592

8 feet (2.4 meters)

A

Center height of lamp to ground

B

25 feet (7.6 meters)

C

Horizontal reference line

D

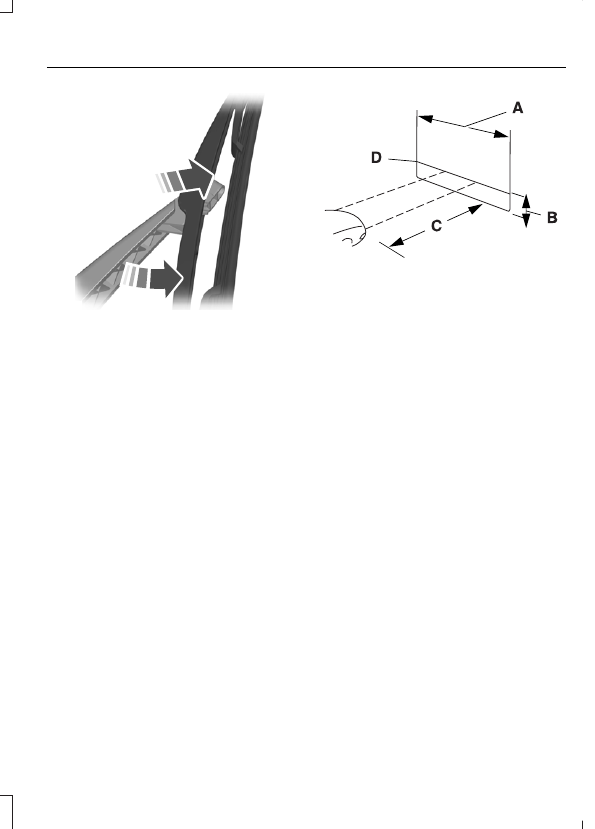

1.

Park the vehicle directly in front of a
wall or screen on a level surface,
approximately 25 feet (7.6 meters)
away.

Note: To see a clearer light pattern for
adjusting, you may want to block the light
from one headlamp while adjusting the
other.

2. Measure the height of the headlamp

bulb center from the ground and mark
an 8 foot (2.4 meter) horizontal
reference line on the vertical wall or
screen at this height.

3. Turn on the low beam headlamps to

illuminate the wall or screen and open
the hood.

E142465

4. On the wall or screen you will observe

a flat zone of high intensity light
located at the top of the right hand
portion of the beam pattern. If the top
edge of the high intensity light zone is
not at the horizontal reference line, the
headlamp will need to be adjusted.

E142467

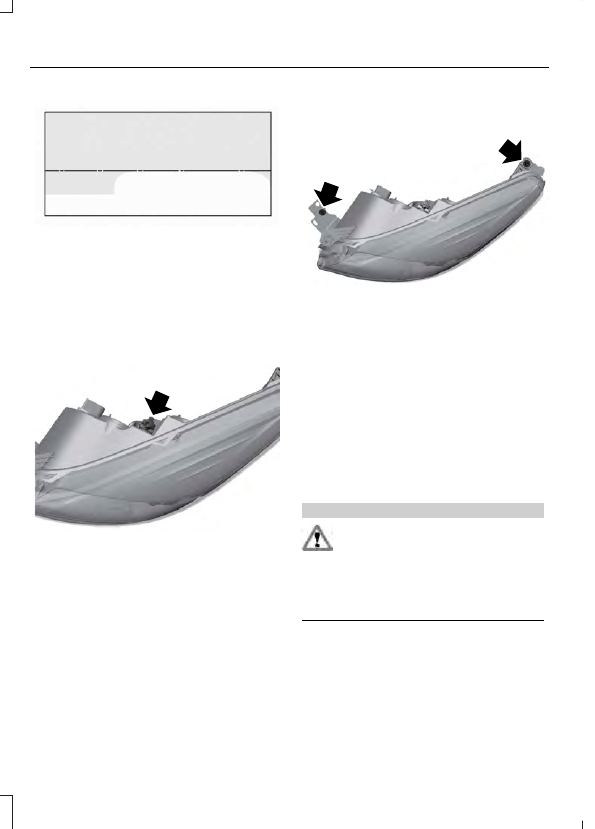

5. Locate the vertical adjuster on each

headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in order
to aim the headlamp. The horizontal
edge of the brighter light should touch
the horizontal reference line.

6. Close the hood and turn off the lamps.

Horizontal Aim Adjustment

Horizontal aim is not required for this
vehicle and is non-adjustable.

REMOVING A HEADLAMP

2

2

E142468

1.

Switch all of the lamps and the ignition
off.

2. Remove the screws that secure the

lamp assembly.

3. Pull the headlamp toward the front of

your vehicle to disengage it from its
locating points and then lift the
headlamp up.

4. Disconnect the electrical connector.

CHANGING A BULB

Replacing Headlamp Bulbs

WARNING

Handle a halogen headlamp bulb
carefully and keep out of children’s
reach. Grasp the bulb by only its

plastic base and do not touch the glass.
The oil from your hand could cause the
bulb to break the next time the headlamps
are operated.

Note: If the bulb is accidentally touched, it
should be cleaned with rubbing alcohol
before being used.

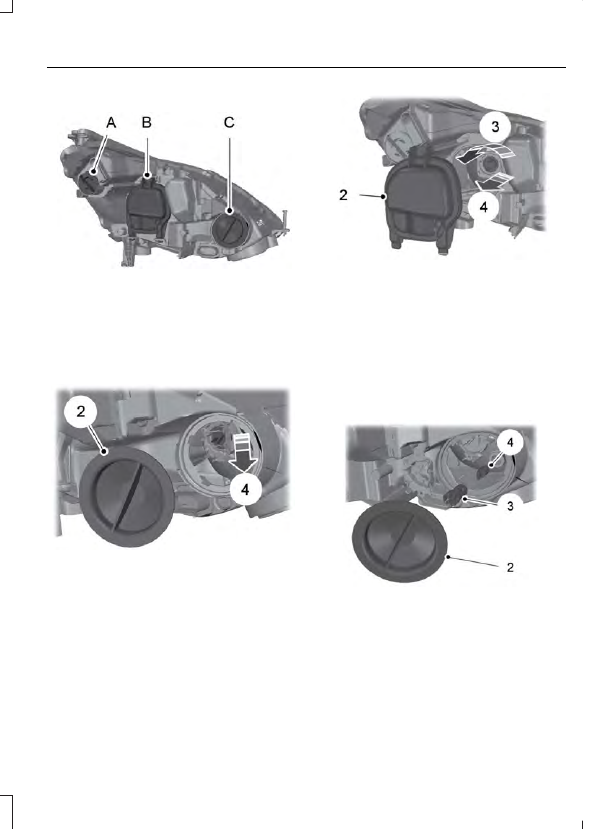

Locating the headlamp bulbs:

E162549

Direction indicator lamp.

A

Low beam headlamp.

B

High beam headlamp.

C

Replacing the High Beam Headlamp
Bulb:

E162550

1.

Remove the headlamp assembly.

2. Remove service cap.

3. Disconnect the electrical connector.

4. Remove bulb from the headlamp

assembly by turning it
counterclockwise, then pull it straight
out.

Replacing the Low Beam Headlamp
Bulb:

E162551

1.

Remove the headlamp assembly.

2. Remove service cap.

3. Disconnect the electrical connector.

4. Remove bulb from the headlamp

assembly by turning it
counterclockwise, then pull it straight
out.

Install the new bulbs in reverse order.

Replacing Side Marker Bulbs:

E162552

1.

Remove the headlamp assembly.

2. Remove service cap.

3. Remove the bulb holder.

4. Remove bulb from the headlamp

assembly.

Install the new bulb in reverse order.

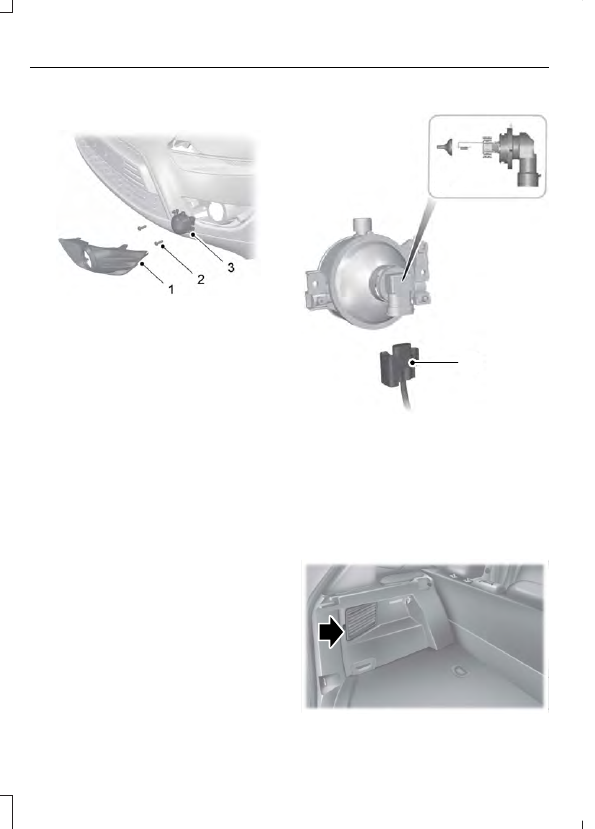

Replacing Fog, Park and Direction
Indicator Bulbs

E162553

Note: You cannot separate the fog lamp
bulb from the bulb holder.

1.

Remove the fog lamp cover.

2. Remove the 2 screws.

3. Remove the lamp.

4

5

E162554

4. Disconnect the electrical connector.

5. Turn the bulb holder counterclockwise

and remove it.

6. Install the new bulb in reverse order.

Replacing Tail, Brake and Direction
Indicator Bulbs

E162555
