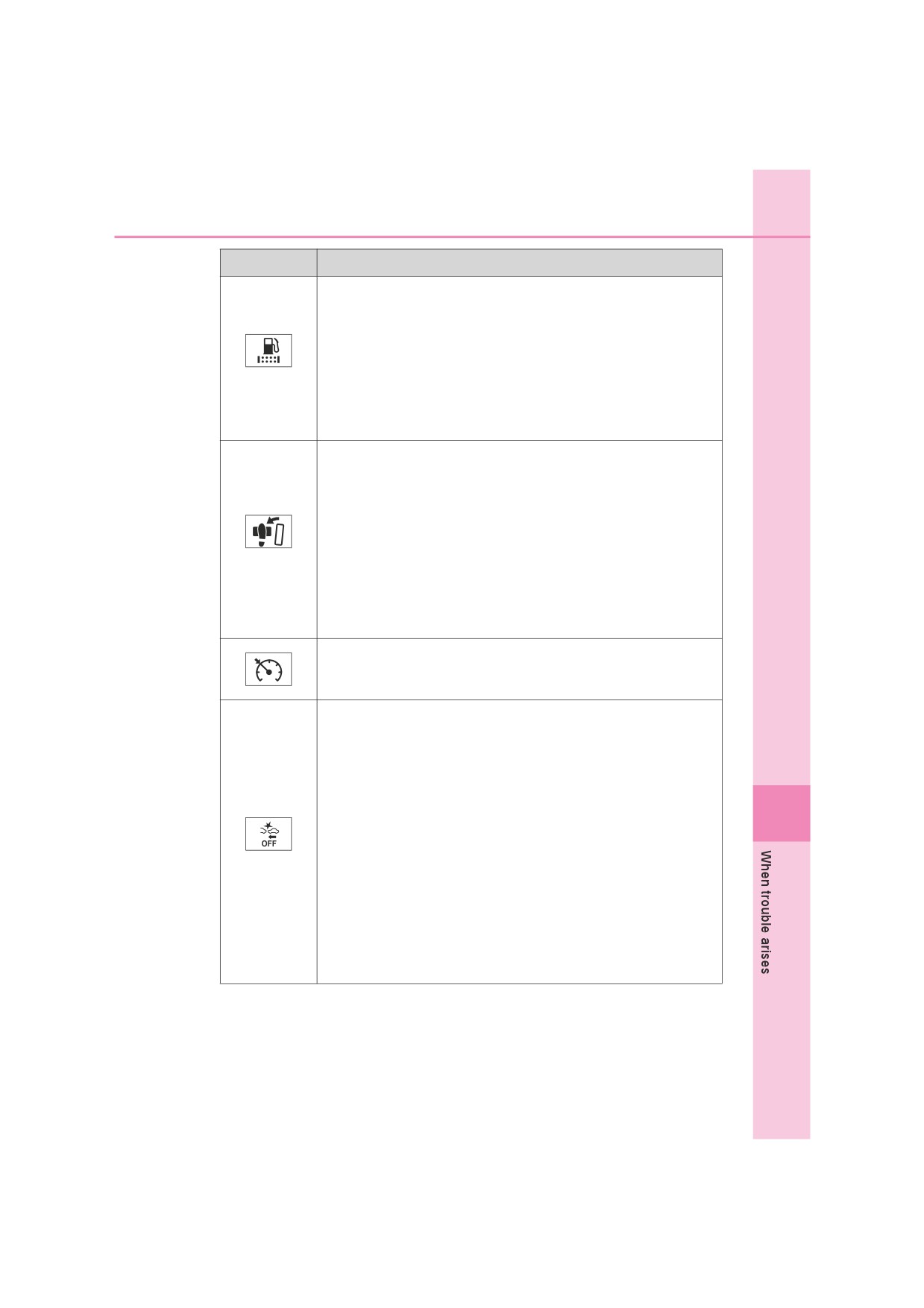

8-2. Steps to take in an emergency

567

Warning light

Warning light/Details/Actions

Fuel system warning light

(warning buzzer)*⁵

(if

equipped)

The amount of accumulated water in the fuel filter has

reached the specified level if the light flashes.

 P. 497

(Flashes or

The fuel filter need to be replaced if the light comes on.

illuminates)

 Have the vehicle inspected by any authorized Toyota

retailer or Toyota authorized repairer, or any reliable

repairer immediately.

Brake Override System warning light*¹ (if equipped)

Indicates that the accelerator and brake pedal are being

depressed simultaneously if the warning light comes on

(P. 193)

 Release the accelerator pedal and depress the brake

pedal.

(Flashes or

Indicates a malfunction in the Brake Override System if

illuminates)

the warning light flashes

 Have the vehicle inspected by any authorized Toyota

retailer or Toyota authorized repairer, or any reliable

repairer immediately.

Cruise control indicator*⁶ (if equipped)

Indicates a malfunction in the cruise control system

 P. 315

PCS warning light (if equipped)

When a buzzer sounds simultaneously:

Indicates a malfunction has occurred in the PCS (Pre-Col-

lision System).

 Have the vehicle inspected by any authorized Toyota

retailer or Toyota authorized repairer, or any reliable

repairer immediately.

When a buzzer does not sound:

The PCS (Pre-Collision System) has become temporarily

(Flashes or

illuminates)

unavailable, corrective action may be necessary.

 Follow the instructions displayed on the multi-infor-

mation display. (P. 269, 573)

If the PCS (Pre-Collision System) or VSC (Vehicle Stability

Control) system is disabled, the PCS warning light will illu-

minate.

 P. 281

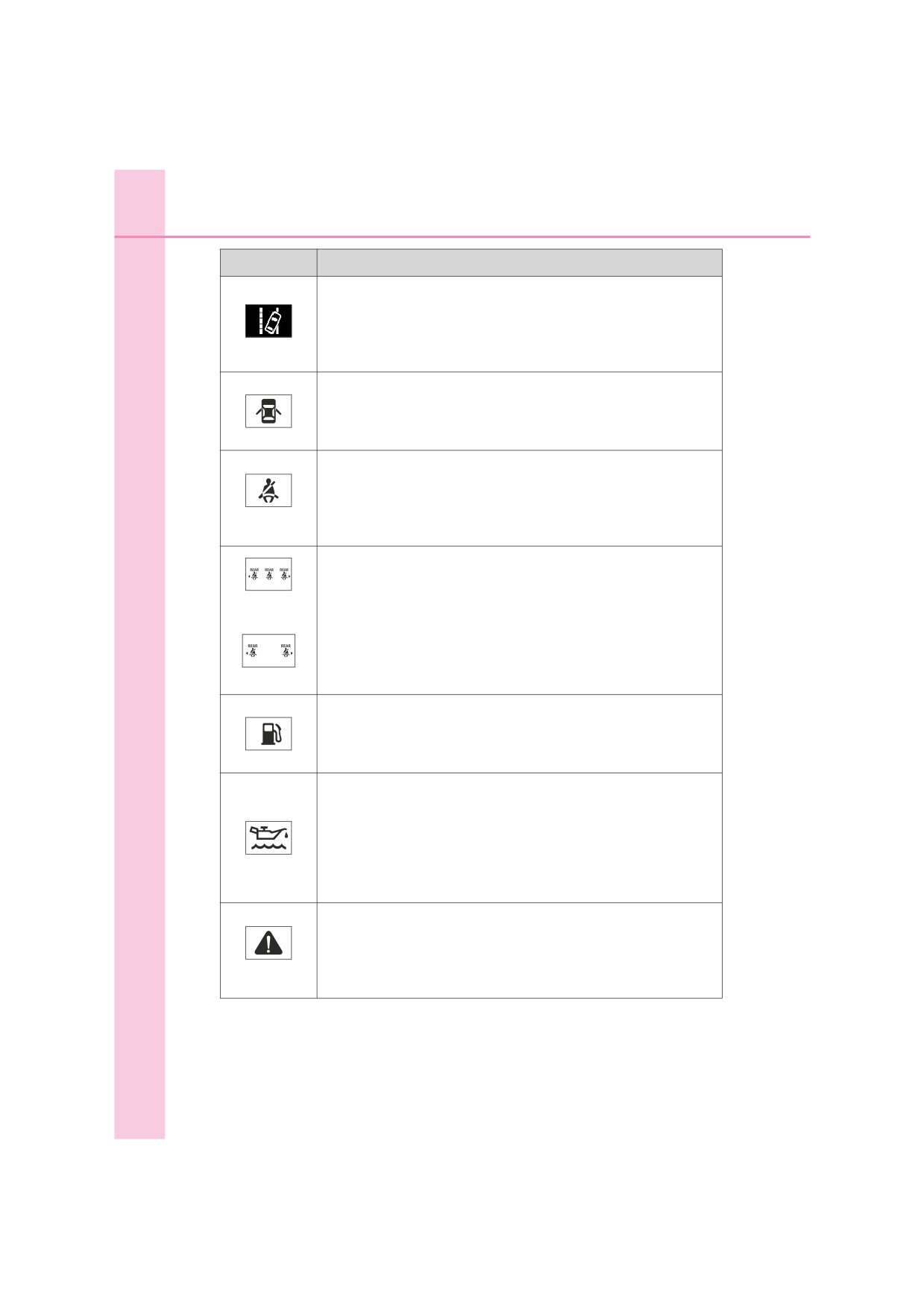

568

8-2. Steps to take in an emergency

Warning light

Warning light/Details/Actions

LDA indicator (warning buzzer) (if equipped)

Indicates a malfunction in the LDA (Lane Departure Alert

with Yaw Assist Function)

(Yellow)

 Follow the instructions displayed on the multi-infor-

mation display. (P. 292)

Open door warning light

(warning buzzer)*^1,7

(if

equipped)

Indicates that a door is not fully closed

 Check that all the doors are closed.

Driver’s and front passenger’s seat belt reminder light

(warning buzzer)*⁸

Warns the driver and front passenger to fasten his/her

(Flashes or

seat belt

illuminates)

 Fasten the seat belt.

(Flashes or

Rear passengers’ seat belt reminder lights (warning

illuminates)

buzzer)*⁹ (if equipped)

Warn the rear passengers to fasten their seat belts

 Fasten the seat belt.

(Flashes or

illuminates)

Low fuel level warning light

Indicates remaining fuel is approximately 12.0 L (3.2 gal.,

2.6 Imp.gal.) or less

 Refuel the vehicle.

Low engine oil level warning light (if equipped)

Indicates that engine oil level is low (This warning light

may come on if the vehicle is stopped on a slope. Move

the vehicle to a level surface and check to see if the light

goes off.)

 Check the level of engine oil and add more oil if nec-

essary.

Master warning light (warning buzzer) (if equipped)

A buzzer sounds and the warning light comes on and

flashes to indicate that the master warning system has

(Flashes or

detected a malfunction.

illuminates)

 P. 573

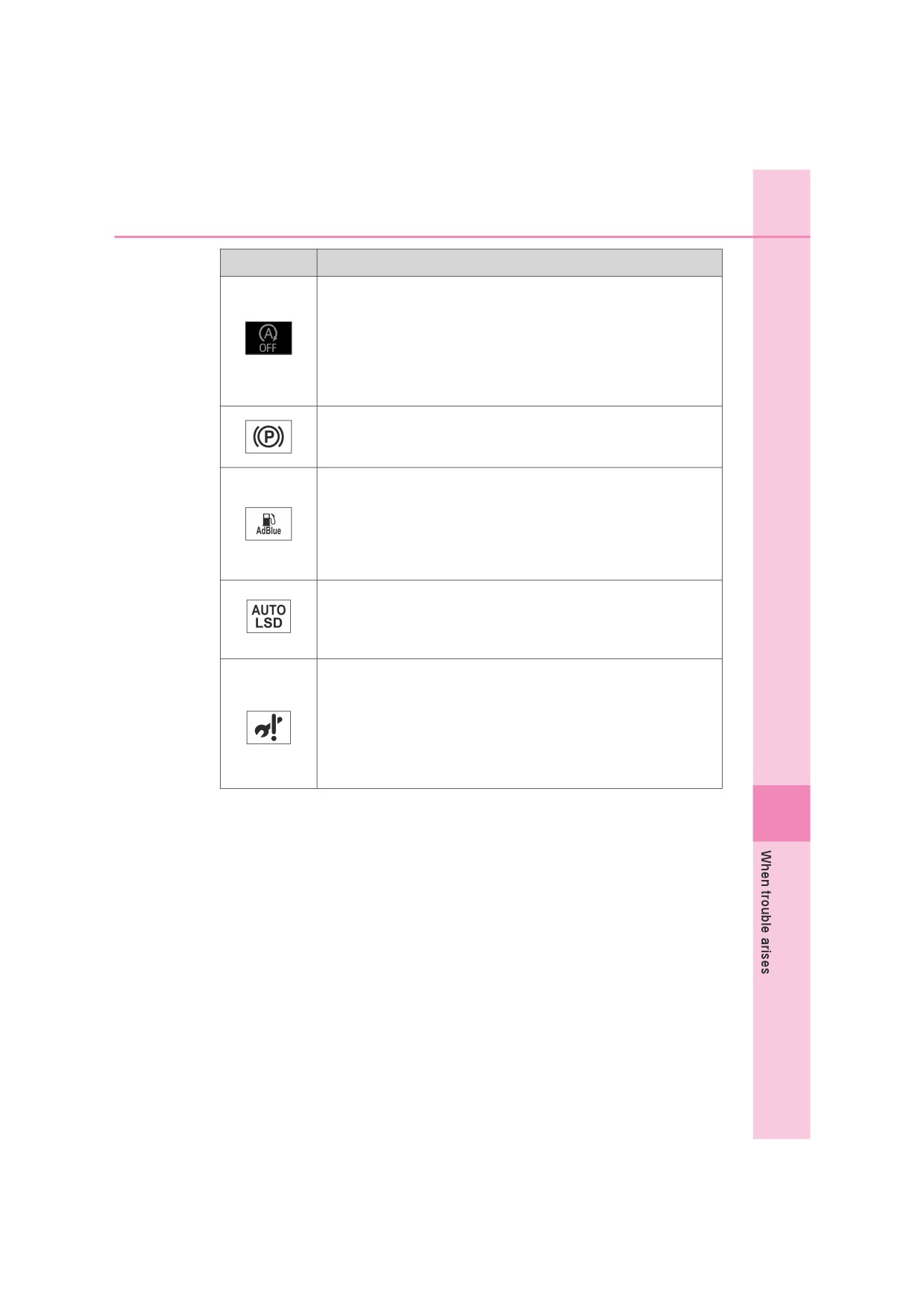

8-2. Steps to take in an emergency

569

Warning light

Warning light/Details/Actions

Stop & Start cancel indicator (if equipped)

Indicates a malfunction in the Stop & Start system

(The Stop & Start cancel indicator will come on when the

system is canceled: P. 344)

(Flashes)

 Have the vehicle inspected by any authorized Toyota

retailer or Toyota authorized repairer, or any reliable

repairer immediately.

Parking brake indicator light (warning buzzer)*¹¹

Warns the driver to release parking brake.

 Release the parking brake.

Low AdBlue™ level warning light (if equipped)

Indicates that the engine may not be restarted due to

AdBlue™ level is low.

 Have AdBlue™ refilled at any authorized Toyota

retailer or Toyota authorized repairer, or any reliable

repairer.

AUTO LSD indicator (if equipped)

Indicate that the system is temporarily unavailable, due to

the brake system overheats.

(Flashes)

 P. 366

Go to service warning light

(warning buzzer)

(if

equipped)

Indicates a malfunction in the electronic engine control

system or electronic throttle control system.

 Have the vehicle inspected by any authorized Toyota

retailer or Toyota authorized repairer, or any reliable

repairer.

570

8-2. Steps to take in an emergency

^*1: Vehicles with multi-information display: a indicator is displayed on the

multi-information display.

^*2: The buzzer sounds if the vehicle reaches a speed of 5 km/h (3 mph).

^*3: Slow down until the lamp goes off.

^*4: The buzzer sounds when the differential oil temperature is too high and

turning the front-wheel drive control switch to H2 is required.

^*5: The buzzer will sound at the same time the warning light flashes.

^*6: The light turns to yellow.

^*7: The open door warning buzzer sounds if the vehicle reaches or exceeds a

speed of 5 km/h (3 mph).

^*8: The driver’s and front passenger’s seat belt warning buzzer sounds to alert

the driver and front passenger that his or her seat belt is not fastened. If

the seat belt is unfastened, the buzzer sounds intermittently for a certain

period of time after the vehicle reaches a certain speed.

^*9: Models made in South Africa*¹⁰, and models made in Thailand*¹⁰ with

rear seat heaters:

The rear passengers’ seat belt warning buzzer sounds to alert the rear

passenger that his or her seat belt is not fastened. If the seat belt is unfas-

tened, the buzzer sounds intermittently for a certain period of time after the

vehicle reaches a certain speed.

Models made in Thailand*¹⁰ without rear seat heaters:

The rear passengers’ seat belt warning buzzer sounds to alert the rear

passenger that his or her seat belt is not fastened. If the seat belt is unfas-

tened, the buzzer sounds intermittently for a certain period of time, after

the seat belt is fastened and unfastened and the vehicle reaches a certain

speed.

¹⁰: See “Checking your vehicle’s model” if you are not sure of which model

your vehicle is. (P. 12)

^*11: The parking brake engaged warning buzzer sounds if the vehicle reaches a

speed of approximately 5 km/h (3 mph) or more.

8-2. Steps to take in an emergency

571

■ Passenger detection sensor, seat belt reminder and warning buzzer

● If luggage is placed on the passenger seat, the front passenger detection

sensor or the rear passenger detection sensor (if equipped) may cause the

warning light to flash and the warning buzzer to sound even if a passenger

is not sitting in the seat.

● If a cushion is placed on the seat, the sensor may not detect a passenger,

and the warning light may not operate properly.

■ If the malfunction indicator lamp comes on while driving

For some models, malfunction indicator lamp will come on if the fuel tank

becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-

diately. The malfunction indicator lamp will go off after several trips.

If the malfunction indicator lamp does not go off, contact any authorized

Toyota retailer or Toyota authorized repairer, or any reliable repairer as soon

as possible.

■ Warning buzzer

In some cases, the buzzer may not be heard due to being in a noisy location

or audio sound.

572

8-2. Steps to take in an emergency

WARNING

■ If a warning light comes on or a warning buzzer sounds when a warn-

ing message is shown on the multi-information display (vehicles with

multi-information display)

Check and follow the message shown on the multi-information display. Fail-

ure to do so may result in death or serious injury.

■ If both the ABS and the brake system warning lights remain on

Stop your vehicle in a safe place immediately and contact any authorized

Toyota retailer or Toyota authorized repairer, or any reliable repairer. The

vehicle will become extremely unstable during braking, and the ABS system

may fail, which could cause an accident resulting in death or serious injury.

NOTICE

■ If the malfunction indicator lamp comes on when the boost pressure in

the turbocharger is abnormally high (diesel engine)

Never drive at high speed or race the engine even after the lamp goes off.

■ If the fuel system warning light flashes (diesel engine)

Never drive the vehicle with the warning light flashing. Continued driving

with water accumulated in the fuel filter will damage the fuel injection pump.

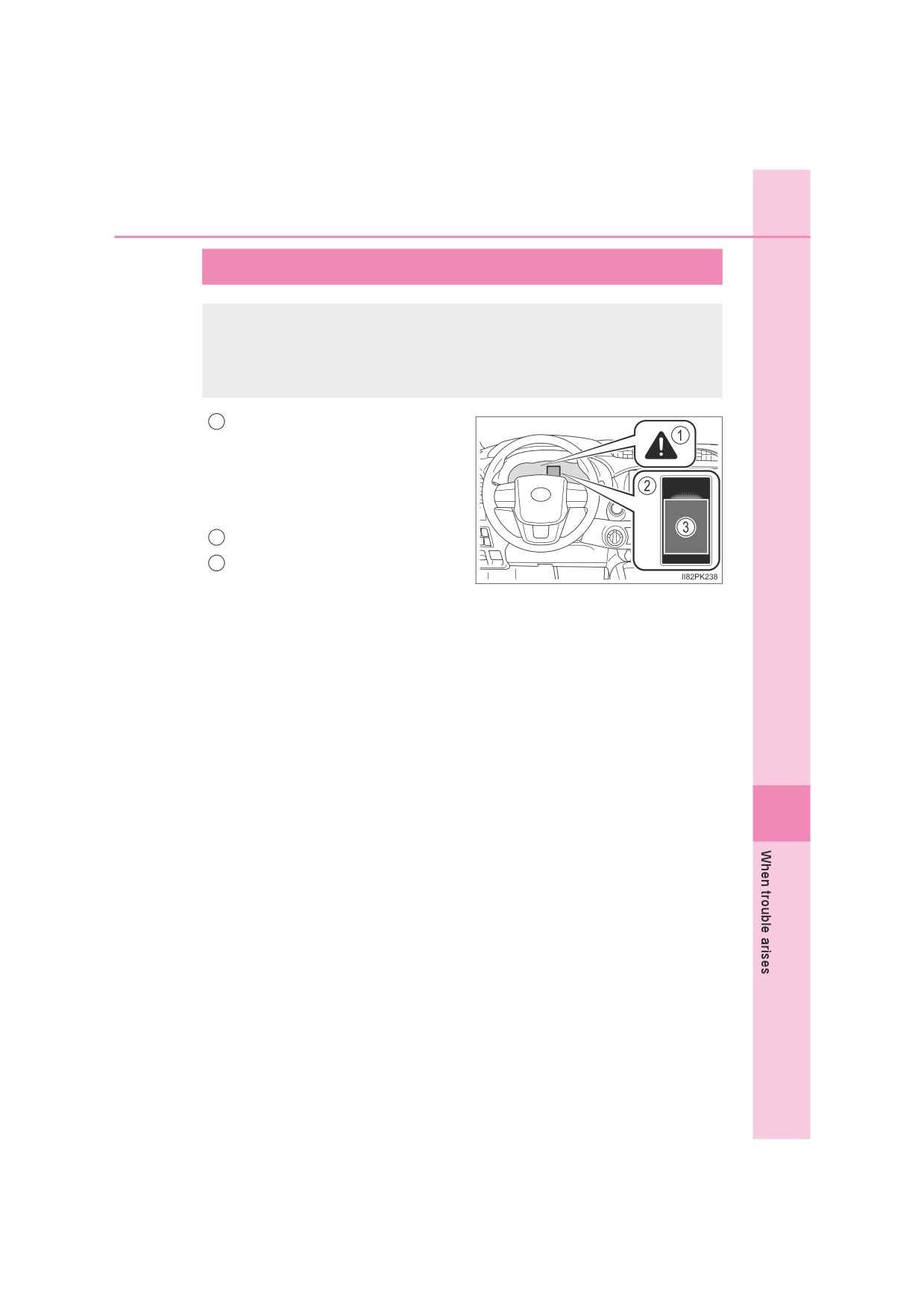

8-2. Steps to take in an emergency

573

If a warning message is displayed^

The multi-information display shows warnings of system mal-

functions, incorrectly performed operations, and messages that

indicate a need for maintenance. When a message is shown,

perform the correction procedure appropriate to the message.

Master warning light

The master warning light also

comes on or flashes in order to

indicate that a message is cur-

rently being displayed on the multi-

information display.

Multi-information display

Handling method

Follow the instructions of the mes-

sage on the multi-information dis-

play.

If any of the warning messages comes on again after the following

actions have been performed, contact any authorized Toyota retailer

or Toyota authorized repairer, or any reliable repairer.

: If equipped

574

8-2. Steps to take in an emergency

Messages and warnings

The warning lights and warning buzzers operate as follows depending

on the content of the message. If a message indicates the need for

inspection by a dealer, have the vehicle inspected by any authorized

Toyota retailer or Toyota authorized repairer, or any reliable repairer

immediately.

System

Warning

warning

Warning

buzzer*

light

Indicates an important situation, such

Comes on

Sounds

as when a system related to driving is

malfunctioning or that danger may

result if the correction procedure is not

Comes on



Sounds

performed

Indicates an important situation, such

Comes on

as when the systems shown on the



Sounds

or flashes

multi-information display may be mal-

functioning

Indicates a situation, such as when

Flashes



Sounds

damage to the vehicle or danger may

result

Indicates a condition, such as mal-

Does not

function of electrical components, their

Comes on



sound

condition, or indicates the need for

maintenance

Indicates a situation, such as when an

Does not

operation has been performed incor-

Flashes



sound

rectly, or indicates how to perform an

operation correctly

The operation of the warning lights and warning buzzers may differ

from those stated. In this case, perform the correction procedure

according to the displayed message.

*: A buzzer sounds the first time a message is shown on the multi-informa-

tion display.

8-2. Steps to take in an emergency

575

■ Warning messages

The warning messages explained below may differ from the actual messages

according to operation conditions and vehicle specifications.

■ If a message about an operation is shown

●If a message about an operation of the engine switch is shown

An instruction for operation of the engine switch is shown when the incor-

rect procedure for starting the engine is performed or the engine switch is

operated incorrectly. Follow the instructions shown on the multi-information

display to operate the engine switch again.

● If a message about a shift lever operation is shown

To prevent the shift lever from being operated incorrectly or the vehicle from

moving unexpectedly, a message that requires shifting the shift lever may

be shown on the multi-information display. In that case, follow the instruc-

tion of the message and shift the shift lever.

● If a message or image about an open/close state of a part or replenishment

of a consumable is shown

Confirm the part indicated by the multi-information display or a warning

light, and then perform the coping method such as closing the open door or

replenishing a consumable.

■ If

is shown

The engine oil pressure is too low. (This warning message may be displayed

if the vehicle is stopped on a slope. Move the vehicle to a level surface and

check to see if the message goes off.)

Immediately stop the vehicle in a safe place and contact any authorized

Toyota retailer or Toyota authorized repairer, or any reliable repairer. Continu-

ing to drive the vehicle may be dangerous.

■ If “Accelerator and Brake Pedals Pressed Simultaneously” is shown

The accelerator and brake pedal are being depressed simultaneously.

(P. 193)

Release the accelerator pedal and depress the brake pedal.

■ If “Windshield washer fluid low” is shown

The washer fluid level is low.

Add washer fluid. (P. 496)

576

8-2. Steps to take in an emergency

■ If “Oil maintenance required soon” is shown

The engine oil is scheduled to be changed.

Check the engine oil, and change if necessary. After changing the engine oil,

the oil change system should be reset. (P. 489)

For Russia, Armenia, Ukraine, Byelarus, Moldova, Bosnia Herzegovina, Mon-

tenegro, Serbia and Macedonia: You have forgotten to reset the oil change

system. Change the engine oil in accordance with the maintenance schedule.

■ If “Oil maintenance required” is shown

The engine oil is scheduled to be changed.

Check and change the engine oil, and oil filter by any authorized Toyota

retailer or Toyota authorized repairer, or any reliable repairer. After changing

the engine oil, the oil change system should be reset. (P. 489)

For Russia, Armenia, Ukraine, Byelarus, Moldova, Bosnia Herzegovina, Mon-

tenegro, Serbia and Macedonia: You have forgotten to reset the oil change

system. Change the engine oil in accordance with the maintenance schedule.

■ If “Differential oil temp high Shift to 2WD mode Cooling time required” or

“Differential oil temp high Cooling time required” is shown

The differential oil temperature is too high.

Turn the front-wheel drive control switch to H2, and reduce the vehicle speed

or stop the vehicle in a safe place. (P. 329)

■ If “Engine oil level low Add or replace” is shown

The engine oil level is low. (This warning message may be displayed if the

vehicle is stopped on a slope. Move the vehicle to a level surface and check

to see if the message goes off.)

Check the level of the engine oil and add or replace oil if necessary.

(P. 477)

■ If “Power turned off to save battery” is shown

Power was turned off due to the automatic power off function.

Next time when starting the engine, increase the engine speed slightly and

maintain that level for approximately 5 minutes to recharge the battery.

■ If “DPF full Manual regeneration required See owner’s manual” is shown

The deposit collected in the filter needs to be regenerated. (P. 369)

■ If “DPF regeneration in progress” is shown

Regeneration is being automatically carried out by the DPF system.

(P. 368)

8-2. Steps to take in an emergency

577

■ If a message that indicates the malfunction of front camera is shown

The following systems may be suspended until the problem shown in the

message is resolved. (P. 269, 564)

● PCS (Pre-Collision System)*

● LDA (Lane Departure Alert With Yaw Assist Function)*

●RSA (Road Sign Assist)*

● Dynamic radar cruise control*

*: If equipped

■ If a message that indicates the malfunction of radar sensor is shown

The following systems may be suspended until the problem shown in the

message is resolved. (P. 269, 564)

● PCS (Pre-Collision System)*

● LDA (Lane Departure Alert With Yaw Assist Function)*

● Dynamic radar cruise control*

*: If equipped

■ If “See owner’s manual” is shown

● If the following messages are shown, follow the instructions accordingly.

•

“Engine Coolant Temp High Stop in a Safe Place” (P. 608)

•

“Transmission fluid temp high” (P. 236)

•

“Water accumulation in fuel filter” (P. 497)

•

“AdBlue Level Low Fill up AdBlue in 2400 km” (P. 500)

•

“AdBlue level Low No start in 800 km Top up AdBlue” (P. 500)

•

“AdBlue empty Unable to Restart Engine Fill up AdBlue” (P. 500)

•

“DPF full” (P. 369)

•

“Front Camera Temporarily Unavailable” (P. 269)

●If “Smart Entry & Start System malfunction” is shown, this may be a mal-

function.

Immediately have the vehicle inspected by any authorized Toyota retailer or

Toyota authorized repairer, or any reliable repairer.

● If “Low Braking Power Stop in a Safe Place” is shown, there may be a mal-

function. Immediately stop the vehicle in a safe place and contact any

authorized Toyota retailer or Toyota authorized repairer, or any reliable

repairer. Continuing to drive the vehicle may be dangerous.

● If the following messages are shown, there may be a malfunction. Immedi-

ately stop the vehicle in a safe place and contact any authorized Toyota

retailer or Toyota authorized repairer, or any reliable repairer.

•

“Charging System Malfunction Stop in a Safe Place”

•

“Oil Pressure Low Stop in a Safe Place”

578

8-2. Steps to take in an emergency

■ If “Radar Cruise Control Temporarily Unavailable See Owner’s Manual”

is shown

The dynamic radar cruise control system is suspended temporarily or until the

problem shown in the message is resolved. (causes and coping methods:

P. 269)

■ If “Radar Cruise Control Unavailable” is shown

The dynamic radar cruise control system cannot be used temporarily. Use the

system when it becomes available again.

■ If “Visit your dealer” is shown

The system or part shown on the multi-information display is malfunctioning.

Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-

rized repairer, or any reliable repairer immediately.

■ Warning buzzer

In some cases, the buzzer may not be heard due to being in a noisy location

or audio sound.

WARNING

■ If a warning light comes on or a warning buzzer sounds when a warn-

ing message is shown

Check and follow the message shown on the multi-information display. Fail-

ure to do so may result in death or serious injury.

NOTICE

■ While the engine oil level warning is shown

Continued engine operation with low engine oil will damage the engine.

■ If “Water accumulation in fuel filter See owner’s manual” is shown

Never drive the vehicle if the warning message is displayed. Continued driv-

ing with water accumulated in the fuel filter will damage the fuel injection

pump.

8-2. Steps to take in an emergency

579

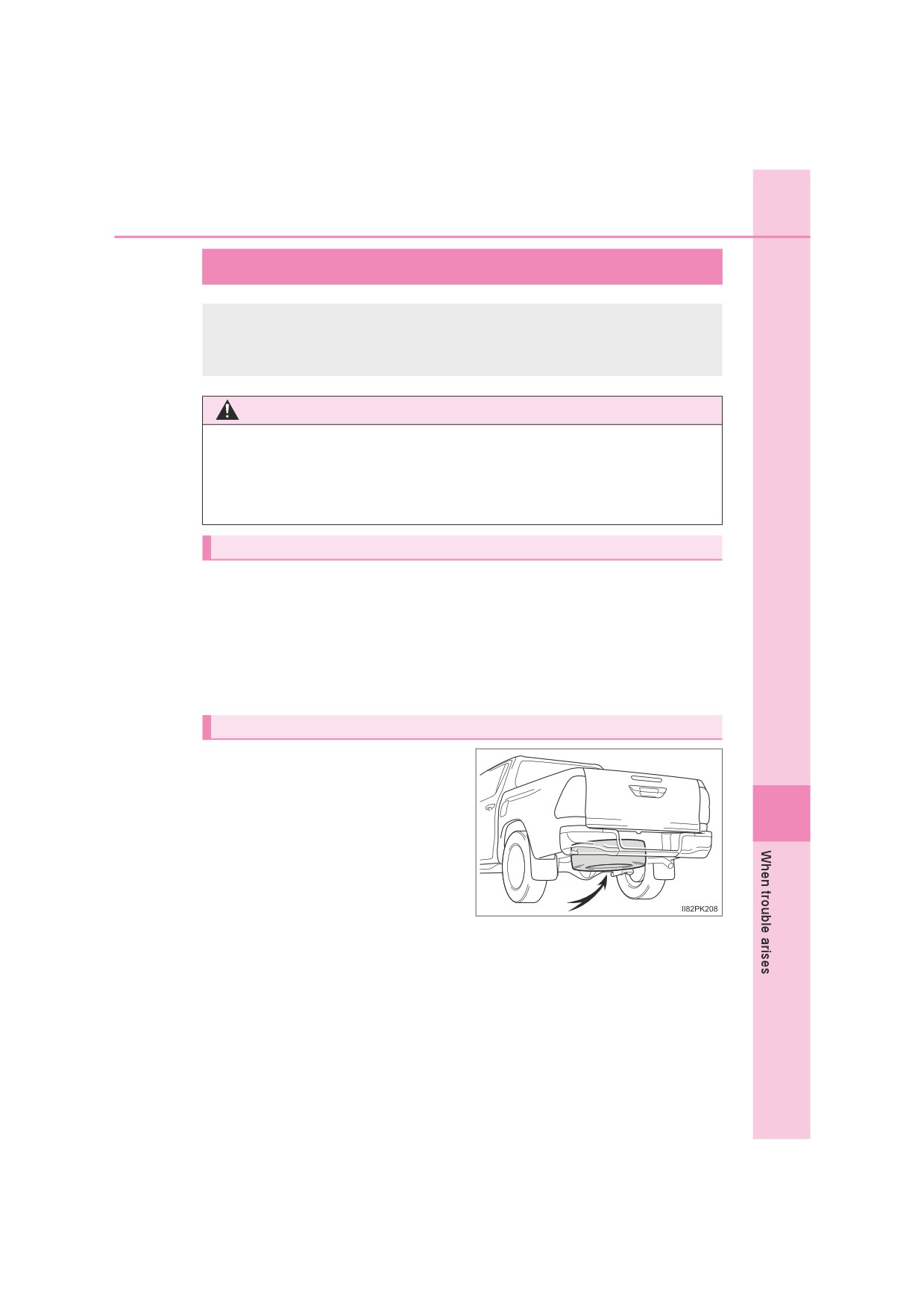

If you have a flat tire

Your vehicle is equipped with a spare tire. The flat tire can be

replaced with the spare tire.

For details about tires: P. 505

WARNING

■ If you have a flat tire

Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair, which could result in an accident.

Before jacking up the vehicle

● Stop the vehicle in a safe place on a hard, flat surface.

● Set the parking brake.

● Shift the shift lever to P (automatic transmission) or R (manual

transmission).

● Stop the engine.

● Turn on the emergency flashers. (P. 552)

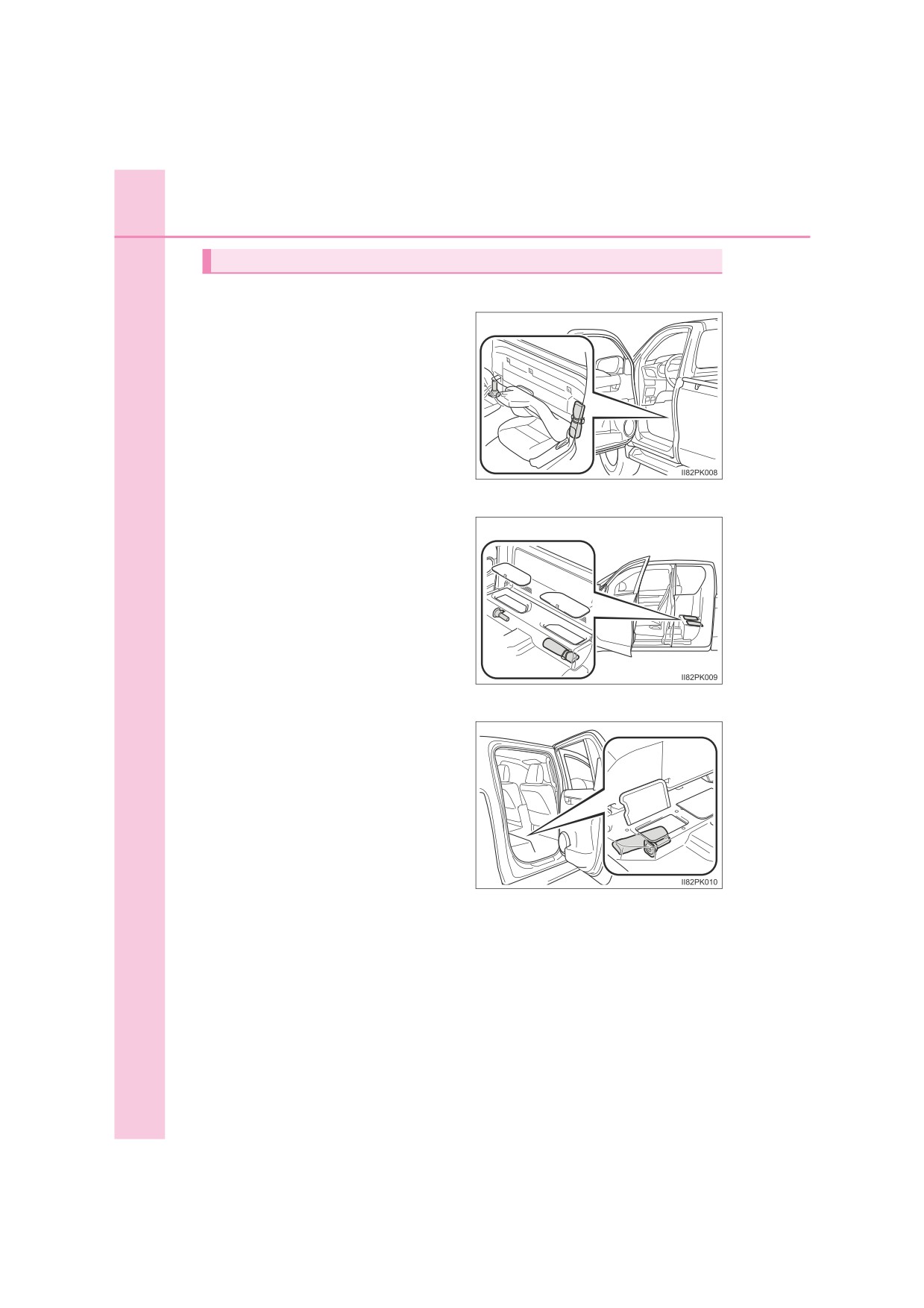

Location of the spare tire

8-2. Steps to take in an emergency

581

WARNING

■ Using the tire jack

Improper use of the tire jack may cause the vehicle to suddenly fall off the

jack, leading to death or serious injury.

●Do not use the tire jack for any purpose other than replacing tires or install-

ing and removing tire chains.

●Only use the tire jack that comes with this vehicle for replacing a flat tire.

Do not use it on other vehicles, and do not use other tire jacks for replac-

ing tires on this vehicle.

● Make sure the tire jack can be moved properly.

●Always check that the tire jack is securely set to the correct jack up point.

●Do not put any part of your body under the vehicle while it is supported by

the jack.

●Do not start or run the engine while your vehicle is supported by the jack.

●Do not raise the vehicle while someone is inside.

● When raising the vehicle, do not put an object on or under the jack.

●Do not raise the vehicle to a height greater than that required to replace

the tire.

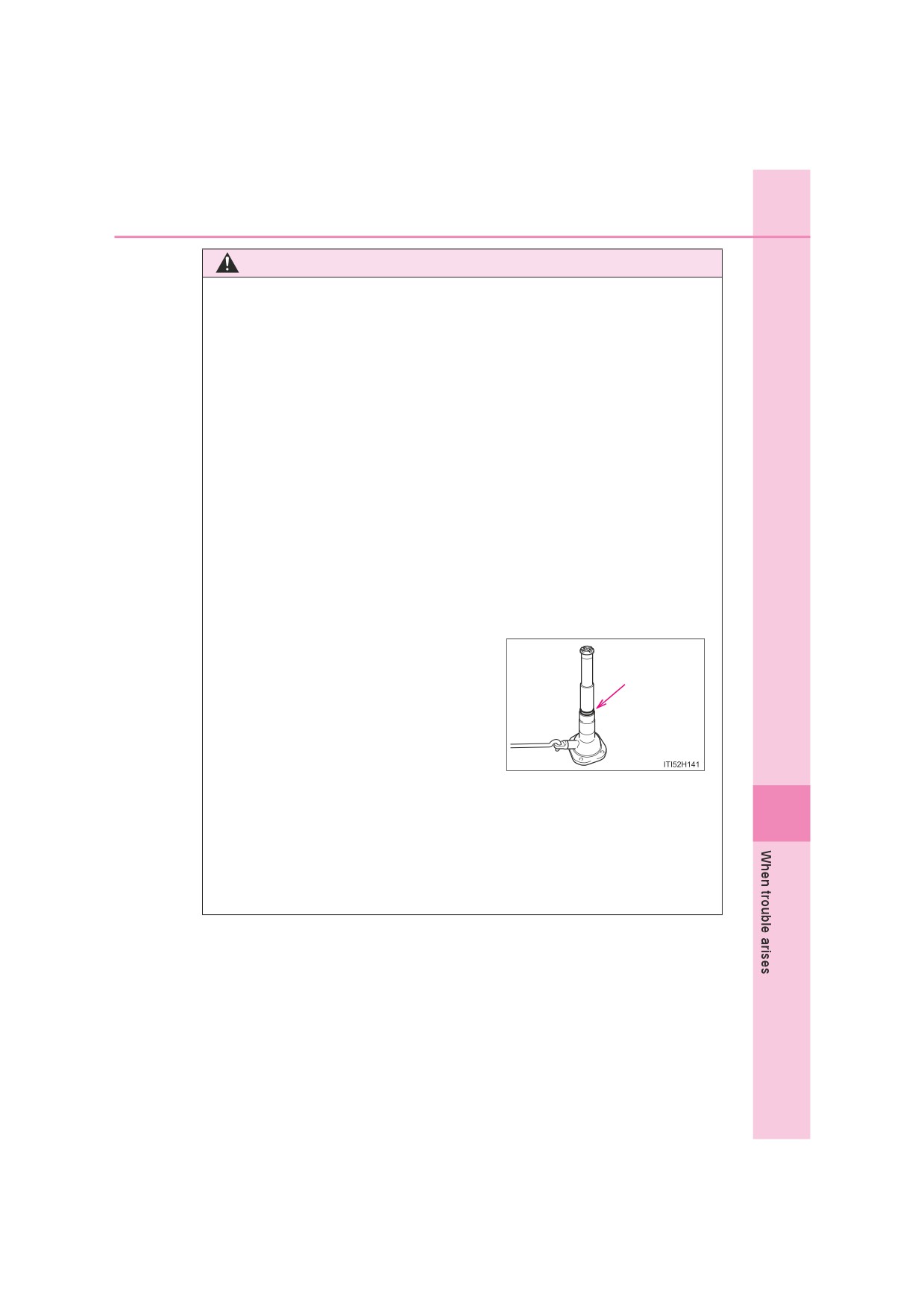

●Do not continue jacking up once the yel-

Yellow

low caution line has appeared.

caution line

●Use a jack stand if it is necessary to get under the vehicle.

Take particular care when lowering the vehicle to ensure that no one work-

ing on or near the vehicle may be injured.

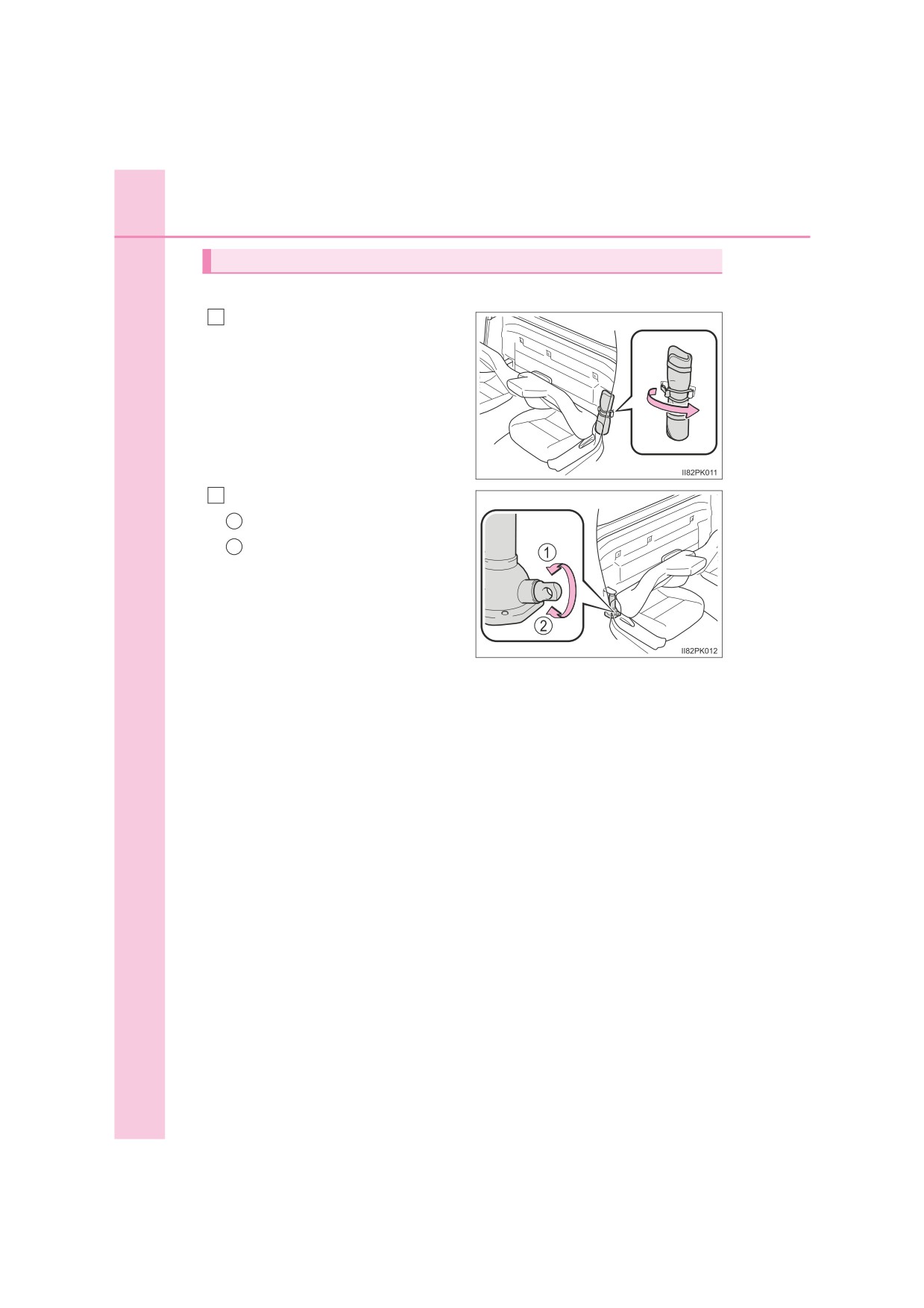

■ Using the jack handle

Insert the square head securely until you hear a click to prevent the exten-

sion parts from coming apart unexpectedly.

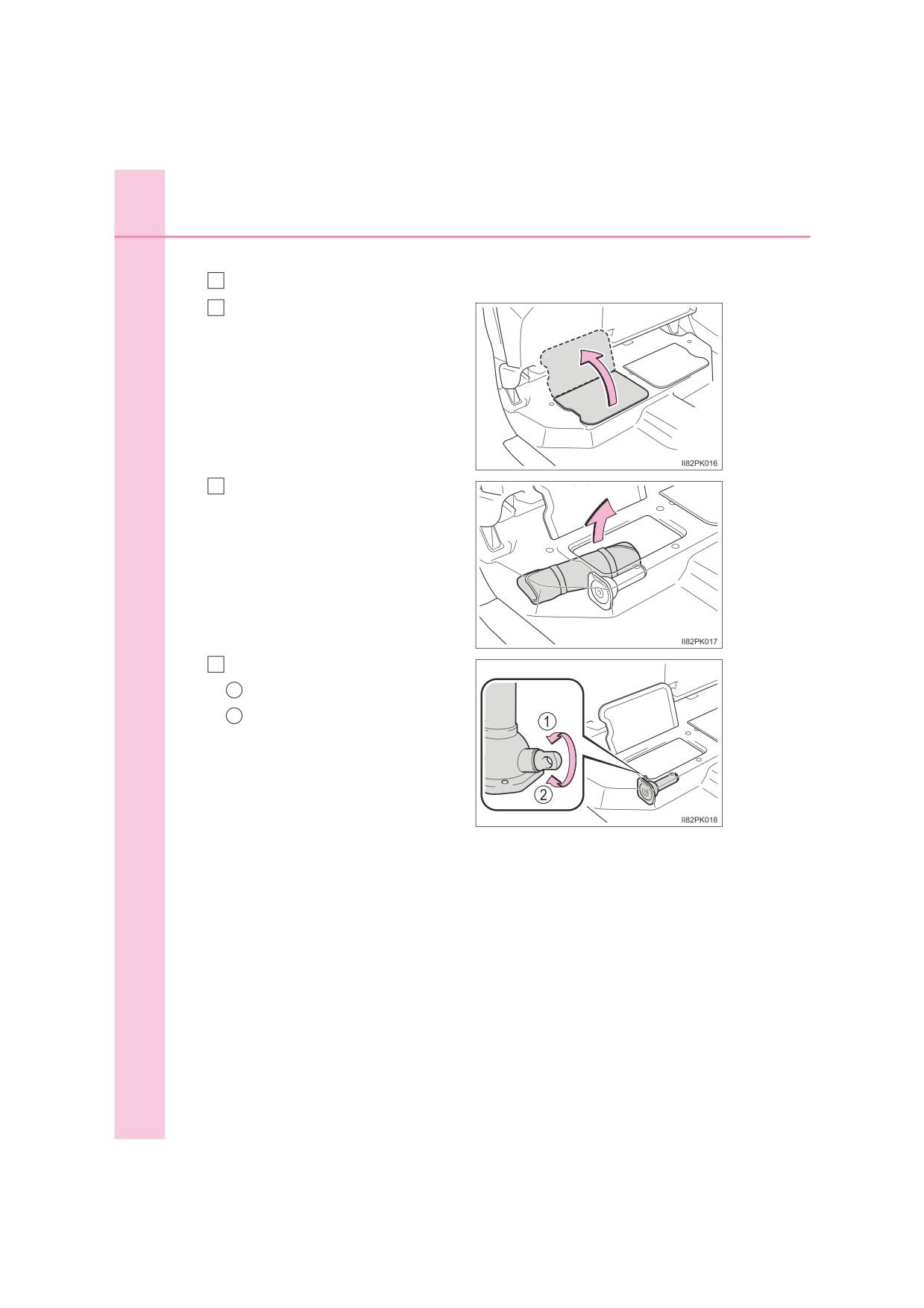

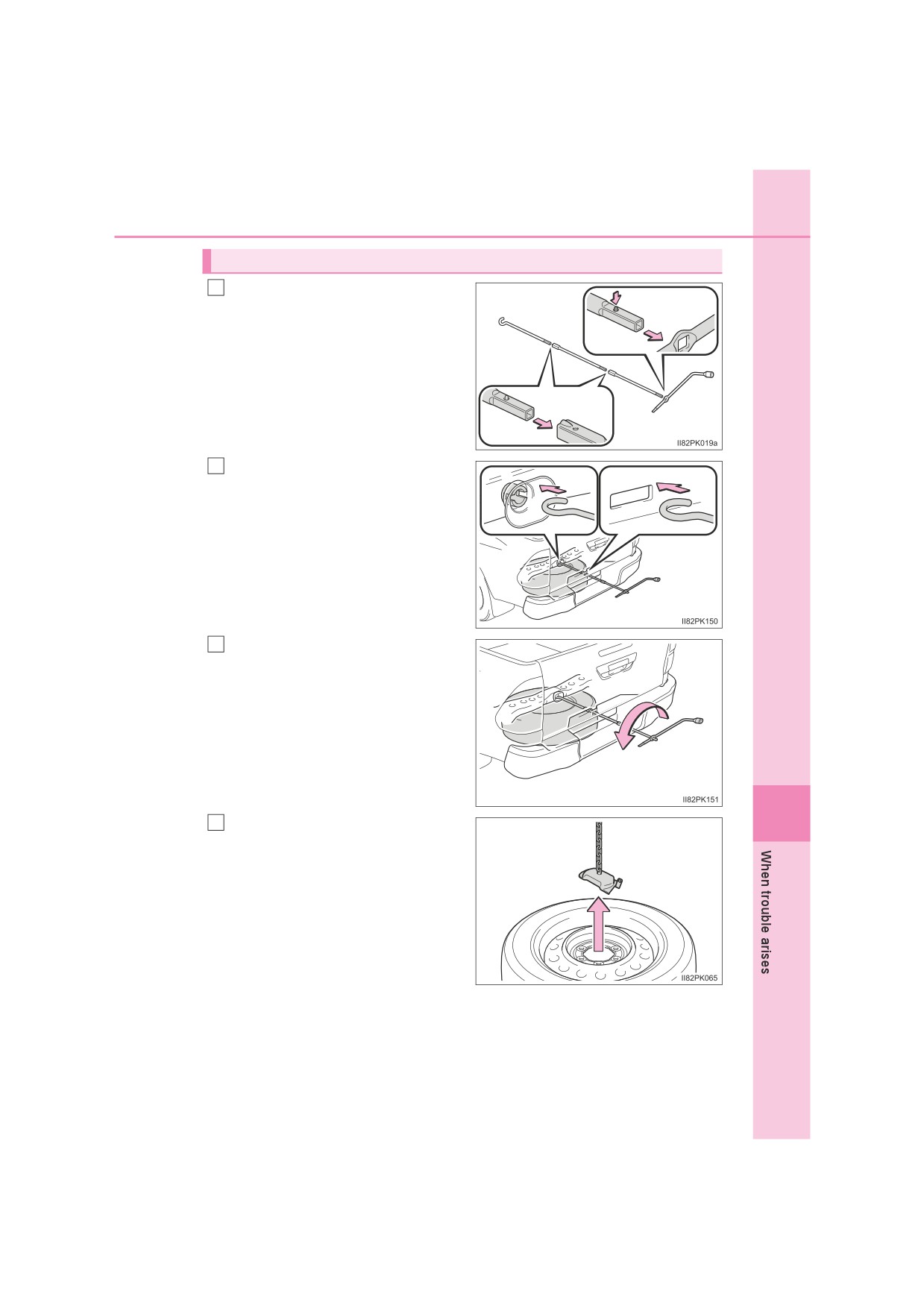

586

8-2. Steps to take in an emergency

Replacing a flat tire

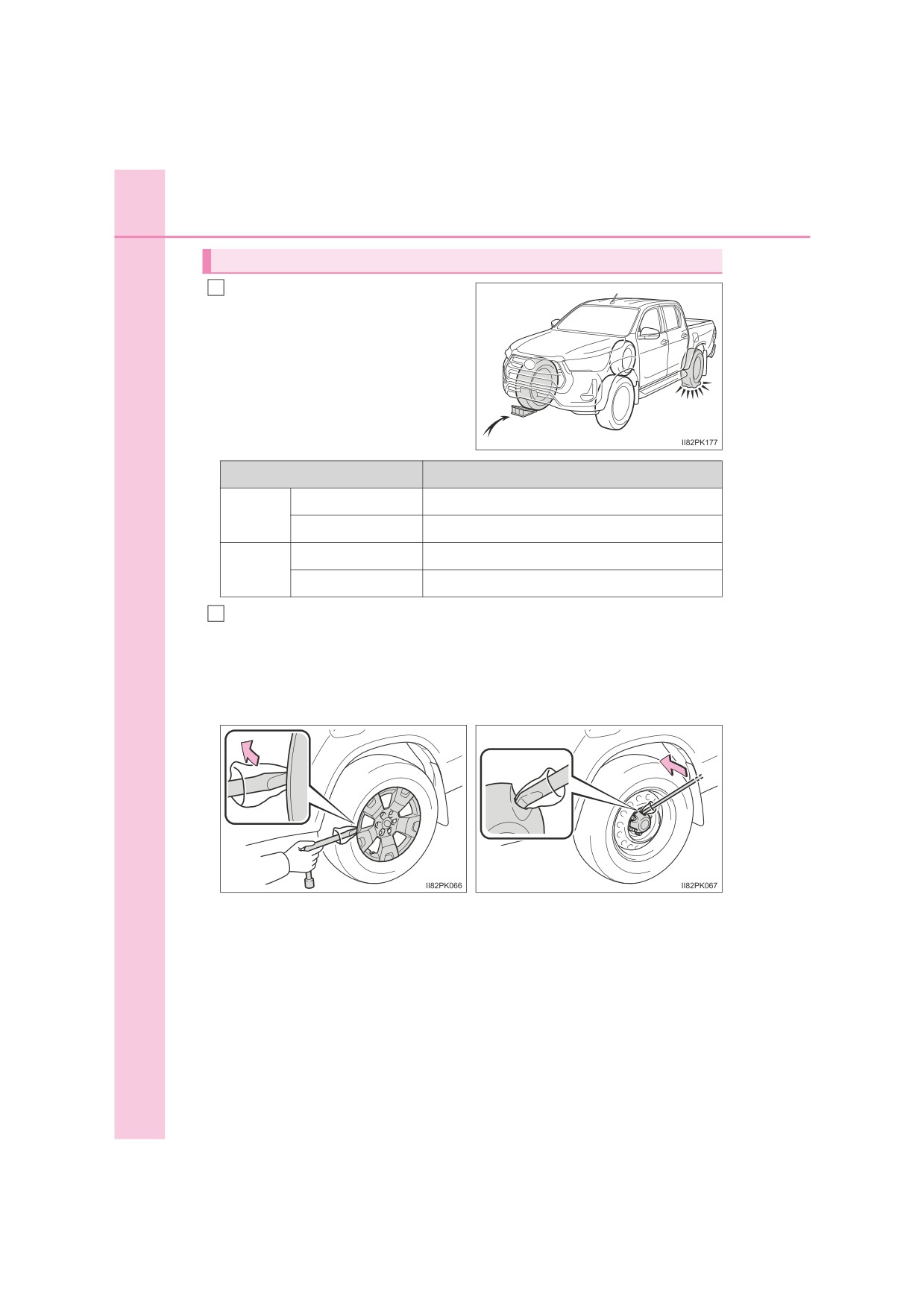

Chock the tires.

Flat tire

Wheel chock positions

Left-hand side

Behind the rear right-hand side tire

Front

Right-hand side

Behind the rear left-hand side tire

Left-hand side

In front of the front right-hand side tire

Rear

Right-hand side

In front of the front left-hand side tire

Remove the wheel ornament, using the beveled end of the wheel

nut wrench as shown.

To protect the wheel ornament, place a rag between the wheel nut wrench

and the wheel ornament.

 Type A

 Type B

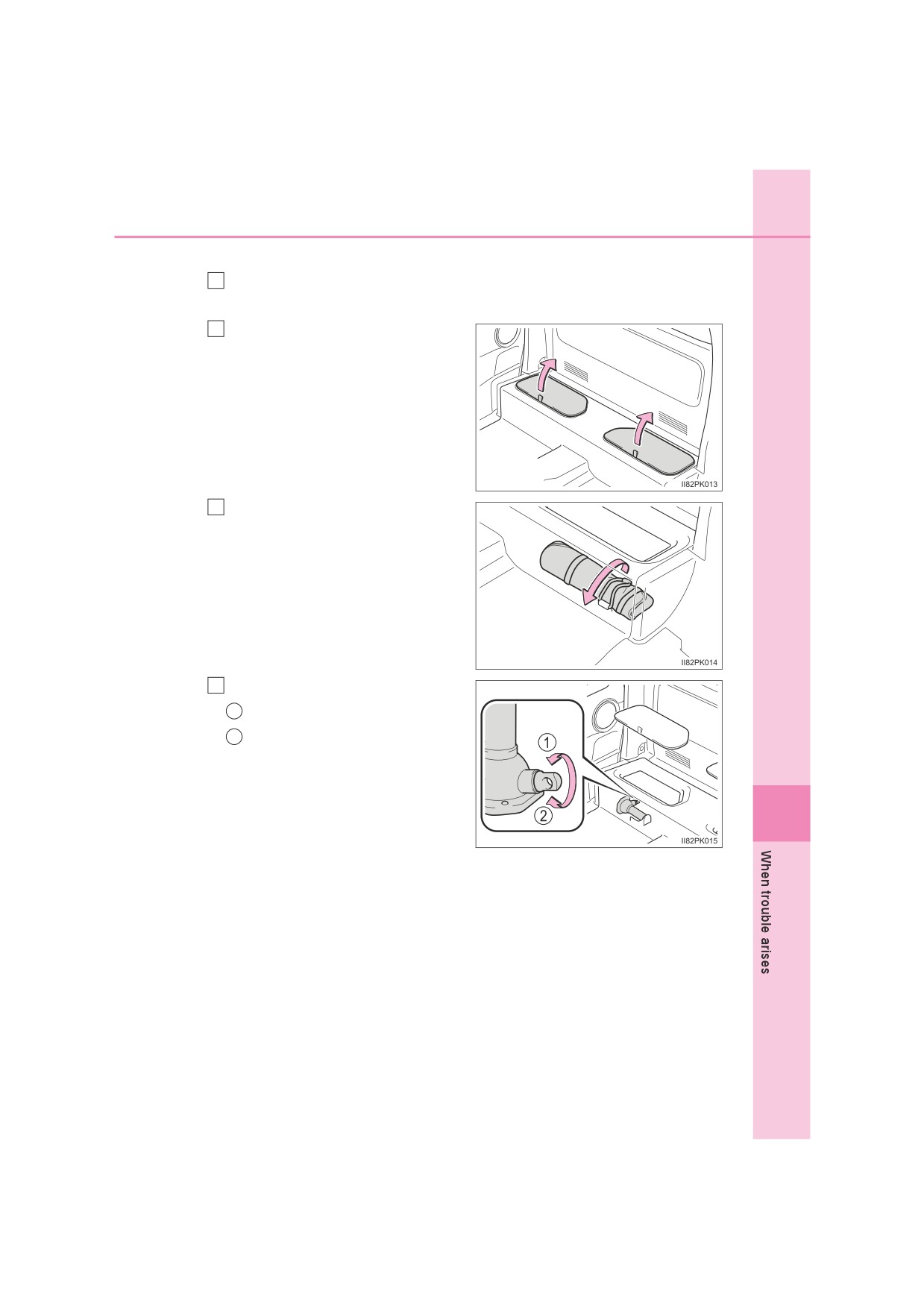

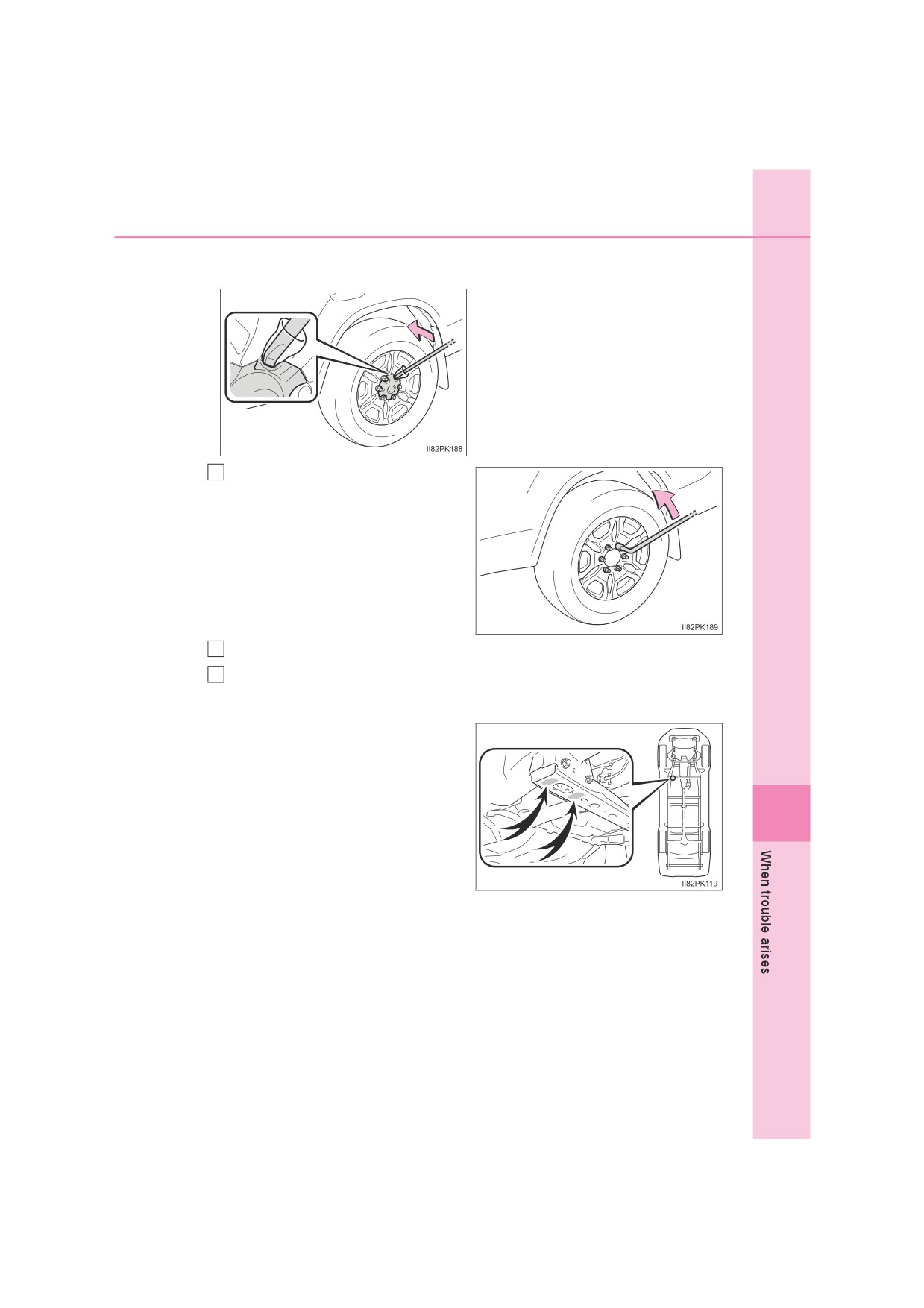

588

8-2. Steps to take in an emergency

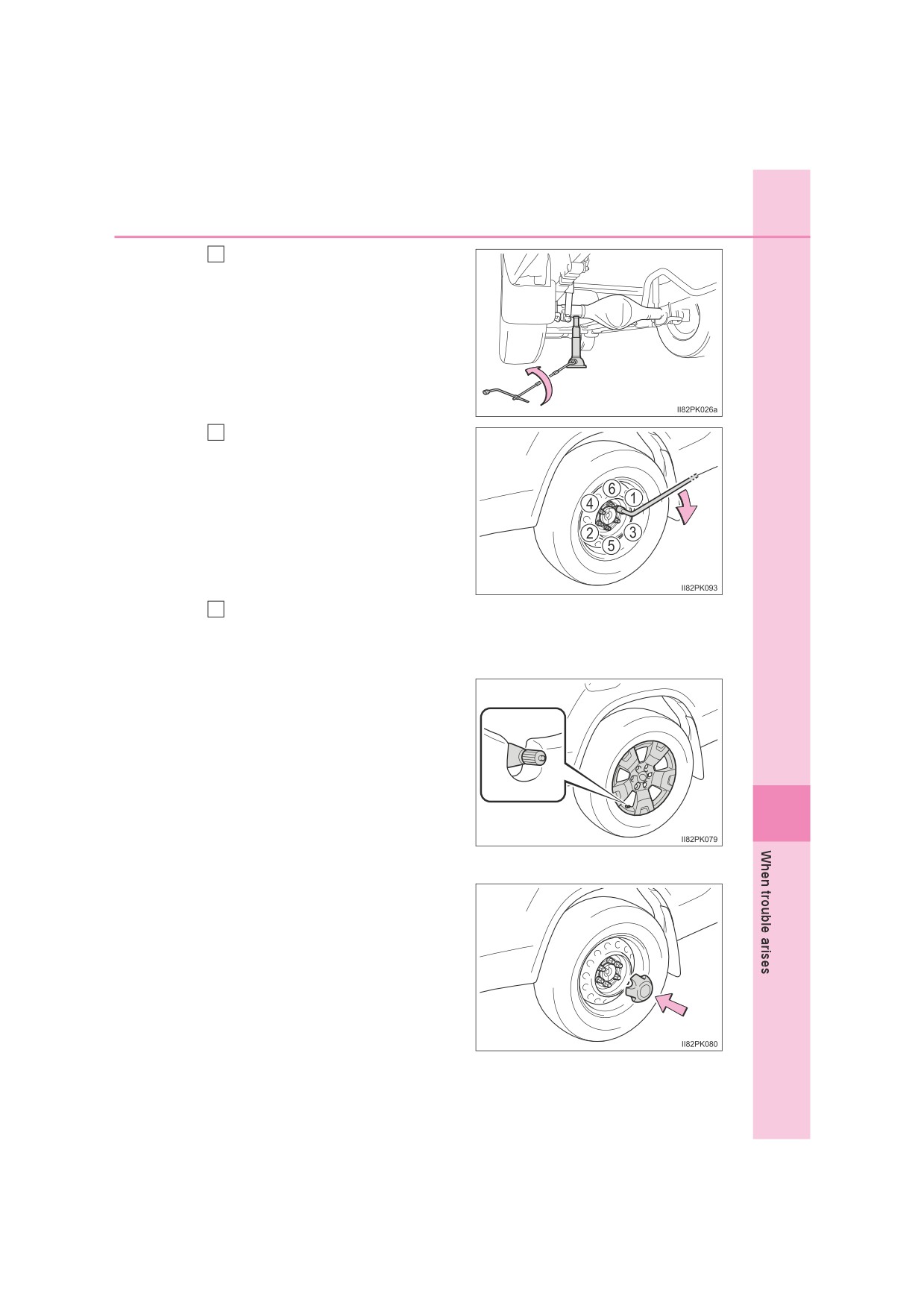

 Rear

Under the rear axle housing

Raise the vehicle until the tire is

slightly raised off the ground.

When positioning the jack under

the rear axle housing, make sure

the groove on the top of the jack

fits with the rear axle housing.

Remove all the wheel nuts and

the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

8-2. Steps to take in an emergency

589

WARNING

■ Replacing a flat tire

●Observe the following precautions.

Failure to do so may result in serious injury:

• Lower the spare tire completely to the ground before removing it from

under the vehicle.

• Do not try to remove the wheel ornament by hand. Take due care in

handling the ornament to avoid unexpected personal injury.

• Do not touch the disc wheels or the area around the brakes immediately

after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around

the brakes will be extremely hot. Touching these areas with hands, feet

or other body parts while changing a tire, etc. may result in burns.

●Failure to follow these precautions could cause the wheel nuts to loosen

and the tire to fall off, resulting in death or serious injury.

• Have the wheel nuts tightened with a torque wrench to

105 N•m

(10.7 kgf•m, 77 ft•lbf) as soon as possible after changing wheels.

• Do not attach a heavily damaged wheel ornament, as it may fly off the

wheel while the vehicle is moving.

• When installing a tire, only use wheel nuts that have been specifically

designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut threads or

bolt holes of the wheel, have the vehicle inspected by any authorized

Toyota retailer or Toyota authorized repairer, or any reliable repairer.

• When installing the wheel nuts, be sure to install them with the tapered

ends facing inward.

590

8-2. Steps to take in an emergency

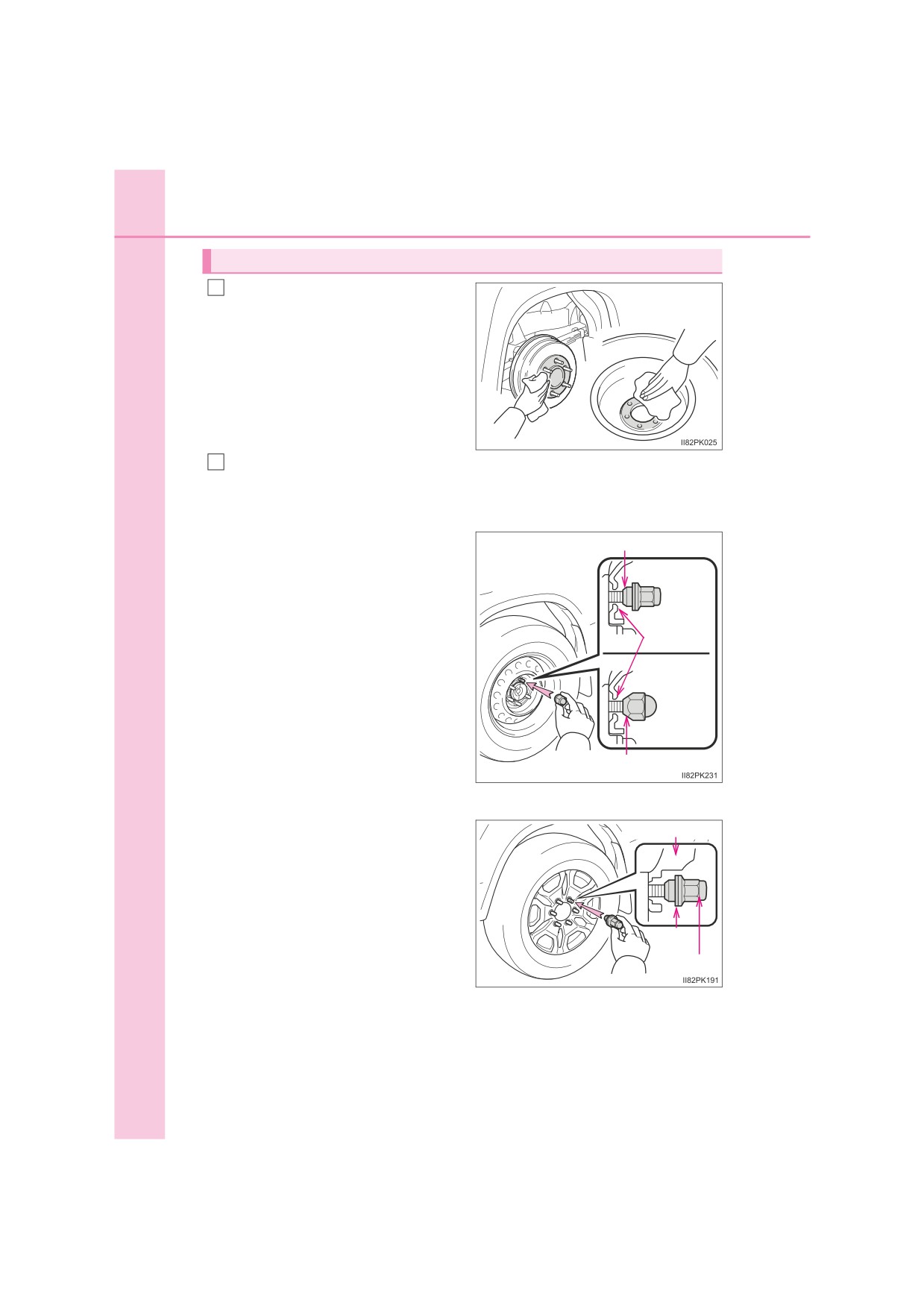

Installing the spare tire

Remove any dirt or foreign mat-

ter from the wheel contact sur-

face.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come

off.

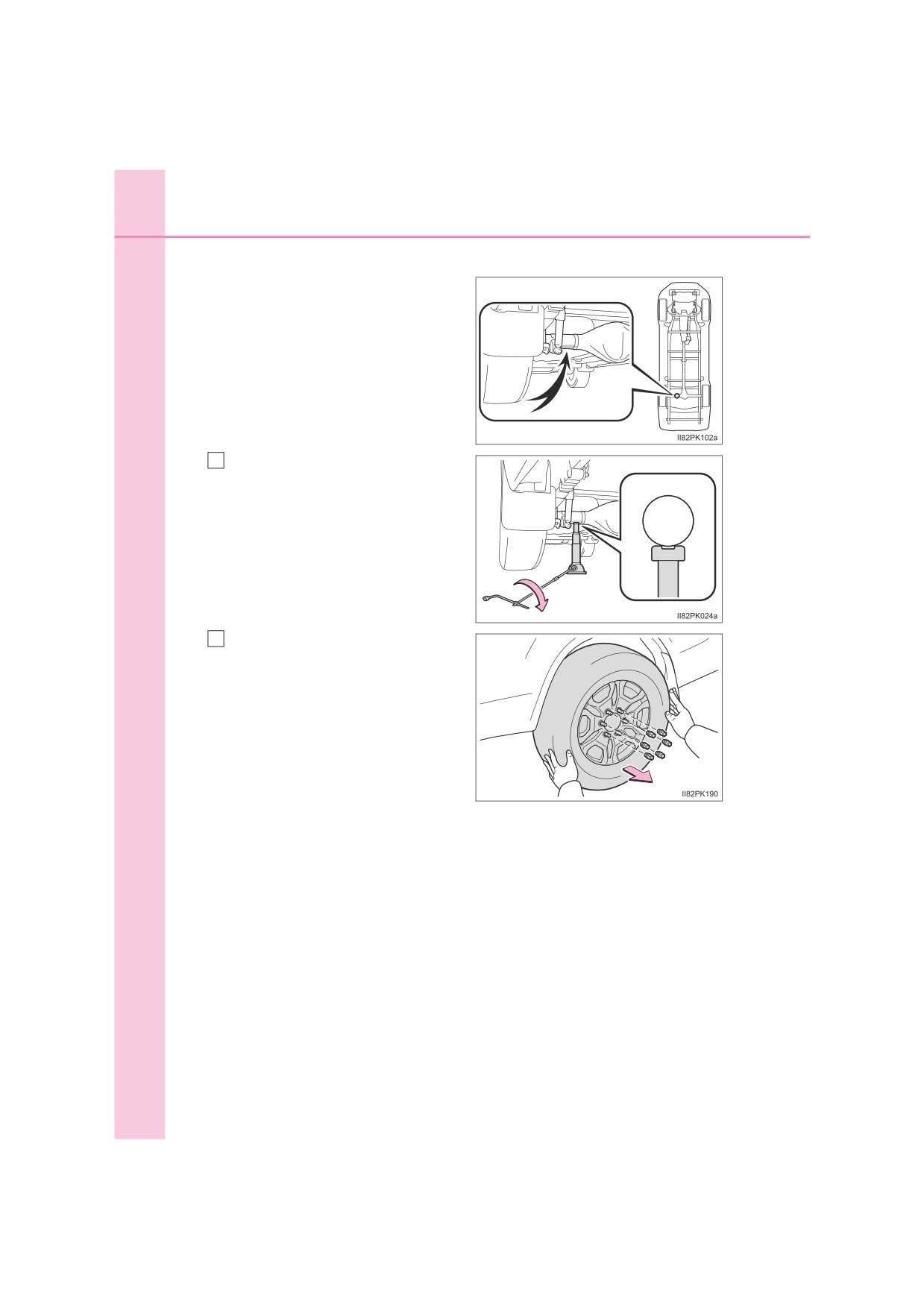

Install the tire and loosely tighten each wheel nut by hand by

approximately the same amount.

 Steel wheels

Tighten the wheel nuts until the

Tapered portion

tapered portion comes into

loose contact with the disc

wheel seat.

Disc wheel

seat

Tapered portion

 Aluminum wheels

Turn the wheel nuts until the

Disc wheel

washers come into contact with

the disc wheel.

Washer

Wheel nut

592

8-2. Steps to take in an emergency

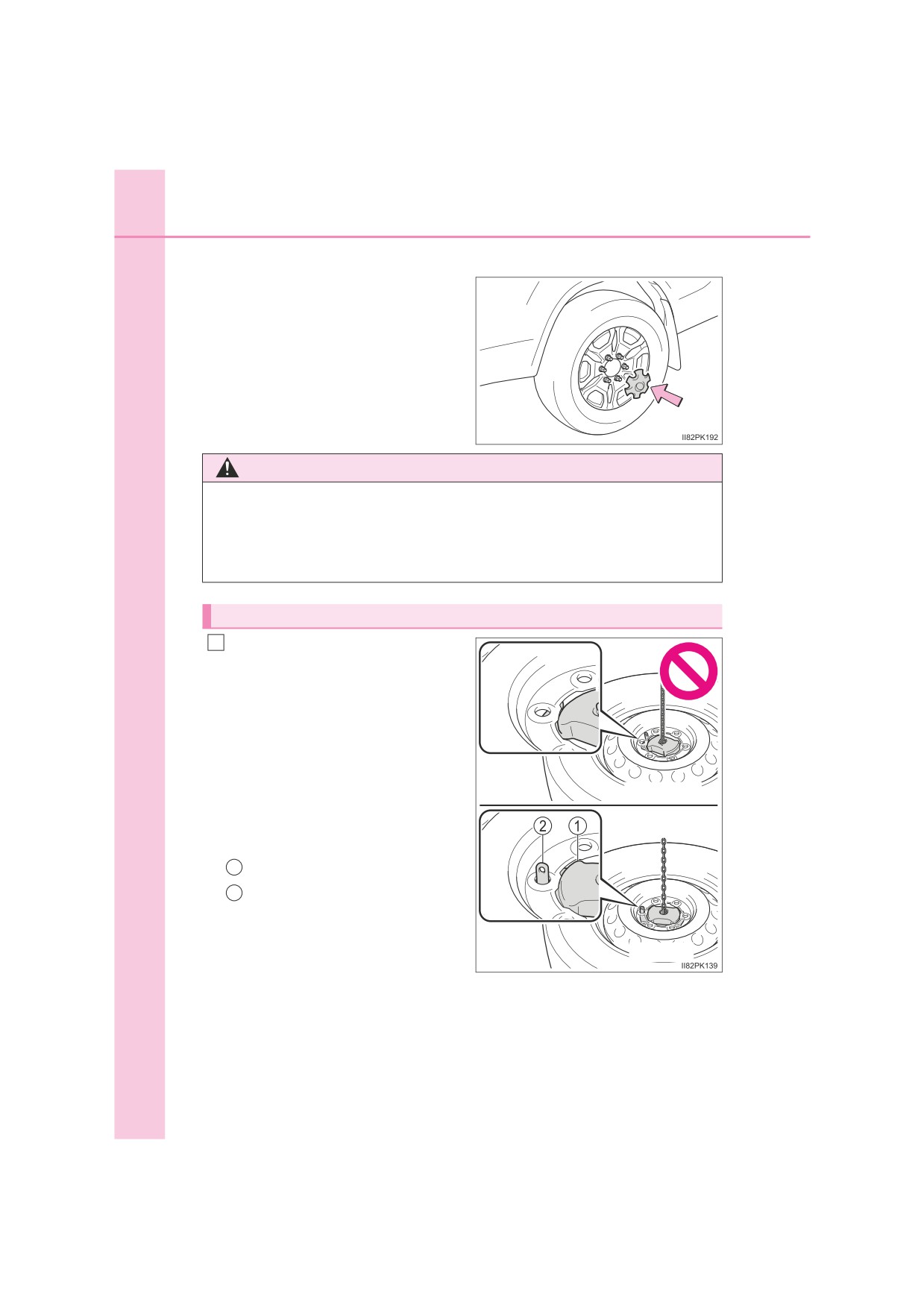

 Type C

WARNING

■ Stowing the flat tire

Failure to follow steps listed under stowing the tire may result in damage to

the spare tire carrier and loss of the tire, which could result in death or seri-

ous injury.

Stowing the flat tire, jack and all tools

Lay down the tire with the valve

stem facing up and install the

holding bracket, inserting the

claw into the wheel lug

nut hole.

Turn the jack handle extension

clockwise to take up slack in

the chain.

Then, check to ensure the claw is

incorrect

in the wheel lug nut hole and the

holding bracket is centered in the

wheel hub.

Holding bracket

Claw

correct

8-2. Steps to take in an emergency

593

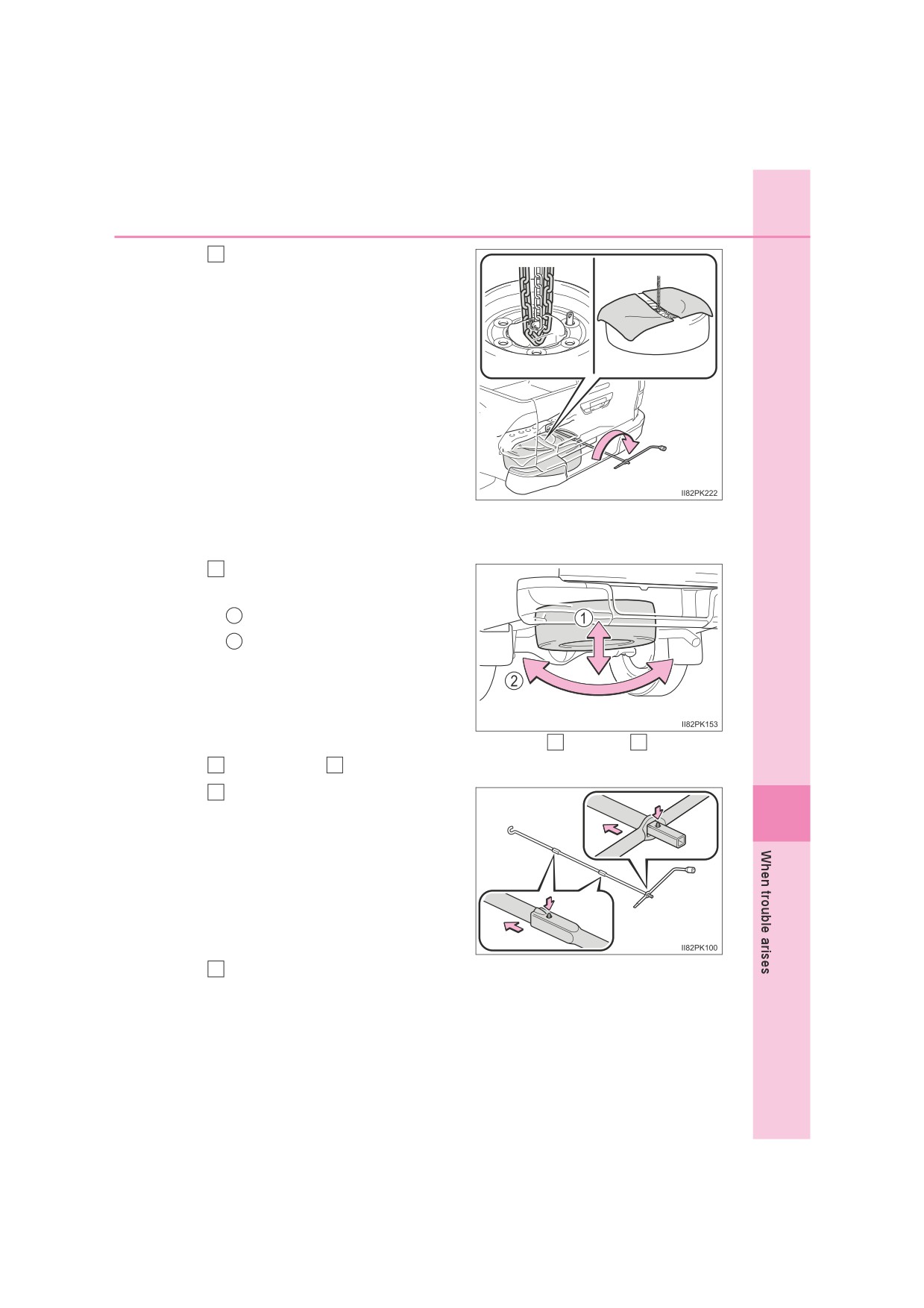

Raise the tire.

To protect the wheel design faces,

place rags between the wheel

design faces and the frame.

While raising, secure the tire, tak-

ing care that the tire goes straight

up without catching on any sur-

rounding part, to prevent it from fly-

ing forward during a collision or

sudden braking.

After the tire goes half way up,

check that the suspended chain is

able to enter the tire hole, for

proper storage.

Tightening torque:

37.0 N•m (3.8 kgf•m, 27.3

ft•lbf)

Confirm that the tire is not

loose

after tightening:

Push and pull the tire

Try rotating

Visually check to ensure the tire is

not hung on surrounding parts.

If looseness or misassembly exists, repeat step

and step

Repeat step

, any time the tire is lowered or disturbed.

Push in the projection on the

jack handle and disassemble

the jack handle end, jack han-

dle extensions and wheel nut

wrench.

Stow the tools and jack securely.

8-2. Steps to take in an emergency

595

■ Flat tire

Repair or replace the flat tire as soon as possible.

When stowing the repaired or replaced tire to the carrier, remove the rags that

are protecting the wheel design faces.

WARNING

■ After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in their

storage location to reduce the possibility of personal injury during a collision

or sudden braking.

NOTICE

■ When stowing the flat tire

Ensure that there is no object caught between the tire and the vehicle

underbody (except for rags that is used when stowing the flat tire).

■ When assembling the jack handle extension

Insert the square head securely until you hear a click. Otherwise the exten-

sion may come off and it may damage the paint or vehicle body.

596

8-2. Steps to take in an emergency

If the engine will not start

If the engine will not start even though correct starting proce-

dures are being followed (P. 218, 221), consider each of the

following points:

The engine will not start even though the starter motor operates

normally.

One of the following may be the cause of the problem:

● There may not be sufficient fuel in the vehicle’s tank.

Gasoline engine: Refuel the vehicle.

Diesel engine: P. 612

● The engine may be flooded. (gasoline engine)

Try to restart the engine again following correct starting procedures.

(P. 218, 221)

● There may be a malfunction in the engine immobilizer system.

(P. 113)

The starter motor turns over slowly, the interior lights and head-

lights are dim, or the horn does not sound or sounds at a low

volume.

One of the following may be the cause of the problem:

● The battery may be discharged. (P. 602)

● The battery terminal connections may be loose or corroded.

The starter motor does not turn over (vehicles with smart entry &

start system).

The engine starting system may be malfunctioning due to an electrical

problem such as an open circuit or a blown fuse. However, an interim

measure is available to start the engine. (P. 597)

8-2. Steps to take in an emergency

597

The starter motor does not turn over, the interior lights and head-

lights do not turn on, or the horn does not sound.

One of the following may be the cause of the problem:

● One or both of the battery terminals may be disconnected.

● The battery may be discharged. (P. 602)

● There may be a malfunction in the steering lock system. (vehicles

with smart entry & start system and manual transmission)

Contact any authorized Toyota retailer or Toyota authorized repairer, or any

reliable repairer if the problem cannot be repaired, or if repair procedures

are unknown.

Emergency start function (vehicles with smart entry & start sys-

tem)

When the engine does not start, the following steps can be used as an

interim measure to start the engine if the engine switch is functioning

normally.

Set the parking brake.

Shift the shift lever to P (automatic transmission) or N (manual

transmission).

Turn the engine switch to ACCESSORY mode.

Press and hold the engine switch for about 15 seconds while

depressing the brake pedal and clutch pedal (manual transmission)

firmly.

Even if the engine can be started using the above steps, the system

may be malfunctioning. Have the vehicle inspected by your any

authorized Toyota retailer or Toyota authorized repairer, or any reliable

repairer.

598

8-2. Steps to take in an emergency

If the electronic key does not operate properly

(vehicles with smart entry & start system)

If communication between the electronic key and vehicle is

interrupted

(P. 164) or the electronic key cannot be used

because the battery is depleted, the smart entry & start system

and wireless remote control cannot be used. In such cases, the

doors can be opened and the engine can be started by following

the procedure below.

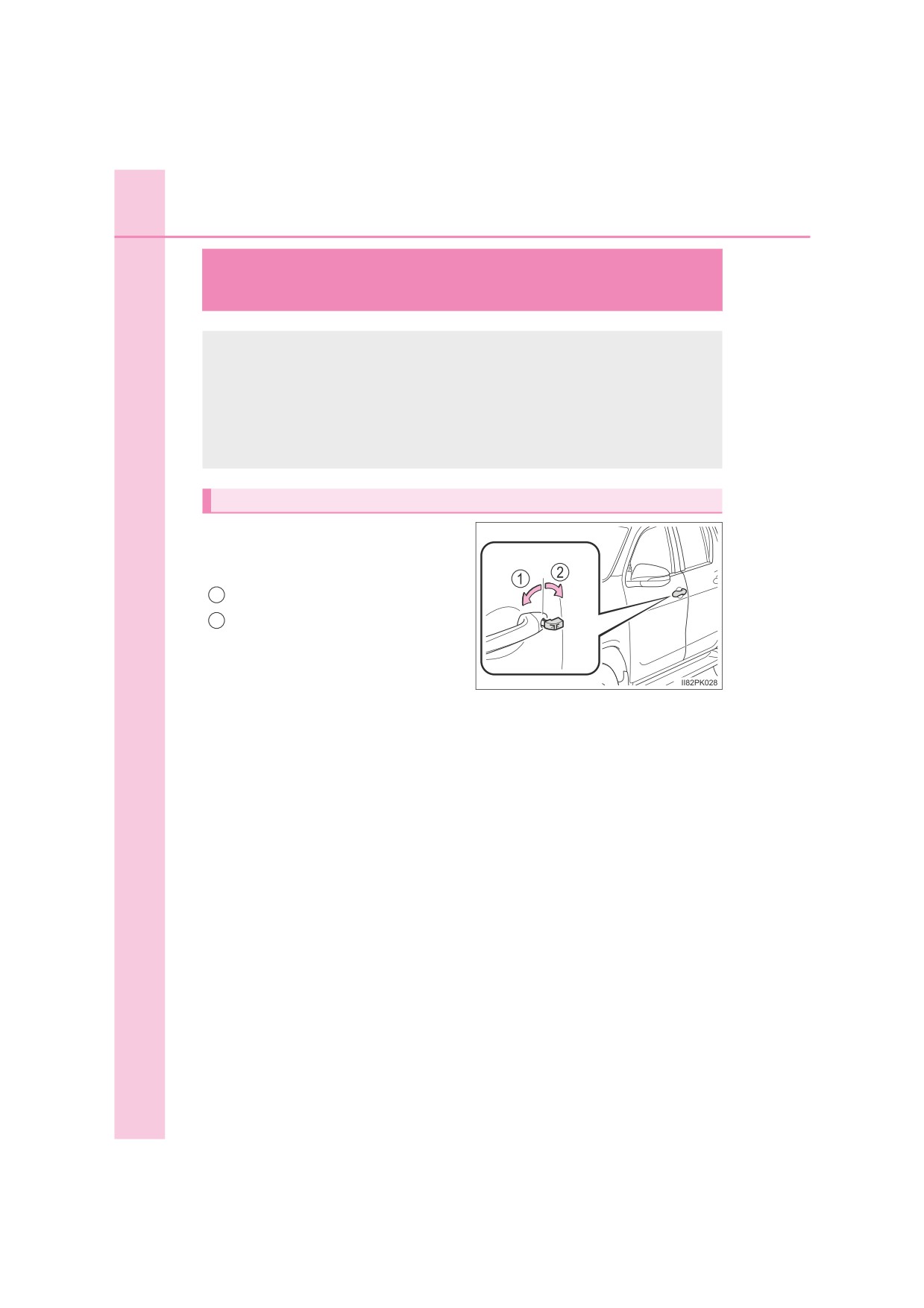

Locking and unlocking the doors

Use the mechanical key (P. 146,

148) in order to perform the follow-

ing operations:

Locks all doors

Unlocks all doors

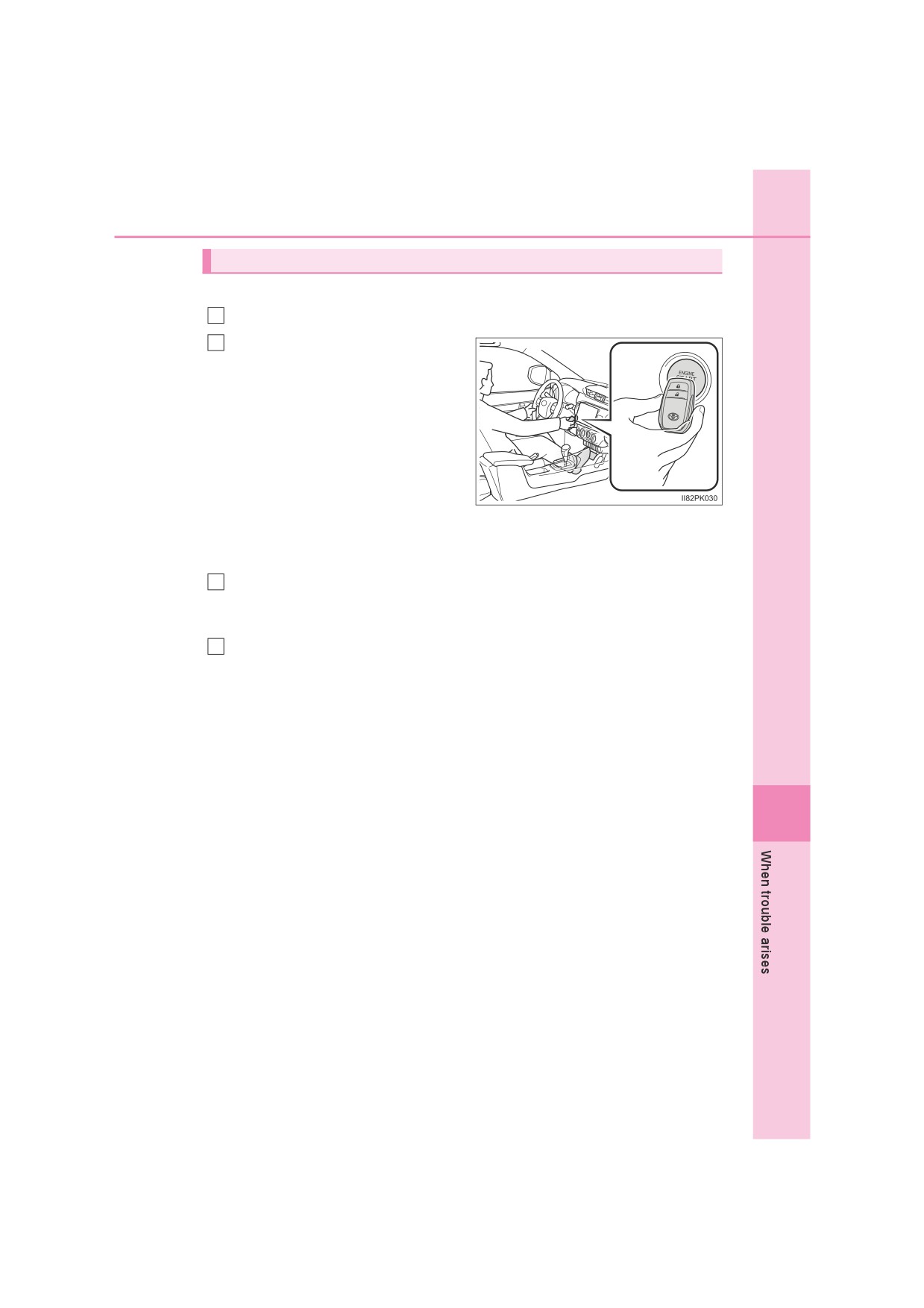

8-2. Steps to take in an emergency

599

Starting the engine

 Automatic transmission

Ensure that the shift lever is in P and depress the brake pedal.

Touch the area behind the lock

button and unlock button on the

electronic key to the engine

switch.

When the electronic key is

detected, a buzzer sounds and the

engine switch will turn to IGNITION

ON mode.

When the smart entry & start sys-

tem is deactivated in customization

setting, the engine switch will turn

to ACCESSORY mode.

Firmly depress the brake pedal.

A message indicating how to start the engine will be displayed on the

multi-information display.

Press the engine switch.

In the event that the engine still cannot be started, contact any autho-

rized Toyota retailer or Toyota authorized repairer, or any reliable

repairer.

600

8-2. Steps to take in an emergency

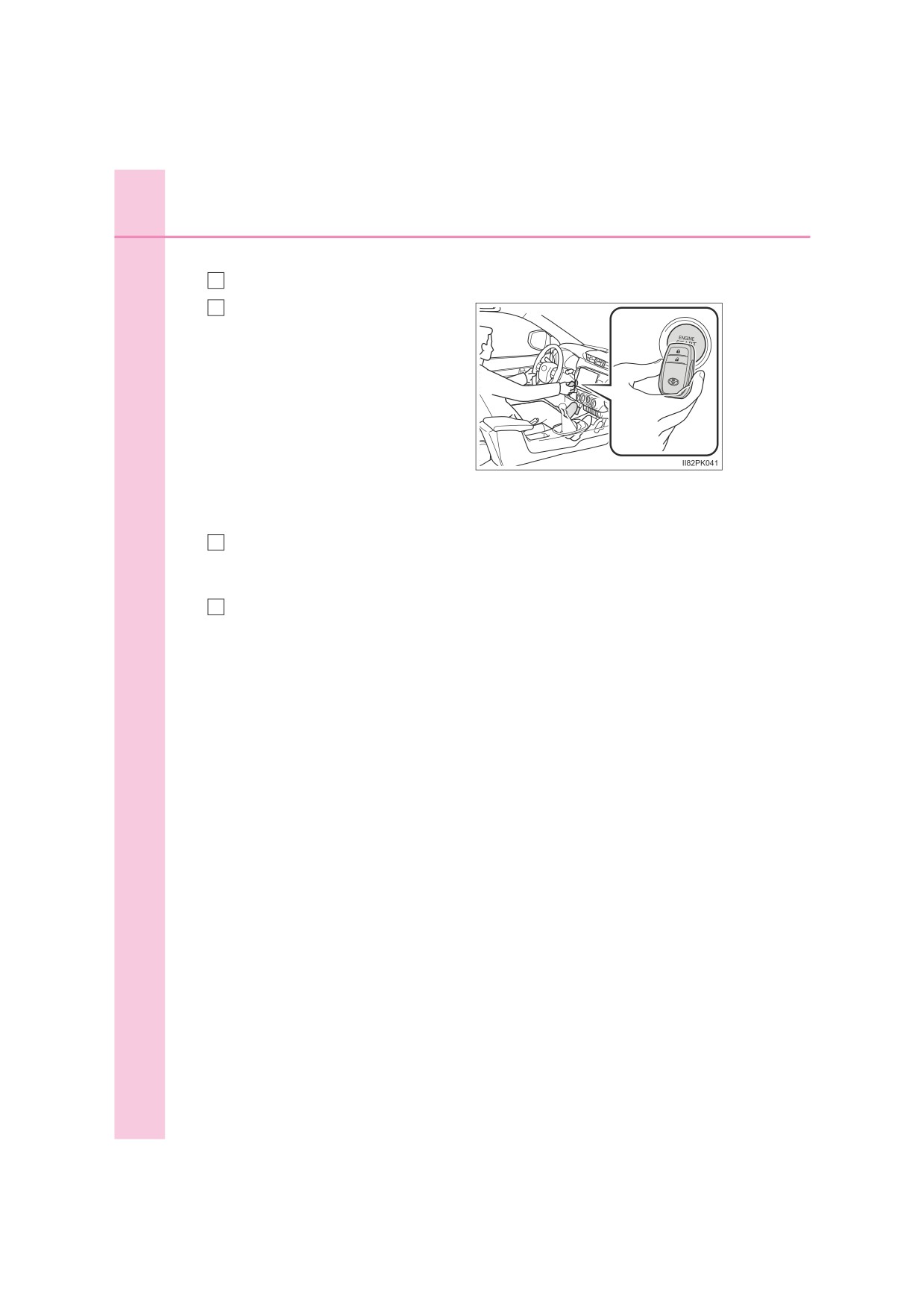

 Manual transmission

Ensure that the shift lever is in N and depress the clutch pedal.

Touch the area behind the lock

button and unlock button on the

electronic key to the engine

switch.

When the electronic key is

detected, a buzzer sounds and the

engine switch will turn to IGNITION

ON mode.

When the smart entry & start sys-

tem is deactivated in customization

setting, the engine switch will turn

to ACCESSORY mode.

Firmly depress the clutch pedal.

A message indicating how to start the engine will be displayed on the

multi-information display.

Press the engine switch.

In the event that the engine still cannot be started, contact any autho-

rized Toyota retailer or Toyota authorized repairer, or any reliable

repairer.

8-2. Steps to take in an emergency

601

■Stopping the engine

Shift the shift lever to P (automatic transmission) or N (manual transmission)

and press the engine switch as you normally do when stopping the engine.

■ Replacing the key battery

As the above procedure is a temporary measure, it is recommended that the

electronic key battery be replaced immediately when the battery is depleted.

(P. 514)

■ Alarm (vehicles with alarm for models for model code destination Blank

[for Kazakhstan, Kyrgyzstan and Russia] and W*)

Using the mechanical key to lock the doors will not set the alarm system.

If a door is unlocked using the mechanical key and is opened when the alarm

system is set, the alarm may be triggered.

*: See “Checking your vehicle’s model” if you are not sure of which model

your vehicle is. (P. 12)

■ Changing engine switch modes

Release the brake pedal (automatic transmission) or clutch pedal (manual

transmission) and press the engine switch in step

above.

The engine does not start and modes will be changed each time the switch is

pressed. (P. 224)

■ When the electronic key does not work properly

● Make sure that the smart entry & start system has not been deactivated in

the customization setting. If it is off, turn the function on.

(Customizable features: P. 644)

●Check if battery-saving mode is set. If it is set, cancel the function.

(P. 162)

602

8-2. Steps to take in an emergency

If the vehicle battery is discharged

The following procedures may be used to start the engine if the

vehicle’s battery is discharged.

You can also call any authorized Toyota retailer or Toyota autho-

rized repairer, or any reliable repairer or a qualified repair shop.

If you have a set of jumper (or booster) cables and a second vehicle

with a 12-volt battery, you can jump start your vehicle by following the

steps below.

Open the hood. (P. 482)

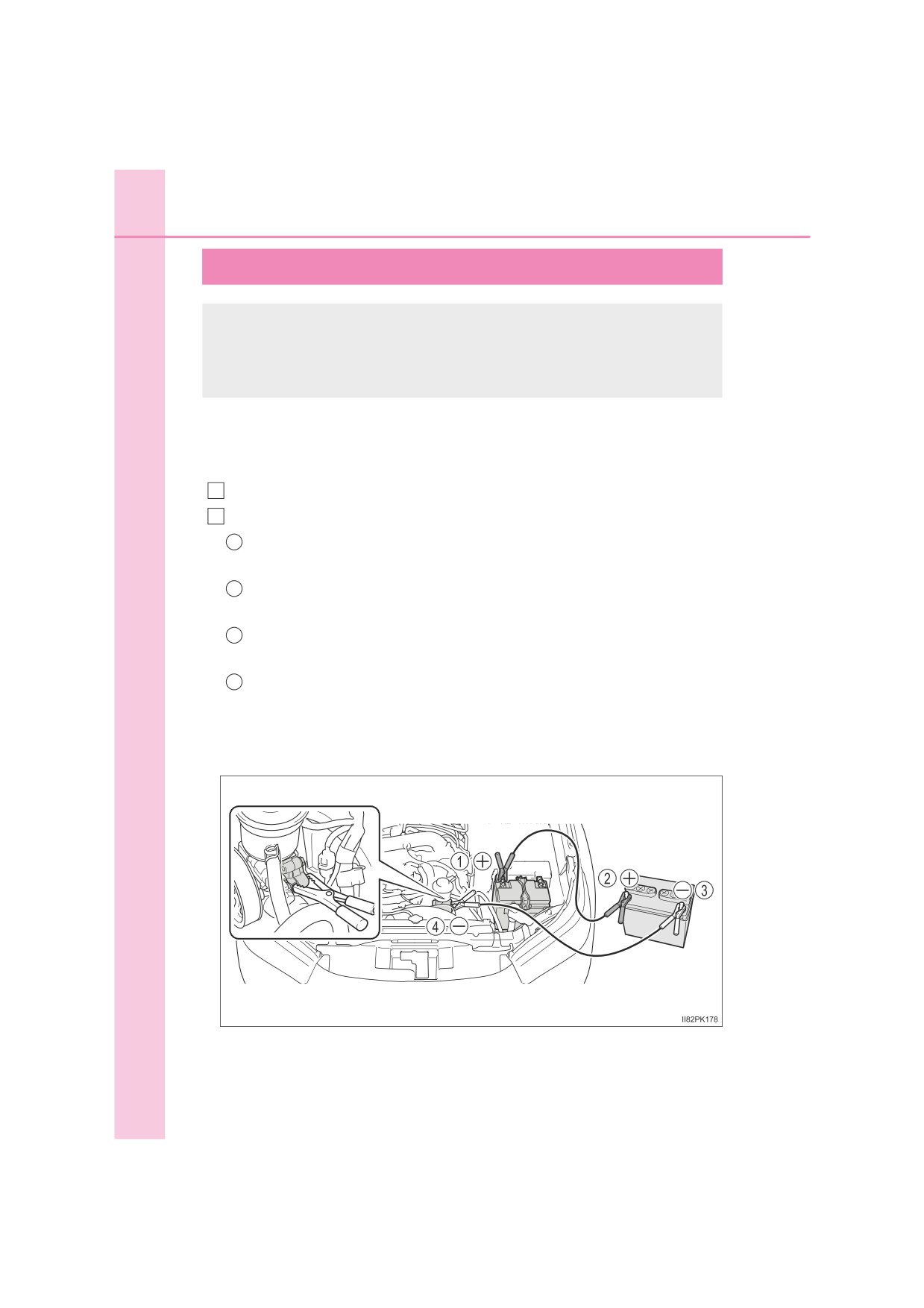

Connect the jumper cables according to the following procedure:

Connect a positive jumper cable clamp to the positive (+) battery

terminal on your vehicle.

Connect the clamp on the other end of the positive cable to the

positive (+) battery terminal on the second vehicle.

Connect a negative cable clamp to the negative (-) battery termi-

nal on the second vehicle.

Connect the clamp at the other end of the negative cable to a

solid, stationary, unpainted metallic point away from the battery

and any moving parts, as shown in the illustration.

 Gasoline engine

8-2. Steps to take in an emergency

603

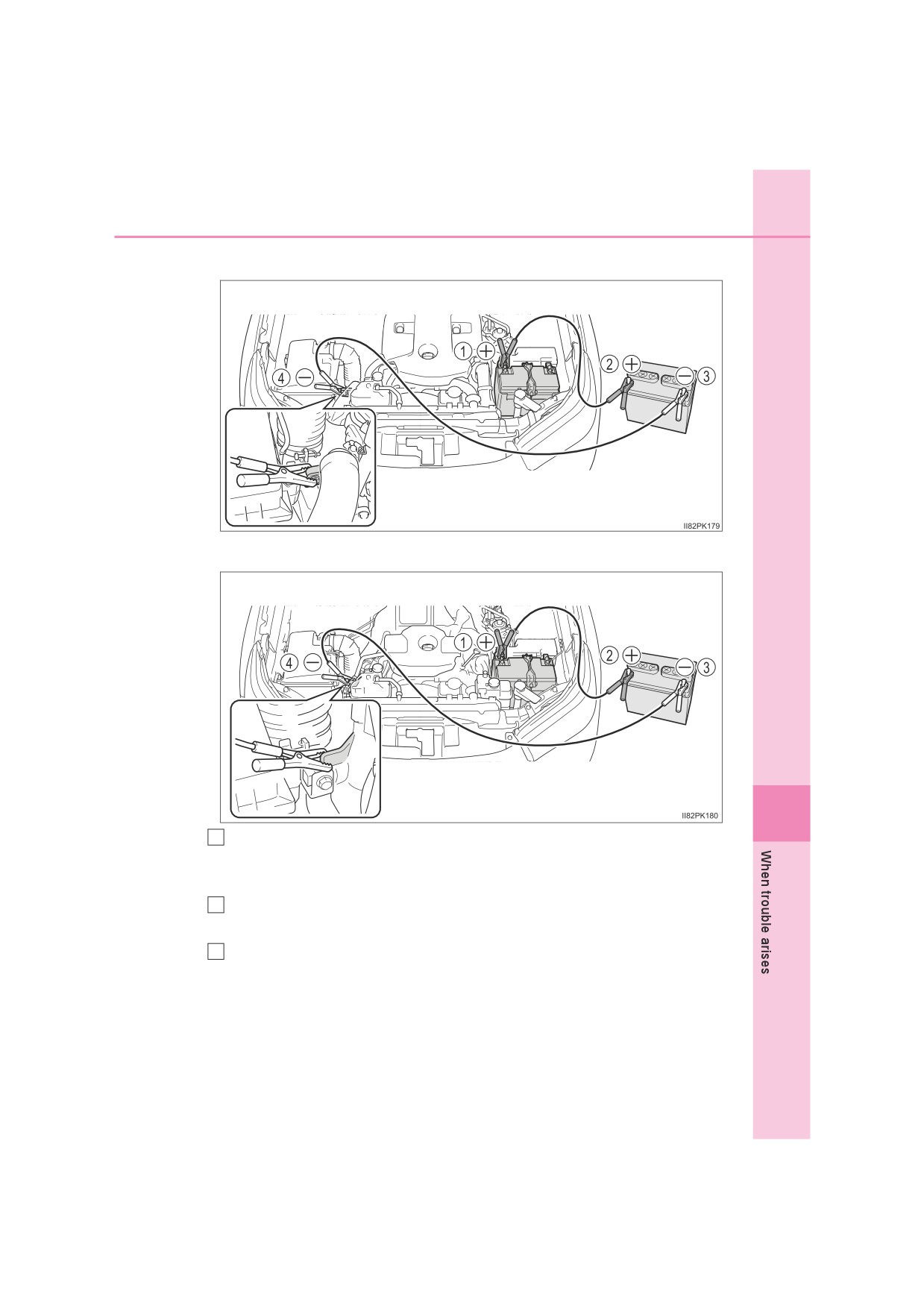

 Diesel engine (vehicles without water-cooled intercooler)

 Diesel engine (vehicles with water-cooled intercooler)

Start the engine of the second vehicle. Increase the engine speed

slightly and maintain at that level for approximately 5 minutes to

recharge the battery of your vehicle.

Vehicles with smart entry & start system and manual transmission:

Open and close any of the doors with the engine switch off.

Maintain the engine speed of the second vehicle and start the

engine of your vehicle by turning the engine switch to the “ON”

position (vehicles without smart entry & start system) or IGNITION

ON mode (vehicles with smart entry & start system).

604

8-2. Steps to take in an emergency

Once the vehicle’s engine has started, remove the jumper cables in

the exact reverse order from which they were connected.

Once the engine starts, have the vehicle inspected at any authorized

Toyota retailer or Toyota authorized repairer, or any reliable repairer

as soon as possible.

■ Starting the engine when the battery is discharged (vehicles with auto-

matic transmission)

The engine cannot be started by push-starting.

■ To prevent battery discharge

● Turn off the headlights and the audio system while the engine is off.

(Vehicles with Stop & Start system: Except when the engine is stopped due

to the Stop & Start system)

● Turn off any unnecessary electrical components when the vehicle is running

at a low speed for an extended period, such as in heavy traffic.

■ When the battery is removed or discharged

●Information stored in the ECU is cleared. When the battery is depleted, have

the vehicle inspected at any authorized Toyota retailer or Toyota authorized

repairer, or any reliable repairer.

●The power windows may not close normally. In this case, initialize the power

windows. (if equipped) (P. 185)

●If it is necessary to initialize the panoramic view monitor (if equipped), refer

“Navigation and multimedia system Owner’s manual” or “Multimedia

Owner’s Manual”.

■ Charging the battery

The electricity stored in the battery will discharge gradually even when the

vehicle is not in use, due to natural discharge and the draining effects of cer-

tain electrical appliances. If the vehicle is left for a long time, the battery may

discharge, and the engine may be unable to start. (The battery recharges

automatically during driving.)

8-2. Steps to take in an emergency

605

■ When recharging or replacing the battery (vehicles with smart entry &

start system)

●In some cases, it may not be possible to unlock the doors using the smart

entry & start system when the battery is discharged. Use the wireless

remote control or the mechanical key to lock or unlock the doors.

● The engine may not start on the first attempt after the battery has recharged

but will start normally after the second attempt. This is not a malfunction.

●The engine switch mode is memorized by the vehicle. When the battery is

reconnected, the system will return to the mode it was in before the battery

was discharged. Before disconnecting the battery, turn the engine switch off.

If you are unsure what mode the engine switch was in before the battery dis-

charged, be especially careful when reconnecting the battery.

● Vehicles with Stop & Start system: After the battery terminals have been dis-

connected and reconnected or, the battery has been replaced, the Stop &

Start system may not automatically stop the engine for up to an hour.

■ When replacing the battery

● Use a battery that conforms to European regulations.

● Use a battery with the same case size as the previous battery and an equiv-

alent 20 hour rate capacity (20HR) or greater.

• If the sizes differ, the battery cannot be properly secured.

• If the 20 hour rate capacity is low, even if the time period where the vehi-

cle is not used is a short time, the battery may discharge and the engine

may not be able to start.

● Vehicles with Stop & Start system: Use a genuine battery specifically

designed for use with the Stop & Start system or a battery with equivalent

specifications to a genuine battery. If an unsupported battery is used, Stop &

Start system functions may be restricted to protect the battery.

Also, battery performance may decrease and the engine may not be able to

restart. Contact any authorized Toyota retailer or Toyota authorized

repairer, or any reliable repairer for details.

● For details, consult any authorized Toyota retailer or Toyota authorized

repairer, or any reliable repairer.

606

8-2. Steps to take in an emergency

WARNING

■ When removing the battery terminals

Always remove the negative (-) terminal first. If the positive (+) terminal con-

tacts any metal in the surrounding area when the positive (+) terminal is

removed, a spark may occur, leading to a fire in addition to electrical shocks

and death or serious injury.

■ Avoiding battery fires or explosions

Observe the following precautions to prevent accidentally igniting the flam-

mable gas that may be emitted from the battery:

● Make sure each jumper cable is connected to the correct terminal and that

it is not unintentionally in contact with any other than the intended terminal.

●Do not allow the other end of the jumper cable connected to the “+” termi-

nal to come into contact with any other parts or metal surfaces in the area,

such as brackets or unpainted metal.

●Do not allow the + and - clamps of the jumper cables to come into contact

with each other.

●Do not smoke, use matches, cigarette lighters or allow open flame near

the battery.

■ Battery precautions

The battery contains poisonous and corrosive acidic electrolyte, while

related parts contain lead and lead compounds. Observe the following pre-

cautions when handling the battery:

● When working with the battery, always wear safety glasses and take care

not to allow any battery fluids (acid) to come into contact with skin, clothing

or the vehicle body.

●Do not lean over the battery.

● In the event that battery fluid comes into contact with the skin or eyes,

immediately wash the affected area with water and seek medical attention.

Place a wet sponge or cloth over the affected area until medical attention

can be received.

● Always wash your hands after handling the battery support, terminals, and

other battery-related parts.

●Do not allow children near the battery.

Citroen C4 (2023 year). Manual in english - page 15
