C O M F O R T

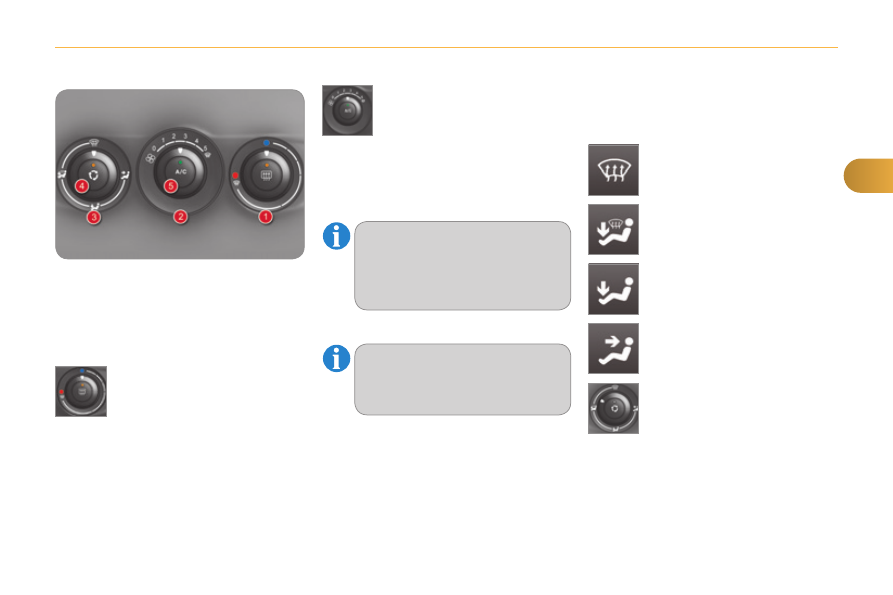

MANUAL AIR CONDITIONING

The air conditioning system operates

only with the engine running.

 Turn the dial to select a

position between blue

(cold) and red (hot) so as

to adjust the temperature

to your requirements.

1. Temperature adjustment

This dial is used to increase or

decrease the speed of the air

booster fan.

2. Air fl ow adjustment

3. Air distribution adjustment

Windscreen and side windows.

 If you place the air fl ow con-

trol in position 0 , the system

is deactivated. However, a

slight fl ow of air, due to the

movement of the vehicle,

can still be felt.

Windscreen, side windows

and footwells.

Footwells.

Central and side vents.

The air distribution can be

adapted by placing the dial in

an intermediate position.

 Turn the dial from position 1 to po-

sition 5 to obtain a comfortable air

fl ow.

This dial is used to arrange the distri-

bution of air in the passenger compart-

ment by combining several air outlets.

Avoid driving too long with the

ventilation off (risk of misting and

deterioration of air quality).

C O M F O R T

4. Air intake / Air recirculation
The intake of exterior air prevents the

formation of mist on the windscreen

and side windows.

5. Air conditioning On / Off

The air conditioning is de-

signed to operate effectively

in all seasons, with the win-

dows closed.

It enables you to:
-

lower the temperature, in summer,

- increase the effectiveness of the

demisting in winter, above 3 °C.

Switching on
 Press the "A/C" button, the button's

indicator lamp comes on.

Switching off
 Press the "A/C" button again, the

button's indicator lamp goes off.

Switching off may affect comfort levels

(humidity, condensation).

The recirculation of interior air isolates

the passenger compartment from exte-

rior odours and smoke.

 Press the button to recir-

culate the interior air. The

indicator lamp comes on

to confi rm this.

 Press the button again to permit the

intake of exterior air. The indicator

lamp goes off to confi rm this.

This function allows hot or cold

air to be delivered selectively

and more quickly.

Return to exterior air intake as soon as

possible to prevent deterioration of the

the air quality and the formation of mist.

The air conditioning does not

operate when the air fl ow adjust-

ment control 2 is in position " 0 ".
To obtain cooled air more quick-

ly, you can use recirculation of

interior air for a few moments.

Then return to fresh air intake.

C O M F O R T

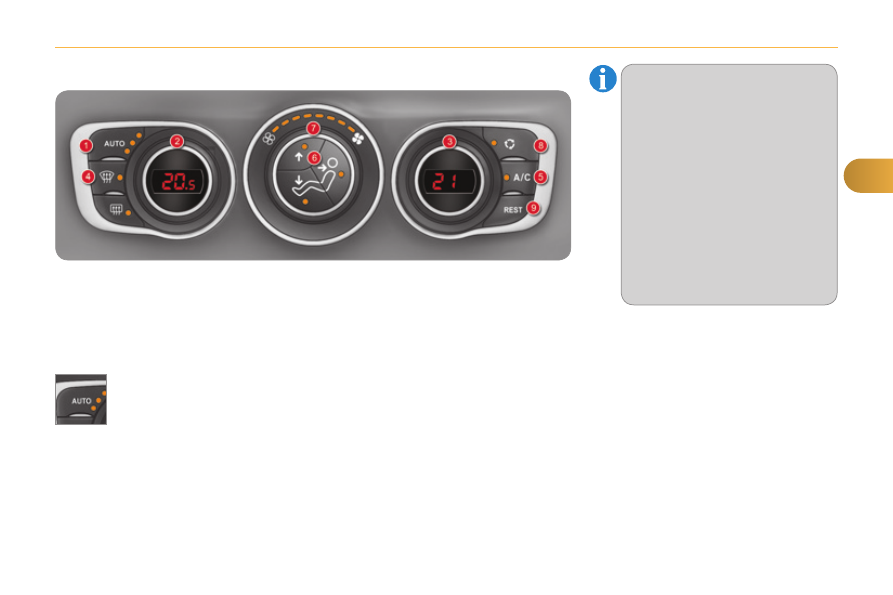

DUAL-ZONE DIGITAL AIR CONDITIONING

Automatic operation

We recommend the use of

one of the three AUTO modes

available: they provide opti-

mised regulation of the tem-

perature in the passenger

compartment according to the comfort

value that you have chosen.
These three modes automatically ad-

just the air fl ow, according to the de-

sired setting, while also maintaining the

desired comfort value.

 Press the

"AUTO" button repeat-

edly:

- a

fi rst indicator lamp comes on; the

"light" setting mode is selected,

- a second indicator lamp comes

on; the "medium" setting mode is

selected,

- a third indicator lamp comes on;

the "intense" mode setting is se-

lected.

The air conditioning system operates when the engine is running.

When the engine is cold, the air

fl ow will reach its optimum level

progressively, taking account

of the weather and the desired

comfort level so as to avoid too

great a distribution of cold air.
On entering the vehicle, if the in-

terior temperature is much colder

or warmer than the comfort val-

ue, there is no need to change

the value displayed in order to

obtain the comfort required. The

system corrects the difference in

temperature automatically and

as quickly as possible.

1. Automatic comfort programme

This system is designed to operate ef-

fectively in all seasons, with the win-

dows closed.

C O M F O R T

For maximum cooling or heating

of the passenger compartment,

it is possible to exceed the mini-

mum value 14 or the maximum

value 28.
 Turn control 2 or 3 to the left

until

"LO" is displayed or

to the right until "HI" is dis-

played.

See "Front demisting - defrosting".

4. Automatic visibility programme

Manual operation

If you wish, you can make a different

choice from that offered by the system

by changing a setting. The the "AUTO"

indicator lamps go off; the other func-

tions will still be controlled automati-

cally.
 Pressing the "AUTO" button returns

the system to completely automatic

operation.

2. Driver's side adjustment

The driver and front pas-

senger can each adjust the

temperature to their require-

ments.

 Turn control 2 or 3 to the left or to

the right respectively to decrease or

increase this value.

A setting around the value 21 provides

optimum comfort. However, depend-

ing on your requirements, a setting be-

tween 18 and 24 is normal.
You are advised to avoid a left / right

setting difference of more than 3.

3. Passenger's side adjustment

The value indicated on the display cor-

responds to a level of comfort and not

to a temperature in degrees Celsius or

Fahrenheit.

With Stop & Start, when dem-

isting has been activated, the

STOP mode is not available.

C O M F O R T

9. "REST" function: ventilation with

the engine off

On switching on the engine
- The control screens come on: the

function is available.

Pressing the REST button activates

the ventilation for a few minutes.

Activation of the function is con-

fi rmed by the display of two dashes

in the control screens and four air

fl ow level indicator lamps.

The function can be deactivated and

reactivated if the control screens

are on.

The screens go off at the end of this

period.

Even with the engine is off,

you can operate the ventila-

tion for a few minutes.
For example, while you are

away from the vehicle, the

passengers can still enjoy some air cir-

culation without having the engine run-

ning.
This function is available after switching

on the ignition, as well as after stopping

the engine.
The period that the function is available

depends on the state of charge of the

battery.
You can activate the "REST" func-

tion while the air conditioning control

screens are on.

7. Air fl ow adjustment

 Turn this control to the left

to decrease the air fl ow or

to the right to increase the

air fl ow.

The air fl ow indicator lamps, between

the two fans, come on progressively in

relation to the value requested.

5. Air conditioning On / Off

 Press this button to switch

off the air conditioning.

Switching the system off could result in

discomfort (humidity, condensation).
 Press this button again to return to

automatic operation of the air con-

ditioning. The indicator lamp on the

"A/C" button comes on.

 Press one or more but-

tons to direct the air fl ow

towards:

6. Air distribution adjustment

- the windscreen and side windows

(demisting or defrosting),

- the outer and centre air vents,
- the footwells.

You can combine the three orientations

to obtain the desired air distribution.

8. Air intake / Air recirculation

 Press this button for recir-

culation of the interior air.

The indicator lamp in the

button comes on.

Air recirculation enables the passenger

compartment to be isolated from exte-

rior odours and smoke.
 As soon as possible, press this but-

ton again to permit the intake of out-

side air and prevent the formation of

condensation. The indicator lamp in

the button goes off.

Avoid prolonged operation in in-

terior air recirculation mode (risk

of misting and deterioration of air

quality).

C O M F O R T

Switching the system off

Avoid prolonged operation in in-

terior air recirculation mode or

driving for long periods with the

system off (risk of misting and

deterioration of air quality).

On stopping the engine
- While the control screens remain

on: the function is available.

Pressing the REST button activates

the ventilation for a few minutes.

Activation of the function is con-

fi rmed by the display of two dashes

in the control screens and four air

fl ow level indicator lamps.

Locking the vehicle has no effect on

this function.

- The control screens go off at the

end of this period.

Pressing again before the end of

the period interrupts off the ventila-

tion defi nitively: the control screens

go off and the function is no longer

available.

 Turn the air fl ow control to

the left until all of the indi-

cator lamps go off.

This action switches off the air condi-

tioning and the ventilation.
Temperature related comfort is no long-

er assured but a slight fl ow of air, due

to the movement of the vehicle, can still

be felt.
 Modify the settings (temperature,

air fl ow or air distribution) or press

the "AUTO" button to reactivate the

system with the values set before it

was switched off.

This switch does not operate the

air conditioning, only the air fan.
When the "REST" function is ac-

tivated, you cannot modify the

temperature, air fl ow and distri-

bution settings: these are con-

trolled automatically according

to the ambient temperature.
This function is not available in

the STOP mode of Stop & Start.

C O M F O R T

FRONT DEMIST - DEFROST

These markings on the control

panel indicate the control po-

sitions for rapid demisting or

defrosting of the windscreen

and side windows.

With manual air conditioning

 Put the temperature, air fl ow and

distribution controls to the dedicated

marked position.

 Put the air intake control to the

"Exterior air intake" position

(indicator lamp on the control off).

 Switch on the air conditioning by

pressing the "A/C" button; the warn-

ing lamp in the button comes on.

REAR SCREEN DEMIST -

DEFROST

The control button is located

on the air conditioning system

control panel.

Switching on

The rear screen demisting/defrosting

can only operate when the engine is

running.
 Press this button to demist/defrost

the rear screen and (depending on

version) the door mirrors. The indi-

cator lamp associated with the but-

ton comes on.

Switching off

The demisting/defrosting switches off

automatically to prevent an excessive

consumption of current.
 It is possible to stop the demisting/de-

frosting operation before it is switched

off automatically by pressing the button

again. The indicator lamp associated

with the button goes off.

 Switch off the demisting/de-

frosting of the rear screen

and door mirrors as soon as

appropriate, as lower current

consumption results in re-

duced fuel consumption.

With digital dual-zone air

conditioning

Automatic visibility programme
 Select this programme to demist

or defrost the windscreen and side

windows as quickly as possible.

The system automatically manages

the air conditioning, air fl ow and air

intake, and provides optimum distribu-

tion towards the windscreen and side

windows.
 To stop the programme, press either the

"visibility" button again or "AUTO" ,

the warning lamp on the button goes

off and the warning lamp on the

"AUTO" button comes on.

The system starts again with the values

in use before it was overridden by the

visibility programme.

With Stop & Start, when dem-

isting has been activated, the

STOP mode is not available.

With Stop & Start, when the

demisting, air conditioning and

air fl ow functions are activated,

STOP mode is not available.

C O M F O R T

FRONT SEATS

Seat consisting of a seat cushion, a

seat back and a head restraint which

can all be adjusted to adapt your posi-

tion for ease of driving and comfort.

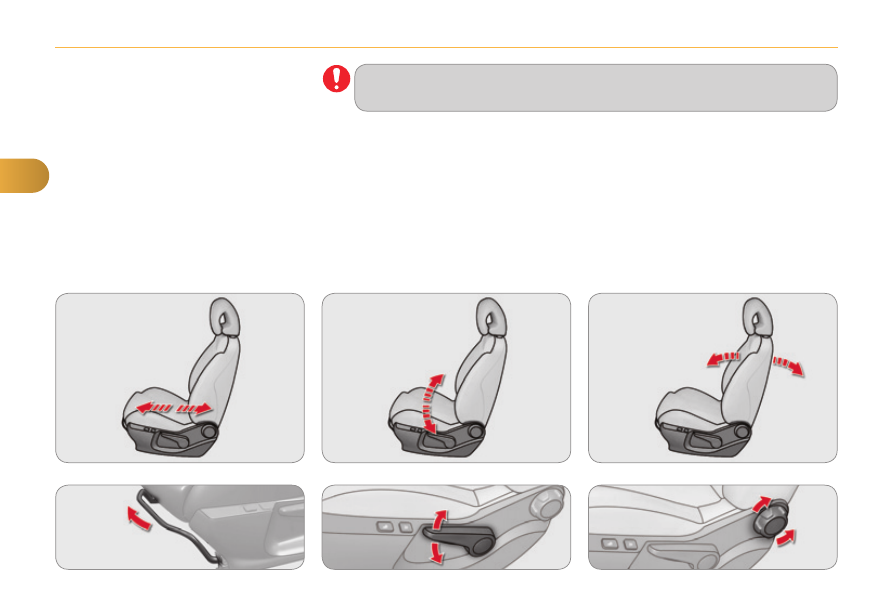

Manual adjustments

Forwards-backwards

Driver's or passenger's seat height

Seat backrest angle

 Raise the control and slide the seat

forwards or backwards.

 Pull the control upwards to raise

or push it downwards to lower, as

many times as necessary, to obtain

the position required.

 Turn the control knob to adjust the

seat backrest angle.

As a safety measure, seat adjustments should only be done when stationary.

C O M F O R T

FRONT SEATS

Seat consisting of a seat cushion, a

seat backrest and a head restraint

which can all be adjusted to adapt your

position for ease of driving and comfort.

Driver's seat electric

adjustments

The electrical functions of the driver's seat are deactivated approximately

one minute after the ignition is switched off.
To reactivate them, switch on the ignition.

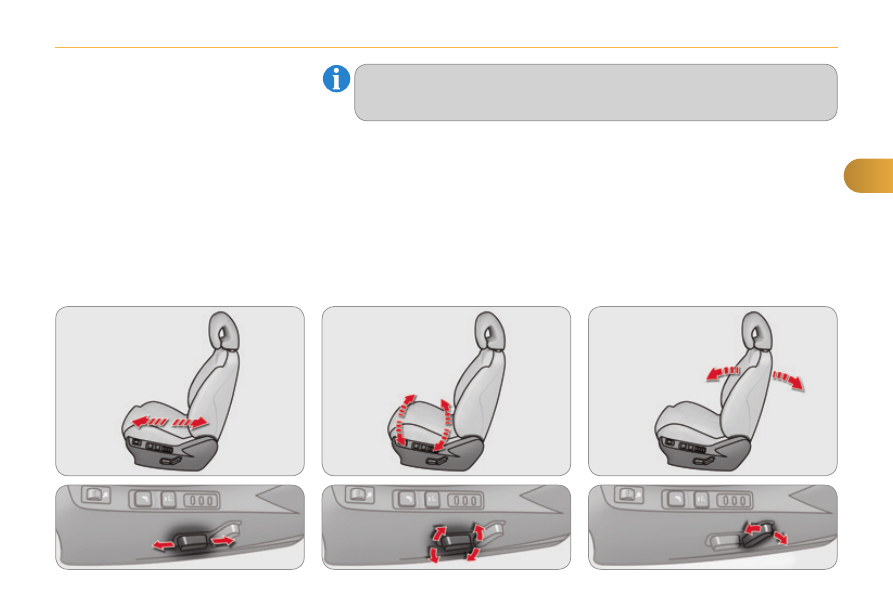

 Push the control forwards or rear-

wards to slide the seat.

Forwards-backwards

 Tilt the rear part of the control up-

wards or downwards to obtain the

required height.

 Tilt the front part of the control up-

wards or downwards to obtain the

required angle.

Cushion height and angle

 Tilt the control forwards or rear-

wards to adjust the angle of the seat

backrest.

Seat backrest angle

C O M F O R T

Additional adjustments

Head restraint height and angle

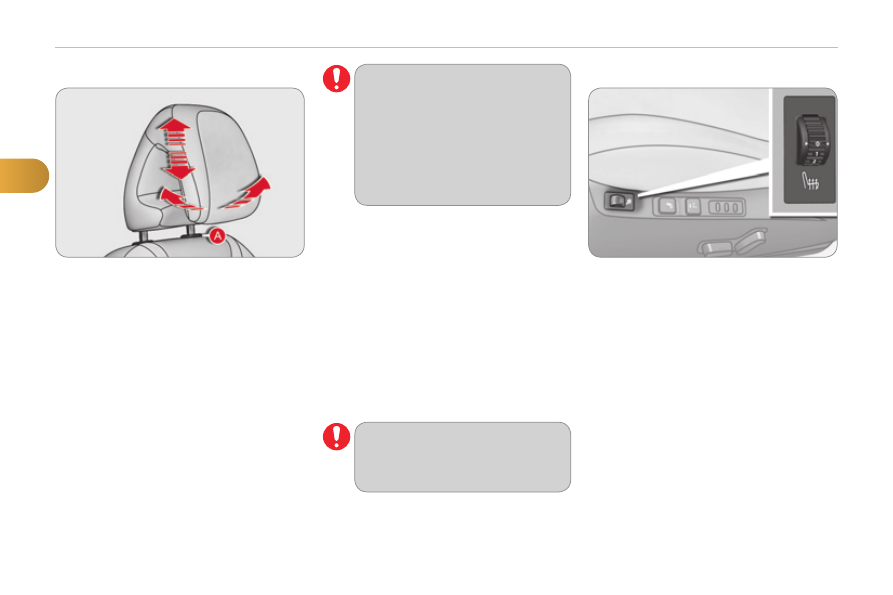

 To raise a head restraint, pull it up-

wards.

 To lower the head restraint, press

the lug A and the head restraint at

the same time.

 To adjust the angle of the head re-

straint, tilt its lower part forwards or

rearwards.

The head restraint is fi tted with

a frame with notches which pre-

vents it from lowering; this is a

safety device in case of impact.
The adjustment is correct

when the upper edge of the

head restraint is level with the

top of the head.

With the engine running, the front seats

can be heated separately.
 Use the adjustment dial, placed on

the side of each front seat, to switch

on and select the level of heating re-

quired:

0: Off.

1 : Low.

2 : Medium.

3 : High.

Heated seats control

Removing a head restraint
 To remove the head restraint, press

the lug A and pull the head restraint

upwards.

 To put the head restraint back in

place, engage the head restraint

stems in the openings keeping them

in line with the seat back and press

the lug A at the same time.

Never drive with the head re-

straints removed; they must be

in place and adjusted correctly.

C O M F O R T

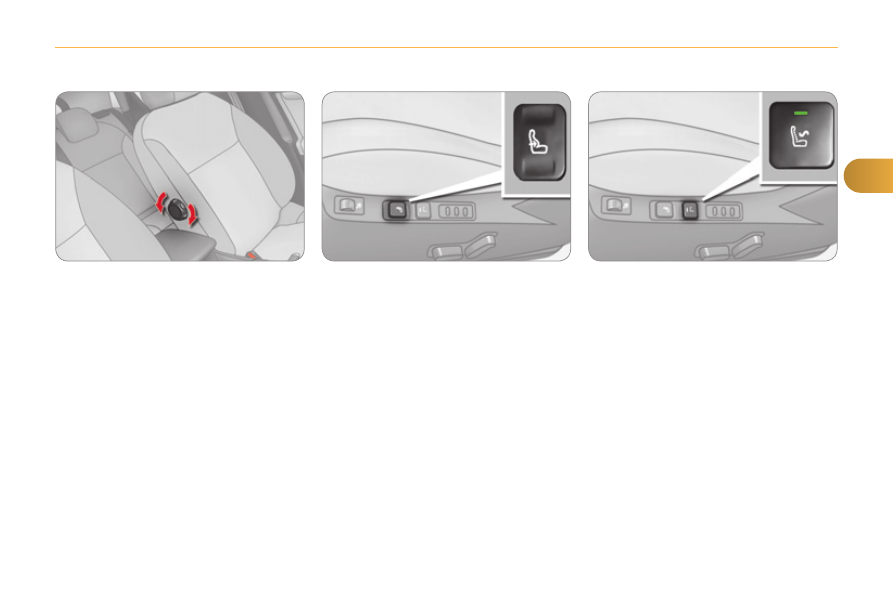

 Turn the knob to obtain the desired

level of lumbar support.

This function provides a back massage;

it only operates when the engine is run-

ning.
 Press the switch to activate the

function.

The warning lamp on the switch comes

on and the massage function is activated

for a period of 60 minutes. During this

time, massage is performed in 6 cycles

of 10 minutes each cycle (6 minutes of

massage followed by 4 minutes break).
After an hour, the function is automati-

cally deactivated. The warning lamp in

the switch goes off.

Deactivation
You can deactivate the massage func-

tion at any time by pressing the switch.

The movement in progress continues

until the initial non-massage position is

reached.

Manual lumbar adjustment

Massage function

Electric lumbar adjustment

 Press the front or rear of the control

to obtain the desired lumbar support.

C O M F O R T

Storing driving positions

System which registers the electrical

settings of the driver's seat and door

mirrors. It enables you to store and re-

call two positions using the buttons on

the side of the driver's seat.

Storing a position

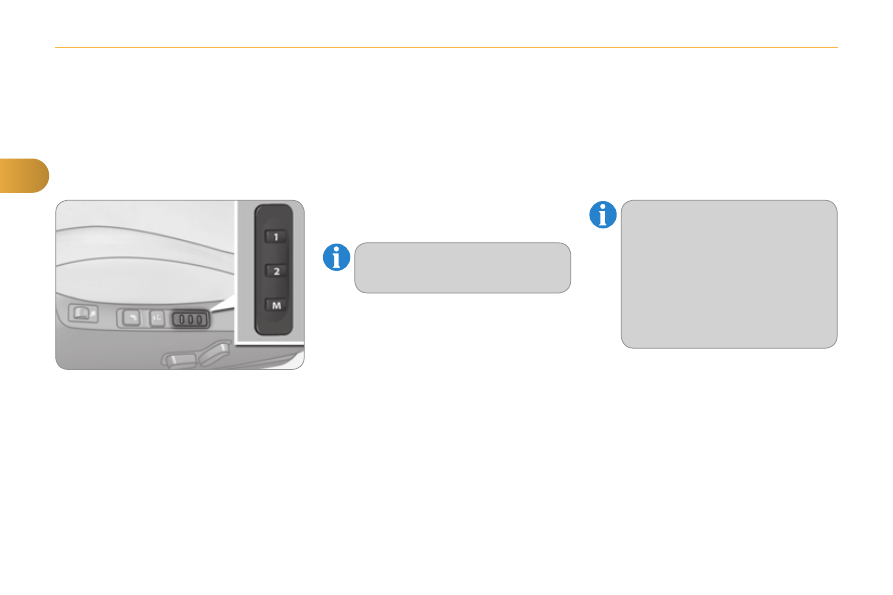

  Using buttons M / 1 / 2
      Switch on the ignition.
     Adjust your seat and the door mir-

rors.

 Press button M , then press button 1

or 2 within four seconds.

An audible signal indicates that the

position has been stored.

Recalling a stored position

Ignition on or engine running
 Press button 1 or 2 to recall the cor-

responding position.

An audible signal confi rms that ad-

justment is complete.

You can interrupt the current

movement by pressing but-

ton M , 1 or 2 or by using one of

the seat controls.
A stored position cannot be re-

called while driving.
Recalling stored positions is

deactivated 45 seconds after

switching off the ignition.

Storing a new position cancels

the previous position.

C O M F O R T

REAR SEATS

Bench seat with fi xed one-piece cush-

ion and split backrest (left hand 2/3, right

hand 1/3) which can be folded individually

to adapt the load space in the boot.

Rear head restraints

These have one position for use (up)

and a stowed position (down).

They can also be removed.

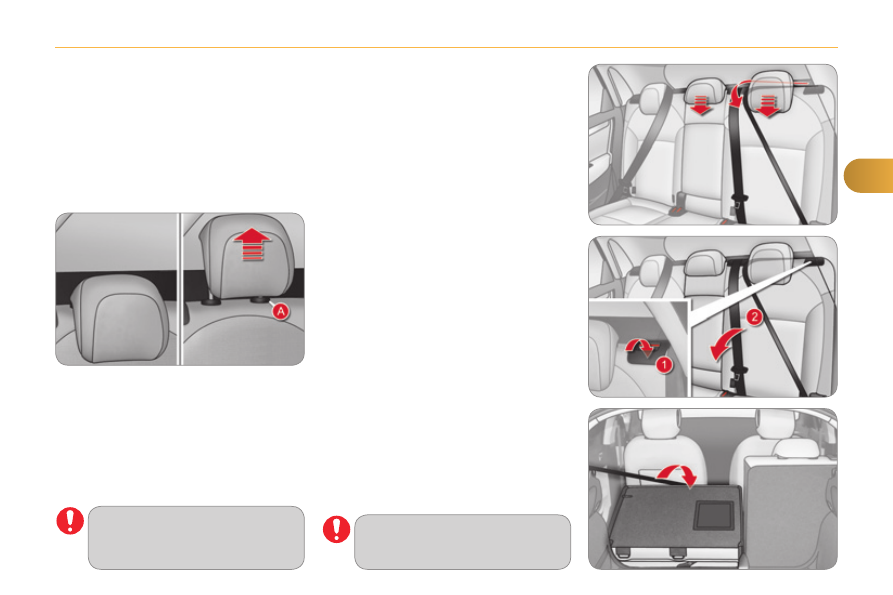

To remove a head restraint:
      release the backrest using control 1 ,
     tilt the backrest 2  slightly forwards,
     pull the head restraint upwards to

the stop,

 then, press the lug A .

Never drive with the head re-

straints removed; they must be

in place and correctly adjusted.

When repositioning the seat

backrest, take care not to trap

the seat belts.

Folding the backrest

 Move the corresponding front seat

forward if necessary.

 Position the seat belt between the

outer and centre head restraints to

avoid trapping the belt when reposi-

tioning the seat backrest.

 Place the head restraints in the low

position.

 Pull control

1 forwards to release

the seat back 2 .

 Fold the seat back 2 on to the cushion.

Repositioning the seat backrest

 Straighten the seat back 2 and se-

cure it.

 Check that the red indicator, located

next to the control 1 , is no longer

visible.

 Put the seat belt back in place on

the side of the seat backrest.

C O M F O R T

MIRRORS

Door mirrors

Each fi tted with an adjustable mirror

glass permitting the lateral rearward vi-

sion necessary for overtaking or park-

ing. They can also be folded for parking

in confi ned spaces.

Demisting - Defrosting

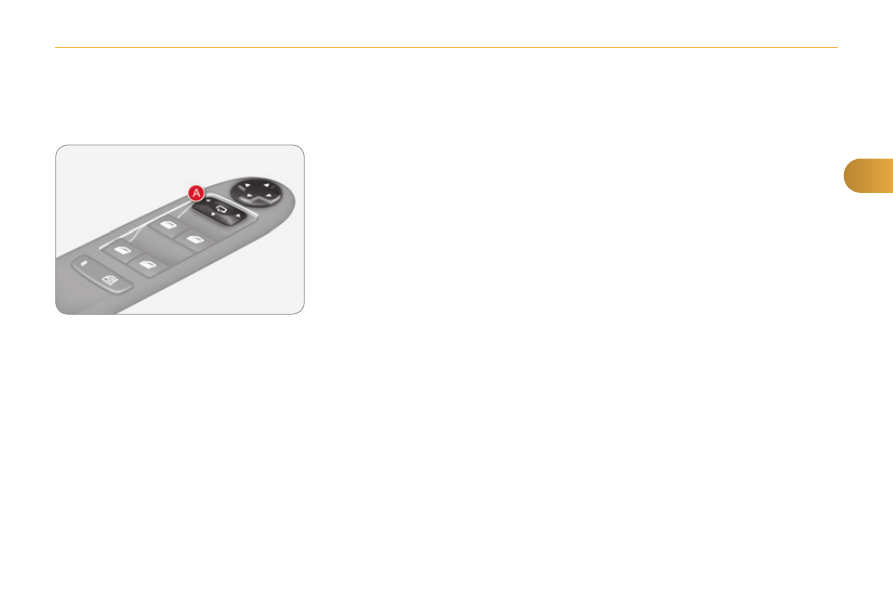

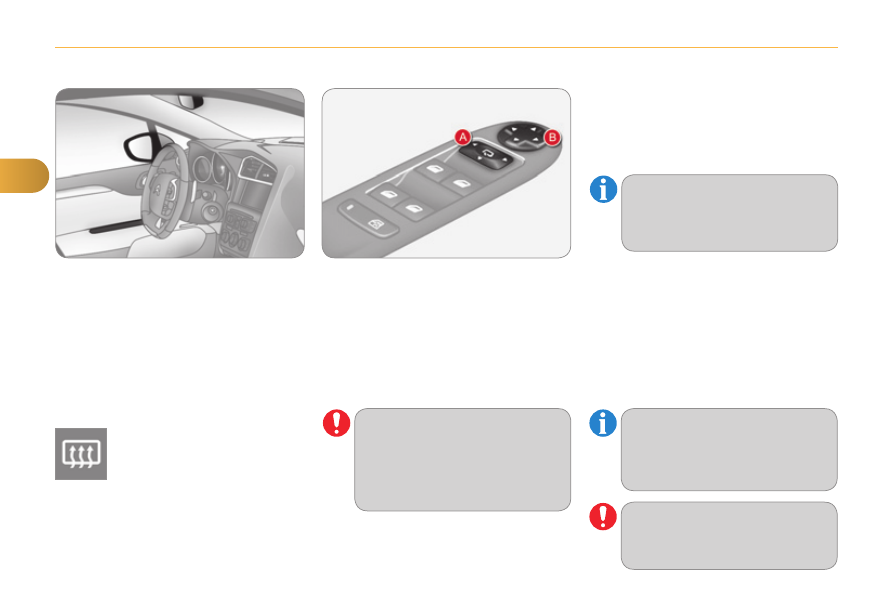

 Move control A to the right or to the left

to select the corresponding mirror.

 Move control B in all four directions

to adjust.

 Return control A to the central posi-

tion.

Adjustment

If the mirrors are folded using

control

A , they will not unfold

when the vehicle is unlocked.

Pull again on control A .

The objects observed are, in re-

ality, closer than they appear.
Take this into account in order to

correctly judge the distance of

vehicles approaching from be-

hind.

Folding
 From outside: lock the vehicle using

the remote control or the key.

 From inside: with the ignition on,

pull the control A in the central posi-

tion rearwards.

The folding and unfolding of the

door mirrors using the remote

control can be deactivated by a

CITROËN dealer or a qualifi ed

workshop.

Unfolding
 From outside: unlock the vehicle us-

ing the remote control or the key.

 From inside: with the ignition on,

pull the control A in the central posi-

tion rearwards.

Never fold or unfold the electric

folding mirrors manually.

If your vehicle is fi tted with

heated mirrors, the demisting-

defrosting operates with the

engine running, by switching

on the heated rear screen (re-

fer to the "Rear screen demist-defrost"

page).

C O M F O R T

Automatic tilting in reverse gear
System which provides a view of the

ground during parking manoeuvres in

reverse gear.

Programming
 With the engine running, engage re-

verse gear.

 Select and adjust the left-hand and

right-hand mirrors in succession.

The adjustment is stored immediately.

Switching on
 With the engine running, engage re-

verse gear.

 Move control A to the right or to the left

to select the corresponding mirror.

The glass of the mirror selected tilts

downwards, in accordance with its pro-

gramming.

  Switching off
      Exit reverse gear and wait ten seconds.
or
      Return control A  to the central position.
The mirror glass returns to its initial po-

sition.
The mirror glass also returns to its initial

position:
-

if the speed exceeds 6 mph (10 km/h),

if the engine is switched off.

C O M F O R T

Automatic day/night model

By means of a sensor, which measures

the light from the rear of the vehicle,

this system automatically and progres-

sively changes between the day and

night uses.

In order to ensure optimum vis-

ibility during your manoeuvres,

the mirror lightens automatically

when reverse gear is engaged.

STEERING WHEEL ADJUSTMENT

 When stationary , pull the control

lever to release the adjustment

mechanism.

 Adjust the height and reach to suit

your driving position.

 Push the control lever to lock the

adjustment mechanism.

As a safety precaution, these opera-

tions should only be carried out while

the vehicle is stationary.

Rear view mirror

Adjustable mirror providing a central

rearward view.
Equipped with an anti-dazzle system,

which darkens the mirror glass and re-

duces the nuisance to the driver caused

by the sun, headlamps from other vehi-

cles...

Manual day/night model

Adjustment

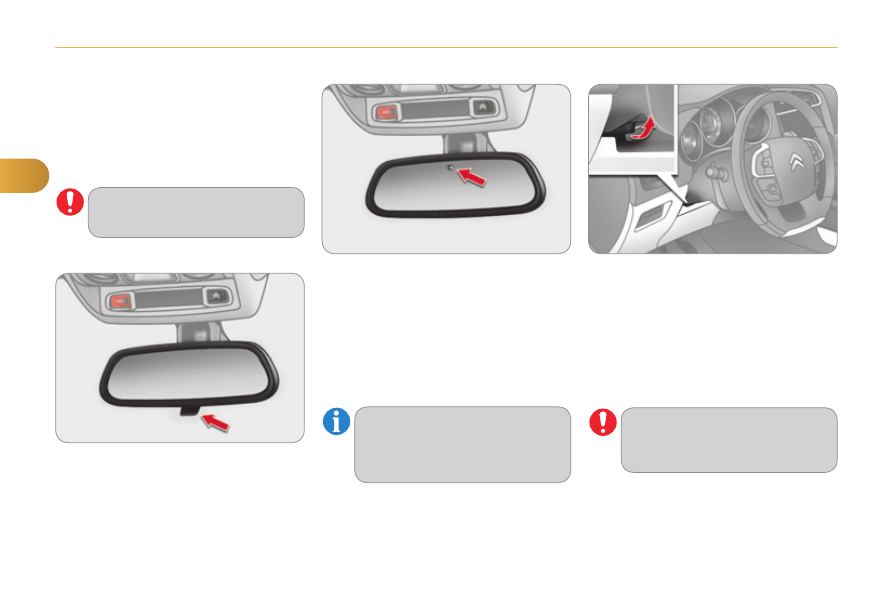

 Adjust the mirror so that the glass is

directed correctly in the "day" position.

Day/night position
 Pull the lever to change to the

"night" anti-dazzle position.

 Push the lever to change to the

normal "day" position.

As a safety measure, the mirrors

should be adjusted to reduce the

"blind spot".

Content .. 3 4 5 6 ..
