SCREEN MENU MAP(S)

Audio functions

FM preferences

Alternative frequencies (RDS)

Audio functions

Activate / deactivate

Regional mode (REG)

Activate / deactivate

Radio-text information (RDTXT)

Activate / deactivate

Play modes

Album repeat (RPT)

Activate / deactivate

Track random play (RDM)

Activate / deactivate

Trip computer

Distance: x miles

Enter distance to destination

Vehicle diagnosis

Warning log

Systems activated or deactivated

State of systems

Screen C

Pressing the MENU button displays:

272

C3PICASSO_EN_CHAP13B_RD45_ED01_2015

SCREEN MENU MAP(S)

Bluetooth: Telephone - Audio

Connect/Disconnect an equipment

Consult the paired equipment

Bluetooth configuration

Telephone function

Audio Streaming function

Delete a paired equipment

Perform a Bluetooth search

Calls list

Call

Directory

Terminate the current call

Manage the telephone call

Activate secret mode

Brightness-video adjustment

Display configuration

Define the vehicle parameters*

Personalisation-configuration

Normal video

Inverse video

Brightness (- +) adjustment

Date and time adjustment

Setting the day/month/year

Setting the hour/minute

Choice of 12 h / 24 h mode

Choice of units

l/100 km - mpg - km/l

°Celsius / °Fahrenheit

Choice of language

* The settings vary according to vehicle.

273

C3PICASSO_EN_CHAP13B_RD45_ED01_2015

FREQUENTLY ASKED QUESTIONS

QUESTION

ANSWER

SOLUTION

There is a difference in

sound quality between

the different audio
sources (radio, CD...).

For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,

which may result in audible differences when changing source (radio,

CD...).

Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None" and
set the loudness correction to the "Active" position
in CD mode or to the "Inactive" position in radio
mode.

The CD is ejected
automatically or is not
played by the player.

The CD is inserted upside down, is unplayable, does not contain any

audio data or contains an audio format which the player cannot play.

The CD is protected by an anti-pirating protection system which is not

recognised by the audio equipment.

Check that the CD is inserted in the player the

right way up.

Check the condition of the CD: the CD cannot
be played if it is too damaged.

Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable

CDs will not be played by the audio system.

The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut.

The battery of the peripheral may not be sufficiently charged.

Recharge the battery of the peripheral device.

The USB memory stick is not recognised.
The memory stick may be corrupt.

Reformat the memory stick.

274

C3PICASSO_EN_CHAP13B_RD45_ED01_2015

FREQUENTLY ASKED QUESTIONS

QUESTION

ANSWER

SOLUTION

I am unable to access my
voicemail.

Few telephones or service providers allow the use of this function.

The CD player sound is
poor.

The CD used is scratched or of poor quality.

Insert good quality CDs and store them in suitable
conditions.

The audio equipment settings (bass, treble, ambiences) are unsuitable.

Set the treble or bass level to 0, without selecting

an ambience.

The stored stations do
not function (no sound,
87.5 Mhz is displayed...).

An incorrect waveband is selected.

Press the BAND AST button to return to the

waveband (AM, FM1, FM2, FMAST) on which the

stations are stored.

The traffic announcement

(TA) is displayed. I do

not receive any traffic

information.

The radio station is not part of the regional traffic information network.

Tune to a radio station which broadcasts traffic

information.

The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...).

The vehicle is too far from the transmitter used by the station listened

to or there is no transmitter in the geographical area through which the

vehicle is travelling.

Activate the RDS function to enable the system

to check whether there is a more powerful

transmitter in the geographical area.

The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode.

This phenomenon is normal and does not indicate
a failure of the audio equipment.

The aerial is absent or has been damaged (for example when going

through a car wash or into an underground car park).

Have the aerial checked by a CITROËN dealer.

275

C3PICASSO_EN_CHAP13B_RD45_ED01_2015

FREQUENTLY ASKED QUESTIONS

QUESTION

ANSWER

SOLUTION

Sound cut-outs of 1 to
2 seconds in radio mode.

During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station.

Deactivate the RDS function if the phenomenon is

too frequent and always on the same route.

With the engine off,
the audio equipment

switches off after a few

minutes of use.

When the engine is switched off, the audio equipment operating time

depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode

and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the battery
charge.

The message "the audio
system is overheated"
appears on the display.

In order to protect the installation if the surrounding temperature is too

high, the audio equipment switches to an automatic thermal protection

mode leading to a reduction of the volume or stopping of the playing of
the CD.

Switch the audio system off for a few minutes to

allow the system to cool.

Visual search

276

C3Picasso_en_Chap14_recherche-visuelle_ed01-2015

Remote control key

59-61, 1 24-126

- opening/closing
- battery
-

anti-theft protection

- starting

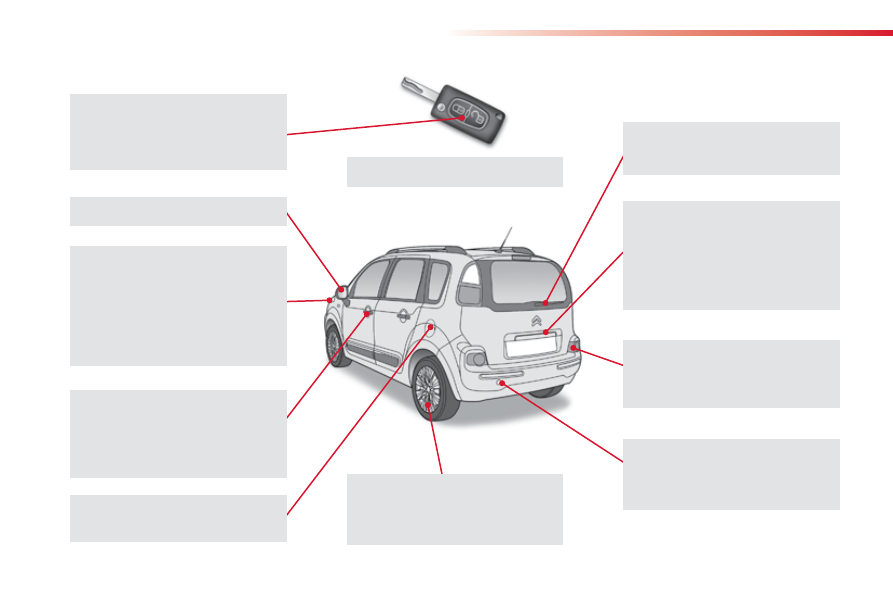

Exterior

Lighting controls

72-75

LED daytime running lamps

Cornering lighting

Headlamp adjustment

Changing bulbs

170-174

front lamps

- foglamps
-

direction indicator repeaters

Door mirrors

Doors 64-66
- opening/closing
-

central locking

emergency control

Child lock

107

Electric windows

62-63

Accessories 193-194

Wiper controls

79-81

Changing a wiper blade

188

Boot 67
Temporary puncture repair kit

150-154

Spare wheel

155-161

- tools
- removing/refitting
Snow chains

162

Changing bulbs

175-176

rear lamps

- 3

brake lamp

number plate lamps

Rear parking sensors

Reversing camera

Towbar

Towing

Hill start assist

Braking assistance

Trajectory control

Tyre pressures

Fuel tank

Misfuel prevention

Visual search

277

C3Picasso_en_Chap14_recherche-visuelle_ed01-2015

Boot fittings

91-93

rear parcel shelf

adjustable boot floor

- hooks

- stowing rings
Adblue

tank

167-169

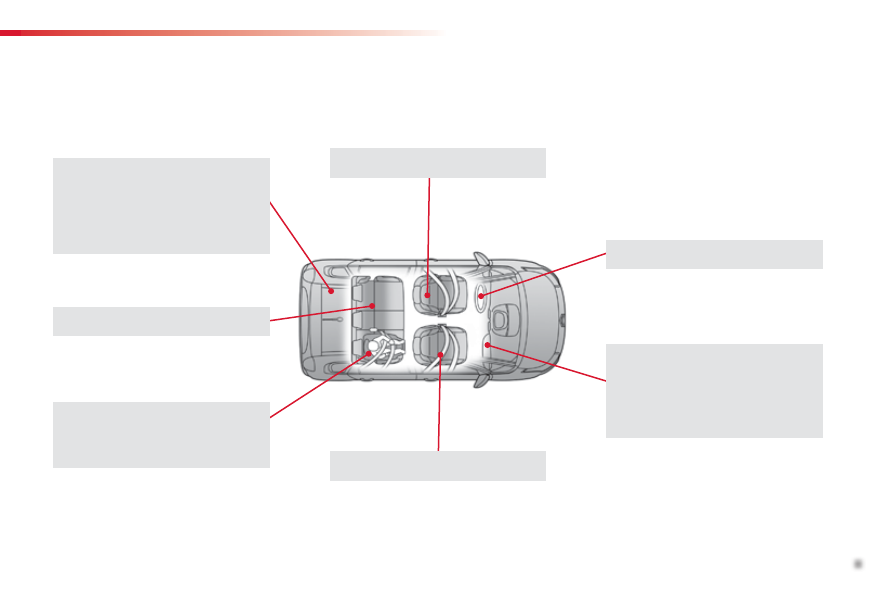

Interior

Child seats

ISOFIX child seats

Manual child lock

Electric child lock

Rear seats

Interior fittings

- auxiliary sockets
-

centre armrest

- mat
Glove box

Deactivating the passenger's airbag

9 7, 120

Seat belts

115-118

Front seats

52-54

Airbags 119-122

Visual search

278

C3Picasso_en_Chap14_recherche-visuelle_ed01-2015

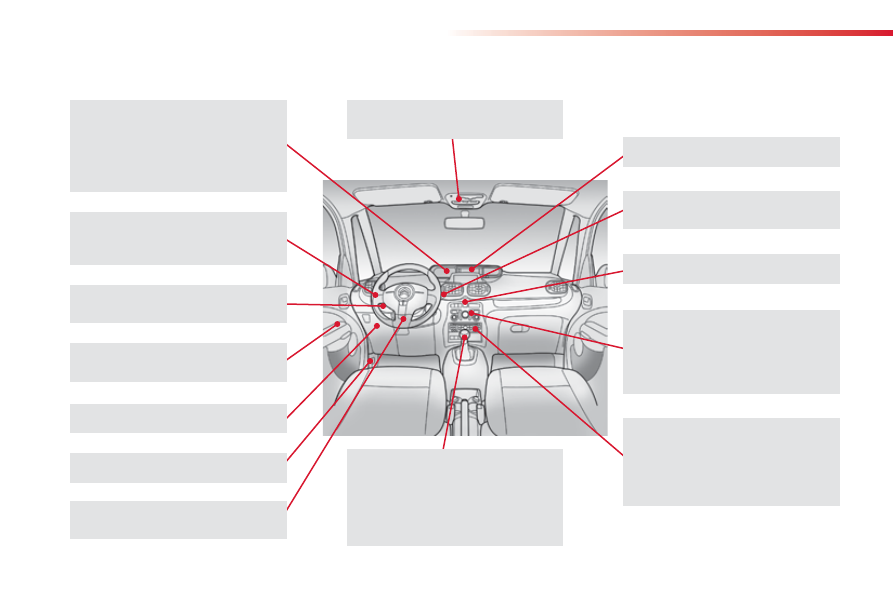

Instrument panels

Warning lamps

11-21

Indicators 22-25
Adjustment buttons

trip distance recorder /clock

lighting dimmer/ black panel

Instruments and controls

Lighting controls

72-75

Headlamp adjustment

Speed limiter

Cruise control

Dashboard fuses

Opening the bonnet

Rear view mirror

Sun visor

84-85

Wiper controls

79-81

Trip computer

40-42

Ventilation / Heating

43-46

Manual air conditioning

46-47

Digital air conditioning

48-50

Demisting - Defrosting (rear screen)

Audio system

255-275

Setting the date/time

3 0, 39

eMyWay 201-254
Setting the date/time

Electronic gearbox

Gear shift indicator

Hill start assist

Parking brake

Steering wheel adjustment

Horn 109

Multifunction screens

27-39

Door mirrors

Electric windows

62-63

Hazard warning lamps

108

Visual search

279

C3Picasso_en_Chap14_recherche-visuelle_ed01-2015

Running out of Diesel

142

AdBlue

additive and SCR system

(BlueHDi Diesel)

163-169

Technical data - Maintenance

Checking levels

145-147

- oil
-

brake fluid

- coolant

- screenwash fluid

- additive (Diesel with particle filter)
AdBlue

additive

167-169

Changing bulbs

170-177

- front
- rear
- interior

Checking components

148-149

- battery
-

air filter / passenger compartment filter

oil filter

particle filter (Diesel)

brake pads / discs

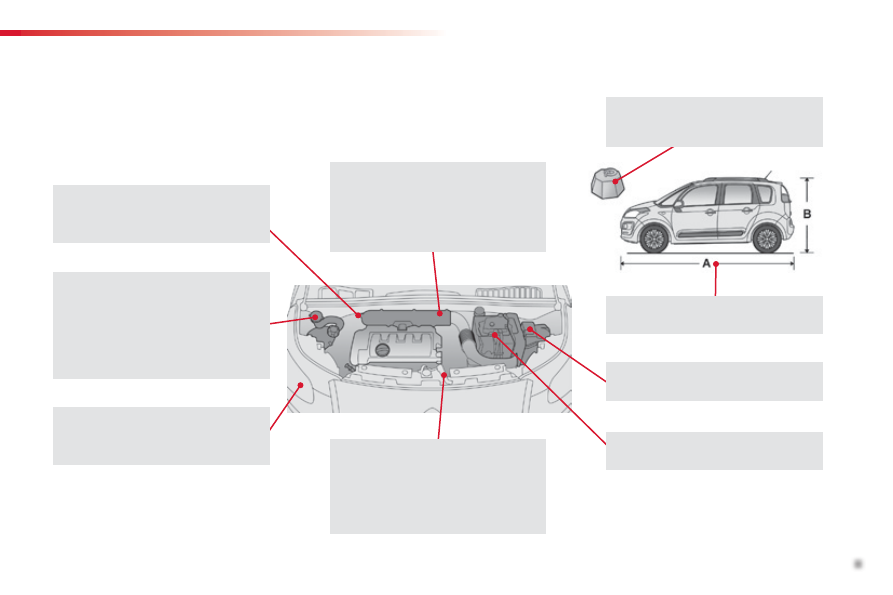

Engine compartment

fuses

178 , 181-184

Battery 185-186
Energy economy mode

187

Bonnet

141

Under-bonnet layout, petrol

143

Under-bonnet layout, Diesel

Petrol engines

Diesel engines

Petrol weights

Diesel weights

Dimensions 199
Identification markings

200

280

Alphabetical index

C3Picasso_en_Chap15_index-alpha_ed01-2015

ABS and EBFD systems ............................. 113
Accessories ................................................ 193
Accessory socket, 12V ...........................84, 8 6
Additive, AdBlue ....................................20, 163
Additive, Diesel ........................................... 148
Adjusting headlamps ....................................78
Adjusting head

restraints ...............................................53, 55

Adjusting seats ........................................52, 5 5
Adjusting the height and reach

of the steering wheel ..................................58

Adjusting the seat belt

height ........................................................ 115

Advice on care and

maintenance .....................................143, 144

Advice on driving ........................................ 123
Airbags .................................................. 18, 119
Airbags, curtain ................................... 121, 122
Airbags, front....................................... 119, 122
Airbags, lateral .................................... 121, 122
Air conditioning ............................................... 8
Air conditioning, digital ...........................44, 48
Air conditioning, manual .........................44, 46
Air vents ........................................................43
Anti-lock braking

system (ABS) ............................................ 113

Anti-pinch ......................................................63
Anti-theft ............................................... 61, 124
Armrest, front ................................................53
Audible warning ..........................................109
Audio streaming

(Bluetooth) ........................................240, 267

Audio system ...............................................255

Capacity, fuel tank ........................................69
Cartridge, fragrance ..................................... 51
CD ....................................................... 237, 260
CD, MP3 .............................................. 237 , 261
Central locking ........................................59, 65
Changing a bulb ...................................170 -177
Changing a fuse ...................................178-184
Changing a wheel ................................155-1 61

Changing a wiper blade ........................ 81 , 188
Changing the date .............................28 , 30 , 39
Changing the remote control battery ............60
Changing the time .............................28 , 30 , 39

Checking the engine oil level ................25, 145
Checking the levels ..............................145 -147
Checking tyre pressures (using the kit) ......153
Checks .................................................143-149
Checks, routine ...................................148, 149
Child lock ..................................................... 107
Children .................................. 94-107, 1 18, 1 20
Child seats ............. 94-96, 100 , 101, 106, 118
Child seats, conventional ............................100
Child seats, ISOFIX ....................................104
Child surveillance mirror ...............................85
Closing the boot ......................................59, 67
Closing the doors ....................................59, 64
Configuration,

vehicle ...................... 28 , 30, 3 3, 3 8, 2 68, 2 72

Control, electric windows ..............................62
Control, emergency boot release .................67
Control, emergency door ..............................66
Control, heated seats ....................................54
Control stalk, lighting ...............................72-7 5
Control stalk, wipers ............................... 79-81
Cornering lamps ...........................................77
Courtesy lamps .....................................82 , 177
Cover, load space ......................................... 91
Cruise control .............................................. 135
Cup holder ...............................................84, 88

Battery .................................................148 , 185
Battery, charging .........................................186
Battery, remote control ...........................60, 61
Blind, panoramic roof ....................................68
Blinds, side ....................................................89
BlueHDi .................................................22 , 163
Bluetooth (hands-free) ........................224, 265
Bluetooth (telephone) ..........................224, 2 65
Bonnet ......................................................... 141
Boot ...............................................................67
Boot floor, adjustable .............................. 91, 92
Brake discs .................................................. 149
Brake lamps ................................................ 175
Brake ........................................................... 149
Braking assistance system ......................... 113
Bulbs (changing) ......................................... 170

Daytime running lamps, LED ................ 76, 174
Deactivating the passenger airbag ............. 120
Deactivating the rear windows .....................63

281

Alphabetical index

C3Picasso_en_Chap15_index-alpha_ed01-2015

Hazard warning lamps ................................108

Hazard warning lamps, automatic

operation ...................................................108

Headlamp adjustment ...................................78
Headlamps, automatic illumination ........72 , 75
Headlamps, dipped beam ..................... 72, 171
Headlamps, main beam ........................ 72, 172
Head restraints, front ....................................53
Heating ....................................................46, 48
Hill start assist ............................................. 132
Hooks ...................................................... 91, 93
Horn.............................................................109

Gauge, fuel..............................................10, 69
Gearbox, electronic ........................ 8, 127, 149

Gearbox, manual ............................ 8, 131, 149
Gear shift indicator ..................................... 131
Gear lever, electronic gearbox ...................127

Glove box ......................................................85
GPS .............................................................207

Eco-driving ..................................................... 8
Economy mode ........................................... 187
Electronic brake force distribution

(EBFD) ...................................................... 113

Emergency braking assistance (EBA) ........ 113
Emergency warning lamps .........................108
Emissions control system, SCR ........... 21, 163
eMyWay ......................................................201
Energy economy mode ............................... 187
Engine compartment ..........................143, 144
Engine, Diesel ....................... 70, 142, 144, 197
Engine oil level indicator ...............................25
Engine, petrol ................................70, 143, 195
Environment .............. 8, 61, 1 09, 1 47 , 169, 1 86
Equipment settings ..................... 27, 29, 32, 36

Defrosting ......................................................45
Dials .............................................................. 10
Diesel ............................................................70
Dimensions .................................................199
Dipstick ..................................................25, 145
Direction indicators ..................... 108 , 171 , 175
Display screen, instrument panel ......... 10, 131
Doors .............................................................64
Driving economically.......................................8
Dynamic stability control (DSC) .................. 114

Filling the fuel tank ...................................69-71
Filter, air ...................................................... 148
Filter, oil .......................................................148
Filter, particle ...................................... 147, 148
Filter, passenger compartment ................... 148
Fitting a wheel .............................................160
Fitting roof bars ...........................................192
Fittings, boot ................................................. 91
Fittings, front .................................................84
Fittings, interior .............................................84
Flap, fuel filler .......................................... 69, 71
Flashing indicators ......................................108
Foglamps, front ............................... 73, 7 7, 1 73
Foglamps, rear ...................................... 73, 176
Front foglamps ...................................... 77, 173
Fuel................................................................ 70
Fuel consumption ............................................8
Fuel tank.................................................. 69, 71
Fusebox, dashboard ...................................179

Fusebox, engine compartment ...................181
Fuses ........................................................... 178

Guidance (Navigation) ................................207
Guide-me-home ...................................... 74, 75

Identification plates .....................................200
Immobiliser, electronic .......................... 61 , 124
Indicator lamps, operation ....................... 11 -14
Indicators, direction ....................................108
Inflating tyres ..........................................8, 200
Inflating tyres and accessories

(using the kit) ............................................153

Input, auxiliary .....................................241, 264

282

Alphabetical index

C3Picasso_en_Chap15_index-alpha_ed01-2015

Navigation ...................................................207
Number plate lamps .................................... 175

Oil change ................................................... 145
Oil consumption ..........................................145
OIl, engine ................................................... 145
Oil level..................................................25, 145
Opening the bonnet .................................... 141
Opening the boot ....................................59 , 67
Opening the doors ..................................59, 64
Opening the fuel filler flap .............................69

Levels and checks ...............................143-147
Level, screenwash

fluid ........................................................... 147

Lighting bulbs

(replacement) ............................................ 170

Lighting, dashboard ......................................26
Lighting dimmer ............................................26
Lighting, guide-me home ........................ 74, 75
Lighting, interior ....................................82, 177
Loading ...................................................8, 192
Load reduction mode .................................. 187
Locating your vehicle ....................................60
Locking from the inside .................................65
Long objects,

transporting ................................................90

Low fuel level ................................................69

Main beam ............................................ 72, 172
Maintenance, routine ......................................8
Map reading lamps ...............................82, 177
Markings, identification ...............................200
Mat ................................................................87
Menu, main .................................................258
Menu short

cuts ...........................................................206

Mirror, rear view ............................................58
Mirrors, door..................................................57
Misfuel prevention ......................................... 71
Mountings, Isofix .........................................103
MP3 CD ............................................... 237, 261

Key with remote control .................. 59-61, 124
Kit, hands-free ....................................224 , 265
Kit, temporary puncture repair ....................150

Instrument panel ........................................... 10
Instrument panel screen ............................... 10
ISOFIX ........................................................103
Isofix mountings ..........................................103

Jack .............................................................155

Labels, identification ...................................200
Lamp, boot ............................................83, 177
Lamps, front ................................................ 170
Level, AdBlue

additive .....................................................163

Level, brake fluid .........................................146
Level, Diesel additive .......................... 147, 148
Level, engine coolant .................................. 147
Level, engine oil .......................................... 145

Pads, brake ................................................. 149
Paint colour code ........................................200
Panoramic glass sunroof ..............................68
Parcel shelf, rear ...........................................93
Parking brake ...................................... 126 , 149
Parking sensors, rear.................................. 137
Petrol .............................................................70
Player, MP3 CD ................................... 237, 261
Players, music media ..................................236
Pockets, seat back ........................................88
Port, USB ............................................240, 262
Pressures, tyres ..................................154, 200
Pre-tensioning seat belts ............................ 118

283

Alphabetical index

C3Picasso_en_Chap15_index-alpha_ed01-2015

Priming the fuel system .............................. 142
Protecting

children ................................ 94-107, 1 18, 1 20

Puncture ......................................................150

Radio ...................................................233, 259
Range, AdBlue ............................................165
Reading lamps, rear ......................................82
Rear foglamp......................................... 73, 176
Rear screen, demisting .................................45
Recharging the battery ...............................186
Reduction of electrical load ........................ 187
Regeneration of the particle filter ............... 148
Reinitialising the electric windows ................63
Reinitialising the remote control ...................60
Reminder, key in ignition ............................. 124
Remote control ........................................ 59-61
Removing a wheel ......................................158
Removing the mat ......................................... 87
Replacing bulbs ...................................170-177
Replacing fuses ...................................178 -184
Replacing the air filter ................................. 148
Replacing the oil filter ................................. 148
Replacing the passenger

compartment filter .................................... 148

Reservoir, screenwash ............................... 147
Resetting the service indicator .....................24
Resetting the trip recorder ............................26
Rev counter ................................................... 10

Reversing camera ....................................... 139
Reversing lamp ................................... 175, 176
Risk areas (update) ..................................... 212
Roof bars .....................................................192
Running out of fuel (Diesel) ........................ 142

Safety, children ...................... 94 -107 , 118 , 120
Saturation of the particle filter

(Diesel) .....................................................148

Scented air freshener ................................... 51
Screen, colour and

mapping ............................................205, 244

Screen,

monochrome .................... 244, 2 58, 268 , 270

Screen, multifunction

(with audio equipment) ...................29 , 32 , 36

Screen, multifunction

(without audio equipment) ..........................27

Screenwash ..................................................80

Screenwash, rear ..........................................80
SCR (Selective Catalytic

Reduction) ................................................163

Seat adjustment ......................................52 , 55
Seat belts .................................... 100 , 115, 118
Seat, rear bench ...........................................55
Seats, front ....................................................52
Seats, heated ................................................54
Selector, gear .............................................. 127

Serial number,

vehicle .......................................................200

Service indicator ...........................................22
Servicing .........................................................8
Settings, equipment ....................................270
Sidelamps ..................................... 72, 172, 175
Side repeater .............................................. 174
Ski flap ..........................................................90
Snow chains ................................................162
Socket, 12 volt accessory .......................84, 86
Sockets, audio ....................240, 24 1, 2 62 , 264
Sockets, auxiliary ........................................262
Speed limiter ............................................... 133
Speedometer ................................................ 10
Starting the engine ..................................... 124
Stay, bonnet ................................................ 141
Steering mounted controls,

audio .................................................204, 2 57

Steering wheel,

adjustment ..................................................58

Storage ....................................................84 , 91
Storage drawer .............................................86

Storage wells ................................................91

Stowing rings ................................................91
Sun visor .......................................................85
Switching off the engine .............................124
Synchronising the remote

control .........................................................60

Synthesiser, voice ....................................... 218

284

Alphabetical index

C3Picasso_en_Chap15_index-alpha_ed01-2015

Under-inflation

(detection) ............................ 19 , 109 -112 , 154

Unlocking ......................................................59
Unlocking from the inside .............................65
Updating risk areas ..................................... 212
UREA ..................................................163 , 164
USB .............................................240 , 261, 2 62

Warning and indicator lamps ................... 11-21
Warning lamps .........................................15-21
Warning lamp, SCR emissions

control system ............................................ 21

Washing (advice).................................143 , 144
Weights ...............................................196, 198
Wheel, spare ...............................................155
Window controls ...........................................62
Wiper blades (changing) ....................... 81 , 188
Wiper, rear.....................................................80
Wipers ..................................................... 79, 81
Wipers, automatic rain sensitive ............. 79, 81

Table of weights ..................................196, 198
Table position ................................................54
Tables, aircraft ..............................................88
Tables of engines ................................ 195, 197
Tables of fuses ............................................ 178
Tank, AdBlue

additive .............................................163, 167

Tank, fuel ................................................. 69, 71
Technical data .....................................195, 197
Telephone ...........................................224 , 265
Three flashes

(direction indicators) .................................108

Ticket holder .................................................87
TMC (Traffic info) ........................................221
Tools ............................................................155
Topping-up the AdBlue

additive ..................................................... 167

Total distance

recorder ......................................................26

Towbar .........................................................191

Towed loads ........................................196, 198

Towing another

vehicle .......................................................190

Traction control (ASR) ................................ 114
Traffic information (TA) .............. 222, 235 , 260
Traffic information (TMC) ....................221 , 222
Trailer .......................................................... 191
Trajectory control

systems ..................................................... 114

Trip computer .................................... 36 , 40-42
Trip distance recorder ...................................26
Tyre pressures ............................................200
Tyres ................................................................ 8
Tyre under-inflation

detection .............................. 19, 109-112, 154

Vanity mirror ..................................................85
Vehicle configuration ................. 28, 3 0 , 33 , 38
Vehicle identification ...................................200
Ventilation .........................................43 , 44, 46

C3Picasso_en_Chap15_index-alpha_ed01-2015

Content .. 16 17 18
