The system is reinitialised with the ignition
on and the vehicle stationary, via the vehicle
configuration menu.

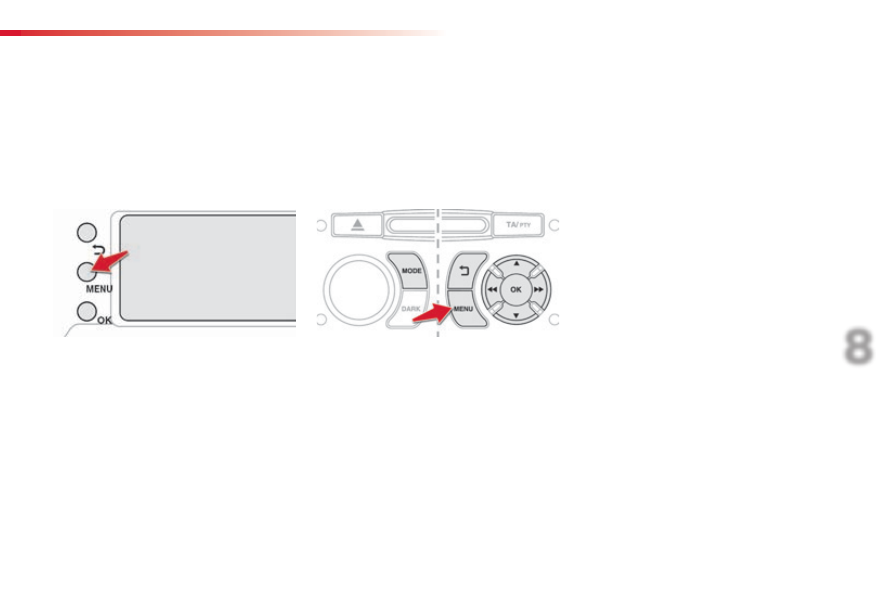

F Press the MENU button for access to the

main menu.

F Press the "5" or "6" button to select

the Veh config menu, then confirm by
pressing the OK button.

F Press the "5" or "6" button to select

"Reinit inflat", then confirm by pressing
the OK button.

F Select "yes" or "no" then press OK.

A message is displayed asking you to
confirm the instruction.

F Confirm by pressing the OK button.
F Conform then quit the menu.

F Press the MENU button for access to the

main.

F Press the "5" or "6" button to select the

menu, "Personalisation-configuration"
then confirm by pressing the buttonOK.

F Press the "5" or "6" button to select the

"Define vehicle parameters", menu, then
confirm by pressing the OK button.

The new pressure settings registered are
considered to be reference values by the
system.

Vehicles without audio or
navigation system

Vehicles with audio system

F Press the "5" or "6" button to select

the "Tyre pressures", menu then the
"Reinitialisation" menu, then confirm by
pressing the OK button.

A message confirms the reinitialisation.

Safety

112

C3Picasso_en_Chap08_securite_ed01-2015

Operating fault

Before doing anything to the system,
the pressures of the four tyres must be
checked and the system reinitialised.

The flashing and then fixed illumination of the
under-inflation warning lamp accompanied
by illumination of the Service warning lamp
indicates a fault with the system.
In this case, under-inflation monitoring of the
tyres is no longer assured.
Have the system checked by a CITROËN
dealer or a qualified workshop.

Snow chains

The system does not have to be
reinitialised after fitting or removing
snow chains.

The under-inflation alert is only
dependable if the system has been
reinitialised with all four tyres inflated to
the correct pressures.

Safety

113

C3Picasso_en_Chap08_securite_ed01-2015

Braking assistance systems

Anti-lock braking system
and electronic brake force
distribution

Linked systems which improve the stability and
manoeuvrability of your vehicle when braking,
in particular on poor or slippery surfaces.

Activation

The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself
felt by slight vibration of the brake pedal.

When braking in an emergency, press
very firmly without releasing the
pressure.

Group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:
-

anti-lock braking system (ABS),

electronic brake force distribution (EBFD),

emergency braking assistance (EBA).

Operating fault

If this warning lamp comes on,
accompanied by an audible signal
and a message in the screen, it
indicates a malfunction of the anti-
lock braking system which could
result in loss of control of the vehicle
when braking.
If this warning lamp comes on,
together with the STOP and ABS
warning lamps, accompanied by an
audible signal and a message in the
screen, it indicates a malfunction of
the electronic brake force distribution
which could result in loss of control of
the vehicle when braking.

Emergency braking assistance

System which, in an emergency, enables you
to obtain the optimum braking pressure more
quickly, thus reducing the stopping distance.

Activation

It is triggered by the speed at which the brake
pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase in
braking efficiency.

In either case, contact a CITROËN dealer or a
qualified workshop.

When braking in an emergency, press
firmly without releasing the pressure.

When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.

You must stop as soon as it is safe to do so.

Safety

114

C3Picasso_en_Chap08_securite_ed01-2015

Deactivation

In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground...), it may be advisable to deactivate the
DSC and ASR systems, so that the wheels can
move freely and regain grip.

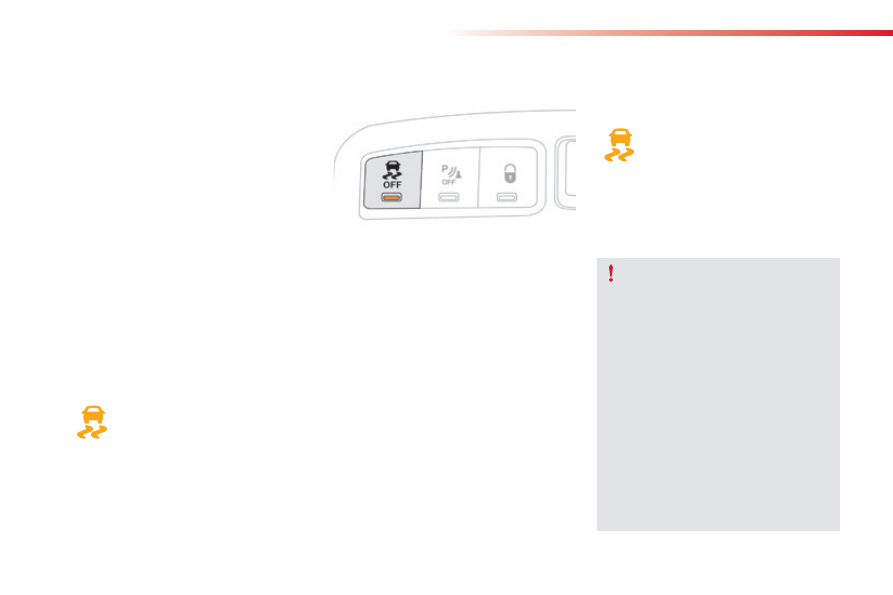

F Press the button, located in the centre of

the dashboard.

Illumination of the indicator lamp in the button
indicates that the DSC and ASR systems are
deactivated.

Reactivation

These systems are reactivated automatically
each time the ignition is switched back on or
from 30 mph (50 km/h).
F Press the button again to reactivate them

manually.

Operating fault

The illumination of this warning lamp
comes in the instrument panel and in
the button, accompanied by an audible
signal and a message in the multifunction
screen, indicates a fault in these systems.

Trajectory control systems

The anti-slip regulation (also known as traction
control) optimises traction to prevent skidding of
the wheels, by acting on the brakes of the driving
wheels and on the engine.
The electronic stability control acts on the brake
of one or more wheels and on the engine to keep
the vehicle on the trajectory required by the driver,
within the limits of the laws of physics.

Anti-slip regulation (ASR)
and dynamic stability
control (DSC)

This is indicated by flashing of this
warning lamp in the instrument panel.

Activation

These systems are activated automatically
each time the vehicle is started.
They come into operation in the event of a grip
or trajectory problem.

The DSC/ASR systems offer
exceptional safety in normal driving, but
this should not encourage the driver to
take extra risks or drive at high speed.
The correct operation of these
systems depends on observation of
the manufacturer's recommendations
regarding wheels (tyres and rims),
braking components, electronic
components and assembly and repair
procedures.
After an impact, have these systems
checked by a CITROËN dealer or a
qualified workshop.

Have it checked by a CITROËN dealer or a
qualified workshop.

Safety

115

C3Picasso_en_Chap08_securite_ed01-2015

Seat belt not fastened /
unfastened warning lamp

Fastening

F Pull the strap, then insert the tongue in the

buckle.

F Check that the seat belt is fastened

correctly by pulling the strap.

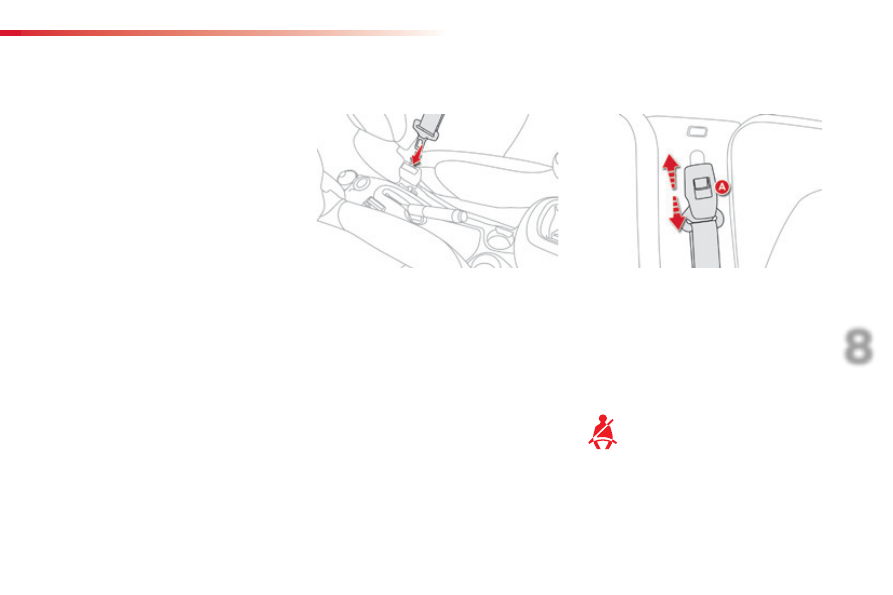

Height adjustment

To lower the attachment point, squeeze the

control A

and slide it downwards.

F To raise the attachment point, slide the

control A

upwards.

When the ignition is switched on, this

warning lamp comes on, either on the
instrument panel or on the seat belt and

passenger's front airbag warning lamp
display, if the driver and/or the front
passenger has not fastened their seat belt.

Unfastening

F Press the red button on the buckle.
F Guide the seat belt as it rolls up.

Seat belts

Front seat belts

The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.

From approximately 12 mph (20 km/h) this warning

lamp flashes for two minutes accompanied by

an audible signal. Once these two minutes have

elapsed, this warning lamp remains on until the driver
and/or the front passenger fastens their seat belt.

Safety

116

C3Picasso_en_Chap08_securite_ed01-2015

Seat belt not fastened /
unfastened warning lamp display

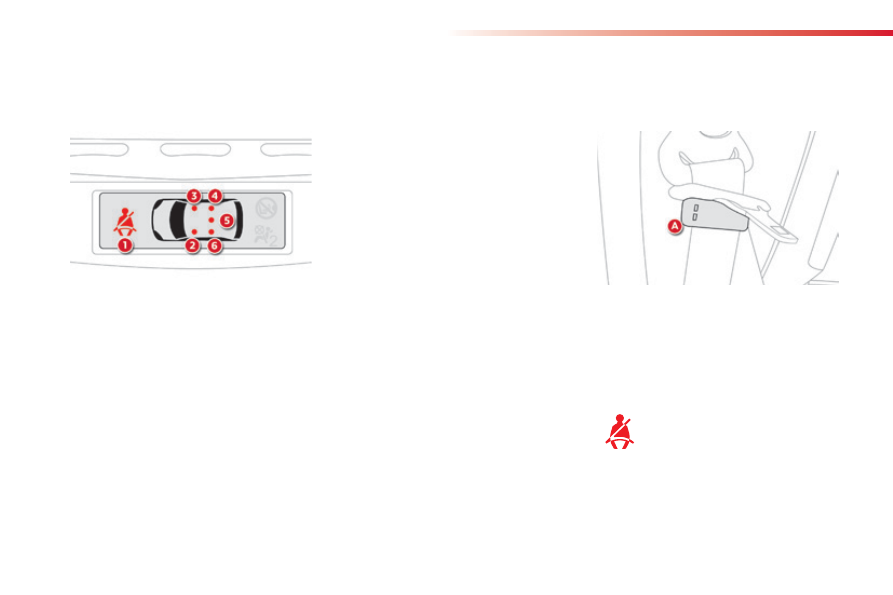

1. Front and/or rear seat belts not fastened /

unfastened warning lamp.

Front left seat belt warning lamp.

Front right seat belt warning lamp.

Rear right seat belt warning lamp.

Rear centre seat belt warning lamp.

Rear left seat belt warning lamp.

Rear seat belts

The rear seats are each fitted with a three-point
inertia reel seat belt with force limiter (with the
exception of the rear centre seat).

Locking

When the rear side side belts are not being
used, you can lock them in place. To do so:
F Raise the grip A

to its maximum height.

Fastening

F Pull the strap, then insert the tongue in the

buckle.

F Check that the seat belt is fastened

correctly by pulling the strap.

Unfastening

F Press the red button on the buckle.
F Guide the seat belt as it rolls up.

The corresponding warning lamp 2 or 3 comes
on in red on the seat belt and passenger's front
airbag warning lamp display if the seat belt is
not fastened or is unfastened.

Seat belt unfastened warning
lamp

This warning lamp comes on, either on
the instrument panel or on the seat belt
and passenger's front airbag warning
lamp display, when one or more rear
passengers unfasten their seat belt.

From approximately 12 mph (20 km/h), this warning lamp
flashes for two minutes accompanied by an audible signal
of increasing volume. Once these two minutes have
elapsed, this warning lamp remains on until the one or
more rear passengers fasten their seat belt.

Safety

117

C3Picasso_en_Chap08_securite_ed01-2015

row rear centre seat belt

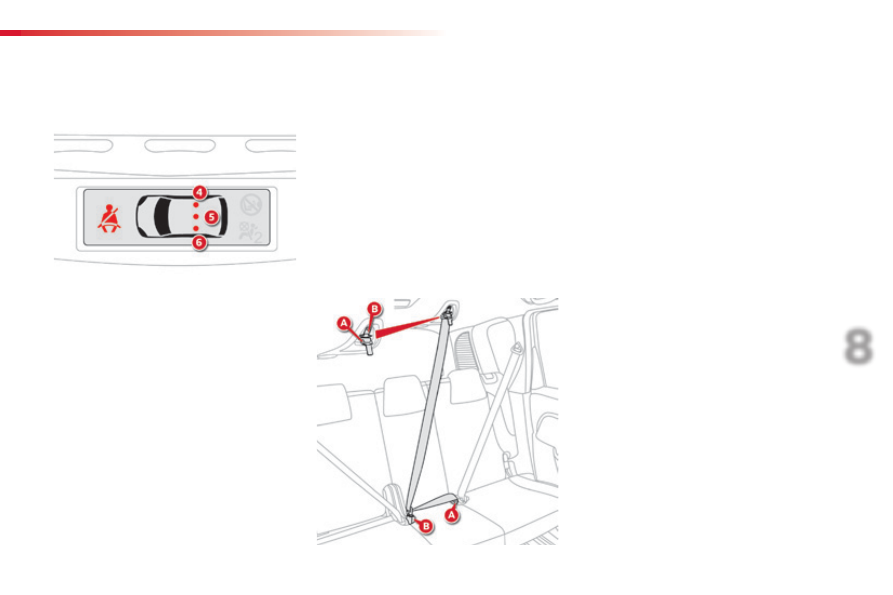

Removal and storing

F Press the red button on the buckle B, then

on the buckle A.

F Guide the strap as it rolls up and bring the

tongue B, then A onto the magnet of the
attachment point on the roof.

Installation

F Pull the strap and insert the tongue A in the

left-hand buckle.

F Insert the tongue B in the right-hand

buckle.

F Check the fastening of each buckle by

pulling the strap.

The seat belt for the rear centre seat of the
2

row is incorporated at the rear left of the roof.

Seat belt unfastened warning
lamp display

When the ignition is switched on, the
corresponding warning lamps 4, 5 and 6 come
on in red for approximately 30 seconds, if the
seat belt is not fastened.
When the engine is running or the vehicle is
moving, the corresponding warning lamp 4, 5 or
6 comes on in red, accompanied by an audible
signal and a message on the multifunction
screen, if a rear passenger has unfastened
their seat belt.

Safety

118

C3Picasso_en_Chap08_securite_ed01-2015

In order to be effective, a seat belt must:
-

be tightened as close to the body as
possible,

- be pulled in front of you with a smooth

movement, checking that it does not
twist,

be used to restrain only one person,

not bear any trace of cuts or fraying,

not be converted or modified to avoid
affecting its performance.

The driver must ensure that passengers use
the seat belts correctly and that they are all
fastened before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfil their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the length
of the strap to your size. The seat belt is
stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly.

In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
CITROËN dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITROËN dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.

Recommendations for children

Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information on child seats, refer to
the corresponding section.

In the event of an impact

Depending on the nature and seriousness
of the impact, the pretensioning device may
be deployed before and independently of the
airbags. Deployment of the pretensioners
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp comes
on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITROËN dealer or a qualified
workshop.

Advice

Safety

119

C3Picasso_en_Chap08_securite_ed01-2015

Airbags

Front airbags

System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
chest.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.

Deployment

The airbags are deployed, except for the
passenger's front airbag if it is deactivated,
in the event of a serious front impact applied
to all or part of the front impact zone A, in
the longitudinal centreline of the vehicle on a
horizontal plane and directed from the front to
the rear of the vehicle.
The front airbag inflates between the front
occupant of the vehicle and the dashboard to
cushion their forward movement.

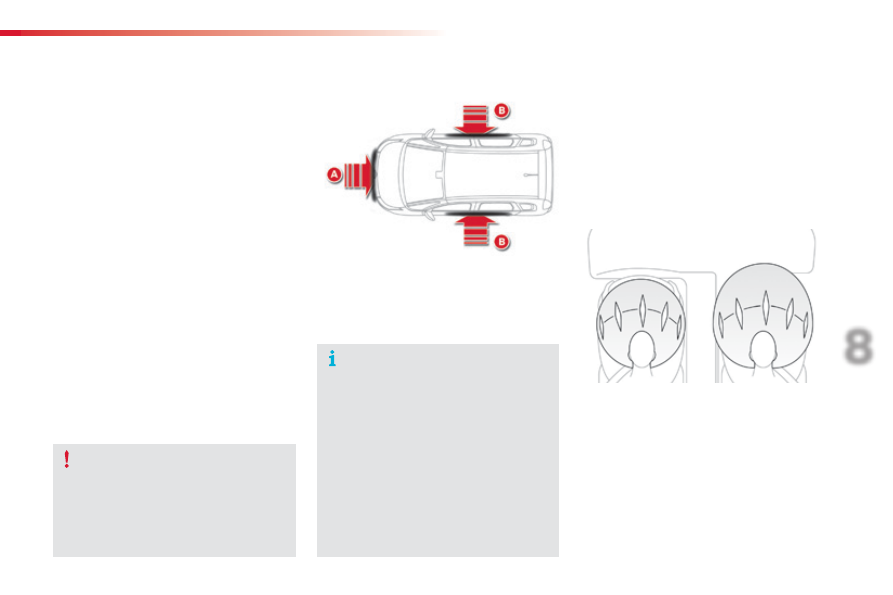

Impact detection zones

A. Front impact zone.
B. Side impact zone.

General information

System designed to contribute towards improving
the safety of the occupants (with the exception of
the rear centre passenger) in the event of violent
collisions. The airbags supplement the action of
the seat belts fitted with force limiters (all except
the centre rear passenger belt).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained in the impact detection zones:
-

in the case of a serious impact, the airbags
are deployed instantly and contribute towards
better protection of the occupants of the
vehicle (with the exception of the rear centre
passenger); immediately after the impact,
the airbags deflate rapidly so that they do not
hinder visibility or the exit of the occupants,

in the case of a minor or rear impact or in
certain roll-over conditions, the airbags
may not be deployed; the seat belt alone
contributes towards ensuring your protection
in these situations.

The airbags do not operate when the
ignition is switched off.
This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again.

Deployment of one or more of the
airbags is accompanied by a slight
emission of smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience slight
irritation.
The noise of detonation related to the
deployment of one or more airbags may
result in a slight loss of hearing for a
short time.

Safety

120

C3Picasso_en_Chap08_securite_ed01-2015

Operating fault

If this warning lamp comes on in the
instrument panel, you must contact
a CITROËN dealer or a qualified
workshop to have the system
checked. The airbags may no longer
be deployed in the event of a serious
impact.

Reactivation

When you remove the rearward facing child
seat, with the ignition off

, turn switch 1 to the

"ON" position to reactivate the airbag and so
assure the safety of your front passenger in the
event of an impact.

With the ignition on, this warning
lamp comes on in the instrument
panel or in the seat belt and
passenger's front airbag warning
lamp display for approximately one
minute, if the passenger's front
airbag is activated.

According to version, this warning
lamp comes on either in the
instrument panel or on the seat belt
and passenger's front airbag warning
lamp display when the ignition is on
and until the airbag is reactivated.

Deactivation

Only the passenger's front airbag can be
deactivated:

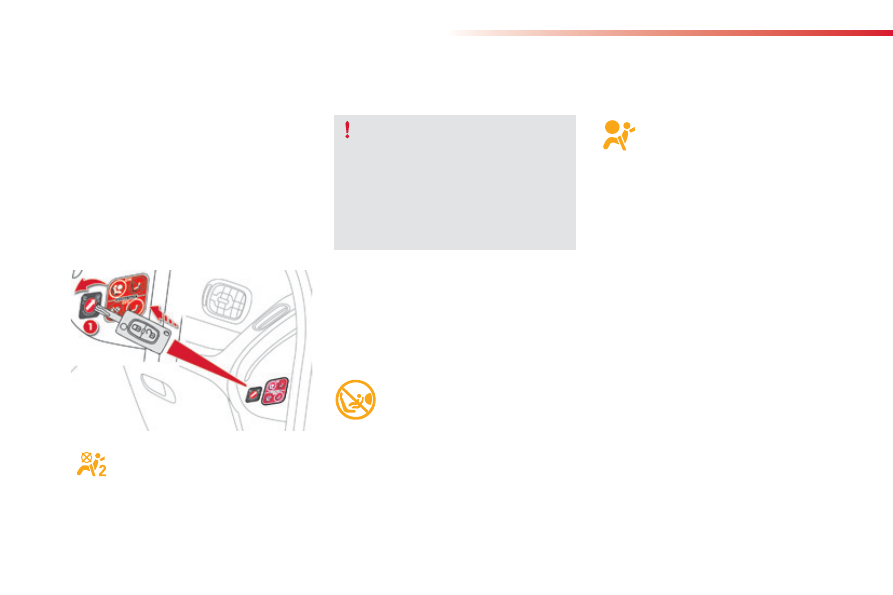

F with the ignition off, insert the key in the

passenger airbag deactivation switch 1,

F turn it to the "OFF" position,
F then, remove the key keeping the switch

in this position.

To assure the safety of your child, it is
imperative that the passenger's front
airbag is deactivated when you install a
"rearward facing" child seat on the front
passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.

Safety

121

C3Picasso_en_Chap08_securite_ed01-2015

Lateral airbags

Deployment

A lateral airbag is deployed unilaterally in the
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle
and the corresponding door trim panel.

Curtain airbags

Deployment

The curtain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The curtain airbag inflates between the front or
rear occupant of the vehicle and the windows.

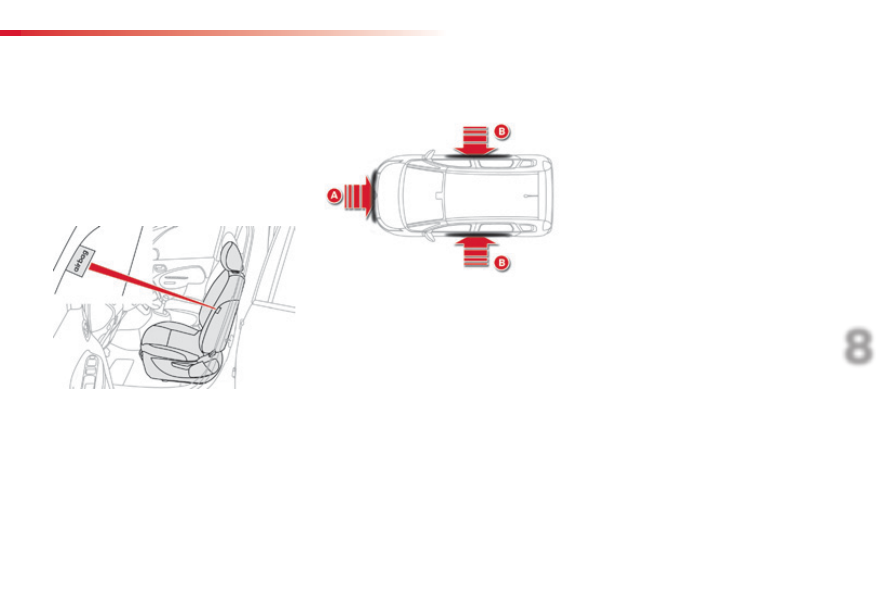

Impact detection zones

A. Front impact zone.
B. Side impact zone.

System which protects the driver and front
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.

System which contributes towards improving
the protection of the driver and passengers
(with the exception of the rear centre
passenger) in the event of a serious side
impact in order to limit the risk of injury to the
side of the head.
Each curtain airbag is built into the pillars and
the upper passenger compartment area.

Safety

122

C3Picasso_en_Chap08_securite_ed01-2015

Front airbags

Do not drive holding the steering wheel by its spokes or resting your hands on the centre part
of the wheel.
Passengers must not place their feet on the dashboard.
Do not smoke as deployment of the airbags can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Do not fit or attach anything to the steering wheel or dashboard, this could cause injuries with
deployment of the airbags.

Lateral airbags

Use only approved covers on the seats, compatible with the deployment the lateral airbags.
For information on the range of seat covers suitable for your vehicle, you can contact a
CITROËN dealer.
For more information on accessories, refer to the corresponding section.
Do not fix or attach anything to the seat backs (clothing...). This could cause injury to the chest
or arms if the lateral airbag is deployed.
Do not sit with the upper part of the body any nearer to the door than necessary.

Curtain airbags

Do not fix or attach anything to the roof. This could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the grab handles installed on the roof, they play a part
in securing the curtain airbags.

For the airbags to be fully effective, observe the safety recommendations below:

Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.

Advice

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.

Driving

123

C3Picasso_en_Chap09_conduite_ed01-2015

Driving recommendations

Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.

Driving on flooded
roads

We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.

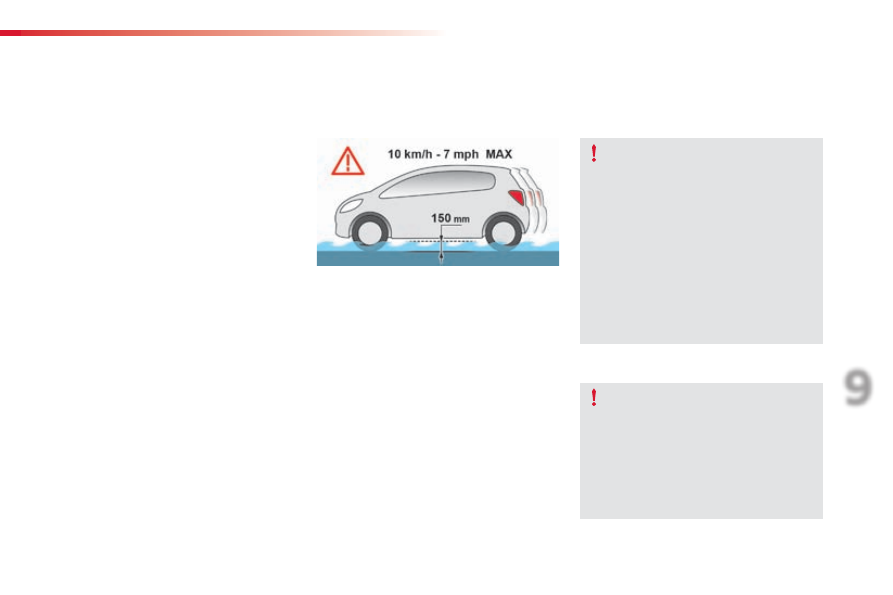

If you are obliged to drive through water:

- check that the depth of water does not

exceed 15 cm, taking account of waves
that might be generated by other users,

deactivate the Stop & Start system,

- drive as slowly as possible without

stalling. In all cases, do not exceed 6 mph
(10 km/h),

- do not stop and do not switch off the

engine.

On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.

Important!

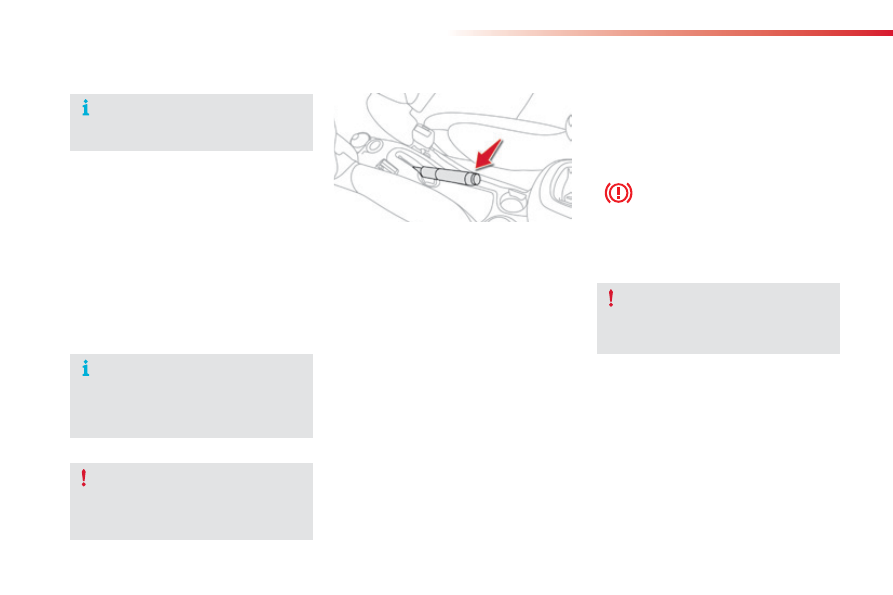

Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass,
dead leaves...) might come into contact
with the hot exhaust system - Risk of
fire!

Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position N or P, depending on the type
of gearbox.

Driving

124

C3Picasso_en_Chap09_conduite_ed01-2015

Electronic engine immobiliser

The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.

Anti-theft protection

In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.

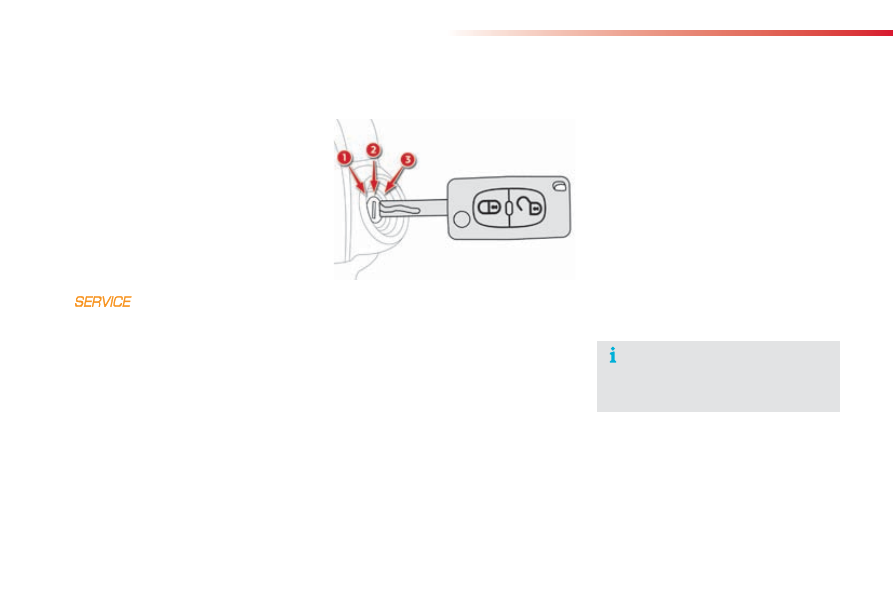

Ignition switch

It has 3 positions:
-

Position 1: Stop

Position 2: Ignition on

Position 3: Starting

Ignition on

In this position the vehicle's electrical
equipment can be used or accessories
charged.
When the state of charge of the battery
drops to a reserve level, the system goes into
energy economy mode: the power supply is
automatically cut off to preserve the state of
charge of the battery.

Keep safely, away from your vehicle, the label
attached to the keys given to you on acquisition
of the vehicle.

In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.

Starting-switching off the engine

Starting the engine

F Apply the parking brake.
F

With a manual gearbox: place the lever in

neutral and fully depress the clutch pedal.

With an electronic gearbox: place the lever

at position N and press the brake pedal
firmly.

With an automatic gearbox: place the lever

at position P and press the brake pedal
firmly.

Insert the key in the ignition switch; the

system recognises the code.

F Unlock the steering column by

simultaneously turning the steering and the
key.

F With a petrol engine, operate the starter

motor by turning the key to position 3 until
the engine starts, without pressing the
accelerator pedal. Once the engine starts,
release the key.

F With a Diesel engine, turn the key to

position 2, ignition on, to operate the
engine preheating system.

In some circumstances, you may have
to apply some force to turn the steering
wheel (wheels on lock for example).

Driving

125

C3Picasso_en_Chap09_conduite_ed01-2015

Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death. In very severe
winter conditions (temperatures
below -23°C), it is necessary to allow
the engine to run for 4 minutes before
setting off, in order to ensure the
correct operation and durability of
the mechanical components of your
vehicle, the engine and gearbox.

If the engine does not start straight
away, switch the ignition off. Wait a
few moments before trying again. If
the engine does not start after a few
attempts, do not keep trying: you risk
damaging the starter motor and the
engine. Call on a CITROËN dealer or a
qualified workshop.

In temperate conditions, do not
warm the engine up with the vehicle
stationary, but move off straight away
and drive at moderate engine speeds.

In wintry conditions, the warning lamp
will stay on longer. When the engine is
hot, it does not come on.

Wait until this warning lamp goes off
in the instrument panel, then operate
the starter motor by turning the key to
position 3

until the engine starts, without

pressing the accelerator pedal. Once
the engine starts, release the key.

Switching the engine off

F Immobilise the vehicle.
F With the engine at idle, turn the key fully

towards you to position 1 (Stop).

Remove the key from the ignition switch.

F To lock the steering column, turn the

steering wheel until it locks.

Never switch the ignition off until the
vehicle has come to a complete stop and
the parking brake has been applied. With
the engine stopped, the braking and
steering assistance systems are also cut
off: risk of loss of control of the vehicle.

To facilitate unlocking of the steering
column, put the front wheels in the
straight ahead position before switching
the ignition off.

F Ensure that the parking brake is applied

correctly, particularly when on a slope.

Driving

126

C3Picasso_en_Chap09_conduite_ed01-2015

Parking brake

Applying

F Pull the parking brake lever fully up to

immobilise your vehicle.

When the vehicle is being driven, if this
warning lamp and the STOP warning lamp
come on, accompanied by an audible signal
and a message in the multifunction screen,
this indicates that the parking brake is still
on or has not been properly released.

Releasing

F Pull the parking brake lever gently, press

the release button then lower the lever
fully.

When parking on a slope, direct your
wheels against the pavement, apply the
parking brake and engage a gear.

When you leave the vehicle, take the
key with you and lock the vehicle.

Energy economy mode

After switching off the engine (position 1 - Stop),
you can still use functions such as the audio
and telematic system, the wipers, dipped beam,
courtesy lamps, etc., for maximum cumulative
period of 30 minutes.
For more information, refer to the "Energy
economy mode" section.

Key reminder

If the key is left in the ignition switch, an
audible signal sounds when the driver's
door is opened.

Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.

Citroen C3 Picasso (2016 year). Manual - part 8
