Citroen C4 Picasso Dag (2009 year). Manual

254

GENERAL OPERATION

A press on the OK dial gives access to

short-cut menus according to the display
on the screen.

TRIP COMPUTER:

ALERT LOG

STATUS OF FUNCTIONS

MUSIC MEDIA PLAYERS:

TRAFFIC INFO (TA)

PLAY OPTIONS

NORMAL ORDER

RANDOM TRACK

REPEAT FOLDER

SCAN

SELECT MUSIC

NAVIGATION (IF GUIDANCE IS IN PROGRESS):

ABORT GUIDANCE

REPEAT ADVICE

BLOCK ROAD

ROUTE INFO

SHOW DESTINATION

TRIP INFO

Route type

Avoid

Satellites

ZOOM/SCROLL

VOICE ADVICE

ROUTE OPTIONS

RADIO:

IN FM MODE

TRAFFIC INFO (TA)

RDS

RADIOTEXT

REGIONAL PROG.

IN AM MODE

REFRESH AM LIST

FULL SCREEN MAP:

ABORT GUIDANCE /RESUME GUIDANCE

SET DESTINATION

POIS NEARBY

POSITION INFO

MAP SETTINGS

ZOOM/SCROLL

TELEPHONE:

END CALL

HOLD CALL

DIAL

DTMF-TONES

PRIVATE MODE

MICRO OFF

DISPLAY ACCORDING TO THE CONTEXT

255

NAVIGATION - GUIDANCE

SELECTING A DESTINATION

Press the NAV button again or select

the "Navigation" Menu function and

press the dial to conﬁ rm.

Select the "Destination input" function

and press the dial to conﬁ rm.

Press the NAV button.

Select the letters of the town one by

one conﬁ rming each time by pressing
the dial.

Once the country has been selected,
turn the dial and select the town

function. Press the dial to conﬁ rm.

"NAVIGATION" MENU

DESTINATION INPUT

Insert the SD card in the front panel reader and leave it there to use the Navigation functions.
The navigation SD card data must not be modiﬁ ed.
Map data updates are available from CITROËN dealers.

A pre-set list (by entering the ﬁ rst few letters) of the towns in the

A pre-set list (by entering the ﬁ rst few letters) of the towns in the
country selected can be accessed via the LIST button o

tton on the virtual

keypad.

Select the "Address input" function

and press the dial to conﬁ rm.

ADDRESS INPUT

The list of the last 20 destinations appears under the "Navigation"

The list of the last 20 destinations appears under the "Navigation"
Menu function.

256

To clear a destination; from steps 1 to 3, select "Choose from last destinations".
A long press on one of the destinations displays a list of actions from which you can select:
Delete entry
Delete list

Repeat steps 5 to 7 for the "Street"
and "House number" functions.

Turn the dial and select OK.

Press the dial to conﬁ rm.

Select the "Save to address book" function to record th

ord the address

entered in a directory ﬁ le. Press the dial to conﬁ rm the selection.

MyWay allows up to 4 000 contact ﬁ les to be recorded.

To speed up the process, the post code can be entered

tered directly after

selecting the "Postal code" function.

Use the virtual keypad to enter the letters and digits.

Then select "Start route guidance"

and the press the dial to conﬁ rm.

During guidance, pressing the end

of the lighting stalk repeats the last

guidance instruction.

You can zoom in/zoom out on the map using the dial.
It is possible to scroll the map or select its orientation via

ion via the short-

cut menu of the FULL SCREEN MAP. Press the dial then select

"Map settings".

Select the route type:

"Fast route", "Short route" or "Optimized route" and press the dial to

conﬁ rm.
It is also possible to select a destination via "Choose fro

se from address

book" or "Choose from last destinations".

CHOOSE FROM LAST DESTINATIONS

CHOOSE FROM ADDRESS BOOK

START ROUTE GUIDANCE

257

NAVIGATION - GUIDANCE

ROUTE OPTIONS

Select the "Route dynamics" function.

This function gives access to the

"Trafﬁ c independent" or
"Semi-dynamic" options.

Select the "Avoidance criteria"
function. This function provides

access to the AVOID options

(motorways, toll roads, ferries).

Turn the dial and select the
"Recalculate" function to take into
account the route options selected.

Press the dial to conﬁ rm.

Press the NAV button.

Press the NAV button again or select

the "Navigation" Menu function and

press the dial to conﬁ rm.

Select the "Route type" function and

press the dial to conﬁ rm. This function

allows you to change the route type.

Select the "Route options" function

and press the dial to conﬁ rm.

"NAVIGATION" MENU

ROUTE OPTIONS

ROUTE TYPE

ROUTE DYNAMICS

AVOIDANCE CRITERIA

RECALCULATE

The route selected by the MyWay audio/telephone depends directly on the route options.
Changing these options may change the route completely.

258

ADDING A STOPOVER

Enter a new address, for example.

Once the new address has been

entered, select OK and press the dial

to conﬁ rm.

Select "Recalculate" and press the

dial to conﬁ rm.

Press the NAV button.

Press the NAV button again or select

the "Navigation" Menu function and

press the dial to conﬁ rm.

Select the "Add stopover" function

(5 stopovers maximum) and press the

dial to conﬁ rm.

Select the "Stopovers" function and

press the dial to conﬁ rm.

"NAVIGATION" MENU

STOPOVERS

ADD STOPOVER

ADDRESS INPUT

The stopover must be completed or deleted in order for the guidance

The stopover must be completed or deleted in order for the guidance
to continue to the next destination. Otherwise, the MyWa

MyWay will always

return you to the previous stopover.

Stopovers can be added to the route once the destination has been selected.

RECALCULATE

259

NAVIGATION - GUIDANCE

SEARCHING FOR POINTS OF INTEREST

Press the NAV button.

Press the NAV button again or select

the "Navigation" Menu function and

press the dial to conﬁ rm.

Select the "POI nearby" function to
search for POIs around the vehicle.

Select the "POI search" function and

press the dial to conﬁ rm.

"NAVIGATION" MENU

POI SEARCH

POI NEARBY

Select the "POI in city" function to
search for POIs in the city required.
Select the country then enter the

name of the city using the virtual
keypad.

Select the "POI near route" function to
search for POIs near the route.

Select the "POI in country" function
to search for POIs in the country
required.

Select the "POI near destination"
function to search for POIs near the
point of arrival of the route.

POI NEAR DESTINATION

POI IN COUNTRY

POI NEAR ROUTE

A list of cities present in the country selected can be acc

be accessed via

the LIST button on the virtual keypad.

POI IN CITY

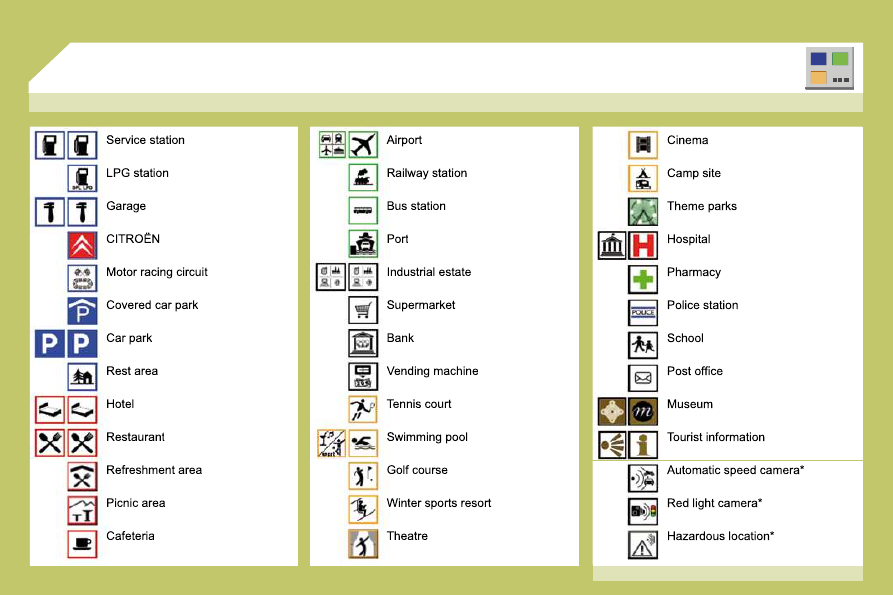

The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various
businesses, airports...).

261

NAVIGATION SETTINGS

Select the "Navi volume" function and
turn the dial to set the volume of each

voice synthesiser (trafﬁ c information,

alert messages…).

Select "Set parameters for risk areas"

to gain access to the "Display on
map", "Visual alert" and "Sound alert"
functions.

Select the "POI categories on Map"
function to select the POIs to be
displayed on the map by default.

NAVI VOLUME

Press the NAV button.

Press the NAV button again or select

the "Navigation" Menu function and

press the dial to conﬁ rm.

Select the "Settings" function and

press the dial to conﬁ rm.

"NAVIGATION" MENU

SETTINGS

POI CATEGORIES ON MAP

SET PARAMETERS FOR RISK AREAS

NAVIGATION - GUIDANCE

Contact a CITROËN dealer for details of the procedure for obtaining the HAZARDOUS LOCATION POIs.
Updating of the HAZARDOUS LOCATION POIs requires an SDHC (High Capacity) compatible reader.

262

TRAFFIC INFORMATION

CONFIGURE THE FILTERING AND

DISPLAY OF TMC MESSAGES

Then select the radius of the ﬁ lter

(in miles (km)) required in accordance

with the route, press the dial to conﬁ rm.

When all of the messages on the

route are selected, the addition of a

geographical ﬁ lter is recommended

(within a radius of 3 miles

(5 km) for example) to reduce the

number of messages displayed on

the map. The geographical ﬁ lter

follows the movement of the vehicle.

Press the TRAFFIC button again or

select the "Trafﬁ c" Menu function and

press the dial to conﬁ rm.

Press the TRAFFIC button.

The ﬁ lters are independent and their results are cumulative.
We recommend a ﬁ lter on the route and a ﬁ lter around the vehicle of:
   -   2 miles (3 km) or 3 miles (5 km) for a region with heavy trafﬁ c,
  -   6 miles (10 km) for a region with normal trafﬁ c,
  -   30 miles (50 km) for long journeys (motorway).

Select the "Geo. Filter" function and

press the dial to conﬁ rm.

MESSAGES ON ROUTE

The list of TMC messages appears under the "Trafﬁ c" Menu sorted

The list of TMC messages appears under the "Trafﬁ c" Menu sorted
in order of proximity.

ALL WARNING ON ROUTE

"TRAFFIC" MENU

Select the ﬁ lter of your choice:

ONLY WARNINGS MESSAGES

ALL MESSAGES

The messages appear on the map
and on the list.

To exit, press ESC.

The TMC icon, at the bottom left of the sc

the screen, may

appear in 3 different forms:
- No TMC station available,

- TMC station available, no message on route,

- TMC station available and messages on route

(if guidance is active).

GEO. FILTER

263

SELECTING A STATION

When the current radio station is
displayed on the screen, press the
dial.

The radio source short-cuts menu appears and provides

ovides access to

the following short-cuts:

Select the function required and press

the dial to conﬁ rm to gain access to

the corresponding settings.

TRAFFIC INFO (TA)

The RDS, if displayed, allows you to continue listening to the same

station by automatic retuning to alternative frequencies. However, in

certain conditions, coverage of an RDS station may not be assured

throughout the entire country as radio stations do not cover 100 % of

the territory. This explains the loss of reception of the station during

the territory. This explains the loss of reception of the station during
a journey.

The external environment (hill, building, tunnel, underground car park...) may interfere with
the reception, including in RDS following mode. This phenomenon is a normal result of the
way in which radio waves are transmitted and does not in any way indicate a failure of the

audio equipment.

RDS - REGIONAL MODE - TRAFFIC INFO

Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.

Select the station required by turning

the dial and press to conﬁ rm.

While listening to the radio, press one of the
buttons to select the previous or next station on
the list.

Press one of the buttons on the numeric keypad for mo

or more than

2 seconds to store the current station.
Press the button on the numeric keypad to recall the sto

the stored radio

station.

RDS

RADIOTEXT

REGIONAL PROG.

RADIO

A long press of one of the buttons starts the
automatic search for a station with a lower or

higher frequency.

264

06 MUSIC MEDIA PLAYERS

CD, MP3/WMA CD

INFORMATION AND ADVICE

In order to be able to play a recorded CDR or CDRW, when recording

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet s

oliet standard.

If the disc is recorded in another format it may not be pla

t be played

correctly.

It is recommended that the same recording standard is always used

for an individual disc, with as low a speed as possible (4x maximum)

for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.

In the particular case of a multi-session CD, the Joliet standard is

In the particular case of a multi-session CD, the Joliet standard is
recommended.

The MyWay will only play audio ﬁ les with the extension ".mp3" with

a speed of between 8 Kbps and 320 Kbps and the extension ".wma"

with a speed of between 5 Kbps and 384 Kbps.

It also supports the VBR (Variable Bit Rate) mode.

No other type of ﬁ le (.mp4, .m3u...) can be played.

The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3

The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3
and the WMA format, an abbreviation of Windows Medi

Media Audio and

the property of Microsoft, are audio compression standa

standards which

permit the recording of several tens of music ﬁ les on a single disc.

It is advisable to restrict ﬁ le names to 20 characters, without using of

special characters (e.g.: " " ? ; ù) to avoid any playing and displaying

special characters (e.g.: " " ? ; ù) to avoid any playing and displaying
problems.

265

SELECTING/PLAYING MUSIC

CD, MP3/WMA CD

The playing and displaying of an MP3/WMA compilation may

depend on the recording programme and/or the settings used.

We recommend the ISO 9660 ﬁ le standard.

Press the MUSIC button.

Select the "Select music" function and

press the dial to conﬁ rm.

Press the up or down button to select
the next/previous folder.

Select the music source required:

CD, MP3/WMA CD. Press the dial to

conﬁ rm. Play begins.

SELECT MUSIC

Press the MUSIC button again or
select the "Music" Menu function and

press the dial to conﬁ rm.

Press one of the buttons to select a
music track.
Press and hold one of the buttons for
fast forward or rewind play.

"MUSIC" MENU

The list of tracks or MP3/WMA ﬁ les appears under "Music" Menu.

266

Connect the portable equipment (MP3/

WMA player…) to the audio sockets

(white and red, RCA type) in the glove

box using a JACK/RCA audio cable.

Press the MUSIC button then press

it again or select the "Music" Menu

function and press the dial to conﬁ rm.

Select the AUX music source and

press the dial to conﬁ rm. Play begins
automatically.

Select the "External device" function
and press the dial to activate it.

EXTERNAL DEVICE

The display and management of the controls is via the portable

The display and management of the controls is via the portable
equipment.

USING THE EXTERNAL INPUT (AUX)

AUDIO/RCA CABLE NOT SUPPLIED

MUSIC MEDIA PLAYERS

"MUSIC" MENU

267

The services available depend on the network, the SIM card and the compatibility of the Bluetooth

equipment used. Refer to your telephone's manual and your operator to check which services you
have access to. A list of mobile telephones which offer the best range of services is available from
dealers.

BLUETOOTH TELEPHONE

CONNECTING A TELEPHONE

For reasons of safety and because they require prolonged attention

on the part of the driver, the operations for pairing the Bluetooth

on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the MyWa

MyWay must be

carried out with the vehicle stationary. The ignition must be on.

Activate the telephone's Bluetooth function.
The last telephone connected is reconnected
automatically.

Enter the authentication code on the telephone. The
code to be entered is displayed on the screen.

To change the telephone connected,

press the PHONE button, then select
"Phone" Menu and press the dial to

conﬁ rm.

Once the telephone has been connected, MyWay can s

can synchronise

the address book and the call list. This synchronisation

ation may take a

few minutes.

Select "Connect phone". Select the

telephone and press to conﬁ rm.

The list of telephones connected previously (4 maximum) appears

The list of telephones connected previously (4 maximum) appears
on the multifunction screen. Select the telephone requir

required for a new

connection.

Press the PHONE button.

For a ﬁ rst connection, select
"Search phone" and press the dial to

conﬁ rm. Then select the name of the
telephone.

SEARCH PHONE

CONNECT PHONE

268

hold the TEL button.

Select the "Yes" tab to accept or "No"

to refuse and conﬁ rm by pressing the
dial.

RECEIVING A CALL

An incoming call is announced by a ring and a superimposed display

An incoming call is announced by a ring and a superimposed display
on the multifunction screen.

YES

To hang up, press the PHONE button

or press the dial and select "End call"

then conﬁ rm by pressing the dial.

END CALL

MAKING A CALL

Press the PHONE button.

Select "Dial number", then dial the

telephone number using the virtual
keypad.

Select the "Phone" Menu function and

press the dial to conﬁ rm.

The list of the last 20 calls made and received in the veh

he vehicle appears

under "Phone" Menu. You can select a number and pres

d press the dial to

make the call.

It is also possible to select a number from the address b

ress book. You can

select "Dial from address book". The MyWay permits the recording of

select "Dial from address book". The MyWay permits the recording of
up to 4 000 entries.

Press the end of the steering wheel control for more than

two seconds to gain access to the address book.

"PHONE" MENU

DIAL NUMBER

To delete a number, press the PHONE button then press and hold on

a call number to display a list of actions including:

Delete entry

Delete list

269

CONFIGURATION

SETTING THE DATE AND TIME

This function gives access to the options: System language, Date & Time, Display (Brightness, Colour,
Map colour), Vehicle, Units, System.

Set the parameters one by one using

the direction arrows and conﬁ rm by
means of the dial.

Select the "Date format" function and

press the dial to conﬁ rm.

Select the "Set date & time" function

and press the dial to conﬁ rm.

Conﬁ rm the format required using the dial.

Pressing the SET UP button for more than 2 seconds gives

Pressing the SET UP button for more than 2 seconds gives
access to:

Press the SET UP button.

Conﬁ rm the format required using
the dial.
Select the "Time format" function and

press the dial to conﬁ rm.

SET DATE AND TIME

Select the "Date & Time" function and

press the dial to conﬁ rm.

DESCRIPTION OF THE UNIT

GPS COVERAGE

DEMO MODE

DATE AND TIME

Citroen C4 Picasso Dag (2009 year). Manual - part 19
