Lincoln Aviator (2020 year). Instruction - part 10

Action

Message

Reminder to remove the park brake while in neutral tow.

Neutral Tow Remove Park Brake for

Towing

Displays when the neutral tow is off.

Neutral Tow Disengaged

Displays when neutral tow is on.

Neutral Tow Enabled Leave Transmission

in Neutral

HEAD UP DISPLAY

 (IF EQUIPPED)

This is a visual system that shows information
in your field of view as you drive. The
information comes from various vehicle
systems and includes vehicle speed, speed
limit, navigation, and advanced driver
assistance systems (ADAS), such as adaptive
cruise control (ACC) and the lane keeping
system. This system projects the information
off the windshield, and focuses the image

near the end of the hood approximately 7 ft
(2 m) in front of the driver. Viewing this
information does not require you to
significantly move your head, allowing you
to keep your eyes on the road while having
quick and easy access to information.

Configuring The Head Up Display

You can control the system's options through
the information display by using the 4-way
toggle on the right-hand side of your steering
wheel.  See General Information (page 127).
You can adjust the display according to your
height to make viewing the content easier.
You can also adjust what content displays
and the brightness of the content. The
system's options appear in the instrument
cluster while the updates happen in the HUD.

Note: If HUD On is unchecked, other options
of the system are hidden.

Note: The HUD menu automatically closes
after a certain period of inactivity.

Note: The HUD image brightness
automatically adjusts to the brightness of
the ambient environment. You have the
ability to adjust the brightness further
according to your preference.

Note: In some instances, sunlight can cause
some reflections in and around the HUD
image.

153

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

Head-Up Display (HUD)

Turns the HUD on and off.

HUD On

Follow onscreen directions to confirm or modify your settings.

Brightness

Follow onscreen directions to confirm or
modify your settings.

Vertical Position

HUD Position

Image Rotation

Turns the distance to empty, time and temperature on and off.

HUD Content

Select Your Setting

Cruise and Lane Control

Note: When you save a memory preset position, your current HUD settings are also saved to that memory preset position.  See Memory
Function (page 175).

154

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

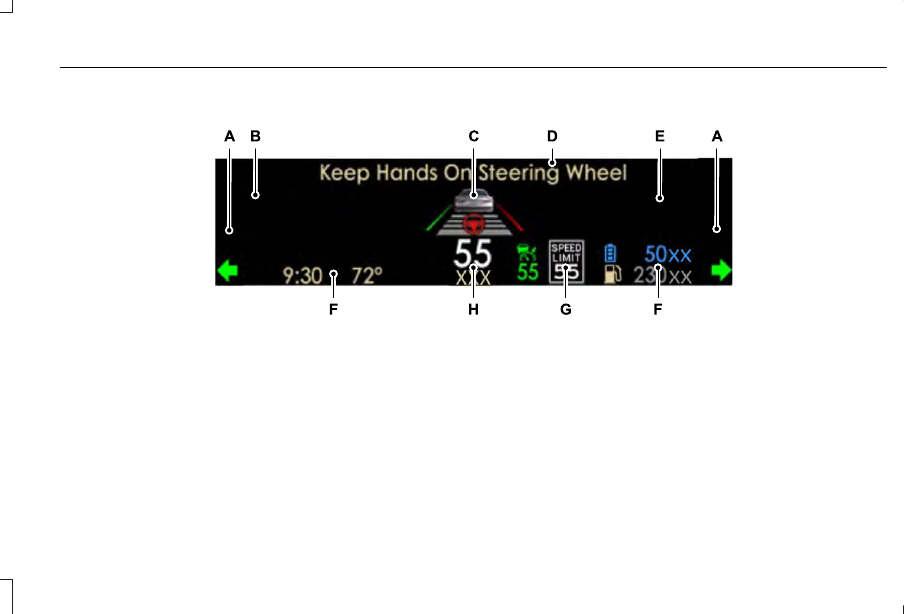

Head Up Display Overview

E288059

Signaling and Traffic Indication.

A

Navigation Display Area.

B

ADAS Display Area.

C

System Message Display Area.

D

ADAS Message Display Area.

E

Status Bar.

F

Speed Limit Display Area.

G

Speedometer Display Area.

H

155

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

Signaling and Traffic Indication

Displays direction indicators and blind spot
information (if direction indicators are active).

Navigation Display Area

Displays navigation next turn instructions.

ADAS Display Area

Displays Adaptive Cruise Control (ACC), Lane
centering aid and lane keeping system status
and warnings.

System Message Display Area

Displays system messages and notifications
including an incoming phone call.

ADAS Message Display Area

Displays ADAS messages and image
adjustment prompts.

Status Bar

Displays Distance To Empty (DTE), time and
outside air temperature. Next to DTE, the
fuel gauge fill color changes to yellow in low
fuel conditions. You can switch off the status
bar in the HUD settings menu.

Note: For Hybrid vehicles, the status bar also
displays your EV Range.

Speed Limit Display Area

Displays your speed limit information (if
available in the map database or detected
by the camera).

Speedometer Display Area

Displays your current vehicle speed and your
transmission gear selection.

Maintaining Your Head Up Display

•

Do not place objects onto the transparent
cover, as they may block you from seeing
portions of the image. These objects
could also damage the cover and affect
the quality of the projected image.

•

The system uses a special windshield
designed to provide the optimum image
quality. You must replace the windshield
in a vehicle with this system with a
certified original equipment
manufactured (OEM) head up display
windshield. Replacing this system's
windshield with a non-head up display
windshield causes a double image or
distorted image. Have an authorized
dealer or authorized repair facility replace
the windshield.

•

Light conditions such as oncoming
headlamps, sunrise, sunset or reflections
off road surfaces can affect the driver's
ability to see the HUD image.

•

Clean the windshield often for optimal
HUD performance.  See Cleaning the
Windows and Wiper Blades (page 374).

156

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

AUTOMATIC CLIMATE CONTROL

E286903

Note: Depending on your vehicle option
package, the controls may look different
from what you see here.

Note: You can switch temperature units
between Fahrenheit and Celsius.

Note: You can control some of the climate
features through the touchscreen.

Note: For Hybrid vehicles, the air
conditioning compressor may run and airflow
may be felt when the climate control is off
to provide cooling to the battery.

Accessing the Air Distribution Controls

E265283

Press and release the button to
activate the selection screen.

From the screen you can direct air to the
windshield, instrument panel or footwell
vents. You can direct air through any
combination of these vents.  See Climate
(page 472).

Accessing the Climate Control Menu

E265038

Press and release the button to
access additional controls for the
front climate system.

Accessing Rear Climate Controls

E270447

Press and release the button to
access additional controls for the
rear climate system.

Setting the Blower Motor Speed

E265389

Turn the control to adjust the volume of air
circulated in the vehicle.

157

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Climate Control

Setting the Temperature

E266187

E266186

Press the toggle button on the left-hand side
of the climate control upward or downward
to set the left-hand temperature.

Note: This control also adjusts the right-hand
side temperature when you switch off dual
zone mode.

Press the toggle button on the right-hand
side of the climate control upward or
downward to set the right-hand temperature.

Switching Auto Mode On and Off

Press and release the button to
switch on automatic operation.
Repeatedly press the button to

adjust auto mode.

The system adjusts the blower motor speed,
air distribution, air conditioning operation,
and outside or recirculated air to reach and
maintain the temperature you have set.

Under high humidity conditions, the system
adjusts the blower motor speed, air
distribution and air conditioning operation
to reduce window fogging.

Note: The system starts at the previous
setting when you switch on AUTO mode.

Note: You can also switch off dual zone
mode by pressing and holding the button for
more than two seconds.

158

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Climate Control

Auto Mode Indicator Status

Description

Auto Mode Indicator Status

One indicator illuminated.

•

The blower motor speed is reduced.
•

Use this setting to minimize the amount of noise from the blower motor.

•

This setting increases the time taken to cool the interior.

Two indicators illuminated.

•

The blower motor speed is moderate.

Three indicators illuminated.

•

The blower motor speed is increased.
•

Use this setting to reduce the time taken to cool the interior.

•

This setting increases the amount of noise from the blower motor.

Switching the Air Conditioning On and
Off

Press and release the button.

Use air conditioning with recirculated air to
improve cooling performance and efficiency.

Note: In certain conditions, such as
maximum defrost, the air conditioning
compressor may continue to operate even
though you switch off the air conditioning.

Note: The A/C LED light may turn on and off
based on the temperature setting or the
current conditions.

Switching the Climate Control On and
Off

Press and release the button.

Note: Your vehicle may not have a physical
button. You can use the touchscreen to turn
the climate control on and off.

159

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Climate Control

Switching Maximum Air Conditioning
On and Off

Press and release the button for
maximum cooling.

The driver and passenger temperatures are
set to LO, recirculated air flows through the
instrument panel air vents, air conditioning
turns on and the blower motor adjusts to the
highest speed.

Switching Maximum Defrost On and
Off

Press and release the button for
maximum defrosting.

The driver and passenger temperatures are
set to HI, air flows through the windshield air
vents, and the blower motor adjusts to the
highest speed.

Note: Depending on your region, air
conditioning turns on.

You can also use this setting to defog and
clear the windshield of a thin covering of ice.

Note: To prevent window fogging, you
cannot select recirculated air when
maximum defrost is on.

Note: The heated rear window also turns on
when you select maximum defrost.

Switching Recirculated Air On and Off

Press and release the button to
switch between outside air and
recirculated air.

The air currently in the passenger
compartment recirculates. This may reduce
the time needed to cool the interior, when
used with A/C, and reduce unwanted odors
from entering your vehicle.

Note: Recirculated air may turn off, or
prevent you from switching on, in all air flow
modes except MAX A/C to reduce the risk
of fogging. Recirculation may also turn on
and off in various air distribution control
combinations during hot weather to improve
cooling efficiency.

HINTS ON CONTROLLING THE
INTERIOR CLIMATE

General Hints

Note: Prolonged use of recirculated air may
cause the windows to fog up.

Note: You may feel a small amount of air
from the footwell air vents regardless of the
air distribution setting.

Note: To reduce humidity build-up inside
your vehicle, do not drive with the system
switched off or with recirculated air always
switched on.

Note: Do not place objects under the front
seats as this may interfere with the airflow
to the rear seats.

Note: Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

Note: To improve the time to reach a
comfortable temperature in hot weather,
drive with the windows open until you feel
cold air through the air vents.

160

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Climate Control

Automatic Climate Control

Note: Adjusting the settings when your
vehicle interior is extremely hot or cold is not
necessary. Automatic mode is best
recommended to maintain set temperature.

Note: The system adjusts to heat or cool the
interior to the temperature you select as
quickly as possible.

Note: For the system to function efficiently,
the instrument panel and side air vents
should be fully open.

Note: If you select AUTO during cold outside
temperatures, the system directs air flow to
the windshield and side window air vents. In
addition, the blower motor may run at a
slower speed until the engine warms up.

Note: If you select AUTO during hot
temperatures and the inside of the vehicle
is hot, the system uses recirculated air to
maximize interior cooling. Blower motor
speed may also reduce until the air cools.

Quickly Heating the Interior

1. Press and release AUTO.

2. Adjust the temperature function to the

setting you prefer.

Recommended Settings for Heating

1. Press and release AUTO.
2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.

Quickly Cooling the Interior

1. Press and release MAX A/C.

Recommended Settings for Cooling

1. Press and release AUTO.

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.

Defogging the Side Windows in Cold
Weather

1. Press and release defrost.

2. Adjust the temperature control to the

setting you prefer. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.

REAR PASSENGER CLIMATE
CONTROLS - VEHICLES WITH:
QUADRUPLE ZONE AUTOMATIC
TEMPERATURE CONTROL

Use the rear passenger touchscreen to
select the following:

E283811

Touch the climate button on the
feature bar to access the rear
passenger climate control screen.

Rear Passenger Climate Control Screen

E283809

161

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Climate Control

Selecting a Row

Touch 2nd Row to control the second row
climate.

Touch 3rd Row to control the third row
climate.

Linking the Rows

E282078

Touch the button to simultaneously
control the climate of the second
and third row.

Setting the Rear Blower Motor Speed

Touch the arrow buttons to adjust
the volume of air circulated in the
rear passenger compartment.

Setting the Rear Temperature

Touch the arrow buttons to set the
temperature in the rear passenger
compartment.

Switching the Rear Climate Control On
and Off

Touch the button to switch the
selected row controls on or off.

Note: When linked, touch the button to
switch both rows on or off.

Directing Air to the Overhead and Rear
Footwell Air Vents

Touch the button to activate the
selection screen.

Touch the button to direct airflow
to the overhead air vents.

Touch the button to direct airflow
to the rear footwell air vents.

Switching Rear Auto Mode On and Off

Touch AUTO switch on rear automatic
operation, then set the temperature.

Rear Climate Control Lock Message

A message displays when the controls are
locked through the front and you try to
operate them.

REAR PASSENGER CLIMATE
CONTROLS - VEHICLES WITH:
TRIPLE ZONE AUTOMATIC
TEMPERATURE CONTROL

E290004

Note: Depending on your vehicle option
package, the controls may look different
from what you see here.

162

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Climate Control

Directing Air to the Rear Console Air
Vents

Press and release the button to
direct airflow to the rear console
air vents.

Directing Air to the Rear Footwell Air
Vents

Press and release the button to
direct airflow to rear footwell air
vents.

Note: Air can be directed through any
combination of air vents.

Rear Climate Control Lock Indicator

Illuminates when the rear climate
controls are locked through the
front climate controls.

Note: If the rear climate controls are locked
and the rear climate system is turned off, the
indicator illuminates for a few seconds when
you try to use any of the rear climate
controls.

Setting the Rear Blower Motor Speed

E265389

Turn the control to adjust the volume of air
circulated in the rear passenger
compartment.

Setting the Rear Temperature

E265862

Turn the control to set the temperature in
the rear passenger compartment.

Switching Rear Auto Mode On

Press and release the button to
switch rear automatic operation on,
then set the temperature.

163

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Climate Control

The system adjusts the blower motor speed,
air distribution, air conditioning operation to
reach and maintain the temperature you
have set.

Switching the Rear Climate Control On
and Off

Press and release the button to
switch the rear climate control on
or off.

Note: If the system is on and Max Defrost is
switched on through the front climate
controls, the system turns off. It turns back
on when Max Defrost is switched off.

Note: If Max Defrost is switched on, the
system can be turned on at the same time.

Switching the Rear Heated Seats On
and Off

 (If Equipped)

See Heated Seats (page 182).

Switching the Rear Ventilated Seats
On and Off

 (If Equipped)

E268558

See Climate Controlled Seats
(page 183).

HEATED REAR WINDOW

E184884

Press the button to clear the rear
window of thin ice and fog.  The
heated rear window turns off after

a short period of time.

Note: Do not use harsh chemicals, razor
blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window. The vehicle warranty may not
cover damage to the heated rear window
grid lines.

HEATED EXTERIOR MIRRORS

When you switch the heated rear window
on, the heated exterior mirrors turn on.

Note: Do not remove ice from the mirrors
with a scraper or adjust the mirror glass
when it is frozen in place.

Note: Do not clean the mirror housing or
glass with harsh abrasives, fuel or other
petroleum-based cleaning products. The
vehicle warranty may not cover damage
caused to the mirror housing or glass.

REMOTE START

The climate control system adjusts the
interior temperature during remote start.

You can switch this feature on or off and
adjust the settings using the touchscreen.
See Settings (page 488).

You cannot adjust the climate control setting
during remote start operation.  Switch the
ignition on to make adjustments.

Based on your remote start settings, the
following vehicle-dependent features may
or may not remain on after remote starting
your vehicle:
•

Climate controlled seats.

•

Heated steering wheel.

164

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Climate Control

•

Heated mirrors.

•

Heated rear window.

•

Windshield wiper de-icer.

Note: For dual zone climate controlled seats,
the passenger seat setting defaults to match
the driver seat during remote start.

Automatic Settings

If Auto is on, the system sets the interior
temperature to 72°F (22°C) and heats or
cools the vehicle interior as required to
achieve comfort.

Note: In cold weather, the heated rear
window and heated mirrors turn on.

Last Settings

If Last Settings is on, the system uses the
settings last selected before you turned off
the vehicle.

Heated and Cooled Features

In Auto mode, certain heated features may
switch on during cold weather, and cooled
features during hot weather.

165

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Climate Control

ABOUT THE CABIN AIR FILTER

Your vehicle has a cabin air filter, which gives
you and your passengers the following
benefits:
•

It improves your driving comfort by
reducing particle concentration.

•

It improves the interior compartment
cleanliness.

•

It protects the climate control
components from particle deposits.

LOCATING THE CABIN AIR FILTER

You can locate the cabin air filter behind the
glove box.

CHANGING THE CABIN AIR FILTER

Replace the filter at regular intervals.  See
Scheduled Maintenance (page 512).

Note: Make sure you have a cabin air filter
installed at all times. This prevents foreign
objects from entering the system. Running
the system without a filter in place could
result in degradation or damage to the
system.

Note: Using an aftermarket cabin air filter
could reduce cabin air filtration and climate
control performance.

166

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Interior Air Quality

SITTING IN THE CORRECT
POSITION

WARNING: Sitting improperly, out of

position or with the seatback reclined too
far can take weight off the seat cushion
and affect the decision of the passenger
sensing system, resulting in serious injury
or death in the event of a crash. Always sit
upright against your seat back, with your
feet on the floor.

WARNING: Do not recline the

seatback too far as this can cause the
occupant to slide under the seatbelt,
resulting in serious injury in the event of a
collision.

WARNING: Do not place objects

higher than the top of the seat backrest.
Failure to follow this instruction could result
in personal injury or death in the event of
a sudden stop or crash.

E68595

When you use them properly, the seat, head
restraint, seatbelt and airbags will provide
optimum protection in the event of a crash.

We recommend that you follow these
guidelines:
•

Sit in an upright position with the base of
your spine as far back as possible.

•

Do not recline the seat backrest so that
your torso is more than 30° from the
upright position.

•

Adjust the head restraint so that the top
of it is level with the top of your head and
as far forward as possible. Make sure that
you remain comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in (25 cm)
between your breastbone and the airbag
cover.

•

Hold the steering wheel with your arms
slightly bent.

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the seatbelt
over the center of your shoulder and
position the lap strap tightly across your
hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

167

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

HEAD RESTRAINTS

WARNING: Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk of
neck injury in the event of a crash. Do not
adjust the head restraint when your vehicle
is moving.

WARNING: The head restraint is a

safety device. Whenever possible it should
be installed and properly adjusted when
the seat is occupied. Failure to adjust the
head restraint properly could reduce its
effectiveness during certain impacts.

Note: Adjust the seat backrest to an upright
driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

Adjusting the Head Restraint

Front Seat Head Restraints

E138642

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and release
button.

C

Guide sleeve unlock and remove
button.

D

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1. Press and hold button C.
2. Push the head restraint down.

Removing the Head Restraint

1. Pull the head restraint up until it reaches

its highest position.

2. Press and hold buttons C and D.
3. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

168

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats
