Fuel Gauge.

D

Coolant Gauge.

E

Left Information Group.

F

Status Bar

Displays information related to the current
audio source, compass direction and outside
air temperature.

Left and Right Information Group

Information that appears depends on current
gauge view and on-demand settings.  See
General Information (page 127).

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump symbol
indicates on which side of your vehicle the
fuel filler door is located.

Note: The fuel gauge may vary slightly when
your vehicle is moving or on a slope.

Distance to Empty

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but also
increase or stay constant for periods of time

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty reaches
75 mi (120 km) to empty for MyKey, and at
50 mi (80 km), 25 mi (40 km), 10 mi (20 km)
and 0 mi (0 km) for all vehicle keys.

Note: The low fuel reminder can appear at
different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

Engine Coolant Temperature Gauge

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator will be in the normal range. If the
engine coolant temperature exceeds the
normal range, stop your vehicle as soon as
safely possible, switch off the engine and let
the engine cool.

WARNING: Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap with
a thick cloth to prevent the possibility of
scalding and slowly remove the cap.
Failure to follow this instruction could result
in personal injury.

121

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Instrument Cluster

WARNING LAMPS AND
INDICATORS

The following warning lamps and indicators
alert you to a vehicle condition that may
become serious.  Some lamps illuminate
when you start your vehicle to make sure
they work.  If any lamps remain on after
starting your vehicle, refer to the respective
system warning lamp for further information.

Note: Some warning indicators appear in
the information display and function the
same as a warning lamp, but do not display
when you start your vehicle.

Adaptive Cruise Control

 (If Equipped)

E144524

The speed control system indicator
light changes color to indicate
what mode the system is in.  See

About Adaptive Cruise Control With Stop
and Go (page 264).

On (white light): Illuminates when you switch
on the adaptive cruise control system. Turns
off when the speed control system is turned
off.

Engaged (green light): Illuminates when you
engage the adaptive cruise control system.
Turns off when you disengage the speed
control system.

Adaptive Steering

 (If Equipped)

E223375

The adaptive steering system
indicator illuminates if the system
detects a fault during the

continuous diagnostic checks.

Adaptive Steering Initialization (yellow,
flashing): The adaptive steering system
detects a difference between steering wheel
angle and the desired road wheel angle. The
steering wheel adjusts itself to correct this
difference. This adjustment is part of normal
system operation.

Adaptive Steering Off (yellow, solid): The
adaptive steering system is off. It is possible
that the steering wheel may not be straight
when you drive straight ahead. If this
message persists, see an authorized dealer.

Adaptive Steering Loss (red, solid): The
adaptive steering system integrity cannot be
verified. Do not drive the vehicle and contact
an authorized dealer immediately.  See
Steering (page 294).

Anti-Lock Braking System

If it illuminates when you are
driving, this indicates a system
error.  You continue to have the

normal braking (without ABS) unless the
brake system warning lamp also illuminates.
Have the system checked by an authorized
dealer.

Automatic High Beam Control

 (If Equipped)

Illuminates when this feature is on.
See About Automatic High Beam
Control (page 111).

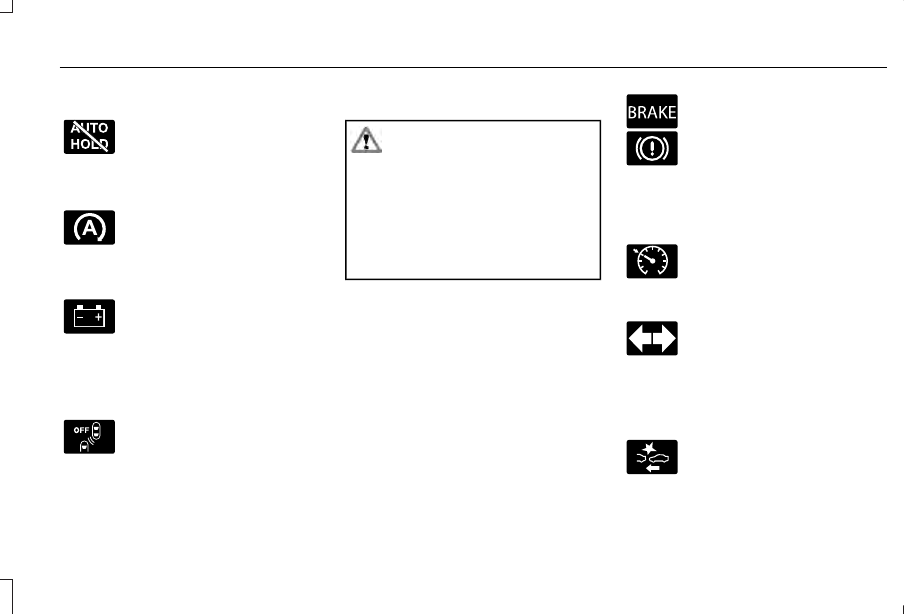

Auto Hold Active

E197933

Illuminates when the system holds
your vehicle stationary.

122

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Instrument Cluster

Auto Hold Unavailable

E197934

Illuminates when the system is on,
but unavailable to hold your
vehicle stationary.

Auto Start-stop

 (If Equipped)

Illuminates to inform you when the
engine shuts down or in
conjunction with a message.

Battery

If it illuminates while driving, it
indicates a system error. Switch off
all unnecessary electrical

equipment and have the system checked by
an authorized dealer immediately.

Blind Spot Monitor

 (If Equipped)

E151262

Illuminates when you switch this
feature off or in conjunction with a
message.  See Blind Spot

Information System (page 285).

Brake System Warning Lamp

WARNING: Driving your vehicle with

the warning lamp on is dangerous. A
significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

Note: Indicators vary depending on region.

This lamp is a dual function lamp and
illuminates when:

•

You apply the parking brake with the
ignition on.

•

Your vehicle has a brake fault or low
brake fluid level, regardless of parking
brake position.

E270480

If the lamp illuminates when you
are moving, you may have the
parking brake applied. Make sure
the parking brake is off. Have your
vehicle checked as soon as
possible if the lamp continues to

illuminate.

Cruise Control

 (If Equipped)

E71340

Illuminates when you switch this
feature on.

Direction Indicator

Illuminates when you switch on the
left or right direction indicator or
the hazard flasher. If the indicators

stay on or flash faster, check for a burned
out bulb.  See Changing a Bulb (page 369).

Distance Alert

E281485

Flashes when your vehicle is
rapidly approaching another
vehicle or a pedestrian within your

driving path.  See Pre-Collision Assist (page
295).

123

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Instrument Cluster

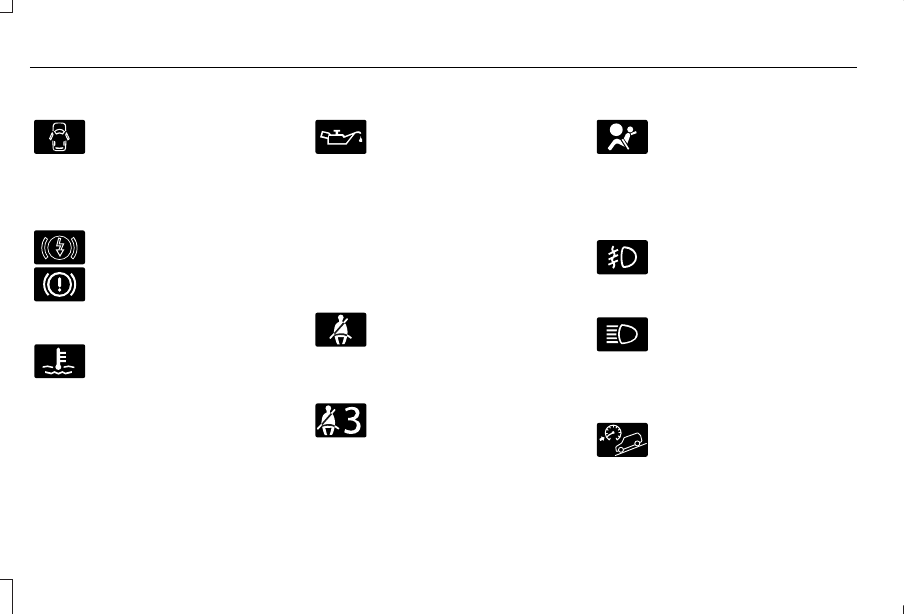

Door Ajar

Illuminates when the ignition is on
and any door is not completely
closed.

Electric Park Brake

Note: Indicators vary depending on region.

E146190

Illuminates or flashes when the
electric parking brake has a system
error.  See Electric Parking Brake
(page 232).

Engine Coolant Temperature

Illuminates when the engine
coolant temperature is high. Stop
your vehicle as soon as possible,

switch off the engine and let it cool.  See
Engine Coolant Check (page 356).

Engine Oil

If it illuminates with the engine
running or when you are driving,
this indicates a system error.  Stop

your vehicle as soon as it is safe to do so
and switch the engine off.  Check the engine
oil level.   See Engine Oil Check (page 354).

Note: Do not resume your journey if it
illuminates despite the level being correct.
Have the system checked by an authorized
dealer immediately.

Fasten Seatbelt

E71880

Illuminates and a tone sounds to
remind you to fasten your seatbelt.
See Seatbelt Reminder (page 47).

Fasten Rear Seatbelt

 (If Equipped)

E206718

Illuminates and a tone sounds to
signal the rear seatbelts are not
fastened.

Front Airbag

E67017

If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates

there is a system error. Have the system
checked by an authorized dealer.

Front Fog Lamps

 (If Equipped)

Illuminates when you switch the
front fog lamps on.

High Beam

Illuminates when you switch the
high beam headlamps on. It flashes
when you use the headlamp

flasher.

Hill Descent

 (If Equipped)

Illuminates when you switch hill
descent on.

124

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Instrument Cluster

Hood Ajar

E246598

Illuminates when the ignition is on
and the hood is not completely
closed.

Lamps On

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

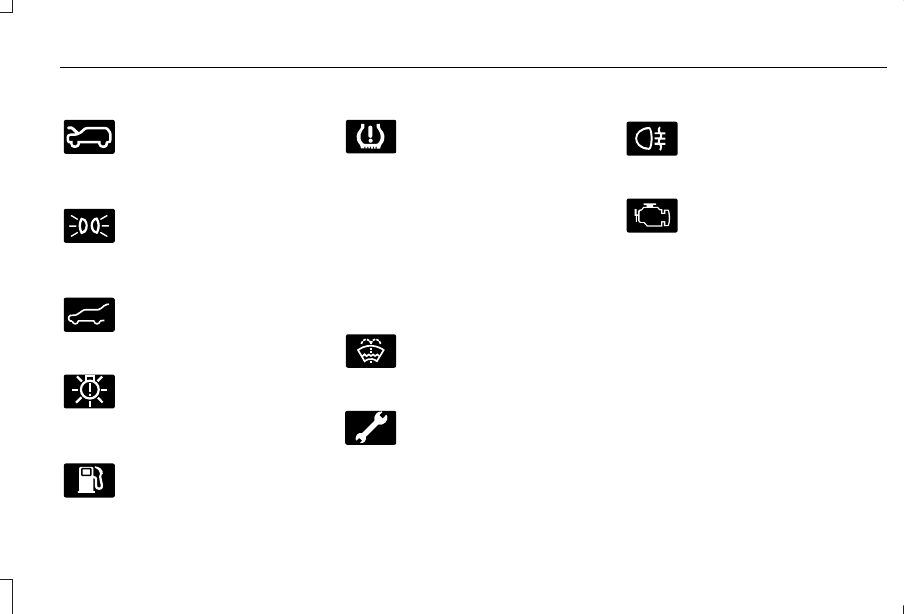

Liftgate Ajar

E162453

Illuminates when the liftgate is not
completely closed.

Low Beam Warning

E181350

Illuminates when the low beam
headlamp bulb is not functioning
properly.

Low Fuel Level

Illuminates when the fuel level is
low or the fuel tank is nearly
empty.  Refuel as soon as possible.

Low Tire Pressure Warning

Illuminates when your tire pressure
is low. If the lamp remains on with
the engine running or when

driving, check your tire pressure as soon as
possible.

It also illuminates momentarily when you
switch the ignition on to confirm the lamp is
functional. If it does not illuminate when you
switch the ignition on, or begins to flash at
any time, have the system checked by an
authorized dealer.

Low Washer Fluid

E132353

Illuminates when the windshield
washer fluid is low.

Powertrain Fault

Illuminates when the system
detects a powertrain or an 4WD
fault. Contact an authorized dealer

as soon as possible.

Rear Fog Lamps Indicator

 (If Equipped)

E67040

Illuminates when you switch the
rear fog lamps on.

Service Engine Soon

It illuminates when you switch the
ignition on prior to engine start to
check the bulb and to indicate

whether your vehicle is ready for Inspection
and Maintenance (I/M) testing.

Normally, it illuminates until the engine is
cranked and automatically turns off if no
system errors are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.
See Catalytic Converter (page 215).

If it illuminates when the engine is running
this indicates a system error. The On Board
Diagnostics system has detected an error in
the vehicle emission control system.

125

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Instrument Cluster

If it flashes, engine misfire may be occurring.
Continuing to drive your vehicle may cause
reduced power or the engine to stop.  Failure
to respond to the warning lamp may cause
component damage not covered by the
vehicle Warranty.  Have your vehicle
checked as soon as possible.

Stability Control

E138639

It flashes when the system is
active. If it remains illuminated or
does not illuminate when you

switch the ignition on, this indicates a system
error. During a system error the system
switches off. Have the system checked by
an authorized dealer immediately.  See
Using Stability Control (page 243).

Stability Control Off

E130458

Illuminates when you switch the
system off. It goes out when you
switch the system back on or when

you switch the ignition off.  See Using
Stability Control (page 243).

Tow Haul Indicator

 (If Equipped)

E246592

Illuminates when the system
switches on.

AUDIBLE WARNINGS AND
INDICATORS

Keyless Warning Alert

The horn will sound twice when you exit your
vehicle with the intelligent access key and
your vehicle is in RUN, indicating your vehicle
is still on.

Headlamps On Warning Chime

Sounds when you have left the headlamps
or parking lamps on and open the driver door
with the vehicle off.

Parking Brake On Warning Chime

Sounds when you have left the parking brake
on and drive your vehicle. If the warning
chime remains on after you have released
the parking brake, have the system checked
by your authorized dealer immediately.

126

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Instrument Cluster

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

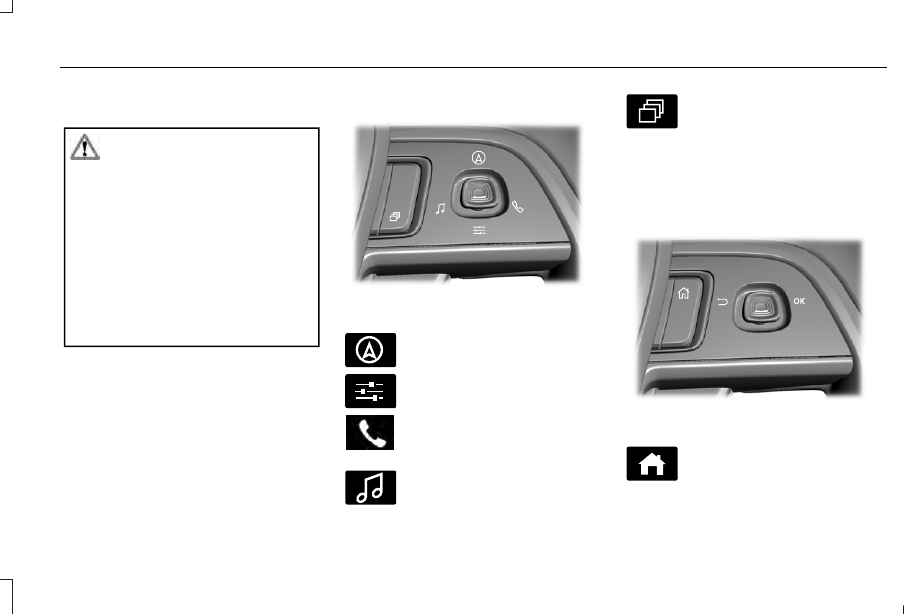

You can control various systems on your
vehicle using the quick action menu (QAM)
on the right-hand side of the steering wheel.
The information display provides the
corresponding information.

Information Display Controls

E281220

Note: The controls change when you enter
a submenu.

E281481

Move the selector switch up to
enter the navigation submenu.

E280315

Move the selector switch down to
enter the settings submenu.

Move the selector switch to the
right to enter the mode phone
submenu.

E100027

Move the selector switch to the left
to enter the media submenu.

E281483

Press the folder button to scroll
through information on demand
display screens.  See Personalized

Settings (page 130).

Menu Controls

The following controls are only available
once you enter a submenu:

E299701

Use the selector switch to toggle up and
down.

E272621

Press the home button to exit a
submenu.

127

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

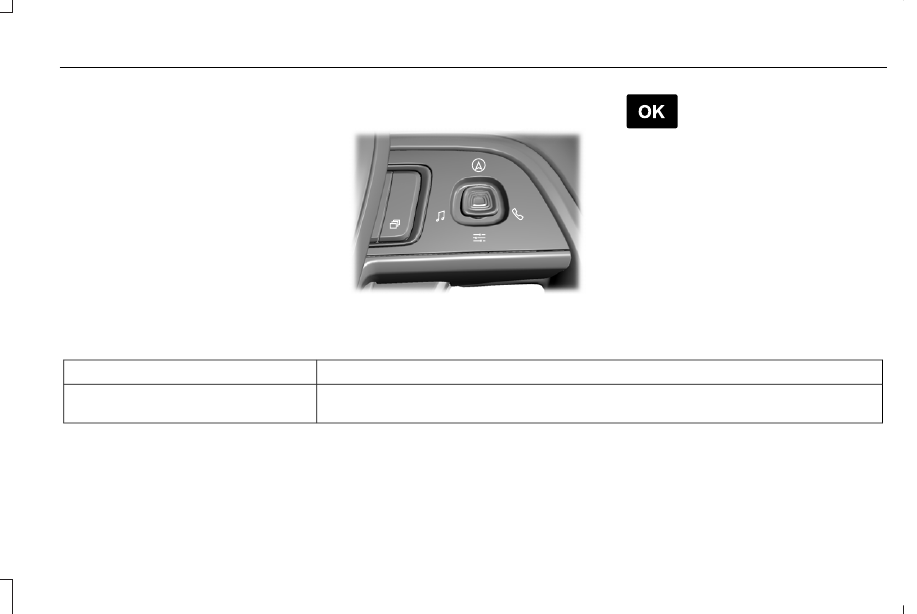

E281480

Move the selector switch to the left
to exit a submenu.

E265041

Move the selector switch to the
right to choose and confirm
settings or messages.

Menu

E204495

This icon shows the features on or
off status. A check in the box
indicates the feature is on, and

unchecked indicates the feature is off.

Note: Some menu items are regional specific
or optional and may appear slightly different
or not at all.

Settings

Settings

See Personalized Settings (page 130).

Information Screens

Display Setup

Speedometer km/h

Speedometer MPH

Add Tachometer to View

Enter the submenu and select your setting

Border Crossing

Displays your oil life status

Oil Life

Hold OK to Reset

Hold OK to Reset

Tire Monitor

With the engine off, hold OK to Initialize

Neutral Tow

Note: Additional vehicle settings are
available through your touchscreen.  See
Settings (page 488).

128

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

Head Up Display

Head Up Display

Menu options covered in the head up display section.  See Head Up Display (page 153).

Phone

Phone

Menu options covered in the SYNC chapter.  See Phone (page 475).

Audio

Audio

Menu options covered in the SYNC chapter.  See Entertainment (page 460).

Navigation

 (If Equipped)

Navigation

Menu options covered in the SYNC chapter.  See Navigation (page 477).

129

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

PERSONALIZED SETTINGS

Information On Demand

 (If Equipped)

Note: On Demand information appears on the right-hand side of the instrument cluster in single gauge view and in the center of the instrument
cluster in dual gauge view when you switch on certain drive modes.

Calm Screen

Trip 1

Trip 2

Fuel Economy

Auto StartStop

Seatbelts

Tire Pressure

Power Distribution

Trailer Light Check

Off Road

Eco Coach

130

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

Trip 1 and 2

Provides trip timer, trip average fuel economy
and total trip distance traveled.

Press and hold the folder button to reset.

Fuel Economy

An Instant Fuel Economy gauge is provided
along with Average Fuel Economy. Average
fuel economy is continuously averaged since
the last reset.

While viewing this screen you can reset your
average fuel economy by pressing and
holding the folder button.

INFORMATION MESSAGES

E281220

E265041

Move the selector switch to the
right to acknowledge and remove
some messages from the

information display. Other messages will be
removed automatically after a short time.

Certain messages need to be confirmed
before you can access the menus.

Active Park

Action

Message

The system requires service due to a malfunction. Have the system checked by an authorized

dealer.

Active Park Fault

131

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

Adaptive Cruise Control

Action

Message

A radar malfunction is preventing the adaptive cruise from engaging.  See About Adaptive Cruise

Control With Stop and Go (page 264).

Adaptive Cruise Malfunction

Front Sensor Not Aligned

Conditions exist such that the adaptive cruise cannot function properly.  See About Adaptive

Cruise Control With Stop and Go (page 264).

Adaptive Cruise Not Available

The radar is blocked because of poor radar visibility due to bad weather, ice, mud or water in

front of radar. You can typically clean the sensor to resolve.  See About Adaptive Cruise Control

With Stop and Go (page 264).

Adaptive Cruise Not Available Sensor

Blocked See Instruction

Displayed when the automatic braking has been disabled.

Normal Cruise Active Adaptive Braking Off

Displayed when the adaptive cruise has reinstated controls to the driver.

Adaptive Cruise - Driver Resume Control

Displays when the vehicle speed is too slow to activate the adaptive cruise.

Adaptive Cruise Speed Too Low to

Activate

Adaptive Headlamps

Action

Message

Displays when a system error has occurred. Contact an authorized dealer as soon as possible.

Check Headlamp System See Instruction

132

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

Adaptive Steering

Action

Message

The adaptive steering system detects a difference between steering wheel angle and the desired
road wheel angle. The steering wheel adjusts itself to correct this difference. This adjustment is

part of normal system operation.

Adaptive Steering Initialization

The adaptive steering system is off. It is possible that the steering wheel may not be straight

when you drive the vehicle straight ahead. If this message persists, see an authorized dealer.

Adaptive Steering Fault Service Required

The adaptive steering system integrity cannot be verified. Do not drive the vehicle and contact

an authorized dealer immediately.

Adaptive Steering Loss Do Not Drive

AdvanceTrac™ and Traction Control

Action

Message

The system detects a condition that requires service. Contact an authorized dealer as soon as

possible.

Service AdvanceTrac

The status of the system after you switched it off.

AdvanceTrac Off

The status of the system after you switched it off.

AdvanceTrac On

133

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

Action

Message

The status of the system after you switched it on.

AdvanceTrac SPORT MODE

The status of the system after you switched it off.

Traction Control Off

The status of the system after you switched it off.

Traction Control On

Alarm

Action

Message

Alarm triggered due to unauthorized entry.  See Anti-Theft Alarm (page 92).

Vehicle Alarm To Stop Alarm, Start Vehicle.

Automatic Engine Shutdown

Action

Message

The engine is getting ready to shut off.

Vehicle Shuts Off In {seconds:#0} Seconds

The engine has shut off to help increase fuel economy.

Vehicle Shut Off to Save Energy

The engine is getting ready to shut off. You can press OK on the left-hand steering wheel button

to override the shut down.

Vehicle Shuts Off in {seconds:#0} Seconds

Press Ok to Override

134

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

AWD

Action

Message

The all-wheel drive system temporarily turns off to protect itself from overheating.

AWD Temporarily Disabled

The all-wheel drive system is locking up the torque transfer clutch to help reduce clutch

temperature.

AWD Temporarily Locked

The all-wheel drive system temporarily turns off to protect itself from overheating or if you are

using the temporary spare tire.

AWD OFF

The all-wheel drive system will resume normal function and clear this message after driving a

short distance with the road tire re-installed or after the system cools.

AWD Restored

The all-wheel drive system is not operating properly. If the warning stays on or continues to

come on, contact an authorized dealer.

AWD Fault Service Required

Displayed when the transfer case fluid requires service.

Change AWD Power Transfer Unit Lube

Displayed when the transfer case fluid has been changed and reset to new.

AWD Power Transfer Unit Lube Set to New

135

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays

Battery and Charging System

Action

Message

The charging system needs servicing. If the warning stays on or continues to come on, contact

an authorized dealer as soon as possible.

Check Charging System

The charging system needs servicing. If the warning stays on or continues to come on, contact

an authorized dealer as soon as possible.

Charging System Service Soon

The charging system needs servicing. Contact an authorized dealer as soon as possible.

Charging System Service Now

The battery management system determines that the 12V battery is at a low state of charge.

Start the engine to charge the battery or charge the battery using an aftermarket battery charger.
This message clears once you restart your vehicle and the battery state of charge has recovered.

Battery State of Charge Low

The battery management system determines that the battery is at a low state of charge. Turn

the ignition off as soon as possible to protect the battery. This message will clear once the vehicle
has been started and the battery state of charge has recovered. Turning off unnecessary electrical

loads will allow faster battery state-of-charge recovery.

Turn Power Off To Save Battery

Displayed when the battery management system detects an extended low-voltage condition.

Various vehicle features will be disabled to help preserve the battery. Turn off as many of the

electrical loads as soon as possible to improve system voltage. If the system voltage has

recovered, the disabled features will operate again as normal.

Low Battery Features Temporarily Turned

Off

136

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Information Displays
