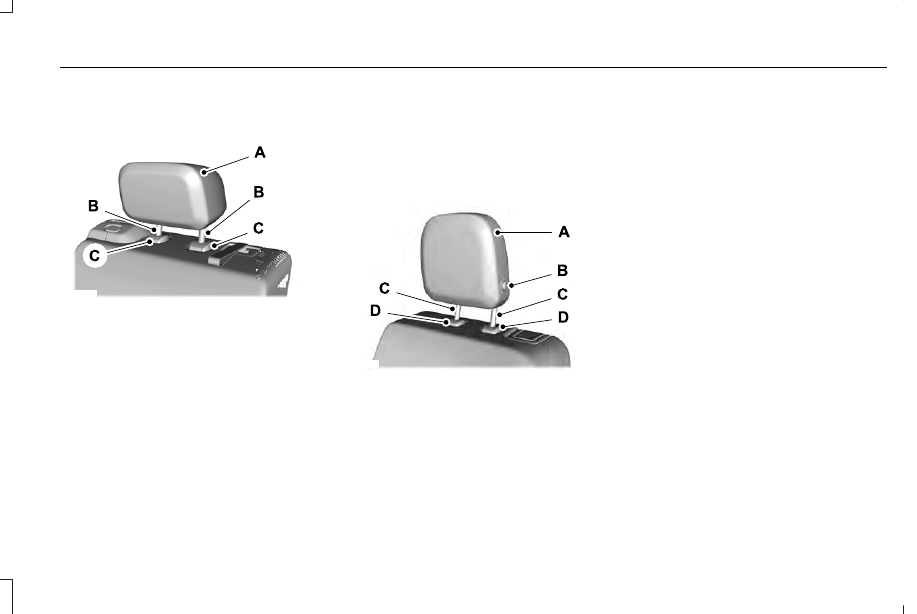

Second Row Center Seat Head Restraint
(If Equipped)

E286400

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and release
buttons.

C

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1. Press and hold C buttons.
2. Push the head restraint down.

Second Row Outermost Seat Head
Restraints

E281823

The head restraints consist of:

An energy absorbing head
restraint.

A

Fold button.

B

Two steel stems.

C

Guide sleeve unlock and remove
button.

D

Folding the Head Restraint

1. Press and hold button B.

2. Pull the head restraint back up to reset.

Removing the Head Restraint

1. Press and hold both D buttons.

2. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

169

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

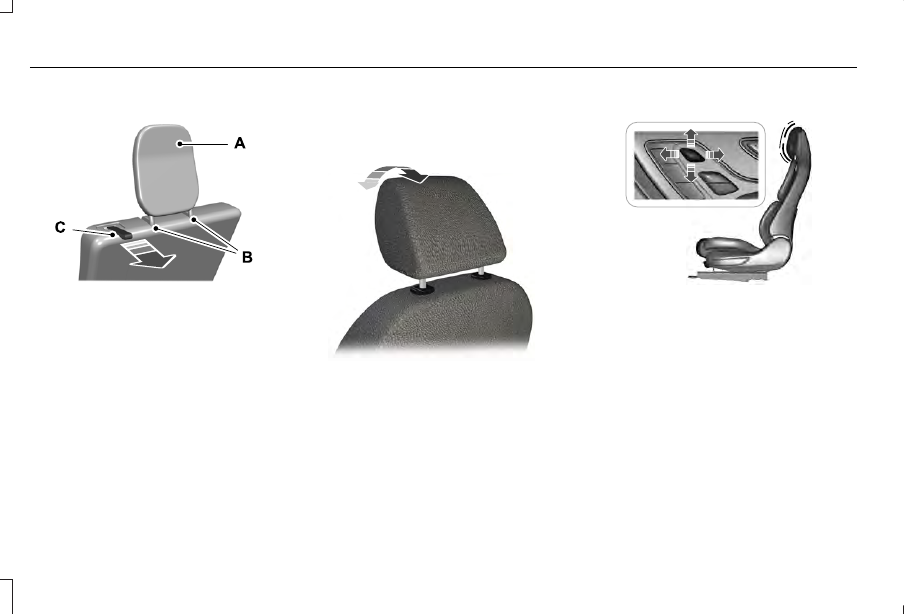

Third Row Seat Head Restraints

E286397

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Fold strap.

C

Folding the Head Restraint

Pull the fold strap (C). Pull the head restraint
back up to reset.

Tilting Head Restraints

The front head restraints tilt for extra comfort.
To tilt the head restraint, do the following:

E144727

1. Adjust the seat backrest to an upright

driving or riding position.

2. Pivot the head restraint forward toward

your head to the desired position.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, un-tilted
position.

Power Front Head Restraints (If Equipped)

E222280

To raise the head restraint, lift the switch up
until you reach a comfortable height.

To lower the head restraint, press the switch
down.

To move the head restraint forward, push
the switch forward until you reach the
desired position.

To move the head restraint rearward, push
the switch rearward.

170

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

POWER SEATS

WARNING: Do not adjust the driver

seat or seat backrest when your vehicle is
moving. This may result in sudden seat
movement, causing the loss of control of
your vehicle.

WARNING: Do not place cargo or

any objects behind the seatback before
returning it to the original position.

10-Way and 12-Way Seat Controls

The power seat controls are on the door.

E285258

Recline.

A

Lumbar control.

B

Memory function.

C

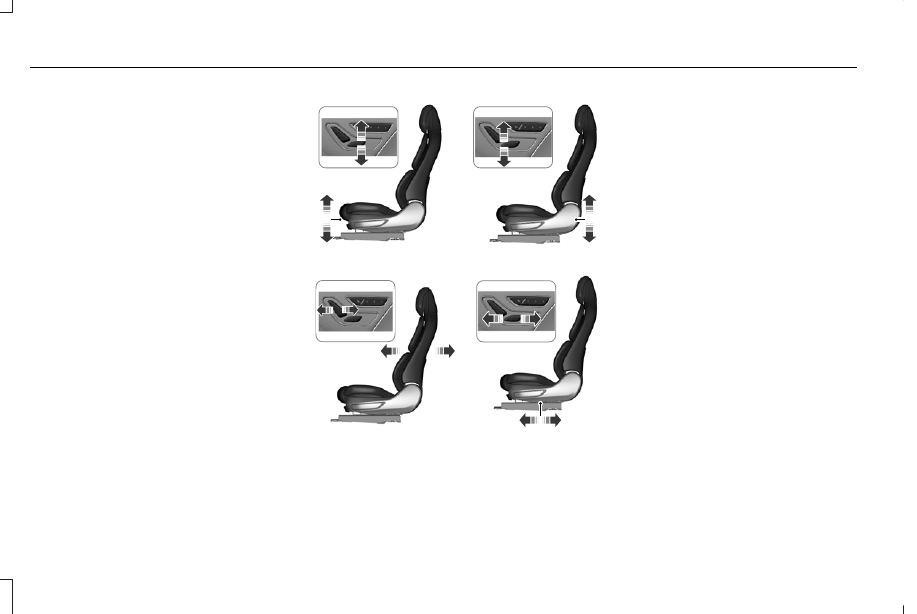

Seat adjust (forward, backward,
height and tilt).

D

E285278

Press this button to access the
lumbar menu on the touchscreen.

171

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

E285488

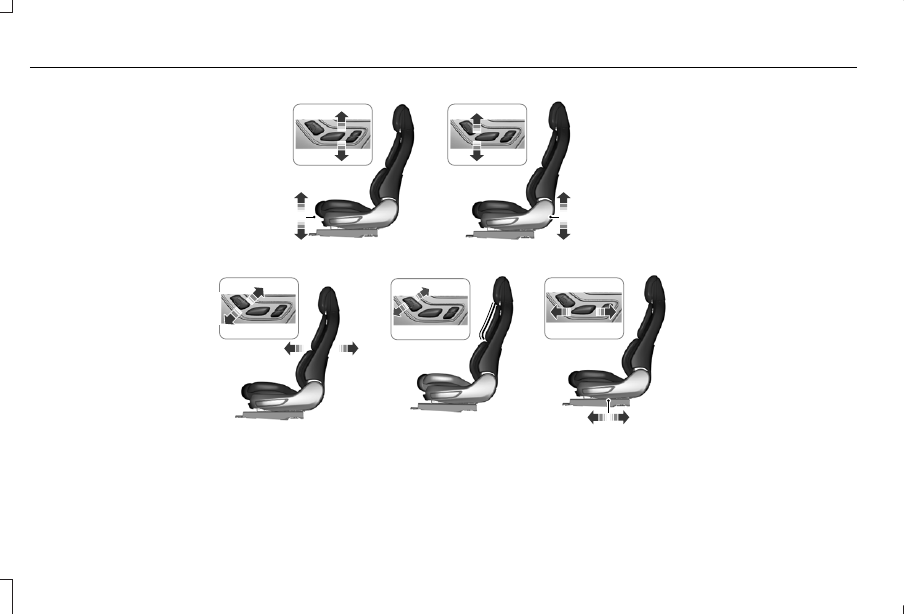

30-Way Seat Controls

The power seat controls are on the door.

172

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

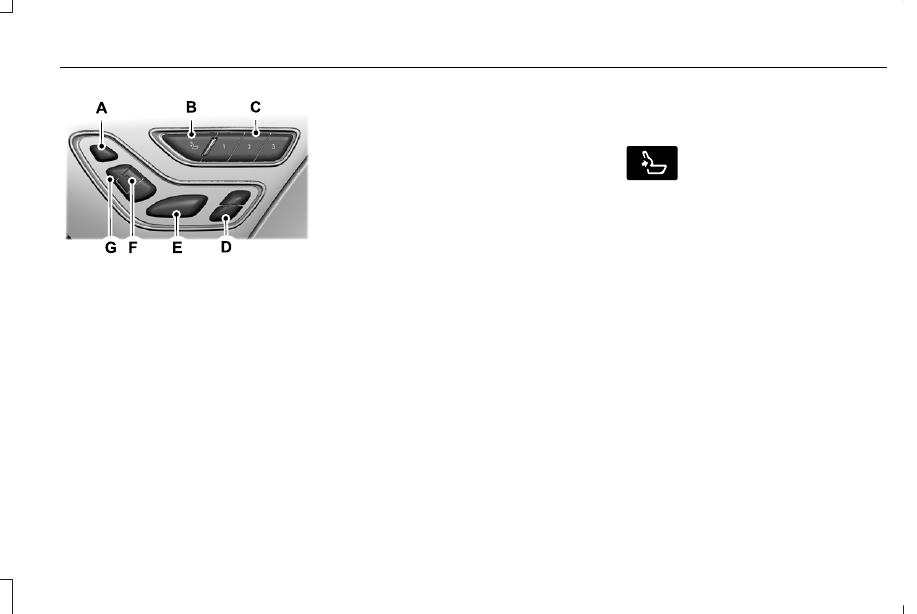

E282855

Head restraint.

A

Lumbar support.

B

Memory function.

C

Independent leg and thigh seat
extensions.

D

Seat adjust (forward, backward,
height and tilt).

E

Upper seat backrest.

F

Recline.

G

E285278

Press this button to access the
lumbar menu on the touchscreen.

173

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

E254489

174

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

Adjusting the Length of the Seat Cushion

E285685

Adjusting the Multi-Contour Front
Seats With Active Motion

 (If Equipped)

Note: The engine must be running or the
vehicle must be in accessory mode to
activate the seats.

Note: Allow a few seconds for any selection
to activate. The seat backrest and cushion
massage cannot function at the same time.

You can adjust this feature through the
touchscreen.  See SYNC™ 3 (page 446).

MEMORY FUNCTION

WARNING: Before activating the

memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants are
clear of moving parts.

WARNING: Do not use the memory

function when your vehicle is moving.

This feature recalls the position of the
following:

•

Driver seat.

•

Power mirrors.

•

Optional power steering column.

The memory control is on the driver door.

E283882

Saving a PreSet Position

1. Switch the ignition on.
2. Adjust the memory features to your

preferred position.

3. Press and hold the preferred preset

button until you hear a single tone.

You can save up to three preset memory
positions. You can save a memory preset at
any time.

175

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

Recalling a PreSet Position

Press and release the preset button
associated with your preferred driving
position. The memory features move to the
position stored for that preset.

Note: You can only recall a preset memory
position when the ignition is off, or when the
transmission is in park (P) or neutral (N) and
the vehicle is not moving if the ignition is on.

You can also recall a preset memory position
by:
•

Pressing the unlock button on your
remote control if it is linked to a preset
position.

•

Unlocking the intelligent driver door
handle if a linked remote control is
present.

•

Recalling a personal profile in your SYNC
3 menu.

Note: Using a linked remote control to recall
your memory position when the ignition is
off moves the seat to the Easy Entry position.

Note: Pressing any active memory feature
adjustment control, or any memory button
during a memory recall, cancels the
operation.

Easy Entry and Exit Feature

If you enable the easy entry and exit feature,
it moves the driver seat position rearward up
to 2 in (5 cm) when you switch the ignition
off.

The driver seat returns to the previous
position when you switch the ignition on.

You can enable or disable this feature
through the touchscreen.  See Settings
(page 488).

Personal Profiles

This feature allows you to create multiple
personal profiles enabling users to
personalize vehicle’s settings. You can
create one profile for each preset memory
seat button along with a guest profile. You
can recall a profile using SYNC 3 or the
preset button you selected when you created
your profile. You can also link a remote
control and a mobile device to your profile,
which are used to recall it.

Creating a Personal Profile

Use the SYNC display to create a personal
profile.

1. Switch the ignition on and leave the

vehicle in park (P).

2. Select the Personal Profiles button under

Settings.

3. Follow the instructions on the display.

176

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

Linking a Personal Profile to Your Remote
Control or Mobile Device

You can save preset memory positions for
up to three remote controls, by assigning a
remote control to a personal profile in your
SYNC 3. You can assign three additional
remote controls set up as Phone as a Key.
See Keys and Remote Controls (page 64).

Use the SYNC display to link a remote
control, mobile device or both to a personal
profile.

1. Switch the ignition on and leave the

vehicle in park (P).

2. Select the Personal Profiles button under

Settings.

3. Touch the arrow for the profile you wish

to link to a remote control or mobile
device.

4. Select the correct button to link a remote

control, mobile device, or both.

5. Follow the instructions on the display.

Note: To successfully link a mobile device,
the mobile device must be present in your
vehicle, and must have previously been
setup as a remote control for your vehicle.

Note: If more than one linked remote control
is in range, the memory function moves to
the settings of the first key to initiate a
memory recall.

Note: The guest profile consists of existing
settings when there is no driver profile
created. After you create a driver profile, the
guest profile serves as an additional driver
profile.

Note: You cannot link a personalized name,
a memory seat button or a remote control
to a guest profile.

Personal Settings

Personal Profiles allow you to personalize
positional settings such as seats and mirrors,
as well as non-positional settings such as
radio, navigation, driver assist and system
settings.  See SYNC™ 3 (page 446).  You
cannot change the menu locations and
settings of those personalized features with
Personal Profiles.

Note: Non-positional settings are saved to
the active driver profile whenever you
change a setting.

Note: You can save positional settings if you
press and hold a memory seat button.

Recalling and Changing a Profile

You can recall a profile by:
•

Using a remote control or mobile device
that has been linked to a driver profile to
access the remote start feature, press an
unlock button or open the door with the
exterior door handle.

•

Pressing a memory seat button that has
been linked to a driver profile.

•

Using the Personal Profiles menu on the
SYNC touchscreen.

Note: The recalled profile replaces the
previously active profile. If the active profile
is not your preferred profile, you can change
it using any of the three methods listed.

177

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

When you switch on the Personal Profiles
feature:
•

Unlocking a door with a remote control
or mobile device that is not linked to a
driver profile recalls non-positional
settings from the guest profile. It will not
change the positional settings.

•

Pressing a memory seat button that is
not linked to a driver profile or has not
been saved to a preset setting recalls
non-positional settings from the guest
profile. It will not change the positional
settings.

•

Pressing a memory seat button that is
not linked to a driver profile but has been
saved to a preset setting recalls
non-positional settings from the guest
profile. It recalls the positional settings
that you saved to that memory seat
button.

See SYNC™ 3 Troubleshooting (page 490).

When you switch off a Personal Profiles
feature:
•

Unlocking a door with a remote control
or mobile device recalls non-positional
settings from the guest profile and still
recalls positional settings from the driver
profile which the remote control or
mobile device had been linked to.

•

Pressing a memory seat button that has
not been linked to a driver profile or has
not been saved to a preset setting recalls
non-positional settings from the guest
profile. It will not change the positional
settings.

•

Pressing a memory seat button that has
been linked to a driver profile or has
saved to a preset setting recalls
non-positional settings from the guest
profile. It recalls the positional settings
that you saved to that memory seat
button.

REAR SEATS

WARNING: Always drive and ride

with your seatback upright and the lap belt
snug and low across the hips.

WARNING: Do not recline the

seatback too far as this can cause the
occupant to slide under the seatbelt,
resulting in serious injury in the event of a
collision.

178

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

Adjusting the Second Row Outermost
Seats Backrest

E281809

Lift the handle and adjust the seat backrest
rearward or forward.

Folding the Second Row Outermost
Seats Flat

E281813

Lift the handle and fold the seat backrest
forward until it is flat.

Adjusting the Second Row Seats for
Easy Entry

WARNING: Do not drive your vehicle

with a seat that is unlatched or in the
folded position. Failure to follow this
instruction could result in personal injury
or death in the event of a sudden stop or
crash.

WARNING: Do not place cargo or

any objects behind the seat backrest
before returning it to the original position.
Pull on the seat backrest to make sure that
it has fully latched after returning the seat
backrest to its original position. An
unlatched seat may become dangerous if
you stop suddenly or have a crash.

WARNING: Do not adjust a seat or

release a seat floor latch when the vehicle
is moving. Failure to follow this instruction
could result in personal injury or death in
a sudden stop or crash.

Note: You may have to move the front row
seat forward to allow the second row seat
to be fully folded.

Note:  You can move the second row
outermost seats forward to allow access to
the third row seats.

This feature allows for easier entry and exit
to and from the third row seat.

179

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

Folding the Second Row Center Seat

E281821

Pull the strap to fold the seat backrest flat.

To return the seat to the upright position,
rotate the seat backrest until it locks.

To recline the seat backrest, pull the strap
and adjust the seat backrest rearward or
forward.

Adjusting the Second Row Outermost Seats

E286395

Lift the handle to move the seat forward or
rearward.

Adjusting the Second Row Seats with
Power Easy Entry

WARNING: Do not fold a seat if it is

occupied. Failure to follow this instruction
could result in personal injury.

The easy entry seat allows for easier entry
and exit to and from the third row seat.

E281819

Press the button on top of the second row
seat backrest to move the seat forward. This
provides access to the third row.

180

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

E281818

1. Push the seat forward.

2. To return the seat to the seating position,

push the seat backrest rearward until it
latches.

Adjusting the Third Row Power Seats

WARNING: Do not fold a seat if it is

occupied. Failure to follow this instruction
could result in personal injury.

WARNING: Do not place cargo or

any objects behind the seatback before
returning it to the original position.

WARNING: Do not drive your vehicle

with a seat that is unlatched or in the
folded position. Failure to follow this
instruction could result in personal injury
or death in the event of a sudden stop or
crash.

Note: The power rear seat functions disable
10 minutes after you switch the ignition off.
The transmission must be in park (P) and the
liftgate must be open to operate the seats.

The control buttons are inside the liftgate
area.

E251776

Press to fold the left-hand third row
seat.

A

Press to fold and unfold both third
row seats.

B

Press to fold the right-hand third
row seat.

C

181

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

To return the third-row seat backrest to the
original position, press the corresponding
control again.

Note: If the seat does not completely fold or
unfold, press and hold the seat button until
the seat folds and unfolds twice.

If the power rear seat disables after 10
minutes, you can enable the seat by:
•

Opening any door.

•

Pressing the unlock button on the key
fob.

•

Pressing any keyless entry keypad
button.

•

Switching the ignition on.

HEATED SEATS

 (IF EQUIPPED)

Front Seats

WARNING: Use caution when using

the heated seat if you are unable to feel
pain to your skin because of advanced
age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion
or other physical conditions. The heated
seat could cause burns even at low
temperatures, especially if used for long
periods of time. Failure to follow this
instruction could result in personal injury.

WARNING: Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could result
in personal injury.

WARNING: Do not place anything

on the seat that blocks the heat, for
example a seat cover or a cushion. This
could cause the seat to overheat. Failure
to follow this instruction could result in
personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

Note: The engine must be running to use
this feature.

E146322

182

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

Note: Based on your remote start settings,
the heated seats may remain on after you
remote start your vehicle. The heated seats
may also turn on when you start your vehicle
if they were on when you switched your
vehicle off.

Second Row Heated Seats

WARNING: Use caution when using

the heated seat if you are unable to feel
pain to your skin because of advanced
age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion
or other physical conditions. The heated
seat could cause burns even at low
temperatures, especially if used for long
periods of time. Failure to follow this
instruction could result in personal injury.

WARNING: Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could result
in personal injury.

WARNING: Do not place anything

on the seat that blocks the heat, for
example a seat cover or a cushion. This
could cause the seat to overheat. Failure
to follow this instruction could result in
personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the seat heater if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

Note: The engine must be running to use
this feature.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

Note: Based on your remote start settings,
the heated seats may remain on after you
remote start your vehicle. The heated seats
may also turn on when you start your vehicle
if they were on when you switched your
vehicle off.

CLIMATE CONTROLLED SEATS

 (IF

EQUIPPED)

Heated Seats

183

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

WARNING: Use caution when using

the heated seat if you are unable to feel
pain to your skin because of advanced
age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion
or other physical conditions. The heated
seat could cause burns even at low
temperatures, especially if used for long
periods of time. Failure to follow this
instruction could result in personal injury.

WARNING: Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could result
in personal injury.

WARNING: Do not place anything

on the seat that blocks the heat, for
example a seat cover or a cushion. This
could cause the seat to overheat. Failure
to follow this instruction could result in
personal injury.

Note: The heated seats switch on during a
remote start if they are enabled through the
information displays.  See Remote Control
(page 64).

Note: The heated seats may also switch on
when you start your vehicle if they were on
when you previously switched your vehicle
off.

Note: Do not do the following:

•

Place heavy objects on the seat.

•

Operate the seat heater if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

E146322

Press this symbol to cycle through the
various heat settings and off. More indicator
lights indicate warmer settings.

The rear heated seat controls are on the rear
of the center console.

Ventilated Seats

Note: The ventilated seats switch on during
a remote start if they are enabled through
the information displays.  See Remote
Control (page 64).

Note: The ventilated seats may also switch
on when you start your vehicle if they were
on when you previously switched your
vehicle off.

Note: Do not do the following:

•

Spill liquid on the front seats. This may
cause the air vent holes to become
blocked and not work properly.

•

Place cargo or objects under the seats.
They may block the air intake causing
the air vents to not work properly.

The ventilated seats only function when the
engine is running.

184

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats
