Snowmobile Ski-Doo CROSSOVER E-TEC AND EFI SERIES. OPERATOR’S GUIDE (2024)

VEHICLE CARE

Post-Operation Care

Remove snow and ice from rear suspension, track, front suspension,

steering mechanism and skis.

WARNING

Make sure D.E.S.S. key is removed from D.E.S.S. post before

standing in front the vehicle, getting close to the track or rear

suspension components.

Always cover your snowmobile when leaving it outside overnight or

during extended periods of inactivity. This will protect it from frost and

snow as well as help retain its appearance.

Vehiiclle Clleaniing and Protection

Wash snowmobile using water mixed with a mild detergent.

Use only microfiber cloths or an equivalent.

NOTICE

Never use a high pressure washer to clean the vehicle. Use low

pressure only, like a garden hose.

Non Compatible Cleaning Products

Material Type

Non-Compatible Cleaning Products

BRAKE AND PARTS CLEANER

All plastics, vinyls,

painted steel and

ANY PETROLEUM BASE CLEANING

aluminium

PRODUCTS

Compatible Cleaning Products

Material Type

Cleaning Product

All plastics, vinyls,

Automotive type soap with water

painted steel and

XPS Spray Cleaner and Polish

aluminium.

XPS All Purpose Cleaner

For more information and products, Visit the XPS Products website at

www.xpslubricants.com

346

STORAGE

During summer, or when a snowmobile is not in use for more than

three months, proper storage is necessary.

Storage

Clean the vehicle

Add fuel stabilizer to fuel following the product manufacturer

recommendations.

Run the engine after adding the product to the fuel

Lubricate engine. Refer to Engine Storage Procedure in this

section.

Lubricate brake lever pivot

Lubricate rear suspension

Charge battery monthly to keep it fully charged during storage (if

equipped)

Block muffler outlet with rags

Lift rear of vehicle until track is clear of the ground. Do not release

track tension

CAUTION

Use appropriate lifting device or have assistance to share lifting

stress. If a lifting device is not used, use proper lifting techni-

ques, notably using your legs force. Do not attempt to lift the

rear of vehicle if it is above your limits.

NOTICE

The snowmobile has to be stored in a cool and dry place and

covered with an opaque but ventilated tarpaulin. This will pre-

vent sun rays and grime from affecting plastic components and

vehicle finish.

NOTICE

Fuel stabilizer should be added prior to engine lubrication to

prevent the loss of the chemical properties of fuel and protect

the fuel system against varnish deposits.

347

STORAGE

6. Remove the spark plugs and spray storage oil for 5 seconds in

each cylinder.

7. Spin the drive pulley for three complete revolutions by hand to dis-

tribute the storage oil to coat the cylinder walls.

8. Reinstall the spark plugs and tighten to specification.

Tightening torque

Spark plug

28 ± 2 Nm (21 ± 1 lbf-ft)

E-TEC Engine - 4.5” and 7.2” Digital Display

Follow these simple steps.

To engage the procedure, do the following:

1. Place the vehicle in a well ventilated area.

2. Start the engine and let it run at idle speed until it reaches its oper-

ating temperature (watch the coolant temperature on the display or

verify the rear heat exchanger becomes warm).

3. Push the SET (S) button to select odometer mode.

349

STORAGE

TYPICAL

Do not touch anything during engine lubrication cycle.

The engine lubrication function takes approximately 1 minute. Dur-

ing this time the engine RPM will increase slightly to approximately

1600 RPM and the oil pump will "oil flood" the engine.

At the end of engine lubrication procedure, the ECM will turn the

engine off.

Remove tether cord cap from engine cut-off switch.

NOTICE

Do not start the engine during storage period.

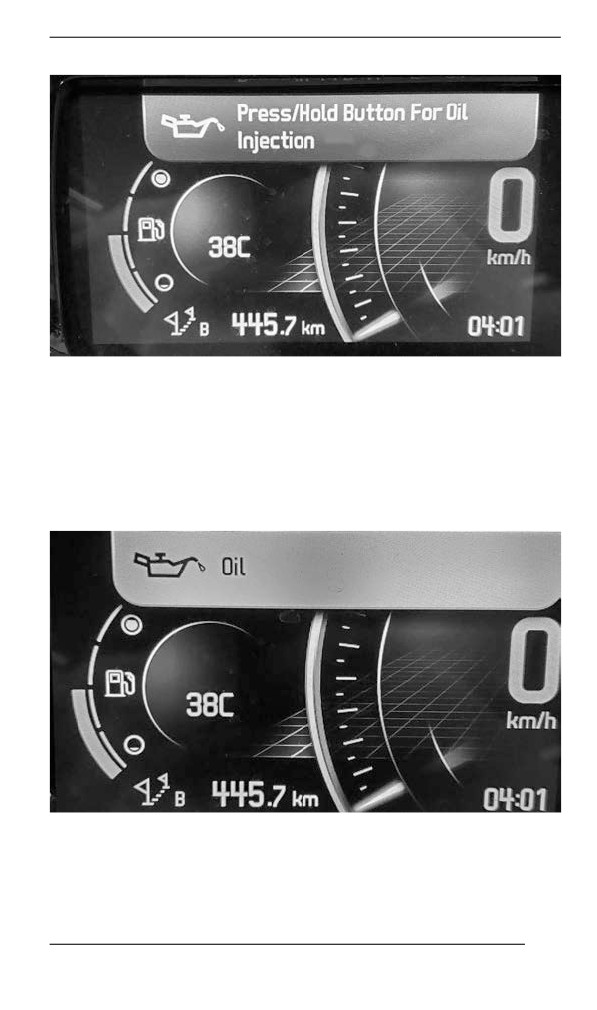

E-TEC Engine - Large Panoramic 7.8” Wide LCD Display

Follow these simple steps.

To engage the procedure, do the following:

1. Place the vehicle in a well ventilated area.

2. Start the engine and let it run at idle speed until it reaches its oper-

ating temperature (watch the coolant temperature on the display or

verify the rear heat exchanger becomes warm).

3. Using the rotary control, select the trip display but stay in odometer

mode.

351

VEHICLE IDENTIFICATION

520002459

FOR EUROPEAN MARKET

Identificatiion Numbers

The main components of your snowmobile (engine and frame) are

identified by different identification numbers. It may sometimes be-

come necessary to locate these numbers for warranty purposes or to

trace your snowmobile in the event of loss. These numbers are re-

quired by the authorized BRP snowmobile dealer to complete war-

ranty claims properly. We strongly recommend that you take note of

all the identification numbers on your snowmobile and supply them to

your insurance company.

Vehicle Identification Number (VIN)

VIN is scribed on vehicle description decal. See above. It is also en-

graved on tunnel near vehicle description decal.

Model number and model year are part of the information found in the

VIN. See illustration.

2BP

LSAB

000001

2BP = Canada

Serial

Model number

YH2 = Finland

number

Factory

S = Ski-Doo

V = Valcourt

L = Lynx

R = Rovaniemi

Numeric or

Alphabetic

Model year: P = 2023

Q = 2024

R=2025etc.

367

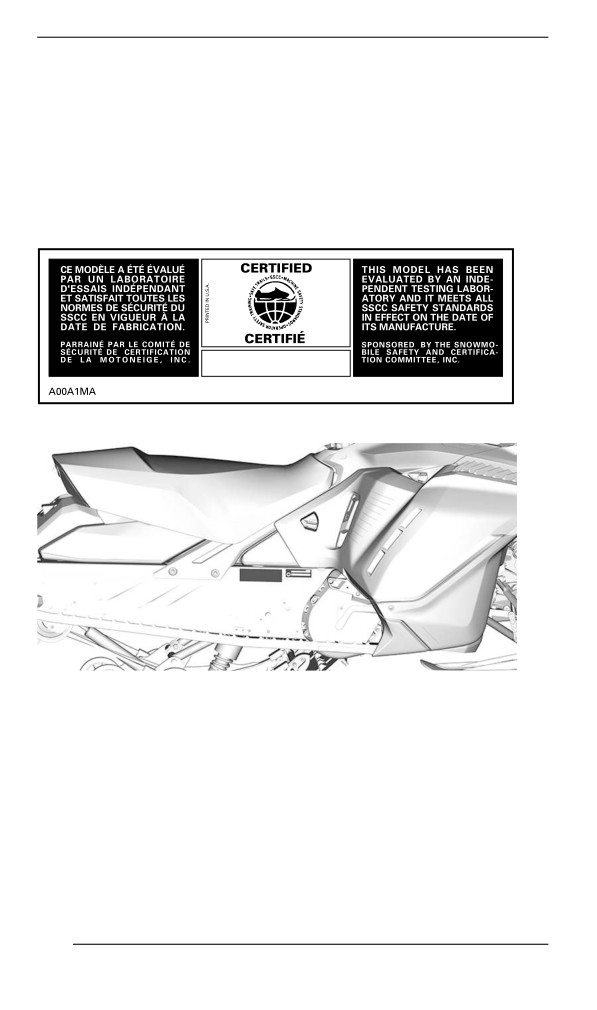

COMPLIANCE LABELS

SSCC Labell

Safety standards for snowmobiles have been adopted by the Snow-

mobile Safety and Certification Committee (SSCC) of which BRP is a

proud participating member. Assurance that your snowmobile meets

these standards is easily checked by locating the Certification Label

on a right vertical portion of the vehicle.

The following label shows that an independent testing laboratory has

verified compliance with the SSCC safety standards.

SSCC LABEL

TYPICAL

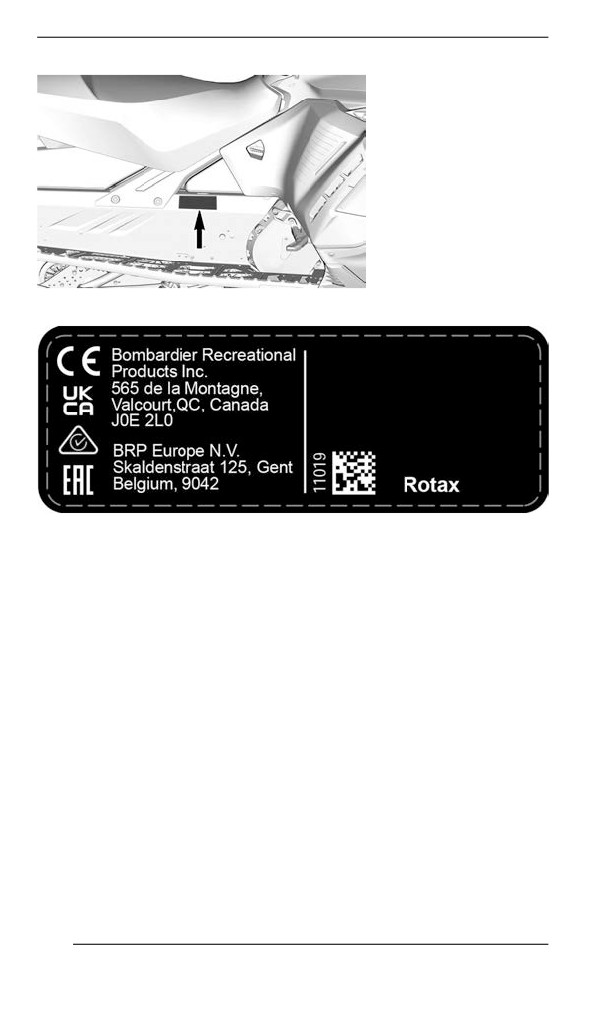

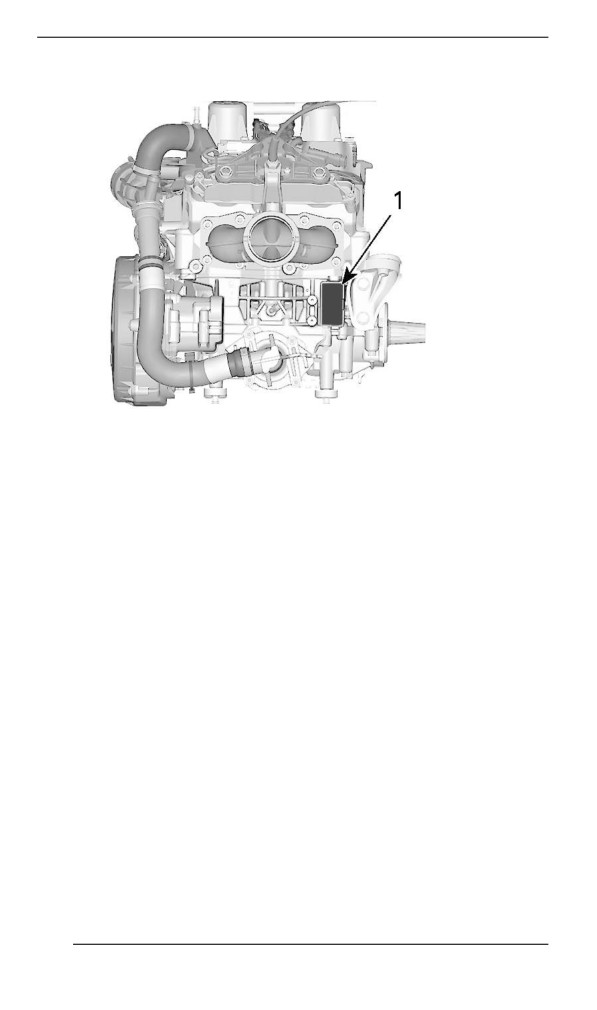

Regullatiion (EU) 2016/1628 appllicablle for

Non-Road Mobiile Machineries

Vehicles who comply to Regulation (EU) 2016/1628 (NRMM) are iden-

tified on the engine.

370

NOISE EMISSION AND VIBRATION VALUES

600R

MODEL

600 EFI

850 E-TEC

E-TEC

NOISE EMISSION AND VIBRATION VALUES¹

Sound

101 dB

98.3 dB

100 dB

power

(Uncertainty

level

(K_wa) 3 dB)

(L_WA)

Noise

Sound

83 dB

86.2 dB

86 dB

pressure

(Uncertainty

(L_pA)

(K_pA) 3 dB)

Han

d-arm

<2.5 m/s²

3.11 m/s²

<2.5 m/s²

system

Vibra

tion

Whole

body at

<0.5 m/s²

seat

¹: Noise emission and Vibration values are measured

in accordance with Annexes A and B of ISMA 1

regulation on a snow covered or grass surface in

neutral or without belt.

373

EPA CERTIFIED ENGINES

Engiine Emissions Informatiion

Manufacturer''s Responsibility

Snowmobile manufacturers of snowmobile engines need to determine

the exhaust emission levels for each engine horsepower family and

certify these engines with the United States of America Environmental

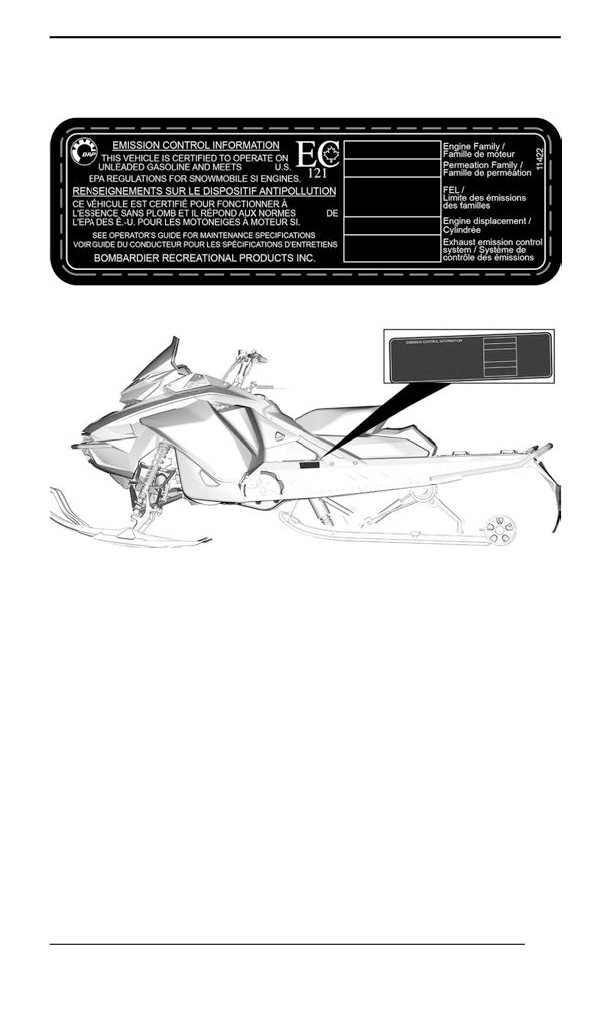

Protection Agency (EPA). An emissions control information label,

showing emission levels and engine specifications, must be placed on

each vehicle at the time of manufacture.

Dealer''s Responsibility

When performing service on a certified BRP snowmobiles that carry

an emissions control information label, adjustments must be kept with-

in published factory specifications.

Replacement or repair of any emission related component must be

executed in a manner that maintains emission levels within the pre-

scribed certification standards.

Dealers are not to modify the engine in any manner that would alter

the horsepower or allow emission levels to exceed their predeter-

mined factory specifications.

Exceptions include manufacturer's prescribed changes, such as alti-

tude adjustments for example.

Owner’s Responsibility

The owner / operator is required to have engine maintenance per-

formed to maintain emission levels within prescribed certification

standards.

The owner / operator is not to, and should not allow anyone to modify

the engine in any manner that would alter the horsepower or allow

emissions levels to exceed their predetermined factory specifications.

EPA Emission Regulations

All BRP snowmobiles manufactured by BRP are certified to the EPA

as conforming to the requirements of the regulations for the control of

air pollution from new snowmobile engines. This certification is contin-

gent on certain adjustments being set to factory standards. For this

reason, the factory procedure for servicing the product must be strictly

followed and, whenever practicable, returned to the original intent of

the design.

The responsibilities listed above are general and in no way a complete

listing of the rules and regulations pertaining to the EPA requirements

on exhaust emissions for snowmobile products. For more detailed in-

formation on this subject, you may contact the following locations:

376

RADIO FREQUENCY DIGITALLY ENCODED

SECURITY SYSTEM (RF D.E.S.S. KEY)

This device complies with FCC Part 15 and Industry Canada license

exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device

may not cause interference, and (2) this device must accept any inter-

ference, including interference that may cause undesired operation of

the device.

Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate the

equipment.

IC Registration

Engine

FCC ID

Number

12006A-100131703

2ACE

600 EFI

R-1001317030

12006A-100130169

2ACE

E-TEC

R-1001301698

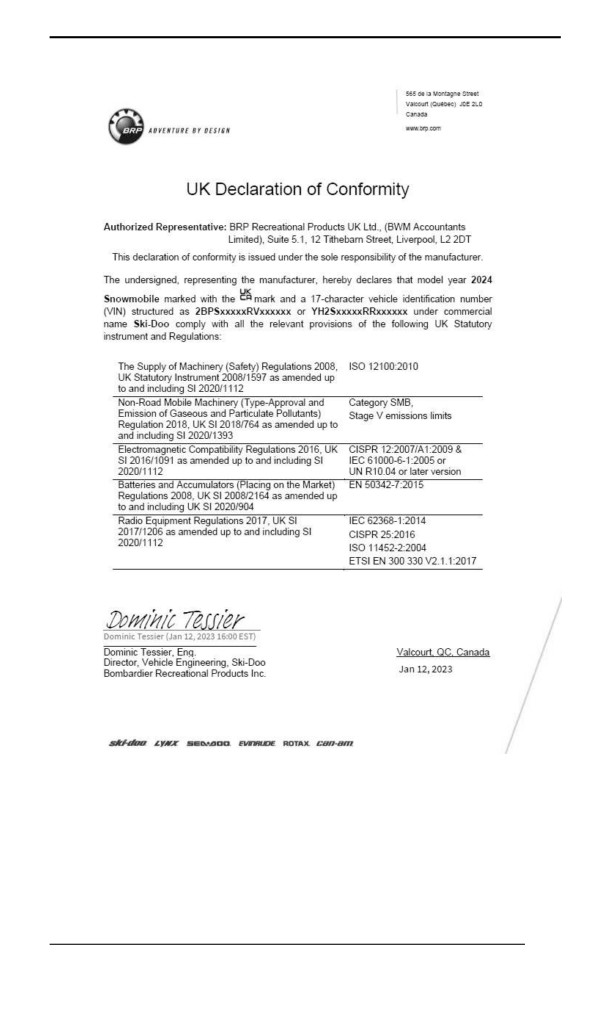

We, the party responsible for compliance, declare under our sole re-

sponsibility that the device is in conformity with the provisions of the

following Council Directive: 2014/53/EU. To which this declaration re-

lates is in conformity with the essential requirements and other rele-

vant requirements. The product is in conformity with the following

directives, harmonized standards and regulations:

Radio Equipment Directive

(RED)

2014/53/EU and Harmonized

Standards:

IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300

330 V2.1.1:2017

Radio Equipment Statutory Instrument 2017/1206 and Designated

Standards:

IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300

330 V2.1.1:2017

378

MULTIFUNCTION GAUGE REGULATORY

INFORMATION

Technical Information

Transmitter:

- BT operating frequency range: 2402 - 2480 MHz

- BT version: 4.2 (no BTLE)

- BT output power: < 8.5 dBm

Receiver:

- FM operating range: 76 - 108 MHz

Manufacturer and Address

Manufacturer:

- Robert Bosch LLC

Address:

38000 Hills Tech Drive,

Farmington Hills, MI 48331,

USA

To display the regulatory information on the vehicle digital

display:

From the home screen, access the main menu and keep the joystick

pressed down for more than 10 seconds.

USA and Canada

This device complies with FCC Part 15 and Industry Canada license

exempt RSS standard (s). Operation is subject to the following two

conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference

that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada appli-

cables aux appareils radio exempts de licence. L'exploitation est au-

torisée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectri-

que subi, même si le brouillage est susceptible d'en compromettre le

fonctionnement.

Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user's authority to operate the

equipment.

IC: 22868 - VDIBRHS01

FCC ID: 2AMJS - VDIBRHS01

RF exposure:

379

MULTIFUNCTION GAUGE REGULATORY INFORMATION

- The equipment complies with FCC RF exposure limits set forth for

an uncontrolled environment.

- This equipment must be installed and operated with a separation

distance of at least 20 cm from all persons.

- The antenna(s) used for this transmitter must not be co-located or

operating in conjunction with any other antenna or transmitter.

Mexico

IFETEL

Marca: Robert Bosch LLC

Modelo(s): VIPHI2BT

Número: RCPBOVI18-0967

NOM-121-SCT1-2009

La operación de este equipo está sujeta a las siguientes dos condi-

ciones: (1) es posible que este equipo o dispositivo no cause interfer-

encia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier

interferencia, incluyendo la que pueda causar su operación no

deseada.

Brazil

03473-18-04473

Este equipamento opera em caráter secundário, isto é, não tem direito

a proteção contra interferência prejudicial, mesmo de estações do

mesmo tipo, e não pode causar interferência a sistemas operando em

caráter primário.

Japan

This device is granted pursuant to the Japanese Radio Law (

)

and the Japanese Telecommunications Business Law

(

). This device should not be modified (otherwise the

granted designation number will become invalid).

380

MULTIFUNCTION GAUGE REGULATORY INFORMATION

Europe

Declaration of Conformity

Simplified EU Declaration of Conformity according Radio Equipment

Directive 2014/53/EU.

Hiermit erklärt Robert Bosch LLC, dass der Funkanlagentyp VIPHI2BT der Richtlinie 2014/53/EU entspricht.

Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: eu-doc.

bosch.com

Le soussigné, Robert Bosch LLC, déclare que l'équipement radioélectrique du type VIPHI2BT est conforme à la

directive 2014/53/UE.

Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante:eu-doc.

bosch.com

Robert Bosch LLC

VIPHI2BT

2014/53/.

: eu-doc.

bosch.com

Με την παρούσα ο/η Robert Bosch LLC, δηλώνει ότι ο ραδιοεξοπλισ×όØ VIPHI2BT πληροί την οδηγία 2014/53/EE.

Το πλήρεØ κεί×ενο τηØ δήλωσηØ συ××όρφωσηØ ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: eu-doc.

bosch.com

Tímto Robert Bosch LLC prohlašuje, že typ rádiového zařízení VIPHI2BT je v souladu se směrnicí 2014/53/EU.

Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: eu-doc.bosch.com

Hermed erklærer Robert Bosch LLC, at radioudstyrstypen VIPHI2BT er i overensstemmelse med direktiv

2014/53/EU.

EU-overensstemmelseserklæringens fulde tekst kan ðndes på følgende internetadresse: eu-doc.bosch.com

Käesolevaga deklareerib Robert Bosch LLC, et käesolev raadioseadme tüüp VIPHI2BT vastab direktiivi

2014/53/EL nõuetele.

ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: eu-doc.bosch.com

Por la presente, Robert Bosch LLC declara que el tipo de equipo radioeléctrico VIPHI2BT es conforme con la

Directiva 2014/53/UE.

El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: eu-doc.

bosch.com

Robert Bosch LLC vakuuttaa, että radiolaitetyyppi VIPHI2BT on direktiivin 2014/53/EU mukainen.

EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: eu-doc.

bosch.com

Hereby, Robert Bosch LLC declares that the radio equipment type VIPHI2BT is in compliance with Directive

2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: eu-doc.bosch.com

Robert Bosch LLC ovime izjavljuje da je radijska oprema tipa VIPHI2BT u skladu s Direktivom 2014/53/EU.

Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: eu-doc.bosch.com

Robert Bosch LLC igazolja, hogy a VIPHI2BT típusú rádióberendezés megfelel a 2014/53/EU irányelvnek.

Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: eu-doc.bosch.com

Il fabbricante, Robert Bosch LLC, dichiara che il tipo di apparecchiatura radio VIPHI2BT è conforme alla direttiva

2014/53/UE.

Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: eu-doc.

bosch.com

381

MULTIFUNCTION GAUGE REGULATORY INFORMATION

Aš, Robert Bosch LLC, patvirtinu, kad radijo įrenginių tipas VIPHI2BT atitinka Direktyvą 2014/53/ES.

Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: eu-doc.bosch.com

Ar šo Robert Bosch LLC deklarē, ka radioiekārta VIPHI2BT atbilst Direktīvai 2014/53/ES.

Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: eu-doc.bosch.com

B'dan, Robert Bosch LLC, niddikjara li dan it-tip ta' tagħmir tar-radju VIPHI2BT huwa konformi mad-Direttiva

2014/53/UE.

It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej: eudoc.

bosch.com

Hierbij verklaar ik, Robert Bosch LLC, dat het type radioapparatuur VIPHI2BT conform is met Richtlijn

2014/53/EU.

De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: eudoc.

bosch.com

Robert Bosch LLC niniejszym oświadcza, że typ urządzenia radiowego VIPHI2BT jest zgodny z dyrektywą

2014/53/UE.

Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym: eu-doc.bosch.com

O(a) abaixo assinado(a) Robert Bosch LLC declara que o presente tipo de equipamento de rádio VIPHI2BT está

em conformidade com a Diretiva 2014/53/UE.

O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: eudoc.

bosch.com

Prin prezenta, Robert Bosch LLC declară că tipul de echipamente radio VIPHI2BT este în conformitate cu

Directiva 2014/53/UE.

Textul integral al declaraiei UE de conformitate este disponibil la următoarea adresă internet: eu-doc.bosch.com

Härmed försäkrar Robert Bosch LLC att denna typ av radioutrustning VIPHI2BT överensstämmer med direktiv

2014/53/EU.

Den fullständiga texten till EU-försäkran om överensstämmelse nns på följande webbadress: eu-doc.bosch.com

Robert Bosch LLC potrjuje, da je tip radijske opreme VIPHI2BT skladen z Direktivo 2014/53/EU.

Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: eu-doc.bosch.com

Robert Bosch LLC týmto vyhlasuje, že rádiové zariadenie typu VIPHI2BT je v súlade so smernicou 2014/53/EÚ.

Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: eu-doc.bosch.com

Robert Bosch LLC lýsir því hér með yr að þráðlausi arskiptabúnaðurinn VIPHI2BT er í samræmi við tilskipun

2014/53/ESB.

Óstyttan texta ESB-samræmisyrlýsingarinnar er að nna á ve anginu: eu-doc.bosch.com

Liechtenstein

Hiermit erklärt Robert Bosch LLC, dass der Funkanlagentyp VIPHI2BT der Richtlinie 2014/53/EU entspricht.

Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: eudoc.

bosch.com

Hermed erklærer Robert Bosch LLC at radioutstyrstypen VIPHI2BT er i samsvar med direktiv 2014/53/EU.

Hele teksten i EU-samsvarserklæringen nnes på følgende internettadresse: eu-doc.bosch.com

382

ENGINE

600 EFI

ENGINE

600 EFI

Rotax 600 EFI

Engine type

liquid cooled with

reed valves

Number of cylinder

Bore

72.3 mm (2.85 in)

Stroke

73 mm (2.87 in)

Displacement

599.4 cm³ (36.6 in³)

Maximum power engine speed

7500 ± 100 RPM

FUEL SYSTEM

Throttle body

Fuel delivery

injection

Idle speed (not adjustable)

1500 ± 200 RPM

ELECTRICAL SYSTEM

30 A @ 14.5 V

Lighting system output

650W @ 6000 RPM

Type

BPR8ES

Spark plug

Not adjustable 0.6

Gap⁽¹⁾

to 0.7 mm (.024 to

.028 in)

LUBRICATION SYSTEM

Mechanical oil

Oil injection pump type

injection pump

XPS 2T Synthetic

Injection oil

Type⁽²⁾

Recommended

Blend oil

(semi-synthetic)

384

VEHICLE

Backcountry Sport

COOLING SYSTEM

XPS Extended life

Recommended

pre-mixed coolant

Ethyl glycol and

distilled water (50%/

Coolant type

50%)

Alternative, or if

or coolant

not available

specifically

formulated for

aluminum engines

FUEL SYSTEM

Fuel pump

In-tank electrical

Type

Regular unleaded

gasoline

Fuel

600 EFI

87 Pump posted

Octane rating

AKI (R+M)/2)

92 RON

Fuel tank capacity

36 l (9.5 gal (US))

ELECTRICAL SYSTEM

Battery

12 V, 18 A•h

Headlamp

2 x 60/55 W (H-13)

2.6 W / 139 mW

Taillight and stoplight

LED

Battery

30 A

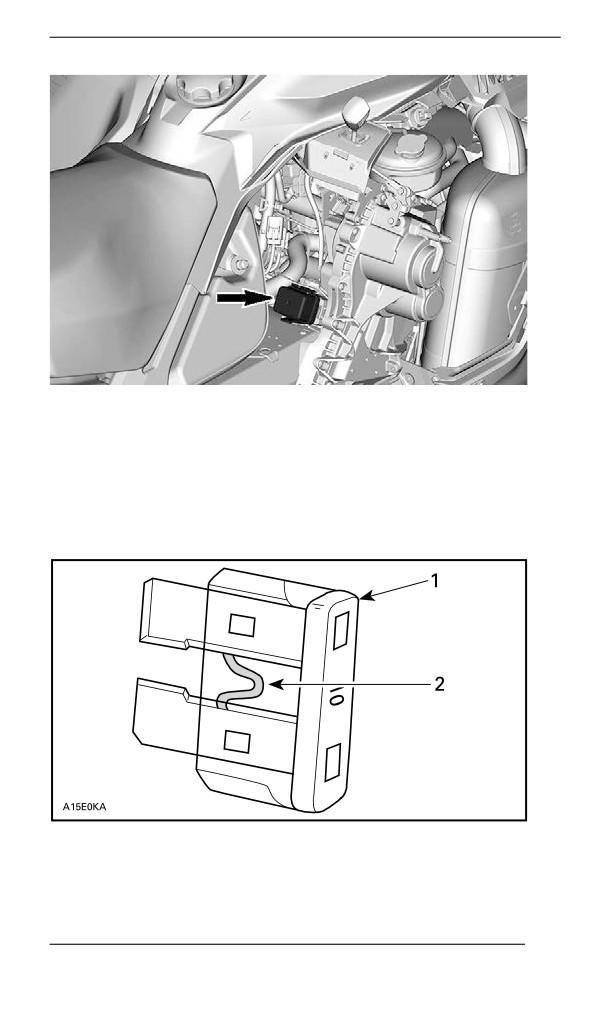

ECM/Engine/

Fuses

Fuel Pump/

20 A

Starter

Cluster

15 A

388

VEHICLE

DRIVE SYSTEM - TRACK

41 mm (1.6 in) or 50

Profile height

mm (2 in)

Deflection

32 mm (1.26 in)

Track adjustment³

Force

7.3 kgf (16 lbf)

BRAKE SYSTEM

Single 200-mm

Brake

Type

cross-drilled carbon

steel disc

Type

DOT 4

Brake fluid

65 ml (2.2 fl oz

Quantity

(US))

Fixed twin pistons (2

Caliper

x 40 mm)

Brake pad material

Organic

Minimum brake pad thickness (includes

5.0 mm (.197 in)

backing plate)

Minimum brake disc thickness

4.5 mm (.177 in)

Maximum brake disc warpage

0.25 mm (.010 in)

FRONT SUSPENSION

Suspension type

RAS X

Suspension maximum travel

220 mm (8.7 in)

Shock absorber type

Motion Control

390

VEHICLE

REAR SUSPENSION

Suspension type

cMotion

Suspension maximum travel

239 mm (9.4 in)

Measured at rear arm

Shock

Center

Motion Control

absorber

type

Rear

HPG

WEIGHT AND DIMENSIONS

Mass (dry)

202 kg (446 lb)

Overall length

317.4 cm (125 in)

114 cm (44.9 in) to

Overall width

118 cm (46.5 in)

Overall height

128.3 cm (50.5 in)

Ski stance

99 cm (39 in) or

(1)

Do not attempt to adjust gap on this spark

NOTICE

plug.

(2)

Refer to INJECTION OIL for detailed information.

(3)

Refer to Track Tension Verification in Maintenance

Procedures for detailed procedure.

Expediitiion

COOLING SYSTEM

XPS Extended life

Coolant type

Recommended

pre-mixed coolant

391

VEHICLE

COOLING SYSTEM

Ethyl glycol and

distilled water (50%/

50%)

Alternative, or if

or coolant

not available

specifically

formulated for

aluminum engines

FUEL SYSTEM

Fuel pump

In-tank electrical

87 Pump Posted

600 EFI

AKI (R+M)/2)

92 RON

Octane

Fuel

rating

91 Pump Posted

600R E-TEC

AKI (R+M)/2)

850 E-TEC

(RON)

36 l (9.5

Expedition Sport

gal(liq.,US))

Fuel tank

capacity

Expedition LE / SE /

42 l (11.1

Extreme

gal(liq.,US))

ELECTRICAL SYSTEM — 600 EFI

Battery

Expedition Sport

12 V, 18 A•h

Headlamp

2 x 60/55 W (H-13)

2.6 W / 139 mW

Taillight and stoplight

LED

Battery

30 A

ECM/ Egine/

Fuses

Fuel Pump/

20 A

Starter

Cluster

15 A

392

VEHICLE

DRIVE SYSTEM - CHAINCASE

Recommended

XPS Synthetic

Chaincase Oil or

equivalent.

Type

75W140 gear oil

Alternative, or if

Chaincase

that meets the API

not available

oil

GL-5 specification

350 ml (12 fl

Capacity

oz(US))

Expedition

Chain drive ratio

21/49

Sport

DRIVE SYSTEM - GEARBOX

Synchromesh

Transmission

Type

Synthetic Oil or

Gearbox oil (if equipped)

equivalent.

900 ml (30.4 fl

Capacity

oz(US))

Low

3.87:1

600R

E-TEC

High

2.15:1

Gearbox

ratio

Low

3.59:1

850

E-TEC

High

2.0:1

DRIVE SYSTEM - PULLEYS AND TRACK

600 EFI

pDrive LC

Drive pulley

Type

600R E-TEC

pDrive with clickers

850 E-TEC

394

VEHICLE

DRIVE SYSTEM - PULLEYS AND TRACK

600 EFI

2300 ± 100 RPM

Engage

ment

600R E-TEC

3400 ± 100 RPM

RPM

850 E-TEC

3800 ± 100 RPM

Driven

Type

QRS

pulley

Drive sprocket number of teeth

Expedition

41 cm (16 in)

Sport

Expedition LE

20”

Width

Expedition SE

50 cm (20 in)

Expedition

Xtreme

Expedition LE

61 cm (24 in)

24”

Track

Length

392.3 cm (154 in)

Expedition

38 mm (1.5 in)

Sport/ LE

38.1 mm (1.5 in)

Profile

Expedition SE

height

45.7 mm (1.8 in)

Expedition

45.7 mm (1.8 in)

Xtreme

600R E-TEC

35 mm (1.38 in)

Deflec

850 E-TEC

Track

tion

adjustment

600 EFI

45 mm (1.77 in)

Force

7.3 kgf (16 lbf)

395

VEHICLE

BRAKE SYSTEM

Single 200 mm

Brake

Type

cross drilled carbon

steel disc

Type

DOT 4

Brake fluid

Quantity

65 ml (2.2 fl oz(US))

Fixed twin pistons

Caliper

(2 x 40mm)

Brake pad material

Organic

Minimum brake pad thickness (includes

5 mm (.2 in)

backing plate)

Minimum brake disc thickness

4.5 mm (.177 in)

Maximum brake disc warpage

0.25 mm (.010 in)

FRONT SUSPENSION

Suspension type

RAS X

Expedition

210 mm (8.3 in)

Sport

Suspension maximum

travel

Expedition LE/

220 mm (8.7 in)

SE/ Xtreme

Expedition

Motion Control

Sport

Expedition LE/

Shock absorber type

HPG

Expedition

HPG Plus

Xtreme

396

VEHICLE

REAR SUSPENSION

Suspension type

SC-5U

Suspension maximum travel

239 mm (9.4 in)

Measured at rear arm

Expedition

Motion control

Sport

Expedition LE/

Center

HPG

Expedition

HPG Plus

Shock

Xtreme

absorber

type

Expedition

HPG

Sport/ LE

ACS (Air Controlled

Rear

Expedition SE

Suspension)

Expedition

KYB Pro 36 Easy

Xtreme

adjust

WEIGHT AND DIMENSIONS

Expedition

228 kg (502 lb)

Sport

Expedition LE

280 kg (616 lb)

20”

Mass (dry)

Expedition SE

290 kg (639 lb)

Expedition LE

285 kg (626 lb)

24”

Expedition

271 kg (596 lb)

Xtreme

Expedition

330.9 cm (130.3 in)

Sport

Overall length

Expedition LE/

325.6 cm (128.2 in)

397

VEHICLE

WEIGHT AND DIMENSIONS

Expedition

329.3 cm (129.6 in)

Xtreme

Expedition

114 to 118 cm (44.9

Sport/ Xtreme

to 46.5 in)

Overall width

Expedition LE/

120 to 124 cm (47.7

to 48.8 in)

Expedition

151.3 cm (59.6 in)

Sport/ LE/ SE

Overall height

Expedition

128 cm (50.4 in)

Xtreme

97.5 cm (38.4 in) to

Ski stance

102 cm (40.2 in)

Expedition

25 kg (55 lb)

Rear rack capacity

Sport

(including tongue

weight)

Expedition LE/

57 kg (125 lb)

SE/ Extreme

Rear under seat storage

15 l (4 gal(liq.,US))

Expedition LE/

compartment loading

SE/ Extreme

capacity

10 kg (22 lb)

135 l (35.7

Cargo Box capacity

Expedition SE

gal(liq.,US)) or

48 kg (105 lb)

Total vehicle load

Expedition

206 kg (454.2 lb)

allowed

Sport

(including occupant(s),

all other loads and

Expedition LE/

238 kg (525 lb)

added accessories)

SE/ Extreme

398

TROUBLESHOOTING GUIDELINES – E-TEC

ENGINES

ELECTRIC STARTER DOES NOT WORK

1. Emergency engine stop switch in OFF position or tether

cord cap not installed on engine cut-off switch.

- Place the emergency engine stop switch in the ON position

and install tether cord cap (on engine cut-off switch.

2. Throttle applied while attempting an engine start.

- Release throttle while cranking.

ENGINE IS CRANKING BUT FAILS TO START

1. No fuel to the engine.

- Check fuel tank level, add fuel if necessary.

2. System voltage too low.

- Contact an authorized BRP snowmobile dealer.

ENGINE RPM DOES NOT REACH CLUTCH ENGAGEMENT

POINT

1. D.E.S.S. did not read D.E.S.S. key code in the tether cord

cap. D.E.S.S. pilot lamp blinks (slow short beeps/

repetitive).

- Properly install tether cord cap.

2. D.E.S.S. has read a different code than the one

programmed. D.E.S.S. pilot lamp blinks rapidly (fast short

beeps/repetitive).

- Install a tether cord cap for which this snowmobile was

programmed.

3. ECM does not recognize the D.E.S.S. key.

- Refer to an authorized BRP snowmobile dealer.

402

TROUBLESHOOTING GUIDELINES - E-TEC ENGINES

ENGINE LACKS ACCELERATION OR POWER

Engine warm-up in progress.

- Drive vehicle at low speeds for a few minutes.

Engine break-in period not completed.

- Complete break-in period.

Drive and driven pulleys require servicing.

- Contact an authorized BRP snowmobile dealer.

Engine overheats.

- Check coolant level, see Maintenance procedures.

- Check heat exchangers cleanliness. Clean if necessary.

Drive belt worn too thin.

- If the drive belt has lost more than 3 mm (1/8 in) of its

original width, it will affect vehicle performance.

- Replace drive belt.

Incorrect track adjustment.

- See MAINTENANCE and/or an authorized Lynx dealer for

proper alignment and tension adjustments.

R.A.V.E. valves problem.

- Seek service from an authorized BRP snowmobile dealer,

repair shop, or person of your own choosing for

maintenance, repair, or replacement.

Fuel pressure too low.

- Seek service from an authorized BRP snowmobile dealer,

repair shop, or person of your own choosing for

maintenance, repair, or replacement.

403

TROUBLESHOOTING GUIDELINES - E-TEC ENGINES

ENGINE BACKFIRES

1. Engine is running too hot.

- See item 4 of ENGINE LACKS POWER.

2. Ignition timing is incorrect or there is an ignition system

failure.

- Seek service from an authorized BRP snowmobile dealer,

repair shop, or person of your own choosing for

maintenance, repair, or replacement.

3. Exhaust system leak.

- Seek service from an authorized BRP snowmobile dealer,

repair shop, or person of your own choosing for

maintenance, repair, or replacement.

4. Fuel pressure too low.

- Seek service from an authorized BRP snowmobile dealer,

repair shop, or person of your own choosing for

maintenance, repair, or replacement.

ENGINE MISFIRES

1. Water in fuel.

- Drain fuel system and refill with fresh fuel.

2. RAVE valves malfunction.

- Have RAVE valves system inspected. Seek service from an

authorized BRP snowmobile dealer, repair shop, or person

of your own choosing for maintenance, repair, or

replacement.

HEATED GRIPS/THUMB WARMERS ARE NOT WORKING

1. Engine RPM is too low.

- Make sure engine RPM is above 2000.

ENGINE HAS SHUT DOWN

1. The engine shuts down after long periods of idling.

- Do not let engine idle too long. Refer to Vehicle warm-up in

operating instruction.

404

MONITORING SYSTEM

Piilot Lamps, Messages and Beeper Codes

Gauge pilot lamp(s) will inform you if an anomaly occurs or to inform

you of a particular condition.

TYPICAL — PILOT LAMPS

Pilot lamp can flash alone or in combination with another lamp.

The lower display is used as a complement of the pilot lamps to give

you a brief description if an anomaly occurs or to inform you of a par-

ticular condition.

7.2" DIGITAL LOWER DISPLAY

4.5" DIGITAL LOWER DISPLAY

Messages will be displayed with a beep code and pilot lamp(s).

Beeper codes will be heard and messages will be displayed to catch

your attention.

See table below for details.

405

MONITORING SYSTEM

NOTE:

Some of the listed pilot lamps and messages do not apply to all

models.

Pilot

Message

lamp

Beeper

Description

display

Engine is overheating,

reduce snowmobile

speed and run in loose

snow or stop engine

immediately and let

engine cool down.

HIGH

Check coolant level,

ENGINE

refer to Maintenance. If

TEMPERA

coolant level is correct

TURE

and overheating

persists, contact an

1 Long

authorized BRP

beep

snowmobile dealer. Do

repeat

not run the engine if

ing

condition persists.

Reduce speed or stop

engine. Let engine cool

down and restart. If

overheating persists,

MUFFLER

contact an authorized

OVERHEAT

BRP snowmobile

dealer. Do not run the

engine if condition

persists.

Critical overheat. Stop

engine immediately and

let engine cool down.

1 Long

HIGH

Check coolant level,

beep

ENGINE

refer to Maintenance. If

repeat

TEMPERA

coolant level is correct

ing

TURE

and overheating

persists, contact an

authorized BRP

snowmobile dealer. Do

406

MONITORING SYSTEM

Pilot

Message

lamp

Beeper

Description

display

not run the engine if

condition persists.

MUFFLER

Critical overheat. Stop

OVERHEAT

engine immediately and

let engine cool down. If

overheating persists,

contact an authorized

ECM

BRP snowmobile

OVERHEAT

dealer. Do not run the

engine if condition

persists.

Indicate a low or high

battery voltage

—

BATT VOLT

condition. See an

authorized BRP

snowmobile dealer as

soon as possible.

Engine fault, see an

1 Long

authorized BRP

beep

CHECK

snowmobile dealer,

repeat

ENGINE

repair shop or person of

ing

your own choosing as

soon as possible.

Displayed when brake is

applied for more than 15

seconds while throttle

—

lever is squeezed and

vehicle is moving at

more than 5 km/h (3

MPH).

4 short

Engine detonation

beeps

—

KNOCK

(RPM is limited when

every 5

this condition occurs).

minutes

407

MONITORING SYSTEM

Pilot

Message

lamp

Beeper

Description

display

- Ensure

recommended fuel is

used.

- Check fuel quality,

replace if

necessary.

- If fault still occurs,

contact an

authorized BRP

snowmobile dealer,

repair shop, or

person of your own

choosing.

4 short

Engine RPM limited for

beeps

—

REV LIMIT

protection when certain

every 5

faults occur.

minutes

Indicates that maximum

—

OVER REV

engine RPM is reached.

Check clutch calibration.

Short

Shutdown procedure in

beeps

force due to engine

—

repeat

SHUTDOWN

overheating or fuel

ing

pump problem.

rapidly

Good key, vehicle ready

—

to operate.

Unable to read key (bad

DESS

connection). Make sure

—

WRONG KEY

the key is clean and

correctly snapped on

post.

408

BRP LIMITED WARRANTY USA AND

CANADA: 2024 SKI-DOO® SNOWMOBILES

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2024

Ski-Doo snowmobiles sold by authorized BRP dealers (as defined be-

low) in the United States of America (“USA”) and in Canada from de-

fects in material or workmanship for the period and under the

conditions described below. This limited warranty will become null and

void if: (1) the snowmobile was used for racing or any other competi-

tive activity, at any point, even by a previous owner; or (2) the snow-

mobile has been altered or modified in such a way so as to adversely

affect its operation, performance or durability, or has been altered or

modified to change its intended use.

Non-factory installed parts and accessories are not covered under this

limited warranty. Please refer to the applicable parts and accessories

limited warranty text.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS

EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE

LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE

UNDER THIS WARRANTY. SOME STATES/PROVINCES DO

NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-

CLUSIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY

NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS

WHICH MAY VARY FROM STATE TO STATE, OR PROVINCE

TO PROVINCE.

Neither the distributor, any BRP dealer nor any other person has been

authorized to make any affirmation, representation or warranty regard-

ing the product, other than those contained in this limited warranty,

and if made, shall not be enforceable against BRP. BRP reserves the

right to modify this limited warranty at any time, being understood that

such modification will not alter the warranty conditions applicable to

the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

412

BRP LIMITED WARRANTY USA AND CANADA: 2024 SKI-DOO^®

SNOWMOBILES

Damage caused by failure to provide proper maintenance and/or

storage, as described in the Operator's Guide;

Damage resulting from removal of parts, improper repairs, service,

maintenance, modifications or use of parts or accessories not

manufactured or approved by BRP or resulting from repairs done

by a person that is not an authorized servicing BRP dealer;

Damage caused by abuse, abnormal use, neglect, use of the prod-

uct on surfaces other than snow, or operation of the product in a

manner inconsistent with the recommended operation described in

the Operator’s Guide;

Damage resulting from accident, submersion, fire, theft, vandalism

or any act of God;

Operation with fuels, oils or lubricants which are not suitable for

use with the product (see the Operator’s Guide);

Snow or water ingestion;

–

Incidental or consequential damages, or damages of any kind in-

cluding without limitation towing, storage, telephone, rental, taxi, in-

convenience, insurance coverage, loan payments, loss of time,

loss of income; and

Damage resulting from studs installed on tracks if the installation

does not conform to BRP’s instructions.

WARRANTY COVERAGE PERIOD

This limited warranty will be in effect from the date of delivery to the

first retail consumer or the date the product is first put into use, which-

ever occurs first and for the following period:

TWELVE (12) CONSECUTIVE MONTHS, for private or commercial

use owners. However, the warranty coverage period on a snowmobile

delivered between June 1^st and December 1^st of a given year will ex-

pire November 30^th of the following year.

For emission-related components; please also refer to the US EPA

Emission-Related Warranty contained herein.

The repair or replacement of parts or the performance of service under

this warranty does not extend the life of this warranty beyond its origi-

nal expiration date.

CONDITIONS REQUIRED FOR WARRANTY

COVERAGE

This warranty coverage is available only if each of the following condi-

tions has been fulfilled:

- The 2024 Ski-Doo snowmobile must be purchased as new and un-

used by its first owner from a BRP dealer authorized to distribute

Ski-Doo snowmobiles in the country in which the sale occurred

(“BRP dealer”);

413

BRP LIMITED WARRANTY USA AND CANADA: 2024 SKI-DOO^®

SNOWMOBILES

- The BRP specified pre-delivery inspection process must be com-

pleted and documented and signed by the purchaser;

- The 2024 Ski-Doo snowmobile must have undergone proper regis-

tration by an authorized BRP dealer;

- The 2024 Ski-Doo snowmobile must be purchased in the country

in which the purchaser resides; and

- Routine maintenance outlined in the Operator’s Guide must be

timely performed in order to maintain warranty coverage. BRP re-

serves the right to make warranty coverage contingent upon proof

of proper maintenance.

BRP will not honor this limited warranty to any private use owner or

commercial use owner if one of the preceding conditions has not been

met. Such limitations are necessary in order to allow BRP to preserve

both the safety of its products, and also that of its consumers and the

general public.

WHAT TO DO TO OBTAIN WARRANTY

COVERAGE

The customer must cease using the snowmobile upon the appearance

of an anomaly. The customer must notify a servicing BRP dealer with-

in three (3) days of the appearance of a defect, and provide it with rea-

sonable access to the product and reasonable opportunity to repair it.

The customer must also present to the authorized BRP dealer, proof

of purchase of the product and must sign the repair/work order prior to

starting the repair in order to validate the warranty repair. All parts re-

placed under this limited warranty become the property of BRP.

WHAT BRP WILL DO

BRP’s obligations under this warranty are limited to, at its sole discre-

tion, repairing parts found defective under normal use, maintenance

and service, or replacing such parts with new genuine Ski-Doo parts

without charge for parts and labor , at any authorized BRP dealer dur-

ing the warranty coverage period under the conditions described here-

in. No claim of breach of warranty shall be cause for cancellation or

rescission of the sale of the snowmobile to the owner.

In the event that service is required outside of the country of original

sale, the owner will bear responsibility for any additional charges due

to local practices and conditions, such as, but not limited to, freight, in-

surance, taxes, license fees, import duties, and any and all other finan-

cial charges, including those levied by governments, states, territories

and their respective agencies.

BRP reserves the right to improve or modify products from time to time

without assuming any obligation to modify products previously

manufactured.

414

BRP LIMITED WARRANTY USA AND CANADA: 2024 SKI-DOO^®

SNOWMOBILES

TRANSFER

If the ownership of a product is transferred during the warranty cover-

age period, this limited warranty, subject to its terms and conditions,

shall also be transferred and be valid for the remaining coverage peri-

od provided BRP or an authorized Ski-Doo Distributor/Dealer receives

a proof that the former owner agreed to the transfer of ownership, in

addition to the co-ordinates of the new owner.

CONSUMER ASSISTANCE

In the event of a controversy or a dispute in connection with this limited

warranty, BRP suggests that you try to resolve the issue at the dealer-

ship level. We recommend discussing the issue with the authorized

dealer's service manager or owner.

If the matter still remains unresolved, contact BRP by filling out the

customer contact form at www.brp.com or contact BRP by mail at one

of the addresses listed under the CONTACT US section of this guide.

415

US EPA EMISSION-RELATED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants to the ulti-

mate purchaser and each subsequent purchaser that this new engine,

including all parts of its exhaust emission-control system and its evap-

orative emission-control system, meets two conditions:

1. It is designed, built, and equipped so it conforms at the time of sale

to the ultimate purchaser with the requirements of 40 CFR 1051

and 40 CFR 1060.

2. It is free from defects in materials and workmanship that may keep

it from meeting the requirements of 40 CFR 1051 and 40 CFR

1060.

Where a warrantable condition exists, BRP will repair or replace, as it

elects, any part or component with a defect in materials or workman-

ship that would increase the engine’s emissions of any regulated pol-

lutant within the stated warranty period at no cost to the owner,

including expenses related to diagnosing and repairing or replacing

emission-related parts. All defective parts replaced under this warranty

become the property of BRP.

For all emission-related warranty claims, BRP is limiting the diagnosis

and repair of emission-related parts to the authorized Ski-Doo dealers,

unless for emergency repairs as required by item 2 of the following

list.

As a certifying manufacturer, BRP will not deny emission-related war-

ranty claims based on any of the following:

1. Maintenance or other service BRP or BRP's authorized facilities

performed.

2. Engine/equipment repair work that an operator performed to cor-

rect an unsafe, emergency condition attributable to BRP as long as

the operator tries to restore the engine/equipment to its proper con-

figuration as soon as possible.

3. Any action or inaction by the operator unrelated to the warranty

claim.

4. Maintenance that was performed more frequently than BRP

specify.

5. Anything that is BRP fault or responsibility.

6. The use of any fuel that is commonly available where the equip-

ment operates unless BRP written maintenance instructions state

that this fuel would harm the equipment’s emission control system

and operators can readily find the proper fuel. See maintenance in-

formation section and fuel requirements of fueling section.

Emission-Rellated Warranty Periiod

The emission-related warranty is valid for the following period which-

ever comes first:

416

US EPA EMISSION-RELATED WARRANTY

Kilo

hours

months

meters

Exhaust emission-related

200

4000

components

Evaporative emission-related

N/A

components

Components Covered

The emission-related warranty covers all components whose failure

would increase an engine’s emissions of any regulated pollutant, in-

cluding the following listed components:

For exhaust emissions, emission-related components include any

engine parts related to the following systems:

- Air-induction system

- Fuel system

- Ignition system

- Exhaust gas recirculation systems

The following parts are also considered emission-related compo-

nents for exhaust emissions:

- Aftertreatment devices

- Crankcase ventilation valves

- Sensors

- Electronic control units

The following parts are considered emission-related components

for evaporative emissions:

- Fuel tank

- Fuel cap

- Fuel line

- Fuel line fittings

- Clamps*

- Pressure relief valves*

- Control valves*

- Control solenoids*

- Electronic controls*

- Vacuum control diaphragms*

- Control cables*

- Control linkages*

- Purge valves

- Vapor hoses

- Liquid/vapor separator

- Carbon canister

- Canister mounting brackets

417

US EPA EMISSION-RELATED WARRANTY

- Carburetor purge port connector

NOTE:

*As related to the evaporative emission control system

4. Emission-related components also include any other part whose

only purpose is to reduce emissions or whose failure will increase

emissions without significantly degrading engine/equipment

performance.

Limited Appllicabillity

As a certifying manufacturer, BRP may deny emission-related war-

ranty claims for failures that have been caused by the owner’s or oper-

ator’s improper maintenance or use, by accidents for which the

manufacturer has no responsibility, or by acts of God. For example, an

emission-related warranty claim need not be honored for failures that

have been directly caused by the operator’s abuse of the engine/

equipment or the operator’s use of the engine/equipment in a manner

for which it was not designed and are not attributable to the manufac-

turer in anyway.

If you have any question regarding your warranty rights and responsi-

bility or for the name and location of the nearest authorized BRP deal-

er, you should contact BRP by filling out the customer contact form at

www.brp.com or contact BRP by mail at one of the addresses listed

under the CONTACT US section of this guide, or call at

1-888-272-9222.

418

BRP INTERNATIONAL LIMITED WARRANTY:

2024 SKI-DOO® SNOWMOBILES

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2024

Ski-Doo snowmobiles sold by distributors or dealers authorized by

BRP to distribute Ski-Doo snowmobiles ("Ski-Doo Distributor/Deal-

er") outside of the fifty United States, Canada, members of the Euro-

pean Economic Area (which is comprised of the member states of the

European Union plus the United Kingdom, Norway, Iceland and Liech-

tenstein) (“EEA”), members states of the Commonwealth of the Inde-

pendent States (including Ukraine and Turkmenistan) ("CIS") and

Turkey, from defects in material or workmanship for the period and

under the conditions described below.

Non-factory installed parts and accessories are not covered under this

limited warranty. Please refer to the applicable parts and accessories

limited warranty text.

This limited warranty will become null and void if: (1) the snowmobile

was used for racing or any other competitive activity, at any point,

even by a previous owner; or (2) the snowmobile has been altered or

modified in such a way so as to adversely affect its operation, perform-

ance or durability, or has been altered or modified to change its in-

tended use.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS

EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE

LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE

UNDER THIS WARRANTY. SOME JURISDICTIONS DO NOT

ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EXCLU-

SIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY NOT

APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS

WHICH MAY VARY FROM COUNTRY TO COUNTRY. BRP

SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY

PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR

REASONS OUTSIDE OF BRP’S CONTROL. (FOR PRODUCTS

PURCHASED IN AUSTRALIA REFER TO “FOR PRODUCTS

SOLD IN AUSTRALIA ONLY”, BELOW).

Neither the Ski-Doo Distributor/Dealer nor any other person has been

authorized to make any affirmation, representation or warranty

419

BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO^®

SNOWMOBILES

regarding the product, other than those contained in this limited war-

ranty, and if made, shall not be enforceable against BRP.

BRP reserves the right to modify this warranty at any time, being

understood that such modification will not alter the warranty conditions

applicable to the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under this limited warranty under any

circumstances:

Normal wear and tear;

–

Routine maintenance items, tune ups, adjustments;

–

Damage caused by negligence or failure to provide proper mainte-

nance and/or storage, as described in the operator's guide;

Damage resulting from removal of parts, improper repairs, service,

maintenance, modifications or use of parts or accessories not

manufactured or approved by BRP which in its reasonable judge-

ment are either incompatible with the product or adversely affect

its operation, performance and durability, or resulting from repairs

done by a person that is not an authorized servicing BRP snowmo-

bile distributor/ dealer;

Damage caused by abuse, abnormal use, neglect, racing or opera-

tion of the product on surfaces other than snow, or operation of the

product in a manner inconsistent with the recommended operation

described in the Operator’s Guide;

Damage resulting from accident, submersion, fire, snow or water

ingestion, theft, vandalism or any act of God;

Operation with fuels, oils or lubricants which are not suitable for

use with the product (see the Operator’s Guide);

Damage resulting from rust, corrosion or exposure to the

elements;

Incidental or consequential damages, or damages of any kind in-

cluding without limitation towing, storage, transportation expenses,

telephone, rental, taxi, inconvenience, insurance coverage, loan

payments, loss of time, loss of income; or time missed for down-

time experience due to service work.

And damage resulting from studs installed on tracks if the installa-

tion does not conform to BRP’s instructions.

WARRANTY COVERAGE PERIOD

This warranty will be in effect from (1) the date of delivery to the first

retail consumer or (2) the date the product is first put into use, which-

ever occurs first and for a period of:

TWELVE (12) CONSECUTIVE MONTHS, for private or commercial

use owners. However, the warranty coverage period on a snowmobile

420

BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO^®

SNOWMOBILES

delivered between June 1^st and December 1^st of a given year will ex-

pire November 30^th of the following year.

The repair or replacement of parts or the performance of service under

this warranty does not extend the life of this warranty beyond its origi-

nal expiration date.

Note that the duration and any other modalities of the warranty cover-

age are subject to the applicable national or local legislation in the cus-

tomer's country.

FOR PRODUCTS SOLD IN AUSTRALIA ONLY

Nothing in these Warranty terms and conditions should be taken to ex-

clude, restrict or modify the application of any condition, warranty,

guarantee, right or remedy conferred or implied under the Competition

and Consumer Act 2010 (Cth), including the Australian Consumer

Law or any other law, where to do so would contravene that law, or

cause any part of these terms and conditions to be void. The benefits

given to you under this limited warranty are in addition to other rights

and remedies that you have under Australian law.

Our goods come with guarantees that cannot be excluded under the

Australian Consumer Law. You are entitled to a replacement or refund

for a major failure and for compensation for any other reasonably fore-

seeable loss or damage. You are also entitled to have the goods re-

paired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure.

CONDITIONS TO HAVE WARRANTY COVERAGE

This warranty coverage is available only if each of the following condi-

tions has been fulfilled:

- The 2024 Ski-Doo snowmobile must be purchased as new and un-

used by its first owner from a Ski-Doo Distributor/Dealer authorized

to distribute Ski-Doo snowmobiles in the country in which the sale

occurred;

- The BRP specified pre-delivery inspection process must be com-

pleted, documented and signed by the purchaser;

- The product must have undergone proper registration by an au-

thorized Ski-Doo Distributor/Dealer;

- The 2024 Ski-Doo snowmobile must be purchased in the country

in which the purchaser resides.

- Routine maintenance outlined in the Operator’s Guide must be

timely performed in order to maintain warranty coverage. BRP re-

serves the right to make warranty coverage contingent upon proof

of proper maintenance.

BRP will not honour this limited warranty to any private use owner or

commercial use owner if one of the preceding conditions has not been

421

BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO^®

SNOWMOBILES

met. Such limitations are necessary in order to allow BRP to preserve

both the safety of its products, and also that of its consumers and the

general public.

WHAT TO DO TO OBTAIN WARRANTY

COVERAGE

The customer must cease using the snowmobile upon the appearance

of an anomaly. The customer must notify a servicing BRP snowmobile

distributor/ dealer within two (2) months of the appearance of a defect,

and provide it with reasonable access to the product and reasonable

opportunity to repair it. The customer must also present to the author-

ized BRP snowmobile distributor/ dealer, proof of purchase of the

product and must sign the repair/work order prior to starting the repair

in order to validate the warranty repair. All parts replaced under this

limited warranty become the property of BRP.

Note that the notification period is subject to the applicable national or

local legislation in customer's country.

WHAT BRP WILL DO

To the extent permitted by law, BRP’s obligations under this warranty

are limited to, at its sole discretion, repairing parts found defective

under normal use, maintenance and service, or replacing such parts

with new genuine Ski-Doo parts without charge for parts and labour, at

any authorized Ski-Doo Distributor/Dealer during the warranty cover-

age period under the conditions described herein. BRP’s responsibility

is limited to making the required repairs or replacements of parts. No

claim of breach of warranty shall be cause for cancellation or rescis-

sion of the sale of the snowmobile to the owner. You may have other

legal rights which may vary from country to country.

In the event that service is required outside of the country of original

sale, the owner will bear responsibility for any additional charges due

to local practices and conditions, such as, but not limited to, freight, in-

surance, taxes, license fees, import duties, and any and all other finan-

cial charges, including those levied by governments, states, territories

and their respective agencies.

BRP reserves the right to improve or modify products from time to time

without assuming any obligation to modify products previously

manufactured.

TRANSFER

If the ownership of a product is transferred during the warranty cover-

age period, this limited warranty, subject to its terms and conditions,

shall also be transferred and be valid for the remaining coverage peri-

od provided BRP or an authorized Ski-Doo Distributor/Dealer receives

422

BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO^®

SNOWMOBILES

a proof that the former owner agreed to the transfer of ownership, in

addition to the co-ordinates of the new owner.

CONSUMER ASSISTANCE

In the event of a controversy or a dispute in connection with this limited

warranty, BRP suggests that you try to resolve the issue at the Ski--

Doo Distributor/Dealer level. We recommend discussing the issue with

the authorized Ski-Doo Distributor/Dealer's service manager or owner.

If the matter still remains unresolved, contact BRP by filling out the

customer contact form at www.brp.com or contact BRP by mail at one

of the addresses listed under the CONTACT US section of this guide.

423

BRP LIMITED WARRANTY FOR THE

EUROPEAN ECONOMIC AND THE

COMMONWEALTH OF THE INDEPENDENT

STATES (CIS) AREAS AND TURKEY: 2024

SKI-DOO® SNOWMOBILES

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2024

Ski-Doo snowmobiles sold by distributors or dealers authorized by

BRP to distribute Ski-Doo snowmobiles ("Ski-Doo Distributor/Deal-

er") in member states of the European Economic Area (which is com-

prised of the member states of the European Union plus the United

Kingdom, Norway, Iceland and Liechtenstein) ("EEA"), in member

states of the Commonwealth of the Independent States (including Uk-

raine and Turkmenistan) ("CIS") and Turkey from defects in material

or workmanship for the period and under the conditions described

below.

Non-factory installed parts and accessories are not covered under this

limited warranty. Please refer to the applicable parts and accessories

limited warranty text.

This limited warranty will become null and void if: (1) the snowmobile

was used for racing or any other competitive activity, at any point,

even by a previous owner; or (2) the snowmobile has been altered or

modified in such a way so as to adversely affect its operation, perform-

ance or durability, or has been altered or modified to change its in-

tended use.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS

EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE

LIFE OF THE EXPRESS WARRANTIES. INCIDENTAL AND

CONSEQUENTIAL DAMAGES ARE EXCLUDED FROM COVER-

AGE UNDER THIS WARRANTY. SOME JURISDICTIONS DO

NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-

CLUSIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY

NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS

WHICH MAY VARY FROM COUNTRY TO COUNTRY. BRP

SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY

PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR

REASONS OUTSIDE OF BRP’S CONTROL.

424

Neither the Ski-Doo Distributor/Dealer nor any other person has been

authorized to make any affirmation, representation or warranty regard-

ing the product, other than those contained in this limited warranty,

and if made, shall not be enforceable against BRP.

BRP reserves the right to modify this warranty at any time, being

understood that such modification will not alter the warranty conditions

applicable to the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under this limited warranty under any

circumstances:

Normal wear and tear;

–

Routine maintenance items, tune ups, adjustments;

–

Damage caused by negligence or failure to provide proper mainte-

nance and/or storage, as described in the operator's guide;

Damage resulting from removal of parts, improper repairs, service,

maintenance, modifications or use of parts or accessories not

manufactured or approved by BRP which in its reasonable judge-

ment are either incompatible with the product or adversely affect

its operation, performance and durability, or resulting from repairs

done by a person that is not an authorized servicing BRP snowmo-

bile distributor/ dealer;

Damage caused by abuse, abnormal use, neglect, racing or opera-

tion of the product on surfaces other than snow, or operation of the

product in a manner inconsistent with the recommended operation

described in the Operator’s Guide;

Damage resulting from accident, submersion, fire, snow or water

ingestion, theft, vandalism or any act of God;

Operation with fuels, oils or lubricants which are not suitable for

use with the product (see the Operator’s Guide);

Damage resulting from rust, corrosion or exposure to the

elements;

Incidental or consequential damages, or damages of any kind in-

cluding without limitation towing, storage, transportation expenses,

telephone, rental, taxi, inconvenience, insurance coverage, loan

payments, loss of time, loss of income; or time missed for down-

time experience due to service work.

And damage resulting from studs installed on tracks if the installa-

tion does not conform to BRP’s instructions.

WARRANTY COVERAGE PERIOD

This warranty will be in effect from (1) the date of delivery to the first

retail consumer or (2) the date the product is first put into use, which-

ever occurs first and for a period of:

425

TWENTY-FOUR (24) CONSECUTIVE MONTHS, for private use own-

ers and TWELVE (12) CONSECUTIVE MONTHS for commercial use

owners. However, the warranty coverage period on a snowmobile de-

livered between June 1^st and December 1^st of a given year will expire

November 30^th of the applicable year. A snowmobile is used commer-

cially when it is used in connection with generating income or any work

or employment during any part of the warranty period. A snowmobile

is also used commercially when, at any point during the warranty peri-

od, it has commercial tags or is licensed for commercial use.

The repair or replacement of parts or the performance of service under

this warranty does not extend the life of this warranty beyond its origi-

nal expiration date.

Note that the duration and any other modalities of the warranty cover-

age are subject to the applicable national or local legislation in the cus-

tomer's country.

CONDITIONS TO HAVE WARRANTY COVERAGE

This warranty coverage is available only if each of the following condi-

tions has been fulfilled:

- The 2024 Ski-Doo snowmobile must be purchased as new and un-

used by its first owner from a Ski-Doo Distributor/Dealer authorized

to distribute Ski-Doo products in the country in which the sale

occurred;

- The BRP specified pre-delivery inspection process must be com-

pleted, documented and signed by the purchaser;

- The product must have undergone proper registration by an au-

thorized Ski-Doo Distributor/Dealer;

- The 2024 Ski-Doo snowmobile must be purchased within the coun-

try (or in the case of the EEA, union of countries) in which the pur-

chaser resides; and

- Routine maintenance outlined in the Operator’s Guide must be

timely performed in order to maintain warranty coverage. BRP re-

serves the right to make warranty coverage contingent upon proof

of proper maintenance.

BRP will not honour this limited warranty to any private use owner or

commercial use owner if one of the preceding conditions has not been

met. Such limitations are necessary in order to allow BRP to preserve

both the safety of its products, and also that of its consumers and the

general public.

WHAT TO DO TO OBTAIN WARRANTY

COVERAGE

The customer must cease using the snowmobile upon the appearance

of an anomaly. The customer must notify a servicing BRP snowmobile

426

distributor/ dealer within two (2) months of the appearance of a defect,

and provide it with reasonable access to the product and reasonable

opportunity to repair it. The customer must also present to the author-

ized BRP snowmobile distributor/ dealer, proof of purchase of the

product and must sign the repair/work order prior to starting the repair

in order to validate the warranty repair. All parts replaced under this

limited warranty become the property of BRP.

Note that the notification period is subject to the applicable national or

local legislation in customer's country.

WHAT BRP WILL DO

To the extent permitted by law, BRP’s obligations under this warranty

are limited to, at its sole discretion, repairing parts found defective

under normal use, maintenance and service, or replacing such parts

without charge for parts and labour, at any authorized Ski-Doo Distrib-

utor/Dealer during the warranty coverage period under the conditions

described herein. BRP’s responsibility is limited to making the required

repairs or replacements of parts. No claim of breach of warranty shall

be cause for cancellation or rescission of the sale of the snowmobile

to the owner. You may have other legal rights which may vary from

country to country.

In the event that service is required outside of the EEA, CIS or Turkey,

the owner will bear responsibility for any additional charges due to lo-

cal practices and conditions, such as, but not limited to, freight, insur-

ance, taxes, license fees, import duties, and any and all other financial

charges, including those levied by governments, states, territories and

their respective agencies.

BRP reserves the right to improve or modify products from time to time

without assuming any obligation to modify products previously

manufactured.

TRANSFER

If the ownership of a product is transferred during the warranty cover-

age period, this limited warranty, subject to its terms and conditions,

shall also be transferred and be valid for the remaining coverage peri-

od provided BRP or an authorized Ski-Doo Distributor/Dealer receives

a proof that the former owner agreed to the transfer of ownership, in

addition to the co-ordinates of the new owner.

CONSUMER ASSISTANCE

In the event of a controversy or a dispute in connection with this limited

warranty, BRP suggests that you try to resolve the issue at the Ski--

Doo Distributor/Dealer level. We recommend discussing the issue with

the authorized Ski-Doo Distributor/Dealer's service manager or owner.

427

If the matter still remains unresolved, contact BRP by filling out the

customer contact form at www.brp.com or contact BRP by mail at one

of the addresses listed under the CONTACT US section of this guide.

ADDITIONAL TERMS AND CONDITIONS FOR FRANCE ONLY

The following terms and conditions are applicable to products sold in

France only:

The seller shall deliver goods that are complying with the contract and

shall be responsible for defects existing upon delivery. The seller shall

also be responsible for defects resulting from packaging, assembling

instructions or the installation when it is its responsibility per the con-

tract or if accomplished under its responsibility. To be compliant with

the contract, the good shall:

1. Be fit for normal use for goods similar thereto and, if applicable:

- Correspond to the description provided by the seller and have

the qualities presented to the buyer though sample or model;

- Have the qualities that a buyer may legitimately expect consid-

ering the public declarations of the seller, the manufacturer of

its representative, including in advertising or labeling; or

2. Have the characteristics mutually agreed upon as between the par-

ties or be fit for the specific use intended by the buyer and brought

to the attention of the seller and which accepted

The action for failure to comply is prescribed after two years after de-

livery of the goods. The seller is responsible for the warranty for hid-

den defects of the good sold if such hidden defects are rendering the

good unfit for the intended use, or if they diminish its use in such a

way that the buyer would not have acquired the good or would have

given a lesser price, had he known. The action for such hidden defects

shall be taken by the buyer within 2 years of the discovery of the

defect.

428

DATA PRIVACY INFORMATION

Bombardier Recreational Products inc., its affiliates and subsidiaries

(“BRP”) is committed to protecting your privacy and support a general

policy of openness about how we collect, use and disclose your per-

sonal information in the course of managing our relationship with you.

More details can be found by visiting BRP’s Privacy Policy at:

https://brp. com/en/privacy-policy. html or by scanning the QR

Code below.

Please be assured that we have appropriate security measures in

place to ensure that your personal information is protected against

loss and unauthorized access.

Your personal information that may be collected by BRP, directly from

you or from authorized dealers or authorized third parties, includes:

- Contact, Demographic & Registration Information (e.g., name,

full address, phone number, email, gender, ownership history, lan-

guage of communication)

- Vehicle Information (e.g., serial number, purchase and delivery

date, unit usage, vehicle location and movements)

- Third Party Information (e.g., information received from BRP

partners, joint-marketing activities information, social media)

- Technological Information (e.g., IP address, type of device, op-

erating system, browser type, webpages you view, cookies and

similar technologies when you use BRP or dealers’ websites or

mobile application)

- Interaction with BRP Information (e.g., information collected

when you call BRP’s in-house sales representatives, buy items on

a BRP web Site, sign up for BRP emails, participate in BRP-spon-

sored contests and sweepstakes or attend BRP-sponsored

events)

- Transactional Information (e.g., information necessary to handle

returns, payment information when you purchase our products or

services through our websites or mobile applications and other is-

sues related to your purchase of BRP products)

This information may be used and processed for the following

purposes:

- Safety & Security

- Customer Support for Sales & After Sales (e.g., complete or follow

up with you about your purchase or maintenance)

- Registration & Warranty

- Communication (e.g., sending you a BRP satisfaction survey)

- Online Behavioural Advertising, Profiling and Location-Based

Services

(e.g., offer customized experience)

- Compliance & Dispute Resolution

- Marketing & Advertising

- Assistance (e.g., help with any delivery issues, handle returns, and

other issues related to your purchase of BRP products).

430

DATA PRIVACY INFORMATION

We also may use personal information to generate aggregated or stat-

istical data that no longer identifies you personally.

Your personal information may be disclosed to the following:

BRP, BRP’s authorized dealerships, distributors, service pro-

viders, advertising & market research partners and other author-

ized third parties.

We may receive information about you from diverse sources, including

third parties, such as BRP’s authorized dealerships and partners, with

whom we offer services or engage in joint-marketing activities. We

may also receive information about you from social media platforms

such as Facebook and Twitter, when you interact with us on those

platforms.

Depending on the circumstances, your personal information may be

communicated outside the region where you reside. Your personal in-

formation is retained only for as long as necessary for the purpose for

which we obtained it and according to our retention policies.

To exercise your data privacy rights (e.g. right of access, right of recti-

fication), to withdraw your consent in order to be removed from the ad-

dress list for marketing purposes or for the satisfaction survey or for

general data privacy questions, please contact BRP’s Data Protection

Officer at or by mail at privacyofficer@brp.com or by mail at:

BRP Legal Service, 726 St-Joseph, Valcourt, Quebec, Canada, J0E

2L0.

When BRP processes your personal information, they do so in

compliance with its Privacy Policy available at: https://www.brp.

com/en/privacy-policy.html or by using the following

QR Code.

431

www.brp.com

Asiia Paciific

Australia

Level 26

477 Pitt Street

Sydney, NSW 2020

China

上海市徐汇区衡山路10号6号楼301

Rm 301, Building 6,

No.10 Heng Shan Rd,

Shanghai, China

Japan

21F Shinagawa East One Tower

2-16-1 Konan, Minato-ku-ku,

Tokyo 108-0075

New Zealand

Suite 1.6, 2-8 Osborne Street,

Newmarket, Auckland 2013

Europe, Middle East and Afriica

Belgium

Oktrooiplein 1

9000 Gent

Czech Republic

Stefanikova 43a

Prague 5

150 00

Germany

Itterpark 11

40724 Hilden

Finland

Isoaavantie 7

PL 8040

96101 Rovaniemi

France

Arteparc Bâtiment B

Route de la côte d'Azur,

13590 Meyreuil

432

CHANGE OF ADDRESS/OWNERSHIP

If your address has changed or if you are the new owner of the snow-

mobile, be sure to notify BRP by either:

- Notifying an authorized BRP snowmobile dealer or distributor.

- North America Only: calling at 1 888 272-9222.

- Mailing one of the change of address cards on the following pages

at one of the BRP addresses indicated in the Contact Us section of

this guide.

In case of change of ownership, please join a proof that the former

owner agreed to the transfer.

Notifying BRP, even after the expiration of the limited warranty, is very

important as it enables BRP to reach the snowmobile owner if neces-

sary, like when safety recalls are initiated. It is the owner’s responsibil-

ity to notify BRP.

STOLEN UNITS: If your personal snowmobile is stolen, you should

notify BRP or an authorized BRP snowmobile dealer. We will ask you

to provide your name, address, phone number, the vehicle identifica-

tion number and the date it was stolen.

434

Snowmobile Ski-Doo CROSSOVER E-TEC AND EFI SERIES. OPERATOR’S GUIDE (2024) - page 4
