Snowmobile Lynx UTILITY ACE SERIES. OPERATOR’S GUIDE (2024)

NOISE EMISSION AND VIBRATION VALUES

MODEL

600 ACE

900 ACE

NOISE EMISSION AND VIBRATION VALUES¹

90,4 dB @ 3625

91,2 dB @ 3625

Sound power level

Noise

RPM (Uncertainty

(LWA)

(Kwa) 3 dB)

<2.5 m/s² @

3.15 m/s² @

Hand-arm system

3625 RPM

Vibration

Whole body at

<0.5 m/s² @

<0.5m/s² @ 3625

seat

3625 RPM

RPM

¹: Noise emission and Vibration values are measured in accordance

with Annexes A and B of ISMA 1 regulation on a snow covered or

grass surface in neutral or without belt.

900 ACE Turbo (130 hp) and Turbo

MODEL

R (180 hp)

NOISE EMISSION AND VIBRATION VALUES¹

Sound power level

99 dB @ 3625 RPM (Uncertainty

(LWA)

(Kwa) 3 dB)

Noise

Sound pressure

92 dB @ 3625 RPM (Uncertainty

(LpA)

(Kpa) 3 dB)

Hand-arm system

<2.5 m/s² @ 3625 RPM

Vibration

Whole body at

<0.5m/s² @ 3625 RPM

seat

¹: Noise emission and Vibration values are measured in accordance

with Annexes A and B of ISMA 1 regulation on a snow covered or

grass surface in neutral or without belt.

285

RADIO FREQUENCY DIGITALLY ENCODED

SECURITY SYSTEM (RF D.E.S.S. KEY)

This device complies with FCC Part 15 and Industry Canada license

exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device

may not cause interference, and (2) this device must accept any inter-

ference, including interference that may cause undesired operation of

the device.

Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate the

equipment.

IC Registration Number: 12006A-1001317030

FCC ID: 2ACER-1001317030

We, the party responsible for compliance, declare under our sole re-

sponsibility that the device is in conformity with the provisions of the

following Council Directive: 2014/53/EU. To which this declaration re-

lates is in conformity with the essential requirements and other rele-

vant requirements. The product is in conformity with the following

directives, harmonized standards and regulations:

Radio Equipment Directive

(RED)

2014/53/EU and Harmonized

Standards:

IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300

330 V2.1.1:2017

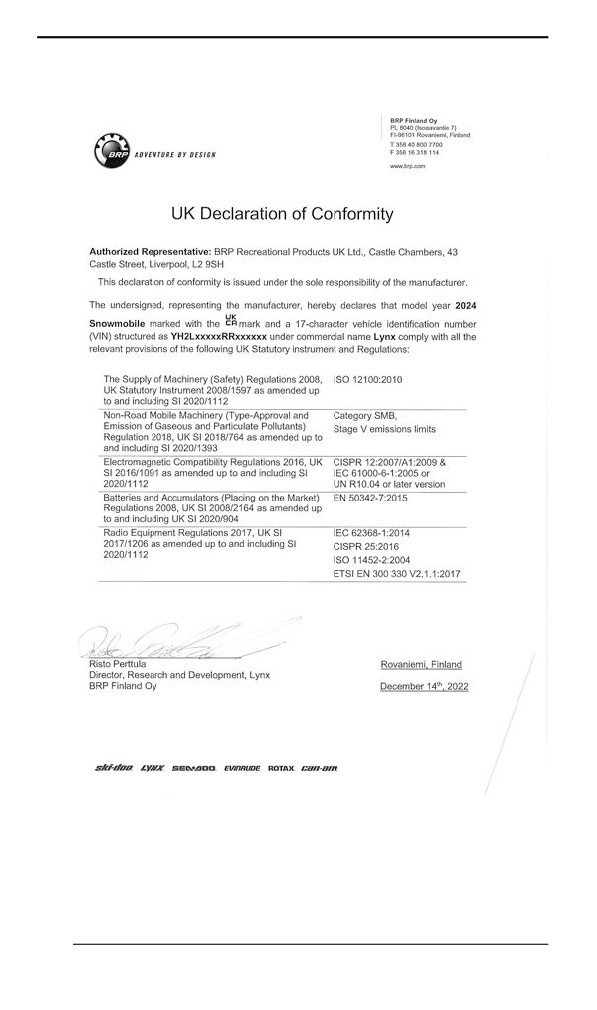

Radio Equipment Statutory Instrument 2017/1206 and Designated

Standards:

IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300

330 V2.1.1:2017

288

MULTIFUNCTION GAUGE REGULATORY

INFORMATION

Technical Information

Transmitter:

- BT operating frequency range: 2402 - 2480 MHz

- BT version: 4.2 (no BTLE)

- BT output power: < 8.5 dBm

Receiver:

- FM operating range: 76 - 108 MHz

Manufacturer and Address

Manufacturer:

- Robert Bosch LLC

Address:

38000 Hills Tech Drive,

Farmington Hills, MI 48331,

USA

To display the regulatory information on the vehicle digital

display:

From the home screen, access the main menu and keep the joystick

pressed down for more than 10 seconds.

USA and Canada

This device complies with FCC Part 15 and Industry Canada license

exempt RSS standard (s). Operation is subject to the following two

conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference

that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada appli-

cables aux appareils radio exempts de licence. L'exploitation est au-

torisée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectri-

que subi, même si le brouillage est susceptible d'en compromettre le

fonctionnement.

Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user's authority to operate the

equipment.

IC: 22868 - VDIBRHS01

FCC ID: 2AMJS - VDIBRHS01

RF exposure:

289

MULTIFUNCTION GAUGE REGULATORY INFORMATION

- The equipment complies with FCC RF exposure limits set forth for

an uncontrolled environment.

- This equipment must be installed and operated with a separation

distance of at least 20 cm from all persons.

- The antenna(s) used for this transmitter must not be co-located or

operating in conjunction with any other antenna or transmitter.

Mexico

IFETEL

Marca: Robert Bosch LLC

Modelo(s): VIPHI2BT

Número: RCPBOVI18-0967

NOM-121-SCT1-2009

La operación de este equipo está sujeta a las siguientes dos condi-

ciones: (1) es posible que este equipo o dispositivo no cause interfer-

encia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier

interferencia, incluyendo la que pueda causar su operación no

deseada.

Brazil

03473-18-04473

Este equipamento opera em caráter secundário, isto é, não tem direito

a proteção contra interferência prejudicial, mesmo de estações do

mesmo tipo, e não pode causar interferência a sistemas operando em

caráter primário.

Japan

This device is granted pursuant to the Japanese Radio Law (

)

and the Japanese Telecommunications Business Law

(

). This device should not be modified (otherwise the

granted designation number will become invalid).

290

MULTIFUNCTION GAUGE REGULATORY INFORMATION

Europe

Declaration of Conformity

Simplified EU Declaration of Conformity according Radio Equipment

Directive 2014/53/EU.

Hiermit erklärt Robert Bosch LLC, dass der Funkanlagentyp VIPHI2BT der Richtlinie 2014/53/EU entspricht.

Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: eu-doc.

bosch.com

Le soussigné, Robert Bosch LLC, déclare que l'équipement radioélectrique du type VIPHI2BT est conforme à la

directive 2014/53/UE.

Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante:eu-doc.

bosch.com

Robert Bosch LLC

VIPHI2BT

2014/53/.

: eu-doc.

bosch.com

Με την παρούσα ο/η Robert Bosch LLC, δηλώνει ότι ο ραδιοεξοπλισ×όØ VIPHI2BT πληροί την οδηγία 2014/53/EE.

Το πλήρεØ κεί×ενο τηØ δήλωσηØ συ××όρφωσηØ ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: eu-doc.

bosch.com

Tímto Robert Bosch LLC prohlašuje, že typ rádiového zařízení VIPHI2BT je v souladu se směrnicí 2014/53/EU.

Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: eu-doc.bosch.com

Hermed erklærer Robert Bosch LLC, at radioudstyrstypen VIPHI2BT er i overensstemmelse med direktiv

2014/53/EU.

EU-overensstemmelseserklæringens fulde tekst kan ðndes på følgende internetadresse: eu-doc.bosch.com

Käesolevaga deklareerib Robert Bosch LLC, et käesolev raadioseadme tüüp VIPHI2BT vastab direktiivi

2014/53/EL nõuetele.

ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: eu-doc.bosch.com

Por la presente, Robert Bosch LLC declara que el tipo de equipo radioeléctrico VIPHI2BT es conforme con la

Directiva 2014/53/UE.

El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: eu-doc.

bosch.com

Robert Bosch LLC vakuuttaa, että radiolaitetyyppi VIPHI2BT on direktiivin 2014/53/EU mukainen.

EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: eu-doc.

bosch.com

Hereby, Robert Bosch LLC declares that the radio equipment type VIPHI2BT is in compliance with Directive

2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: eu-doc.bosch.com

Robert Bosch LLC ovime izjavljuje da je radijska oprema tipa VIPHI2BT u skladu s Direktivom 2014/53/EU.

Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: eu-doc.bosch.com

Robert Bosch LLC igazolja, hogy a VIPHI2BT típusú rádióberendezés megfelel a 2014/53/EU irányelvnek.

Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: eu-doc.bosch.com

Il fabbricante, Robert Bosch LLC, dichiara che il tipo di apparecchiatura radio VIPHI2BT è conforme alla direttiva

2014/53/UE.

Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: eu-doc.

bosch.com

291

MULTIFUNCTION GAUGE REGULATORY INFORMATION

Aš, Robert Bosch LLC, patvirtinu, kad radijo įrenginių tipas VIPHI2BT atitinka Direktyvą 2014/53/ES.

Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: eu-doc.bosch.com

Ar šo Robert Bosch LLC deklarē, ka radioiekārta VIPHI2BT atbilst Direktīvai 2014/53/ES.

Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: eu-doc.bosch.com

B'dan, Robert Bosch LLC, niddikjara li dan it-tip ta' tagħmir tar-radju VIPHI2BT huwa konformi mad-Direttiva

2014/53/UE.

It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej: eudoc.

bosch.com

Hierbij verklaar ik, Robert Bosch LLC, dat het type radioapparatuur VIPHI2BT conform is met Richtlijn

2014/53/EU.

De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: eudoc.

bosch.com

Robert Bosch LLC niniejszym oświadcza, że typ urządzenia radiowego VIPHI2BT jest zgodny z dyrektywą

2014/53/UE.

Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym: eu-doc.bosch.com

O(a) abaixo assinado(a) Robert Bosch LLC declara que o presente tipo de equipamento de rádio VIPHI2BT está

em conformidade com a Diretiva 2014/53/UE.

O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: eudoc.

bosch.com

Prin prezenta, Robert Bosch LLC declară că tipul de echipamente radio VIPHI2BT este în conformitate cu

Directiva 2014/53/UE.

Textul integral al declaraiei UE de conformitate este disponibil la următoarea adresă internet: eu-doc.bosch.com

Härmed försäkrar Robert Bosch LLC att denna typ av radioutrustning VIPHI2BT överensstämmer med direktiv

2014/53/EU.

Den fullständiga texten till EU-försäkran om överensstämmelse nns på följande webbadress: eu-doc.bosch.com

Robert Bosch LLC potrjuje, da je tip radijske opreme VIPHI2BT skladen z Direktivo 2014/53/EU.

Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: eu-doc.bosch.com

Robert Bosch LLC týmto vyhlasuje, že rádiové zariadenie typu VIPHI2BT je v súlade so smernicou 2014/53/EÚ.

Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: eu-doc.bosch.com

Robert Bosch LLC lýsir því hér með yr að þráðlausi arskiptabúnaðurinn VIPHI2BT er í samræmi við tilskipun

2014/53/ESB.

Óstyttan texta ESB-samræmisyrlýsingarinnar er að nna á ve anginu: eu-doc.bosch.com

Liechtenstein

Hiermit erklärt Robert Bosch LLC, dass der Funkanlagentyp VIPHI2BT der Richtlinie 2014/53/EU entspricht.

Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: eudoc.

bosch.com

Hermed erklærer Robert Bosch LLC at radioutstyrstypen VIPHI2BT er i samsvar med direktiv 2014/53/EU.

Hele teksten i EU-samsvarserklæringen nnes på følgende internettadresse: eu-doc.bosch.com

292

ENGINE

LUBRICATION SYSTEM

Recom

XPS 4T 0W40

mended

Synthetic oil

XPS oil

Use a 0W40 4-stroke

SAE synthetic engine

oil meeting or

exceeding the

following lubricant

Type

industry

If XPS

specifications.Always

product is

Engine oil

check the API

not

service label

available

certification on the oil

container, it must

contain at least the

indicated standard.

- API service

classification SN

Oil change with filter:

Quantity

2.1 l

(2.22 qt (liq.,US))

900 ACE

ENGINE

Rotax 903, liquid

Engine type

cooled, 4-stroke,

D.O.H.C., dry sump

Number of cylinder

74 mm

Bore

(2.9 in)

69.7 mm

Stroke

(2.74 in)

295

ENGINE

LUBRICATION SYSTEM

Use a 0W40 4-stroke

SAE synthetic engine

oil meeting or

exceeding the

following lubricant

industry

If XPS

specifications.Always

product is

check the API

not

service label

available

certification on the oil

container, it must

contain at least the

indicated standard.

- API service

classification SN

Oil change with filter:

Quantity

3.3 l

(3.5 qt (liq.,US))

900 ACE Turbo

ENGINE

Rotax 903, liquid

cooled, 4-stroke,

Engine type

D.O.H.C., dry sump,

turbo without

intercooler

Number of cylinder

74 mm

Bore

(2.9 in)

69.7 mm

Stroke

(2.74 in)

899 cm³

Displacement

(54.9 in³)

Maximum power engine speed

7400 ± 200 RPM

297

ENGINE

FUEL SYSTEM

Multi point EFI, 46

Fuel delivery

mm heated throttle

body

Standard

and ECO

1300 ± 200 RPM

Idle speed (not adjustable)

mode

Sport mode

1500 ± 200 RPM

ELECTRICAL SYSTEM

30 A @ 14.5 V

Total system output

650 W @ 6000 RPM

NGK LMAR9AI-8D or

Type

equivalent

Spark plug

Not adjustable

Gap

0.7 to 0.8 mm

(.028 to .031 in)

LUBRICATION SYSTEM

Recom

XPS 4T 0W40

mended

Synthetic oil

XPS oil

Use a 0W40 4-stroke

SAE synthetic engine

oil meeting or

exceeding the

following lubricant

Engine oil

Type

industry

If XPS

specifications.Always

product is

check the API

not

service label

available

certification on the oil

container, it must

contain at least the

indicated standard.

- API service

classification SN

298

ENGINE

ELECTRICAL SYSTEM

30 A @ 14.5 V

Total system output

650 W @ 6000 RPM

NGK LMAR9AI-8D or

Type

equivalent

Spark plug

Not adjustable

Gap

0.7 to 0.8 mm

(.028 to .031 in)

LUBRICATION SYSTEM

Recom

XPS 4T 0W40

mended

Synthetic oil

XPS oil

Use a 0W40 4-stroke

SAE synthetic engine

oil meeting or

exceeding the

following lubricant

Type

industry

If XPS

specifications.Always

product is

check the API

Engine oil

not

service label

available

certification on the oil

container, it must

contain at least the

indicated standard.

- API service

classification SN

Oil change with filter:

Quantity

3.3 l

(3.5 qt (liq.,US))

300

VEHICLE

49 Ranger

COOLING SYSTEM

Recommended

XPS Extended life

XPS coolant

pre-mixed coolant

Ethyl glycol and

distilled water (50%/

Coolant type

If the

50%)

recommended

or coolant

XPS product is

specifically

not available

formulated for

aluminum engines

6.9 l

49 Ranger

(7.3 qt (liq.,US))

Coolant capacity

7.2 l

49 Ranger ST

(7.6 qt (liq.,US))

FUEL SYSTEM

Fuel pump

In-tank electrical

Regular unleaded

gasoline (fuel which

Type

may contain up to

600 ACE

10% MAX ethanol

900 ACE

87 Pump Posted

Octane

AKI (R+M)/2)

rating

92 RON

Fuel

Premium unleaded

gasoline (fuel which

Type

may contain up to

10% MAX ethanol

900 ACE Turbo

91 Pump Posted

Octane

AKI (RON+MON)/2

rating

95 RON

37 l

Fuel tank capacity

(9.8 gal (liq.,US))

301

VEHICLE

ELECTRICAL SYSTEM

Battery

12 V, 18 A•h

Headlamp

2 x 60/55 W (H-13)

Taillight and stoplight

2 x 0.4/1.4 W LED

Starter/Relays

Accessory

15 A

Taillight/Brake/

10 A

PAC

ECM/RFID/O2/

10 A

Sensor/CAPS

Fuses

Fuel pump/

10 A

Engine

Cluster

15 A

Fan

15 A

F10

Headlamps

20 A

RY 1

Main

RY 2

Accessory

Relays

RY 3

Fan

RY 4

Lighting

DRIVE SYSTEM - CHAINCASE

XPS Synthetic

Recommended

chaincase oil

Type

Chaincase

75W140 gear oil

Alternative, or if

oil (if

that meets the API

not available

equipped)

GL-5 specification

550 ml

Capacity

(18.6 fl oz (US))

302

VEHICLE

DRIVE SYSTEM - CHAINCASE

49 Ranger 600

21 / 53 / 116

ACE

49 Ranger ST

Chain drive ratio

21 / 49 / 114

900 ACE

49 Ranger ST

24 / 49 / 116

900 ACE Turbo

DRIVE SYSTEM - PULLEYS

600 ACE

eDrive II LC

Drive pulley type

900 ACE

pDrive LD

900 ACE Turbo

pDrive 4S

600 ACE

2200 ± 100 RPM

Drive pulley

900 ACE

engagement RPM

900 ACE Turbo

2100 ± 100 RPM

600 ACE

QRS-4S

900 ACE

Driven pulley type

900 ACE Turbo

QRS-4S-VENT

DRIVE SYSTEM - TRACK

Drive sprocket number of teeth

40.6 cm

Width

(16 in)

Track

392.3 cm

Length

(154.4 in)

39 mm

49 Ranger

(1.54 in)

Profile

Track

height

50 mm

49 Ranger ST

(2.0 in)

303

VEHICLE

DRIVE SYSTEM - TRACK

Deflection

32 mm

(1.26 in)

Track adjustment

Force

7.3 kgf

(16 lbf)

BRAKE SYSTEM

Single 200 mm

Brake

Type

cross drilled carbon

steel disc

Type

DOT 4

Brake fluid

65 ml

Quantity

(2.2 fl oz (US))

Fixed twin pistons (2

Caliper

x 40mm)

Brake pad material

Organic

Minimum brake pad thickness (includes

5 mm

backing plate)

(.2 in)

4.5 mm

Minimum brake disc thickness

(.177 in)

0.25 mm

Maximum brake disc warpage

(.01 in)

FRONT SUSPENSION

49 Ranger ST

LFS X

Suspension type

LFS X with bended

49 Ranger

lower A-arms

215 mm

49 Ranger

(8.5 in)

Suspension maximum

travel

221 mm

49 Ranger ST

(8.7 in)

304

VEHICLE

WEIGHT AND DIMENSIONS

97.5 to 101.7 cm

49 Ranger

(38.4 to 40 in)

Ski Stance

108 cm

49 Ranger ST

(42.5 in)

59 Ranger

COOLING SYSTEM

Recommended

XPS Extended life

XPS coolant

pre-mixed coolant

Ethyl glycol and

distilled water (50%/

Coolant type

If the

50%)

recommended

or coolant

product is not

specifically

available

formulated for

aluminum engines

6.9 l

Coolant capacity

(7.3 qt (liq.,US))

FUEL SYSTEM

Fuel pump

In-tank electrical

Regular unleaded

gasoline (fuel which

Type

may contain up to

10% MAX ethanol

Fuel

87 Pump Posted

Octane rating

AKI (R+M)/2)

92 RON

42 l

Fuel tank capacity

(11.1 gal (liq.,US))

306

VEHICLE

DRIVE SYSTEM - GEARBOX

XPS Synchromesh

Recommended

Transmission

XPS oil

Synthetic Oil or

equivalent.

Type

If the

Gearbox oil

75W140 gear oil

recommended

that meets the API

product is not

GL-5 specification

available

700 ml

Capacity

(23.7 fl oz(US))

Chain drive ratio

21 / 51 / 100

Low

4.81 : 1

Gearbox ratio

High

2.66 : 1

DRIVE SYSTEM - PULLEYS

Drive pulley type

eDrive II LC

Drive pulley engagement RPM

2200 ± 100 RPM

Driven pulley type

QRS-4S

DRIVE SYSTEM - TRACK

Drive sprocket number of teeth

50 cm

Width

(20 in)

392.3 cm

Track

Length

(154.4 in)

44 mm

Profile height

(1.75 in)

Deflection

32 mm

Track adjustment

(1.26 in)

308

VEHICLE

REAR SUSPENSION

Suspension type

EasyRide

340 mm

Suspension maximum travel

(13.4 in)

Center

HPG 36

Shock absorber type

Rear

HPG 36

WEIGHT AND DIMENSIONS

265 kg

Mass (dry)

(584 lb)

324 cm

Overall length (without snowflap)

(127.6 in)

120 cm

Overall width

(47.2 in)

150 cm

Overall height

(59 in)

97.5 to 101.7 cm

Ski Stance

(38.4 to 40 in)

69 Ranger

COOLING SYSTEM

Recommended

XPS Extended life

XPS coolant

pre-mixed coolant

Ethyl glycol and

distilled water (50%/

Coolant type

If the XPS

50%)

product is not

or coolant

avilable

specifically

formulated for

aluminum engines

7.0 l

Coolant capacity

900 ACE

(7.4 qt (liq.,US))

310

VEHICLE

COOLING SYSTEM

900 ACE Turbo

7.2 l

900 ACE Turbo

(7.5 qt (liq.,US))

FUEL SYSTEM

Fuel pump

In-tank electrical

Regular unleaded

gasoline (fuel which

Type

may contain up to

10% MAX ethanol

900 ACE

87 Pump Posted

Octane

AKI (R+M)/2)

rating

92 RON

Fuel

Premium unleaded

gasoline (fuel which

Type

may contain up to

900 ACE Turbo

10% MAX ethanol

900 ACE Turbo

91 Pump Posted

Octane

AKI (RON+MON)/2

rating

95 RON

42 l

Fuel tank capacity

(11.1 gal (liq.,US))

ELECTRICAL SYSTEM

All except

12 V, 18 A•h

SnowCruiser

Battery

SnowCruiser

12 V, 30 A•h

Headlamp

2 x 60/55 W (H-13)

Taillight and stoplight

2 x 0.4/1.4 W LED

Clock/Starter/

Fuses

Relays

311

VEHICLE

FRONT SUSPENSION

SnowCruiser

LFS X

Suspension type

All other 69

LFS X with bended

Ranger

lower A-arms

257 mm

Suspension maximum travel

(10.1 in)

SnowCruiser

KYB 36 R

Shock absorber type

All other 69

HPG 36

Ranger

REAR SUSPENSION

Suspension type

EasyRide

340 mm

Suspension maximum travel

(13.4 in)

KYB 46 Kashima

SnowCruiser

coated

Center

All other 69

HPG 36

Shock

Ranger

absorber

type

KYB 46 Kashima

SnowCruiser

coated

Rear

All other 69

HPG 36

Ranger

WEIGHT AND DIMENSIONS

292 kg

69 Ranger

(643.7 lb)

69 Ranger

327 kg

Mass (dry)

Limited

(720.9 lb)

69 Ranger

315 kg

SnowCruiser

(694.5 lb)

315

TROUBLESHOOTING-

GUIDELINES

1. ELECTRIC STARTER DOES NOT WORK

Emergency engine stop switch in OFF position or tether cord cap not

installed on engine cut-off switch.

- Place the emergency engine stop switch in the ON position and in-

stall tether cord cap (on engine cut-off switch.

Throttle applied while attempting an engine start.

- Release throttle while cranking.

2. ENGINE IS CRANKED BUT FAILS TO START

No fuel to the engine.

- Check fuel tank level, add fuel if necessary.

System voltage too low.

- Contact an authorized BRP snowmobile dealer.

3. ENGINE RPM DOES NOT REACH CLUTCH

ENGAGEMENT POINT

D.E.S.S. did not read D.E.S.S. key code in the tether cord cap.

- Properly install tether cord cap.

D.E.S.S. has read a different code than the one programmed.

- Install a tether cord cap for which this snowmobile was

programmed.

ECM does not recognize the D.E.S.S. key.

- Refer to an authorized BRP snowmobile dealer.

4. ENGINE LACKS ACCELERATION OR POWER

Engine warm-up in progress.

- Drive vehicle at low speeds for a few minutes.

Engine break-in period not completed.

- Complete break-in period.

Drive and driven pulleys require servicing.

- Contact an authorized BRP snowmobile dealer.

318

TROUBLESHOOTING-GUIDELINES

Engine overheats.

- Check coolant level, see Maintenance Procedures.

- Check heat exchangers cleanliness. Clean if necessary.

Drive belt worn too thin.

- If the drive belt has lost more than 3 mm (1/8 in) of its original

width, it will affect vehicle performance.

- Replace drive belt.

Incorrect track adjustment.

- See Maintenance Procedures and/or an authorized BRP snowmo-

bile dealer for proper alignment and tension adjustments.

Fuel pressure too low.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

replacement. Please refer to the US EPA EMISSION-RELATED

WARRANTY contained herein for information about warranty

claims.

5. ENGINE BACKFIRES

Engine is running too hot.

- See item 4 of ENGINE LACKS POWER.

Ignition timing is incorrect or there is an ignition system failure.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

replacement. Please refer to the US EPA EMISSION-RELATED

WARRANTY contained herein for information about warranty

claims.

Exhaust system leak.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

replacement. Please refer to the US EPA EMISSION-RELATED

WARRANTY contained herein for information about warranty

claims.

Fuel pressure too low.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

319

MONITORING SYSTEM

Piilot Lamps, Messages and Beeper Codes

Gauge pilot lamp(s) will inform you if an anomaly occurs or to inform

you of a particular condition.

TYPICAL — PILOT LAMPS

Pilot lamp can flash alone or in combination with another lamp.

The lower display is used as a complement of the pilot lamps to give

you a brief description if an anomaly occurs or to inform you of a par-

ticular condition.

7.2" DIGITAL LOWER DISPLAY

4.5" DIGITAL LOWER DISPLAY

Messages will be displayed with a beep code and pilot lamp(s).

Beeper codes will be heard and messages will be displayed to catch

your attention.

See table below for details.

321

MONITORING SYSTEM

NOTE:

Some of the listed pilot lamps and messages do not apply to all

models.

Pilot

Message

lamp

Beeper

Description

display

Engine is overheating,

reduce snowmobile

speed and run in loose

snow or stop engine

immediately and let

engine cool down.

HIGH

Check coolant level,

ENGINE

refer to Maintenance. If

TEMPERA

coolant level is correct

TURE

and overheating

persists, contact an

1 Long

authorized BRP

beep

snowmobile dealer. Do

repeat

not run the engine if

ing

condition persists.

Reduce speed or stop

engine. Let engine cool

down and restart. If

overheating persists,

MUFFLER

contact an authorized

OVERHEAT

BRP snowmobile

dealer. Do not run the

engine if condition

persists.

Critical overheat. Stop

engine immediately and

let engine cool down.

1 Long

HIGH

Check coolant level,

beep

ENGINE

refer to Maintenance. If

repeat

TEMPERA

coolant level is correct

ing

TURE

and overheating

persists, contact an

authorized BRP

snowmobile dealer. Do

322

MONITORING SYSTEM

Pilot

Message

lamp

Beeper

Description

display

not run the engine if

condition persists.

MUFFLER

Critical overheat. Stop

OVERHEAT

engine immediately and

let engine cool down. If

overheating persists,

contact an authorized

ECM

BRP snowmobile

OVERHEAT

dealer. Do not run the

engine if condition

persists.

Indicate a low or high

battery voltage

—

BATT VOLT

condition. See an

authorized BRP

snowmobile dealer as

soon as possible.

Engine fault, see an

1 Long

authorized BRP

beep

CHECK

snowmobile dealer,

repeat

ENGINE

repair shop or person of

ing

your own choosing as

soon as possible.

Displayed when brake is

applied for more than 15

seconds while throttle

—

lever is squeezed and

vehicle is moving at

more than 5 km/h (3

MPH).

4 short

Engine detonation

beeps

—

KNOCK

(RPM is limited when

every 5

this condition occurs).

minutes

323

MONITORING SYSTEM

Pilot

Message

lamp

Beeper

Description

display

- Ensure

recommended fuel is

used.

- Check fuel quality,

replace if

necessary.

- If fault still occurs,

contact an

authorized BRP

snowmobile dealer,

repair shop, or

person of your own

choosing.

4 short

Engine RPM limited for

beeps

—

REV LIMIT

protection when certain

every 5

faults occur.

minutes

Indicates that maximum

—

OVER REV

engine RPM is reached.

Check clutch calibration.

Short

Shutdown procedure in

beeps

force due to engine

—

repeat

SHUTDOWN

overheating or fuel

ing

pump problem.

rapidly

Good key, vehicle ready

—

to operate.

Unable to read key (bad

DESS

connection). Make sure

—

WRONG KEY

the key is clean and

correctly snapped on

post.

324

BRP INTERNATIONAL LIMITED WARRANTY:

2024 LYNX® SNOWMOBILES

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2024

LYNX snowmobiles sold by distributors or dealers authorized by BRP

to distribute LYNX snowmobiles ("LYNX Distributor / Dealer") outside

of the fifty United States, Canada, members of the European Econom-

ic Area (which is comprised of the member states of the European

Union plus United Kingdom, Norway, Iceland and Liechtenstein)

(“EEA”), members states of the Commonwealth of the Independent

States (including Ukraine and Turkmenistan) (''CIS'') and Turkey, from

defects in material or workmanship for the period and under the condi-

tions described below.

Non-factory installed parts and accessories are not covered under this

limited warranty. Please refer to the applicable parts and accessories

limited warranty text.

This limited warranty will become null and void if: (1) the snowmobile

was used for racing or any other competitive activity, at any point,

even by a previous owner; or (2) the snowmobile has been altered or

modified in such a way so as to adversely affect its operation, perform-

ance or durability, or has been altered or modified to change its in-

tended use.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS

EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE

LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE

UNDER THIS WARRANTY. SOME JURISDICTIONS DO NOT

ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EXCLU-

SIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY NOT

APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS

WHICH MAY VARY FROM COUNTRY TO COUNTRY. BRP

SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY

PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR

REASONS OUTSIDE OF BRP’S CONTROL. (FOR PRODUCTS

PURCHASED IN AUSTRALIA REFER TO “FOR PRODUCTS

SOLD IN AUSTRALIA ONLY”, BELOW).

Neither the LYNX Distributor / Dealer nor any other person has been

authorized to make any affirmation, representation or warranty

328

BRP INTERNATIONAL LIMITED WARRANTY: 2024 LYNX^® SNOWMOBILES

regarding the product, other than those contained in this limited war-

ranty, and if made, shall not be enforceable against BRP.

BRP reserves the right to modify this warranty at any time, being

understood that such modification will not alter the warranty conditions

applicable to the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under this limited warranty under any

circumstances:

Normal wear and tear;

–

Routine maintenance items, tune ups, adjustments;

–

Damage caused by negligence or failure to provide proper mainte-

nance and/or storage, as described in the operator's guide;

Damage resulting from removal of parts, improper repairs, service,

maintenance, modifications or use of parts or accessories not

manufactured or approved by BRP which in its reasonable judge-

ment are either incompatible with the product or adversely affect

its operation, performance and durability, or resulting from repairs

done by a person that is not an authorized servicing BRP snowmo-

bile distributor/ dealer;

Damage caused by abuse, abnormal use, neglect, racing or opera-

tion of the product on surfaces other than snow, or operation of the

product in a manner inconsistent with the recommended operation

described in the Operator’s Guide;

Damage resulting from accident, submersion, fire, snow or water

ingestion, theft, vandalism or any act of God;

Operation with fuels, oils or lubricants which are not suitable for

use with the product (see the Operator’s Guide);

Damage resulting from rust, corrosion or exposure to the

elements;

Incidental or consequential damages, or damages of any kind in-

cluding without limitation towing, storage, transportation expenses,

telephone, rental, taxi, inconvenience, insurance coverage, loan

payments, loss of time, loss of income; or time missed for down-

time experience due to service work.

And damage resulting from studs installed on tracks if the installa-

tion does not conform to BRP’s instructions.

WARRANTY COVERAGE PERIOD

This warranty will be in effect from (1) the date of delivery to the first

retail consumer or (2) the date the product is first put into use, which-

ever occurs first and for a period of:

TWELVE (12) CONSECUTIVE MONTHS, for private or commercial

use owners. However, the warranty coverage period on a snowmobile

329

BRP INTERNATIONAL LIMITED WARRANTY: 2024 LYNX^® SNOWMOBILES

delivered between June 1^st and December 1^st of a given year will ex-

pire November 30^th of the following year.

The repair or replacement of parts or the performance of service under

this warranty does not extend the life of this warranty beyond its origi-

nal expiration date.

Note that the duration and any other modalities of the warranty cover-

age are subject to the applicable national or local legislation in the cus-

tomer's country.

FOR PRODUCTS SOLD IN AUSTRALIA ONLY

Nothing in these Warranty terms and conditions should be taken to ex-

clude, restrict or modify the application of any condition, warranty,

guarantee, right or remedy conferred or implied under the Competition

and Consumer Act 2010 (Cth), including the Australian Consumer

Law or any other law, where to do so would contravene that law, or

cause any part of these terms and conditions to be void. The benefits

given to you under this limited warranty are in addition to other rights

and remedies that you have under Australian law.

Our goods come with guarantees that cannot be excluded under the

Australian Consumer Law. You are entitled to a replacement or refund

for a major failure and for compensation for any other reasonably fore-

seeable loss or damage. You are also entitled to have the goods re-

paired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure.

CONDITIONS TO HAVE WARRANTY COVERAGE

This warranty coverage is available only if each of the following condi-

tions has been fulfilled:

- The 2024 LYNX snowmobile must be purchased as new and un-

used by its first owner from a LYNX Distributor / Dealer authorized

to distribute LYNX snowmobiles in the country in which the sale

occurred;

- The BRP specified pre-delivery inspection process must be com-

pleted and documented;

- The product must have undergone proper registration by an au-

thorized LYNX Distributor / Dealer;

- The 2024 LYNX snowmobile must be purchased in the country in

which the purchaser resides.

- Routine maintenance outlined in the operator’s guide must be

timely performed in order to maintain warranty coverage. BRP re-

serves the right to make warranty coverage contingent upon proof

of proper maintenance.

BRP will not honour this limited warranty to any private use owner or

commercial use owner if one of the preceding conditions has not been

330

BRP INTERNATIONAL LIMITED WARRANTY: 2024 LYNX^® SNOWMOBILES

met. Such limitations are necessary in order to allow BRP to preserve

both the safety of its products, and also that of its consumers and the

general public.

WHAT TO DO TO OBTAIN WARRANTY

COVERAGE

The customer must cease using the snowmobile upon the appearance

of an anomaly. The customer must notify a servicing LYNX Distributor

/ Dealer within two (2) days of the appearance of a defect, and provide

it with reasonable access to the product and reasonable opportunity to

repair it. The customer must also present to the authorized LYNX Dis-

tributor / Dealer, proof of purchase of the product and must sign the re-

pair / work order prior to starting the repair in order to validate the

warranty repair. All parts replaced under this limited warranty become

the property of BRP.

Note that the notification period is subject to the applicable national or

local legislation in customer's country.

WHAT BRP WILL DO

To the extent permitted by law, BRP’s obligations under this warranty

are limited to, at its sole discretion, repairing parts found defective

under normal use, maintenance and service, or replacing such parts

without charge for parts and labour, at any authorized LYNX Distribu-

tor / Dealer during the warranty coverage period under the conditions

described herein. BRP’s responsibility is limited to making the required

repairs or replacements of parts. No claim of breach of warranty shall

be cause for cancellation or rescission of the sale of the snowmobile

to the owner. You may have other legal rights which may vary from

country to country.

In the event that service is required outside of the country of original

sale, the owner will bear responsibility for any additional charges due

to local practices and conditions, such as, but not limited to, freight, in-

surance, taxes, license fees, import duties, and any and all other finan-

cial charges, including those levied by governments, states, territories

and their respective agencies.

BRP reserves the right to improve or modify products from time to time

without assuming any obligation to modify products previously

manufactured.

TRANSFER

If the ownership of a product is transferred during the warranty cover-

age period, this limited warranty, subject to its terms and conditions,

shall also be transferred and be valid for the remaining coverage peri-

od provided BRP or an authorized LYNX Distributor / Dealer receives

331

BRP INTERNATIONAL LIMITED WARRANTY: 2024 LYNX^® SNOWMOBILES

a proof that the former owner agreed to the transfer of ownership, in

addition to the coordinates of the new owner.

CONSUMER ASSISTANCE

In the event of a controversy or a dispute in connection with this limited

warranty, BRP suggests that you try to resolve the issue at the LYNX

Distributor / Dealer level. We recommend discussing the issue with

the authorized LYNX Distributor / Dealer's service manager or owner.

If the matter still remains unresolved, contact BRP by filling out the

customer contact form at www.brp.com or contact BRP by mail at one

of the addresses listed under the CONTACT US section of this guide.

332

BRP LIMITED WARRANTY FOR THE

EUROPEAN ECONOMIC AND THE

COMMONWEALTH OF THE INDEPENDENT

STATES (CIS) AREAS AND TURKEY: 2024

LYNX® SNOWMOBILES

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2024

LYNX snowmobiles sold by distributors or dealers authorized by BRP

to distribute LYNX snowmobiles ("LYNX Distributor / Dealer") in mem-

ber states of the European Economic Area (which is comprised of the

member states of the European Union plus the United Kingdom, Nor-

way, Iceland and Liechtenstein) ("EEA"), in member states of the

Commonwealth of the Independent States (including Ukraine and

Turkmenistan) (''CIS'') and Turkey from defects in material or work-

manship for the period and under the conditions described below.

Non-factory installed parts and accessories are not covered under this

limited warranty. Please refer to the applicable parts and accessories

limited warranty text.

This limited warranty will become null and void if: (1) the snowmobile

was used for racing or any other competitive activity, at any point,

even by a previous owner; or (2) the snowmobile has been altered or

modified in such a way so as to adversely affect its operation, perform-

ance or durability, or has been altered or modified to change its in-

tended use.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS

EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE

LIFE OF THE EXPRESS WARRANTIES. INCIDENTAL AND

CONSEQUENTIAL DAMAGES ARE EXCLUDED FROM COVER-

AGE UNDER THIS WARRANTY. SOME JURISDICTIONS DO

NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-

CLUSIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY

NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS

WHICH MAY VARY FROM COUNTRY TO COUNTRY. BRP

SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY

PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR

REASONS OUTSIDE OF BRP’S CONTROL.

333

Neither the LYNX Distributor / Dealer nor any other person has been

authorized to make any affirmation, representation or warranty regard-

ing the product, other than those contained in this limited warranty,

and if made, shall not be enforceable against BRP.

BRP reserves the right to modify this warranty at any time, being

understood that such modification will not alter the warranty conditions

applicable to the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under this limited warranty under any

circumstances:

Normal wear and tear;

–

Routine maintenance items, tune ups, adjustments;

–

Damage caused by negligence or failure to provide proper mainte-

nance and/or storage, as described in the operator's guide;

Damage resulting from removal of parts, improper repairs, service,

maintenance, modifications or use of parts or accessories not

manufactured or approved by BRP which in its reasonable judge-

ment are either incompatible with the product or adversely affect

its operation, performance and durability, or resulting from repairs

done by a person that is not an authorized servicing BRP snowmo-

bile distributor/ dealer;

Damage caused by abuse, abnormal use, neglect, racing or opera-

tion of the product on surfaces other than snow, or operation of the

product in a manner inconsistent with the recommended operation

described in the Operator’s Guide;

Damage resulting from accident, submersion, fire, snow or water

ingestion, theft, vandalism or any act of God;

Operation with fuels, oils or lubricants which are not suitable for

use with the product (see the Operator’s Guide);

Damage resulting from rust, corrosion or exposure to the

elements;

Incidental or consequential damages, or damages of any kind in-

cluding without limitation towing, storage, transportation expenses,

telephone, rental, taxi, inconvenience, insurance coverage, loan

payments, loss of time, loss of income; or time missed for down-

time experience due to service work.

And damage resulting from studs installed on tracks if the installa-

tion does not conform to BRP’s instructions.

WARRANTY COVERAGE PERIOD

This warranty will be in effect from (1) the date of delivery to the first

retail consumer or (2) the date the product is first put into use, which-

ever occurs first and for a period of:

334

TWENTY-FOUR (24) CONSECUTIVE MONTHS, for private use own-

ers and TWELVE (12) CONSECUTIVE MONTHS for commercial use

owners. However, the warranty coverage period on a snowmobile de-

livered between June 1^st and December 1^st of a given year will expire

November 30^th of the applicable year. A snowmobile is used commer-

cially when it is used in connection with generating income or any work

or employment during any part of the warranty period. A snowmobile

is also used commercially when, at any point during the warranty peri-

od, it has commercial tags or is licensed for commercial use.

The repair or replacement of parts or the performance of service under

this warranty does not extend the life of this warranty beyond its origi-

nal expiration date.

Note that the duration and any other modalities of the warranty cover-

age are subject to the applicable national or local legislation in the cus-

tomer's country.

CONDITIONS TO HAVE WARRANTY COVERAGE

This warranty coverage is available only if each of the following condi-

tions has been fulfilled:

- The 2024 LYNX snowmobile must be purchased as new and un-

used by its first owner from a LYNX Distributor / Dealer authorized

to distribute LYNX products in the country in which the sale

occurred;

- The BRP specified pre-delivery inspection process must be com-

pleted and documented;

- The product must have undergone proper registration by an au-

thorized LYNX Distributor / Dealer;

- The 2024 LYNX snowmobile must be purchased in the country (or

in the case of the EEA, union of countries) in which the purchaser

resides; and

- Routine maintenance outlined in the operator’s guide must be

timely performed in order to maintain warranty coverage. BRP re-

serves the right to make warranty coverage contingent upon proof

of proper maintenance.

BRP will not honour this limited warranty to any private use owner or

commercial use owner if one of the preceding conditions has not been

met. Such limitations are necessary in order to allow BRP to preserve

both the safety of its products, and also that of its consumers and the

general public.

WHAT TO DO TO OBTAIN WARRANTY

COVERAGE

The customer must cease using the snowmobile upon the appearance

of an anomaly. The customer must notify a servicing LYNX Distributor

335

/ Dealer within two (2) months of the appearance of a defect, and pro-

vide it with reasonable access to the product and reasonable opportu-

nity to repair it. The customer must also present to the authorized

LYNX Distributor / Dealer, proof of purchase of the product and must

sign the repair / work order prior to starting the repair in order to vali-

date the warranty repair. All parts replaced under this limited warranty

become the property of BRP.
