IMPORTANT ON-PRODUCT LABELS

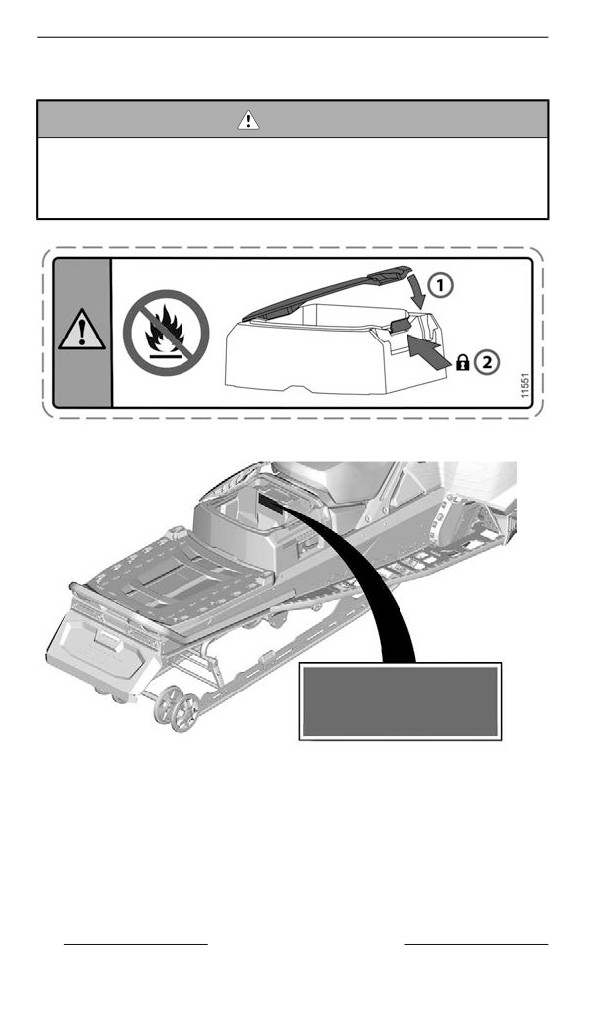

Rear Storage Compartment - Warning Label
WARNING
To reduce the risk of severe injury or death:
– Never carry flammable or dangerous liquids inside cargo
box. If ignited, this can lead to an explosion.
– Make sure the cover is closed and latched before riding.
REAR STORAGE COMPARTMENT - WARNING LABEL
TYPICAL
74
SAFETY INFORMATION
IMPORTANT ON-PRODUCT LABELS

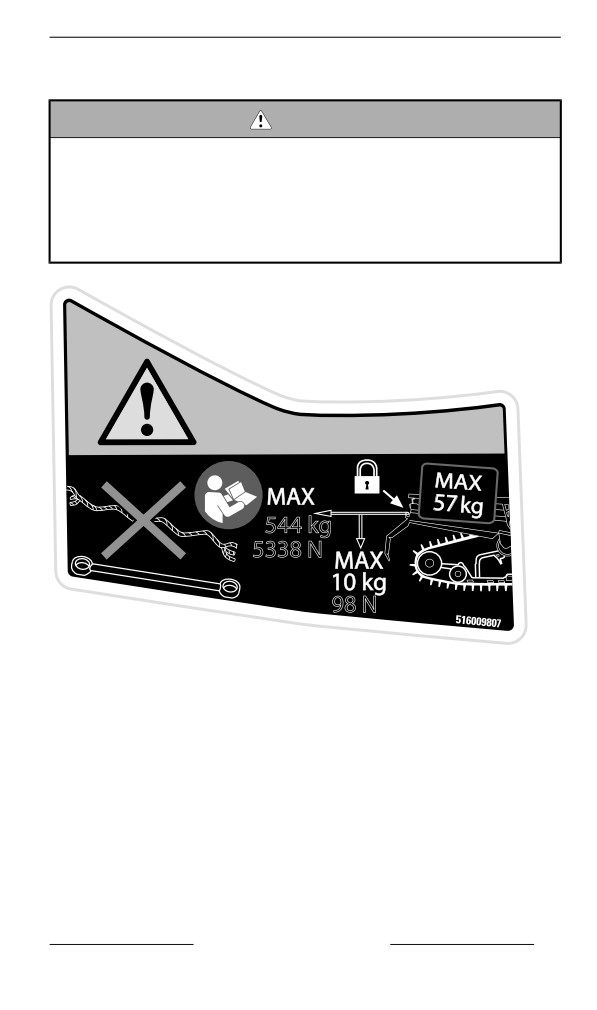

Maxiimum Towing Capacity - Warning Labell
WARNING
– Always use a securely fastened rigid tow bar to tow.
– Refer to the operator''s guide for more details.
– Exceeding maximum cargo may affect steering control,
braking ability and cause permanent damage.
– MAXIMUM cargo load: 57 kg (559 N)
– MAXIMUM tongue weight: 10 kg (98 N)
– MAXIMUM towing capacity: 544 kg (5338 N)
544 kg
5338 N
98 N

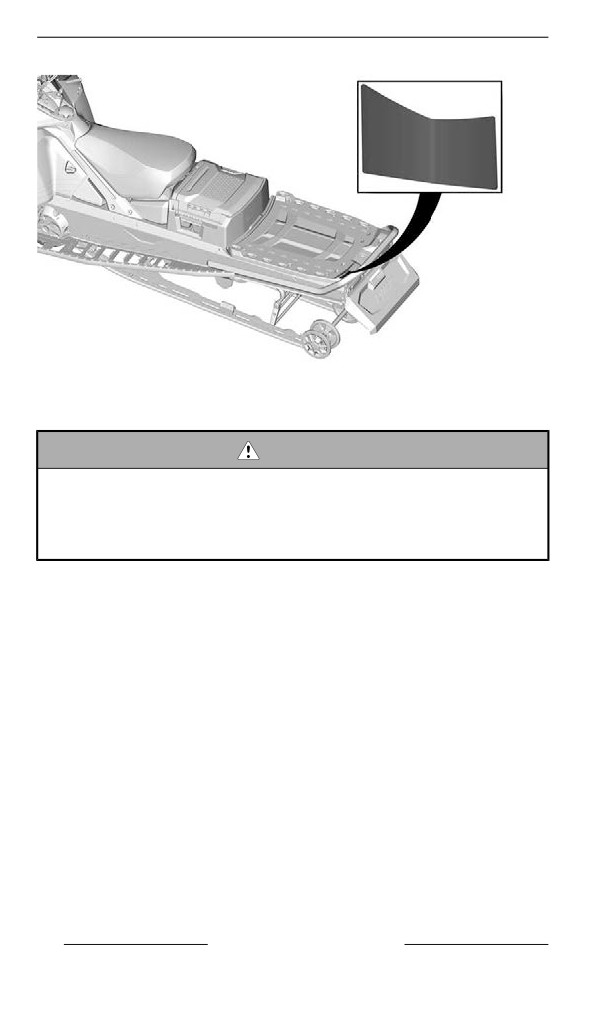

MAXIMUM CARGO LOAD AND TOWING CAPACITY - WARN-
ING LABEL
SAFETY INFORMATION
75
IMPORTANT ON-PRODUCT LABELS
LABEL LOCATION — TYPICAL

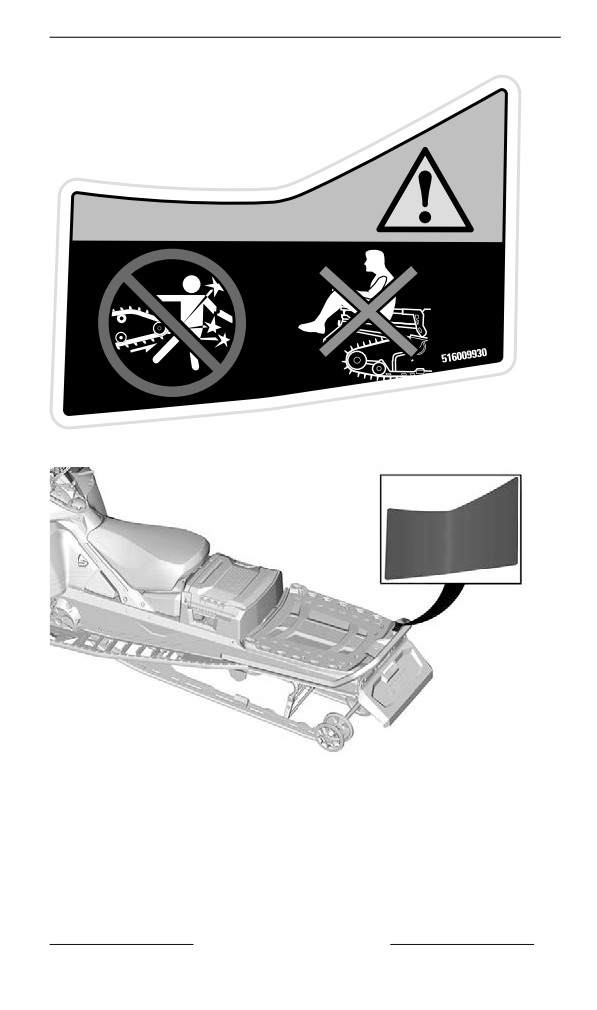

Rotating Track - Warning Labell
WARNING
-NEVER stand behind or near a rotating track. Debris could be
projected causing severe injuries. To remove packed snow/ice,
stop engine, lift and hold vehicle on the side and use wrench
tool on the belt guard.
- NEVER sit in cargo area.
76
SAFETY INFORMATION
IMPORTANT ON-PRODUCT LABELS

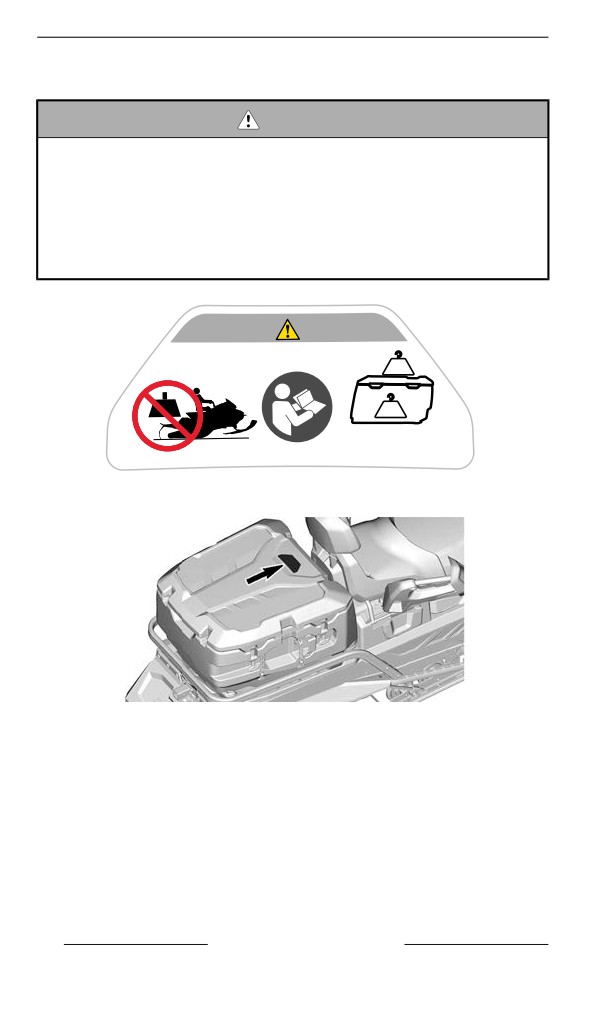

PROHIBITIONS - WARNING LABEL
LABEL LOCATION — TYPICAL
SAFETY INFORMATION
77
IMPORTANT ON-PRODUCT LABELS
Rear Cargo Box - Warning Labell
WARNING
– Exceeding maximum cargo load may affect steering control,
braking ability and cause permanent damage.
– For maximum cargo load specification, refer to the opera-
tor’s guide.
– Maximum cargo load capacity of cargo box lid): 20 kg (44
lb).
– Maximum cargo load capacity of the box, including inside
and on lid: 48 kg (105 lb).
A
B
A < 20Kg (44lb)
A + B < 48Kg (105lb)
REAR CARGO BOX (OUTSIDE) – WARNING LABEL
LABEL LOCATION
78
SAFETY INFORMATION
IMPORTANT ON-PRODUCT LABELS

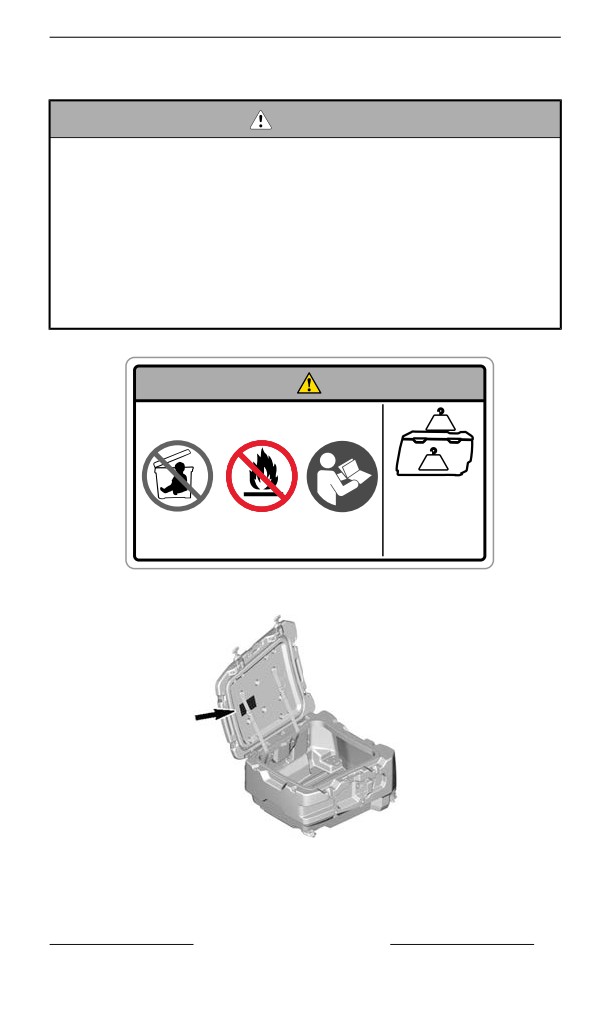

Rear Cargo Box - Warniing Label
WARNING
– NEVER carry a child or pet in this cargo box. The cargo box
is airtight which can lead to suffocation.
– NEVER carry flammable or dangerous liquid inside the car-
go box. If ignited, this can lead to an explosion and cause
severe injury or death.
– For maximum cargo load specification, refer to the opera-
tor’s guide.
– Maximum cargo load capacity of cargo box lid): 20 kg (44
lb).
– Maximum cargo load capacity of the box, including inside
and on lid: 48 kg (105 lb).
A
B
A < 20Kg
(44lb)
A + B < 48Kg
(105lb)
REAR CARGO BOX (INSIDE) – WARNING LABEL
LABEL LOCATION
SAFETY INFORMATION
79
IMPORTANT ON-PRODUCT LABELS

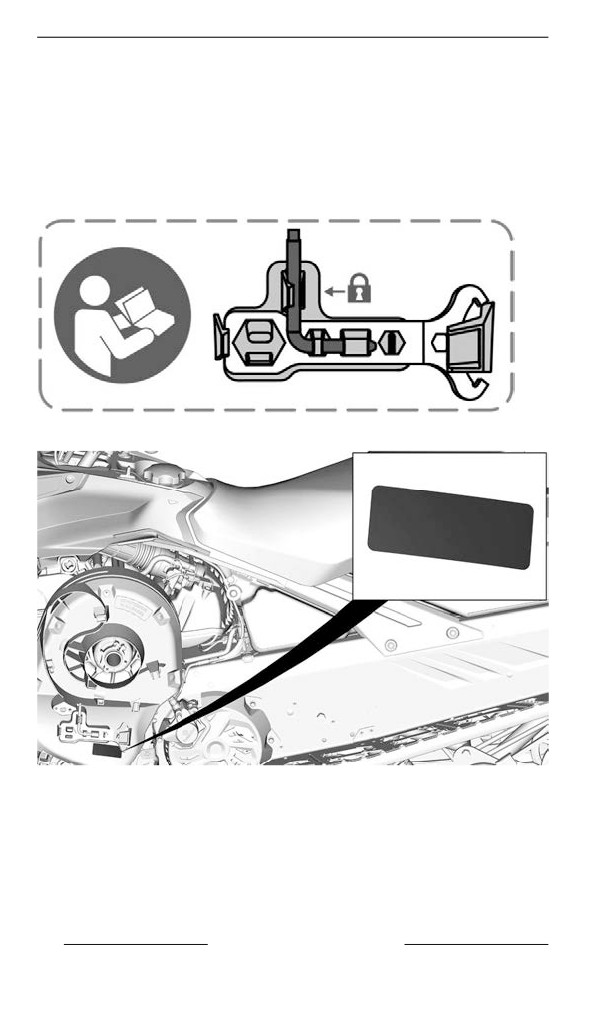

Techniicall Information Labells
Adjustment Tools Label
- Install suspension adjustment tool first. (Illustrated red on label)
- Install pulley expander and Headlight adjustment tool second. (Il-
lustrated blue on label)
- Refer to Tools in Equipment.
ADJUSTMENT TOOLS
TYPICAL
80
SAFETY INFORMATION
IMPORTANT ON-PRODUCT LABELS
Recommended Fuel — Notice Label
Refer to the Technical Specifications for appropriate fuel type for your
vehicle engine.

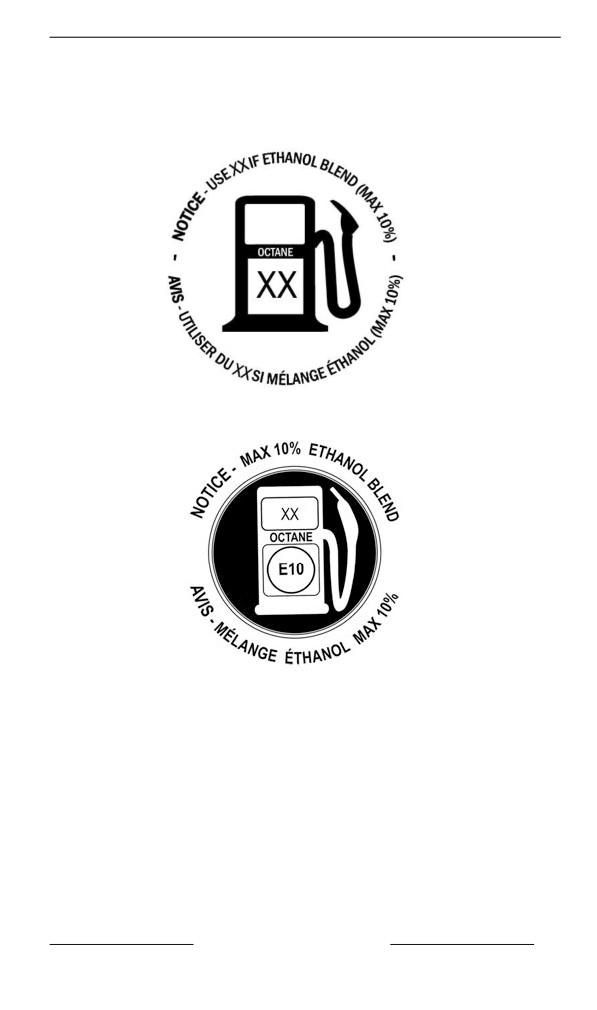

AKI (RON+MON)/2 OCTANE RATING - NOTICE LABEL
RON OCTANE RATING - NOTICE LABEL
SAFETY INFORMATION
81

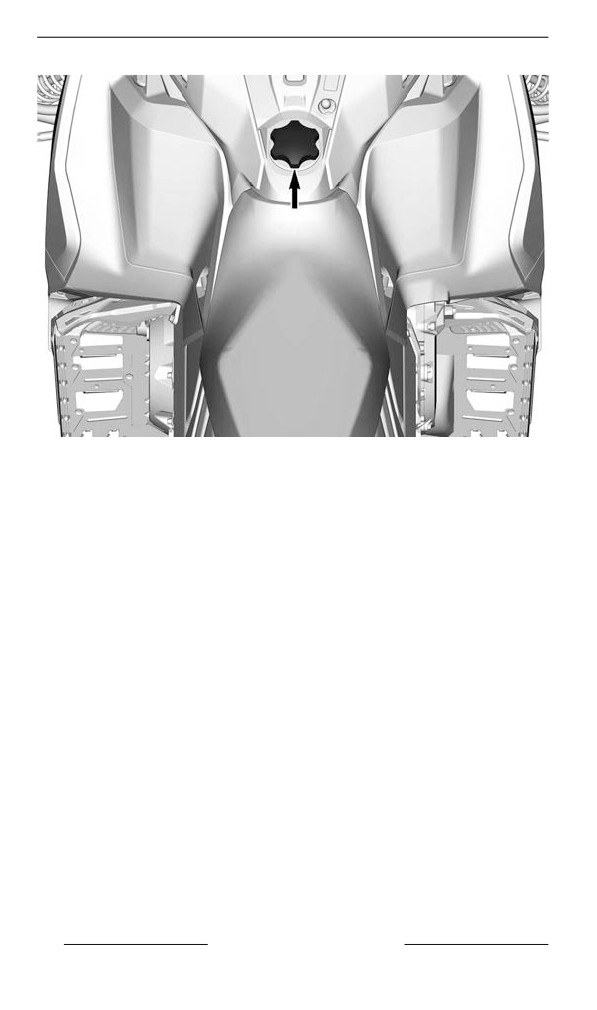

IMPORTANT ON-PRODUCT LABELS
82
SAFETY INFORMATION
PRE-RIDE INSPECTION
Perform a pre-ride inspection before each ride to detect potential prob-
lems during operation. The pre-ride inspection can help you monitor
wear and deterioration before they become a problem. Correct any
problems that you discover to reduce the risk of an accident or a
malfunction.
Before Starting the Engiine
1. Remove snow and ice from body including lights, seat, footrests,
controls and instruments.
2. Remove packed snow and ice from the rear suspension using the
wrench tool stored on the drive belt guard.
3. Verify that air silencer prefilter is free of snow.
4. Verify that skis and steering operate freely. Check corresponding
action of skis versus handlebar.
5. Check fuel and injection oil for levels and leaks. Replenish if neces-
sary and in case of any leaks; you should seek service from an au-
thorized BRP snowmobile dealer, repair shop, or person of your
own choosing for maintenance, repair, or replacement.
6. All storage compartments must be properly latched and they must
not contain any heavy or breakable objects. Hood and side panels
must be also properly latched.
7. Activate the throttle control lever several times to check that it oper-
ates easily and smoothly. It must return to idle position when
released.
8. Activate the brake lever and make sure the brake fully applies be-
fore the brake control lever touches the handlebar grip. It must fully
return when released.
9. Apply parking brake and check if it operates properly. Leave park-
ing brake applied.
10. Inspect drive belt condition and height. Refer to drive belt in main-
tenance procedures.
After Engiine is Started
For proper engine starting procedure, refer to the appropriate Engine
Starting Procedure.
1. Check headlights high beam and low beam, taillight, stop light and
pilot lamps operation.
NOTE:
You may need to detach tether cord from your clothes to check lights.
In such a case, attach cord as soon as you get back at the controls of
the snowmobile.
2. Check the engine cut-off switch (by pulling tether cord cap) and
emergency engine stop switch operation.
3. Release parking brake.
4. Refer to Vehicle warm up and follow instructions.
SAFETY INFORMATION
83
PRE-RIDE INSPECTION
Pre-Ride Check List
ITEM
OPERATION
ü
BODY INCLUDING
SEAT, FOOTRESTS,
Check condition wear and remove
LIGHTS, AIR FILTER,
snow or ice .
CONTROLS AND
INSTRUMENTS
SKIS AND STEERING
Check for free movement and proper
ACTION
operation.
Check for proper operation and
SKI RUNNERS
abnormal wear.
FUEL
Check for proper level and no leaks.
INJECTION OIL (IF
Check for proper level and no leaks.
APPLICABLE)
COOLANT
Check for proper level and no leaks.
Check for cracks, fraying or abnormal
DRIVE BELT
wear and proper height.
THROTTLE LEVER
Check for proper operation.
BRAKE LEVER
Check for proper operation.
PARKING BRAKE,
Check for proper operation.
BRAKE
BRAKE FLUID
Check for proper level and no leaks.
STORAGE
Check for proper latching and no
COMPARTMENT
heavy or breakable objects.
Check condition and remove snow or
ice.
TRACK
For studded tracks, refer to Traction
Enhancing Products.
Check for proper operation and
SLIDER SHOES
abnormal wear.
84
SAFETY INFORMATION
PRE-RIDE INSPECTION
EMERGENCY ENGINE
STOP SWITCH AND
Check for proper action. Tether cord
ENGINE CUT-OFF
must be attached to operator clothing
SWITCH (TETHER
eyelet.
CORD CAP)
LIGHTS
Check for proper operation.
HORN BUTTON (IF
Check for proper operation.
EQUIPPED)
SAFETY INFORMATION
85
SAFETY INFORMATION
This page is intention-
ally blank
86
SAFETY INFORMATION
VEHICLE
INFORMATION
87
PRIMARY CONTROLS

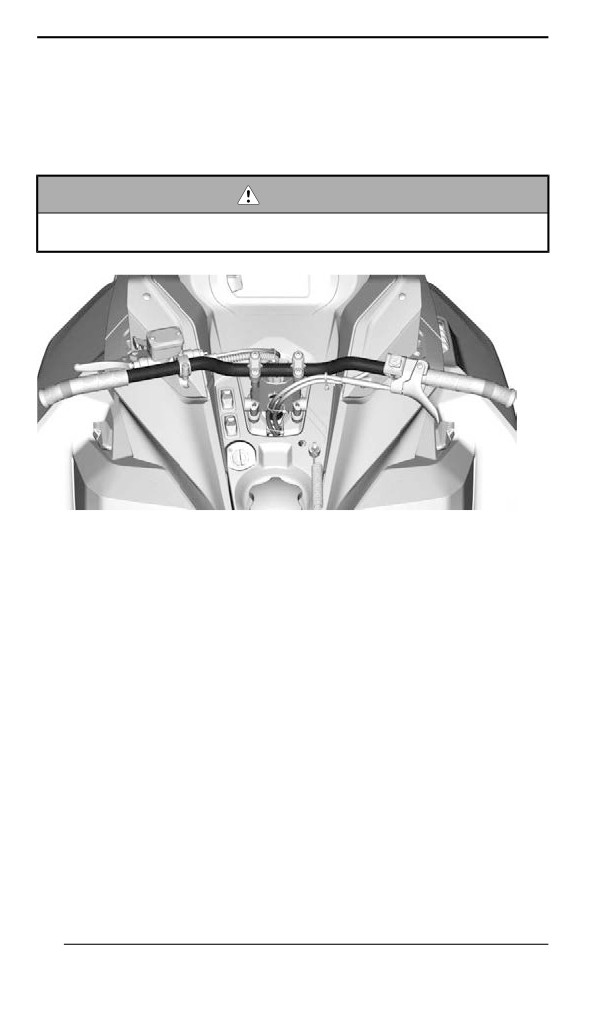

Handllebar
The handlebar controls the steering of the snowmobile. As the handle-
bar is rotated to right or left, the skis are turned right or left to steer the
snowmobile.
WARNING
Fast reverse while turning, could result in loss of stability and
control.
TYPICAL
Throttlle Lever
Throttle lever is located on the RH side of handlebar.
When squeezed, it increases the engine speed. When released, en-
gine speed returns automatically to idle.
Models with 900 ACE Turbo or 900 ACE Turbo R Engine
Designed to be thumb activated.
88
PRIMARY CONTROLS

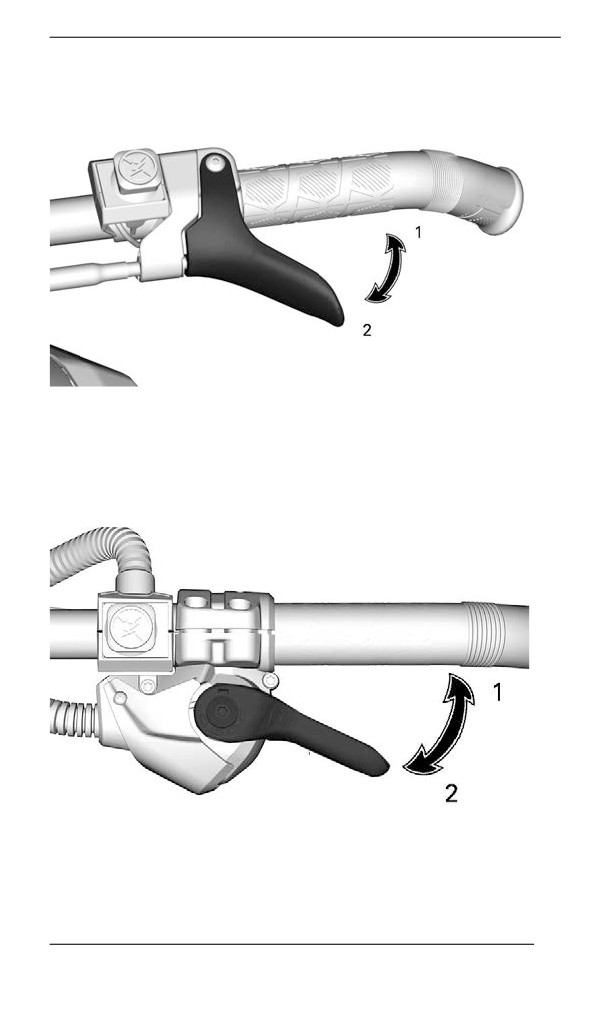

CABLE THROTTLE LEVER
1. To accelerate
2. To decelerate
Models with 600 ACE or 900 ACE Engine
Designed to be either thumb or finger activated.
ITC THROTTLE LEVER
1. To accelerate
2. To decelerate
89
PRIMARY CONTROLS
WARNING
Test the throttle lever operation each time before starting the
engine. The lever must return to the rest position once re-
leased. Otherwise, do not start engine.

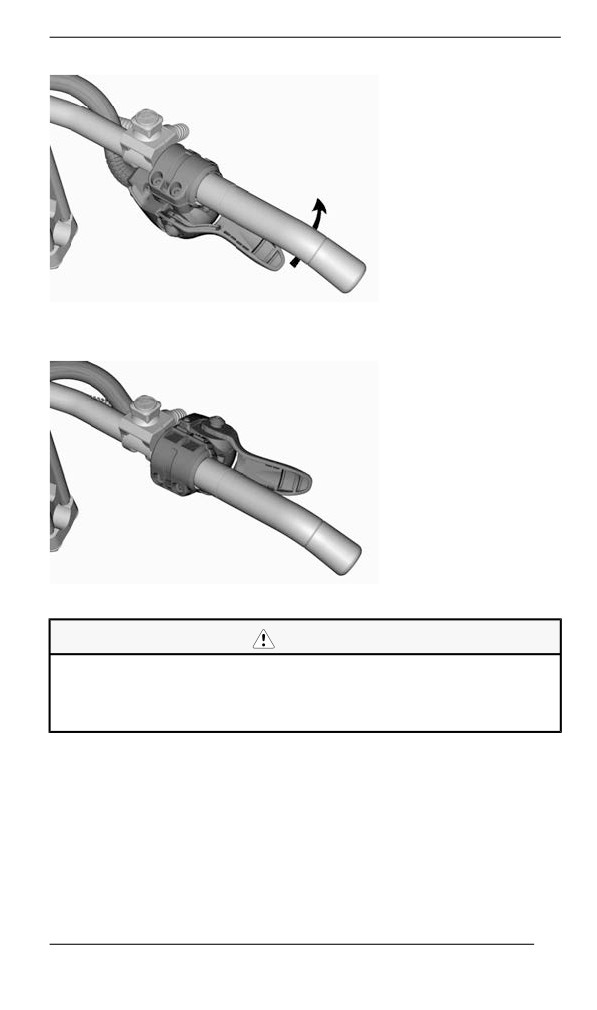

Switching from Thumb to Finger Throttle Position (ITC Throttle
Lever)
CAUTION
It is highly recommended to immobilize the snowmobile before
attempting any modification to the throttle position as it could
lead to a hazardous situation.
There are mainly three positions to choose from when going from the
thumb to the finger throttle position and the best one will be to the rid-
er's preference and in direct relation with the riding style and
conditions.

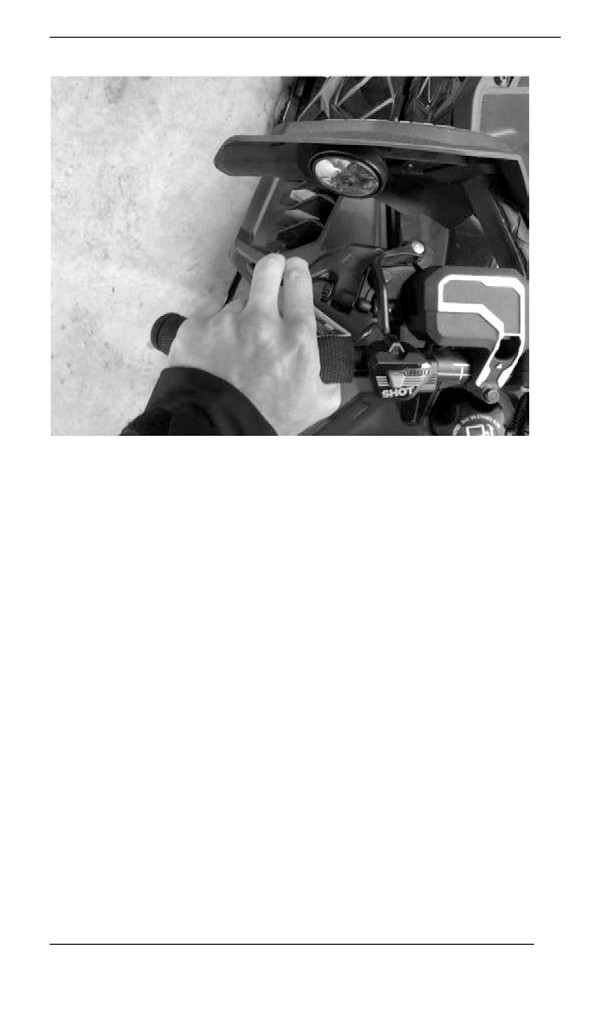

THUMB THROTTLE POSITION : PUSH DOWNWARD TO RO-
TATE THROTTLE HOUSING
90
PRIMARY CONTROLS
IF WANTED, CONTINUE TO ROTATE THE THROTTLE
HOUSING
FINGER THROTTLE POSITION
CAUTION
It is HIGHLY recommended to use gloves and NOT mitts when
using the finger throttle position.
It is not recommended to use the finger throttle position while
riding in dense off trail areas.
The procedure to go back to the thumb throttle position is the reverse
of the one shown above.

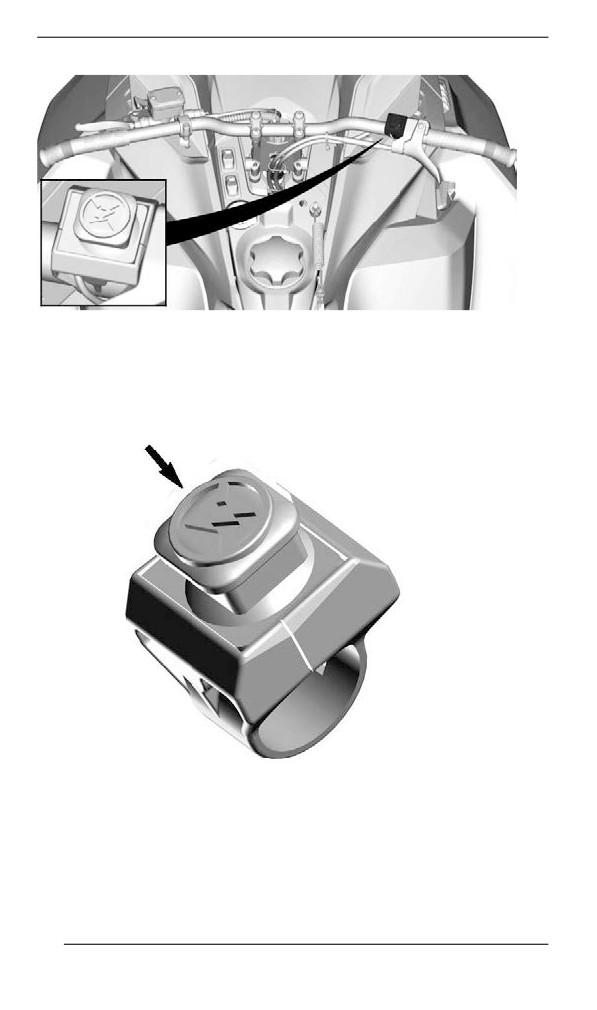

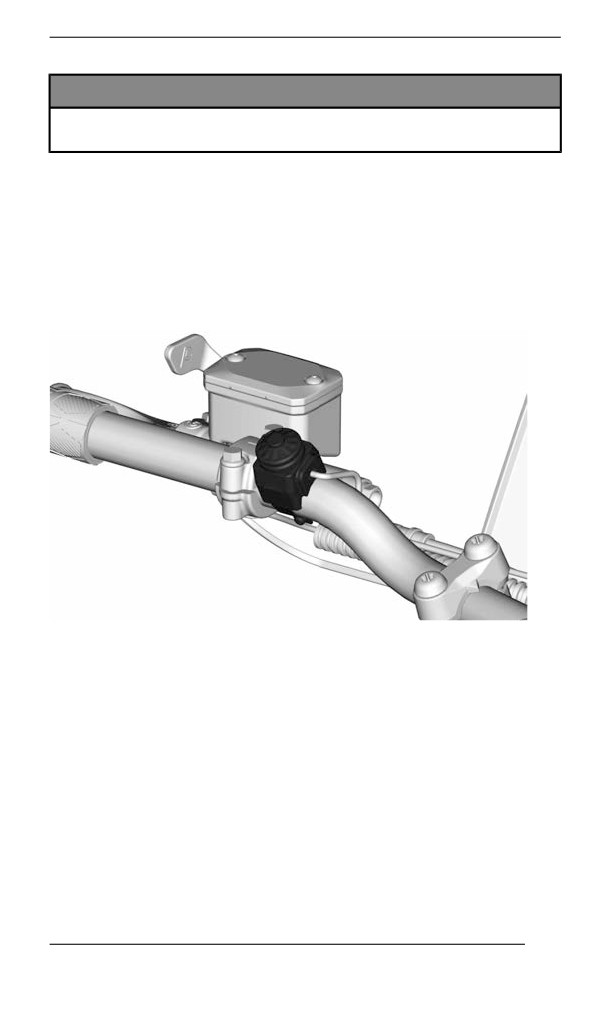

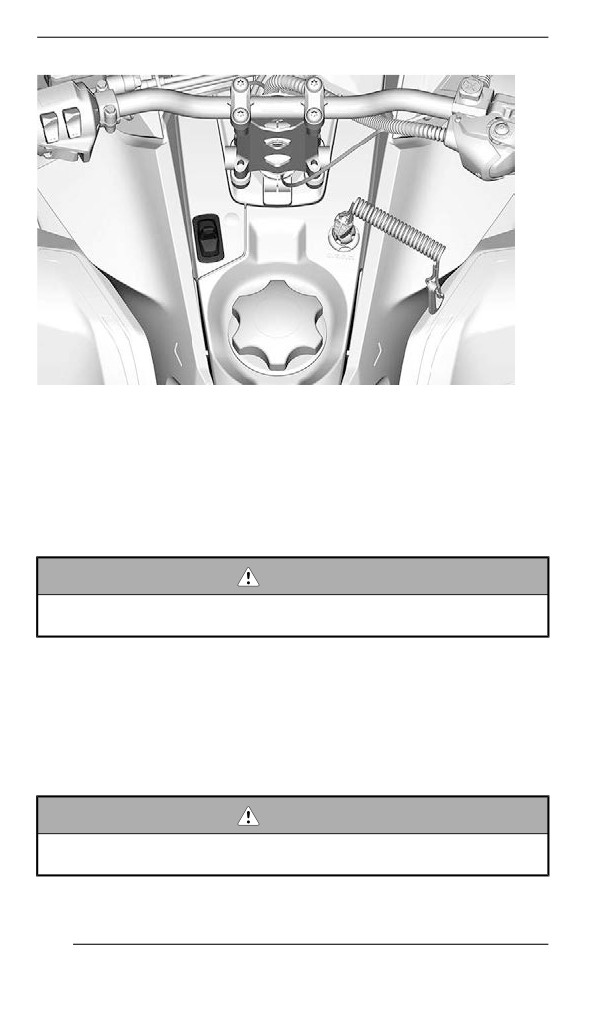

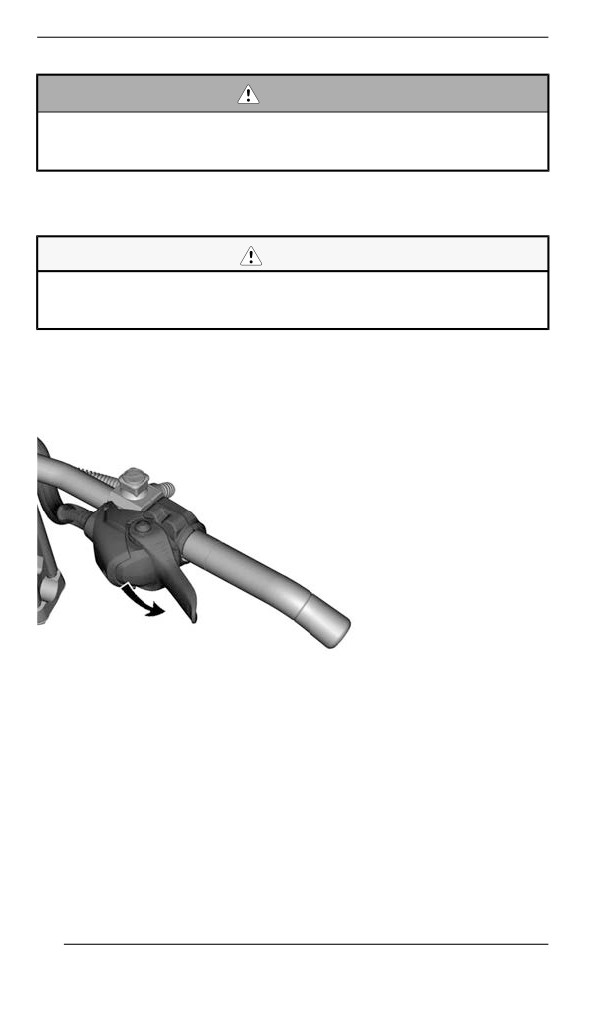

Emergency Engine Stop Switch
The emergency engine stop switch is located on the RH side of
handlebar.
91
PRIMARY CONTROLS
TYPICAL
To stop the engine in an emergency, push the switch down in OFF po-
sition and simultaneously apply the brake.
OFF POSITION

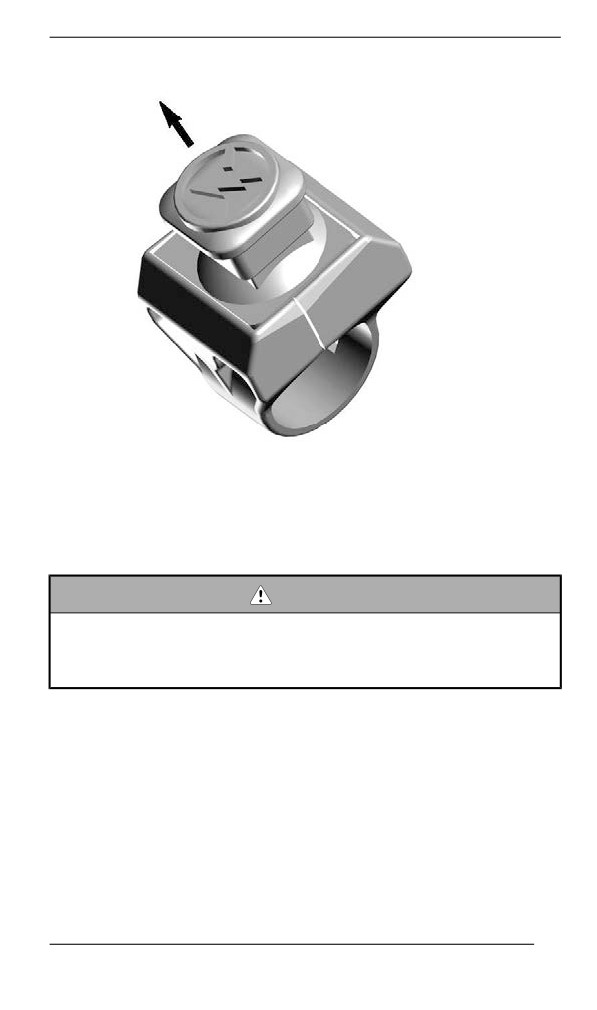

To allow engine starting, pull the switch up in ON position.
92
PRIMARY CONTROLS
ON POSITION
All operators of the snowmobile should familiarize themselves with the
function of the emergency engine stop switch by using it several times
on first outing and whenever stopping the engine thereafter. This en-
gine stopping procedure will become a reflex and will prepare opera-
tors for emergency situations requiring its use.
WARNING
If the switch has been used in an emergency caused by a sus-
pected malfunction, the source of the malfunction should be de-
termined and corrected before restarting engine. Visit an
authorized BRP snowmobile dealer for servicing.
Brake Lever
Brake lever is located on the LH side of handlebar.
When squeezed, brake is applied. When released, it automatically re-
turns to the rest. Braking effect is proportional to the pressure applied
on the lever and to the type of terrain and its snow coverage.
93
PRIMARY CONTROLS

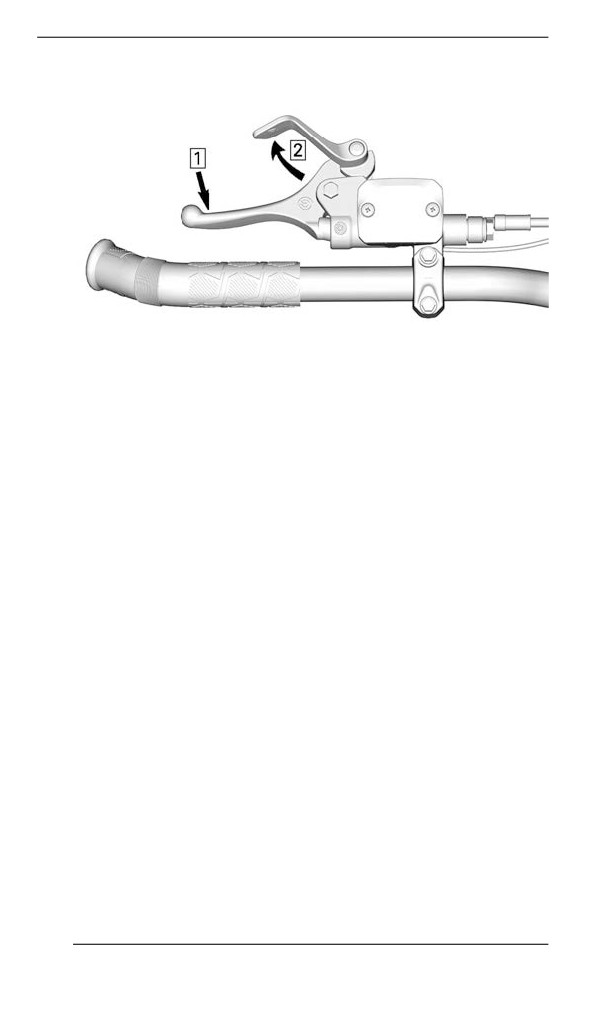

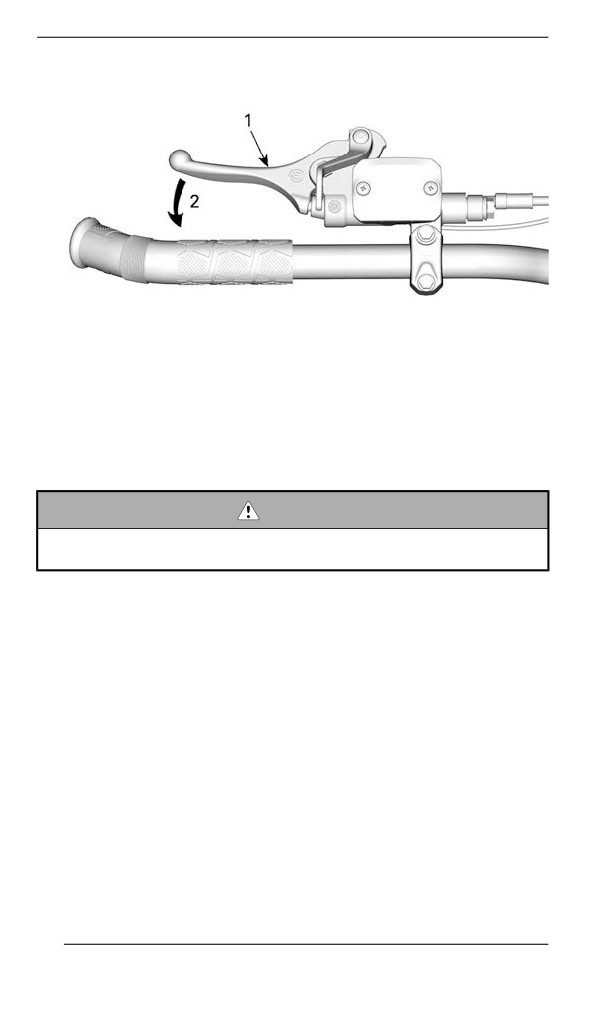

TYPICAL
1. Brake lever
2. To apply brake
Brake Lever Adjustment
WARNING
It is important to adjust the brake lever to the user size and nor-
mal riding position.
Proper brake lever position should allow:
- Good support for the index and middle finger on the lever.
- Use the outer end of the lever to optimize the force.
- Proper wrist alignment.
Taking the time to adjust and try out the brake lever before your first
snowmobile outing improves user comfort.
94
PRIMARY CONTROLS

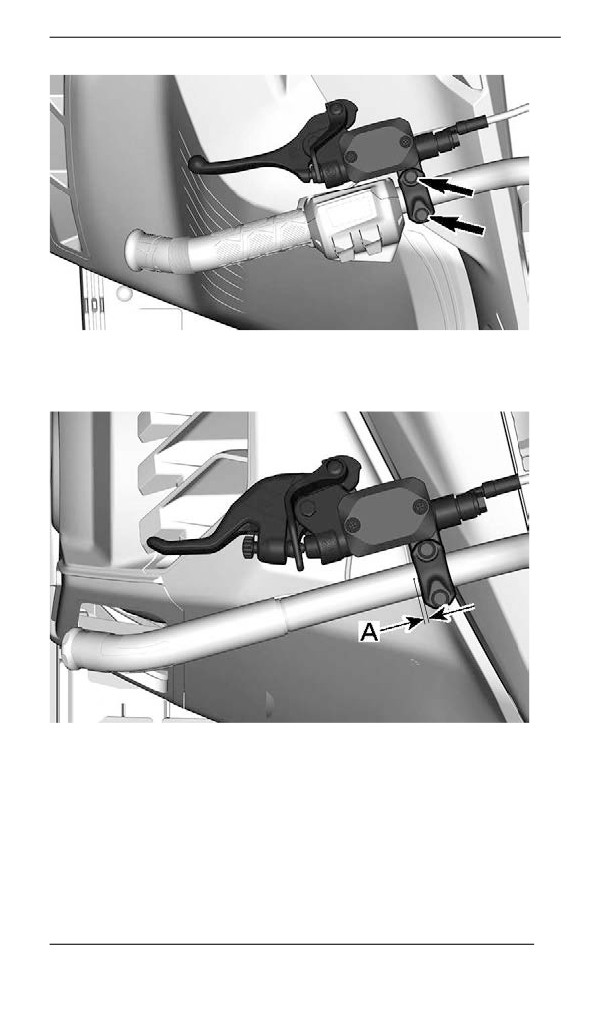

Adjusting the Brake Lever
1. Loosen the two bolts enough to easily move the brake lever on the
handlebar.
NOTE:
If the two bolts are not loosen enough the brake lever can leave marks
on the handlebar.

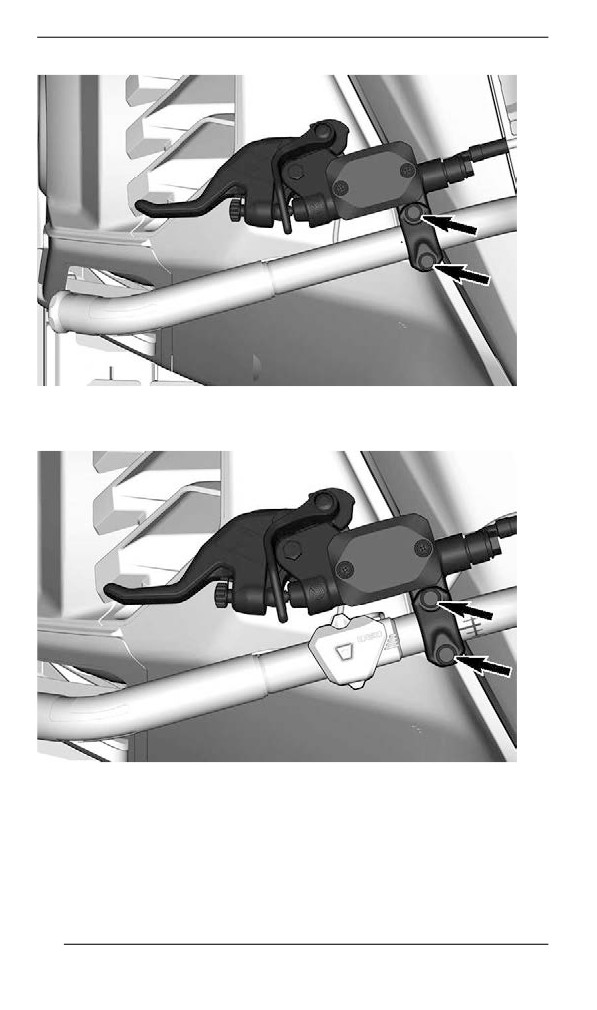

Models with steel handlebar
95
PRIMARY CONTROLS

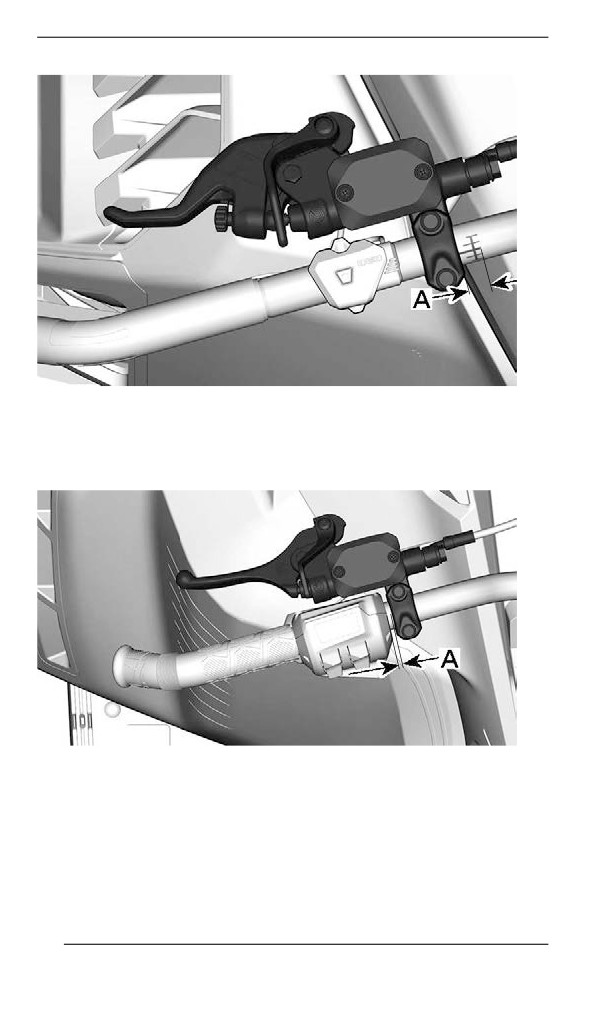

Models with aluminum handlebar and without multifunction
switch
Models with aluminum handlebar and with multifunction
switch
96
PRIMARY CONTROLS
2. Locate the reference mark on the handlebar and respect the dis-
tance and rotation limits.
Models with steel handlebar
A. 0 to 5 mm (0 to 0.197 in) between the handlebar point and side of
the brake lever
Models with aluminum handlebar and without multifunction
switch
97
PRIMARY CONTROLS
A. 0 to 9 mm (0 to 0.354 in) between the start of the handlebar mark
and side of the brake lever
Models with aluminum handlebar and with multifunction
switch
A. 0 to 15 mm (0 to 0.590 in) between the side of the multifunction
switch and the side of the brake lever
3. With the operator on the driver seat, put the brake lever in the de-
sired position.
4. Tighten the two bolts to specification.
98
PRIMARY CONTROLS
TIGHTENING TORQUE
Brake lever adjustment
8.5 ± 1.5 Nm (75 ± 13 lbf-in)
bolts

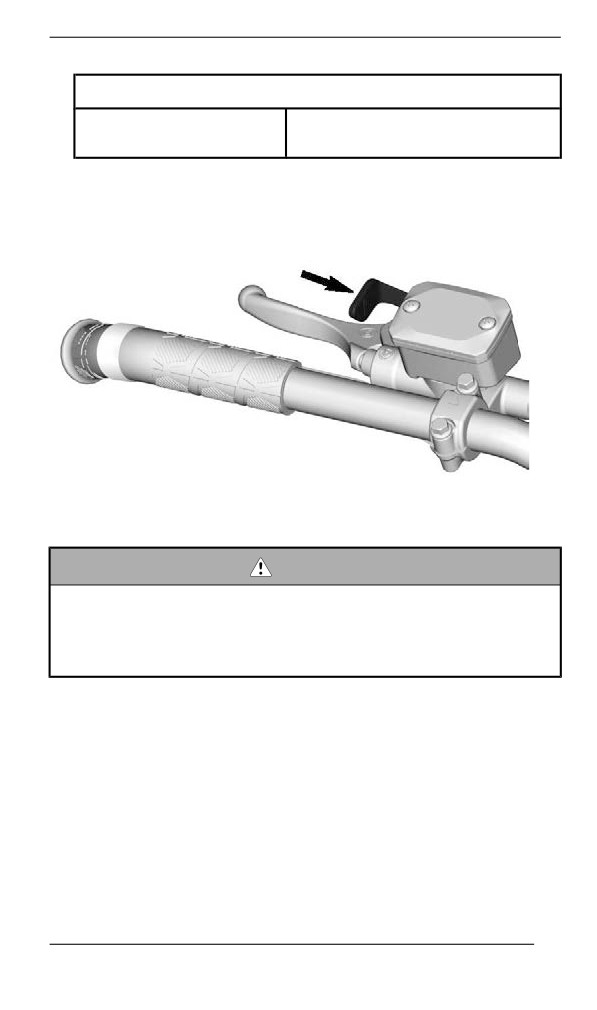

Parking Brake Lever
Parking brake lever is located on the LH side of handlebar.
TYPICAL
Parking brake should be used whenever snowmobile is parked.
WARNING
Make sure parking brake is fully disengaged before operating
the snowmobile. When you ride the vehicle, brake pads that are
caused to drag by a continuous pressure on the lever may
cause damage to the brake system and cause loss of braking
capacity and/or fire.
To Engage Parking Brake
Apply and hold brake, then lock brake lever using the parking brake
lever as shown.
99
PRIMARY CONTROLS
TYPICAL — ENGAGE MECHANISM
1. Apply and hold brake
2. Lock brake lever using parking brake lever
To Release Parking Brake
Squeeze brake lever. Parking brake lever will automatically return to
its original position. Always release parking brake before riding.
100
PRIMARY CONTROLS
Engine Cut-off Swiitch
D.E.S.S.
101
PRIMARY CONTROLS
MECHANICAL SWITCH

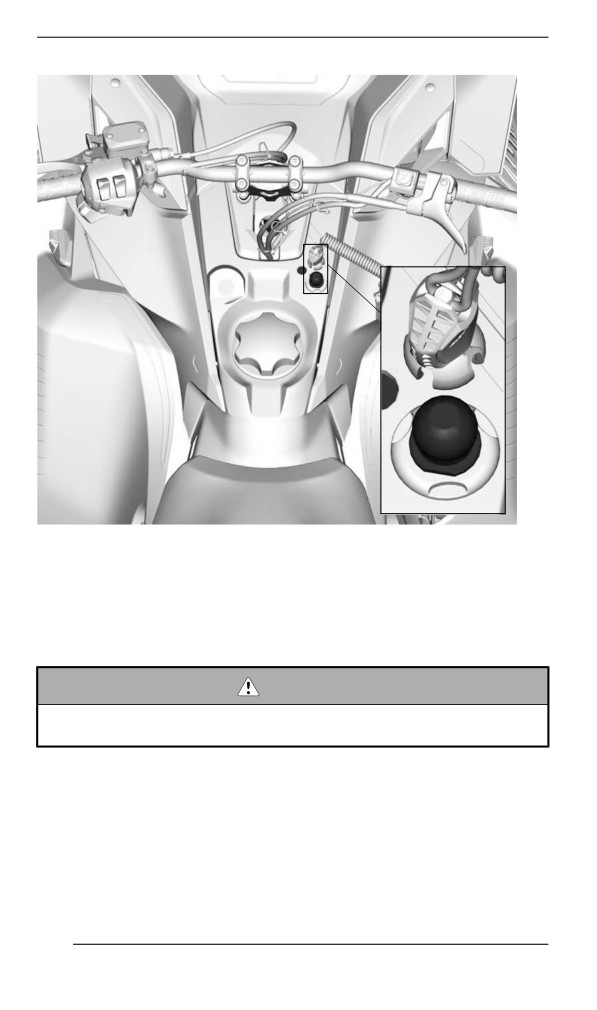

The engine cut-off switch (tether cord) is located on the console.
The tether cord cap must be securely snapped on the engine cut-off
switch to allow vehicle operation.
Pulling the tether cord cap from the switch shuts the engine off.
WARNING
Always attach the tether cord eyelet to clothing before starting
the engine.
D.E.S.S. (Digitally Encoded Security System)
The tether cord cap has an integrated D.E.S.S. key to provide you and
your snowmobile with the equivalent security of a conventional lock
key.
The D.E.S.S. key contains an electronic chip which features a unique
permanently memorized digital code.
102
PRIMARY CONTROLS
Your authorized BRP snowmobile dealer has programed the D.E.S.S.
of your snowmobile to recognize the D. E. S. S. key in the tether cord
cap to allow vehicle operation.
If another tether cord is used without programming the D.E.S.S., the
engine will start but will not reach drive pulley engagement speed to
move vehicle.
Make sure the tether cord cap is free of dirt or snow.
D.E.S.S. Flexibility
The D.E.S.S. of your snowmobile can be programmed by your author-
ized BRP snowmobile dealer to accept up to 8 different keys.
We recommend the purchase of additional tether cords from your au-
thorized BRP snowmobile dealer. If you have more than one D.E.S.S.
equipped BRP snowmobile, each can be programmed by your author-
ized BRP snowmobile dealer to accept the other vehicles D. E. S. S.
keys.
103
SECONDARY CONTROLS
Some features may not apply to your model or could be optional.
Vehicle safety labels are not shown on illustrations. For information on
vehicle safety labels, refer to Vehicle Safety Labels.
Handllebar Mulltiifunction Switch
Multifunction switch is located on the LH side of handlebar.

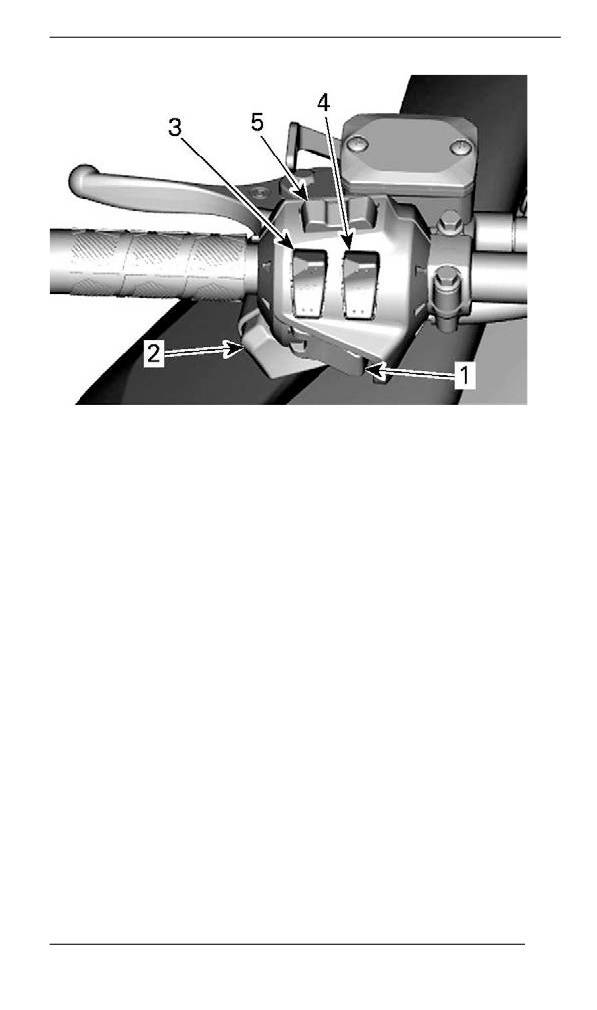

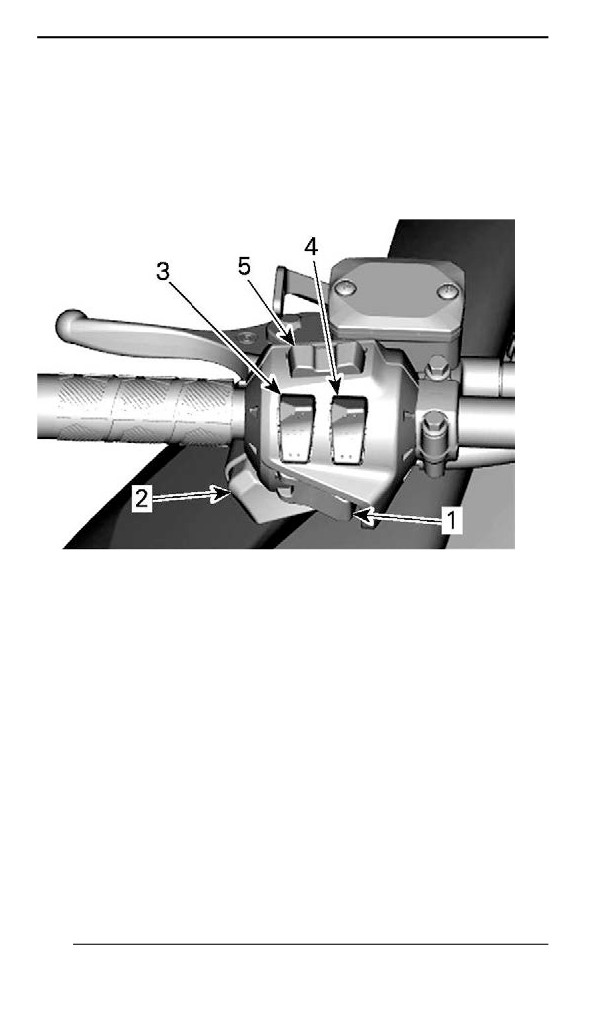

TYPICAL - MODELS WITHOUT THE LARGE PANORAMIC 7.8"
WIDE LCD DISPLAY
1. Start/Electronic Reverse button
2. Headlights dimmer switch
3. Heated grips switch
4. Heated throttle lever switch
5. Mode/set button (If equipped)
104
SECONDARY CONTROLS
MODELS WITH THE LARGE PANORAMIC 7.8" WIDE LCD
DISPLAY
1. Start/Electronic Reverse button
2. Headlights dimmer switch
3. Heated grips switch
4. Heated throttle lever switch
5. Audio Control and Phone call control
Start / Electronic Reverse Button
Press to start engine. Refer to Engine Starting Procedure in Basic
Procedures.
Once engine is started, press to engage the electronic reverse. Refer
to Shifting in Reverse in Basic Procedures for procedure.
Headlights Dimmer Button
Press to select HI or LOW beam. Lights are automatically ON when
the engine is running.
Heated Grips Switch
Depress switch as required to select heating intensity to keep your
hands at a comfortable temperature.
105
SECONDARY CONTROLS
VARIABLE INTENSITY
1. Heated grip switch
2. Increase heat
3. Decrease heat
The heating intensity is displayed via the digital display.
NOTE:
There are ten intensity settings. When released, display will return to
fuel level.
106
SECONDARY CONTROLS

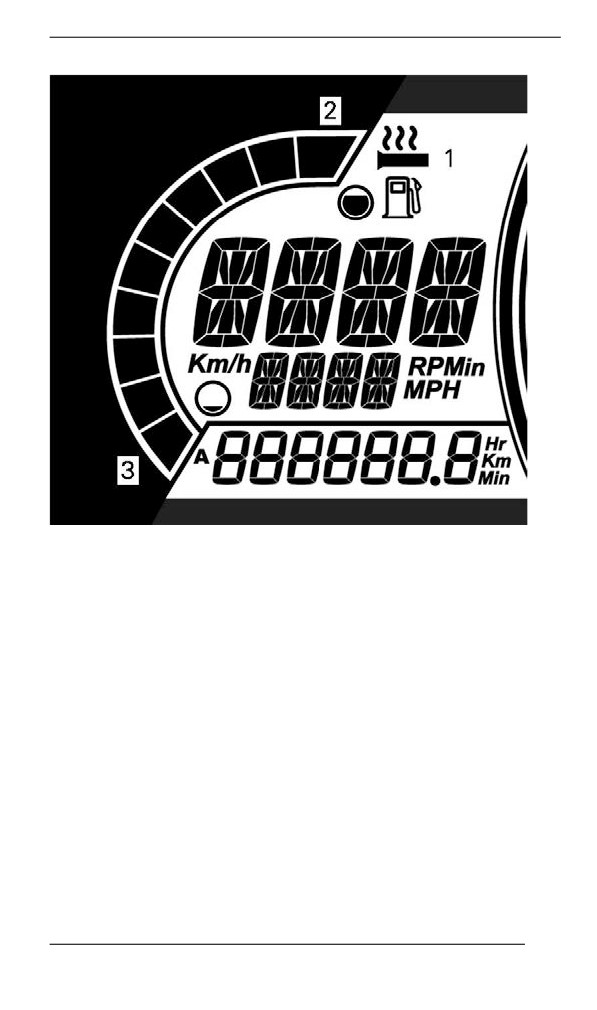

MODELS WITHOUT THE LARGE PANORAMIC 7.8" WIDE LCD
DISPLAY SHOWN
1. Heated grip icon
2. More heat
3. Less heat
Heated grips will be in OFF position when there are no bars displayed
on the gauge.
NOTE:
For models with the Large Panoramic 7.8" Wide LCD Display, refer to
Large Panoramic 7.8” Wide LCD Display section.
Heated Throttle Lever Switch
Depress switch as required to select heating intensity to keep your
thumb at a comfortable temperature.
107
SECONDARY CONTROLS

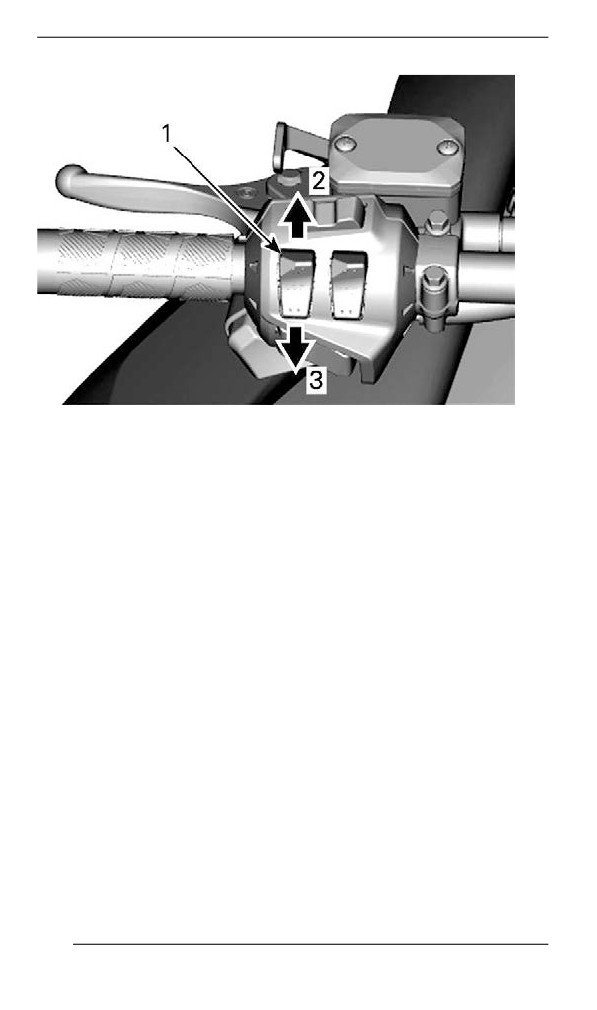

VARIABLE INTENSITY
1. Heated throttle lever switch
2. Increase heat
3. Decrease heat
NOTE:
There are ten intensity settings. When released, display will return to
engine temperature.
108
SECONDARY CONTROLS

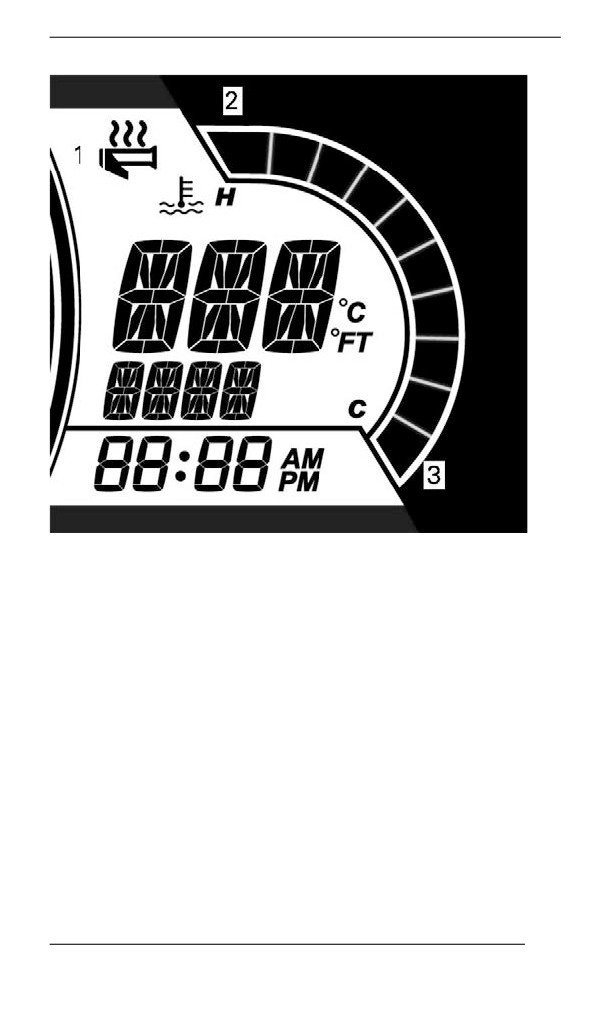

MODELS WITHOUT THE LARGE PANORAMIC 7.8" WIDE LCD
DISPLAY SHOWN
1. Heated grip icon
2. More heat
3. Less heat
Heated throttle lever will be in OFF position when there are no bars
displayed on the gauge.
NOTE:
For models with the Large Panoramic 7.8" Wide LCD Display, refer to
Large Panoramic 7.8” Wide LCD Display section.
Menu/Set Button
Models without the Large Panoramic 7.8" Wide LCD Display
This button is used to manage the information displayed on the multi-
function gauge.
109
SECONDARY CONTROLS

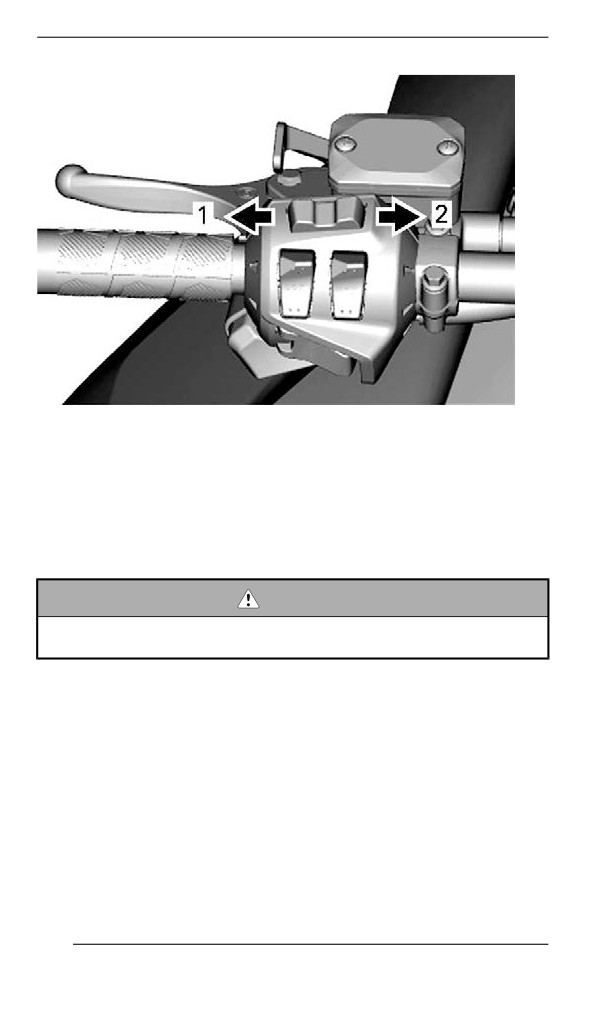

MENU/SET BUTTON
1. Menu function
2. SET function
Refer to Gauge for complete information.
Driving Modes
WARNING
Whenever changing operating mode, make sure to maintain sit-
uational awareness while riding.
ECO Mode
(Fuel Economy Mode)
When ECO mode is selected (fuel economy mode), vehicle torque
and speed are limited whereby an optimal cruising speed is main-
tained in order to reduce fuel consumption.
Once activated, ECO mode will remain active until it is deactivated by
the operator.
Standard Mode
When in Standard mode, no indicator is in the multifunction gauge.
110
SECONDARY CONTROLS
Sport Mode
WARNING
Ensure passenger is advised to hold on tightly before activating
Sport mode. Sport mode provides increased acceleration.
When selected, Sport mode provides for instant throttle response and
more rapid accelerations than Standard or ECO mode.
Once activated, Sport mode will remain active until it is deactivated by
the operator.
A message of the selected mode will be displayed at activation and
deactivation as follow:
Operating mode
Message at Activation
Sport
SPORT MODE
Standard
STANDARD MODE
Eco
ECO MODE
Navigating the Driving Modes
Use ECO/ Standard/ Sport Mode switch to navigate between power
levels, from ECO (reduced power) to Standard (full power) to Sport (in-
creased response).
To increase power, press the switch upwards. To decrease power,
press the switch downwards.
111
SECONDARY CONTROLS
TYPICAL
To activate Standard mode when in Sport mode, press bottom end of
switch once.
To activate ECO mode when in Sport mode, press bottom end of
switch twice.
To activate ECO mode when in Standard mode, press bottom end of
switch once.
WARNING
Ensure passenger is advised to hold on tightly before activating
Sport mode. Sport mode provides increased acceleration.
To activate Sport mode when in Standard mode, press top end of
switch once.
To activate Sport mode when in ECO mode, press top end of switch
twice.
To activate Standard mode when in ECO mode, press top end of
switch once.
WARNING
When adjusting modes, be sure to maintain situational aware-
ness of other snowmobiles, obstacles, or persons.
112
SECONDARY CONTROLS

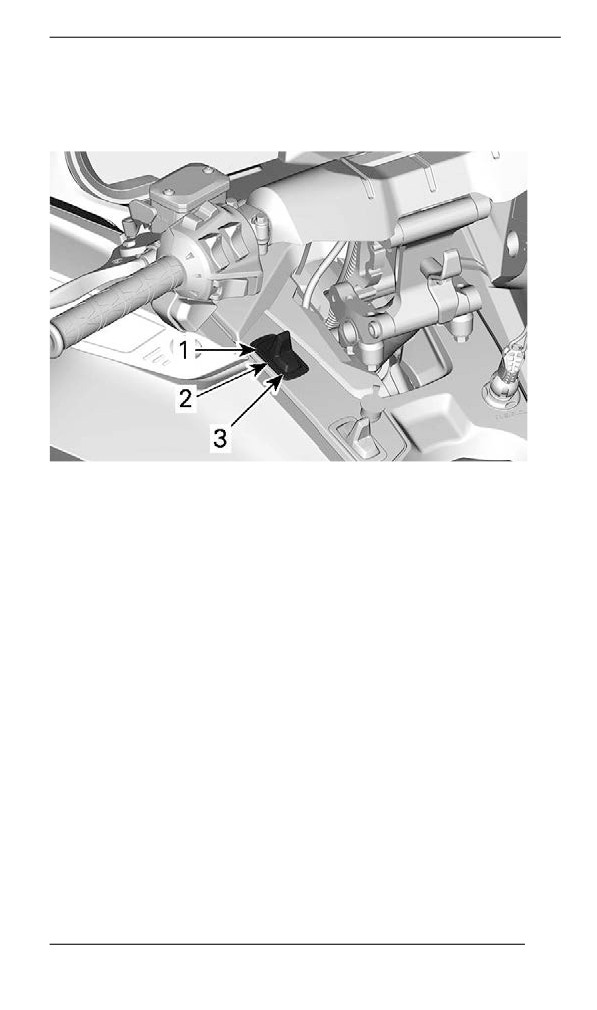

Heated Seat Swiitch (if equiipped)
The heated seat switch is located on the console to the left of the
steering column.
TYPICAL
1. HIGH
2. OFF
3. LOW

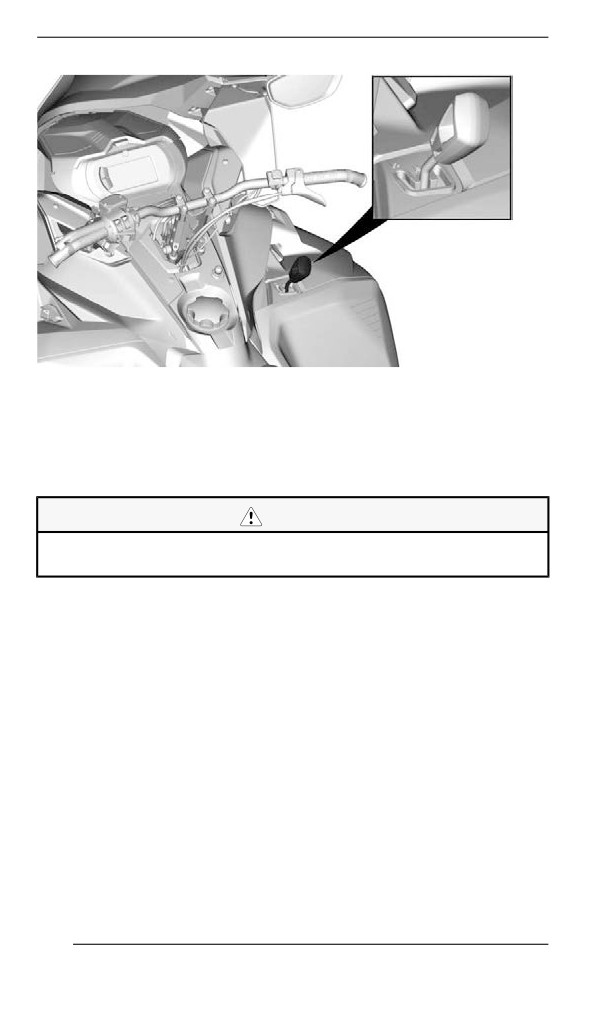

Gearshift Lever
Model equipped with Hi/Lo Gearbox
113
SECONDARY CONTROLS
TYPICAL
Use this lever to select gears. The gearbox has two forward gears and
a neutral.
Shifting from one position to another is possible at speeds lower than
30 km/h (19 MPH)
CAUTION
Shifting at a speed faster than 30 km/h (19 MPH) may cause
serious damage to the gearbox.
Neutral
The neutral position disengages the gearbox forward gears.
NOTE: The reverse gear still can be activated.
High Range (Forward)
This position selects the high speed range of the gearbox. It is the nor-
mal driving speed range. It allows the vehicle to reach its maximum
speed.
Low Range (Forward)
This position selects the low speed range of the gearbox. It allows the
vehicle to move slowly with maximum torque.
114
SECONDARY CONTROLS
NOTICE
Use the low speed range to pull a cargo carrier, carry heavy
cargo, go over obstacles or drive uphill and downhill.
Reverse Lever (iif equiipped)
Refer to Shifting in Reverse in Basic Procedures for proper operation.

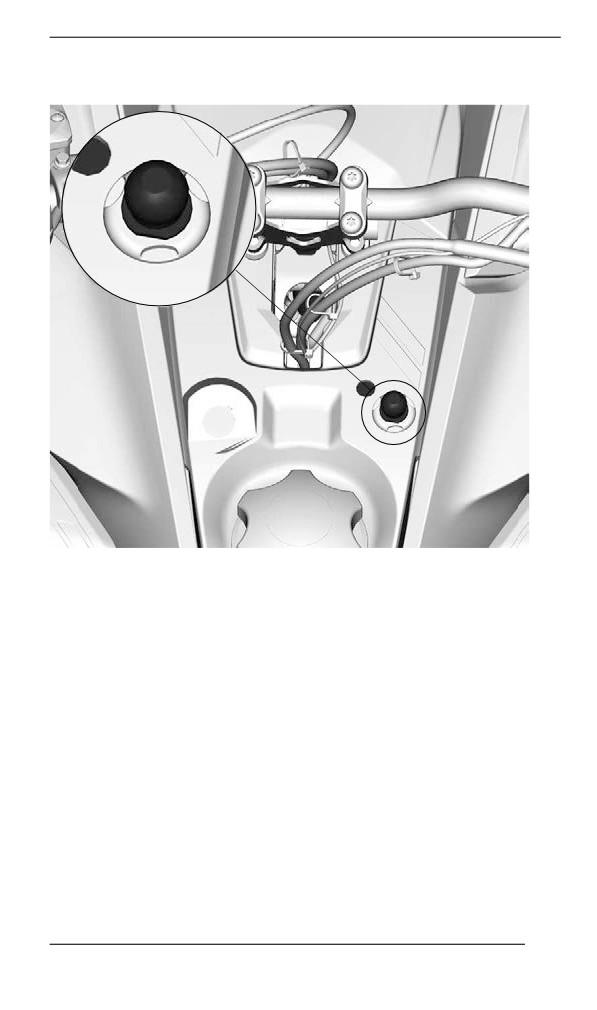

Horn Button (iif equipped)
For vehicles sold in Finland
Press on the horn button to activate the horn.
TYPICAL
115
SECONDARY CONTROLS

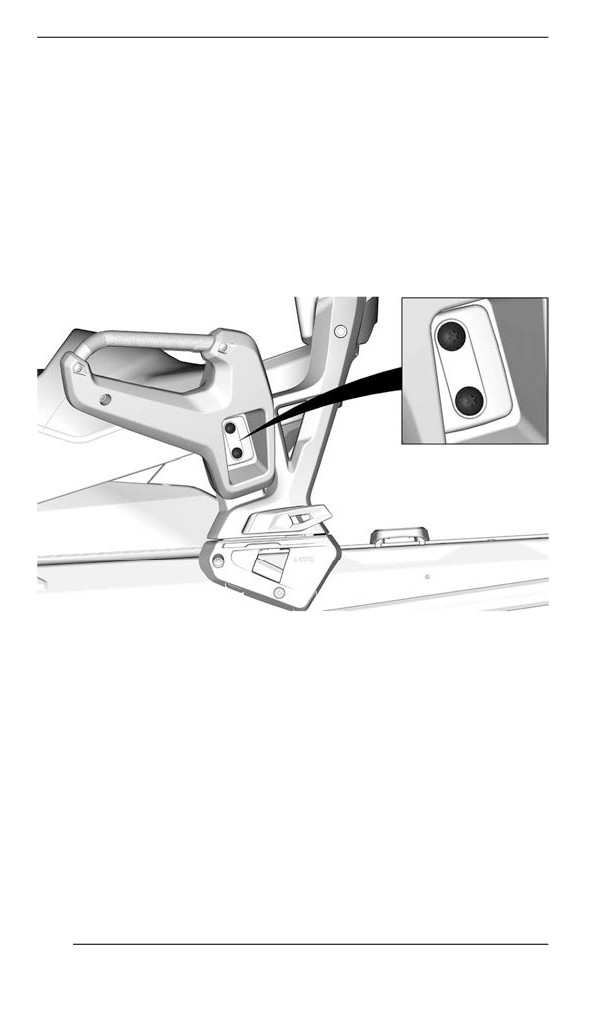

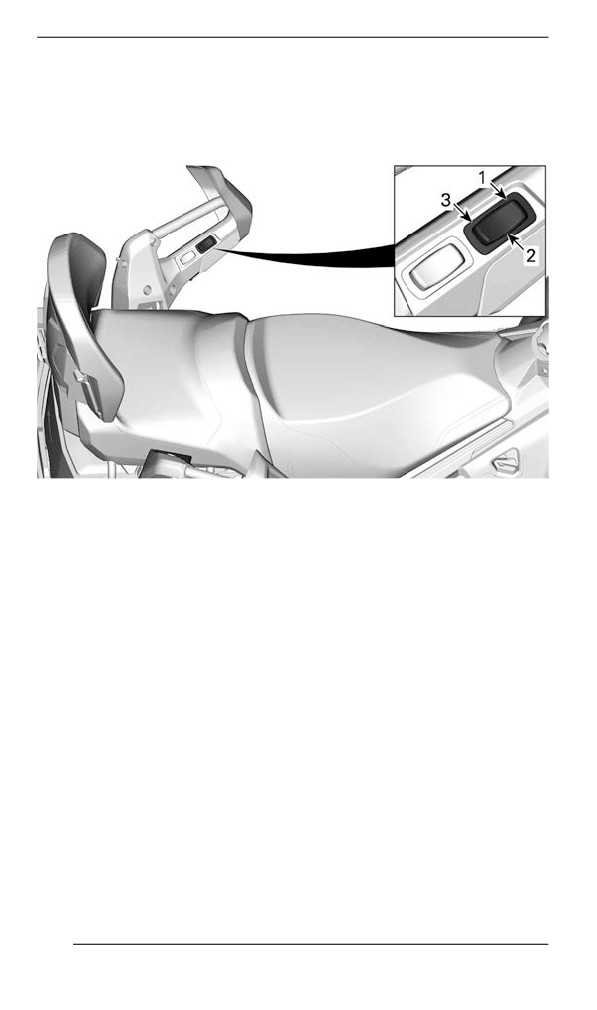

Passenger Heated Griip Switch (if equiipped)
The switch is located on the LH passenger handhold.
Adjust heating intensity as shown.
1. HIGH
2. OFF
3. LOW
116
SECONDARY CONTROLS

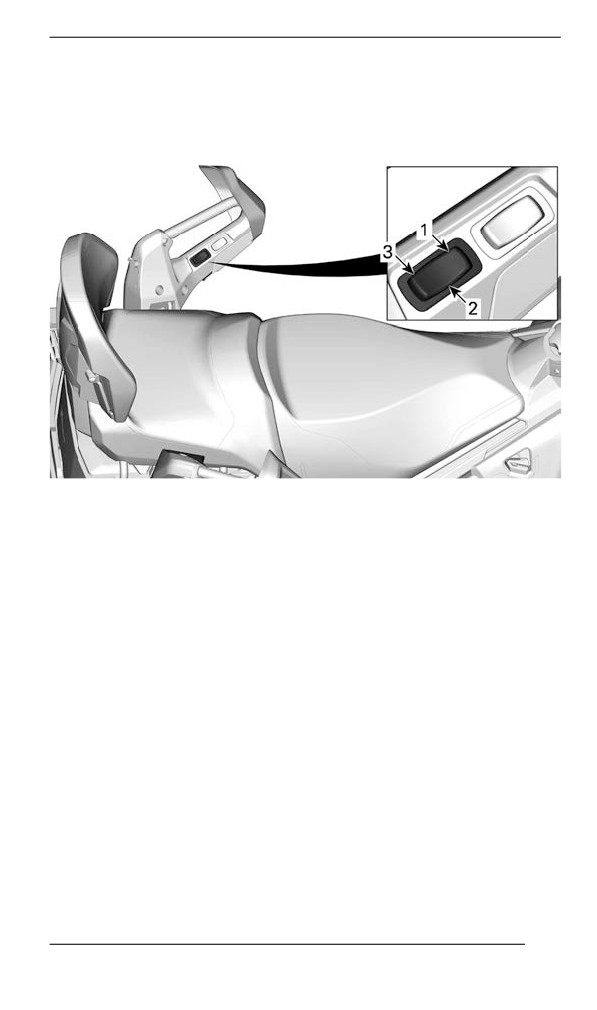

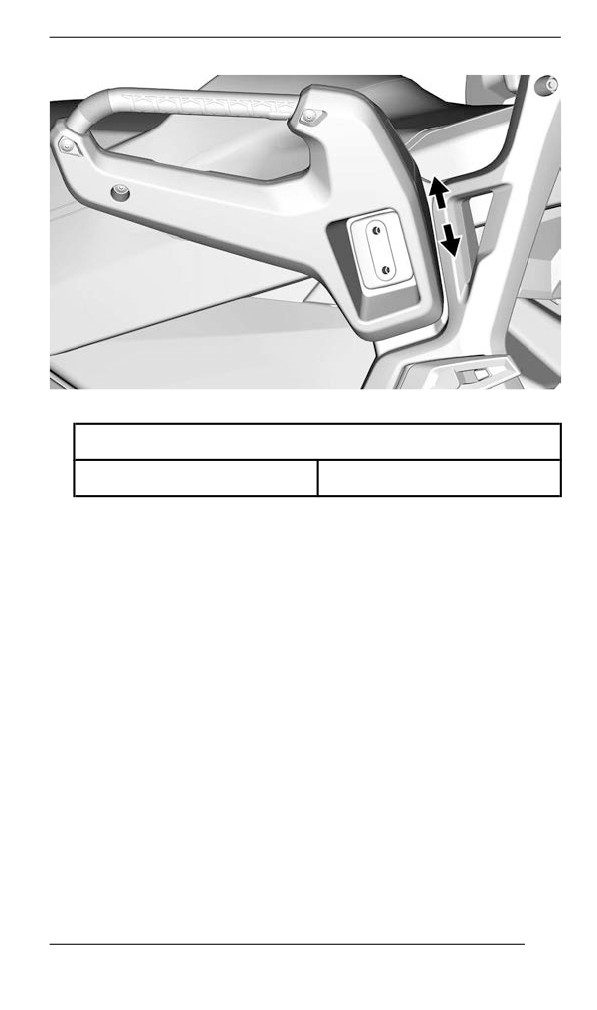

Passenger Heated Seat Switch (if equiipped)
The switch is located on the LH passenger handhold.
Adjust heating intensity as shown.
1. HIGH
2. OFF
3. LOW
117
BODY AND SEAT
Windshiield

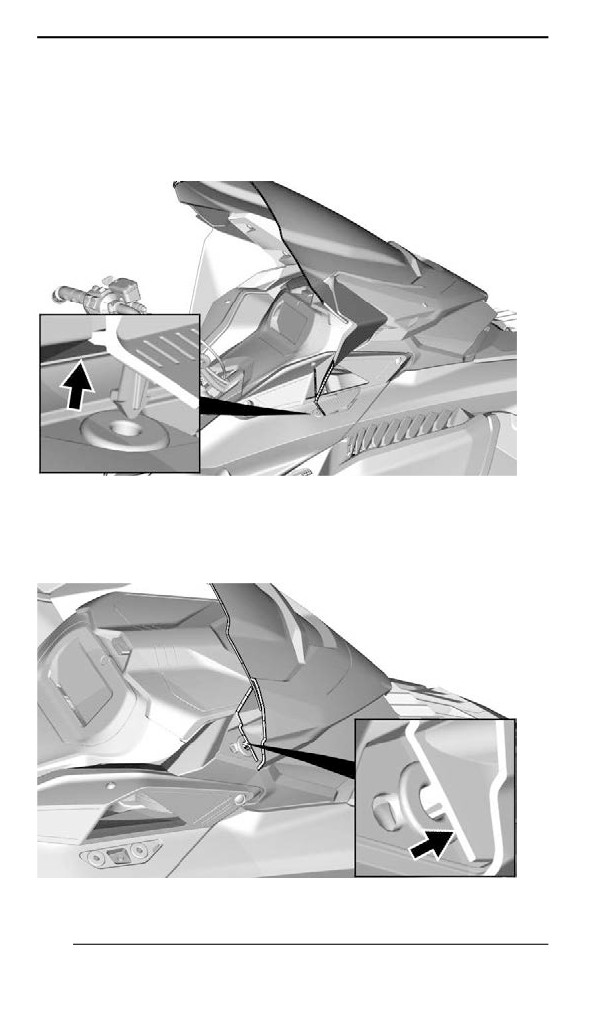

Removing the Windshield
1. Pull off the deflector pins off the grommets, if applicable.
TYPICAL — WITH SIDE DEFLECTORS
2. Place hands on each sides of the windshield.
3. Pull the windshield up until both side pins come out of their rubber
grommets.
TYPICAL
118

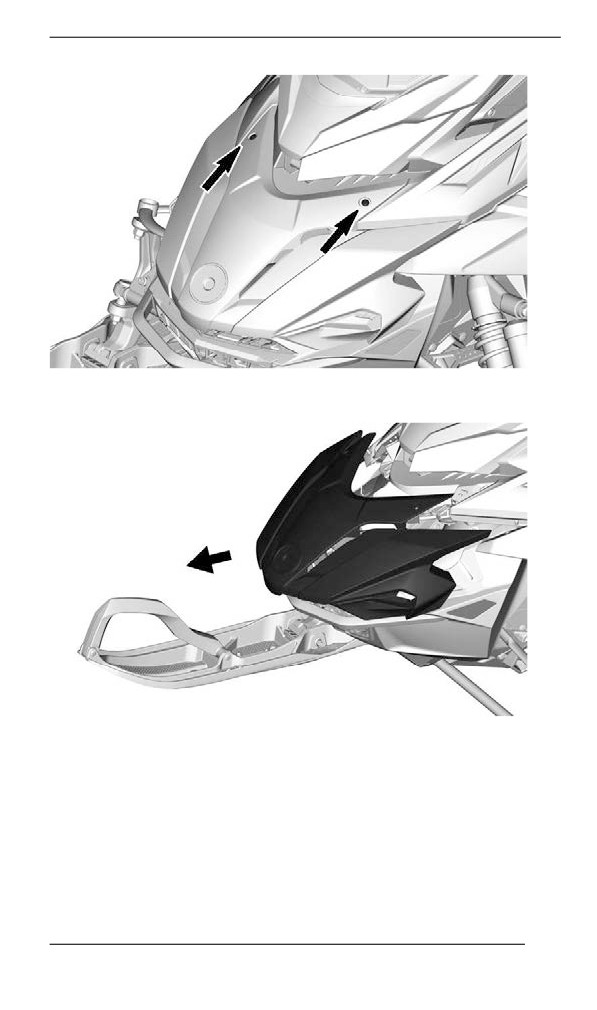

BODY AND SEAT

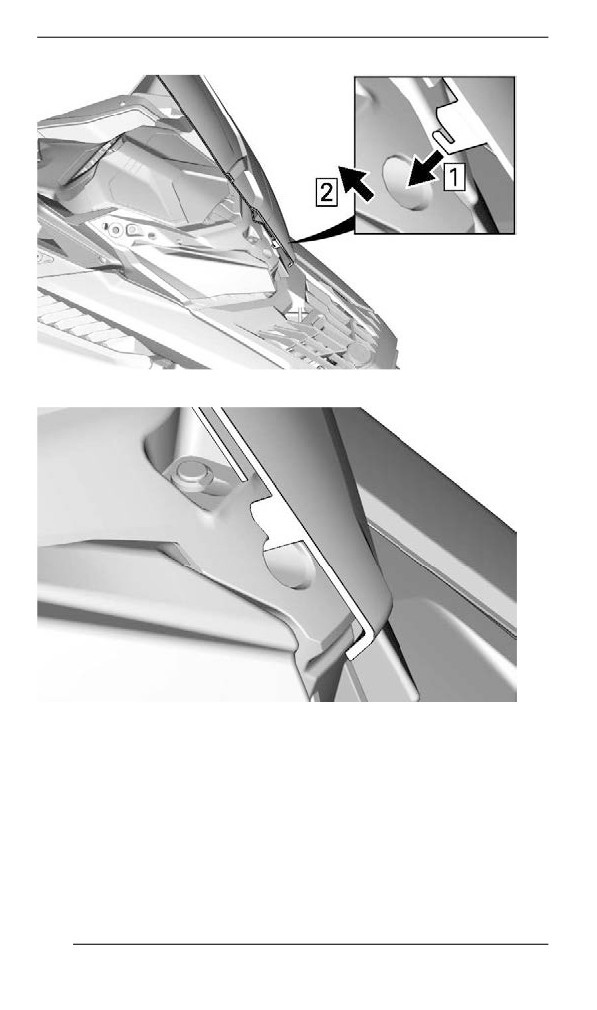

4. Disengage the center pin or tab, if applicable.
TYPICAL — CENTER TAB - WITH SIDE DEFLECTORS

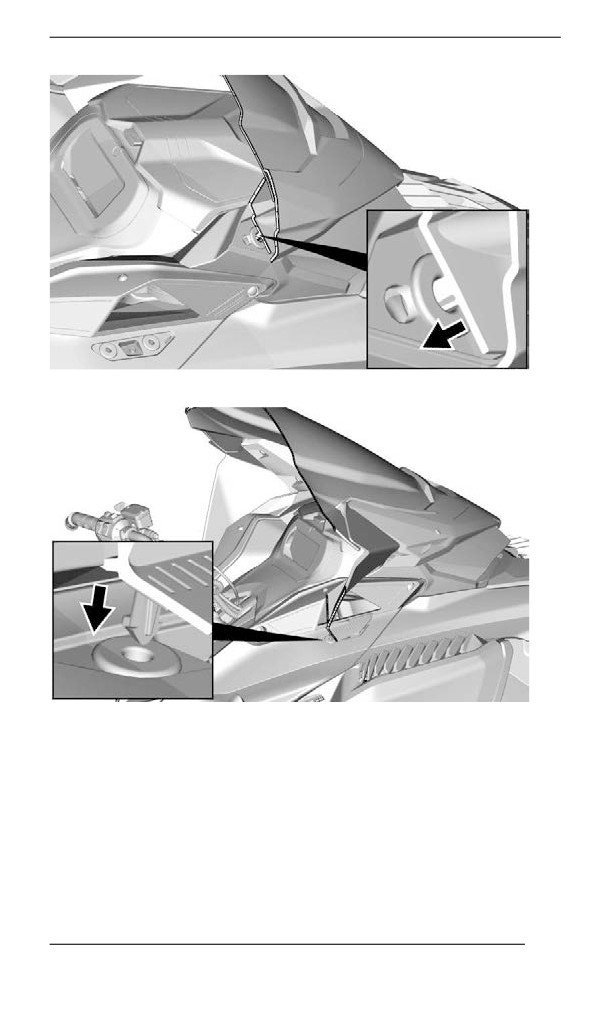

Installing the Windshield
1. Lubricate the grommets using soapsuds, if required.
NOTICE
Do not lubricate grommets with any type of grease.
2. Insert center pin or tab in headlamp module hole.
119
BODY AND SEAT
TYPICAL - CENTER TAB - WITH SIDE DEFLECTORS
TYPICAL
3. Secure windshield by inserting the windshield pins into the
grommets.
120
BODY AND SEAT
TYPICAL
TYPICAL — WITH SIDE DEFLECTORS

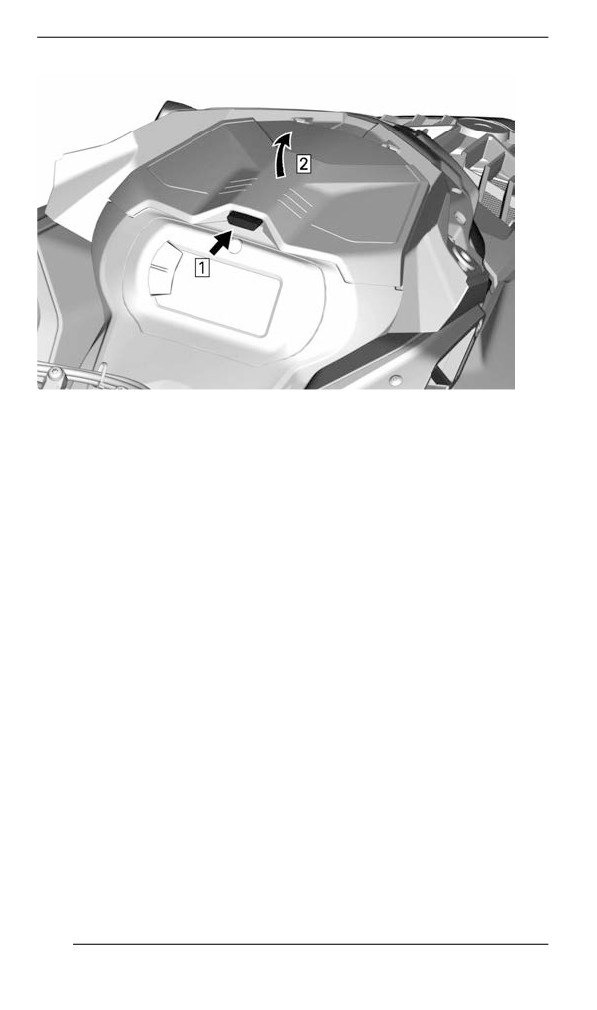

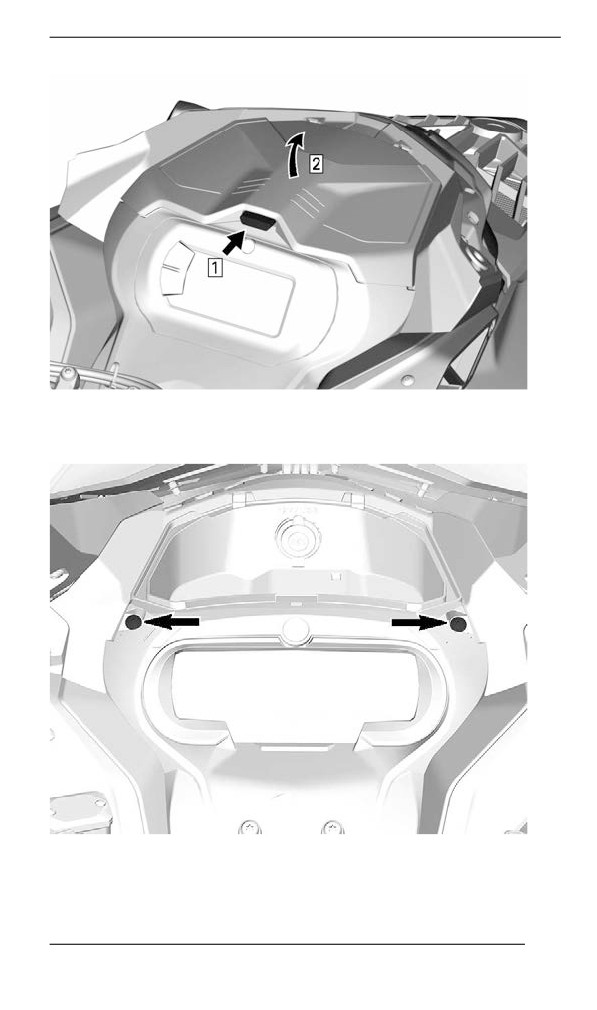

Front Storage Compartment
A storage compartment is located at the front of the vehicle, above the
gauge.
The Operator's Guide and the emergency starter rope are in the front
storage compartment.
To open, push the button and lift the cover.
121
BODY AND SEAT
TYPICAL
NOTE:
When closing, make sure cover is secured properly. You will hear a
"click".

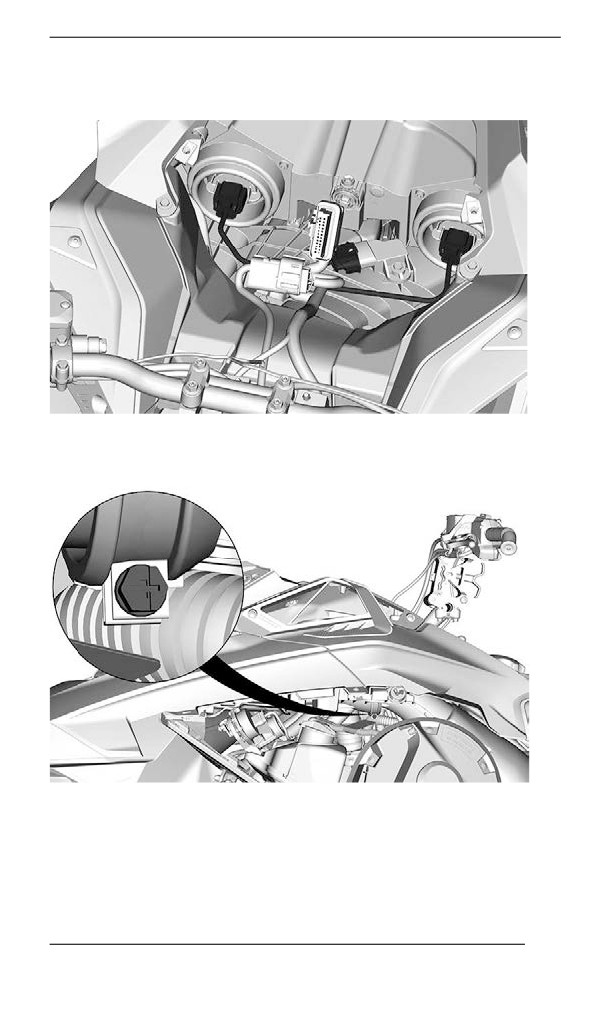

Hood

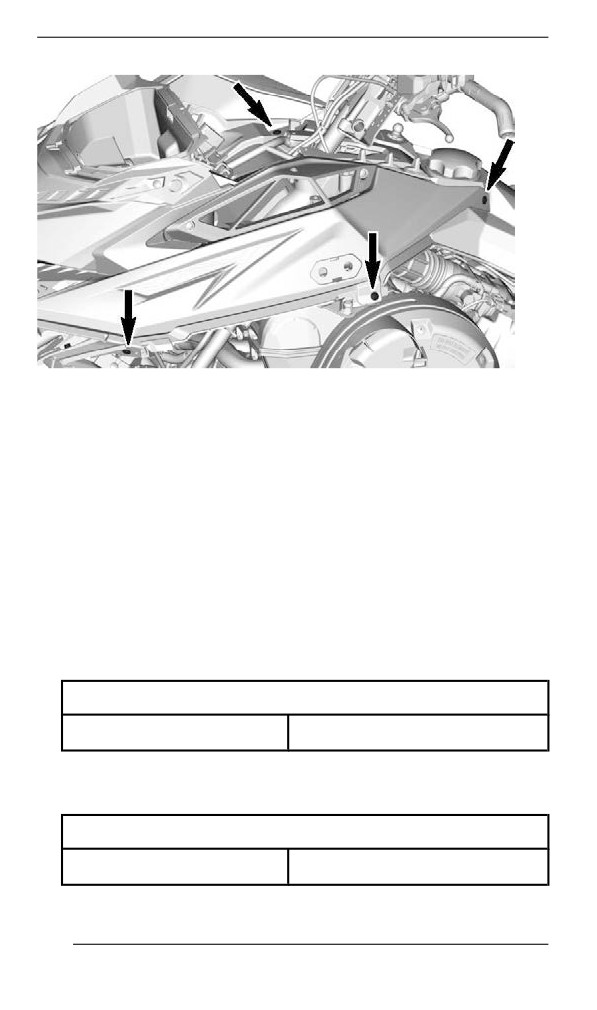

Removing the Hood
1. Remove hood screws.
122
BODY AND SEAT
TYPICAL

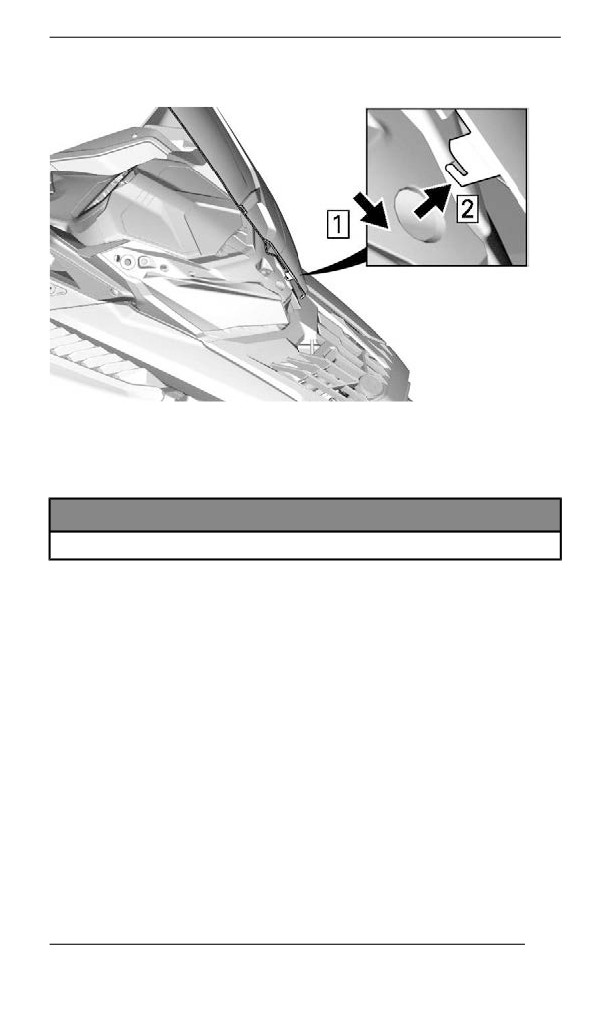

2. Pull the hood forward.
TYPICAL
Installing the Hood
1. The installation is the reverse of removal procedure. However, pay
attention to the following.
123
BODY AND SEAT
TIGHTENING TORQUE
Hood Torx screw
2.5 ± 0.2 Nm
Side Panells
WARNING
Never operate engine with side panels opened or removed from
vehicle.
400 mm (16 in.) Tunnel Width

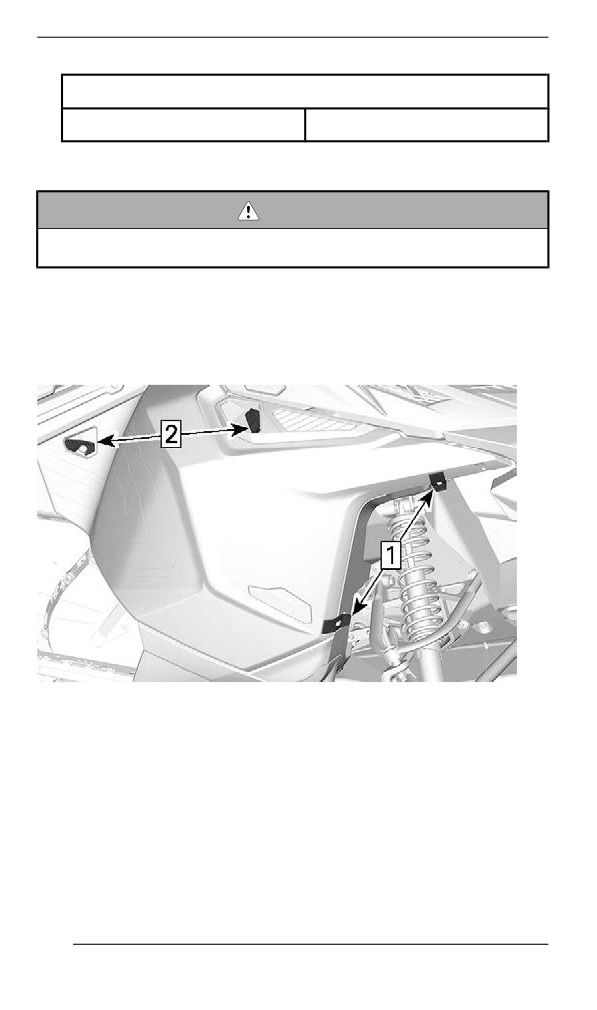

Removiing the Siide Panels
1. Release all latches, then open panel.
1. Unhook
2. Turn
124
BODY AND SEAT
TYPICAL
2. Lift the side panel to disengage the tabs.
125
BODY AND SEAT
500 and 600 mm (20 and 24 in.) Tunnel Width
Removiing the Siide Panels

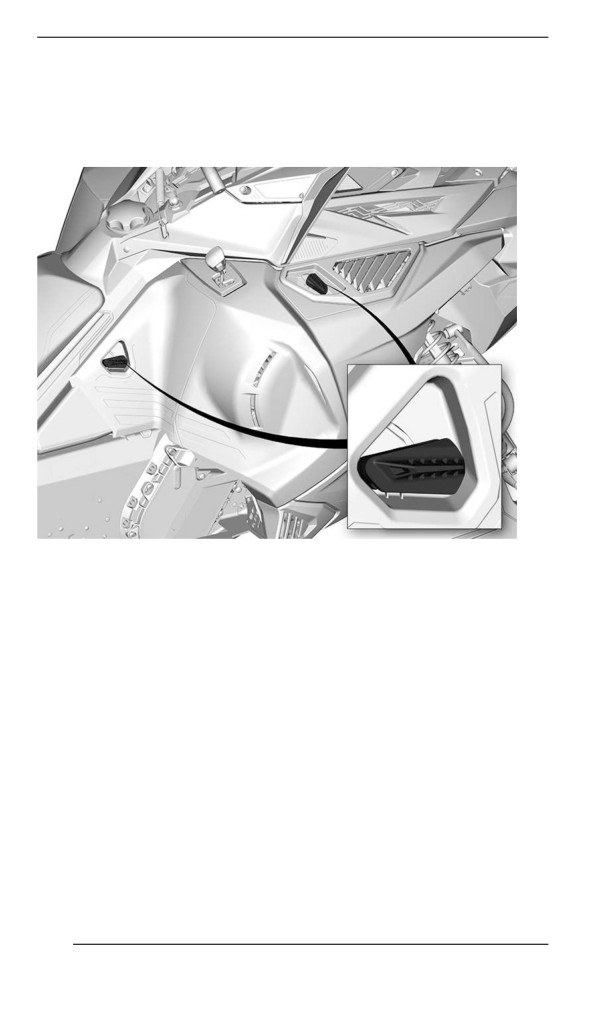

1. Unlock all latches, then open panel.
TYPICAL

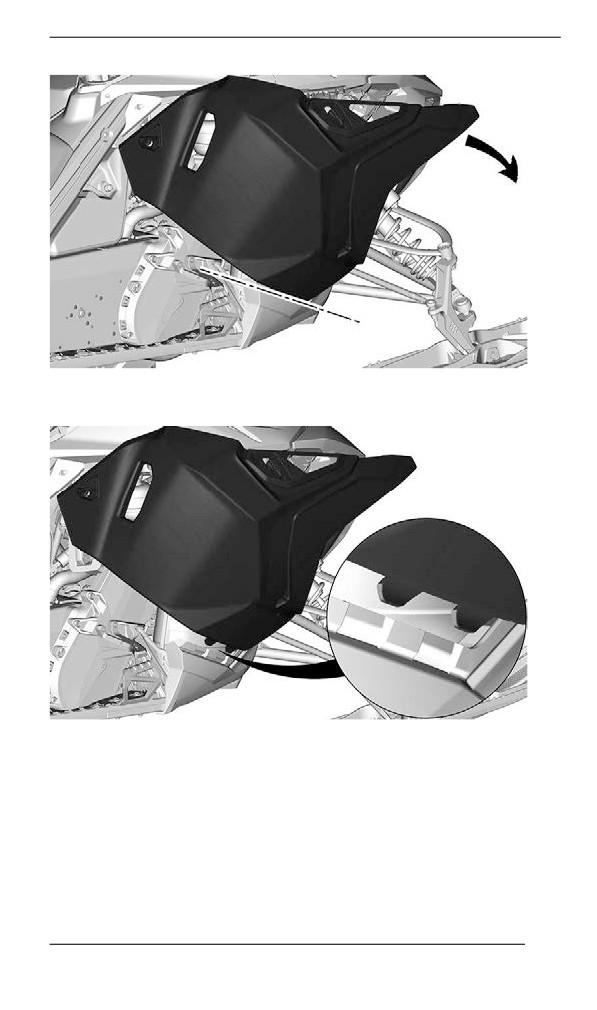

2. Pivot side panel around lower edge.
126
BODY AND SEAT

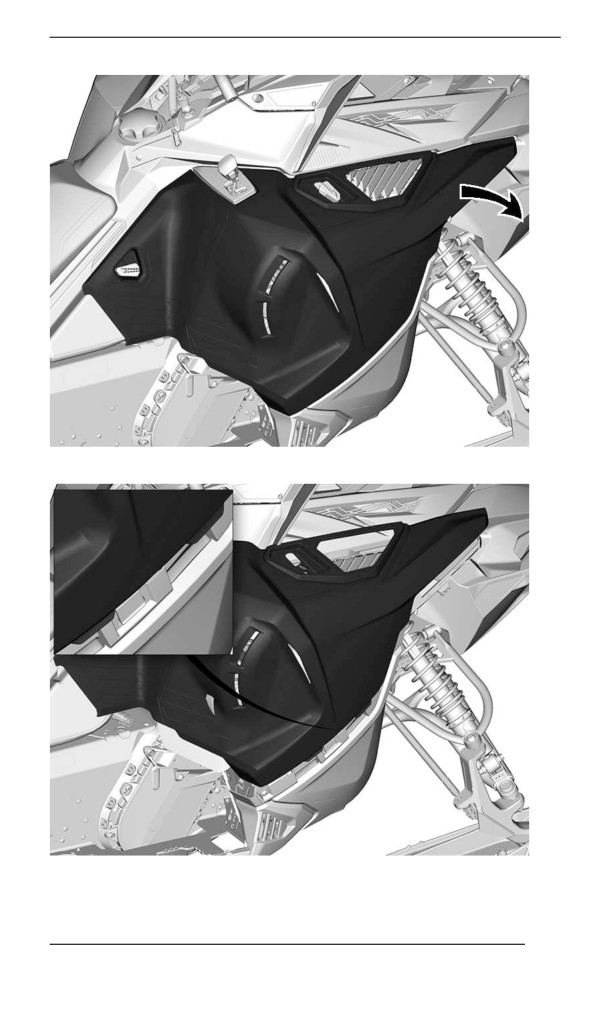

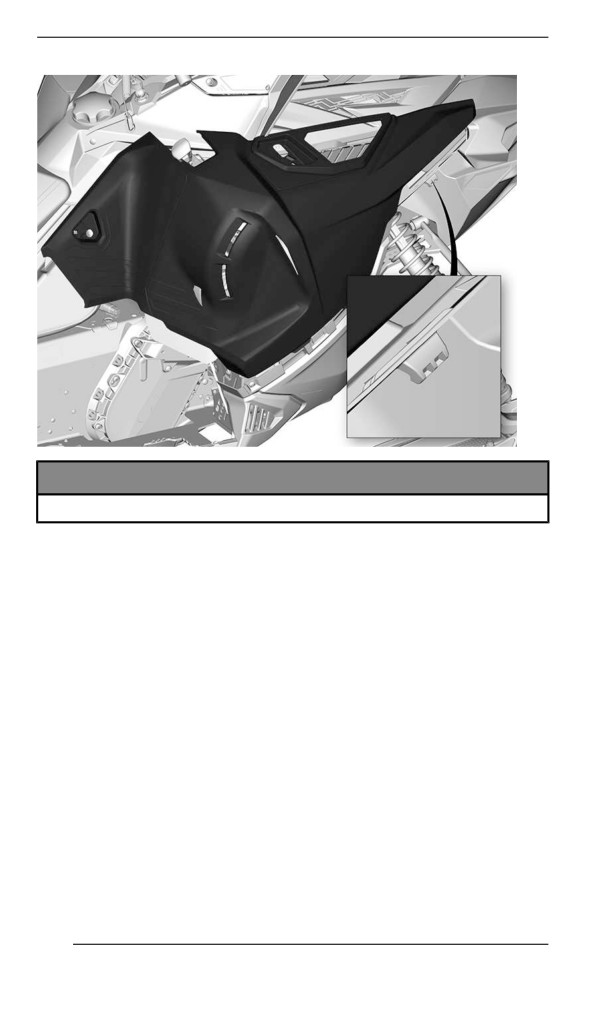

3. Disengage panel tabs.
4. Free panel from side hull tab.
127
BODY AND SEAT
NOTICE
Make sure to place panel in a safe place to avoid scratching.
Installing the Side Panels
The installation is the reverse of the removal procedure.
Upper Body Module
Removing the Upper Body Module
1. Remove:
- Windshield
- Hood
- Side panels
2. Open the storage compartment.
128
BODY AND SEAT
TYPICAL
3. Remove the gauge support retaining screws.
TYPICAL

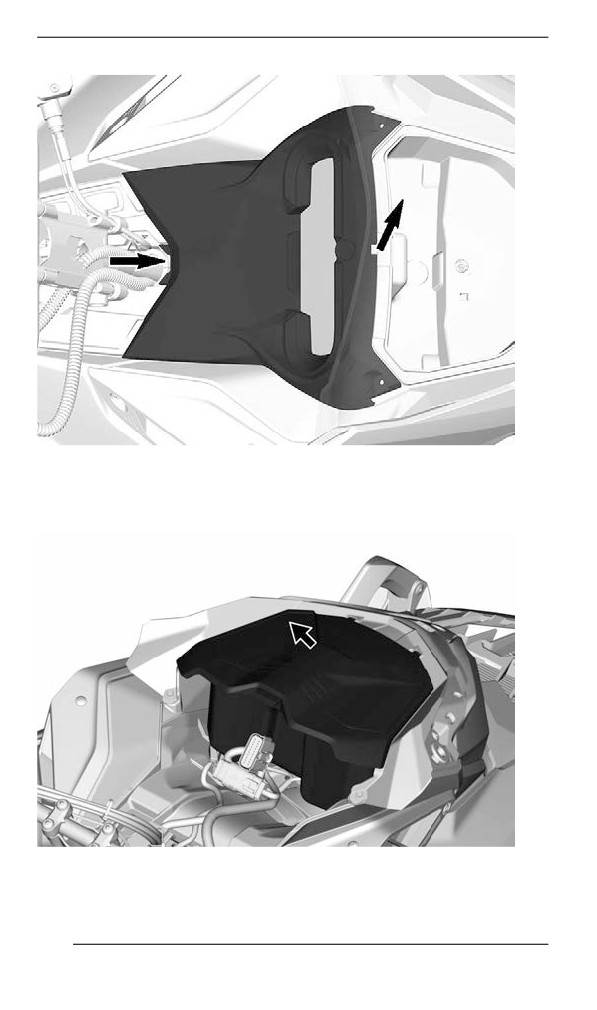

4. Lift the front of the gauge support, then slide it forward to remove it.
129
BODY AND SEAT
5. Disconnect gauge connector and remove support .
6. Lift storage compartment and disconnect 12V power outlet connec-
tors before removing the storage compartment (if equipped).
TYPICAL
130
BODY AND SEAT
7. Disconnect the headlight and MAPTS
(2-stroke engine)
connectors.
TYPICAL
8. Loosen the air intake duct clamp.
9. Remove the upper body module retaining screws on both sides.
131
BODY AND SEAT
10. Remove the upper body module.
1. Grab the upper body module in the gauge support section.
2. Pull the module forward.
3. Remove the module from the vehicle.
Installing the Upper Body Module
The installation is the reverse of the removal procedure. However, pay
attention to the following.
1. Lower the upper body module in place.
NOTE:
Make sure the air intake duct is positioned correctly in the boot.
2. Tighten air intake duct clamp.
TIGHTENING TORQUE
Duct clamp
1 ± 0.2 Nm
3. On both sides, install the upper body module retaining screws.
4. Connect the IR light connector.
5. Install the hood.
TIGHTENING TORQUE
Upper body screws
2.5 ± 0.2 Nm
132
BODY AND SEAT
6. Connect the headlight connectors.
7. Install the storage compartment but leave the cover open.
8. Install gauge, secure with the screws.
TIGHTENING TORQUE
Gauge screws
2.5 ± 0.2 Nm
9. Install:
- Side panels
- Hood
- Windshield
Seat
400 mm (16 in.) Tunnel Width
Removing the Seat (tab llock)

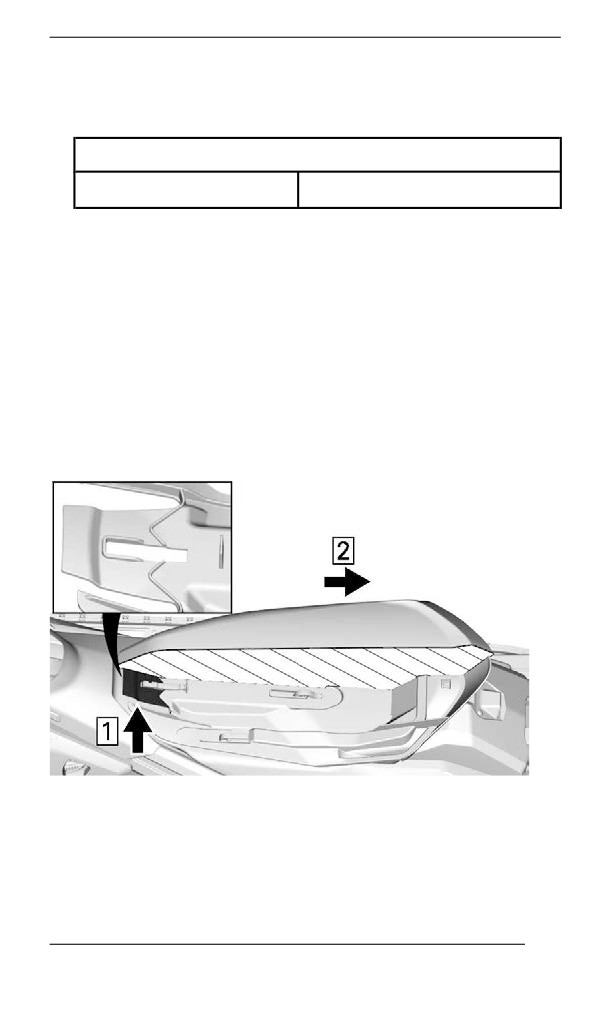

From between the fuel tank and the seat front end, pull the locking tab
upwards.
Slide the seat backwards while holding the tab up.
TYPICAL — CROSSCUT VIEW OF SEAT FOAM
1. Pull upwards
2. Slide backwards
133
BODY AND SEAT
Installling the Seat (tab lock)
NOTICE
Riding the vehicle with any objects between the seat and the
fuel tank could damage the fuel tank. NEVER place any objects
between seat and fuel tank.
Place seat over the hooks, then slide it forward until the tab locks over
the front hook.
WARNING
Make sure seat is securely latched before riding.
134
BODY AND SEAT

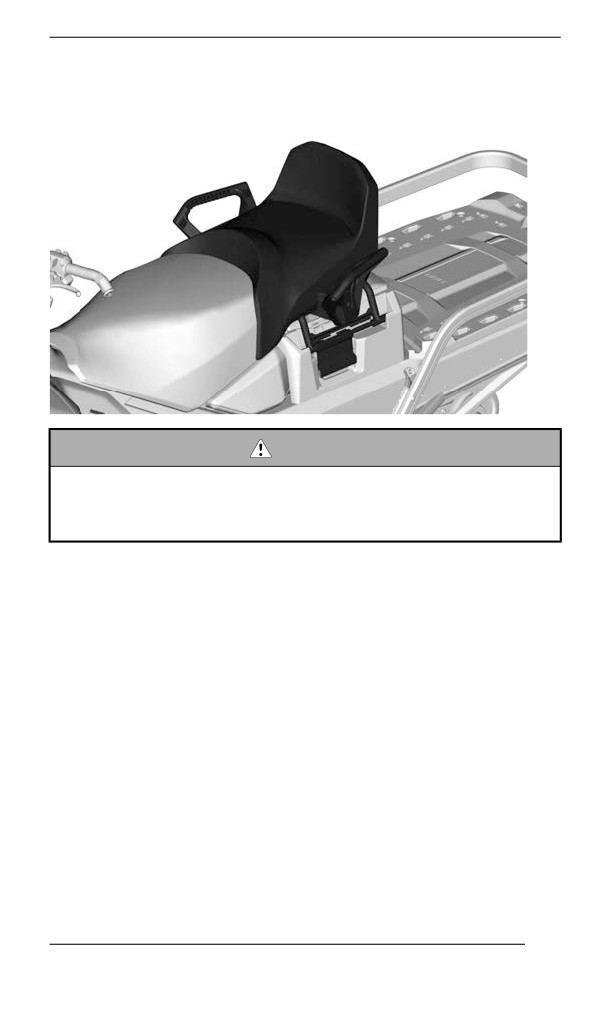

Backrest (if equiipped)
Removing the Backrest
1. Disengage the LinQ lever cap on both sides.
2. Unlock the LinQ on both sides.
3. Pull the backrest upwards to remove..
135
BODY AND SEAT
Installling the Backrest
The installation is the reverse of the removal procedure.
Passenger Handholds (if equiipped)
The passenger handholds provide a strong holding point and comfort
for the passenger on long rides.
Adjjusting the Passenger Handholds
To adjust the handhold height, proceed as follows:
1. Remove the screws.
2. Raise or lower the handhold to suit passenger's comfort.
136
BODY AND SEAT
3. Reinstall the screws. Tighten to specification.
Tightening Torque
Handhold screw
24.5 ± 3.5 Nm (18 ± 3 lbf-ft)
137
BODY AND SEAT
500 and 600 mm (20 and 24 in.) Tunnel Width
Operator’s Seat
Removiing the Seat

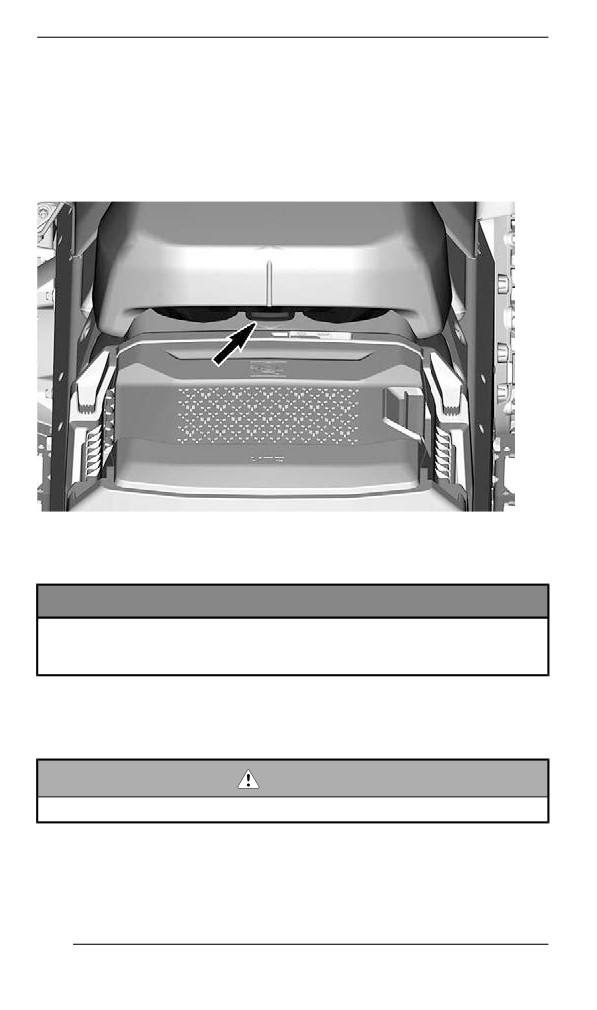

Release the latch at the back of the seat.
Slide seat rearwards to remove it.
Installling the Seat
NOTICE
Riding the vehicle with any objects between the seat and the
fuel tank could damage the fuel tank. NEVER place any objects
between seat and fuel tank.
Place seat over the hooks, then slide it forward.
Securely engage the latch.
WARNING
Make sure seat is securely latched before riding.
138
BODY AND SEAT
Passenger Seat (iif equipped)
WARNING
Any passenger must be able to firmly lay is feet on the footrests
and keep his hands on the handholds at all times when seated.
Respecting those physical criteria is important to ensures that
the passenger is stable and to reduce the risks of ejection.
Removing the Passenger Seat

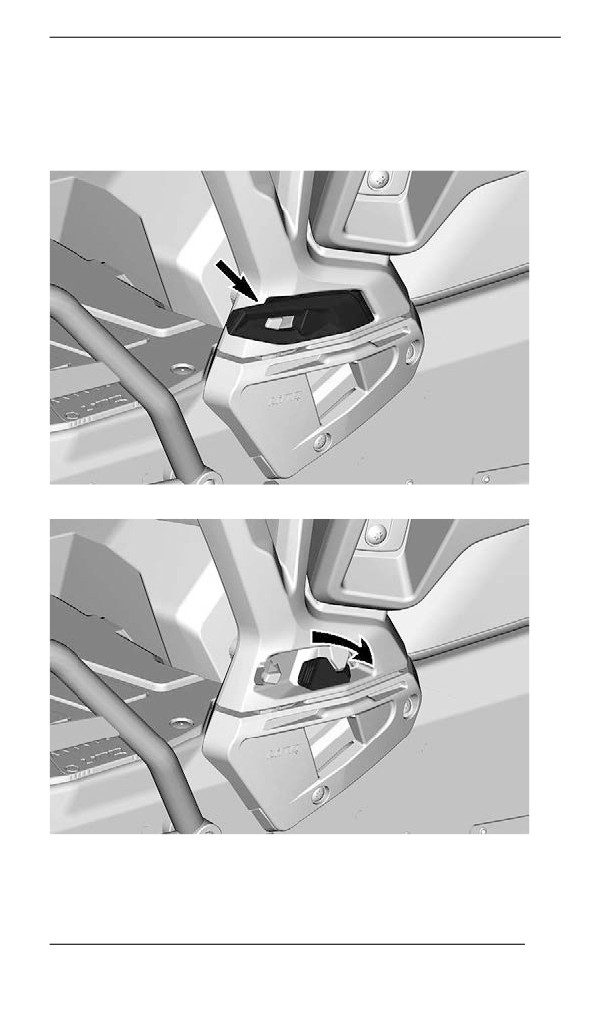

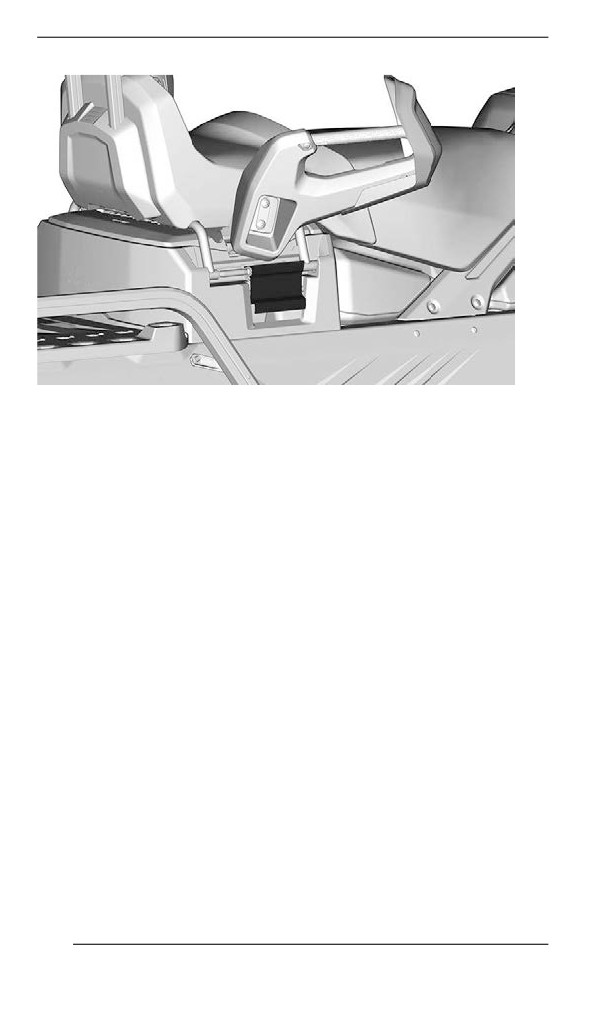

1. Unlock seat latch on both sides.
139
BODY AND SEAT
TYPICAL
2. Lift the seat to disconnect the electrical connector.
3. Remove passenger seat.
Installling the Passenger Seat
The installation is the reverse of removal procedure. However, pay at-
tention to the following.

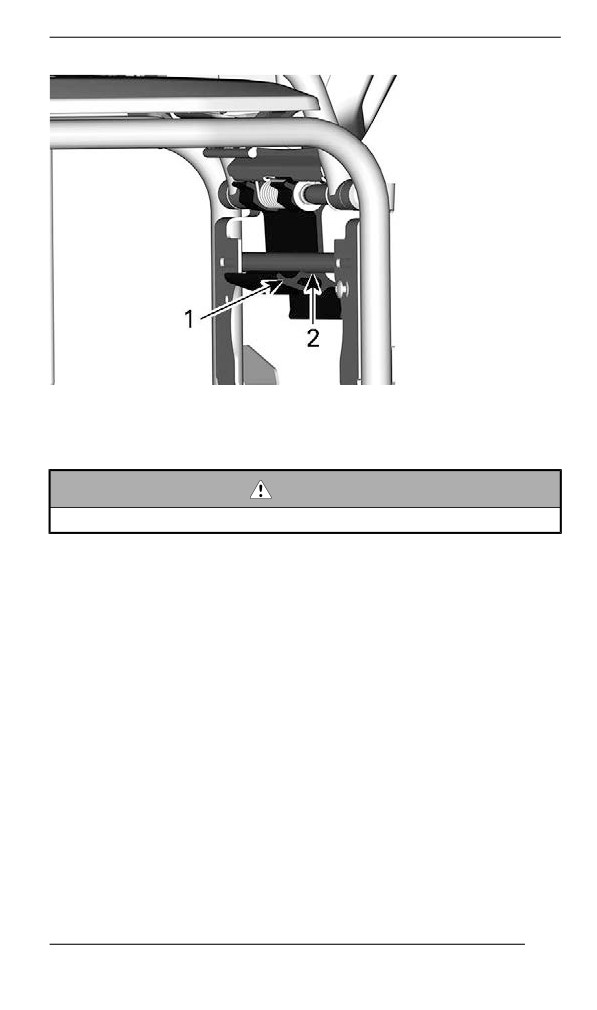

Ensure to reach the second step when latching.
140
BODY AND SEAT
1. First step
2. Second step
WARNING
Ensure the latch is on the second step before riding.
141
EQUIPMENT
Some features may not apply to your model or could be optional.
Operator''s Guiide
The Operator's Guide should be stored in the Front Storage
Compartment.

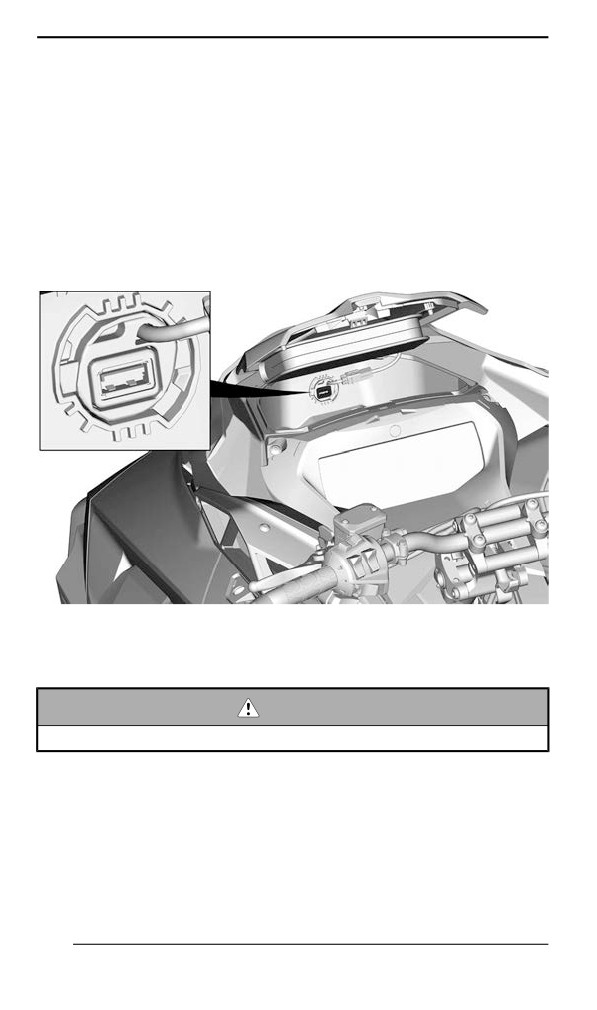

Power Outllet - USB (if equiipped)
The USB power Outlet is located in the front storage compartment. It
allows to charge your cell phone while stored in the heated cell case.

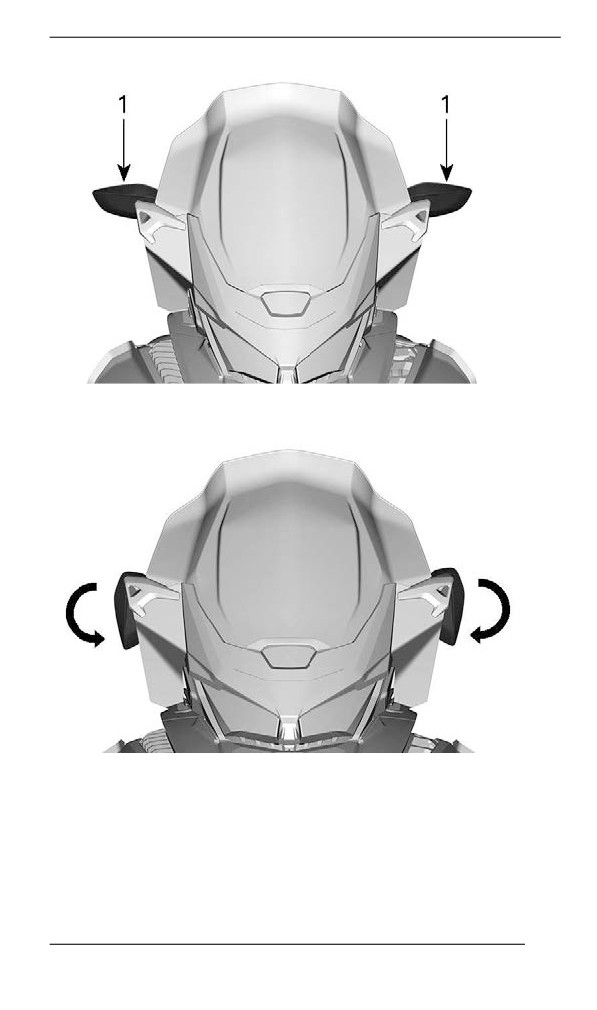

Adjjustable Miirrors (iif equipped)
Each mirror can be adjusted to suit operator's preference.
WARNING
Adjust with vehicle at rest in a safe place.
When installing a cover, the mirrors can be tilted downward to ease
installation.
142
EQUIPMENT
TYPICAL
1. Mirrors
TYPICAL
Mountain Strap
This handlebar strap shall be used only to provide additional pulling
force when snowmobile is stuck in a slanted position. On an excep-
tional basis it can be used at very slow speed only, when standing on
the right running board to bring the vehicle back on its desired path.
143
