194

Customer information

Comfort and infotainment

functions

Comfort settings and custom settings

can be stored in the vehicle and

changed or reset at any time.
Depending on the equipment level in

question, these include

● seat and steering wheel position

settings

● chassis and air conditioning

settings

● custom settings such as interior

lighting

You can input your own data in the

infotainment functions for your

vehicle as part of the selected

features.
Depending on the equipment level in

question, these include

● multimedia data such as music,

videos or photos for playback in

an integrated multimedia system

● address book data for use with an

integrated hands-free system or

an integrated navigation system

● input destinations
● data on the use of online services

This data for comfort and

infotainment functions can be stored

locally in the vehicle or be kept on a

device that you have connected to the

vehicle (e.g. a smartphone, USB stick

or MP3 player). Data that you have

input yourself can be deleted at any

time.
This data can only be transmitted out

of the vehicle at your request,

particularly when using online

services in accordance with the

settings selected by you.

Smartphone integration, e.g.

Android Auto or Apple CarPlay

If your vehicle is equipped

accordingly, you can connect your

smartphone or another mobile device

to the vehicle so that you can control

it via the controls integrated in the

vehicle. The smartphone image and

sound can be output via the

multimedia system in this case. At the

same time, specific information is

transmitted to your smartphone.

Depending on the type of integration,

this includes data such as position

data, day / night mode and other

general vehicle information. For more

information, please see the operating

instructions for the vehicle /

infotainment system.
Integration allows selected

smartphone apps to be used, such as

navigation or music playback. No

further integration is possible

between smartphone and vehicle, in

particular active access to vehicle

data. The nature of further data

processing is determined by the

provider of the app used. Whether

you can define settings, and if so

which ones, is dependent on the app

in question and your smartphone's

operating system.

Customer information

195

Online services

If your vehicle has a radio network

connection, this allows data to be

exchanged between your vehicle and

other systems. The radio network

connection is made possible by

means of a transmitter device in your

vehicle or a mobile device provided

by you (e.g. a smartphone). Online

functions can be used via this radio

network connection. These include

online services and applications /

apps provided to you by the

manufacturer or other providers.

Proprietary services

In the case of the manufacturer's

online services, the relevant functions

are described by the manufacturer in

an appropriate location (e.g. Owner's

Manual, the manufacturer's website)

and the associated data protection

information is provided. Personal

data may be used to provide online

services. Data exchange for this

purpose takes place via a protected

connection, e.g. using the

manufacturer's IT systems provided

for the purpose. Collection,

processing and use of personal data

for the purposes of preparation of

services take place solely on the

basis of legal permission, e.g. in the

case of a legally prescribed

emergency communication system or

a contractual agreement, or by virtue

of consent.
You can activate or deactivate the

services and functions (which are

subject to charges to some extent)

and, in some cases, the vehicle's

entire radio network connection. This

does not include statutory functions

and services such as an emergency

communication system.

Third party services

If you make use of online services

from other providers (third parties),

these services are subject to the

liability and data protection and usage

conditions of the provider in question.

The manufacturer frequently has no

influence over the content exchanged

in this regard.

Therefore, please note the nature,

scope and purpose of the collection

and use of personal data within the

scope of third party services provided

by the service provider in question.

Radio Frequency

Identification (RFID)

RFID technology is used in some

vehicles for functions such as tyre

pressure monitoring and immobiliser.

It is also used in connection with

conveniences such as radio remote

controls for door locking / unlocking

and starting. RFID technology in

Vauxhall vehicles does not use or

record personal information or link

with any other Vauxhall system

containing personal information.

196

Body conversions

Tipper and dropside ................... 196

Loading information ................. 196

Tailboard ................................. 197

Sideboards .............................. 197

Lashing eyes ........................... 197

Tipper operation ...................... 198

Safety prop .............................. 199

Hydraulic oil level .................... 200

Ladder ..................................... 200

Toolbox .................................... 200

Cleaning .................................. 200

Vehicle checks ........................ 201

Declaration of conformity ......... 201

Tipper and dropside

Loading information

The tipper and dropside are not

designed for carrying people or

unsuitable / unsafe materials.

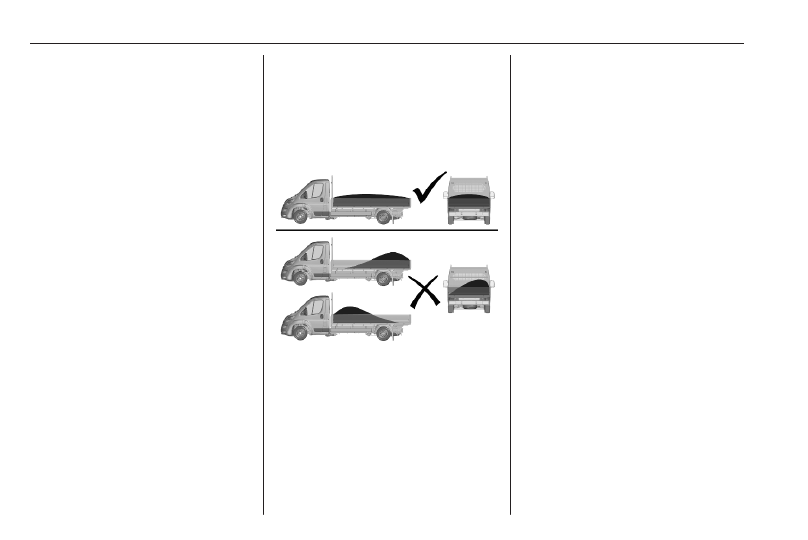

● Load the vehicle evenly,

distributing the load across the

body.

● Ensure the vehicle tailboard and

sideboards are securely closed

before loading.

● Ensure the tipper is completely

lowered and fixed before loading.

● Secure any solid loads with

additional lashing equipment.

● Place loads from the minimum

practicable height. Do not drop

loads onto the body.

● Do not overload the body.
● The rack supports a load of 300

kg.

● Ensure the load will not fall out or

endanger other road users.

● Do not drive with the body tipped.
● Do not drive with the tailboard or

sideboards down.

● Do not attempt to tip loads from

the body when body sides or

tailboard are closed.

● Do not attempt to tip loads unless

the vehicle is on solid and flat

ground.

● The isolation switch must be in

the OFF position when tipping

function is not in use.

Body conversions

197

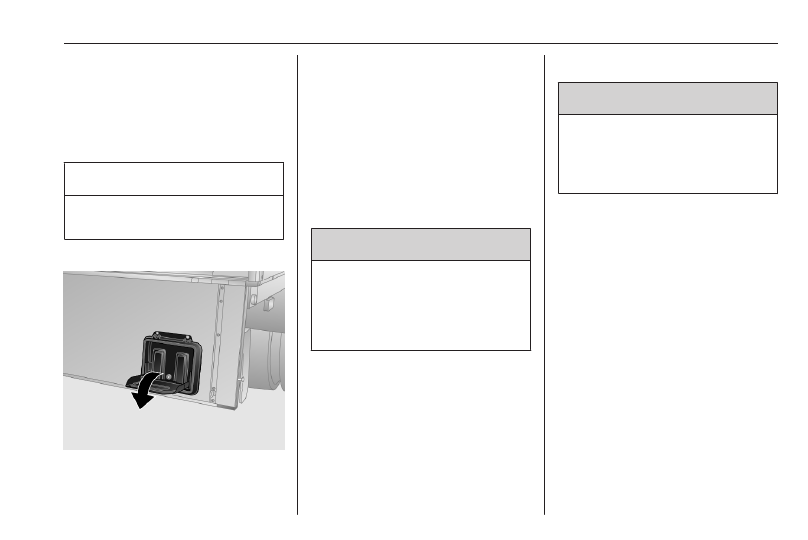

Tailboard

Opening

Pull up the release levers to

disengage the locks and lower the

tailboard fully.

Caution

Do not operate tipping with

lowered tailboard.

Step

With the tailboard lowered, fold down

the step. Fold up when not required.

Closing

Raise the tailboard and push firmly

into position. Push down the release

levers ensuring locks engage fully.

Swinging

The tailboard lower hooks are

automatically released to allow the

tailboard to swing from its upper

hinges during tipping operations.

Warning

To prevent the tailboard becoming

detached from the vehicle, ensure

that the upper hinges are engaged

with the release levers in the

locked position.

Check that the tailboard is securely

locked by the lower hooks after

tipping.

Version for rear tipper

Hook the chain to the bolt to use the

tailboard in a horizontal position.
The maximum load is 150 kg.

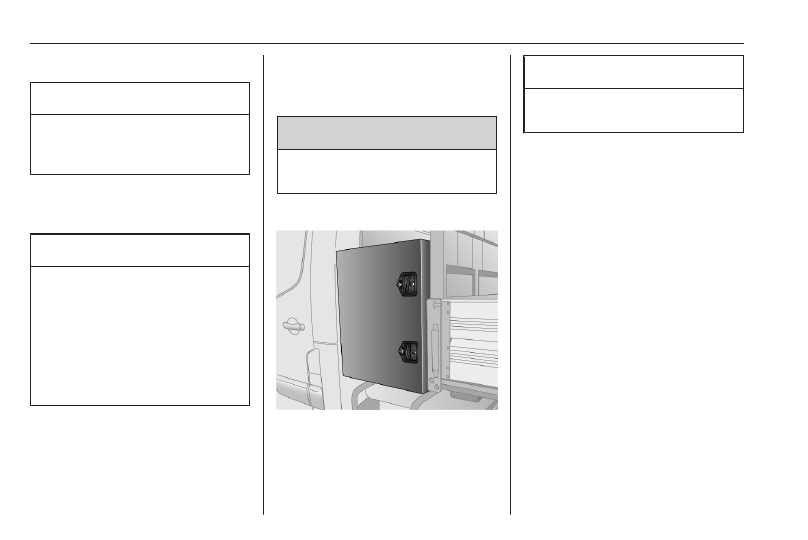

Sideboards

Warning

The sideboards are heavy.
Take care when lowering the

sideboards, do not allow them to

drop down unassisted.

To open, pull up the release levers to

disengage the locks.
The sideboards may have a

horizontal position. To open fully, pull

to the outside at the 45° position and

lower the sideboard.
To close, raise the sideboard and

push firmly into position. Push down

the release levers ensuring locks

engage fully.

Lashing eyes

Secure objects with lashing straps

attached to the lashing eyes.

198

Body conversions

Caution

The maximum force applied to the

lashing eyes must not exceed

8000 N. Ensure a lashing angle of

at least 30°.
Refer to the safety warning labels

located on the tipper or dropside

body.

Tipper operation

Danger

Don't be under a raised tipper

without using the safety prop

199.

Warning

Before operating the tipper, apply

the parking brake and select

neutral gear position.
The operator must remain at the

control to ensure tipping and

lowering are performed correctly.

Keep other people away when

tipping function is in use.
Ensure the vehicle is on solid

ground and that the tipper body

can be raised to the maximum

height without touching overhead

obstructions.

If the tipper is prolonged raised, use a

support prop in the front area.

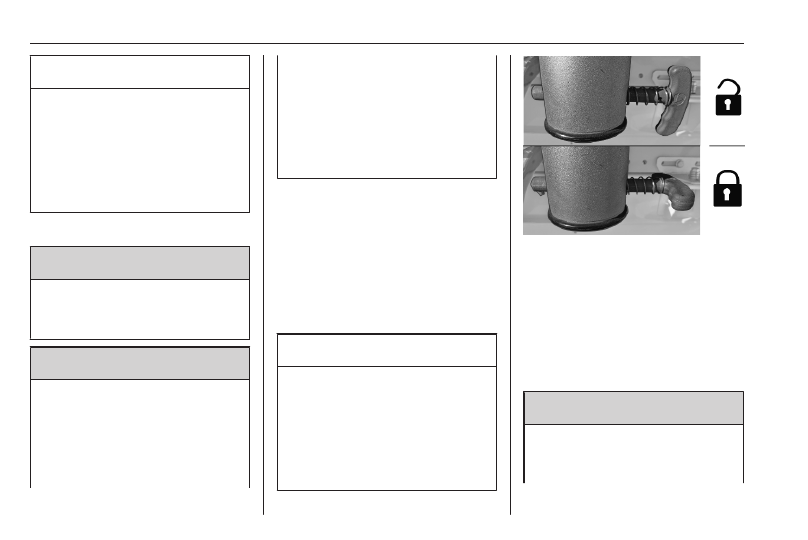

Locking pins

The tipper body has two different

locking pins which must be always

attached while operating. The locking

pins are used to obtain any one of the

three tipping positions.

Caution

The tipper must not be operated

with locking pins incorrectly

installed.
Pins installed diagonally opposite

or in both front pivot positions will

result in damage if tipping is

attempted.

Insert locking pins into the pivots.

In the end stop position rotate both

locking pins.

Tipping to the side

Insert locking pins into the front and

rear pivots on the same side. Lower

the sideboard fully.

Tipping to the rear

Warning

To prevent the tailboard becoming

detached from the vehicle, ensure

that the upper hinges are engaged

Body conversions

199

and push the release levers

downwards to engage the locks

fully.

Insert locking pins into the left and

right rear pivots.

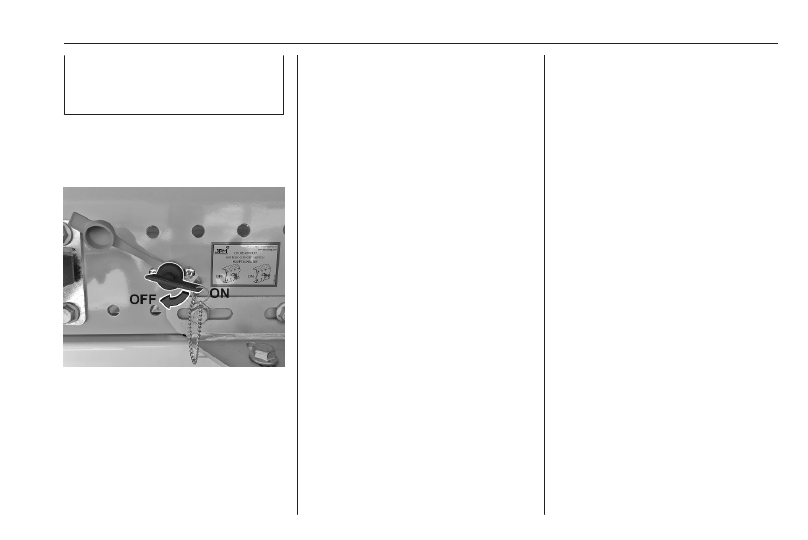

Isolation switch

The system must be activated using

the isolation switch located on the left-

hand side of the chassis. Insert the

key after removing the protective cap.
When the tipper is not in use, remove

the key and attach the protective cap.

Raising and lowering the tipper

The tipper is operated using the

remote control located by the front

seats.
The remote control enables the user

to supervise the operation of the

tipper from outside the vehicle.
Press switch:

: raise

: lower

When the tipper is active an acoustic

signal sounds.
The tipper can be stopped at any time

by releasing the switch.
The tipper body will cease moving

automatically when it reaches the

maximum height.
Store the remote control in the holder

when not in use.

Safety prop

The safety prop is located under the

tipper body and is provided only to

assist in supporting the empty tipper

body when tipped to the rear, for

carrying out visual inspection of the

vehicle components.

Using the safety prop

1. Prepare the tipper body for tipping

to the rear.

2. Raise the tipper fully.
3. Raise the safety prop to align with

support on the tipper.

4. Lower the tipper body until the

safety prop is in contact with the

tipper.

Stowing the safety prop:

1. Raise the tipper body sufficiently

to release the safety prop from its

support.

2. Lower the safety prop into the

stowed position.

3. Lower the tipper body.

200

Body conversions

Hydraulic oil level

Caution

Before any inspection work can be

carried out the safety prop must be

in position.

With the tipper fully raised, the

hydraulic oil level must be between

the MIN and MAX marks.

Caution

Only use products that have been

tested and approved. Damage

resulting from the use of

nonapproved materials will not be

covered by the warranty.
The use of additives could cause

damage and invalidate the

warranty.

Check the hydraulic oil level after long

driving on bumpy or steep roads.
Have the cause of the loss of

hydraulic oil remedied by a workshop.
Use only hydraulic oil type ISO H46 or

equivalent.

Ladder

To lower the ladder, push down latch

to release and pull the ladder out.

Warning

The ladder must be stowed

securely before driving.

Toolbox

Unlock using the key provided and

turn latches to open.
Close the door and turn both latches,

then lock with the key.

Caution

Ensure the toolbox door is

properly secure before setting off.

Permissible load per shelf of the

toolbox in front of the tipper is 35 kg.
Permissible load of the plastic toolbox

under the tipper is 25 kg.
Permissible load of the stainless steel

toolbox under the tipper is 7 kg.

Cleaning

Clean the tipper or dropside

immediately after transporting

corrosive products.
Dirt or mud which remains dry on the

body may become abrasive and can

damage paint, seals, locks and

hinges.
Clean the following parts if they

become contaminated with dirt:

● Sideboard and tailboard locking

latches and hinges.

● Tipper body pivot pins and

locating holes.

Body conversions

201

Caution

Do not spray high-pressure water

directly at the hydraulic seals,

pump, reservoir, hydraulic ram ball

joints, or guide clamps.

After cleaning, check, and if

necessary lubricate the components

listed in the vehicle checks.

Warning

Do not venture under the tipper

body when raised.

Vehicle checks

Check regularly the following items:

● Visually check the subframe

mountings, the safety cables and

the hydraulic system. If any of the

components appear loose,

defective or leaking, seek the

assistance of a workshop to

rectify the cause of the fault.

● The tipper has an operating

angle of 45° - 50°. If this limit is

exceeded, seek the assistance of

a workshop to rectify the cause of

the fault.

● Do not operate the tipper if the

acoustic signal doesn't sound.

Seek the assistance of a

workshop.

● Lubricate every month the tipper

body pivots and hinges with high-

pressure grease.

● Check every month the hydraulic

oil level in the reservoir.

Declaration of conformity

All devices are compliant with

directive 2004/108/CE or UN

regulation R10.

202

Index

Accessories and vehicle

modifications .......................... 142

Active emergency braking.... 60, 114

AdBlue.................................... 57, 96

AdBlue gauge............................... 51

Adjustable air vents ..................... 85

Airbag and belt tensioners ........... 55

Airbag deactivation ...................... 29

Airbag label................................... 25

Airbag system .............................. 25

Air conditioning regular operation 87

Air conditioning system ................ 78

Air intake ...................................... 87

Air suspension........................ 56, 93

Air vents........................................ 85

Antilock brake system ................ 101

Antilock brake system (ABS) ....... 56

Anti-theft alarm system ................ 12

Anti-theft locking system .............. 12

Appearance care........................ 178

Armrest ........................................ 22

Ashtrays ....................................... 49

Automatic crash notification.......... 65

Automatic light control ................. 68

Automatic locking .......................... 9

Autostop....................................... 91

Auxiliary heater............................. 82

Battery........................................ 151

Battery discharge protection ........ 73

BlueInjection................................. 96

Bonnet ....................................... 147

Brake assist ............................... 103

Brake fluid .......................... 151, 183

Brake pad wear............................ 56

Brakes ............................... 101, 150

Brake system ............................... 56

Breakdown.................................. 177

Bulb replacement ....................... 154

Capacities .................................. 187

Catalytic converter ....................... 96

Central locking system .................. 7

Centre console lighting ................ 73

Centre console storage ............... 38

Centre high-mounted brake light 161

Changing tyre and wheel size ... 166

Charging..................................... 131

Charging cable........................... 128

Charging status.......................... 134

Charging system .......................... 55

Charging types........................... 128

Child locks ..................................... 9

Child restraint installation

locations ................................... 34

Child restraints.............................. 30

203

Child restraint systems ................ 30

Cigarette lighter ........................... 49

Cleaning..................................... 200

Climate control systems............... 77

Clock ............................................ 48

Control indicators.......................... 53

Control of the vehicle ................... 88

Controls........................................ 46

Convex shape .............................. 14

Coolant and antifreeze............... 183

Cruise control ...................... 59, 107

Cupholders .................................. 37

Curtain airbag system .................. 29

Danger, Warnings and Cautions ... 3

Daytime running lights ................. 69

Declaration of conformity.... 189, 201

DEF.............................................. 96

Descent control system........ 57, 106

Diesel exhaust fluid...................... 96

Diesel fuel system bleeding ....... 153

Diesel particle filter....................... 57

Door open .................................... 60

Doors.............................................. 9

Drain fuel filter ............................. 58

Driver assistance systems.......... 107

Driver Information Centre............. 60

Driving characteristics and

towing tips .............................. 137

Driving hints.................................. 88

Dynamic stability control............. 104

Electric adjustment ...................... 14

Electrical accessories................... 48

Electrical system......................... 162

Electric drive unit.......................... 99

Electric power consumption........ 127

Electric range.............................. 127

Electric Vehicles

Heating and ventilation............. 82

Electronic climate control system 80

Electronic Stability Control and

Traction Control system.... 57, 104

Emergency call............................. 65

Emergency call data recording

and privacy.............................. 191

End-of-life vehicle recovery ....... 146

Engine coolant ........................... 149

Engine coolant temperature ........ 57

Engine coolant temperature

gauge ....................................... 52

Engine exhaust ............................ 95

Engine identification................... 186

Engine oil ........................... 148, 183

Engine oil pressure ...................... 58

Event data recorders.................. 192

Exhaust filter................................. 95

Exit lighting .................................. 73

Exterior care .............................. 178

Exterior lighting..................... 67, 160

Exterior mirrors............................. 14

First aid kit ................................... 39

Fixed air vents ............................. 86

Fixed speed limiter..................... 110

Folding mirrors ............................. 15

Folding tray .................................. 40

Forward collision alert................. 112

Front airbag system ..................... 28

Front doors..................................... 9

Front fog lights ............... 59, 70, 156

Front seats.................................... 19

Front storage................................ 37

Front turn lights .......................... 157

Fuel for diesel engines .............. 134

Fuel gauge ................................... 51

Fuel system cut-off..................... 134

Fuses ......................................... 162

Gear shifting................................. 56

General information............ 127, 137

Glovebox ..................................... 36

Glovebox cooler ........................... 86

Ground clearance......................... 93

204

Halogen headlights .................... 154

Hand brake................................. 102

Hazard warning flashers .............. 70

Headlight flash ............................. 69

Headlight levelling system............ 59

Headlight range adjustment ........ 69

Headlights..................................... 67

Headlights when driving abroad . . 69

Head restraints ............................ 18

Heated mirrors ............................. 15

Heated rear window ..................... 17

Heating ........................................ 22

Heating and ventilation system . . . 77

Heating electric vehicles............... 82

High beam ............................. 59, 68

High beam assist.................... 59, 68

High voltage battery........... 146, 152

High voltage battery gauge.......... 52

Hill start assist...................... 57, 103

Horn ............................................. 46

Hydraulic oil level........................ 200

Identification plate ..................... 186

Ignition switch positions ............... 89

Immobiliser ............................ 13, 59

Indicators...................................... 53

Info Display................................... 62

Instrument panel illumination

control ...................................... 71

Instrument panel overview ........... 44

Intelligent grip system................. 104

Interior care ............................... 180

Interior lighting.............................. 71

Interior lights ................................ 72

Interior mirrors.............................. 16

Introduction .................................... 2

Isolation switch........................... 198

Jump starting ............................. 175

Keys ............................................... 4

Keys, locks..................................... 4

Ladder........................................ 200

Lane change alert....................... 118

Lane departure warning....... 57, 125

Lashing eyes ....................... 39, 197

Light switch .................................. 67

Load compartment lighting........... 72

Load inertia control..................... 104

Loading information ............. 41, 196

Low beam..................................... 59

Low fuel ....................................... 58

Malfunction indicator light ............ 55

Manual anti-dazzle ...................... 16

Manual transmission .................. 101

Mirrors.......................................... 14

Misted light covers ....................... 71

Multimedia.................................... 75

Multimedia Navi............................ 74

New vehicle running-in ................ 89

Number plate light ..................... 161

Object detection systems........... 117

Odometer ..................................... 50

Oil, engine.................................. 183

Oil pressure.................................. 58

Outside temperature .................... 47

Overcab storage .......................... 39

Overhead console ....................... 37

Parking ........................................ 93

Parking assist ............................ 117

Parking brake....................... 56, 102

Parking heater.............................. 83

Parking lights ............................... 71

Particulate filter............................. 95

Performing work ........................ 147

Power outlets ............................... 48

205

Power steering.............................. 56

Power windows ............................ 17

Preheating ................................... 57

Propulsion types............................. 2

Puncture..................................... 170

Radio Frequency Identification

(RFID)..................................... 195

Radio remote control ..................... 5

Rain sensor.................................. 47

REACH....................................... 189

Rear cross traffic alert................ 122

Rear doors ................................... 10

Rear fog light ................. 59, 71, 158

Rear step...................................... 10

Rear view camera ...................... 121

Rear view mirror display............... 60

Recommended fluids and

lubricants ................................ 183

Refuelling ................................... 136

Regenerative braking................. 103

Registered trademarks............... 191

Reversing lights ........................... 71

Ride control systems.................. 104

Roof bars...................................... 41

Roof load...................................... 41

Roof rack ..................................... 41

Safety prop................................. 199

Seat adjustment ........................... 19

Seat belt reminder ....................... 55

Seat belts ..................................... 22

Seat heating................................. 22

Seat position ................................ 19

Selective catalytic reduction......... 96

Service ......................................... 87

Service display ...................... 52, 55

Service information .................... 181

Service interval........................... 181

Service vehicle soon .................... 55

Side airbag system ...................... 29

Side blind spot alert............ 118, 122

Sideboards................................. 197

Sidelights...................................... 67

Side marker lights....................... 160

Side step......................................... 9

Side turn lights ........................... 160

Sliding door .................................... 9

Software update......................... 189

SOS.............................................. 65

Spare wheel ............................... 170

Speed limiter......................... 60, 110

Speed limit recognition............... 107

Speedometer ............................... 50

Starting and operating.................. 89

Starting the engine ...................... 90

Steering........................................ 89

Steering wheel adjustment .......... 46

Steering wheel controls ............... 46

Stop-start system.................... 59, 91

Storage......................................... 36

Storage compartments................. 36

Sun visors .................................... 17

Suspension seat........................... 19

Symbols ......................................... 3

Tachograph.................................. 64

Tachometer ................................. 51

Tailboard..................................... 197

Tail lights ................................... 158

Three-point seat belt .................... 23

Tipper operation......................... 198

Toolbox....................................... 200

Tools .......................................... 162

Tow bar....................................... 137

Towing................................ 137, 177

Towing another vehicle ............. 178

Towing equipment ..................... 139

Towing the vehicle ..................... 177

Traction Control system.............. 104

Traffic sign assistant................... 124

Trailer coupling........................... 137

Trailer towing ............................. 138

Tread depth ............................... 165

Trip computer .............................. 64

Turn lights .............................. 54, 70

206

Tyre chains ................................ 167

Tyre designations ...................... 163

Tyre pressure ............................ 163

Tyre pressure monitoring

system............................... 58, 164

Tyre repair kit ............................. 167

Ultrasonic parking assist............. 117

Underseat storage ....................... 37

Upholstery.................................. 180

USB socket................................... 48

Using this manual .......................... 2

Vehicle battery ........................... 151

Vehicle checks................... 147, 201

Vehicle data recording and

privacy..................................... 192

Vehicle detected ahead................ 59

Vehicle dimensions .................... 187

Vehicle identification number .... 185

Vehicle jack................................ 162

Vehicle messages ....................... 63

Vehicle personalisation ............... 65

Vehicle security............................ 12

Vehicle storage........................... 144

Vehicle tools............................... 162

Ventilation..................................... 83

Warning chimes ........................... 63

Warning lights............................... 53

Warning triangle .......................... 39

Washer fluid ............................... 150

Wheel changing ......................... 170

Wheel covers ............................. 166

Wheels and tyres ....................... 163

Windows....................................... 16

Windscreen................................... 16

Windscreen wiper and washer .... 47

Winter tyres ............................... 163

Wiper blade replacement .......... 153

Content .. 5 6 7
