130

Driving and operating

Enhanced domestic cables (mode 2)

are similar to basic domestic cables

(mode 2). However, the charging

performance of enhanced domestic

cables (mode 2 charging) is better

than the charging performance of

basic domestic cables (mode 2).

Enhanced domestic cables (mode 2)

are used at Green'Up sockets which

have to be installed by a certified

electrician at the customer's site.

Charging cable status indicators

After plugging in the charging cable,

it will perform a quick self test and all

status indicators illuminate for a

moment. For the functions of the

status indicators, refer to the manual

of the charging cable manufacturer.

Important information about

portable electric vehicle charging

● Charging an electric vehicle can

stress a building's electrical

system more than a typical

household appliance.

● Before you plug in to any

electrical outlet, have a qualified

electrician inspect and verify the

electrical system (electrical

outlet, wiring, junctions and

protection devices) for heavy-

duty service at a 10 A continuous

load.

● Electrical outlets may wear out

with normal usage or be

damaged over time, making them

unsuitable for electric vehicle

charging.

● Check the electrical outlet / plug

while charging and discontinue

use if the electrical outlet / plug is

hot, then have the electrical

outlet serviced by a qualified

electrician.

● When outdoors, plug into an

electrical outlet that is weather-

proof while in use.

● Mount the charging cable to

reduce strain on the electrical

outlet / plug.

Mode 3 charging cable

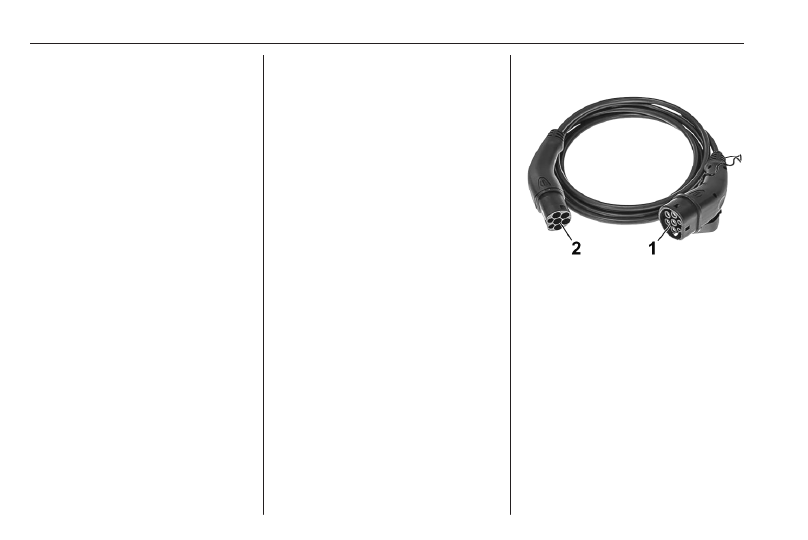

1. Vehicle plug
2. Plug for wall box / AC charging

station

Mode 3 charging cables are used for

charging at wall boxes and AC

charging stations. A mode 3 charging

cable provides a vehicle plug and a

plug for the wall box / AC charging

station. Wall boxes / AC charging

stations may provide an integrated

mode 3 charging cable. For more

information on the mode 3 charging

cable, refer to the manual of the

charging cable manufacturer.

Driving and operating

131

Mode 4 charging cable

Notice

Only use DC charging cables shorter

than 30 metres.

Mode 4 charging cables are used for

DC charging. Since mode 4 charging

cables are integrated within DC

charging stations, they only provide a

vehicle plug.

Charging

Warning

Persons with a pacemaker or

similar devices should consult a

doctor for possible precautions.
If in doubt, during charging do not

remain inside or near the vehicle,

near the charging cable or the

charging unit.

In order to ensure the compatibility of

plug and outlet, different labels are

used. The labels are located on the

inside of the vehicle's charging port

flap. Make sure to connect only a

cable of the same type.

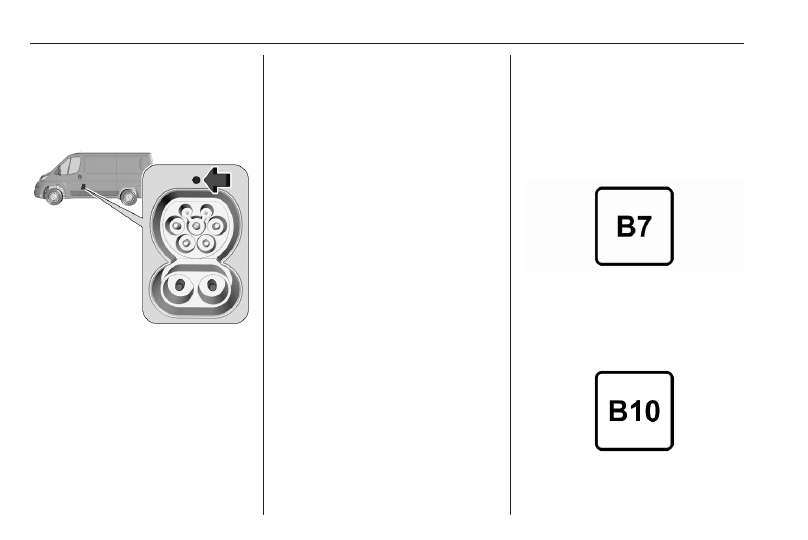

Type 2 plug or outlet used for AC

charging

FF plug or outlet used for DC charging

Warning

Avoid any entry of fluids into the

charging port of the vehicle, the

vehicle plug of the charging cable

and the domestic electrical outlet.

When charging at a public AC

charging station / public DC charging

station, follow the instructions for the

use of the respective charging

station. Public AC charging stations

may not provide an integrated

charging cable. In this case, a

portable mode 3 charging cable is

required.

Warning

When charging at a domestic

electrical outlet, only use an outlet

which is properly grounded and

protected by a 30 mA differential

switch.
Only use a domestic electrical

outlet protected by a circuit

breaker adapted to the amperage

of the electrical circuit.
Have a qualified electrician check

the electrical installation to be

used. The installation has to be in

compliance with national

standards and compatible with the

vehicle.
When using a dedicated domestic

electrical outlet, have it installed

by a qualified electrician.

132

Driving and operating

Make sure that the electrical

outlet, the plug and the cable do

not support the weight of the

control box.

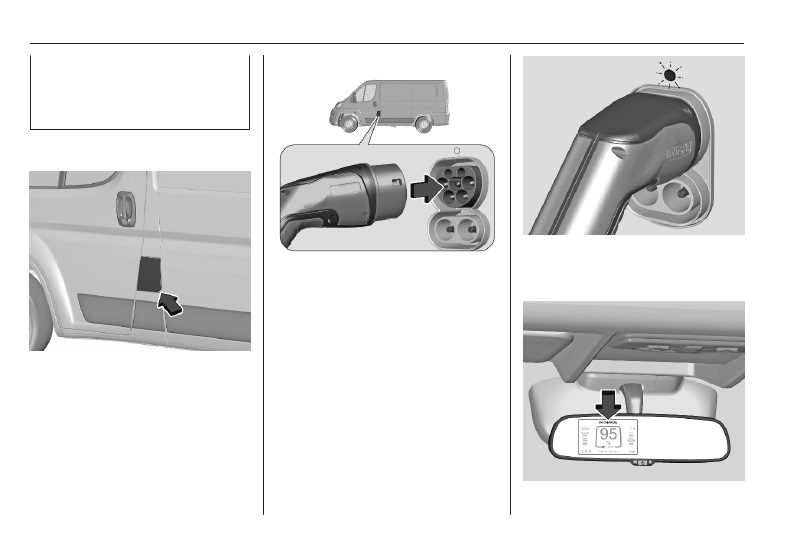

1. Shift into N, apply the parking

brake and switch off the vehicle.

2. Pull the charging port flap to

release it.

3. If necessary, take the charging

cable out of the load

compartment.

4. If necessary, plug in the plug of

the charging cable into the

corresponding port of the external

power source.

Charging cable

134.

5. Remove the protective cover and

plug in the vehicle plug of the

charging cable into the charging

port of the vehicle.
Charging status

134.

The LED located above the

charging port illuminates to

indicate that the vehicle plug is

locked.

Driving and operating

133

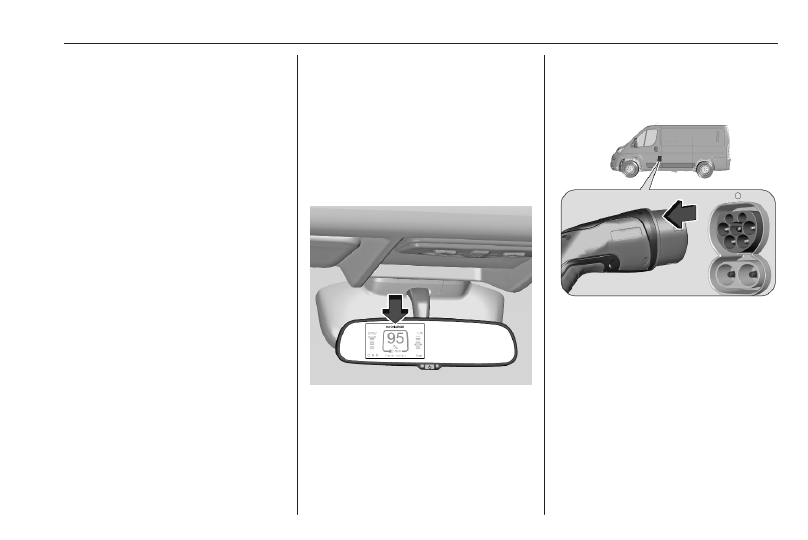

The start of charging is indicated

by a message in the rear view

mirror display.

Once charging, the vehicle plug will

be locked to the charging port and

cannot be disconnected while

charging is active.
Driver Information Centre

60.

Charging types

128.

Cancelling the charging process

Notice

At public charging stations, the

cancelling and subsequent

resuming of the charging process

may cause additional costs.
Once the charging process has

started, only the driver's door can be

unlocked without cancelling the

charging process. Therefore,

activate the driver's door only

function in the vehicle

personalisation.

Press

for five seconds on the radio

remote control to cancel the charging

process at any time.

If the vehicle plug of the charging

cable is not removed within 30

seconds after the cancellation of the

charging, the charging will be

resumed.
Central locking system

Vehicle personalisation

65.

Stop charging

A message displayed on the rear view

mirror display indicates when the high

voltage battery is fully charged.

1. Press

for five seconds on the

radio remote control to stop the

charging.

The LED located above the

charging port extinguishes to

indicate that the vehicle plug is

unlocked.

2. Disconnect the vehicle plug of the

charging cable from the charging

port within 30 seconds after

unlocking.

3. Close the charging port flap by

pressing firmly to latch properly.

4. Reinsert the protective cover into

the charging port.

5. Disconnect the charging cable

from the external power source.

6. If necessary, store the charging

cable in the load compartment.

134

Driving and operating

While the charging cable is plugged

into the vehicle, the vehicle cannot be

driven.

Charging status

If the vehicle is plugged in, the LED

located above the charging port

indicates the following:

● Illuminates: the vehicle plug of

the charging cable is locked.

● Flashes: the vehicle plug of the

charging cable has been

inserted, but the ignition is still

switched on. Switch off ignition

and try it again.

● Off: the vehicle plug of the

charging cable is unlocked and

can be disconnected.

Further charging status indicators are

located on the control box of the basic

domestic cable (mode 2) / enhanced

domestic cable (mode 2).
Further information regarding the

charging is displayed on the rear view

mirror display.
Charging cable

128.

Driver Information Centre

60.

Fuel

Fuel for diesel engines

The Diesel engines are compatible

with bio-fuels that conform to current

and future European standards and

can be obtained from filling stations:

Diesel fuel that meets standard

EN590 mixed with a biofuel that

meets standard EN14214 (possibly

containing up to 7% Fatty Acid Methyl

Ester)

Driving and operating

135

Diesel fuel that meets standard

EN16734 mixed with a biofuel that

meets standard EN14214 (possibly

containing up to 10% Fatty Acid

Methyl Ester)

Paraffinic Diesel fuel that meets

standard EN15940 mixed with a

biofuel that meets standard

EN14214 (possibly containing up to

7% Fatty Acid Methyl Ester).

The use of B20 or B30 fuel meeting

standard EN16709 is possible.

However, this use, even occasional,

requires strict application of the

special servicing conditions referred

to as "Arduous conditions".

For more information, contact a

dealer or a qualified workshop.

Caution

The use of any other type of (bio)

fuel (vegetable or animal oils, pure

or diluted, domestic fuel etc.) is

strictly prohibited (risk of damage

to the engine and fuel system).

Notice

The only Diesel additives authorised

for use are those that meet the

B715000 standard.

Low temperature operation

At temperatures below 0 °C, some

diesel products with biodiesel blends

may clog, freeze or gel, which may

affect the fuel supply system. Starting

and engine operation may not work

properly. Make sure to fill winter

grade diesel fuel at ambient

temperatures below 0 °C.
Arctic grade diesel fuel can be used

at extremely low temperatures below

-20 °C. Using this fuel grade in warm

or hot climates is not recommended

and may cause engine stalling, poor

starting or damage on the fuel

injection system.

Fuel system cut-off

In the event of an impact, the fuel cut-

off system, automatically cuts off the

fuel supply to the engine and the

vehicle's power supply.
As soon as the system cuts off the fuel

supply, the hazard warning flashers,

the side lights and the interior lights

are switched on and the doors are

unlocked.

Caution

After an impact and before

restoring these power supplies,

check that there are no fuel leaks

or sparks to avoid any risk of fire.

136

Driving and operating

To restore the fuel supply, press the

button on the fuel supply cut-off

device.
It is located in the passenger

compartment.
Depending on version, there is a an

additional safety relay that is

activated after an impact. This safety

relay cuts off the electrical supply.
Seek the assistance of a workshop.

Refuelling

Danger

Before refuelling, switch off

ignition and any external heaters

with combustion chambers.
Follow the operating and safety

instructions of the filling station

when refuelling.

Danger

Fuel is flammable and explosive.

No smoking. No naked flames or

sparks.
If a smell of fuel can be noticed

inside the vehicle, have the cause

of this remedied immediately by a

workshop.

A label with symbols at the fuel filler

flap is indicating the allowed fuel

types. In Europe the pump nozzles of

the filling stations are marked with

these symbols. Refuel only the

allowed fuel type.

Caution

In case of misfueling, do not switch

on ignition.

Fuel filler flap is located at the front left

side of vehicle.

Release the fuel filler flap by pulling

the flap.
Place the key in the lock and unlock

the cap.
To open, turn the cap slowly anti-

clockwise.

Driving and operating

137

The fuel filler cap can be attached to

the hook on the fuel filler flap.
Place the nozzle in straight position to

the filler neck and press with slight

force to insert.
To refuel, switch on pump nozzle.
After the automatic cut-off, the tank

can be topped up by operating the

pump nozzle a maximum of two more

times.

Caution

Wipe off any overflowing fuel

immediately.

To close, turn the fuel filler cap

clockwise until it clicks.
Close the flap and allow it to engage.

Fuel filler cap

Only use genuine fuel filler caps.

Trailer hitch

General information

Only use towing equipment that has

been approved for the vehicle.
Entrust retrofitting of towing

equipment to a workshop. It may be

necessary to make changes that

affect the cooling system, heat

shields or other equipment.

Driving characteristics and

towing tips

Before attaching a trailer, lubricate

the coupling ball. However, do not do

so if a stabiliser, which acts on the

coupling ball, is being used to reduce

snaking movements. It is advisable to

use a stabiliser.
During trailer towing do not exceed a

speed of 50 mph. A maximum speed

of 60 mph is only appropriate if an

oscillation damper is used and the

permissible gross trailer weight does

not exceed the vehicle's curb weight.

138

Driving and operating

For trailers with low driving stability

and caravan trailers, the use of an

oscillation damper is strongly

recommended.
If the trailer starts snaking, drive more

slowly, do not attempt to correct the

steering and brake sharply if

necessary.
When driving downhill, drive in the

same gear as if driving uphill and

drive at a similar speed.
If the outside temperature exceeds

37 °C, reduce the load on the trailer

to protect the engine of the vehicle.
At high outside temperatures it is

recommended to leave the engine

running for one or two minutes after

having stopped the vehicle in order to

faciliate cooling.
Adjust tyre pressure to the value

specified for full load.
Towing a trailer increases the braking

distance of the vehicle. To limit the

heating of the brakes, it is

recommended to use the braking

effect of the engine.

By driving uphill, the temperature of

the coolant is increased. To reduce

heating, drive at a reduced speed and

pay attention to the coolant

temperature. If the control indicator of

the engine coolant temperature

gauge illuminates, stop the vehicle

and switch off engine as soon as

possible.

Trailer towing

Trailer loads

The permissible trailer loads are

vehicle and engine-dependent

maximum values which must not be

exceeded. The actual trailer load is

the difference between the actual

gross weight of the trailer and the

actual coupling socket load with the

trailer coupled.
The permissible trailer loads are

specified in the vehicle documents. In

general, they are valid for inclines up

to 12%.
The permissible trailer load applies

up to the specified incline and at sea

level. Since engine power decreases

as altitude increases due to the air

becoming thinner, therefore reducing

climbing ability, the permissible gross

train weight also decreases by 10%

for every 1000 m of altitude. The

gross train weight does not have to be

reduced when driving on roads with

slight inclines (less than 8%, e.g.

motorways).
The permissible gross train weight

must not be exceeded. This weight is

specified on the identification plate

186.

Vertical coupling load

The vertical coupling load is the load

exerted by the trailer on the coupling

ball. It can be varied by changing the

weight distribution when loading the

trailer.
The maximum permissible vertical

coupling load (70 kg) is specified on

the towing equipment identification

plate and in the vehicle documents.
Always aim for the maximum vertical

coupling load, especially in the case

of heavy trailers. The vertical coupling

load should never fall below 25 kg.

Driving and operating

139

Rear axle load

When the trailer is coupled and the

towing vehicle fully loaded, the

permissible rear axle load (see

identification plate or vehicle

documents) may be exceeded by

60 kg, the gross vehicle weight rating

must not be exceeded. If the

permissible rear axle load is

exceeded, a maximum speed of

60 mph applies.

Towing equipment

Depending on version the vehicle can

be fitted with a detachable or a fixed

coupling ball bar.

Caution

When operating without a trailer,

remove the coupling ball bar.

Fitting the coupling ball bar

Remove the sealing plug from the

opening for the coupling ball bar and

store it.

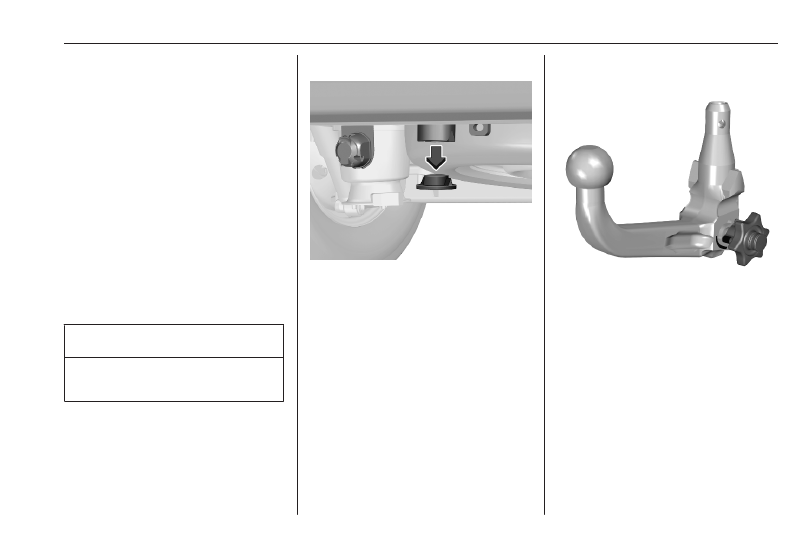

Swivel the connecting socket

downwards.

Checking the tensioning of the

coupling ball bar

● Red marking on rotary knob must

point towards green marking on

coupling ball bar.

● The gap between the rotary knob

and the coupling ball bar must be

approx. 6 mm.

140

Driving and operating

● Remove the cover from the lock

of the rotary knob and verify

whether the rotary knob is

locked. If the rotary knob cannot

be turned, it is locked.

Otherwise, the coupling ball bar must

be tensioned before being inserted:

● Unlock coupling ball bar by

turning key to position

● Pull out rotary knob and turn

clockwise as far as it will go.

Inserting the coupling ball bar

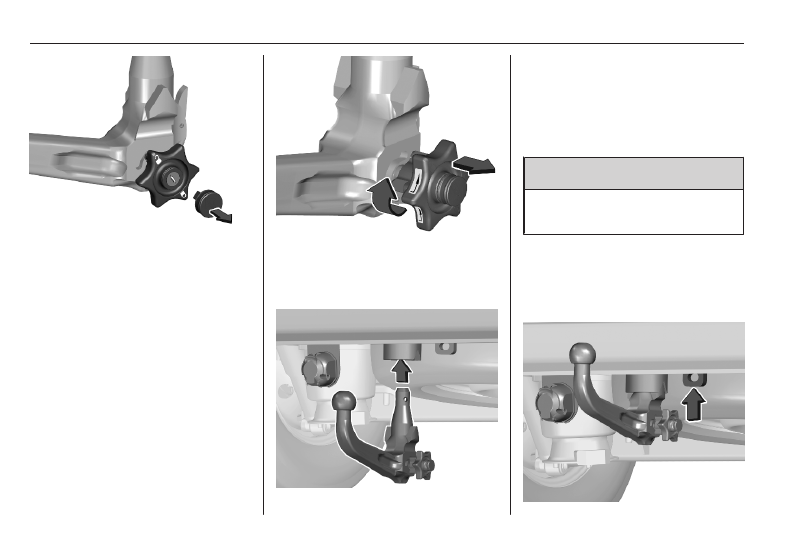

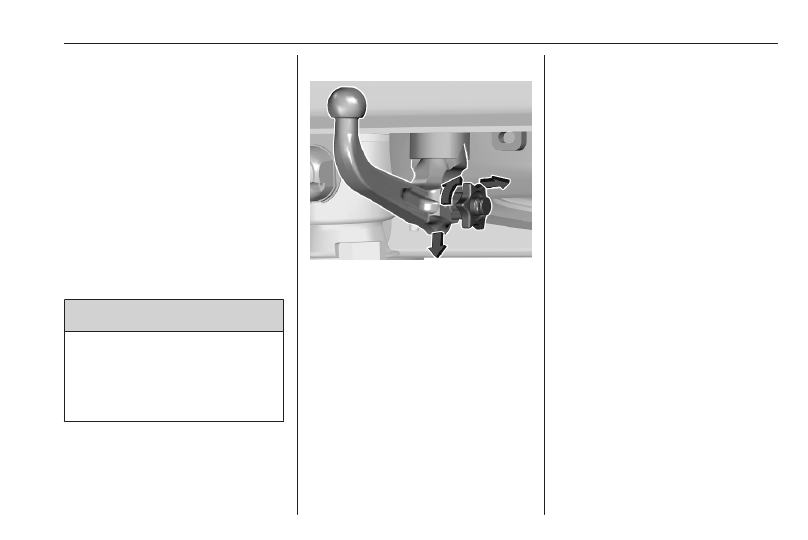

Insert the tensioned coupling ball bar

in the opening and push firmly

upwards until it audibly engages.
The rotary handle snaps back into its

original position resting against the

coupling ball bar without a gap.

Warning

Do not touch rotary handle during

insertion.

Lock the coupling ball bar by turning

the key to position

. Remove the key

and close the protective flap.

Eye for break-away stopping cable

Driving and operating

141

Attach breakaway stopping cable to

eye.

Check that the coupling ball bar is

correctly installed

● Green marking on rotary knob

must point towards green

marking on coupling ball bar.

● There must be no gap between

the rotary handle and the

coupling ball bar.

● The coupling ball bar must be

firmly engaged in the opening.

● The coupling ball bar must be

locked and the key removed.

Warning

Towing a trailer is permitted only

when a coupling ball bar is fitted

correctly. If the coupling ball bar

does not engage correctly, seek

the assistance of a workshop.

Dismounting the coupling ball bar

Open the protective flap and turn the

key to position

to unlock the

coupling ball bar.
Pull out rotary handle and turn

clockwise as far as it will go. Pull out

coupling ball bar downwards.
Insert sealing plug in opening. Swivel

the connecting socket upwards.

142

Vehicle care

General Information ................... 142

Accessories and vehicle

modifications .......................... 142

Vehicle storage ........................ 144

End-of-life vehicle recovery ..... 146

Vehicle checks ........................... 147

Performing work ...................... 147

Bonnet ..................................... 147

Engine oil ................................. 148

Engine coolant ......................... 149

Washer fluid ............................ 150

Brakes ..................................... 150

Brake fluid ............................... 151

Vehicle battery ......................... 151

High voltage battery ................ 152

Diesel fuel system bleeding ..... 153

Wiper blade replacement ........ 153

Bulb replacement ....................... 154

Halogen headlights .................. 154

Front fog lights ......................... 156

Front turn lights ....................... 157

Tail lights ................................. 158

Side turn lights ......................... 160

Exterior lighting ........................ 160

Centre high-mounted brake

light ......................................... 161

Number plate light ................... 161

Electrical system ........................ 162

Fuses ....................................... 162

Vehicle tools .............................. 162

Tools ........................................ 162

Wheels and tyres ....................... 163

Winter tyres ............................. 163

Tyre designations .................... 163

Tyre pressure .......................... 163

Tyre pressure monitoring

system .................................... 164

Tread depth ............................. 165

Changing tyre and wheel size . 166

Wheel covers ........................... 166

Tyre chains .............................. 167

Tyre repair kit .......................... 167

Wheel changing ....................... 170

Spare wheel ............................ 170

Jump starting ............................. 175
Towing ....................................... 177

Towing the vehicle ................... 177

Towing another vehicle ........... 178

Appearance care ....................... 178

Exterior care ............................ 178

Interior care ............................. 180

General Information

Accessories and vehicle

modifications

We recommend the use of genuine

parts and accessories and factory

approved parts specific for your

vehicle type. We cannot assess or

guarantee reliability of other products

- even if they have a regulatory or

otherwise granted approval.
Any modification, conversion or other

changes made to standard vehicle

specifications (including, without

limitation, software modifications,

modifications of the electronic control

units) may invalidate the warranty

offered by Vauxhall. Furthermore,

such changes may affect driver

assistance systems, may impact fuel

or electric power consumption, CO

emissions and other emissions of the

vehicle and cause the vehicle to no

longer conform to the operating

permit, impacting the validity of your

vehicle registration.

Vehicle care

143

Caution

Access to the diagnostic socket

associated with the on-board

electronics is reserved for

qualified technicians and

approved tools.

Caution

When transporting the vehicle on

a train or on a recovery vehicle, the

mud flaps might be damaged.

Cold protection covers

In order to prevent the accumulation

of snow or ice in the upper engine

compartment, it is recommended to

install removable protection covers.
The protection covers must be

professionally installed, consult a

workshop.

Mobile phones and CB radio

equipment

The vehicle specific installation

instructions and the operating

guidelines of the mobile phone and

hands-free manufacturer must be

observed when installing and

operating a mobile telephone. Failure

to do so could invalidate the vehicle

type approval (EU directive 95/54/

EC).
Recommendations for fault-free

operation:

● Professionally installed exterior

antenna to obtain the maximum

range possible.

● Maximum transmission power

10 W.

● Installation of the phone in a

suitable spot, consider the area

in which the airbag inflates

28.

Seek advice on predetermined

installation points for the external

antenna or equipment holder and

ways of using devices with a

transmission power exceeding 10 W.

Use of a hands-free attachment

without external antenna with mobile

telephone standards GSM

900/1800/1900 and UMTS is only

permitted if the maximum

transmission power of the mobile

telephone is 2 W for GSM 900 or

1 W for the other types.
For reasons of safety, do not use the

phone while driving. Even use of a

hands-free set can be a distraction

while driving.

Warning

Operation of radio equipment and

mobile telephones which fail to

meet above mentioned mobile

telephone standards is only

permitted using an antenna

located outside of the vehicle.

Caution

Mobile telephones and radio

equipment may lead to

malfunctions in the vehicle

electronics when operated inside

144

Vehicle care

the vehicle with no exterior

antenna, unless the above

mentioned regulations are

observed.

Vehicle storage

Storage for a long period of time

(non-electric vehicle)

If the vehicle is to be stored for several

months:

● Wash the vehicle.
● Have the wax in the engine

compartment and underbody

checked.

● Clean and preserve the rubber

seals.

● Fill up fuel tank completely.
● Change the engine oil.
● Drain the washer fluid reservoir.
● Check the coolant antifreeze and

corrosion protection.

● Adjust tyre pressure to the value

specified for full load.

● Park the vehicle in a dry, well

ventilated place. Engage first or

reverse gear or set selector lever

to P. Prevent the vehicle from

rolling.

● Do not apply the parking brake.
● Open the bonnet, close all doors

and lock the vehicle.

● Activate the vehicle battery

standby mode. Note that all

systems are not functional, e.g.

anti-theft alarm system.

Storage for a long period of time

(electric vehicle)

If the vehicle is to be stored for several

months:

● Wash the vehicle.
● Have the wax in the engine

compartment and underbody

checked.

● Clean and preserve the rubber

seals.

● Drain the washer fluid reservoir.
● Check the coolant antifreeze and

corrosion protection.

● Adjust tyre pressure to the value

specified for full load.

● Park the vehicle in a dry, well

ventilated place. Prevent the

vehicle from rolling.

● Do not apply the parking brake.
● Open the bonnet, close all doors

and lock the vehicle.

Up to four weeks

Plug in the charging cable.
Four weeks to twelve months

● Ensure a high voltage battery's

state of charge of 30 percent.

● Do not plug in the charging cable.
● Always store the vehicle in a

place with temperatures between

−10 °C and 30 °C.

● Vehicle storage at extreme

temperatures may cause

damage to the high voltage

battery.

● Remove the black negative (−)

cable from the 12 V vehicle

battery and attach a trickle

charger to the vehicle battery

terminals or keep the 12 V

vehicle battery cables connected

Vehicle care

145

and trickle charge from the

positive (+) and negative (−)

terminals in the engine

compartment.

● Every three months, check the

high voltage battery's state of

charge. If the state of charge is

below 30 percent, recharge to 30

percent.

Putting back into operation (non-

electric vehicle)

When the vehicle is to be put back into

operation:

● Deactivate the vehicle battery

standby mode.

● Check tyre pressure.
● Fill up the washer fluid reservoir.
● Check the engine oil level.
● Check the coolant level.
● Fit the number plates if

necessary.

Putting back into operation

(electric vehicle)

When the vehicle is to be put back into

operation:

● Connect the clamp to the

negative terminal of the 12 V

vehicle battery.

● Check tyre pressure.
● Fill up the washer fluid reservoir.
● Check the coolant level.
● Fit the number plate if necessary.

Vehicle battery standby mode

In order to protect the 12 V vehicle

battery, it is possible to activate the

vehicle battery standby mode.

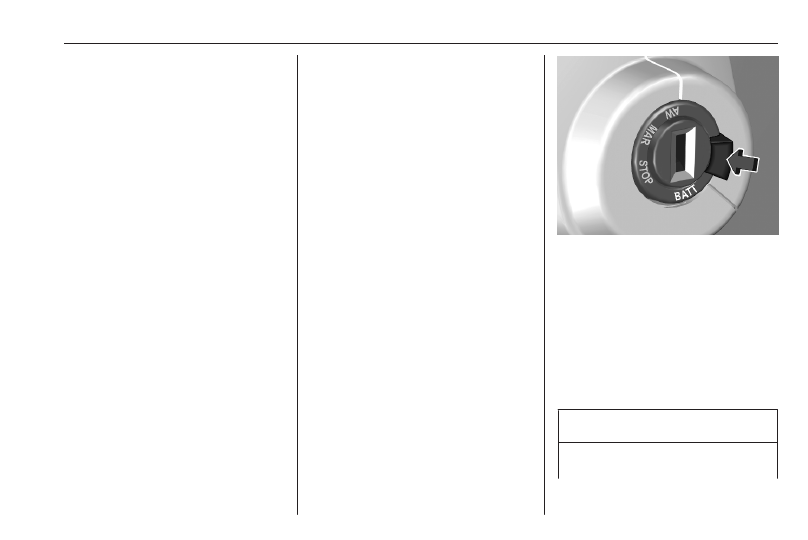

Activation

1. Switch off engine.

2. Press the red button, then turn key

to position BATT.
The vehicle battery goes into

standby mode approx. seven

minutes later. In this time period

the vehicle should be left and

locked by using the radio remote

control.
Ensure that all vehicle electrical

systems are deactivated.

Caution

When the vehicle battery is in

standby mode, the driver's door

146

Vehicle care

can only be unlocked by unlocking

the mechanical lock.

Notice

After a vehicle battery standby,

several settings of the infotainment

system (e.g. time, date, radio

stations, etc.) are memorised.

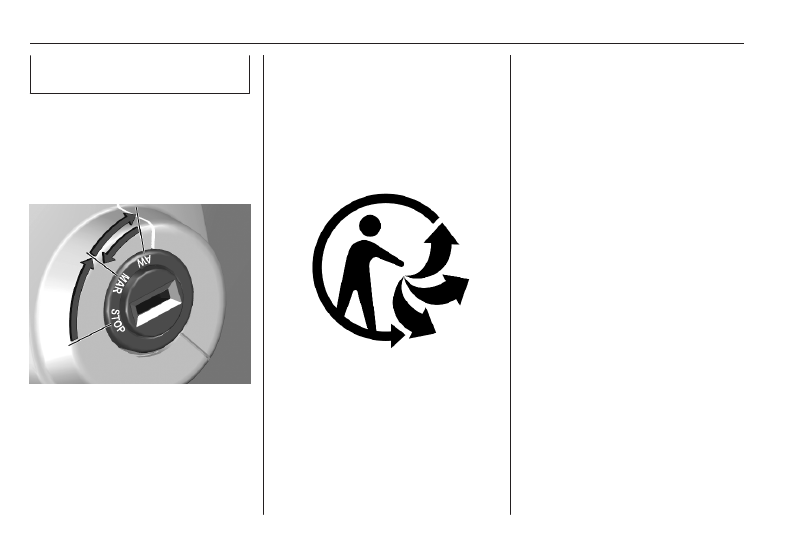

Deactivation

1. Turn key to position MAR.
2. Turn key briefly to position AVV to

start the engine.
Starting the engine

90.

End-of-life vehicle recovery

Information on end-of-life vehicle

recovery centres and the recycling of

end-of-life vehicles is available on our

website, where legally required. Only

entrust this work to an authorised

recycling centre.

High voltage battery

The high voltage battery is designed

for the life of the vehicle if the

recommendations are followed. If it

becomes necessary to replace the

high voltage battery, contact a

workshop for instructions on its

disposal. Improper disposal carries

the risk of severe burns, electric

shock, and damage to the

environment.
Recommendations

152.

Vehicle care

147

Vehicle checks

Performing work

Warning

Only perform engine compartment

checks when the ignition is off.
The cooling fan may start

operating even if the ignition is off.

Danger

The ignition system uses

extremely high voltage. Do not

touch.

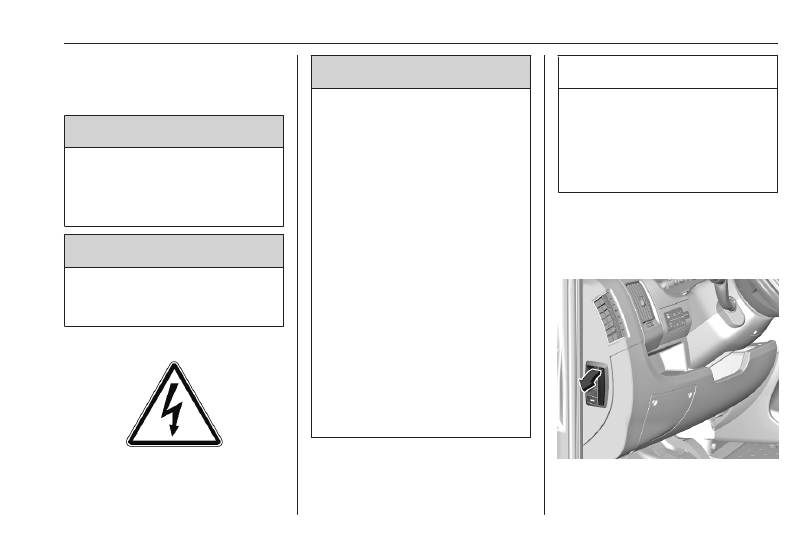

Electric vehicle

Danger

Never try to perform maintenance

work on high voltage components

yourself. You may be injured and

the vehicle may be damaged.

Service and repair of these high

voltage components should only

be performed by a trained service

technician with proper knowledge

and tools. Exposure to high

voltage may cause shock, burns,

and even death. The high voltage

components in the vehicle can

only be serviced by technicians

with special training.
High voltage components are

identified by labels. Do not

remove, open, take apart, or

modify these components. High

voltage cable or wiring has orange

covering. Do not probe, tamper

with, cut, or modify high voltage

cable or wiring.

Caution

Even small amounts of

contamination to the liquids can

cause damage to vehicle systems.

Do not allow contaminants to

contact the fluids, reservoir caps,

or dipsticks.

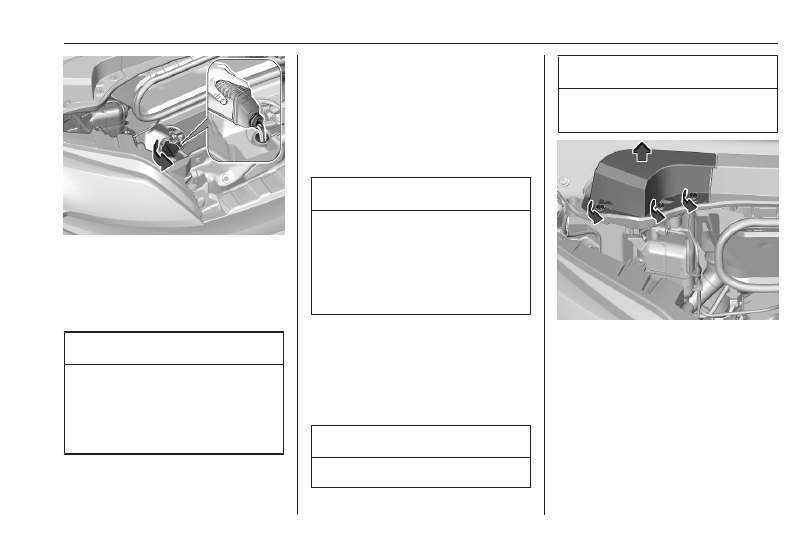

Bonnet

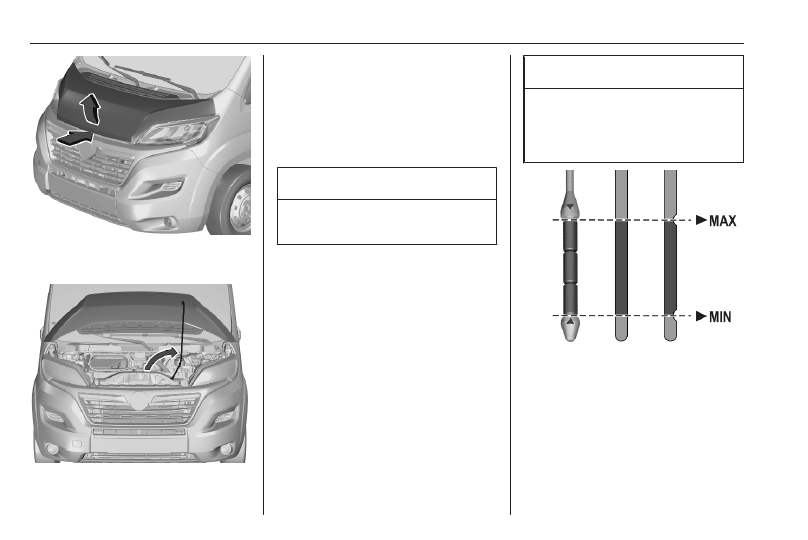

Opening

Open the driver's door.

Pull the release lever and return it to

its original position.

148

Vehicle care

Push the safety catch upwards and

open the bonnet.

Secure the bonnet support.

Closing

Before closing the bonnet, press the

support into the holder.
Lower the bonnet and let it fall into the

latch from a low height (20-25 cm).

Check that the bonnet is engaged.

Caution

Do not press the bonnet into the

latch to avoid dents.

Engine oil

Check the engine oil level manually

on a regular basis to prevent damage

to the engine. Ensure that the correct

specification of oil is used.
Recommended fluids and lubricants

183.

Check with the vehicle on a level

surface. The engine must be at

operating temperature and switched

off for at least five minutes.
It is recommended to check the

engine oil level, and top up if

necessary, every 3,000 miles.

Caution

It is the owner's responsibility to

maintain the proper level of an

appropriate quality oil in the

engine.

Different dipsticks are used

depending on engine variant.
Pull out the dipstick, wipe it clean,

reinsert it fully, pull out and read the

engine oil level.
When the engine oil level has

dropped to the MIN mark, top up the

engine oil.

Vehicle care

149

We recommend the use of the same

grade of engine oil that was used at

last change.
The engine oil level must not exceed

the MAX mark on the dipstick.

Caution

Overfilled engine oil must be

drained or suctioned out. If the oil

exceeds the maximum level, do

not start the vehicle and contact a

workshop.

Capacities

187.

Fit the cap on straight and tighten it.

Engine coolant

Coolant level BEV

If the coolant level is at the MIN mark

or below, seek the assistance of a

workshop to have the engine coolant

topped up.

Caution

Using the wrong engine coolant

can cause severe damages to the

high voltage battery. Only

experienced mechanics are

allowed to open the coolant

reservoir and to top up coolant.

Propulsion types

Coolant level ICE

The factory filled coolant provides

freeze protection down to approx.

-37 °C.

Caution

Only use approved antifreeze.

Coolant and antifreeze

183.

Caution

Too low a coolant level can cause

engine damage.

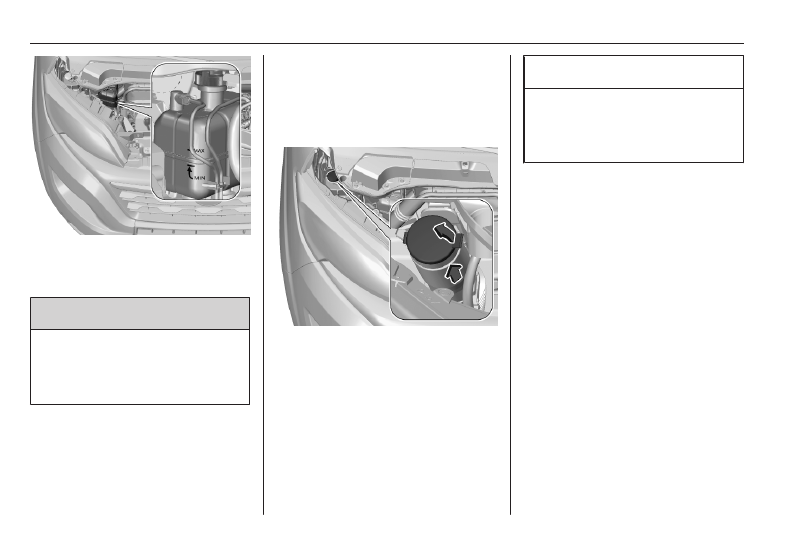

To gain access to the tank cap,

remove the protective cover by

turning the three fixing screws a

quarter of a turn.

150

Vehicle care

If the cooling system is cold, the

coolant level should be above the

MIN mark. Top up if the level is low.

Warning

Allow the engine to cool before

opening the cap. Carefully open

the cap, relieving the pressure

slowly.

To top up, use a 1:1 mixture of

released coolant concentrate mixed

with clean tap water. If no coolant

concentrate is available, use clean

tap water. Install the cap tightly. Have

the coolant concentration checked

and have the cause of the coolant

loss remedied by a workshop.

Washer fluid

To access the filler cap, pull the

telescope filler neck and unclip the

cap.
Fill with clean water mixed with a

suitable quantity of approved

windscreen washer fluid which

contains antifreeze.

Caution

Only washer fluid with a sufficient

antifreeze concentration provides

protection at low temperatures or

a sudden drop in temperature.

Washer fluid

183.

Brakes

Depending on the driving style, the

brake wear may vary significantly.The

brake wear may increase when the

vehicle is driven over short distances,

e.g. in the city.
It may be necessary to have the

condition of the brakes checked, even

between vehicle services.
Unless there is a leak in the circuit, a

drop in the brake fluid level indicates

that the brake pads are worn.
Once new brake linings are installed,

do not brake unnecessarily hard for

the first few journeys.

Vehicle care

151

Brake fluid

Warning

Brake fluid is poisonous and

corrosive. Avoid contact with eyes,

skin, fabrics and painted surfaces.

The brake fluid level must not exceed

the MAX mark.
If the brake fluid level is not close to

the MAX mark, seek the assistance of

a workshop.
Brake and clutch fluid

183.

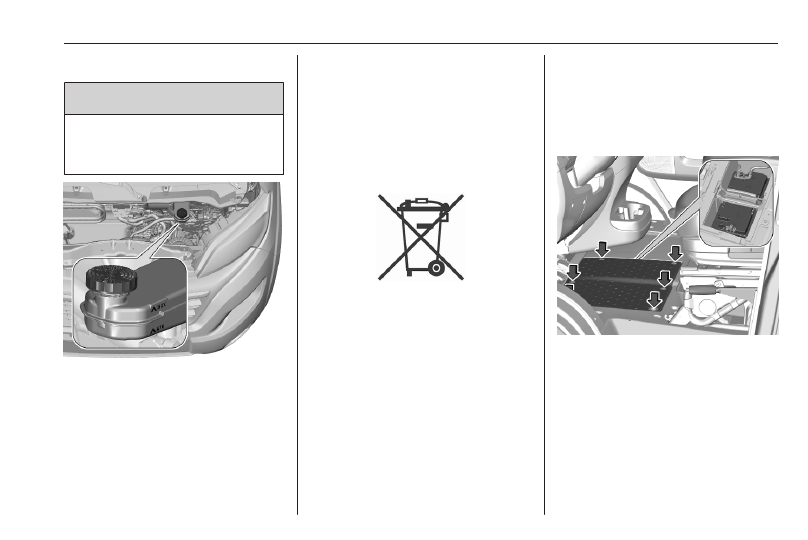

Vehicle battery

The vehicle battery is maintenance-

free provided that the driving profile

allows sufficient charging of the

battery. Short-distance-driving and

frequent engine starts can discharge

the vehicle battery. Avoid the use of

unnecessary electrical consumers.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.
Laying up the vehicle for more than

four weeks can lead to vehicle battery

discharge. Activate the vehicle

battery standby mode or disconnect

the clamp from the negative terminal

of the vehicle battery.
Vehicle battery standby mode

144.

Ensure the ignition is switched off

before connecting or disconnecting

the vehicle battery.
Battery discharge protection

73.

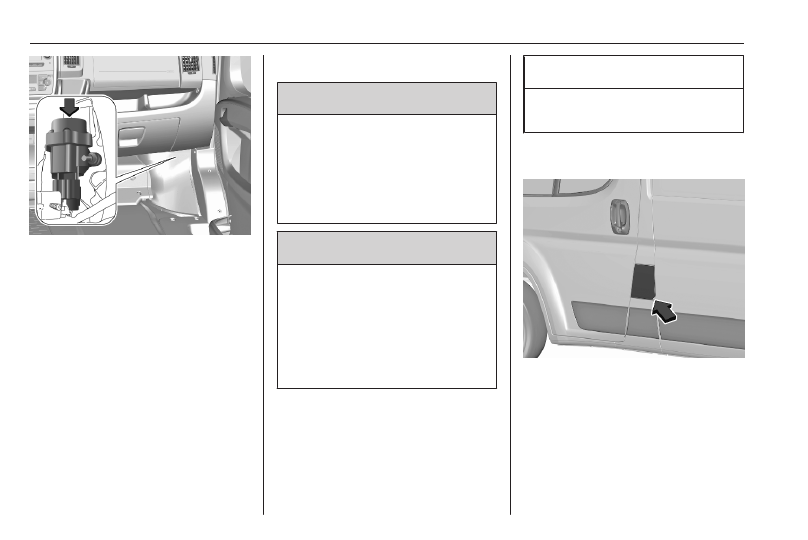

Vehicle battery access

The vehicle battery is located under

the left-hand front floor. Remove the

panel to access the vehicle battery.

Replacing the vehicle battery

Notice

Any deviation from the instructions

given in this section may lead to

temporary deactivation or

disturbance of the stop-start system.

152

Vehicle care

When the vehicle battery is being

replaced, ensure that there are no

open ventilation holes in the vicinity of

the positive terminal. If a ventilation

hole is open in this area, it must be

closed off with a dummy cap, and the

ventilation in the vicinity of the

negative terminal must be opened.
Ensure that the vehicle battery is

always replaced by the same type of

battery.
The vehicle battery has to be

replaced by a workshop.
Stop-start system

91.

Charging the vehicle battery

Warning

On vehicles with stop-start

system, ensure that the charging

potential does not exceed 14.6 V

when using a battery charger.

Otherwise the vehicle battery may

be damaged.

Jump starting

175.

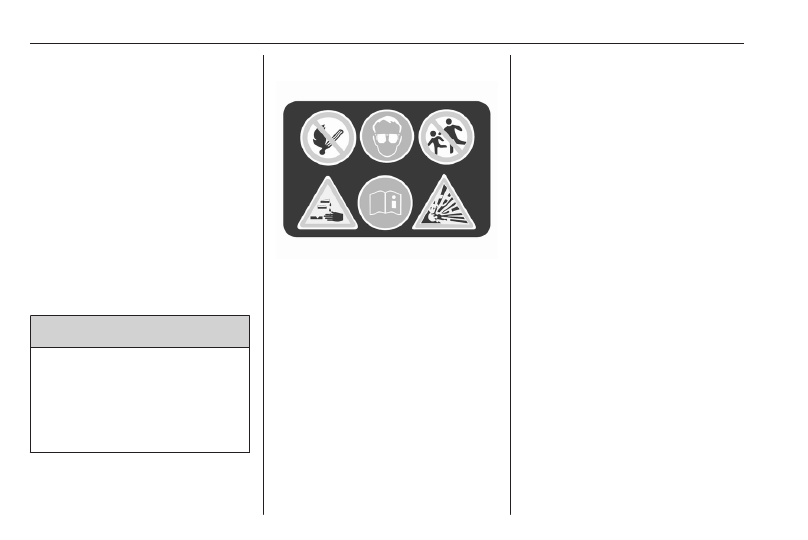

Warning label

Meaning of symbols:

● No sparks, naked flames or

smoking.

● Always shield eyes. Explosive

gases can cause blindness or

injury.

● Keep the vehicle battery out of

reach of children.

● The vehicle battery contains

sulphuric acid which could cause

blindness or serious burn

injuries.

● See the Owner's Manual for

further information.

● Explosive gas may be present in

the vicinity of the vehicle battery.

High voltage battery

To preserve the range and the

durability of the high voltage battery,

the following is recommended:

● Whenever possible do not

charge the high voltage battery

more than 80%.

● Do not completely discharge the

high voltage battery.

● Do not store the vehicle for a long

period of non-use (more than

twelve hours) when the high

voltage battery has a low or high

charge level. Prefer a charge

level between 20 and 40%.

● Limit the use of fast charging.
● Do not expose the vehicle to

temperatures below -30 °C and

above 60 °C for more than 24

hours.

Vehicle care

153

● Avoid charging the vehicle at low

temperatures (except if the

vehicle ran more than 20

minutes) or above 30 °C.

● Do not use the high voltage

battery as a generator of energy.

● Do not use a generator to

recharge the high voltage

battery.

Vehicle storage

144.

Leakage

Damage to the high voltage battery

could result in the leakage of toxic

gases or fluids either immediately or

later. The following is recommended:

● Always inform the fire and

emergency services in the event

of an incident, that the vehicle is

equipped with a high voltage

battery.

● Never touch the liquids leaking

from the high voltage battery.

● Do not inhale the gases emitted

by the high voltage battery which

are toxic.

● Move away from the vehicle in

the event of incident or accident,

the gases emitted being

flammable and could cause a

fire.

● Too low a coolant level must be

topped up and the cause of the

coolant loss remedied by a

workshop.

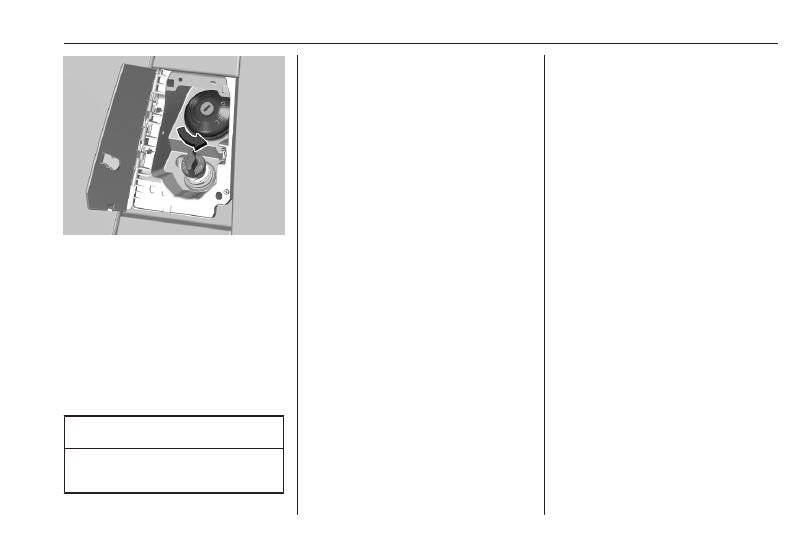

Diesel fuel system bleeding

If the tank has been run dry, the diesel

fuel system must be bled. Refuel at

least five litres diesel. Switch on the

ignition for about 60 seconds and

switch off again. Then crank the

engine. If the engine does not start

directly, repeat this process a few

times. If the engine then fails to start,

seek the assistance of a workshop.

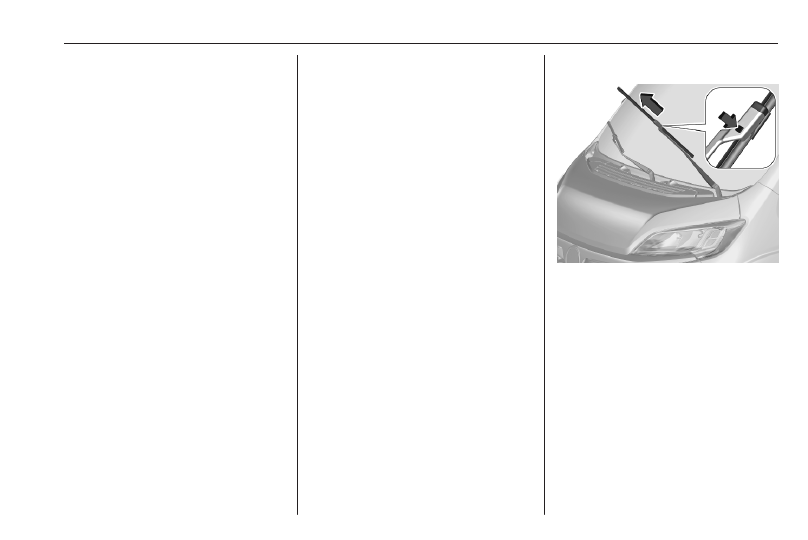

Wiper blade replacement

Switch off the ignition.
Lift the wiper arm until it stays in the

raised position, press the button to

unclip the wiper blade and remove it.
Attach the wiper blade to the wiper

arm and push until it engages.
Lower the wiper arm carefully.

154

Vehicle care

Bulb replacement

Before replacing a bulb, ensure that

all exterior and interior lights and the

ignition are switched off. All doors

have to be closed.
Only hold a new bulb at the base. Do

not touch the bulb glass with bare

hands.
Use only the same bulb type for

replacement.
Replace headlight bulbs from within

the engine compartment.
In case of defective LEDs, have them

replaced by a workshop.

Bulb check

After a bulb replacement switch on

the ignition, operate and check the

lights.

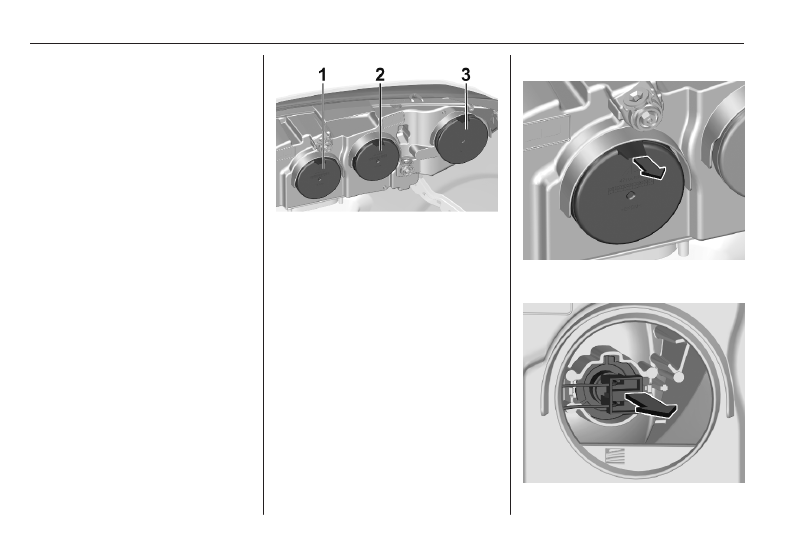

Halogen headlights

Halogen headlights with separate

bulbs for low beam, high beam and

sidelights / daytime running lights.

High beam (1) inner bulb
Low beam (2) middle bulb
Sidelights / daytime running lights (3)

outer bulbs

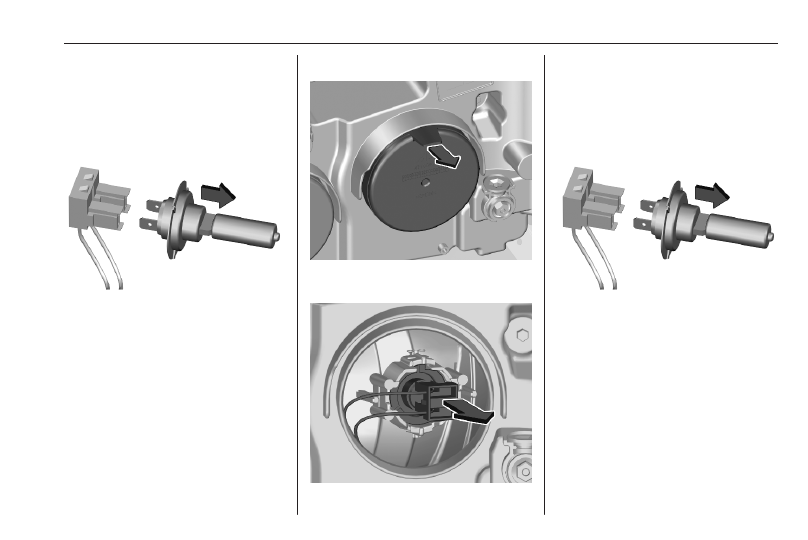

High beam (1)

1. Remove the protective cover by

pulling.

Vehicle care

155

2. Release the locking spring by

pressing the central clamp.
Withdraw the bulb socket from the

reflector housing.

3. Detach the bulb from the bulb

socket and replace the bulb.

4. Insert the bulb socket into the

reflector housing.

5. Close the locking spring.
6. Fit the protective cover on.

Low beam (2)

1. Remove the protective cover by

pulling.

2. Release the locking spring by

pressing the central clamp.
Withdraw the bulb socket from the

reflector housing.

3. Detach the bulb from the bulb

socket and replace the bulb.

4. Insert the bulb socket into the

reflector housing.

5. Close the locking spring.
6. Fit the protective cover on.

156

Vehicle care

Sidelight / daytime running lights

(3) with bulbs

1. Remove the protective cover by

pulling.

2. Rotate the bulb socket

anticlockwise to disengage and

withdraw from the reflector.

3. Remove the bulb from the bulb

socket by pulling.

4. Replace and insert the new bulb

into the bulb socket.

5. Insert the bulb socket into the light

assembly and turn clockwise.

6. Fit the protective cover on.

Sidelight / daytime running light

with LEDs

In case of defective LEDs, have them

replaced by a workshop.

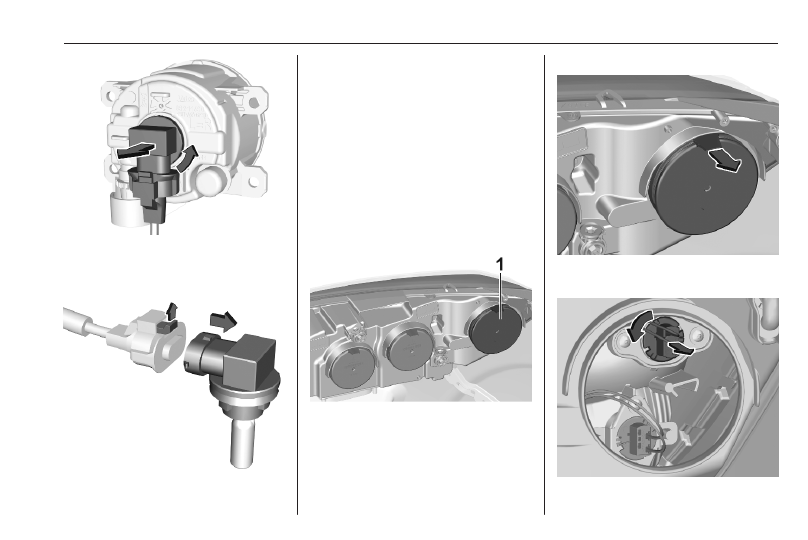

Front fog lights

1. Turn the steering wheel so that

the access to fog lights is given.

2. Unscrew and remove the

protective flap.

Vehicle care

157

3. Turn the bulb socket

anticlockwise and remove it from

the light assembly.

4. Disengage the plug connector by

pulling the retaining lug.

5. Remove and replace the bulb unit

and attach the plug connector.

Note that the bulb and the socket

are one unit and have to be

changed together.

6. Insert the bulb socket into the light

assembly by turning clockwise

and engage.

7. Reinstall the protective flap.

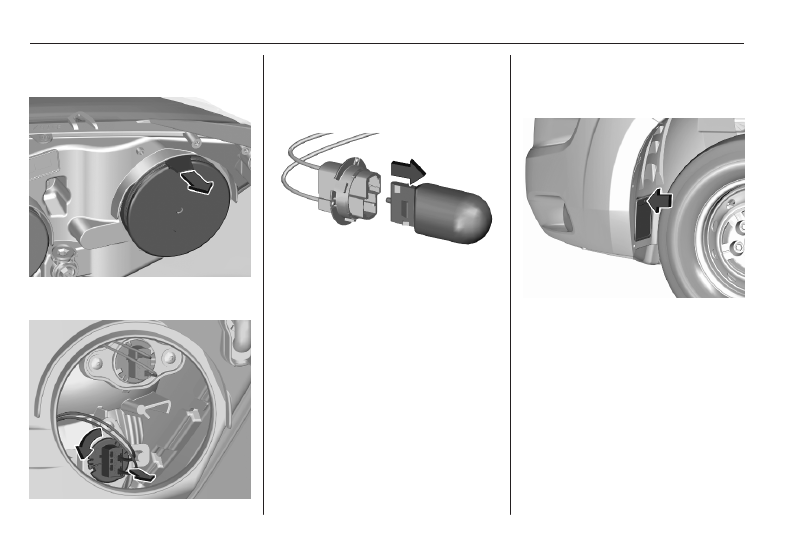

Front turn lights

Turn light (1) outer bulb

1. Remove the protective cover by

pulling.

158

Vehicle care

2. Rotate the bulb socket

anticlockwise to disengage and

withdraw from the reflector.

3. Remove the bulb from the bulb

socket by pulling.

4. Replace and insert the new bulb

into the bulb socket.

5. Insert the bulb socket into the light

assembly and turn clockwise.

6. Fit the protective cover on.

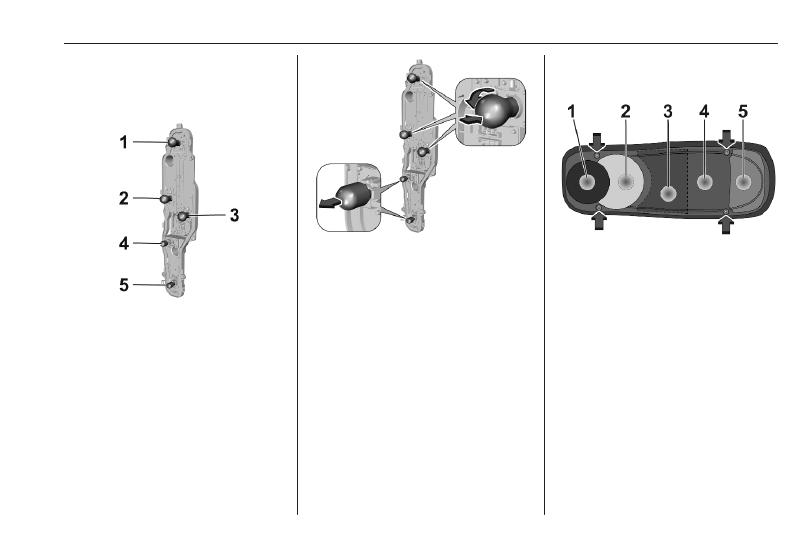

Tail lights

Tail light assembly

1. Unscrew the seven fixing screws

with a screwdriver and remove

cover afterwards.

2. Disconnect the electrical

connector by pressing on its

central tab. Remove the two fixing

nuts from the lens unit. From the

outside, remove the lens unit.

Vehicle care

159

3. Remove the six fixing screws from

the bulb carrier. Open the three

retaining tabs and pull the bulb

carrier out of his housing.

4. Replace the respective bulb:

Brake light (1)
Brake light / tail light (2)
Turn light (3)
Reverse light (4)
Rear fog light (5)

5. To replace bulbs 1 to 3:

Turn the bulb anticklockwise and

remove it.
Replace and insert the new bulb

into the bulb socket.
To replace bulbs 4 and 5:
Remove the bulb from the bulb

socket by pulling.
Replace and insert the new bulb

into the bulb socket.

6. Install the tail light assembly in

reversed order.

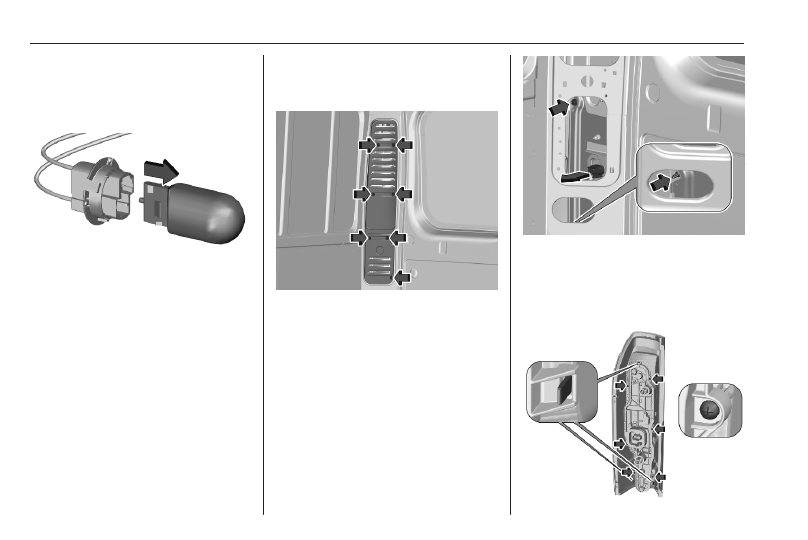

Body conversion variants

1. Remove the four fixing screws.

Pull out lens unit.

2. Replace the respective bulb:

Turn light (1)
Brake light (2)
Tail light (3)
Reverse light (4)
Rear fog light (5)

3. To replace bulbs 1 and 2:

Turn the bulb anticklockwise and

remove it.
Replace and insert the new bulb

into the bulb socket.

160

Vehicle care

To replace bulbs 3 to 5:
Remove the bulb from the bulb

socket by pulling.
Replace and insert the new bulb

into the bulb socket.

4. Install the body conversion variant

in reversed order.

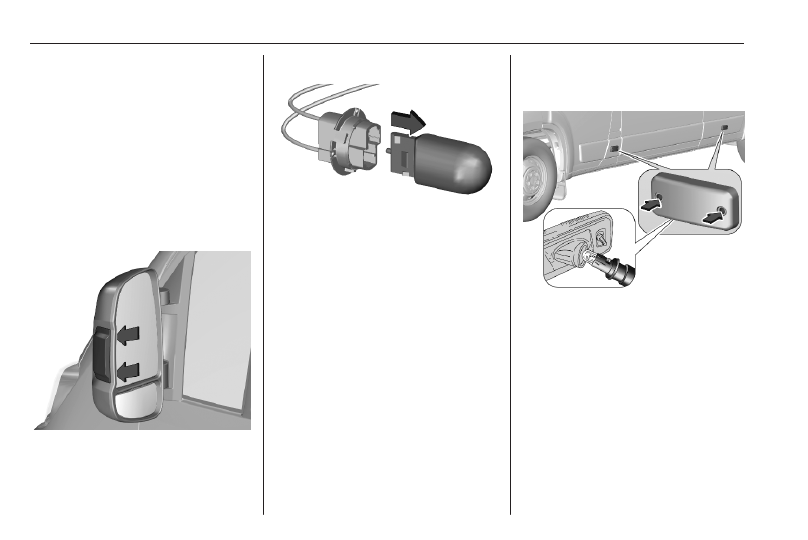

Side turn lights

To replace the bulb, remove the light

housing:

1. Remove the two fixing screws.
2. Pull the bulb carrier to release it

from the pins.

3. Remove the bulb from the bulb

socket by pulling.

4. Replace and insert the new bulb

into the bulb socket.

Exterior lighting

Side marker lights

1. Remove the two fixing screws.
2. Pull the bulb carrier to release it

from the pins.

Vehicle care

161

3. Remove the bulb from the bulb

socket by pulling.

4. Replace and insert the new bulb

into the bulb socket.

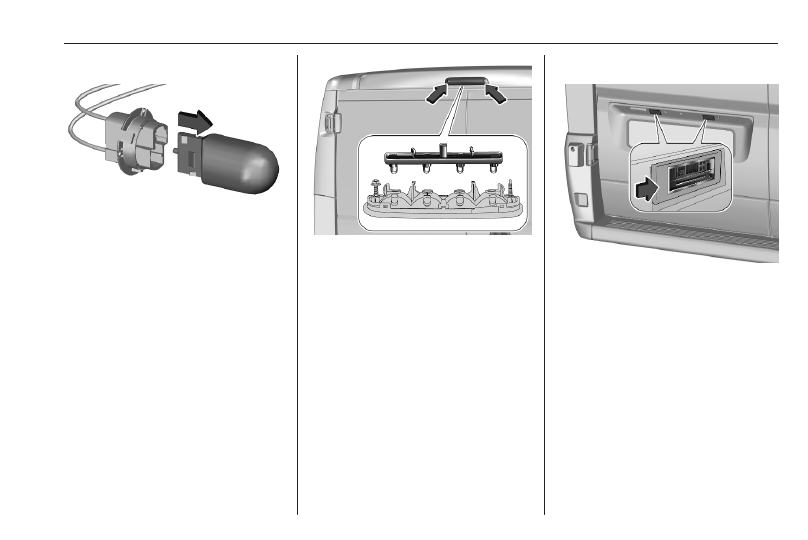

Centre high-mounted brake

light

1. Remove the two fixing screws.

2. Pull the brake light assembly out

carefully.

3. Remove the bulb carrier by

pinching the two tabs inwards.

4. Remove the faulty bulb by pulling

on it.

5. Renew bulb.
6. Install brake light assembly in

reversed order.

Number plate light

1. Insert a screwdriver in one of the

recesses of the cover and lever it

out. Remove the cover.

2. Pull the bulb from the bulb holder

and replace it.

3. Attach the cover.

Vauxhall Movano C (2023 year). Manual in english - page 5
