Vauxhall Crossland X (2023 year). Manual in english

230

Vehicle care

Caution

Access to the diagnostic socket

associated with the on-board

electronics is reserved for

qualified technicians and

approved tools.

Caution

When transporting the vehicle on

a train or on a recovery vehicle, the

mud flaps might be damaged.

Cold protection covers

In order to prevent the accumulation

of snow at the radiator cooling fan, it

is recommended to install removable

protection covers.

Caution

The cold protection covers must

be removed when one of the

following conditions occurs:

● The ambient temperature is

above 5 °C.

● The vehicle is driven at speeds

above 75 mph.

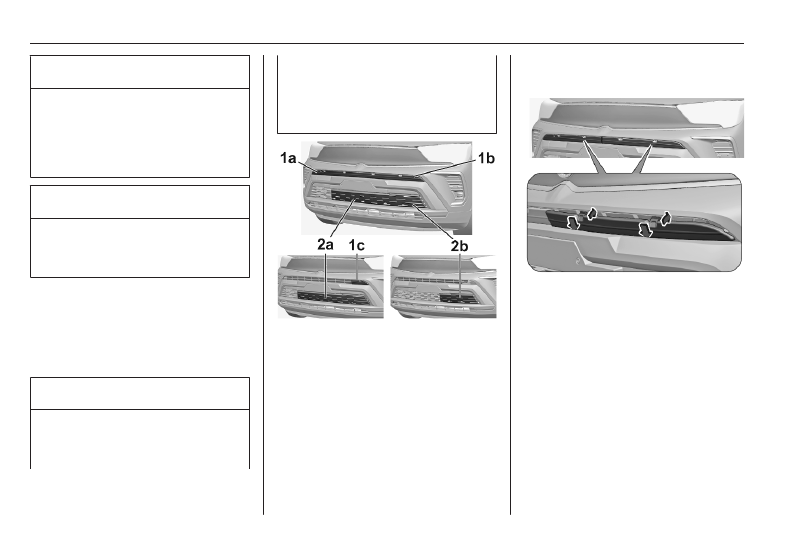

The cold protection covers consist of

one, three or four parts depending on

engine and equipment with trailer

hitch.
Engines EB2FA or EB2F

Use 2b only.
All other engines

● For vehicles with trailer hitch, use

1a, 1b, 2a and 2b.

● For vehicles without trailer hitch,

use 1c, 2a and 2b.

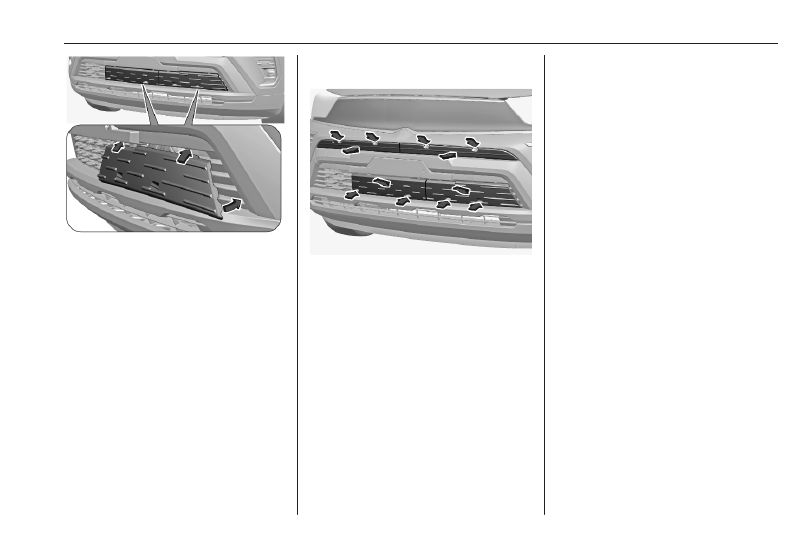

Installation

Upper grille:

● Place the lower part of the

protection cover against the

lower part of the grille.

● Insert the flaps of the protection

cover into the slat and press

firmly until they audibly engage.

Lower grille:

Vehicle care

231

● Insert the flaps of the protection

cover into the slats.

● Press the lower part of the

protection cover against the slat

until the lower flaps audibly

engage.

Deinstallation

Upper grille:

● Insert a finger into the opening

and press down the flap.

● Pull the protection cover

downwards and remove it.

Lower grille:

● Insert a finger into the opening

and press the flap upwards.

● Pull the protection cover upwards

and remove it.

Mobile phones and CB radio

equipment

The vehicle specific installation

instructions and the operating

guidelines of the mobile phone and

hands-free manufacturer must be

observed when installing and

operating a mobile telephone. Failure

to do so could invalidate the vehicle

type approval (EU directive 95/54/

EC).
Recommendations for fault-free

operation:

● Professionally installed exterior

antenna to obtain the maximum

range possible.

● Maximum transmission power

10 W.

● Installation of the phone in a

suitable spot, consider the area

in which the airbag inflates

38.

Seek advice on predetermined

installation points for the external

antenna or equipment holder and

ways of using devices with a

transmission power exceeding 10 W.

232

Vehicle care

Use of a hands-free attachment

without external antenna with mobile

telephone standards GSM

900/1800/1900 and UMTS is only

permitted if the maximum

transmission power of the mobile

telephone is 2 W for GSM 900 or

1 W for the other types.
For reasons of safety, do not use the

phone while driving. Even use of a

hands-free set can be a distraction

while driving.

Warning

Operation of radio equipment and

mobile telephones which fail to

meet above mentioned mobile

telephone standards is only

permitted using an antenna

located outside of the vehicle.

Caution

Mobile telephones and radio

equipment may lead to

malfunctions in the vehicle

electronics when operated inside

the vehicle with no exterior

antenna, unless the above

mentioned regulations are

observed.

Vehicle storage

Storage for a long period of time

If the vehicle is to be stored for several

months:

● Wash the vehicle.
● Have the wax in the engine

compartment and underbody

checked.

● Clean and preserve the rubber

seals.

● Fill up fuel tank completely.
● Change the engine oil.
● Drain the washer fluid reservoir.
● Check the coolant antifreeze and

corrosion protection.

● Adjust tyre pressure to the value

specified for full load.

1. Park the vehicle in a dry, well

ventilated place. Engage first or

reverse gear or set selector lever

to P. Prevent the vehicle from

rolling.

2. Do not apply the parking brake.
3. Switch off ignition and all electrical

consumers.

4. Wait four minutes.
5. Open the bonnet, close all doors

and lock the vehicle.

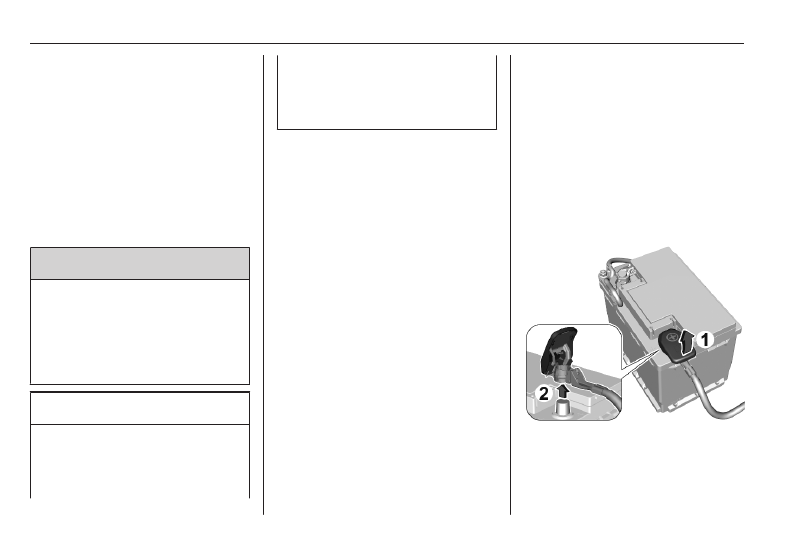

6. Lift the plastic cover of the vehicle

battery's positive terminal in the

engine compartment.

7. Raise the lever fully and remove

clamp from the terminal.

Vehicle care

233

Anti-theft alarm system

17.

Putting back into operation

When the vehicle is to be put back into

operation:

1. Connect the clamp to the positive

terminal of the vehicle battery in

the engine compartment.

2. Initialise the power windows

22.

● Check tyre pressure.
● Fill up the washer fluid reservoir.
● Check the engine oil level.
● Check the coolant level.
● Fit the number plate if necessary.

End-of-life vehicle recovery

Information on end-of-life vehicle

recovery centres and the recycling of

end-of-life vehicles is available on our

website, where legally required. Only

entrust this work to an authorised

recycling centre.

Vehicle checks

Performing work

Warning

Only perform engine compartment

checks when the ignition is off.
The cooling fan may start

operating even if the ignition is off.

234

Vehicle care

Danger

The ignition system uses

extremely high voltage. Do not

touch.

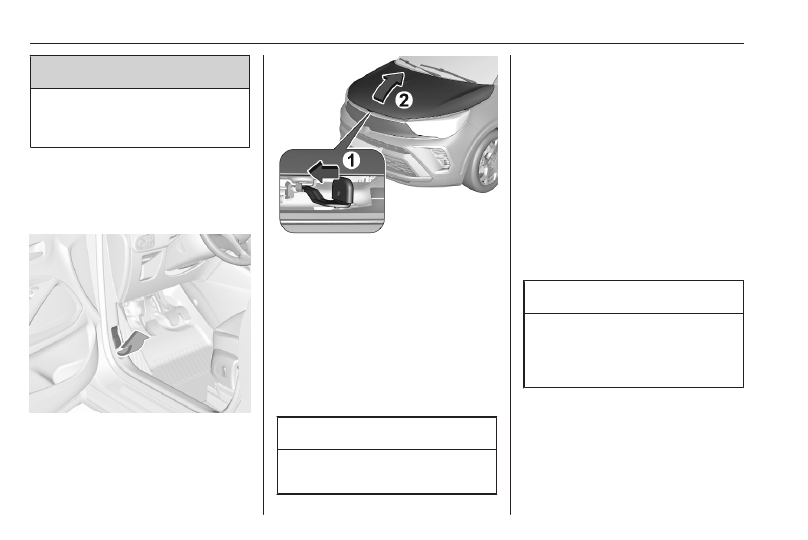

Bonnet

Opening

Open the left front door.

Pull the lever and return it to its

original position.

Move the safety catch sideways to the

left vehicle side and open the bonnet.
Secure the bonnet support.

Closing

Before closing the bonnet, press the

support into the holder.
Lower the bonnet and let it fall into the

latch from a low height (20-25 cm).

Check that the bonnet is engaged.

Caution

Do not press the bonnet into the

latch to avoid dents.

Engine oil

Check the engine oil level manually

on a regular basis to prevent damage

to the engine. Ensure that the correct

specification of engine oil is used.
Recommended fluids and lubricants

273.

The maximum engine oil

consumption is 0.6 l per 600 miles.
Check with the vehicle on a level

surface. The engine must be at

operating temperature and switched

off for at least five minutes.

Caution

It is the owner's responsibility to

maintain the proper level of an

appropriate quality engine oil in

the engine.

Vehicle care

235

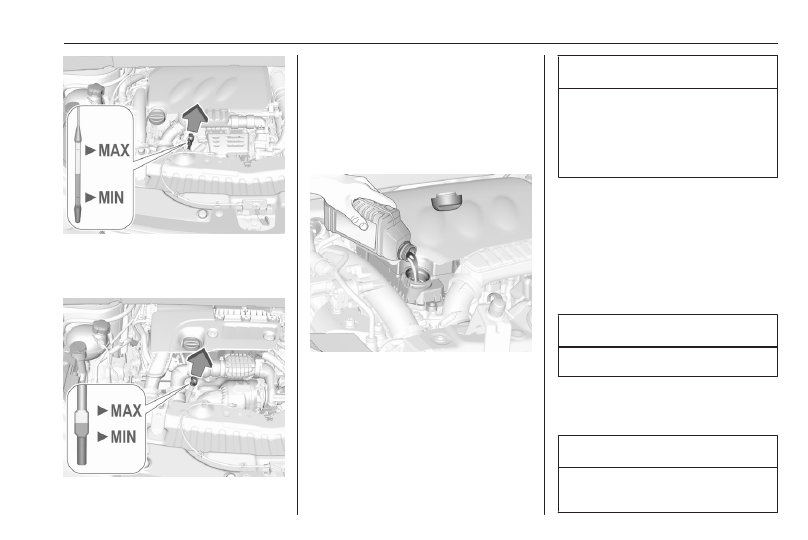

Pull out the dipstick, wipe it clean,

reinsert it fully, pull out and read the

engine oil level.

Different dipsticks are used

depending on engine variant.
When the engine oil level has

dropped to the MIN mark, top up the

engine oil. We recommend the use of

the same grade of engine oil that was

used at last change.

The engine oil level must not exceed

the MAX mark on the dipstick.

Caution

Overfilled engine oil must be

drained or suctioned out. If the

engine oil exceeds the maximum

level, do not start the vehicle and

contact a workshop.

Capacities

282.

Fit the cap on straight and tighten it.

Engine coolant

The factory filled coolant provides

freeze protection down to approx.

-37 °C.

Caution

Only use approved antifreeze.

Coolant and antifreeze

273.

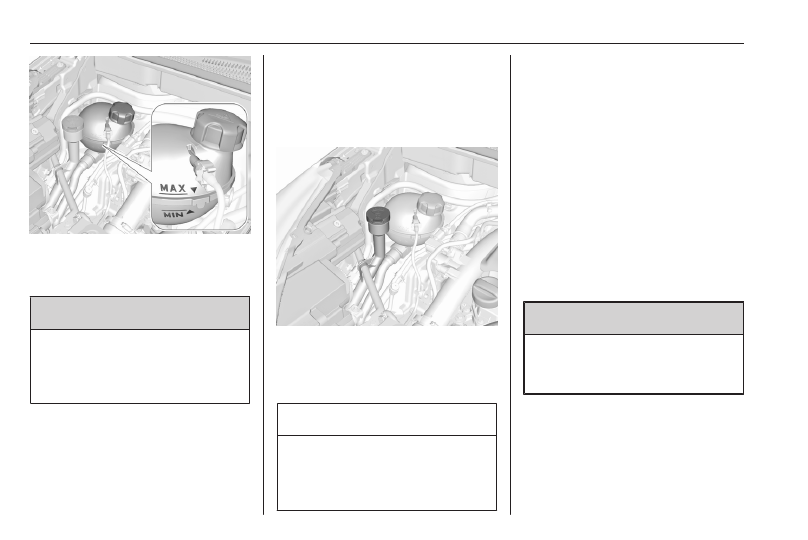

Coolant level

Caution

Too low a coolant level can cause

engine damage.

236

Vehicle care

If the cooling system is cold, the

coolant level should be above the

MIN mark. Top up if the level is low.

Warning

Allow the engine to cool before

opening the cap. Carefully open

the cap, relieving the pressure

slowly.

To top up, use a 1:1 mixture of

released coolant concentrate mixed

with clean tap water. If no coolant

concentrate is available, use clean

tap water. Install the cap tightly. Have

the coolant concentration checked

and have the cause of the coolant

loss remedied by a workshop.

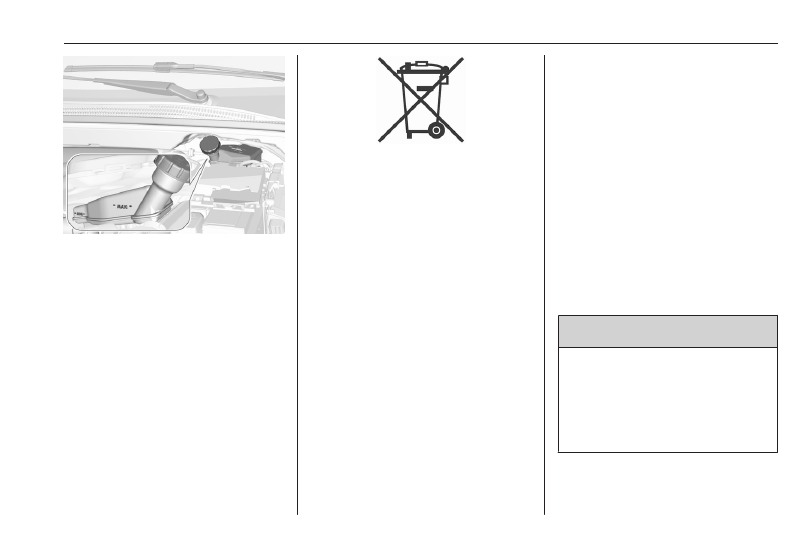

Washer fluid

Fill with clean water mixed with a

suitable quantity of approved

windscreen washer fluid which

contains antifreeze.

Caution

Only washer fluid with a sufficient

antifreeze concentration provides

protection at low temperatures or

a sudden drop in temperature.

Washer fluid

273.

Brakes

In the event of minimum thickness of

the brake lining, a squealing noise

sounds during braking.
Continued driving is possible but

have the brake lining replaced as

soon as possible.
Once new brake linings are installed,

do not brake unnecessarily hard for

the first few journeys.

Brake fluid

Warning

Brake fluid is poisonous and

corrosive. Avoid contact with eyes,

skin, fabrics and painted surfaces.

Vehicle care

237

The brake fluid level must be between

the MIN and MAX marks.
If fluid level is below MIN seek the

assistance of a workshop.
Brake fluid

273.

Vehicle battery

The vehicle battery is maintenance-

free provided that the driving profile

allows sufficient charging of the

battery. Short-distance-driving and

frequent engine starts can discharge

the battery. Avoid the use of

unnecessary electrical consumers.

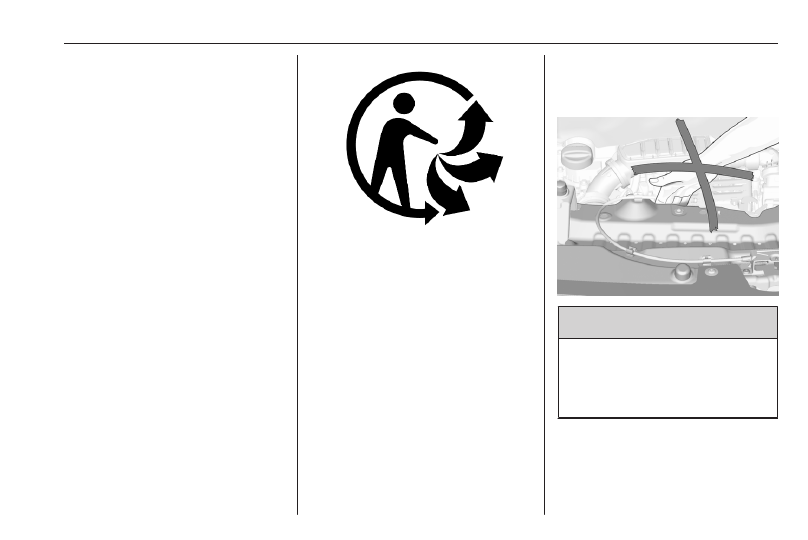

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.
Laying up the vehicle for more than

four weeks can lead to battery

discharge. Disconnect the clamp from

the negative terminal of the vehicle

battery.
Ensure the ignition is switched off

before connecting or disconnecting

the vehicle battery.
Battery discharge protection

94.

Anti-theft alarm system

17.

Replacing the vehicle battery

Notice

Any deviation from the instructions

given in this section may lead to

temporary deactivation or

disturbance of the stop-start system.

When the vehicle battery is being

replaced, ensure that there are no

open ventilation holes in the vicinity of

the positive terminal. If a ventilation

hole is open in this area, it must be

closed off with a dummy cap, and the

ventilation in the vicinity of the

negative terminal must be opened.
Ensure that the vehicle battery is

always replaced by the same type of

battery.
The vehicle battery has to be

replaced by a workshop.
Stop-start system

175.

Charging the vehicle battery

Warning

On vehicles with stop-start

system, ensure that the charging

potential does not exceed 14.6 V

when using a battery charger.

Otherwise the vehicle battery may

be damaged.

Jump starting

263.

238

Vehicle care

Discharge protection

Battery voltage

When the vehicle battery voltage is

running low, a warning message will

appear in the Driver Information

Centre.
When the vehicle is being driven, the

load reduction function temporarily

deactivates certain functions, e.g. the

heated rear window.
The deactivated functions are

reactivated automatically as soon as

conditions permit.

Idle boost

If charging of the vehicle battery is

required due to battery condition, the

power output of the generator must

be increased. This will be achieved by

an idle boost which may be audible.
A message appears in the Driver

Information Centre.

Power outlet

The power outlets are deactivated in

the event of low vehicle battery

voltage.

Power saving mode

This mode deactivates electrical

consumers to avoid excessive

discharging of the vehicle battery.

These consumers, such as the

infotainment system, windscreen

wipers, low beam headlights,

courtesy light, etc. can be used for a

total maximum time of about

40 minutes after ignition is switched

off.

Deactivating power saving mode

Power saving mode is deactivated

automatically when the engine is

restarted. Run the engine for a

sufficient charge:

● for less than ten minutes to use

the consumers for approx. five

minutes

● for more than ten minutes to use

the consumers for up to approx.

30 minutes

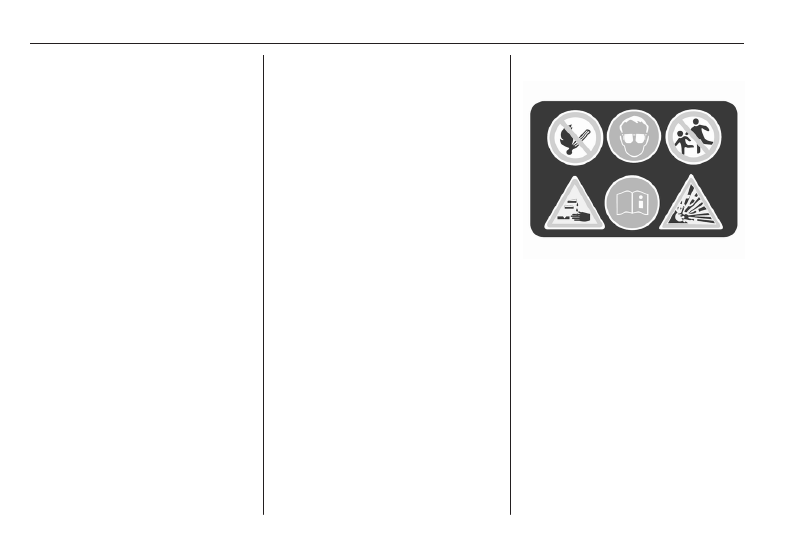

Warning label

Meaning of symbols:

● No sparks, naked flames or

smoking.

● Always shield eyes. Explosive

gases can cause blindness or

injury.

● Keep the vehicle battery out of

reach of children.

● The vehicle battery contains

sulphuric acid which could cause

blindness or serious burn

injuries.

Vehicle care

239

● See the Owner's Manual for

further information.

● Explosive gas may be present in

the vicinity of the vehicle battery.

Diesel fuel system bleeding

If the tank has been run dry, the diesel

fuel system must be bled. Switch on

the ignition three times for

15 seconds at a time. Then crank the

engine for a maximum of

40 seconds. Repeat this process after

no less than 5 seconds. If the engine

fails to start, seek the assistance of a

workshop.

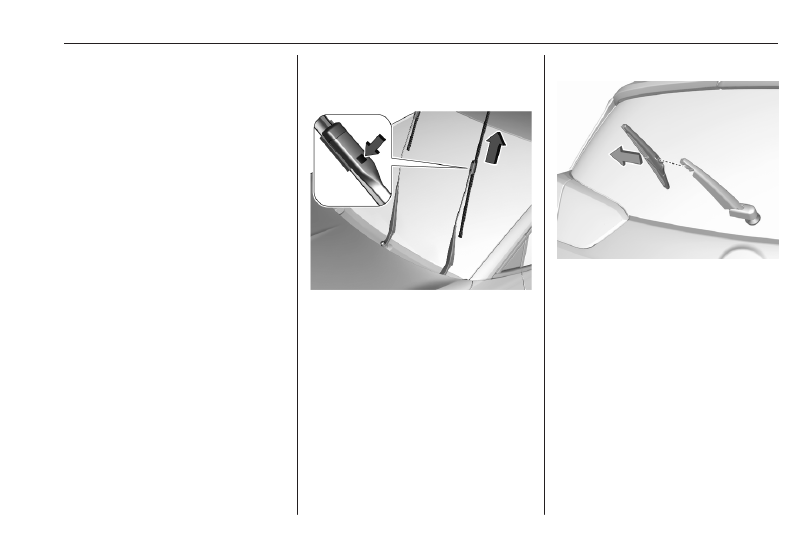

Wiper blade replacement

Windscreen

Switch off ignition.
Within one minute after switching off

ignition, operate the wiper lever to

positon the wiper blades vertically on

the windscreen.
Lift the wiper arm until it stays in the

raised position, press button to

disengage the wiper blade and

remove.
Attach the wiper blade slightly angled

to the wiper arm and push until it

engages.
Lower wiper arm carefully.

Rear window

Lift wiper arm. Disengage wiper blade

as shown in illustration and remove.
Attach the wiper blade slightly angled

to the wiper arm and push until it

engages.
Lower wiper arm carefully.

240

Vehicle care

Bulb replacement

Before replacing a bulb, ensure that

all exterior and interior lights and the

ignition are switched off. All doors

have to be closed.
Only hold a new bulb at the base. Do

not touch the bulb glass with bare

hands.
Use only the same bulb type for

replacement.
Replace headlight bulbs from within

the engine compartment.

Bulb check

After a bulb replacement switch on

the ignition, operate and check the

lights.

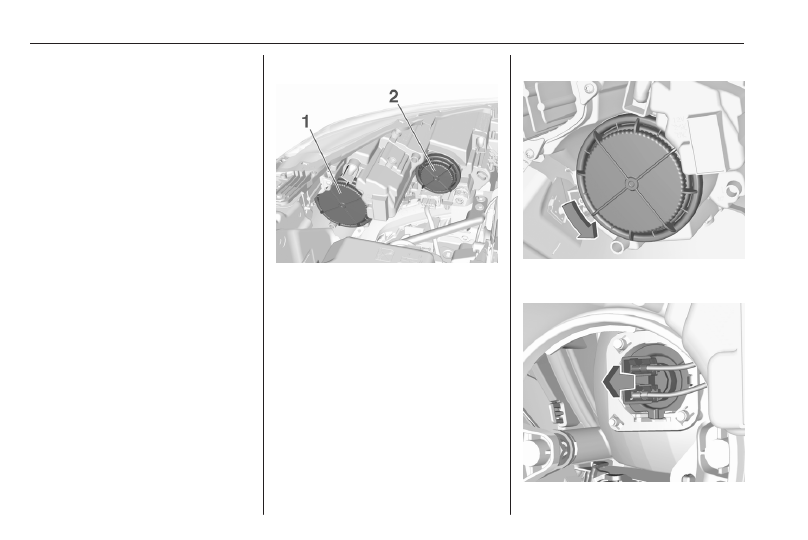

Halogen headlights

1 : high beam, turn light

2 : low beam

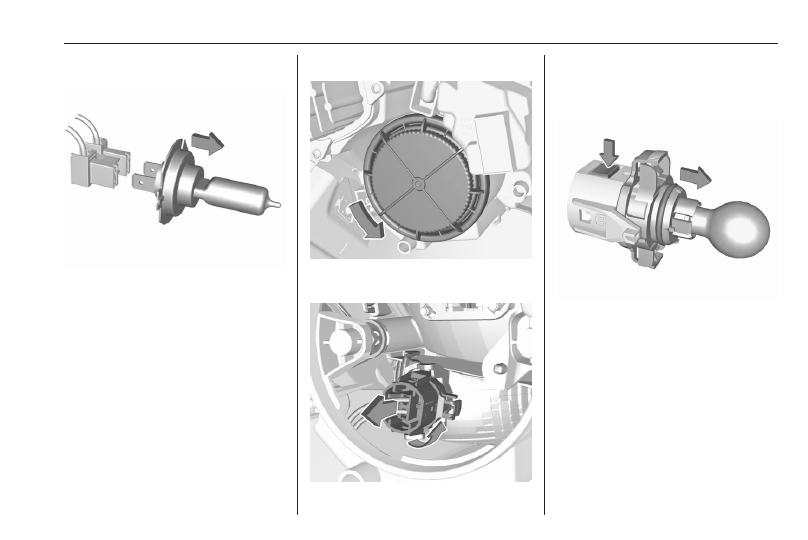

High beam

1. Rotate the cap anticlockwise and

remove it.

Vehicle care

241

2. Withdraw the upper bulb socket

from the reflector housing.

3. Remove the bulb from the plug

connector by pulling.

4. Replace the bulb and connect it to

the plug connector.

5. Insert and push the bulb socket

into the reflector housing by

setting the lug into position.

6. Fit the cap and rotate clockwise.

Turn light

1. Rotate the cap anticlockwise and

remove it.

2. Rotate the lower bulb socket

anticlockwise to disengage.

Withdraw the bulb socket from the

reflector housing.

3. Press latch and remove the bulb

from the bulb socket.

4. Replace the bulb and attach it to

the bulb socket.

5. Insert the bulb socket into the

reflector housing and rotate

clockwise.

6. Fit the cap and rotate clockwise.

242

Vehicle care

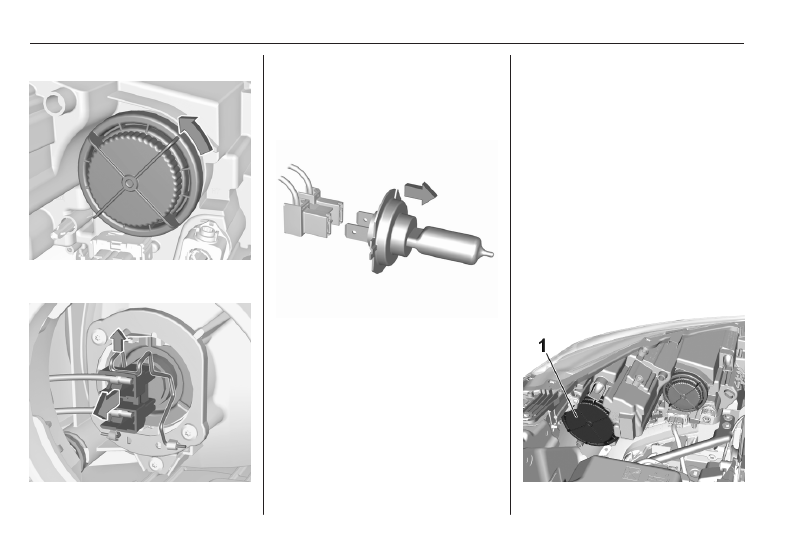

Low beam

1. Rotate the cap anticlockwise and

remove it.

2. Lift the retainer, then pull the plug

connector backwards.

3. Fold down the retainer and

remove the bulb from the reflector

housing.

4. Replace the bulb and push it into

the reflector housing by setting

the lug into position.

5. Fold up the retainer and hold in

position.

6. Attach the plug connector to the

bulb and fix it with the retainer.

7. Fit the cap and rotate clockwise.

Sidelight / daytime running light

In case of defective LEDs, have them

replaced by a workshop.

LED headlights

Headlights for low and high beam,

sidelights, daytime running lights and

turn lights are designed as LEDs and

cannot be changed.
Have lights repaired by a workshop in

case of failure.

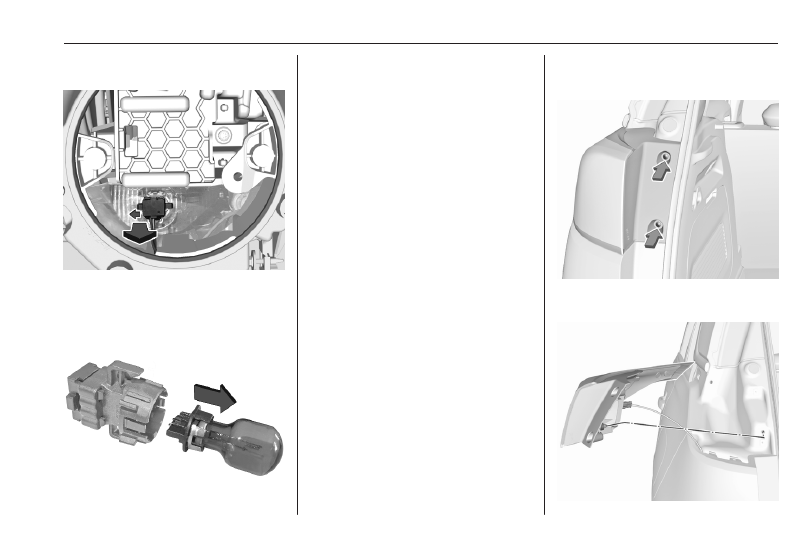

Eco-LED headlights

The turn lights are designed as bulbs.

Vehicle care

243

1. Rotate the cap anticlockwise and

remove it.

2. Push the bulb socket to the left

and withdraw it from the reflector

housing.

3. Remove the bulb from the plug

connector by pulling.

4. Replace the bulb and connect it to

the plug connector.

5. Insert the bulb socket into the

reflector housing and push it

forwards until it engages.

6. Fit the cap and rotate clockwise.

Front fog lights

The front fog lights are designed as

LEDs and cannot be changed. In

case of failure, have LEDs replaced

by a workshop.

Tail lights

Depending on version, tail lights and

brake lights are designed as LEDs. In

case of failure, have LEDs replaced

by a workshop.

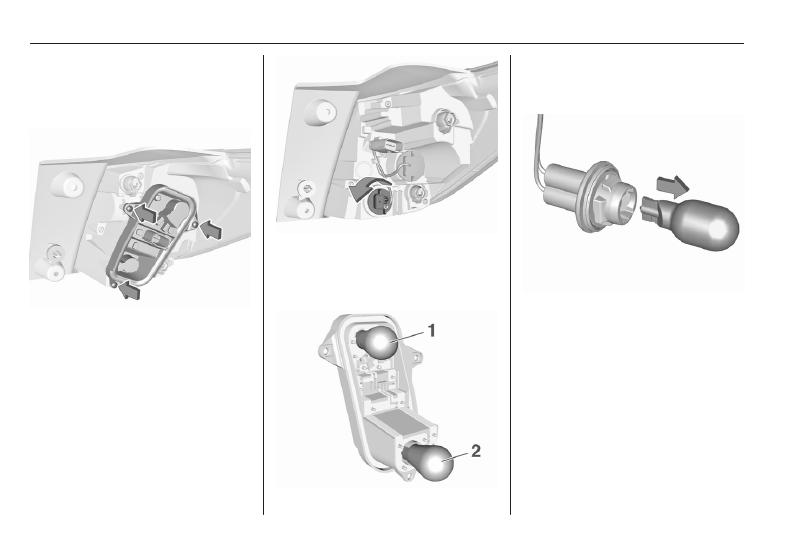

Light assembly in the body

Detaching the light assembly

1. Unscrew the two screws that

secure the light assembly.

244

Vehicle care

2. Remove the light assembly by

pulling it straight back.

3. Remove the bulb socket.

a) Version without LED:

Remove the three screws and

take out.
b) Version with LED:

Remove from the light assembly

by turning it anticlockwise.

4. Remove the bulb.

a) Version without LED:

Pull and replace.

1 : tail light / brake light
2 : turn light
b) Version with LED:

Pull straight out to remove from

the socket and replace.

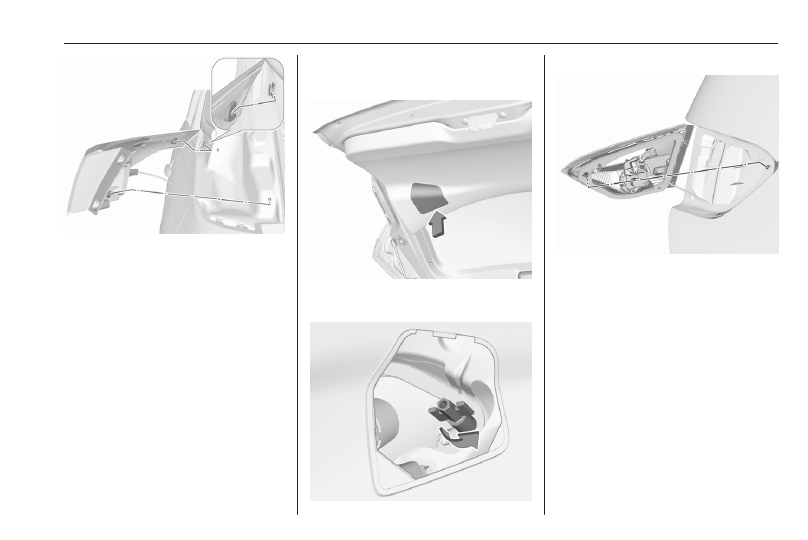

Attaching the light assembly

1. Depending on version, attach the

bulb carrier to the light assembly

and secure with the three screws

or attach turn light bulb socket.

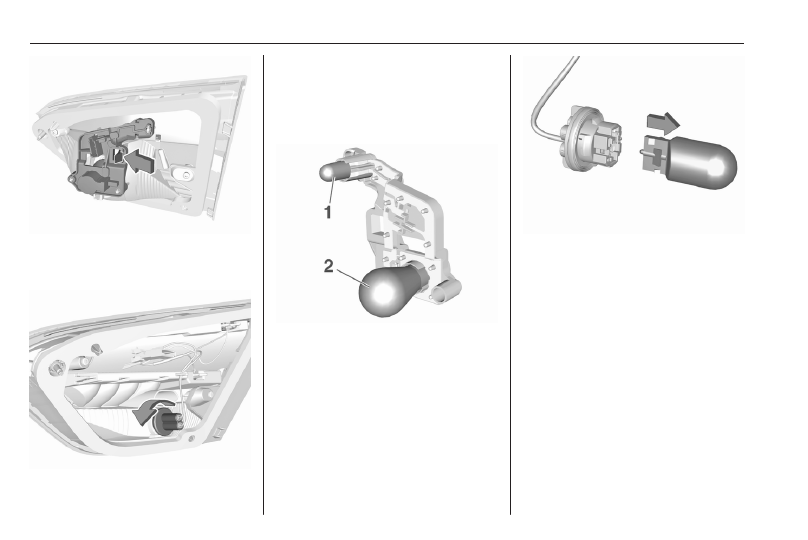

246

Vehicle care

Press latch to release and remove

bulb socket.
b) Version with LED:

Remove the reverse light bulb

socket from the light assembly by

turning it anticlockwise.

5. Remove bulb.

a) Version without LED:

Remove and replace.
1 : tail light
2 : rear fog light or reverse light
b) Version with LED:

Pull straight out to remove and

replace.

Attaching the light assembly

1. Depending on version, attach the

bulb carrier to the light assembly

or attach the reverse light bulb

socket.

248

Vehicle care

4. Insert bulb socket and turn

clockwise.

5. Insert left end of the light

assembly, slide to the left and

insert right end.

Number plate light

The number plate light is designed as

LEDs and cannot be changed. Have

lights repaired by a workshop in case

of failure.

Interior lights

Have the following bulbs replaced by

a workshop:

● courtesy light, reading lights
● load compartment light
● instrument panel illumination

Electrical system

Fuses

A defective fuse must be replaced by

a workshop.

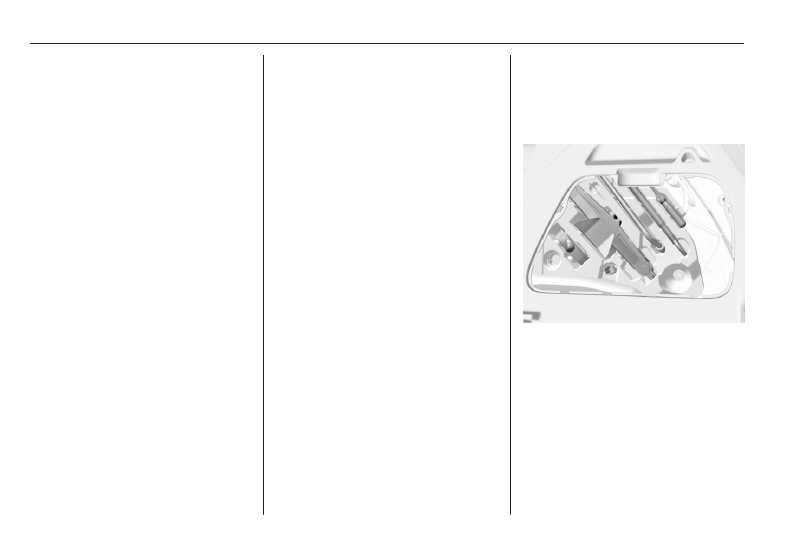

Vehicle tools

Tools

Vehicles with spare wheel

The jack, tools, a strap for securing a

damaged wheel and the towing eye

are placed in the tool box in the right

wall of the load compartment.

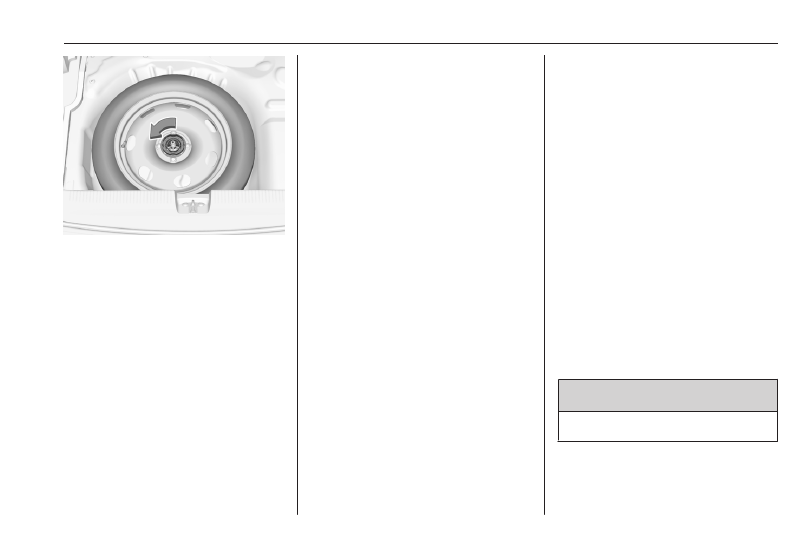

Spare wheel

258.

Vehicle care

249

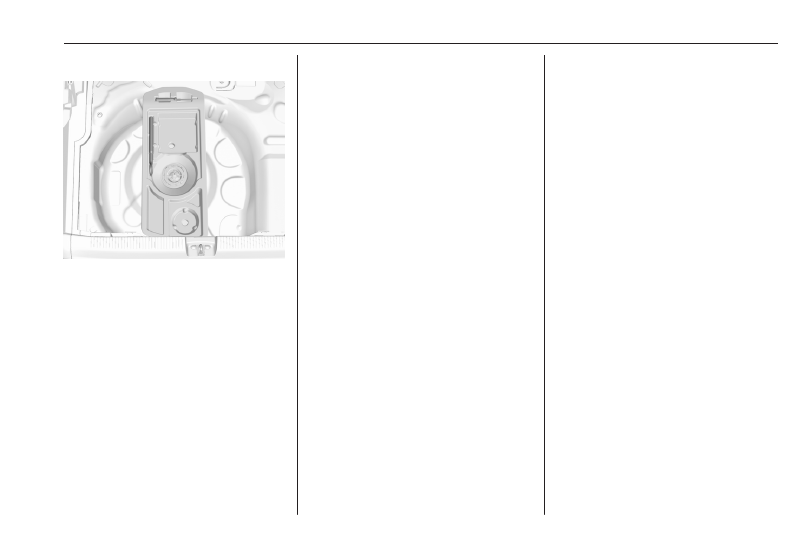

Vehicles without spare wheel

The screwdriver and the towing eye

are located in a box below the floor

cover in the load compartment.
Tyre repair kit

253.

Wheels and tyres

Tyre condition, wheel condition

Drive over edges slowly and at right

angles if possible. Driving over sharp

edges can cause tyre and wheel

damage. Do not trap tyres on the kerb

when parking.
Regularly check the wheels for

damage. Seek the assistance of a

workshop in the event of damage or

unusual wear.

Winter tyres

Winter tyres improve driving safety at

temperatures below 7 °C and should

therefore be fitted on all wheels.
In accordance with country-specific

regulations, affix the speed sticker in

the driver's field of view, if the tyre

speed code is below the maximum

speed of the vehicle.
All tyre sizes are permitted as winter

tyres

283.

Tyre designations

E.g. 195/65 R 15 91 T
195 : tyre width, mm

65 : cross-section ratio (tyre height

to tyre width), %

: belt type: Radial

RF : type: RunFlat

15 : wheel diameter, inches

91 : load index e.g. 95 is equivalent

to 615 kg

: speed code letter

Speed code letter:
Q : up to 100 mph

S : up to 112 mph

T : up to 118 mph

H : up to 130 mph

V : up to 150 mph

W : up to 168 mph
Choose a tyre appropriate for the

maximum speed of this vehicle. Refer

to the EEC Certificate of Conformity

provided with the vehicle or other

national registration documents.

Optional equipment could reduce the

maximum speed of the vehicle.

250

Vehicle care

Directional tyres

Directional tyres should be mounted

so that they rotate in the correct

direction. The proper rotation

direction is indicated by a symbol

(e.g. an arrow) on the sidewall.

Tyre pressure

Check the pressure of cold tyres at

least every 14 days and before any

long journey.
Do not forget the spare wheel.

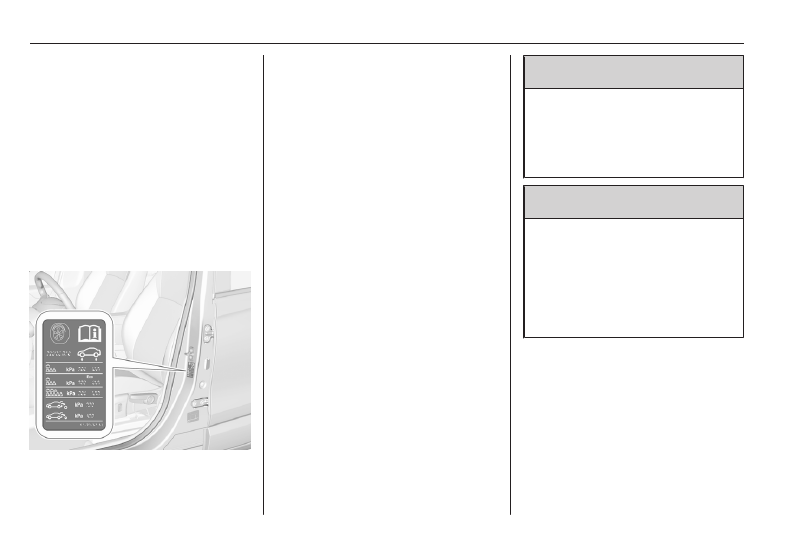

The tyre pressure information label

on the left door frame indicates the

original equipment tyres and the

correspondent tyre pressures.
The tyre pressure data refers to cold

tyres. It applies to summer and winter

tyres.
Always inflate the spare tyre to the

pressure specified for full load.
The ECO tyre pressure serves to

achieve the smallest amount of fuel

consumption possible.
Incorrect tyre pressures will impair

safety, vehicle handling, comfort and

fuel economy and will increase tyre

wear.
The tyre pressure table indicates the

required pressure for a specific tyre

size only and shows all possible tyre

combinations

283.

For the tyres approved for this

vehicle, refer to the EEC Certificate of

Conformity provided with the vehicle

or other national registration

documents.
The driver is responsible for correct

adjustment of tyre pressure.

Warning

If the pressure is too low, this can

result in considerable tyre warm-

up and internal damage, leading to

tread separation and even to tyre

blow-out at high speeds.

Warning

For specific tyres the

recommended tyre pressure as

shown in the tyre pressure table

may exceed the maximum tyre

pressure as indicated on the tyre.

Never exceed the maximum tyre

pressure as indicated on the tyre.

Temperature dependency

The tyre pressure depends on the

temperature of the tyre. During

driving, tyre temperature and

pressure increase. Tyre pressure

values provided on the tyre

information label and tyre pressure

chart are valid for cold tyres, which

means at 20 °C.

Vehicle care

251

The pressure increases by nearly

1.5 psi for a 10 °C temperature

increase. This must be considered

when warm tyres are checked.

Tyre deflation detection

system

The tyre deflation detection system

continually checks the rotation speed

of all four wheels and warns on low

tyre pressure condition once vehicle

is driving. This is achieved by

comparing tyre rolling circumference

with reference values and further

signals.
If a tyre loses pressure the control

indicator

illuminates and a warning

message is displayed in the Driver

Information Centre.
Control indicator

74.

In this case reduce speed, avoid

sharp cornering and strong braking.

Stop at next safe opportunity and

check tyre pressure.
After adjusting tyre pressure initialise

system to extinguish the control

indicator and restart system.

If the failure continues to be

displayed, contact a workshop. The

system is inoperable when ABS or

ESC has a malfunction or a

temporary spare wheel is used. Once

the road tyre has been refitted, check

the tyre pressure with cold tyres and

initialise the system.

Caution

Deflation detection system warns

just about low tyre pressure

condition and does not replace

regular tyre maintenance by the

driver.

System initialisation

After tyre pressure correction or

wheel change, the system must be

initialised to learn new circumference

reference values:

1. Always ensure that all four tyres

have correct tyre pressure

283.

2. Apply parking brake.

3. Initialise the system via the Info

Display

79.

4. Reset is confirmed by pop-up

indication.

After initialisation system

automatically calibrates to new tyre

pressures during driving. After longer

drive the system will adopt and

monitor new pressures.
Always check tyre pressure with cold

tyres.
System has to be reinitialised when:

● Tyre pressure has been changed
● Load condition has been

changed

● Wheels have been swapped or

exchanged

The system will not warn

instantaneously on a tyre blow out or

a rapid deflation. This is due to

required calculation time.

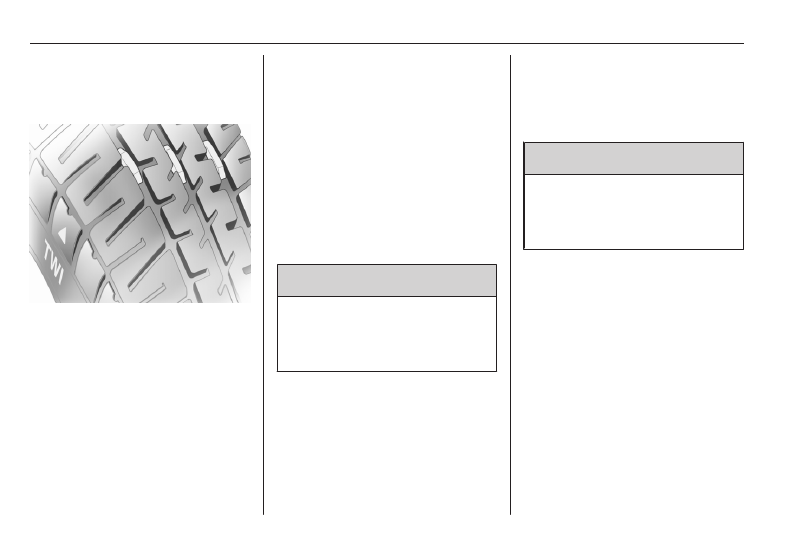

Tread depth

Check tread depth at regular

intervals.

252

Vehicle care

For safety reasons, it is

recommended that the tread depth of

the tyres on one axle should not vary

by more than 2 mm.

The legally permissible minimum

tread depth (1.6 mm) has been

reached when the tread has worn

down as far as one of the tread wear

indicators (TWI). Their position is

indicated by markings on the

sidewall.
If there is more wear at the front than

the rear, swap round front wheels and

rear wheels periodically. If directional

tyres are mounted, ensure that the

direction of rotation of the wheels

remains the same.

Tyres age, even if they are not used.

We recommend tyre replacement

every 6 years.

Changing tyre and wheel

size

If tyres of a different size than those

fitted at the factory are used, it may be

necessary to reprogramme systems

and make other vehicle modifications.
Have the label with tyre pressures

replaced.

Warning

The use of unsuitable tyres or

wheels may lead to accidents and

will invalidate the vehicle

operating permit.

Wheel covers

Wheel covers and tyres that are

factory approved for the respective

vehicle and comply with all of the

relevant wheel and tyre combination

requirements must be used.

If the wheel covers and tyres used are

not factory approved, the tyres must

not have a rim protection ridge.
Wheel covers must not impair brake

cooling.

Warning

Use of unsuitable tyres or wheel

covers could lead to sudden

pressure loss and thereby

accidents.

Vehicles with steel wheels: When

using locking wheel nuts, do not

attach wheel covers.

Vehicle care

253

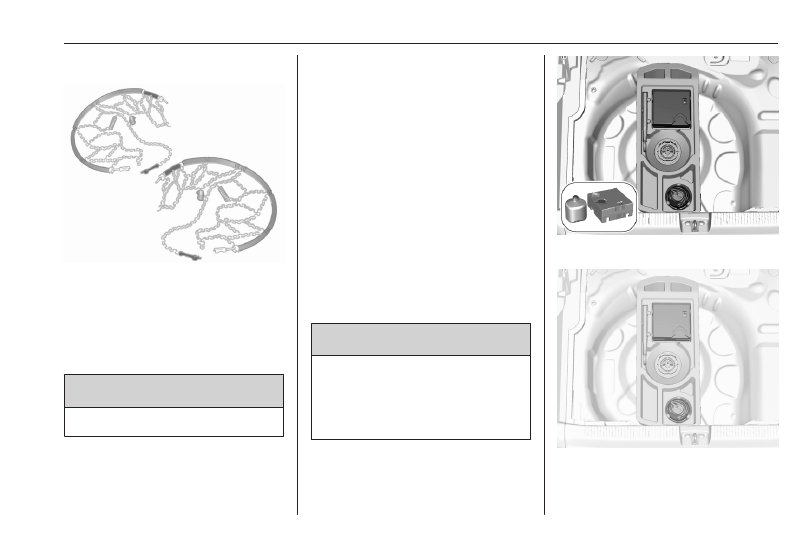

Tyre chains

Tyre chains are only permitted on the

front wheels.
Always use fine mesh chains that add

no more than 10 mm to the tyre tread

and the inboard sides (including chain

lock).

Warning

Damage may lead to tyre blowout.

Tyre chains are only permitted on

tyres of size 195/65 R15 91 and

195/60 R16 89

Temporary spare wheel

The use of tyre chains is not permitted

on the temporary spare wheel.

Tyre repair kit

Minor damage to the tyre tread can be

repaired with the tyre repair kit.
Do not remove foreign bodies from

the tyres.
Tyre damage exceeding 4 mm or that

is at tyre's sidewall cannot be repaired

with the tyre repair kit.
Depending on version, there are two

different tyre repair kits (Type A and

Type B).

Warning

Do not drive faster than 50 mph.
Do not use for a lengthy period.
Steering and handling may be

affected.

In the case of a flat tyre:
Apply the parking brake and engage

first gear, reverse gear or P.

Type A

Type B
The tyre repair kit is in the load

compartment below the floor cover.

254

Vehicle care

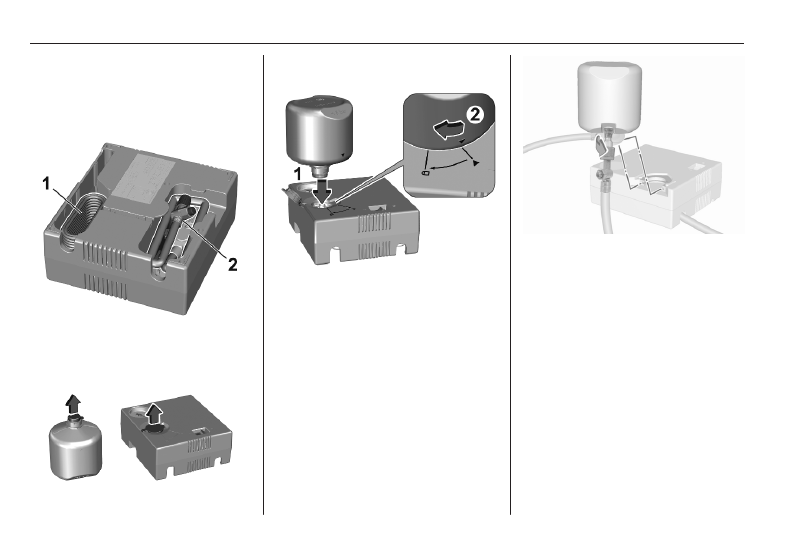

1. Remove the sealant bottle and the

compressor.

2. Pull speed limit label from sealant

bottle and place it in driver's

visible area.

3. Remove the electrical connection

cable (1) and air hose (2) from the

stowage compartments on the

underside of the compressor.

4. Type A: Open sealant bottle and

lift the lid.

5. Type A: First, insert sealant bottle

into the compressor and align the

triangle symbols. Then, push

down sealant bottle and turn it to

the lock position.

Type B: Screw the compressor air

hose to the connection on the

sealant bottle.

6. Type B: Fit the sealant bottle into

the bracket on the compressor.

7. Set the compressor near the tyre

in such a way that the sealant

bottle is upright.

8. Unscrew valve cap from defective

tyre.

Vehicle care

255

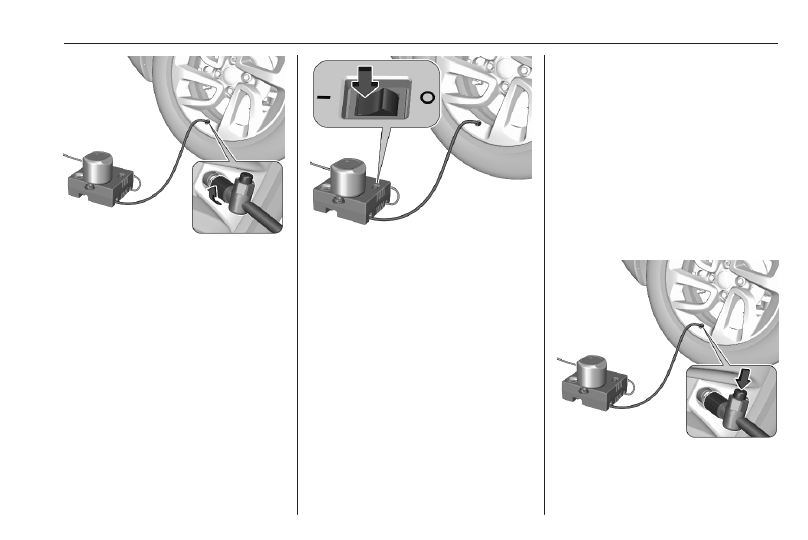

9. Screw the filler hose to the tyre

valve.

10. The switch on the compressor

must be set to

11. Connect the compressor plug to

the 12 V power outlet or cigarette

lighter socket

62.

To avoid discharging the vehicle

battery, we recommend running

the engine.

12. Set the rocker switch on the

compressor to I. The tyre is filled

with sealant.

13. The compressor pressure gauge

briefly indicates up to

600 kPa (6 bar) whilst the sealant

bottle is emptying (approx.

30 seconds). Then the pressure

starts to drop.

14. All of the sealant is pumped into

the tyre. Then the tyre is being

inflated.

15. The prescribed tyre pressure

should be obtained within ten

minutes.
Tyre pressure

283.

When the correct pressure is

obtained, switch off the

compressor.
If the prescribed tyre pressure is

not obtained within ten minutes,

remove the tyre repair kit. Move

the vehicle one tyre rotation.

Reattach the tyre repair kit and

continue the filling procedure for

ten minutes. If the prescribed tyre

pressure is still not obtained, the

tyre is too badly damaged. Seek

the assistance of a workshop.

Drain excess tyre pressure with

the button on the air hose.
Do not run the compressor longer

than ten minutes.

256

Vehicle care

16. Detach the tyre repair kit. Remove

sealant bottle from compressor.

Screw the filler hose to the free

connection of the sealant bottle.

This prevents sealant from

escaping. Stow tyre repair kit in

load compartment.

17. Remove any excess sealant

using a cloth.

18. Continue driving immediately so

that sealant is evenly distributed

in the tyre. Drive between

13 mph and 37 mph. After driving

approx. 3 miles but no more than

ten minutes, stop and check tyre

pressure. Screw compressor air

hose directly onto tyre valve when

doing this. Fill tyre as described

before. Drain excess tyre

pressure with the button on the air

hose.
If tyre pressure hasn't decreased

under 200 kPa (2 bar), set it to the

correct value. Otherwise the

vehicle must not be used. Seek

assistance of a workshop.
Repeat the checking procedure

once more after driving further

6 miles but no more than ten

minutes to check that there is no

more loss of pressure.
If the tyre pressure has fallen

below 200 kPa (2 bar), the vehicle

must not be used. Seek the

assistance of a workshop.

19. Stow away tyre repair kit in load

compartment.

Notice

The driving characteristics of the

repaired tyre are severely affected,

therefore have this tyre replaced.
If unusual noise is heard or the

compressor becomes hot, turn

compressor off for at least 30 min.
The built-in safety valve opens at a

pressure of seven bar (102 psi).
Note the expiry date of the kit. After

this date its sealing capability is no

longer guaranteed. Pay attention to

storage information on sealant

bottle.
Replace the used sealant bottle.

Dispose of the bottle as prescribed

by applicable laws.
The compressor and sealant can be

used from approx. -30 °C.

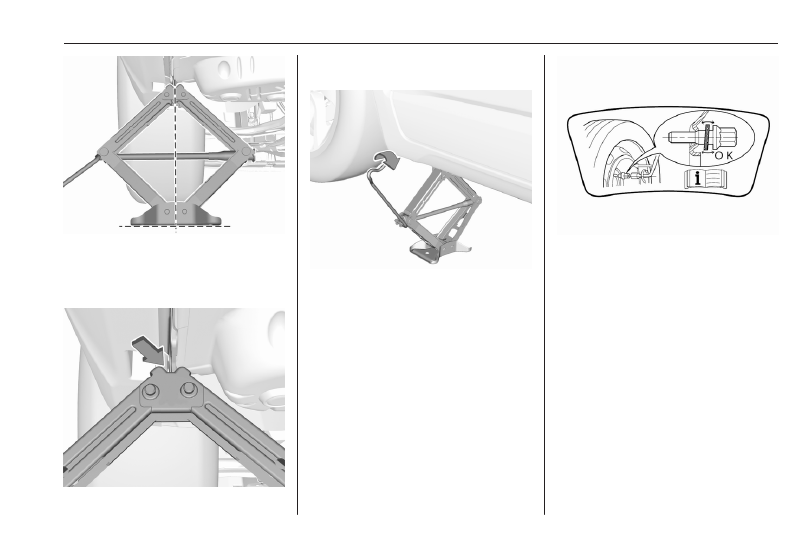

Wheel changing

Warning

Ensure to use always the correct

wheel bolts if changing the

wheels. When installing the spare

wheel for temporary usage, the

bolts for alloy wheel rims can also

be used.

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

● If necessary, place a chock under

the wheel diagonally opposite the

wheel to be changed.

● Apply the parking brake and

engage first gear, reverse gear or

● If the ground on which the vehicle

is standing is soft, a solid board

(max. 1 cm thick) should be

placed under the jack.

Vehicle care

257

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

● Do not start the vehicle when it is

raised on the jack.

● Before screwing in the wheel

bolts, clean them.

Warning

Do not grease wheel bolts.

Tightening torques

Caution

If the vehicle is equipped with alloy

wheel rims, tighten the wheel bolts

manually at least for the first five

turns.

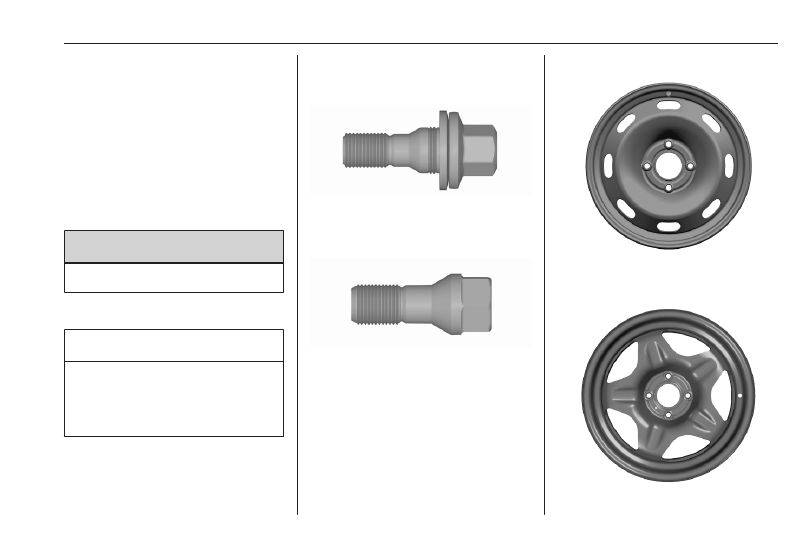

Depending on the wheel rim, different

bolts with different tightening torques

are available.

Use the correct wheel bolts for the

respective wheels. The wheel rims

shown are only examples.

● For alloy wheel rims:

Tightening torque for alloy wheel

rims is 100 Nm.

● For steel wheel rims:

Tightening torque for

conventional steel wheel rims is

110 Nm.

258

Vehicle care

Tightening torque for designed

steel wheel rims is 130 Nm.

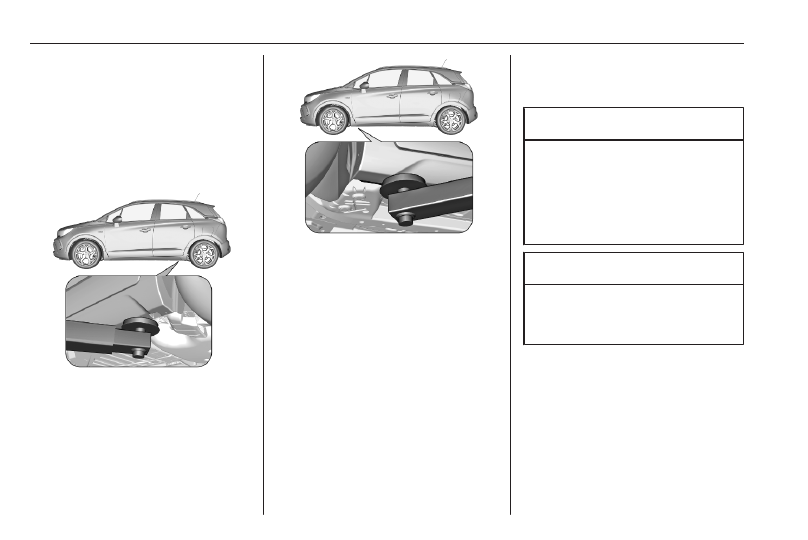

Jacking positions

The jacking positions shown refer to

the use of lifting arms and accessory

jacks used for changing winter /

summer tyres.

The rear arm position of the lifting

platform is centrically under the

relevant vehicle jacking point.

The front arm position of the lifting

platform is centrically under the

relevant vehicle jacking point.

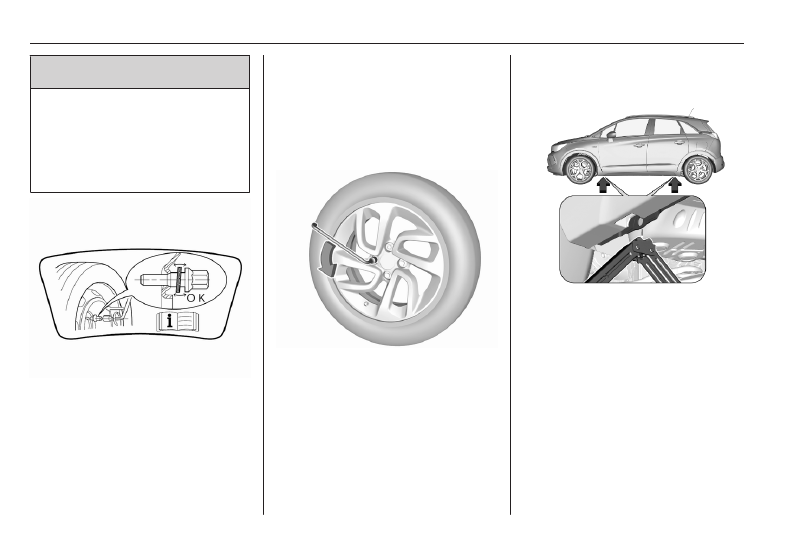

Spare wheel

The spare wheel can be classified as

a temporary spare wheel depending

on the size compared to the other

mounted wheels and country

regulations. In this case a permissible

maximum speed applies, even

though no label at the spare wheel

indicates this.
If there is a label on the spare wheel,

the permissible speed still depends

on the country regulations.

Only mount one temporary spare

wheel. Take curves slowly. Do not

use for a long period of time.

Caution

The use of a spare wheel that is

smaller than the other wheels or in

combination with winter tyres

could affect driveability. Have the

defective tyre replaced as soon as

possible.

Caution

If driving with a temporary spare

wheel, active emergency braking

has to deactivated.

Vehicle care

259

The spare wheel is located in the load

compartment beneath the floor

covering.
To remove:

1. Open the floor cover.
2. The spare wheel is secured with a

wing nut. Unscrew nut and take

out the spare wheel.
There is a box with tools in the

right wall of the load

compartment.
Vehicle tools

248.

3. If, after a wheel change, no wheel

is placed in the spare wheel well,

fasten the wing nut and close the

floor cover.

4. After a wheel change back to a full

size wheel, place the spare wheel

outside up in the well and secure

with the wing nut.

Fitting the spare wheel

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

● If necessary, place a chock under

the wheel diagonally opposite the

wheel to be changed.

● Apply the parking brake and

engage first gear, reverse gear or

● Remove the spare wheel.
● Never change more than one

wheel at once.

● Use the jack only to change

wheels in case of puncture, not

for seasonal winter or summer

tyre change.

● The jack is maintenance-free.
● If the ground on which the vehicle

is standing is soft, a solid board

(max. 1 cm thick) should be

placed under the jack.

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

● Do not start the vehicle when it is

raised on the jack.

● Before screwing in the wheel

bolts, clean them.

Warning

Do not grease wheel bolts.

260

Vehicle care

Warning

Ensure to use always the correct

wheel bolts if changing the

wheels. When installing the spare

wheel for temporary usage, the

bolts for alloy wheel rims can also

be used.

● Note that the spare wheel is

secured by the conical contact of

each bolt if the wheel bolts for the

alloy wheel rims are used. In this

case, the washers do not come

into contact with the spare wheel.

1. Disengage wheel bolt caps with a

screwdriver and remove.

Steel wheel rims: Pull off the

wheel cover.
Alloy wheel rims: Disengage

wheel bolt caps with a screwdriver

and remove. To protect the wheel,

place a soft cloth between the

screwdriver and the alloy wheel.

2. Attach the wheel wrench and

loosen each wheel bolt by half a

turn.
The wheels might be protected by

locking wheel bolts. To loosen

these specific bolts, first attach

the adapter for the locking wheel

bolts onto the head of the bolt

before installing the wheel

wrench. The adapter is located in

the glovebox or in the load

compartment under the rear floor

cover.

3. Ensure the jack is correctly

positioned under the relevant

vehicle jacking point.

Vehicle care

261

4. Set the jack to the necessary

height. Position it directly below

the jacking point in a manner that

prevents it from slipping.

Ensure that the edge of the body

fits into the notch of the jack.

With the jack correctly aligned

jack up until wheel is clear of the

ground.

5. Unscrew the wheel nuts.
6. Change the wheel.
7. Screw on the wheel nuts.
8. Lower the vehicle and remove

jack.

9. Install the wheel wrench ensuring

that it is located securely and

tighten each bolt in a crosswise

sequence. Tightening torque is

100 Nm.

If the vehicle is equipped with

alloy wheel rims, note that the

wheel bolts can also be used for

the spare wheel. In this case, the

spare wheel is secured by the

conical contact of each bolt.

10. Align the valve hole in the wheel

cover with the tyre valve before

installing.
Install wheel nut caps.

11. Stow and secure the replaced

wheel and the tools.

12. Check the tyre pressure of the

installed tyre and the tightening

torque as soon as possible.

Vauxhall Crossland X (2023 year). Manual in english - page 8
