Takeuchi Mini excavator TB225 (No.122500005~). Operator's Manual (2019)

SPECIFICATIONS

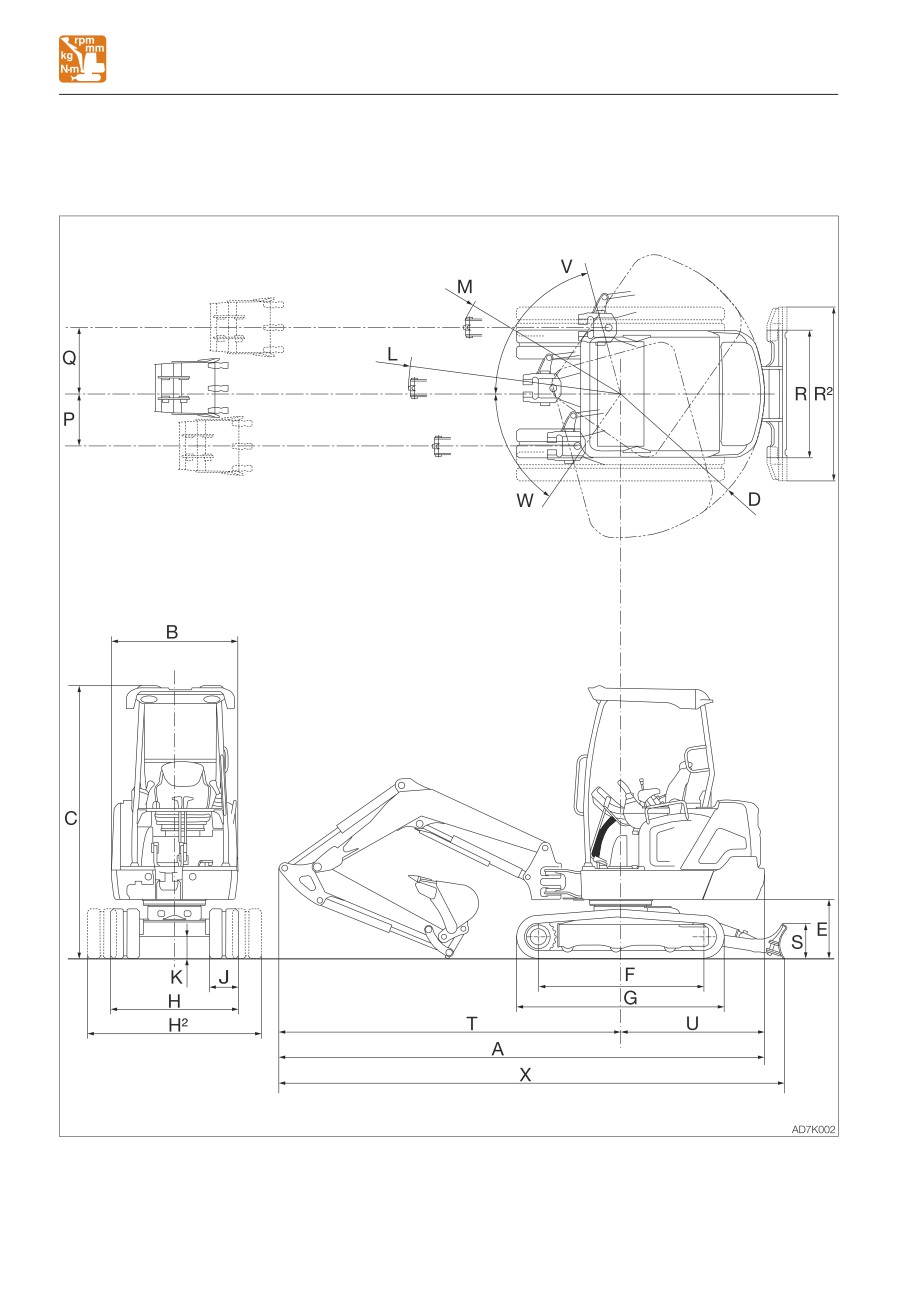

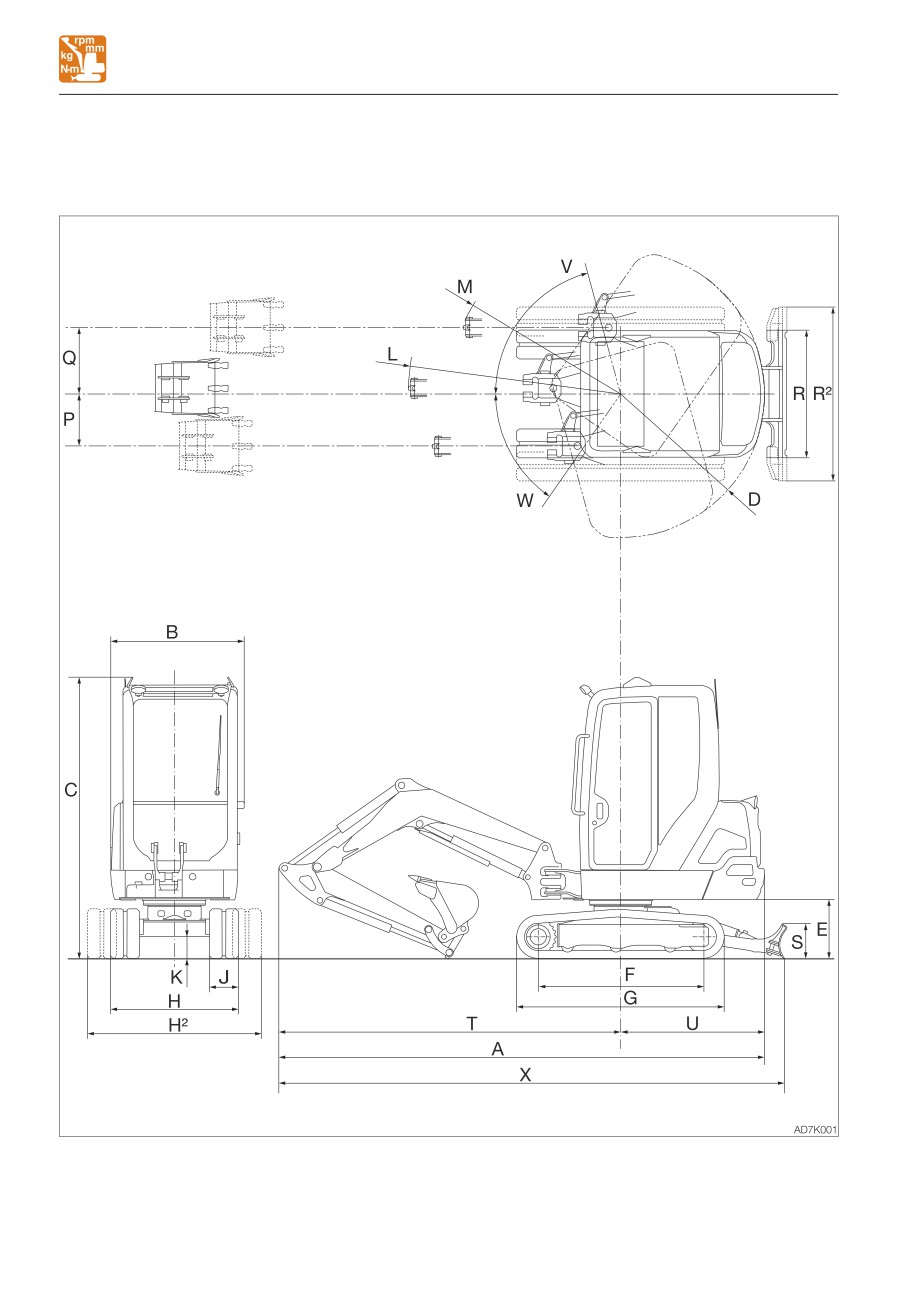

MACHINE DIMENSIONS

Cab

Unit: mm (inch)

Long arm

Standard arm

Item

Rubber crawlers

Overall length

4180 (164.6)

4165 (164)

Upperstructure overall width

1100 (43.3)

Overall height

2430 (95.7)

Slew radius

1240 (48.8)

Clearance height under upperstructure

505 (19.9)

Crawler base

1415 (55.7)

Crawler overall length

1790 (70.5)

Crawler overall width (narrow)

1100 (43.3)

H²

Crawler overall width (wide)

1500 (59.1)

Crawler shoe width

250 (9.8)

Ground clearance of undercarriage

190 (7.5)

Minimum radius of equipment and attachment

1830 (72)

1810 (71.3)

Minimum radius of equipment at maximum front

1485 (58.5)

1465 (57.7)

offset

Offset distance of bucket (right swing)

450 (17.7)

Offset distance of bucket (left swing)

575 (22.6)

Dozer blade width (narrow)

1100 (43.3)

R²

Dozer blade width (wide)

1500 (59.1)

Dozer blade height

300 (11.8)

Front distance to axis of rotation

2940 (115.7)

2925 (115.2)

Dozer blade distance to axis of rotation

1400 (55.1)

Boom swing angle (Left)

75°

Boom swing angle (Right)

55°

Overall length (dozer blade at rear)

4375 (172.2)

4360 (171.7)

7-5

SPECIFICATIONS

MACHINE DIMENSIONS

Canopy

Unit: mm (inch)

Long arm

Standard arm

Item

Rubber crawlers

Overall length

4180 (164.6)

4165 (164)

Upperstructure overall width

1100 (43.3)

Overall height

2355 (92.7)

Slew radius

1240 (48.8)

Clearance height under upperstructure

505 (19.9)

Crawler base

1415 (55.7)

Crawler overall length

1790 (70.5)

Crawler overall width (narrow)

1100 (43.3)

H²

Crawler overall width (wide)

1500 (59.1)

Crawler shoe width

250 (9.8)

Ground clearance of undercarriage

190 (7.5)

Minimum radius of equipment and attachment

1830 (72)

1810 (71.3)

Minimum radius of equipment at maximum front

1485 (58.5)

1465 (57.7)

offset

Offset distance of bucket (right swing)

450 (17.7)

Offset distance of bucket (left swing)

575 (22.6)

Dozer blade width (narrow)

1100 (43.3)

R²

Dozer blade width (wide)

1500 (59.1)

Dozer blade height

300 (11.8)

Front distance to axis of rotation

2940 (115.7)

2925 (115.2)

Dozer blade distance to axis of rotation

1400 (55.1)

Boom swing angle (Left)

75°

Boom swing angle (Right)

55°

Overall length (dozer blade at rear)

4375 (172.2)

4360 (171.7)

7-7

SPECIFICATIONS

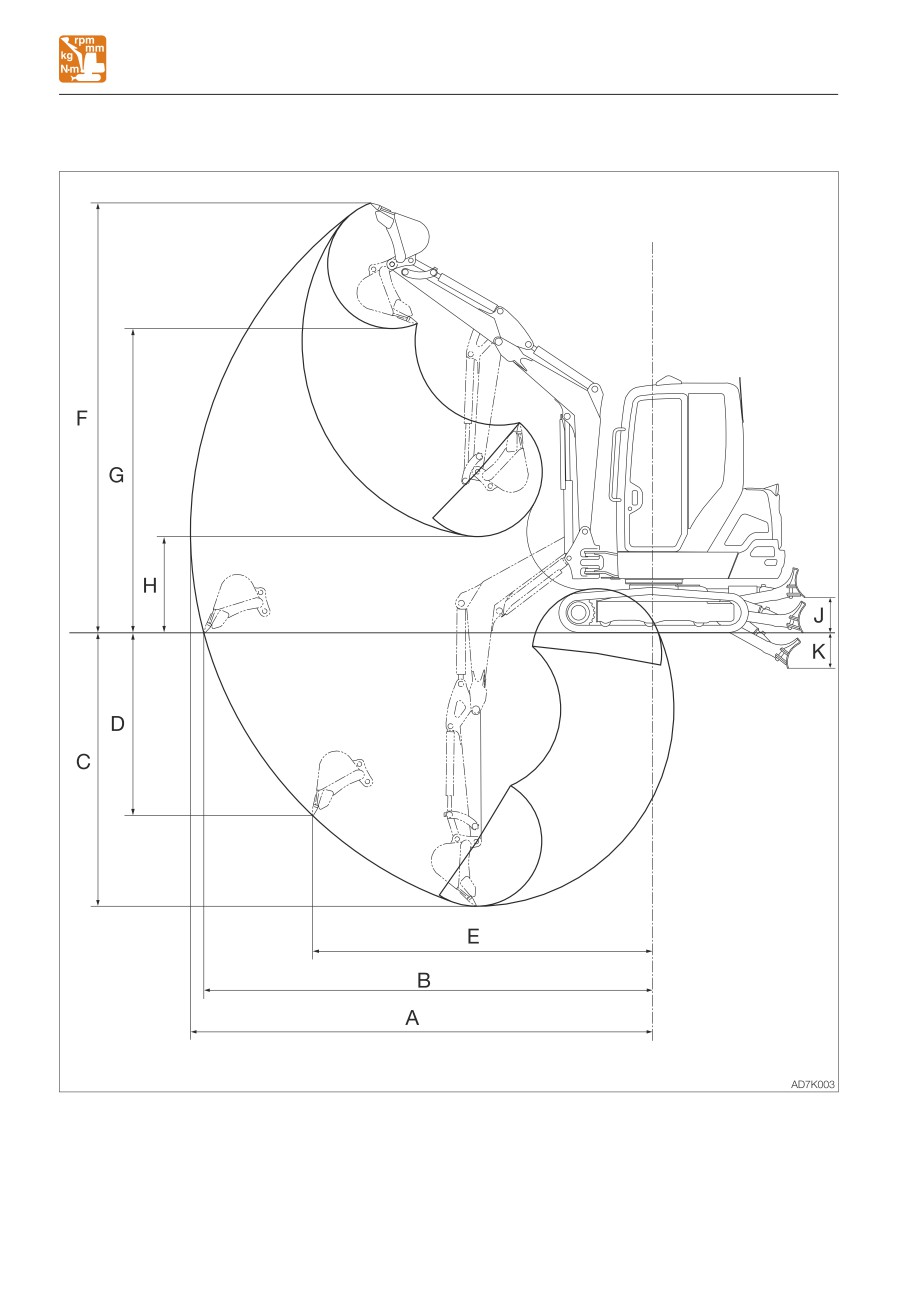

OPERATING RANGES

Standard arm

Unit: mm (inch)

Item

Rubber crawlers

Maximum reach

4255 (167.5)

Maximum reach at ground reference plane

4130 (162.6)

Maximum digging depth

2455 (96.7)

Maximum vertical digging depth

1980 (78)

Reach at maximum vertical digging depth

2720 (107.1)

Maximum height of cutting edge

3985 (156.9)

Maximum dumping height

2800 (110.2)

Minimum dumping height

1035 (40.7)

Dozer blade maximum lifting

335 (13.2)

Dozer blade maximum lowering

330 (13)

Long arm

Unit: mm (inch)

Item

Rubber crawlers

Maximum reach

4375 (172.2)

Maximum reach at ground reference plane

4250 (167.3)

Maximum digging depth

2580 (101.6)

Maximum vertical digging depth

2100 (82.7)

Reach at maximum vertical digging depth

2750 (108.3)

Maximum height of cutting edge

4060 (159.8)

Maximum dumping height

2875 (113.2)

Minimum dumping height

910 (35.8)

Dozer blade maximum lifting

335 (13.2)

Dozer blade maximum lowering

330 (13)

7-9

SPECIFICATIONS

LIFTING CAPACITIES

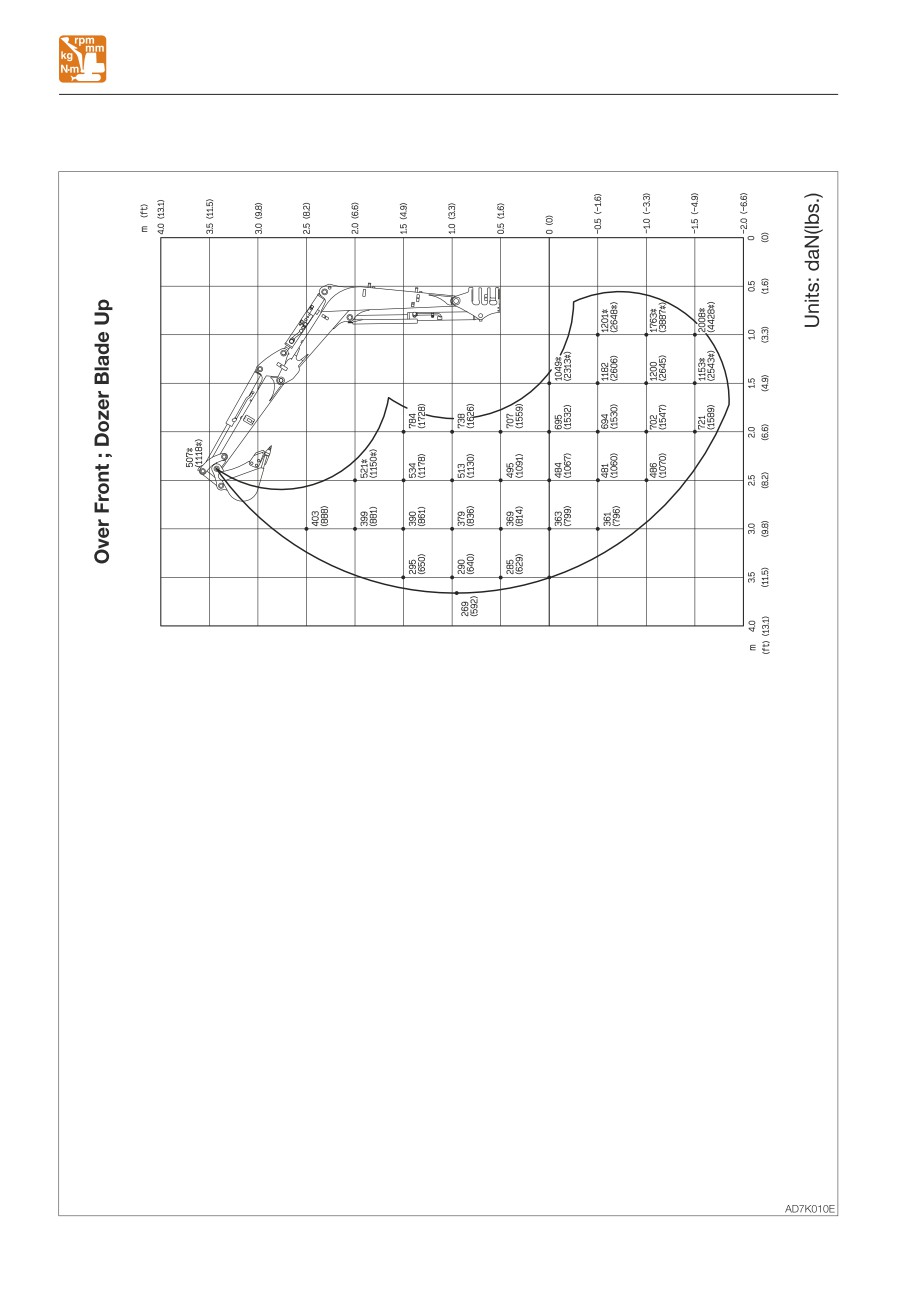

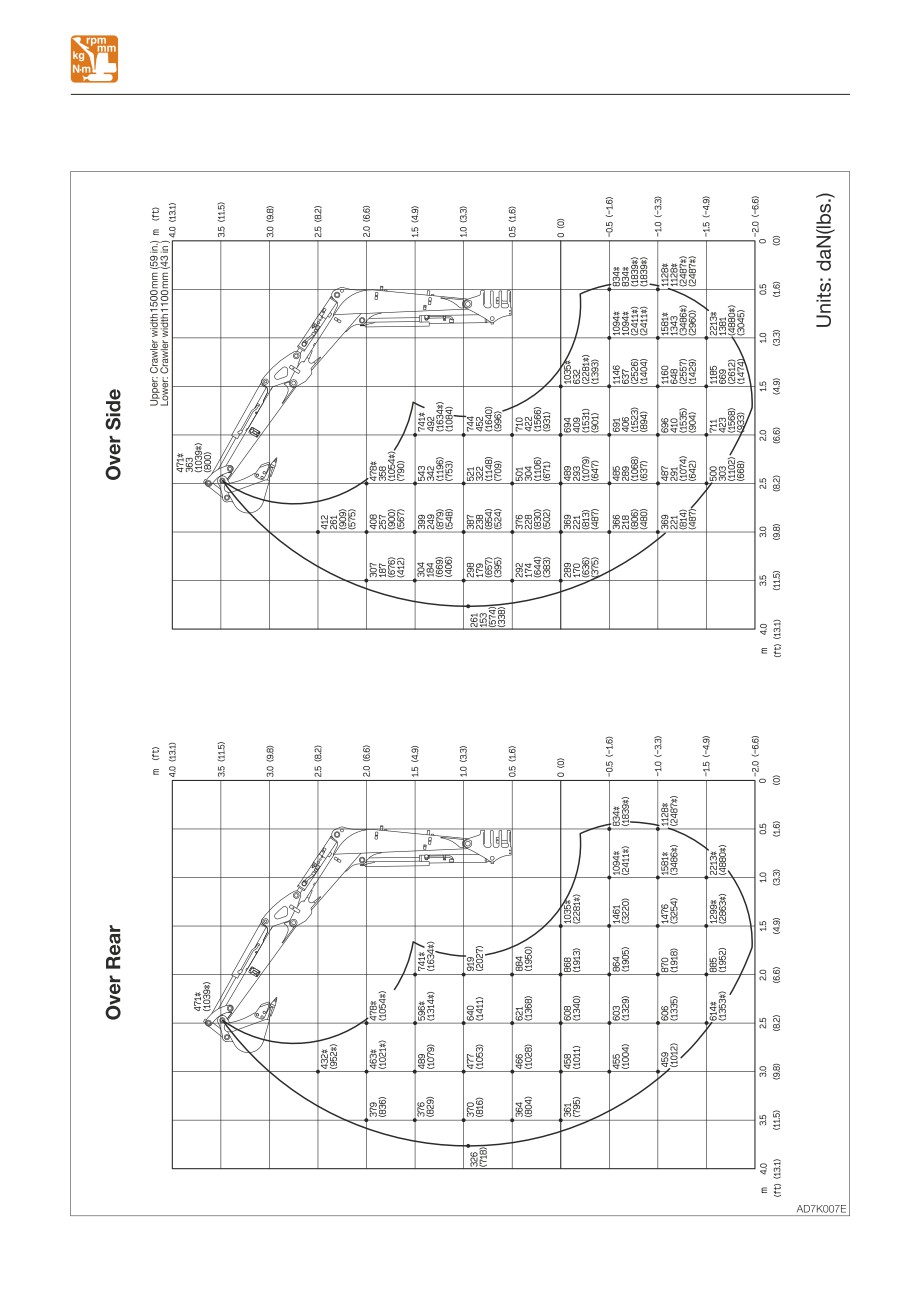

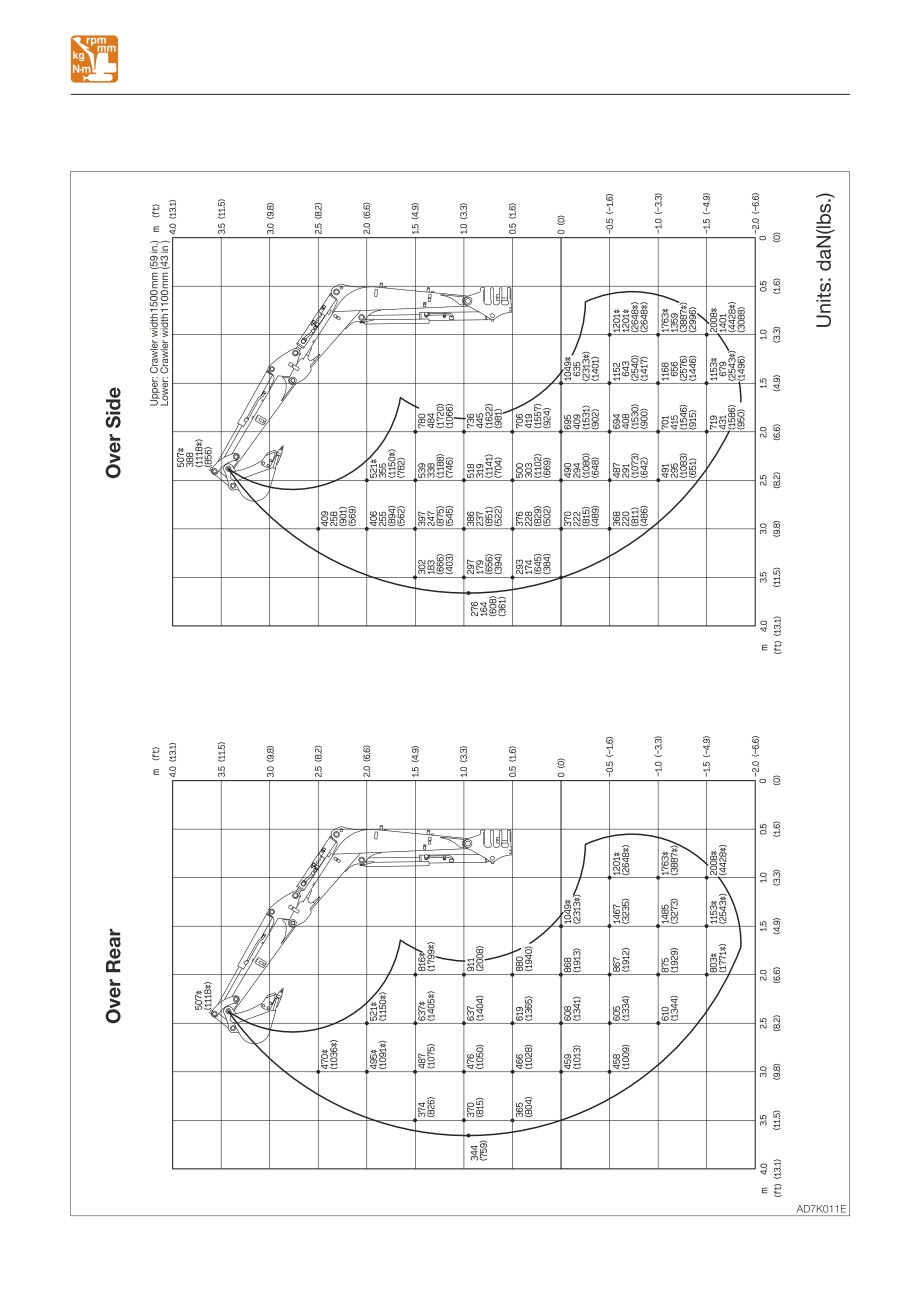

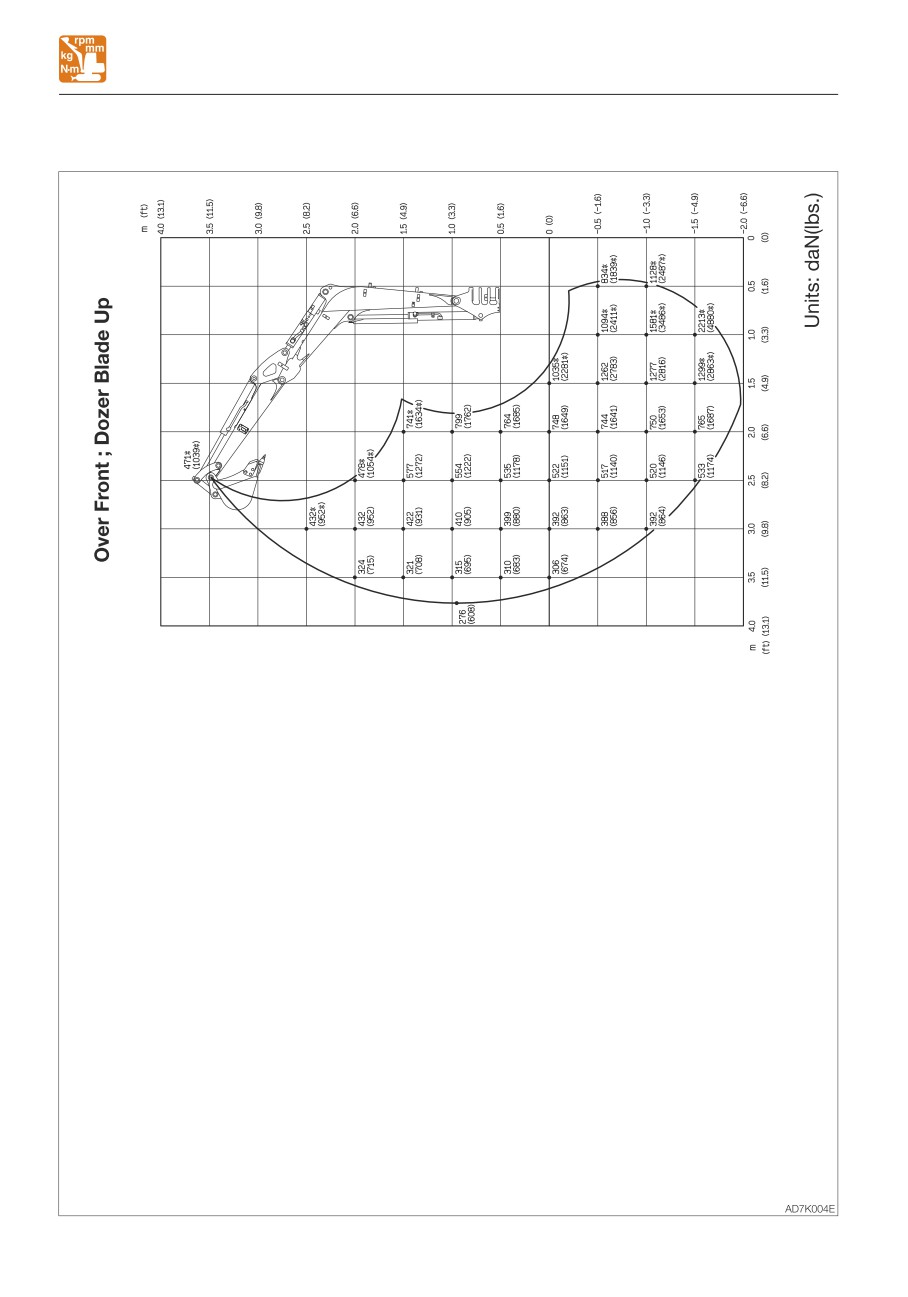

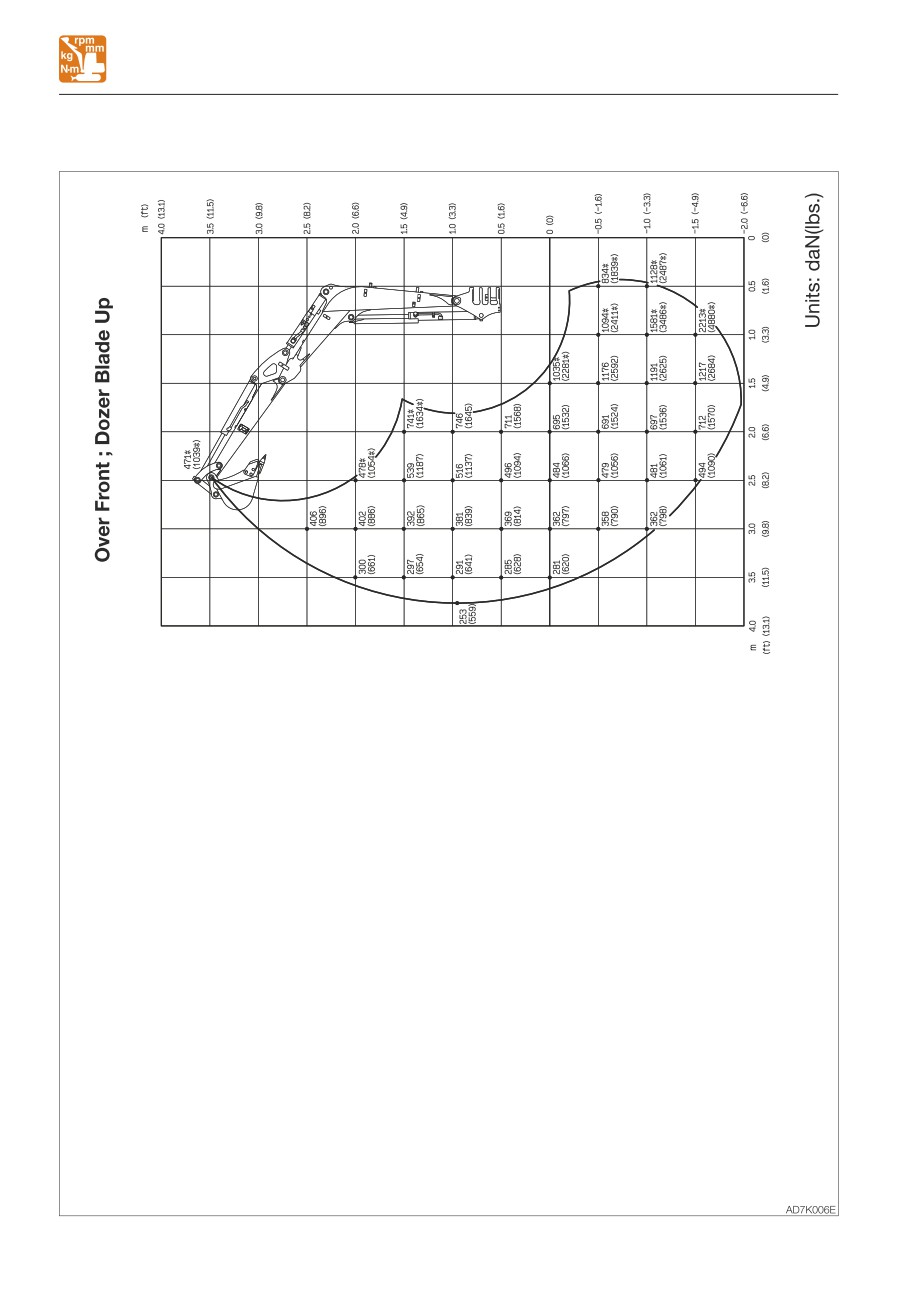

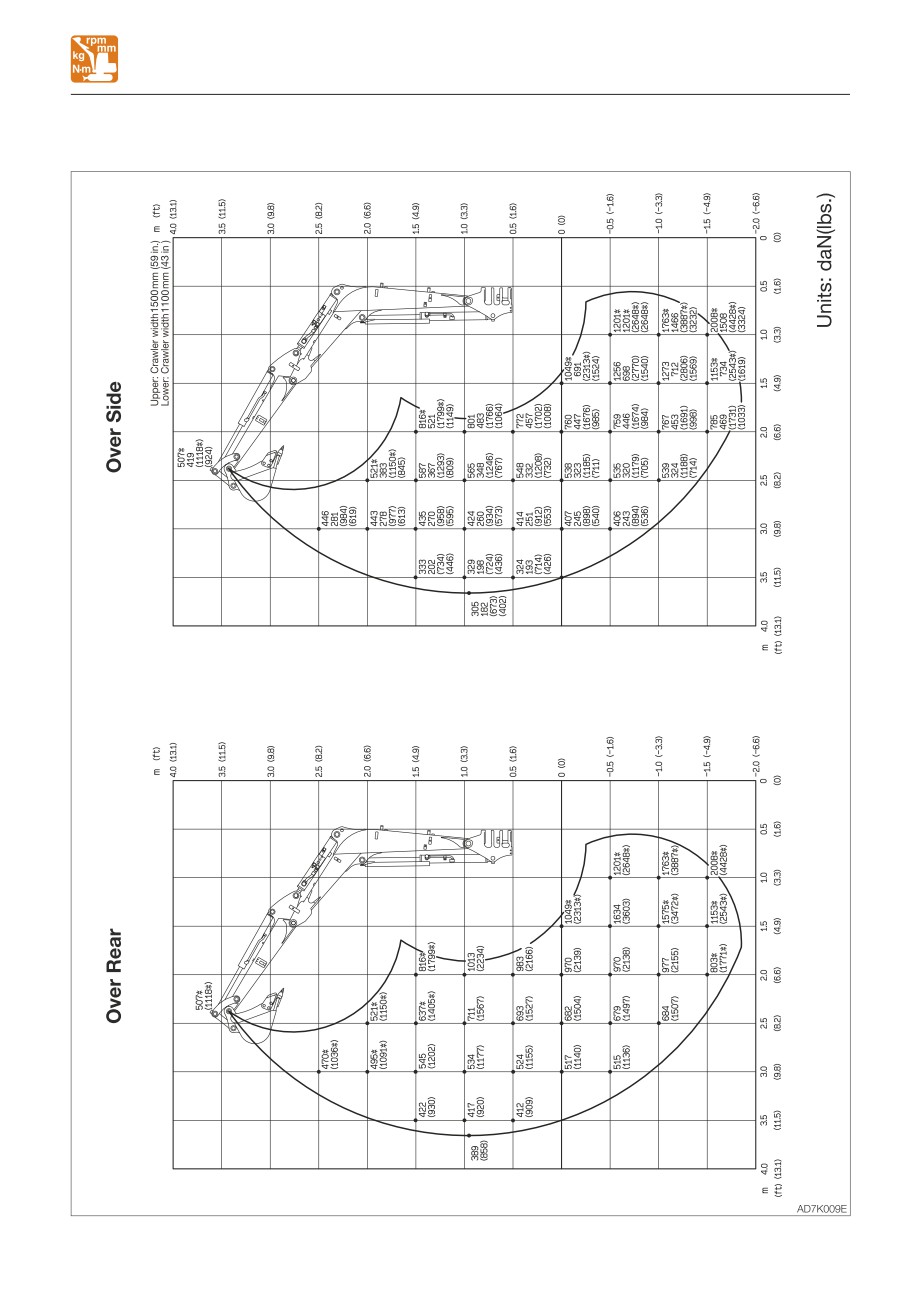

Rated lift capacity chart

• Do not attempt to lift or hold any load

• The loads in the charts do not exceed 87%

that is greater than these rated values at

of hydraulic lift capacity or 75% of tipping

their specified load radii and height.

load.

• The rated lift capacities are based on

• Figures marked with an asterisk (

) are

the machine being level and situated on

hydraulically-limited capacities.

a firm supporting surface. For safe

• The mass of slings and any other lifting

lifting, the operator is expected to make

devices shall be deducted from the rated

due allowance for the particular job

load to determine the net load that may be

conditions such as soft or uneven

lifted.

ground, non-level condition, load to the

• The load point is the bucket hinge pin, and

machine sides, hazardous conditions,

the bucket posture is with the standard

experience of personnel, etc. The

bucket completely retracted under the arm.

operator and other personnel should

• Unit: daN (lbs)

fully acquaint themselves with the

operator’s manual furnished by the

Load hooking system

manufacturer before operating this

A load hooking system must be provided

machine. When operating the machine,

with the following capabilities.

the safety rules of the equipment must

1. A system which can withstand twice the

also be followed.

rated lift capacity no matter at what

• Do not travel while lifting a load; It is

position the load is applied.

very dangerous.

2. A system that poses no risk of the lifted

load falling from the hooking device. For

example, equipped with a hook slippage

prevention device.

3. A system that poses no risk of the hooking

system slipping from the hoe attachment.

7-11

OPTIONS

GENERAL PRECAUTIONS

• Use the proper procedure when

GENERAL PRECAUTIONS

mounting a boom or arm; otherwise

SAFETY PRECAUTIONS

serious damage could result. Consult

your sales or service dealer for help.

When removing or installing an

attachment or optional part, take the

CAUTIONS WHEN INSTALLING

following precautions.

ATTACHMENTS

• Consult with Takeuchi before installing

an optional attachment.

Be sure to perform a test operation after an

• Do not use any attachments not

optional or other special attachment has

approved by Takeuchi. Doing so may

been replaced. Inspect the hydraulic oil level

cause safety problems. Or, it may

and recharge it as necessary. Consult your

adversely affect the machine’s operation

sales or service dealer for detailed

or service life.

procedures on installing/removing

• We will not be held responsible for any

attachments.

injuries, accidents or damage to its

products caused by the use by a non-

approved attachment.

• Select a firm, level work area. Also, be

sure to park in a well ventilated place.

• Clear obstacles and dangerous objects,

and clean up spilled fuel immediately.

• When hoisting, be sure to designate a

person to act as a signalman.

Follow the instructions of the signalman

regarding the procedure and measures.

• When it is necessary to temporally

place a heavy object or an attachment

on the ground during removal or

installation, be sure to place it in a

stable position.

• Keep everyone out of the area when

hoisting. There is a hazard of objects

falling or contacting with people in the

area.

• Use a crane to move heavy objects (25

kg (55 lb.) or greater).

• Before removing a heavy object, be sure

to put a support to it. When lifting with a

crane, pay attention to the center of

gravity of the load to keep the machine

in balance.

• Do not operate the machine while the

load is lifted by a crane stand.

8-2

OPTIONS

GENERAL PRECAUTIONS

CAUTIONS WHEN OPERATING

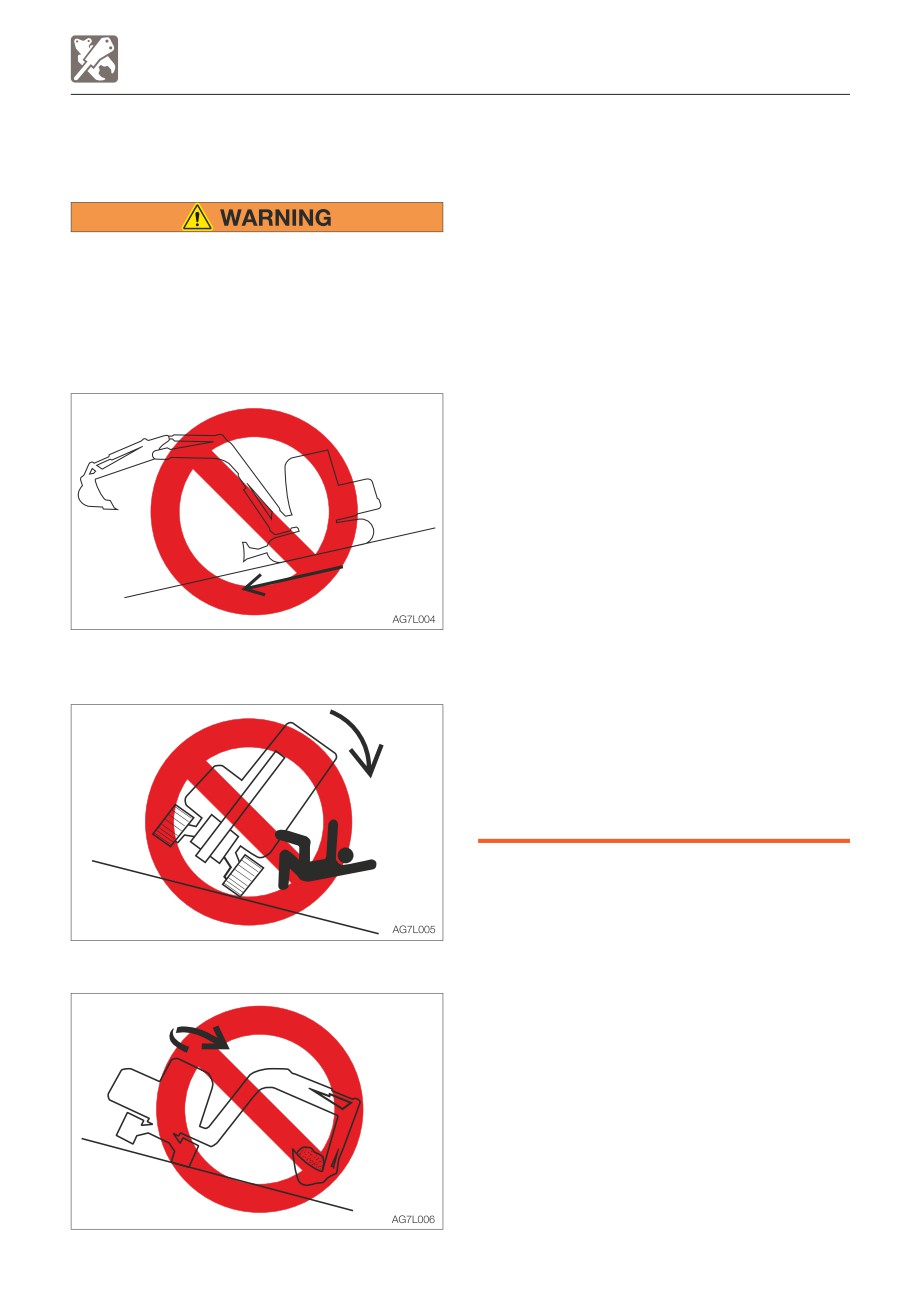

• Slewing on slopes

ATTACHMENTS

• If there is a heavy attachment is

installed, the machine takes longer

distance than usual to come to a

complete stop when the stopping

Long attachments reduce stability of the

operation is performed. Carefully judge

machine. The machine may tip over if it

the distance so as not to bump into an

loses the balance when traveling or

object around the machine. Keep a safe

slewing on slopes.

distance from surrounding obstacles.

Never perform the operations listed below

When a heavy attachment is installed,

as they are extremely dangerous.

natural drop (the gradual dropping of

the attachment under its own weight

when it is stopped in midair) increases.

• The machine can tip over more easily in

the lateral direction than in the

longitudinal direction.

· Do not slew sideways with a heavy

load at the how attachment. In

particular, do not slew sideways on

slopes.

· The attachment is heavier for

machines equipped with breakers or

crushers than for machines equipped

• Traveling down the slopes with the

with the standard bucket. Do not

attachment raised

operate such machines sideways,

especially digging downhill.

• When a long arm is installed, the

operating range increases. Carefully

judge the distance so as not to bump

into an object around the machine.

Keep a safe distance from surrounding

obstacles.

• Traveling across slopes

8-3

OPTIONS

ATTACHMENT COMBINATION TABLE

The table below shows which bucket should be installed when the machine is using a long

arm. Select a proper bucket by following the table.

• Consult with Takeuchi before installing an optional attachment.

• Do not use any attachments not approved by Takeuchi. Doing so may cause safety

problems. Or, it may adversely affect the machine’s operation or service life.

• We will not be held responsible for any injuries, accidents or damage to its products

caused by the use by a non-approved attachment.

• The swing stopper must be mounted when a bucket wider than a 500W bucket is

mounted. Failure to mount the swing stopper may result in the bucket hitting the

machine body.

√ :Can be used.

∆ :Can be used only for light operations (digging and loading of dry and loose soil or mud)

—:Cannot be used.

Total bucket mass = Bucket mass + Heaped bucket load (specific gravity: 1.8)

Bucket cutting

Standard arm

Long arm

Rated capacity

Bucket

width

1120 mm

1245 mm

m³ (cu. yd.)

mm (inch)

(44.1 in.)

(45 in.)

500W

0.064

(2.26)

500 (19.7)

√

Total bucket mass

Within 500 (19.7)

√

= Within 167 kg (368 lb.)

8-4

OPTIONS

SELECTING A LEVER PATTERN

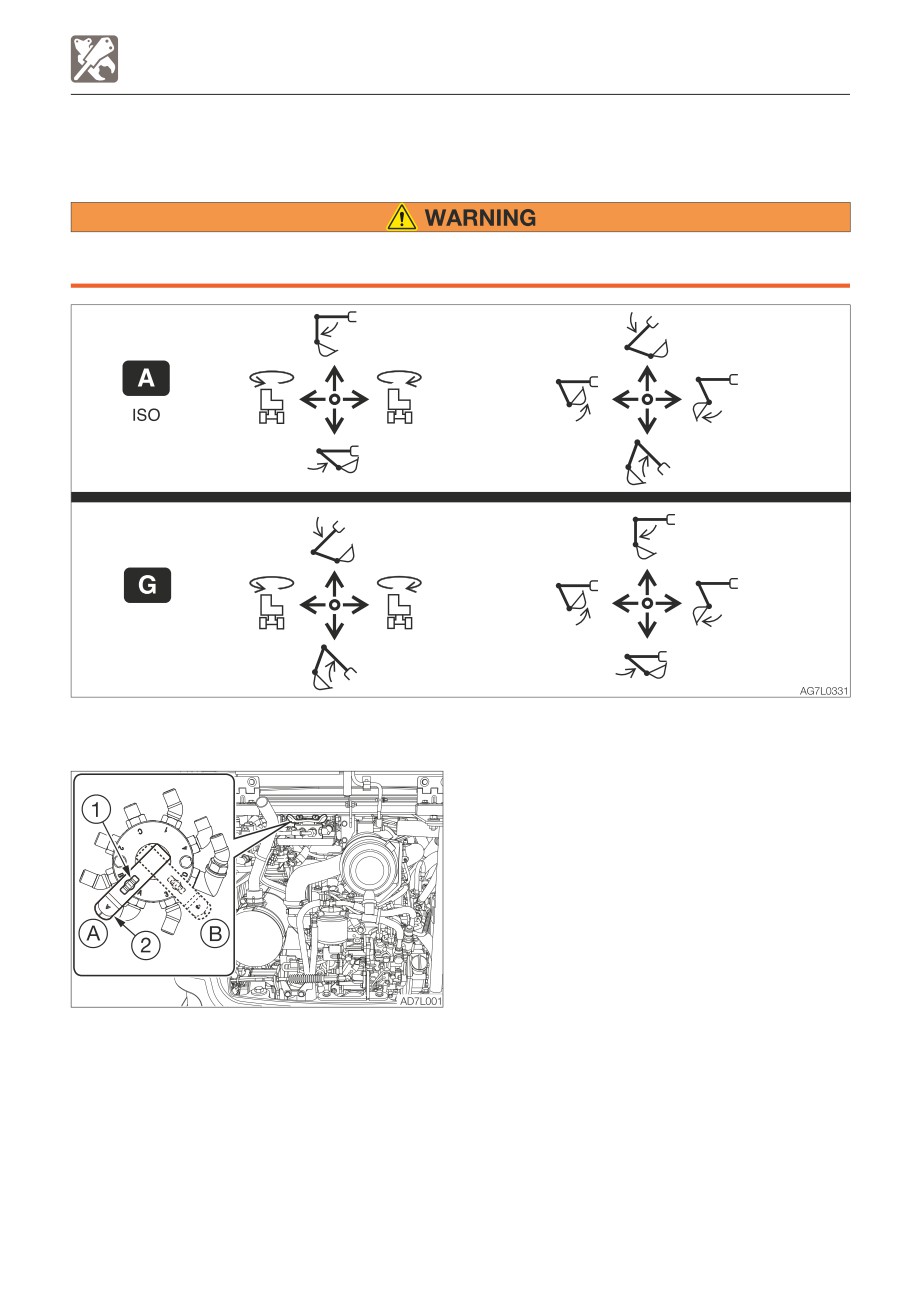

The operating pattern of the left and right operating levers can be changed.

Before starting the engine, check the selector to see which operating pattern the left

and right operating levers are set.

SWITCHING THE LEVER PATTERN

1. Park the machine on a flat and rigid

ground, and stop the engine.

2. Open the maintenance cover.

3. Loosen the wing bolt (1).

4. Turn the selector valve lever (2) to switch

the pattern.

5. Tighten the wing bolt (1) and fasten the

lever (2) in place.

6. Close the maintenance cover.

7. Confirm the lever pattern.

(A) : ISO pattern

(G) : G pattern

8-5

OPTIONS

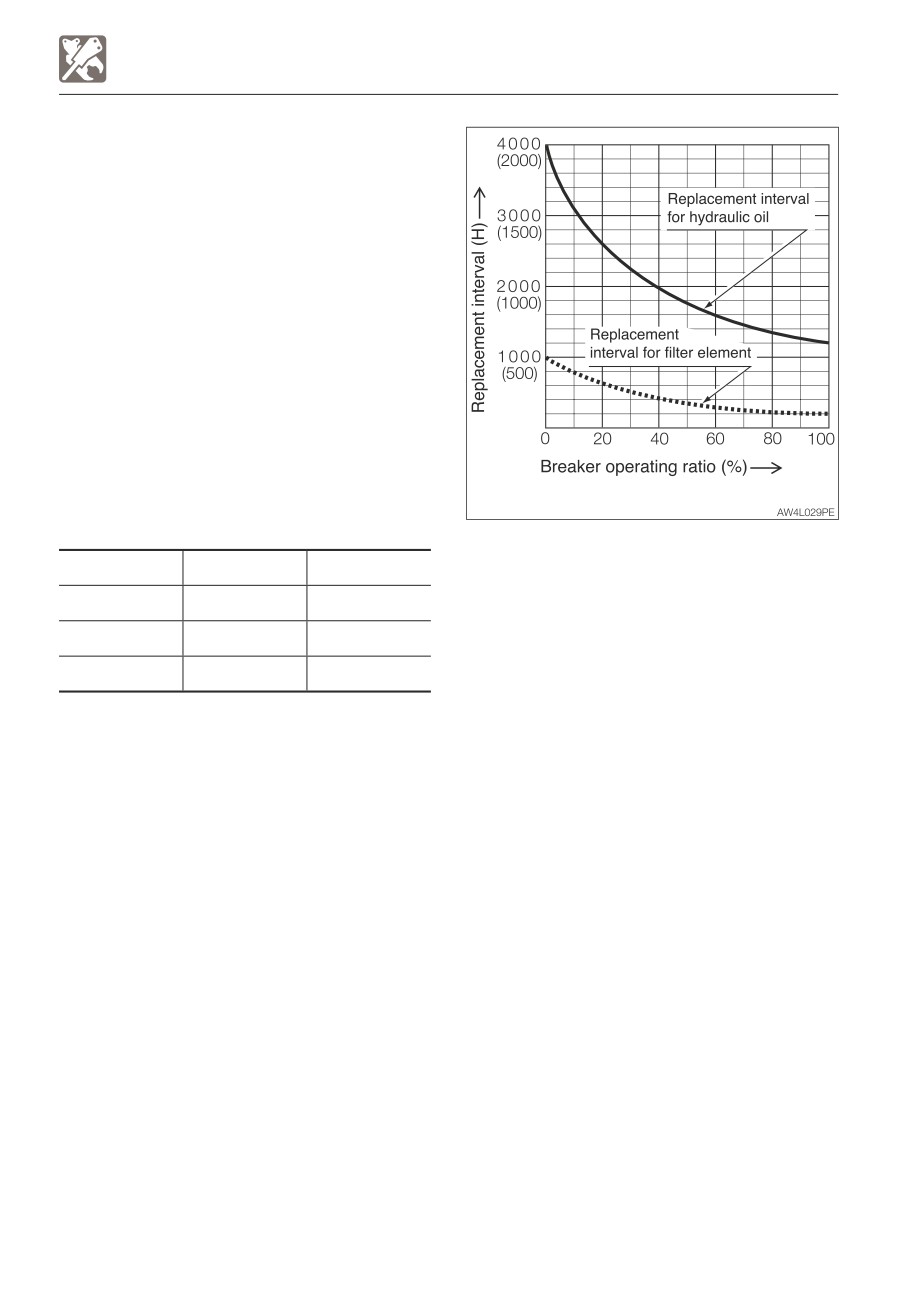

HYDRAULIC BREAKER

Cautions on operating

HYDRAULIC BREAKER

For handling of the breaker, read the

hydraulic breaker’s manual, provided

separately.

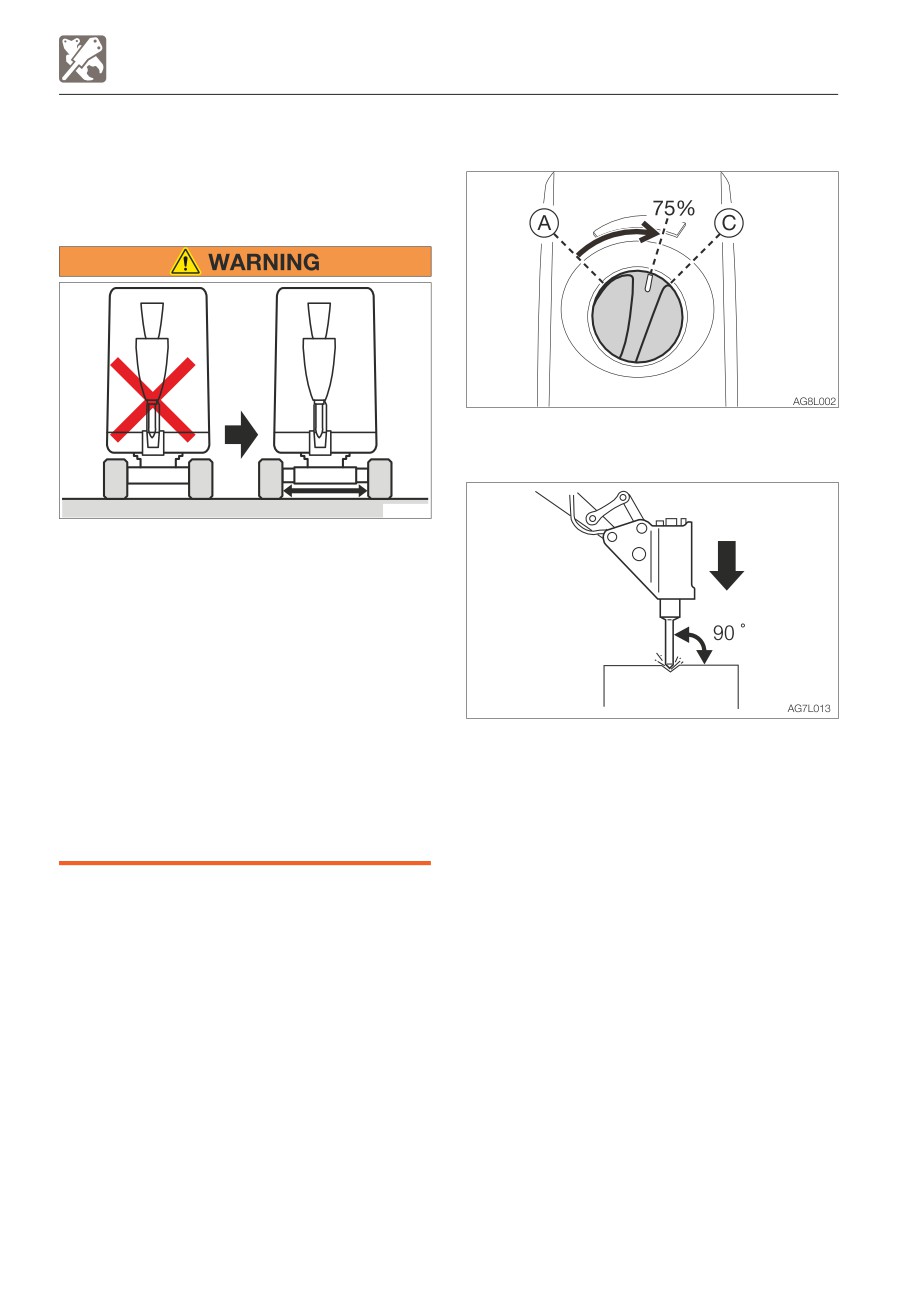

• Start the engine and run it at 75% of the

maximum speed.

AD6A001

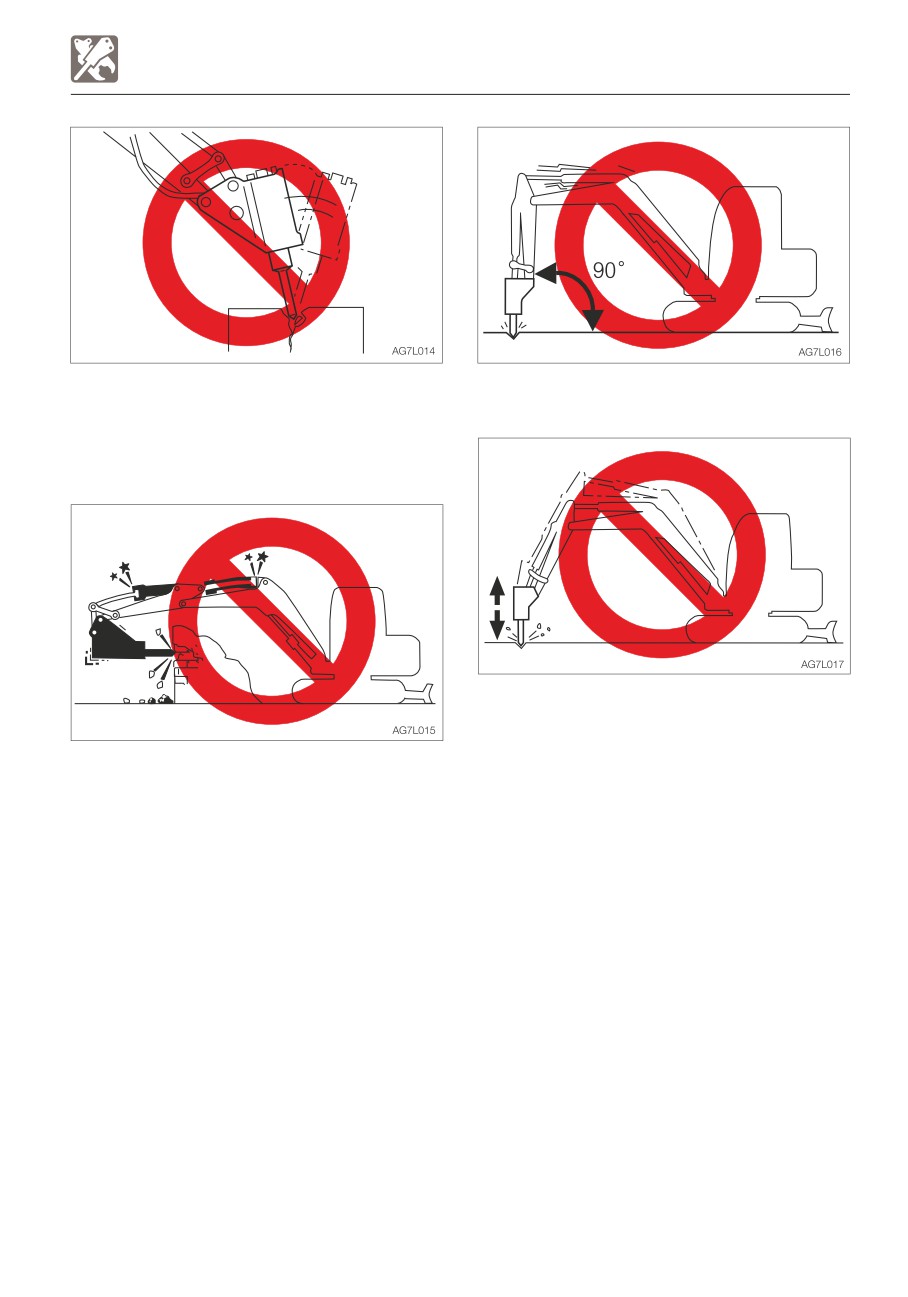

Do not use the breaker when the crawler

width is narrowed!

• Always operate the machine with the

crawler width extended to 1500 mm

(59.1 in.) to maximize the machine

stability. If the machine is operated with

the crawler width narrowed 1100 mm

(43.3 in.), the machine may tip over due

to its poor stability.

• If the machine must be operated with

• Pound with the chisel pressed

the narrowed crawler width 1100 mm

perpendicular to the surface to be

(43.3 in.), traveling should be done after

pounded.

folding the hoe attachment, lowering the

• When pounding, press the chisel properly

boom to lower the center of gravity and

against the object to be broken so as to

keeping the machine facing forward.

avoid pounding the air.

When an optional attachment, such as a

breaker, tilted bucket or clamshell, is

operated, be sure that the crawler width is

extended to 1500 mm (59.1 in.).

IMPORTANT: When installing an

attachment, make sure that it is

appropriate for the machine being used.

Contact your sales or service dealer for

advice on selecting attachments.

8-6

OPTIONS

HYDRAULIC BREAKER

• Do not pry with the chisel or do not pry

• Do not pound with the arm placed

while pounding.

perpendicular to the ground surface.

• Do not move the chisel while pounding.

• Do not pound continuously for over 30

seconds on the same surface.

• Do not drop the breaker itself on the object

to be broken in order to break it.

• Do not move objects to be broken or rocks

• Do not pound with the cylinder fully

with the breaker itself.

extended or retracted (at the stroke end).

• Slew the machine occasionally to cool the

Leave a margin of at least 50mm(2 in).

engine.

• If a hydraulic hose is vibrating abnormally,

nitrogen gas may be leaking from the

accumulator. Ask for an inspection early.

8-7

OPTIONS

HYDRAULIC BREAKER

REPLACING THE HYDRAULIC OIL

REGULARLY

When a hydraulic breaker is used, the oil

deteriorates more quickly than that used for

a usual operation. Be sure to replace the

hydraulic oil and the return filter elements.

• Failure to replace these in time can lead to

damage to the machine and the breaker

hydraulic system. To improve the service

life of the hydraulic systems, be sure to

replace the hydraulic oil and return filter

element after the number of hours shown

on the diagram below.

• When replacing the hydraulic oil, clean the

suction strainer.

Replacement interval (hours)

(

When using conventional antiwear

hydraulic oil.

Item

Hydraulic oil

Filter element

1st time

—

2nd time

—

100

Periodically

1200 (600)

200

When the breaker operating ratio is 100%.

8-8

OPTIONS

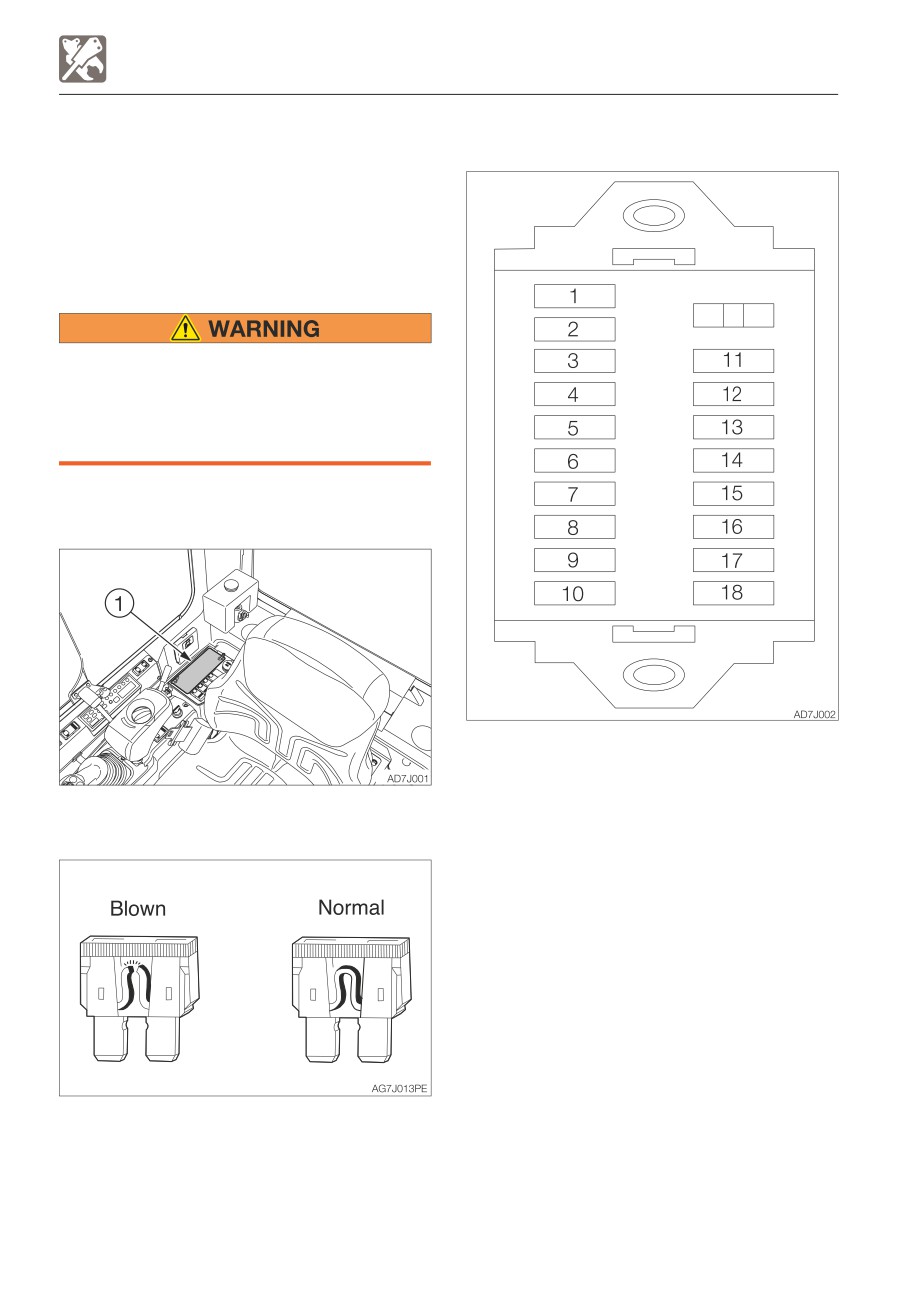

TRAVEL ALARM

Fuse layout and circuits protected

TRAVEL ALARM

The alarm sounds while the machine is

traveling and stops when the machine stops

traveling.

If the alarm does not sound when the

machine travels, the fuse may be blown.

Inspect the fuses.

If the fuse blows again soon after

replacement, then the electric system is

likely faulty. It may pose a fire hazard if

not properly repaired. Contact your sales

or service dealer for advice.

1. Turn the starter key to the OFF position to

stop the engine.

2. Open the fuse box cover (1).

3. Check for fuse.

4. If a fuse is blown, replace it with a spare

fuse of the same capacity.

8-10

OPTIONS

TRAVEL ALARM

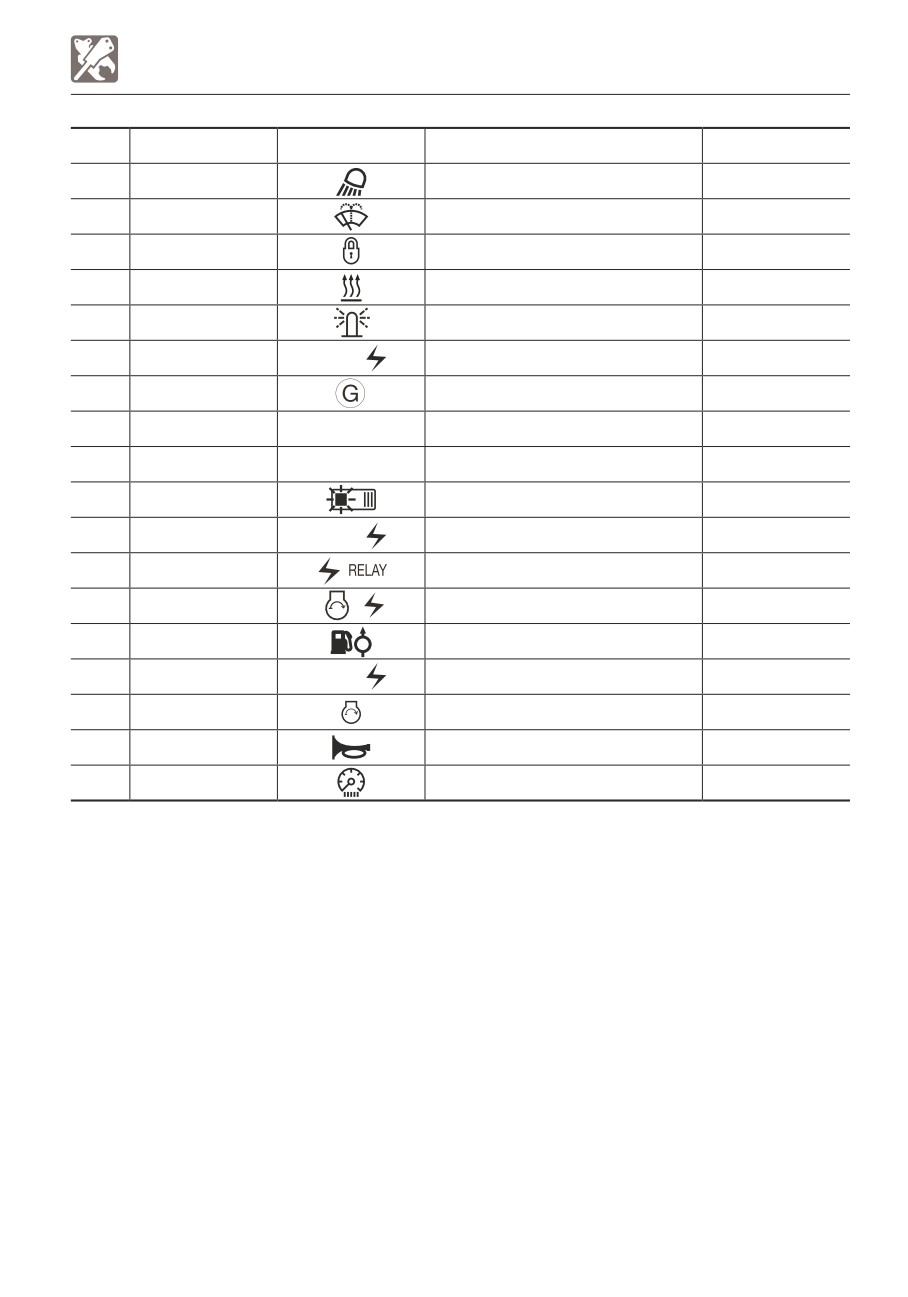

No.

Capacity

Symbol

Protected circuit

Fuse No.

15A

Lights

15A

Wiper

10A

Safety lock lever

10A

Heater

15A

Beacon

15A

CAB

Cab

10A

Alternator relay

15A

OPT

Option, Travel alarm

−

Switch lighting

F10

20A

CTL 00

Controller power supply

F11

10A

ACC relay

F12

30A

Engine

F13

Feed pump

F14

CTL 00

Controller power supply

F15

20A

Starter switch

F16

10A

Horn

F17

10A

Cluster

F18

*: Only for cab

8-11

OPTIONS

BIODEGRADABLE OIL

4. Bleed the air from the hydraulic oil system.

BIODEGRADABLE OIL

5. Operate the hydraulic devices for 30

Biodegradable oil is a new type of hydraulic

minutes.

oil that is decomposed into carbon dioxide

6. Drain the biodegradable oil from the tank

and water by microorganisms in the soil and

and cylinders.

water. It is highly safe for living organisms

7. Replace the hydraulic oil return filter with a

and offers advantages in term of

new filter.

environmental protection.

8. Repeat steps 3 and 4.

• Recommended biodegradable oil: Mobile

9. Operate the hydraulic devices for 30

EAL Envirosyn 46H (an ester synthetic oil).

minutes.

When replacing the hydraulic oil with

10. Drain the biodegradable oil from the tank

biodegradable oil, use the above or an

and cylinders.

equivalent oil.

11. Repeat steps 3 and 4.

Note that other oils, even other brands of

12. Operate the hydraulic devices for 1 hour.

ester synthetic oils, may damage O-rings,

13. Drain the biodegradable oil from the tank

packings and seals. Takeuchi products

and cylinders.

shipped with the optional biodegradable oil

14. Replace the return filter with a new filter.

are shipped with the above brand of oil.

15. Repeat steps 3 and 4.

• When switching from a mineral oil to a

16. Operate the hydraulic devices, then

biodegradable oil, the parking brake torque

check for oil leakage.

decreases by about 30%.

There is no need to flush the hydraulic oil

system when switching from biodegradable

to mineral hydraulic oil.

REPLACING THE HYDRAULIC OIL WITH

BIODEGRADABLE OIL

Mixing mineral oil with biodegradable oil will

result in a decrease of the hydraulic oil’s

performance as well as a decrease in

biodegradability and safety. The hydraulic oil

system must be flushed as described below

before supplying the biodegradable oil. This

operation is dangerous and requires

experience. Have it performed by a Takeuchi

sales or service outlet.

Flushing

To be performed by a Takeuchi sales or

service outlet

1. Drain the hydraulic oil (mineral oil) from the

hydraulic oil tank and clean the inside of

the tank and suction strainer.

Refer to “Replacing the hydraulic oil and

cleaning the suction strainer” on page

5-50.

2. Remove the cylinder hoses and drain the

hydraulic oil (mineral oil) from inside the

cylinders.

3. Supply new biodegradable oil to the

hydraulic oil tank.

8-13

OPTIONS

TAKEUCHI SECURITY SYSTEM

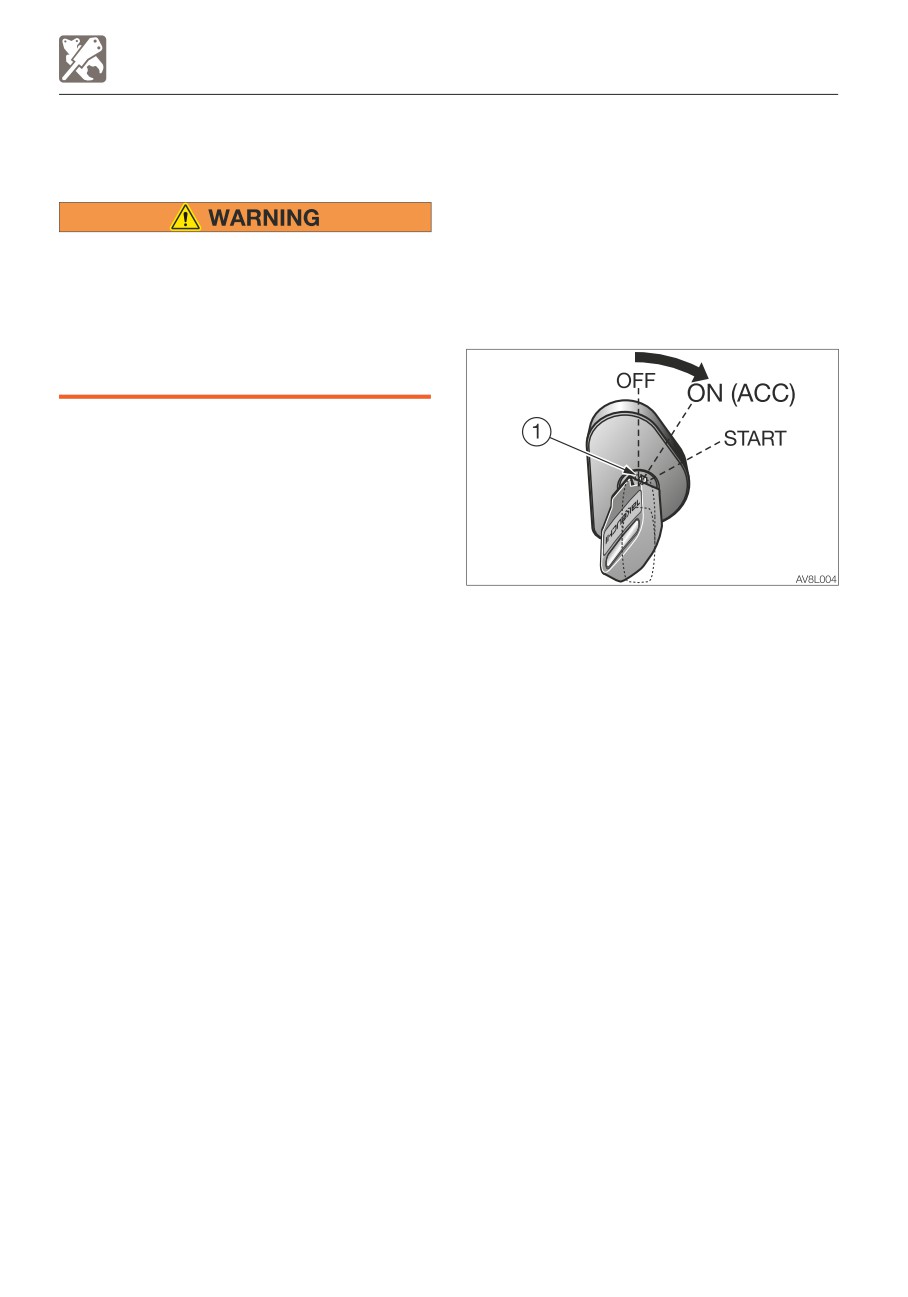

STARTING THE ENGINE

TAKEUCHI SECURITY SYSTEM

The Takeuchi Security System is a system

that allows only registered starter keys to be

used for starting the engine.

The engine cannot be started with any

unregistered or counterfeit starter keys. If a

registered starter key is lost or stolen, you

can set the system to delete the registered

key information, so that the lost or stolen key

cannot be used to start the engine. Although

machine theft cannot be completely

prevented, the system certainly helps reduce

the risk of theft.

The engine can be started using the normal

method with a registered BLACK key.

The engine cannot be started using the RED

STARTER KEY

master key.

Refer to Chapter 3, “Starting and stopping

the engine”.

If an attempt is made to start the engine

with an unregistered key:

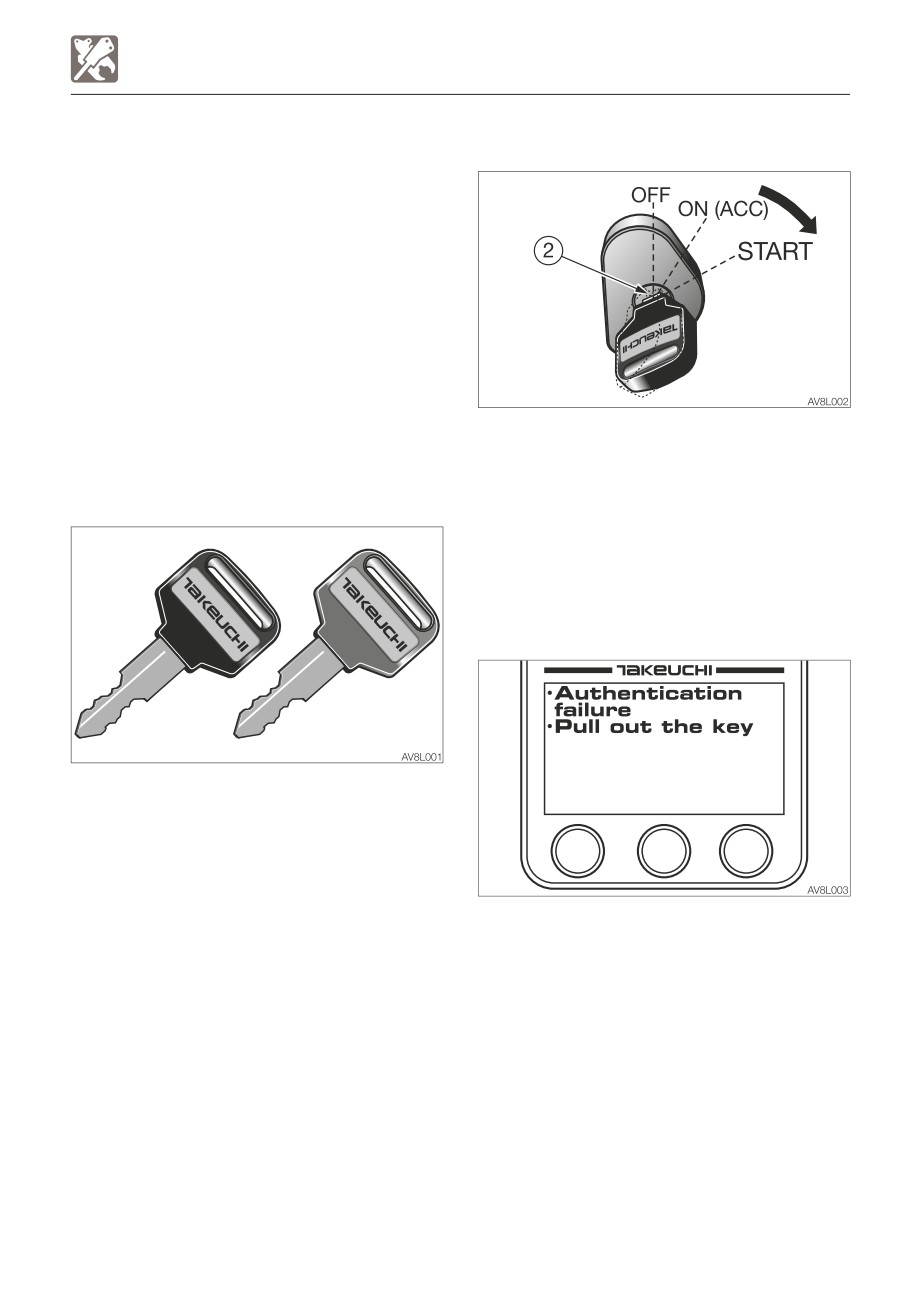

There are two types of starter key, red and

black, which can be registered in the

Takeuchi Security System.

The red key is the master key. The black key

is the starting key.

If an unregistered starter key is turned from

the OFF to the ON (ACC) position, the

message “Authentication failure” appears

and the alarm starts sounding.

If this attempt is repeated five times in a row,

the horn sounds for two minutes, and the

engine cannot be started. The horn stops

when the key is turned to the OFF position.

8-15

OPTIONS

TAKEUCHI SECURITY SYSTEM

REGISTERING AND DELETING THE

Starter key registration procedure

STARTER KEY

For Steps 1 to 6 below, complete each step

and proceed to the next one within five

minutes. If no operation is performed for five

minutes during this procedure, the system

• Sit on the operator's seat.

returns to the initial state.

• Raise the safety lock lever to the locked

From Step 7 onward, the system

position.

automatically ends the operation if no

• Clear all people from the machine and

operation is performed for five minutes.

the area.

• Sound the horn to warn people around

the machine.

Registration may fail if the starter key is on a

keyring or keychain; remove it before starting

registration.

A malfunction could occur if multiple starter

keys are brought near to the key cylinder. Be

sure that no starter keys other than the

correct key are near the key cylinder during

registration.

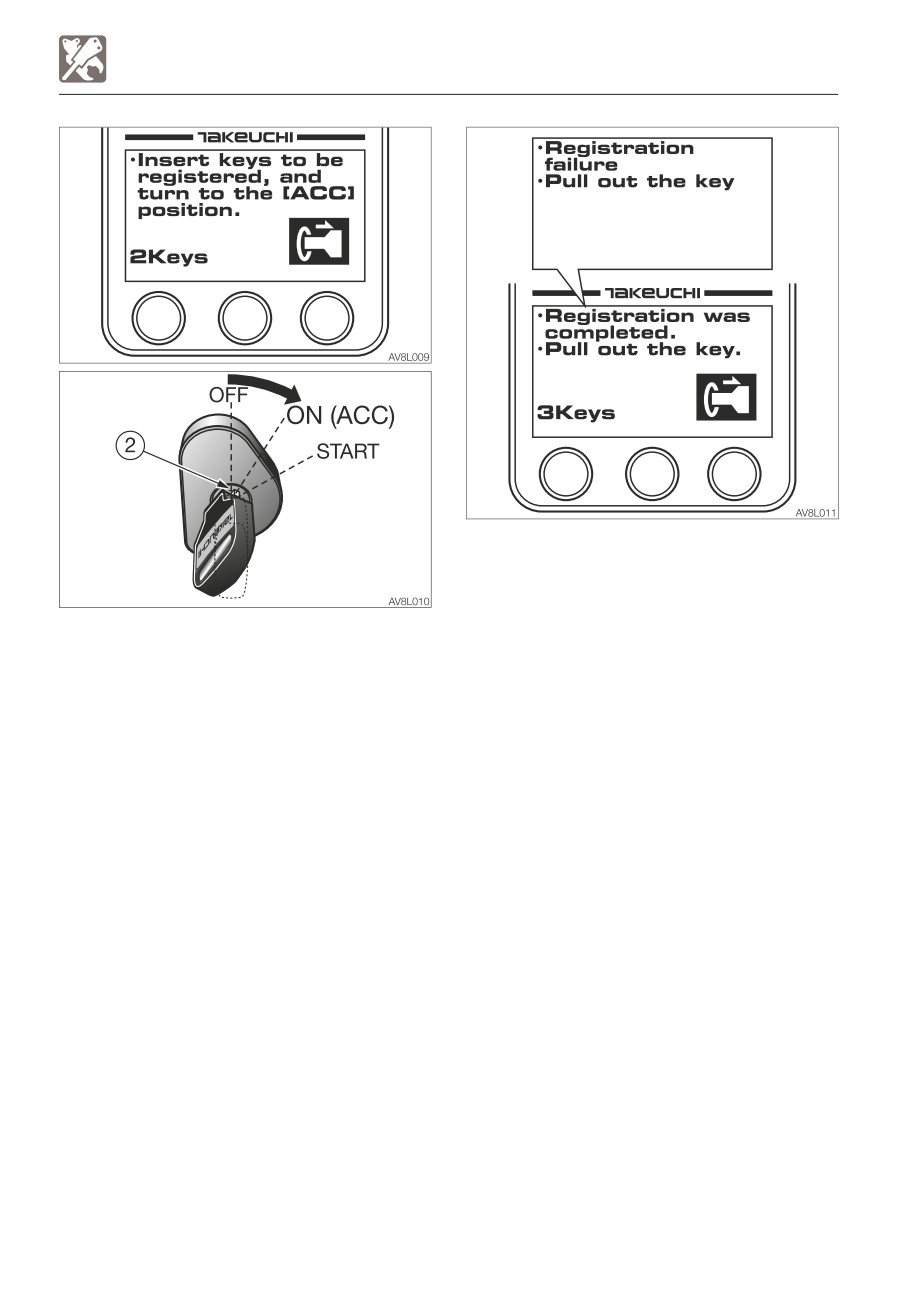

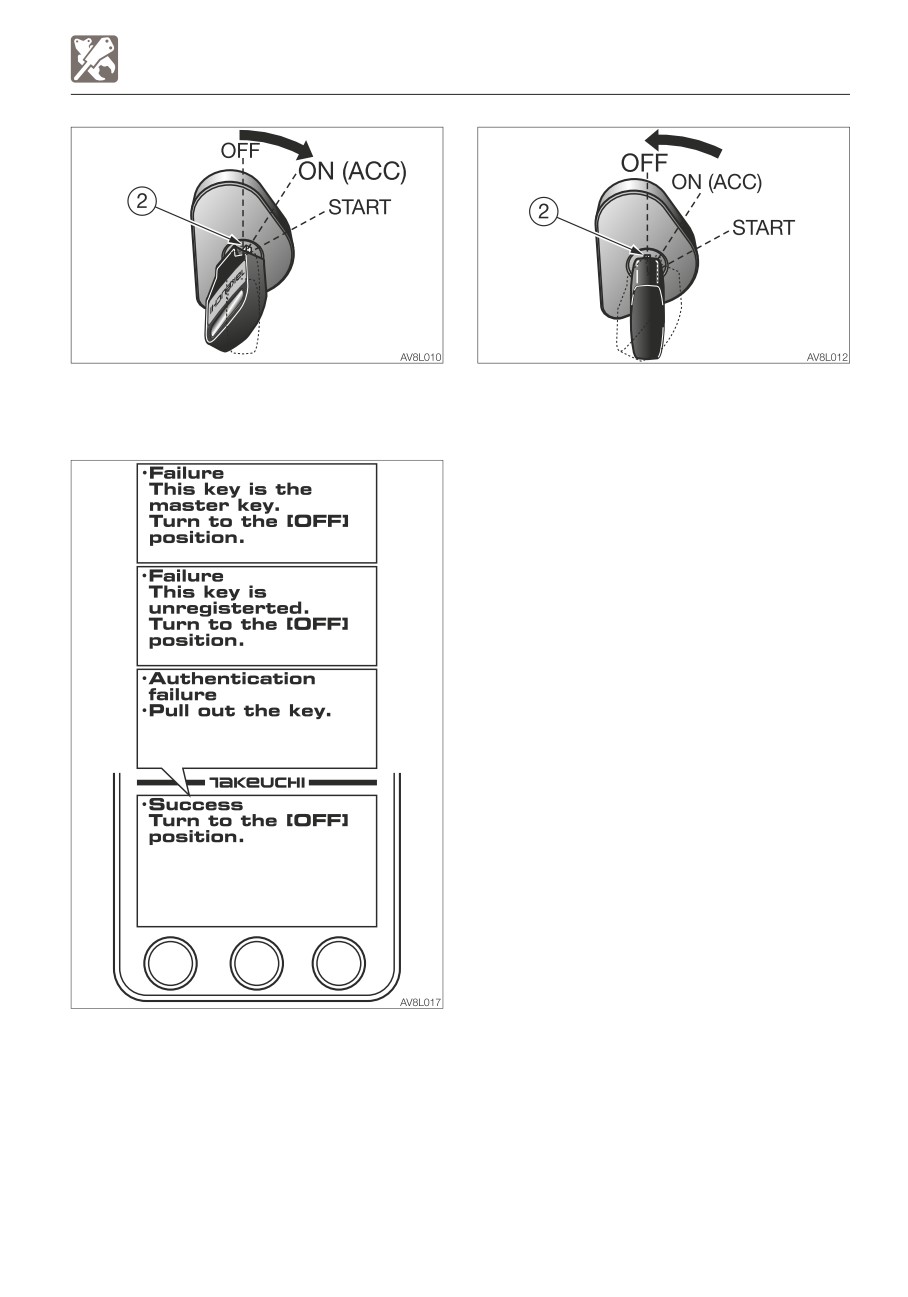

1. Insert the master key (1) into the starter

switch and turn the key from the OFF to

the ON (ACC) position.

8-16

OPTIONS

TAKEUCHI SECURITY SYSTEM

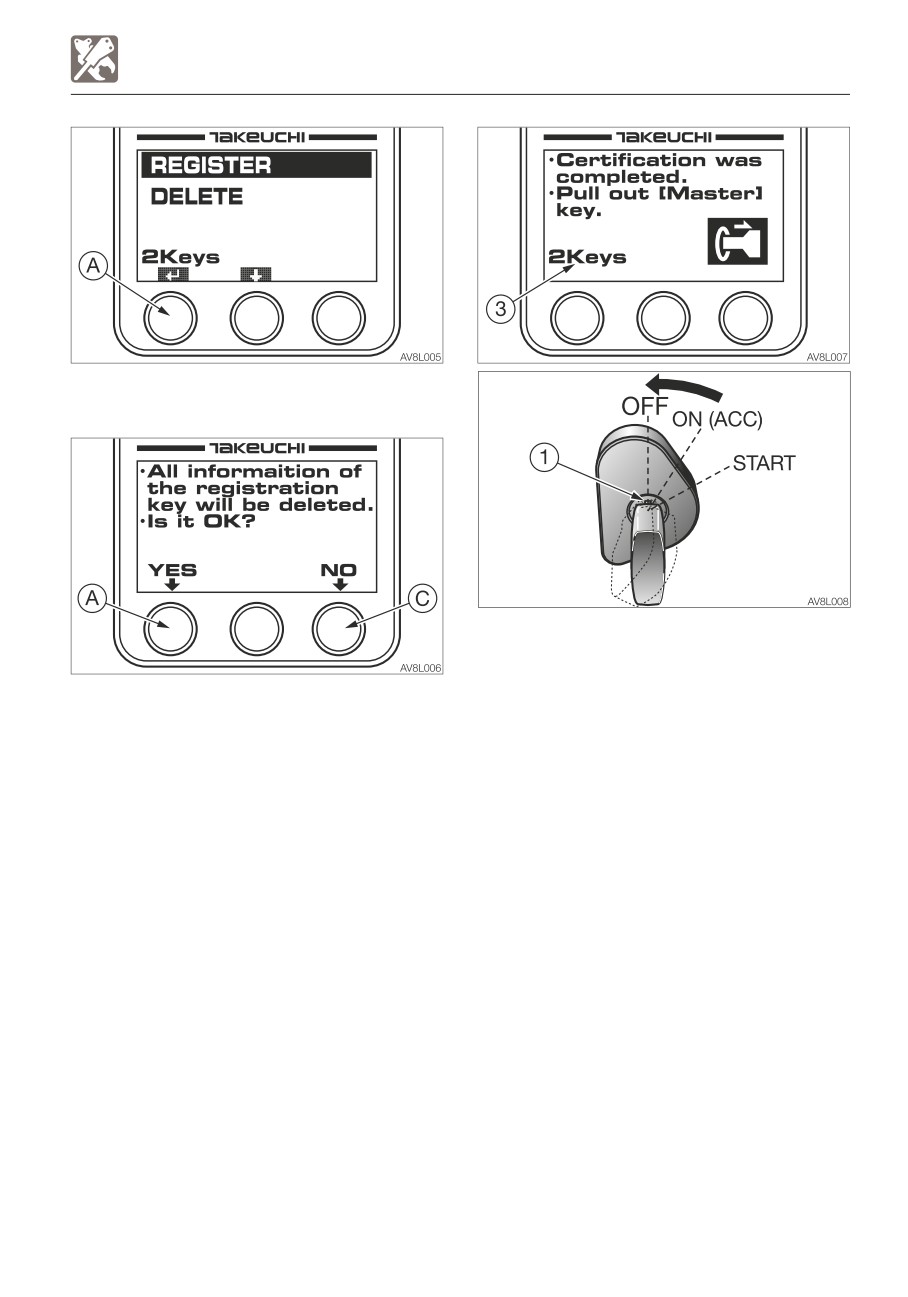

2. On the LCD, select “REGISTER” and

press (A).

4. When the message “Certification was

completed” appears on the LCD, turn the

master key (1) from the ON (ACC) to the

3. Select whether to delete all of the existing

OFF position, and then remove it from the

registration information.

starter switch.

YES (A): All registration information will be

The number (3) in the lower left indicates

deleted; register a new key.

the number of starter keys currently

NO (C): A new starter key registration will

registered. Up to 13 starter keys can be

be added to the existing registration

registered.

information.

Do not remove the master key (1) before

making a selection, otherwise registration

could fail.

8-17

OPTIONS

TAKEUCHI SECURITY SYSTEM

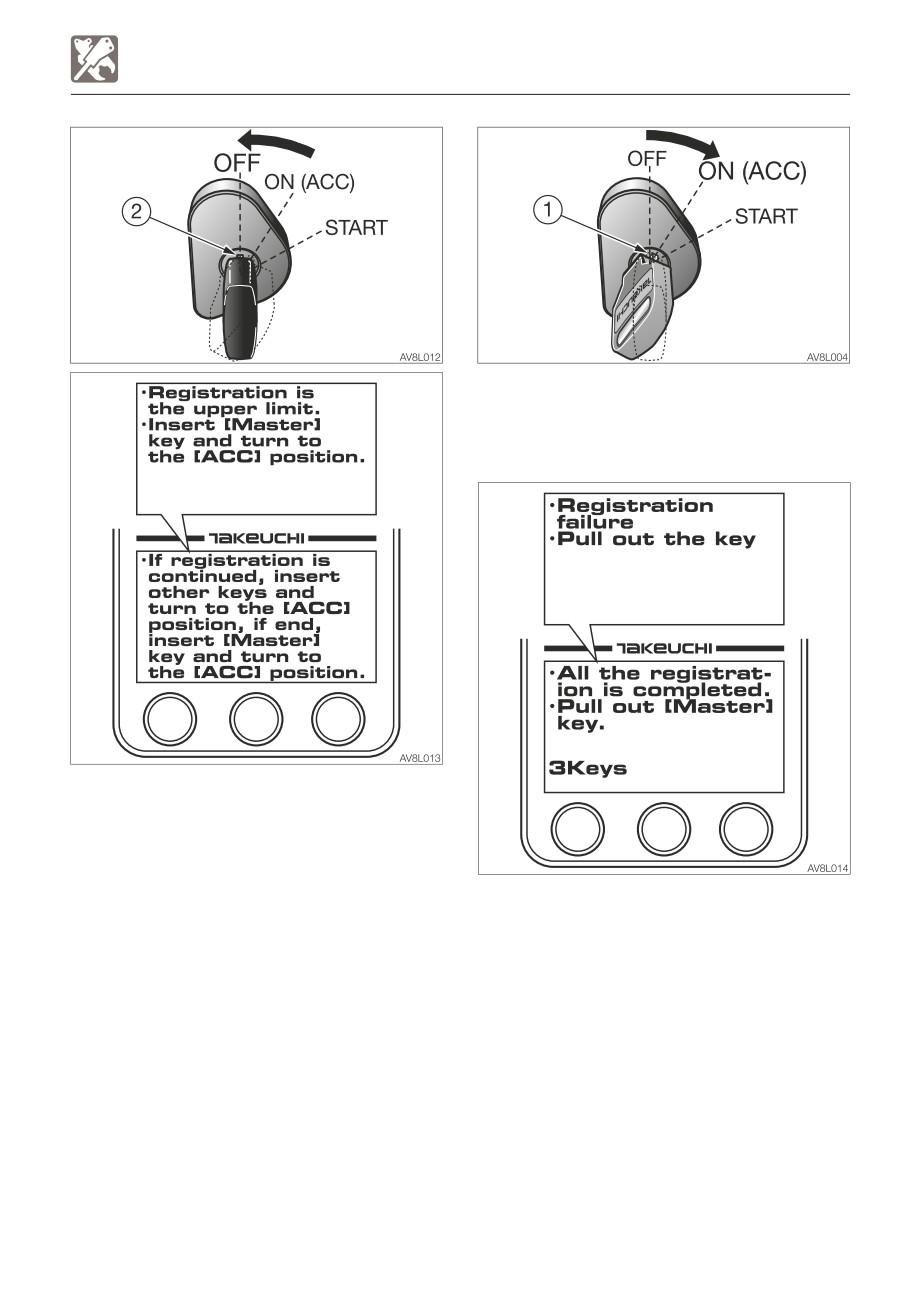

8. Insert the master key (1) into the starter

switch and turn the key from the OFF to

the ON (ACC) position. Or, wait for five

minutes or more.

7. Turn the starter key (2) from the ON (ACC)

to the OFF position, and then remove it

from the starter switch.

To continue registration, repeat the steps

from Step 5.

To end registration, proceed to Step 8.

9. If any starter key has been registered, the

message “All the registration is completed”

appears. Turn the master key (1) from the

ON (ACC) to the OFF position, and then

remove it from the starter switch to

complete the registration.

If no starter key has been registered, the

message “Registration failure” appears,

and the registration information is returned

to the initial state.

8-19

OPTIONS

TAKEUCHI SECURITY SYSTEM

Deleting a registered starter key

The information of each registered starter

key can be deleted to cancel its ability to

start the engine.

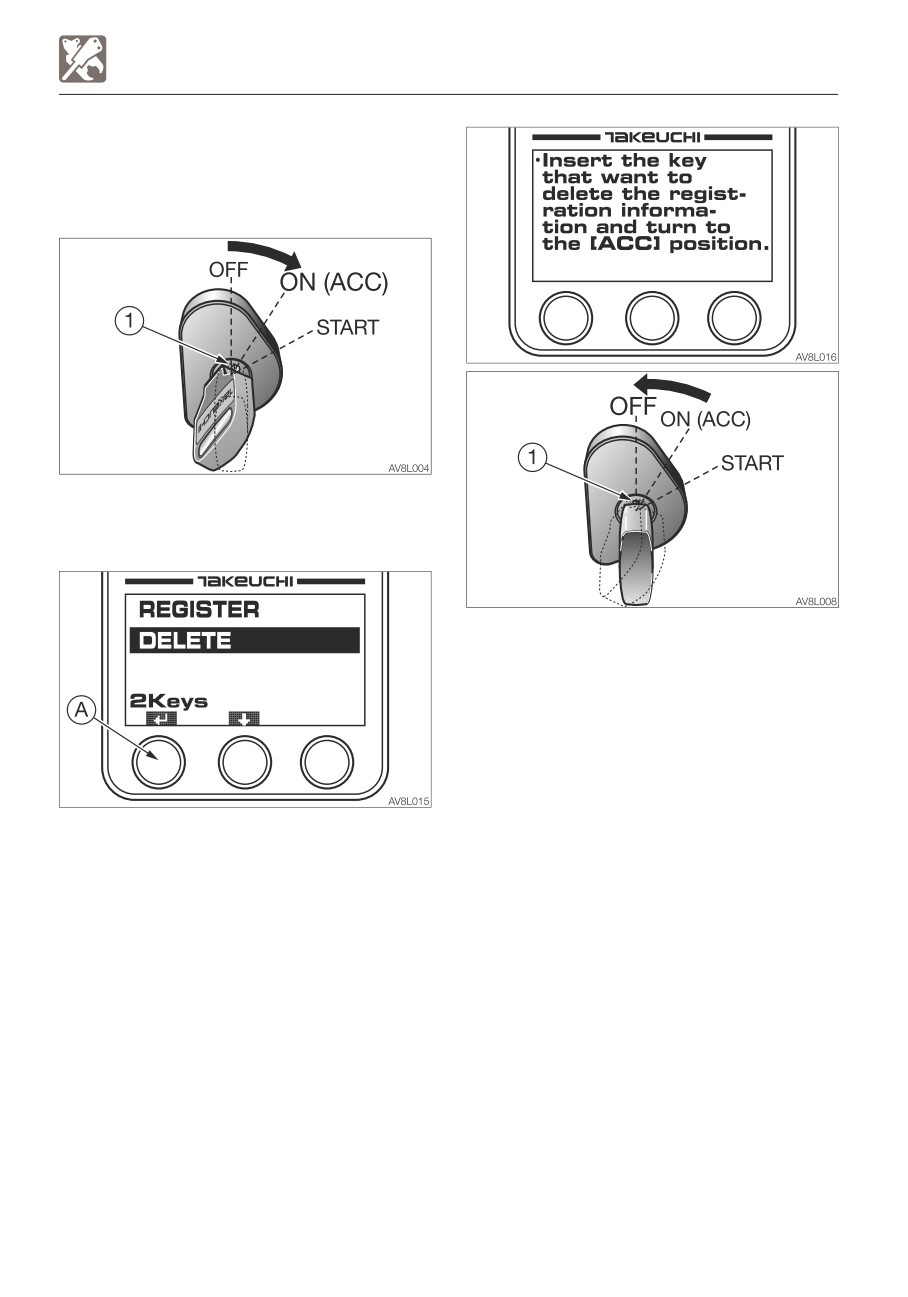

1. Insert the master key (1) into the starter

switch and turn the key from the OFF to

the ON (ACC) position.

3. When the display shown as the illustration

appears on the LCD, turn the master key

(1) from the ON (ACC) to the OFF position,

and then remove it from the starter switch.

Note: If the registered key is lost and you

want to delete all registration information,

please refer to STEP 3 (A) on page 8-17.

2. On the LCD, select “DELETE” and press

(A).

8-20

OPTIONS

TAKEUCHI SECURITY SYSTEM

4. Insert the starter key (2) to be deleted into

6. Turn the starter key (2) from the ON (ACC)

the starter switch and turn the key from

to the OFF position, and then remove it

the OFF to the ON (ACC) position.

from the starter switch.

To continue deletion, repeat the steps

from Step 1.

5. If the deletion is successful, the message

“Success” appears. This means that the

information registered for the starter key

(2) currently inserted has been deleted.

If the deletion fails, the message “Failure”

or “Authentication failure” appears on the

LCD. Remove the starter key, and then

repeat the steps from Step 1 again.

8-21

OPTIONS

TAKEUCHI SECURITY SYSTEM

IF THE MASTER KEY IS LOST

COUNTRIES WHERE THE SYSTEM CAN

BE USED

If you lose your master key, contact your

service or sales dealer for assistance.

To use the Takeuchi Security System, “radio

wave authentication” must be obtained in the

country where the system is to be used.

The system can be used in the countries

listed below, as of January 2017. Do not use

the system in other countries. For details on

how to disable the system, please contact

your service or sales dealer for assistance.

Countries where the system can be used:

Ireland, Italy, UK, Estonia, Austria, Holland,

Cyprus, Greece, Croatia, Sweden, Spain,

Slovakia, Slovenia, Czech, Denmark,

Germany, Hungary, Finland, France,

Bulgaria, Belgium, Poland, Portugal, Malta,

Latvia, Lithuania, Rumania, Luxemburg,

Iceland, Norway, Liechtenstein,

Switzerland, Turkey

8-22

Declaration of Conformity

We herewith declare that following named machine, based on its conception and design

and in the form brought into service is in accordance with the relevant, basic safety and

health requirements of the following EU directives. In case of any alteration of the

machine not coordinated with us, this certificate loses its validity.

Designation of the machine Compact Excavator

Manufacturer

TAKEUCHI MFG. CO., LTD

205 Uwadaira, Sakaki-machi, Hanishina-gun, Nagano

389-0605, Japan

Model

TB225

Engine type

3TNV82A-BSTB

Engine power

16.5 kW @ 2200 rpm

The machine is in accordance with the requirements of EU directives:

1) Machine directive 2006/42/EC and appendix

2) Electromagnetic compatibility-regulation 2014/30/EU and appendix

3) Noise directive 2000/14/EC (Evaluation procedure according to appendix VI),

2005/88/EC and appendices.

4) Regulations on engine emissions: None.

Harmonized norms: EN474-1:2006+A4:2013, EN474-5:2006+A3:2013.

Compiler of the technical files:

Daniel Bailli

Parc d’Activités des Béthunes

3, avenue de la Mare 95310 SAINT OUEN L’AUMONE

CS 29258 - SOA

Issued in Sakaki, Japan

Akio Takeuchi, President

Takeuchi Mini excavator TB225 (No.122500005~). Operator's Manual (2019) - page 7
