Takeuchi Mini Excavator TB260 (S/N 126000002~, S/N 126100003~). Operator's Manual - page 8
SPECIFICATIONS

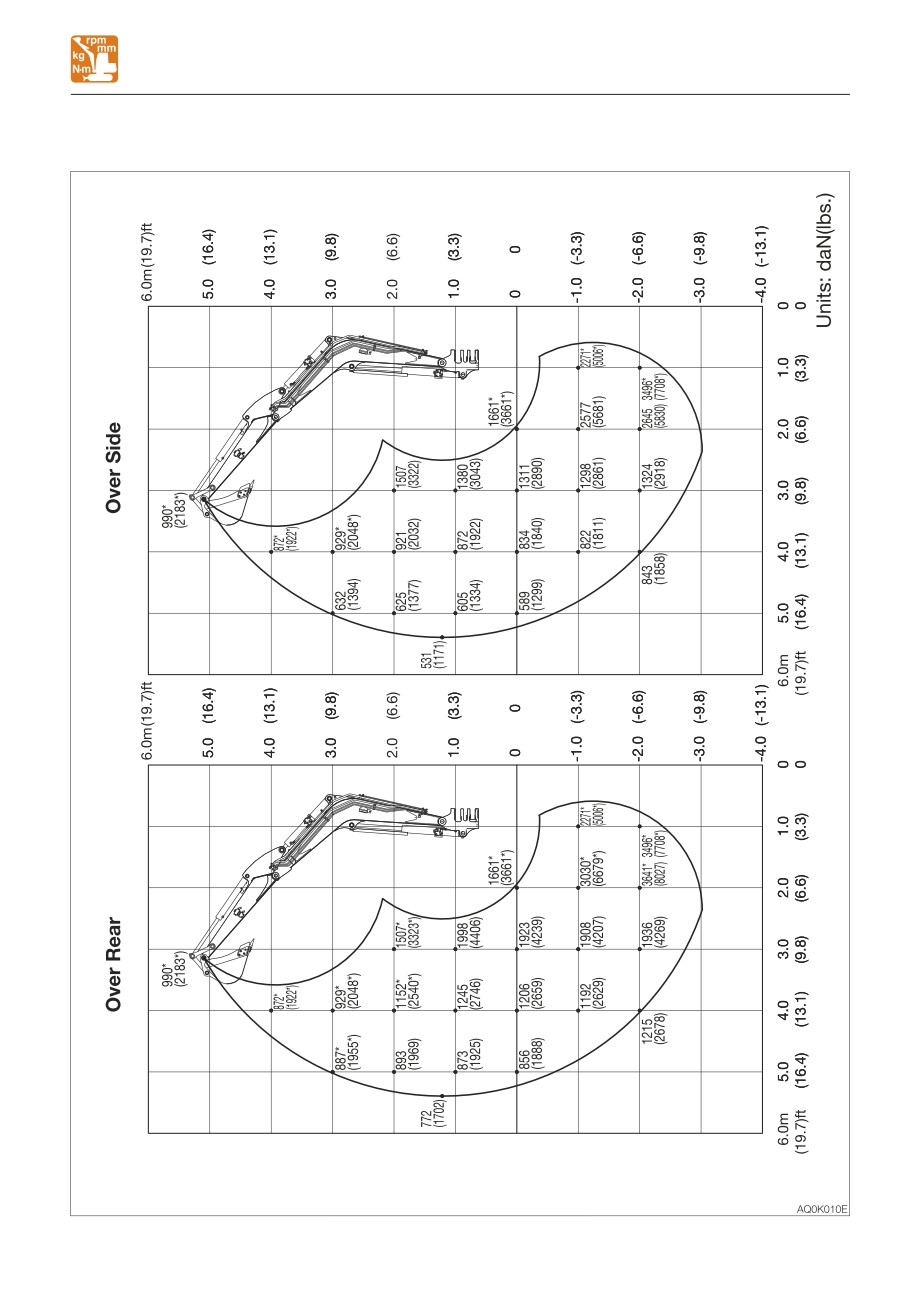

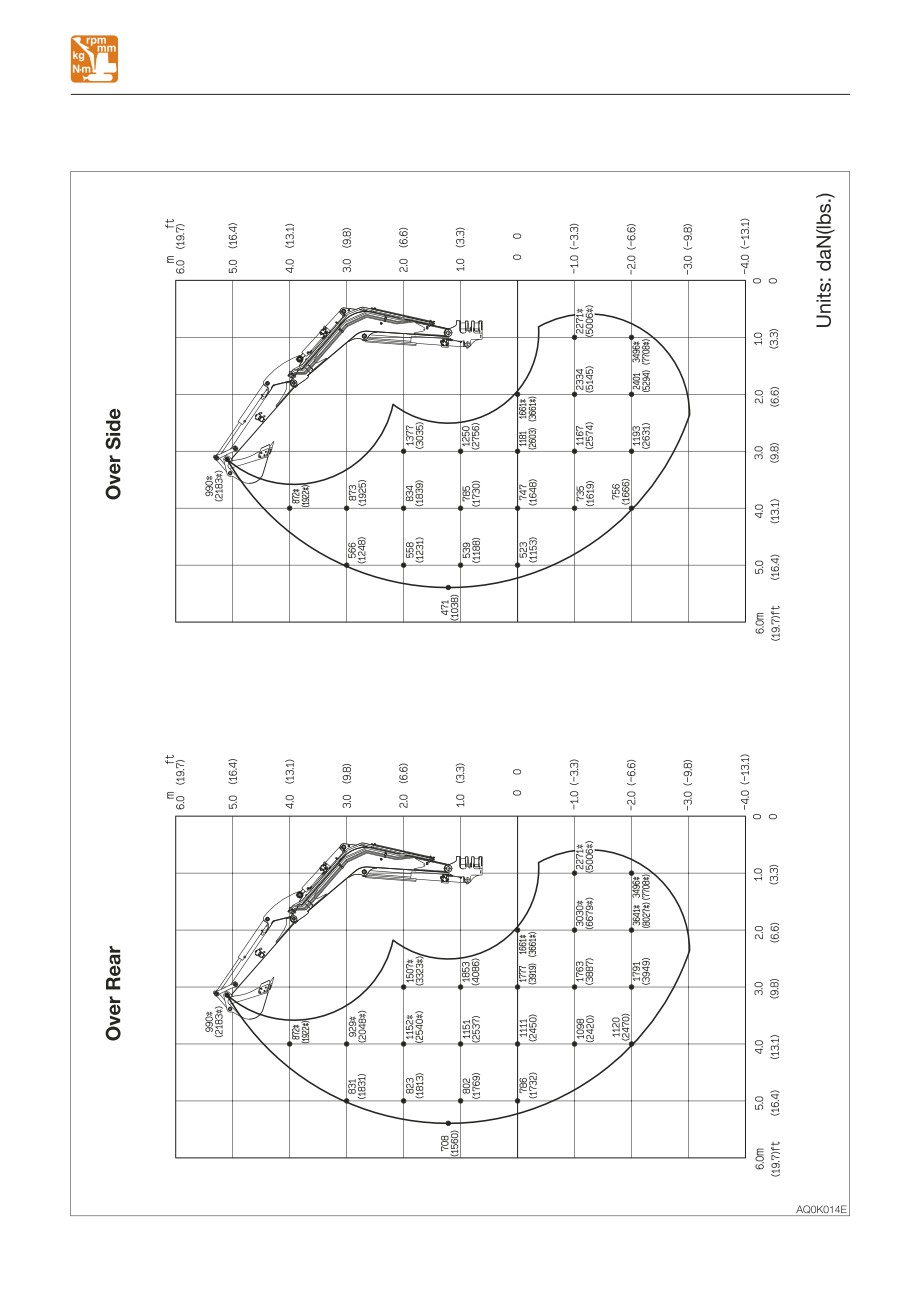

LIFTING CAPACITIES
<Cab> Long arm (Applicable machine models 126100003 or later)
7-17
SPECIFICATIONS

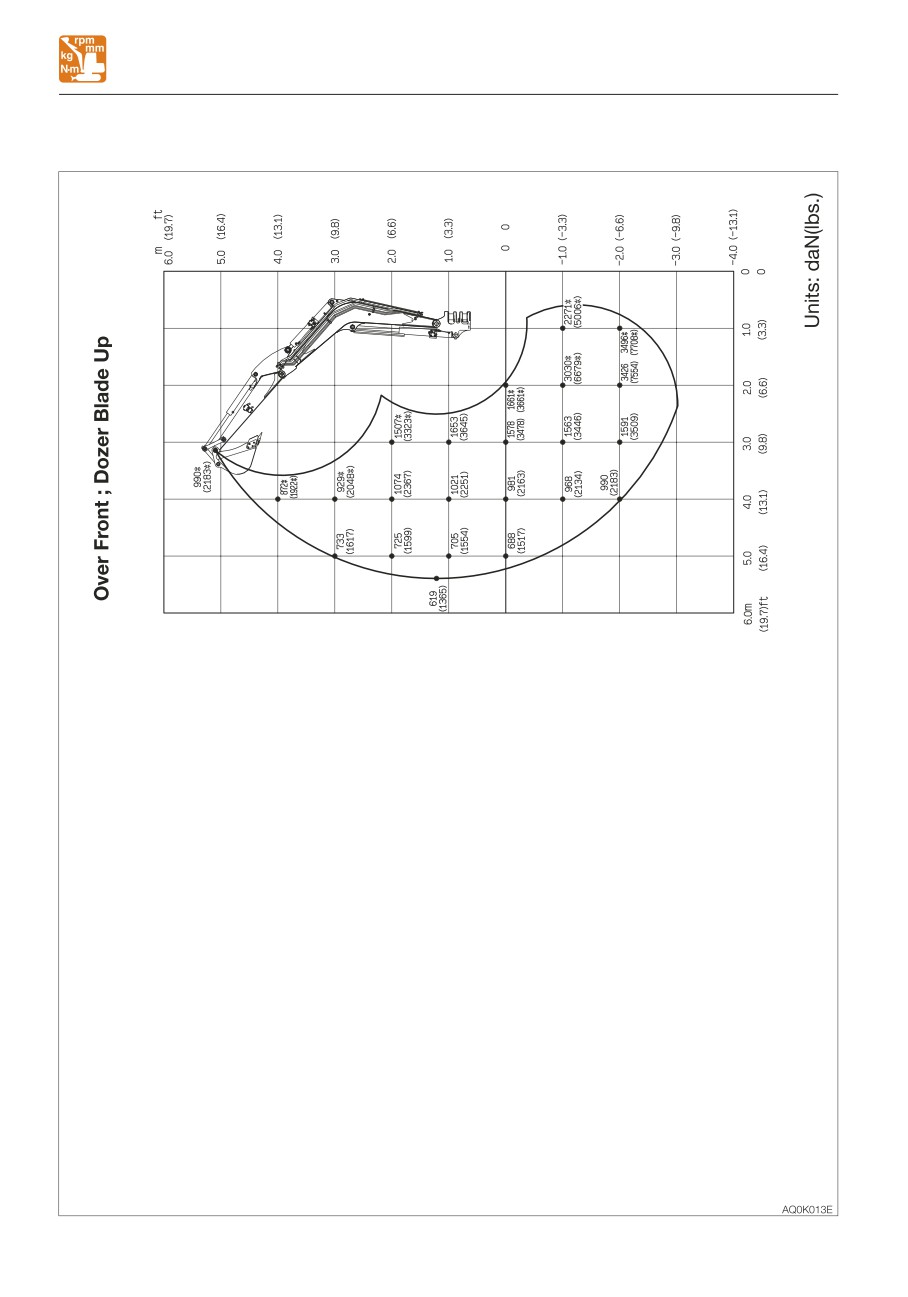

LIFTING CAPACITIES
<Canopy> Middle arm (Applicable machine models 126100003 or later)
7-18
SPECIFICATIONS
LIFTING CAPACITIES
<Canopy> Middle arm (Applicable machine models 126100003 or later)
7-19
SPECIFICATIONS

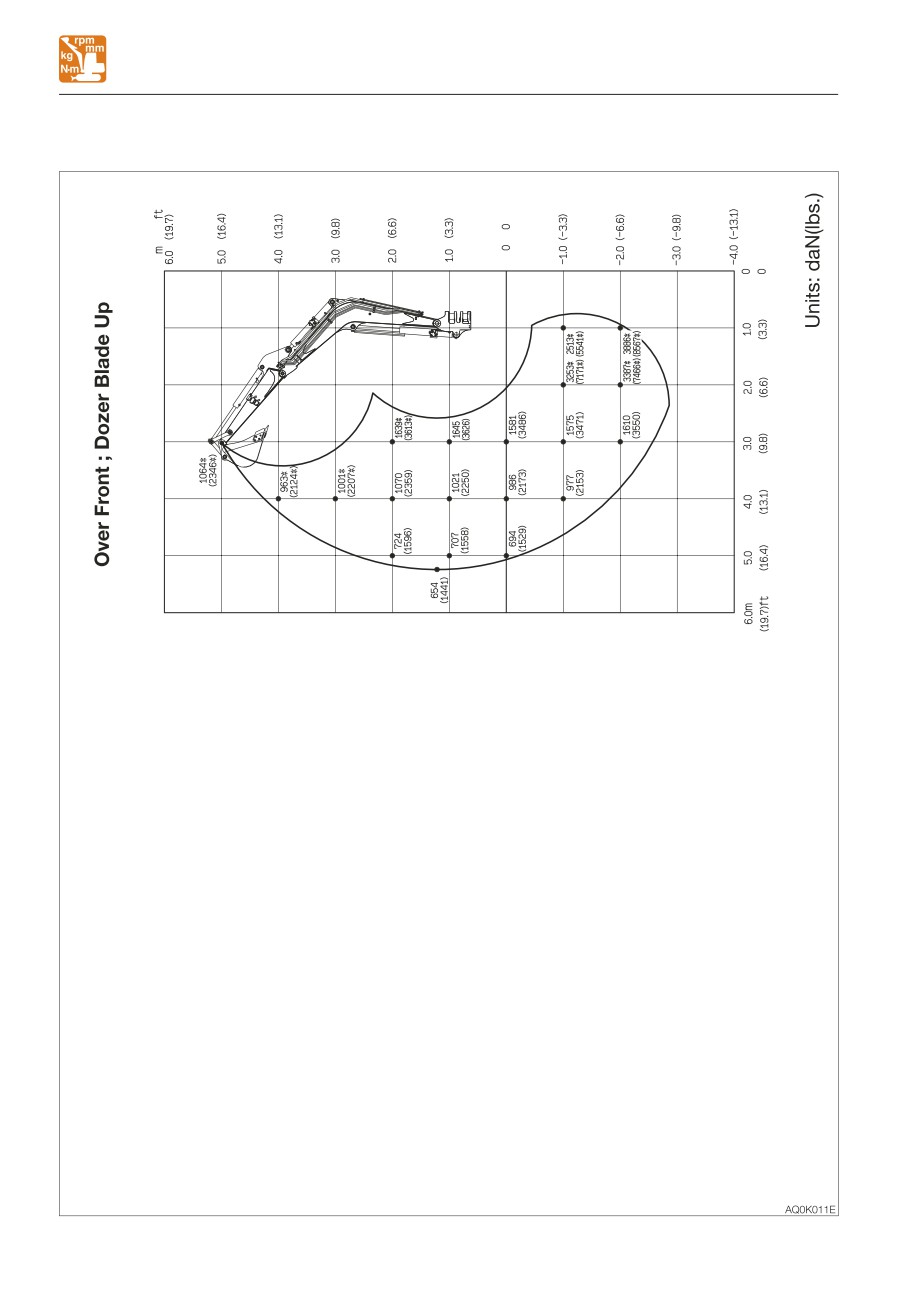

LIFTING CAPACITIES
<Canopy> Long arm (Applicable machine models 126100003 or later)
7-20
SPECIFICATIONS
LIFTING CAPACITIES
<Canopy> Long arm (Applicable machine models 126100003 or later)
7-21
7-22
OPTIONS
8-1
OPTIONS
GENERAL PRECAUTIONS
• Use the proper procedure when
GENERAL PRECAUTIONS
mounting a boom or arm; otherwise
SAFETY PRECAUTIONS
serious damage could result. Consult
your sales or service dealer for help.
When removing or installing an
attachment or optional part, take the
CAUTIONS WHEN INSTALLING
following precautions.
ATTACHMENTS
• Consult with Takeuchi before installing
an optional attachment.
Be sure to perform a test operation after an
• Do not use any attachments not
optional or other special attachment has
approved by Takeuchi. Doing so may
been replaced. Inspect the hydraulic oil level
cause safety problems. Or, it may
and recharge it as necessary. Consult your
adversely affect the machine’s operation
sales or service dealer for detailed
or service life.
procedures on installing/removing
• We will not be held responsible for any
attachments.
injuries, accidents or damage to its
products caused by the use by a non-
approved attachment.
• Select a firm, level work area. Also, be
sure to park in a well ventilated place.
• Clear obstacles and dangerous objects,
and clean up spilled fuel immediately.
• When hoisting, be sure to designate a
person to act as a signalman.
Follow the instructions of the signalman
regarding the procedure and measures.
• When it is necessary to temporally
place a heavy object or an attachment
on the ground during removal or
installation, be sure to place it in a
stable position.
• Keep everyone out of the area when
hoisting. There is a hazard of objects
falling or contacting with people in the
area.
• Use a crane to move heavy objects (25
kg (55 lb.) or greater).
• Before removing a heavy object, be sure
to put a support to it. When lifting with a
crane, pay attention to the center of
gravity of the load to keep the machine
in balance.
• Do not operate the machine while the
load is lifted by a crane stand.
8-2
OPTIONS
GENERAL PRECAUTIONS
CAUTIONS WHEN OPERATING

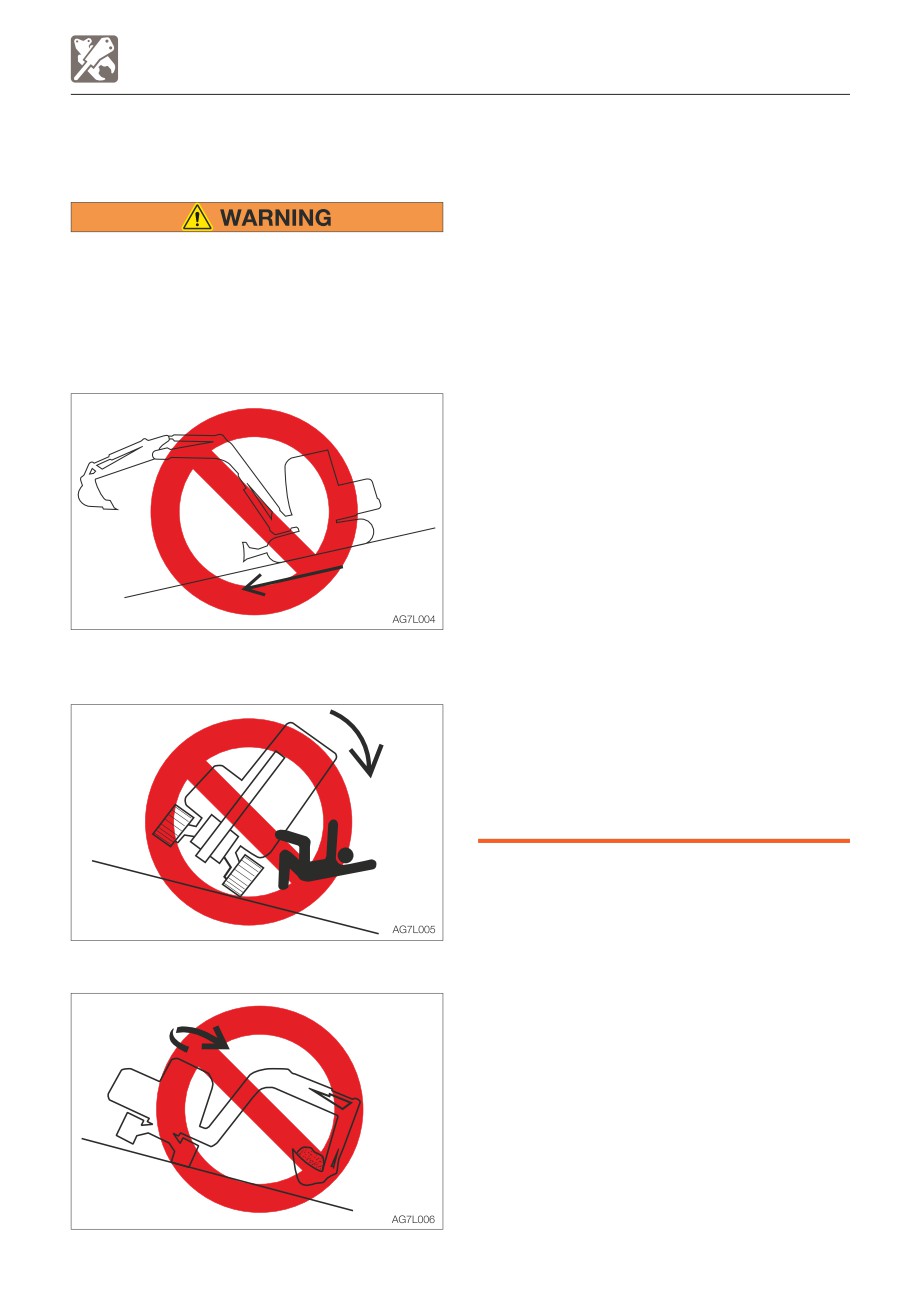

• Slewing on slopes
ATTACHMENTS
• If there is a heavy attachment is
installed, the machine takes longer
distance than usual to come to a
complete stop when the stopping
Long attachments reduce stability of the
operation is performed. Carefully judge
machine. The machine may tip over if it
the distance so as not to bump into an
loses the balance when traveling or
object around the machine. Keep a safe
slewing on slopes.
distance from surrounding obstacles.
Never perform the operations listed below
When a heavy attachment is installed,
as they are extremely dangerous.
natural drop (the gradual dropping of
the attachment under its own weight
when it is stopped in midair) increases.
• The machine can tip over more easily in
the lateral direction than in the
longitudinal direction.
· Do not slew sideways with a heavy
load at the how attachment. In
particular, do not slew sideways on
slopes.
· The attachment is heavier for
machines equipped with breakers or
crushers than for machines equipped
• Traveling down the slopes with the
with the standard bucket. Do not
attachment raised
operate such machines sideways,
especially digging downhill.
• When a long arm is installed, the
operating range increases. Carefully
judge the distance so as not to bump
into an object around the machine.
Keep a safe distance from surrounding
obstacles.
• Traveling across slopes
8-3
OPTIONS
ATTACHMENT COMBINATION TABLE
ATTACHMENT COMBINATION TABLE
The table below shows which bucket should be installed when the machine is using a
standard arm, middle arm or long arm. Select a proper bucket by following the table.
• Consult with Takeuchi before installing an optional attachment.
• Do not use any attachments not approved by Takeuchi. Doing so may cause safety
problems. Or, it may adversely affect the machine’s operation or service life.
• We will not be held responsible for any injuries, accidents or damage to its products
caused by the use by a non-approved attachment.
• The swing stopper must be installed when a bucket wider than a 640W (standard)
bucket is installed. Failure to do so may result in the bucket hitting the machine body.
√ :Can be used.
∆ :Can be used only for light operations (digging and loading of dry and loose soil or mud)
—:Cannot be used.
Total bucket mass = Bucket mass + Heaped bucket load (specific gravity: 1.8)
Bucket cutting
Middle arm
Long arm
Rated capacity
Bucket
width
1620 mm
1780 mm
m3 (cu.yd.)
mm (inch)
(63.8 in.)
(70.1 in.)
640 W (S.T.D.)
0.168
(0.2)
640 (25.2)
√
√
Total bucket weight= Within 440 kg
Within 640 (25.2)
√
√
(970 lb.)
8-4
OPTIONS

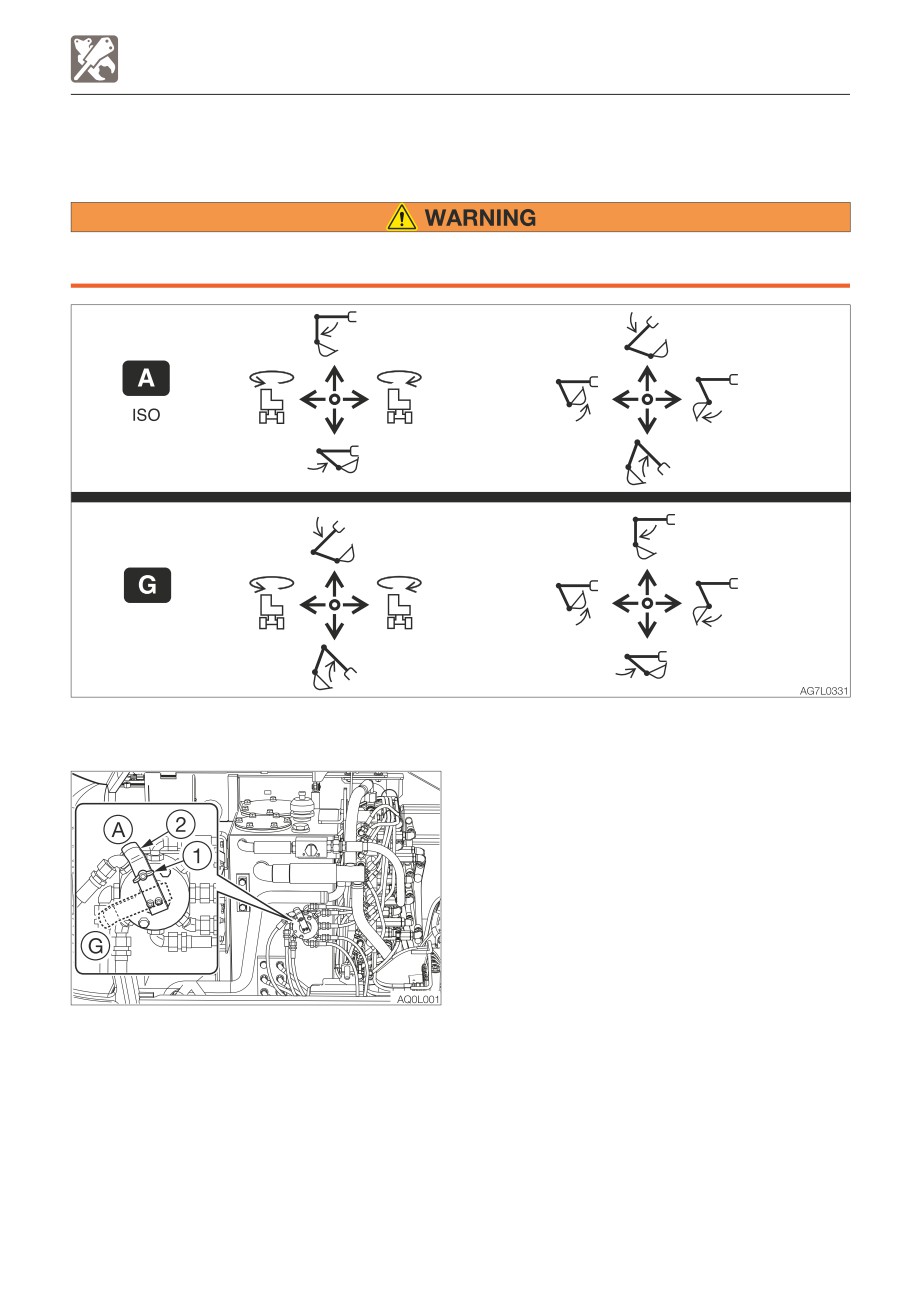

SELECTING A LEVER PATTERN
SELECTING A LEVER PATTERN
The operating pattern of the left and right operating levers can be changed.
Before starting the engine, check the selector to see which operating pattern the left
and right operating levers are set.
SWITCHING THE LEVER PATTERN
1. Park the machine on a flat and rigid
ground, and stop the engine.
2. Open the right side cover.
3. Loosen the wing bolt (1).
4. Turn the selector valve lever (2) to change
the pattern.
5. Tighten the wing bolt (1) and fasten the
lever (2) in place.
6. Close the right side cover.
7. Confirm the lever pattern.
(A) : ISO pattern
(G) : G pattern
8-5
OPTIONS

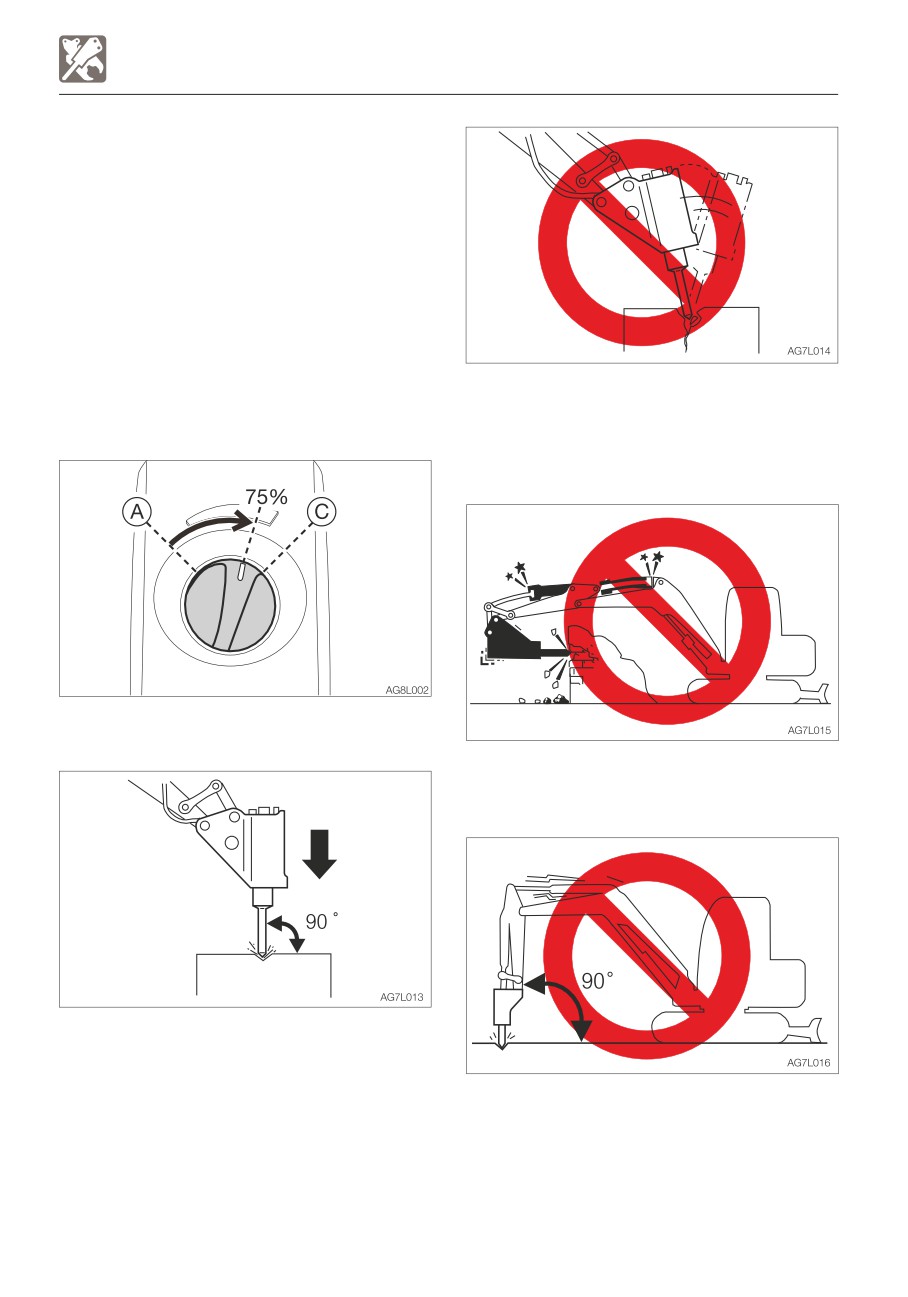

HYDRAULIC BREAKER
HYDRAULIC BREAKER
For handling of the breaker, read the
hydraulic breaker’s manual, provided
separately.
IMPORTANT: When installing an
attachment, make sure that it is
appropriate for the machine being used.
Contact your sales or service dealer for
advice on selecting attachments.
• Do not pry with the chisel or do not pry
while pounding.
CAUTIONS ON OPERATING
• Do not move the chisel while pounding.
• Do not pound continuously for over 30
seconds on the same surface.
• Start the engine and run it at 75% of the
maximum speed.
• Do not pound with the cylinder fully
extended or retracted (at the stroke end).
Leave a margin of at least 50mm(2 in).
• Pound with the chisel pressed
perpendicular to the surface to be
pounded.
• When pounding, press the chisel properly
• Do not pound with the arm placed
against the object to be broken so as to
perpendicular to the ground surface.
avoid pounding the air.
8-6
OPTIONS
HYDRAULIC BREAKER
REPLACING THE HYDRAULIC OIL
REGULARLY
When a hydraulic breaker is used, the oil
deteriorates more quickly than that used for
a usual operation. Be sure to replace the
hydraulic oil and the return filter elements.
• Failure to replace these in time can lead to
damage to the machine and the breaker
hydraulic system. To improve the service
life of the hydraulic systems, be sure to
• Do not drop the breaker itself on the object
replace the hydraulic oil and return filter
to be broken in order to break it.
element after the number of hours shown
• Do not move objects to be broken or rocks
on the diagram below.
with the breaker itself.
• When replacing the hydraulic oil, clean the
• Slew the machine occasionally to cool the
suction strainer.
engine.
• If a hydraulic hose is vibrating abnormally,
Replacement interval (hours)
nitrogen gas may be leaking from the
accumulator. Ask for an inspection early.
Item
Hydraulic oil
Filter element
1st time
—
25
2nd time
—
100
Periodically
1200 (600)
200
When the breaker operating ratio is 100%.
(
): When using conventional antiwear
hydraulic oil.
8-7
OPTIONS
TRAVEL ALARM
Fuse layout and circuits protected
TRAVEL ALARM
The alarm sounds while the machine is
Protected
traveling and stops when the machine stops
Capacity
Symbol
circuit
traveling.
If the alarm does not sound when the
5A
Switch lighting
machine travels, the fuse may be blown.
Inspect the fuses.
10A
Horn
5A
Starter switch
If the fuse blows again soon after
10A
Immobilizer
replacement, then the electric system is
likely faulty. It may pose a fire hazard if
not properly repaired. Contact your sales
25A
Light
or service dealer for advice.
10A*
Wiper
1. Turn the starter key to the OFF position to
20A*/15A
Lever lock
stop the engine.
Controller
15A
power supply,
Travel alarm
OX controller
20A
power supply
Cab interior
25A*
power supply
25A
Option (1)
10A*
Air conditioner
Engine ACC
2. Open the fuse box cover (1).
<Applicable
3. Check for any blown fuses (2).
machine
30A*
models
126000002 or
later>
10A
Feed pump
Air conditioner
30A*
blower motor
25A
Cab light
*:
Cab
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.
8-8
OPTIONS
OPTIONAL EQUIPMENT MASS
OPTIONAL EQUIPMENT MASS
Applicable machine
Applicable machine
models 126000002
models 126100003
Standard machine mass kg (lb.)
or later
or later
(Not including operator)
Cab/Rubber crawlers
5660 (12480)
OPTION
Steel crawler
175 (385)
Segmental rubber crawler
176 (388)
Center guide
10 (20)
Angle blade
—
130 (285)
Long arm
13 (30)

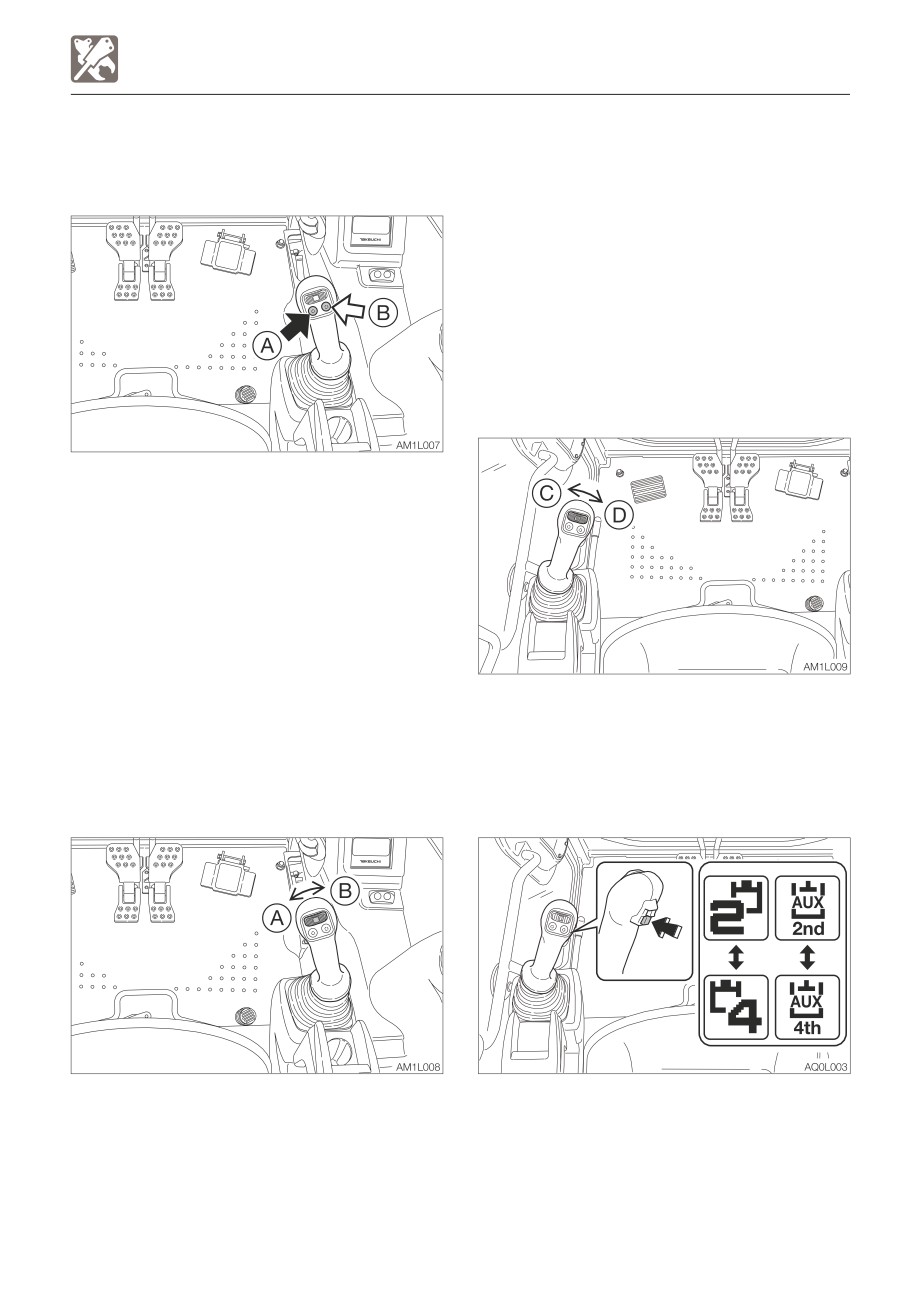

Auxiliary 3rd + Auxiliary
Auxiliary hydraulic lines
13 (30)
4th.
Roof guard (Level II: ISO 10262)
47 (104)

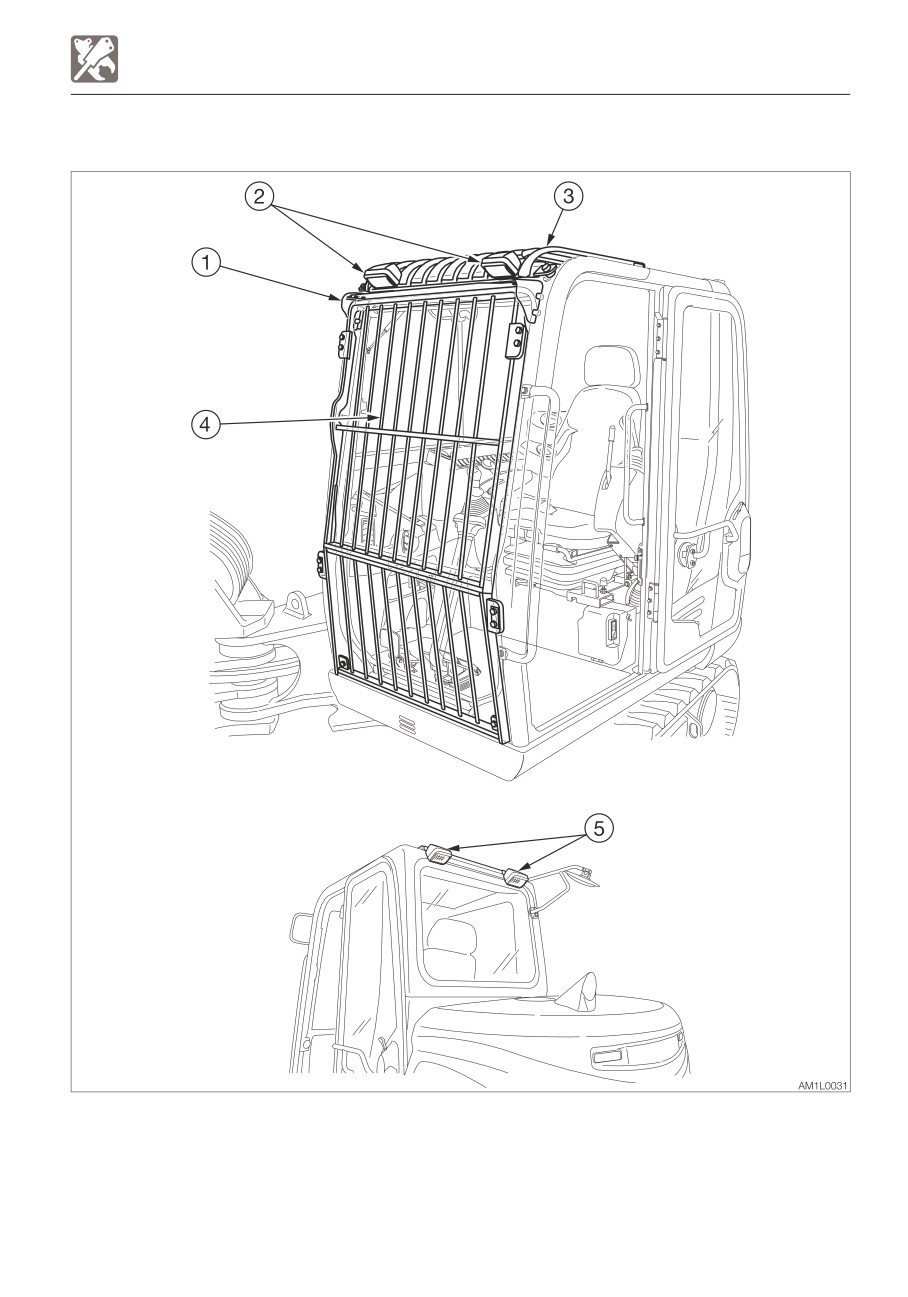

Front guard (Level II: ISO 10262)
42 (91)
Units: kg (lb)
*: Mass of optional equipment is added to the standard machine mass.
*: This table only contains the optional equipment of 10kg (20lb) or more in mass.
8-9
OPTIONS
BIODEGRADABLE OIL
4. Bleed the air from the hydraulic oil system.
BIODEGRADABLE OIL
5. Operate the hydraulic devices for 30
Biodegradable oil is a new type of hydraulic
minutes.
oil that is decomposed into carbon dioxide
6. Drain the biodegradable oil from the tank
and water by microorganisms in the soil and
and cylinders.
water. It is highly safe for living organisms
7. Replace the hydraulic oil return filter with a
and offers advantages in term of
new filter.
environmental protection.
8. Repeat steps 3 and 4.
• Recommended biodegradable oil: Mobile
9. Operate the hydraulic devices for 30
EAL Envirosyn 46H (an ester synthetic oil).
minutes.
When replacing the hydraulic oil with
10. Drain the biodegradable oil from the tank
biodegradable oil, use the above or an
and cylinders.
equivalent oil.
11. Repeat steps 3 and 4.
Note that other oils, even other brands of
12. Operate the hydraulic devices for 1 hour.
ester synthetic oils, may damage O-rings,
13. Drain the biodegradable oil from the tank
packings and seals. Takeuchi products
and cylinders.
shipped with the optional biodegradable oil
14. Replace the return filter with a new filter.
are shipped with the above brand of oil.
15. Repeat steps 3 and 4.
• When switching from a mineral oil to a
16. Operate the hydraulic devices, then
biodegradable oil, the parking brake torque
check for oil leakage.
decreases by about 30%.
There is no need to flush the hydraulic oil
system when switching from biodegradable
to mineral hydraulic oil.
REPLACING THE HYDRAULIC OIL WITH
BIODEGRADABLE OIL
Mixing mineral oil with biodegradable oil will
result in a decrease of the hydraulic oil’s
performance as well as a decrease in
biodegradability and safety. The hydraulic oil
system must be flushed as described below
before supplying the biodegradable oil. This
operation is dangerous and requires
experience. Have it performed by a Takeuchi
sales or service outlet.
Flushing
To be performed by a Takeuchi sales or
service outlet
1. Drain the hydraulic oil (mineral oil) from the
hydraulic oil tank and clean the inside of
the tank and suction strainer.
Refer to “Replacing the hydraulic oil and
cleaning the suction strainer”.
2. Remove the cylinder hoses and drain the
hydraulic oil (mineral oil) from inside the
cylinders.
3. Supply new biodegradable oil to the
hydraulic oil tank.
8-10
OPTIONS
CAB OPTIONS
CAB OPTIONS
1. Rain guard
2. Front light
3. Roof guard (Level II: ISO 10262)
4. Front guard (Level II: ISO 10262)
5. Rear light
8-11
OPTIONS

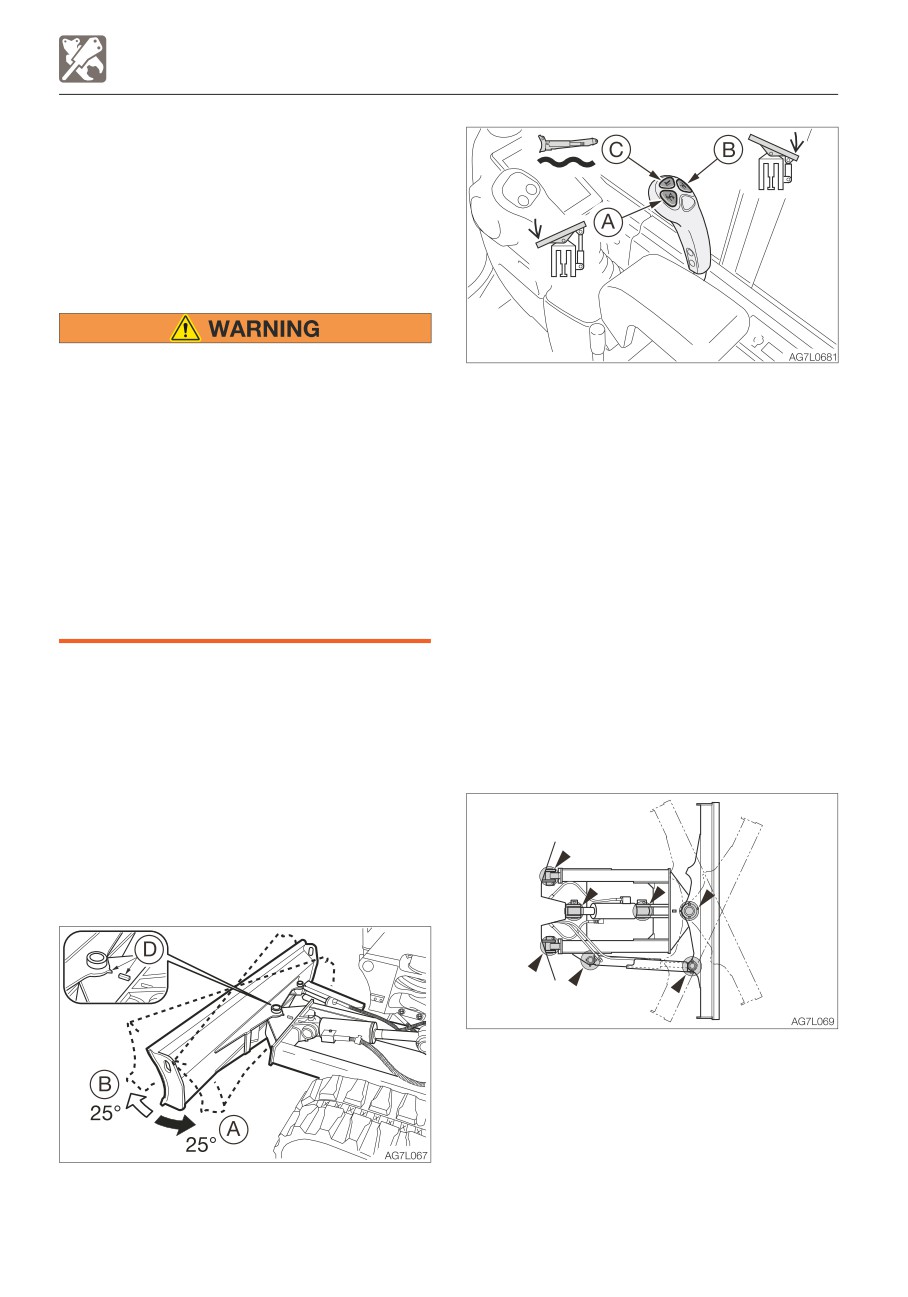

ANGLE DOZER BLADE <APPLICABLE MACHINE MODELS 126100003 OR LATER>
ANGLE DOZER BLADE
<APPLICABLE MACHINE
MODELS 126100003 OR
LATER>
• Do not press the float button while the
machine is raised by the dozer blade.
Button (A)
Left angle (0 to 25°)
Doing so will cause the machine to fall.
Button (B)
Right angle (0 to 25°)
If you must work beneath the raised
The dozer blade angle is
machine, always use a secure support
increased/decreased between
to keep the machine raised.
0 and 25° as long as the
• Do not press the float button while the
button is pressed.
dozer blade is raised. Doing so will
To position the dozer blade at
cause the dozer blade to fall. Lower the
a right angle, align the
dozer blade to the ground before
matching marks (D) as shown
pressing the float button.
in the figure.
• Do not travel forward while the dozer
blade is in the float mode.
Float operation
Button (C)
Float mode
IMPORTANT: Do not raise the machine by
To cancel the float mode,
using the angled dozer blade. Or, the
press the button again.
dozer blade may be damaged due to the
load concentrated onto a point on the
Daily inspection (every 10 hours)
dozer blade.
Lubricating
This dozer blade can be angled (to 25° right
or left). Also, it can be used in the float
mode.
Angle operation
1. Lower the working equipment to the
ground and stop the engine.
2. Use the grease gun to lubricate the grease
fitting.
3. Wipe off the excess grease.
8-12
OPTIONS
ANGLE DOZER BLADE <APPLICABLE MACHINE MODELS 126100003 OR LATER>
SPECIFICATIONS
Item
Rubber crawlers
A
Dozer blade width
2000 (78.7)
B
Dozer blade height
430 (17)
C
Dozer blade distance to axis of rotation
1930 (76)
D
Dozer blade maximum lifting
445 (17.5)
E
Dozer blade maximum lowering
450 (17.6)
F
Angle degree (Left/Right)
25°
Unit: mm (inch)
8-13
OPTIONS
OPERATING LEVER SWITCH KIT 1
engine revolutions to low idling whenever the
OPERATING LEVER SWITCH
engine is started.
Cancel the deceleration mode by pressing
KIT 1
the deceleration button as necessary.

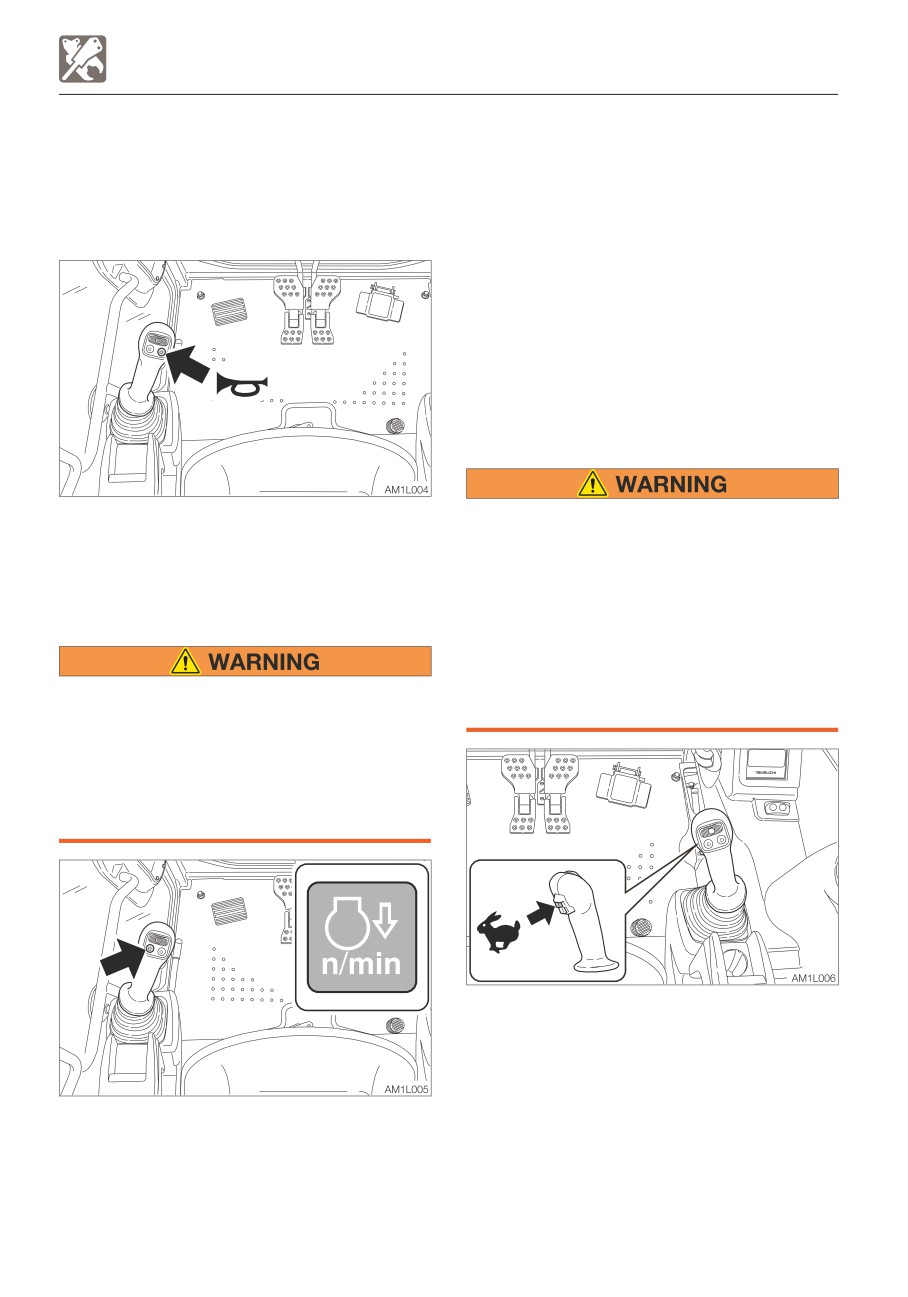

HORN BUTTON
Note: This deceleration button is capable of
decreasing the engine speed and reducing
the fuel consumption, with a simple
operation, in a situation such as when little
engine output is required and thus the
operating or the travel levers are in neutral.
TRAVEL SPEED BUTTON
Press the button situated on the left
When a load greater than a set value is
operating lever to blow the horn.
applied during traveling in 2nd (high)
speed, the speed will automatically slow
down to 1st (low) speed. When the load
DECELERATION BUTTON
becomes lighter, the speed will increase
and return to 2nd (high) speed. It should
be noted that the travel speed changes
depending on the load condition (for
Before operating the deceleration button,
machines with the automatic travel shift-
set the operating lever to the neutral
down system).
position and take your foot off the pedals.
If the deceleration button is pressed while
driving, the machine’s operating speed
will abruptly change to result in a
dangerous situation.
Press this switch to set the travel speed to
2nd (high) speed. Press it again to return to
1st (low) speed.
Press this button on the left operating lever
to lower the engine speed to low idling.
Press the button again to return to the
engine speed set with the throttle controller.
For safety reasons, it is designed that the
deceleration function is activated to set the
8-14
OPTIONS
OPERATING LEVER SWITCH KIT 1

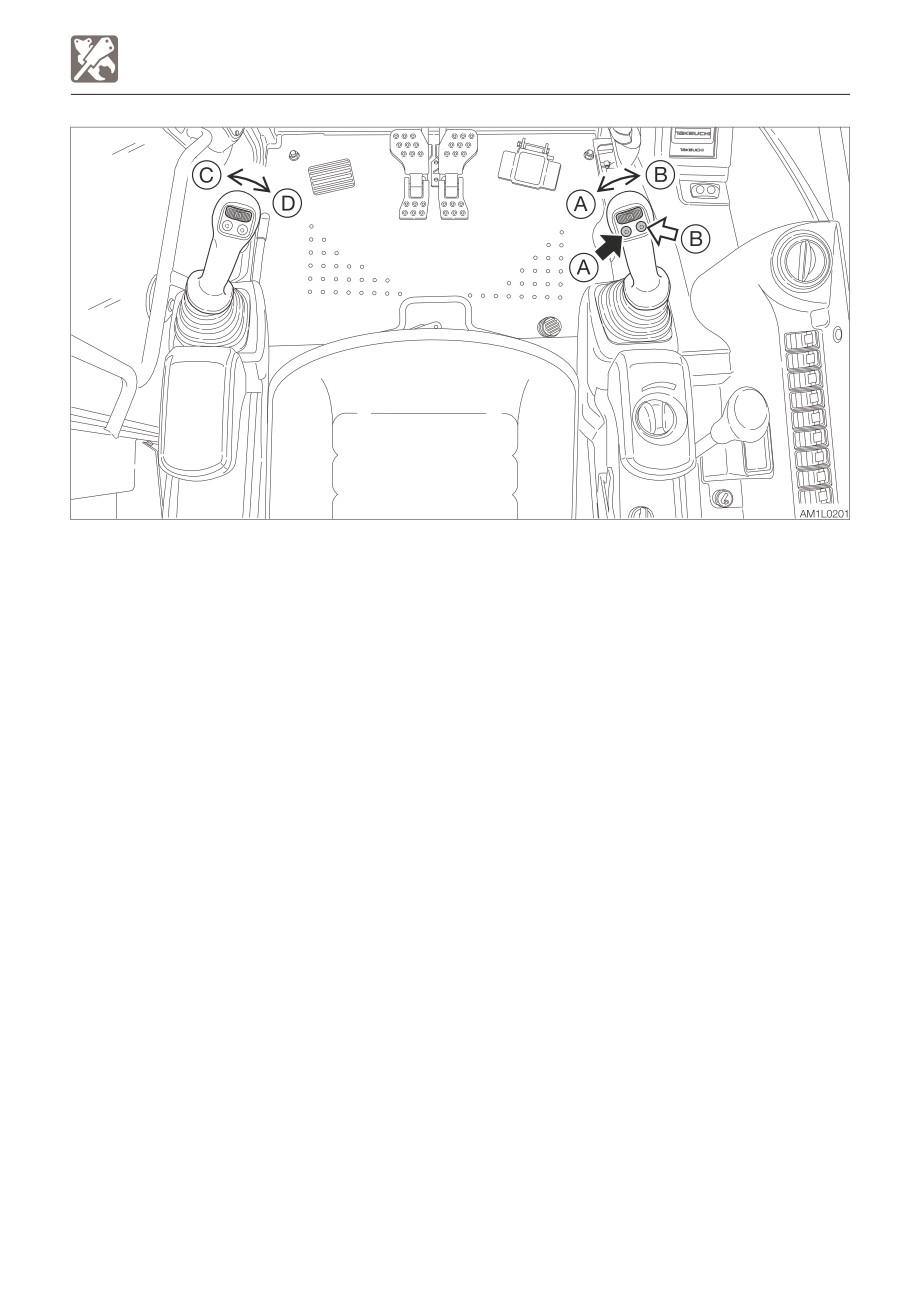

AUXILIARY 1ST SWITCHES
Refer to “Auxiliary hydraulic lines” on pages
2-76 to 2-80.
Auxiliary hydraulic buttons
AUXILIARY 2ND/4TH SWITCH
Slider switch
(Proportional control)
Proportional control allows for slow-to-fast/
fast-to-slow movement of attachment.
Example: If you move the slider switch half
way, the attachment will move at
approximately one-half the speed.
Press those buttons to control the flow of the
oil in the first auxiliary hydraulic lines.
• Proportional control of the auxiliary
hydraulic circuit is not possible.
(A)
Hydraulic oil flows to the left auxiliary
line (a).
(B)
Hydraulic oil flows to the right auxiliary
line (b).
Slider switch
(Proportional control)
Move this switch to control the flow of the oil
Proportional control allows for slow-to-fast/
in the second auxiliary hydraulic lines.
fast-to-slow movement of attachment.
(C):
Hydraulic oil flows to the left auxiliary
Example: If you move the slider switch half
line (c).
way, the attachment will move at
(D):
Hydraulic oil flows to the right auxiliary
approximately one-half the speed.
line (d).
Move this switch to control the flow of the oil
To use the auxiliary 4th hydraulic line, press
in the first auxiliary hydraulic lines.
the auxiliary 2/4 select button to change to
(A)
Hydraulic oil flows to the left auxiliary
the operation of the auxiliary 4th.
line (a).
Refer to “Auxiliary hydraulic lines” on pages
(B)
Hydraulic oil flows to the right auxiliary
2-76 to 2-80.
line (b).
8-15
OPTIONS
OPERATING LEVER SWITCH KIT 1

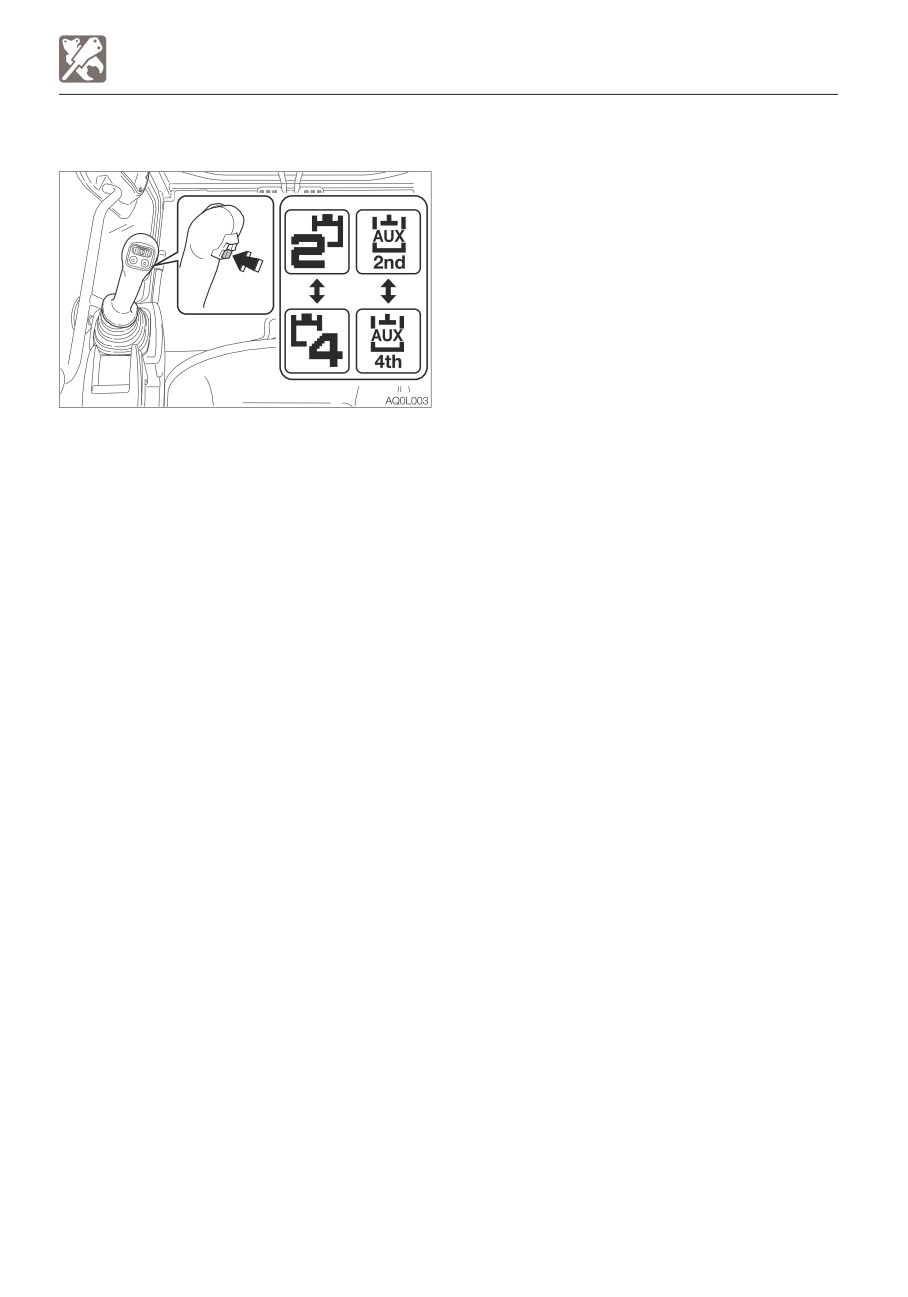

AUXILIARY 2/4 SELECT BUTTON
This button is used to change from the
second auxiliary operation to the fourth
auxiliary operation.
Pressing this button displays the second
auxiliary on the display to indicate that the
second auxiliary operation is enabled.
Pressing this button one more time displays
the fourth auxiliary on the display to indicate
that the fourth auxiliary operation is enabled.
The actual operation is performed with the
auxiliary 2nd/4th switch (slider switch).
8-16
OPTIONS
OPERATING LEVER SWITCH KIT 1
Operating
Releasing the residual pressure
Press those buttons to control the flow of the
After the auxiliary hydraulic circuits have
oil in the first/second auxiliary hydraulic lines.
been used, pressure remains in the circuits.
(A)
Hydraulic oil flows to left auxiliary line
This is called the residual pressure. Release
(a).
this residual pressure before disconnecting
(B)
Hydraulic oil flows to right auxiliary line
the lines.
(b).
Perform the residual pressure releasing
(C)
Hydraulic oil flows to left auxiliary line
within 10 minutes after the engine stopping.
(c).
1. Park the machine on a flat, rigid and safe
(D)
Hydraulic oil flows to right auxiliary line
ground.
(d).
2. Stop the engine.
Refer to “Auxiliary hydraulic lines” on pages
3. Lower the safety lock lever to the
2-76 to 2-80.
unlocked position.
4. Turn the starter switch to the ON position.
5. Press the auxiliary hydraulic switches
several times to release the residual
pressure in the auxiliary hydraulic circuitry.
8-17
First Published March 2013
No.43754
Eighth Published February 2015
OPERATOR’S MANUAL
TB260 Mini excavator
Edited and issued by TAKEUCHI MFG. CO., LTD.
Printed in Japan by STATION M Co., Ltd.
CALIFORNIA
PROPOSITION 65 WARNING
Diesel engine exhaust and some of its constituents are known to the State of California
to cause cancer, birth defects, and other reproductive harm.
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling battery.
EC-CONFORMITY CERTIFICATE
We herewith declare that following named machine, based on its conception and design
and in the form brought into service is in accordance with the relevant, basic safety and
health requirements of the following EC directives. In case of any alteration of the
machine not coordinated with us, this certificate loses its validity.
Designation of the machine Compact Excavator
Manufacturer
TAKEUCHI MFG. CO., LTD
205 Uwadaira, Sakaki-machi, Hanishina-gun, Nagano
389-0605, Japan
Model
TB260 <S/N 126000002~>
TB260 <S/N 126100003~>
Engine type
4TNV84T-BPTB
4TNV86CT-PTB
Engine power
34.3 kW @ 2400 rpm
35.5 kW @ 2400 rpm
The machine is in accordance with the requirements of EC regulations:
1) Machine directive 2006/42/EC and appendix
2) Electromagnetic compatibility-regulation 2004/108/EC and appendix
3) Noise directive 2000/14/EC (Evaluation procedure according to appendix VI),
2005/88/EC and appendices.
4) Regulations on engine emissions: 2004/26/EC and appendices.
Harmonized norms: EN474-1:2006+A1:2009, EN474-5:2006+A2:2012.
Complier of the technical files:
Hans Friedrich
Oliver Scharschmidt
Wilhelm Schafer Gmbh
68307 Manheim-Sandhofen GERMANY
Issued in Sakaki, Japan
Akio Takeuchi, President
