SANY Crawler Hydraulic Excavator SY215CLC (CUMMINS QSB6.7 engine). Shop Manual - page 5

Shop Safety

SY215C

2-14

2.2.16 Fire Extinguisher and Emer-

gency Exits

●

It is important to know where all emergen-
cy exits and fire extinguishing equipment
are located if a fire should occur in the
shop.

●

Before preparing for work, take time and
walk around the shop to make a mental
note of where all exits and

re equipment

are located. If you are performing repairs
in the

eld, always have a

re extinguisher

handy and within reach.

●

If you do not know how to use a

re extin-

guisher contact someone who can instruct
you in the proper use of this equipment.

2.2.17 Personal Protective Equipment

If your shop speci

es the use of safety equip-

ment, OSHA requires this equipment to be
used when on the shop floor or in the area
where this equipment is required.

Never allow personnel in the shop area with-
out the proper personnel protective equipment
even for a moment.

Always keep personnel protective equipment
in good condition and replace them as re-
quired.

2.2.15 Aligning Parts or Components

●

Be careful when installing or aligning parts
or components.

●

Avoid using your

ngers or hands to posi-

tion holes or part mating surfaces, serious
injury could result if your hand or fingers
should get ought between the surfaces.

●

Always use tools to align a part or compo-
nent to avoid any

nger or hand injuries.

Shop Safety

SY215C

2-15

●

Keep in mind that during running opera-
tions, hydraulic systems, cooling systems
and fuel systems will be under extremely
high pressure and at high temperatures.

●

Always use caution when working on or
near these systems.

2.2.18 Running the Machine

Run the machine during repair procedures
ONLY if directed to do so in this shop manual.
If the machine must be run when making re-
pairs, it is important to follow some basic safe-
ty rules.

●

Always be aware of rotating components.

●

During repair operations while the engine
is running, one worker must remain in the
operator seat of the machine with clear
contact between the person performing the
repairs on the machine at all times.

●

If equipped, all lock levers must be in the
LOCK position or the parking brake must
be in the PARK position.

●

The person in the cab must never touch
any controls. If a control lever must be op-
erated, always maintain a clear view to the
person doing the repair and signal them
when you are about to move the control le-
ver.

●

Be aware of hot surfaces. During running
operations, most surfaces will be hot, and
some surfaces will be extremely hot. If
necessary, use personnel protective equip-
ment when working around high tempera-
ture surfaces.

Shop Safety

SY215C

2-16

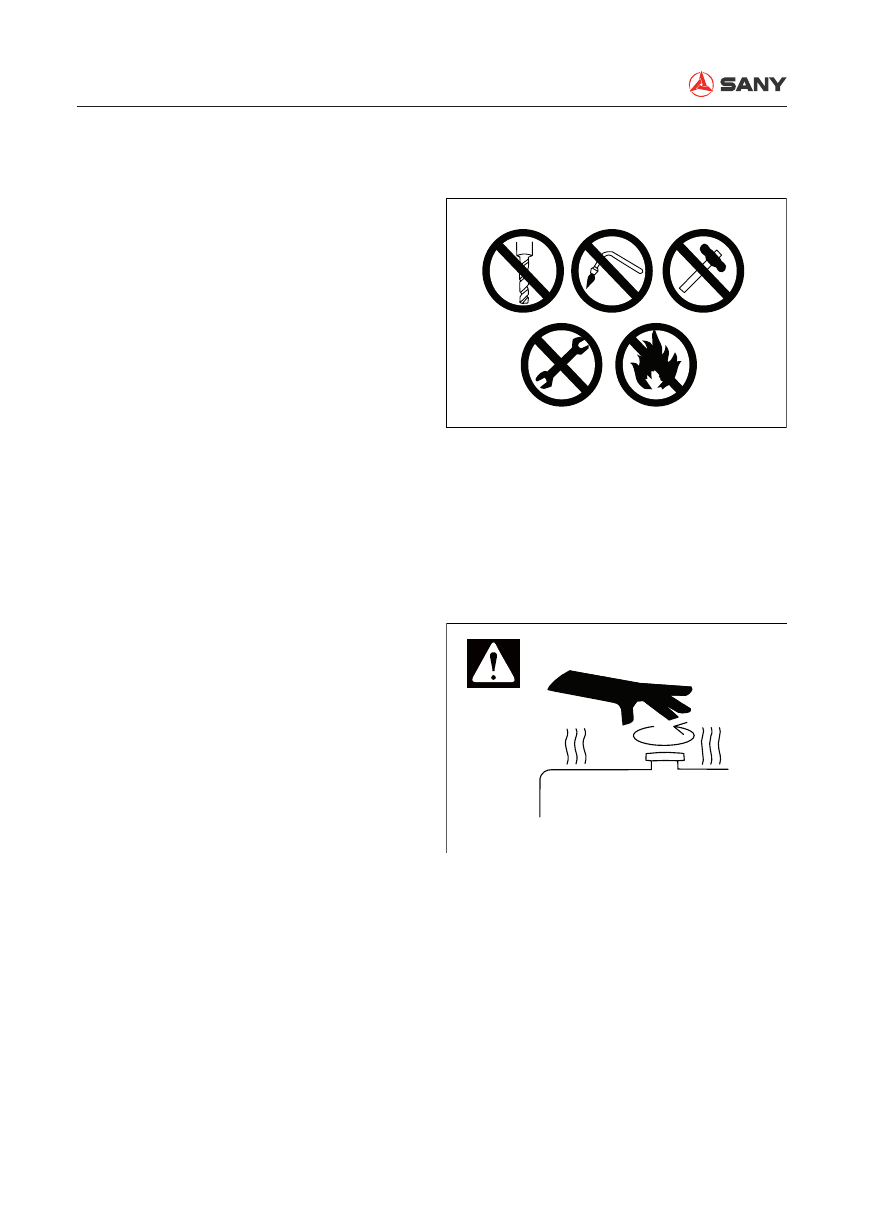

2.2.19 Accumulator

If the machine is equipped with an accumula-
tor charged with high-pressure nitrogen gas, it
is important to follow these basic precautions.

●

Do not disassemble the accumulator.

●

Never expose the accumulator to high heat
or open

ames.

●

Never weld on the accumulator.

●

Never drill or cut on the accumulator.

●

Never strike the accumulator.

●

Use only nitrogen gas to charge the ac-
cumulator. Unapproved gases could be
explosive.

2.2.20 Adding Fluids to a System

If it should be necessary to add fluids to a
system during running operations, always be
aware that these systems may be hot and un-
der high pressure.

Before adding fluids, shut the machine down
and allow the systems to cool down to outdoor
ambient temperatures before removing any
caps. Failure to do so may result in serious
burns or a sudden loss of

uid.

Shop Safety

SY215C

2-17

2.2.21 Track Recoil Springs

If you are making repairs to a machine
equipped with tracks, always be aware of the
dangers involved with track recoil springs. This
spring is under extreme pressure at all times.
If it is disassembled by mistake, the spring
may

y out and cause serious injury.

Be careful when removing or installing tracks
on track-type machines. When removing the
master track link the track system may sepa-
rate suddenly and cause possible injury.

Always stand clear of the track travel path
when separating the master link section of the
track.

2.2.22 High-Pressure Fluid Lines

Always keep in mind that these systems are
under high pressure. When inspecting or re-
placing piping or hoses, always check to be
sure the pressure in the system has been
relieved before proceeding. Working on a sys-
tem still under pressure could lead to serious
injury, always do as follows:

●

If you will be removing a line or component
with fluid in the system, always cap and
seal the opening to avoid leakage or sys-
tem contamination.

●

Never carry out inspections or replace
items while the system is under pressure.

●

Never use any part of your body to check
or feel for leaks. Always wear safety
glasses and leather gloves when checking
for leaks and use a piece of wood or card-
board when checking for leaks from small
holes.

●

If high pressure fluids should penetrate
your skin or get into your eyes, seek medi-
cal attention immediately.

Shop Safety

SY215C

2-18

2.2.23 Safe Work Preparations

Before starting any repairs, be sure the ma-
chine is sitting on a level stable surface.

Lower all the work equipment to a safe and
stable position on the ground. Turn the engine
OFF and neutralize the work equipment con-
trols by rotating them to the left and right (joy-
stick control) or moving them back and forth
(lever control). This function will relieve system
pressure.

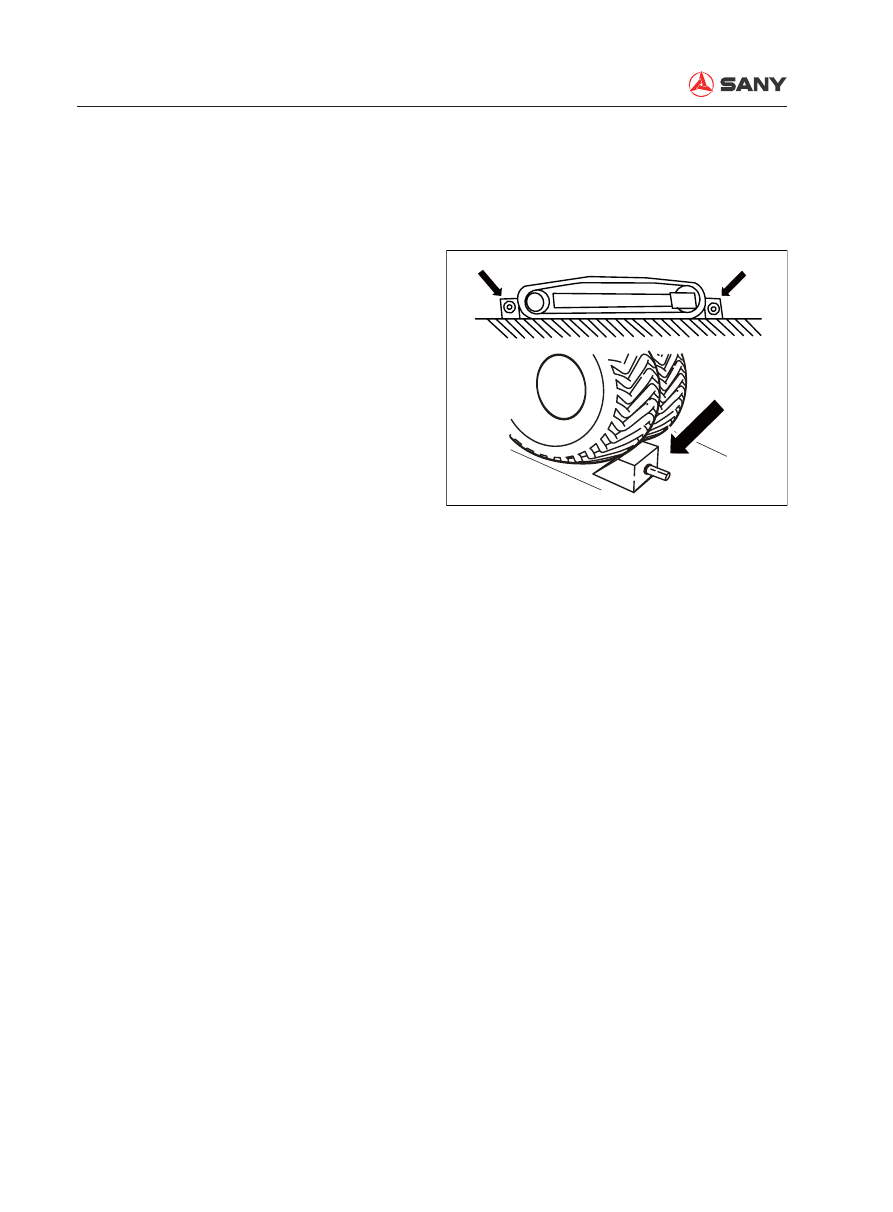

Block the tracks (if equipped) or wheels (if
equipped) with chocks to prevent the machine
from moving.

If equipped, set the hydraulic lock lever in the
LOCKED position. If equipped, set the parking
brake in the PARK position.

Be sure all personnel and equipment is clear
of your work area and you can be seen by all
working personnel especially if performing re-
pairs in the

eld.

Shop Safety

SY215C

2-19

2.2.24 Mounting and Dismounting

It is important to follow these procedures when
mounting or dismounting the equipment:

●

Use all hand-holds and step plates on your
equipment.

●

Never jump off or onto the equipment.

●

Wipe off any oil, grease, or mud from your
shoes, rails, steps or platforms before get-
ting on the equipment; always keep these
areas clean and in good condition.

●

Never get on or off moving equipment.
These actions may lead to serious injury.
Always bring the equipment to a full stop
and turn the engine OFF.

●

When getting on or off the equipment,
always face the equipment and maintain
a three-point contact (both feet and one
hand or one foot and both hands) with the
handrails, steps and platforms to ensure
that you support yourself correctly.

●

Never climb on areas of the machine that
are not designated walk areas.

●

Never climb on or off the machine with
tools, parts or similar objects in your
hands.

●

Never use machine controls or non-spec-
i

ed points on the equipment to get on or

off the machine.

●

Use all hand-holds when on the machine.

Shop Safety

SY215C

2-20

2.2.25 Battery Hazards

Working around batteries always poses a haz-
ard, especially if the battery has been in ser-
vice for a long period of time.

Listed below are some basic precautions to
be aware of when servicing or working around
batteries.

●

Always wear personal protective equip-
ment when working around batteries.

●

Battery gasses are extremely explosive.
When opening a battery compartment, al-
ways allow ample time for the gasses to
escape before servicing the battery.

●

When working with batteries, always work
in a wellventilated area.

●

If the battery is corroded, flush the area
with a baking soda and warm water mix.

●

If battery acid should get on your skin or in
your eyes,

ush the area immediately with

fresh water and seek medical attention.

Shop Safety

SY215C

2-21

2.2.26 Jump-Start Safety

When using jumper cables to start the ma-
chine, connect the positive (+) jumper first,
then the negative (-) jumper to a remote loca-
tion on the chassis away from the battery.

Never use a welder or a machine with a
higher voltage system to jump-start the
machine. Doing so may damage the ma-
chine’s electrical system or cause an unex-
pected explosion or fi re resulting in minor
or major injury.

CAUTION

2.2.27 Disconnecting the System

Power

Before starting any repair operations, remove
the battery leads from the battery or set the
main disconnect on the machine in the OFF
position.

For the location of the machine main electri-
cal disconnect switch, refer to the machines
Safety, Operation & Maintenance Manual for
location and procedures.

If the battery must be disconnected, remove
the negative (-) terminal clamp first then re-
move the positive (+) clamp last.

When reconnecting the battery, be sure every
electrical system switch is in the OFF position,
connect the positive clamp (+) first, then the
negative clamp(-) last.

Shop Safety

SY215C

2-22

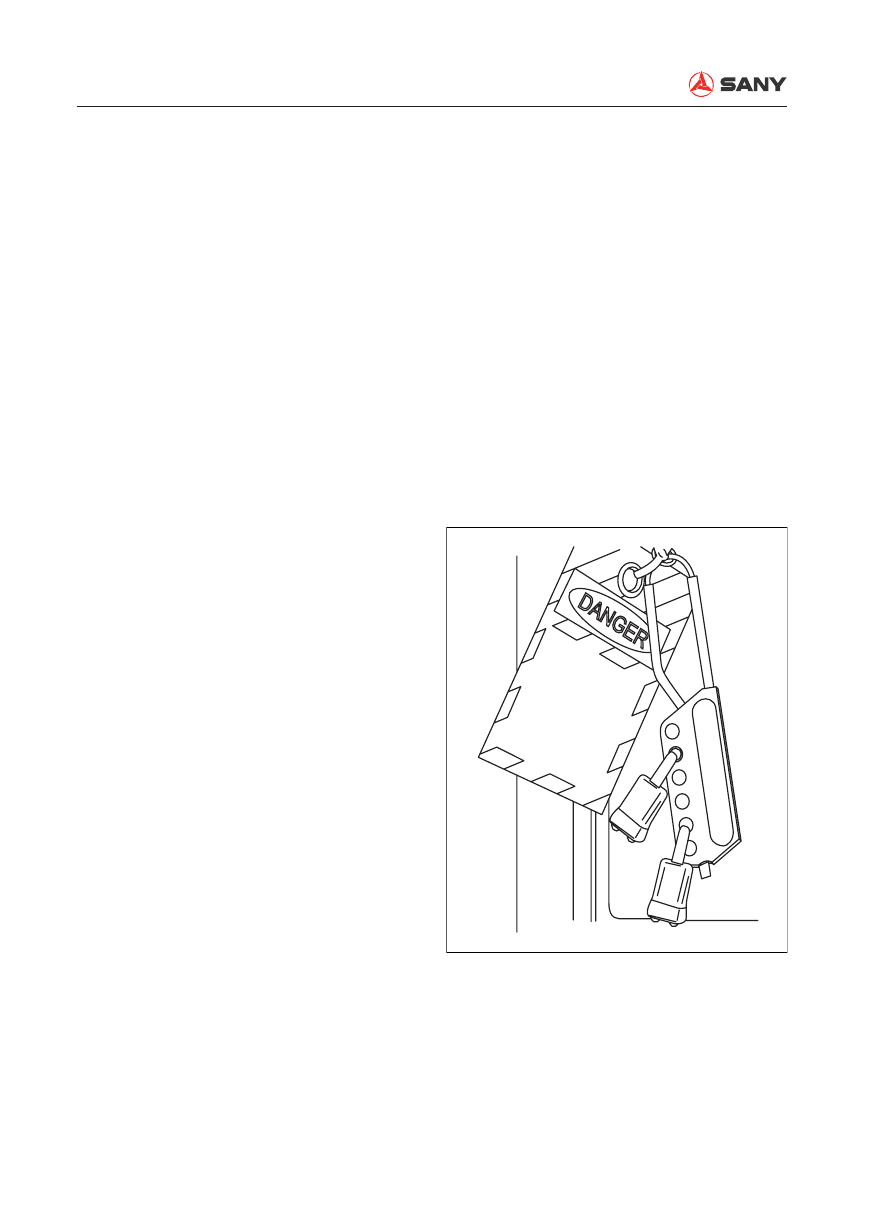

2.2.28 LOCKOUT/TAGOUT

Due to the size and complexity of this ma-
chine, Lockout and Tagout procedures may
be required by your company to ensure the
safety of yourself and others involved in the
repair process of the machine. While work
is in progress, all power sources must be
disabled, locked and tagged with a warning
label. Lockout/Tagout procedure establishes
the minimum requirements used to isolate all
power sources from potentially hazardous en-
ergy, and to ensure that the machine is “locked
out and tagged out” before anyone performs
repairs on the machine.

2.2.29 Sequence of Procedures

Only authorized employees performing repairs
on the machine shall perform Lockout/Tagout
in accordance with this procedure listed below.

If the employee performing repairs to the ma-
chine is issued

a lock and key, the employee shall not share
the lock or key with other employees until all
repair procedures are complete and the ma-
chine is ready to put back into service.

The following steps shall be performed in the
sequence listed when the equipment is to be
either locked-out or tagged-out for repair.

DO NOT

OPERA

DANGER

Shop Safety

SY215C

2-23

Locking out of service

1. Notify all employees who may be poten-

tially affected by the repair process on the
machine.

2. Secure the machine in a safe position. If

equipped, set the parking brake or hy-
draulic lock lever in the PARK or LOCKED
position.

3. Identify, remove or disconnect all power

or energy sources and be sure to install
a Lockout/Tagout device on them. If the
machine is equipped with a Maintenance
Alert Tag, attach this tag to the machine
controls.

4. Be sure all employees involved in the

repairs have installed there lock on the
power source before performing any
repairs. Once an employee has completed
there repair procedure, they must remove
there lock and not access the machine in
any manor.

Returning to service

1. The authorized person who performed the

Lock out/Tagout procedure shall check the
area around the machine to ensure that no
one is exposed to any hazard before start-
up.

2. The authorized person who performed

the Lock out/Tagout shall ensure that
all guards have been reinstalled to their
proper place, all tools and equipment have
been removed and all locks are removed.

3. The authorized person who performed

the Lock out/Tagout shall verify that all
controls are in the neutral or “off” position
and all personnel are aware of the time the
machine will be back in service.

4. Remove the Lockout/Tagout equipment

and any additional alert equipment and re-
energize the machine for return to service.

DANGER

DO NOT OPERATE

When this is not being used,
keep it in the storage compartment.

Shop Safety

SY215C

2-24

2.2.30 CHEMICAL HAZARDS

Exposure to hazardous chemicals pose a
serious danger if released or mishandled.
Handling hazardous materials often releases
substances that could pose a hazard. Tempo-
rary implication or possible residual injury may
result unless proper precautions are observed
while working with these materials. All work-
ers involved in handling hazardous materi-
als should use approved personal protective
equipment and follow all environmental safety
regulations.

2.2.31 Material Safety Data Sheets

(MSDS)

Material Safety Data Sheet (MSDS) informa-
tion relating to the materials the workers could
be exposed to.

●

MSDS data sheets provide both workers
and emergency personnel with the proper
procedures for handling or working with a
particular substance. Information includes
physical data, health effects, first aid, re-
activity, storage, disposal and protective
equipment required.

●

Be sure all personnel involved are familiar
with all MSDS-related information as it re-
lates to the hazardous materials they could
be exposed to. Keep MSDS data sheets
handy in site of all employees and emer-
gency personnel where they can be easily
accessed.

●

Never handle hazardous materials with-
out the proper MSDS information. Always
verify the data on the MSDS sheet before
handling any hazardous materials.

Specifi cations

SY215C

3-1

3 Specifi cations

3.1 Dimensions .............................................................................................................. 3-3

3.2 Working Ranges ...................................................................................................... 3-4

3.3 Technical Speci

cations ........................................................................................... 3-5

3.4 Weight Table ............................................................................................................ 3-6

3.5 Fuel and Coolant ..................................................................................................... 3-7

3.6 Engine Performance Curve ..................................................................................... 3-9

Specifi cations

SY215C

3-2

WARNING

Always read the Safety section of this man-
ual before attempting to operate or service
this equipment. Failure to do so could re-
sult in machine damage, personnel injury
or death.

Specifi cations

SY215C

3-3

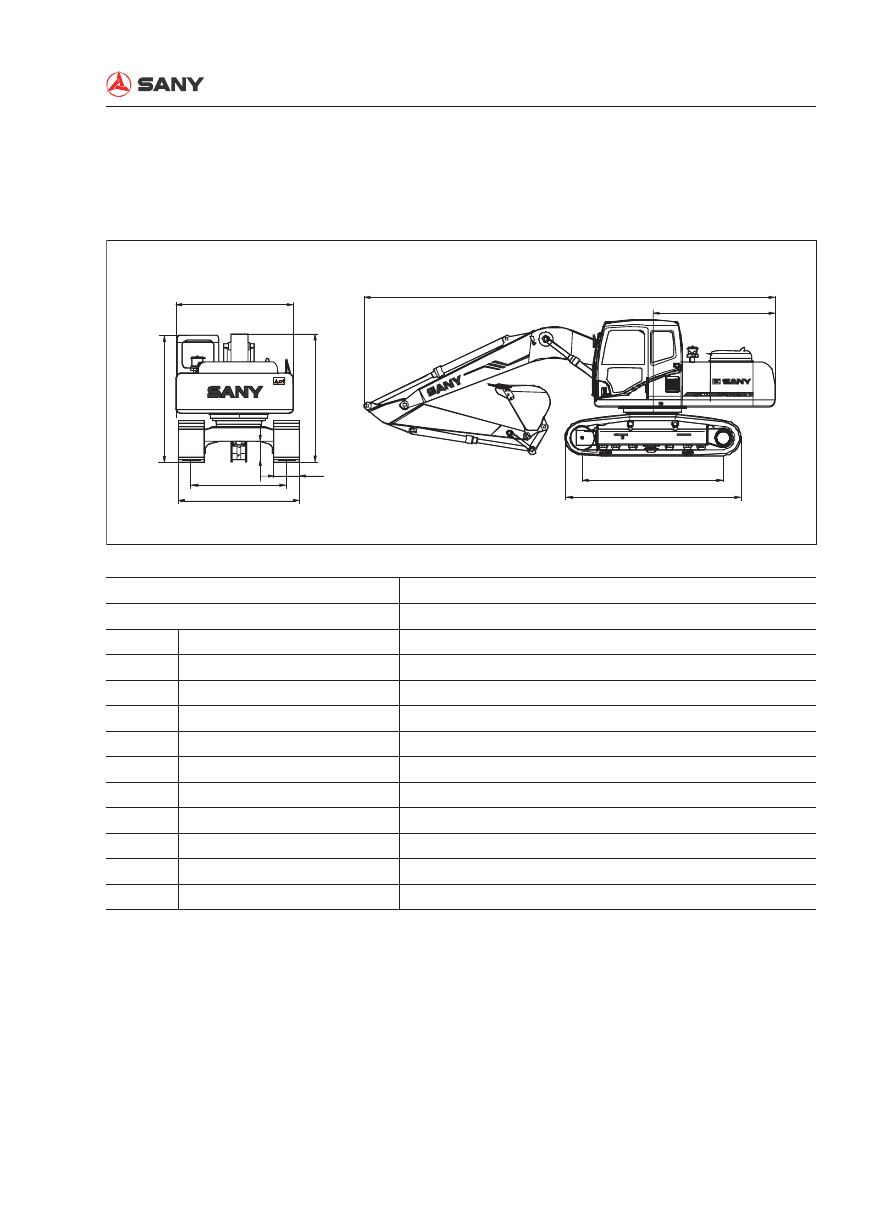

ZX215-1001001

J
K

Boom length

5700 mm (18'8")

Arm length

2900 mm (9'7'')

Overall length (shipping)

9397 mm (30'10'')

Overall width

3180 mm (10'5'')

Overall height (Shipping)

2956 mm (9'8'')

Width (top)

2710 mm (8'11'')

Overall height (to cab roof)

2930 mm (9'7'')

Std. track shoe width

800 mm (2'7'')

Track gauge

2380 mm (7'10'')

Min. ground clearance

440 mm (1'5'')

Tail swing radius

2873 mm (9')

Length of track on ground

3640 mm (11'11'')

Track length

4450 mm (14'7'')

3 SPECIFICATIONS

3.1

Dimensions

Specifi cations

SY215C

3-4

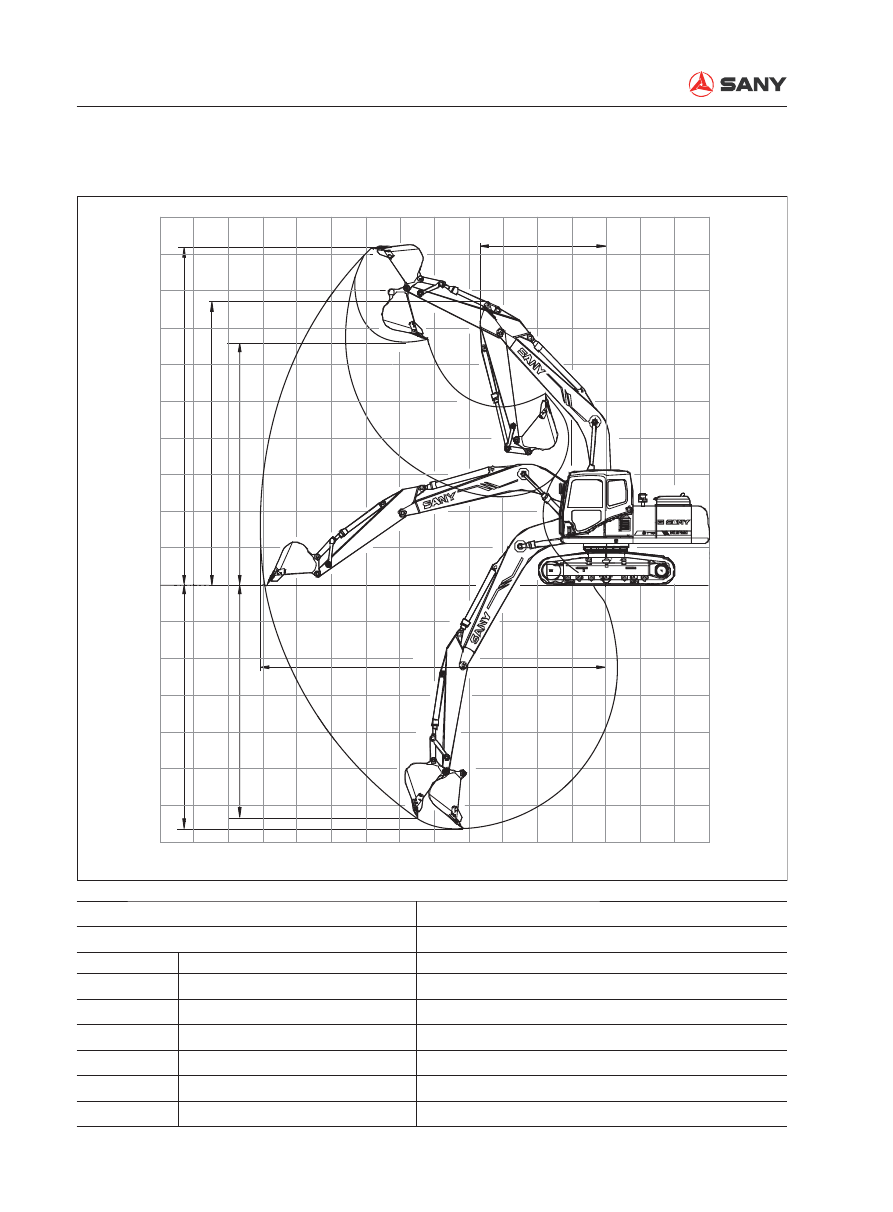

3.2

Working Ranges

Boom length

5700 mm (18'8")

Arm length

2900 mm (9'7'')

Max. cutting height

9305 mm (30'7'')

Max. dumping height

6485 mm (21'3'')

Max. digging depth

6630 mm (21'9'')

Max. vertical digging depth

5980 mm (19'7'')

Max. digging reach

9885 mm (32'5'')

Min. swing radius

3630 mm (11'11'')

Max. height at min. swing radius

7570 mm (24'10'')

ZX215-1001002

Specifi cations

SY215C

3-5

Machine model

SY215

Machine

Bucket capacity
Operating weight
Max. bucket digging force – SAE
Max. arm digging force – SAE
Swing speed
Travel speed (Hi/Lo)
Gradeability
Ground pressure

0.9 m³ (1.18 yd³)

21,600 kg (47,620 lb)

138 kN (31,080 lb)
100 kN (22,481 lb)

12.5 rpm

5.5/3.2 km/h (3.4/2.0 mph)

70%, 35°

36 kPa (5.2 psi)

Engine

Model
Type

No. of cylinders-bore x stroke
Piston displacement

CUMMINS QSB6.7–C155

6-cylinder, 4-cycle, water-cooled, in-line, high-pressure,

common rail

6–

107mm × 124mm (

4.2 in × 4.9 in)

6.7 L (409 in³)

Performance

Rated power – SAE J1995, gross
Max. torque
Max. speed at no load
Min. speed at no load
Min. fuel consumption

116 kW (155 hp) @ 2,000 rpm

618 N·m (456 lb·ft) @ 1,500 rpm

2,000±50 rpm

600±10 rpm

215 g/KWh (0.353 lb/hph)

Starter motor
Alternator (EPA Tier 3 Emission certi

ed)

24V, 7.5kW

70A

Under-carriage

Carrier roller (each side)

Track roller (each side)

Track shoe (each side)

Hydraulic system

Hydraulic

pump

Type
Max.

2 × variable displacement piston type

2×210 L/min (55.5 gal/min)

Relief valve setting

34.3 MPa (4,975psi)

Implement relief power boost

37.3 MPa (5,400psi)

Travel motor

2 × axial piston motors with parking brake

Swing motor

1 × axial piston motor with swing holding brake

Cylinder

Type

Boom

Arm

Bucket

Double acting piston

Bore
Rod
Stroke

120 mm (4.7 in)

85 mm (3.3 in)

1,285 mm (50.6 in)

135 mm (5.3 in)

90 mm (3.5 in)
1,490 (58.7 in)

115 mm (4.5 in)

80 mm (3.1 in)

1,120 mm (44.1 in)

Hydraulic tank
Hydraulic oil

lter element

Hydraulic oil cooler

Closed type

Tank return side

Air-cooling type

3.3 Technical Specifi cations
