2.2.14 Precautions when using

ROPS(Roll over protective structure)

● The operator’s cab has a ROPS structure.

In addition to supporting of the load if the

machine tips over, it also absorbs the

impact energy and protects the operator.

If the function of ROPS is reduced, it

cannot protect the operator and he may

be injured.

● Always do the following. Do not weld, drill

holes, or make any other modification to

the operator’s cab structure.

Fig. 2.2-15

● Repair or replace the operator’s cab if it

is deformed by falling objects or when the

machine tips over. For details of repair,

please consult your SANY distributor.

Fig. 2.2-16

2.2.15 Attachment installation

● Installation of optional parts or

attachments may involve safety issues or

be limited by the law. In this case, contact

your Sany distributor in advance.

● Sany assumes no responsibility for the

injury,accidents and product failure caused

by the use of unauthorized attachments

and parts.

● Before installing and using machine

attachments,read related instructions

regarding the attachment and general

precautions on attachment in this manual.

2-21

Safety

2.2.16 Cab windows glasses

● Broken cab windows at the side of the

work equipment may expose the operator

in direct contact with the work equipment.

In this case, stop operation immediately

and replace the glasses.

● Broken or damaged window provides

no protection to the operator. When

the roof window is damaged, replace it

immediately with a new one.

2.2.17 Unauthorized modification

Any modification unauthorized by Sany

may lead to safety problems, personal injury

or death. Improper modification can affect

machine's strength and operator's view.

Contact your Sany distributor before making

any modification.

Sany assumes no responsibility for the

accidents, failure or damage caused by

unauthorized modification.

2.2.18 Examination and confirmation of

worksite

Before starting operations, check first if

there is any danger on the jobsite. If you do

not understand the dangers of the jobsite

before starting operations, the machine may

tip over, or the ground may collapse, or rocks

may fall,causing injury to the operator. Always:

● Check the terrain and condition of the

ground at the worksite, and determine

the safest method of operation. Do

not operate where there is a hazard of

landslides or falling rocks.

● Prevent any unauthorized person from

entering the operating area.

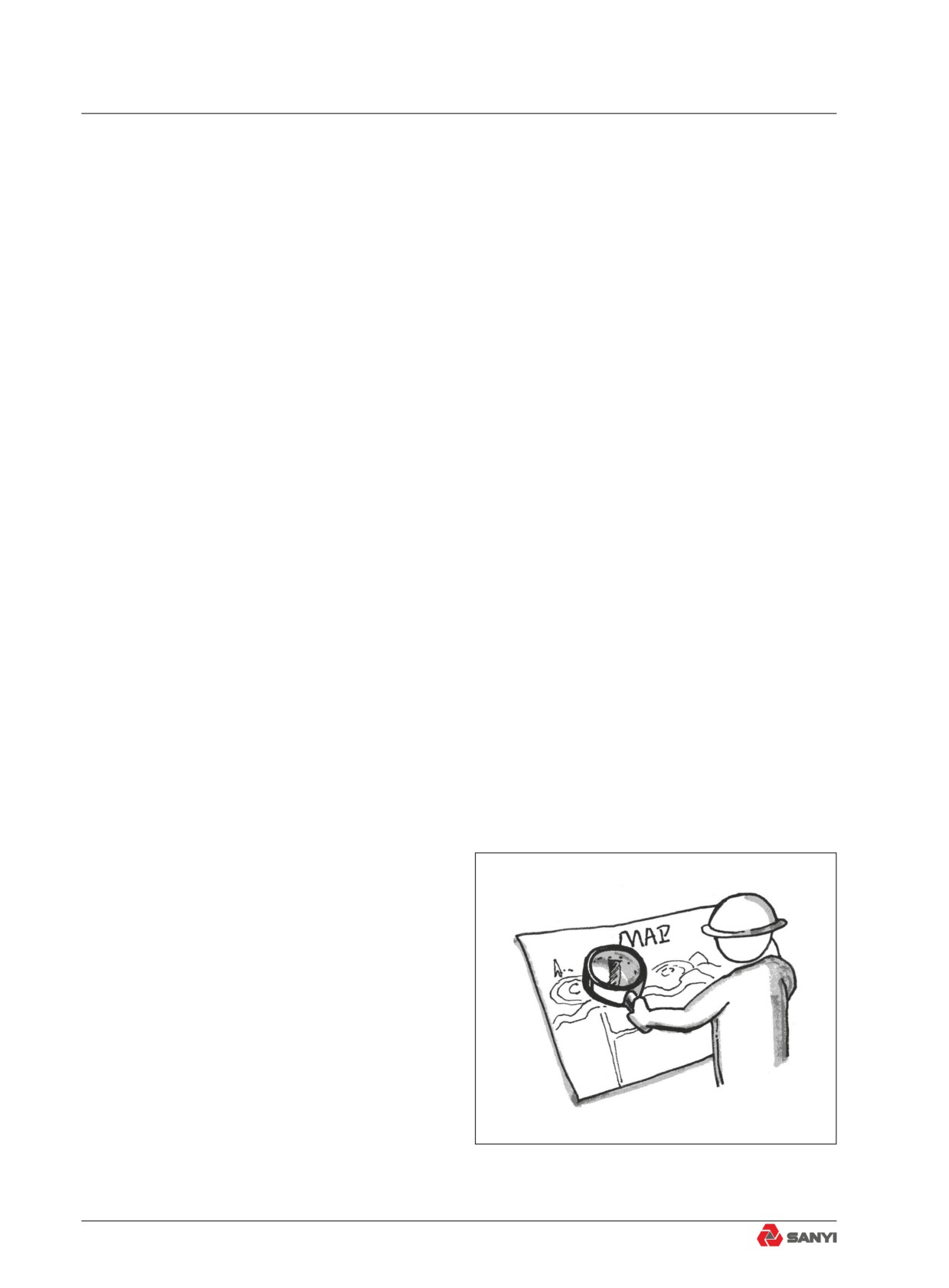

Fig. 2.2-17

● Before operating in shallow water or on

2-22

Safety

soft ground, check the depth of the water,

speed of the current, and the firmness

and shape of the ground. Avoid any area

where there is any obstruction to travel

operations.

● Maintain the travel path on the jobsite

so that there is no obstruction to travel

operations.

Fig. 2.2-18

2.2.19 Operation on soft ground

● Avoid traveling or operating your machine

near cliffs, road shoulders or trenches.

The soft ground plus machine weight

and vibration can cause your machine to

sink or tip over. The ground may become

even softer after heavy rain, explosion or

earthquake.

● When operating on a dam or near an

excavated ditch, vibration and machine

weight may trigger a landslide. Before

operation, take protective measures to

prevent your machine from tipping over or

falling.

2-23

Safety

2.2.20 Overhead power cables

Never drive or operate your machine near

power cables, which may bring electrocution

hazard and cause machine damage, personal

injury or death. The following steps are to be

followed while working at where power cables

could be nearby.

●

Before operation in the vicinity of power

cables, inform local power company of the

coming operation and ask them to take

necessary measures.

●

If your machine is too close to power

cable, electrocution is most likely to occur

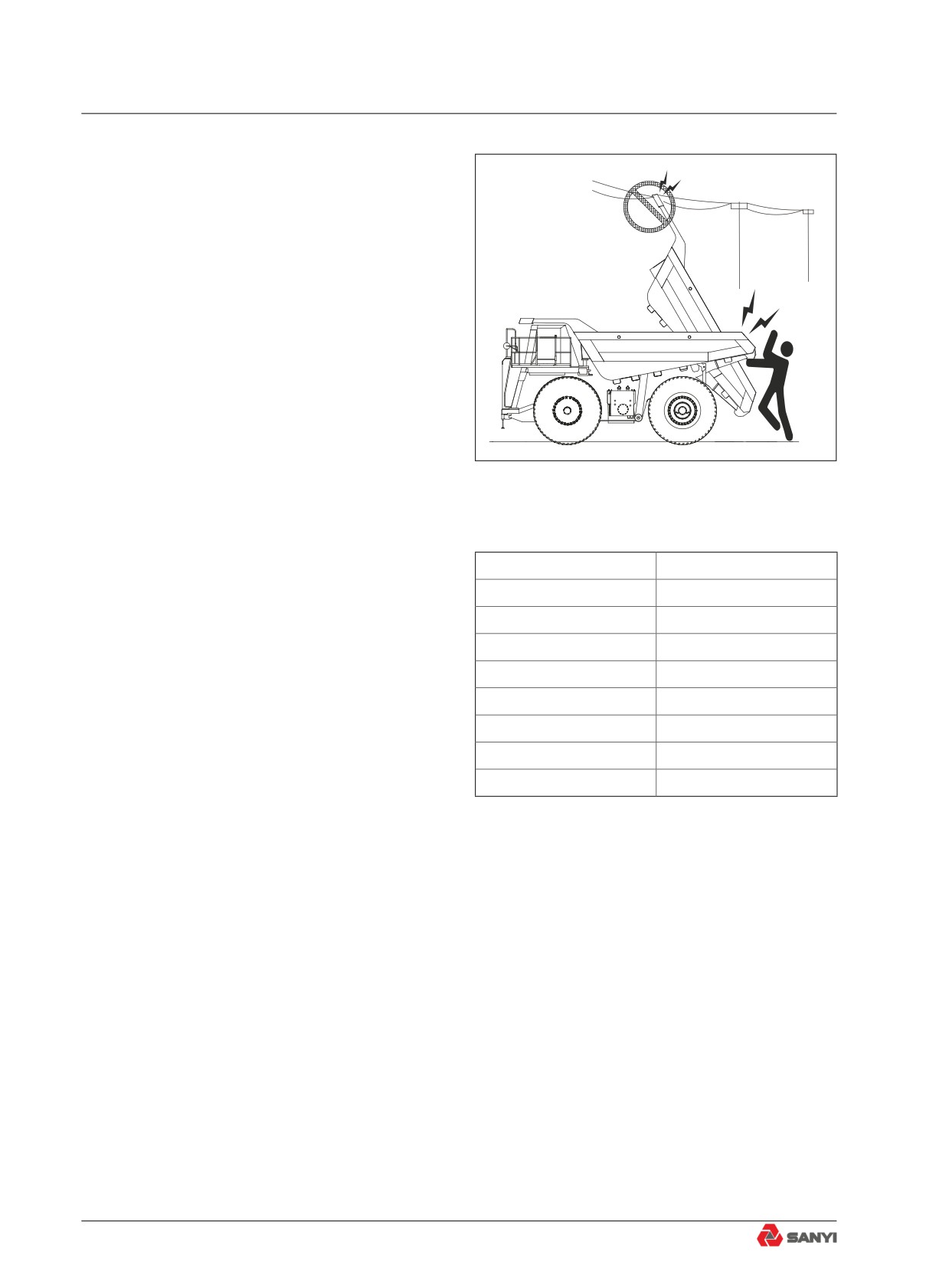

Fig. 2.2-19

and cause burns or death. A safe distance

must be kept between machine and power

cable (See Table 1-1). Before operation,

communicate with local power company

Cable Voltage

Safe Distance

regarding safety measures.

100V - 200V

2 m ( 7 ft) or above

●

A signalman is to be designated to give

6，600V

2 m ( 7 ft) or above

signals if your machine is too close to

22，000V

3m（10 ft）or above

power cables.

66，000V

4m（14 ft）or above

●

Nobody is allowed to approach the

154，000V

5m（17 ft）or above

machine when it is operated near high-

187，000V

6m（20 ft）or above

voltage cables.

275，000V

7m（23 ft）or above

●

If your machine is too close to the

cable or touches the cable, to prevent

500，000V

11m（36 ft）or above

electrocution, operator shall not leave

Table 1-1

the cab until machine power is surely

cut off. In addition, Nobody is allowed to

approach the machine.

●

To prevent accidents, wear rubber shoes

and rubber gloves during operation. Cover

the operator’s seat with rubber sheet and

pay attention to exposed part of body

that should not touch the lower part of

machine.

2-24

Safety

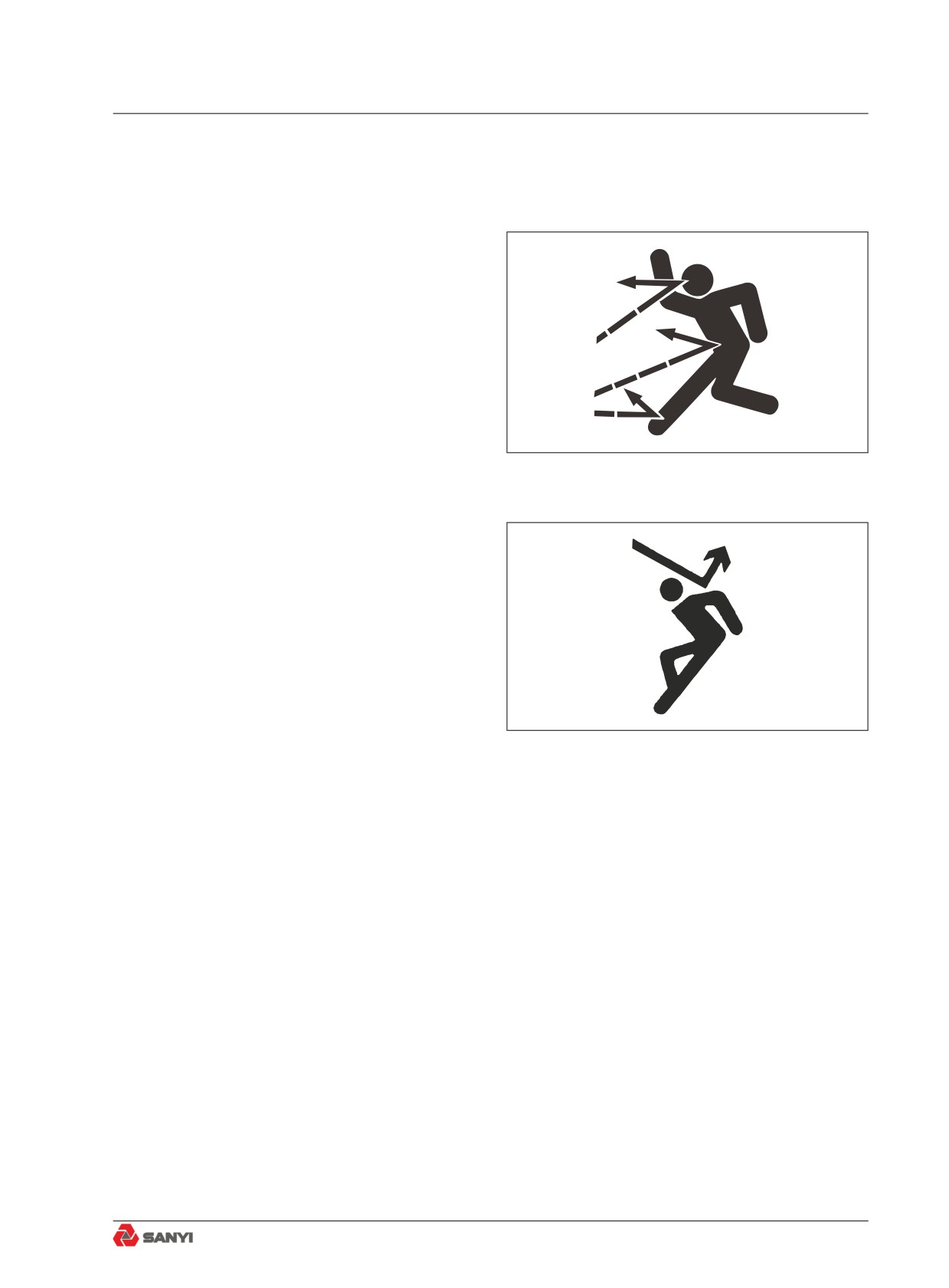

2.2.21 Alternate exit

● If you are unable to open the cab door

in case of emergency, use the safety

hammer to break the rear window to

escape.

● Remove the pieces of glass from the

window frame before escaping. Be

careful not to be cut by broken glass.

Pay attention to the broken glass on the

ground, which may cause you to slip and

fall.

Fig. 2.2-20

2.2.22 Ensure good visibilty

This machine is equipped with mirrors to

improve the visibility, but even with mirrors,

there are places, which cannot be seen from

the operator’s seat, so always be careful when

operating.

When operating or traveling in places

with poor visibility, if it is impossible to confirm

the condition of the job side or obstacle is in

the area around the machine, there is danger

that the machine may suffer damage or the

Fig. 2.2-21

operator may suffer serious personal injury.

Whenoperating or traveling in places with poor

visibility, always observe the following items

strictly.

● If the visibility cannot be sufficiently

assured, position a flagman if necessary.

The operator should pay careful attention

to the signs and follow the instructions of

the flagman.

● The signals should be given only by one

flagman.

● When working in dark places, turn on

the working lamps and front lamps of

the machine, and if necessary, set up

additional lighting in the area.

● Stop operations if there is poor visibility,

2-25

Safety

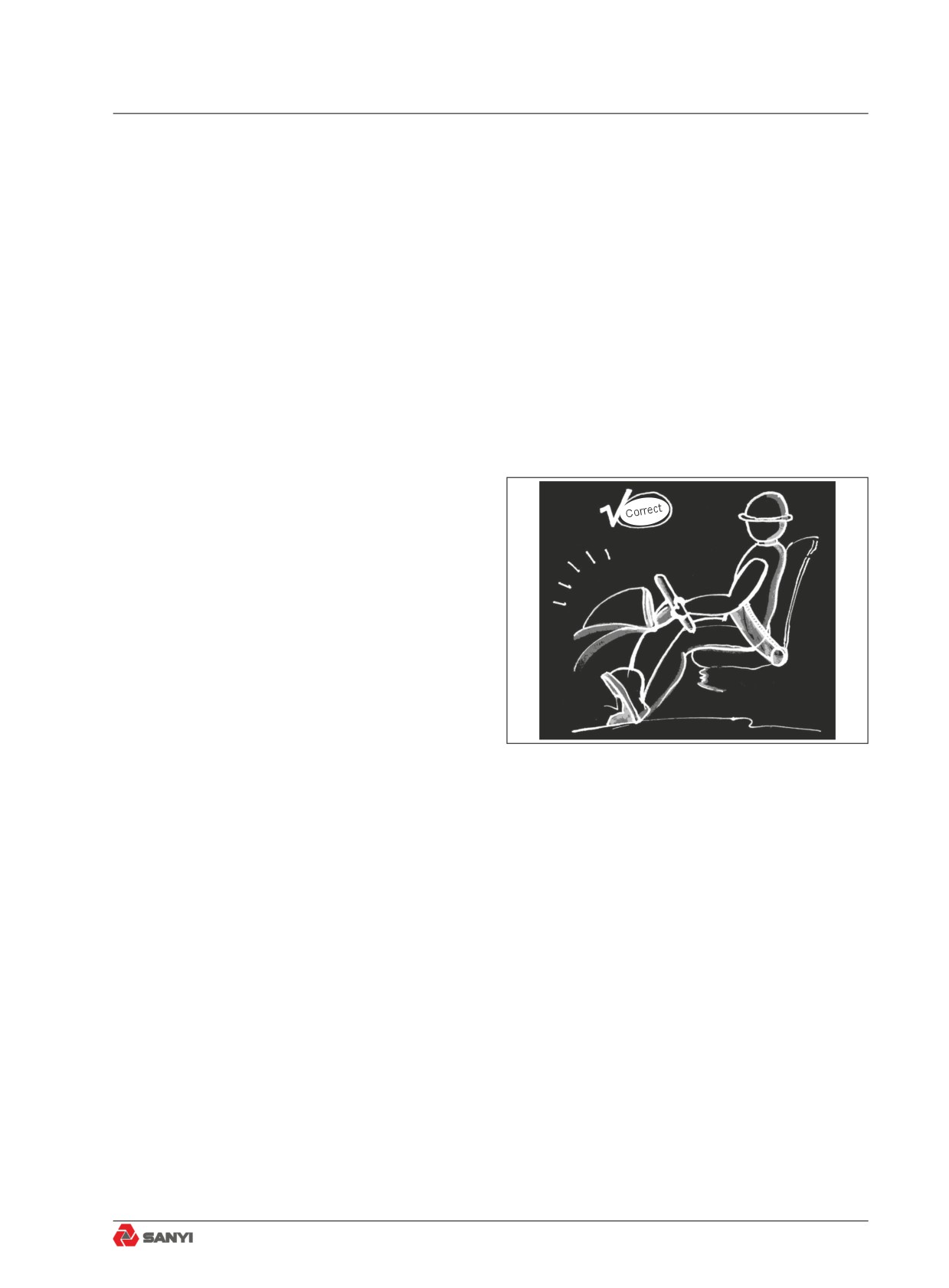

2.3.1.3 Seat belt

● The operator may get seriously injured or

killed when the machine tips over. Before

operating the machine, check carefully

your seat belt, the buckles and the anchor

point. Replace the seat belt if damage or

excessive wear is observed. When the

machine is being operated, keep your

seat belt buckled up.

● The seat belt must be replaced every

three years regardless of its condition.

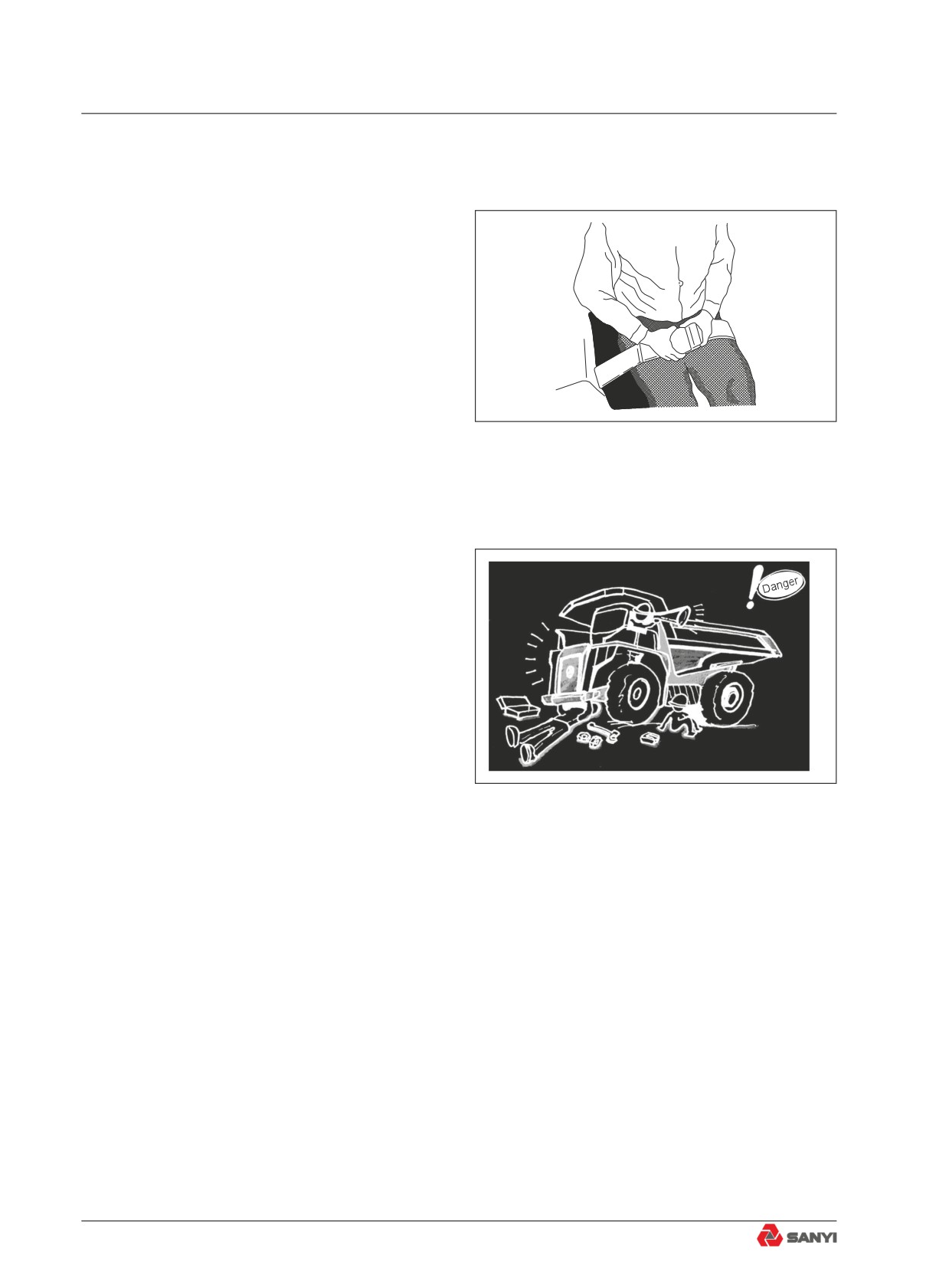

Fig. 2.3-3

2.3.1.4 Before starting the engine

Before starting your daily work, the

following items must be observed before

starting the engine.

●

Clean the windows to ensure a good

visibility.

●

Clean the head lamps and work lamps,

and check if they are in good condition.

●

Check coolant level, fuel level and engine

oil level.

●

Check for blocked air filter and damaged

electrical wires.

Fig. 2.3-4

●

Check that there is no mud or dust

accumulated around the movable parts of

the accelerator pedal or brake pedal, and

check that the pedals work properly.

●

Adjust the operator’s seat so that it is

easy to see to the front, and check that

there is no damage or wear to the seatbelt

or seatbelt mounts.

●

Check that the instruments and gauges

are working properly, that the gear shift

lever is at the Neutral position, and that

the dump control lever is at the FLOAT

position.

2-28

Safety

● Adjust the mirrors so that the rear of the

machine can be seen clearly from the

operator’s seat.

● Check that there are no persons or

obstacles above, below, or in the area

around the machine.

● Check that the parking brake switch is in

the PARKING position.

2.3.1.5 Engine starting rules

● Before starting the machine, make

sure nobody is on, under or around the

machine. Sound the horn to warn people

around.

● Always start and operate the machine

from the operator seat.

● No one is allowed to stay on the machine

except the operator.

● Never start the engine by shorting the

start motor circuit, which is dangerous and

may cause machine damage.

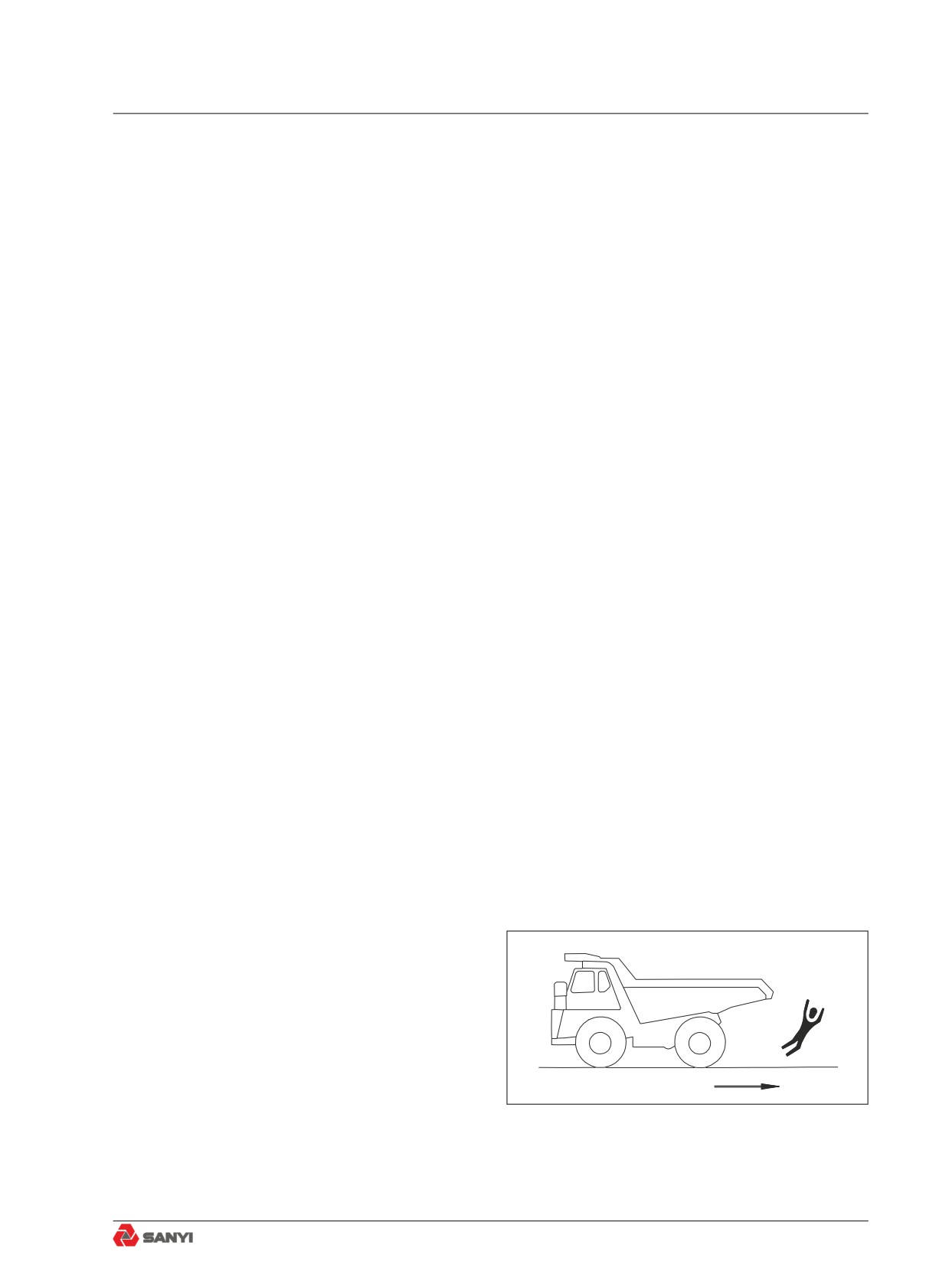

Fig. 2.3-5

2.3.1.6 Starting engine in cold season

● Sufficient warm-up operation is necessary.

Incomplete warming up may result in slow

reaction and accidents.

● Before starting, check the battery

electrolyte.In case of frozen electrolyte,

never charge the battery or use alternative

power source to start the engine; instead,

melt the electrolyte first. Otherwise, fire

may break out on the battery.

2-29

Safety

2.3.1.7 Engine starting aid

Follow procedures in the Operation

sectionwhen using jumper cables to start the

engine. Improper handling may cause battery

explosion or loss of machine control, resulting

in personal injury and death. Never use jumper

cables to start the engine unless necessary.

Contact your Sany distributor before such an

attempt.

●

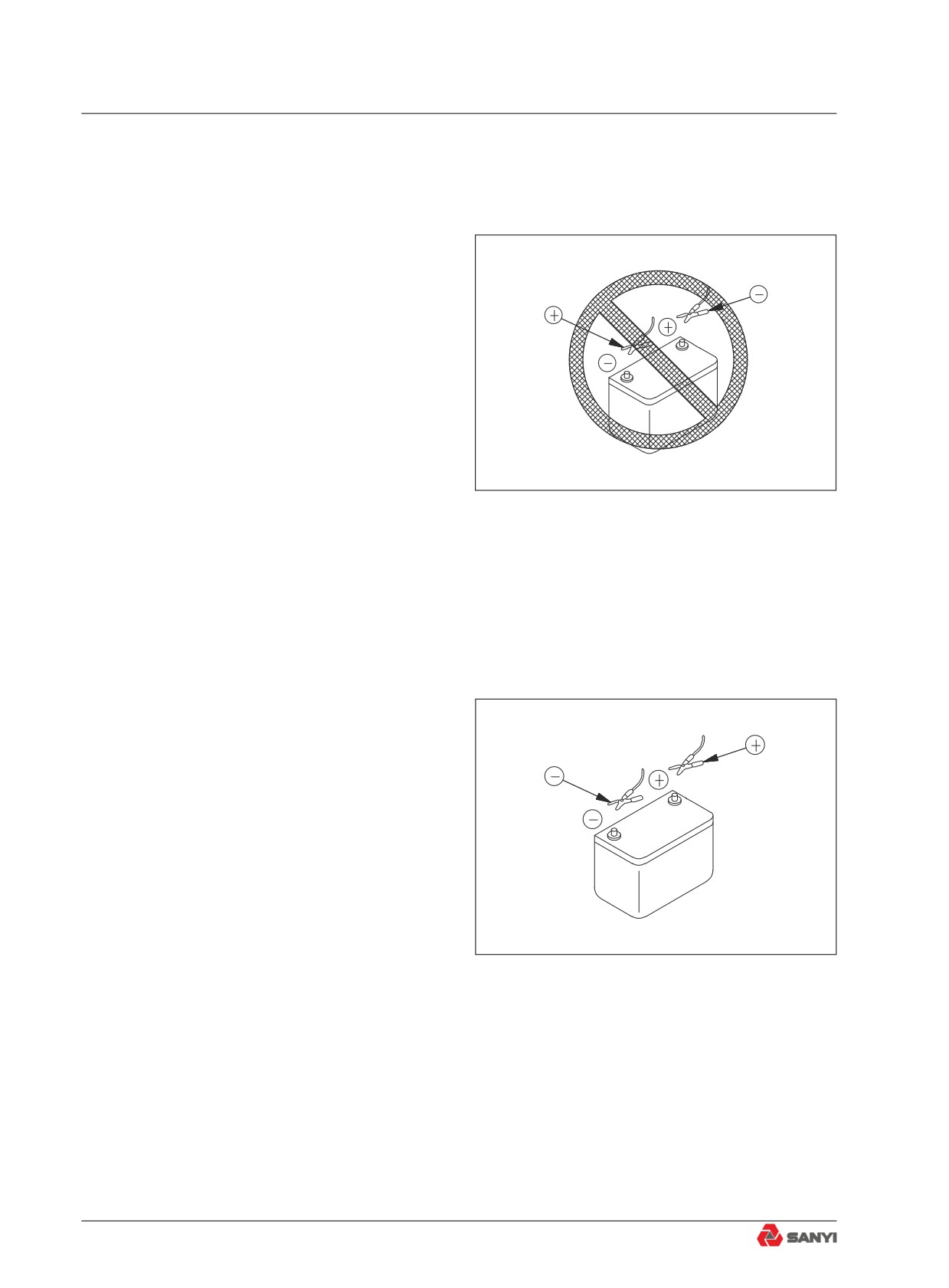

Using jumper cables to start the engine

needs two persons working together with

one seated in the operator seat and the

other handling the battery.

●

Wear goggles and rubber gloves before

Fig. 2.3-6

starting the engine with jumper cables.

●

When connecting a normal machine with

a faulty machine with jumper cables,

battery voltage of the two machines shall

be the same. Be careful not to allow the

two machines to contact with each other.

●

Turn both start switches to OFF position

when connecting the two machines.

Otherwise, the machine may move and

cause danger when it is powered on.

●

Start with the positive terminal when

connecting the jumper cable. Start with

the ground or negative terminal when

disconnecting the jump cable.

●

When disconnecting the jumper cable,

take care not to allow the clips of jumper

cable to contact with each other or with

the machine.

●

Ether is a liquid used for cold start, which

Fig. 2.3-7

is extremely flammable and explosive.

Read the instructions on the ether

container before application.

●

Never use ether if the engine is equipped

with spark-plug preheater or other forms

of preheater.

2-30

Safety

2.3.1.8 After starting the engine

● Run the engine at low idle for 3 to 5

minutes after engine startup, and check

the running parameters and make sure

they are normal and all readings are

within normal working range.

2.3.2 Operation

2.3.2.1 Inspection before operation

● When conducting inspection, move the

machine to a spacious area without

barriers and operate slowly. Any other

person is not allowed to approach the

machine.

● Be sure to buckle the seat belt. Check

the gauges and machine operation for

abnormality; check the swivel system and

steering system for abnormal operation.

● Check for abnormal noise, vibration,

heating, odor or gauge reading; check oil

or fuel for leakage.

● In case of any abnormality, stop

operation and take corrective measures

immediately.

2.3.2.2 Prior-operation precautions

To prevent serious injury or death, follow

the items below before moving the machine.

● It is dangerous to stay in the working

range during machine operation. Sound

the horn to warn people within the working

range before operating your machine.

● Nobody is allowed to stay on and near the

machine, or within the working range.

● To improve the visibility in the travel

Fig. 2.3-8

direction, you may turn the cab if

necessary.

2-31

Safety

● Assign a signalman at where visibility is

poor.

2.3.2.3 Precautions when traveling

● Do not load the dump body above the

maximum payload. The brakes will lose

their effect.

● Never turn the starting switch key to

the OFF position when the machine is

traveling. If the engine stops when the

Fig. 2.3-9

machine is traveling, the steering will

become heavy. There is danger that

this may cause mistaken operation of

the steering wheel and lead to serious

personal injury. If the engine stops,

depress the brake pedal immediately and

stop the machine.

● Lower the dump body, setting the dump

lever at FLOAT position, then travel.

● Never transport anyone riding on the body

or carry out any other operation besides

the main use for the machine. This is

dangerous.

● To avoid accidents caused by coming in

contact with people, structures, and other

machines, always maintain the proper

distance when traveling.

● When traveling on rough ground, travel

at low speed and avoid sudden changes

in direction to prevent the machine from

turning over.

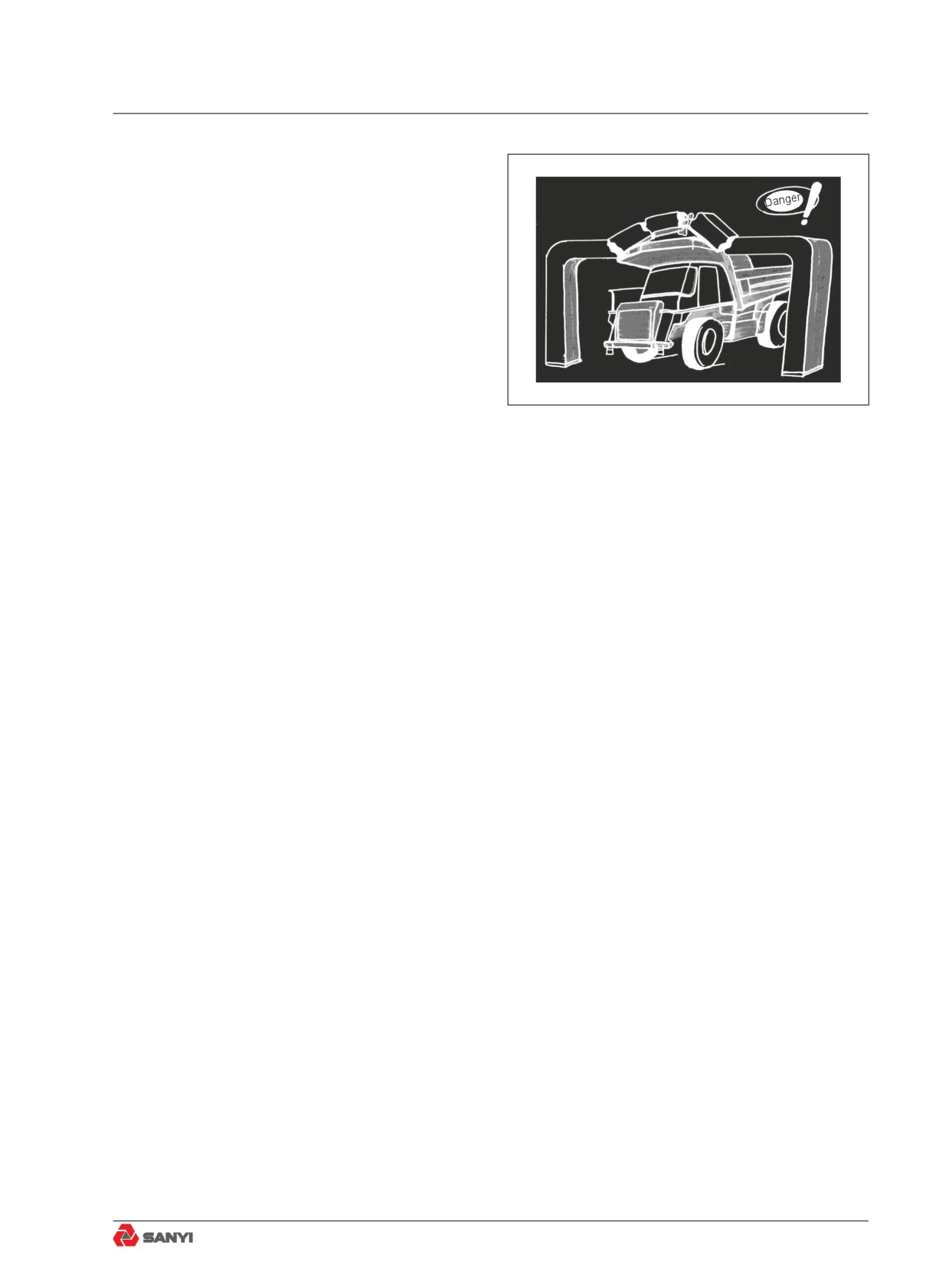

● When operating in tunnels, inside

buildings, or under bridges or electric

wires, or other places where the height is

Fig. 2.3-10

2-32

Safety

limited, operate slowly and be extremely

careful not to let the machine or dump

body contact anything.

●

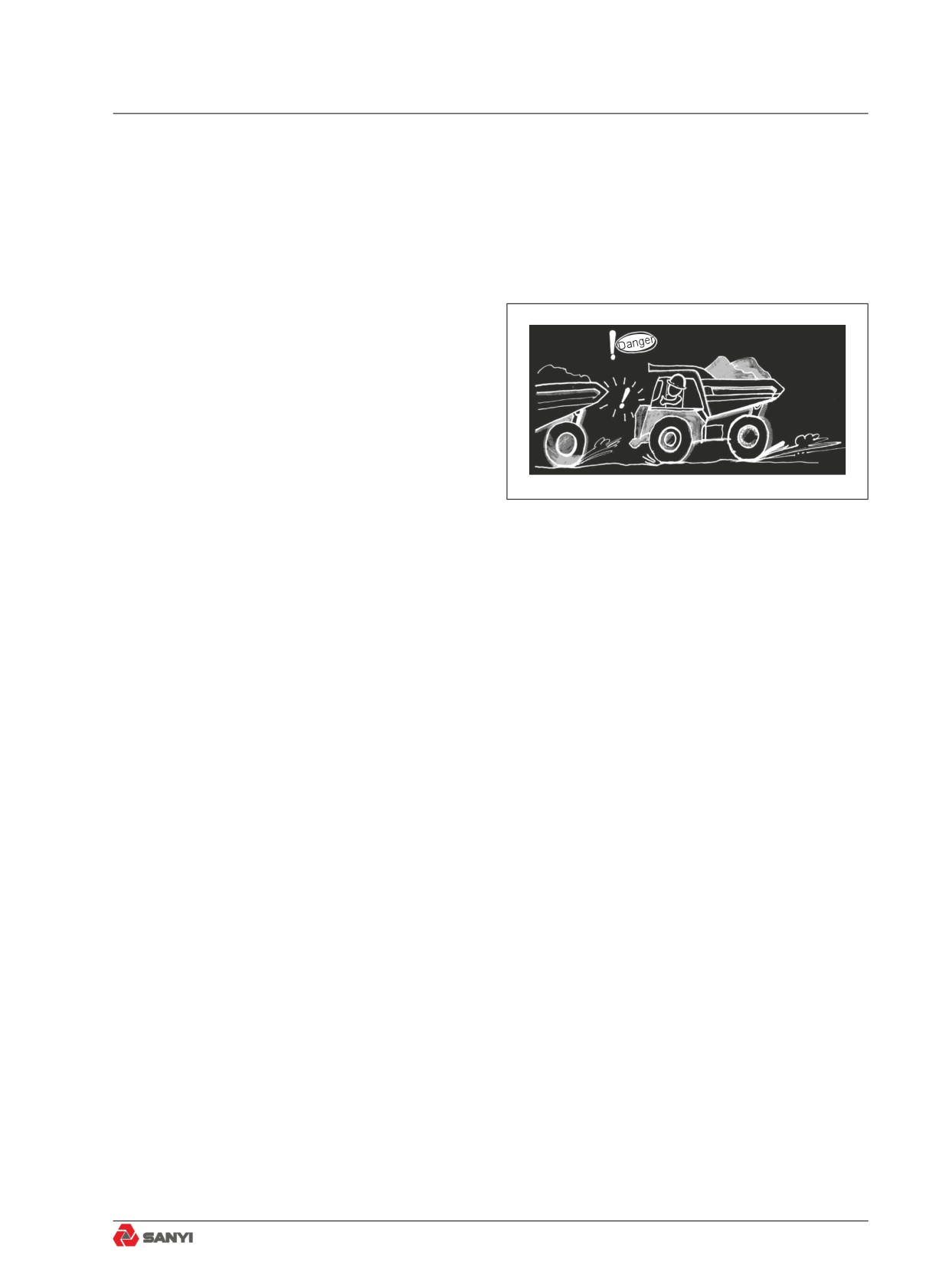

Continuous long time traveling at high

speed may cause tires to heat up,

abnormally increasing the inflation

pressure inside the tires, and to blow

up. The explosion of the tire is very

destructive, and it can lead to serious

injury or death.

●

Contact with SANY before doing long

continuous traveling.

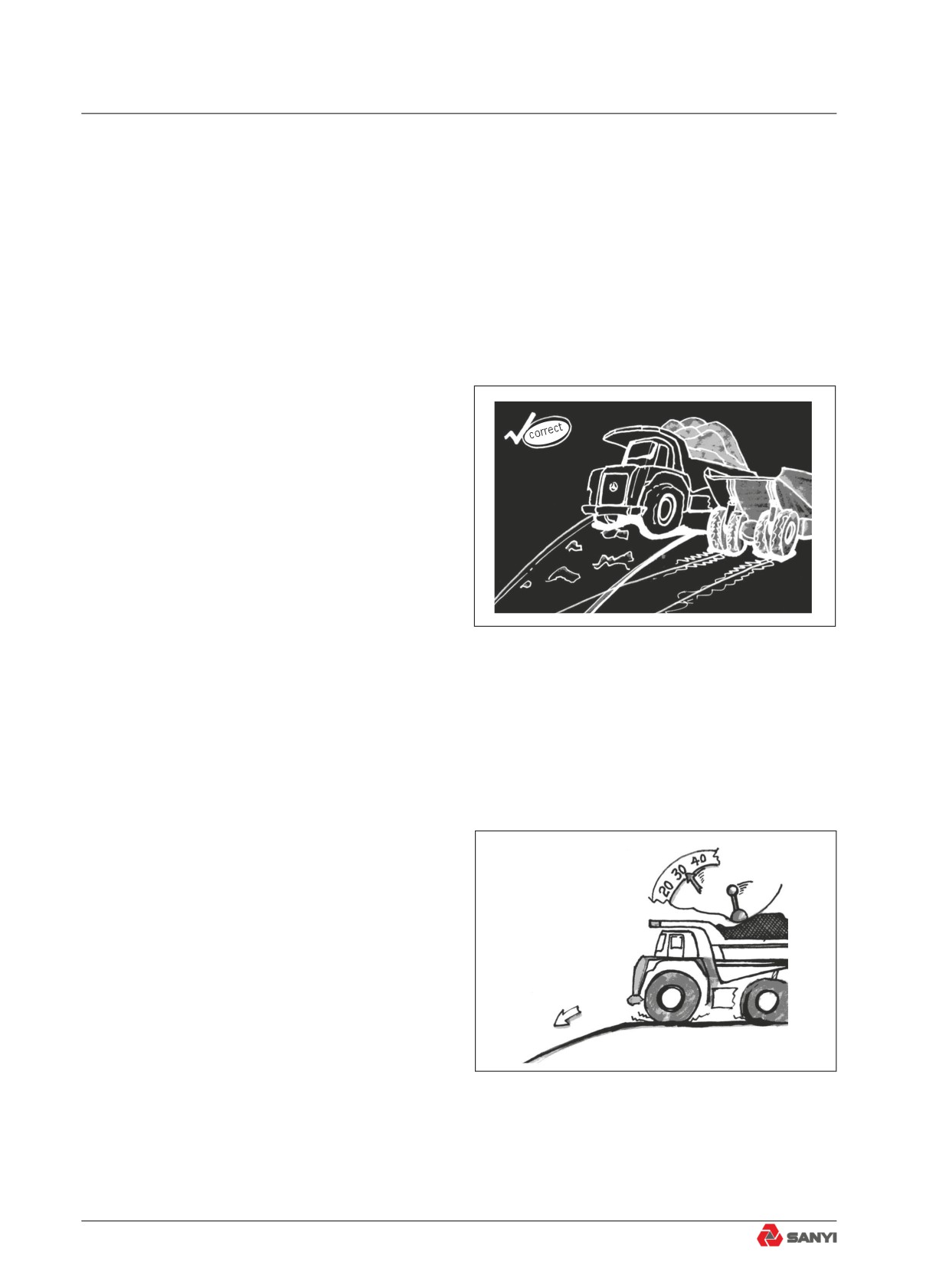

Fig. 2.3-11

●

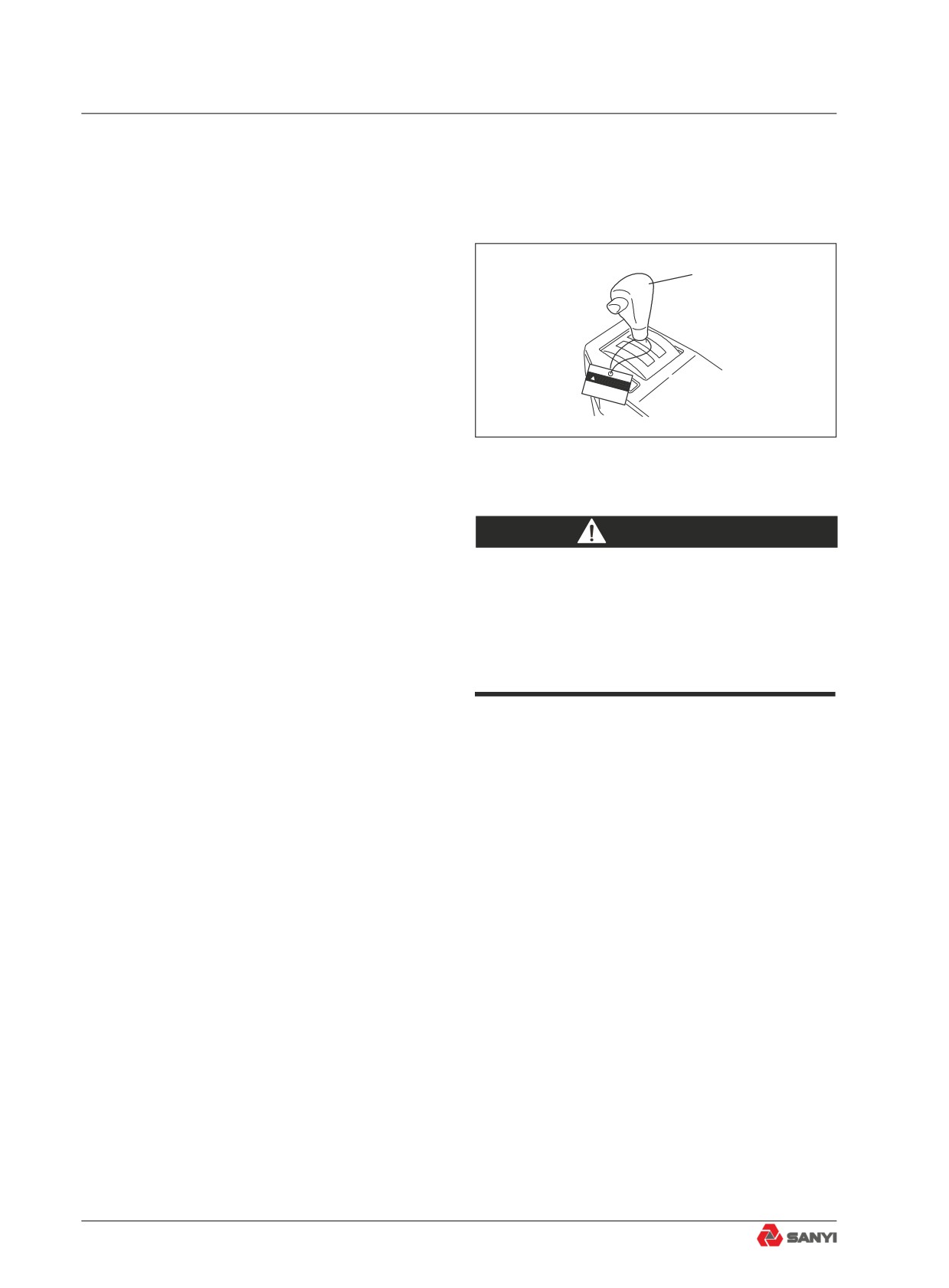

Do not move the gear shift lever to the N

position when the machine is traveling or

when it is traveling down a slope. Always

place the transmission in gear before

traveling.

●

If the transmission is in Neutral, the engine

cannot provide any braking effect and the

steering wheel will become heavier. In

addition, there will be lack of cooling oil for

the retarder, so there is danger that it will

overheat or that the actuation of the brake

will be poor.

●

There may also be damage to the

transmission or other parts of the power

train, and there is danger of unexpected

accidents.

2-33

Safety

fall off the road. This may lead to serious

personal injury and damage. Always do as

follows.

● Fit tire chains.

● Do not apply the brake suddenly on

Danger

slopes. Reduce the speed and use the

braking force of the engine together with

the foot brake (depress the foot brake

repeatedly; do not keep it depressed) to

stop the machine.

● Do not enter areas where the snow is

deep. There is danger of driving off the

road.

Fig. 2.3-13

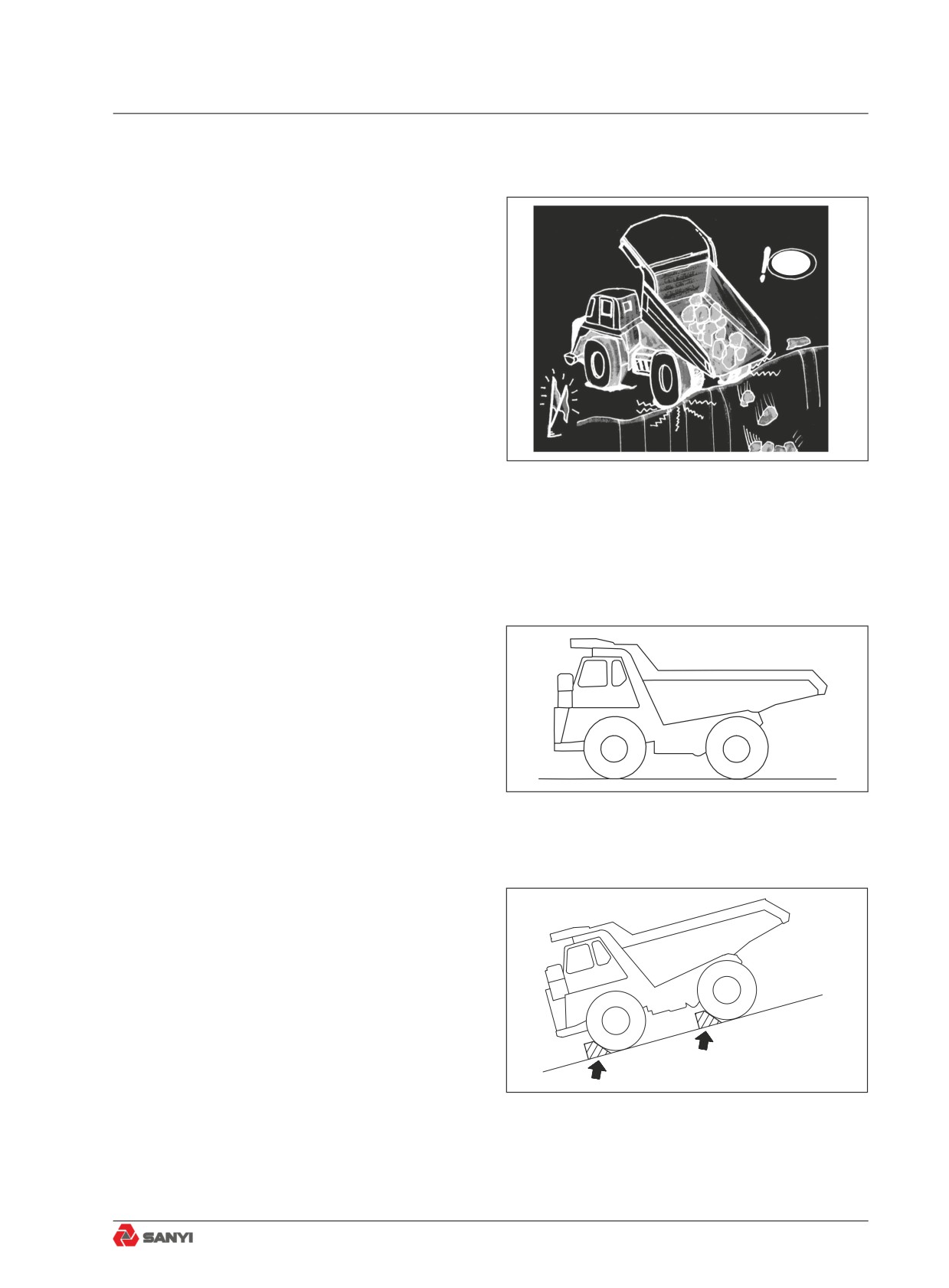

2.3.2.7 Parking the machine

Select a parking place

● Park your machine on a solid and flat

surface.

● Park the machine in an ares free of such

hazards as falling stones or landslide.

If the terrain is low, park it in a relatively

higher place.

● Never park your machine on a road

undergoing construction. If you have to

Fig. 2.3-14

park your machine in such a place, flags

are to be used on daytime and signal

lamps at night to warn other people or

vehicles according to local regulations.

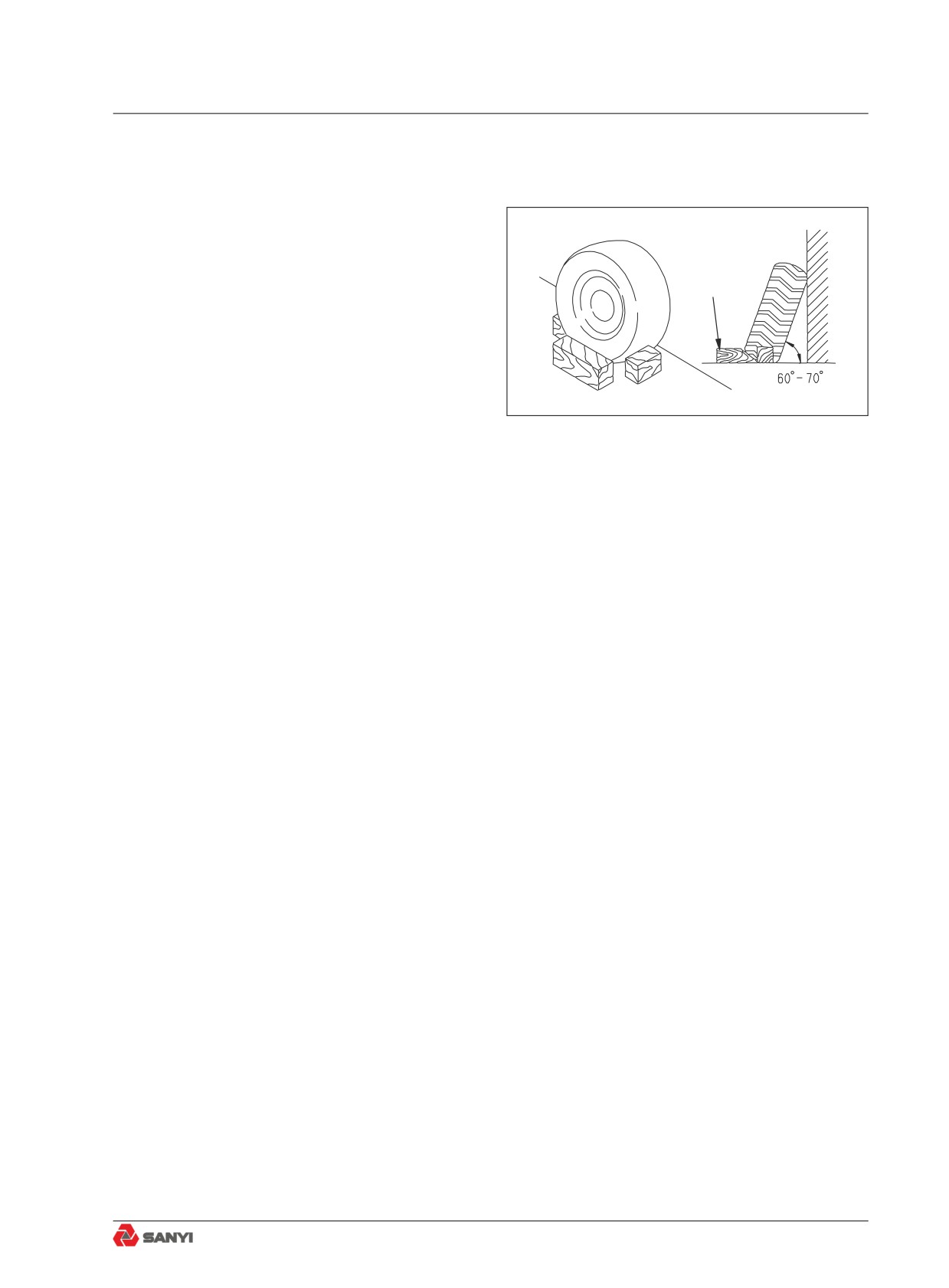

● Chock the wheels to prevent unexpected

movement.

Fig. 2.3-15

2-35

Safety

2.3.3 Transportation

This machine must be disassembled

for transportation. When transporting the

machine, please consult your Sany distributor.

2.3.3.1 Loading and unloading the machine

Improper loading and unloading of the

machine may cause it to fall or tip over. Follow

the procedures below:

●

Load or unload the machine only on

a solid and flat surface.Keep it a safe

distance away from road sides or a cliff.

Max. Angle15°

●

Keep on-lookers away.

Blocks

●

Use an access ramp with enough

strength.Make sure that the width, length

and thickness of the access ramp is

capable of providing a safe loading/

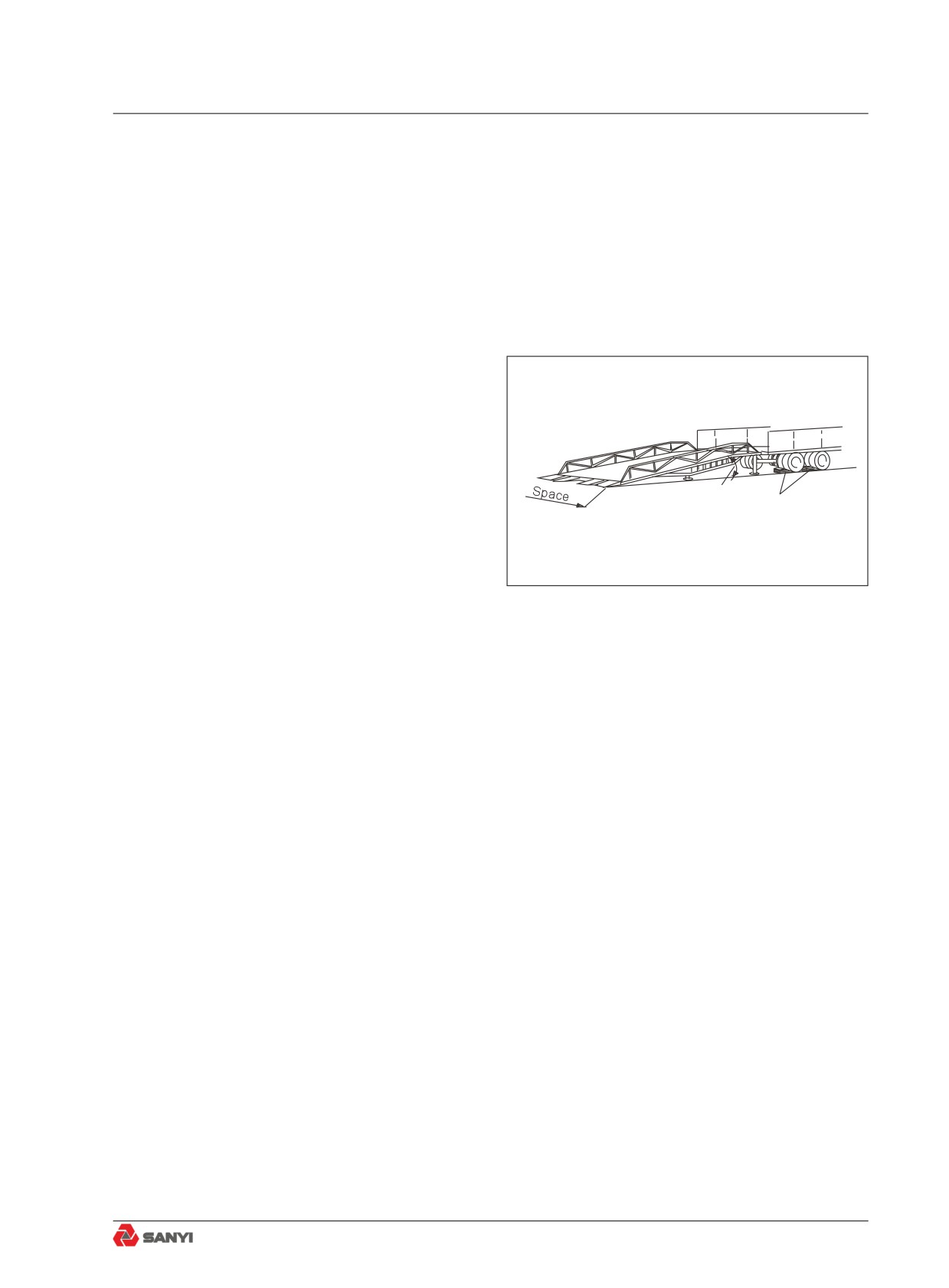

Fig. 2.3-16

unloading operation(at an angle ≤ 15°).

●

Make sure the access ramp is free from

grease, oil, water and debris. Clean the

track if necessary. Be extremely careful

when loading or unloading the machine in

rainy or snowy weather.

●

Run the engine at low speed and operate

slowly.

●

Gravity center of the machine may alter

when it passes the jointing area between

the ramp and the trailer. The machine may

tilt at this moment. Travel slowly when the

machine is on the joint area.

●

Never reposition the machine on the

access ramp. If necessary, drive it off the

ramp, reposition, and get on the ramp

again.

●

When loading or unloading the machine

on a platform, make sure the platform has

adequate width, strength and a proper

grade.

●

Once the machine is loaded, lock the cab

door. Otherwise, it may swing open during

transportation.

2-37

Safety

2.3.4 Battery

Electrolyte contains sulfuric acid, which gives

off flammable and explosive gases. Improper

handling may cause personal injury or fire. Observe

the instructions below when handling battery:

● Never smoke or use fire near a battery.

● Turn the engine ignition key to the OFF

position before working on the battery.

● Wear safety glasses and rubber gloves

when handling battery.

● Electrolyte is a strong acid. If electrolyte

contacts your clothing or skin, flush

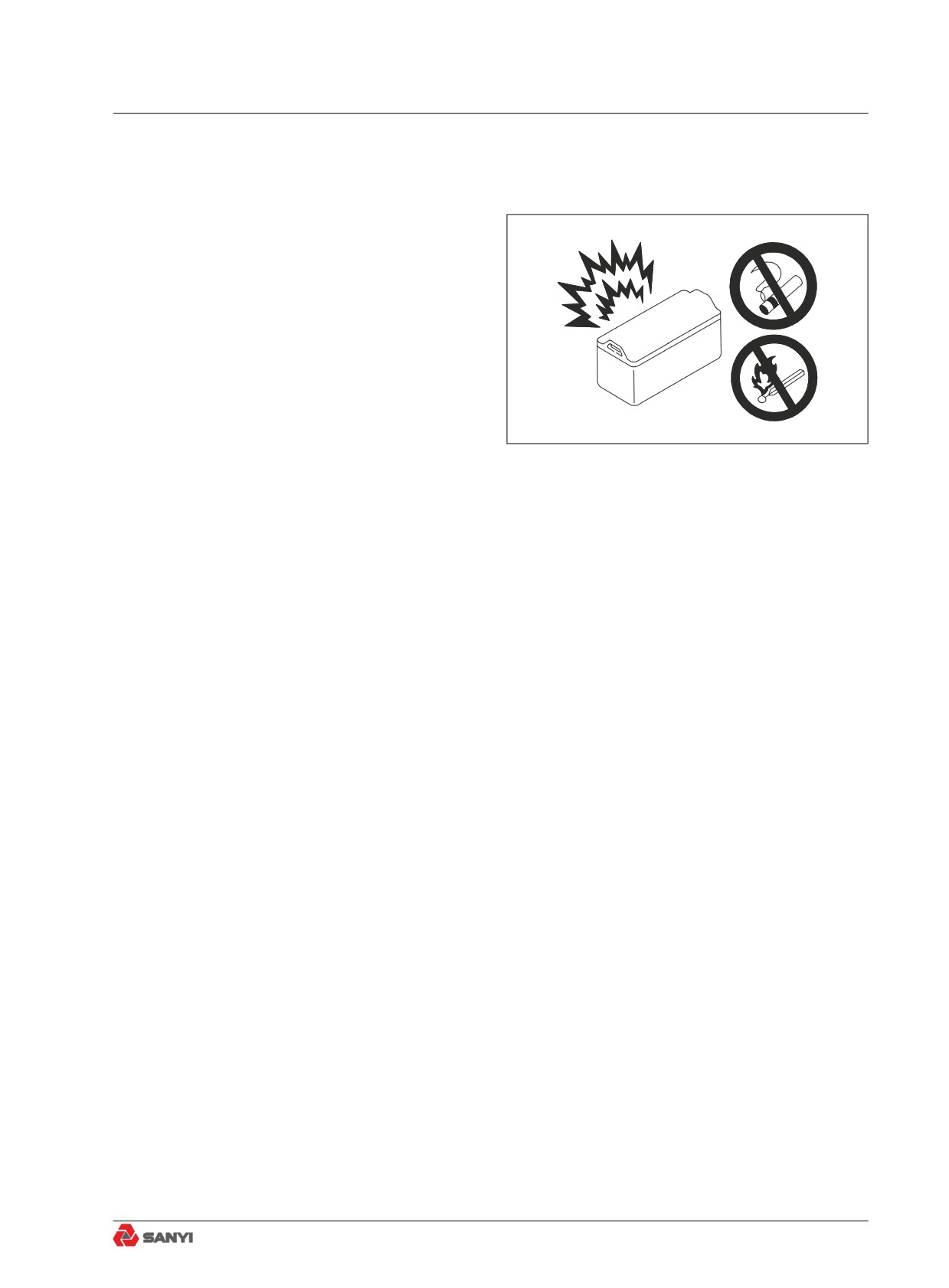

Fig. 2.3-17

immediately with plenty of water.

Electrolyte may cause blindness if it

contacts your eyes. Flush immediately

with plenty of clean water under such

circumstances and seek medical

treatment.

To avoid battery-induced explosion,

observe

the following precautions:

●

Never allow tools and other metal parts to

contact with battery terminals. Keep tools

or metal parts away from batteries.

●

Stop the engine and wait for one minute

before you proceed. Always disconnect

the grounding terminal (negative(-) ) first.

To connect battery cables, always begin

with the positive (+) terminal, and then

connect the negative (-) terminal. Ensure

all terminals are securely connected.

●

Battery temperature rises when it is being

charged. When battery temperature

exceeds 45°C, stop charging and wait till

it is at ambient temperature. Reduce the

charging current by half and continue the

charging process.

●

A battery being charged may give off

flammable gases. Before charging a

battery, remove it from the undercarriage,

put it in well-ventilated area and remove

the cap.

2-39

Safety

2.3.5 Towing

● When towing a damaged machine, improper

operation or use of unacceptable wire cable

could lead to serious accident:

● Never tow the machine on a slope.

● Wear protective gloves and a had hat when

A

using wire ropes.

● Check the strength of wire cable and make

B

sure it could bear the weight of machine.

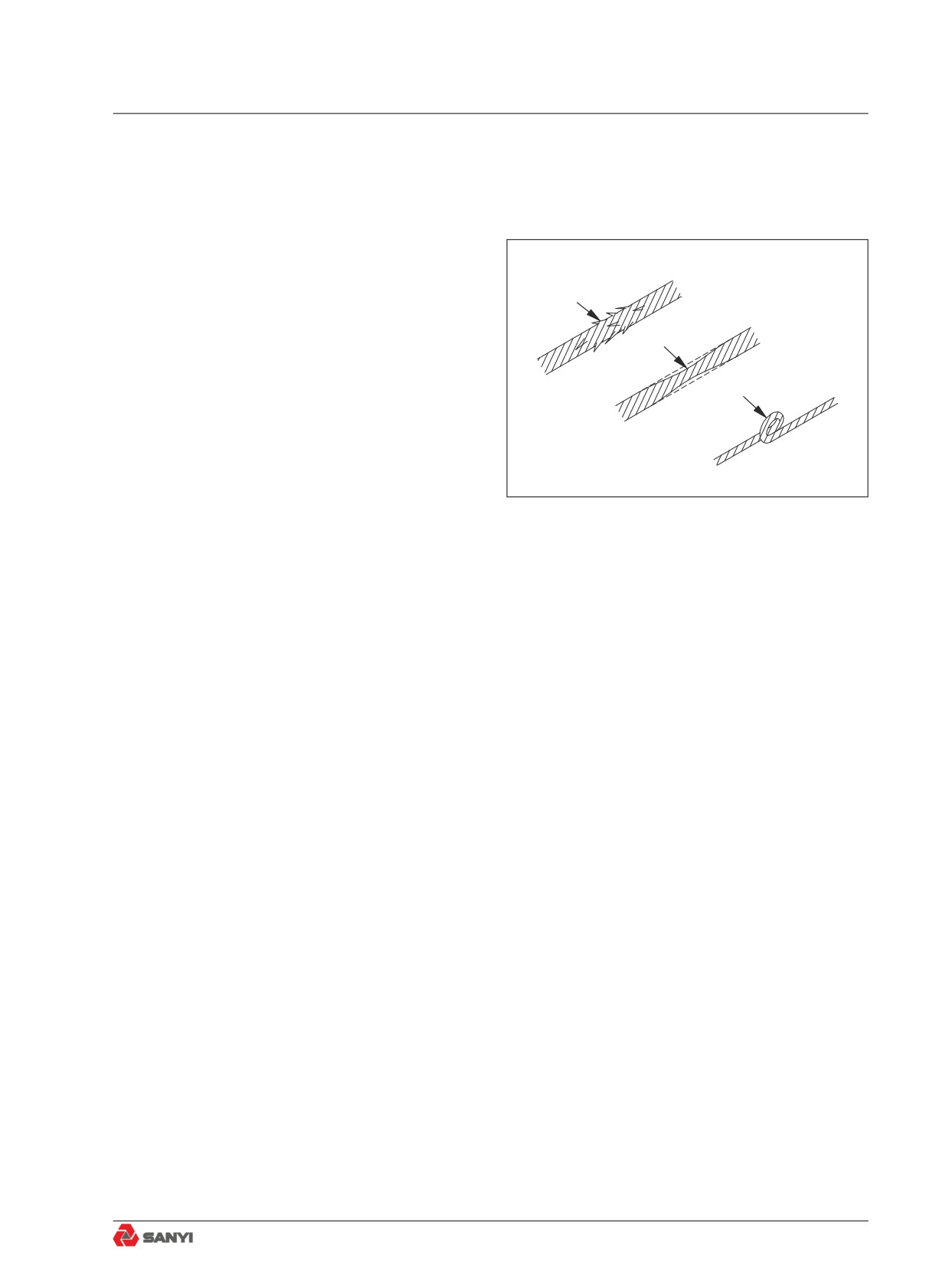

● Never use ropes with broken wires (A),

C

reduced diameter (B) and twisting (C). Such

ropes may break when towing.

● Never stand between the towing machine and

the towed machine during towing operation.

● Operate the machine slowly. Never add load

to the wire cable suddenly.

Fig. 2.3-18

2-41

Safety

2.4 Precautions for Maintenance

2.4.1 Lock-out and tag-out

● Before maintenance, attach a Never

1

OPERATE tag or similar sign to the cab's

retarder lever to warn others that this

machine is under maintenance.

● Attach other warning tags around the

machine if necessary.

● When maintenance is underway, starting

the engine or moving the control levers or

pedals could lead to serious accident.

Fig. 2.4-1

DANGEROUS

Never OPERATE ！

When this tag is not being used keep it in the

2.4.2 Select a working area

storage compartment.Still more,when there

is no storage compartment,keep it in the

● For maintenance work, select a clean flat

operation manual case.

area with plenty of space, ample sunlight

and good ventilation.

● Clean the working area by removing fuel,

lubricant and water, and covering slippery

ground with sand or other absorptive

materials.

● Never leave your hammer or other tools at

the working area.

● If a clean, tidy working area cannot be

guaranteed, there would be danger of

tipping, thus resulting in personal injury.

2.4.3 Prior-maintenance precautions

To prevent accidents:

● Understand maintenance procedure

before operation.

● Keep a clean and dry working area.

● Never spray water or steam in the cab.

● Never add lubricant and carry out other

maintenance work when your machine is

2-42

Safety

moving.

● Keep your hands, feet and clothing away

from rotating parts.

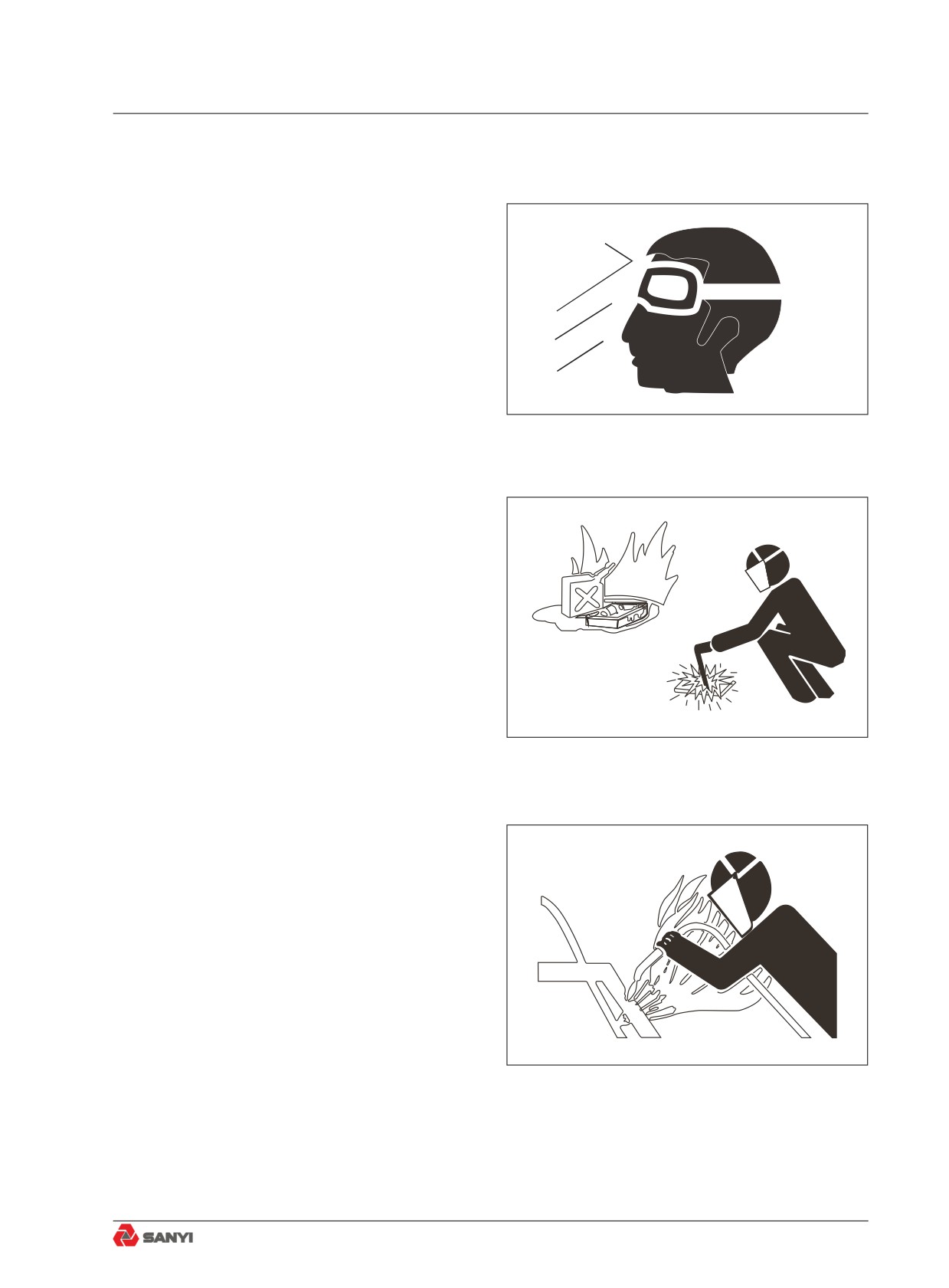

2.4.4 Preparing yourself

Only approved personnel can maintain

or repair the machine. An observer may be

assigned if necessary.

● Wear protective clothing and shoes

necessary for the job.

Fig. 2.4-2

● Wear rubber apron and rubber gloves

when handling corrosive materials. Wear

heavy gloves when handling wooden

materials,wire ropes or sharp-edged

metals.

● Wear a face shield when removing spring

or elastic parts, or adding acid to battery.

Wear safety hat and goggles when you

weld or cut with a torch.

● Never carry out grinding, flame cutting

or welding without an aspirator and

ventilation equipment.

Fig. 2.4-3

Fig. 2.4-4

2-43

Safety

2.4.5 Stop engine before carrying out

maintenance

● Park the machine on solid and flat ground.

● Lower the bucket to the ground.

！

！

● Lower the dump body, set dump control

lever (1) to the HOLD position, lock the

dump control lever , then stop the engine.

3

2

4

1

2

1

Fig. 2.4-5

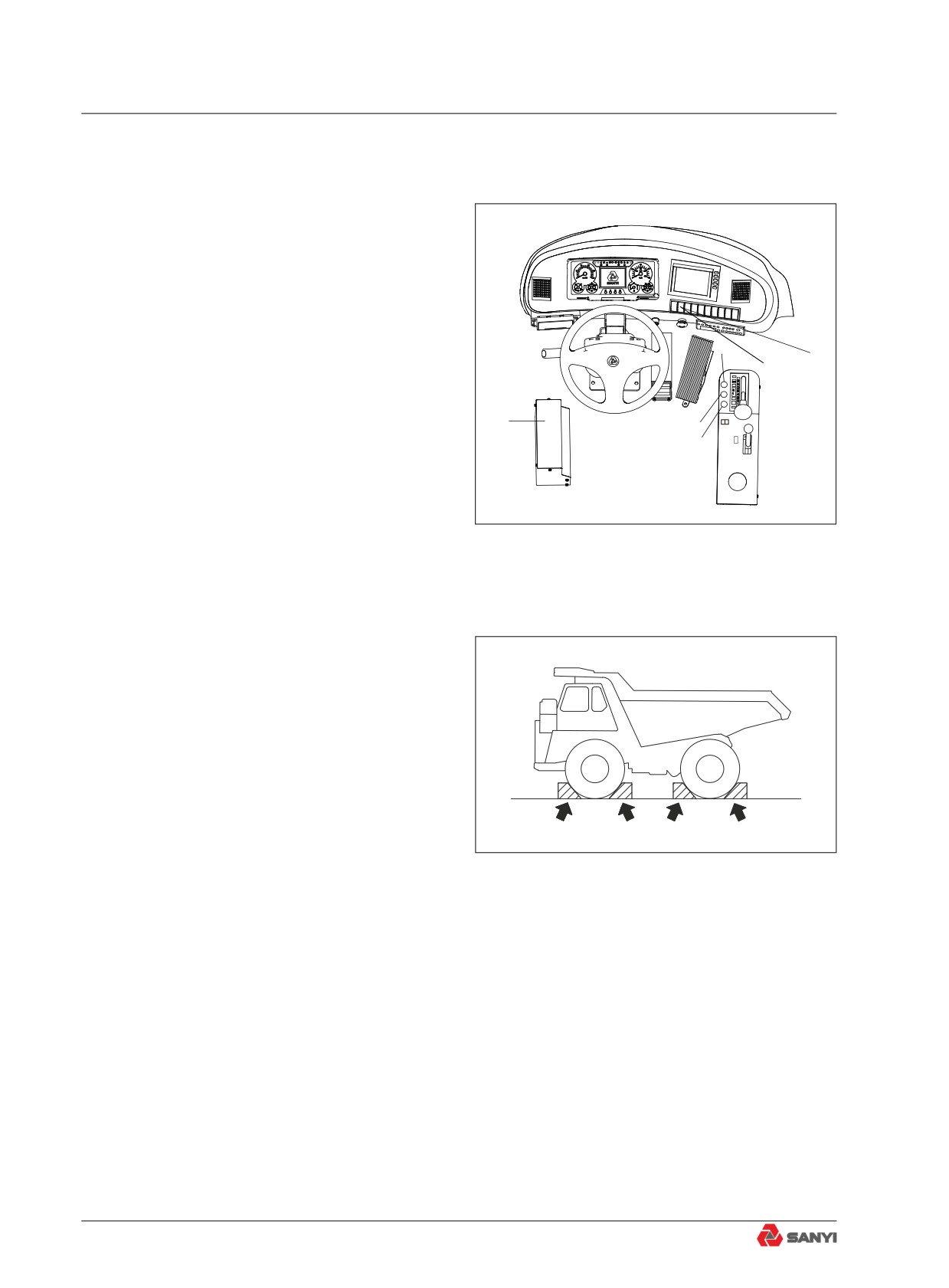

● Set parking brake switch (2) to the

PARKING position and put blocks under

the tires to prevent the machine from

moving.

Fig. 2.4-6

2-44

Safety

2.4.6 Maintenance with engine running

To prevent injury, no maintenance shall

be carried out when the engine is running.

However, if maintenance has to be done on

！

！

a running engine, at least two worker are

needed to carry out the maintenance.

● One of the workers shall stay in the

3

operator seat ready to shut down the

2

4

engine at any time. All the workers

involved shall keep in touch.

1

2

● set dump control lever (1) to the HOLD

1

position,then set parking brake switch (2)

to the PARKING position.

Fig. 2.4-7

Fig. 2.4-8

2-45

Safety

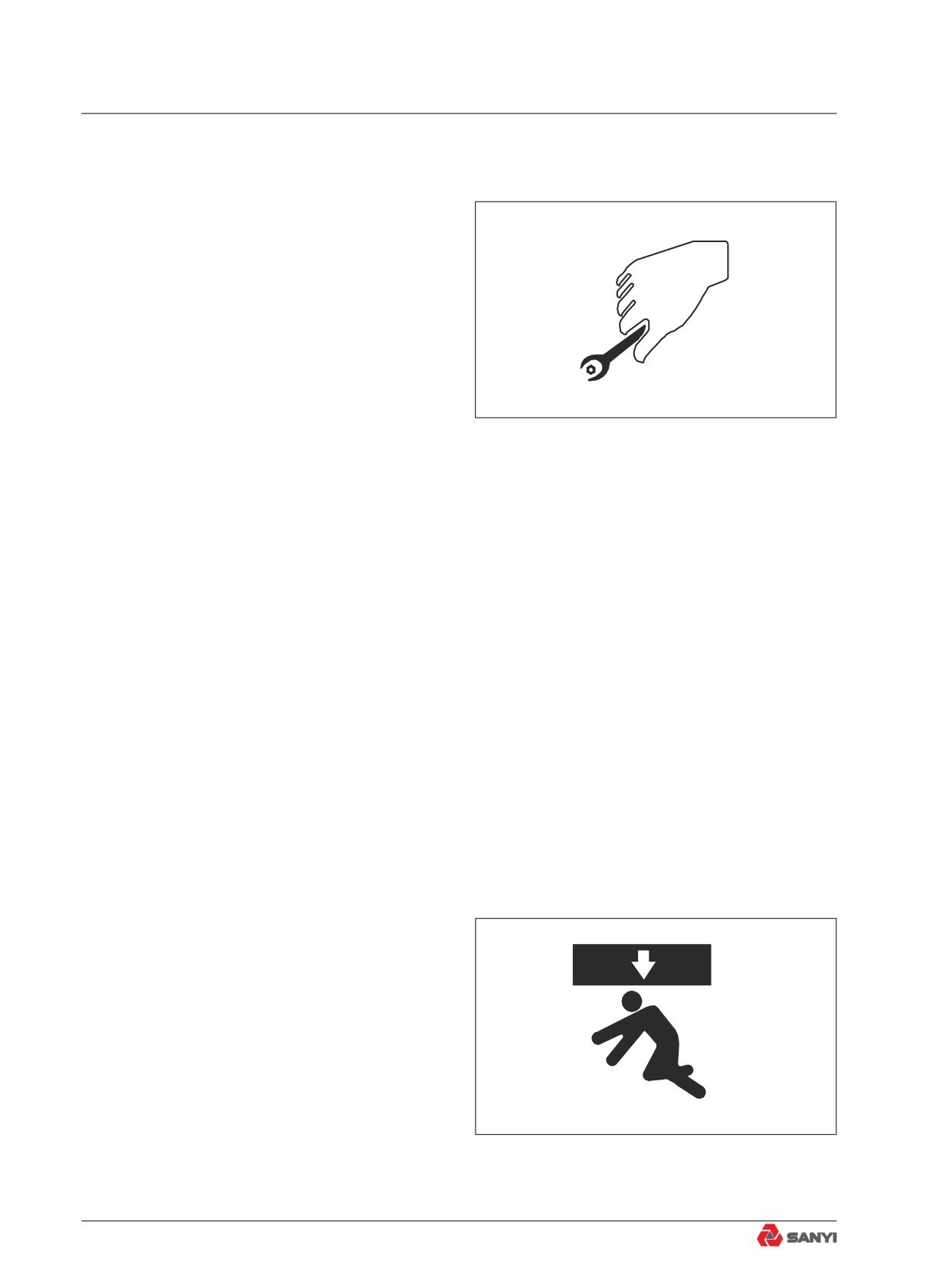

2.4.7 Using proper tools

Use proper tools and use them correctly.

Using damaged, inferior, defective, temporary

tools or using the tools incorrectly could lead

to serious accidents.

Fig. 2.4-9

2.4.8 Handling suspension cylinder

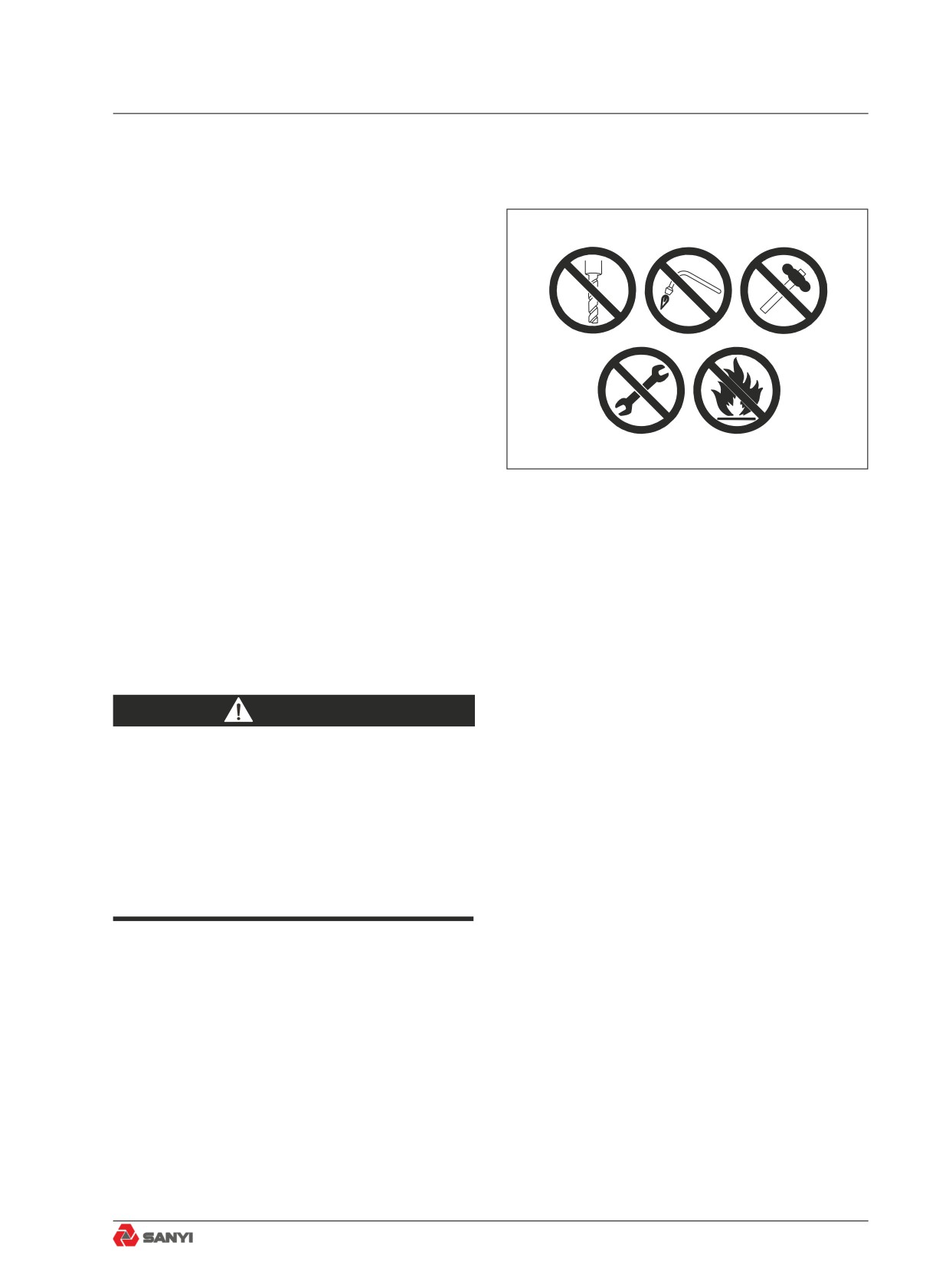

The suspension cylinder and accumulator

are charged with high-pressure nitrogen gas.

If any mistake is made in handling, there is

danger that it may cause an explosion or

serious personal injury.

● Do not remove or disassemble unless

necessary.

● Do not bring it near flame or dispose of it

in fire.

● Do no make holes in it weld it, or use a

cutting torch.

● Do not bear any shock by hammering,

rolling or similar activity.

● Ask your Sany distributor when sealing

gas into the cylinder or replacing gas from

it.

2.4.9 Working under the machine

● If the machine or work equipment has

to be lifted for maintenance, blocks

or supports that are strong enough to

support the machine or work equipment

should be used.

● When carrying out inspection with the

dump body raised, always set the dump

control lever to the HOLD position, then

Fig. 2.4-10

insert the body pivot pin.

2-46

Safety

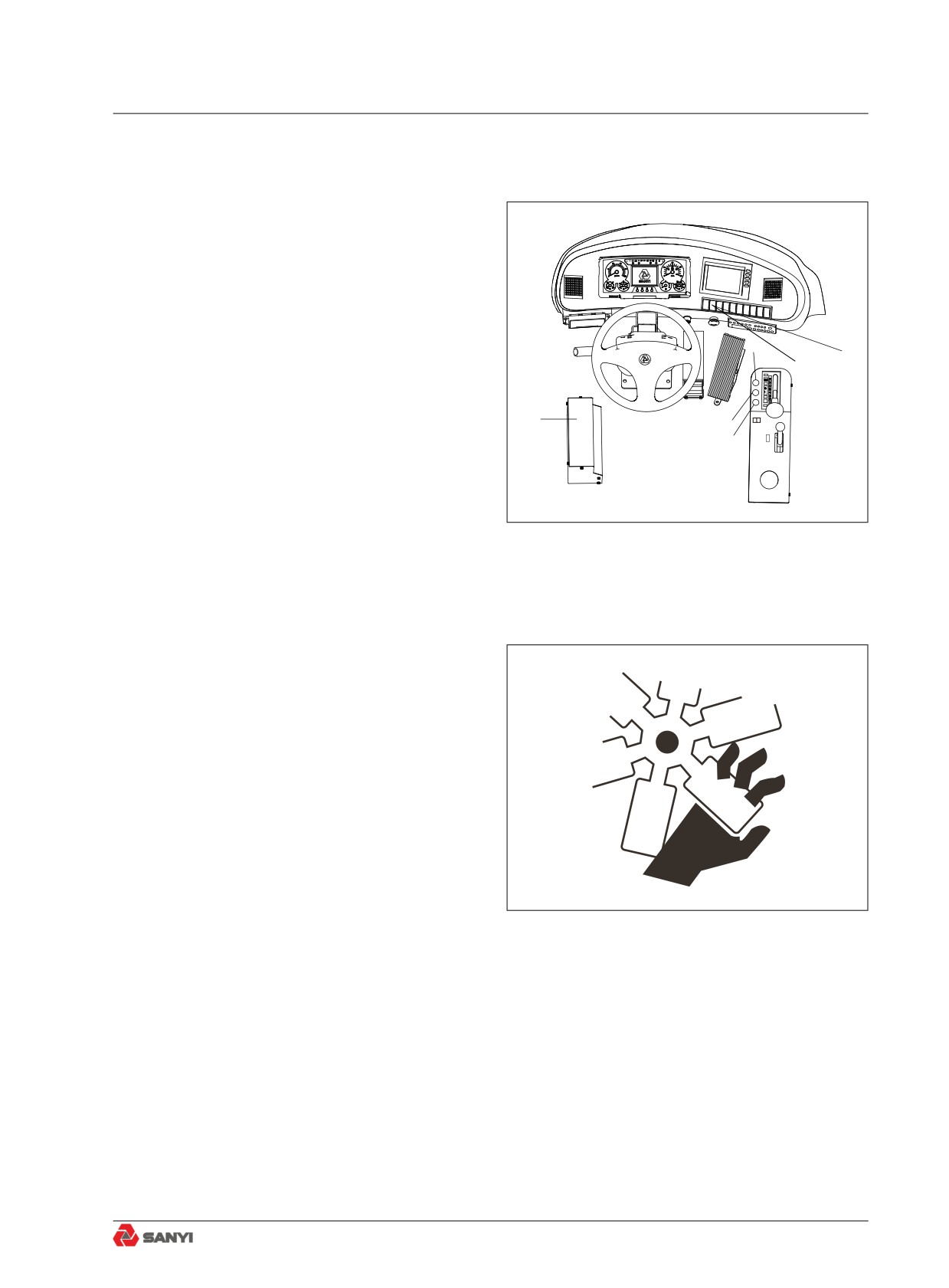

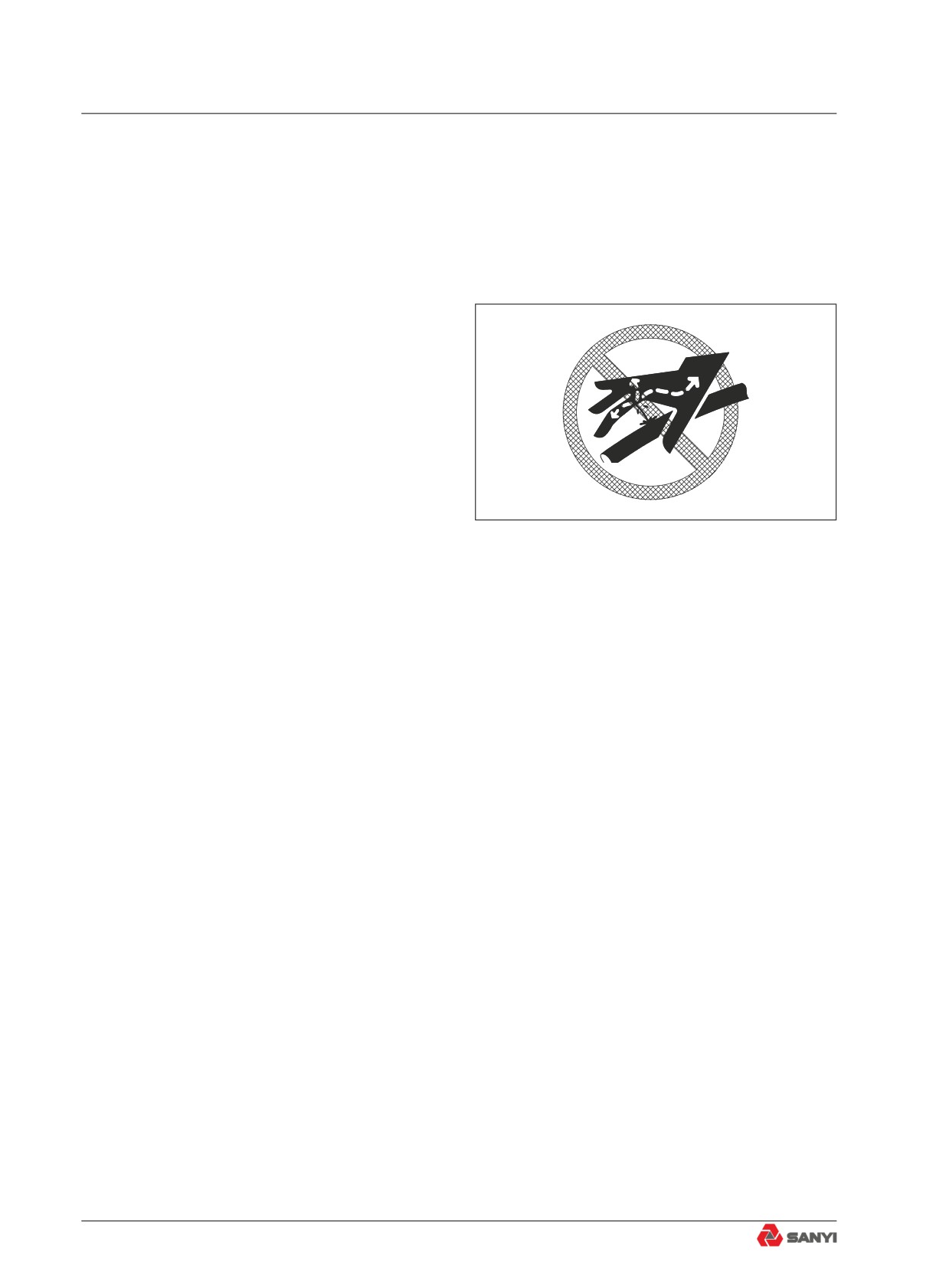

2.4.14 Precautions with high-pressure

oil

The hydraulic system is always under

pressure.Make sure pressure in hydraulic

circuits has been relieved before checking or

replacing the lines. Residual pressure in the

circuit may cause serious accidents.

Release system pressure before

maintainingthe hydraulic system:

1) Remove thebutterfly nut of the vent

valve and pressthe venting button to release

the internalpressure of the hydraulic tank;

2) Shut down engine.Rotate steering

wheel to the two directions for several turns

and release steering system pressure. Press

foot valve continuously to release pressure of

Fig. 2.4-12

brake accumulator.

●

Open fire is not allowed around the

hydraulic system. Remove splashed

hydraulic oil as quickly as possible.

●

Diesel oil or pressurized hydraulic oil can

penetrate skin or eyes, causing serious

injury, blindness or death. It is hard to find

the leaking of hydraulic oil with naked

eyes.A cardboard or wooden board is

necessary for checking for leaks. Never

touch leaking liquid with bare hand. Wear

face shield or safety goggles to protect

your eyes. If any liquid penetrates your

skin, flush with clean water immediately

and get medical attention as soon as

possible.

●

The fuel lines are under high pressure

when the engine is running. When

checking or servicing the fuel system,

shut down the engine and wait for 30

seconds till internal pressure drops before

operation.

2-48

Safety

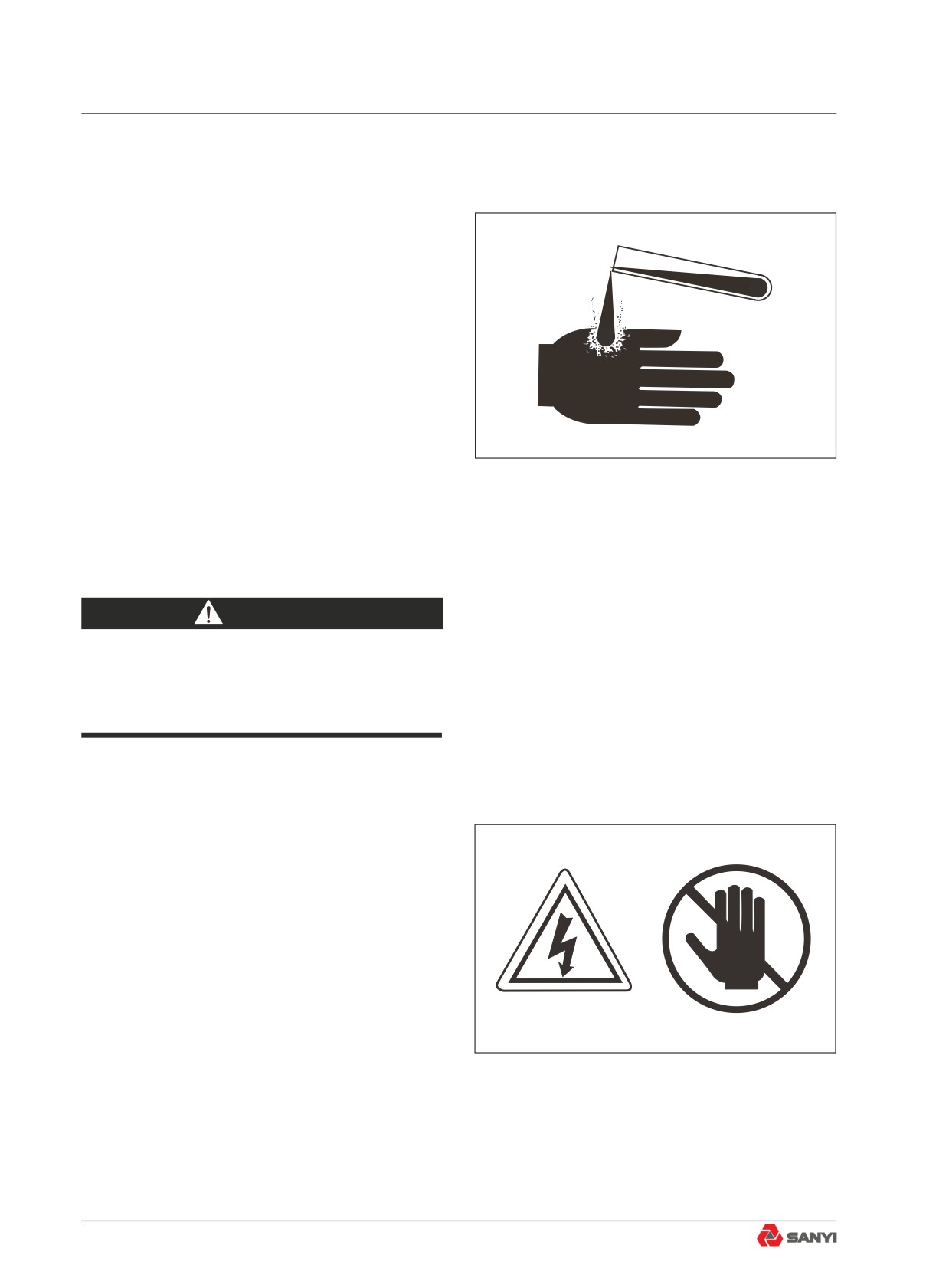

2.4.17 Air-conditioning system

Keep fire source away when servicing

airconditioning system.

● In maintenance of air-conditioning

system, observe the instruction on the

refrigerant cylinder and use it correctly.

The type of refrigerant is R134a. Use of

other refrigerants may damage the air-

conditioning system.

● Refrigerant getting into eyes may cause

blindness. It may cause frostbite if

splashed on your skin.

Fig. 2.4-14

● Obey local material disposal regulations.

Never discharge refrigerant directly into

the air.

WARNING

Refrigerant R134 a is a harmless gas

under room temperature. It will change

into highly toxic gas when burning.

2.4.18 High voltage precautions

● When the engine is running or has just

been shut down, high voltage can occur in

fuel injector terminal and engine controller.

Since there is danger of electrocution,

never touch fuel injector or interior of

engine controller.

● Please contact Sany distributor if you

have to access fuel injector terminal or

interior of engine controller.

Fig. 2.4-15

2-50

Safety

2.4.19 Accumulator

Accumulator contains highly pressurized

nitrogen.Improper operation of accumulator

can cause explosion and serious accidents.

Therefore, the following precautions must be

observed:

● Never disassemble the accumulator.

● Never let the accumulator be near a fire

source or exposed in flame.

● Never punch, weld or flame-cut on

accumulator.

● Never strike or roll the accumulator, or let

Fig. 2.4-16

it bear any impact.

● The gas must be released when disposing

of the accumulator. Contact Sany

distributor for this disposal.

2.4.20 Avoiding fire and explosion

DANGER

Never smoke when handling the fuel or

maintaining the fuel system. The gases in

empty fuel tank can cause explosion easily.

Never carry out flame-cutting or welding

operation on fuel pipe, fuel tank or fuel

vessels, which can lead to fire, explosion,

injury or death.

● Then engine must be shut down and

electrical equipment must be switched

off when refueling the tank. Be extremely

careful when adding fuel to a hot engine.

No sparks shall occur around the

grounding nozzle.

● Handle all solvents and dry chemicals in

a place with good ventilation according to

the steps indicated on vessel.

2-51

Safety

or illegible signs and marks.

● Tighten all fasteners and connectors to

specified torque.

● Install all guards, covers and hoods

after repair and service. Replace or

repair damaged guards. Only the type of

hydraulic oil approved or recommended

by Sany should be used to make up the

hydraulic system.

● Start the engine and check for any

leaks (check the hydraulic system), and

operate all control devices to be sure of

their proper functioning. Make road test

if necessary. Shut down the engine and

check the work you have done (see if

there are missing pins, gaskets and nuts).

Check again all hydraulic oil levels before

operation.

2.4.23 Proper disposal of wastes

Improper disposal of wastes harms

the environment and ecology. Consult local

environmental protection department or Sany

distributors for methods of recycling and waste

disposal.

● Potential harmful substances used in

Sany products include hydraulic oil,

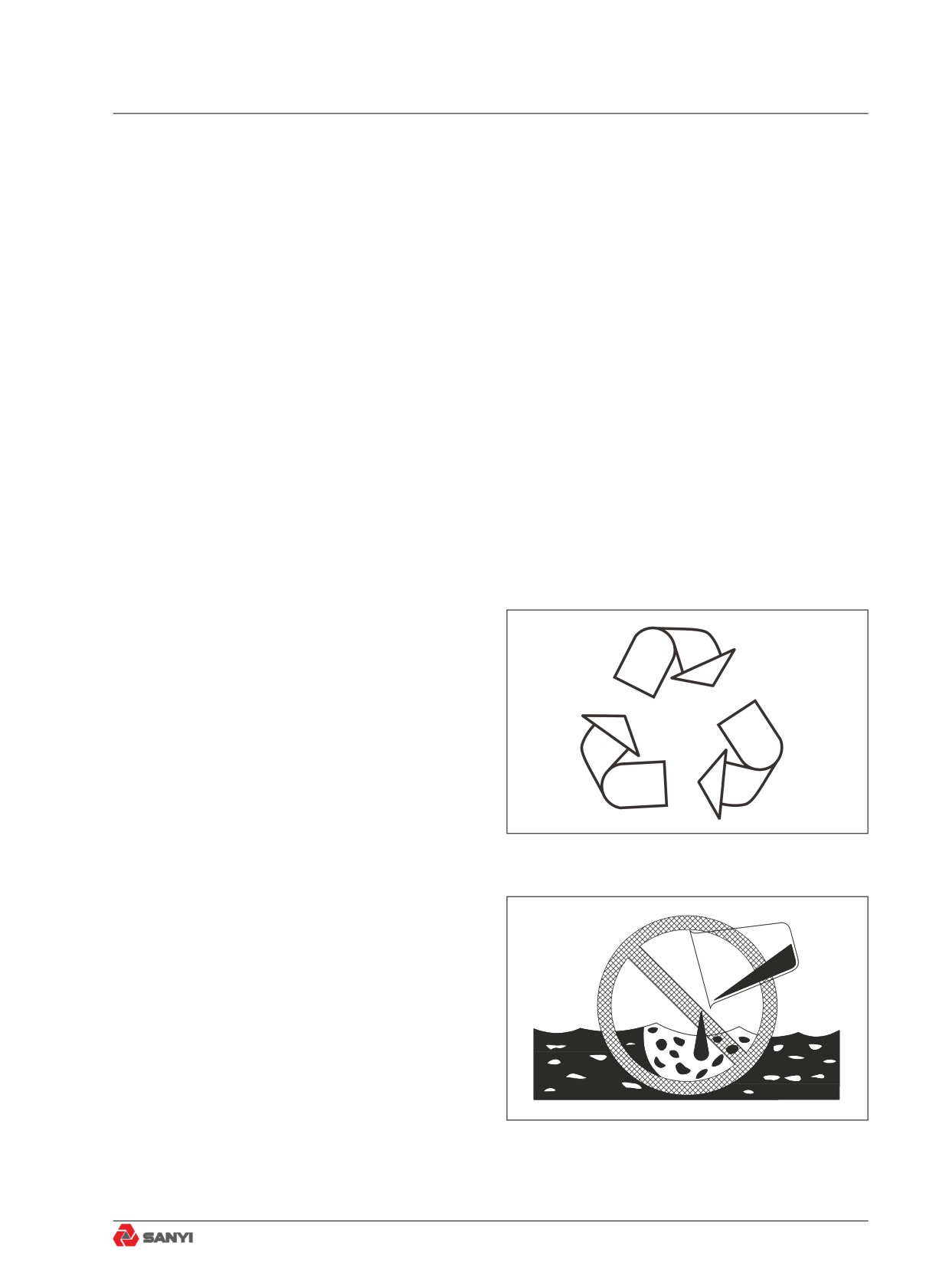

Fig. 2.4-17

fuel, cooling liquid, refrigerant, filter and

batteries etc.

● Use leak-proof vessels to hold discharged

fluids. Never use food or beverage

containers.

● Never dump waste fluids directly to the

ground, sewage or water source.

● Leaking of refrigerant from air conditioner

can spoil the atmosphere of the globe.

Related laws and regulations must be

followed to recover or regenerate the

refrigerant.

Fig. 2.4-18

2-53

Safety

2.5 Precautions With Tires

2.5.1 Handling tires

Explosive separation of a tire and/or rim parts

can cause serious injury or death.To ensure

safety, always do as follows.

●

When carrying out maintenance,

disassembly, repair, or assembly of the

tire or rim, special tools and procedures

must be used. Always ask your Komatsu

distributor to do the work.

●

Use only specified tires and inflate them

to the specified pressure.

●

When pumping up the tires, check that no

other person is standing near the tire, and

install an air chuck with a clip that can be

secured to the air valve. To prevent the

tire inflation pressure from becoming too

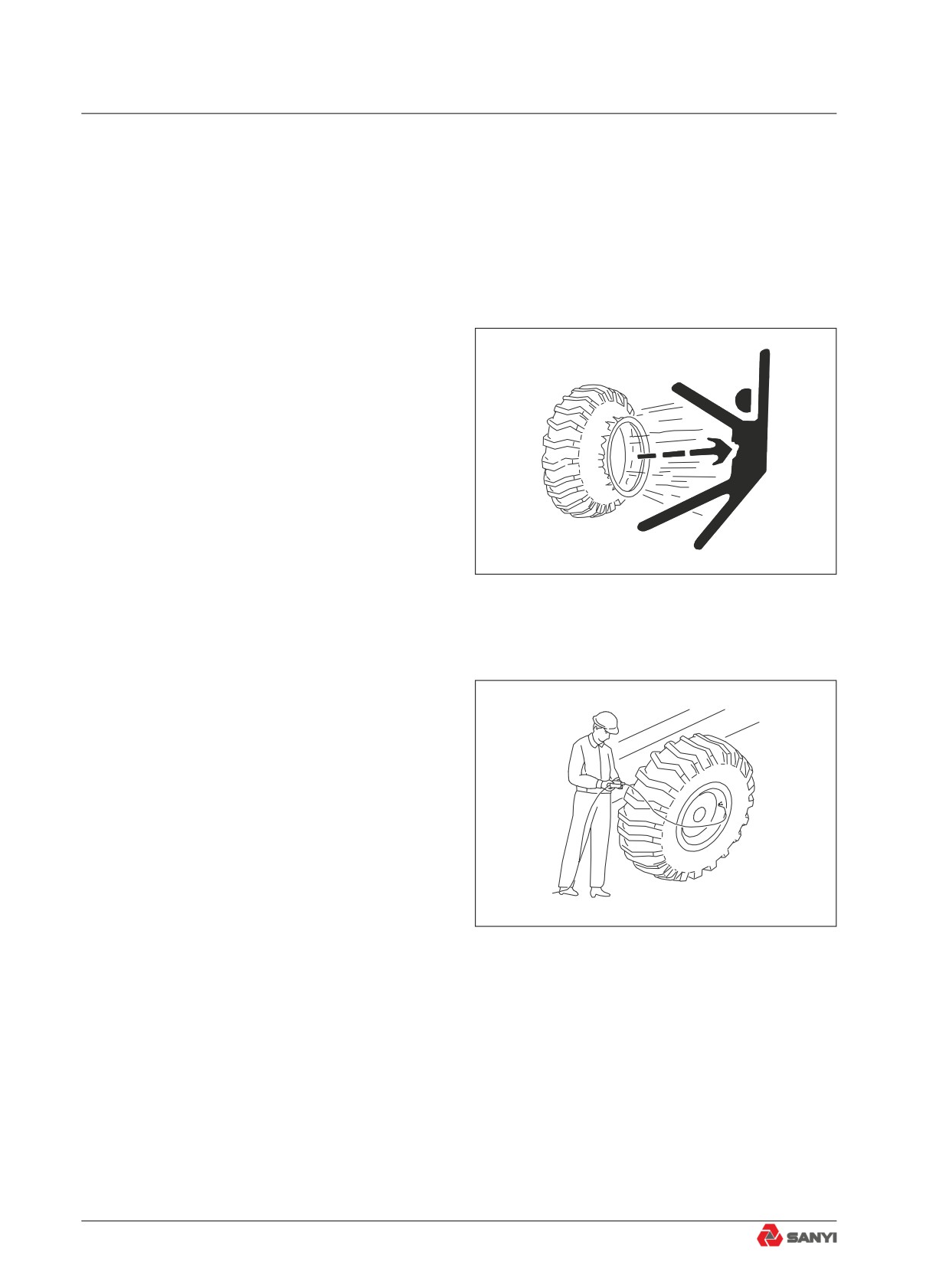

Fig. 2.5-1

high, measure the pressure from time to

time with an air gauge while pumping up

the tire.

●

If the pressure goes down abnormally or

the rim parts go not fit the tire, there is a

problem with the tires or rim parts. Always

contact your Komatsu distributor for

repairs.

●

If the rim parts are not fitted properly

when the tire is being pumped up, there

is danger that the rim parts may fly off, so

set up a protective fence around the tire,

and do not stand directly in front of the

rim. Stand beside the tread when pumping

Fig. 2.5-2

up the

●

Do not adjust the tire inflation pressure

immediately after traveling at high speed

or carrying out operations under heavy

load.

●

Never carry out welding or light a fire near

the tire.

●

Always release all pressure from a single

tire, or from both tires of a dual assembly,

prior to removing any rim components.

2-54

Safety

2.5.2 Precautions when storing tire

● Store the tires in a warehouse where

unauthorized persons cannot enter.

Always erect a fence and put up "No

Entry" signs if the tires must be stored

Block

outside. Stand the tire on level ground,

and block it securely so that it cannot roll

or fall over if any person should touch it.

● Do not lay the tire on its side. This will

deform the tire and cause it to deteriorate.

● If the tire should fall over, do not attempt

Fig. 2.5-3

to stop it. Get out of the way quickly.

2-55

Content      ..      1      2      3      ..
