SECTION 5 -- FAULT FINDING

THREE--POINT LINKAGE

PROBLEM

POSSIBLE CAUSE

CORRECTION

3--point linkage does

Error code will indicate source of

See your authorised dealer.

not move when con-

malfunction.

trol lever is moved

Hitch not in phase with the control

Put lift control lever back in phase with

lever.

lower links.

Fast raise switch in external control

Put switch in correct position.

position.

Height limit control incorrectly

Adjust height limit control.

positioned.

External power lift

Fast raise switch not in external

Centralise switch (external control

control does not op-

control position.

position).

erate

3--point linkage does

Height limit control incorrectly

Adjust height limit control.

not raise fully

positioned.

3--point

linkage

Drop rate control incorrectly

Adjust drop rate control.

drops slowly

positioned.

3--point linkage slow

Position/draft control incorrectly

Adjust position/draft control.

to respond to draft

adjusted.

loads

Drop rate too slow.

Adjust drop rate control.

Implement not functioning properly.

See implement operator’s manual.

3--point linkage too

Position/draft control incorrectly

Adjust position/draft control.

responsive to draft

adjusted.

loads

3--point linkage sta-

Position/draft control incorrectly

Adjust position/draft control.

tus light flashes con-

adjusted.

tinually

5--9

SECTION 5 -- FAULT FINDING

BRAKES

PROBLEM

POSSIBLE CAUSE

CORRECTION

Pedal(s) feel spongy

Air in system.

System requires bleeding. See

your authorised dealer.

Excessive brake

Brake piston seal leaking.

See your authorised dealer.

pedal travel

Brake bleed valve leaking.

See your authorised dealer.

Leakage in brake valve(s)

See your authorised dealer.

Worn brake discs.

See your authorised dealer.

CAB

PROBLEM

POSSIBLE CAUSE

CORRECTION

Dust enters the cab

Improper seal around filter

Check seal condition.

element(s).

Blocked filter(s).

Clean or replace filters.

Defective filter.

Replace filter.

Damaged seals around

Replace seal(s).

doors/windows or roof hatch.

Low pressuriser air

Blocked filter(s).

Clean or replace filters.

flow

Heater or evaparotor core blocked.

See your authorised dealer.

Air conditioner does

Heater control turned on.

Turn temperature control knob fully anti-

not produce cool air

clockwise.

Condenser blocked.

Clean radiator, condenser and oil cooler.

Drive belt slipping, worn or

Check automatic belt tensioner and belt

damaged.

condition.

Low refrigerant level.

See your authorised dealer.

5--10

SECTION 5 -- FAULT FINDING

ELECTRICAL SYSTEM

PROBLEM

POSSIBLE CAUSE

CORRECTION

Electrical

system

Loose or corroded battery

Clean and tighten connections.

completely inopera-

connections.

tive

Sulphated batteries.

Check battery open circuit voltage for

minimum 12.6 volts. Check electrolyte

level and specific gravity.

Starter speed slow --

Loose or corroded battery

Clean and tighten connections.

engine cranks slowly

connections.

Low battery output.

Check battery open circuit voltage for

minimum 12.6 volts. Check electrolyte

level and specific gravity.

Incorrect viscosity engine oil.

Use correct viscosity oil for ambient

temperature.

Starter inoperative

Loose or corroded battery or

Clean and tighten connections.

starter motor connections.

Dead batteries.

Charge or replace batteries.

Starter safety switch(es) operative.

Place all gear shift levers in neutral and

fully depress clutch pedal.

Alternator light stays

Low engine idle speed.

Increase engine idle speed.

on with engine run-

ning

Broken/loose drive belt.

Check belt and automatic belt tensioner.

Malfunctioning batteries.

Check battery open circuit voltage for

minimum 12.6 volts. Check electrolyte

level and specific gravity.

Malfunctioning alternator

Have alternator checked by your

authorised dealer.

Batteries will not

Malfunctioning alternator

Have alternator checked by your

charge

authorised dealer.

Loose or corroded terminals.

Clean and tighten connections.

Loose or worn drive belt.

Check belt and automatic belt tensioner.

Replace belt, if required.

Malfunctioning batteries.

Check battery open circuit voltage for

minimum 12.6 volts. Check electrolyte

level and specific gravity.

5--11

SECTION 6

VEHICLE STORAGE

The following text is given for your information and guidance. For further information concerning long term

storage of your tractor, please consult your authorised dealer.

TRACTOR STORAGE

• Raise the tractor and place supports under the

axles to take the weight off the tyres.

Before storing the tractor for an extended period, the

• Cover the exhaust pipe opening.

following precautions should be taken:

PREPARATION FOR USE AFTER STORAGE

•

Clean the tractor.

After extended storage, prepare the tractor for

•

Drain the engine and transmission/rear axle and

further use, as follows:

refill with clean oil.

•

Inflate the tyres to the correct pressure and lower

•

Drain the fuel tank(s) and pour approximately

the tractor to the ground.

two gallons of special calibrating fuel into the

tank. Run the engine for at least 10 minutes to

•

Refill the fuel tank(s).

ensure complete distribution of the calibrating

fuel throughout the injection system. See the

•

Check the radiator coolant level.

next item before running the engine.

•

Check all oil levels.

•

Check the radiator coolant level. If the coolant is

within 200 hours of the next change, drain, flush

•

Install fully charged batteries.

and refill the system. See Operation

32 in

Section

4. Run the engine for one hour to

•

Remove the exhaust pipe covering.

disperse the coolant throughout the system.

•

Start the engine and check that all instruments

•

Lubricate all grease fittings.

and controls are functioning correctly. Using the

tractor hydraulic system in Position Control, fully

•

Using the tractor hydraulic system in Position

raise the lift linkage and remove the supports.

Control, raise the lift linkage and support the lift

arms in the raised position.

•

Check operation of heating and air conditioning

systems (where fitted).

•

Lightly coat all exposed hydraulic piston rods

with petroleum jelly, e.g., power steering cylinder

•

Drive the tractor without a load to ensure that it

rams, lift assist rams, spool valves, etc.

is operating satisfactorily.

•

Remove the batteries and store in a warm, dry

atmosphere. Recharge periodically.

6--1

SECTION 7

ACCESSORIES

This section of the Manual describes the function

Subject

Page

and operation of features that are available for your

tractor as dealer installed accessories. Unless

Engine Coolant Immersion Heater

7--2

otherwise stated, these features may also be

available as factory fitted options.

Transmission Oil Heater

7--2

Maintenance requirements for these features will be

40 Amp Socket and Cable

7--3

found in Section 4 -- Lubrication and Maintenance.

Auxiliary Headlights

7--3

This subjects covered in this section are shown on

Battery Isolator Switch

7--4

the right. A comprehensive index is provided at the

end of this book.

Loader Subframe and

7--5

Control Valve (Joystick)

Remote Valve Zero Detent Kits

7--8

7--1

SECTION 7 -- ACCESSORIES

COOLANT IMMERSION HEATER

This dealer installed accessory consists of a heating

element fitted into one of the core plug apertures on

the right--hand side of the block. The heater is

available in

115 volts A.C only. This accessory

provides easier starting down to --29° C (--20° F).

WARNING

To avoid shocks or other injuries, never use an

unearthed or inadequate extension lead. Always use

an earthed, three core extension lead, which is rated

for at least a 15 amp load, in conjunction with a

residual current circuit breaker or earth leakage trip

device.

To operate the heater, connect the plug on the free

end of the heater cable (1) to a suitable 115 volt outlet

(or 230 volt using a transformer), for up to four hours

before carrying out the cold weather starting

procedure.

NOTE: The heater may be left plugged in for more

than four hours without harm. However, no

noticeable increase in the heater’s effectiveness will

be achieved after this period.

TRANSMISSION OIL HEATER

This dealer installed accessory consists of a 115

volts A.C. heating element installed in the

transmission housing. A cable connected to the

heater is clipped to the left of P.T.O. shaft housing.

This accessory provides for faster warm up of the

transmission/hydraulic oil when operating in cold

climates.

WARNING

To avoid shocks or other injuries, never use an

unearthed or inadequate extension lead. Always use

an earthed, three core extension lead, which is rated

for at least a 15 amp load, in conjunction with a

residual current circuit breaker or earth leakage trip

device.

To operate the heater, connect the plug on the free

end of the heater cable (1) to a suitable 115 volt outlet

(using a voltage transformer, if necessary) for up to

four hours before starting the engine.

NOTE: The heater may be left plugged in for more

than four hours without harm. However, no

noticeable increase in the heater’s effectiveness will

be achieved after this period.

7--2

SECTION 7 -- ACCESSORIES

ADDITIONAL 40 AMP SOCKET

A second 4--pin, 40 amp socket is available as a

dealer installed accessory. The socket is mounted on

the underside of the lower, right-hand windscreen

frame.

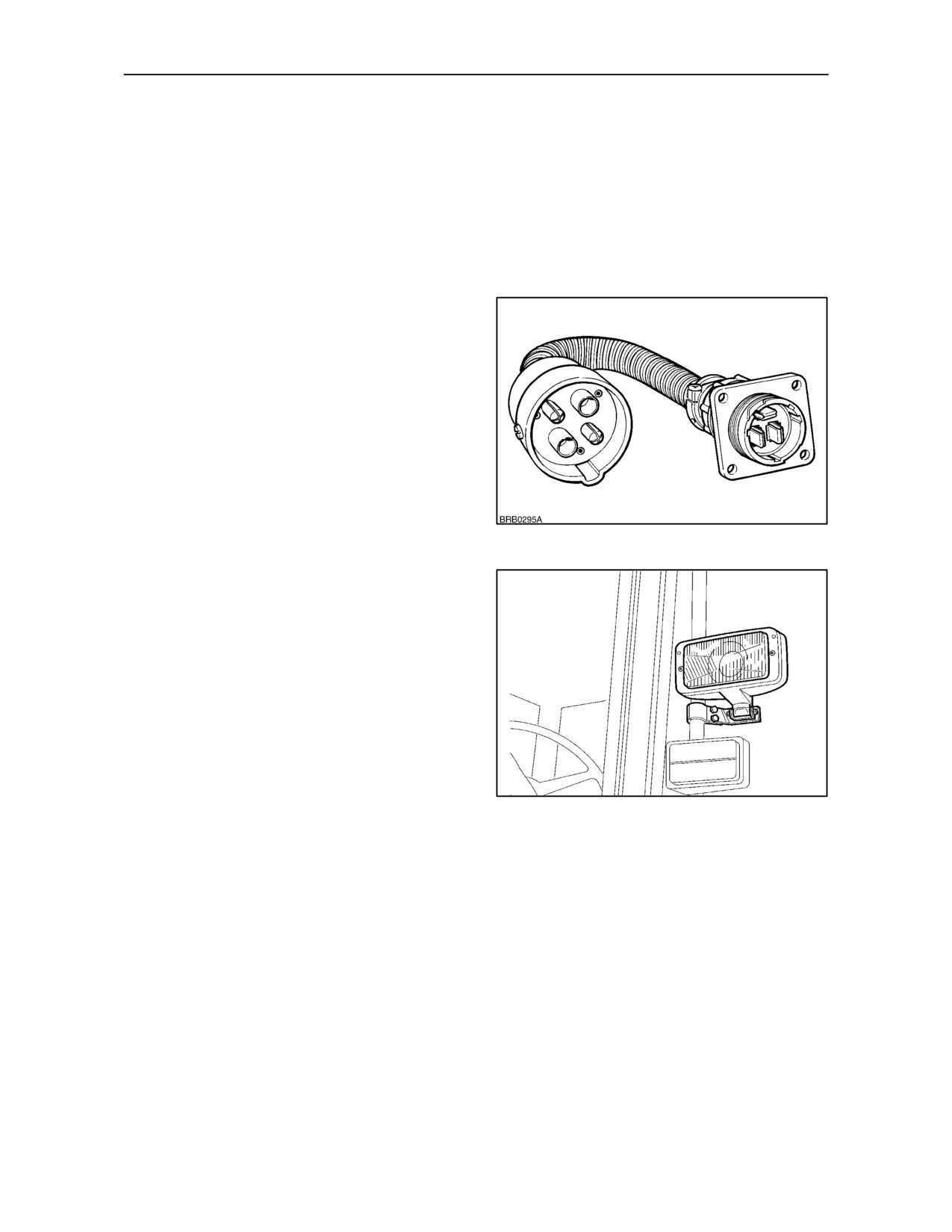

A 4--pin to SAE 3--pin adaptor cable is available as

an accessory from your dealer. (See Figure 2).

4--PIN TO 3--PIN ADAPTOR

A 4--pin to SAE 3--pin adaptor cable is available as

an accessory from your dealer. The adaptor may be

used with the 4--pin, 40 amp implement socket.

AUXILIARY HEADLIGHTS

A set of additional dipping headlights are available for

use with front mounted equipment. Located on the

upper right and left--hand grab rails, the headlight

beams pass over front mounted equipment to

illuminate the road ahead.

To turn on the auxiliary headlights, depress the

switch on the lower left side of the instrument panel.

Wnen switched on the auxiliary headlight beams

may be dipped using the multi--function switch on the

left of the steering column.

7--3

SECTION 7 -- ACCESSORIES

BATTERY ISOLATOR SWITCH

Before disconnecting battery power with the isolator,

ensure the key--start and any other electrical

switches are turned OFF.

IMPORTANT: After turning the tractor key--start off,

wait for

60 seconds before isolating the battery

power. This will permit any unsaved information in

the tractor electronic processors to be memorised.

An inbuilt power reserve will maintain a small amount

of power to supply the electronic processors and

radio memories when the tractor battery is isolated.

Electronic Operation

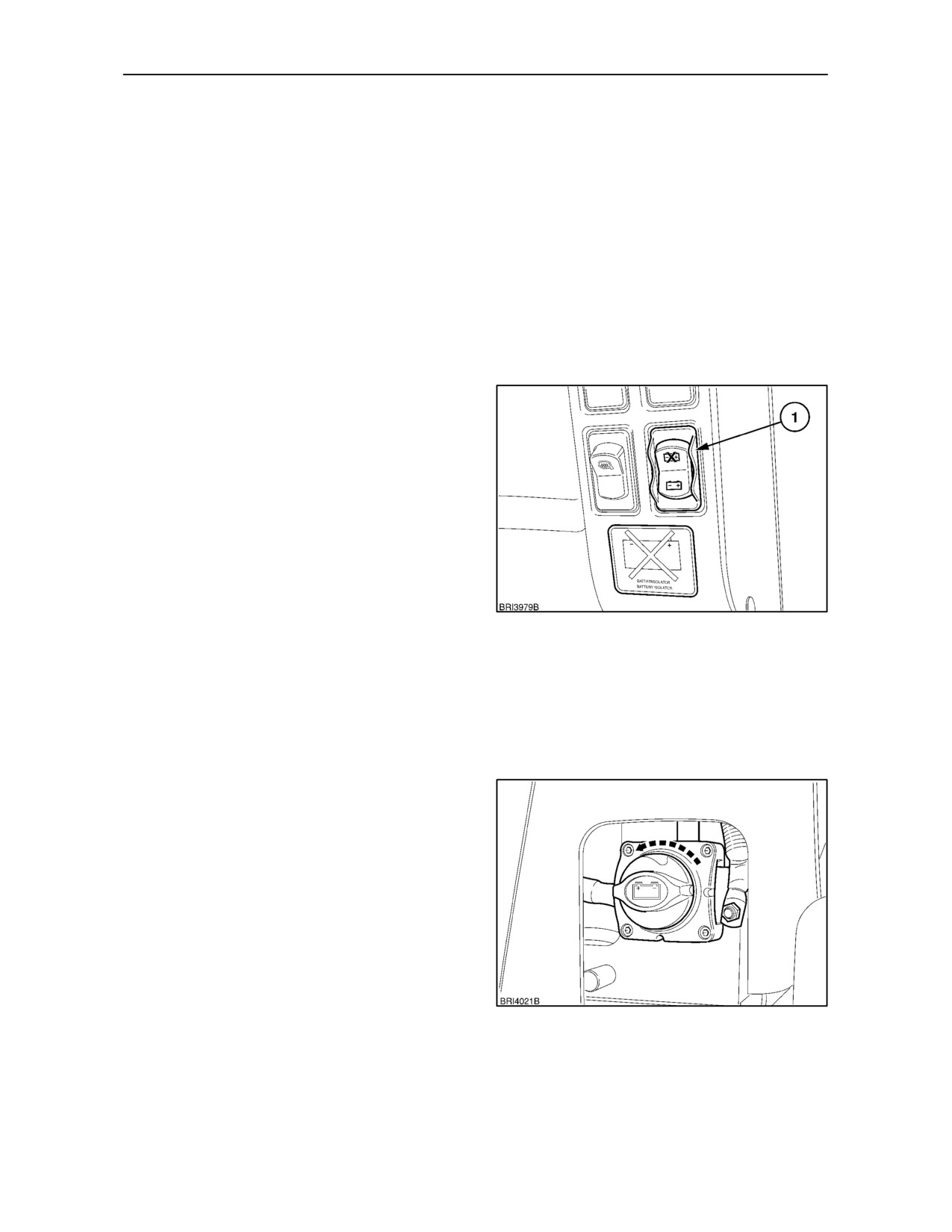

The solenoid operated battery isolator is controlled

by a switch (1) located on the left--hand cab ’C’ pillar.

Depress the top of the switch to disconnect battery

power, an audible warning will sound for

approximately 5 seconds. Depress the bottom of the

switch to re--connect battery power.

IMPORTANT: When in the ’ON’ position, the isolator

switch solenoid consumes a small amount of

electrical power. If the tractor is left for an extended

period of time with the isolator on, battery power may

be reduced. Always turn the battery isolator switch

’OFF’ when the tractor is not in use.

NOTE: The key--start switch must be in the ’OFF’ or

’ACCESSORIES’ position to operate the battery

isolator, it will not function with the key--start in the

’ON’ (run) position.

Mechanical Operation

The mechanical isolator switch is attached to the

battery carrier on the right--hand side of the tractor.

Rotate the switch¹/₄ turn anti--clockwise (position

’O’, red background) to disconnect battery power.

7--4

SECTION 7 -- ACCESSORIES

LOADER SUBFRAME and CONTROL

VALVE (JOYSTICK)

Operating

If your tractor is equipped with the optional front

loader, a mid mounted remote control valve with

two spools will have been fitted. The valves are

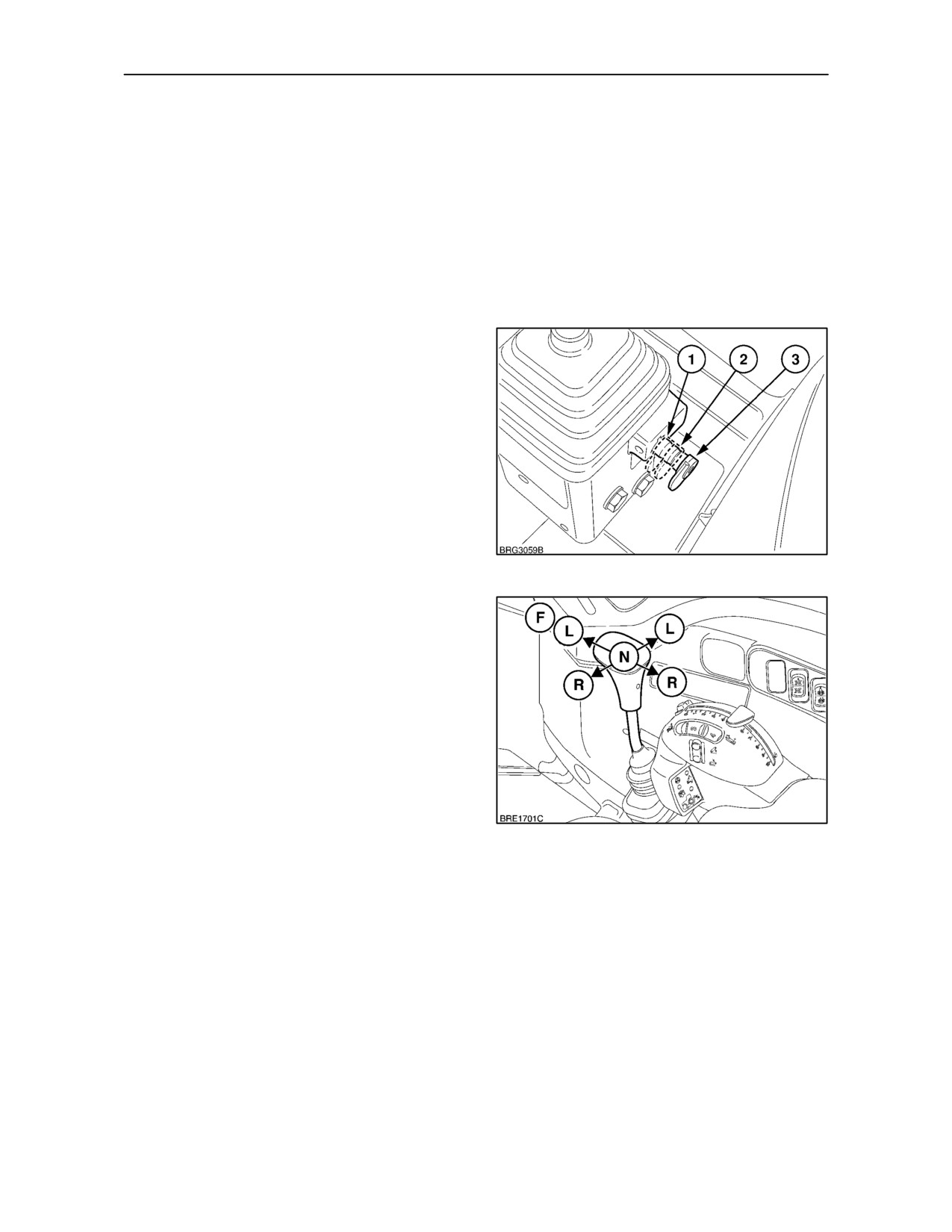

controlled by a joystick mounted on the right--hand

side of the seat. The joystick is able to operate two

services simultaneously by moving it diagonally.

The lever lock provides selective control of the

joystick. With the lock pushed fully in, position (1), the

joystick is fixed in neutral and the remote valves

cannot be operated, either by accident or by choice.

If the lock is pulled fully out, position (3), valves I and

II may be operated independently or together by

moving the joystick control in the appropriate

direction.

Intheintermeadiateposition (2), lateral movement of

the joystick that operates valve II is locked.

Joystick Operation

Pull the joystick rearwards (R) to raise the loader. If

required, pulling the joystick fully rearward against

spring pressure will provide a faster rate of lift.

Pushing the joystick forward to the ‘lower’ position (L)

will cause the loader to lower to the ground at a

controlled rate of descent.

Further forward movement of the joystick will select

‘float’ (F) which will allow the loader arms to move up

and down freely. When using the float position to

lower the loader, pushing the joystick fully forward

against spring pressure will cause the rate of drop to

slow.

Moving the joystick to the left (R) will cause the

bucket to roll upwards (crowd), moving the joystick

to the right (L) will roll the bucket out (dump).

IMPORTANT: Do not hold the lever in the raise or

lower positions once the loader or bucket cylinder

has reached the extent of its travel. This will cause

the relief valve to ‘blow’ which, if occuring over an

extended period, may overheat the oil.

7--5

SECTION 7 -- ACCESSORIES

Additional Services (where fitted)

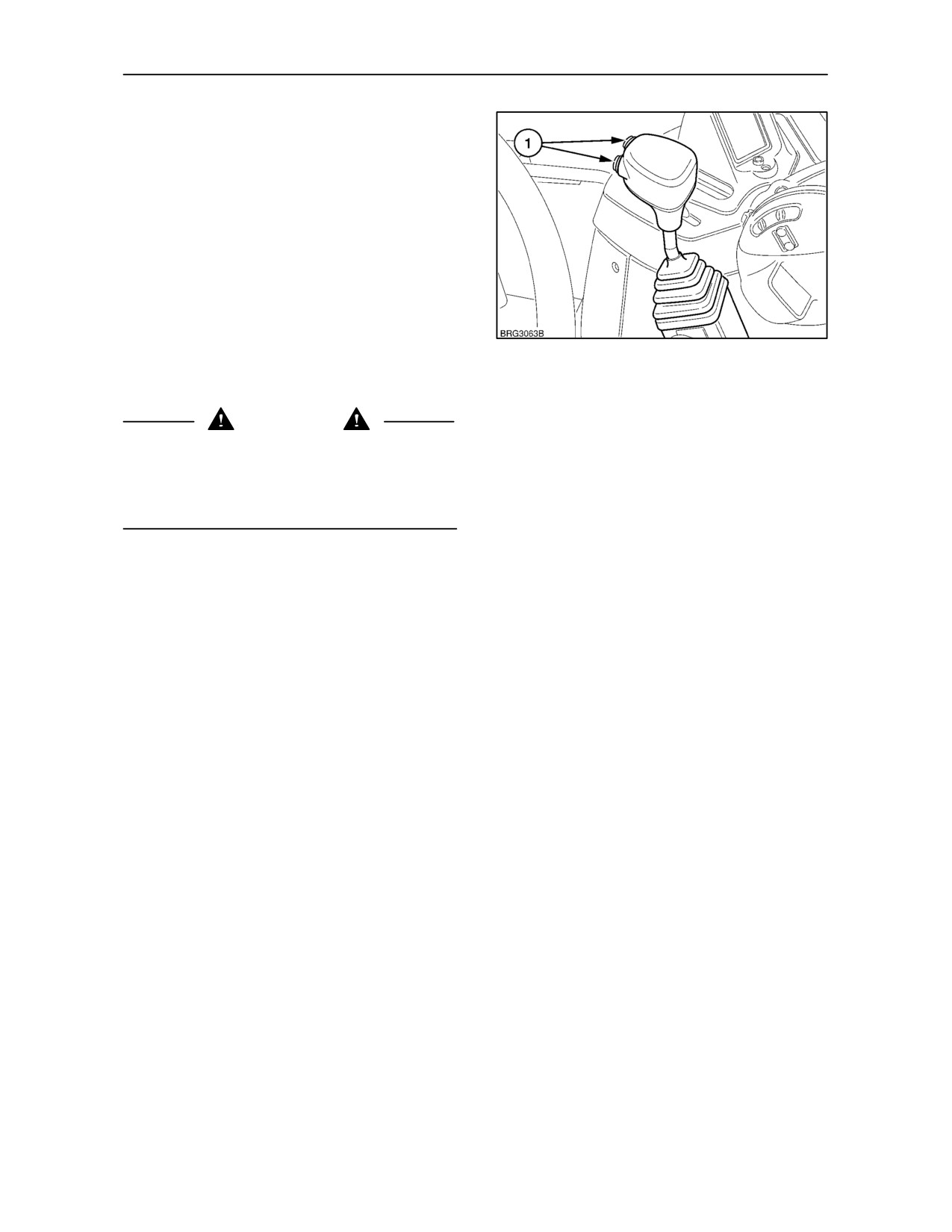

Your loader may be equipped with additional

functions activated using the buttons (1) on the

joystick knob.

Depending on loader specification, up to three

buttons may be fitted to the joystick. Consult the

loader Operator’s Manual for further information.

Attaching the Loader to the Subframe

CAUTION

Before attempting to connect or disconnect the

loader hydraulic services, switch OFF the tractor

engine and relieve any pressure in the hydraulic

hoses by individually selecting both FLOAT

positions. Place the joystick control in Neutral.

Dependent on country, different procedures are used

for removing and attaching the front loader arms.

Consult the installation instructions in your loader

manual.

IMPORTANT: Before connecting the loader

hydraulic hoses, stop the engine and thoroughly

clean the connections to prevent oil contamination.

Loader cylinders are operated by oil drawn from the

tractor hydraulic system, therefore, always check

and replenish the hydraulic system oil after the

loader cylinders have been connected and cycled a

few times. Operating the tractor with a low oil level

may result in damage to the rear axle and

transmission components.

7--6

SECTION 7 -- ACCESSORIES

Connecting the Loader Hydraulics

IMPORTANT: To ensure good contact between the

tractor and loader hydraulic manifolds, ensure the

mating surfaces of both manifolds are clean and free

of debris before clamping together.

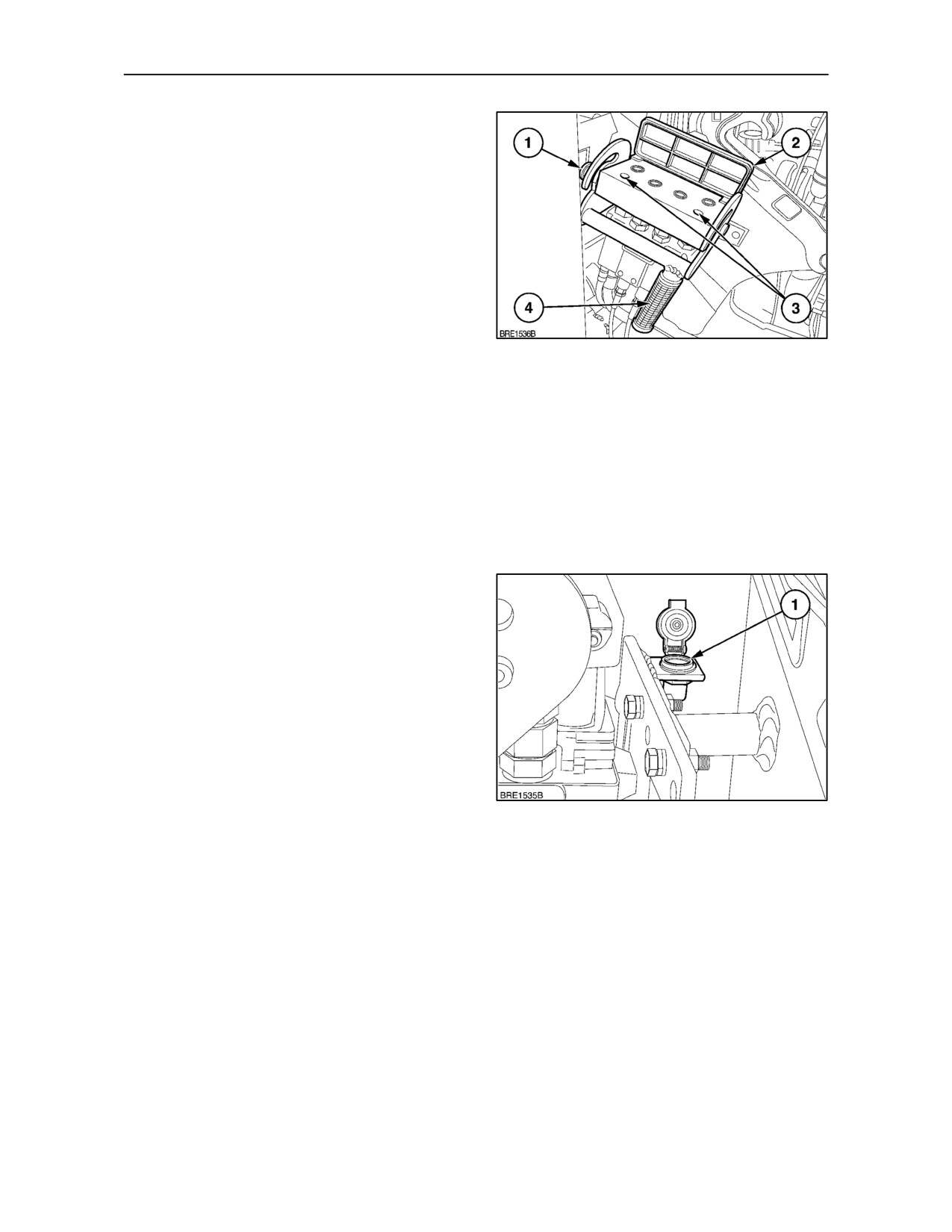

With the loader securely mounted on the tractor

sub--frame, lift the protective cover (2) on the tractor

hydraulic connector manifold until it locks in the

vertical position.

Pull out the lock button (1), and lift the handle (4) of

the clamp arm upwards until sufficient clearance is

obtained to manoeuvre the loader manifold into

position. Ensure the two guide pins on the loader

manifold align with the holes

(3) in the tractor

manifold.

Pull down the clamp handle until the lock button

engages in the manifold block.

IMPORTANT: Whenever the loader is removed from

the tractor, always ensure the cover for the manifold

is fully closed to prevent ingress of dust and debris.

Connecting Additional Services

Additional services are electronically controlled via a

cable that connects to a socket (1) on the loader

subframe. When the loader is removed from the

tractor ensure the cover on the electrical socket is

closed to protect the internal components.

After re--fitting the loader, start the tractor engine and

cycle the loader joystick through all movements, stop

the engine and check for any oil leaks.

7--7

SECTION 7 -- ACCESSORIES

REAR REMOTE VALVE ZERO

DETENT KITS

If your tractor is fitted with a non New Holland front

loader, the rear remote valves may be used to

provide the hydraulic power. For efficient operation

it is recommended valves 1 and 2 are converted to

non detent functionality.

Valve 1. Convert using kit part No. 719.362.010.

This kit retains detent operation on the float position

only, used for grading or backfilling applications.

Valve 2. Convert using kit part No. 718.362.010.

Removes the detents from all positions and restricts

valve operation to Raise, Neutral and Lower (float

removed).

7--8

SECTION 8

TRACTOR SPECIFICATION

GENERAL

Subject

Page

General Dimensions

8--2

The specification figures in this section are provided

for your information and guidance. For further

Vehicle Weights

8--6

information concerning your tractor and equipment,

consult your New Holland dealer.

Lubricant and Fluid Capacities

8--8

Engine

8--9

New Holland policy is one of continuous

improvement and the right to change prices,

Fuel System

8--9

specification or equipment at any time without notice

is reserved.

Cooling System

8--10

Transmission Options

8--10

All data given in this manual is subject to production

variations. Dimensions and weight are approximate

Brakes

8--11

only. The illustrations do not necessarily show

tractors in standard condition or imply that these

Rear Power Take Off

8--11

features are available in all countries. For exact

Front Power Take Off

8--12

information about any particular tractor, please

consult your New Holland dealer.

Steering

8--12

Maximum Operating Angles

8--12

Hydraulic System

8--13

Rear Three--Point Lift

8--14

Remote Control Valves

8--20

Front Power Lift

8--20

Front Remote Valves

8--21

Electrical Equipment

8--21

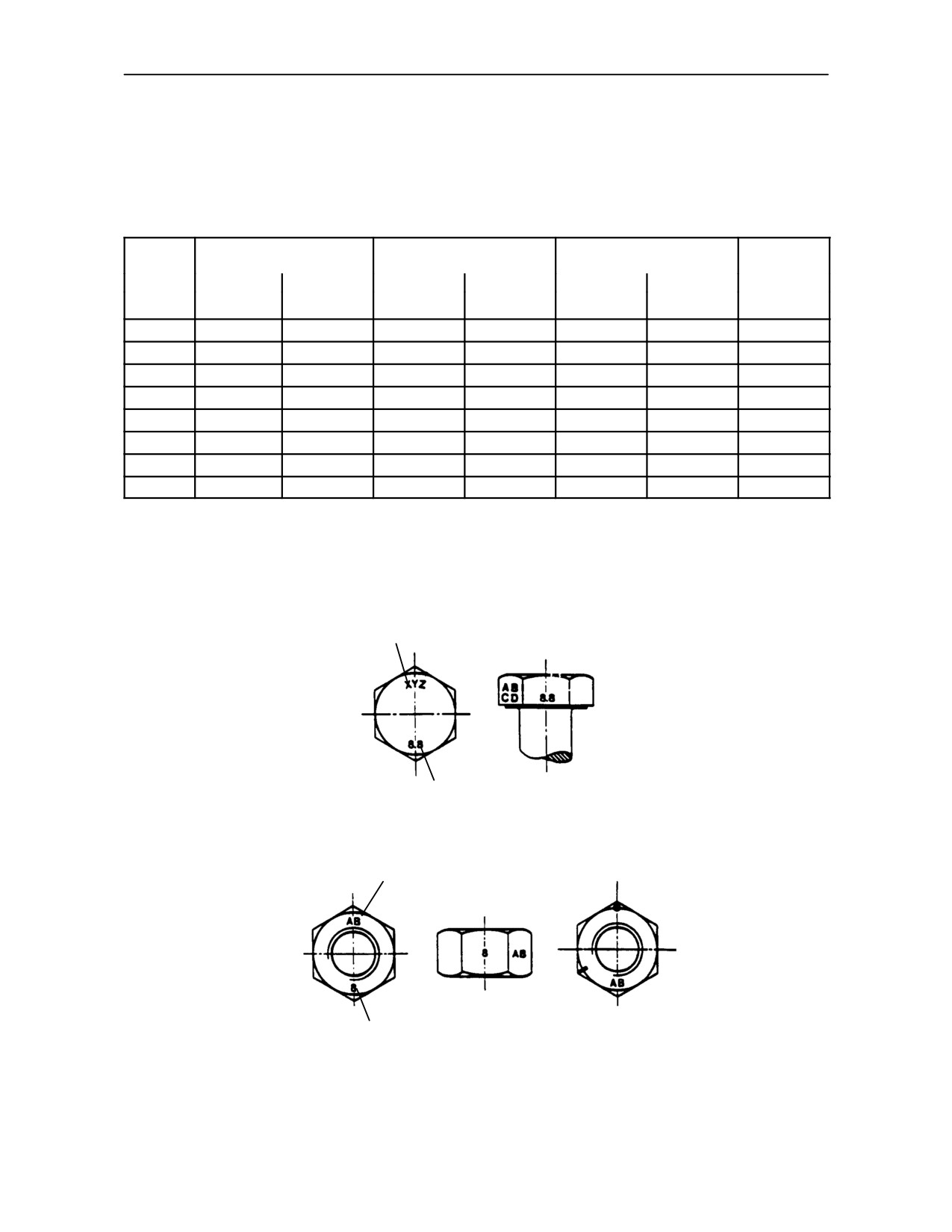

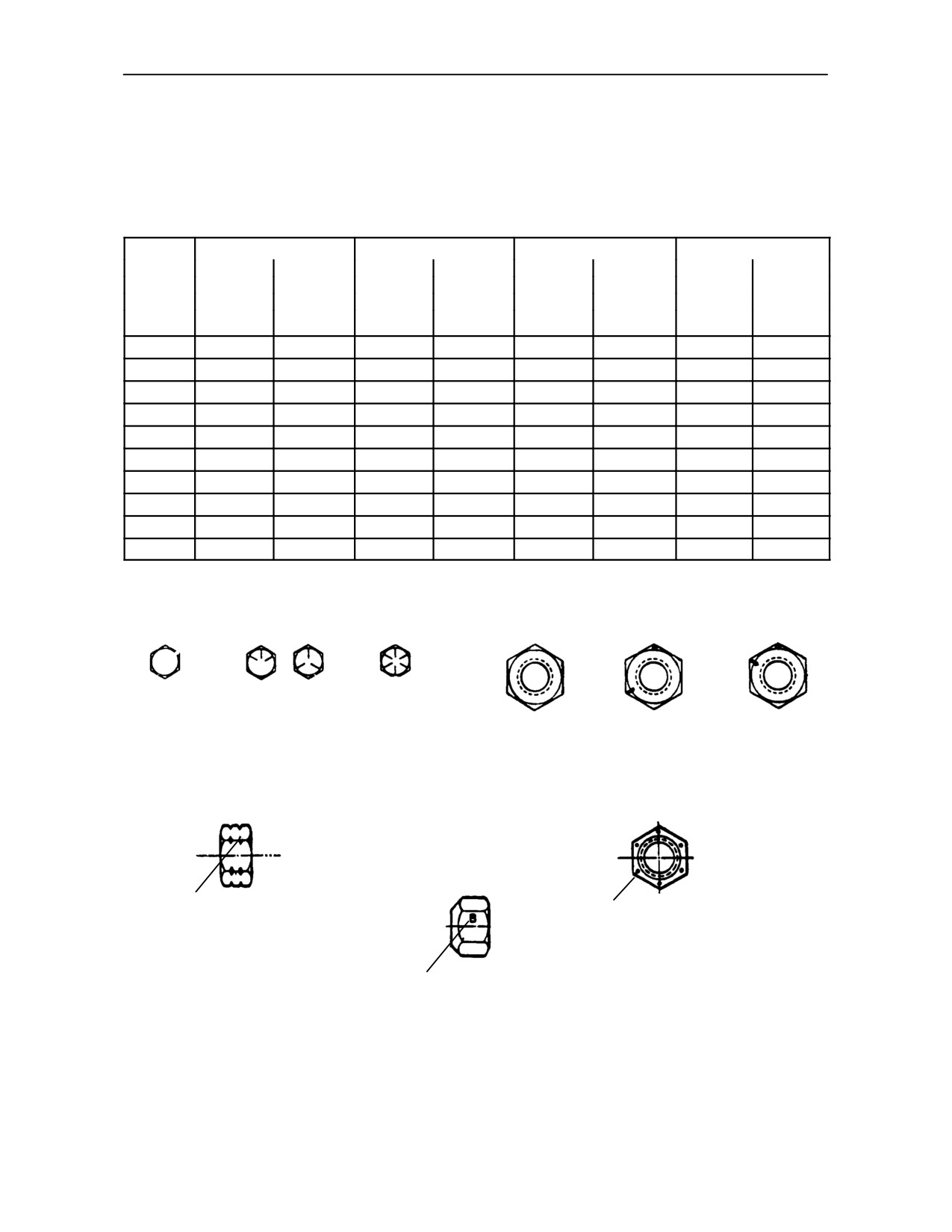

Hardware Torque Tables

8--22

8--1

SECTION 8 -- SPECIFICATIONS

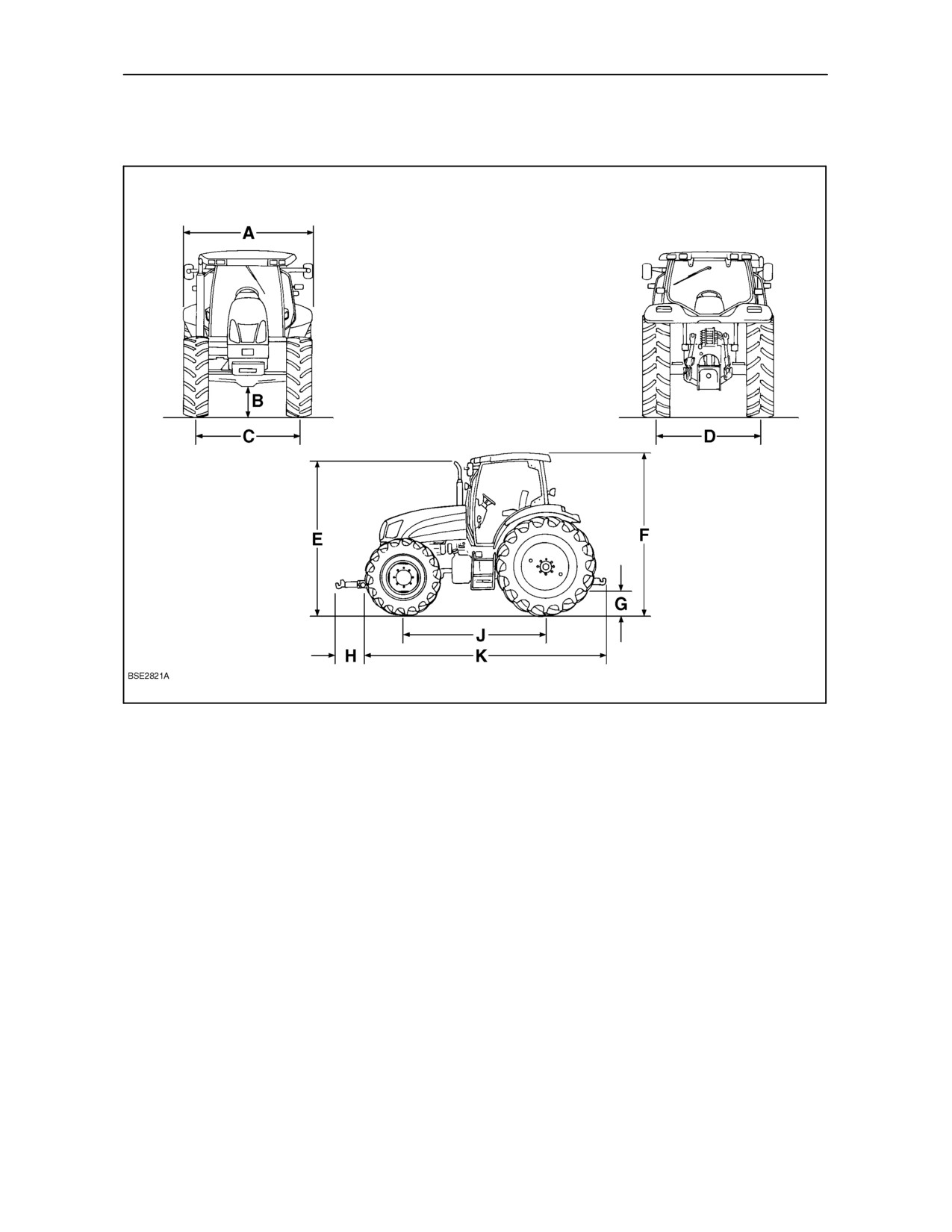

GENERAL DIMENSIONS

T6010 and T6020,

NOTE:The following dimensions are based on standard tractors fitted with tyre sizes as shown. Allow-

ance must be made for tyres of larger or smaller dimensions:

T6010 and T6020

2WD

4WD

The following dimensions are based

Front

7.50 x 16

14.9 R24

on tractors with tyre sizes shown:

Rear

16.9 R38

A. Width across fenders

Standard fenders

2170

85.4

Extended fenders

2550

100.3

8--2

SECTION 8

-- SPECIFICATIONS

GENERAL DIMENSIONS

T6010

and T6020

2WD

4WD

Ground clearance below

472 Std / 522 HD

427

front axle

18.5 Std / 20.5 HD

16.8

Front track setting

1422 -- 2134

1407 -- 2108

56.0 -- 84.0

55.4 -- 83.0

Rear track setting

1426 -- 2026

56.1 -- 79.8

Height to top of exhaust

2876

(with Standard Cab)

113.2

(with Low Profile Cab)

2726

107.3

Height to:

-- Top of Standard Cab

2856

115.0

-- Top of Low Profile Cab

2775

109.2

-- Top of ROPS

2856

112.4

Ground clearance below

426

drawbar

16.7

Front hitch projection

725

28.5

Wheelbase

2370

2412

93.3

94.9

Overall length to end of

4145

4182

lower links

163.1

164.6

Minimum turn radius

(with brakes)

3277

3540

129.0

139.3

(without brakes)

3660

4940

144.0

194.4

NOTE: If your tractor has tyres of a different size then the above dimensions will vary due to the difference in

the rolling radius and section width of the tyres fitted.

8--3

SECTION 8 -- SPECIFICATIONS

GENERAL DIMENSIONS

T6030, T6050 and T6070

NOTE:The following dimensions are based on standard tractors fitted with tyre sizes as shown. Allow-

ance must be made for tyres of larger or smaller dimensions:

T6030, T6050

T6030, T6050, T6070

2WD

4WD

The following dimensions are based

Front

10.00 x 16

14.9 R28

on tractors with tyre sizes shown:

Rear

18.4 R38

A. Width across fenders

Standard fenders

2170

85.4

Extended fenders

2550

100.3

8--4

SECTION 8

-- SPECIFICATIONS

GENERAL DIMENSIONS

T6030, T6050

T6030, T6050, T6070

2WD

4WD

Ground clearance below

507 Std / 557 HD

478

front axle

19.9 Std / 21.9 HD

18.8

Front track setting

1422 -- 2134

1407 -- 2108

56.0 -- 84.0

55.4 -- 83.0

Rear track setting

1426 -- 2026

56.1 -- 79.8

Height to top of exhaust

2920

(with Standard Cab)

114.9

(with Low Profile Cab)

2770

109.0

Height to:

-- Top of Standard Cab

2900

116.7

-- Top of Low Profile Cab

2819

111.0

-- Top of ROPS

2900

(n/a on T6070)

114.1

Ground clearance below

470

drawbar

18.5

Front hitch projection

675

26.5

Wheelbase

2652

2661

104.4

104.7

Overall length to end of

4385

4481

lower links

172.6

176.4

Minimum turn radius

(with brakes)

3277

3720

129.0

146.4

(without brakes)

3660

5360

144.0

211.0

NOTE: If your tractor has tyres of a different size then the above dimensions will vary due to the difference

in the rolling radius and section width of the tyres fitted.

8--5

SECTION

8 -- SPECIFICATIONS

WEIGHTS

T6010

T6020

T6030

T6050

T6070

2WD -- with Standard Cab

On front axle

1362

1482

3002

2367

On rear axle

3178

3458

7006

7623

Total weight

4540

4940

10008

10890

2WD -- with Low Profile Cab

On front axle

1500

ina

3807

On rear axle

2710

ina

5974

Total weight

4210

ina

9281

4WD -- with Standard Cab

On front axle

1884

2044

4153

4506

On rear axle

2826

3066

6230

6759

Total weight

4710

5110

10383

11265

4WD -- with Low Profile Cab

On front axle

1872

2008

4127

4426

On rear axle

2706

3134

5966

6909

Total weight

4578

5142

10093

11336

NOTE:The above weights are based on standard production tractors with full fuel tank, but without driver,

ballast or additional equipment.

8--6

SECTION

8 -- SPECIFICATIONS

WEIGHTS (continued)

T6010

T6020

T6030

T6050

T6070

2WD -- with ROPS

On front axle

1233

1359

2718

2996

On rear axle

2877

3171

6342

6990

Total weight

4110

4530

9060

9986

4WD -- with ROPS

On front axle

1712

1880

3774

4144

On rear axle

2568

2820

5661

6216

Total weight

4280

4700

9435

10361

NOTE:The above weights are based on standard production tractors with full fuel tank, but without driver,

ballast or additional equipment.

8--7

SECTION

8 -- SPECIFICATIONS

CAPACITIES

T6010

T6020

T6030

T6050

T6070

Fuel tank

Litres

180

254

US gals

47.5

67.0

Cooling system

Litres

(with cab)

US gals

6.07

6.6

Cooling system

Litres

(less cab)

US gals

5.54

6.07

Engine

Litres

(including filter)

US gals

2.64

3.96

Transmission and rear axle

(with 12 x 12, light duty axle)

Litres

US gals

15.3

(with 12 x 12, heavy duty axle)

Litres

US gals

17.1

(with 24 x 24, light duty axle)

Litres

58.5

US gals

15.4

(with 24 x 24, heavy duty axle)

Litres

65.5

US gals

17.3

(with 16 x 16, light duty axle)

Litres

US gals

14.5

(with 16 x 16 , heavy duty axle)

Litres

US gals

16.3

4WD Front axle differential

Litres

9.0

(Class 3 axles)

US qts

9.5

4WD Front hubs

(Class 3)

Litres

1.25

US qts

1.3

(Class 3 with brakes)

Litres

3.0

US qts

3.2

NOTE: When operating remote cylinders, the rear axle oil level will be affected. When topping up the rear

axle to accommodate the oil requirement of remote cylinders, no more than 20 litres (5.28 U.S. gallons)

should be added to bring the oil level up to the upper mark on the dipstick when all rams are fully

extended.

Alternatively, remote cylinders with an oil capacity of up to 18 litres (4.75 U.S. gallons) may be connected

to the tractor hydraulic system without adding oil, provided the tractor is being operated on level ground.

8--8

SECTION

8 -- SPECIFICATIONS

ENGINE

T6010

T6020

T6030

T6050

T6070

Advertised engine power

104

(at rated speed, ISO TR 14396)

Hp (cv)

101

112

117

127

142

Number of cylinders

Valves per cylinder

Aspiration

Turbo

Turbocharged and intercooled

Bore

104

in.

4.0

Stroke

132

in.

5.19

5.09

5.19

Displacement

cm³

4485

6728

in³

273

410

Compression ratio

17.5:1

Firing order

1.3.4.2.

1.5.3.6.2.4.

Rated engine speed

rev/min

2200

Idle speed

rev/min

850--950

Maximum no--load speed

rev/min

2375

Valve tappet clearance (cold)

Intake

0.25

in.

0.010

Exhaust

0.51

in.

0.020

FUEL SYSTEM

System type

Mechanical fuel injection

Fuel injection pump

Delphi

Bosch VE mechanical

Dynamic timing (BTDC)

0°

1.5°

5°

8--9

SECTION 8 -- SPECIFICATIONS

COOLING SYSTEM

T6010

T6020

T6030

T6050

T6070

Type

Pressurised, with full flow bypass and recovery tank

Cooling fan, number of blades

Fixed drive

Viscous drive

Diameter

510

in.

20.0

Thermostat

Begins to open at:

°C

°F

178

Fully open at:

°C

°F

205

Radiator pressure cap

bar

1.0

lbf.in²

14.5

TRANSMISSION

Synchro Command

12x12

30 km/h

Dual Command

24x24

30 km/h

24x24

*40 km/h

Electro Command

16x16

30 km/h

16x16

*40 km/h

17x16

*50 km/h

* 4WD tractors only

Clutch type -- 12x12

330

355

Dry, ceremetallic -- diameter

in.

13.0

14.0

Clutch type -- 24x24

Oil immersed disc, No. of plates

6 friction plates + 6 steel plates

Clutch type -- 16x16 (17x16)

Oil immersed disc, No. of plates

4 friction plates + 4 steel plates

Creeper Gear Operation

12x12 transmission

Lever

24x24 and 16x16 transmission

Switch

8--10

SECTION 8 -- SPECIFICATIONS

BRAKES

T6010

T6020

T6030

T6050

T6070

Service Brake

Self adjusting, oil immersed disc acting on differential shafts

Number of discs per side

1 friction and 1 steel

Parking brake

Oil immersed discs acting on bevel pinion shaft

Number of discs

REAR POWER TAKE--OFF

Availability

-- Two speed

540/1000 shiftable, independent

-- Two Speed

540/1000 non--shiftable, independedt

-- Three Speed

540/540E/1000 shiftable, independent

-- Groundspeed

540/540E/1000 shiftable, independent

Engine speed @ PTO speed

-- 540

1969

-- 540E

1546

-- 1000

(shiftable and non--shiftable)

2120

Groundspeed PTO

PTO Shaft revolutions per rear

wheel revolution

-- With light duty rear axle

-- 540

8.83 : 1

-- 540E

11.24 : 1

-- 1000

15.19 : 1

-- With heavy duty rear axle

-- 540

9.93 : 1

-- 540E

12.65 : 1

-- 1000

17.08 : 1

Fender mounted PTO controls

Optional (except 12 x 12 trans)

(except North America)

8--11

SECTION 8 -- SPECIFICATIONS

FRONT POWER TAKE--OFF

T6010

T6020

T6030

T6050

T6070

(4WD tractors only)

Type -- Single speed, fully independent

-- Shaft

6 Spline 39.4mm (1.375 in.)

-- Operation

Elecro--hydraulic

-- Direction of rotation

Anti--clockwise

Engine speed @ PTO speed

-- with 1000 rpm shaft

All models, 2120 e.r.p.m.

STEERING

Type

Hydrostatic with tilt/telescoping steering wheel

Turns from lock to lock

-- 2WD

3.35

-- 4WD

3.9

-- 4WD with Fast Steer activated

10° right or left from the straight ahead position

Front wheel alignment

0 -- 13

2 wheel drive

in.

0 -- 0.5

Front wheel alignment

0+/ -- 3

4 wheel drive

in.

0+/ --0.12

MAXIMUM OPERATING ANGLE

Front end up

All models, 35°

Rear end up

All models, 35°

Right--side up

All models, 30°

Left--side up

All models, 30°

8--12

SECTION 8

-- SPECIFICATIONS

HYDRAULIC SYSTEM

T6010

T6020

T6030

T6050

T6070

Hydraulic pump availability:

63 ltr fixed displacement pump

With Mechanical or Electronic Draft Control

80 ltr fixed displacement pump

With Electronic Draft Control

113 ltr variable displacement pump

With Mechanical Draft Control

113 ltr variable displacement pump

With Electronic Draft Control

Flow at rated engine speed

Fixed displacement pump

Litres/min

US gal/min

16.6

High flow fixed displacement

Litres/min

pump

US gal/min

21.1

Variable displacement pump

Litres/min

113

US gal/min

29.8

Maximum system pressure

at rated engine speed

63 ltr fixed displacement pump

bar

200⁺/_--5

lbf.in²

2900⁺/_--72

80 ltr fixed displacement pump

bar

200⁺/_--5

lbf.in²

2900⁺/_--72

Variable displacement pump

bar

210⁺/_--5

lbf.in²

3046⁺/_--72

8--13

SECTION 8 -- SPECIFICATIONS

REAR THREE POINT LIFT

T6010

T6020

T6030

T6050

T6070

Linkage Category

-- with MDC*

Cat II w/fixed link ends

-- with MDC

Cat II w/flexible link ends

-- with EDC*

Cat II w/flexible link ends

-- with EDC

Cat II/III w/flexible link ends

-- with MDC

Cat II w/quick attach link ends

-- with MDC

Cat II/III w/quick attach link ends

-- with EDC

Cat II/III w/quick attach link ends

*MDC = Mechanical Draft Control

*EDC = Electronic Draft Control

LIFT CAPACITIES

Manufacturers’ figures to OECD criteria -- maximum lift capacity,

610

mm (24

in) behind link ends

through full lift range at 90% of maximum hydraulic pressure:

without assist ram

-- with Fixed link ends

2248

lbs

4957

-- with Flexible link ends

1992

lbs

4390

-- with Quick attach link ends

2248

lbs

4957

with 1 x 50mm assist ram

-- with Fixed link ends

3341

lbs

7365

-- with Flexible link ends

3069

lbs

6765

-- with Quick attach link ends

3344

lbs

7372

with 2 x 50mm assist ram

-- with Fixed link ends

3762

lbs

8293

-- with Flexible link ends

3609

lbs

7956

-- with Quick attach link ends

3762

lbs

8293

NOTE: All lift capacity values are theoretical

8--14

SECTION 8 -- SPECIFICATIONS

LIFT CAPACITIES

T6010

T6020

T6030

T6050

T6070

(continued)

Manufacturers’ figures to OECD criteria -- maximum lift capacity at link ends at maximum hydraulic

pressure:

without assist ram

-- with Fixed link ends

4170

lbs

9195

-- with Flexible link ends

3814

lbs

8408

-- with Quick attach link ends

4170

lbs

9195

with 1

x 50mm assist ram

-- with Fixed link ends

5241

lbs

11555

-- with Flexible link ends

4833

lbs

10654

-- with Quick attach link ends

5241

lbs

11554

with 2

x 50mm assist ram

-- with Fixed link ends

6332

lbs

13959

-- with Flexible link ends

5853

lbs

12905

-- with Quick attach link ends

6332

lbs

13959

NOTE: All lift capacity values are theoretical

8--15

SECTION 8 -- SPECIFICATIONS

LIFT CAPACITIES

T6010

T6020

T6030

T6050

T6070

(continued)

Manufacturers’ figures to OECD criteria -- maximum lift capacity, 610 mm (24

in) behind link ends

through full lift range at 90% of maximum hydraulic pressure:

with 2 x 80mm assist ram

-- with Flexible link ends

3742

lbs

8249

-- with Quick attach link ends

3783

lbs

8339

with 2 x 90mm assist ram

-- with Flexible link ends

4741

lbs

10451

-- with Quick attach link ends

4782

lbs

10542

Manufacturers’ figures to OECD criteria -- maximum lift capacity at link ends at maximum hydraulic

pressure:

with 2 x 80mm assist ram

-- with Flexible link ends

5516

lbs

12160

-- with Quick attach link ends

5628

lbs

12407

with 2 x 90mm assist ram

-- with Flexible link ends

6985

lbs

15399

-- with Quick attach link ends

7117

lbs

15690

NOTE: All lift capacity values are theoretical

8--16

SECTION 8 -- SPECIFICATIONS

LIFT CAPACITIES

T6010

T6020

T6030

T6050

T6070

Manufacturers’ figures to SAE J283/ASAE -- maximum lift capacity, 610 mm (24

in) behind link

ends through full lift range at

90% of maximum hydraulic pressure:

without assist ram

-- with Fixed link ends

2896

lbs

6385

-- with Flexible link ends

2560

lbs

5643

-- with Quick attach link ends

2896

lbs

6385

with 1

x 50mm assist ram

-- with Fixed link ends

3905

lbs

8610

-- with Flexible link ends

3742

lbs

8249

-- with Quick attach link ends

3905

lbs

8610

with 2

x 50mm assist rams

-- with Fixed link ends

4384

lbs

9664

-- with Flexible link ends

4211

lbs

9285

-- with Quick attach link ends

4384

lbs

9664

NOTE: All lift capacity values are theoretical

8--17

SECTION 8 -- SPECIFICATIONS

LIFT CAPACITIES

T6010

T6020

T6030

T6050

T6070

(continued)

Manufacturers’ figures to SAE J283/ASAE -- maximum lift capacity at link ends at maximum

hydraulic pressure:

without assist ram

-- with Fixed link ends

4170

lbs

9195

-- with Flexible link ends

3813

lbs

8408

-- with Quick attach link ends

4170

lbs

9195

with 1

x 50mm assist ram

-- with Fixed link ends

5241

lbs

11554

-- with Flexible link ends

4833

lbs

10654

-- with Quick attach link ends

5241

lbs

11554

with 2

x 50mm assist ram

-- with Fixed link ends

6332

lbs

13959

-- with Flexible link ends

5853

lbs

12905

-- with Quick attach link ends

6332

lbs

13959

NOTE: All lift capacity values are theoretical

8--18

SECTION 8 -- SPECIFICATIONS

LIFT CAPACITIES

T6010

T6020

T6030

T6050

T6070

(continued)

Manufacturers’ figures to SAE J283/ASAE -- maximum lift capacity, 610 mm (24

in) behind link

ends through full lift range at 90% of maximum hydraulic pressure:

with 2 x 80mm assist ram

-- with Flexible link ends

4364

lbs

9620

-- with Quick attach link ends

4354

lbs

9598

with 2 x 90mm assist ram

-- with Flexible link ends

5527

lbs

12185

-- with Quick attach link ends

5506

lbs

12138

Manufacturers’ figures to SAE J283/ASAE -- maximum lift capacity at link ends at maximum

hydraulic pressure:

with 2 x 80mm assist ram

-- with Flexible link ends

5516

lbs

12160

-- with Quick attach link ends

5628

lbs

12407

with 2 x 90mm assist ram

-- with Flexible link ends

6985

lbs

15399

-- with Quick attach link ends

7117

lbs

15690

NOTE: All lift capacity values are theoretical

8--19

SECTION

-- SPECIFICATIONS

REMOTE CONTROL VALVES

T6010

T6020

T6030

T6050

T6070

With 63 ltr fixed displacement

Std

2 valves, non configurable

pump and MDC

Opt

3 valves, non configurable

With 80 ltr fixed displacement

Std

2 valves, non configurable

pump and EDC

Opt

2 valves, configurable

Opt

2 configurable and 1 non configurable valve

Opt

2 configurable and 2 non configurable valves

With 113 ltr variable

Opt

2 valves, non configurable

displacement pump and MDC

Opt

2 valves, configurable

Opt

2 configurable and 1 non configurable valve

Opt

2 configurable and 2 non configurable valves

With 113 ltr variable

Opt

2 valves, non configurable

displacement pump and EDC

Opt

2 valves, configurable

Opt

2 configurable and 1 non configurable valve

Opt

2 configurable and 2 non configurable valves

Opt

2, 3 or 4 electronic valves (EHR’s)

FRONT THREE--POINT

HITCH

Linkage Category

Category II

Lift capacity through full

2750

lift range at 610 mm (24 in)

lbs

6063

in front of link ends

8--20

SECTION 8 -- SPECIFICATIONS

FRONT HYDRAULIC COUPLERS

T6010

T6020

T6030

T6050

T6070

(with front hitch only)

Number of couplers

Four couplers (two double acting valves) -- optional

Maximum flow through one

coupler at rated engine speed

With 63 ltr/min pump

litres/min

US gal/min

16.6

With 80 ltr/min pump

litres/min

US gal/min

20.3

With 113 ltr/min pump

litres/min

100⁺/_--5

US gal/min

25⁺/--1.3

ELECTRICAL EQUIPMENT

Alternator

-- all models

12 volt, 120 amp

Battery

-- standard

Minimum maintenance 12 volt, 107 Ah, 800 cca

-- heavy duty

Minimum maintenance 12 volt, 132 Ah, 960 cca

Starting motor

Positive engagement, solenoid operated

4.2 kw -- geared reduction

Cold starting aid

Std

Thermostart in inlet manifold

Opt

Inlet manifold grid heater

Bulb rating and type

-- headlights

60/55W -- H4

-- parking lights (front)

5W -- R5W

-- parking lights (rear)

5W -- P21/5W

-- work lights (auxiliary)

50W -- GE866

-- turn indicators (front)

21W -- PY21W

-- turn indicators (rear)

21W -- R21W

-- SMV lights (N. America)

21W -- PY21W

-- stop lights

21W -- P21/5W

-- licence plate lights

5W -- R5W

8--21

SECTION 8 -- SPECIFICATIONS

MINIMUM HARDWARE TIGHTENING TORQUES

IN FOOT--POUNDS (NEWTON METERS) FOR NORMAL ASSEMBLY APPLICATIONS

INCH HARDWARE AND LOCKNUTS

SAE GRADE 2

SAE GRADE 5

SAE GRADE 8

LOCKNUTS

NOMINAL

UNPLATED

PLATED

UNPLATED

PLATED

UNPLATED

PLATED

GR.B

GR.C

SIZE

w/ZnCr

w/GR5

w/GR8

PLATED

BOLT

SILVER

GOLD

SILVER

GOLD

SILVER

GOLD

1/4

55* (6.2)

72* (8.1)

86* (9.7)

112* (13)

121* (14)

157* (18)

61* (6.9)

86* (9.8)

5/16

115* (13)

149* (17)

178* (20)

229* (26)

250* (28)

324* (37)

125* (14)

176* (20)

3/8

(23)

(30)

(35)

(46)

(50)

(65)

(26)

(35)

7/16

(37)

(47)

(57)

(73)

(80)

(104)

(41)

(57)

1/2

(57)

(73)

(87)

(113)

(123)

117

(159)

(61)

(88)

9/16

(81)

(104)

(125)

120

(163)

130

(176)

169

(229)

(88)

(125)

5/8

(112)

107

(145)

128

(174)

165

(224)

180

(244)

233

(316)

(122)

127

(172)

3/4

146

(198)

189

(256)

226

(306)

293

(397)

319

(432)

413

(560)

160

(217)

226

(305)

7/8

142

(193)

183

(248)

365

(495)

473

(641)

515

(698)

667

(904)

258

(350)

364

(494)

1.0

213

(289)

275

(373)

547

(742)

708

(960)

773

(1048)

1000

(1356)

386

(523)

545

(739)

NOTE: Torque values shown with * are inch pounds.

IDENTIFICATION

CAP SCREWS AND CARRIAGE BOLTS

SAE

GRADE 2

GRADE 5

GRADE 8

REGULAR

SAE

NUTS

GRADE 5

GRADE 8

HEX NUTS

NUTS

LOCKNUTS

GRADE IDENTIFICATION

GRADE A NO NOTCHES

GRADE A NO MARKS

GRADE B ONE CIRCUMFRETIAL NOTCH

GRADE B THREE MARKS

GRADE C TWO CIRCUMFRENTIAL NOTCHES

GRADE C SIX MARKS

MARKS NEED NOT BE LOCATED

GRADE IDENTIFICATION

AT CORNERS

GRADE A NO MARK

GRADE B LETTER B

GRADE C LETTER C

8--22

SECTION 8 -- SPECIFICATIONS

MINIMUM HARDWARE TIGHTENING TORQUES

IN FOOT--POUNDS (NEWTON METERS) FOR NORMAL ASSEMBLY APPLICATIONS

METRIC HARDWARE AND LOCKNUTS

CLASS 5.8

CLASS 8.8

CLASS 10.9

LOCKNUT

CL.8

NOMINAL

UNPLATED

PLATED

UNPLATED

PLATED

UNPLATED

PLATED

w/CL8.8

SIZE

w/ZnCr

BOLT

15* (1.7)

19* (2.2)

23* (2.6)

30* (3.4)

33* (3.7)

42* (4.8)

16* (1.8)

51* (5.8)

67* (7.6)

79* (8.9)

102* (12)

115* (13)

150* (17)

56* (6.3)

124* (14)

159* (18)

195* (22)

248* (28)

274* (31)

354* (40)

133* (15)

M10

(28)

(36)

(43)

(56)

(61)

(79)

(30)

M12

(49)

(63)

(75)

(97)

(107)

102

(138)

(53)

M16

(121)

117

(158)

137

(186)

177

(240)

196

(266)

254

(344)

(131)

M20

175

(237)

226

(307)

277

(375)

358

(485)

383

(519)

495

(671)

195

(265)

M24

303

(411)

392

(531)

478

(648)

619

(839)

662

(897)

855

(1160)

338

(458)

NOTE: Torque values shown with * are inch pounds.

IDENTIFICATION

HEX CAP SCREWS AND CARRIAGE BOLTS

CLASSES 5.6 AND UP

MANUFACTURERS IDENTIFICATION

PROPERTY CLASS

HEX NUTS AND LOCKNUTS

CLASSES 05 AND UP

MANUFACTURERS IDENTIFICATION

PROPERTY CLASS

CLOCK MARKING

8--23

SECTION 9 -- 1ST 50 HOUR SERVICE SHEETS

DEALER’S COPY

CHECK AND ADJUST, AS REQUIRED

INOPERATIVE SERVICE CHECKS:

SAFETY ITEMS CHECKS:

1. Check tyre pressures and condition

1. Cab or safety frame bolt torque

2. Clean radiator, oil cooler and A/C condenser

(where applicable)

cores (where fitted)

2. Neutral start switches operative

3. Check radiator coolant level and specific

3. Operator’s Manual supplied

gravity (1.071 -- 1.083 at 16 ° C (60 ° F)

4. Change fuel filter, drain water separator

OPERATIVE SERVICE CHECKS:

and bleed system

All operative checks are to be performed with the

5. Inspect Poly V-belt

tractor at normal operating temperature.

6. Check engine oil level

1. Lights/instruments for proper operation

Change hydraulics/transmission filters

2. Windscreen wipe/wash operation

Check transmission/rear axle oil level

3. Fluid and oil leaks

Check front axle differential oil level (4wd) . . .

4. Maximum no-load speed and idle speed

10.

Check front axle hub oil level (4wd)

adjustments and fuel shut-off

11.

Check brake/clutch master cylinder fluid level

5. P.T.O. operation

12.

Check clutch pedal free play

6. Hydraulic System:

13.

Check brake adjustment and

Draft and Position Control operation

pedal equalisation

Flow control operation

14.

Handbrake cable adjustment

Remote control valve operation

15.

Check exhaust manifold bolt torque

16.

Wheel-to-rim clamp bolts and lock nuts

PERFORMANCE SERVICE CHECKS:

for tightness

1. Engine operation including throttle and

17.

Wheel disc-to-hub nuts for tightness

governor operation

18.

Front end weight clamp bolts for tightness . .

2. Transmission, including clutch

19.

Grease front wheel bearings (2WD)

3. Steering control

20.

Lubricate all grease fittings

4. Differential lock engagement and

21.

Clean cab air filter (where fitted)

disengagement

22.

Clean air cleaner element and check

5. Brake action

hose connections

6. All optional equipment and accessories

SERVICE PERFORMED

TRACTOR MODEL NO

TRACTOR SERIAL NO

OWNER’S SIGNATURE

DATE

DEALER’S SIGNATURE

DATE

9--1

SECTION 9 -- 1ST 50 HOUR SERVICE SHEETS

OWNER’S COPY

CHECK AND ADJUST, AS REQUIRED

INOPERATIVE SERVICE CHECKS:

SAFETY ITEMS CHECKS:

1. Check tyre pressures and condition

1. Cab or safety frame bolt torque

2. Clean radiator, oil cooler and A/C condenser

(where applicable)

cores (where fitted)

2. Neutral start switches operative

3. Check radiator coolant level and specific

3. Operator’s Manual supplied

gravity (1.071 -- 1.083 at 16 ° C (60 ° F)

4. Change fuel filter, drain water separator

OPERATIVE SERVICE CHECKS:

and bleed system

All operative checks are to be performed with the

5. Inspect Poly V-belt

tractor at normal operating temperature.

6. Check engine oil level

1. Lights/instruments for proper operation

Change hydraulics/transmission filters

2. Windscreen wipe/wash operation

Check transmission/rear axle oil level

3. Fluid and oil leaks

Check front axle differential oil level (4wd) . . .

4. Maximum no-load speed and idle speed

10.

Check front axle hub oil level (4wd)

adjustments and fuel shut-off

11.

Check brake/clutch master cylinder fluid level

5. P.T.O. operation

12.

Check clutch pedal free play

6. Hydraulic System:

13.

Check brake adjustment and

Draft and Position Control operation

pedal equalisation

Flow control operation

14.

Handbrake cable adjustment

Remote control valve operation

15.

Check exhaust manifold bolt torque

16.

Wheel-to-rim clamp bolts and lock nuts

PERFORMANCE SERVICE CHECKS:

for tightness

1. Engine operation including throttle and

17.

Wheel disc-to-hub nuts for tightness

governor operation

18.

Front end weight clamp bolts for tightness . .

2. Transmission, including clutch

19.

Grease front wheel bearings (2WD)

3. Steering control

20.

Lubricate all grease fittings

4. Differential lock engagement and

21.

Clean cab air filter (where fitted)

disengagement

22.

Clean air cleaner element and check

5. Brake action

hose connections

6. All optional equipment and accessories

SERVICE PERFORMED

TRACTOR MODEL NO

TRACTOR SERIAL NO

OWNER’S SIGNATURE

DATE

DEALER’S SIGNATURE

DATE

9--3

New Holland T6010, T6020, T6030, T6050, T6070 Delta and Plus Tractors. Operator's Manual - page 10
