New Holland Tractor Workmaster 50 / Workmaster 60 / Workmaster 70 / Tier 4B (final). SERVICE MANUAL

Platform, cab, bodywork, and decals - Fenders and guards

Fenders and guards - Remove

WARNING

Avoid injury!

Handle all parts carefully. Do not place your hands or fingers between parts. Use Personal Protec-

tive Equipment (PPE) as indicated in this manual, including protective goggles, gloves, and safety

footwear.

Failure to comply could result in death or serious injury.

W0208A

DANGER

Heavy objects!

Lift and handle all heavy components using lifting equipment with adequate capacity. Always support

units or parts with suitable slings or hooks. Make sure the work area is clear of all bystanders.

Failure to comply will result in death or serious injury.

D0076A

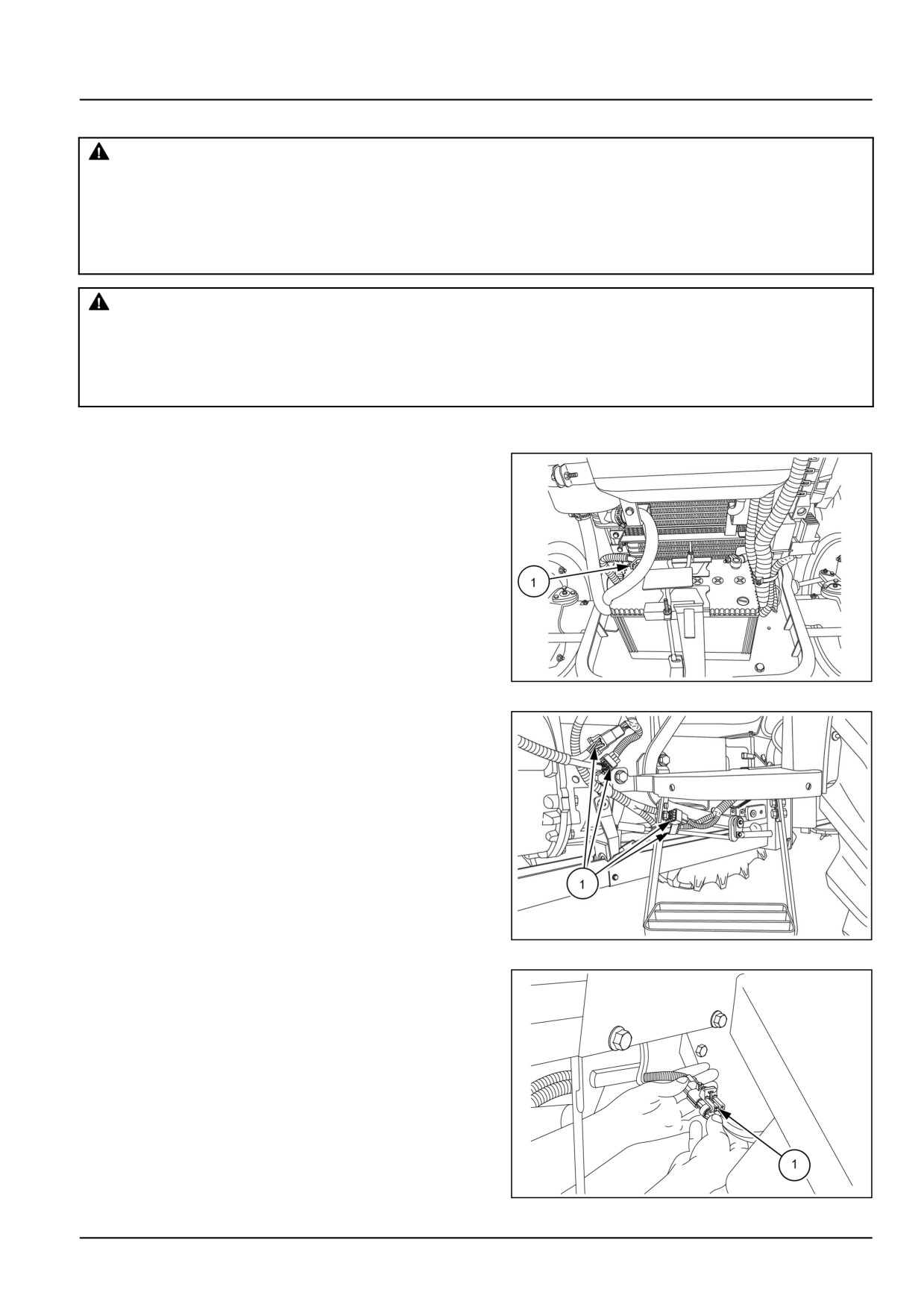

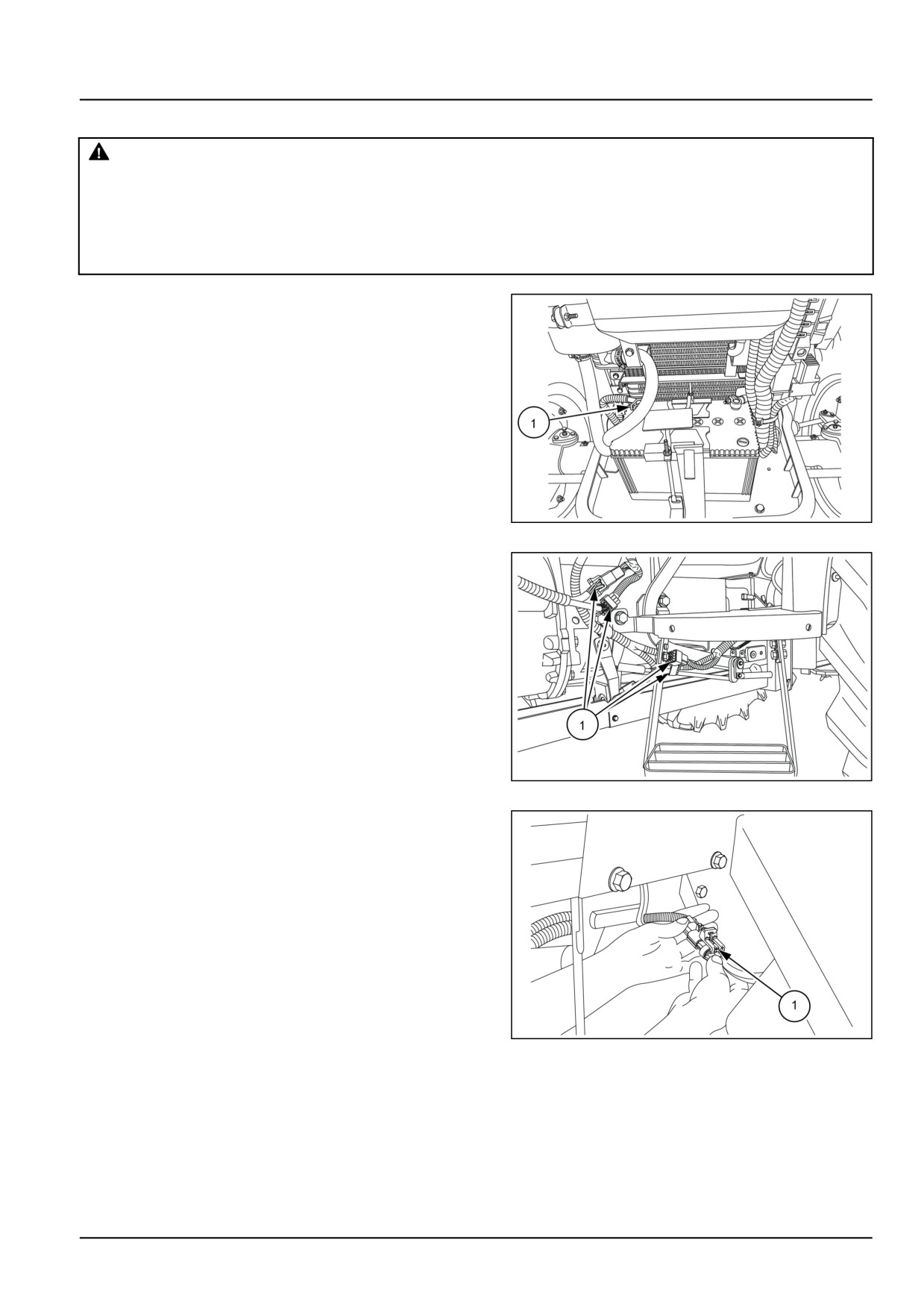

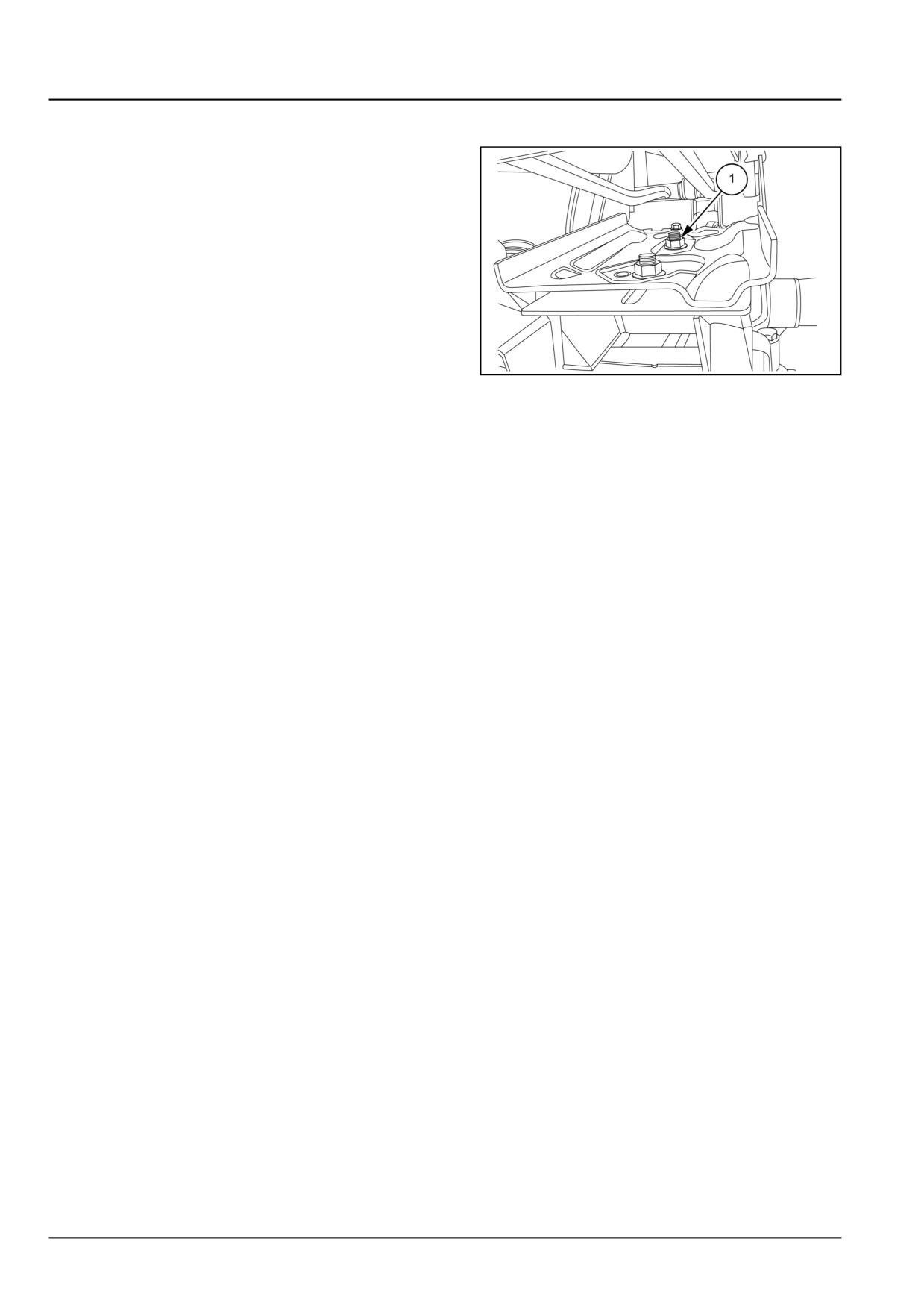

1. Lift the front hood.

2. Disconnect battery negative terminal (1) and insulate.

GNIL14TR00784AA

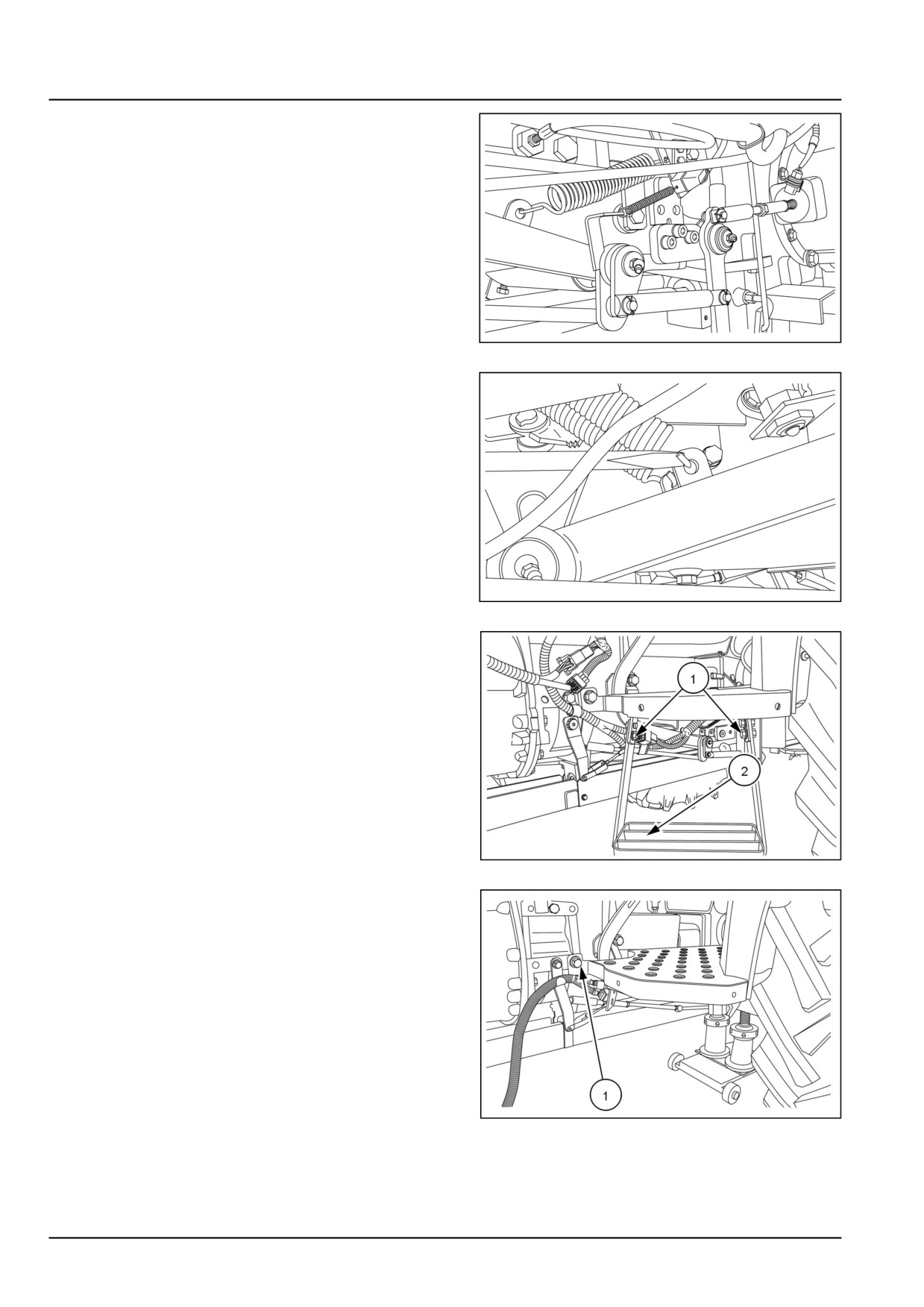

3. Disconnect the electrical couplings (1).

GNIL14TR00797AA

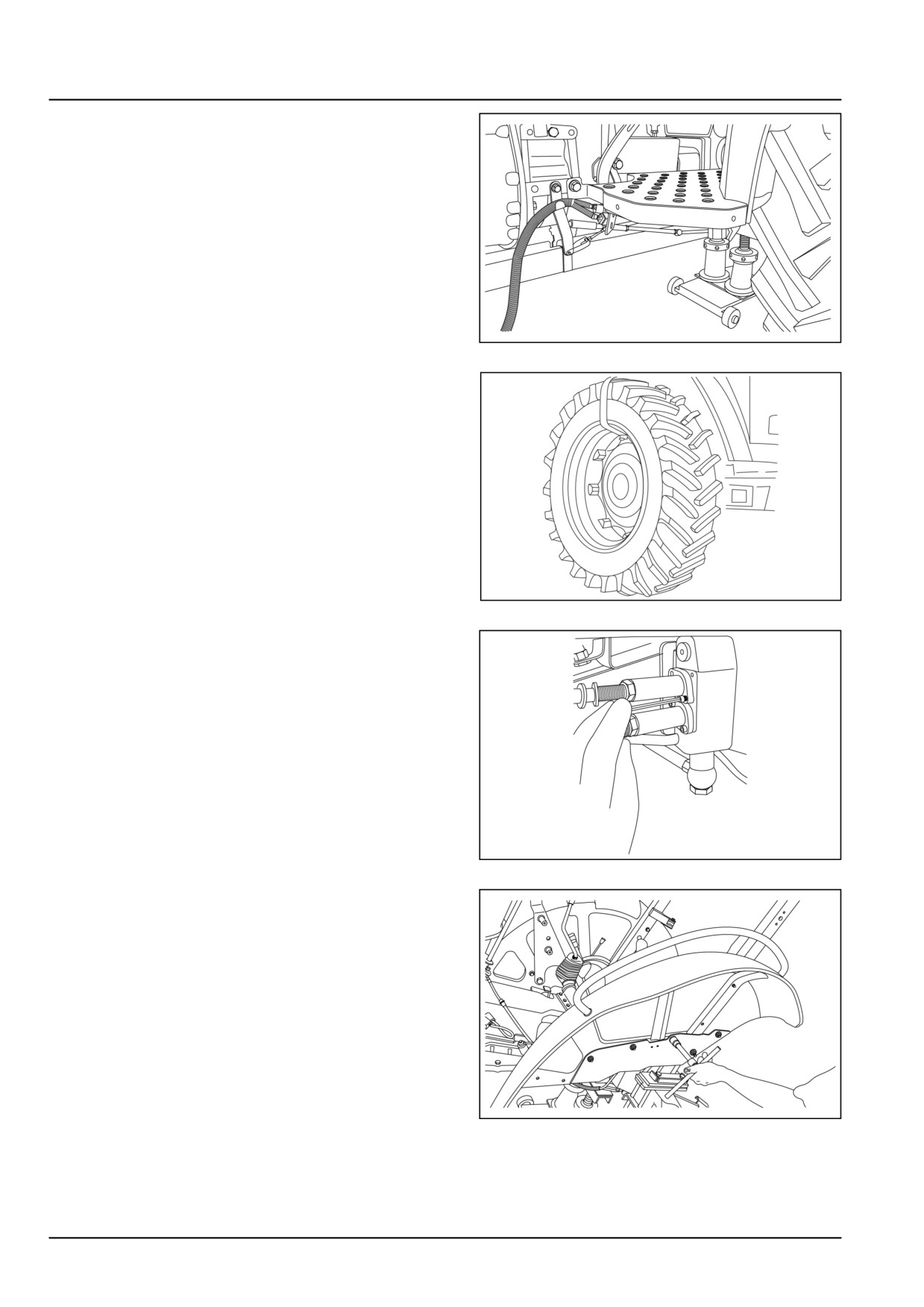

4. Detach electric connections (1) between left and right-

hand side fenders.

GNIL14TR04012AB

90.3 [90.116] / 3

SPECIAL TOOL INDEX

Genuine

Reference

PAGE

380001672 [Steering Wheel

Engine - Remove

10.1 / 6

Puller With Height Adjustment

]

380003008 [ Steering Wheel

Engine - Remove

10.1 / 6

puller]

380000612 [Clutch Centralizer

Engine flywheel - Remove

10.2 / 3

and Clutch Registers (2) for

the 11" clutch]

380000612 [Clutch Centralizer

Clutch - Special tools

18.2 / 4

and Clutch Registers (2) for

the 11" clutch]

380000256 [Clutch Adjusting

Clutch - Special tools

18.2 / 4

Wrench Set]

380000612 [Clutch Centralizer

Clutch - Remove

18.2 / 9

and Clutch Registers (2) for

the 11" clutch]

380000612 [Clutch Centralizer

Clutch - Assemble

18.2 / 15

and Clutch Registers (2) for

the 11" clutch]

380000612 [Clutch Centralizer

Clutch - Adjust

18.2 / 16

and Clutch Registers (2) for

the 11" clutch]

380000612 [Clutch Centralizer

Clutch - Service instruction

18.2 / 17

and Clutch Registers (2) for

the 11" clutch]

380002985 [Pinion Locking

Mechanical transmission - Special tools

21.1 / 6

Tool]

380000295 [Wheel Hub

Four-Wheel Drive

25.1 / 21

Bearing Slotted Nut Socket]

380000268 [Bevel Pinion Ring

Four-Wheel Drive

25.1 / 24

Nut Wrench]

380000257 [Bevel Gear

Four-Wheel Drive

25.1 / 24

Pinion Splined Retainer Deep

Socket]

380000252 [Front Axle Ring

Four-Wheel Drive

25.1 / 27

Nut Wrench]

380000252 [Front Axle Ring

Four-Wheel Drive

25.1 / 28

Nut Wrench]

380000257 [Bevel Gear

Four-Wheel Drive

25.1 / 28

Pinion Splined Retainer Deep

Socket]

380000265 [Swivel Housing

Steering knuckle and king pin - Remove

25.3 / 3

Pin Pivot Puller]

380000234 [Swivel Pin

Steering knuckle and king pin - Remove

25.3 / 3

Bearing Outer Race Puller]

380000235 [Swivel Housing

Steering knuckle and king pin - Adjust

25.3 / 4

Torque Check Adapter]

380000235 [Swivel Housing

Steering knuckle and king pin - Adjust

25.3 / 4

Torque Check Adapter]

380000248 [Bevel Pinion

Final drive driving pinion - Preload -

25.4 / 3

Bearings Adjusting Guage]

380000248 [Bevel Pinion

Final drive driving pinion - Preload -

25.4 / 3

Bearings Adjusting Guage]

380000248 [Bevel Pinion

Final drive driving pinion - Preload -

25.4 / 3

Bearings Adjusting Guage]

380000249 [Universal Pinion

Final drive driving pinion - Adjust -

25.4 / 5

Installation Tool Kit]

Genuine

Reference

PAGE

380000249 [Universal Pinion

Final drive driving pinion - Adjust -

25.4 /

Installation Tool Kit]

380000248 [Bevel Pinion

Final drive driving pinion - Adjust -

25.4 /

Bearings Adjusting Guage]

380000249 [Universal Pinion

Final drive driving pinion - Adjust -

25.4 /

Installation Tool Kit]

380000257 [Bevel Gear

Final drive driving pinion - Adjust -

25.4 /

Pinion Splined Retainer Deep

Socket]

380000268 [Bevel Pinion Ring

Final drive driving pinion - Adjust -

25.4 /

Nut Wrench]

380000257 [Bevel Gear

Final drive driving pinion - Adjust -

25.4 /

Pinion Splined Retainer Deep

Socket]

380000257 [Bevel Gear

Final drive driving pinion - Adjust -

25.4 /

Pinion Splined Retainer Deep

Socket]

380001545 [Slide Hammer

Non-powered front axle - Special tools

25.5 /

Puller Adapter ]

380001545 [Slide Hammer

Non-powered front axle - Remove

25.5 /

Puller Adapter ]

9971349 [Bevel wheel

Rear bevel gear set and differential - Special tools

27.2 /

adjuster]

380001672 [Steering Wheel

Steering control - Special tools

41.1 /

Puller With Height Adjustment

]

380003008 [ Steering Wheel

Steering control - Special tools

41.1 /

puller]

Contents

1 GENERAL INFORMATION

Note to the owner

1-1

Electro-magnetic compatibility (EMC)

1-3

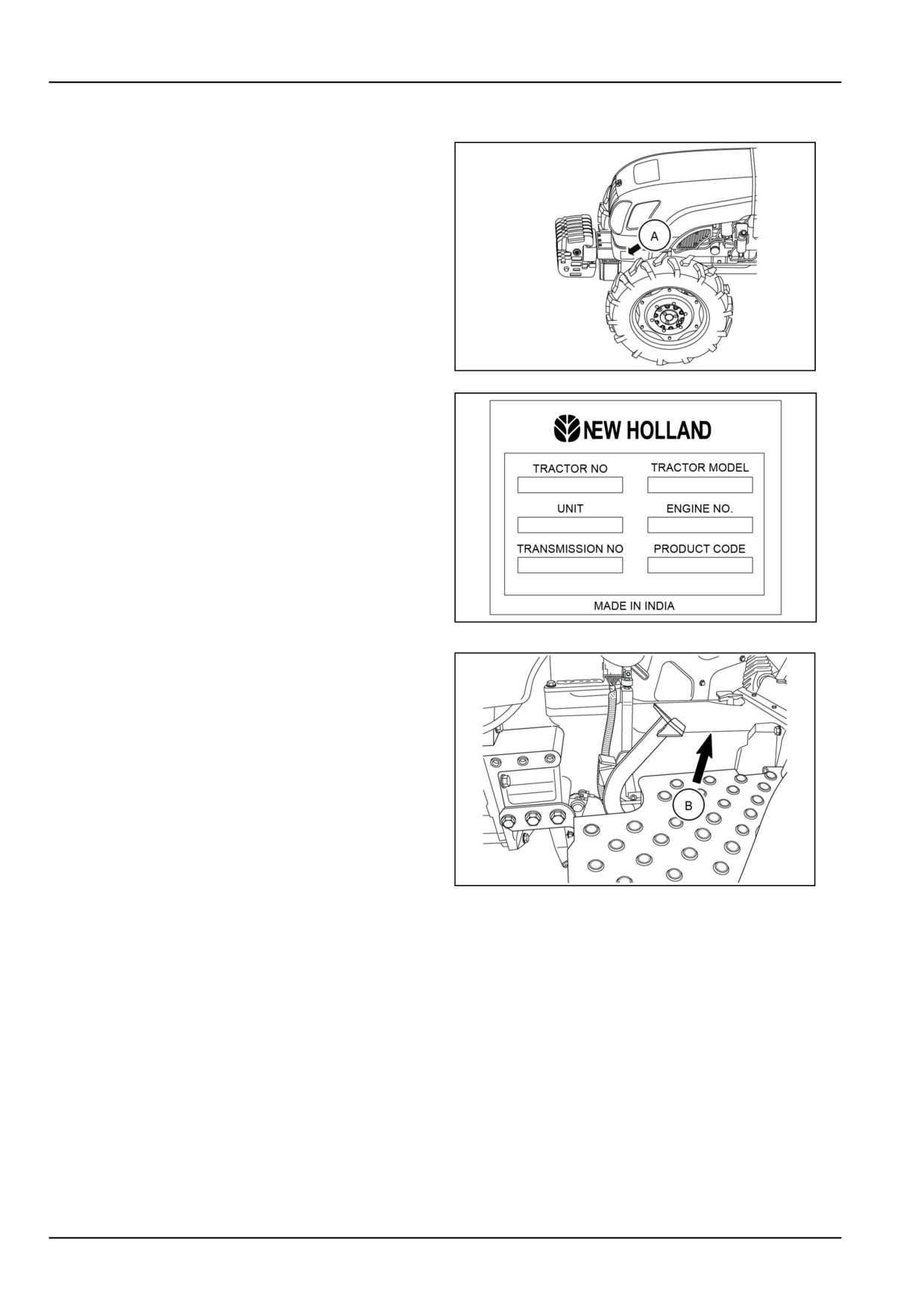

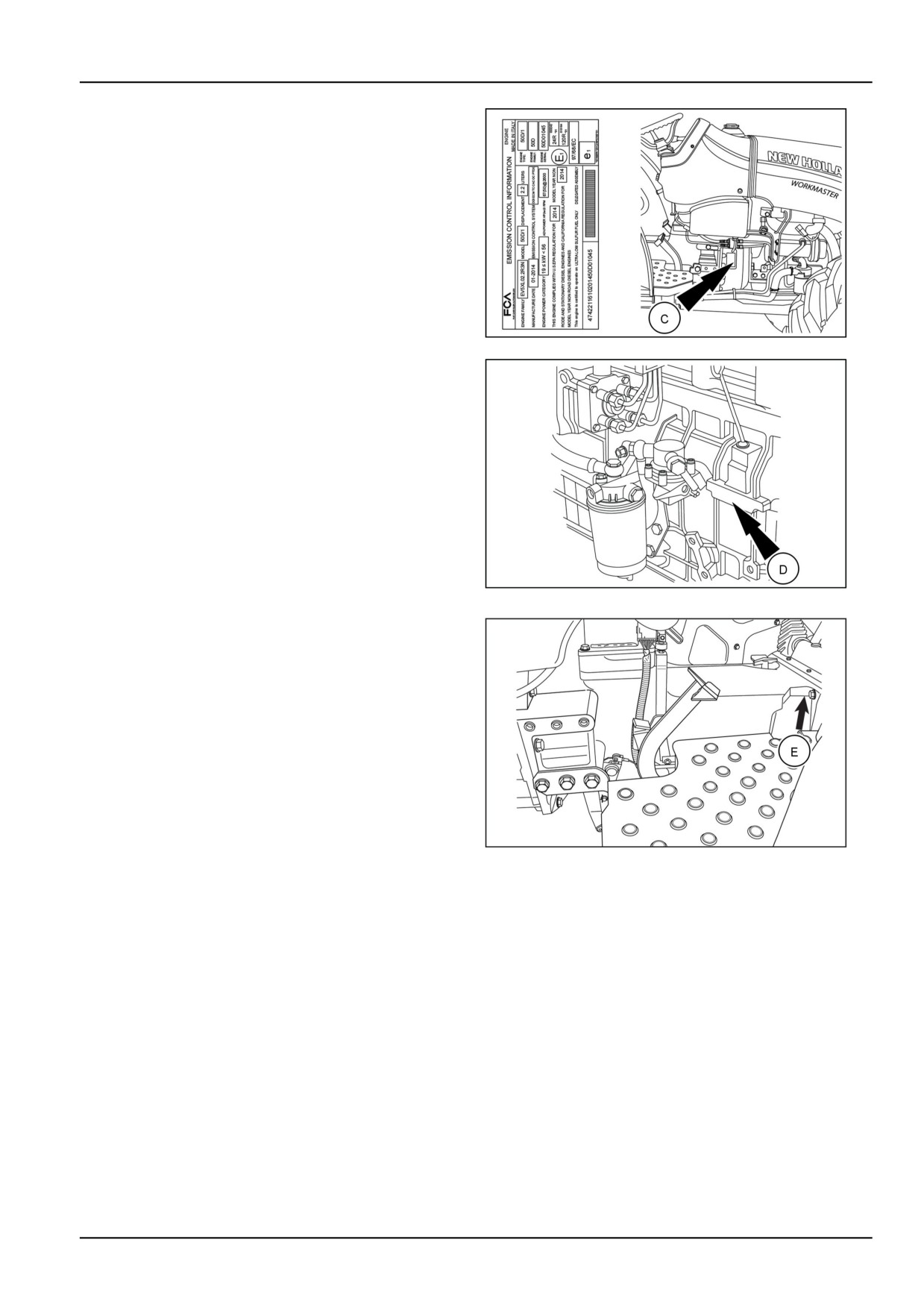

Product Identification Number (PIN)

1-4

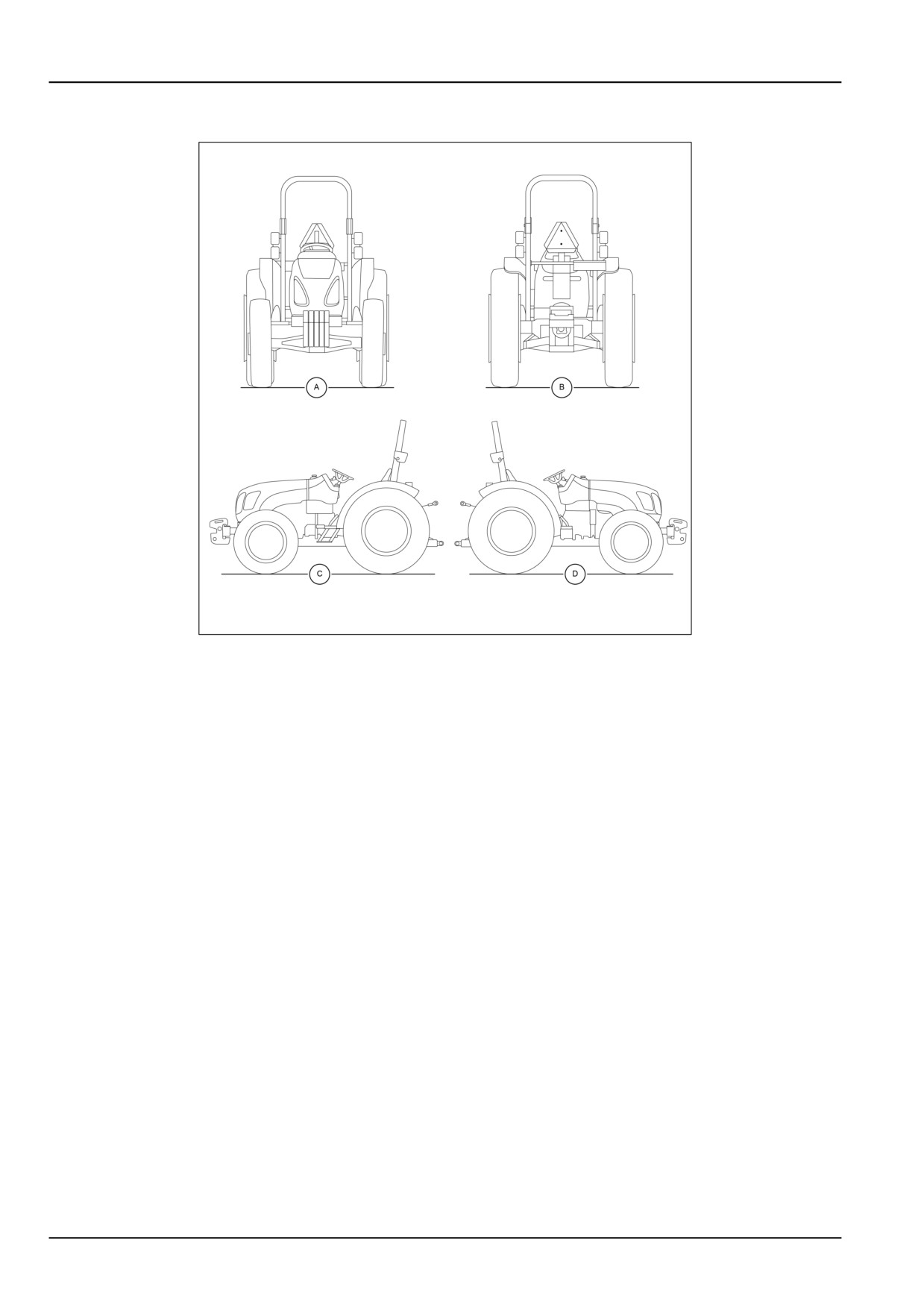

Machine orientation

1-6

Exhaust Gas Recirculation (EGR) - Diesel Particulate Filter (DPF) exhaust treatment - Product

overview

1-7

2 SAFETY INFORMATION

Personal safety

2-1

Safety rules

2-2

Proposition 65

2-9

Ecology and the environment

2-10

Safety signs

2-11

Instructional signs

2-21

3 CONTROLS AND INSTRUMENTS

ACCESS TO OPERATOR'S PLATFORM

Before operating

3-1

OPERATOR'S SEAT

Operator's seat

3-1

Seat belt

3-2

FORWARD CONTROLS

Instrument cluster - Localization overview

3-3

Hand controls and switches

3-8

Clutch pedal

3-11

Brake pedals - Control identification

3-12

Transmission - Control identification

3-13

Foot throttle control - Control identification

3-14

LEFT-HAND SIDE CONTROLS

Transmission - Control identification

3-15

Four-Wheel Drive (4WD)

3-16

Power Take-Off (PTO) - Control identification

3-17

RIGHT-HAND SIDE CONTROLS

Parking brake

3-18

Differential lock pedal

3-19

Transmission - Control identification

3-20

DISPLAY SETTINGS

Instrument cluster Analog-Digital Instrument Cluster (ADIC) - Program

3-21

Adjusting the dashboard/display brightness

3-22

Activating/deactivating buzzer

3-24

Programming maintenance work

3-25

Resetting the oil change counter

3-27

Viewing error codes

3-28

4 OPERATING INSTRUCTIONS

STARTING THE UNIT

Starting the tractor

4-1

STOPPING THE UNIT

Shut off the engine

4-6

MOVING THE UNIT

Roll Over Protective Structure (ROPS) frame - Basic instructions

4-6

5 TRANSPORT OPERATIONS

ROAD TRANSPORT

Towing attachments

5-1

RECOVERY TRANSPORT

Towing the tractor

5-2

6 WORKING OPERATIONS

GENERAL INFORMATION

Field operation

6-1

POWER TAKE OFF (PTO)

Two-speed rear Power Take-Off (PTO) - Grouped Safety Message

6-1

Attaching Power-Take Off (PTO) driven equipment

6-2

Power Take Off (PTO)

6-3

THREE POINT LINKAGE

Three-point linkage

6-6

Attaching three-point equipment

6-6

Detaching three-point equipment

6-8

Lift rods, lower links and top link

6-9

HYDRAULIC SYSTEM

Hydraulic systems - Operating

6-11

WHEEL TRACK ADJUSTMENT

Wheel tread settings

6-14

BALLASTING AND TIRES

Ballasting and tires

6-19

7 MAINTENANCE

GENERAL INFORMATION

Lubrication and maintenance general information

7-1

Refueling the tractor

7-3

Fuel saving tips for optimum performance

7-4

Biodiesel fuel

7-6

Machine shields and guards - Basic instructions

7-7

Consumables

7-8

Protecting the electrical system during charging or welding

7-9

General battery maintenance

7-10

MAINTENANCE CHART

Frame - Maintenance chart

7-11

Every 10 hours of operation or daily

Engine oil level

7-13

Engine cooling system

7-13

Steering oil reservoir level

7-14

After the first 50 hours of operation

Clutch pedal free play

7-15

Brake pedal free play

7-15

Wheels and tires

7-15

Hydraulic oil filter

7-15

Every 50 hours

Clutch pedal free play

7-16

Brake pedal free play

7-16

Wheels and tires

7-17

Transmission oil level or hydraulic oil level

7-17

Front axle differential oil level

7-18

Front wheel hub oil level (4WD)

7-18

Air cleaner

7-19

Every 150 hours

Battery electrolyte level

7-20

Every 300 hours

Engine oil and filter

7-20

Engine air cleaner outer element

7-22

Hydraulic oil filter

7-26

Power Take-Off (PTO) clutch

7-27

Every 600 hours

Transmission breather

7-28

Front wheel bearing - Two-Wheel Drive (2WD)

7-28

Fuel injectors - servicing

7-29

Fuel filter replacement

7-30

Hydraulic oil filter

7-31

EVERY 900 HOURS

Air cleaner restriction indicator

7-32

Every 1200 hours

Transmission/hydraulics oil level

7-32

Fuel tanks - Cleaning

7-33

Engine coolant

7-34

Steering - Change fluid

7-35

Four-Wheel Drive (4WD) front axle differential oil - Change fluid

7-36

Four-Wheel Drive (4WD) front axle hub oil - Change fluid

7-36

Air filter

7-37

Power Take-Off (PTO) clutch

7-39

Every 1800 hours

Fan and drive - Replace

7-40

Every 4000 hours

Alternator - Replace

7-40

As required

Lubrication points

7-41

Headlights

7-44

Fuses

7-45

Bulbs

7-47

STORAGE

Tractor storage

7-48

8 TROUBLESHOOTING

SYMPTOM(S)

Viewing error codes

8-1

Engine - Troubleshooting

8-1

Electrical systems - Troubleshooting

8-4

Hydraulic systems - Troubleshooting

8-5

Brakes and controls - Troubleshooting

8-6

Error code identification

8-7

1 - GENERAL INFORMATION

1 - GENERAL INFORMATION###_1_###

Note to the owner

This manual contains information concerning the adjustment and maintenance of the tractors. You have purchased

a dependable machine, but only by proper care and operation can you expect to receive the performance and long

service built into this equipment. Please have all operators read this manual carefully and keep it available for ready

reference.

Your NEW HOLLAND dealer will instruct you in the general operation of your new equipment. (Refer to the 'Delivery

Report' at the back of this manual.) Your dealer's staff of factory-trained service technicians will be glad to answer

any questions that may arise regarding the operation of your tractor. New Holland Top Service is also available. Call

1-866-NEWHLND (1-866-639-4563) or email na.topservice@cnh.com.

Your NEW HOLLAND dealer carries a complete line of genuine NEW HOLLAND service parts. These parts are

manufactured and carefully inspected to insure high quality and accurate fitting of any necessary replacement parts.

Be prepared to give your dealer the model and product identification number of your new equipment when ordering

parts. Locate these numbers now and record them below. Refer to the 'General Information' section of this manual

for the location of the model and product identification numbers of your machine.

Please record the following information

Model

Product Identification Number (PIN)

Date purchased

Attachment model

This is the safety alert symbol. It is used with and without signal words to alert you to potential

personal injury hazards. Obey all safety messages that follow this symbol to avoid possible

death or injury.

WARNING

Illustrations in this manual may show protective shielding open or removed to better illustrate a par-

ticular feature or adjustment.

Replace all shields before operating the machine.

Failure to comply could result in death or serious injury.

W0012A

Improvements

CNH Industrial N.V. is continually striving to improve its products. We reserve the right to make improvements or

changes when it becomes practical and possible to do so, without incurring any obligation to make changes or addi-

tions to the equipment sold previously.

1-1

1 - GENERAL INFORMATION

Intended use

DO NOT use this machine for any purpose or in any man-

ner other than as described in the manual, decals, or

other product safety information provided with the ma-

chine. These materials define the machine’s intended

use.

Use only approved accessories and attachments de-

signed for your machine. Consult your dealer on changes,

additions or modifications that may be required for your

machine. Do not make any unauthorized modifications to

your machine.

ATTENTION: The engine and fuel system on your ma-

chine is designed and built to government emissions stan-

dards. Tampering by dealer, customers, operators and

users is strictly prohibited by law. Failure to comply could

result in government fines, rework charges, invalid war-

ranty. legal action and possible confiscation of the ma-

chine until rework to original condition is completed. En-

gine service and/or repairs must be done by a certified

technician only!

Operator’s age

All persons who will be operating this machine shall pos-

sess a valid local vehicle operating permit and/or other

applicable local age work permits.

WARNING

IMPROPER OPERATION OF THIS MACHINE

CAN CAUSE DEATH OR SERIOUS INJURY.

MAKE SURE THAT EVERY OPERATOR:

-is instructed in the safe and proper use of this

machine.

-reads and understands the operator's manual

for this machine.

-reads and understands ALL safety signs on

the machine.

Failure to comply could result in death or se-

rious injury.

W0188A

Read and thoroughly understand this manual before op-

erating this machine. If you are an inexperienced opera-

tor, study this manual and receive operating instructions

from an experienced operator. Your dealer can assist you

in learning machine operation and show you proper op-

erating procedures. Keep this manual readily available,

preferably with the machine. If the original manual is dam-

aged, order a new one from your dealer.

1-2

1 - GENERAL INFORMATION

Electro-magnetic compatibility (EMC)

Interference may arise as a result of add-on equipment that may not necessarily meet the required standards. As

such interference can result in serious malfunction of the unit and/or create unsafe situations, you must observe

the following:

• The maximum power of emission equipment (radio, telephones, etc.) must not exceed the limits imposed by the

national authorities of the country where you use the machine

• The electro-magnetic field generated by the add-on system should not exceed 24 V/m at any time and at any lo-

cation in the proximity of electronic components

• The add-on equipment must not interfere with the functioning of the on board electronics

Failure to comply with these rules will render the NEW HOLLAND warranty null and void.

1-3

1 - GENERAL INFORMATION

Exhaust Gas Recirculation (EGR) - Diesel Particulate Filter (DPF)

exhaust treatment - Product overview

What is Exhaust Gas Recirculation (EGR)?

Your NEW HOLLAND machine is equipped with additional components to comply with national and local exhaust

emissions requirements. EGR works by recirculating a portion of the engine exhaust gasses back into the engine

combustion chamber to lower combustion temperatures.

The main components of the EGR system include:

• EGR valve

• Diesel Oxidation Catalyst (DOC)

• Particulate Matter Catalyst (PM Cat)

• Exhaust gas temperature sensors

• Throttle valve actuator

What is a Particulate Matter Catalyst (PM Cat)?

A PM Cat is a high efficiency flow through filter that works based on an open flow design to allow exhaust gases to

pass through. It is made up of alternating layers of corrugated metal foil on a porous metal fleece. The filter captures

particulate matter long enough for catalytic oxidation. By design, a PM Cat cannot plug up, creating no risk of an

uncontrolled regeneration.

How does it work?

When exhaust enters the DOC, many chemical reactions occur. Nitric Oxide (NO) gas enters the DOC to be oxidized

to nitrogen dioxide (NO2). When it enters the particulate matter catalyst, NO2 oxidizes the particulate matter, creating

a continuous, efficient, passive regeneration. This reaction occurs best between 220 - 480 °C (428 - 896 °F).

What if the exhaust isn’t warm enough?

A special engine management system has been designed for off road applications to maintain the efficiency of the par-

ticulate matter catalyst, even in situations such as prolonged idling, or low-load applications. During these scenarios,

the engine management software will activate an exhaust temperature management mode to maintain the efficiency

of soot reduction. In this mode, the exhaust gas temperature is controlled via management of multiple injections and

control of the air system. This design enhances passive regeneration in low load conditions, and reduces the need

for an incinerating regeneration.

Manual regeneration

If the thermal management system is disabled for prolonged periods of time, depending on exhaust temperatures, soot

may build up within the particulate matter catalyst. If the soot build-up reaches extreme levels, a manual regeneration

initiated by the operator may be necessary. This is enabled through the instrument cluster, and takes about 15 min.

For these reasons, it is recommended to have the thermal management system remain enabled unless the tractor is

in high fire-risk conditions.

Finding a cleaning facility

To find a NEW HOLLAND dealer that is fully equipped to service your system, call the number below.

Top Service: 1-866-639-4563

na.topservice@newholland.com

US Environmental Protection Agency (EPA) and California Emissions Control Warranty

Statement

NEW HOLLAND warrants to the ultimate purchaser and each subsequent purchaser that the engine is designed,

built and equipped so as to conform with US Environmental Protection Agency regulations applicable at the time of

1-7

1 - GENERAL INFORMATION

manufacture and that it is free from defects in workmanship or material which would cause it not to meet these

regulations for a period of:

•

2 years or 1500 h of operation, whichever occurs first, for engines less than 19 kW (25 Hp).

•

5 years or 3000 h of operation, whichever occurs first, for engines greater than or equal to 19 kW (25 Hp).

NOTE: This warranty applies to all units operated in the United States or Canada.

Coverage

The model year, class of diesel engine, and emission application determination for your engine are identified on the

Emission Control Information Label. This label is affixed to one of the following areas of the engine: the top of en-

gine's rocker arm cover, the right-hand side of the oil pan, and the right-hand side of the engine front gear cover.

The warranty period begins on the date the new equipment is sold to the first retail purchaser. The presence of the

emission control label is the indication that the engine conforms to the applicable standards. Any emission control

system parts which are proven defective during normal use will be repaired or replaced during the warranty period.

The engine owner has responsibility to perform all the required maintenance listed in the Owner's Manual. NEW

HOLLAND will not deny an emission warranty claim solely because no record of maintenance exists; however, a

claim may be denied if failure to perform maintenance resulted in the failure of a warranted part.

It is recommended that replacement parts used for maintenance or repairs be NEW HOLLAND Service Parts to main-

tain the quality originally designed into your emission certified engine. The use of non- NEW HOLLAND parts does

not invalidate the warranty on other components unless the use of such parts causes damage to warranted parts.

The manufacturer is liable for damages to other engine components caused by the failure of any warranted emission

control system part. NEW HOLLAND is not responsible for failures resulting from improper repair or the use of parts

that are not genuine NEW HOLLAND or NEW HOLLAND approved parts.

Component coverage

New engines certified for sale and registered will have the following items covered by the emission warranty, depend-

ing on the emission level of the engine, if the items were first installed on the new engine as original equipment:

Fuel injection system

Exhaust after treatment Devices (if applicable)

• Fuel injection pump

• Catalytic converter (DOC)

• Fuel injectors

• Diesel particulate filter (DPF)

• Fuel injection lines

• Selective catalytic reduction (SCR)

• Diesel Exhaust Fluid (DEF) tank and dispensing sys-

Air induction system

tems

• Intake manifold

• Particulate Matter Catalyst (PM Cat)

• Turbocharger system (includes exhaust manifold)

Exhaust Gas Recirculation Systems (EGR)

• Charge air cooler

• EGR valve assembly

Positive crankcase ventilation system (if applicable)

• EGR cooler

• PCV valve

Cold Start Enrichment Systems

• Oil fill cap

Electronic Control Units, Sensors, Solenoids, and Wiring

harnesses used in above systems

Emissions warranty does not cover

• Repairs arising from storage deterioration, failure to maintain the equipment, negligence, alteration, improper use

of the equipment, collision or other accident, vandalism, or other casualty, or operation beyond rated capacity or

specification.

• Repairs arising from abuse or neglect, including but not limited to: operation without adequate coolant or lubricants,

adjustments to the fuel system outside equipment specifications, over-speeding, improper storage, starting, warm-

up, or shutdown practices, incorrect fuel or contaminated fuel, oil or other fluids.

1-8

1 - GENERAL INFORMATION

•

Normal maintenance services, such as engine tune-ups, engine fuel system cleaning, checks, adjustments, shim-

ming, etc.

•

Items replaced due to customer demand.

•

Labor charges performed by anyone except a dealer authorized by contract to repair the equipment, unless they

qualify under special provisions (i.e. outside labor).

•

Any and all travel costs for items such as towing, service calls, or transporting a unit to and from the place where

the warranty service is performed.

•

Normal maintenance costs, including but not limited to: lubricants, coolants, fluids, fuel, filters, and associated labor.

Lubricants, filters, and coolants may qualify for warranty reimbursement if they require replacement as a DIRECT

RESULT of a defect in material or workmanship.

•

Claims involving the inspection or reconditioning of units after storage or prior use.

•

Repairs arising from service performed by agents not approved by NEW HOLLAND.

•

Repairs arising from any unauthorized modification to the product or the use of non- NEW HOLLAND parts, imple-

ments or attachments.

•

Removal, replacement, or installation of non- NEW HOLLAND optional equipment, attachments or components.

•

Premiums charged for overtime labor costs or out of shop expenses.

•

Economic loss including lost profits, crop loss, equipment rental, or other expense.

•

Unauthorized modification or updating machines without a warrantable failure.

•

Any and all costs of dealer shop supplies incurred with repairs, including but not limited to: solvents, cleaners,

anti-seize lubricants, loctite, sealant, adhesive, oil-dry, shop towels, etc.

•

Failure of the machine, its implements or attachments caused by improper field application or loading.

•

Any and all costs for coolant, fuel, or lube (oil) analysis including supplies and lab recommendations.

•

Cost associated with cleaning of machine in preparation for servicing.

1-9

2 - SAFETY INFORMATION

2 - SAFETY INFORMATION###_2_###

Personal safety

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all

safety messages that follow this symbol to avoid possible death or injury.

Throughout this manual you will find the signal words DANGER, WARNING, and CAUTION followed by special in-

structions. These precautions are intended for the personal safety of you and those working with you.

Read and understand all the safety messages in this manual before you operate or service the machine.

DANGER indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

FAILURE TO FOLLOW DANGER, WARNING, AND CAUTION MESSAGES COULD RESULT

IN DEATH OR SERIOUS INJURY.

Machine safety

NOTICE: Notice indicates a situation that, if not avoided, could result in machine or property damage.

Throughout this manual you will find the signal word Notice followed by special instructions to prevent machine or

property damage. The word Notice is used to address practices not related to personal safety.

Information

NOTE: Note indicates additional information that clarifies steps, procedures, or other information in this manual.

Throughout this manual you will find the word Note followed by additional information about a step, procedure, or

other information in the manual. The word Note is not intended to address personal safety or property damage.

2-1

2 - SAFETY INFORMATION

Safety rules

General safety rules

Use caution when you operate the machine on slopes.

Do not attempt to remove material from any part of the

Raised equipment, full tanks and other loads will change

machine while it is being operated or while components

the center of gravity of the machine. The machine can

are in motion.

tip or roll over when near ditches and embankments or

uneven surfaces.

Make sure that all guards and shields are in good con-

dition and properly installed before you operate the ma-

Never permit anyone other than the operator to ride on

chine. Never operate the machine with shields removed.

the machine.

Always close access doors or panels before you operate

the machine.

Never operate the machine under the influence of alcohol

or drugs, or while you are otherwise impaired.

Dirty or slippery steps, ladders, walkways, and platforms

can cause falls. Make sure these surfaces remain clean

When digging or using ground-engaging attachments, be

and clear of debris.

aware of buried cables. Contact local utilities to determine

the locations of services.

A person or pet within the operating area of a machine can

be struck or crushed by the machine or its equipment. DO

Pay attention to overhead power lines and hanging obsta-

NOT allow anyone to enter the work area.

cles. High voltage lines may require significant clearance

for safety.

Raised equipment and/or loads can fall unexpectedly and

crush persons underneath. Never allow anyone to enter

Hydraulic oil or diesel fuel leaking under pressure can

the area underneath raised equipment during operation.

penetrate the skin, causing serious injury or infection.

Never operate the engine in enclosed spaces as harmful

• Do not use your hand to check for leaks. Use a piece

exhaust gases may build up.

of cardboard or paper.

• Stop the engine, remove the key, and relieve the pres-

Before you start the machine, be sure that all controls are

sure before you connect or disconnect fluid lines.

in neutral or park lock position.

• Make sure that all components are in good condition.

Start the engine only from the operator’s seat. If you

Tighten all connections before you start the engine or

bypass the safety start switch, the engine can start with

pressurize the system.

the transmission in gear. Do not connect or short across

• If hydraulic fluid or diesel fuel penetrates the skin, seek

terminals on the starter solenoid. Attach jumper cables

medical attention immediately.

as described in the manual. Starting in gear may cause

death or serious injury.

• Continuous long term contact with hydraulic fluid may

cause skin cancer. Avoid long term contact and wash

Always keep windows, mirrors, all lighting, and

the skin promptly with soap and water.

Slow-Moving Vehicle (SMV) emblem clean to provide the

best possible visibility while you operate the machine.

Keep clear of moving parts. Loose clothing, jewelry,

watches, long hair, and other loose or hanging items can

Operate controls only when seated in the operator’s seat,

become entangled in moving parts.

except for those controls expressly intended for use from

other locations.

Wear protective equipment when appropriate.

2-2

2 - SAFETY INFORMATION

Before you leave the machine:

1. Bring the engine to low idle speed.

1. Park the machine on a firm, level surface.

2. Disengage all drive systems.

2. Put all controls in neutral or park lock position.

WARNING

3. Engage the parking brake. Use wheel chocks if re-

Some components may continue to run down

quired.

after disengaging drive systems.

Make sure all drive systems are fully disen-

4. Lower all hydraulic equipment — Implements, header,

gaged.

etc.

Failure to comply could result in death or seri-

5. Turn off the engine and remove the key.

ous injury.

W0113A

When, due to exceptional circumstances, you would

decide to keep the engine running after you leave

Shift the transmission into neutral.

the operator’s station, then you must follow these

4. Apply the parking brake.

precautions:

General maintenance safety

Keep the area used for servicing the machine clean and

Stop the engine, remove the key, and relieve pressure

dry. Clean up spilled fluids.

before you connect or disconnect fluid lines.

Service the machine on a firm, level surface.

Stop the engine and remove the key before you connect

or disconnect electrical connections.

Install guards and shields after you service the machine.

Scalding can result from incorrect removal of coolant

Close all access doors and install all panels after servicing

caps. Cooling systems operate under pressure. Hot

the machine.

coolant can spray out if you remove a cap while the sys-

tem is hot. Allow the system to cool before you remove

Do not attempt to clean, lubricate, clear obstructions, or

the cap. When you remove the cap, turn it slowly to allow

make adjustments to the machine while it is in motion or

pressure to escape before you completely remove the

while the engine is running.

cap.

Always make sure that working area is clear of tools,

Replace damaged or worn tubes, hoses, electrical wiring,

parts, other persons and pets before you start operating

etc.

the machine.

The engine, transmission, exhaust components, and hy-

Unsupported hydraulic cylinders can lose pressure and

draulic lines may become hot during operation. Take care

drop the equipment, causing a crushing hazard. Do not

when you service such components. Allow surfaces to

leave equipment in a raised position while parked or dur-

cool before you handle or disconnect hot components.

ing service, unless the equipment is securely supported.

Wear protective equipment when appropriate.

Jack or lift the machine only at jack or lift points indicated

When welding, follow the instructions in the manual. Al-

in this manual.

ways disconnect the battery before you weld on the ma-

chine. Always wash your hands after you handle battery

Incorrect towing procedures can cause accidents. When

components.

you tow a disabled machine follow the procedure in this

manual. Use only rigid tow bars.

Wheels and tires

Make sure that tires are correctly inflated. Do not exceed

wheel to a tire shop or your dealer for service. Explosive

any recommended load or pressure. Follow the instruc-

separation of the tire can cause serious injury.

tions in the manual for proper tire inflation.

Do not weld to a wheel or rim until the tire is completely

Tires are heavy. Handling tires without proper equipment

removed. Inflated tires can generate a gas mixture with

could cause death or serious injury.

the air that can be ignited by high temperatures from weld-

ing procedures performed on the wheel or rim. Removing

Never weld on a wheel with a tire installed. Always re-

the air or loosening the tire on the rim (breaking the bead)

move the tire completely from the wheel prior to welding.

will NOT eliminate the hazard. This condition can exist

whether tires are inflated or deflated. The tire must be

Always have a qualified tire technician service the tires

completely removed from the wheel or rim prior to weld-

and wheels. If a tire has lost all pressure, take the tire and

ing the wheel or rim.

2-3

2 - SAFETY INFORMATION

Driving on public roads and general transportation safety

Comply with local laws and regulations.

the SMV on the equipment or machine is covered while

being transported on a trailer.

Use appropriate lighting to meet local regulations.

Be aware of overhead structures or power lines and make

Make sure that the SMV emblem is visible.

sure that the machine and/or attachments can pass safely

under.

Make sure that the brake pedal latch is engaged. You

must lock brake pedals together for road travel.

Travel speed should be such that you maintain complete

control and machine stability at all times.

Use safety chains for trailed equipment when safety

chains are provided with machine or equipment.

Slow down and signal before turning.

Lift implements and attachments high enough above

Pull over to allow faster traffic to pass.

ground to prevent accidental contact with road.

Follow correct towing procedure for equipment with or

When you transport equipment or a machine on a trans-

without brakes.

port trailer, make sure that it is properly secured. Be sure

Fire and explosion prevention

Fuel or oil that is leaked or spilled on hot surfaces or elec-

belts, gears, cleaning fans, etc. More frequent cleaning

trical components can cause a fire.

of your machine may be necessary depending on the

operating environment and conditions.

Crop materials, trash, debris, bird nests, or flammable

material can ignite on hot surfaces.

Inspect the electrical system for loose connections and

frayed insulation. Repair or replace loose or damaged

Always have a fire extinguisher on or near the machine.

parts.

Make sure that the fire extinguisher(s) is maintained and

Do not store oily rags or other flammable material on the

serviced according to the manufacturer’s instructions.

machine.

At least once each day and at the end of the day, remove

Do not weld or flame cut any items that contain flammable

all trash and debris from the machine especially around

material. Clean items thoroughly with non-flammable sol-

hot components such as the engine, transmission, ex-

vents before welding or flame-cutting.

haust, battery, etc. More frequent cleaning of your ma-

chine may be necessary depending on the operating en-

Do not expose the machine to flames, burning brush, or

vironment and conditions.

explosives.

At least once each day, remove debris accumulation

Promptly investigate any unusual smells or odors that

around moving components such as bearings, pulleys,

may occur during operation of the machine.

General battery safety

Always wear eye protection when you work with batteries.

Follow the manufacturer’s instructions when you store

and handle batteries.

Do not create sparks or have open flame near a battery.

Battery post, terminals, and related accessories contain

Ventilate the area when you charge a battery or use a

lead and lead compounds. Wash hands after handling.

battery in an enclosed area.

This is a California Proposition 65 warning.

Disconnect the negative (-) terminal first and reconnect

Battery acid causes burns. Batteries contain sulfuric acid.

the negative (-) terminal last.

Avoid contact with skin, eyes, or clothing. Antidote (exter-

nal): Flush with water. Antidote (eyes): flush with water

When you weld on the machine, disconnect both termi-

for 15 minutes and seek medical attention immediately.

nals of the battery.

Antidote (internal): Drink large quantities of water or milk.

Do not induce vomiting. Seek medical attention immedi-

Do not weld, grind, or smoke near a battery.

ately.

When you use auxiliary batteries or connect jumper ca-

Keep out of reach of children and other unauthorized per-

bles to start the engine, use the procedure shown in the

sons.

operator’s manual. Do not short across terminals.

2-4

2 - SAFETY INFORMATION

Operator presence system

Your machine is equipped with an operator presence sys-

If the operator presence system is inoperable, then it must

tem to prevent the use of some features while the operator

be repaired.

is not in the operator’s seat.

Never disconnect or bypass the operator presence sys-

tem.

Power Take-Off (PTO)

PTO-driven machinery can cause death or serious injury.

•

Match the right tractor PTO spline and speed with the

Before you work on or near the PTO shaft or service or

PTO driveshaft provided with an implement. This will

clear the driven machine, put the PTO lever in the disen-

assure proper geometry and operating speed.

gage position, stop the engine, and remove the key.

•

Never operate 540 RPM implements at 1000 RPM.

Whenever a PTO is in operation, a guard must be in place

•

Never operate 1000 RPM implements at 540 RPM.

to prevent death or injury to the operator or bystanders.

•

Use of PTO adaptors will void the warranty of the drive-

shaft, and the PTO drive train of the machine and im-

When doing stationary PTO work, keep clear of all moving

plement.

parts and make sure that appropriate guards are in place.

•

For correct hitch geometry, refer to the operator’s man-

Never use a spline adaptor:

ual for each implement you connect.

Reflectors and warning lights

You must use flashing amber warning lights when you

operate equipment on public roads.

Seat belts

Seat belts must be worn at all times.

•

Replace belts that have cuts that can make the belt

weak.

Seat belt inspection and maintenance:

•

Check that bolts are tight on the seat bracket or mount-

• Keep seat belts in good condition.

ing.

• Keep sharp edges and items than can cause damage

•

If the belt is attached to the seat, make sure that the

away from the belts.

seat or seat brackets are mounted securely.

• Periodically check belts, buckles, retractors, tethers,

•

Keep seat belts clean and dry.

slack take-up system, and mounting bolts for damage

•

Clean belts only with soap solution and warm water.

and wear.

•

Do not use bleach or dye on the belts because this can

• Replace all parts that have damage or wear.

make the belts weak.

2-5

2 - SAFETY INFORMATION

Operator protective structure

Your machine is equipped with an operator protective

After an accident, fire, tip over, or roll over, the following

structure, such as: a Roll Over Protective Structure

must be performed by a qualified technician before

(ROPS), Falling Objects Protective Structure (FOPS),

returning the machine to field or job-site operations:

or a cab with a ROPS. A ROPS may be a can frame

• The protective structure must be replaced.

or a two-posted or four-posted structure used for the

protection of the operator to minimize the possibility of

• The mounting or suspension for the protective struc-

serious injury. The mounting structure and fasteners

ture, operator’s seat and suspension, seat belts and

forming the mounting connection with the machine are

mounting components, and wiring within the operator’s

part of the ROPS.

protective system MUST be carefully inspected for

damage.

The protective structure is a special safety component of

• All damaged parts must be replaced.

your machine.

Do not weld, drill holes, attempt to straighten or repair the

Do not attach any device to the protective structure for

protective structure. Modification in any way can reduce

pulling purposes. DO NOT drill holes to the protective

the structural integrity of the structure, which could cause

structure.

death or serious injury in the event of fire, tip over, roll

over, collision or accident.

The protective structure and interconnecting components

are a certified system. Any damage, fire, corrosion, or

Seat belts are part of your protective system and must be

modification will weaken the structure and reduce your

worn at all times. The operator must be held to the seat

protection. If this occurs, The protective structure must

inside the frame in order for the protective system to work.

be replaced. so that it will provide the same protection

as a new protective structure. Contact your dealer for

protective structure inspection and replacement.

Personal Protective Equipment (PPE)

Wear Personal Protective Equipment (PPE) such as hard

hat, eye protection, heavy gloves, hearing protection, pro-

tective clothing, etc.

Do Not Operate tag

Before you start servicing the machine, attach a ‘Do Not

Operate’ warning tag to the machine in an area that will

be visible.

Hazardous chemicals

If you are exposed to or come in contact with hazardous

Dispose of all fluids, filters, and containers in an environ-

chemicals you can be seriously injured. The fluids, lu-

mentally safe manner according to local laws and regula-

bricants, paints, adhesives, coolant, etc. required for the

tions. Check with local environmental and recycling cen-

function of your machine can be hazardous. They may

ters or your dealer for correct disposal information.

be attractive and harmful to domestic animals as well as

humans.

Store fluids and filters in accordance with local laws and

regulations. Use only appropriate containers for the stor-

Material Safety Data Sheets (MSDS) provide information

age of chemicals or petrochemical substances.

about the chemical substances within a product, safe

handling and storage procedures, first aid measures, and

Keep out of reach or children or other unauthorized per-

procedures to take in the event of a spill or accidental

sons.

release. MSDS are available from your dealer.

Applied chemicals require additional precautions. Obtain

Before you service your machine check the MSDS for

complete information from the manufacturer or distributor

each lubricant, fluid, etc. used in this machine. This in-

of the chemicals before you use them.

formation indicates the associated risks and will help you

service the machine safely. Follow the information in the

MSDS, and on manufacturer containers, as well as the in-

formation in this manual, when you service the machine.

2-6

2 - SAFETY INFORMATION

Utility safety

When digging or using ground-engaging equipment, be

power source occur, the following precautions must be

aware of buried cables and other services. Contact your

taken:

local utilities or authorities, as appropriate, to determine

• Stop the machine movement immediately.

the locations of services.

• Apply the parking brake, stop the engine, and remove

Make sure that the machine has sufficient clearance to

the key.

pass in all directions. Pay special attention to overhead

• Check if you can safely leave the cab or your actual po-

power lines and hanging obstacles. High voltage lines

sition without contact with electrical wires. If not, stay

may require significant clearance for safety. Contact local

in your position and call for help. If you can leave your

authorities or utilities to obtain safe clearance distances

position without touching lines, jump clear of the ma-

from high voltage power lines.

chine to make sure that you do not make contact with

the ground and the machine at the same time.

Retract raised or extended components, if necessary.

Remove or lower radio antennas or other accessories.

• Do not permit anyone to touch the machine until power

Should a contact between the machine and an electric

has been shut off to the power lines.

Electrical storm safety

Do not operate machine during an electrical storm.

If an electrical storm should strike during operation, re-

main in the cab. Do not leave the cab or operator’s plat-

If you are on the ground during an electrical storm, stay

form. Do not make contact with the ground or objects

away from machinery and equipment. Seek shelter in a

outside the machine.

permanent, protected structure.

Mounting and dismounting

Mount and dismount the machine only at designated lo-

Maintain a three-point contact with steps, ladders, and

cations that have handholds, steps, and/or or ladders.

hand supports.

Do not jump off of the machine.

Never mount or dismount from a moving machine.

Make sure that steps, ladders, and platforms remain

Do not use the steering wheel or other controls or acces-

clean and clear of debris and foreign substances. Injury

sories as hand supports when you enter or exit the cab or

may result from slippery surfaces.

operator’s platform.

Face the machine when you mount and dismount the ma-

chine.

Working at heights

When the normal use and maintenance of the machine

• Do not stand on surfaces that are not designated as

requires you to work at heights:

steps or platforms.

• Correctly use installed steps, ladders, and railings.

Do not use the machine as a lift, ladder, or platform for

• Never use ladders, steps, or railings while the machine

working at heights.

is moving.

Lifting and overhead loads

Never use loader buckets, forks, etc. or other lifting, han-

Do not leave equipment in raised position while parked

dling, or digging equipment to lift persons.

or during service, unless securely supported. Hydraulic

cylinders must be mechanically locked or supported if

Do not use raised equipment as a work platform.

they are left in a raised position for service or access.

Know the full area of movement of the machine and equip-

Loader buckets, forks, etc. or other lifting, handling, or

ment and do not enter or permit anyone to enter the area

digging equipment and its load will change the center of

of movement while the machine is in operation.

gravity of the machine. This can cause the machine to tip

on slopes or uneven ground.

Never enter or permit anyone to enter the area under-

neath raised equipment. Equipment and/or loads can fall

unexpectedly and crush persons underneath it.

2-7

New Holland Tractor Workmaster 50 / Workmaster 60 / Workmaster 70 / Tier 4B (final). SERVICE MANUAL - page 26
