VersaMax 14-Point Micro PLCs

3.9.4

Micro PLC IC200UDR002 Specifications

Item

Description

Inputs

Eight 24Vdc positive/negative logic input circuits

Outputs

Six normally open 2 Amp relay circuits

High-Speed Counters

Up to four Type A or one Type A and one Type B

Output Power Supplies

24Vdc for input circuits & user devices, 200mA max. +5Vdc on
pin 7 of Serial Port, 100mA max.

DC Power Specifications

Range

–

20%/+25%Vdc

Hold-up

10 ms at 19.2Vdc

Inrush Current

1 A maximum at 30Vdc

Inrush Time

10 ms for 1 A

Input Current

0.16 A typical at 24Vdc

Input Power Supply Rating

DC Input Specifications

Number of Inputs

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current

7.5mA typical

Input Resistance

2.8 kΩ

Input Threshold Voltage

ON: 15Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

ON: 4.5mA maximum, OFF: 1.5mA minimum

Response Time

0.5 to 20ms configurable as regular input; 100µs as HSC input

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

Relay Output Specifications

Operating Voltage

5 to 30Vdc or 5 to 250Vac

Isolation

1500 V RMS between field side and logic side, 500 V RMS
between groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty Rating

2 amps at 24Vdc and 240Vac

Maximum Resistive Load Rating 2 amps at 24Vdc and 240Vac

Minimum Load

10 mA

Maximum Inrush

5 amps per half cycle

Response Time

ON: 15 ms maximum, OFF: 15 ms maximum

Contact Life: Mechanical

20 x 106 mechanical operations

Contact Life: Electrical Voltage
240Vac, 120Vac, 24Vdc

Current: Resistive
2A

Current: Lamp and
Solenoid
0.6A

Typical Operations
200,000

User Manual

Chapter 3

GFK-1645M

Dec 2019

VersaMax 14-Point Micro PLCs

Item

Description

High-Speed Counter Input and Output Specifications

Maximum Counter Frequency

10kHz

Input Voltage

ON: 15V, OFF: 5V

Count Pulse Width

20% to 80% duty cycle at 10kHz

Count Registers

16 bits

Outputs

Available Pulse Outputs

None

Load Voltage

Refer to relay specifications

3.9.5

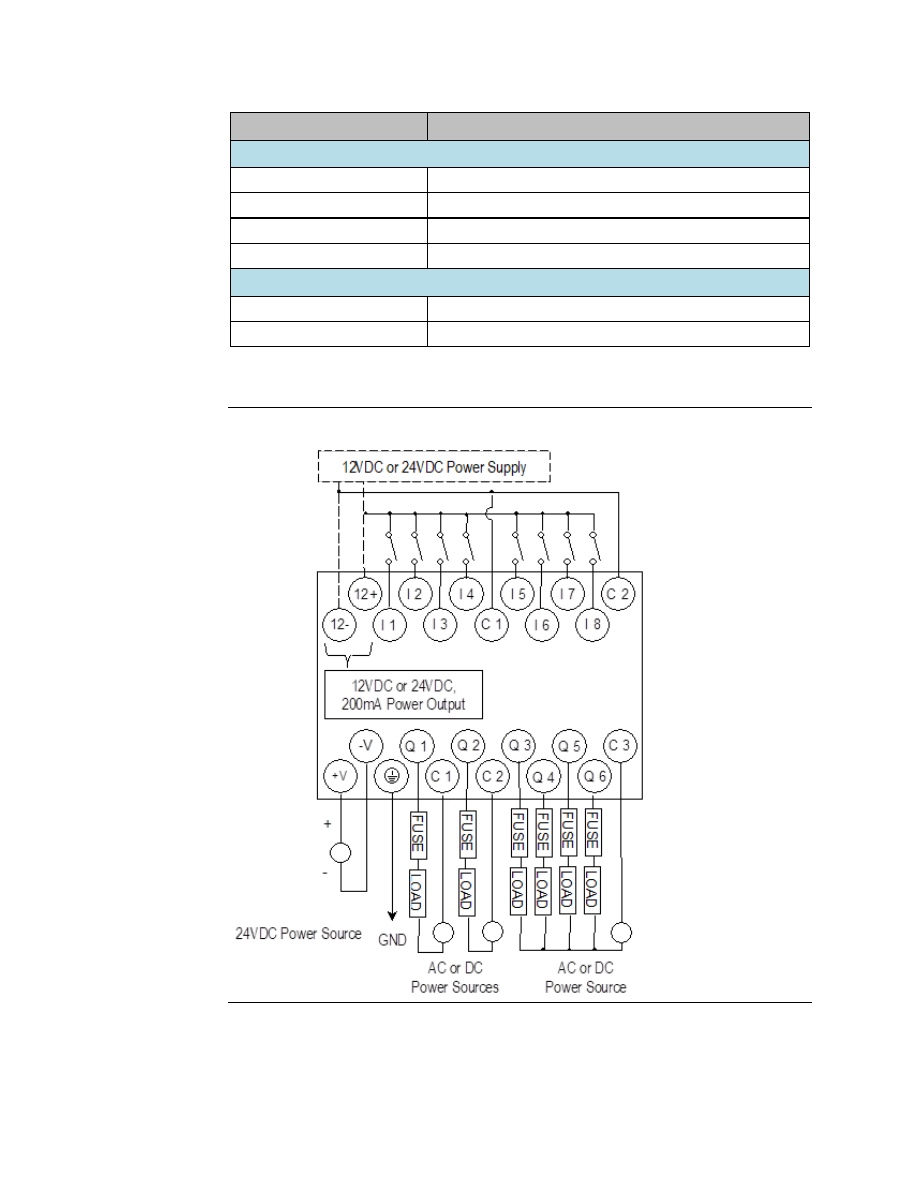

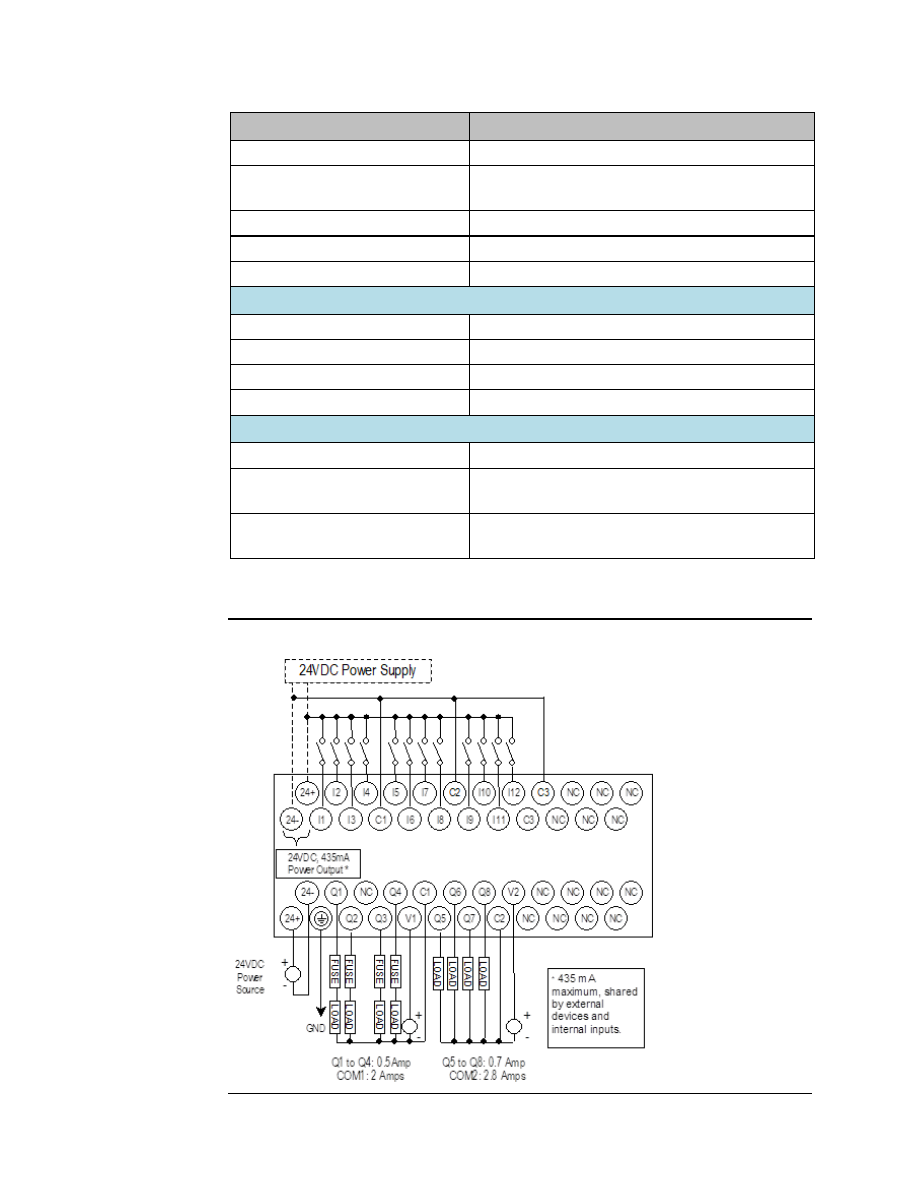

Wiring Diagram, IC200UDR002

Figure 20

User Manual

Chapter 3

GFK-1645M

Dec 2019

VersaMax 14-Point Micro PLCs

3.10

IC200UDR003
14-Point Micro PLC, (8) 12Vdc In, (6) Relay Out,
12Vdc Power Supply

VersaMax Micro PLC IC200UDR003 accepts eight DC inputs and provides six normally open
2 Amp relay outputs that can control 5 to 30Vdc or 5 to 250Vac output devices. It uses
+12Vdc nominal input power for PLC operation.

3.10.1

DC Power

The DC power supply requires more current at startup voltage (approximately 4Vdc) than
at rated input voltage.  A minimum of 2.0 A is required to start up the DC power supply. If
configured to disable power-up diagnostics, the PLC begins logic solution 100ms after the
voltage level of the power supply input reaches and maintains  24Vdc. The 24Vdc power
source  for  the  PLC  must  have  enough  transient  current  capability  to  support  the  inrush
current  of  the  power  supply  and  to  maintain  a  24Vdc  voltage  level  (see  power  supply
specifications for inrush requirements).

3.10.2

DC Inputs

Eight configurable DC inputs can be used as positive or negative logic standard or High-
Speed Counter inputs. When used as standard inputs, they are compatible with a wide range
of devices, such as pushbuttons, limit switches, and electronic proximity switches.

The Micro PLC 12Vdc supply can be used for input devices and to power the DC input circuits
at about 7.5 mA per input. The combination of input circuit current and external device
current must not exceed 200 mA.

3.10.3

Relay Outputs

The  six  normally-open  Form  A  relay  outputs  (SPST-single  pole  single  throw)  can  control
many  types  of  devices  such  as  motor  starters,  solenoids,  and  indicators.  Power  for  the
internal relay coils is provided by the internal supply.  An external source of AC or DC power
must be supplied to operate field devices.

The relay outputs can be configured as HSC outputs. They cannot be used as Pulse Train or
PWM outputs. Connections and specifications for HSC outputs are the same as for standard
relay outputs.

User Manual

Chapter 3

GFK-1645M

Dec 2019

VersaMax 14-Point Micro PLCs

3.10.4

Micro PLC IC200UDR003 Specifications

Item

Description

Inputs

Eight 12Vdc positive/negative logic input circuits

Outputs

Six normally open 2 Amp relay circuits

High-Speed Counters

Up to four Type A or one Type A and one Type B

Output Power Supplies

12Vdc for input circuits & user devices, 200mA max.
+5Vdc on pin 7 of Serial Port, 100mA max.

DC Power Specifications

Range

9.6Vdc - 15Vdc

Hold-up

3.0mS

Inrush Current

9.2A typical at 12Vdc

Inrush Time

200

S typical

Input Current

200mA typical at 12Vdc

Input Power Supply Rating

DC Input Specifications

Number of Inputs

Rated Input Voltage

12 volts DC

Input Voltage Range

0 to 15 volts DC

Input Current

9.0mA typical

Input Resistance

1.3 kΩ

Input Threshold Voltage

ON: 9.5Vdc minimum, OFF: 2.5Vdc maximum

Input Threshold Current

ON: 6.5mA maximum, OFF: 1.6mA minimum

Response Time

0.5 to 20ms configurable as regular input; 100µs as HSC input

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

Relay Output Specifications

Operating Voltage

5 to 30Vdc or 5 to 250Vac

Isolation

1500 V RMS between field side and logic side
500 V RMS between groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty Rating

2 amps at 24Vdc and 240Vac

Maximum Resistive Load Rating 2 amps at 24Vdc and 240Vac

Minimum Load

10 mA

Maximum Inrush

5 amps per half cycle

Response Time

ON: 15 ms maximum, OFF: 15 ms maximum

Contact Life: Mechanical

20 x 106 mechanical operations

Contact Life: Electrical Voltage
240Vac, 120Vac, 24Vdc

Current: Resistive
2A

Current: Lamp and
Solenoid
0.6A

Typical
Operations
200,000

User Manual

Chapter 3

GFK-1645M

Dec 2019

VersaMax 14-Point Micro PLCs

Item

Description

High-Speed Counter Input and Output Specifications

Maximum Counter Frequency

10kHz

Input Voltage

ON: 9V, OFF: 2.5V

Count Pulse Width

20% to 80% duty cycle at 10kHz

Count Registers

16 bits

Outputs

Available Pulse Outputs

None

Load Voltage

Refer to relay specifications

3.10.5

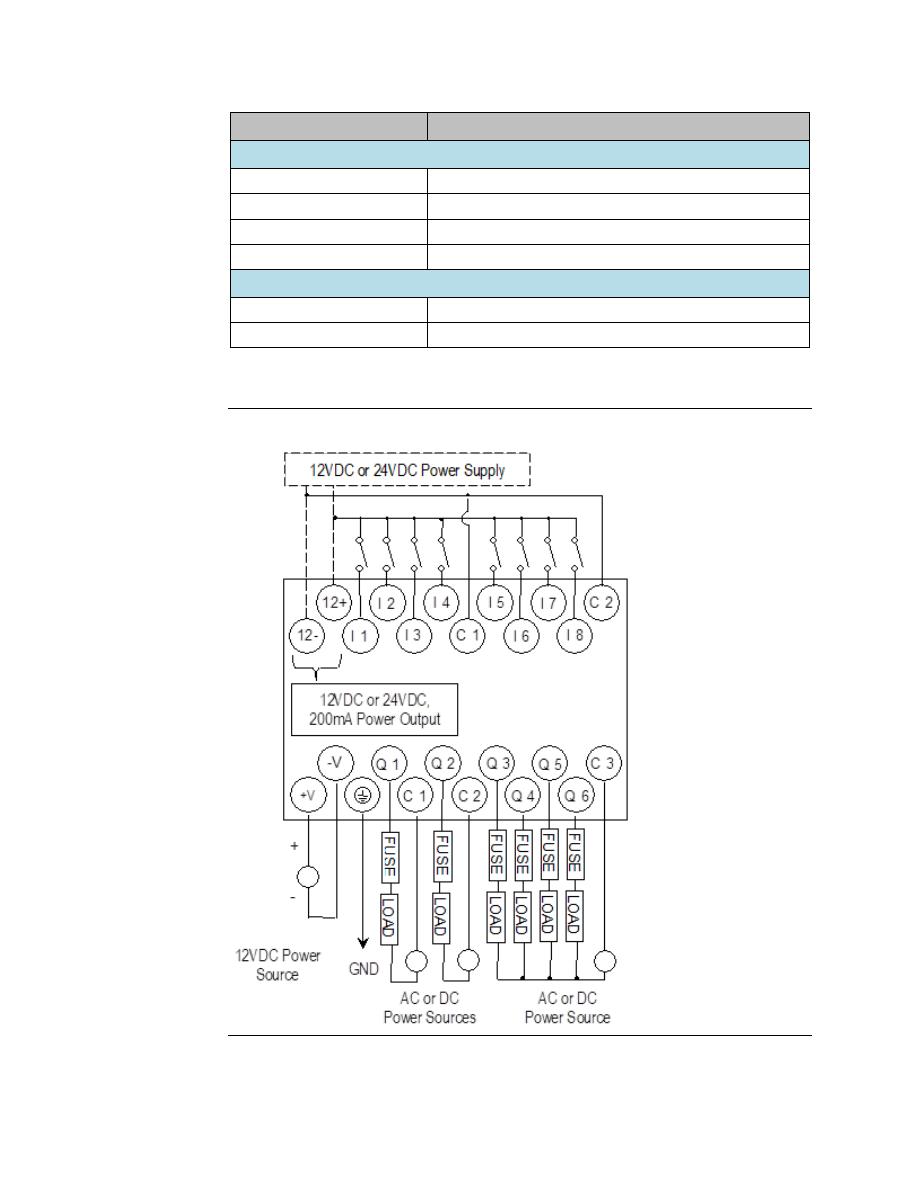

Wiring Diagram, IC200UDR003

Figure 21

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

Chapter 4:

VersaMax 20-Point Micro/Micro
PLUS PLCs

This chapter describes the features, specifications, and field wiring for 20-point VersaMax
Micro and VersaMax Micro PLUS PLCs.

IC200UDD020 20-point, (12) 24Vdc In, (4) 24Vdc Outputs with ESCP, (4) 24Vdc Transistor

Outputs, 24Vdc Power Supply

IC200UDD220 20-point, (12) 24Vdc In, (8) 24Vdc Transistor Outputs, 24Vdc Power Supply
IC200UDR020 20-point, (12) 24Vdc In, (8) Relay Out, 24Vdc Power Supply

IC200UDR120 20-point, (12) 24Vdc In, (8) Relay Out, 120/240Vac Power Supply

Note:

Firmware releases 4.00 and later require a Micro PLUS CPU, which has enhanced memory.
Firmware versions 4.00 cannot be used with the earlier hardware versions.

•

Micro and Micro PLUS PLCs support the same user logic memory size

•

The specifications given in this chapter for Micro PLCs also apply to Micro PLUS
PLCs.

4.1

Features of VersaMax 20-Point Micro PLCs

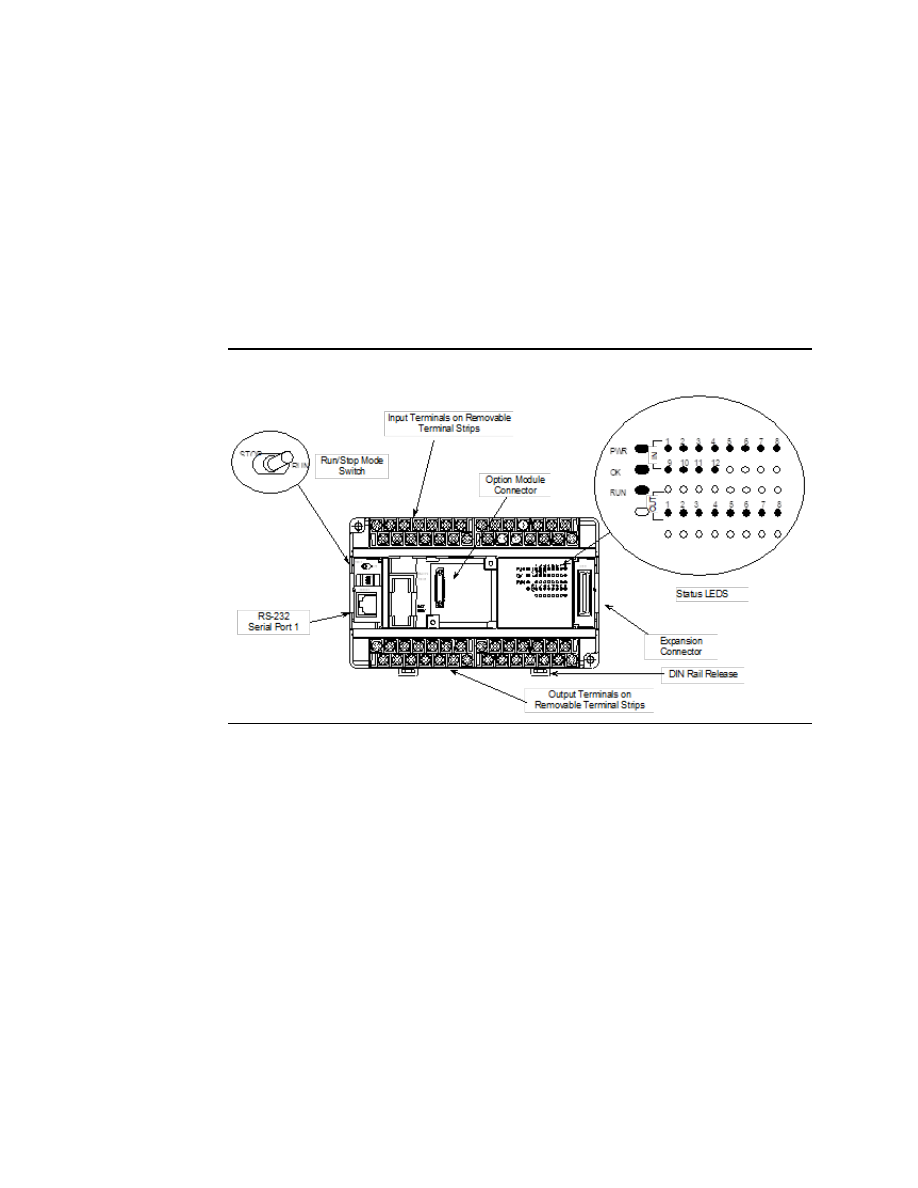

Figure 22

All VersaMax Micro-20 PLCs feature:

•

Removable screw-down

“

barrier-style

”

terminal strips with protective covers.

•

Built-in serial communications port that supports SNP/ SNPX master and slave,
Modbus RTU master and slave, and Serial I/O.

•

Removable Memory Pack Module available.

•

Optional Port 2.

•

Run/Stop mode switch that can be configured as a run/stop switch, a memory
protect switch, and also used for clearing faults when a fatal fault exists.

•

Full-featured programming Instruction Set with floating point math. The application
program can be either Ladder Diagram (LD) or Instruction List (IL) format.

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

•

24K words of program memory, 32K words of registers.

•

Flash memory (ROM) for non-volatile program storage and for system firmware.

•

Configurable to read configuration and application program at power up from either
RAM or flash memory (ROM).

•

Capacitor backup for RAM and the Time-of-Day clock for at least 30 minutes at 25°
C

•

Optional lithium battery backup for RAM and real-time clock.

•

Enhanced High-Speed Counter / Pulse Train commands for Jogging, Blending, and
Homing, plus configurable 32-bit Counters /PTO/ and 32-bit function blocks.

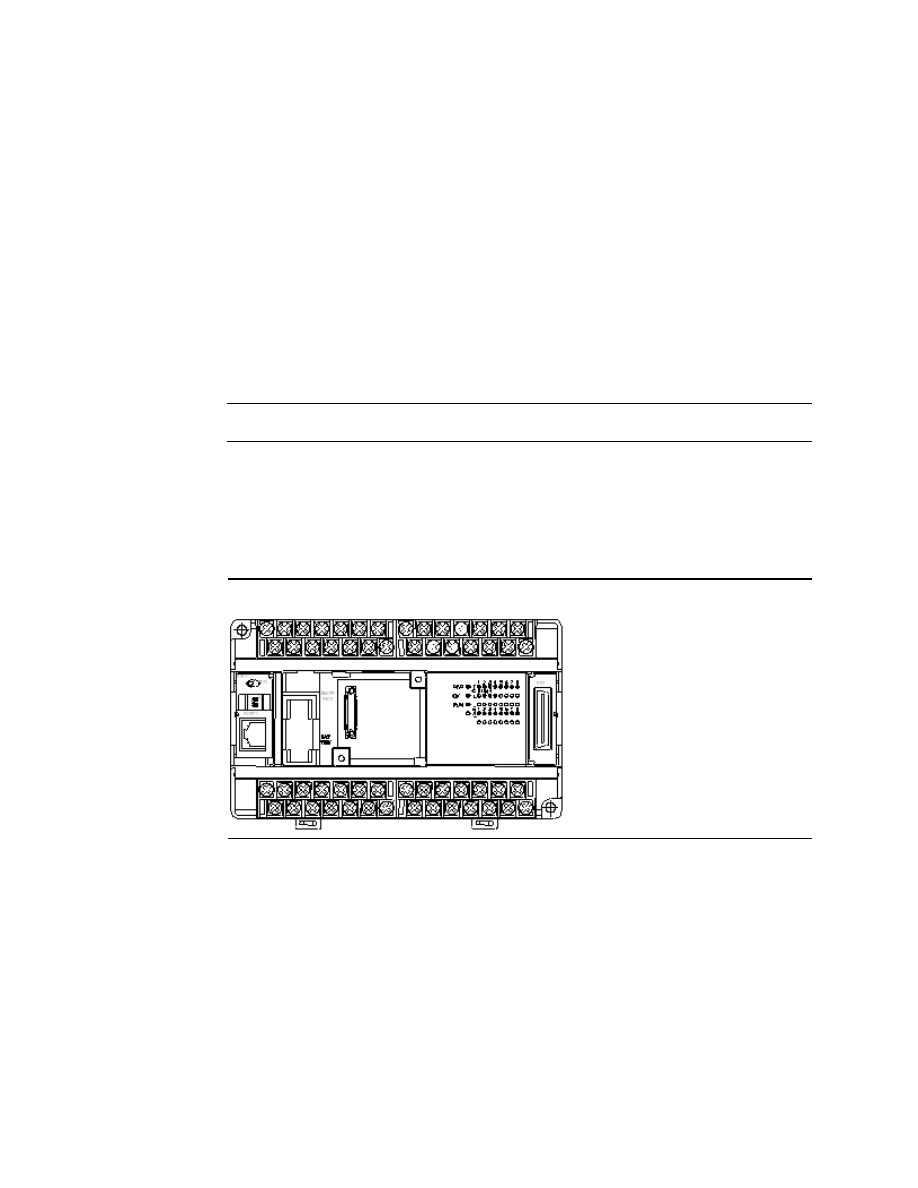

Figure 23

4.1.1

Run/Stop Switch

The Run/Stop switch can be configured as a run/stop switch or a memory protect switch and
used for clearing faults when a fatal fault exists.

4.1.2

Ports

Port 1 is a built-in RS-232 serial port with an RJ-45 connector.

A second port can be added to a Micro-20 PLC using one of the port Option Modules
described in Chapter 14:. If a second port is installed, both ports can be used for
programming. Only one port can be used at a time for programming, but both ports can be
used for monitoring at the same time.

Port 1 and the optional Port 2 are individually configurable for SNP master/slave, RTU
master/slave, and Serial I/O protocols. Both 4-wire and 2-wire RTU are supported when the
RS-485 Port Option module is installed as port 2. Port 2 does not support hardware flow
control. When either port is being used for RTU slave, it automatically switches to SNP slave
mode when that port is being used by the programmer. If a port is configured for Serial I/O,

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

RTU Master, or SNP Master operation, that port defaults to SNP slave and automatically
reverts to SNP slave when the CPU is in Stop mode.

Either port can be  software-configured to set up communications between the CPU and
various  serial  devices.  An  external  device  can  obtain  power  from  the  port  if  it  requires
200mA or less at 5Vdc.

4.1.3

Analog Inputs

The RS232 Option Module (IC200USB001) or the RS485 Option Module (IC200USB002) can
provide two 0-10V analog inputs. See Chapter 14: for more information about option
modules. The two inputs can be used to adjust the values in analog registers %AI016 (input
1) and %AI017 (input 2). An example use for the analog inputs would be to set threshold
values for use in logical relationships with other inputs/outputs.

4.1.4

Removable Terminal Strips

The removable terminal assemblies are protected by hinged covers. After turning off power
to the Micro PLC, a terminal assembly and attached field wiring can be separated from the
Micro PLC by removing two screws.

4.1.5

Status LEDs

LEDs on the Micro PLC provide quick visual verification of operating status. In addition to
LEDs for Power, OK, and Run mode, there is an LED for each I/O point.

4.1.6

Backup Battery

The Micro PLC uses a large value capacitor to provide memory retention current to the
System/User RAM and the Time-of-Day clock when the power supply is either not present
or not powered up. The capacitor retains memory contents for at least 30 minutes.

To maintain memory for longer than this, a replaceable battery assembly can be installed in
the battery holder, as described in Chapter 15:. The Micro PLC reports the battery state to
the PLC Fault Table and also uses Status Bits %SA011 and %S0014 to indicate the battery
state.

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

4.2

General Specifications of 20-Point VersaMax
Micro PLCs

Module Dimensions

Height: 90mm (3.6 inches)
Depth: 76mm (3.0 inches)
Width: 150mm (6.0 inches)

Typical Scan Rate

1.7 ms/K for Boolean logic (see Appendix A:)

Real Time Clock accuracy (for Timer
contacts and Timer function blocks)

±0.5%

Time-of-Day Clock accuracy

±5 sec/day @10°C, ±5 sec/day @25°C, and
±11 sec/day @ 55°C or across full temperature range

Maximum number of slave devices per
RS-485 network

8 (can be increased with a repeater)

+24Vdc Output Power Supply
(for input circuits and user devices)

435mA maximum

+5Vdc output of Serial Ports

200mA per port, 400mA total for both ports, maximum

4.3

High-Speed Counters

All VersaMax Micro PLCs with DC power can be configured to provide built-in High-Speed
Counter and pulse operation.

When configured for High-Speed Counter operation, inputs can be set up as:

•

Up to four Type A Counters or

•

One Type A and one Type B Counter.

•

Up to four Type A_32 Counters or

•

One Type A and one Type B_32 Counter

Each counter provides direct processing of rapid pulse signals up to 100 kHz for industrial
control applications such as meter proving, turbine flow meter, velocity measurement,
material handling, motion control, and process control.

Each counter can be enabled independently. Type A counters can be configured for up or
down counting (default is up) and for positive or negative edge detection (default is
positive). The type B counter provides an A Quad B counting function.

See Chapter 18: for information about High-Speed Counter features.

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

4.4

IC200UDD020
20-Point Micro PLC, (12) 24Vdc In, (4) 24Vdc
Out with ESCP, (4) LCDC Out, 24Vdc Power
Supply

VersaMax Micro PLC IC200UDD020 accepts twelve DC inputs and provides four ESCP
outputs and four 24Vdc low-current outputs. It uses +24Vdc nominal input power for PLC
operation.

4.4.1

DC Power

If configured to disable power-up diagnostics, the PLC begins logic solution 100ms after the
voltage level of the power supply input reaches and maintains its nominal voltage (24Vdc).
The power source for the PLC must have enough transient current capability to support the
inrush current of the power supply and to maintain the nominal voltage level (see power
supply specifications for inrush requirements).

4.4.2

DC Inputs

The twelve configurable DC inputs can be used as positive or negative logic standard inputs.
Eight of these inputs can be used for High-Speed Counter inputs. When used as standard
inputs, they are compatible with a wide range of input devices, such as pushbuttons, limit
switches, and electronic proximity switches.

The Micro PLC +24Vdc supply can be used for input devices and to power the DC input
circuits at about 8mA per input. The combination of input circuit current and external device
current must not exceed 435 mA.

4.4.3

DC Outputs

Outputs 1

–

4 can be used as standard, High-Speed Counter, Pulse-Width Modulated, Pulse

Train Outputs, or Pulse Train Outputs with Ramping. All standard outputs are all source-
type. Outputs can be used to switch devices like valves, lamps or contactors.

Outputs 5

–

8 provide Electronic Short-Circuit Protection.

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

4.4.4

Micro PLC IC200UDD020 Specifications

Item

Description

Inputs

Twelve 24Vdc positive or negative logic inputs

Outputs

Eight 24Vdc outputs. Outputs 5-8 with ESCP

High-Speed Counters

Up to four Type A or one Type A and one Type B, or four
Type A_32, or one Type A_32 and one Type B_32

DC Power Specifications

Range

19.2Vdc to 30Vdc

Hold-up

10mS at 19.2Vdc

Inrush Current

1 Amp maximum at 30Vdc

Inrush Time

10mS for 1 Amp

Input Current

0.20 Amp typical at 24Vdc

Input Power Supply Rating

DC Input Specifications

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current at 24Vdc

I1, I 3, I 5, I 7: 8mA typical; Other inputs: 4.8mA typical

Input Impedance

I1, I 3, I 5, I 7: 2.7 kΩ; Other inputs: 4.7 kΩ

Input Threshold Voltage

ON: 18Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

I1, I3, I5, I7: ON 4.5mA maximum, OFF: 1.8mA minimum
Other Inputs: ON 3.3mA maximum, OFF: 1.6mA
minimum

Response Time

0.5ms to 20ms configurable as regular input; 100µs as
HSC input

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between
groups

Output Specifications

Voltage Range

12Vdc / 24Vdc

External Power Supply

12/24Vdc

–

10%, +20%

Maximum Load Current

0.5A per point (Q1

–

Q4) at 24Vdc at 100 % ON duration

0.7A per point (Q5

–

Q8) at 24Vdc at 100 % ON duration

Minimum Switching Current

10mA

Maximum Inrush Current

Q1-Q4: 2A for 20ms, 1 pulse
Q5-Q8: 4A for 20ms, 1 pulse

Output Voltage Drop

0.3V maximum

OFF state leakage current

0.1mA maximum

Response Time

OFF to ON, ON to OFF: 1ms maximum (24Vdc)

Isolation Voltage

1500V RMS between field side and logic side,
500V RMS between groups

Fuse

None, outputs Q5

–

Q8 are ESCP protected

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

Item

Description

Under-voltage shutdown

–

Q8: 5V minimum, 8V maximum

DC short circuit current

–

Q4: 5A typical

–

Q8: 0.7A minimum, 2A maximum

Peak short circuit current

–

Q8: 4A maximum

Delay time of peak short circuit current 100 µS

Delay time of current limit

100 µS

High-Speed Counter Input and Output Specifications

Maximum Counter Frequency

100kHz

Input Voltage

ON : 18V, OFF: 5V

Count Pulse Width

20% to 80% of duty cycle at 100kHz

Count Registers

16/32 bits

Outputs

Load Voltage

12/24Vdc

Maximum Pulse/Pulse Train with
Ramping/PWM Frequency

PWM and PTO: 65kHz
Pulse Train with Ramping: 65kHz

Types available

Up to four HSC, PTO, PTO with Ramping and/or PWM
outputs

4.4.5

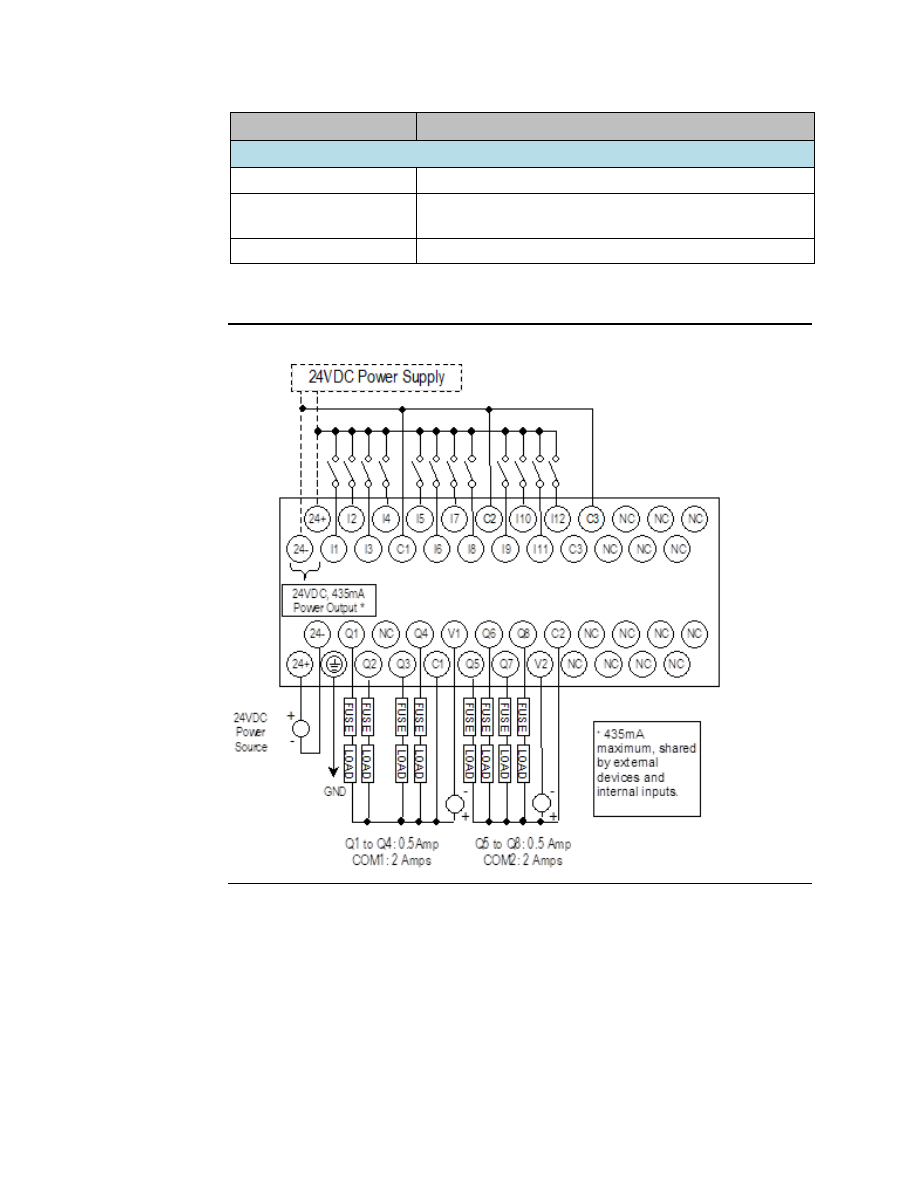

Wiring Diagram, IC200UDD020

Figure 24

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

4.5

IC200UDD220
20-Point Micro PLC, (12) 24Vdc In, (8) 24Vdc
Out (Sink), 24Vdc Power Supply

VersaMax Micro PLC IC200UDD220 accepts twelve DC inputs and provides eight DC
outputs. It uses +24Vdc nominal input power for PLC operation.

4.5.1

DC Power

If configured to disable power-up diagnostics, the PLC begins logic solution 100ms after the
voltage level of the power supply input reaches and maintains  24Vdc. The 24Vdc power
source  for  the  PLC  must  have  enough  transient  current  capability  to  support  the  inrush
current  of  the  power  supply  and  to  maintain  a  24Vdc  voltage  level  (see  power  supply
specifications for inrush requirements).

4.5.2

DC Inputs

Twelve configurable DC inputs can be used as positive or negative logic standard inputs.
Eight of these inputs can be used for High-Speed Counter inputs. When used as standard
inputs, they are compatible with a wide range of input devices, such as pushbuttons, limit
switches, and electronic proximity switches.

4.5.3

DC Outputs

Micro PLC IC200UDD220 has eight Sink-type DC outputs. All outputs are isolated between
field and logic and are switching positive voltage. The outputs are able to drive high inrush
currents (8 times the rated current) and are protected against negative voltage pulses. This
makes it possible to switch lamps and inductive loads.

DC outputs can be used as standard, High-Speed Counter, Pulse-Width Modulated, Pulse
Train Outputs, or Pulse Train Outputs with Ramping.

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

4.5.4

Micro PLC IC200UDD220 Specifications

Item

Description

Inputs

Twelve 24Vdc positive or negative logic inputs

Outputs

Eight transistor outputs, 24Vdc.

High-Speed Counters

Up to four Type A or one Type A and one Type B, or four Type
A_32, or one Type A_32 and one Type B_32

DC Power Specifications

Range

19.2Vdc to 30Vdc

Hold-up

10mS at 19.2Vdc

Inrush Current

1 Amp maximum at 30Vdc

Inrush Time

10mS for 1 Amp

Input Current

0.20 Amp typical at 24Vdc

Input Power Supply Rating

DC Input Specifications

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current at 24Vdc

I1, I 3, I 5, I 7: 8mA typical; Other inputs: 4.8mA typical

Input Impedance

I1, I 3, I 5, I 7: 2.7 kΩ; Other inputs: 4.7 kΩ

Input Threshold Voltage

ON: 18Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

I1, I3, I5, I7: ON 4.5mA maximum, OFF: 1.8mA minimum
Other Inputs: ON 3.3mA maximum, OFF: 1.6mA minimum

Response Time

0.5ms to 20ms configurable as regular input; 100µs as HSC input

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

Output Specifications

Voltage Range

12Vdc/24Vdc

External Power Supply

12/24Vdc

–

10%, +20%

Maximum Load Current

0.5A per point (Q1

–

Q8) at 24Vdc

Minimum Switching Current

10mA

Maximum Inrush Current

Q1-Q8: 2A for 20ms, 1 pulse

Output Voltage Drop

0.3Vdc maximum

OFF state leakage current

0.1mA maximum

Response Time

OFF to ON, ON to OFF: 1ms maximum @ 24Vdc

Isolation Voltage

1500V RMS between field side and logic side, 500V RMS between
groups

High-Speed Counter Input and Output Specifications

Maximum Counter Frequency 100kHz

Input Voltage

ON : 18V, OFF: 5V

Count Pulse Width

20% to 80% of duty cycle at 100kHz

Count Registers

16/32 bits

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

Item

Description

Outputs

Load Voltage

12/24Vdc

Maximum Pulse/PWM
Frequency

PWM and PTO: 65kHz
Pulse Train with Ramping: 65kHz

Types available

Up to four HSC, PTO, PTO, and/or PWM outputs

4.5.5

Wiring Diagram, IC200UDD220

Figure 25

User Manual

Chapter 4

GFK-1645M

Dec 2019

VersaMax 20-Point Micro/Micro PLUS PLCs

4.6

IC200UDR020
20-Point Micro PLC, (12) 24Vdc In, (8) Relay
Out, 24Vdc Power Supply

VersaMax Micro PLC IC200UDR020 accepts twelve DC inputs and provides eight normally
open 2 Amp relay outputs. It uses +24Vdc nominal input power for PLC operation.

4.6.1

DC Inputs

4.6.2

Relay Outputs

The eight normally open Form A relay outputs (SPST-single pole single throw) can control
many types of load devices such as motor starters, solenoids, and indicators. The switching
capacity of each of these circuits is 2 amps. An external source of AC or DC power must be
supplied to operate field devices.

The relay outputs can be configured as up to four HSC outputs. Relay outputs cannot be
used as Pulse Train or PWM outputs.

4.6.3

Micro PLC IC200UDR020 Specifications

Item

Description

Inputs

Twelve 24Vdc positive/negative logic input circuits

Outputs

Eight normally open 2 amp relay circuits

High-Speed Counters

Up to four Type A or one Type A and one Type B, or four Type
A_32, or one Type A_32 and one Type B_32

+24Vdc Output Power Supply

435mA maximum (for input circuits and user devices)

+5Vdc output of Serial Port

Serial Port 1, pin 7: 100mA maximum

DC Power Specifications

Range

19.2Vdc to 30Vdc

Hold-up

10mS at 19.2Vdc

Inrush Current

1 Amp maximum at 30Vdc

Inrush Time

10mS for 1 Amp

Input Current

0.20 Amp typical at 24Vdc

Input Power Supply Rating

EMERSON PACSystems VersaMax MICRO PLC & NANO PLC. USER MANUAL (2019) - page 6
