Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

18

2.2.3



Relay Outputs

The four Form A (SPST-single pole single throw) normally open relay outputs can control a
wide  range  of  devices  such  as  motor  starters,  solenoids,  and  indicators.  Power  for  the
internal relay coils is provided by the +24-volt DC internal supply.  An external source of AC
or DC power must be supplied to operate field devices.

The relay outputs can be used as up to three High-Speed Counter outputs. They cannot be
used as Pulse Train or Pulse-Width Modulated outputs. Connections and specifications for
High-Speed Counter outputs are the same as for standard relay outputs.

2.2.4



Nano PLC IC200NAL110 Specifications

Inputs

Six 12Vdc positive/negative logic inputs, one analog input, 0 to 10V

Outputs

Four normally open 2 Amp relay circuits

High-Speed Counters

Three Type A or One Type A and One Type B

DC Power Specifications

Range

9.6Vdc - 15Vdc

Hold-up

3.0mS

Inrush Current

8A typical at 12Vdc

Inrush Time

200mS typical

Input Current

250mA typical at 12Vdc

Input Power Supply Rating

3W

DC Input Specifications

Number of Inputs

Rated Input Voltage

12 volts DC

Input Voltage Range

0 to 15 volts DC

Input Current

9.0mA typical

Input Impedance

1.3 kΩ



Input Threshold Voltage

ON: 9.5Vdc minimum, OFF: 2.5Vdc maximum

Input Threshold Current

ON: 6.5mA maximum, OFF: 1.6mA minimum

Response Time

0.5 to 20ms (user configurable) as regular input; 100µs as HSC
input

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between group

Analog Input Specifications

Number of Analog Inputs

1, single

Input range

0 to 10 V (10.24 maximum)

Resolution

8 bits

Accuracy

1% of full scale over temperature range

Voltage input impedance

100kΩ



Input filter time

200ms to reach 1% error for step input

Relay Output Specifications

User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

19

Operating Voltage

5 to 30Vdc  or  5 to 250Vac

Isolation

1500 V RMS between field side and logic side
500 V RMS between groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty Rating  2 amps at 24Vdc and 240Vac

Maximum Resistive Load
Rating

2 amps at 24Vdc and 240Vac

Minimum Load

10 mA

Maximum Inrush

5 amps per half cycle

On Response Time

15 ms maximum

Off Response Time

15 ms maximum

Fuse

None

Contact Life:  Mechanical

20 x 106 mechanical operations

Contact Life:  Electrical
     240Vac, 120Vac, 24Vdc

Current: Resistive
2A

Current: Lamp and
Solenoid 0.6A

Typical Operations
200,000

High-Speed Counter Input and Output  Specifications

Maximum Counter Frequency  10kHz

Input Voltage

ON: 9V,  OFF: 2.5V

Count Pulse Width

20% to 80% duty cycle at 10kHz

Count Registers

16bits

Outputs

Load Voltage

12V

Number of Pulse Outputs

None

2.2.5

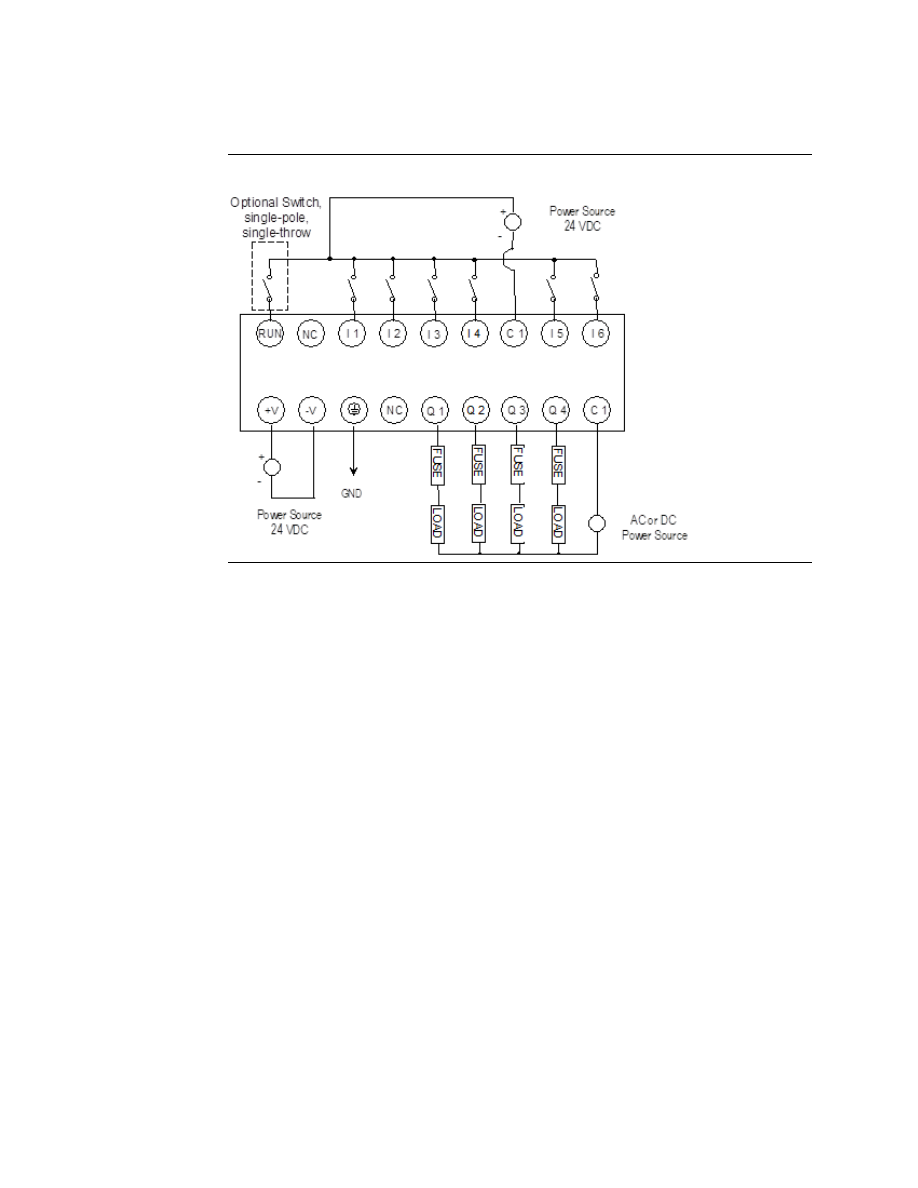

Wiring Diagram, IC200NAL110

Figure 6



User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

20

2.3



IC200NAL211
Nano PLC with 10 Discrete Points and 1 Analog
Input:
(6) 12Vdc In, (4) Relay Out, 1 Analog Input,
24Vdc Power Supply

VersaMax Nano PLC IC200NAL211 has six DC inputs, one analog input, and four  normally
open 2 Amp relay outputs that can control 5 to 30Vdc or 5 to 250Vac output devices. It uses
+24Vdc nominal input power for PLC operation.

2.3.1



DC Inputs

The module’s six configurable DC inputs can be used as positive or negative logic standard

inputs.  Whether  used  as  a  standard  or  HSC  input,  each  DC  input  can  have  positive  or
negative logic characteristics. When used as standard inputs, the input characteristics are
compatible with  a wide range of input devices, such as pushbuttons, limit switches, and
electronic proximity switches.

2.3.2



Analog Input

Input IN1 can be used as an analog input (8-bit resolution), for analog signals in the 0V to
10V range. The analog input cannot be software calibrated.

2.3.3



Relay Outputs

The four Form A (SPST-single pole single throw) normally open relay outputs can control a
wide  range  of  devices  such  as  motor  starters,  solenoids,  and  indicators.  Power  for  the
internal relay coils is provided by the +24-volt DC internal supply.  An external source of AC
or DC power must be supplied to operate field devices.

The relay outputs can be used as up to three High-Speed Counter outputs. They cannot be
used as Pulse Train or Pulse-Width Modulated outputs. Connections and specifications for
High-Speed Counter outputs are the same as for standard relay outputs.







User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

21

2.3.4



Nano PLC IC200NAL211 Specifications

Inputs

Six 24Vdc positive/negative logic inputs, one analog input, 0 to 10V

Outputs

Four normally open 2 Amp relay circuits

High-Speed Counters

Three Type A or One Type A and One Type B

DC Power Specifications

Range

19.2Vdc - 30.0Vdc

Hold-up

10mS  at 19.2Vdc

Inrush Current

1 Amp maximum at 30Vdc

Inrush Time

10mS  for 1 Amp

Input Current

 0.12 Amp typical at 24Vdc

Input Power Supply Rating  3W

DC Input Specifications

Number of Inputs

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current

7.5mA typical

Input Impedance

2.8 kΩ



Input Threshold Voltage

ON: 15Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

ON: 4.5mA maximum, OFF: 1.5mA minimum

Response Time

0.5 to 20ms (user configurable) as regular input; 100µs as HSC input

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between group

Analog Input Specifications

Number of Analog Inputs

1, single

Input range

0 to 10 V (10.24 maximum)

Resolution

8 bits

Accuracy

1% of full scale over temperature range

Voltage input impedance

100kΩ



Input filter time

200ms to reach 1% error for step input

Relay Output Specifications

Operating Voltage

5 to 30Vdc  or  5 to 250Vac

Isolation

1500 V RMS between field side and logic side
500 V RMS between groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty
Rating

2 amps at 24Vdc and 240Vac

Maximum Resistive Load
Rating

2 amps at 24Vdc and 240Vac

Minimum Load

10 mA

Maximum Inrush

5 amps per half cycle

User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

22

On Response Time

15 ms maximum

Off Response Time

15 ms maximum

Fuse

None

Contact Life:  Mechanical

20 x 106 mechanical operations

 Contact Life:  Electrical
     240Vac, 120Vac, 24Vdc

Current: Resistive
2A

Current: Lamp and Solenoid
0.6A

Typical Operations
200,000

High-Speed Counter Input and Output Specifications

Maximum Counter
Frequency

10kHz

Input Voltage

ON: 15V,  OFF: 5V

Count Pulse Width

20% to 80% duty cycle at 10kHz

Count Registers

16bits

Outputs

Load Voltage

12/24V

Number of Pulse Outputs  None

2.3.5



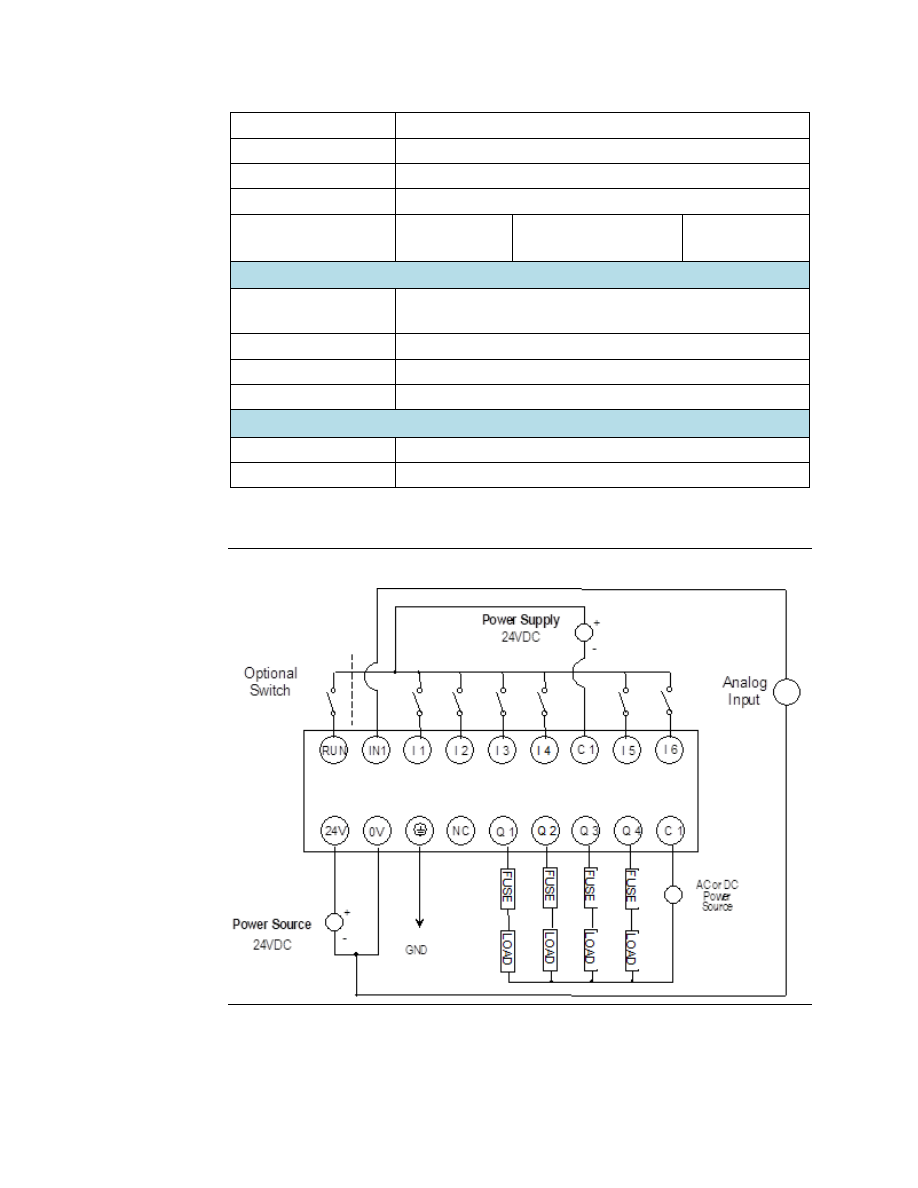

Wiring Diagram, IC200NAL211

Figure 7









User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

23

2.4



IC200NDD010
10 Point Nano PLC: (6) 12Vdc In, (4) 12Vdc Out,
12Vdc Power Supply

VersaMax Nano PLC IC200NDD010 has six 12Vdc inputs and four DC transistor outputs. It
uses +12Vdc nominal input power for PLC operation.

2.4.1



DC Inputs

The  module’s  six  configurable  DC  inputs  can  be  used  as  standard  inputs  or  High

-Speed

Counter inputs. Whether used as a standard or HSC input, each input can have positive or
negative logic characteristics. When used as standard inputs, the input characteristics are
compatible with  a wide range of input devices, such as pushbuttons, limit switches, and
electronic proximity switches.

2.4.2



Transistor Outputs

The  four  transistor  output  circuits  can  be  used  to  switch  devices  like  valves,  lamps  or
contactors.  External  fusing  should  be  provided  to  protect  the  outputs.  Fast  fuses  are
recommended.

The  outputs  can  be  configured  as  regular  outputs  or  as  outputs  controlled  by  the  High-
Speed Counters. Then can also be used as Pulse Train and/or Pulse Width Modulation (PWM)
outputs.

All  outputs  are  isolated  between  field  and  logic  and  are  switching  positive  voltage.  The
outputs  have  one  common  incoming  supply  (VC)  and  one  common  ground  (COM).  The
outputs are able to drive high inrush currents (8 times the rated current) and are protected
against negative voltage pulses. This makes it possible to switch lamps and inductive loads.

2.4.3



Nano PLC IC200NDD010 Specifications

Inputs

Six 12Vdc positive/negative logic input circuits

Outputs

Four transistor outputs

High-Speed Counters

Three Type A or One Type A and One Type B

DC Power Specifications

Range

9.6Vdc - 15Vdc

Hold-up

3.0mS

Inrush Current

8A typical at 12Vdc

Inrush Time

200mS typical

Input Current

250mA typical at 12Vdc

Input Power Supply Rating

3W

DC Input Specifications

Number of Inputs

User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

24

Rated Input Voltage

12 volts DC

Input Voltage Range

0 to 15 volts DC

Input Current

9.0mA typical

Input Impedance

1.3 kΩ



Input Threshold Voltage

ON:  9.5Vdc minimum,  OFF: 2.5Vdc maximum

Input Threshold Current

ON:  6.5mA maximum, OFF: 1.6mA minimum

Response Time

0.5 to 20ms (user configurable) as regular input; 100µs as HSC
input

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between group

Transistor Output Specifications

Voltage Range

12Vdc (12Vdc +20%, -20%)

Maximum Load

0.7A per circuit,  4A per common

Maximum Inrush Current

4A for 20mS

Output Voltage Drop

0.3V maximum

OFF state leakage

0.1mA maximum

Response

OFF to ON:   0.1mS maximum 12Vdc 0.2A
ON  to OFF:   0.1mS maximum 12Vdc 0.2A

Isolation Voltage

1500V RMS field side to logic side, 500Vac between field side and
logic side

External power supply

12Vdc +10%, -20%

Fuse

Outputs should be fused externally. Otherwise, a load short can
damage the module output transistor, which is not user
replaceable.

High-Speed Counter Input and Output Specifications

Maximum Counter Frequency  10kHz

Input Voltage

ON:  9V,  OFF  2.5V

Count Pulse Width

20% to 80% duty cycle at 10kHz

Count Registers

16bits

Outputs

Number of Outputs

Up to three HSC/PT and/or PWM outputs

Load Voltage

12V

Maximum Pulse/PWM
Frequency

5kHz







User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

25

2.4.4



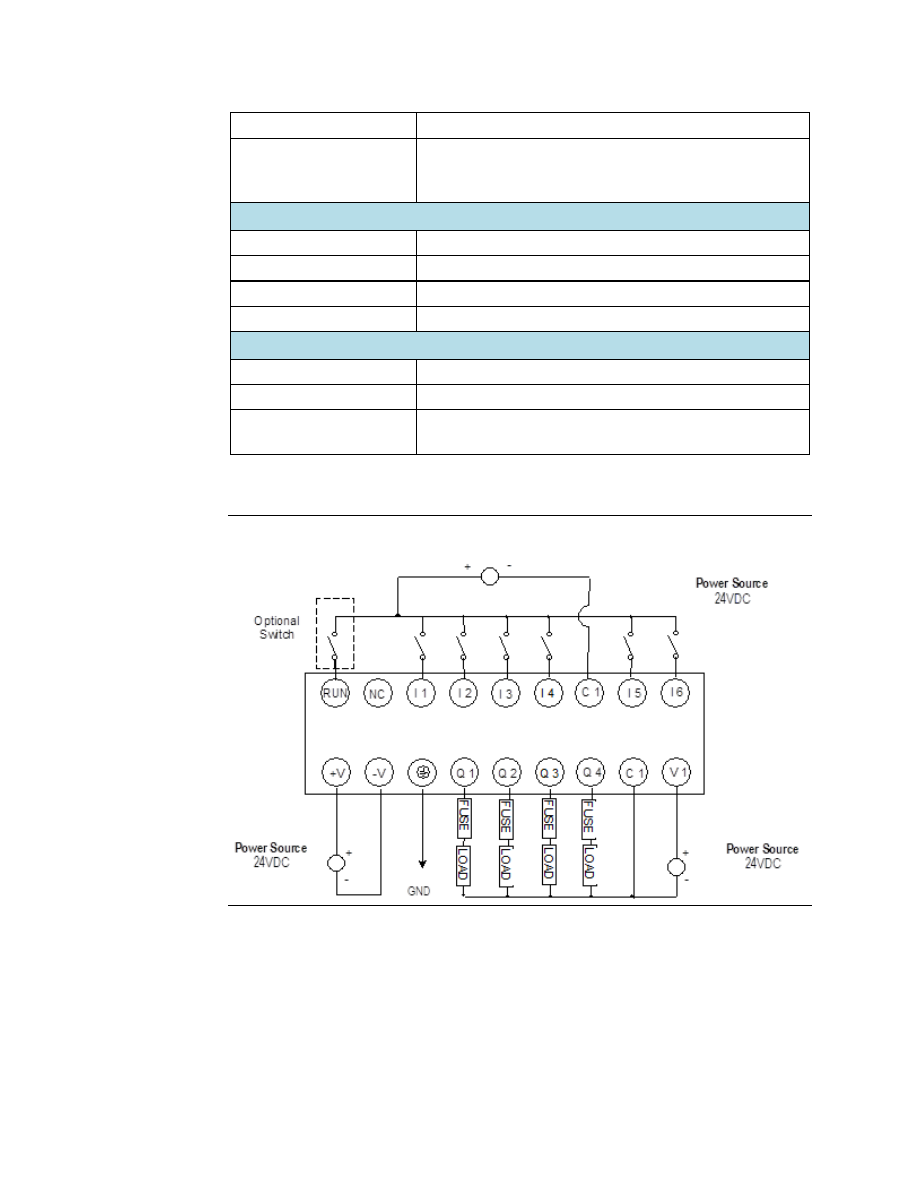

Wiring Diagram, IC200NDD010

Figure 8



2.5



IC200NDD101
10 Point Nano PLC: (6) 24Vdc In, (4) 12Vdc Out,
24Vdc Power Supply

VersaMax Nano PLC IC200NDD101 has six 24Vdc inputs and four DC transistor outputs. It
uses +24Vdc nominal input power for PLC operation.

2.5.1



DC Inputs

Six configurable DC inputs can be used as standard inputs or High-Speed Counter inputs.
Whether used as a standard or HSC input, each input can have  positive or negative logic
characteristics. When used as standard inputs, the input characteristics are compatible with
a wide range of input devices, such as pushbuttons, limit switches, and electronic proximity
switches.

2.5.2



Transistor Outputs

The  four  transistor  output  circuits  can  be  used  to  switch  devices  like  valves,  lamps  or
contactors.  External  fusing  should  be  provided  to  protect  the  outputs.  Fast  fuses  are
recommended.

The  outputs  can  be  configured  as  regular  outputs  or  as  outputs  controlled  by  the  High-
Speed Counters. Then can also be used as Pulse Train and/or Pulse Width Modulation (PWM)
outputs.

User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

26

All outputs are isolated between field and logic and are switching positive voltage. The
outputs have one common incoming supply (VC) and one common ground (COM). The
outputs are able to drive high inrush currents (8 times the rated current) and are protected
against negative voltage pulses. This makes it possible to switch lamps and inductive
loads.

2.5.3



Nano PLC IC200NDD101 Specifications

Inputs

Six 24Vdc positive/negative logic input circuits

Outputs

Four transistor outputs

High-Speed Counters

Three Type A or One Type A and One Type B

DC Power Specifications

Range

19.2Vdc - 30.0Vdc

Hold-up

10mS  at 19.2Vdc

Inrush Current

1 Amp maximum at 30Vdc

Inrush Time

10mS for 1 Amp

Input Current

0.12 Amp typical at 24Vdc

Input Power Supply Rating

3W

DC Input Specifications

Number of Inputs

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current

7.5mA typical

Input Impedance

2.8 kΩ



Input Threshold Voltage

ON:  15Vdc minimum,  OFF: 5Vdc maximum

Input Threshold Current

ON:  4.5mA maximum,  OFF:  1.5mA minimum

Response Time

0.5 to 20ms (user configurable) as regular input; 100µs as HSC
input

Isolation Voltage

1500V RMS field side to logic side
500V RMS between group

Transistor Output Specifications

Voltage Range

12Vdc/24Vdc (24Vdc +10% / -43% input at V1,C1)

Maximum Load

0.75A per point (Q1 - Q4) at 24Vdc at 100 %  ON duration
0.5A per point (Q1 - Q4) at 12Vdc at 100 %  ON duration

Maximum Inrush Current

8A for 20ms, 1 pulse (0.75A outputs)
4A for 20ms, 1 pulse (0.5A outputs)

Output Voltage Drop

0.3V maximum

OFF state leakage

100

A maximum

Response

OFF to ON:   0.1mS maximum 24Vdc 0.2A
ON  to OFF:   0.1mS maximum 24Vdc 0.2A

Isolation Voltage

1500V RMS field side to logic side, 500Vac between field side and
logic side

User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

27

External power supply

16-30Vdc required to power the outputs.

Fuse

Outputs should be fused externally. Otherwise, a load short can
damage the module output transistor, which is not user
replaceable.

High-Speed Counter Input and Output Specifications

Maximum Counter Frequency  10kHz

Input Voltage

ON:  15V,  OFF:  5V

Count Pulse Width

20% to 80% duty cycle at 10kHz

Count Registers

16bits

High-Speed Counter Outputs

Number of Outputs

Up to three HSC/PT and/or PWM outputs

Load Voltage

12/24V

Maximum Pulse/PWM
Frequency

5kHz

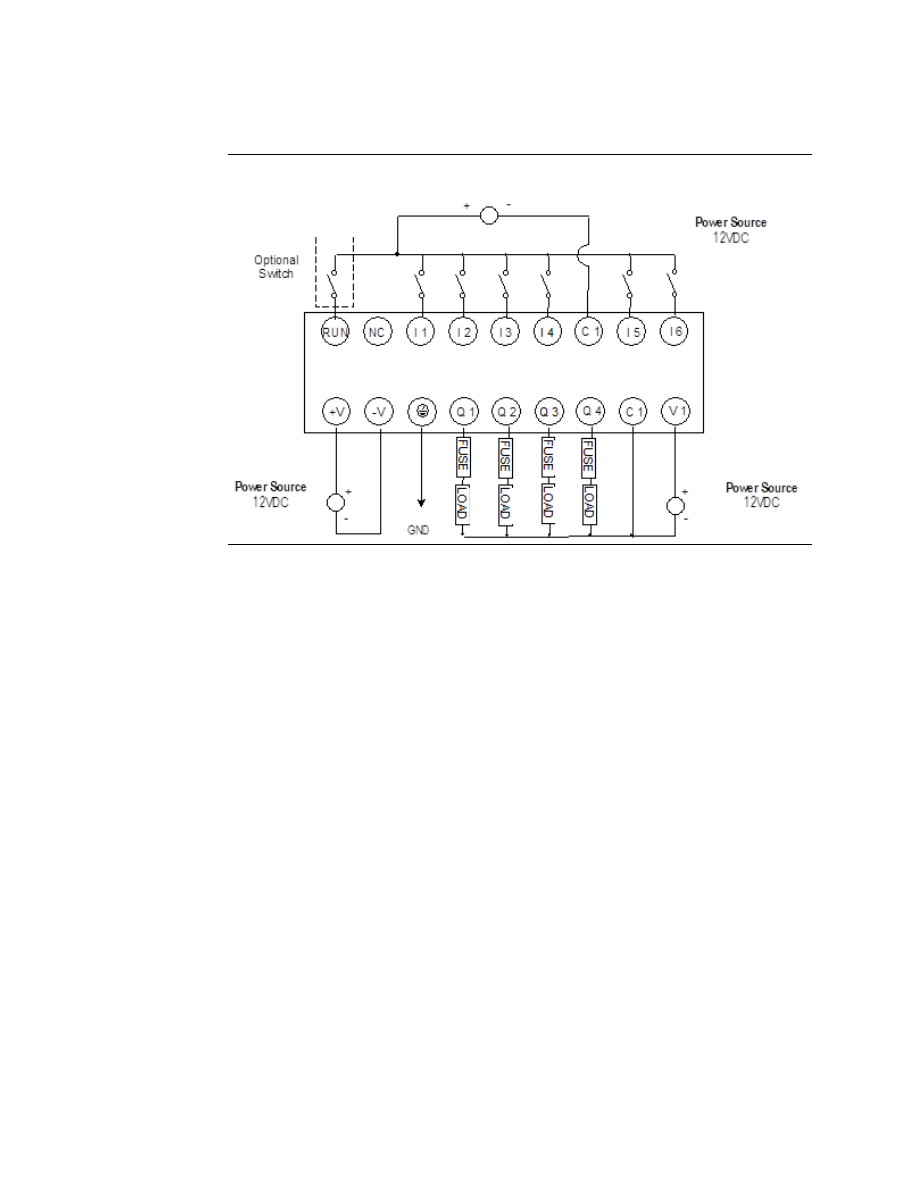

2.5.4



Wiring Diagram, IC200NDD101

Figure 9









User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

28

2.6



IC200NDR001

10-Point Nano PLC: (6) 24Vdc In, (4) Relay Out, 24Vdc  Power Supply

VersaMax  Nano  PLC  IC200NDR001  has  six  24Vdc  inputs,  and  four  normally-open  2-Amp
relay outputs that can control 5 to 30Vdc or 5 to 250Vac output devices. It uses +12Vdc
nominal input power for PLC operation.

2.6.1



DC Inputs

The  module’s  six  configurable  DC  inputs  can  be  used  as  standard  inputs  or  High

-Speed

Counter inputs.  Whether used as a standard or High-Speed Counter input, each input can
have  positive  or  negative  logic  characteristics.  When  used  as  standard  inputs,  the  input
characteristics are compatible with a wide range of input devices, such as pushbuttons, limit
switches, and electronic proximity switches.

2.6.2



Relay Outputs

The four Form A (SPST-single pole single throw) normally open relay outputs can control a
wide  range  of  devices  such  as  motor  starters,  solenoids,  and  indicators.  Power  for  the
internal relay coils is provided by the +24-volt DC internal supply.  An external source of AC
or DC power must be supplied to operate field devices.

Connections and specifications for HSC outputs are the same as for standard relay outputs.

2.6.3



Nano PLC IC200NDR001 Specifications

Inputs

Six 24Vdc positive/negative logic input circuits

Outputs

Four normally open 2 Amp relay circuits

High-Speed Counters

Three Type A or One Type A and One Type B

DC Power Specifications

Range

24

20%/+25%Vdc

Hold-up

10 ms at 19.2Vdc

Inrush Current

1A maximum at 24Vdc

Inrush Time

10 ms for 1 A

Input Current

0.12A typical at 24Vdc

Input Power Supply Rating  3W

Input Specifications

Number of Inputs

Rated Input Voltage

24 volts DC

Input Voltage Range

0 to 30 volts DC

Input Current

7.5mA typical

Input Resistance

2.8 kΩ



Input Threshold Voltage

ON:  15Vdc minimum, OFF: 5Vdc maximum

Input Threshold Current

ON:  4.5mA maximum,  OFF:  1.5mA minimum

User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

29

Response Time

0.5 to 20ms configurable as regular input; 100µs as HSC input

Isolation Voltage

1500V RMS field side to logic side,  500V RMS between groups

Relay Output Specifications

Operating Voltage

5 to 30Vdc  or  5 to 250Vac

Isolation

1500 V RMS between field side and logic side, 500 V RMS between
groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty
Rating

2 amps at 24Vdc and 240Vac

Maximum Resistive Load
Rating

2 amps at 24Vdc and 240Vac

Minimum Load

10 mA

Maximum Inrush

5 amps per half cycle

Response Time

ON:  15 ms maximum, OFF:  15 ms maximum

Fuse

None

Contact Life:  Mechanical

20 x 106 mechanical operations

Contact Life:  Electrical
     240Vac, 120Vac, 24Vdc

Current: Resistive
2A

Current: Lamp and Solenoid
0.6A

Typical Operations
200,000

High-Speed Counter Input and Output Specifications

Maximum Counter
Frequency

10kHz

Input Voltage

ON:  15V,  OFF:  5V

Count Pulse Width

20% to 80% duty cycle at 10kHz

Count Registers

16bits

High-Speed Counter Outputs

Load Voltage

refer to relay output specifications

Number of Pulse Outputs  None







User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

30

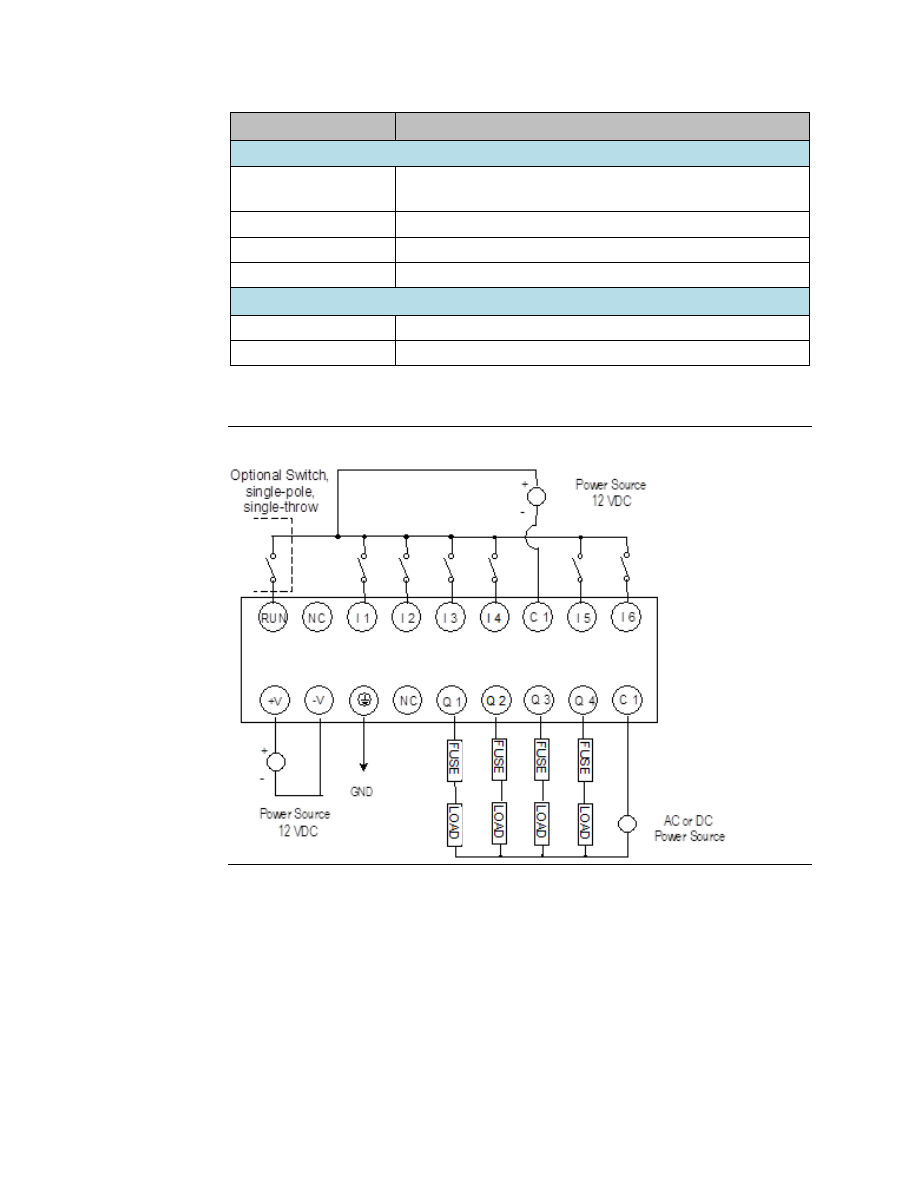

2.6.4



Wiring Diagram, IC200NDR001

Figure 10



2.7



IC200NDR010
10 Point Nano PLC: (6) 24Vdc In, (4) Relay Out,
12Vdc Power Supply

VersaMax  Nano  PLC  IC200NDR010  has  six  24Vdc  inputs,  and  four  normally  open  2-Amp
relay outputs that can control 5 to 30Vdc or 5 to 250Vac output devices. It uses +12Vdc
nominal input power for PLC operation.

2.7.1



Inputs

The  module’s  six  configurable  DC  inputs  c

an  be  used  as  standard  inputs  or  High-Speed

Counter inputs. Whether used as a standard or High-Speed Counter input, each input can
have  positive  or  negative  logic  characteristics.  When  used  as  standard  inputs,  the  input
characteristics are compatible with a wide range of input devices, such as pushbuttons, limit
switches, and electronic proximity switches.

2.7.2



Relay Outputs

The four Form A (SPST-single pole single throw) normally open relay outputs can control a
wide  range  of  devices  such  as  motor  starters,  solenoids,  and  indicators.  Power  for  the
internal relay coils is provided by the +24-volt DC internal supply.  An external source of AC
or DC power must be supplied to operate field devices.

Connections  and  specifications  for  High-Speed  Counter  outputs  are  the  same  as  for
standard relay outputs.





User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

31

2.7.3



Nano PLC IC200NDR010 Specifications

Item

Description

Inputs

Six 12Vdc positive/negative logic input circuits

Outputs

Four normally open 2 Amp relay circuits

High-Speed Counters

Three Type A or One Type A and One Type B

DC Power Specifications

Range

9.6Vdc - 15Vdc

Hold-up

3.0mS

Inrush Current

8A typical at 12Vdc

Inrush Time

200mS typical

Input Current

250mA typical at 12Vdc

Input Power Supply Rating  3W

Input Specifications

Number of Inputs

Rated Input Voltage

12 volts DC

Input Voltage Range

0 to 15 volts DC

Input Current

9.0mA typical

Input Resistance

1.3 kΩ



Input Threshold Voltage

ON:  9.5Vdc minimum, OFF: 2.5Vdc maximum

Input Threshold Current

ON:  6.5mA maximum, OFF:  1.6mA minimum

Response Time

0.5 to 20ms configurable as regular input; 100µs as HSC input

Isolation Voltage

1500V RMS field side to logic side, 500V RMS between groups

Relay Output Specifications

Operating Voltage

5 to 30Vdc  or  5 to 250Vac

Isolation

1500 V RMS between field side and logic side, 500 V RMS between
groups

Leakage Current

15 mA at 240Vac maximum

Maximum UL Pilot Duty
Rating

2 amps at 24Vdc and 240Vac

Maximum Resistive Load
Rating

2 amps at 24Vdc and 240Vac

Minimum Load

10mA

Maximum Inrush

5 amps per half cycle

Response Time

ON:  15 ms maximum, OFF:  15 ms maximum

Fuse

None

Contact Life:  Mechanical

20 x 106 mechanical operations

 Contact Life:  Electrical
     240Vac, 120Vac, 24Vdc

Current: Resistive
2A

Current: Lamp and Solenoid
0.6A

Typical Operations
200,000



User Manual

Chapter 2

GFK-1645M

Dec 2019



VersaMax Nano PLCs

32

Item

Description

High-Speed Counter Input and Output Specifications

Maximum Counter
Frequency

10kHz

Input Voltage

ON:  9V,  OFF:  2.5V

Count Pulse Width

20% to 80% duty cycle at 10kHz

Count Registers

16bits

Outputs

Load Voltage

refer to relay output specifications

Number of Pulse Outputs  None

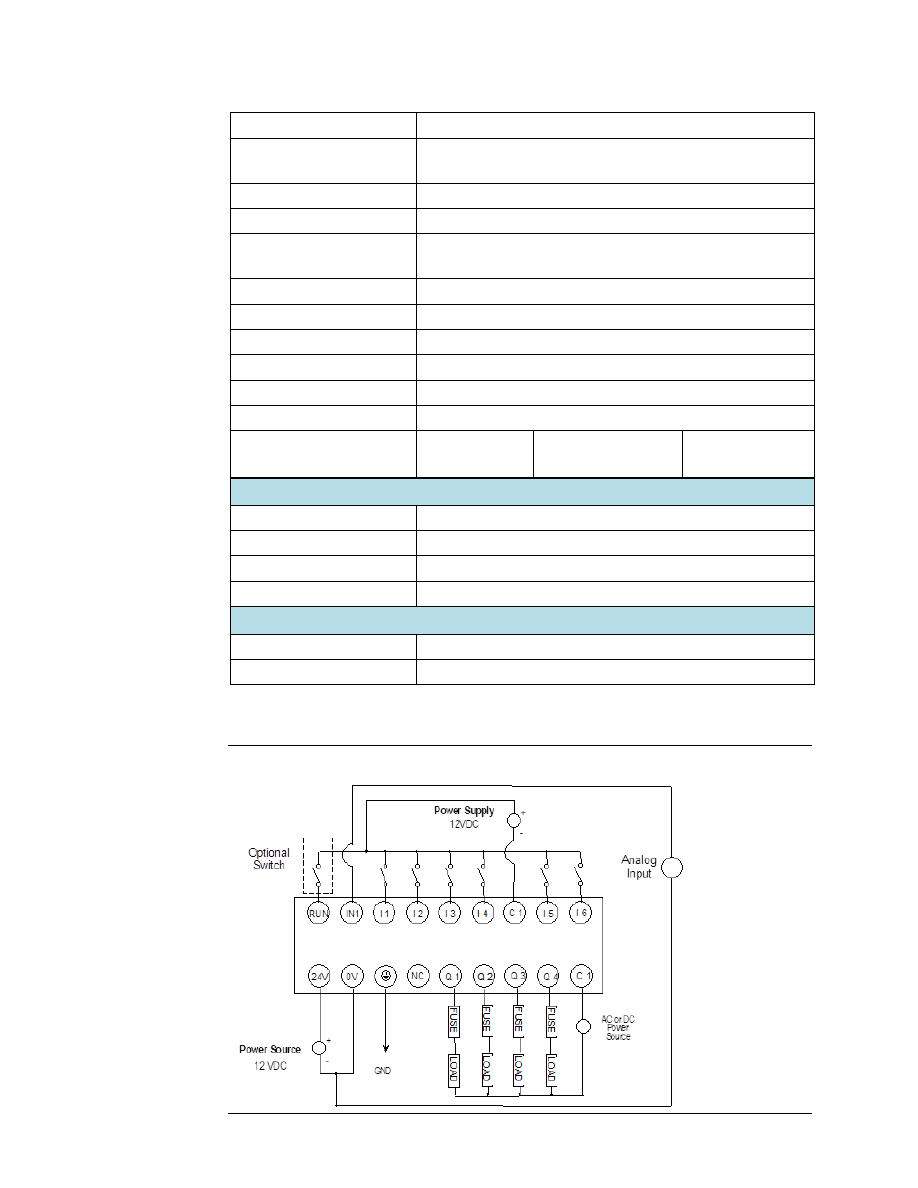

2.7.4



Wiring Diagram, IC200NR010

Figure 11





User Manual

Chapter 3

GFK-1645M

Dec 2019



VersaMax 14-Point Micro PLCs

33

Chapter 3:



VersaMax 14-Point Micro PLCs

IC200UAA003  14 Point Micro PLC, (8) 120Vac In, (6) 120Vac Out, 120/240Vac Power Supply
IC200UAR014  14 Point Micro PLC, (8) 120Vac In, (2) Relay Out at 10 Amps, (4) Relay Out at 2

Amps, 120/240Vac Power Supply

IC200UDD104  14  Point  Micro  PLC,  (8)  24Vdc  Source  In,  (6)  24Vdc  Source  Out,  24Vdc  Power

Supply

IC200UDD112  14 Point Micro PLC, (8) 12Vdc In, (6) 12Vdc Out, 12Vdc Power Supply
IC200UDR001  14 Point Micro PLC, (8) 24Vdc In, (6) Relay Out, 120/240Vac Power Supply
IC200UDR002  14 Point Micro PLC, (8) 24Vdc In, (6) Relay Out, 24Vdc Power Supply

IC200UDR003  14 Point Micro PLC, (8) 12Vdc In, (6) Relay Out, 12Vdc Power Supply

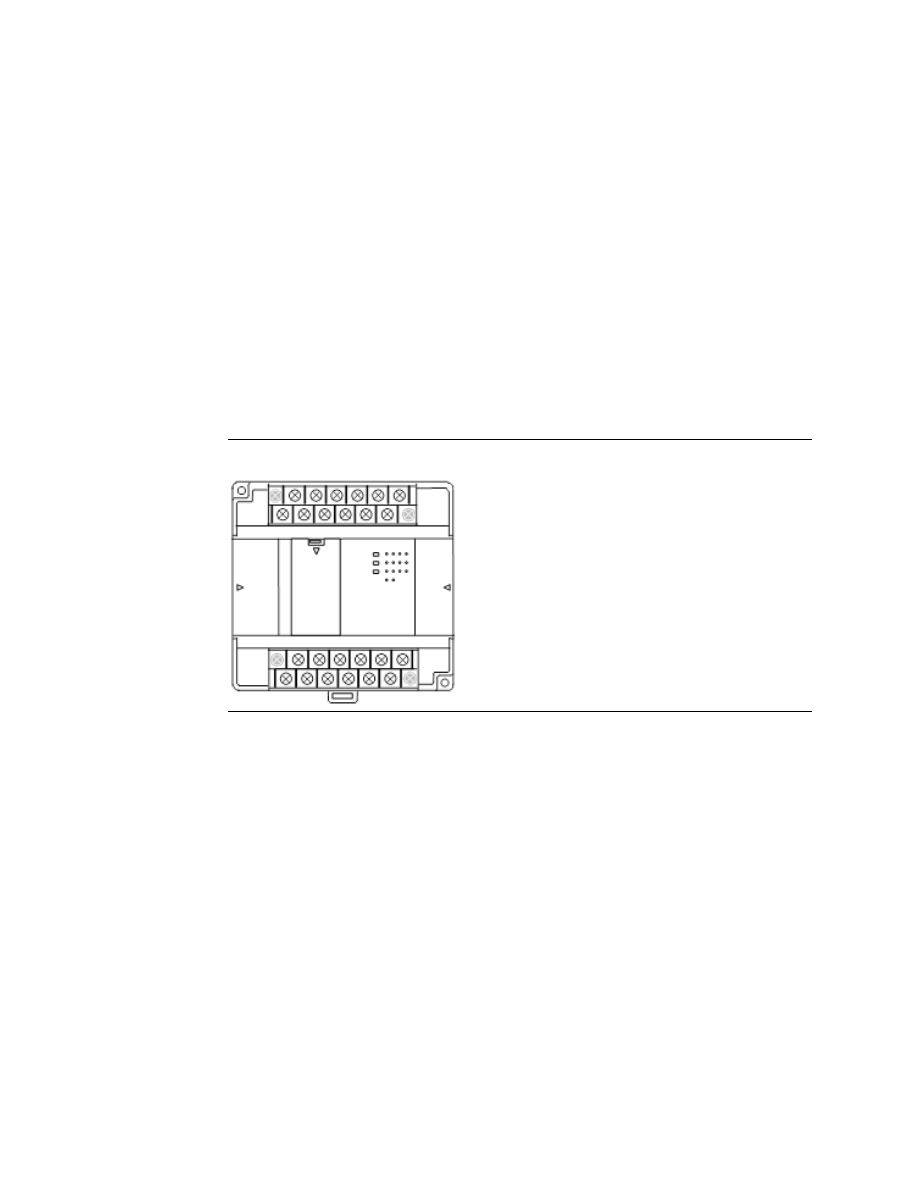

3.1



VersaMax 14-Point Micro PLC Features

Figure 12



All VersaMax 14 Point Micro PLCs feature:



Two removable screw-down

barrier-style

 terminal strips with protective covers.



RS-232 serial port that supports SNP/SNPX, RTU slave protocols, and Serial I/O.



Run/Stop  mode  switch  that  can  be  configured  as  a  run/stop  switch,  a  memory
protect switch, and also used for clearing faults when a fatal fault exists.



Two analog potentiometers.



Full-featured programming Instruction Set with floating point math. The application
program can be either Ladder Diagram (LD) or Instruction List (IL) format.



9K words of program memory, 256 words of registers.



Support for up to four Expansion Units in any combination.



Flash memory (ROM) for non-volatile program storage and for system firmware.



Configurable to read configuration at power-up from either RAM or flash memory
(ROM). Can also be configured to read application program from flash at power-up.



Capacitor backs up RAM for at least 3 days.



















Content      ..     2      3      4      5     ..
