1.45

RREEFFIINNIISSHHIINNGG

PPAAIINNTT CCOOLLOORRSS BBYY M

MOODDEELL

2017 CHIEF CLASSIC

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17CCCAAAK
N17CCCAABK
N17CCCAACK
N17CCCAAEK
N17CCCAAKK

Pearl White

P-566

N17CCCAAAD
N17CCCAABD
N17CCCAACD
N17CCCAAED
N17CCCAAKD

Burgundy Metallic /

Thunder Black

P-629

P-266

N17CCCAAAZ
N17CCCAABZ
N17CCCAACZ

Unpainted

2017 CHIEF DARK HORSE

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17CCDAAAH
N17CCDAABH
N17CCDAACH
N17CCDAAEH

Thunder Black Smoke

P-463

2017 CHIEF VINTAGE

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17CCVAAAA
N17CCVAABA
N17CCVAACA
N17CCVAAEA
N17CCVAAKA

Thunder Black

P-266

N17CCVAAAE
N17CCVAABE
N17CCVAACE
N17CCVAAEE
N17CCVAAKE

Indian Red /

Ivory Cream

P-639 /

P-646

N17CCVAAAG
N17CCVAABG
N17CCVAACG
N17CCVAAEG

Willow Green /

Ivory Cream

P-670 /

P-646

N17CCVAAAF
N17CCVAABF
N17CCVAACF
N17CCVAAEF

Springfield Blue /

Ivory Cream

P-640 /

P-646

N17CCVAAAZ
N17CCVAABZ
N17CCVAACZ

Unpainted

2017 CHIEFTAIN

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17TCAAAA1
N17TCAAAB1
N17TCAAAC1
N17TCAAAE1

Thunder Black Pearl

P-666

N17TCAAAA6
N17TCAAAB6
N17TCAAAC6
N17TCAAAE6

White Smoke

P-675

N17TCAAAAS
N17TCAAABS
N17TCAAACS
N17TCAAAES
N17TCAAAKS

Silver Smoke

P-581

N17TCAAAAT
N17TCAAABT
N17TCAAACT
N17TCAAAET

Star Silver /

Thunder Black

P-354 /

P-266

N17TCAAAAP
N17TCAAABP
N17TCAAACP
N17TCAAAEP

Wildfire Red /

Thunder Black

P-676 /

P-266

N17TCAAAAZ
N17TCAAABZ
N17TCAAACZ

Unpainted

2017 CHIEFTAIN DARK HORSE

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17TCDAAAH
N17TCDAABH
N17TCDAACH
N17TCDAAEH

Thunder Black Smoke

P-463

2017 CHIEFTAIN LIMITED

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17TCNAAAA

Thunder Black

P-266

N17TCNAAAP
N17TCNAABP
N17TCNAACP
N17TCNAAEP

Wildfire Red /

Thunder Black

P-676 /

P-266

N17TCNAAA6
N17TCNAAB6
N17TCNAAC6
N17TCNAAE6

White Smoke

P-675

GENERAL / SPECIFICATIONS

1.46

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

2017 CHIEFTAIN LIMITED

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17TCNAAAT
N17TCNAABT
N17TCNAACT
N17TCNAAET

Star Silver /

Thunder Black

P-354 /

P-266

N17TCNAAAS
N17TCNAABS
N17TCNAACS
N17TCNAAES

Silver Smoke

P-581

2017 CHIEFTAIN ELITE

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17TCEAAA4

Red Candy /

Thunder Black

P-1627

2017 ROADMASTER

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17TRAAAAA
N17TRAAABA
N17TRAAACA
N17TRAAAEA
N17TRAAAKA

Thunder Black

P-266

N17TRAAAAG
N17TRAAABG
N17TRAAACG
N17TRAAAEG

Willow Green /

Ivory Cream

P-670 /

P-646

N17TRAAAAV
N17TRAAABV
N17TRAAACV
N17TRAAAEV

Burgundy Metallic

P-629

N17TRAAAAX
N17TRAAABX
N17TRAAACX
N17TRAAAEX

Thunder Black /

Ivory Cream

P-266 /

P-646

N17TRAAAAB
N17TRAAABB
N17TRAAACB
N17TRAAAEB
N17TRAAAKB

Steel Gray /

Thunder Black

P-266 /
P-692 /

N17TRAAAAZ
N17TRAAABZ
N17TRAAACZ

Unpainted

2017 ROADMASTER CLASSIC

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17TRLAAAA
N17TRLAABA
N17TRLAACA
N17TRLAAEA

Thunder Black

P-266

N17TRLAAAG
N17TRLAABG
N17TRLAACG
N17TRLAAEG

Willow Green /

Ivory Cream

P-670 /

P-646

N17TRLAAAE
N17TRLAABE
N17TRLAACE
N17TRLAAEE

Indian Red /

Ivory Cream

P-639 /

P-646

GENERAL / SPECIFICATIONS

1.47

2017 SPRINGFIELD

MODEL

NUMBER

PAINT COLOR

PAINT

CODE

N17THAAAAA
N17THAAABA
N17THAAACA
N17THAAAEA
N17THAAAKA

Thunder Black

P-266

N17THAAAAR
N17THAAABR
N17THAAACR
N17THAAAER

Indian Red

P-639

N17THAAAAL
N17THAAABL
N17THAAACL
N17THAAAEL
N17THAAAKL

Steel Gray/

Burgundy Metallic

P-692 /

P-629

N17THAAAAM
N17THAAABM
N17THAAACM
N17THAAAEM

Blue Sapphire /

Silver Star

P-598 /

P-354

N17THAAAAZ
N17THAAABZ
N17THAAACZ

Unpainted

GENERAL / SPECIFICATIONS

1.48

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

EEM

MIISSIIOONNSS IINNFFOORRM

MAATTIIOONN

EEM

MIISSSSIIOONN CCOONNTTRROOLL SSYYSSTTEEM

MSS

The U. S. Environmental Protection Agency and
California

Air

Resources

Board

(CARB)

require

manufacturers to certify that their motorcycles comply
with applicable exhaust emissions standards during
their useful life, and that motorcycles built after
January 1, 1983 comply with applicable noise emission
standards for one year or 6,000 km (3,730 mi) after the
time of sale to the ultimate purchaser, when operated
and

maintained

according

the

instructions

provided.

EEM

MIISSSSIIOONN SSOOUURRCCEESS

An internal combustion engine produces carbon
monoxide

and

hydrocarbons

during

operation.

Hydrocarbons must be controlled because under
some conditions hydrocarbons react with sunlight to
produce photochemical smog. Carbon monoxide must
be controlled because it is toxic.

EEXXHHAAUUSSTT EEM

MIISSSSIIOONN CCOONNTTRROOLL

Indian

Motorcycles

have

electronic

engine

management system which controls fuel delivery and
ignition timing to control hydrocarbon and carbon
monoxide emissions. If components are replaced that
affect idle speed, no adjustments should be made to
the system. The Electronic Fuel Injection (EFI) and
Electronic Throttle Control (ETC) systems control idle
speed.

NNOOIISSEE EEM

MIISSSSIIOONN CCOONNTTRROOLL

Tampering with Noise Control Systems is Prohibited.
Federal law prohibits the following acts or causing
thereof:

The removal or rendering inoperative by any
person other than for purposes of maintenance,
repair or replacement, any device or element of
design incorporated into the motorcycle for the
purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is in
use, or

The use of the motorcycle after such device or
element of design has been removed or rendered
inoperative.

Among

those

acts

presumed

constitute

tampering are the acts listed below:

Removal of, or puncturing the muffler, baffles,
header pipes or any other component which
conducts exhaust gases.

Removal or puncturing of any part of the intake
system.

Lack of proper maintenance.

Replacing any moving part of the motorcycle or
parts of the exhaust / intake system with parts
other than those specified by the manufacturer.

CCRRAANNKKCCAASSEE EEM

MIISSSSIIOONN CCOONNTTRROOLL

The crankcase emission control system is comprised
of a closed system that routes crankcase emissions
through the air cleaner into the combustion chamber.

EEVVAAPPOORRAATTIIVVEE EEM

MIISSSSIIOONN CCOONNTTRROOLL

((CCAALLIIFFOORRNNIIAA AANNDD IINNTTEERRNNAATTIIOONNAALL M

MOODDEELLSS))

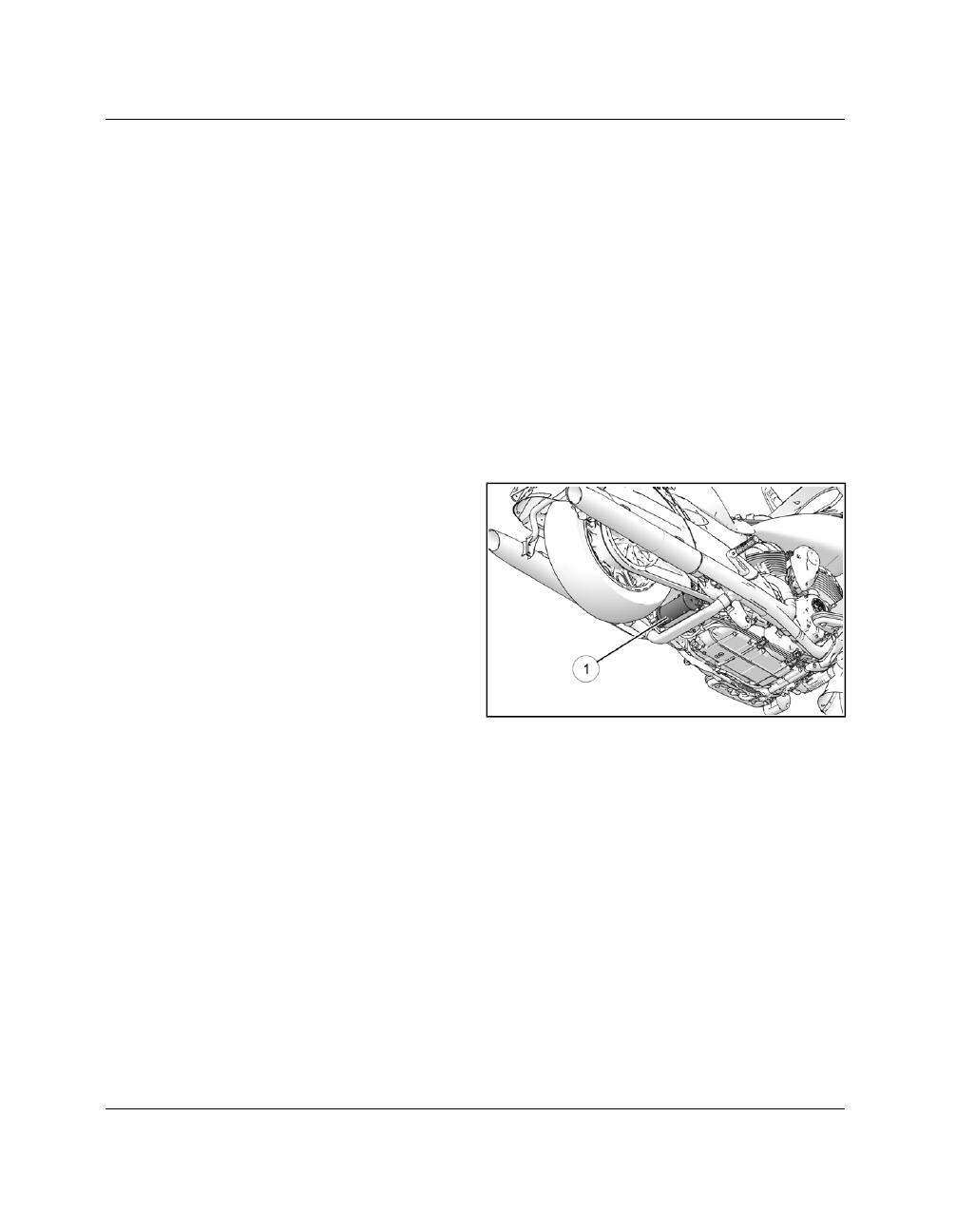

California and International models are equipped with
an Evaporative Emissions Canister

. Activated

charcoal inside the canister temporarily stores fuel
system vapors until the engine is started and the
motorcycle is driven. The Electronic Control Module
(ECM) automatically opens a Purge Control Valve
under certain conditions, and engine intake vacuum
draws vapors out of the canister.

GENERAL / SPECIFICATIONS

1.49

SSPPEECCIIAALL TTOOOOLLSS

UUSSIINNGG SSPPEECCIIAALL TTOOOOLLSS

Special tools have been designed exclusively for
servicing the specialized components found on Indian
Motorcycles. By using these tools, service technicians
can maximize efficiency and minimize the likelihood
of causing damage to the motorcycle during service.

How To Use This Book

The

Special Tools Index

located in this chapter

provides

comprehensive

list

and

pictorial

representation of the special tools used throughout
this service manual. The

Special Tools

section at the

beginning of each chapter provides a short list of the
tools required to perform procedures specific to that
chapter.

GENERAL / SPECIFICATIONS

1.50

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

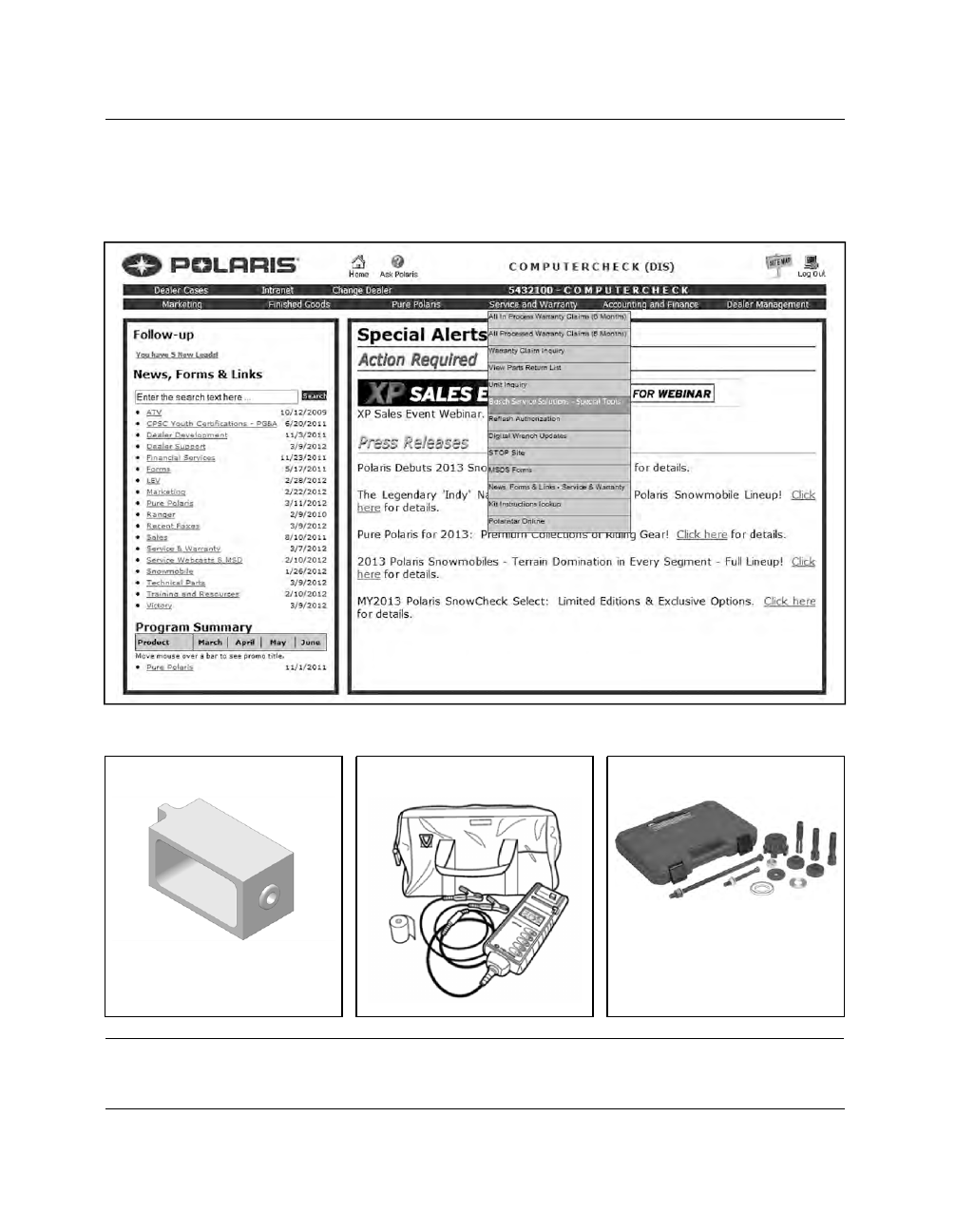

TTOOOOLL OORRDDEERRIINNGG IINNFFOORRM

MAATTIIOONN

Special tools may be required while servicing this vehicle. Some of the tools listed or depicted are mandatory,
while other tools may be substituted with a similar tool, if available. Indian Motorcycle recommends use of the
Special Tools referenced in the chapters of this service manual when servicing any Indian Motorcycle product.
Dealers may order special tools through Indian Motorcycle’s official tool supplier, Bosch Automotive Service
Solutions, by phone at 1-800-328-6657 or on-line via your dealer website.

SSPPEECCIIAALL TTOOOOLLSS IINNDDEEXX

ABS Tool (Brake Lever Reserve)
PV-50104

Battery Tester
PU-50296

Bearing Removal Kit
PF-51324

GENERAL / SPECIFICATIONS

1.51

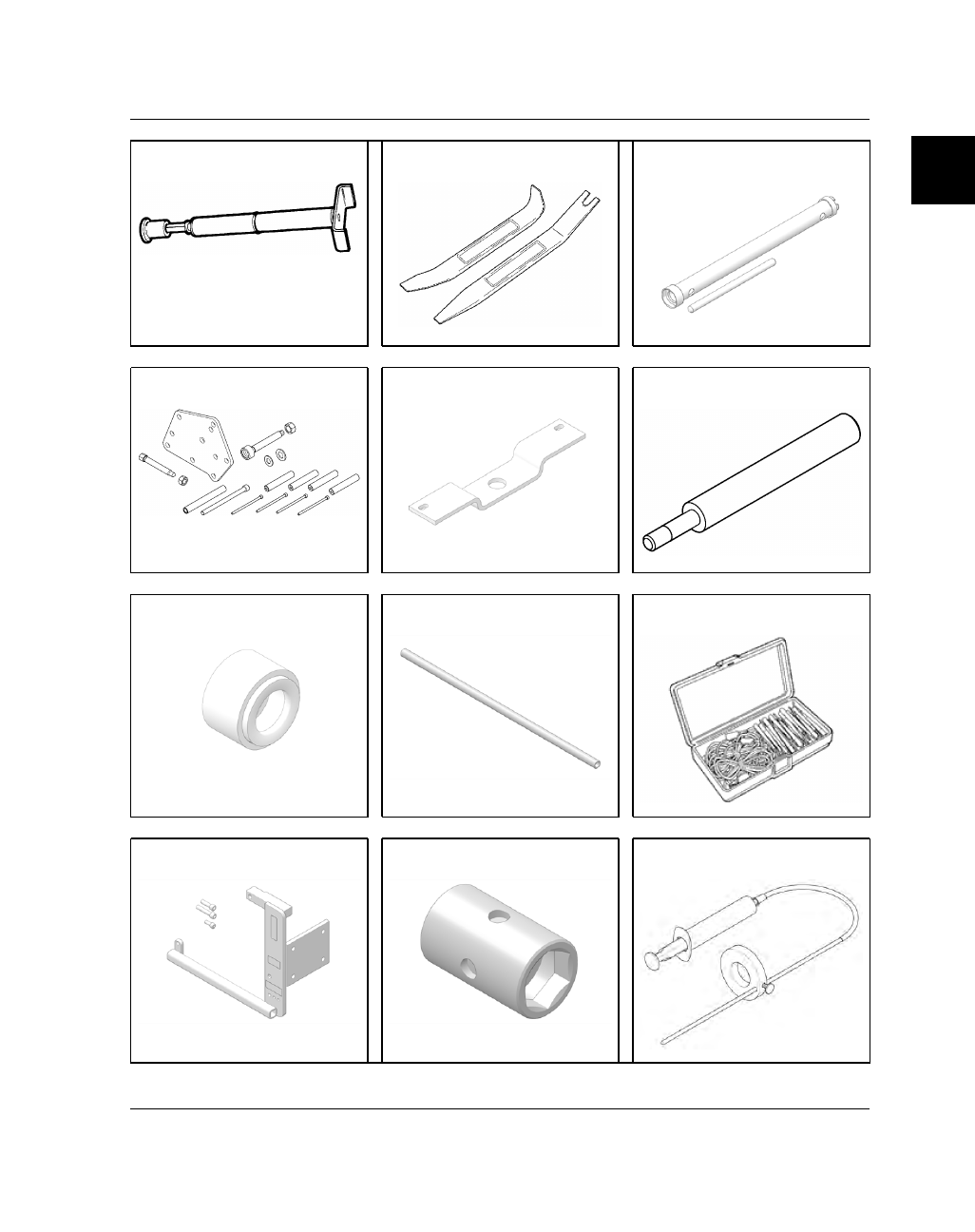

Belt Tension Meter
PV-43532

Body Panel Tool Kit
PV-49955

Cartridge Shaft Tool
PV-49452

Crankcase Tool
PF-51234

Clutch Shaft Holding Tool
PF-51232

Crankshaft Locking Pin
PF-52135

Crankshaft Rotation Tool
PF-51239

Damper Rod Holder
PV-49453

Electrical Tester Kit
PV-43526

Engine Stand Adapter
PF-51240

Fork Spring Compressor Adapter
PV-49464

Fork Oil Level Tool
PV-59000A

GENERAL / SPECIFICATIONS

1.52

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

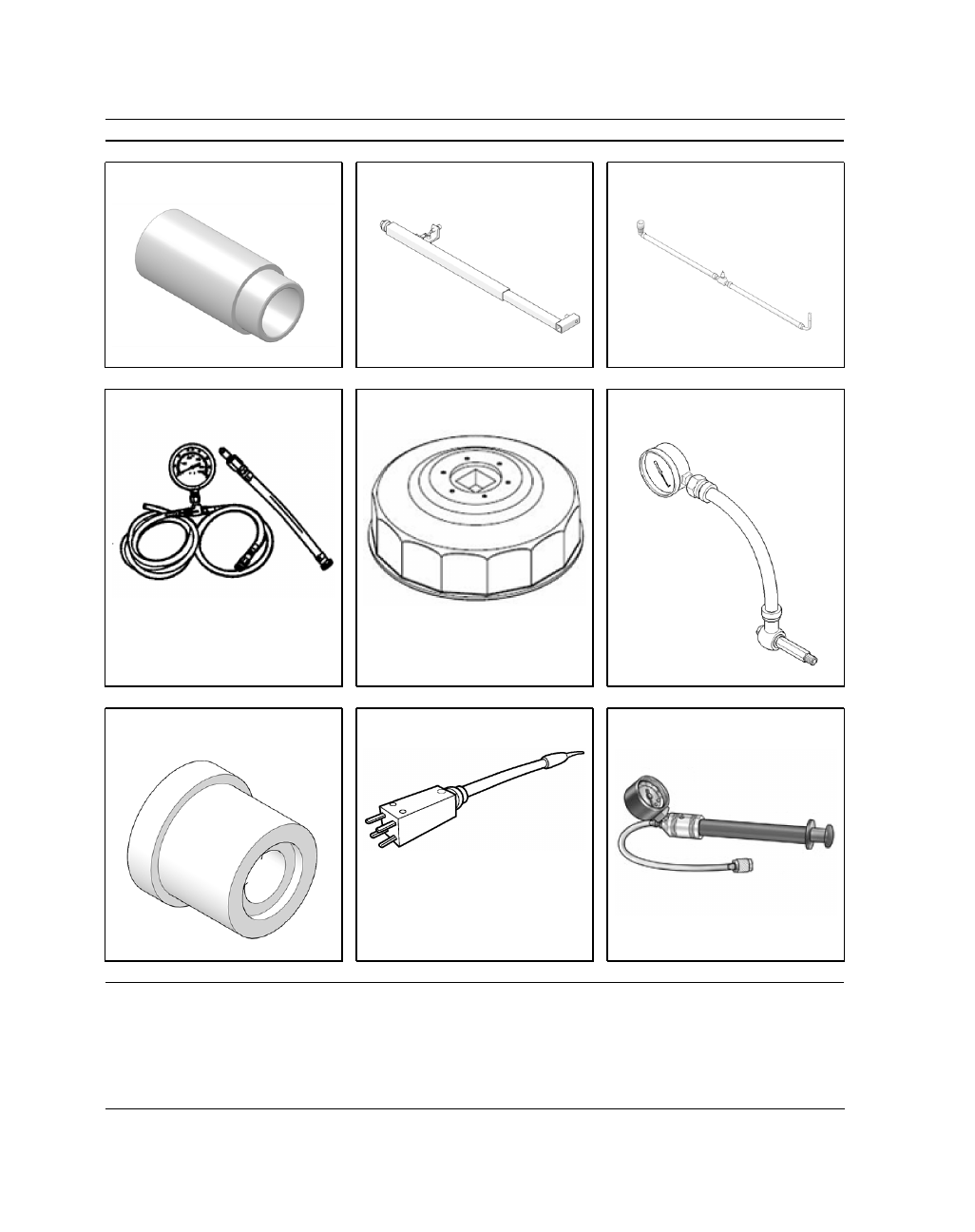

Fork Seal Tool
PV-49494

Fork Spring Compressor
PV-49463

Fuel Pressure Adapter
PV-48656

Fuel Pressure Gauge
PU-43506A

Oil Filter Wrench
PU-50105

Oil Pressure Gauge
PV-43531

Output Shaft Seal Tool
PF-51243

Relay Bypass Tool
PU-49466

Shock Air Pump
PV-48909

GENERAL / SPECIFICATIONS

1.53

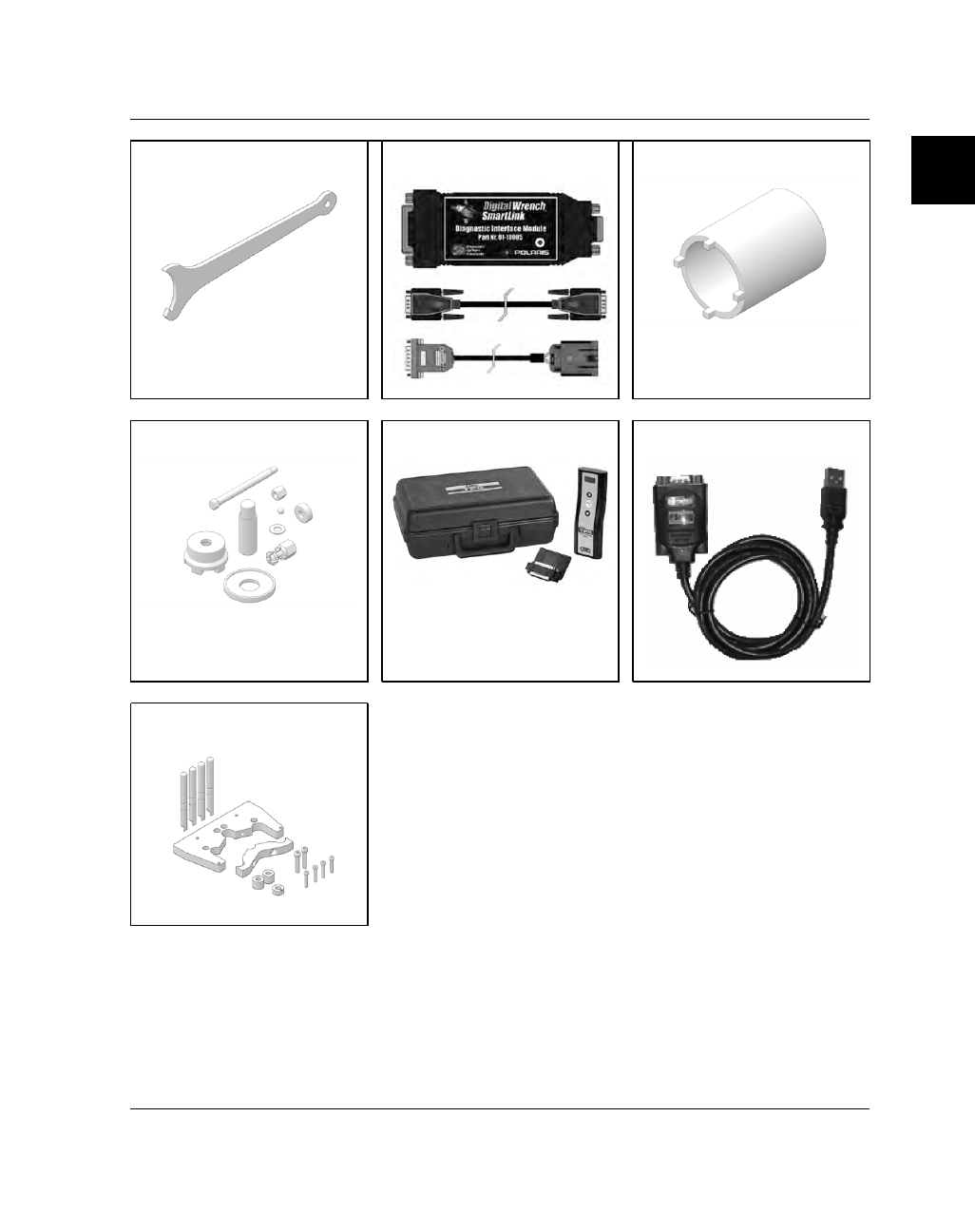

Shock Spanner Wrench
PV-46993

Smartlink Module Kit
PU-47471

Spanner Socket (Stem)
PV-43508

Swingarm Bushing Tool
PF-51237

TPMS Activation Tool
PF-51288

USB to Serial Adapter
PU-50621

Cam Installation Tool
PF-51455

GENERAL / SPECIFICATIONS

1.54

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

RREEFFEERREENNCCEE

MAASSTTEERR TTOORRQQUUEE TTAABBLLEE

ITEM

TORQUE

ABS Module Bracket fasteners

84 in-lbs (10 Nm)

ABS Pulse Ring / Brake Disc
fasteners

22 ft-lbs (30 Nm)

Air Box

Bracket
fasteners

88 in-lbs (10 Nm)

Cover
fasteners

84 in-lbs (10 Nm)

Retainer
fastener

86 in-lbs (10 Nm)

Air Filter

Filter
fasteners

62 in-lbs (7 Nm)

Adapter
Plate
fasteners

31 in-lbs (4 Nm)

Auxiliary Light Bar Bracket fasteners

18 ft-lbs (24 Nm)

Baffle Plate fasteners

31 in-lbs (4 Nm)

Balance Shaft

Drive Gear
fasteners

10 ft-lbs (14 Nm)

Driven Gear
fastener

59 ft-lbs (80 Nm)

Battery

Box
fasteners

84 in-lbs (10 Nm)

Battery to
Starter Motor
Nut

63 in-lbs (7 Nm)

Terminal
Fasteners

40 in-lbs (5 Nm)

Bezel fasteners

36 in-lbs (4 Nm)

Bezel fasteners (Vintage/Springfield)

12 in-lbs (1 Nm)

Blind Plug

15 ft-lbs (20 Nm)

Brake Bleeder fasteners

48 in-lbs (5 Nm)

Brake Caliper Cover Acorn Nut

18 in-lbs (2 Nm)

Brake Disc fasteners

22 ft-lbs (30 Nm)

Brake Lever Cap fastener

70 in-lbs (8 Nm)

Brake Line

Banjo
fasteners

18 ft-lbs (24 Nm)

Mounting
fasteners

84 in-lbs (10 Nm)

Brake Pad Retaining Pin

120 in-lbs (14 Nm)

Brake Pedal Pad fasteners

84 in-lbs (10 Nm)

Brake Pressure Switches

18 ft-lbs (24 Nm)

Camshaft Carrier

Bearing
Retainer
Plate
fasteners

62 in-lbs (7 Nm)

Carrier
fasteners

15 ft-lbs (20 Nm)

Carrier
Bearing
fasteners

52 ft-lbs (70 Nm)

Cam Chain Tensioner

Chain Cover
fasteners

15 ft-lbs (20 Nm)

ITEM

TORQUE

Chain Guide
fasteners

71 in-lbs (8 Nm)

Tensioner
fastener

15 ft-lbs (20 Nm)

Camshaft Sprocket fasteners

52 ft-lbs (70 Nm)

Clutch

Cable
Adjuster Jam
Nut

48 in-lbs (5 Nm)

Cable Guide
fastener

84 in-lbs (10 Nm)

Lever Cap
fastener

70 in-lbs (8 Nm)

Pinion Shaft
Lever
fastener

88 in-lbs (10 Nm)

Spring
fasteners

89 in-lbs (10 Nm)

Stake Nut

125 ft-lbs (170 Nm)

Switch Cover
fasteners

6 in-lbs (1 Nm)

Switch
fastener

6 in-lbs (1 Nm)

Connecting Rod Bearing Cap
fastener

22 ft-lbs (30 Nm)

Console Bracket fasteners

43 in-lbs (5 Nm)

Console Panel fasteners

84 in-lbs (10 Nm)

Crankcase fasteners

22 ft-lbs (30 Nm)

Crankshaft Position Sensor

89 in-lbs (10 Nm)

Crankshaft Sprocket fastener

52 ft-lbs (70 Nm)

Cylinder Head

Cylinder
Head Nuts

Step 1: 22 ft-lbs (30

Nm)

Step 2: Back nuts off

completely.

Step 3: 40 ft-lbs (54

Nm)

Cylinder
Studs

25 ft-lbs (34 Nm)

Cylinder
Head
Temperature
Sensor

71 in-lbs (8 Nm)

Display Bracket fasteners (top)

36 in-lbs (4 Nm)

Display Bracket fasteners (bottom)

84 in-lbs (10 Nm)

Detent Roller fastener

89 in-lbs (10 Nm)

Down Tube fasteners

45 ft-lbs (60 Nm)

Drive Motor Hinge fasteners

84 in-lbs (10 Nm)

Drive Sprocket

Cover
fasteners

84 in-lbs (10 Nm)

Sprocket Nut

180 ft-lbs (244 Nm)

Sprocket Nut
Retainer
Plate

88 in-lbs (10 Nm)

GENERAL / SPECIFICATIONS

1.55

ITEM

TORQUE

ECM fasteners

36 in-lbs (4 Nm)

Engine Mounts

Front

18 ft-lbs (24 Nm)

Rear

75 ft-lbs (102 Nm)

Evaporative Emissions Canister
fasteners

84 in-lbs (10 Nm)

Exhaust Clamps

31 ft-lbs (42 Nm)

Fairing

Clamp
fasteners

36 in-lbs (4 Nm)

Inner
Mounting
Nuts

12 ft-lbs (16 Nm)

Outer
Mounting
Nuts

36 in-lbs (4 Nm)

Fender fasteners

84 in-lbs (10 Nm)

Floorboard

Pivot
fasteners

18 ft-lbs (24 Nm)

Support
fasteners

35 ft-lbs (48 Nm)

Foot Peg

Blank
fastener

35 ft-lbs (48 Nm)

Mounting
fasteners

35 ft-lbs (48 Nm)

Fork Cartridge fastener

17 ft-lbs (23 Nm)

Fork Clamp fasteners

18 ft-lbs (24 Nm)

Fork Cap to Jam Nut

11 ft-lbs (15 Nm)

Fork Cap to Outer Tube

16 ft-lbs (22 Nm)

Frame Down Tube fasteners

45 ft-lbs (60 Nm)

Front Axle

52 ft-lbs (71 Nm)

Front Axle Pinch fasteners

18 ft-lbs (24 Nm)

Front Caliper Body fasteners

20 ft-lbs (27 Nm)

Front Caliper Stud

35 ft-lbs (48 Nm)

Front Fender fasteners

18 ft-lbs (24 Nm)

Front Master Cylinder

70 in-lbs (8 Nm)

Front Master Cylinder Cover
fasteners

14 in-lbs (2 Nm)

Fuel Injector Retaining fasteners

89 in-lbs (10 Nm)

Fuel Pump Nut

24 in-lbs (3 Nm)

Fuel Tank Mounting fasteners

18 ft-lbs (25 Nm)

Fuse Box fastener

63 in-lbs (7 Nm)

Gear Position Switch

43 in-lbs (5 Nm)

Grip Retaining fastener

35 in-lbs (4 Nm)

Ground Wire fastener

84 in-lbs (10 Nm)

Gusset Plate

55 ft-lbs (75 Nm)

Head Pipe Nuts

15 ft-lbs (20 Nm)

Head Pipe Trim Cover fasteners

84 in-lbs (10 Nm)

Headlight

Bracket
fastener

12 in-lbs (1 Nm)

Carrier
fasteners

75 in-lbs (8 Nm)

ITEM

TORQUE

Heat Shield Clamps

31 in-lbs (4 Nm)

Highway Bar

Lower
fasteners

35 ft-lbs (48 Nm)

Upper
fasteners

18 ft-lbs (24 Nm)

Hinge fasteners

45 in-lbs (5 Nm)

Horn to Bracket Nut

84 in-lbs (10 Nm)

Ignition Coil

84 in-lbs (10 Nm)

Ignition Cover fasteners

84 in-lbs (10 Nm)

Intake Manifold Boots

89 in-lbs (10 Nm)

Intake Manifold Clamps

20 in-lbs (2 Nm)

Knock Sensor

15 ft-lbs (20 Nm)

Latch Assembly fasteners

65 in-lbs (7 Nm)

Latch Striker fasteners

36 in-lbs (4 Nm)

LED Trunk Light fasteners

36 in-lbs (4 Nm)

Left Hand Lower Side Cover
fastener

84 in-lbs (10 Nm)

License Plate Bracket fasteners

84 in-lbs (10 Nm)

License Plate Light fasteners

15 in-lbs (2 Nm)

Lift Arm fasteners

84 in-lbs (10 Nm)

Lifter Block fasteners

89 in-lbs (10 Nm)

Lifter Retaining Plate fasteners

62 in-lbs (7 Nm)

Lock Actuator fasteners

13 ft-lbs (18 Nm)

Lower Belt Guard

96 in-lbs (11 Nm)

Luggage Rack fasteners

12 in-lbs (1 Nm)

Master Cylinder Jam Nut

35 ft-lbs (48 Nm)

Main Plate Mounting fasteners

88 in-lbs (10 Nm)

Midcast fasteners

Lower

75 ft-lbs (102 Nm)

Upper

35 ft-lbs (48 Nm)

Muffler Hanger fasteners

18 ft-lbs (24 Nm)

Oil Cooler

Mounting
fastener

84 in-lbs (10 Nm)

Supply/
Return Line
fasteners

84 in-lbs (10 Nm)

Oil Filter

Adapter
fasteners

88 in-lbs (10 Nm)

Filter Fitting

22 ft-lbs (30 Nm)

Oil Jet fasteners

62 in-lbs (7 Nm)

Oil Pan

Drain Plug

15 ft-lbs (20 Nm)

Inlet Screen

88 in-lbs (10 Nm)

Scavenge
Tube
Mounting
fasteners

88 in-lbs (10 Nm)

Oil Pump

Assembly
fasteners

88 in-lbs (10 Nm)

Pickup
fasteners

88 in-lbs (10 Nm)

GENERAL / SPECIFICATIONS

1.56

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

ITEM

TORQUE

Oil Pressure Sensor

88 in-lbs (10 Nm)

Oil Pressure Sensor Adapter

15 ft-lbs (20 Nm)

Oxygen Sensors

14 ft-lbs (19 Nm)

P-Clamp fasteners (Brake Line / W.
S.S.)

84 in-lbs (10 Nm)

Passenger to Driver Seat fasteners
(Except Darkhorse)

84 in-lbs (10 Nm)

Pressure Plate fasteners

88 in-lbs (10 Nm)

Primary Cover fasteners

15 ft-lbs (20 Nm)

Rear Axle Nut

Step 1: 15 ft-lbs (20

Nm)

Step 2: 65 ft-lbs (88

Nm)

Rear Caliper Mounting fasteners

31 ft-lbs (42 Nm)

Rear Caliper Slide fasteners

20 ft-lbs (27 Nm)

Rear Head Pipe Hanger fasteners

18 ft-lbs (24 Nm)

Rear Lower Subframe fasteners

18 ft-lbs (24 Nm)

Rear Master Cylinder Cover
fasteners

7 in-lbs (1 Nm)

Rear Nacelle Cover fasteners

36 in-lbs (4 Nm)

Rear Subframe fasteners

35 ft-lbs (48 Nm)

Rectifier

Bracket
fasteners

84 in-lbs (10 Nm)

Crankcase
fasteners

89 ft-lbs (10 Nm)

Ride Command Display Fasteners

36 in-lbs (4 Nm)

Right Hand Sprocket Cover fastener

84 in-lbs (10 Nm)

Riser fasteners

60 ft-lbs (81 Nm)

Riser Clamp fasteners

18 ft-lbs (24 Nm)

Tighten Front

fasteners First, Then

Rear

Rocker Arm fastener

22 ft-lbs (30 Nm)

Saddlebag Mounting Cylinder
fasteners

25 in-lbs (34 Nm)

Saddlebag fasteners

84 in-lbs (10 Nm)

Seat Fasteners

18 ft-lbs (24 Nm)

Seat Fasteners (Except Darkhorse)

84 in-lbs (10 Nm)

Seat fasteners

14 in-lbs (2 Nm)

Shift Rod Jam Nuts

84 in-lbs (10 Nm)

Shifter Toe Pedal

18 ft-lbs (24 Nm)

Shock Absorber fasteners

55 ft-lbs (75 Nm)

Shock Air Line Jam Nut

20 ft-lbs (27 Nm)

Side Stand

Bumper
fastener

84 in-lbs (10 Nm)

Pivot
fastener

37 ft-lbs (50 Nm)

Switch
fasteners

43 in-lbs (5 Nm)

ITEM

TORQUE

Solenoid Terminal (B+) Nut

60 in-lbs (7 Nm)

Spark Plug

13 ft-lbs (17 Nm)

Speedometer Bracket fasteners

15 in-lbs (2 Nm)

Spool fasteners

25 ft-lbs (34 Nm)

Starter Motor fasteners

89 in-lbs (10 Nm)

Starter Solenoid Mounting fasteners

84 in-lbs (10 Nm)

Starter Terminal (B+) Nut

60 in-lbs (7 Nm)

Stator fasteners

88 in-lbs (10 Nm)

Steering Lock fasteners

18 ft-lbs (24 Nm)

Steering Stem Adjuster Nut

29 ft-lbs (39 Nm)

Strap fasteners

8 ft-lbs (11 Nm)

Strut Cover fasteners

84 in-lbs (10 Nm)

Swing-arm Nut

65 ft-lbs (88 Nm)

Swing-arm Shaft (Initial Torque)

8 ft-lbs (11 Nm)

Swing-arm Shaft Jam Nut

75 ft-lbs (102 Nm)

Switch Cubes

31 in-lbs (4 Nm)

Switch Cubes (2018 models)

7 in-lbs (1 Nm)

Tail Light fastener

84 in-lbs (10 Nm)

Throttle Body fasteners

89 in-lbs (10 Nm)

TMAP Sensor fastener

62 in-lbs (7 Nm)

Tone Ring fasteners

18 ft-lbs (24 Nm)

Torque Compensator fastener

83 ft-lbs (112 Nm)

Torque Compensator Locking Plate
fastener

88 in-lbs (10 Nm)

TPMS Sensor fastener

44 in-lbs (5 Nm)

Triple Clamp Nut, Top

72 ft-lbs (98 Nm)

Triple Clamp Pinch fasteners

18 ft-lbs (24 Nm)

Trunk

Back
fasteners

12 in-lbs (1 Nm)

Base
fasteners

13 ft-lbs (18 Nm)

Turn Signal fastener

18 ft-lbs (24 Nm)

Turn Signal fastener, Front

36 in-lbs (4 Nm)

Upper Pushrod fastener

55 ft-lbs (75 Nm)

Valve Cover fasteners

89 in-lbs (10 Nm)

Valve Stem Lock Nut

13 in-lbs (2 Nm)

Valve Stem Nut

44 in-lbs (5 Nm)

VCM Mounting Plate fastener

84 in-lbs (10 Nm)

Wheel Speed Sensor

96 in-lbs (11 Nm)

Wheel Spoke

69 in-lbs (8 Nm)

Windshield

Mounting
fasteners

36 in-lbs (4 Nm)

Motor Nuts

36 in-lbs (4 Nm)

GENERAL / SPECIFICATIONS

1.57

SSAAEE TTAAPP DDRRIILLLL SSIIZZEESS

THREAD SIZE / DRILL

SIZE

THREAD SIZE / DRILL

SIZE

#0-80

3/64

1/2-13

27/64

#1-64

#53

1/2-20

29/64

#1-72

#53

9/16-12

31/64

#2-56

#51

9/16-18

33/64

#2-64

#50

5/8-11

17/32

#3-48

5/64

5/8-18

37/64

#3-56

#45

3/4-10

21/32

#4-40

#43

3/4-16

11/16

#4-48

#42

7/8-9

49/64

#5-40

#38

7/8-14

13/16

#5-44

#37

1-8

7/8

#6-32

#36

1-12

59/64

#6-40

#33

1 1/8-7

63/64

#8-32

#29

1 1/8-12

1 3/64

#8-36

#29

1 1/4-7

1 7/64

#10-24

#24

1 1/4-12

1 11/64

#10-32

#21

1 1/2-6

1 11/32

#12-24

#17

1 1/2-12

1 27/64

#12-28

#15

1 3/4-5

1 9/16

1/4-20

1 3/4-12

1 43/64

1/4-28

2-4 1/2

1 25/32

5/16-18

2-12

1 59/64

5/16-24

2 1/4-4 1/2

2 1/32

3/8-16

2 1/2-4

2 1/4

3/8-24

2 3/4-4

2 1/2

7/16-14

3-4

2 3/4

7/16-20

25/64

MEETTRRIICC TTAAPP DDRRIILLLL SSIIZZEESS

TAP SIZE

DRILL

SIZE

DECIMAL

EQUIVA-

LENT

NEAREST

FRAC-

TION

3x.50

#39

0.0995

3/32

3x.60

3/32

0.0937

3/32

4x.70

#30

0.1285

1/8

4x.75

1/8

0.125

1/8

5x.80

#19

0.166

11/64

5x.90

#20

0.161

5/32

6x1.00

0.196

13/64

7x1.00

16/64

0.234

15/64

8x1.00

0.277

9/32

8x1.25

17/64

0.265

17/64

9x1.00

5/16

0.3125

5/16

9x1.25

5/16

0.3125

5/16

10x1.25

11/32

0.3437

11/32

10x1.50

0.339

11/32

11x1.50

3/8

0.375

3/8

12x1.50

13/32

0.406

13/32

12x1.75

13/32

0.406

13/32

GENERAL / SPECIFICATIONS

1.58

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

DDEECCIIM

MAALL EEQQUUIIVVAALLEENNTTSS

1/64 in = .0156 in

1/32 in = .0312 in [1 mm = .0394 in]

3/64 in = .0469 in

1/16 in = .0625 in

5/64 in = .0781 in [2 mm = .0787 in]

3/32 in = .0938 in

7/64 in = .1094 in [3 mm = .1181 in]

1/8 in = .1250 in

9/64 in = .1406 in

5/32 in = .1563 in [4 mm = .1575 in]

11/64 in = .1719 in

3/16 in = .1875 in [5 mm = .1969 in]

13/64 in = .2031 in

7/32 in = .2188 in

15/64 in = .2344 in [6 mm = .2362 in]

1/4 in = .25 in

17/64 in = .2656 in [7 mm = .2756 in]

9/32 in = .2813 in

19/64 in = .2969 in

5/16 in = .3125 in [8mm= .3150 in]

21/64 in = .3281 in

11/32 in = .3438 in [9 mm = .3543 in]

23/64 in = .3594 in

3/8 in = .375 in

25/64 in = .3906 in [10 mm = .3937 in]

13/32 in = .4063 in

27/64 in = .4219 in [11 mm =.4331 in]

7/16 in = .4375 in

29/64 in = .4531 in

15/32 in = .4688 in [12 mm = .4724 in]

31/64 in = .4844 in

1/2 in = .5 in [13mm = .5118 in]

33/64 in = .5156 in

17/32 in = .5313 in

35/64 in = .5469 in [14 mm = .5512 in]

9/16 in = .5625 in

37/64 in = .5781 in [15 mm = .5906 in]

19/32 in = .5938 in

39/64 in = .6094 in

5/8 in = .625 in [16mm=. 6299 in]

41/64 in = .6406 in

21/32 in = .6563 in [17 mm = .6693 in]

43/64 in = .6719 in

11/16 in = .6875 in

45/64 in = .7031 in [18 mm = .7087 in]

23/32 in = .7188 in

47/64 in = .7344 in [19 mm = .7480 in]

3/4 in = .75 in

49/64 in = .7656 in

25/32 in = .7813 in [20 mm = .7874 in]

51/64 in = .7969 in

13/16 in = .8125 in [21 mm =. 8268 in]

53/64 in = .8281 in

27/32 in = .8438 in

55/64 in = .8594 in [22 mm = .8661 in]

7/8 in = .875 in

57/64 in = .8906 in [23 mm = .9055 in]

29/32 in = .9063 in

59/64 in = .9219 in

15/16 in = .9375 in [24 mm = .9449 in]

61/64 in = .9531 in

31/32 in = .9688 in [25 mm = .9843 in]

63/64 in = .9844 in

1 in = 1.0 in

GENERAL / SPECIFICATIONS

1.59

FFAAHHRREENNHHEEIITT TTOO CCEELLSSIIUUSS

C to

F: 9 (

C + 40) ¸ 5 - 40 =

F to

C: 5 (

F + 40) ¸ 9 - 40=

DEGREES F

DEGREES C

104

113

122

131

140

149

158

167

176

185

194

203

212

100

MEEAASSUURREEM

MEENNTT CCOONNVVEERRSSIIOONN CCHHAARRTT

UNIT OF

MEASURE

MULTIPLIED

COVERTS TO

ft-lbs

x 12

= in-lbs

in-lbs

x.0833

= ft-lbs

ft-lbs

x 1.356

= Nm

in-lbs

x.0115

= kg-m

x.7376

= ft-lbs

kg-m

x 7.233

= ft-lbs

kg-m

x 86.796

= in-lbs

kg-m

x 10

= Nm

x 25.4

= mm

x.03937

= in

x 2.54

= cm

mile

x 1.6

= km

x.6214

= mile

Ounces (oz)

x 28.35

= grams (g)

Fluid Ounce

x 29.57

= CCs

grams (g)

x.035

= Ounces (oz)

cc’s

x.03381

= Fluid Ounces
(oz)

lbs

x.454

= kg

x 2.2046

= lbs

Cubic Inches

x 16.387

= Cubic
Centimeters

Cubic
Centimeters

x.061

= Cubic Inches

Imperial pints

x.568

= liters (l)

liters (l)

x 1.76

= Imperial pints

Imperial quarts

x 1.137

= liters (l)

liters (l)

x.88

= Imperial
quarts

Imperial quarts

x 1.201

= US quarts

US quarts

x.833

= Imperial
quarts

US quarts

x.946

= liters

liters

x 1.057

= US quarts

US gallon

x 3.785

= liter

GENERAL / SPECIFICATIONS

1.60

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

UNIT OF

MEASURE

MULTIPLIED

COVERTS TO

liter

x .264

= US gallon

Pounds force
per square inch
(psi)

x 6.895

= Kilo pascals
(kPa)

Kilo pascals
(kPa)

x .145

= Pounds force
per square inch
(psi)

Kilo pascals
(kPa)

x .01

= Kilograms
force per cm

Kilograms force
per cm

x 98.1

= Kilo pascals
(kPa)

p (3.14159) x R

x H (height)

= Cylinder
Volume

GENERAL / SPECIFICATIONS

Content .. 2 3 4 5 ..
