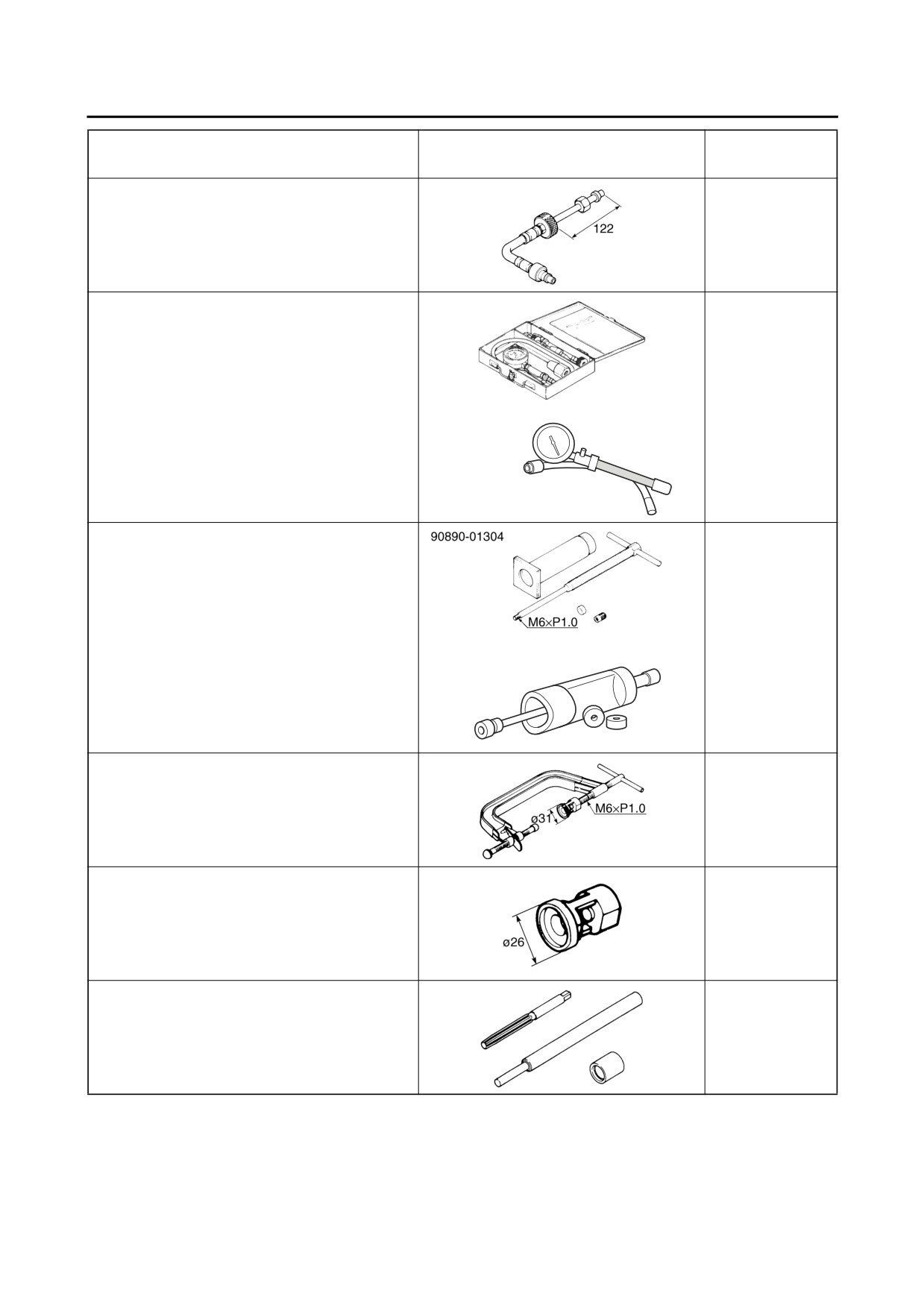

SPECIAL TOOLS
Reference
Tool name/Tool No.
Illustration
pages
Extension
5-1
90890-04136
Compression gauge
5-1
90890-03081
90890-03081
Engine compression tester
YU-33223
YU-33223
Piston pin puller set
5-22
90890-01304
Piston pin puller
YU-01304
YU-01304
Valve spring compressor
5-29, 5-33
90890-04019
Valve spring compressor
YM-04019
Valve spring compressor attachment
5-29, 5-33
90890-01243
Valve spring compressor adapter (26 mm)
YM-01253-1
Valve guide remover & installer set (ø5.5)
5-31
90890-04016
Valve guide remover (5.5 mm)
YM-01122
1-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIAL TOOLS
Reference
Tool name/Tool No.
Illustration
pages
Valve guide remover & installer set (ø5.5)
5-31
90890-04016
Valve guide installer (5.5 mm)
YM-04015
Valve guide remover & installer set (ø5.5)
5-31
90890-04016
Valve guide reamer (5.5 mm)
YM-01196
Rotor holding tool
5-37, 5-37, 5-38,
90890-04166
5-39, 5-45, 5-46,
YM-04166
5-52, 5-57
Flywheel puller (M38 X P1.5)
5-37
90890-04178
Flywheel puller (M38 X P1.5)
YM-04178
M38×P1.5
Digital circuit tester
5-42, 7-8
90890-03174
Model 88 Multimeter with tachometer
YU-A1927

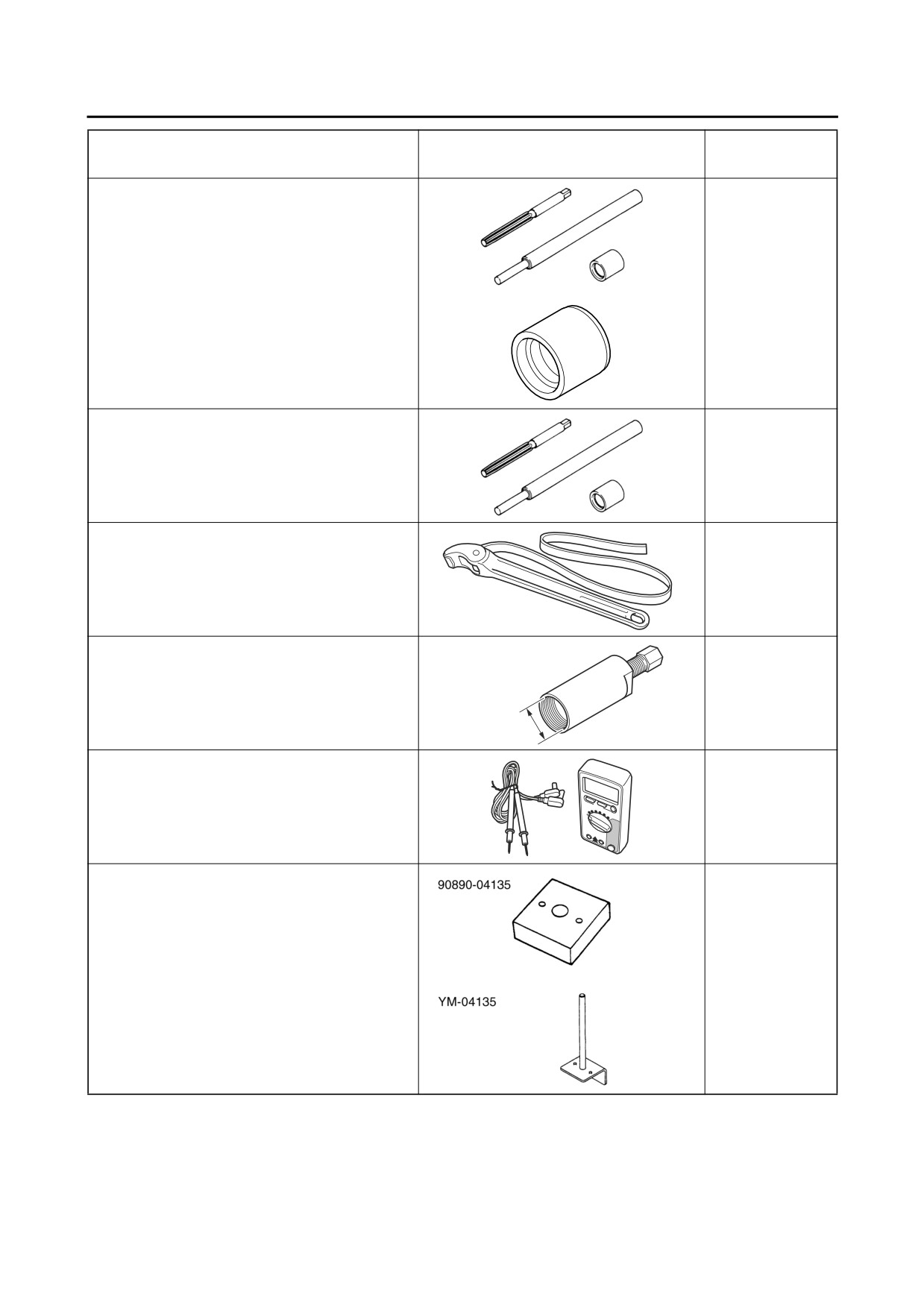

Sheave fixed block
5-52, 5-56
90890-04135
Sheave fixed bracket
YM-04135
1-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIAL TOOLS
Reference
Tool name/Tool No.
Illustration
pages

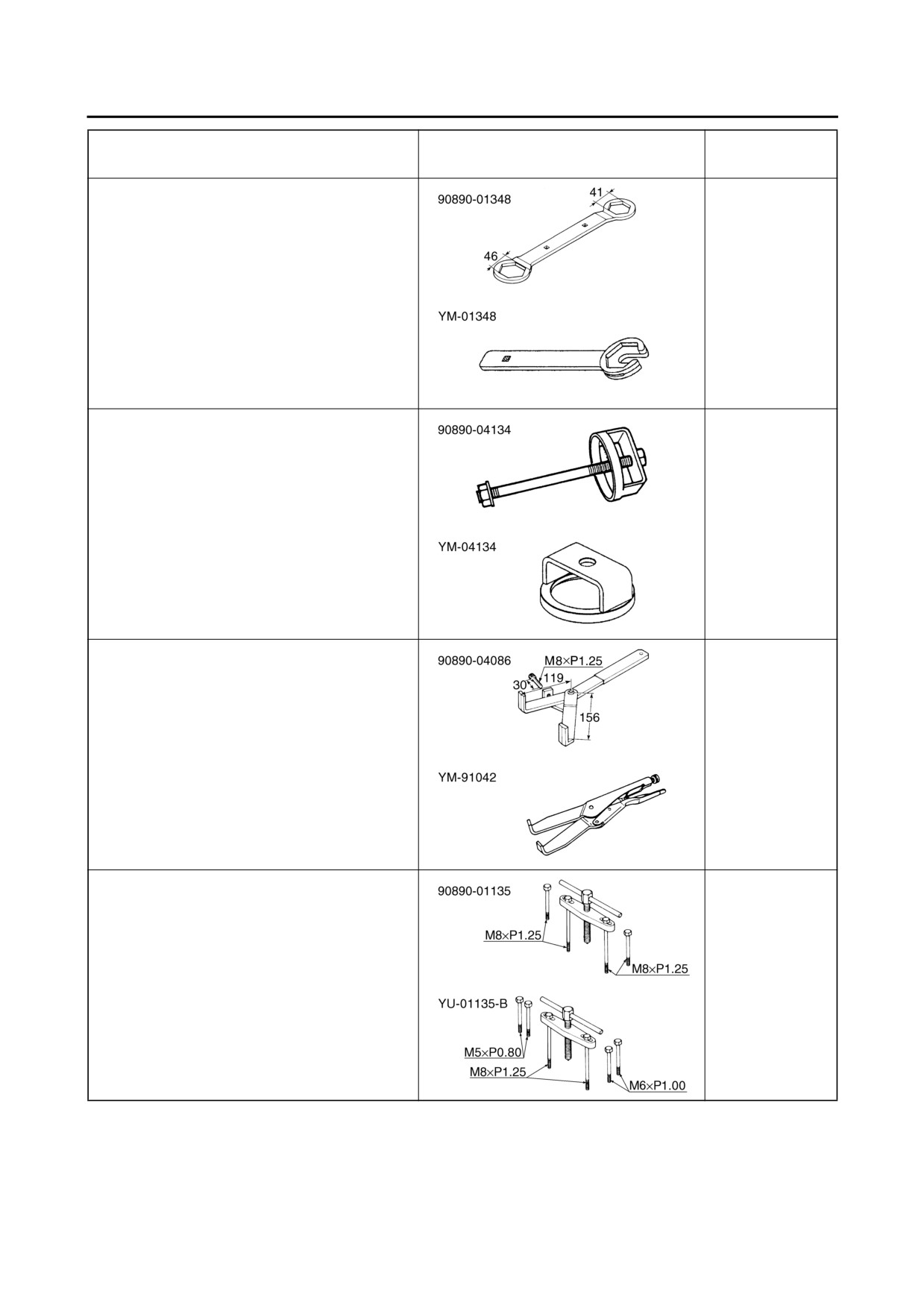

Locknut wrench
5-52, 5-56
90890-01348
Locknut wrench
YM-01348
Sheave spring compressor
5-52, 5-56
90890-04134
Sheave spring compressor
YM-04134
Universal clutch holder
5-61, 5-62
90890-04086
Universal clutch holder
YM-91042
Crankcase separating tool
5-67, 5-72
90890-01135
Crankcase separator
YU-01135-B
1-18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIAL TOOLS
Reference
Tool name/Tool No.
Illustration
pages

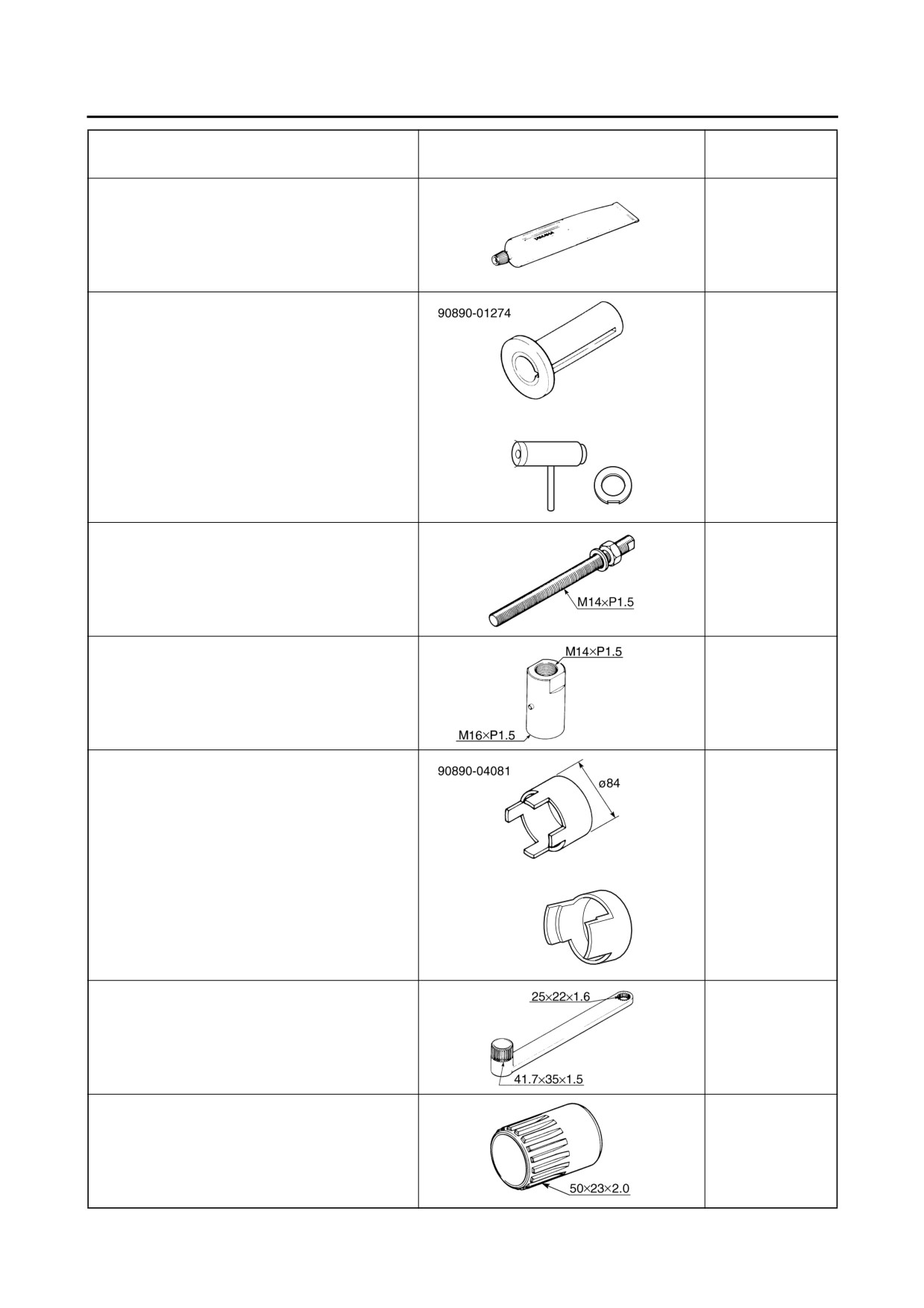

Yamaha bond No. 1215
5-68
90890-85505
(Three bond No.1215®)
Crankshaft installer pot
5-74
90890-01274
Installing pot
YU-90058
YU-90058/YU-90059
Crankshaft installer bolt
5-74
90890-01275
Bolt
YU-90060
Adapter (M16)
5-74
90890-04130
Adapter #13
YM-04059
Spacer (crankshaft installer)
5-74
90890-04081
Pot spacer
YM-91044
YM-91044
Coupling gear/middle shaft tool
5-84, 5-84, 5-87,
90890-01229
5-87
Gear holder
YM-01229
Bearing retainer wrench
5-85, 5-86
90890-04128
Middle gear bearing retainer
YM-04128
1-19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIAL TOOLS
Reference
Tool name/Tool No.
Illustration
pages
Ring nut wrench
5-85, 5-86
90890-01430
Ring nut wrench
YM-38404
Final gear backlash band
5-88, 8-29
90890-01511
Middle drive gear lash tool
YM-01230

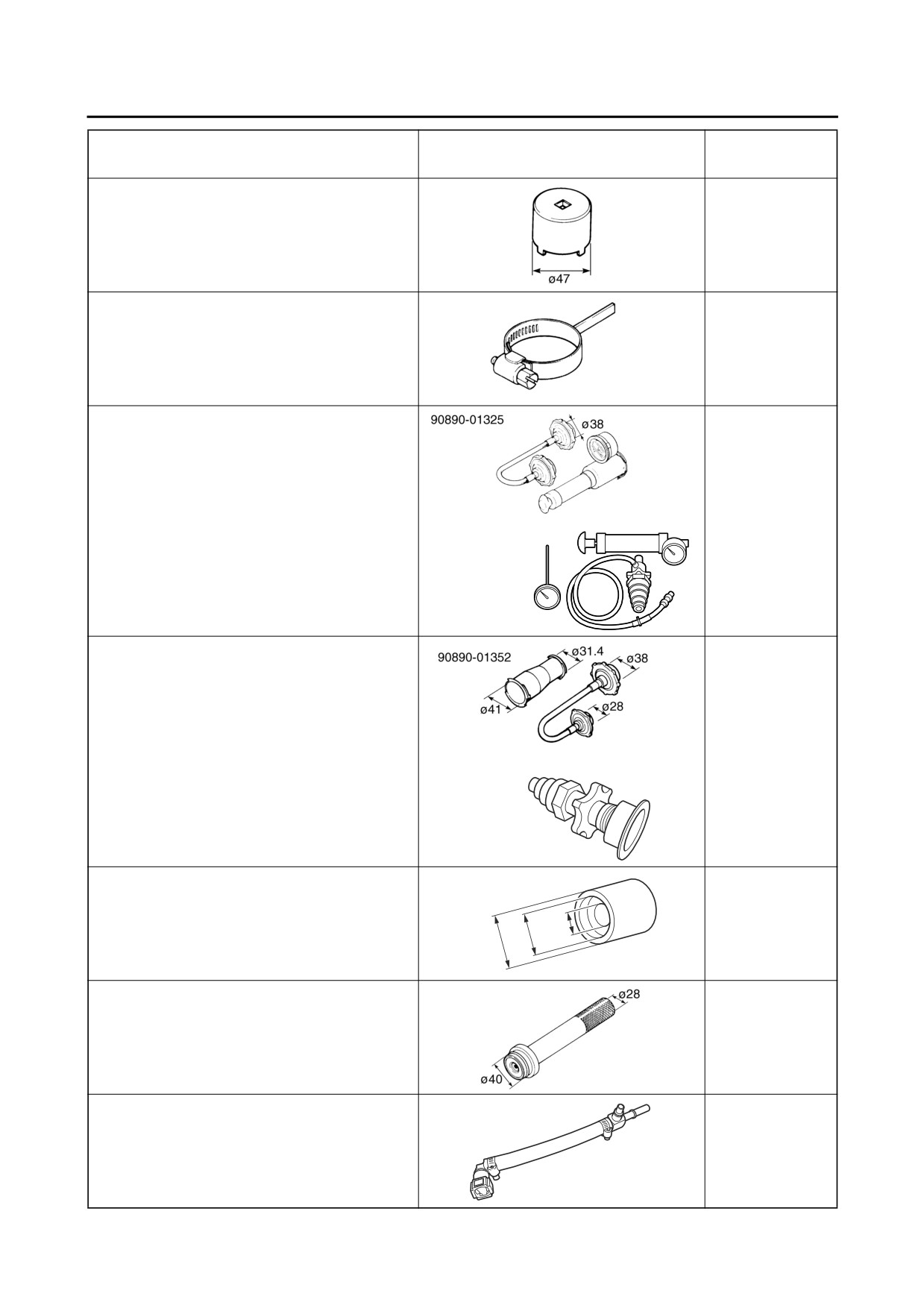

Radiator cap tester
6-6
90890-01325
Mityvac cooling system tester kit
YU-24460-A
YU-24460-A
Radiator cap tester adapter
6-6
90890-01352
Pressure tester adapter
YU-33984
YU-33984
Mechanical seal installer
6-12
90890-01581
Mechanical seal installer
YM-01581
ø12.5
ø26
ø33.8
Middle driven shaft bearing driver
6-12
90890-04058
Middle drive bearing installer 40 & 50 mm
YM-04058
Fuel pressure adapter
7-7
90890-03176
Fuel pressure adapter
YM-03176
1-20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIAL TOOLS
Reference
Tool name/Tool No.
Illustration
pages

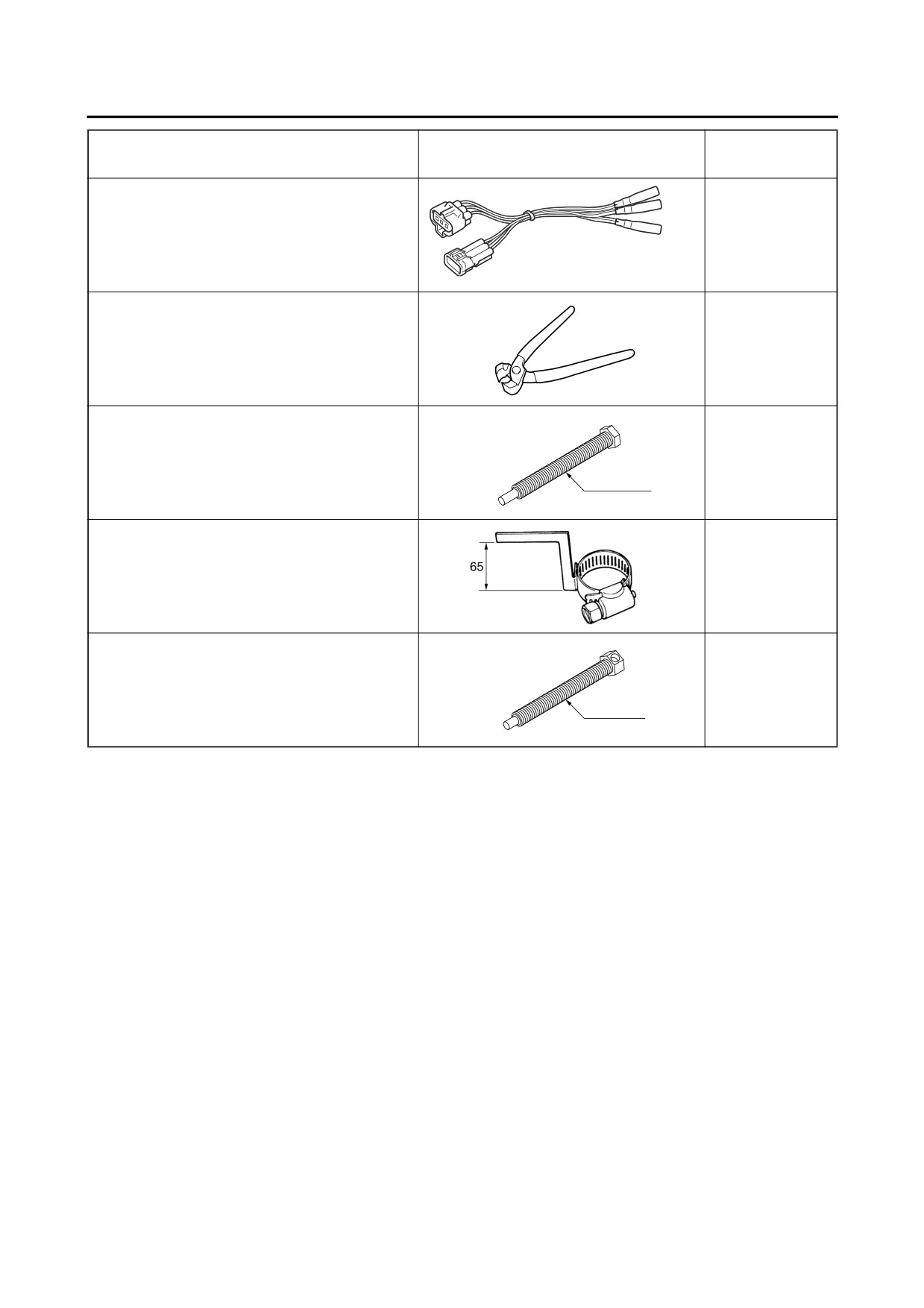

Test harness- TPS (3P)
7-8
90890-03204
Test harness- TPS (3P)
YU-03204
Boots band installation tool
8-9, 8-11, 8-21,
90890-01526
8-21, 8-23
Boots band installation tool
YM-01526
Ring gear fix bolt (M10)
8-13
90890-01527
Ring gear fix bolt (M10)
YM-01527
M10×P1.25
Gear lash measurement tool
8-13
90890-01475
Middle drive gear lash tool
YM-01475
Ring gear fix bolt (M14)
8-29
90890-01524
Ring gear fix bolt (M14)
YM-01524
M14×P1.5
1-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
GENERAL SPECIFICATIONS
2-1
ENGINE SPECIFICATIONS
2-2
CHASSIS SPECIFICATIONS
2-7
ELECTRICAL SPECIFICATIONS
2-9
2
TIGHTENING TORQUES
2-12
GENERAL TIGHTENING TORQUE SPECIFICATIONS
2-12
ENGINE TIGHTENING TORQUES
2-13
CHASSIS TIGHTENING TORQUES
2-18
LUBRICATION POINTS AND LUBRICANT TYPES
2-23
ENGINE
2-23
LUBRICATION SYSTEM CHART AND DIAGRAMS
2-25
ENGINE OIL LUBRICATION CHART
2-25
LUBRICATION DIAGRAMS
2-27
COOLING SYSTEM DIAGRAMS
2-31
CABLE ROUTING
2-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL SPECIFICATIONS
EBS20014
GENERAL SPECIFICATIONS
Model
Model
2UD2 (YF70GPG) (for CDN)
2UD3 (YFM70GPXG) (for Europe)
2UD4 (YFM70GPXG) (for Oceania)
2UD5 (YFM700FWAD) (for Russia)
2UD7 (YF70GPG) (for CDN)
2UD8 (YFM70GPHG) (for Europe)
2UD9 (YFM70GPHG) (for Oceania)
2UDA (YFM700FWAD) (for Russia)
B302 (YF70GG) (for CDN)
B303 (YFM70GDXG) (for Europe)
B305 (YFM70GDHG) (for Europe)
B312 (YF70GPSG) (for CDN)
B313 (YFM70GPSG) (for Europe)
B314 (YFM70GPSG) (for Oceania)
B316 (YF70GPLG) (for CDN)
B317 (YFM70GPLG) (for Europe)
B318 (YFM70GPLG) (for Russia)
Dimensions
Overall length
2070 mm (81.5 in)
Overall width
1230 mm (48.4 in)
Overall height
1253 mm (49.3 in)
Seat height
918 mm (36.1 in)
Wheelbase
1250 mm (49.2 in)
Ground clearance
288 mm (11.3 in)
Minimum turning radius
3500 mm (138 in)
Maximum water depth
35 cm (14 in)
Weight
Curb weight
308.0 kg (679 lb) (YF70GG, YFM70GDHG,
YFM70GDXG)
314.0 kg (692 lb) (YF70GPG, YFM700FWAD,
YFM70GPHG, YFM70GPXG)
320.0 kg (705 lb) (YF70GPLG, YF70GPSG,
YFM70GPLG, YFM70GPSG)
Maximum loading limit
240.0 kg (530 lb) (Total weight of rider, cargo,
accessories, and tongue)
Loading
Front carrier load limit
50.0 kg (110 lb)
Rear carrier load limit
90.0 kg (198 lb)
Storage compartment load limit
4.0 kg (9 lb)
Front storage compartment load limit
0.5 kg (1 lb)
Rear storage compartment load limit
2.0 kg (4 lb)
Trailer hitch pulling load limit
5880 N (600 kgf, 1322 lbf)
Trailer hitch vertical load limit
147 N (15 kgf, 33 lbf)
2-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENGINE SPECIFICATIONS
EBS20015
ENGINE SPECIFICATIONS
Engine
Engine type
Liquid cooled 4-stroke, DOHC
Cylinder arrangement
Single cylinder
Displacement
708 cm³
Bore × stroke
103.0 × 85.0 mm (4.06 × 3.35 in)
Compression ratio
10.1 : 1
Standard compression pressure (at sea level)
650-1000 kPa (6.5-10.0 kgf/cm², 92.4-142.2
psi)
Starting system
Electric starter
Fuel
Recommended fuel
Regular unleaded gasoline only (for CDN and
Oceania)
Regular unleaded gasoline only with a research
octane number of 95 or higher (for Europe)
Unleaded gasoline only. Minimum research
octane number 91 (for Russia)
Fuel tank capacity
18.0 L (4.75 US gal, 3.96 Imp.gal)
Fuel reserve amount
4.0 L (1.06 US gal, 0.88 Imp.gal)
Engine oil
Lubrication system
Wet sump
Recommended brand
YAMALUBE
Type
SAE 0W-30, 10W-30, 10W-40, 15W-40, 20W-
40 or 20W-50
Recommended engine oil grade
API service SG type or higher, JASO standard
MA
Engine oil quantity
Without oil filter cartridge replacement
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement
2.10 L (2.22 US qt, 1.85 Imp.qt)
Quantity (disassembled)
2.60 L (2.75 US qt, 2.29 Imp.qt)
Differential gear oil
Type
Yamaha Friction Modified Plus Shaft Drive Oil
(Part No.: ACC-SHFTL-PL-32) or SAE 80 API
GL-4 Hypoid gear oil
Quantity
0.22 L (0.23 US qt, 0.19 Imp.qt)
Quantity (disassembled)
0.23 L (0.24 US qt, 0.20 Imp.qt)
Final gear oil
Type
Yamaha Friction Modified Plus Shaft Drive Oil
(Part No.: ACC-SHFTL-PL-32) or SAE 80 API
GL-4 Hypoid gear oil
Quantity
0.20 L (0.21 US qt, 0.18 Imp.qt)
Quantity (disassembled)
0.25 L (0.26 US qt, 0.22 Imp.qt)
Oil filter
Oil filter type
Cartridge
2-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENGINE SPECIFICATIONS
Oil pump
Inner-rotor-to-outer-rotor-tip clearance limit
0.20 mm (0.0079 in)
Outer-rotor-to-oil-pump-housing clearance limit
0.240 mm (0.0094 in)
Oil pressure (hot)
50.0 kPa/1600 r/min (0.50 kgf/cm²/1600 r/min,
7.3 psi/1600 r/min)
Cooling system
Coolant quantity
Radiator (including all routes)
1.76 L (1.86 US qt, 1.55 Imp.qt)
Coolant reservoir (up to the maximum level
mark)
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator core
Width
340.0 mm (13.39 in)
Height
258.0 mm (10.16 in)
Depth
24.0 mm (0.94 in)
Radiator cap opening pressure
107.9-137.3 kPa (1.1-1.4 kgf/cm², 15.6-19.9
psi)
Thermostat
Valve opening temperature
69-73 °C (156-163 °F)
Valve full open temperature
84 °C (183 °F)
Valve lift (full open)
8.0 mm (0.31 in)
Water pump
Water pump type
Single suction centrifugal pump
Impeller shaft tilt limit
0.15 mm (0.006 in)
Spark plug (s)
Manufacturer/model
NGK/CPR7EA-9
Spark plug gap
0.8-0.9 mm (0.031-0.035 in)
Cylinder head
Warpage limit
0.03 mm (0.0012 in)
Camshaft
Drive system
Chain drive (left)
Camshaft journal diameter
21.946-21.963 mm (0.8640-0.8647 in)
Camshaft lobe dimensions
Lobe height (Intake) limit
33.800 mm (1.3307 in)
Base circle diameter (Intake) limit
24.850 mm (0.9783 in)
Lobe height (Exhaust) limit
30.750 mm (1.2106 in)
Base circle diameter (Exhaust) limit
22.350 mm (0.8799 in)
Camshaft-journal-to-camshaft-cap clearance
0.037-0.075 mm (0.0015-0.0030 in)
Valve, valve seat, valve guide
Valve clearance (cold)
Intake
0.10-0.20 mm (0.0039-0.0079 in)
Exhaust
0.22-0.32 mm (0.0087-0.0126 in)
Valve dimensions
Valve head diameter (intake)
38.90-39.10 mm (1.5315-1.5394 in)
Valve head diameter (exhaust)
31.90-32.10 mm (1.2559-1.2638 in)
Valve seat contact width (intake)
1.34-1.48 mm (0.0528-0.0583 in)
Valve seat contact width (intake) limit
1.9 mm (0.07 in)
Valve seat contact width (exhaust)
1.34-1.48 mm (0.0528-0.0583 in)
2-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENGINE SPECIFICATIONS
Valve seat contact width (exhaust) limit
1.9 mm (0.07 in)
Valve stem diameter (intake) limit
5.420 mm (0.2134 in)
Valve stem diameter (exhaust) limit
5.415 mm (0.2132 in)
Valve guide inside diameter (intake) limit
5.550 mm (0.2185 in)
Valve guide inside diameter (exhaust) limit
5.550 mm (0.2185 in)
Valve-stem-to-valve-guide clearance (intake)
limit
0.080 mm (0.0032 in)
Valve-stem-to-valve-guide clearance
(exhaust) limit
0.100 mm (0.0039 in)
Valve stem runout
0.040 mm (0.0016 in)
Valve spring
Spring tilt (intake)
1.7 mm (0.07 in)
Spring tilt (exhaust)
1.7 mm (0.07 in)
Winding direction (intake)
Clockwise
Winding direction (exhaust)
Clockwise
Cylinder
Bore
103.000-103.020 mm (4.0551-4.0559 in)
Wear limit
103.080 mm (4.0583 in)
Taper limit
0.050 mm (0.0020 in)
Out of round limit
0.050 mm (0.0020 in)
Piston
Piston-to-cylinder clearance
0.040-0.075 mm (0.0016-0.0030 in)
Diameter
102.960-102.975 mm (4.0535-4.0541 in)
Measuring point (from piston skirt bottom)
11.0 mm (0.43 in)
Piston pin bore inside diameter limit
23.035 mm (0.9069 in)
Piston pin outside diameter limit
22.974 mm (0.9045 in)
Piston ring
Top ring
Ring type
Barrel
End gap (installed) limit
0.50 mm (0.0197 in)
Ring side clearance limit
0.12 mm (0.0047 in)
2nd ring
Ring type
Taper
End gap (installed) limit
0.70 mm (0.0276 in)
Ring side clearance limit
0.12 mm (0.0047 in)
Oil ring
End gap (installed) limit
1.0 mm (0.04 in)
Crankshaft
Crank assembly width
65.68-65.76 mm (2.586-2.589 in)
Runout limit
0.030 mm (0.0012 in)
Big end side clearance
0.090-0.500 mm (0.0035-0.0197 in)
Clutch
Clutch type
Wet, centrifugal automatic
Clutch shoe thickness limit
1.0 mm (0.04 in)
Clutch housing inside diameter
150.0 mm (5.91 in)
Clutch-in revolution
2000-2100 r/min
Clutch-stall revolution
3800-3900 r/min
2-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENGINE SPECIFICATIONS
V-belt
V-belt width limit
31.3 mm (1.23 in)
Transmission type
V-belt automatic
Operation
Left hand operation
Low range
31/16 (1.938)
High range
27/25 (1.080)
Reverse gear
23/14 × 28/23 (2.000)
Gear ratio
2.380-0.700 : 1
Drive axle runout limit
0.06 mm (0.0024 in)
Secondary reduction ratio
43/21 × 24/18 × 33/9 (10.011)
Secondary reduction system
Shaft drive
Shaft drive
Middle gear backlash
0.10-0.30 mm (0.004-0.012 in)
Final gear backlash
0.10-0.20 mm (0.004-0.008 in)
Differential gear backlash
0.05-0.25 mm (0.002-0.010 in)
Shifting mechanism
Shift fork thickness
5.76-5.89 mm (0.2268-0.2319 in)
Decompression device
Device type
Auto decomp
Air filter
Air filter element
Wet element
Air filter oil grade
Foam air-filter oil
Fuel pump
Pump type
Electrical
Throttle body
Type/quantity
44EIS/1
ID mark
B161 00
Throttle valve size
#100
Fuel injector
Model/quantity
E270103/1
Resistance
12.0 Ω
Throttle position sensor
Resistance
2.64-6.16 kΩ
Idling condition
Engine idling speed
1550-1650 r/min
CO (%)
2.8 %
Intake vacuum
26.7 kPa (200 mmHg, 7.9 inHg)
Water temperature
85 °C (185 °F)
Oil temperature
55-65 °C (131-149 °F)
Throttle lever free play
3.0-5.0 mm (0.12-0.20 in)
Speed limiter length
12 mm (0.5 in)
2-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENGINE SPECIFICATIONS
Air induction system
Solenoid resistance
18-22 Ω
2-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHASSIS SPECIFICATIONS
EBS20016
CHASSIS SPECIFICATIONS
Chassis
Frame type
Steel tube frame
Caster angle
4.53°
Camber angle
0.3°
Kingpin angle
11.3°
Kingpin offset
0.0 mm (0.00 in)
Trail
26.0 mm (1.02 in)
Toe-in (with tires touching the ground)
0.0-10.0 mm (0.00-0.39 in)
Tread rear (STD)
975.0 mm (38.39 in)
Tread front (STD)
1000.0 mm (39.37 in)
Front wheel
Wheel type
Cast wheel (YF70GPLG, YF70GPSG,
YFM70GPLG, YFM70GPSG)
Panel wheel (YF70GG, YF70GPG,
YFM700FWAD, YFM70GDHG, YFM70GDXG,
YFM70GPHG, YFM70GPXG)
Rim size
12 × 6.0AT
Wheel material
Steel
Radial wheel runout limit
1.2 mm (0.05 in)
Lateral wheel runout limit
1.2 mm (0.05 in)
Rear wheel
Wheel type
Cast wheel (YF70GPLG, YF70GPSG,
YFM70GPLG, YFM70GPSG)
Panel wheel (YF70GG, YF70GPG,
YFM700FWAD, YFM70GDHG, YFM70GDXG,
YFM70GPHG, YFM70GPXG)
Rim size
12 × 7.5AT
Wheel material
Steel
Radial wheel runout limit
1.2 mm (0.05 in)
Lateral wheel runout limit
1.2 mm (0.05 in)
Front tire
Type
Tubeless
Size
AT26 × 8-12
Manufacturer/model
MAXXIS/MU05Y
Wear limit (front)
3.0 mm (0.12 in)
Rear tire
Type
Tubeless
Size
AT26 × 10-12
Manufacturer/model
MAXXIS/MU06Y
Wear limit (rear)
3.0 mm (0.12 in)
Tire air pressure (measured on cold tires)
Recommended
Vehicle load
0 - maximum
Front
35.0 kPa (0.350 kgf/cm², 5.0 psi)
Rear
30.0 kPa (0.300 kgf/cm², 4.4 psi)
2-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHASSIS SPECIFICATIONS
Minimum
Vehicle load
0 - maximum
Front
32.0 kPa (0.320 kgf/cm², 4.6 psi)
Rear
27.0 kPa (0.270 kgf/cm², 4.0 psi)
Front brake
Type
Hydraulic disc brake
Operation
Right hand operation
Disc outside diameter × thickness
220.0 × 3.5 mm (8.66 × 0.14 in)
Brake disc thickness limit
3.0 mm (0.12 in)
Brake disc deflection limit
0.10 mm (0.0039 in)
Brake pad lining thickness limit
1.0 mm (0.04 in)
Master cylinder inside diameter
12.70 mm (0.50 in)
Caliper cylinder inside diameter
33.96 mm (1.34 in)
Specified brake fluid
DOT 4
Rear brake
Type
Hydraulic disc brake
Operation
Left hand and right foot operation
Disc outside diameter × thickness
205.0 × 3.5 mm (8.07 × 0.14 in)
Brake disc thickness limit
3.0 mm (0.12 in)
Brake disc deflection limit
0.10 mm (0.0039 in)
Brake pad lining thickness limit
1.0 mm (0.04 in)
Master cylinder inside diameter
12.70 mm (0.50 in)
Caliper cylinder inside diameter
33.96 mm (1.34 in)
Specified brake fluid
DOT 4
Brake pedal free play
1.0-6.0 mm (0.04-0.24 in)
Front suspension
Type
Double wishbone
Spring/shock absorber type
Coil spring/gas-oil damper
Shock absorber travel
111.7 mm (4.40 in)
Installed length
259.8 mm (10.23 in)
Wheel travel
193 mm (7.6 in)
Rear suspension
Type
Double wishbone
Spring/shock absorber type
Coil spring/gas-oil damper
Wheel travel
232 mm (9.1 in)
Rear shock absorber assembly travel
120.3 mm (4.74 in)
Installed length
284.6 mm (11.20 in)
Front and rear suspension spring preload adjusting positions
Minimum
1
Standard
2
Maximum
5
2-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRICAL SPECIFICATIONS
EBS20017
ELECTRICAL SPECIFICATIONS
Voltage
System voltage
12 V
Engine control unit
Model/manufacturer
F8T85873/MITSUBISHI (YF70GPLG,
YF70GPSG, YFM70GPLG, YFM70GPSG)
F8T85875/MITSUBISHI (YF70GPG,
YFM700FWAD, YFM70GPHG, YFM70GPXG)
F8T85876/MITSUBISHI (YF70GG,
YFM70GDHG, YFM70GDXG)
Ignition system
Ignition system
TCI
Advancer type
Digital
Ignition timing (B.T.D.C.)
7.0°/1600 r/min
Pickup coil resistance
152.0-228.0 Ω
Ignition coil
Primary coil resistance
2.16-2.64 Ω
Secondary coil resistance
8.64-12.96 kΩ
Spark plug cap
Resistance
10.0 kΩ
Charging system
Charging system
AC magneto
Standard output
14.0 V, 35.0 A at 5000 r/min
Stator coil resistance
0.15-0.22 Ω
Rectifier/regulator
Regulator type
Semi conductor-short circuit
Regulated voltage (DC)
14.3-14.7 V
Rectifier capacity (DC)
50.0 A
Battery
Model
YTX20L-BS
Voltage, capacity
12 V, 18.0 Ah
Handle mounted light
Handle mounted light bulb type
Halogen bulb
Bulb voltage, wattage × quantity
Headlight
LED
Handle mounted light
12 V, 35.0/36.5 W × 1
Tail/brake light
LED
Meter lighting
EL (Electroluminescent)
Indicator light
Neutral indicator light
LED
Reverse indicator light
LED
2-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRICAL SPECIFICATIONS
Coolant temperature warning light
LED
Park indicator light
LED
Engine trouble warning light
LED
High-range indicator light
LED
Low-range indicator light
LED
Differential gear lock indicator light
LED
EPS warning light
LED (YF70GPG, YF70GPLG, YF70GPSG,
YFM700FWAD, YFM70GPHG, YFM70GPLG,
YFM70GPSG, YFM70GPXG)
Starter motor
Power output
0.80 kW
Armature coil resistance
0.005-0.015 Ω
Brush overall length limit
6.50 mm (0.26 in)
Mica undercut (depth)
0.70 mm (0.03 in)
Starter relay
Amperage
180.0 A
Coil resistance
4.18-4.62 Ω
Horn (except for CDN)
Horn type
Plane (YFM700FWAD, YFM70GDHG,
YFM70GDXG, YFM70GPHG, YFM70GPLG,
YFM70GPSG, YFM70GPXG)
Quantity
1 pcs (YFM700FWAD, YFM70GDHG,
YFM70GDXG, YFM70GPHG, YFM70GPLG,
YFM70GPSG, YFM70GPXG)
Maximum amperage
1.0 A (YFM700FWAD, YFM70GDHG,
YFM70GDXG, YFM70GPHG, YFM70GPLG,
YFM70GPSG, YFM70GPXG)
Fuel sender unit
Sender unit resistance (full)
19.00-21.00 Ω
Sender unit resistance (empty)
138.50-141.50 Ω
EPS torque sensor
Coil resistance
1.00-1.50 kΩ (YF70GPG, YF70GPLG,
YF70GPSG, YFM700FWAD, YFM70GPHG,
YFM70GPLG, YFM70GPSG, YFM70GPXG)
Auxiliary DC output
Jack capacity
12 V, 10.0 A (120 W)
Fuel injection sensor
Crankshaft position sensor resistance
152-228 Ω
Intake air pressure sensor output voltage
3.75-4.25 V
Intake air temperature sensor resistance
5.40-6.60 kΩ at 0 °C (32 °F)
290-390 Ω at 80 °C (176 °F)
Coolant temperature sensor resistance
2.32-2.59 kΩ at 20 °C (68 °F)
310-326 Ω at 80 °C (176 °F)
Fuses
Main fuse
40.0 A
2-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRICAL SPECIFICATIONS
Headlight fuse
10.0 A
Signaling system fuse
10.0 A
Ignition fuse
10.0 A
Radiator fan motor fuse
20.0 A
Auxiliary DC jack fuse
10.0 A
Fuel injection system fuse
15.0 A
Four-wheel-drive motor fuse
10.0 A
EPS fuse
40.0 A (YF70GPG, YF70GPLG, YF70GPSG,
YFM700FWAD, YFM70GPHG, YFM70GPLG,
YFM70GPSG, YFM70GPXG)
Spare fuse
20.0 A
Spare fuse
15.0 A
Spare fuse
10.0 A
2-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TIGHTENING TORQUES
EBS20018
TIGHTENING TORQUES
EBS30018
GENERAL TIGHTENING TORQUE
SPECIFICATIONS
This chart specifies tightening torques for stan-
dard fasteners with a standard ISO thread pitch.
Tightening torque specifications for special com-
ponents or assemblies are provided for each
chapter of this manual. To avoid warpage, tight-
en multi-fastener assemblies in a crisscross pat-
tern and progressive stages until the specified
tightening torque is reached. Unless otherwise
specified, tightening torque specifications re-
quire clean, dry threads. Components should be
at room temperature.
A. Distance between flats
B. Outside thread diameter
General tightening torques
A (nut)
B (bolt)
Nm
m·kgf
ft·lbf
10 mm
6 mm
6
0.6
4.3
12 mm
8 mm
15
1.5
11
14 mm
10 mm
30
3.0
22
17 mm
12 mm
55
5.5
40
19 mm
14 mm
85
8.5
61
22 mm
16 mm
130
13.0
94
2-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TIGHTENING TORQUES
EBS30019
ENGINE TIGHTENING TORQUES
Thread
Item
Q’ty
Tightening torque
Remarks
size
V-belt cooling exhaust duct joint
M4
2
1.5 Nm (0.15 m·kgf, 1.1 ft·lbf)
clamp screw
V-belt cooling intake duct joint clamp
M4
2
1.5 Nm (0.15 m·kgf, 1.1 ft·lbf)
screw
Exhaust pipe nut
M8
2
20 Nm (2.0 m·kgf, 14 ft·lbf)
Muffler bolt
M8
1
33 Nm (3.3 m·kgf, 24 ft·lbf)
Muffler bracket bolt
M8
2
20 Nm (2.0 m·kgf, 14 ft·lbf)
Exhaust pipe protector bolt
M6
2
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Spark arrester bolt
M6
4
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Cylinder head cover bolt
M6
4
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Breather plate cover bolt
M6
4
See TIP.
Camshaft cap bolt
M6
8
See TIP.
Cylinder head bolt
M11
4
See TIP.
E
Cylinder head bolt
M6
2
See TIP.
Cylinder bolt
M6
2
See TIP.
Cylinder head stud bolt (exhaust
M8
2
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
pipe)
Timing chain tensioner bolt
M6
2
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Timing chain tensioner cap bolt
M6
1
5 Nm (0.5 m·kgf, 3.6 ft·lbf)
Timing chain stopper guide bolt (low-
M6
2
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LT
er)
Timing chain guide bolt (intake side)
M6
2
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LT
Air cut-off valve bracket bolt
M6
1
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Reed valve cover bolt
M6
2
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LT
AC magneto cover bolt
M6
11
See TIP.
Crankshaft end accessing screw
M32
1
11 Nm (1.1 m·kgf, 8.0 ft·lbf)
Timing mark accessing screw
M14
1
4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
AC magneto/crankshaft position
M5
2
3.0 Nm (0.30 m·kgf, 2.2 ft·lbf)
LT
sensor lead holder bolt
AC magneto rotor nut
M14
1
160 Nm (16 m·kgf, 116 ft·lbf)
Starter clutch bolt
M6
8
14 Nm (1.4 m·kgf, 10 ft·lbf)
Thermostat cover bolt
M6
2
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Thermostat cover air bleed bolt
M6
1
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Water pump housing bolt
M6
4
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Coolant drain bolt
M6
1
8 Nm (0.8 m·kgf, 5.8 ft·lbf)
Water pump air bleed bolt
M6
1
8 Nm (0.8 m·kgf, 5.8 ft·lbf)
Left-hand
Impeller
M6
1
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
thread
Water jacket joint bolt
M6
2
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Water pump outlet pipe bolt
M6
1
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Oil filter cartridge
1
15 Nm (1.5 m·kgf, 11 ft·lbf)
2-13















Content      ..      1      2      3      ..
