- 96 -

and dirt.

Cushion and backrest are made with vacuum foam one-step molding technology, and may be

dismantled and replaced easily according to needs.

Adjusting range:

 The backrest may be adjusted for 150mm forwards and backwards.

 The adjusting distance of the backrest’s elevation is 60mm.

 The adjusting of the backrest forwards is 12.5°, backwards 15°. The chair may be leveled to

the cushion.

 The journey of the suspending device is 100mm.

 The adjustment between 50-130kg may be conducted according to the driver’s weight.

Optional accessories:

 Backing block



Armrest





Safety belt



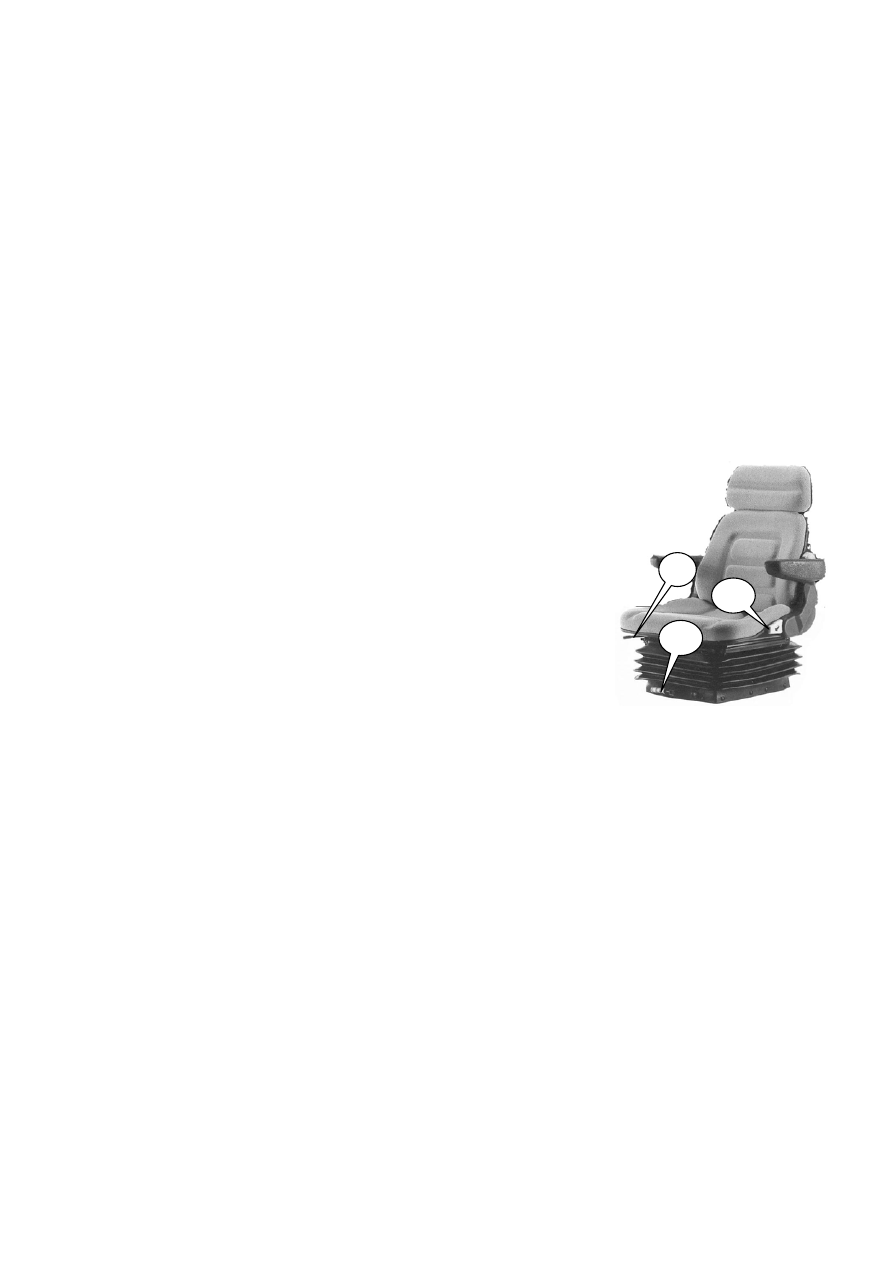

As the fore and rear control locking rod (1) of the chair is pulled

upwards, the chair may be moved to the wanted position forwards or

backwards, and then release the locking rod to lock the chair.

While pull upwards the backrest angle control rod of the chair

(2), adjust the backrest to the required angle, and lay down the control rod to lock the backrest. Pull

out (3) and adjust the elevation by means of rotation.

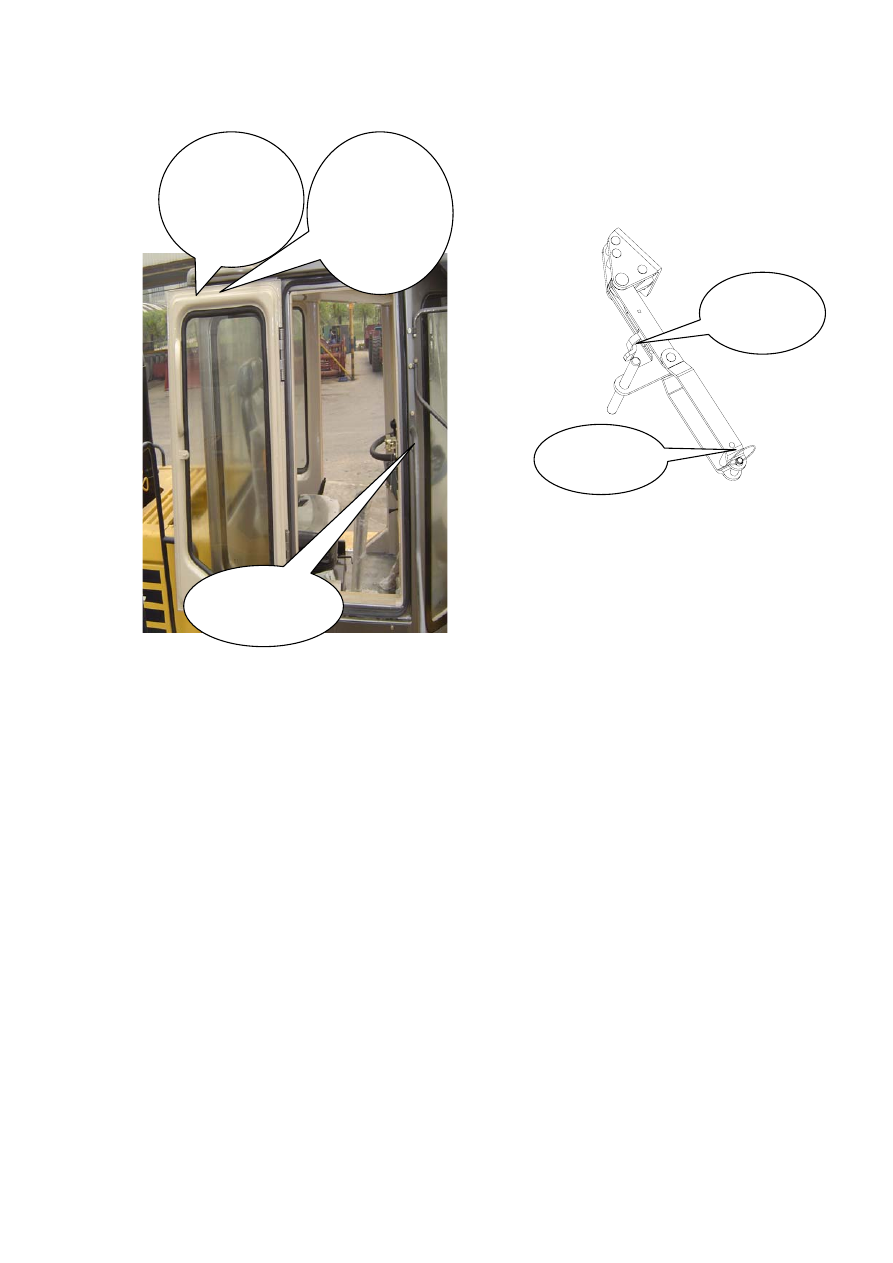

Right door

The right door is used as the exit, which may be opened only from the internal cab. Loosen the

pin (1) to open window. The opened window is fixed by the lock (2) on the right rear top outside the

cab. If the window is required to be opened, the slide rod at the right rear top angle in the cab shall

be pulled to release the window, and then the window may be closed.













3

2

1

- 97 -



As the right door is fixed on the pin (1), the door is opened at certain degree and fixed.

Note: While using pull lock to open or close the door, the lock (4) shall be pulled so as to ensure

smooth rotation. As the loader is working, the window shall be fixed (opened or closed)

Left door

The left door of the cab may be closed or opened. While being opened, the opened window is

fixed by the slide rod (2) on the left rear top angle in the cab. If the door is required to be closed, the

slide rod (2) at the left rear top angle in the cab shall be pulled to release the window, and then the

window may be closed. As the loader is working, the window shall be fixed (opened or closed)

As the loader is working, the window shall be fixed (opened or closed)

As the air conditioning is used, please close the right window and left door of the cab.

Fire extinguisher

MFJL-400 fire extinguisher adopts ammonium phosphate dry powder. In use, hold the fire

extinguisher tightly, pull out safety pin, press compression bar, and spray on the flame.

 Once it is opened, the fire extinguisher shall not be used again. Placing it upside down is now

allowed.

2 Lock at
right rear
angle outside
the cab

1 Pin of sliding
lock

3 Tie bar at
right rear
angle in the
cab

1 Pin of
sliding lock

4 Pusher of
sliding

- 98 -

Operation

I    Operation and Control of Loader

1.1 Start Key Switch

Turn on the power switch firstly, and then turn the key switch to start the engine.

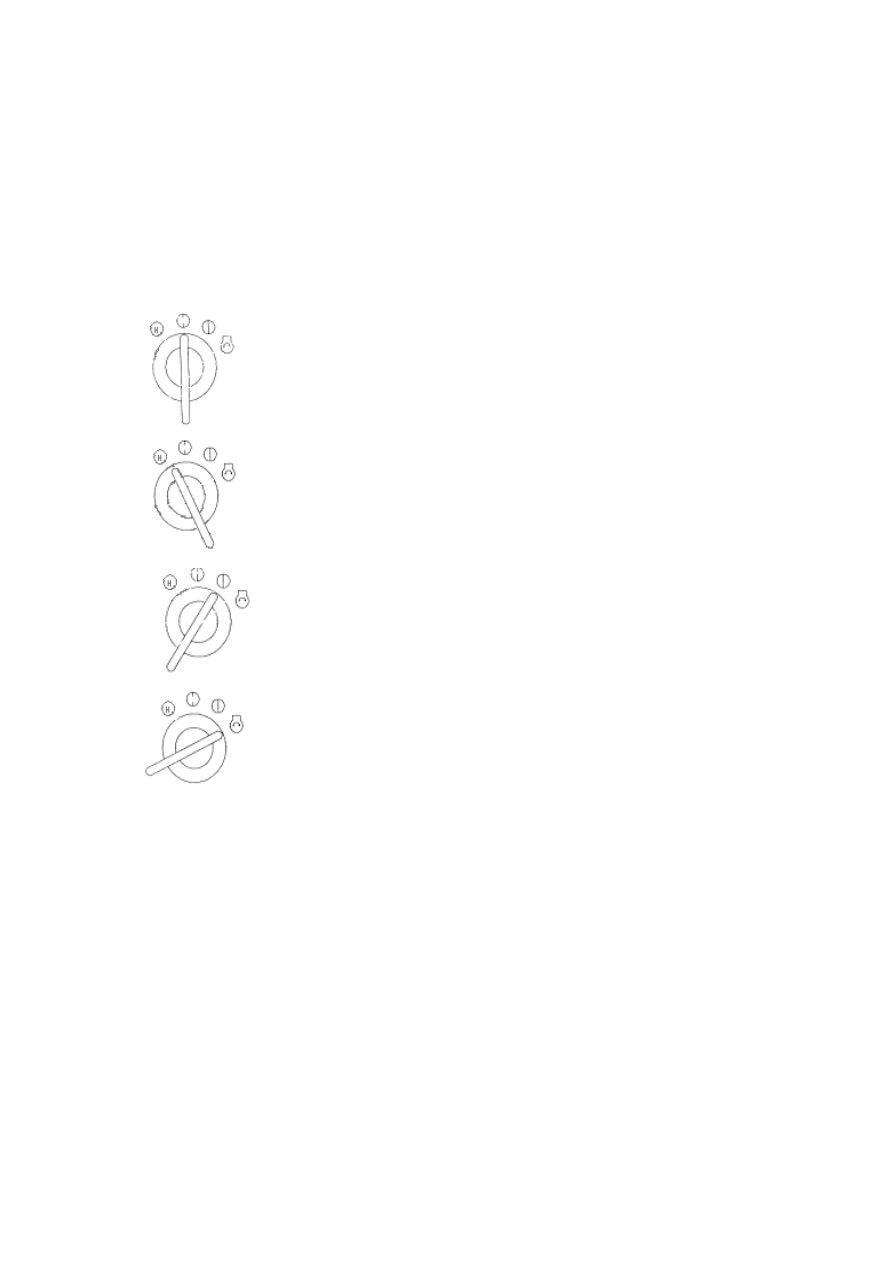

1.  The key switch has four positions:

























Note:

 The running time for starting the engine each time shall not exceed 15 seconds. For the

second starting, the interval time of two times shall be over 2 minutes.

 After starting and preheating of the engine, if the alarm lamp lights (including low brake

pressure alarm lamp, or engine failure, and fuel-water alarm lamp), the engine shall be

stopped immediately for examination. After the alarm lamp lights off, the engine may be

operated, or not, your driving safety would be endangered.

 After starting and preheating of the engine, if the low brake pressure alarm lamp lights

continuously, the engine shall be stopped immediately for examination. After the alarm lamp

lights off, the engine may be operated, or not, your driving safety would be endangered. In

case the brake pressure alarm lamp lights during the period of drive, it shall be stopped

Flameout: The key switch may be inserted or pulled out only at
this position. As the switch is situated at this position, the power
source of most circuits of the cab will be shut off.



Pre-heating: Turn the key switch anticlockwise to this

position to put through preheating device.



Rotation: Turn the key switch clockwise to this
position to put through the power of electronic control
and cab meter,, charging indicator’s relay etc.

Starting: Turn the key switch clockwise to this
position to start the engine. After starting, release the
key switch, the key switch will automatically return to
the power-up position.

- 99 -

immediately for examination.



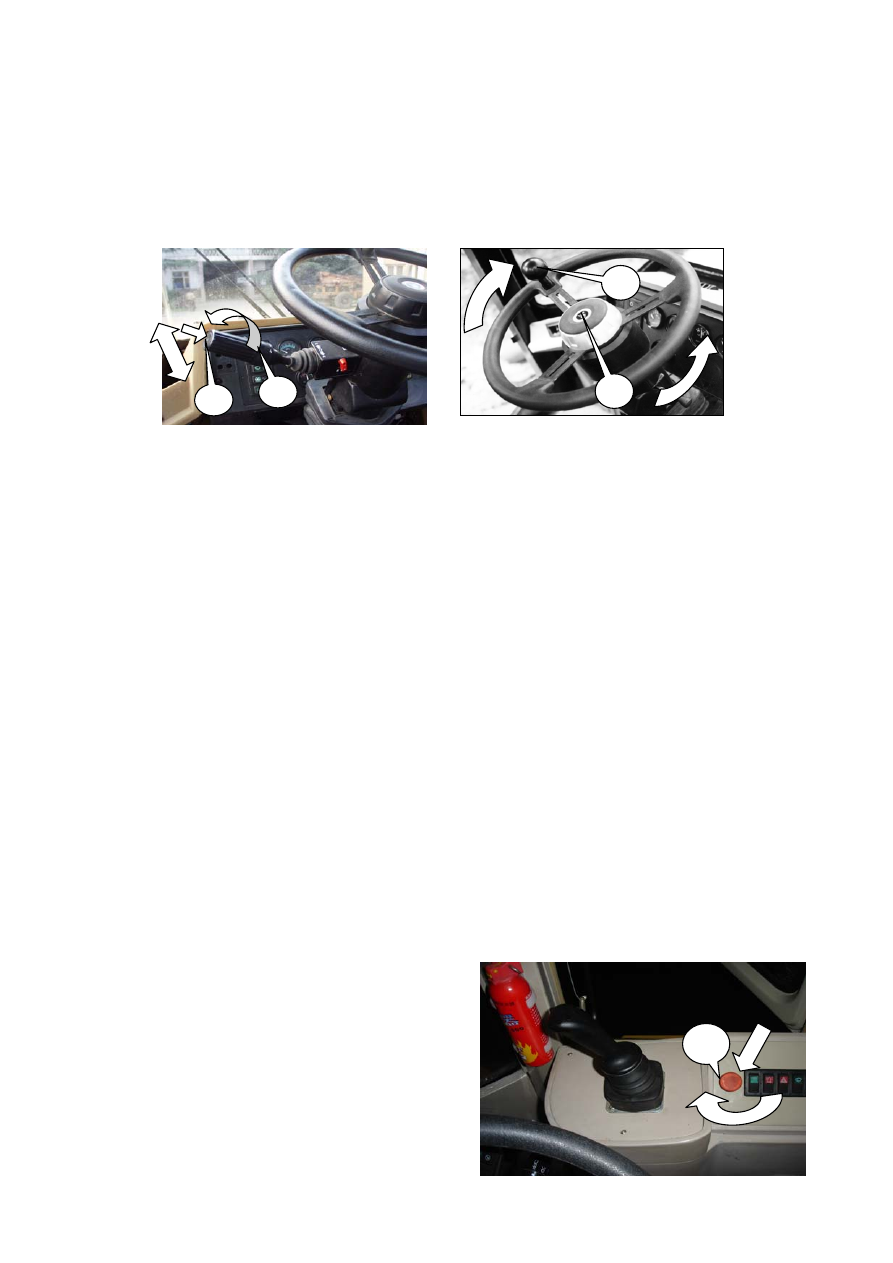

1.2 Transmission Control, Steering Gear and Horn Switch

Transmission control







Option of

driving

directions-- Pull forwards the operating rod (1) for advance, and backwards for

retrogression

Speed option--Turn the speed operating rod (1). As the arrowhead aims at I, II, III and IV, the

corresponding driving speed may be attained.

 This loader has four forward gears and three backward gears. As the speed operating rod is at the

position of IV gear, the loader is under the state of retrogression, and only three-gear speed may

be attained.

(2)--KD key.

Turning operation

The driving direction of this loader is controlled by steering wheel (2). The turning of the

steering wheel means the turning of the loader.

Turn left--Turn the steering wheel (2) anticlockwise, the loader turns left. Faster turning of the

steering wheel anticlockwise, quicker turning left.

Turn right-- Turn the steering wheel anticlockwise, the loader turns right. Faster turning of the

steering wheel anticlockwise, quicker

turning right.

Horn switch (3)--Press the horn switch (3), the

horn will alarm.

1.3 Control of Parking Brake

The parking brake is an integral with the

1

2

2

3

1
