- 60 -

Working Engine

CAUTION

If power system and steering system of the loader still works with a working engine, the

loader may be towed for a small distance to get out of muddy road or to the roadside.

The operator of machine being towed must steer in the direction indicated by towing line.

Make sure that loader is towed in strict accordance to instructions provided in this part.



Shut-Down Engine

Go through the following procedure before towing a loader with a shut-down engine:

1． Connect piston chamber and dedicated hose in the same turning cylinder to allow free

movement of turning cylinder.

CAUTION

Make sure that cylinder hose is properly connected before operating the loader. In case

the hose is connected in reverse direction, steering system will not work.

2． In case a failure of gearbox or transmission system possibly occurs, dismount driving axle

split shaft.

Refer to service manual for information on mounting and dismounting of driving axle split shaft.

WARNING

Loader will lose its parking brake when driving axle split shaft is dismounted, and the

slippage of loader may cause personal injury or death.

Wedge all tires to prevent the loader from moving.

Trailer must be firmly connected, or the loader must be towed by two trailers in the same

size as or larger size than the loader to be towed. In this case, both trailers should be

connected with the loader, one in the front and the other in the back.

Make sure that all repairs and adjustments are done before a serviced loader is reused.

3． Release parking brake.

4． Firmly apply towing lever.

Remove tire wedges and tow the loader slowly at a speed no higher than 2km/h.

- 61 -

Production Information



I. General Information on Loader

1.1 Applicability

Loader is applicable to bucketing, stacking and towing operations in mines, roads, water conservancies and

constructions, as well as conveying earth, sands, gravels and other loose materials in stock yard in factories,

railway stations and ports.

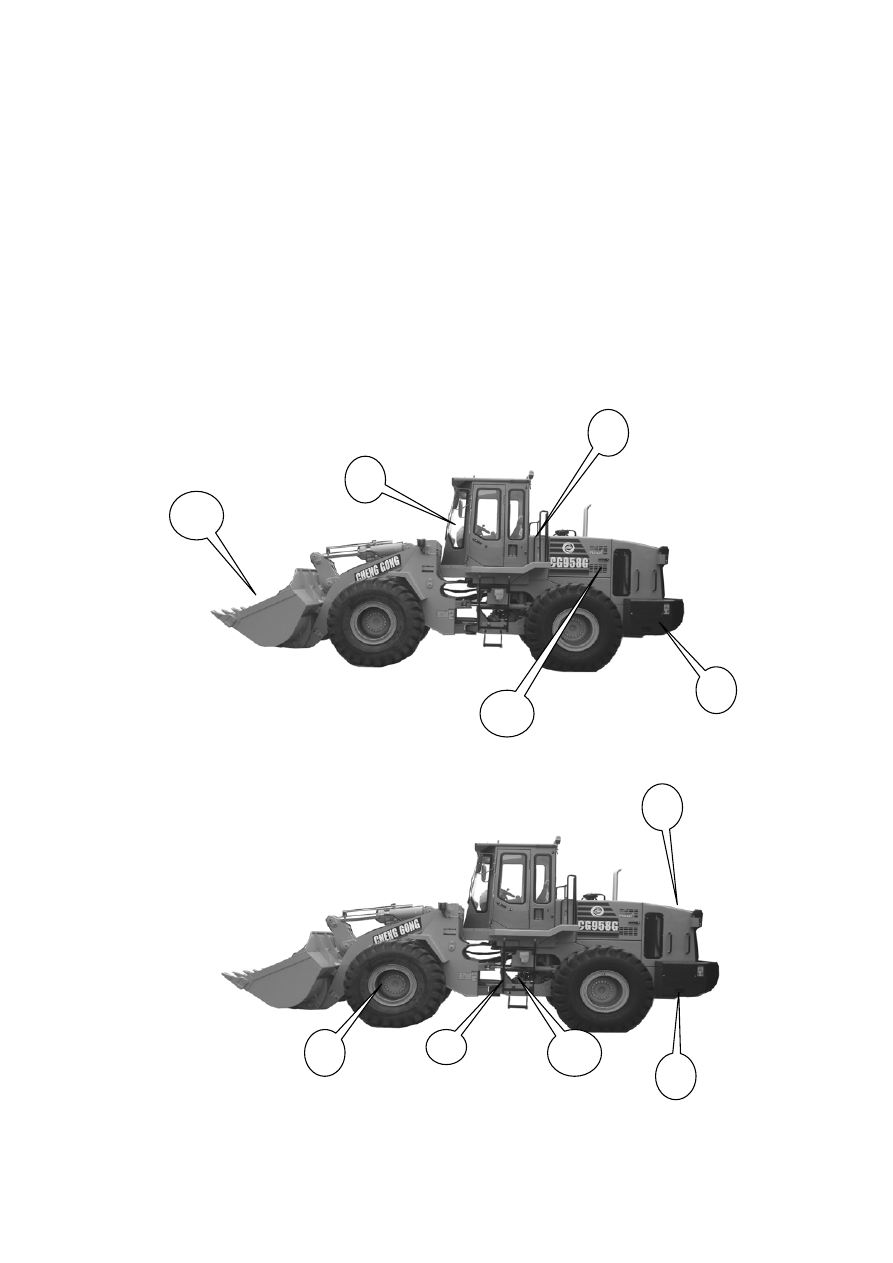

1.2 Profile and Major Parameters



Engine (1), Fuel tank (2), Hydraulic oil tank (3), Working unit (4), Cab (5), Heat radiator (6), Gearbox (7),

Driving axle (8), Batteries (9), Gas tank (10)

1

2

3

4

5

6

7

8

9

10

- 62 -

Major Parameters and Dimensions

Rated

engine

power:



          164kW

Rated

engine

speed:





           2200r/min

Rated

bucket

capacity:







         3.1m

3



Rated

loading

capacity:

           5t

Dump height:









3196 mm

Unloading distance at maximum dump height from (bucket blade):  1162mm

Lift time of movable arms:







<6.5s

Total of “three time” of working unit:







<12.5s

Steering angle:











±35°

Turning radius:











6520mm

Maximum traveling speed:





>36km/h

Length









8100mm

Width







3000mm

Height









3520mm

Weight







17.2t

Oil pressure in working hydraulic system:







17.5MPa

Oil pressure in steering hydraulic system:









15.5MPa

All the above parameters are measured on a loader horizontally parked on hard supporting ground. The

operator should pay attention in operation to limits of various operating conditions, such as soft ground, slope

or unbalanced carrying, and correspondingly adopt proper operating mode.

1.3 Scope of Work and Configuration

As one of major construction machines, loader is widely used in bucketing, conveying, unloading and

leveling operation of loose materials in addition to light-duty cutting.

The working unit of the loader is independently designed and developed by Chenggong with a self-made

standard bucket. Loading weight of the loader should not exceed 5 tons.

The loader is equipped with QSB series engine manufactured by Cummins Engine Company, Ltd.

Torque-converting gearbox is ZF4WG200 manufactured by ZF Liuzhou Company.

Front and rear driving axles are manufactured by Chenggong.

1.3.1 Description of working hydraulic system

- 63 -

Lift time of movable arms: 6.5s

Total of “three times”: 11s

Working hydraulic system

Arm moving cylinder: quantity – inner diameter x travel 2－Φ180x80

Bucket turning cylinder: quantity – inner diameter x travel 2－Φ200x90





Manufacturer: Dezhou Yuli Hydraulic Cylinder Co., Ltd.

Selector valve: model number 7130-B

  Manufacturer:

HUSCO

USA

Pilot-controlled valve: model number 7470(2)

  Manufacturer:

HUSCO

USAHUSCO

Pilot-controlled delivery valve: DKF1-00





Manufacturer: Zhejiang Linhai Haihong Group

Pilot system prepressing air: 16bar

Electromagnetic valve of pilot-controlled delivery valve: 24V, 20W

Working pump:

Model number: T6DM-B35-3L03-C1

Manufacturer: Denison USA

Rotation rate: 400-2500rpm

Displacement: 111.0ml/r

System working pressure: 175bar

Pilot working pressure: 25-30bar

Hydraulic oil refill volume: 150L

Components and operating principle of working hydraulic system
