CG958G Wheel Loader. Manual - part 12

- 52 -

is released.

8.11 Maintenance of Storage Battery

Must abide by the following instrutions on storage battery:

 Never approach lighting cigarrettes or open flame to storage battery.

 When needing to contact storage battery in work, wear protective goggles and

rubber gloves.

 Immediately use large amount of water to wash in case on splash of electrolyte of

storage battery on clothes or skin.

 The splash of electrolyte inside storage batter into eyes may cause blindness. If electrolyte

splashes into eyes, wash with large amount of water immediately and go to see doctor

without delay.

 If having drunk electrolyte by mistake, drink large amount of water, or milk, or raw eggs,

or rapeseed oil, and call for emergency aid of doctor or firstaid center.

 Before conducting works relevant with storage battery, turn off engine.

 Avoid contact with metalic items (such as tools) to cause shortcircuit between the positive

and negative poles of the storage battery.

 When installing storage battery, connect the positive terminal first. When disassembling

storage battery, disconnect the negative ternimal (at the side of ground line) first.

 When disassembling or installing storage battery, firstly check which one is the positive

terminal and which one is the negative and fasten firmly    the nuts.

 When cleaning the top surface of storage battery, clean with cloth. Never use gasoline,

solution, or any other organic solution or detergent.

 Fasten firmly the top cover of storage battery.

 If the electrolyte of storage battery has frozen, neither charge the storage battery nor start

engine by other power supplies. This is dangerous and may cause the storage battery catch

fire. When charging the storage battery or starting engine by other power supplies, melt the

electrolyte of storage battery before starting and check for leakages.

 Remove the storage battery from machine before charging.

 When repairing electric system or conducting electric welding on the machine, remove the

negative pole of storage battery to prevent flow of electric current.

- 53 -

8.12 Charge of Storage Battery

If do not handle storage battery properly when charging it, the storage battery has a danger

to explode. Therefore, please follow the charge procedures in handling rules and manual of

storage battery, and abide by the following cautions:

 Charge in a place of good ventilation. Take off the top cover of storage battery. This will

enable hydrogen diffuse and prevent explosion.

 Set the voltage of charge to the same as the voltage of storage battery to be charged. If the

set of voltage is not correct, the charger may get overheated and catch fire, which may

cause explosion.

 Connect the positive (+) charge clip of charger to positive (+) terminal of storage battery,

then connect the negative (-) charge clip to negative (-) terminal of storage battery. The two

terminals must be fastened.

 If the charge rate of storage battery is lower than 1/10, adopt rapid charge mode and set the

value below the rated capacity of storage battery. If the charge current is too big, leakage or

evaporation of electrolyte may be caused, which may in turn cause fire or explosion.



8.13 Maintenance of Tires

 Since an explosion of tire will push the components and parts such as tire, rim and driving

axle to the a place about 500 meters or farther away from the machine, and the explosion

and fragments will cause serious damages or a human casualty accidents, a normal pressure

of the tire must be ensured without any overpressure.

 When the vehicle is running, the heat produced by high speed running will increase tire’s

pressure, which is normal and do not try to lower it. Speed down or stop to cool the tire

down. Please note: if the vehicle continues to run at a high speed, overheat of tires will

likely to result in their explosion.

 When adjusting the pressure, keep away from the tire as far as possible and must stand at

back of the tread.

 Combustible gas is forbidden to inflate. Dry nitrogen is recommended. Nitrogen can

decrease potential explosion hazard, because it does not support combustion and can

prevent rubber from oxidation or deterioration and tire rim from erosion.

- 54 -

 In order to avoid over-inflation, proper tools for nitrogen inflation and related training on

use of such tools are necessary.

 Check of tires and rims shall be done every day. It is prohibited to operation under low

pressure. Check for presence on the tires such phenomenon as cracks or blisters.

 Checking whether any connecting bolt or nut of tire rim is missing and whether the twisting

moment of connecting nut of the rim complies with the value recommended by

manufacturer.

 When checking tire, do not enter into places in front of or at back of the roll of tire and

shall stand at the side of the tire. If a tire needs to be removed or disassembled, other tires

must be fixed in place by wedges.

 When welding operation is conducted near a tire, must be careful because an explosion of

the tire is possible to occur.

 Since repair of a tire or a rim is very dangerous, only trained professionals can undertake

the repair, using specialized tools and following correct procedures.

 When replacing a tire, the specification of new tire shall be that as specified so as to ensure

the sizes and tread patterns of all tires are uniform.

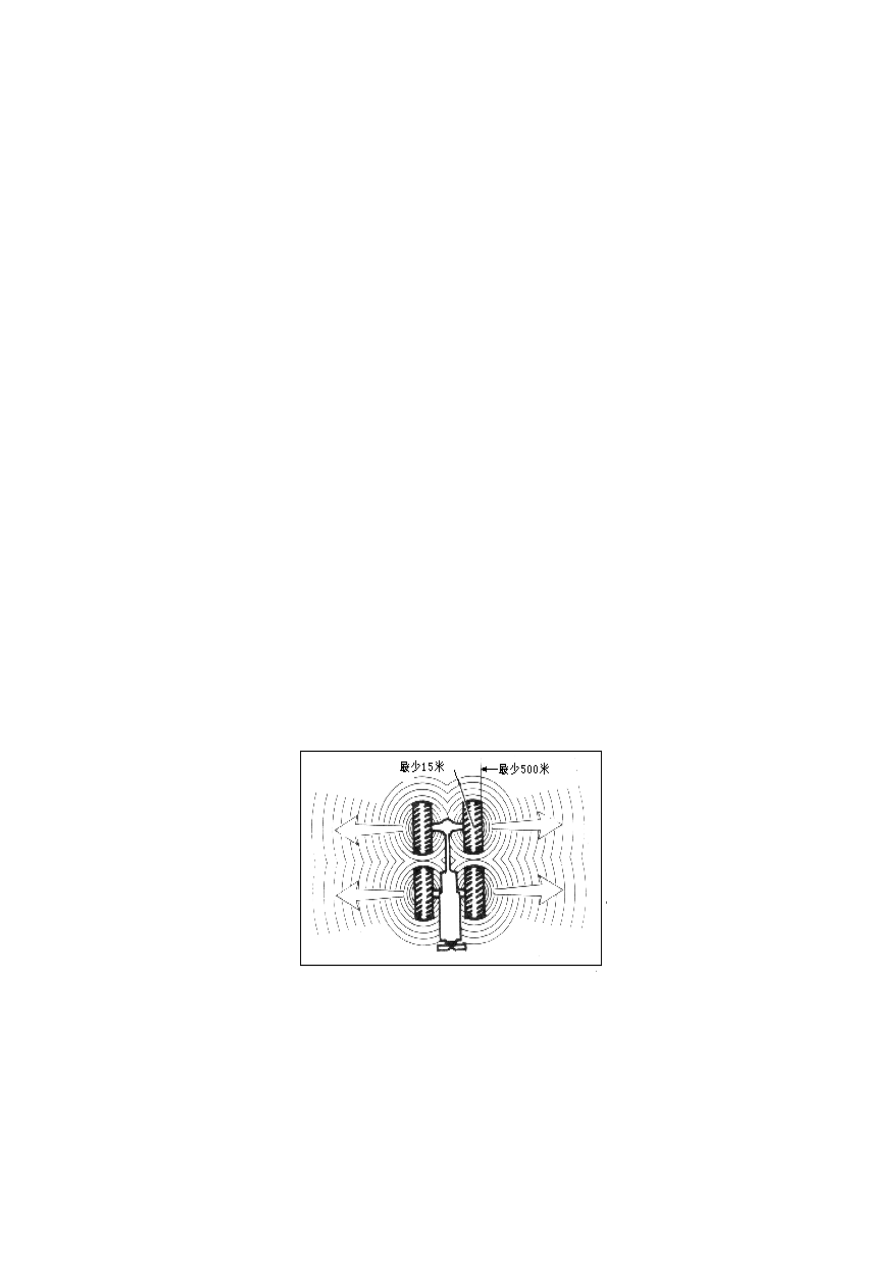

Whenever it is avoidable, do not enter into the range showed in the drawing below.



8.14 Notices on Tire Storage

 As a basic rule, tires shall be stored in a warehouse where any one can not enter into

without permission. If storaging tires outdoors, set up fences around the tires and hang a

label of “No entrance”.

 Since moisture can quicken oxidation of rubber and dirt or oil can corrode tires, the storage

- 55 -

place of tires shall be dry and clean. When storing tires, light, heat and air circulation shall

be avoided and the tires shall be covered by canvas, plastic clothing or other duster.

Incorrect storage practice will adversely affect quality and service lifes of tires.

 The tires shall be placed on level ground vertically and be chocked firmly by wedge blocks

so that unapproved touch will not make them fall down. If they are placed horizontally, the

tires will be pressed flattened and their quality deteriorated. At least once of rotation (of 90°)

shall be made for each tire.



When tires are falling down, get away quickly. Tires of construction machinery are very

heavy, severe injuries may be caused if attempting to hold it.
