Steering is
normal in
slow
turning and
heavy in
fast turning

Steering is normal in slow
turning and heavy in fast
turning

(1). Insufficient oil supply
from oil pump
(2). Large pressure loss
between priority valve and
steering gear
(3). Priority valve plug
blocked
(4). Air in control oil circuit
between priority valve and
steering gear

(1). Repair or replace oil
pump
(2). Use a priority
control spring with larger
control pressure, or
redesign pipeline with an
externally controlled
priority valve
(3). Turn steering wheel
to reach dead end and
then keep turning to
open steering safety
valve for air elimination

Irregular
noise and
bubbles in
oil

Irregular noise and bubbles
in oil, intermittent working
of cylinder in steering

Air in steering system

(1). Check oil level and
add oil to oil tank
(2). Check air intake
pipeline for air leakage
and repair
(3). Eliminate air in
steering system

6. Cooling fan control system

I. Structure and operating principle of cooling fan control system

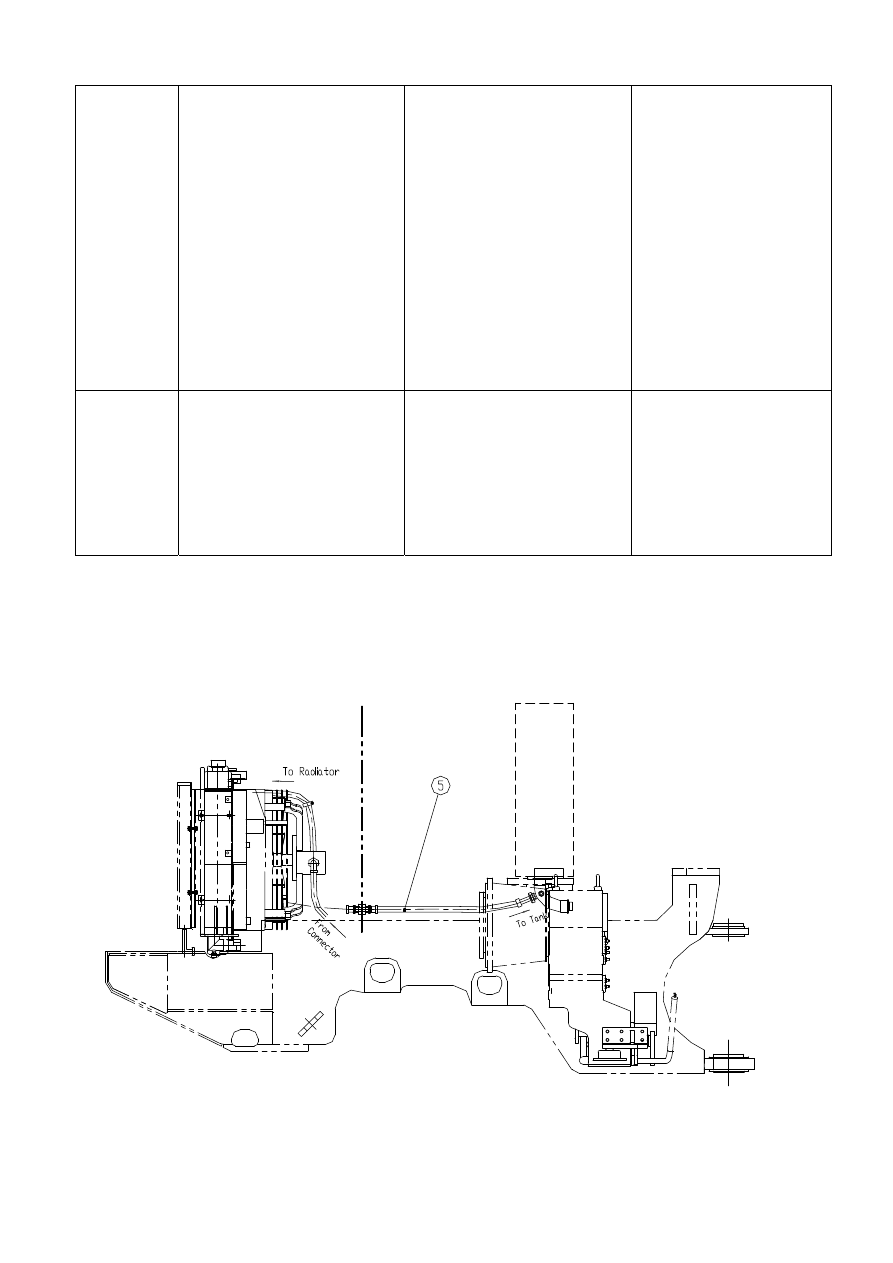

1. Diagram of cooling fan control system









71

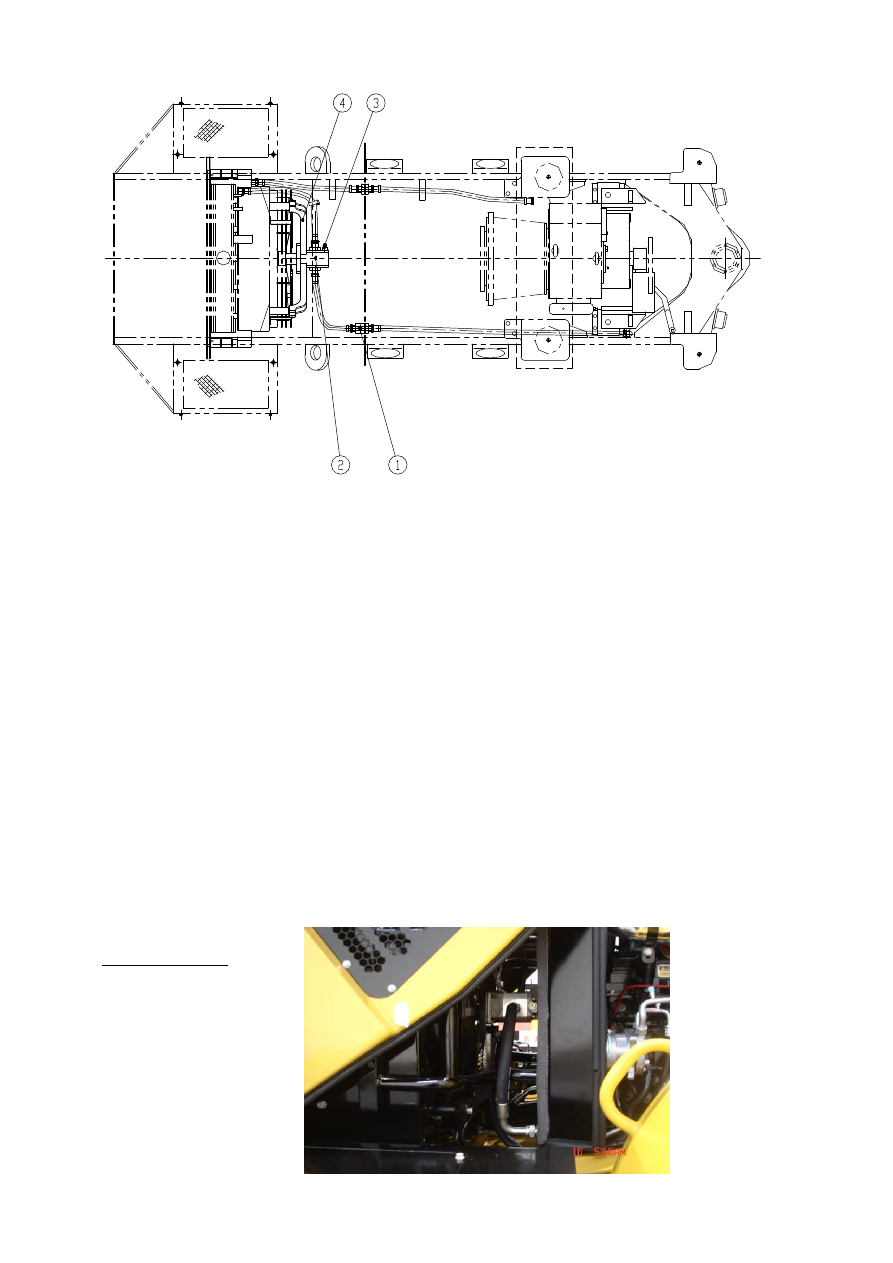

(1). Pressure tap: measures motor inlet pressure, (2). Hydraulic motor:

WM09A1C230R07TB122HGNNR2320001M, (3). Overflow valve: provided with hydraulic motor,

(4). Motor support assembly, (5). fluid coupler

2. CG938H loader adopts an independent cooling system (cooling fan control system) mainly

consisting of motor, motor support assembly, coupling flange, fluid coupler, etc., system cleanliness

is controlled within Grade NAS1683 9.

Features of cooling fan control system:

(1). Better cooling effects on hydraulic oil and torque converting oil;

(2). Cooling effects on hydraulic oil and torque converting oil are not affected even under loaded

working conditions of the loader.

System cleanliness is controlled within Grade NAS1683 9.

II. Motor: WM09A1C230R07TB122HGNNR2320001M manufactured by Haldex International

Trade (shanghai)  Ltd.



Position of motor













72

IMPORTANT



Discounting and servicing of motor by untrained maintenance staff is strictly prohibited.



CAUTION



When replacing rubber tube assembly in motor, loader engine should be shut off first to

release pressure and cool down hydraulic oil (to a safe degree) before the replacement is made.

IV. Safety marks

All safety marks and meanings thereof for cooling fan control units will be described here.

Operators must read carefully and understand completely these descriptions, which should be

complied with in operation and maintenance. If any mark is damaged, lost or illegible, replace

it with a new one.











73

II  Cab Facilities

2.1

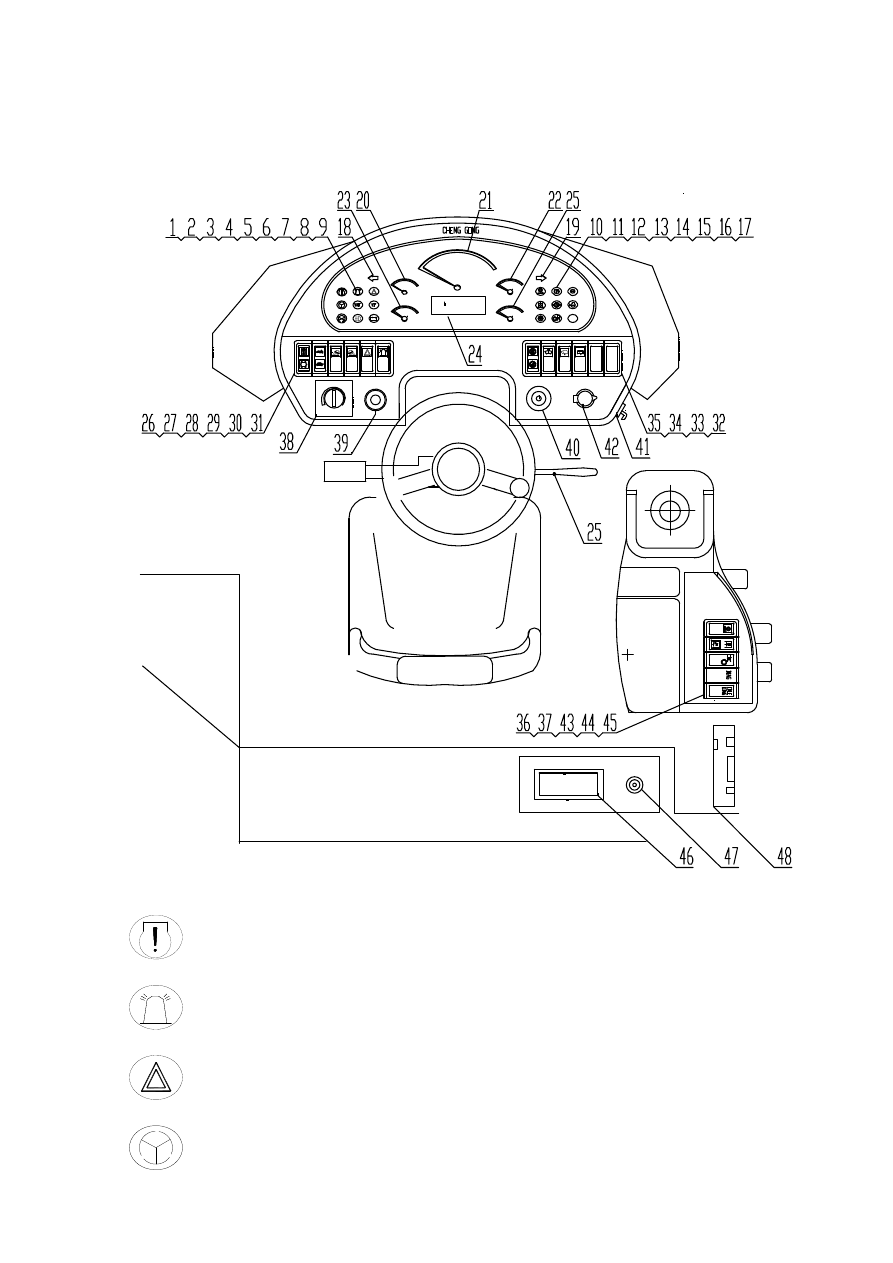

Instrument Desk and Accessories





1.

    Engine failure signal light

2.

  Working rotation indicator

3.

  Emergency warning light

4.

  Emergency steering signal light
