CG938H Wheel Loader. Manual - part 18



74

5.

  Engine waiting signal light

6.

  Signal light for water in engine fuel

7.

  Engine shutdown light

8.

 Remote indicator

9.

  Charging indicator- Indicating the engine and charging system’s work

10.

 Absorber signal light

11.

  Parking signal light

12.

 Low-voltage alarming light while braking

13.

  Hydraulic oil return blockage alarming light

14.

  Gear change alarming light-Indicating the oil pressure of working; the normal value

is 1.6~1.8Mpa; alarms 1.6 Mpa below.

15.

  Air filter blockage alarming light

16.

 Concentrated lubrication indicator

17.

  Level alarming indicator

18.

  Left steering signal light

19.

  Right steering signal light

20. Engine water thermometer -- indicating the temperature of the engine’s coolant. The normal



75

value is 80℃~92℃;

21. Engine tachometer

22. Oil-temperature gauge of torque converter-- indicating the working oil temperature of the torque

converter. The normal value is ≤120℃;

23. Engine oil pressure gauge-- indicating engine oil. The normal value is 0.25~0.45Mpa;

24. Concentrated indication area- indicating the working hours, speed and mileage, gear change

pressure;

25. Fuel gauge

26. Air-conditioning mode switch

27. Blowing rate switch of air-conditioning

28. Front working light switch

29. Rear working light switch

30. Emergency warning switch

31. Working rotary switch

32. Rear wiper switch

33. Front wiper switch

34. Switch of washer pump

35. Power shutoff selector switch

36. Idle regulation switch

37. Failure diagnosis switch

38. Temperature knob of air-conditioning

39. Parking button

40. Cigarette lighter

41.  Key switch

42.  Repairing socket

43.   Intermediate Lube Switch (If Equipped)

44. Joystick lock switch

45.  Absorber switch

46. Fuse

47. Engine Service Tool Connector

48. Radio



76

Caution

It is suggested to use the emergency turning system under the circumstance that urgent

turning to avoid obstruction is required as the paroxysmal normal turning system fails or

engine shuts down.

Warning

If the emergency turning system is started frequently, the emergency turning unit will be

damaged possibly.

The electrical control system of this loader mainly is composed of two parts including

electronic spray engine control system and control system for accessories including lighting, signal

and alarm indicators, wiper, emergency shifter, air conditioning, lifting control and leveling control

etc.





Warning

Improper external power connection will result in personal injuries and death due to

explosion. Accumulators connected in series shall be installed in a separate accumulator box.

As the external power source is used, the cable joint (+) shall be connected with the

accumulator’s joint (+) connected with the starter coil. The cable cathode (-) of the external

power source shall be connected with the one of the

starter. In case the cathode of the starter is not

available, the cable cathode (-) of the external power

source shall be connected with the body of the

engine.



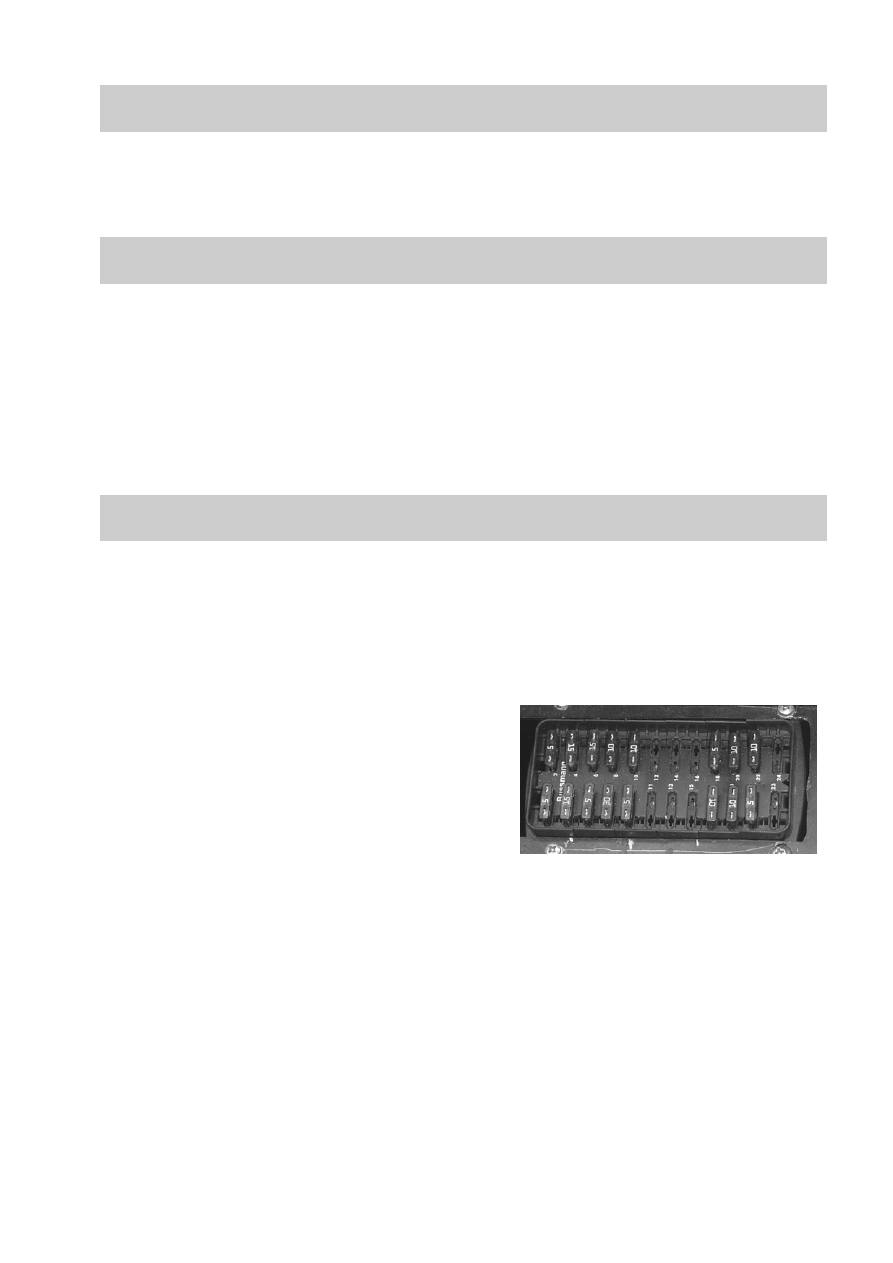

3) Fuse box

  Fuse box-- Installed at the right rear of the chair in the cab.

Fuse--protecting the electrical system from the damage due to circuit overloading. The damaged

fuse shall be replaced; in case the same new fuse is blew upon replacement, the circuit shall be

examined and repaired.









77

Caution

In replacement, the fuse of same model and specification is required, or not the circuit will

be damaged possibly. In case frequently replacement of the fuse is required, the circuit is

involved in failure possibly. The circuit shall be examined.

2.2 Air conditioning System

2.2.1 Basic operating method

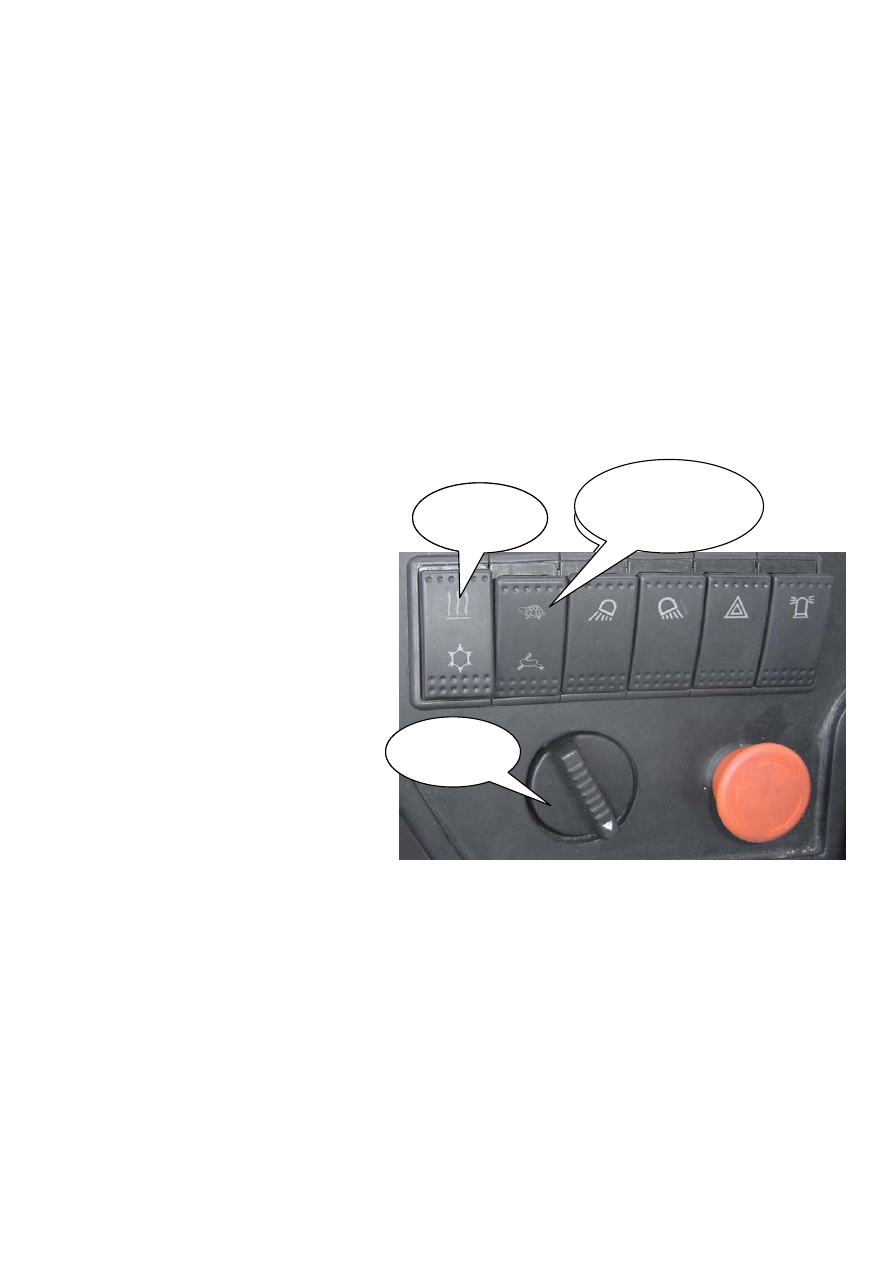

The air-conditioning system has three operation switches and knobs, temperature knob,

air-conditioning mode switch and blowing rate switch, designed on the fore panel, as shown in the

following figure:

 Air-conditioning  Temperature  knob: It may be rotated anticlockwise or clockwise. If

anticlockwise, the temperature is

reduced, vice versa

Air-conditioning mode switch: It

has three positions. Press the upper

position of the switch for heat suppy,

lower position for refrigeration, and

central position, both heat supply

and refrigeration are not available.

Blowing rate switch of

air-conditioning The

air-conditioning system’s rate has

three levels. When the blowing rate

switch is at the upper position, the rate is at a lower level, and central position middle level, and at

the lower position, the wind amount will be increased gradually.

  Refrigeration (1) for the first time the cooling system is used, blowing rate switch of air

conditioning shall be rotated to the high speed after the engine is started (



Air-conditioning

mode switch is at a lower position), and run for five minutes.

    (2) Rotate the temperature knob of the air conditioning anticlockwise at full. At this time, the

cooling system starts work.

        (3) When the temperature is decreased to the required one, rotate the temperature knob of the

air conditioning clockwise slowly until up to the required temperature.

Air-conditioning

mode switch

Wind amount

switch

Air-conditioning

temperature knob

Air-conditioning

mode switch

Blowing rate switch



of

air-conditioning

Air-conditioning

temperature knob
