62

positioning is installed on pilot-controlled valve at lifting, retracting and floating positions.

Note: in case of long-time shutdown, slight steering may be necessary after restarting to provide adequate supply

pressure for pilot system before operating pilot handle to do lifting, retracting, tipping, lowering, etc.

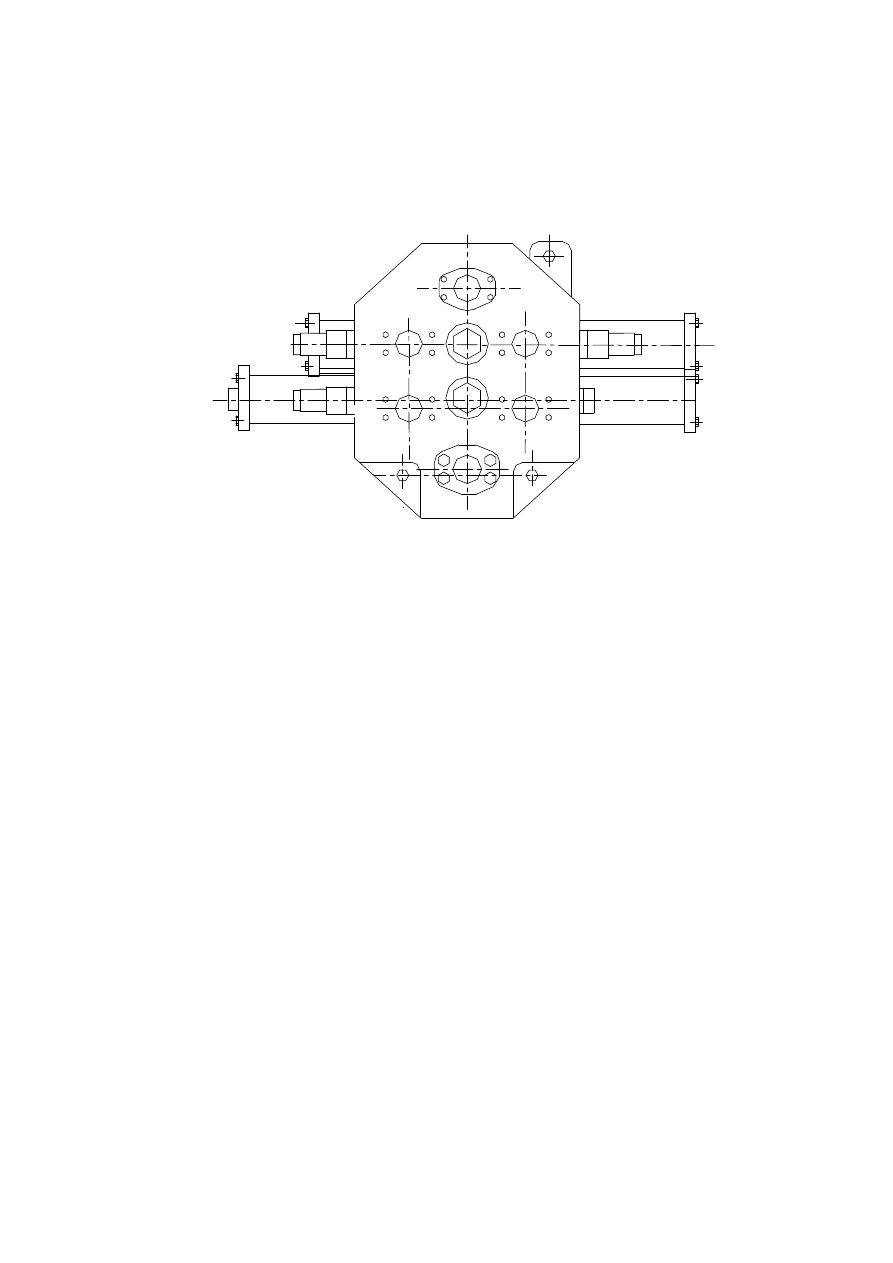

4. Selector valve 7130-B



The selector valve adopted for the loader is pilot-controlled hydraulic multi-path change valve,

mainly consisting of tipping couplet, are moving couplet, main overflow valve, overload valves,

inlet check valve, oil filling valve for movable arm chamber, etc. System pressure is adjusted via

overflow cock at the inlet. Tipping couplet is equipped with two overload valves to protect tipping

cylinder and pipelines.

When the selector valve plug is in neutral position, oil inlet and outlet are connected, so there is

no operation of working unit.

Turn the tipping handle, pressure oil in proportion to travel is output by pilot-controlled valve

to apply a force on one end of selector valve plug to slowing reverse the plug. As pressure gradually

accumulates at oil inlet of selector valve, oil inlet check valve is opened, and pressure oil enters

working port to activate working unit.

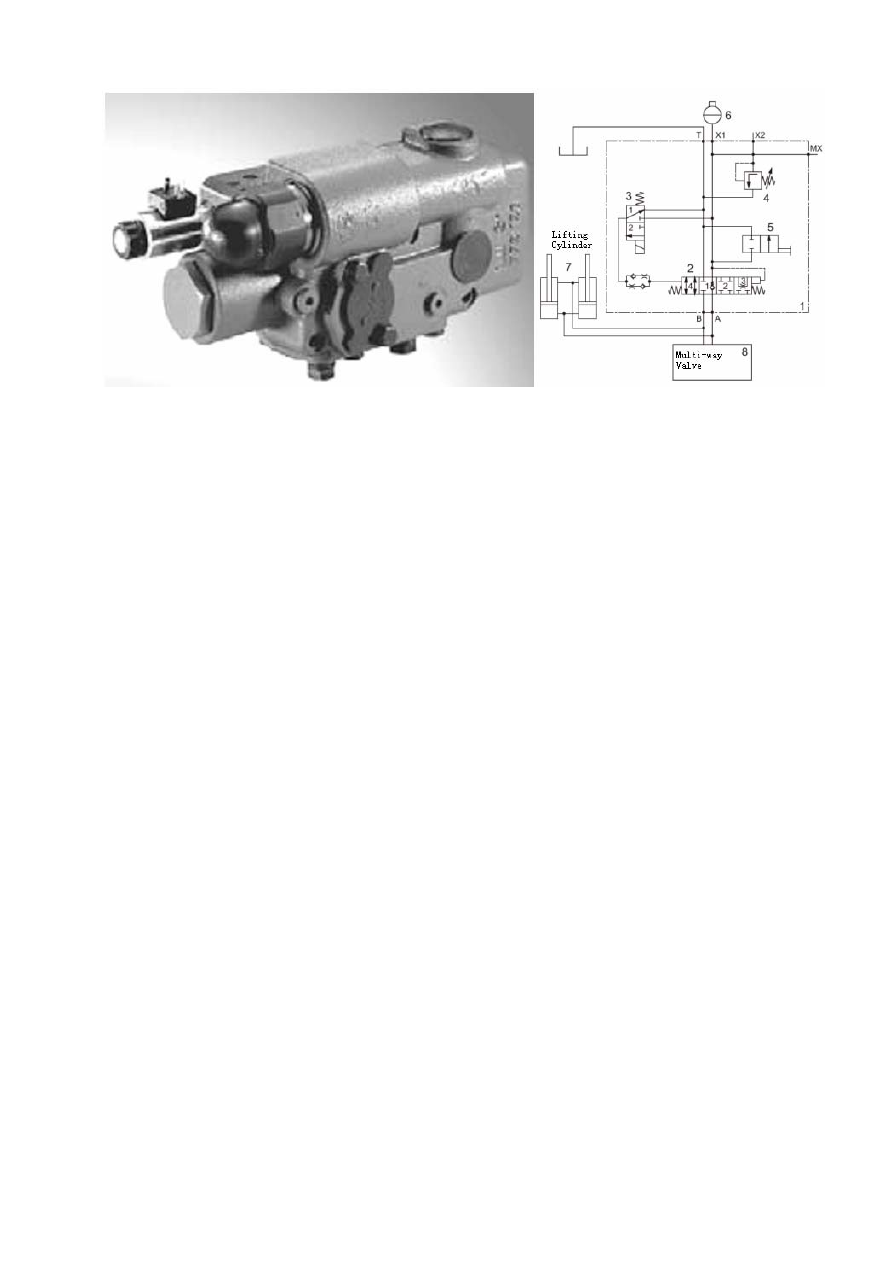

5. Driving control block RSM16



63



Lift the oil cylinder (7) to place the pressure on the piston side, the pressure also will be placed

on the one-way valve of the valve element (2) and accumulator (6).

Lift the oil cylinder (7) to the oil circuit of the accumulator (6), and close by the valve element

(2) (switch to the position 2). In the valve element (2), an internal accumulator (6) has the function

of pressure reduction (switch to the position 3). The opening pressure is higher than the shutoff

pressure about 30bar (switch to the position 2).

The two-position three-way reversal valve may be switched to the position 2 according to the

driving speed of the vehicle (>8km/h). The valve element (2) is switched to the position 4 to collect

the piston side of oil cylinder (7) with the accumulator (6), and rod side of lifting oil cylinder (7)

with the oil tank.

Overflow valve (4) is designed to prevent impermissible pressure in the accumulator (the

opening pressure <allowed pressure of accumulator). This overflow valve is selective upon the

user’s willing.

Pressure relief of this module:

Prior to maintenance of this system, the pressure of this module shall be relieved. In pressure

relief, the loader shall be parked at a safe place, and the protective device of lifting oil cylinder shall

be installed well (see the chapter on safety). And then relieve the pressure of the accumulator

through the emergency oil discharging screw (5). The position of the oil discharging screen is the

position the serial number 1 indicates in the right figure. In the schematic diagram, it is a

two-position two-way mechanical solenoid valve.







64

V. Troubleshooting of working hydraulic system



No. Symptoms

Causes

Solutions

A Insufficient

lifting force of

movable arms

or insufficient

bucket turning

force

1．Cylinder oils seal is damaged

2．Clearance between selector

valve rod and valve body

exceeds limits due to

overwearing

3．Oil leakage in piping system

4．Severe internal leakage of

working pump

5．Low pressure at safety valve

6．Oil intake line or oil filter is

jammed

7．Low pilot pressure causes

insufficient reversing of selector

valve

8．Severe internal leakage of the

pump delivering oil to

pilot-controlled valve

1．Replace oil seal

2．Replace selector valve or

check and repair valve plug

3．Check for cause of leakage

and eliminate it

4．Replace working pump

5．Adjust system to nominal

value

6．Replace oil and clean oil filter

7．Adjust pilot pressure to

nominal value

B Slow  bucket

turning or slow

lifting of movable

arms at high rpm

1． See causes in A

2． Overload valve is blocked

1． See solutions in A

2． Replace or check and repair

overload valve

1.3.2 Brake system

The loader adopts original pedal brake valve (06-466-240) and refill valve (06-463-230)

manufactured by MICO USA. Refer to Installation and Service Manual of MICO Products –

Two-way Refill Valve and Installation and Service Manual of MICO Products – Two-way Serial

Pedal Valve for details.

Accumulator manufactured by HYDAC is adopted.



65

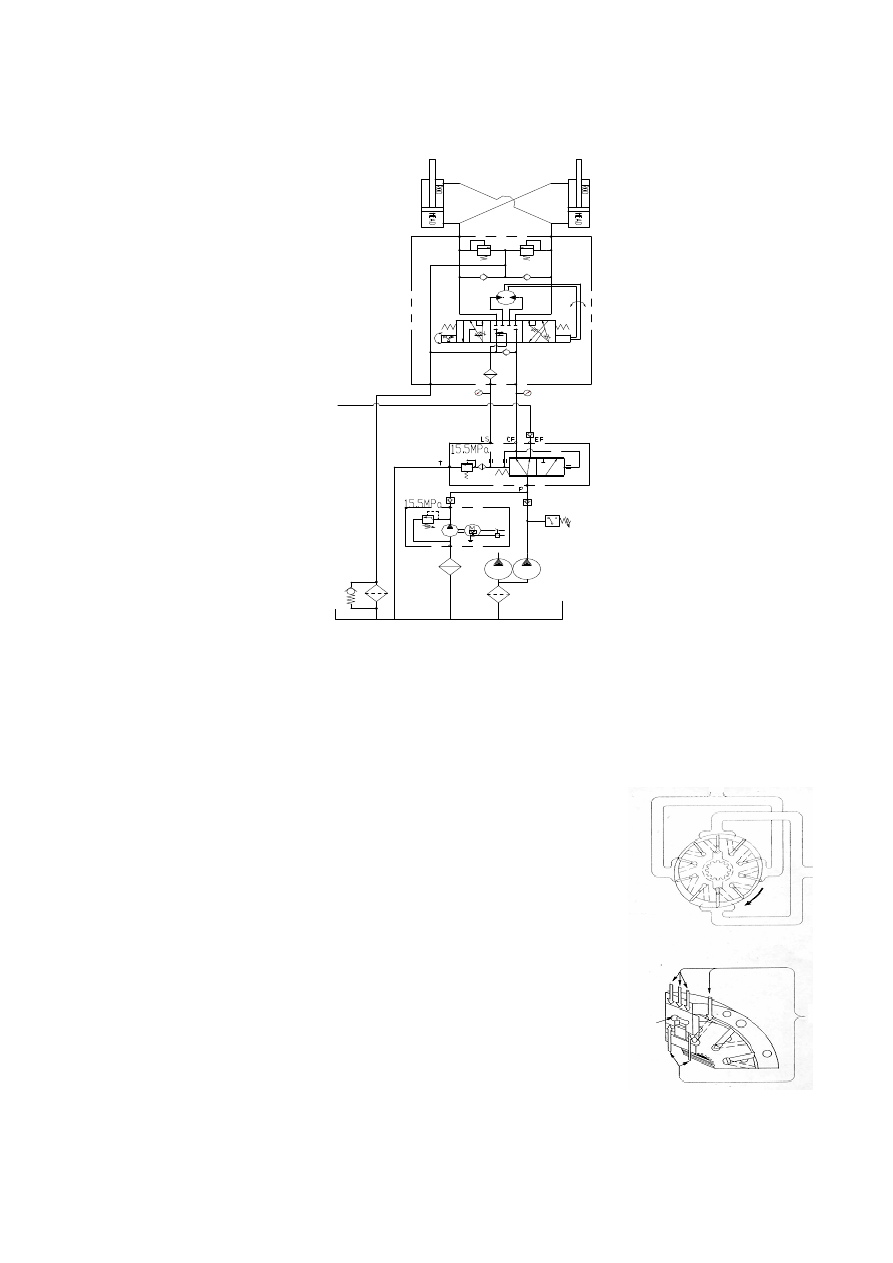

1.3.3 Description of steering hydraulic system

I. Principle:



II. System description

Steering system adopts a load-sensing hydraulic steering mechanism mainly consisting of pump,

load-sensing steering gear, priority steering control valve, steering cylinder, emergency steering

power unit, check valves and pipelines. LS pipeline transfers internal pressure signal from steering

gear to priority valve to achieve balance of the valve plug, thus

ensuring the flow rate required by port CF. When the pressure at the

outlet of the steering pump is less than 8 bars, the pressure switch

installed at the outlet will close to drive the emergency steering power

unit to realize the function of emergent steering.

III. Description of Components

1. Pump: Denison 3520VQS21A12-297DD20R position is shown

in the figure below:

Denison vane pump meets SAE and IOS standards. Hydrocushion

design ensures long service lives of shaft and bearing with extremely

small noise and high volumetric efficiency. The main internal structure is as shown in the right

figure.
