CG935G Wheel Loader. Manual - part 2





12

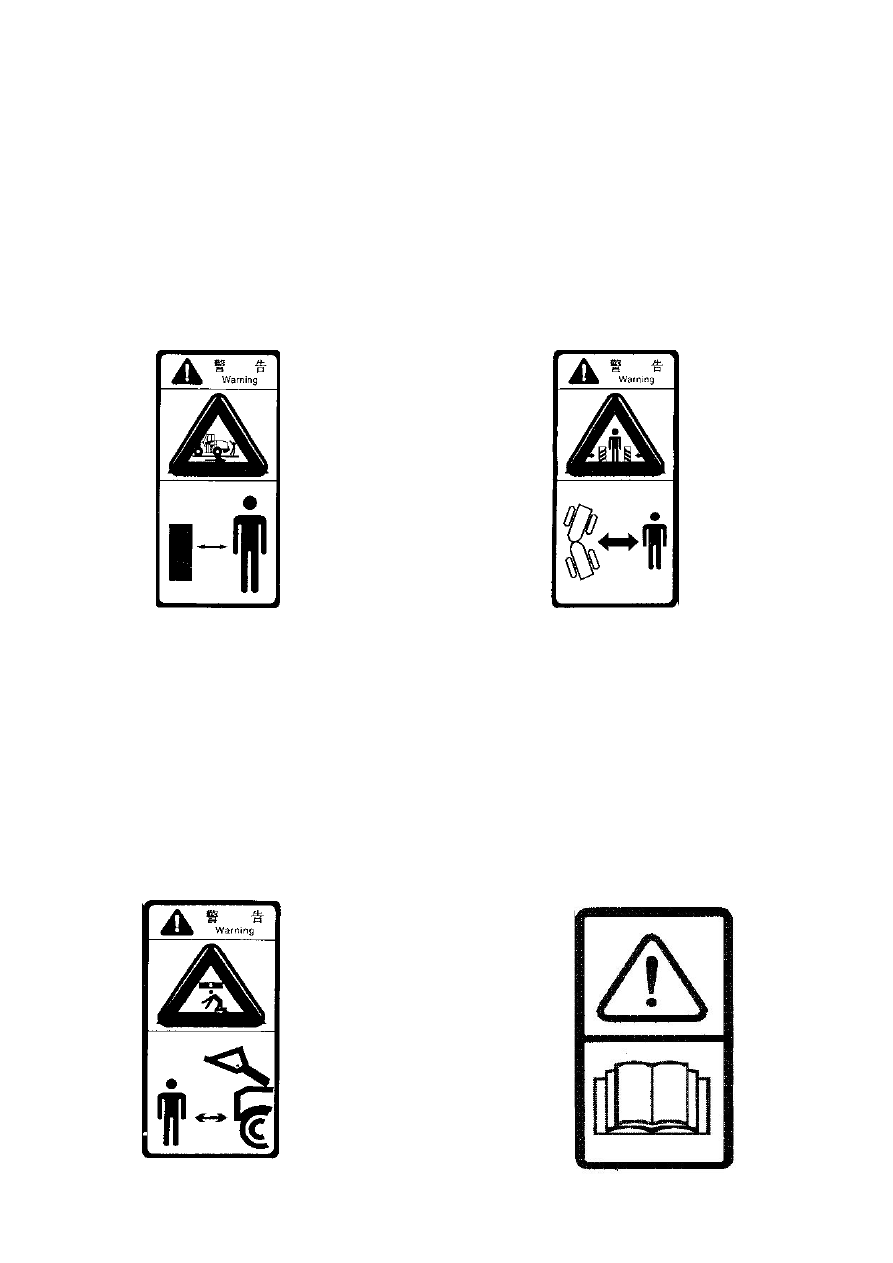

1.2 Implications of Safety Symbols

1．

Keep distance from the machine

                        2．

Keep distance



(at the counter weight of the loader)      (at the jointing  of  the  chassis)

frames)



















3．Do not approach                        4．Please read manual and operate appropriately

(underneath the boom arm)            (at the side door of the operator’s cabin)

During the operation
of the machine, it is
prohibited to approach
the machine or enter
into the work area to
avoid accident or
casualty!



During the operation of the
machine, it is prohibited to
approach the jointing of the
chassis to avoid accident or
casualty!







13

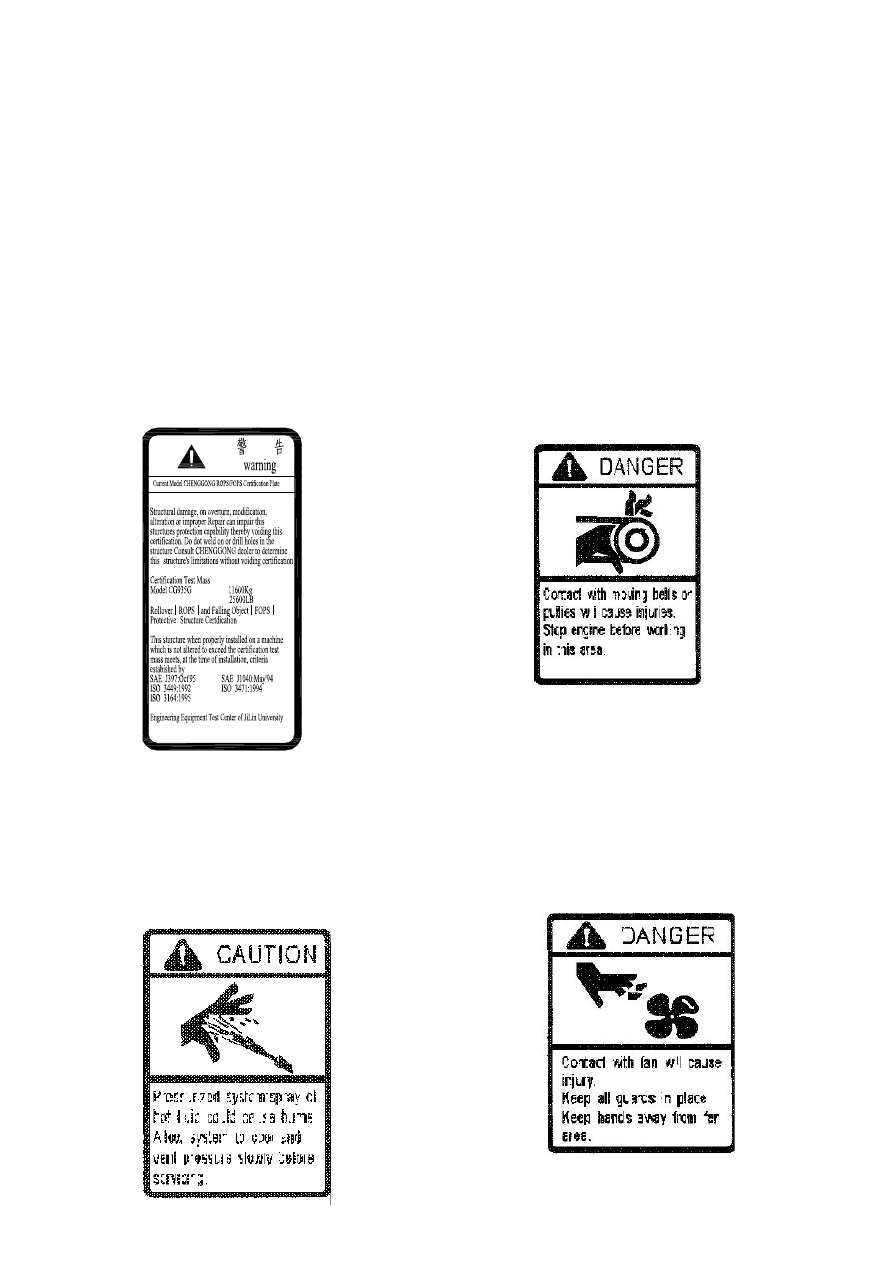

  5．FOPS  and  ROPS  cautions                              6．Do not approach fan when engine is

working

(at the side door of cab)                                                  (at fan housing )









7．Caution: Spray of pressured liquid             8．Keep away from moving belt

(on the machine body)                                                        (on the machine body















During the operation of the
machine,  It is prohibited to get
underneath the Machine!
When the machine is stopped and
the movable arm is lifted, it is
prohibited to get underneath the
machine! To avoid accident or
casualty!



The cab has a rollover And falling object pretective
structure which shall not be modified.



Contact with moving bells or pullies
will cause injuries. Stop engine before
working in this area.

Prior to operation or maintenance,
please read and comprehend
operation and maintenance
instruction and safety issues







14

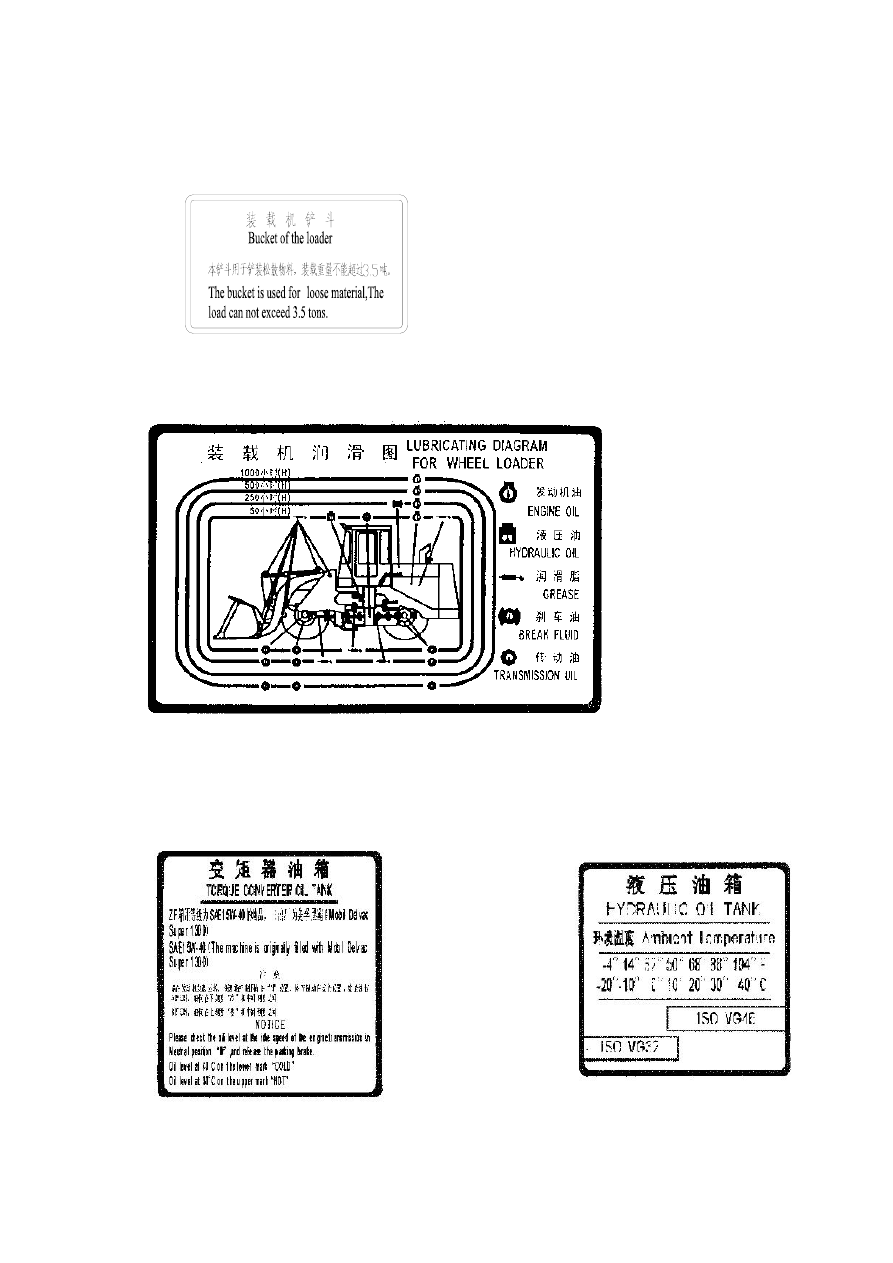

9．Plate on the bucket of the loader













10．Lubrication diagram for wheel loader (on machine body)



11．Notice on oil-filling of torque tank        12. Notice on oil-filling of hydraulic oil tank

  (on the machine body)                                    (on the machine body)





















Please conduct
lubrication
maintenance for
the machine in
compliance with
the requirements.



Pressured liquid (diesel, engine oil
coolant) may cause injuries. Allow
system to vent pressure slowly before
servicing.





15

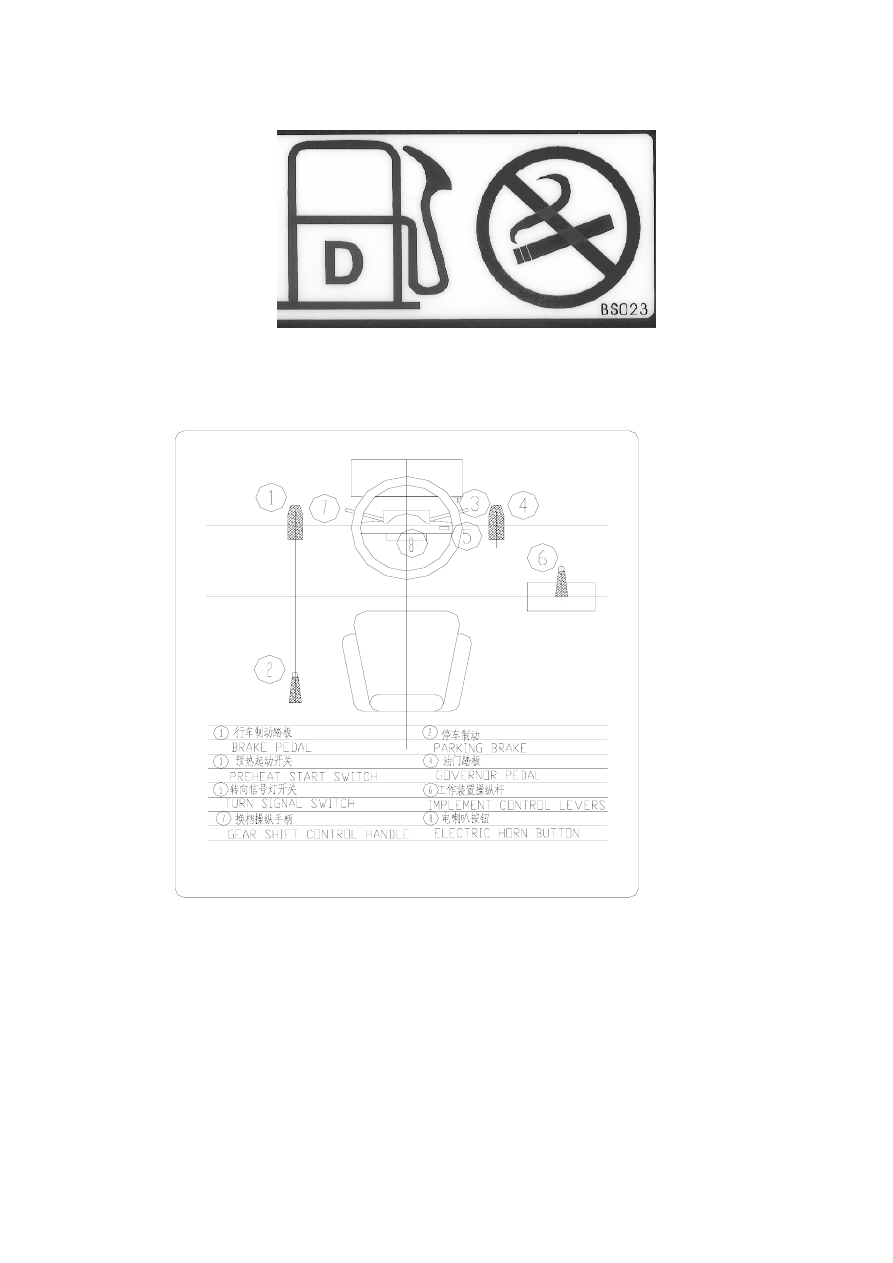

13．Plate on fuel tank















14. Operation plate of cab
