CG935G Wheel Loader. Manual - part 1





8

Preface

Thank you for purchasing our product!

Before you operate the product, please read this manual thoroughly to ensure your safety and

better performance of the product.

This manual contains issues regarding safety protection, operation instruction, lubrication and

maintenance.

This manual does not elaborate on the configuration, operation or maintenance issues of main

purchased parts such as engine, torque converter, or transmission, etc. For the detailed

information, please refer to the attached operation manual of the main purchased parts.

The details or attachments showed by pictures or diagrams in this manual may vary from the

actual product. And, for convenience of elaboration, the cover plate or shield on the product

may be removed.

This manual does not include the continuous betterment and improvement of the design of the

product.

For questions regarding your machine or this manual, please contact Chengdu Chenggong

Construction Machinery Co., Ltd., Sichuan for the latest information.

You are welcome to bring forth advices on the errors or defects of this manual and we will

revise accordingly in new editions.

This manual does not cover tool-carrier. Separate manual is attached when client purchases a

tool-carrier.

Safety

The Safety section lists basic safety precaution measures and explains the contents of the

warning labels on the machine. Please read and comprehend the basic safety precaution

measures prior to operation, lubrication, maintenance or repair of this machine.

Operation

The Operation section is for the reference of new operators and for review of experienced

operators; it shall be kept handy for reading and learning.

The pictures or explanations are intended for operators getting familiar with the appropriate

procedures of check, start, operation and stop of the machine.

This manual explains the basic operation techniques. The operation skills and techniques of the





9

operators will improve as the knowledge of the operations on the machine and its performance

accumulates.

Maintenance

The Maintenance section contains instructive contents on the maintenance of the machine. The

maintenance issues whose periods are not specified are listed in the item of “in need”. For the

issues included in the “maintenance period”, please refer to the following elaborations.

Maintenance period

The maintenance period shall be calculated according to timer meter. If more convenient

maintenance plan can be provided by the calendar date intervals (days, weeks, or months, etc.)

and the intervals of this plan is close to the reading of time meter, it can be used to replace the

time meter to calculate maintenance period. The recommended maintenance shall be

implemented by the interval whichever is due earlier.

Under the work condition which is extremely severe, dusty or humid, higher frequency of

lubrication may be needed than that specified in the “maintenance period”.

All maintenance items shall be conducted repeatedly in the maintenance period. For

example, when conducting a maintenance item of a interval of each 500 work hours or each

quarter, the maintenance items listed in the intervals of each 250 hours or each month, each fifty

hours or each week, and each 10 work hours or everyday shall be conducted simultaneously.





10

 Safety

Most of the accidents result from ignorance of basic safety rules or maintenance measures. Pay

attention to potential accident threats. The relevant staff shall pay attention to potential accident

threats and possess certain skills by training to correct malfunctions.

Inappropriate operation, lubrication, maintenance or repair is hazard and may result in

casualty of personnel.

Any operation, lubrication, maintenance or repair shall not be conducted until the

contents regarding operation, lubrication, maintenance and repair are read and

comprehended.

Safety precaution issues and warnings are listed in the manual. Ignorance of these warnings

may result in casualty of relevant personnel.

It is impossible for Chengdu Chenggong Construction Machinery Co., Ltd., Sichuan to predict

every kind of work environment where peril is present. Therefore, the warnings in this manual

can by no means cover every aspect. If a certain tool, program, work method or operation

technique is not recommended by Chengdu Chenggong Construction Machinery Co., Ltd.,

Sichuan, you shall take care as for the safety of yourself or of other people. You shall ensure

that the operation, lubrication, maintenance or repair procedures you elect will not cause the

damage or unsafe status of the machine.

The contents, norms and diagrams in this manual are based on the data which are available

at the time when this brochure is compiled. The norms, torque, measurement and modulation

methods, diagram and other contents are subject to modification at any time and these

modifications may affect the maintenance and repair of the machine. Complete and latest data

shall be obtained prior to the start of work. Chengdu Chenggong Construction Machinery Co.,

Ltd. will provide the latest data.





11

Safety

Ⅰ

Symbols

1.1 Safety Symbols and Their Positions

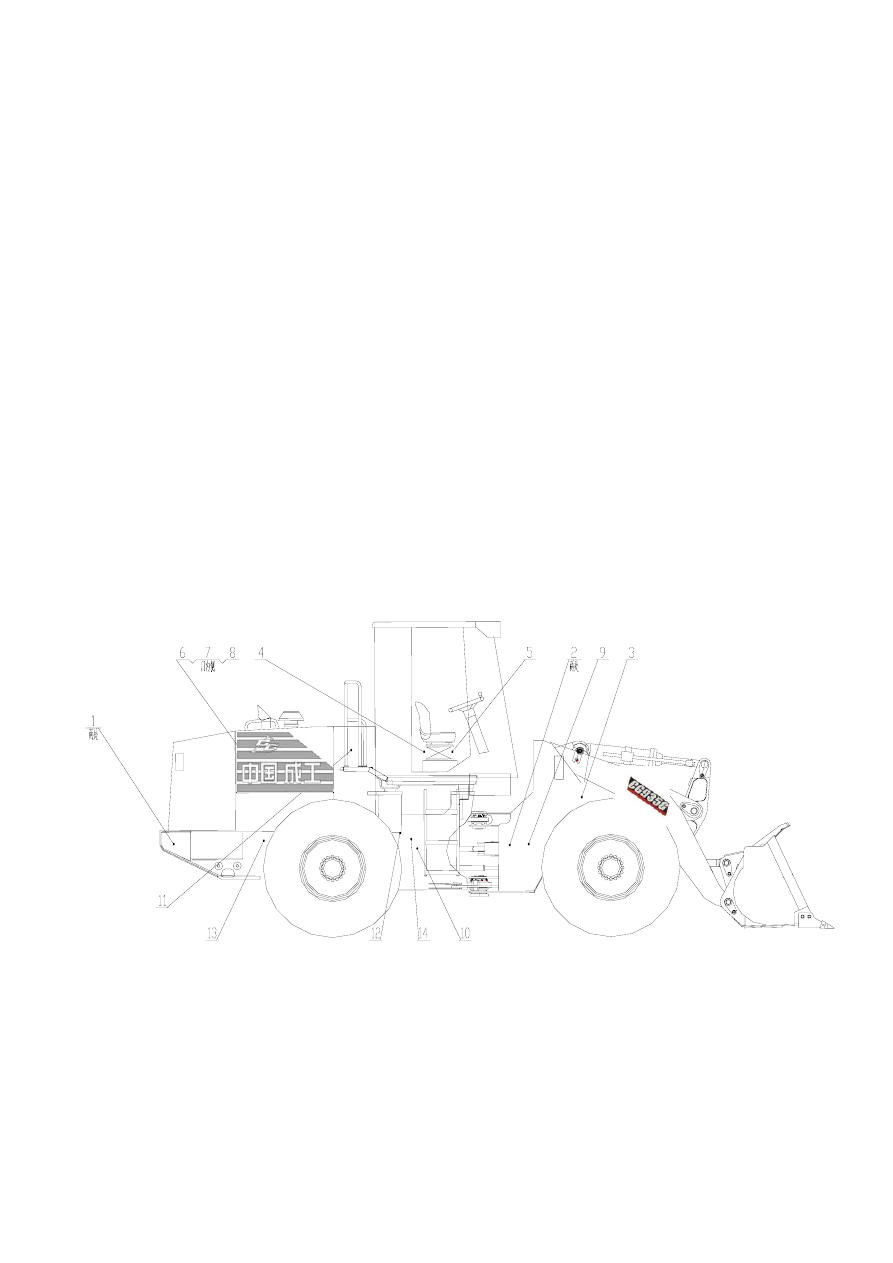

There are a number of safety symbols on this machine. In this section, their exact positions are

identified and the hazard of accidents is described. Please get familiar with all these safety

symbols.

Pay attention to all safety symbols and their positions and implications. The symbols

and warnings that are obscure or damaged during use shall be replaced by new ones.

Clean the safety symbols with cloth, water and soap. Do not use solutions, gasoline or

stringent chemical agents that may result in loss of adhesiveness and peel-off of the

symbols.
