Yanmar engines LV series (L48V, L70V, L100V). Manual - part 23

PERIODIC MAINTENANCE

78

LV Operation Manual

The engine performance is adversely affected
when the air cleaner element is clogged with
dust. Be sure to clean the air filter element
periodically.

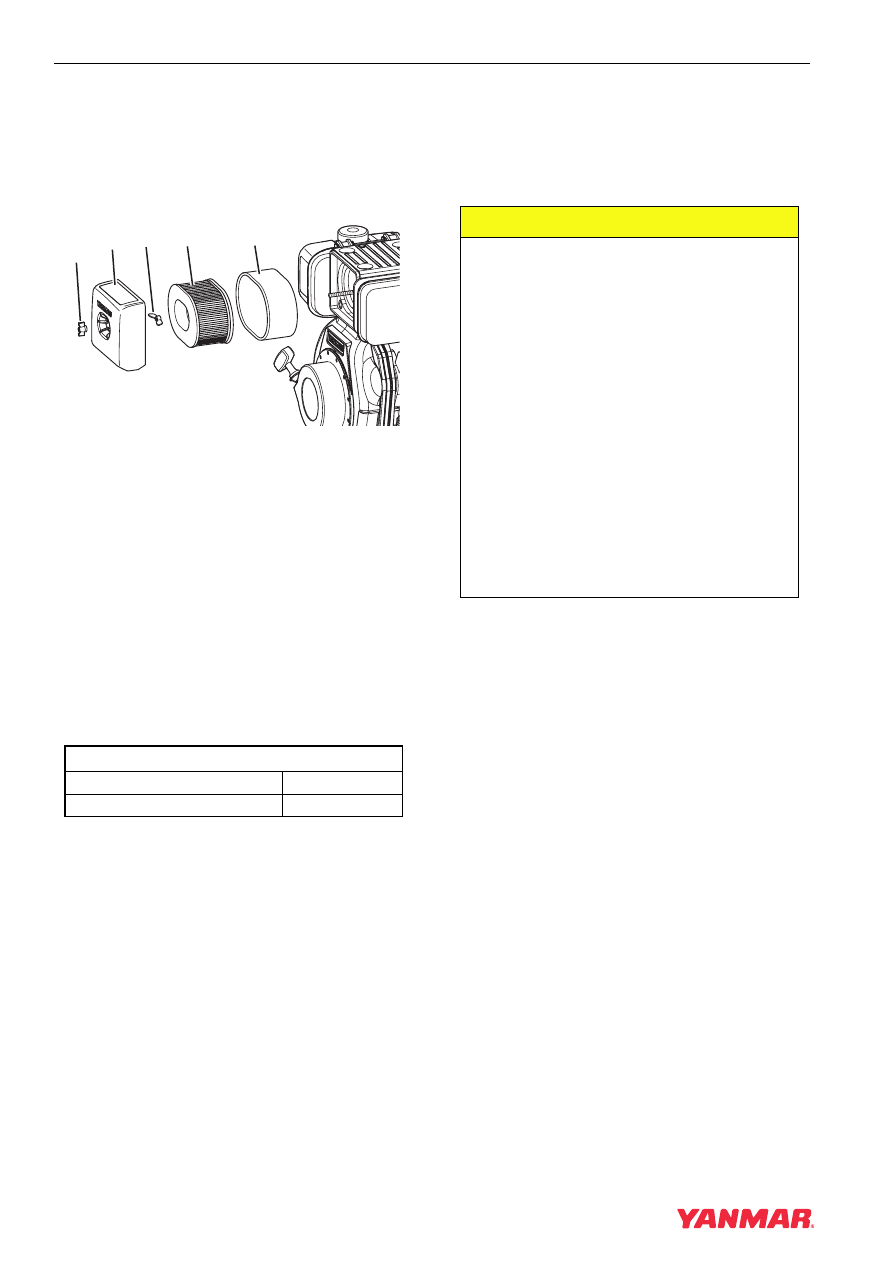

1. Remove the wing nut (Figure 7, (1)).

2. Remove the air cleaner cover (Figure 7, (2)).

Figure 7

3. Remove the wing nut (Figure 7, (3)).

4. Remove the air cleaner element

(Figure 7, (4)) and outer foam element
(Figure 7, (5)).

5. Blow air through both elements using 42-71

psi (0.29

−0.49MPa, 3.0−5.0kgf/cm

2

)

compressed air to remove the particulates.
Use the lowest possible air pressure to
remove the dust without damaging the
elements.

6. If either element is damaged replace both of

them (they are not sold individually).

7. Clean the inside of the air cleaner cover

(Figure 7, (2)).

8. Install the air cleaner element (Figure 7, (4))

into the air cleaner case.

9. Slide the outer foam element (Figure 7, (5))

over the air cleaner element (Figure 7, (4)).

10. Install the wing nut (Figure 7, (3)) and hand

tighten. Overtightening the wing nut will
damage the air cleaner assembly.

11. Install the air cleaner cover (Figure 7, (2)).

12. Install the wing nut (Figure 7, (1)) and hand

tighten. Overtightening the wing nut will
damage the air cleaner assembly.

Replace Engine Oil and Clean /
Inspect Engine Oil Filter

Applicable Air Cleaner Element Part No.

L48V

114250-12581

L70V and L100V

114210-12590

0001549A

(1)

(2)

(4)

(5)

(3)

CAUTION

• Only use the engine oil specified.

Other engine oils may affect warranty
coverage, cause internal engine
components to seize, or shorten
engine life.

• Prevent dirt and debris from

contaminating the engine oil. Carefully
clean the oil cap / dipstick and the
surrounding area before you remove
the cap.

• NEVER mix different types of engine

oil. This may adversely affect the
lubricating properties of the engine oil.

• NEVER overfill. Overfilling may result

in white exhaust smoke, engine
overspeed or internal damage.

0000005en

PERIODIC MAINTENANCE

LV Operation Manual

79

Change the engine oil every 200 hours of
operation after the initial change at 50 hours.
Clean and inspect the engine oil filter at the same
time. See Replace Engine Oil on page 74.

Check Engine Speed Control

After you operate the engine for 200 hours, check
the engine speed control. See the instructions for
your driven machine for proper adjustments.

1. Check the engine speed control for smooth

operation and lubricate or clean as
necessary.

2. Check engine speed control for proper

adjustments.

Drain the Fuel Tank and Replace
Outlet Fuel Filter

CAUTION

Be environmentally responsible. Follow
these procedures for hazardous waste
disposal. Failure to follow these
procedures may seriously harm the
environment.

• Follow the guidelines of the EPA or

other governmental agency for the
proper disposal of hazardous
materials such as engine oil, diesel
fuel and engine coolant. Consult the
local authorities or reclamation facility.

• NEVER dispose of hazardous

materials irresponsibly by dumping
them into a sewer, on the ground or
into ground water or waterways.

0000013en

A

 DANGER

FIRE AND EXPLOSION HAZARD!

• Diesel fuel is extremely flammable and

explosive under certain conditions.

• When you remove any fuel system

component to perform maintenance
(such as changing the fuel filter) place
an approved container under the
opening to catch the fuel.

• NEVER use a shop rag to catch the

fuel. Vapors from the rag are extremely
flammable and explosive.

• Wipe up any spills immediately.

• Wear eye protection. The fuel system

is under pressure and fuel could spray
out when you remove any fuel system
component.

• Failure to comply will result in death or

serious injury.

0000009en

PERIODIC MAINTENANCE

80

LV Operation Manual

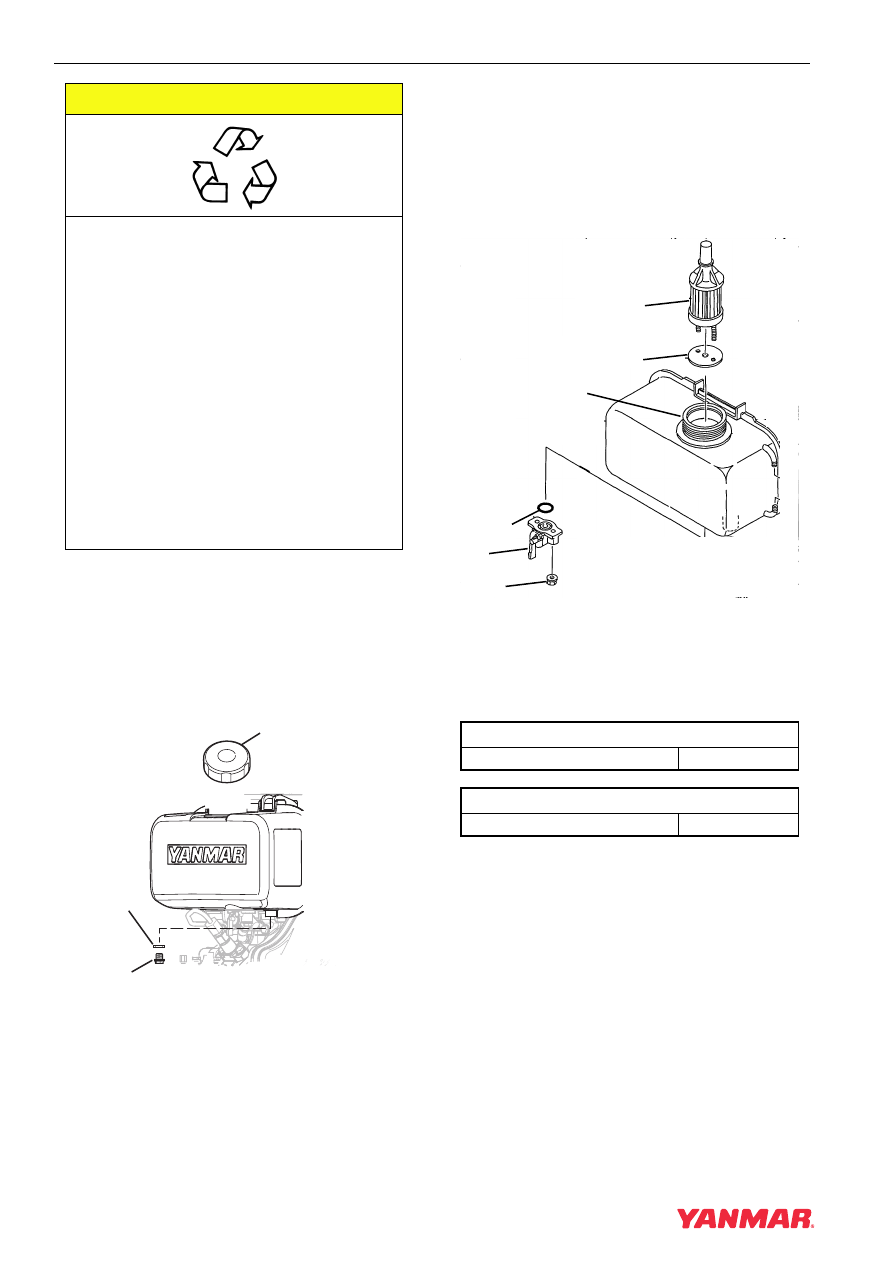

1. Position an approved container under the fuel

tank to collect the fuel.

2. Remove the fuel cap (Figure 8, (1)).

3. Remove the fuel tank drain plug

(Figure 8, (2)) and gasket (Figure 8, (3)) to
drain the fuel.

Figure 8

4. Loosen the fuel cock nuts (Figure 9, (1)) on

either side of the fuel cock (Figure 9, (2)).

5. Remove and discard the O-ring

(Figure 9, (3)).

6. Pull the outlet fuel filter (Figure 9, (4)) and

gasket (Figure 9, (5)) out of the fuel tank filler
port (Figure 9, (6)).

Figure 9

7. Install a new outlet fuel filter (Figure 9, (4))

and gasket (Figure 9, (5)) through the fuel
tank filler port (Figure 9, (6)) and seat in the
fuel tank.

8. Install a new O-ring (Figure 9, (3)) on the fuel

cock (Figure 9, (2)) and fasten the assembly
to the fuel tank using the fuel cock nuts
(Figure 9, (1)).

9. Tighten the fuel tank drain plug (Figure 8, (2))

with new gasket (Figure 8, (3)).

CAUTION

Be environmentally responsible. Follow
these procedures for hazardous waste
disposal. Failure to follow these
procedures may seriously harm the
environment.

• Follow the guidelines of the EPA or

other governmental agency for the
proper disposal of hazardous
materials such as engine oil, diesel
fuel and engine coolant. Consult the
local authorities or reclamation facility.

• NEVER dispose of hazardous

materials irresponsibly by dumping
them into a sewer, on the ground or
into ground water or waterways.

0000013en

0001569A

(1)

(2)

(3)

Applicable Outlet Fuel Filter Part No.

L48V, L70V and L100V

114250-55121

Applicable O-Ring Part No.

L48V, L70V and L100V

24341-000150

(3)

(5)

(4)

(2)

(1)

0001568A

(6)

PERIODIC MAINTENANCE

LV Operation Manual

81

10. Replace the fuel cap (Figure 8, (1)) and hand

tighten. Overtightening the fuel cap will
damage it. Refill fuel tank. See Filling the Fuel
Tank on page 30.

Perform the following maintenance every 400
hours of operation.

• Adjust Intake and Exhaust Valve Clearance

Adjust Intake and Exhaust Valve
Clearance

Proper operation of the intake and exhaust valves
is required to obtain optimum engine
performance. See your authorized Yanmar
industrial engine dealer or distributor for this
service.

Every 400 Hours of Operation

A

 WARNING

HIGH PRESSURE HAZARD!

• Avoid skin contact with the high

pressure diesel fuel spray caused by a
fuel system leak such as a broken fuel
injection line. High pressure fuel can
penetrate your skin and result in
serious injury. If you are exposed to
high pressure fuel spray, obtain
prompt medical treatment.

• NEVER check for a fuel leak with your

hands. ALWAYS use a piece of wood
or cardboard. Have your authorized
Yanmar industrial engine dealer or
distributor repair the damage.

• Failure to comply could result in death

or serious injury.

0000008en
